USER MANUAL WS1330 ALECTO

ADB-17 bel (ontvanger)

voeding: 2 x 1,5 V AA Alkaline ontvangstfrequentie: 433.72 Mhz belsignalen: 36 belmelodieen Licht signaal knipperende LED afmeting: 135 x 53 x 30 mm gewicht: 69 gram (excl. batterij)

ADB-17 deurknop: (zender)

batterij: 12 V. Alkaline (type 23A / 8LR932)
Frequentie: 433.72 MHz
Maximum Vermogen: < -11.76 dBm
afmeting: 40 x 90 x 22 mm
gewicht: 33 gram (excl. batterij)

The ADB-17 is a wireless doorbell suitable for various applications.

The ADB-17 can be used as e.g. a (new) doorbell or an emergency bell for ill people or persons requiring help.

The ADB-17 bell will emit an acoustic signal and also starts flashing for the hearing impaired and for use in noisy surroundings.

Mount the doorbell near an entrance or use it separately.

OPERATION

flashing light while ringing

to select the desired doorbell melody vol to select the desired bell volume

: bell melody only
: flashing light only
⑥: flashing light with bell melody

name tag with cover

bell pusher: bell pusher operation

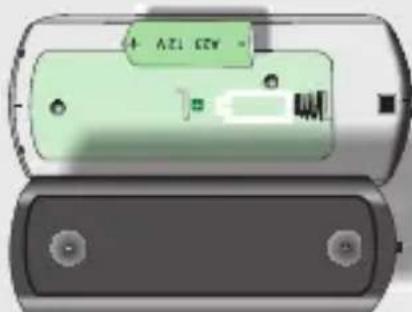

insert an A23 - 12 volt battery into the bell pusher (pay attention to the polarity)

(The battery may be packaged in plastic foil. Remove this first)

battery cover, also used as mounting panel

place bell pusher onto mounting panel, press well to fix.

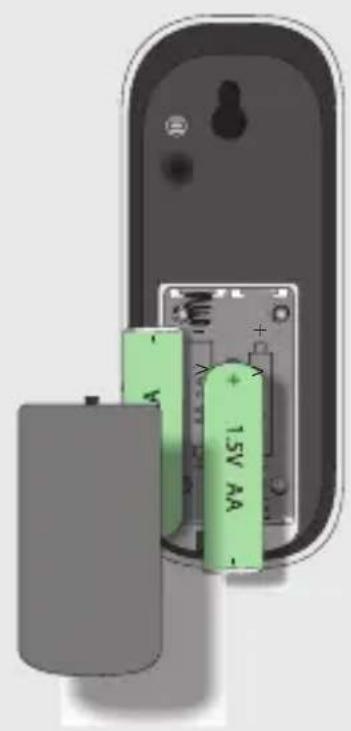

insert 2 × AA alkaline 1.5 volt batteries into the doorbell (pay attention to the polarity). Batteries are not included.

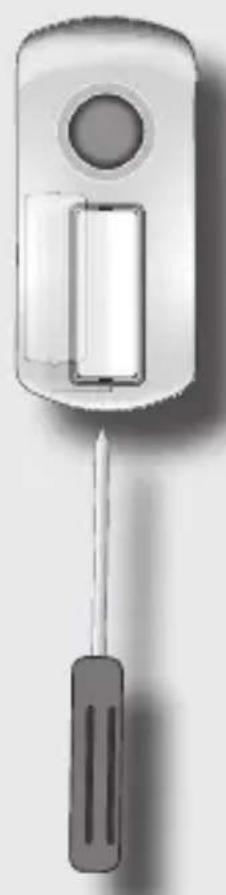

To open the bell pusher.

insert a small screwdriver underneath the tab and then detach both bell pusher parts.

REGISTRATION

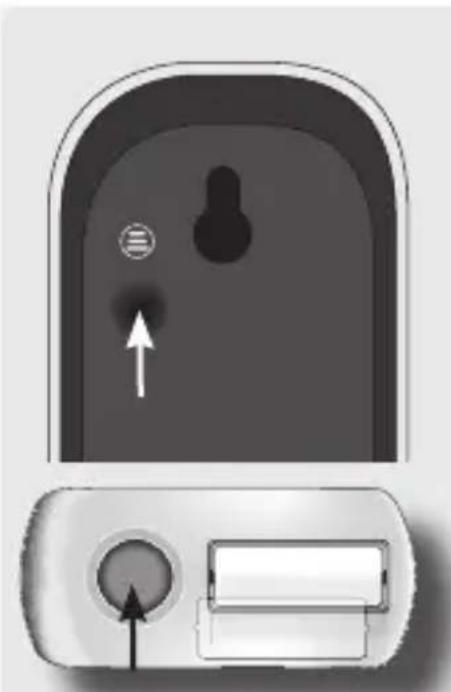

Make sure both the bell pusher and doorbell have full batteries. Now simultaneously press the registration button (rear of the doorbell) and the bell pusher. Depending on the programmed function, the doorbell will start ringing, flashing or both.

The bell pusher is now registered on the doorbell and is ready for use.

OPERATION

as a doorbell:

Mount the ADB- 17 bell pusher near the front door or another door. Don't forget to register the ADB- 17 before installation.

as an additional doorbell:

Mount the ADB- 17 bell pusher near the front door or another door, next to or underneath the existing installation. Don’t forget to register the ADB- 17 before installation.

patient care:

Place the ADB-17 bell pusher near the patient. The patient may also carry the bell pusher with him/her. Don’t forget to register the ADB-17 before installation.

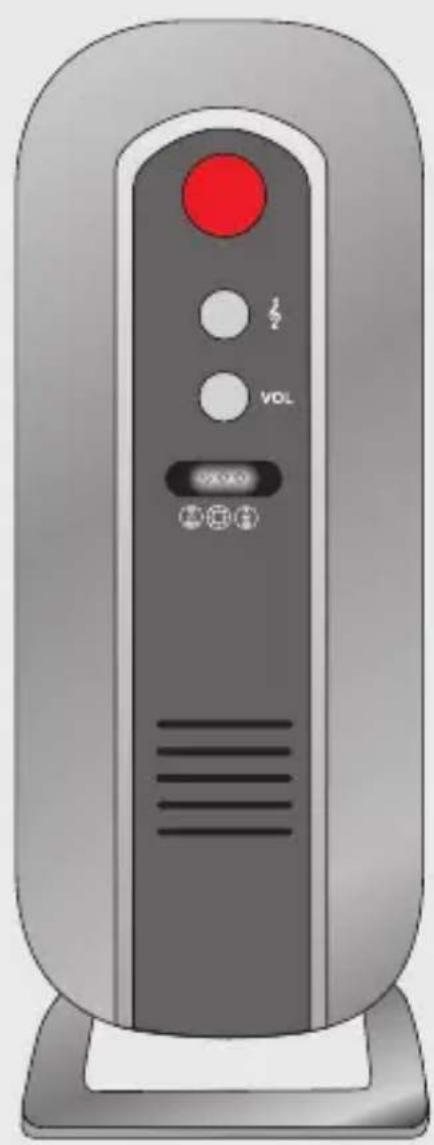

DOORBELL SETUP

BUTTON

To select the desired bell melody.

Press the button to switch between various bell melodies.

BUTTON vol:

To select the desired bell volume.

Press the vol button to switch between low volume and high volume.

FUNCTION SWITCH

Use the function switch to choose the following:

: bell melody only
: flashing light only
⑥: flashing light with bell melody

WARNING AND USER TIPS

• Carefully read the user's manual and follow all directions.
• Always remove the batteries from the doorbell and bell pusher before cleaning.
• Only clean the exterior with a moist cloth, never use chemical cleaning materials.
• Never place or use the doorbell in a wet or humid room or surrounding.
• Don't install the bell in direct sunlight.
• Don't place the bell close to wireless phones, electronic (medical) equipment, fluorescent lighting and other gas discharge lights. The emitted radio waves may affect the reception of the doorbell.
• In this case, move the bell or the interfering device to improve the reception.
• Ensure adequate heat dissipation; never cover the doorbell or place it directly next to a heat source.
• Never dismantle the ADB-17. This may only be performed by qualified personnel

Environment:

• In case you're replacing ADB-17, the product should be returned to your supplier; they will ensure environment-friendlyly processing.
• Defective or exhausted batteries should be turned in

at your local depot for small chemical waste or at battery collection points available specifically for this purpose. Never dispose of exhausted batteries as normal domestic waste.

DECLARATION OF CONFORMITY

This equipment complies with the essential requirements and provisions as described in the European Directive 2014/53/EU.

The declaration of conformity is available at: http://DOC.hesdo.com/ADB-17-DOC.pdf

WARRANTY

Name : Attach here
Address : your receipt
Post code / City : or voucher
Model: ADB-17

For the Alecto ADB-17 you have a warranty of 24 months from the date of purchase. During this period, we guarantee the free repair of defects caused by material and workmanship errors. All this subjected to the final assessment of the importer.

HOW TO HANDLE:
If you notice any defect, first refer to the user's manual. If the manual provides no definite answer, please contact: www.alecto.nl

THE WARRANTY BECOMES NULL AND VOID:

In case of improper use, incorrect connections, leaking and/ or incorrectly installed batteries, use of unoriginal parts or accessories, negligence and in case of defects caused by moisture, fire, flooding, lightning and natural disasters. In case of unauthorized modifications and/or repairs performed by third parties. In case of incorrect transportation of the device without adequate packaging and when the device is not accompanied by this warranty card and proof of purchase. Plugs and batteries are not covered by the guarantee. All further liability, especially concerning any consequential damages, is excluded.

TECHNICAL SPECIFICATIONS

ADB-17 bell (receiver)
power: 2 x 1.5 V AA Alkaline
reception frequency: 433.72 Mhz
bell signals: 36 bell melodies
light signal flashing LED
dimensions: 135 x 53 x 30 mm
weight: 69 gram (excl. battery)

ADB-17 bell pusher (transmitter)
battery: 12 V. Alkaline (type 23A / 8LR932)
Frequency: 433.72 MHz
Maximum Power: < -11.76 dBm
dimensions: 40 × 90 × 22 ~mm weight: 33 gram (excl. battery)

Registration codes: automatic 1 million

ServiceHelp

WWW.ALECTO.NL

[e-mail]

Hesdo,Australielaan 1

5232 BB, 's-Hertogenbosch

The Netherlands
