Product Type	Cordless lawn mower, self-propelled (manual push or electric assist)
Brand	RYOBI
Model	Max Power RY36LMXP40A
Power Source	36 V lithium-ion battery (compatible RYOBI battery pack)
Cutting Width	40 cm
Cutting Height Adjustment	Centralized, multiple positions (adjustment lever)
Grass Bag Capacity	45 L (approx.)
Mulching Function	Yes, with included mulching accessory
Electric Assist (Self-Propelled)	Yes, electric assist lever for motorized drive
Telescopic Handle	Yes, adjustable to 2 positions for storage and use
Cutting Modes	Power mode (heavy grass), Smart mode (adaptive), Eco mode (low speed)
Display	LED interface panel with battery level indicator, overload, blade check
Safety	Isolation key to cut power, automatic blade stop in 3 seconds, protection against battery overload and overheating
Weight	Approximately 22 kg (with battery)
Dimensions (Folded)	Approximately 80 × 50 × 40 cm (estimate)
Noise Level	Guaranteed acoustic power 96 dB(A)
Battery and Charger	Sold separately (compatible RYOBI battery pack and charger)
Maintenance	Clean after each use, sharpen/replace blade, check fasteners
Warranty	2 years (extendable to 5 years subject to online registration within 30 days)
Repairability	Original spare parts recommended, repairs by RYOBI approved service center

Frequently Asked Questions - Max Power RY36LMXP40A RYOBI

What is the battery runtime?

The runtime depends on the condition, height, and density of the grass, as well as the cutting mode used. In Eco mode, runtime is maximum; in Power mode, it is reduced. A fully charged battery can mow approximately 200 to 400 m² depending on conditions. Check the battery level indicator on the interface panel.

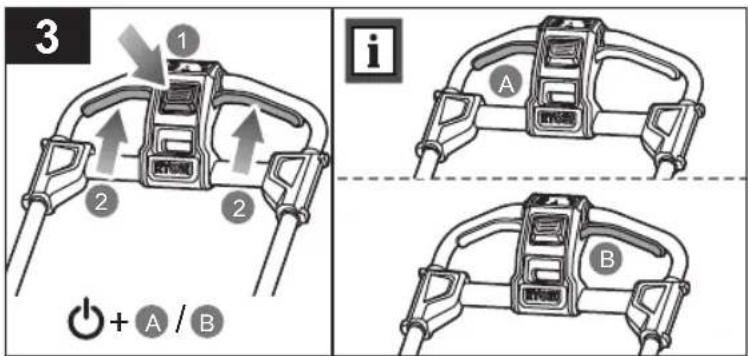

How to start the mower?

Ensure the battery is inserted and the isolation key is in place. Stand behind the handlebar, press the on/off lever, then press the start button. Release the lever to stop.

Can I use the mower in the rain?

No, never use the mower on wet grass or in the rain. This increases the risk of slipping and may damage the appliance. Wait until the grass is dry.

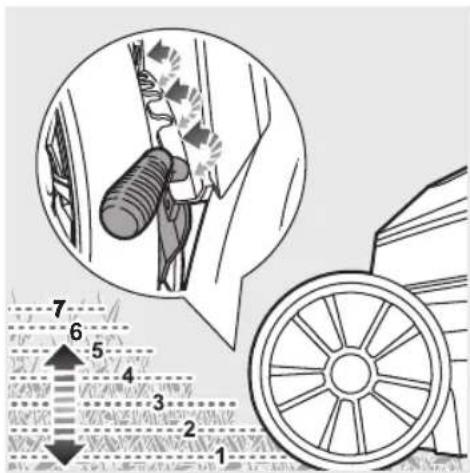

How to adjust the cutting height?

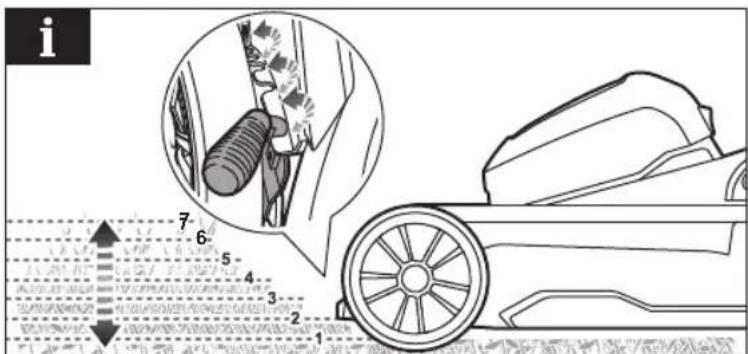

Use the cutting height adjustment lever located on the housing. It allows multiple positions. For a healthy lawn, never cut more than one third of the grass height at a time.

What to do if the blade jams?

Stop the mower immediately, remove the isolation key and battery. Wear thick gloves, check and remove any obstacle under the housing or in the discharge chute. Reinstall the battery and key, then restart.

How to maintain the blade?

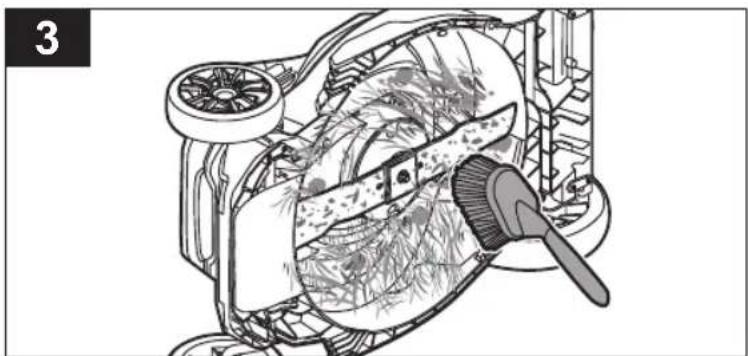

After each use, clean the blade with a dry cloth. Regularly check its condition: if blunt or damaged, replace it. Always wear gloves when handling. The bolts must be tightened to the recommended torque (see manual).

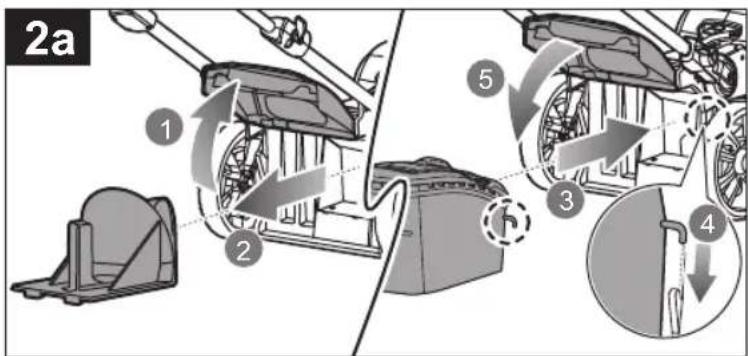

Can I use the mower without the grass bag?

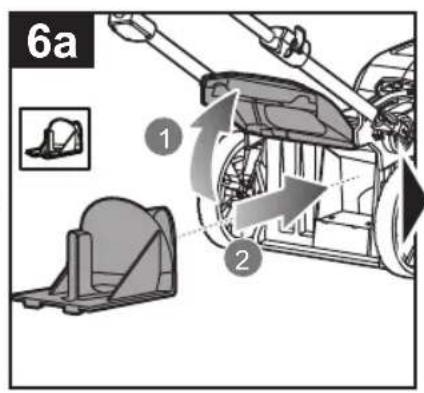

Yes, you can use the included mulching accessory to shred the grass and leave it in place. In that case, remove the bag and install the mulching plug. Ensure the grass is not too high.

How to store the mower?

Stop the mower, remove the isolation key and battery. Clean it, fold the telescopic handle to storage position. Store in a dry place, away from frost and chemicals, out of reach of children.

What to do if the battery does not charge?

Check that the charger is plugged in and the battery is correctly inserted. If the charger light does not come on, test with another battery. If the problem persists, contact a RYOBI approved service center.

What is the warranty and how to extend it?

The legal warranty is 2 years. For a free extension to 5 years, register your product at www.ryobitools.eu within 30 days of purchase, providing proof of purchase. The extension is valid only for domestic use.

USER MANUAL Max Power RY36LMXP40A RYOBI

Illustration of a toy car with wheels and a visible 'Ryosu' logo, set against a diagonal striped background (no text or symbols on the car itself)

Technical line drawing of a car's front wheel assembly (no text or symbols)

Technical line drawing of a mechanical component with a wheel and attached bracket (no text or symbols)

EN FR DE ES IT NL PT DA SV FI NO RU PL CS HU RO LV LT ET HR SL SK BG UK TR
RY36LMXP40A

Important!	It is essential that you read the instructions in this manual before assembling, maintaining and operating the product.
Attention!	Il est essentiel que vous lisiez les instructions contenues dans ce manuel avant d'assembler, d'entretenir et d'utiliser le produit.
Achtung!	Es ist wichtig, dass Sie vor Zusammenbau, Wartung und Benutzung des Produktes die Anweisungen in dieser Anleitung lesen.
¡Atención!	Resulta fundamental que lea este manual de instrucciones antes de realizar el montaje, el mantenimiento y de utilizar este producto
Attenzione!	E’ importante leggere le istruzioni contenute nel presente manuale prima di montare il prodotto, svolgere le operazioni di manutenzione sullo stesso e metterlo in funzione.
Let op!	Het is van essentieel belang dat u de instructies in deze gebruiksaanwijzing leest voor u het product monteert, onderhoudt en gebruikt.
Atenção!	É fundamental que leia as instruções deste manual antes da montagem, manutenção e operação do aparelho.
OBS!	Det er vigtigt, at man læser instrukserne i denne brugsanvisning, inden man samler, vedligeholder og betjener produktet.
Observera!	Det är viktigt att du läser instruktionerna i manualen före montering, användning och underhåll av produkten.
Huomio!	On tärkeää, että luet tämän käsikirjan ohjeet ennen tuotteen kokoamista, huoltoa ja käyttöä.
Advarsel!	Det er viktig at du leser instruksjonene i denne manualen før sammensetning, vedlikehold og bruk av produktet
Внимание!	Необходимо прочитать инструкции в данном руководстве перед сборкой, обслуживанием и эксплуатацией этого изделия.
Uwaga!	Koniecznie należy przeczytać instrukcje zawarte w tym podręczniku przed montażem, obsługą oraz konserwacją produktu.
Dûležité upozornění!	Neinstalujte, neprovádějte údržbu ani nepoužívejte tento výrobek dříve, než si přečtete pokyny uvedené v tomto návodu.
Figyelem!	Fontos, hogy a termék összeszerelése, karbantartása és használata előtt elolvassa a kézikönyvben található utasításokat.
Atenție!	Este esențial să citiți instrucțiunile din acest manual înainte de asamblare, efectuarea întreținerii și operarea produsului.
Uzmanību!	Ir svarīgi izlasīt šīs rokasgrāmatas instrukcijas pirms uzstādīšanas, apkopes un preces darbināšanas.
Dèmesio!	Prieš surenkant, prižiūrint ir naudojant gaminį, būtina perskaityti šiame vadove pateiktus nurodymus.
Tähtis!	Enne masina kokkupanekut, hooldamist ja kasutama hakkamist tuleb käesolevas juhendis esitatud juhised kindlasti läbi lugeda.
Upozorenje!	Vrlo je važno da ste prije sklapanja, održavanja i rada s ovim proizvodom pročitali upute u ovom priručniku.
Pomembno!	Pomembno je da pred montažo vzdrževanjem in uporabo tega izdelka preberete navodila v tem priročniku.
Upzornenie!	Je dôležité, aby ste si pred montážou, údržbou a obsluhou produktu prečitali pokyny v tomto návode.
Важно!	Изключително важно е да прочетете инструкциите в настоящото ръководство, преди да преминете към сглобяване, поддръжка или работа с продукта.
Важливо!	Дуже важливо, щоб ви прочитали інструкції в цьому керівництві перед складанням, обслуговуванням та експлуатацією цієї машини.
Önemli!	Ürünü monte etmeden, kullanmadan ve bakımını yapmadan önce bu kılavuzdaki talimatları okumanız önemlidir.

Subject to technical modification | Sous réserve de modifications techniques | Technische Änderungen vorbehalten | Bajo reserva de modificaciones técnicas | Con riserva di eventuali modifiche tecniche | Technische wijzigingen voorbehouden | Com reserva de modificações técnicas | Med forbehold for tekniske ændringer | Med förbehåll för tekniska ändringar | Tekniset muutokset varataan | Med forbehold om tekniske endringer | могут быть внесены технические изменения | Z zastrzeżeniem modyfikacji technicznych | Změny technických údajů vyhrazeny | A můszaki módosítás jogát fenntartjuk | Sub rezerva modificațiilor tehnice | Paturam tiesības mainīt tehniskos raksturlielumus | Pasiliekant teisę daryti techninius pakeitimus | Tehnilised muudatused võimalikud | Podloæno tehniëkim promjenama | Tehnične spremembe dopuščene | Právo na technické zmeny je vyhradené | Подлежи на технически модификации | Є ob’єктом для технічних змін | Teknik değişikliğe tabidir.

Safety, performance, and dependability have been given top priority in the design of your cordless lawnmower.

INTENDED USE

The cordless lawnmower is intended for outdoor use only.

The product is designed for domestic lawn mowing. It is a pedestrian-controlled walk-behind lawnmower designed to be pushed by hand or used with the power assist feature.

The product should never be operated with the wheels off the ground. It should not be pulled or ridden on.

Do not use the product for any other purpose.

GENERAL SAFETY WARNINGS

- Keep the instructions safe for later use.

■ The product should be operated only with the battery packs specified in this manual. When using a battery-operated product, basic safety precautions should always be followed to reduce the risk of fire, leaking batteries, and personal injury.

PERSONAL SAFETY

■ Never allow children or people with reduced physical, sensory, or mental capabilities, or persons who are not familiar with these instructions to operate, clean, or maintain the product. Local regulations may restrict the age of the operator. Children should be adequately supervised to ensure that they do not play with the product.
■ Be familiar with the controls and the correct use of the product.
■ Wear heavy, long trousers, long sleeves, and sturdy anti-slip footwear. Do not wear short trousers, sandals, or go barefoot. Avoid wearing clothing that is loose-fitting or that has hanging cords or ties.

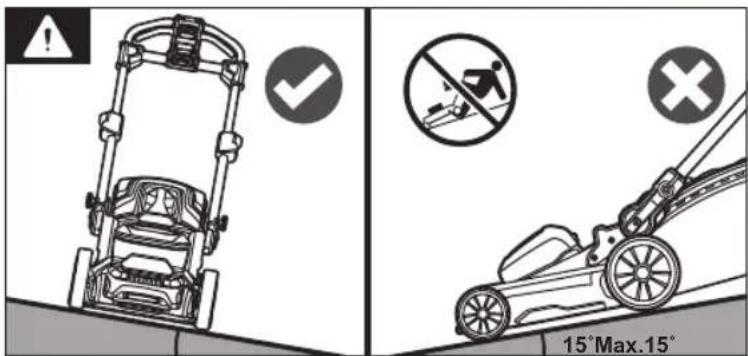

■ Use the product across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes. Keep firm footing and balance. Walk; never run.
- Do not use the product near drop-offs, ditches, excessively steep slopes, or embankments.
■ Always wear safety glasses.

■ The product is capable of amputating hands and feet, and of throwing objects. Failure to observe all safety instructions could result in serious injury or death.
■ Stay alert, watch what you are doing, and use common sense when operating the product. Do not operate the product while tired, ill, or under the influence of drugs, alcohol, or medication. A lapse in concentration while operating the product may result in serious personal injury.

WORK AREA SAFETY

■ Never use the product while people, especially children, or pets are within 15 m because of the danger of objects being thrown by contact with the blade.
■ Always use the product in daylight or good artificial light.
■ Do not operate the product on wet grass or in the rain.
- Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.
■ Objects struck by the lawnmower blade can cause severe injuries to persons. Thoroughly inspect the area where the product is to be used, and remove all rocks, sticks, metal, wire, bones, toys, or other foreign objects. Remember, string or wire may entangle with the cutting means.
■ Do not operate the product in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. The product creates sparks, which may ignite dust or fumes.
■ Do not use the product when there is a risk of lightning.
■ Tragic accidents can occur if the operate is not alert to the presence of children. Children are often attracted to the product and the mowing activity. Never assume that children will remain where you last saw them.
■ Use extra care when approaching blind corners, shrubs, trees, or other objects, including overhanging shrubs, which may block your view.

BATTERY TOOL USE AND CARE

- Read, understand, and always follow the safety instructions which came with your battery and charger. Failure to do

so may result in electric shock, fire or other hazardous situations. Keep all the instructions together in a safe place for future reference.

■ Battery-operated products do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Remove the isolator key whenever you are not operating the product.
■ Remove the battery pack before making any adjustments, cleaning, or removing material from the product.

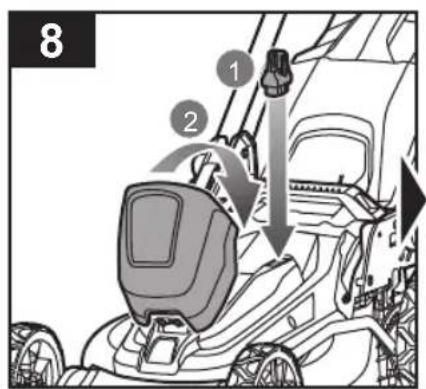

■ Ensure the isolator key is removed before inserting battery pack.
■ A battery pack must be recharged only with the charger specified by the manufacturer. Using a charger with an incompatible battery pack may create a risk of fire. Use battery pack only with charger listed.
■ Use only battery pack intended specifically for the product. Use of any other battery packs may result in a risk of fire, electric shock, or injury to persons.
■ When battery pack is not in use, keep it away from other metal objects like, paper clips, coins, keys, nails, screws, or other small metal objects, that can make a connection from one terminal to another. Shorting the battery pack terminals together may cause sparks, burns, fire or explosion.
■ Do not place battery products or their batteries near fire or heat. This increases the risk of explosion and possibly injury.
■ Do not open or mutilate the battery pack. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
■ Protect the battery pack against moisture and water. Do not charge the product in a damp or wet location. Following this rule will reduce the risk of electric shock.
In case of damage and improper use of the battery, vapour may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapour can irritate the respiratory system.
■ Do not leave the battery pack inside a vehicle in hot or cold conditions.
■ Do not incinerate the battery.
■ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with

water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

LAWNMOWER SAFETY WARNINGS

Before use, always visually inspect the product to ensure that blades, blade bolts, and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
■ Bring the product to an authorised service centre to replace damaged or unreadable labels.
- Do not pull the product backwards unless absolutely necessary. If you must back the product away from a wall or obstruction, first look down and behind to avoid tripping or pulling the product over your feet.
■ Turn off the product and allow the blade to stop if the product has to be tilted for transportation when crossing surfaces other than grass, and when transporting the product to and from the work area.
■ Never use the product with defective guards or shields, or without safety devices, such as deflectors and grass catchers, in place.
- Do not tilt the product when turning on the motor or while the motor is running. If absolutely necessary, you may raise the front of the lawnmower by no more than 5 cm to enable easier starting. Press down on the handlebar to achieve this. Always return the lawnmower to its normal position with all wheels on the ground before cutting. Tilting the lawnmower exposes the blade and increases the probability of objects being thrown and accidentally making contact with the blade.
■ Do not start the product when standing in front of the grass discharge opening.
■ The product must be started with the user behind the handlebars in the operator safety zone. Never start the product if:

• The grass discharge chute is exposed and is not protected by the grass catcher and grass discharge chute cover.
• Hands and feet of all persons are not clear of the cutting enclosure.

■ Turn on the product carefully according to instructions, and keep hands and feet away from the blades. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

■ Never pick up or carry the product while it is running.
■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop:

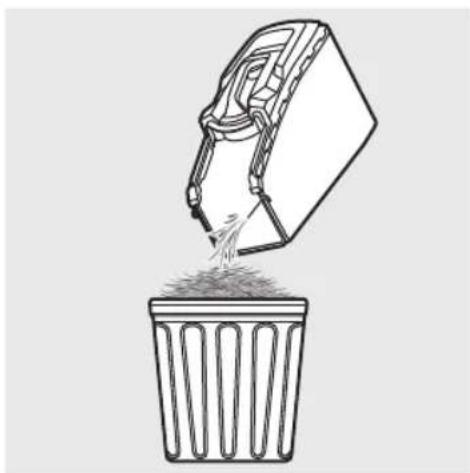

• whenever leaving the product unattended (including disposal of grass clippings)
• before clearing blockages or unclogging the discharge chute
• before checking, cleaning, or working on the product
• before removing the grass catcher or opening the grass discharge chute cover
• after striking a foreign object; inspect the product for damage and make repairs as necessary before restarting and operating the product
• if the product starts to vibrate abnormally (check immediately)

– inspect for damage, particularly the blades
– replace or repair any damaged parts
– check for and tighten any loose parts

■ The cutting blade should rotate approximately parallel to the ground over which it is being wheeled.
■ The blade on the product is sharp. Use extreme caution, and wear heavy-duty gloves when fitting, replacing, cleaning, or checking bolt security.

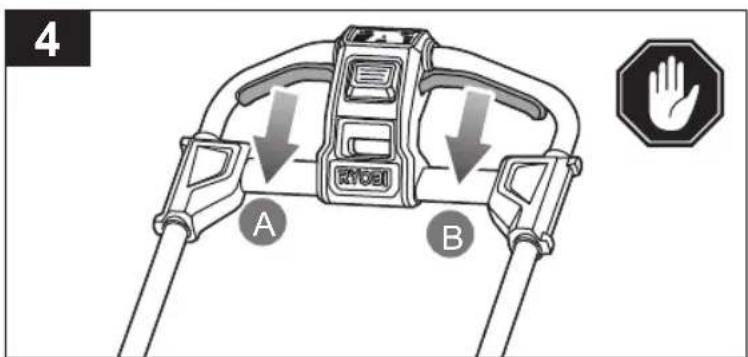

■ Never operate the product if the on/off switch on the handlebar does not properly start and stop the product.
■ Never attempt to lock the on/off switches in the on position; this is extremely dangerous.
■ Do not force the product. It will do the job better and safer at the speed for which it was designed.
■ Stop the blade when crossing gravel surfaces.
- Avoid holes, ruts, bumps, rocks, property stakes, or other hidden objects. Uneven terrain could cause a slip-and-fall accident.
■ Always ensure that the motor control cable is never trapped, pinched, or otherwise damaged during assembly or when folding the handle.
■ Injuries may be caused, or aggravated, by prolonged use of the product. When using the product for prolonged periods, ensure to take regular breaks.

ADDITIONAL BATTERY SAFETY WARNINGS

■ To reduce the risk of fire, personal injury, and product damage due to a short circuit, never immerse the tool, battery pack, or charger in fluid or allow fluid to flow inside them. Corrosive or conductive fluids, such as seawater, certain industrial chemicals, and bleach or bleach-containing products, etc., can cause a short circuit.
■ Do not dispose of battery packs together with household waste material. They must be collected separately and returned to an environmentally compatible recycling facility. Check with your local authority or retailer for recycling advice and collection point.

PRODUCT FEATURES

OVERLOAD AND OVERHEAT PROTECTION

The product has an overload protection device. When overloading is detected, the product automatically turns off. If the overload protector is actuated, the on/off lever must be released. Press the start button, and squeeze the on/off lever to restart the product. If the product still does not start, reinstall the battery pack.

The battery pack has overheat protection. Excessive temperatures will cause the battery to stop powering the product. If the battery pack is too warm, allow it to cool down before resuming operation. If the product still does not work, recharge the battery.

NOTE: The battery pack LED indicator will not work if the battery protection feature has caused the battery pack to stop powering the product. Turn off the product or remove the battery pack from the product, and the battery pack LED indicator will resume normal function.

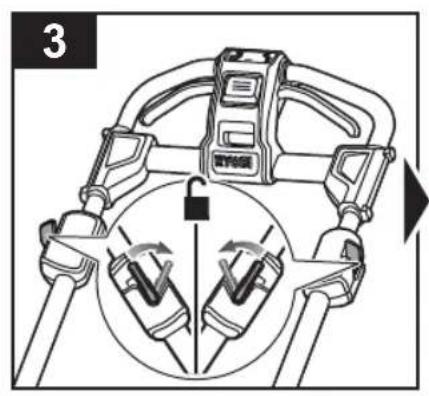

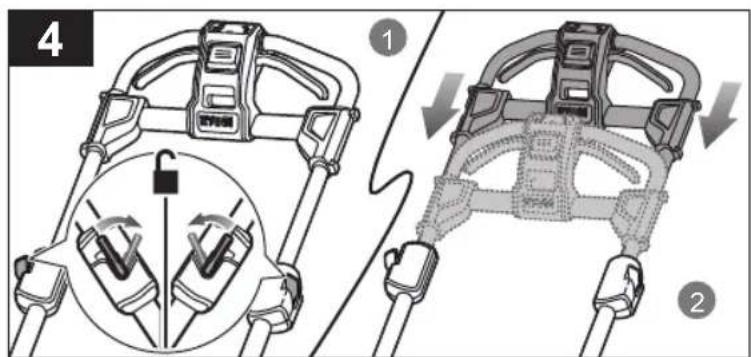

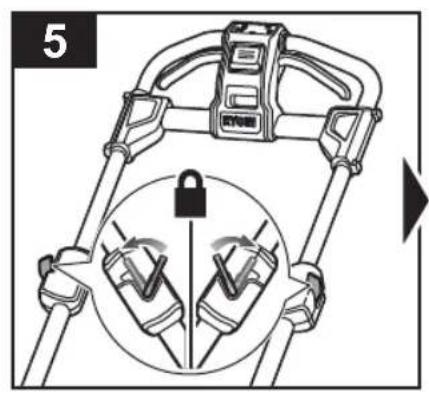

TELESCOPIC HANDLE

The product is equipped with a telescopic handle that can be adjusted for storage and operation. The telescopic handle must be extended to position 1 or 2 when setting up the product for use. Make sure the handle is secured by the handle lock lever and quick-release fastener. Make sure that the handle is locked during vertical storage.

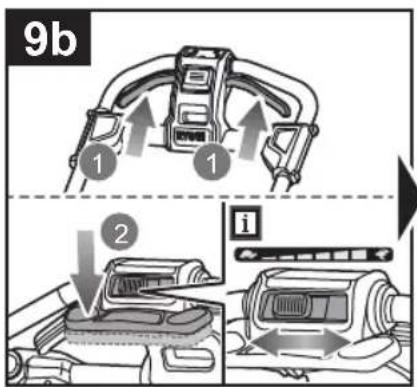

POWER ASSIST LEVER

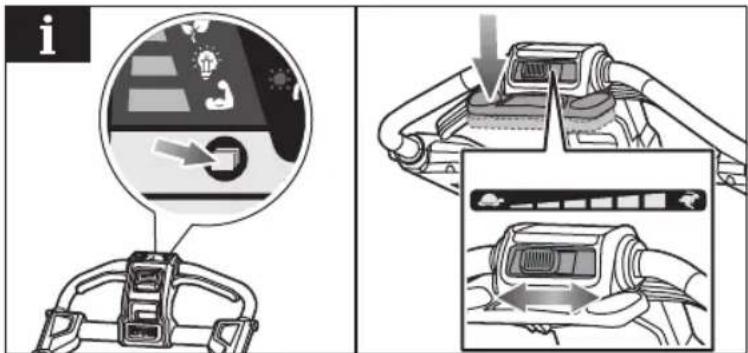

The product is equipped with a power assist lever that activates the self-propel function. Pressing the power assist lever down drives the product forward without having the user push it.

NOTE: The power assist feature functions normally when the product is used on a flat surface. The user needs to push the product forward when using the product on slopes or uneven surfaces because the power assist function will be limited and may cause the wheel to slip.

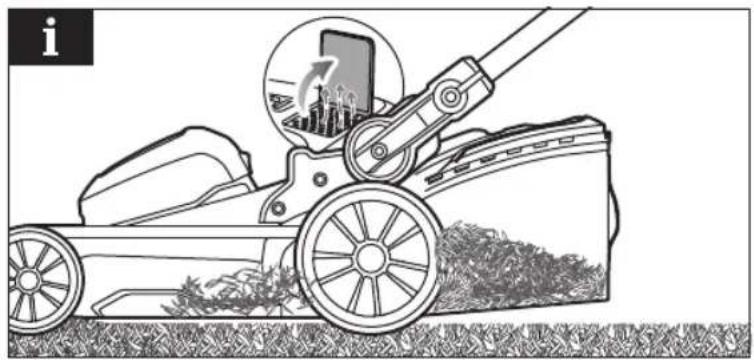

GENERAL MOWING TIPS

The run time of the battery depends on the condition, length, and density of the grass.

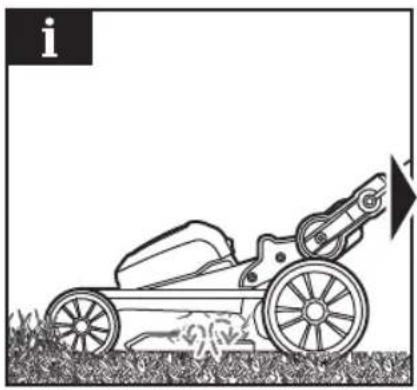

Adjust the cutting height of the lawnmower to suit the current condition of the lawn.

■ For best performance, always cut off one-third or less of the total height of the grass.
■ When cutting long grass, reduce walking speed to allow for more effective cutting and a proper discharge of the clippings.
■ A higher cutting height extends the run time of the battery pack.

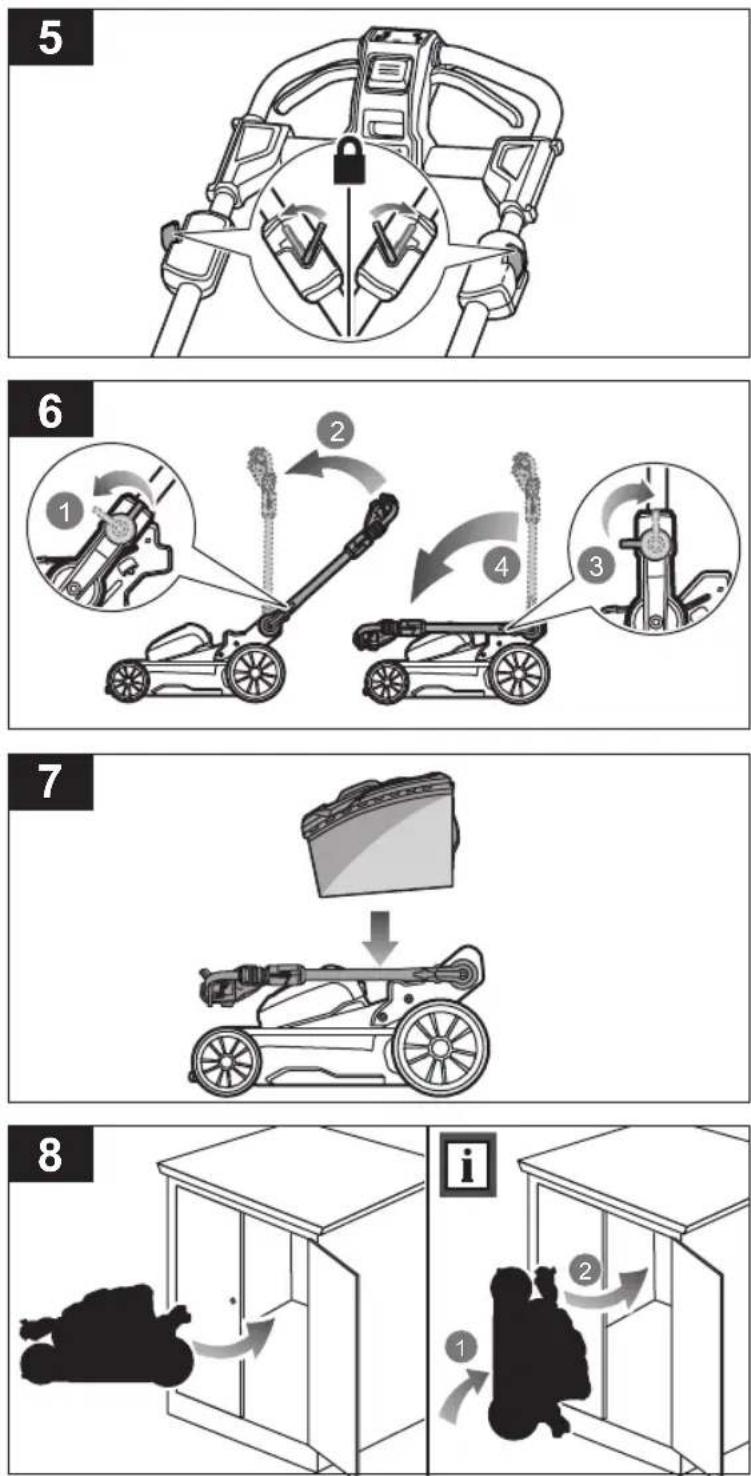

TRANSPORTATION AND STORAGE

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop. Allow the product to cool down before storing or transporting.

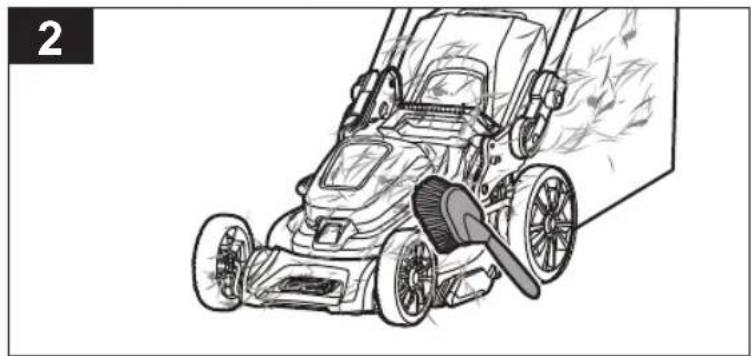

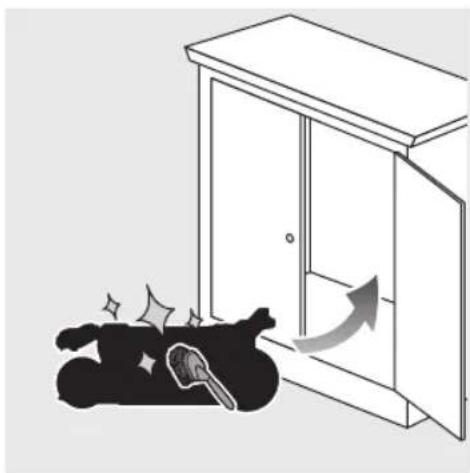

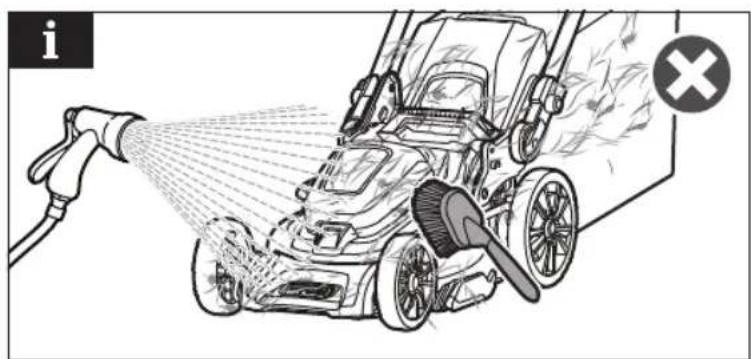

■ Remove all foreign materials from the product. Store the product in a cool, dry, and well-ventilated place that is inaccessible to children. Keep the product away from corrosive agents such as garden chemicals and de-icing salts. Do not store the product outdoors.
■ For transportation in vehicles, remove the isolator key, and secure the product against movement or falling to prevent injury to persons or damage to the product.

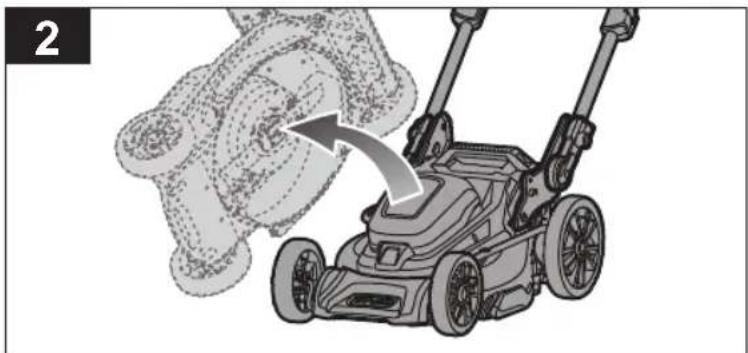

■ Use extreme caution when lifting or tilting the product for maintenance, cleaning, storage, or transportation. The blade is sharp. Keep all body parts away from the blade while it is exposed.

TRANSPORTING LITHIUM BATTERIES

Transport the battery in accordance with local and national provisions and regulations.

Follow all special requirements on packaging and labelling when transporting batteries by a third party. Ensure that no batteries can come in contact with other batteries or conductive materials while in transport by protecting exposed connectors with insulating, non-conductive caps or tape. Do not transport batteries that are cracked or leaking. Check with the forwarding company for further advice.

MAINTENANCE

• Use only original manufacturer's replacement parts, accessories, and attachments. Failure to do so can cause possible injury, can contribute to poor performance, and may void your warranty.
  ■ Servicing requires extreme care and knowledge and should be performed only by a qualified service technician. Have the product serviced by an authorised service centre only.
  ■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop before any cleaning or maintenance task.
  ■ Replace worn or damaged parts for safety.

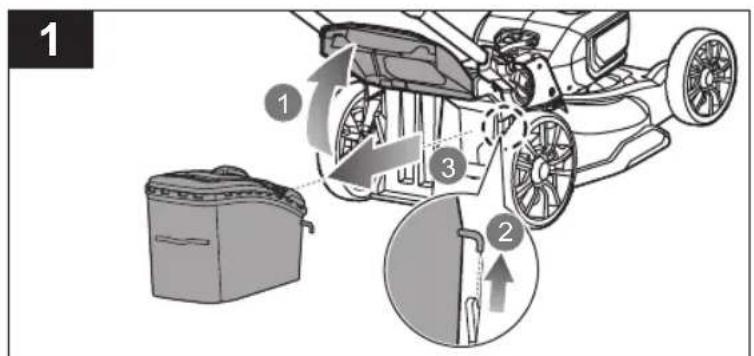

  ■ Frequently check the grass catcher for wear or deterioration.
• Check all nuts, bolts, and screws at frequent intervals for proper tightness to ensure that the product is in safe working condition.
  ■ Be careful during adjustment of the product to prevent entrapment of the fingers between moving blades and fixed parts of the product.

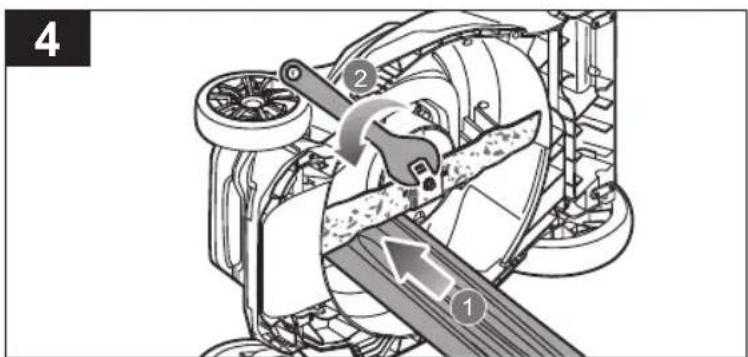

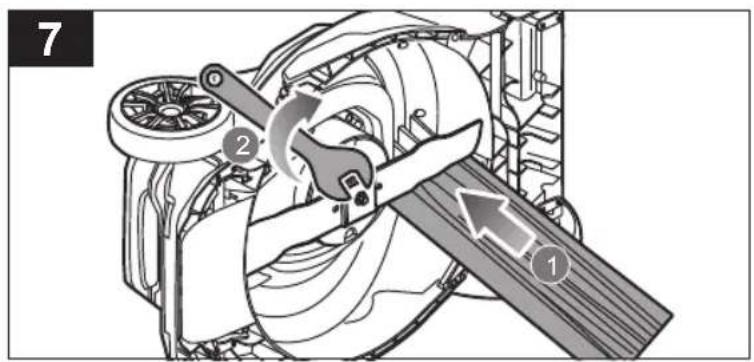

  ■ When servicing the blades, be aware that even though the power source is turned off, the blades can still be moved.
  ■ You may make adjustments and repairs described in this manual. For other repairs, have the product serviced by an authorised service centre only.
  ■ After each use, clean the plastic parts with a soft, dry cloth. Any part that is damaged should be properly repaired or replaced by an authorised service centre.

■ The blade on the product is sharp. Use extreme caution, and wear heavy-duty gloves when fitting, replacing, cleaning, or checking bolt security.
- The blade bolts must be adequately tightened. See the manufacturer's recommendations for blade bolt torque, which can be found in the product specification table in this manual.

CLEARING BLOCKAGES

■ Turn off the product, and remove the isolator key and the battery pack. Make sure that all moving parts have come to a complete stop.
■ Always wear heavy-duty gloves when checking or clearing a blockage. The blades are sharp, and the blockage itself could be a sharp object.
■ Remove the grass catcher. Check and carefully clear the grass catcher for obstructions.
- Check the grass discharge chute, and carefully clear blockages.
■ Turn the product on its side. Check its underside and the area around the blade. Carefully remove any blockages. Remember that the blade may move during cleaning.

KNOW YOUR PRODUCT

See page 165.

1. Speed adjustment slider
2. Power assist lever
3. Interface board
4. Start button
5. On/off lever
6. Telescopic handle
7. Operator's manual
8. Handle lock lever
9. Isolator key
10. Grass catcher full indicator
11. Cutting height adjustment lever
12. Quick-release fastener
13. Grass catcher
14. Battery door
15. Rear wheel
16. Front wheel
17. Mulching plug
18. Battery pack
19. Charger

SYMBOLS ON THE PRODUCT

Read and understand all instructions before operating the product. Follow all warnings and safety instructions.

Wear ear protection.

Wear eye protection.

Do not operate the product on inclines greater than 15^ . Mow across the face of slopes, never up and down.

Do not expose the product to rain or damp condition.

Beware of sharp blades. Blades continue to rotate after the motor is switched off. Remove the isolator key before maintenance.

Beware of thrown or flying objects. Keep all bystanders, especially children and pets, at least 15 m away from the operating area.

Go

Stop

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

European Conformity Mark

British Conformity Mark

EurAsian Conformity Mark

Ukraine Conformity Mark

Guaranteed sound power level

Position 1 on telescopic handle

Position 2 on telescopic handle

Squeeze the on/off lever and press the start button to start the product. Press down the power assist lever to drive the product forward.

SYMBOLS IN THIS MANUAL

Parts or accessories sold separately

Note

Warning

INTERFACE BOARD OVERVIEW

The interface board displays the status and condition of the product.

123 9 8 7 6 5 4

1. High load - indicates that the load is too high for the current setting and the product might stall. Switch to power mode, increase cutting height, or reduce walking speed.
2. Blade check indicator - indicates that the blade must be checked. Replace the dull blade to keep the product in good working condition.
3. Battery charge status button - powers up the battery level indicator when pressed.
4. Battery level indicator - indicates the amount of charge left in the battery packs.

5. If only one LED lights up, the battery pack capacity is lower than 25%.

6. If two LEDs light up, the battery pack capacity is between 25% and 50%.

7. If three LEDs light up, the battery pack capacity is between 50% and 75%.

8. If four LEDs light up, the battery pack is fully charged. The battery pack capacity is between 75% and 100%.

9. Overload indicator - indicates that the product is overloaded and that the blade may be jammed.

10. Mode button - changes the cutting mode of the product when pressed.

11. Power mode - indicates that the blade is at high speed for heavy grass cutting.

12. Smart mode - indicates that the mower is able to adjust the blade speed depending on the load on the product for general cutting.

13. Eco mode - indicates that the blade is at low speed for thin grass cutting.

CARACTÉRISTIQUES DU PRODUIT

SYMBOLES APPLIQUÉS SUR LE PRODUIT

MACHEN SIE SICH MIT IHREM PRODUKT VERTRAUT

Siehe Seite 165.

SYMBOLE AUF DEM PRODUKT

ALGEMENE VEILIGHEIDSWAARSCHUWINGEN

VEILIGHEIDSWAARSCHUWINGEN GRASMAAIMACHINE

SYMBOLER PÅ PRODUKTET

TRANSPORT OCH FÖRVARING

SYMBOLER PÅ PRODUKTEN

SYMBOLER I MANUALLEN

KJENN PRODUKTET DITT

Se side 165.

SYMBOLER PÅ PRODUKTET

SYMBOLER I DENNE MANUALLEN

ELIBERAREA UNUI BLOCAJ

NOSPROSTOJUMA NOVĚRŠANA

PAZİSTIET SAVU IERİCI

Skatīt 165. lappusi

LIIDESEPLAADI ÜLEVAADE

OBOZNÁMTE SA S VAŠÍM PRODUKTOM

Pozrite stranu 165.

Diagram illustrating a mechanical device with labeled components and directional arrows indicating motion or assembly.

i ✓ ×

5

6a 1 2

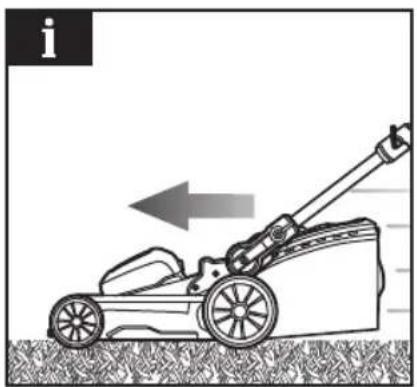

Line drawing of a grassy field with a small cart and arrow indicating motion (no text or symbols)

8 1 2

9a 1 2 1 1 + A / B

i A B

9b ① ① ② i

3

Mechanical assembly diagram showing a belt drive mechanism with arrows indicating motion direction (no text or symbols)

i 1 2 ✓ ×

5

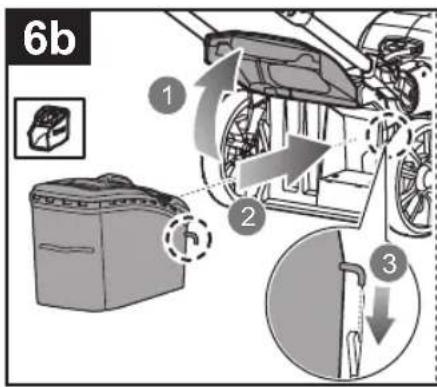

6b 1 2 3

Illustration of a lawn mower in motion, showing wheel rim and blade (no text or symbols)

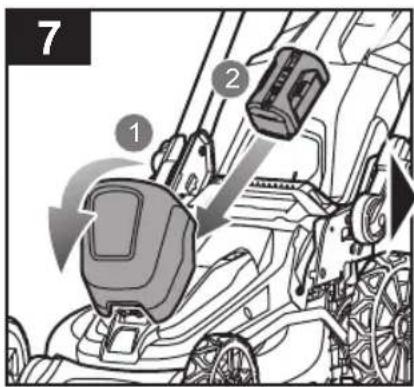

7 1 2

8

Line drawing of a lawn mower with an arrow indicating clockwise motion (no text or symbols)

10

p.171 9 p.175 p.171p 2 p.174

Illustration of a lawn mower on grass, showing blade and wheel movement (no text or symbols)

Diagram comparing two grass lawn lawns: one with warning sign and checkmark, the other with cross and plus signs.

15° Max.15°

Diagram illustrating four steps of a robotic arm maneuvering a vehicle, labeled 1 to 4 with directional arrows and numbered components.

2a ① ② ③ ④

Line drawing of a lawn mower on grass, no text or symbols present

2b 1 3 2 4 5

Line drawing of a lawn mower on grass, no text or symbols present

3 1 2 2 + A / B i A B

Diagram illustrating a device lock switch mechanism with labeled components and directional arrows indicating action or movement.

4 A B

Line drawing of a car's front wheel assembly with visible tire and suspension components (no text or symbols)

Illustration of a lawn mower on a grassy slope next to a brick wall (no text or symbols)

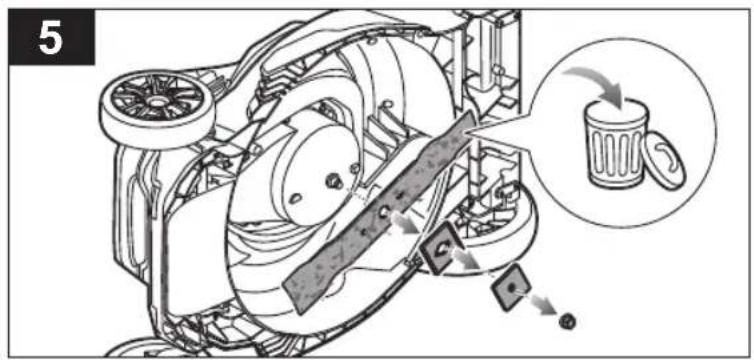

Technical illustration of a mechanical assembly with magnified detail (no text or symbols)

Diagram illustrating a car wheel with numbered parts and a magnified view of the engine component, likely for maintenance or repair.

Mechanical assembly diagram showing two hoses connected to a car, with a magnified inset highlighting the joint detail (no text or symbols present)

Diagram illustrating a car maneuvering with numbered parts and directional arrows, likely for vehicle maintenance or repair instructions.

Diagram illustrating vehicle steering wheel assembly steps with numbered components and directional arrows indicating motion.

Illustration of a lawn mower with a magnified view showing the blade and handle (no text or symbols)

Diagram of a car interior showing dashboard, steering wheel, and gear mechanism (no text or labels)

Technical illustration of a mechanical assembly with internal components and a brush (no text or symbols)

4 ① ②

5

6

7 ① ②

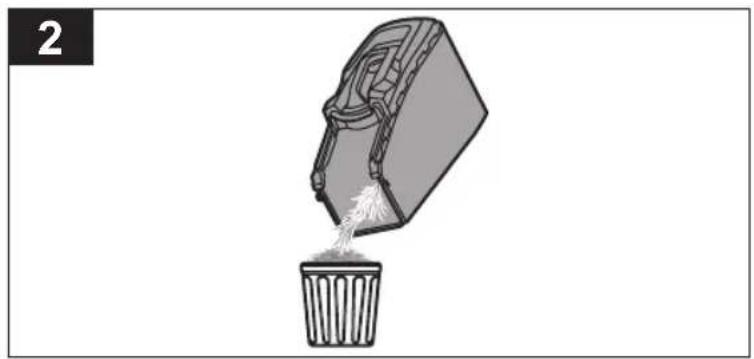

Line drawing of a trash bin with a bucket pouring liquid from a container (no text or symbols)

Illustration of a lawn mower with a magnified inset showing environmental impact (no text or symbols)

i

1 ① ③ ②

Illustration of a trash bin pouring liquid from a container (no text or symbols)

Simple line drawing of a door with a brush and a dog emerging from the window (no text or symbols)

Diagram illustrating vehicle steering wheel assembly steps with numbered instructions and directional arrows indicating motion.

Line drawing of a lawn mower with a brush applying material, no text or symbols present

Illustration of a lawn mower with a tool spraying mist, no text or symbols present

3 1 3 2

4 1 2

English Français Deutsch Español Italiano
Product specifications	Caractéristiques produit Produkt-Spezifikationen Características del producto Caratteristiche del prodotto
Cordless lawnmower	Tondeuse à Gazon Sans-fil Akku-Rasenmäher Cortacésped inalámbrico Tosaerba senza cavo
Model	Modèle	Modell	Modelo	Modello
Rated voltage	Tension nominale	Nennspannung Tensión nominal	Voltaggio nominale
Width of cut	Largeur de coupe	Schnittbreite	Anchura de fresado	Larghezza di fresatura
Height of cut	Hauteur de coupe	Schnitthöhe	Altura del corte	Altezza del taglio
No-load speed	Vitesse de rotation à vide	Leertaufgeschwindigkeit	Velocidad sin carga	Velocità senza carico
Weight (without battery)	Poids (sans batterie)	Gewicht (ohne Akku)	Peso (sin la batería)	Peso (senza batterie)
Weight with heaviest battery pack	Poids (avec le pack de batterie le plus lourd)	Gewicht (mit dem schwersten Akkupack)	Peso (con el paquete de baterías más pesado)	Peso (con la batteria più pesante)
Grass catcher capacity	Capacité du bac de ramasage	Fassungsvermögen des Grasauffangbehälters	Capacidad colectora de césped	Capacità del contenitore di raccolta
Blade bolt torque	Couple de serrage du boulon de lame	Drehmoment der Messerschraube	Par de torsión de los pernos de la cuchilla	Coppia di serraggio del bullone della lama
Vibration level (in accordance with Annex FF of EN 60335-2-77)	Niveau de vibration (selon l'Annexe FF de la norme EN 60335-2-77)	Vibrationsgrad (gemäß Anhang FF von EN 60335-2-77)	Nivel de vibración (de acuerdo con el Anexo FF de EN 60335-2-77)	Livello vibrazioni (secondo quanto disposto dall'Allegato FF della Direttiva EN 60335-2-77)
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
Noise emission level (in accordance with Annex GG of EN 60335-2-77)	Niveau d'émission sonore (selon l'Annexe GG de la norme EN 60335-2-77)	Geräuschemission (gemäß Anhang GG von EN 60335-2-77)	Nivel de emisión de ruido (de acuerdo con el Anexo GG de EN 60335-2-77)	Livello di emissione rumore (secondo quanto disposto dall'Allegato GG della Direttiva EN 60335-2-77)
A-Weighted sound pressure level at operator's position	Niveau de pression sonore pondéré A au niveau de l'opérateur	A-bewerteter Schalldruckpegel an der Position des Anwenders	Nivel de presión sonora ponderado A en la posición del operario	Livello di pressione sonora ponderata A alla posizione dell'operatore
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
A-Weighted sound power level	Niveau de puissance sonore pondéré A	A-bewerteter Schallleistungspegel	Nivel de potencia acústica ponderada en A	Livello di potenza sonora pesato A
Uncertainty of measurement	Incertitude de la mesure	Unsicherheit der Messung	Incertidumbre de medición	Incertezza delle misurazioni
L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA	L_WA + K_WA
Battery and charger	Batterie et chargeur	Akku und Ladegerät	Bateria y cargador	Batteria e caricatore
Model	Modèle	Modell	Modelo	Modello
Battery pack	Bloc de batterie	Akkupack	Bateria	Batteria
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili
Compatible chargers	Chargeurs compatibles	Kompatible Ladegeräte	Cargador compatible	Caricatore compatibile
Model	Modèle	Modell	Modelo	Modello
Battery pack	Bloc de batterie	Akkupack	Bateria	Batteria
Charger	Chargeur	Ladegerät	Cargador	Caricatore
Compatible battery packs	Blocs des batterie compatibles	Kompatible Akkupacks	Paquetes de batería compatibles	Gruppo batterie compatibili

Nederlands Português Dansk Svenska
Productgegevens Características	cas do aparelho	Produktspecifikationer Produktspecifikationer
Snoerloze grasmaaier	Corta-relva sem fios	Ledningsfri pløeneklipper	Sladdlös gråsklippare
Model	Modelo	Model	Modell	RY36LMXP40A
Toegekende spanning	Tensão nominal	Mærkespænding	Spänning	36 V d.c.
Freesbreedte	Largura de fresagem	Fræsebredde	Fräsbredd	40 cm
Hoogte van de snede	Altura de corte	Klippehøjde	Klipphöjd	25-75 mm
Snelheid zonder lading	Velocidade sem carga	Tomgangshastighed	Hastighet utan belastning	3600 /min max
Gewicht (zonder batterij)	Peso (sem a bateria)	Vægt (uden batteri)	Vikt (utan batteri)	20,21 kg
Gewicht (met de zwaarste accu)	Peso (com o conjunto de baterias mais pesado de todos)	Vægt (med det tungeste batteri)	Vikt (med tyngsta batterienhet)	21,64 kg
Capaciteit grasvanger Capacidade do saco de aparas		Græssamlerens kapacitet	Gräsuppsamlarens kapacitet	50 L
Koppel voor mesbout	Binário de aperto do parafuso da lämina	Moment for klingebolt	Ätdragningsmoment bladskruv	35~40 Nm
Trillingsniveau (in overeenstemming met bijlage FF van EN 60335-2-77)	Nível de vibração (em conformidade com o Anexo FF de EN 60335-2-77)	Vibrationsniveau (iht. bilag FF til EN 60335-2-77)	Vibrationsnivá (enligt Annex FF i EN 60335-2-77)	a_h = 0,6 m/s^2
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mått	K = 1,5 m/s^2
Geluidsemissieniveau (in overeenstemming met bijlage GG van EN 60335-2-77)	Nível de emissão de ruído (em conformidade com o Anexo GG de EN 60335-2-77)	Stojemissionsniveau (iht. bilag GG til EN 60335-2-77)	Bullerutsläppsnivá (enligt Annex GG i EN 60335-2-77)
A-gewogen geluidsdrukniveau bij positie van gebruiker	Nível de pressão sonora ponderada A na posição do operador	A-vægtet lydtryksniveau ved operatørens position	A-viktad ljudtrycksnivá vid operatörens plats	L_pA = 81,3 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mått	K = 3,0 dB
A-gewogen geluidsniveau	Nível de potência sonora ponderada A	A-vægtet lydeffektniveau	A-vägd ljudeffektnivá	L_sA = 95,2 dB(A)
Onzekerheid bij meting	Incerteza de medições	Målingsusikkerhed	Osäkerhet för mått	K = 0,9 dB
I_WA + K_wA	I_WA + K_WA	I_WA + K_WA	I_WA + K_WA	97 dB(A)
Accu en oplader	Bateria e carregador	Batteri og oplader	Batteri och batteriladdare
Model	Modelo	Model	Modell	RY36LMXP40A-150
Accu	Bateria	Batteri	Batteri	5 Ah
Lader	Carregador	Oplader	Batteriladdare	RY36C17A
Compatibele accupacks	Baterias compatíveis	Kompatible batterier	Kompatibla batteripaket	RY36B...
Compatibele oplader	Carregador compativel	Kompatibel oplader	Kompatibel laddare	BCL36.., RY36C..
Model	Modelo	Model	Modell	RY36LMXP40A-140	RY36LMXP40A-0
Accu	Bateria	Batteri	Batteri	4 Ah	-
Lader	Carregador	Oplader	Batteriladdare	RY36C17A	-
Compatibele accupacks	Baterias compatíveis	Kompatible batterier	Kompatibla batteripaket	RY36B...
Compatibele oplader	Carregador compativel	Kompatibel oplader	Kompatibel laddare	BCL36.., RY36C..
Vervangonderdelen	Peças de substituição	Reservedele	Utbytesdelar
Zaagblad	Lâmina	Klinge	Blad	RAC404 (639180003)

Suomi Norsk Русский Polski Čeština
Tuotteen tekniset tiedot	Produkspesifikasjoner Характеристики изделия Parametry techniczne Technické údaje produktu
Johdoton ruohonleikkuri	Kabelfri gressklipper	Беспроводная газонокосилка	Kosiarka bezprzewodowa	Akumulátorová sekačka trávy
Malli	Modell Модель	Model	Model
Nimellisjännite	Nominell spenning	Номинальное напряжение	Napięcie znamionowe	Jmenovité napětí
Jyrsintáleveys	Fresebredde	Ширина фрезеровки	Szerokość frezowania	Šířka frézování
Leikkuukorkeus	Klippehøyde	Высота стрижки	Wysokość cięcia	Výška sečení
Nopeus ilman kuormaa	Tomgangshastighet	Холостая скорость	Prędkość obrotowa bez obciążenia	Rychlost naprázdno
Paino (ilman akkua)	Vekt (uten batteri)	Вес (без батарей)	Masa (bez akumulatora)	Hmotnost (bez baterie)
Paino (painavimman akun kanssa)	Vekt (med det tyngste batteriet)	Вес (с самым тяжелым аккумуляторным блоком)	Masa (z najcięższym akumulatorem)	Hmotnost (s nejtěžsimi bateriemí)
Ruohonkerääjän kapasiteetti	Oppsamlerens kapasitet	Объем травособирателя	Pojemność pojemnika na trawę	Kapacita sbérného koše
Teräpultin vääntömomentti	Dreiemoment for knivbolten	Усилие затяжки фиксирующего болта лезвия	Moment dokręcania śruby noża	Utahovací moment śroubu nože
Tärinätaso (standardin EN 60335-2-77 liitteen FF mukaisesti)	Vibrasjonsnivá (iht. tillegg FF i EN 60335-2-77)	Уровень вибрации (в соответствии с Приложением FF стандарта EN 60335-2-77)	Poziom wibracji (zgodnie z aneksem FF normy EN 60335-2-77)	Úroveň vibraci (v souladu s přilohou FF normy EN 60335-2-77)
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejištota měření
Melutaso (standardin EN 60335-2-77 liitteen GG mukaisesti)	Støyutsilpsnivá (iht. tillegg GG i EN 60335-2-77)	Уровень шума (в соответствии с Приложением GG стандарта EN 60335-2-77)	Poziom emisji halasu (zgodnie z aneksem GG normy EN 60335-2-77)	Hladina emise hluku (v souladu s přilohou GG normy EN 60335-2-77)
A-painotettu käytlääjään kohdistuva äänenpainetaso	Støynvåvekling ved operatørens posisjon	Амплитудно-взвешенный уровень звукового давления в рабочем месте оператора	Poziom ciśnienia akusylcznego (A) w miejsu operatora	Hladina akustického tlaku vážená funkcí A v poloze obsluhy
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejištota měření
A-painotettu äänenteho	A-vektet lydeffektnivá	Уровень А-взвешенной звуковой мощности	A-ważony poziom mocy akustycznej	Hladina akustického výkonu vážená funkcí A
Mittausten epätarkkuus	Usikkerhet ved måling	Погрешность измерения	Niepewność pomiaru	Nejištota měření
L_wA + K_wA	L_wA + K_wA	L_wA + K_wA	L_wA + K_wA	L_wA + K_wA
Akku ja laturi	Batteri og lader	Аккумуляторная батарея и зарядное устройство	Akumulator i ładowarka Nabiječka a baterie
Malli	Modell	Модель	Model	Model
Aku	Batteri	Аккумулятор	Akumulator	Baterie
Laturi	Lader	Зарядное устройство	Ładowarka	Nabiječka
Yhteensopivat akut Kompatible batteripakker Совместимая аккумуляторная батарея			Pasujące akumulatory	Kompatibilní akumulátory
Yhteensopiva laturi Kompatibel lader	Совместимое зарядное устройство		Zgodna ładowarka	Kompatibilní nabiječka
Malli	Modell	Модель	Model	Model
Aku	Batteri	Аккумулятор	Akumulator	Baterie
Laturi	Lader	Зарядное устройство	Ładowarka	Nabiječka
Yhteensopivat akut Kompatible batteripakker Совместимая аккумуляторная батарея			Pasujące akumulatory	Kompatibilní akumulátory
Yhteensopiva laturi Kompatibel lader	Совместимое зарядное устройство		Zgodna ładowarka	Kompatibilní nabiječka
Varaosat	Erstatningsdeler	Запасные части	Części zamienne	Náhradní dily
Teră	Blad	Пильное полотно	Ostrze	Núž

Magyar Română Latviski Lietuviškai
Termék műszaki adatai Specificațiile produsului Produkta specifikacijas Gaminio techninės			savybės
Akkumulátoros fūnyíró Mașină de tuns gazonul fāră cablu		Bezvady zăles pjāvējs Akumuliatorinė vejapjovė
Típus	Model	Modelis	Modelis	RY36LMXP40A
Névleges feszültség	Tensiunea nominală	Nominālais spriegums	Nominali įlampa	36 V d.c.
Marási szélesség	Lātjime de frezare	Griezuma platums	Pjovimo plotis	40 cm
Vágásmagasság	Ínaltjimea de táiere	Griešanas augstums	Pjovimo aukštis	25-75 mm
Üresjáratí fordulatszám	Viteză fāră sarcină	Tukšgaitas ātrums	Greitis be apkrovimo	3600 /min max
Súly (akkumulátor nélkül)	Greutate (fāră acumulator)	Svars (bez baterijas)	Svoris (be akumuliatorinės baterijos)	20,21 kg
Súly (a legnehezebb akkucsomaggal)	Greutatea (cu cel mai greu acumulator)	Svars (ar smagāko akumulatoru bloku)	Svoris (su sunkiausiu akumuliatorių bloku)	21,64 kg
Fūfogó kapacitása	Capacitate colector iarbă	Zăles uztvērēja ietilpība	Žolės gaudyklės talpa	50 L
Kėscsavar nyomatėka Cuplul bolțului de fixare a discului táletor		Asmens skrūves novilkšanas spēks	Peilio varžto užveržimo jėga	35-40 Nm
Vibrácios szint (az EN 60335-2-77 FF függelėke szerint)	Nivel de vibrație (în conformitate cu Anexa FF a EN 60335-2-77)	Vibrácijas līmenis (saskaņa ar direktivas EN 60335-2-77 FF pielikumu)	Vibracijos lygis (pagal EN 60335-2-77 standarto FF priedą)	a_h = 0,6 m/s^2
Mérės bizonytalansága	Nesiguranja māsurătorii	Mērijuma nenoteiktība	Matavimo paklaida	K = 1,5 m/s^2
Hangkibocsátási szint (az EN 60335-2-77 GG függelėke szerint)	Nivel emisie zgomot (în conformitate cu Anexa GG a EN 60335-2-77)	Trokšņu emisijas līmenis (saskaņa ar direktivas EN 60335-2-77 GG pielikumu)	Skleidžiamo triukšmo lygis (pagal EN 60335-2-77 standarto GG priedą)
A-súlyozott hangnyomásszint a kezelő helyén	Nivel presiune sunet greutate A la pozitja operatorului	Lietotāja pozicijā ir ar A novērtēts skaņas spiediena līmenis	A svorinis triukšmo slėgio lygis operatoriaus padėtyje	L_pA = 81,3 dB(A)
Mérės bizonytalansága	Nesiguranja māsurătorii	Mērijuma nenoteiktība	Matavimo paklaida	K = 3,0 dB
A-súlyozott hangteljesitmėnyszint	Nivel de putere acusticā ponderatā A	A-līmeņa skaņas jaudas līmenis	A-svertinis akustinis lygis	L_eA = 95,2 dB(A)
Mérės bizonytalansága	Nesiguranja māsurătorii	Mērijuma nenoteiktība	Matavimo paklaida	K = 0,9 dB
L_wA + K_wA	L_wA + K_wA	L_wA + K_wA	L_wA + K_wA	97 dB(A)
Akkumulátor és töltö	Bateria și încarcătorul	Akumulators un lādētājs	Akumuliatorius ir jkroviklis
Típus	Model	Modelis	Modelis	RY36LMXP40A-150
Akkumulátor	Acumulator	Akumulators	Baterija	5 Ah
Töltö	Încarcător	Lādētājs įkroviklis		RY36C17A
Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	RY36B....
Kompatibilis töltö	Încarcător compatibili	Saderīgs lādētājs	Suderinamas įkroviklis	BCL36.., RY36C..
Típus	Model	Modelis	Modelis	RY36LMXP40A-140	RY36LMXP40A-0
Akkumulátor	Acumulator	Akumulators	Baterija	4 Ah	-
Töltö	Încarcător	Lādētājs įkroviklis		RY36C17A	-
Kompatibilis akkumulátorok	Acumulatori compatibili	Savietojami akumulatoru komplekti	Suderinami baterijos paketai	RY36B....
Kompatibilis töltö	Încarcător compatibili	Saderīgs lādētājs	Suderinamas įkroviklis	BCL36., RY36C..
Cserealkatrészek	Piese de schimb	Rezerves daļas	Atsarginės detalės
Kės	Lamà	Asmens	Geležte	RAC404 (639180003)

The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment of exposure.

The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for different applications, used with different accessories, or poorly maintained, the vibration and noise emission may differ. These conditions may significantly increase the exposure levels over the total working period. An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned off or when it is running idle. These conditions may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration and noise, such as maintaining the tool and the accessories, keeping the hands warm (in case of vibration), and organising work patterns.

FR

⚠ AVERTISSEMENT

EN RYOBI WARRANTY APPLICATION CONDITIONS

In addition to any statutory rights resulting from the purchase, this product is covered by a warranty as stated below.

1. The warranty period is 24 months for consumers and commences on the date when the product was purchased. This date has to be documented by an invoice or other proof of purchase. The product is designed and dedicated to consumer and private use only. So there is no warranty provided in case of professional or commercial use. This warranty applies only on new products.
2. There is a possibility to extend for a part of the range of power tools (AC/DC) the warranty period over the period described above using the registration on the www.ryobitools.eu website. The eligibility of products for extended warranty is clearly displayed in stores and / or on packaging and is contained within the product documentation. The end user is required to register his/her newly-acquired products online within 30 days from the date of purchase. The end user may register for the extended warranty in his/her country of residence if listed on the online registration form where this option is valid. Furthermore, end users must give their consent to the storage of their personal data that is required to be entered online. They must also accept the terms and conditions. The registration confirmation receipt, which is sent out by e-mail, and the original invoice showing the date of purchase will serve as proof of the extended warranty.
3. The warranty covers all defects of the product during the warranty period due to faults in workmanship or material at the purchase date. The warranty is limited to repair and/or replacement and does not include any other obligations including but not limited to incidental or consequential damages. The warranty is not valid if the product has been misused, used contrary to the instruction manual, or has been incorrectly connected to a power supply. This warranty does not apply to:

– any damage to the product that is the result of improper or lack of maintenance
– any product that has been altered or modified
– any product where original identification (trade mark, serial number) markings have been defaced, altered or removed
– any damage caused by non-observance of the instruction manual
– any product not displaying the CE approval mark on the rating plate
– any product that has been attempted to be repaired by a non-authorised warranty service centre or without prior authorisation by Techtronic Industries
– any product connected to improper power supply (amps, voltage, frequency)
– any product used with inappropriate fuel mixture (fuel, oil, ratio of oil/ fuel mixture)
– any damage caused by external influences (water, chemical, physical, shocks) or foreign substances
– normal wear and tear spare parts
– inappropriate use, overloading of the tool
– use of non-approved accessories or parts
- Accessories provided with the tool or purchased separately including but not limited to blades, saw chains, cutting lines, etc.
– Any periodic adjustments to or maintenance cleaning of carburettors
- Components (parts and accessories) subject to natural wear and tear, including but not limited to bump knobs, drive belts, clutch, blades of hedge trimmers or lawn mowers, harness, cable throttle, carbon brushes, power cord, tines, felt washers, hitch pins, blower fans, blower and vacuum tubes, vacuum bag and straps, guide bars, saw chains, hoses, connector fittings, spray nozzles, wheels, spray wands, inner reels, outer spools, cutting lines, spark plugs, air filters, gas filters, mulching blades, etc.

1. For servicing, the product must be sent or presented to a RYOBI authorised service station listed for each country in the following list of service station addresses. In some countries your local RYOBI dealer undertakes to send the product to the RYOBI service organisation. When sending a product to a RYOBI service station, the product should be safely packed without any dangerous contents such as petrol, marked with sender's address and accompanied by a short description of the fault.
2. A repair / replacement under this warranty is free of charge. It does not constitute an extension or a new start of the warranty period. Exchanged parts or products become our property. In some countries delivery charges or postage will have to be paid by the sender. Your statutory rights arising from the purchase of the product remain unaffected.
3. This warranty is valid in the European Community, Switzerland, Iceland, Norway, Liechtenstein, Turkey, Russia, and the United Kingdom. Outside these areas, please contact your authorised RYOBI dealer to determine if another warranty applies.

AUTHORISED SERVICE CENTRE

Any request or issue with the product can be addressed to your local authorised service centres (visit www.ryobitools.eu) or directly to: Techtronic Industries GmbH, Max Eyth Straße 10, 71364 Winnenden, Germany. Please state the serial number and product type printed on the label.

FR RYOBI CONDITIONS D'APPLICATION DE LA GARANTIE

EN EC DECLARATION OF CONFORMITY

Cordless lawnmower

Brand: RYOBI | Manufacturer ^1 | Model number ^2 | Serial number range ^3

We declare as the manufacturer under our sole responsibility that the product mentioned below fulfills all the relevant provisions of the following European Directives, European Regulations and harmonised standards ^1

Measured sound power level.... 95.2 dB(A)

Guaranteed sound power level.... 96 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by 2005/88/EC Notified body ^3

Authorised to compile the technical file: ^6

FR DÉCLARATION CE DE CONFORMITÉ

Max-Eyth-Straße 10, 71364 Winnenden, Germany

2 RY36LMXP40A

3 47595201000001 - 47595201999999

2006/42/EC, 2014/30/EU, 2000/14/EC, 2005/88/EC, 2011/65/EU EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A14:2019+A2:2019, EN 60335-2-77:2010, EN IEC 55014-1:2021, EN IEC 55014-2:2021, EN IEC 63000:2018

^5 No. 0197 – TÜV Rheinland LGA Products GmbH Tillystraße 2 - 90431 Nürnberg – Germany

Todd Chipner

Vice President, Quality – Asia

Winnenden, Dec. 20, 2021

^6 Alexander Krug. Managing Director

Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

GB-DECLARATION OF CONFORMITY

Manufacturer: Techtronic Industries GmbH

Max-Eyth-Straße 10, 71364 Winnenden, Germany

We declare as the manufacturer under our sole responsibility that the product mentioned below

Cordless lawnmower

Brand: RYOBI

Model number: RY36LMXP40A

Serial number range: 47595201000001 - 47595201999999

fulfills all the relevant provisions of the following Regulations: S.I. 2008/1597

(as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended), S.I.

2001/1701 (as amended) and that the following designated standards have been

used:

BS EN 60335-1:2012+A2:2019, BS EN 60335-2-77:2010,

BS EN IEC 55014-1:2021, BS EN IEC 55014-2:2021, BS EN IEC 63000:2018

Measured sound power level: 95.2 dB(A)

Guaranteed sound power level: 96 dB(A)

Conformity assessment method to Annex VI Directive 2000/14/EC amended by

2005/88/EC.

Approved body:

No. 8500 - AnP Certification Limited

2 Parkfield Street, Rusholme, Manchester, M14 4PN, United Kingdom

Todd Chipner

Vice President, Quality – Asia

Winnenden, Dec. 20, 2021

Authorised to compile the technical file:

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

EN RYOBI is a trade mark of Ryobi Limited, and is used under license.
FR RYOBI est une marque déposée de Ryobi Limited, et est utilisée sous license.
DE RYOBI ist ein Markenzeichen von Ryobi Limited und wird in Lizenz verwendet.
ES RYOBI es una marca registrada de Ryobi Limited, y se utiliza bajo licencia.
IT L'utilizzo del marchio registrato RYOBI è legato alla licenza concessa da Ryobi Limited.
NL RYOBI is een handelsmerk van Ryobi Limited en wordt onder licentie gebruikt.
PT RYOBI é uma marca comercial de Ryobi Limited, e é utilizada sob licença.
DA RYOBI er et varemærke tilhørende Ryobi Limited og bruges under licens.
SV RYOBI är en del av varumärke Ryobi Limited och dess användning är licensierad.
FI RYOBI on Ryobi Limitedin omistama tavaramerkki, ja sitä käytetään lisenssin puitteissa.
NO RYOBI er et varemerke for Ryobi Limited, og brukes under lisens.
RU RYOBI является товарным знаком компании Ryobi Limited, используемым по лицензии.
PL RYOBI to znak towarowy firmy Ryobi Limited i jest używany zgodnie z udzieloną licencją.
CS RYOBI je ochranná známka společnosti Ryobi Limited a její použivani podléhá licenci.
HU A RYOBI a Ryobi Limited védjegye, használata licenc keretében történik.
RO RYOBI este o marcă comercială a firmei Ryobi Limited și este utilizată sub licență.
LV RYOBI ir Ryobi Limited preču zīme un tiek izmantota saskaņa ar licenci.
LT „RYOBI“ yra „Ryobi Limited“ prekės ženklas, naudojamas pagal licencija.
ET RYOBI on ettevõtte Ryobi Limited kaubamärk, mida kasutatakse litsentsi alusel.
HR RYOBI je žig tvrtke Ryobi Limited i koristi se po licenci
SL RYÓBI je blagovna znamka družbe Ryobi Limited in se uporablja na podlagi dovoljenja.
SK RYOBI je ochranná známka spoločnosti Ryobi Limited a používa sa na základe licencie.
BG RYOBI e търговска марка на Ryobi Limited и се използва под лиценз.
UK RYOBI є товарним знаком Ryobi Limited, і використовується за ліцензією.
TR RYOBI, Ryobi Limited şirketine ait olup, lisans altında kullanılan bir ticari markadır.

Three vertical panels with diagonal striped patterns, no text or symbols present

Techtronic Industries GmbH

Max-Eyth-Straße 10,

71364 Winnenden, Germany

Techtronic Industries (UK) Ltd

Fieldhouse Lane

Marlow Bucks SL7 1HZ

UK

961479056-01
