USER MANUAL SDO10 ME

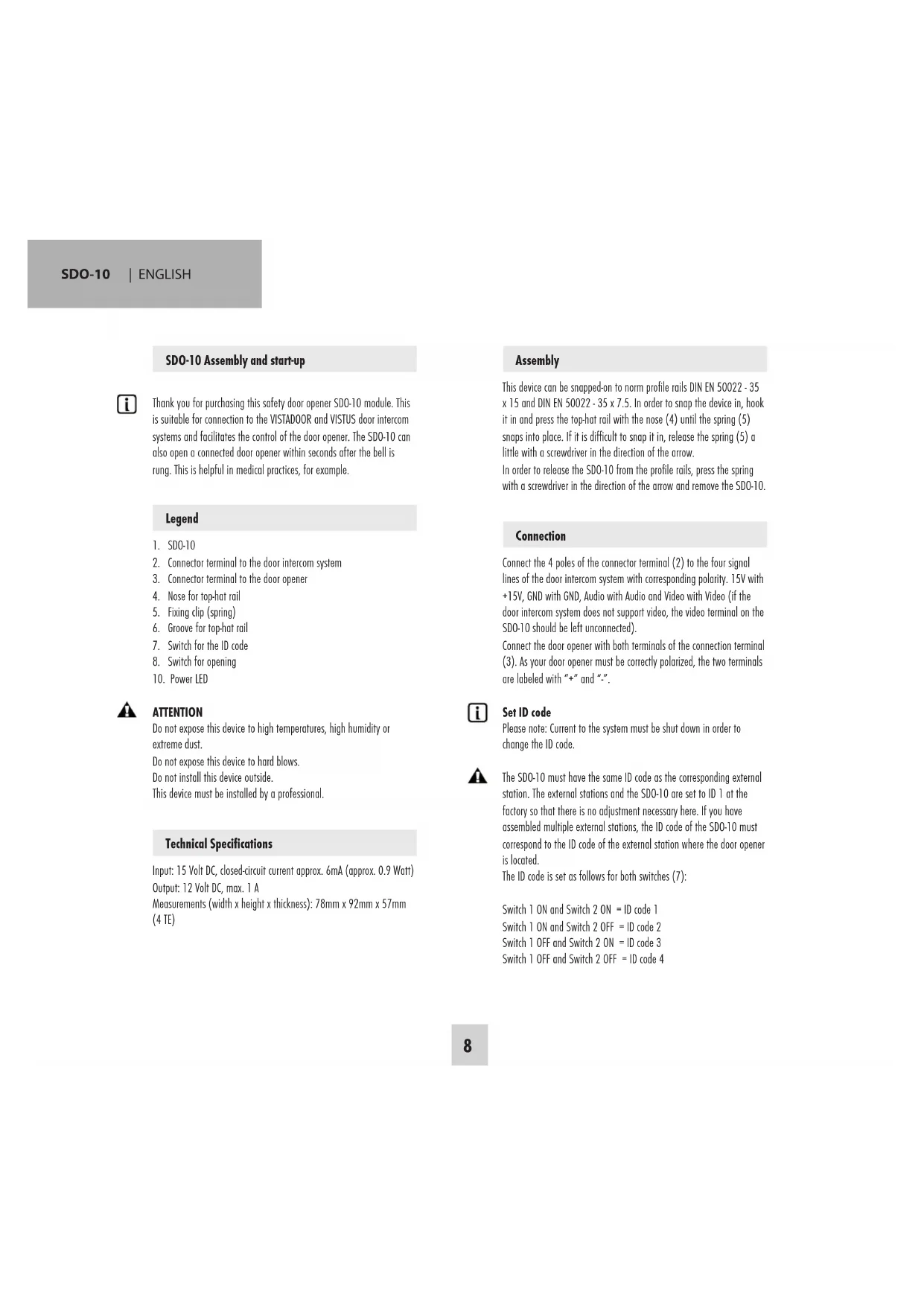

SDO-10 Assembly and start-up

Thank you for purchasing this safety door opener SDO-10 module. This is suitable for connection to the VISTADOOR and VISTUS door intercom systems and facilitates the control of the door opener. The SDO-10 can also open a connected door opener within seconds after the bell is rung. This is helpful in medical practices, for example.

Legend

1. SD0-10
2. Connector terminal to the door intercom system
3. Connector terminal to the door opener
4. Nose for top-hat rail
5. Fixing clip (spring)
6. Groove for top-hat rail
7. Switch for the ID code
8. Switch for opening
9. Power LED

ATTENTION

Do not expose this device to high temperatures, high humidity or extreme dust.

Do not expose this device to hard blows.

Do not install this device outside.

This device must be installed by a professional.

Technical Specifications

Input: 15 Volt DC, closed-circuit current approx. 6mA (approx. 0.9 Watt)
Output: 12 Volt DC, max. 1 A

Measurements (width x height x thickness): 78mm x 92mm x 57mm (4 TE)

Assembly

This device can be snapped-on to norm profile rails DIN EN 50022 - 35 x 15 and DIN EN 50022 - 35 x 7.5. In order to snap the device in, hook it in and press the top-hat rail with the nose (4) until the spring (5) snaps into place. If it is difficult to snap it in, release the spring (5) a little with a screwdriver in the direction of the arrow.

In order to release the SDO-10 from the profile rails, press the spring with a screwdriver in the direction of the arrow and remove the SDO-10.

Connection

Connect the 4 poles of the connector terminal (2) to the four signal lines of the door intercom system with corresponding polarity. 15V with +15V , GND with GND, Audio with Audio and Video with Video (if the door intercom system does not support video, the video terminal on the SD0-10 should be left unconnected).

Connect the door opener with both terminals of the connection terminal (3). As your door opener must be correctly polarized, the two terminals are labeled with "+" and "-"

Set ID code

Please note: Current to the system must be shut down in order to change the ID code.

The SDO-10 must have the same ID code as the corresponding external station. The external stations and the SDO-10 are set to ID 1 at the factory so that there is no adjustment necessary here. If you have assembled multiple external stations, the ID code of the SDO-10 must correspond to the ID code of the external station where the door opener is located.

The ID code is set as follows for both switches (7):

Switch 1 ON and Switch 2 ON = ID code 1

Switch 1 ON and Switch 2 OFF = ID code 2

Switch 1 OFF and Switch 2 ON = ID code 3

Switch 1 OFF and Switch 2 OFF = ID code 4

Set door opening time

Please note: The system must be shut down in order to change the switch time.

The time for which the door opener shall be activated is set with both switches (8). The following options are available for selection:

Switch 1 ON and Switch 2 ON = 1 second

Switch 1 ON and Switch 2 OFF = 2 seconds

Switch 1 OFF and Switch 2 ON = 5 seconds

Switch 1 OFF and Switch 2 OFF = 7 seconds

Activate automatic door opening

Please note: The system must be shut down in order to activate automatic opening.

In order to activate the door opener without having to press any buttons, the switch inside the device is switched ON. This is helpful in medical practices, for example.

The housing of the SDO-10 must be opened in order to uncover the switch. In order to do this, press in both noses on either side of the housing carefully and lift the housing cover of the SDO-10 upwards. Switch the switch ON and put the housing cover on again.

PLEASE NOTE: When this function is activated, the door opener will be opened automatically after the bell is rung at the door station. The time between when the bell is rung and the automatic opening lasts approx. 4 seconds and cannot be adjusted.

Initial set-up:

After switching on the supply voltage of the door intercom system, the SD0-10 is suitable for immediate use.

Troubleshooting

Problem:

The power LED (10) does not light up after switching the supply voltage on.

Analysis:

Test whether the operating voltage is present between the terminals +15V and GND with a voltmeter.

• The voltage is not present: Error in the wiring, test all cables to see if they are correctly connected.
  The voltage is present: Device defect - consult our customer service department.

Problem:

Door opener is not activated.

Analysis:

Using a voltmeter, and without connecting the door opener, test whether 12 Volt DC is present at the terminals for the door opener when the door opener button at the inside station is pressed and the door intercom system is activated.

• The voltage is present: The door opener must probably be connected to the correct poles. Reconnect the door opener and exchange the two connection lines.
• The voltage is not present: Test the ID code of the external station and the SD0-10. Both codes must be the same.

NOTES

The functionality of the unit can be affected by the influence of strong static, electrical or high frequency fields (discharging, mobile phones, radios, microwaves).

Cleaning and maintenance

Always disconnect mains powered units from the mains supply before cleaning (disconnect the plug). The unit housing can be cleaned using

a soapy soft cloth. Do not use any abrasive materials or chemicals. Remove dust build-up from ventilation slits using a brush and clean up using a vacuum cleaner. Do not hold the vacuum cleaner nozzle directly against the unit.

i SAFETY NOTES

The warranty will be null and void in case of damages arising from violations of these operating instructions. We are not liable for consequential damages!

We accept no liability for material damages or injuries arising from inappropriate use or violation of the safety instructions. In such cases, all warranty claims are null and void!

For reasons of safety and licensing (CE), unauthorised conversion and / or modification of the product is prohibited.

A Do not take the product apart! There is a danger of lethal electric shock!

Do not leave packaging material lying about since plastic foils and pockets and polystyrene parts etc. could be lethal toys for children.

The device is suitable only for dry interior rooms (not bathrooms and other moist places). Do not allow the device to get moist or wet. There is a danger of lethal electric shock!

In industrial institutions, the accident prevention regulations of the Association of Commercial Professional Associations for electrical installations and equipment must be observed. Please consult a specialist should you have doubts regarding the method of operation, the safety, or the connections of the device.

Handle the product with care - it is sensitive to bumps, knocks or falls even from low heights.

2 YEAR LIMITED GUARANTEE

For two years after the date of purchase, the defect-free condition of the product model and its materials is guaranteed. This guarantee is only valid when the device is used as intended and is subject to regular maintenance checks. The scope of this guarantee is limited to the repair or reinstallation of any part of the device, and is only valid if no unauthorised modifications or attempted repairs have been undertaken. Customer statutory rights are not affected by this guarantee.

Please note!

No claim can be made under guarantee in the following circumstances:

• Operational malfunction
• Empty batteries or faulty accumulator
• Erroneous coding/channel selection
• Fault through other radio installation (i.e. mobile operation)
• Unauthorised modifications / actions
  Mechanical damage
• Moisture damage
  No proof of guarantee (purchase receipt)

Claims under warranty will be invalidated in the event of damage caused by non-compliance with the operating instructions. We do not accept any responsibility for consequential damage! No liability will be accepted for material damage or personal injury caused by inappropriate operation or failure to observe the safety instructions. In such cases, the guarantee will be rendered void.

Liability limitation

The manufacturer is not liable for loss or damage of any kind including incidental or consequential damage which is the direct or indirect result of a fault to this product.

GB

These operating instruction are published by m-e GmbH modern-electronics,
