RoastMaster Heavy Duty - Barbecue Hendi - Free user manual and instructions

Product type	Gas barbecue
Brand	Hendi
Model	RoastMaster Heavy Duty
Power supply	Propane (gas bottle, recommended capacity > 10 kg)
Material	Stainless steel (burner body, grate, plate)
Cooking surface	Grate and removable plate (optional)
Ignition	Piezoelectric (integrated ignition button)
Safety	Safety thermocouple, stop valve, outdoor use only
Use	Outdoor only, on a stable horizontal surface
Maintenance	Clean after each use with a damp cloth and mild detergent; do not immerse or use high-pressure cleaner
Burner	Stainless steel, to be cleaned at least once a year by a professional
Gas hose	Max length 1.5 m; replace every 3-4 years
Regulator	Original, replace only with original part
Injector	Diameter 1.10 mm; original spare part
Available accessories	Cooking plates, grates, grease tank, legs, wheels, buttons, valves, burners (see detailed list)
Warranty	1 year, subject to proper use and maintenance according to instructions
Disposal	Comply with local regulations; dispose of packaging in appropriate containers
After-sales service	Hendi Romania: Str. 13 December 94A, Hala 14, Brașov, 500164; Tel: [phone]; Email: [e-mail]
Intended use	Food preparation only
Precautions	Do not modify the device, do not move while in operation, keep children away, turn off gas after use

Frequently Asked Questions - RoastMaster Heavy Duty Hendi

How to light the RoastMaster Heavy Duty barbecue?

Open the gas valve, turn the knob to 'normal', then press the ignition button several times until the burners ignite completely. Hold the button for 10 seconds to stabilize the flame. Make sure the upper grate is in place.

What type of gas to use for this barbecue?

Only use propane in bottles. Recommended capacity is over 10 kg. Never use other gases like butane or natural gas without conversion.

How to clean the grate and cooking plate?

Let the device cool completely. Clean the grate and plate with a damp cloth and mild detergent. For stubborn residue, soak in a cleaning agent then scrub with a wire brush or abrasive sponge. Never use a high-pressure cleaner.

What to do if the burner doesn't light?

First check that the gas bottle is not empty and the valve is open. If no spark occurs, the igniter may be defective or the electrode dirty. Clean the electrode with a brush. If the problem persists, check the thermocouple and regulator, or contact a professional.

How to safely replace the gas bottle?

Perform the replacement away from any ignition source (flames, sparks). Close the gas valve and the appliance. Unscrew the regulator from the empty bottle, then attach it to the new bottle tightening the nut well. Check for leaks with soapy water.

Can the RoastMaster barbecue be used indoors?

No, this barbecue is designed exclusively for outdoor use. Using it indoors exposes to risk of carbon monoxide poisoning and fire.

What is the lifespan of the gas hose?

The gas hose must be replaced every 3 to 4 years, even if it appears in good condition, because it becomes porous. Check the condition of the hose at least once a year. In case of cracks or damage, replace it immediately with an original hose.

How to maintain the burner?

Before each use, make sure the burner holes are not clogged. Clean the burner at least once a year by a qualified installer. Only use original spare parts for replacement.

What accessories are available for this model?

Accessories include cooking plates (Grill/Bake master), upper and lower grates, grease tank, legs, wheels, ignition buttons, gas valves and burners. Refer to the article list for part numbers.

How to dispose of the barbecue at the end of its life?

Comply with local regulations. Dispose of packaging (plastic, cardboard) in recycling bins. For the device itself, contact an approved waste disposal center or the municipal waste collection service.

USER MANUAL RoastMaster Heavy Duty Hendi

You should read this user manual carefully before using the appliance.

Thank you for purchasing this Hendi appliance. Please read these user instructions carefully before connecting the appliance in order to prevent damage due to incorrect use. Read the safety instructions in particular very carefully.

Safety Regulations

• Only use this appliance outdoors.
• Incorrect operation and improper use of the appliance can seriously damage the appliance and injure users.
• The appliance may only be used for the purpose it was intended and designed for. The manufacturer is not liable for any damage caused by incorrect operation and improper use.
• Never try to open the casing of the appliance yourself.
• Do not insert any objects in the casing of the appliance.
• Do not use the appliance after it has fallen or is damaged in any other way. Have it checked and repaired, if necessary, by a certified repair company.
• Do not try to repair the appliance yourself. This could give rise to life-threatening situations.
• Always keep an eye on the appliance when in use.
• Children do not understand that incorrect use of appliances can be dangerous. Therefore, never let children use appliances without supervision.
• Do not use any extra devices that are not supplied along with the appliance.
• The use of the installation must comply with the applicable national and local regulations.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• This appliance is intended solely for preparing food.
• Gas and electrical installations should be checked at least once a year.
• Note: the griddle is hot. Let it cool down before touching or removing it.
• We recommend to use only gas cylinders with a capacity of more than 10 kilo's.

General instructions

• Necessary changes may only be done by a qualified technician
• Use only the supplied pressure regulator.
• This appliance is only suited for propane gas.
• Check that there are no kinks in the gas hose.
• The length of the gas hose may not exceed 1,5 meters.
• Keep the appliance away from (easily) flammable material.
• Do not move the gas appliance during use.
  Always close the tap on the gas cylinder if the appliance is no longer being used.

• The user must not change parts of the appliance that are sealed by the manufacturer.
  Install the appliance as level as possible.

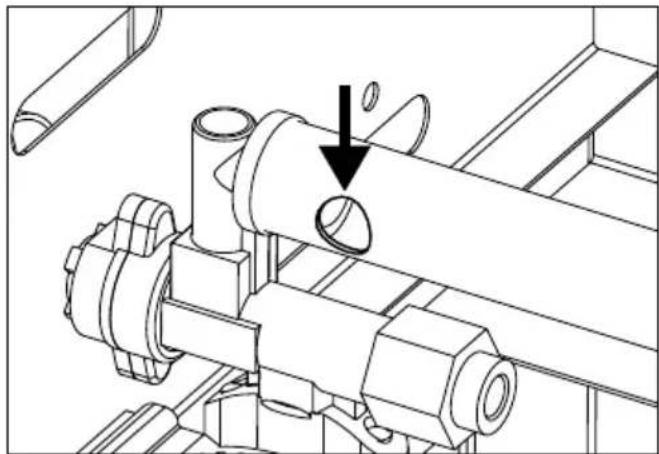

• Before each use, the user must always check whether the holes [pictured below] of the burner are clear of obstructions and not blocked.

• Replacement of the gas bottle must be performed outside the range of any sources of ignition.

WARNING: Some parts of the appliance can become hot. Keep children away from the gas griddle.

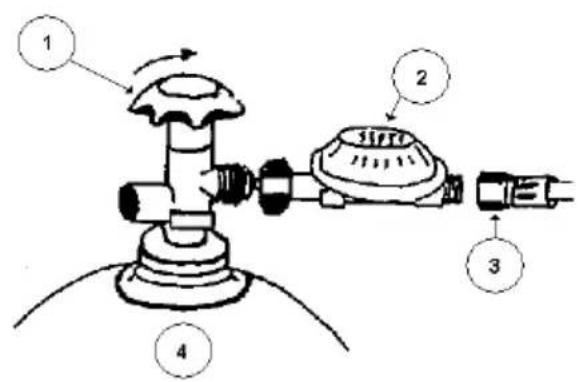

Connecting the gas bottle

1 = main tap
2 = pressure regulator
3 = gas hose
4 = gas bottle

Attach the pressure regulator to the gas bottle using the large brass nut. Always ensure that the rubber-sealing washer is present in the nut. [NB. This rubber washer is not required for UK-type pressure regulators]. Tighten the nut well. Note that the nut has a left-hand thread.

Check the connections for leaks using a soap and water solution.

Igniting the gas griddle

• Place the grill grid.
• Turn the knob to the "big flame" position. Keep the knob pressed and press the ignition button a few times until the burner is burning complete

ly. Keep the knob pressed in for approximately a further 10 seconds. The burner will continue to burn.

Turning off the gas griddle

• Turn the knob completely to the right. The burner will go off.

Note! After turning off the burners, wait approximately 10 minutes before reigning the burners. After turning off the burners, always turn off the main tap on the gas cylinder and the tap on the appliance!

Cleaning and maintenance

• Let the appliance cool down before cleaning
• Beware: Never immerse the appliance in water or any other liquid!
• Clean the outside of the appliance with a damp cloth (water with mild detergent).
• The grid and/or baking tray of the grill should be cleaned regularly. Let it soak in cleaning agent first, then use an abrasive material like a scourer or wire brush. If you use special barbecue cleaner, follow the instructions on the packaging.

• Clean the ventilation slots (if applicable) with a vacuum cleaner.

• Keep inside after use.

• Let specialised personnel clean at least once a year the burner.
• Never use a high pressure cleaner.
• Maintenance after every use: Clean the griddle. Clean the grease holder.
• If the injector must be replaced, replace it only with an original spare part acquired from the manufacturer. The diameter of the injector is noted on the injector: 1.10 ~mm .

Fault

Fault Possible cause Fault	lt Possible cause
Burner will not ignite: Defective igniter Burner does not burn fully: Gas cylinder is (almost) empty
Defective thermocouple
Dirty sparking plug Kink in gas hose
Defective pressure regulator
Empty gas cylinder
Kink in gas hose Defective gas tap
Clogged jet Main jet clogged

Note

• It is to be recommended to replace the gas hose after 3 or 4 years (see date shown on hose). The gas hose becomes porous after a time. Also check the hose for leaks on a yearly basis at least. Even if the expiration date has not been expired yet, you must check the condition of the hose always. In case of damage/cracks you have to replace the hose immediately. Please make sure that you comply with all local health and safety regulations (e.g. fire code).

• Pressure regulators have a default maximum life span as indicated by the date printed on the regulator, but please note that local health and safety regulations may overrule this.

• Only replace the pressure regulator with one provided by the manufacturer.
• Consult the local regulations, these may differ.
• Always store gas bottles upright, in use as well as when empty.

Accessories

Description Article no.
Baking tray Grill/Bake master Mini 154687
Baking tray Grill/Bake master Maxi/ Quattro 154656
Upper grid Grill master Mini 154663
Upper grid Grill master Maxi/ Quattro 154632
Lower grid Grill master Mini 154670
Lower grid Grill master Maxi/Quattro 154649
Grease holder Grill master Mini 154748
Grease holder Grill master Maxi/ Quattro 154755
Leg Grill master Mini 154823
Leg Grill master Maxi 154694
Leg Grill master Quattro 928226
Wheel Quattro 928233
Ignition button Grill/Bake master Mini/Maxi/Quattro
button Quattro 928240
Gas tap Grill/Bake master Mini / Maxi/Quattro	154724
Burner Grill/Bake master Mini / Maxi / Quattro	154731

EN

Important!

When you are using the baking tray for the Grillmaster Mini / Maxi / Quattro, you must remove the upper & lower griddle and the grease holder. When you don't do this, there will be such an amount of heat inside the appliance that this heat will cause damage.

Warranty

Any defect affecting the functionality of the appliance that becomes apparent within one year after purchase will be corrected by free repair or replacement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appliance is claimed under warranty, state where and

when it was bought and include proof of purchase (f.e. receipt).

In line with our policy of continuous product development we reserve the right to change the product, packaging and documentation specifications without notice.

Discarding & Environment

At the end of the life of the appliance, please dispose of the appliance according to the regulations and guidelines applicable at the time.

Throw packing materials like plastic and boxes in the appropriate containers.
