Product type	Ice cream maker (sorbet maker)
Brand	BEEM
Model	Sorbet King
Dimensions (H x W x D)	170 x 370 x 215 mm
Net weight	Approximately 1.42 kg
Power supply	220-240 V ~, 50-60 Hz
Rated power	150 W
Protection class	II
Protection type	IP20
Operating temperature	10 to 40 °C
Main functions	Conical grater for sorbets, coarse grater for decorations, pusher, splash guard
Included accessories	2 graters (conical and coarse), adapter, pusher, grater holder, splash guard, 10 popsicle molds, instruction manual
Materials	Plastic and stainless steel (blades)
Cleaning and maintenance	Motor unit cleanable with damp cloth; other parts dishwasher safe
Safety	On/Off button held pressed; automatic stop when released; do not immerse; do not open the housing
Available spare parts	Kit 1 (chute, housing, guard), Kit 2 (pusher, holder), grater set, popsicle molds
Warranty	Legal warranty + extended manufacturer warranty on certain products (see BEEM website)

Frequently Asked Questions - Sorbet King BEEM

How to prepare fruits for the Sorbet King?

Cut the fruits into pieces suitable for the filling chute, then place them in the freezer for at least 12 hours before use. For a creamy consistency, let thaw for 10 minutes at room temperature or 20 seconds in the microwave.

Which grater to use for a sorbet?

Use the conical grater (white) to grate frozen fruits and obtain a sorbet. The coarse grater (black) is for chocolate, nuts, or decoration.

The appliance does not start, what to do?

Check that the plug is properly connected and the socket circuit breaker is on. If the problem persists, reduce the number of devices on the same circuit. If nothing works, contact customer service.

Can I wash the parts in the dishwasher?

Yes, all parts except the motor unit are dishwasher safe. The motor unit is cleaned with a damp cloth. Never immerse the motor in water.

How to correctly mount the grater?

Insert the grater into the housing until it stops, then turn it clockwise until it engages. To remove, turn counterclockwise. Caution: the blades are very sharp, hold the grater only by the plastic parts.

What is the power of the appliance?

The rated power is 150 W, with a voltage of 220-240 V ~ and a frequency of 50-60 Hz.

Can I make sorbets without banana?

Yes, frozen fruits alone yield a sorbet. Adding frozen ripe bananas makes the texture creamier and resembles Italian ice cream.

How to store the appliance after use?

Clean and dry all parts. Store the graters in the holder, close with the pusher, then assemble the splash guard. Keep the set in a dry, clean, and frost-free place.

What accessories are included?

The appliance is supplied with: 2 graters (conical and coarse), an adapter, a pusher, a grater holder, a splash guard, 10 popsicle molds and the instruction manual.

Where to find spare parts?

Spare parts are available under reference: Kit 1 (900 690 001) for chute, housing and guard; Kit 2 (900 690 011) for pusher and holder; grater set (900 690 016); popsicle molds (900 690 026). Visit the website www.beem.de to order.

USER MANUAL Sorbet King BEEM

Elements of Lifestyle

Bedienungsanleitung

User Manual

Mode d'emploi

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Labeled diagram of a food appliance with numbered parts for identification

Inhalt

General instructions ..... 15

Safety instructions ..... 17

Startup 19

Appliance description 20

Operating 21

Cleaning and care 22

Storage 23

Spare parts and other accessories .. 23

Technical data 24

Troubleshooting 24

Dear Customer,

Before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care.

Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading.

Keep this user manual in a safe place and pass it on to any future owners together with the appliance.

General instructions

Copyright

This document is copyrighted. Any duplication or reprinting, in whole or in part, and the reproduction of the illustrations, even in modified form, is only permitted with the written approval of the manufacturer.

Notes on environmental protection

The packaging materials used can be recycled. When no longer required, dispose of the packaging materials according to local environmental regulations.

This product may not be disposed of in the domestic refuse within the European Union. Dispose of the appliance via communal collection points.

Warranty / Guarantee

In addition to the statutory warranty obligation, BEEM also grants an extended manufacturer's guarantee for some products.

Provided this is granted, the corresponding details for each product can be found either on the product-specific packaging, advertising material or on the BEEM website.

Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages

Symbols used

DANGER

This indicates an imminent hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid danger.

WARNING

This indicates a possible hazardous situation, which could lead to severe physical injury or death.

Follow these instructions to avoid ▶ danger.

CAUTION

This indicates a potentially hazardous situation, which could lead to minor injuries or material damage.

Follow these instructions to avoid ▶ danger.

NOTE

A note contains additional information to simplify the use of the appliance.

Intended use

This appliance is intended primarily for non-commercial use in closed rooms for making sorbet ice cream in normal household quantities.

Any use other than previously stated is considered as improper use.

WARNING

If not used for its intended purpose and/or used in any other way, the appliance may be or become a source of danger.

Use the appliance only for its intended purpose.

Observe the procedures described in this user manual.

No claims of any kind will be accepted for damage resulting from use of the appliance for other than its intended purpose.

The risk must be borne solely by the user.

Declaration of Conformity

BEEM hereby declares that this appliance complies with the fundamental requirements and other relevant provisions of 2006/95/EC and 2004/108/EC and und 2009/125/EC directives.

Limitation of liability

We assume no liability for damage or follow-up damage in the case of:

failure to observe the instructions in ■ the user manual,

use for other than the intended pur- pose,

improper or unsuitable handling, ■

incorrectly performed repairs, ■

unauthorised modifications, ■

use of non-approved parts or spare ■ parts,

use of unsuitable supplementary or accessory parts.

Safety instructions

This appliance is not intended for use by persons (including children) with restricted physical, sensory or mental capabilities or with insufficient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on the use of the appliance from such a person.

Children must be supervised to ensure that they do not play with the appli- ance.

Keep the appliance out of the reach of children.

Inspect the appliance for visible signs of damage before use. Do not use a damaged appliance.

Only allow repairs to the appliance ■ to be carried out by an authorised specialist or by the works customer service; this particularly applies to replacing a damaged connecting cable. Unqualified repairs can lead to considerable danger for the user. This will also invalidate the warranty or guarantee.

Repairs to the appliance during the ■ guarantee period may only be carried out by service centres authorised by the manufacturer, otherwise the warranty or guarantee will become invalid in the event of damage or subsequent damage.

Defective parts may only be replaced with original spare parts. Only original spare parts guarantee that the safety requirements are met.

DANGER

Risk of suffocation!

Never play with packaging material. Risk of suffocation.

Danger from electric current!

Pull the plug out of the mains socket, if you are not using the appliance, – before you mount or remove the – shredder inserts, if a malfunction occurs during operation, before you clean the appliance.

Do not use the appliance if the mains cable or mains plug is damaged.

Do not open the housing of the appliance. Danger from electric current if live connections are touched and/or the electrical and mechanical configuration is changed.

▶ Never immerse the appliance or the mains plug in water or other liquids.

WARNING

Do not lift or move the appliance ▶ when it is in operation.

Risk of injury from rotating parts!

Always disconnect the mains plug before assembling, disassembling, cleaning or storing the appliance.

Always use the pusher supplied ▶ when pushing in.

Never insert your fingers or objects into the feed shaft or the shredder insert.

After switching off, wait until the appliance has completely stopped.

Danger from sharp slicers!

Do not touch the slicers of the ▶ shredder inserts when you mount or clean the shredder inserts. Only grip the shredder inserts with the plastic parts.

CAUTION

Only use the accessories supplied. Use of other parts can lead to personal injury or damage to property.

Do not pull the connecting cable ▶ to remove the plug from the mains socket.

When using for prolonged periods ▶ of time, allow the appliance to cool down occasionally to avoid overheating.

Do not process stones, pips, sticks or peel with the appliance

CAUTION

Do not use sharp objects or abrasive cleaning agents to clean the surfaces.

Requirements for the place of use

For safe and trouble-free operation of the appliance, the place of operation must satisfy the following requirements:

Place the appliance on a dry, flat, waterproof and heat-resistant surface.

Do not install the appliance in a hot, ■ wet or very humid environment.

The surface finishes on furniture may contain substances that can be detrimental to the feet of the appliance. If necessary, place a mat under the feet of the appliance.

■The mains socket must be easily accessible and allow fast disconnection in the event of an emergency.

Electrical connection

For safe and trouble-free operation of the appliance, the following instructions on the electrical connection must be observed:

Before connecting the appliance, ■ compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer.

The mains socket must be protected by at least a 10 A automatic circuit breaker.

Ensure that the mains cable is undamaged and is not laid over hot surfaces or sharp edges.

The connecting cable must not be ■ strained or bent.

Always unwind the mains cable completely before connecting the appliance to the mains socket.

The electrical safety of the appliance is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualified electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor.

Startup

Unpacking

Remove the appliance, all accessory parts and the user manual from the box.

Remove all packaging materials and protective foils from the product and the accessories before using it for the first time.

NOTE

Do not remove the rating plate or any warning signs on the appliance. If possible, keep the original packaging during the guarantee period in order to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invalidate the warranty or guarantee.

Checking the delivery contents

Check for visible signs of damage or missing items.

Report incomplete or damaged contents to your supplier immediately.

Before using for the first time

Clean the appliance and the accessories as described in the section Cleaning and care (page 22).

Before processing, put all fruit for making sorbet into the freezer compartment of the fridge for at least 12 hours.

Before freezing, cut the ingredients ◆ into pieces to fit into the feed shaft.

Appliance description

Appliance overview (see left fold-out page)

Drive unit1

Moulds for lollipop shapes10

Mounting for attachment2

11 On/Off button

Feed shaft3

Handle12

Pusher4

13 User manual

Mounting for shredder insert5

(not illustrated)

Crown grater6

Coarse rasper7

Shredder insert holder8

Splash guard9

Application overview

The following table helps you to select the right shredder insert:

Shredder insert Application

Crown grater (white) (6) For grating frozen fruit for sorbets.

Coarse rasper (black) (7)

For rasping chocolate, nuts and pieces ■ of fruit for larger pieces or garnishing the sorbet.

Operating

Insert/remove attachment (see image A)

Insert the attachment into the fix-◆ ture (2) so that the feed shaft (3) is situated above the symbol on the drive unit.

Turn the attachment anticlockwise until the feed shaft (3) is situated above the symbol on the drive unit. The feed shaft snaps in audibly.

To remove, turn the attachment anticlockwise until the feed shaft (3) is situated above the symbol on the drive unit.

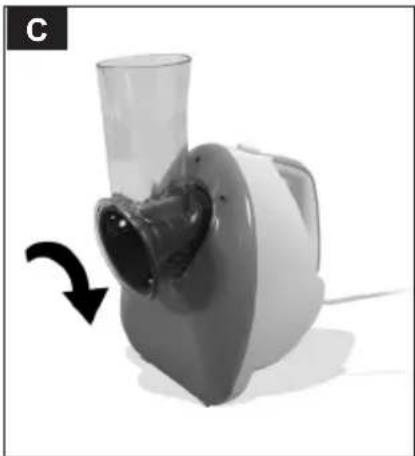

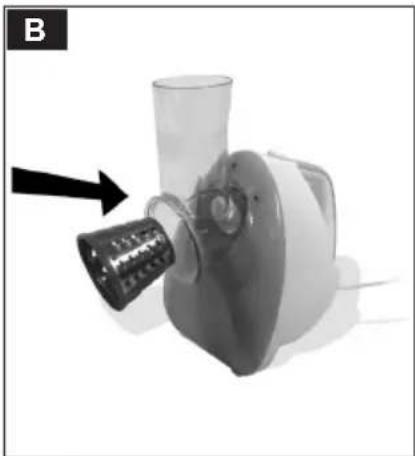

Inserting/removing the shredder insert (see images B and C)

Push the desired shredder insert into the mounting until it stops (5).

Turn the shredder insert anticlockwise until it stops. The shredder insert does not snap in but is pulled inwards and fixed into place during operation.

To remove, simply turn the shredder ♦ insert anticlockwise.

WARNING

The slicers are very sharp!

Only grip the shredder insert at the plastic parts.

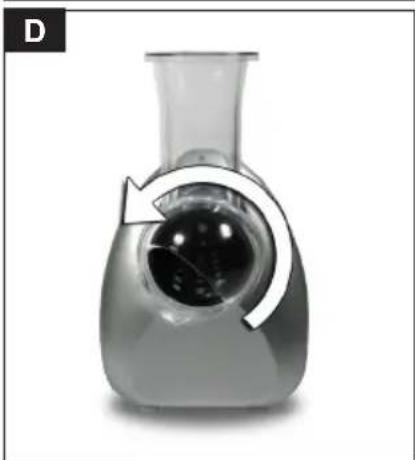

Inserting/removing the splash guard (see image D)

To insert the splash guard (9), proceed as follows:

Insert the splash guard locking elements into the notches of the appliance.

Turn the splash guard anticlockwise ◆ to lock it.

NOTE

After locking, the spout points downwards.

Using the appliance

Insert the attachment first and then ◆ the desired grating insert followed by the splash guard.

◆insert the plug into the mains socket.
◆Press the On/Off button once or twice to fix the shredder insert into place.
◆ Put a suitable container under the spout.
Before freezing, cut the ingredients into pieces to fit into the feed shaft.
leave the ingredients at room temperature for approx. 10 minutes or defrost in the microwave oven for approx. 20 seconds to ensure that the sorbet has a creamy consistence.

Press and hold down the On/Off button.

Remove the pusher.
◆dd the ingredients into the feed shaft
◆ insert the pusher into the feed shaft and press it downwards lightly. This allows the ingredients to be pressed into the shredder insert.

NOTE

The straight surfaces of the pusher point forwards, the rounded point backwards.

Using fully ripe bananas in the base mixture of the sorbet produces the soft ice cream character.

Recipe ideas

Frozen fruit serves as the basis for the sorbet and can be freely combined to taste. Those who prefer it more creamy should also add frozen bananas. However, the fruity taste is more intensive without bananas.

NOTE

Frozen fruit must be defrosted slightly before using:

approx. 10 minutes at room temperature or

approx. 20 seconds in a microwave oven, depending on the amount of fruit and power of the microwave oven.

Principles of preparation

Shred the frozen and slightly defrosted fruit in the Sorbet King, stir well in a bowl and if necessary, add a little aroma or sweeten with icing sugar.

Garnish with whole pieces of fruit, grated chocolate, fruit or chocolate sauce and serve immediately.

Recipe suggestions

Chocolate-cherry sorbet:

2 frozen bananas ■

100 g frozen sweet cherries ■

50 g dark chocolate ■

Berry sorbet:

1 frozen banana

200 g frozen berries (e.g., strawberries, raspberries)

Chocolate sorbet:

2 frozen bananas

100 g dark chocolate

Fruit sorbet:

150 g frozen pineapple pieces

150 g frozen mango pieces

Garnish with grated chocolate

After using

Release the On/Off button and wait ◆ until the motor stops.

Pull the plug out of the mains socket.

Clean the appliance and the accessories as described in the section Cleaning and care (page 22).

Cleaning and care

Before beginning any work, pay attention to the safety instructions in the section Safety instructions (page 17)!

Cleaning the appliance

Clean the appliance after each use.

Pull the plug out of the mains socket.

Remove the splash guard and the shredder insert as described in the section Inserting/removing the shredder insert (page 21).

WARNING

The slicers are very sharp!

Only grip the shredder insert at the plastic parts.

Remove the attachment as described in the section Inserting/removing the attachment (page 21).

Clean the drive unit (1) with a damp ◆ cloth.

Clean the other parts in hot water and a little washing up liquid.

NOTE

With the exception of the drive unit, all parts can be cleaned in the dishwasher.

Storage

If you do not intend to use the appliance for a longer period of time, clean it as described in the section Cleaning and care (page 22).

To save space, the grating inserts can be stored in the grating insert holder (8).

Put the grating inserts into the grating insert holder (8).

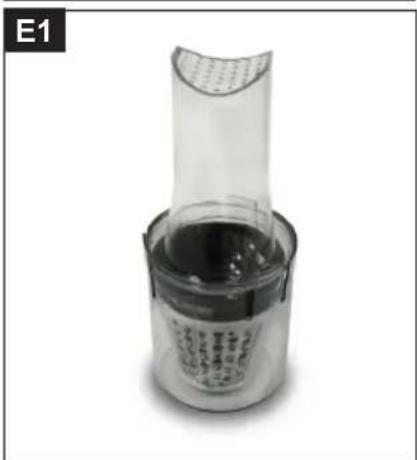

Close the grating insert holder with ◆ the pusher until it snaps in (see image E1).

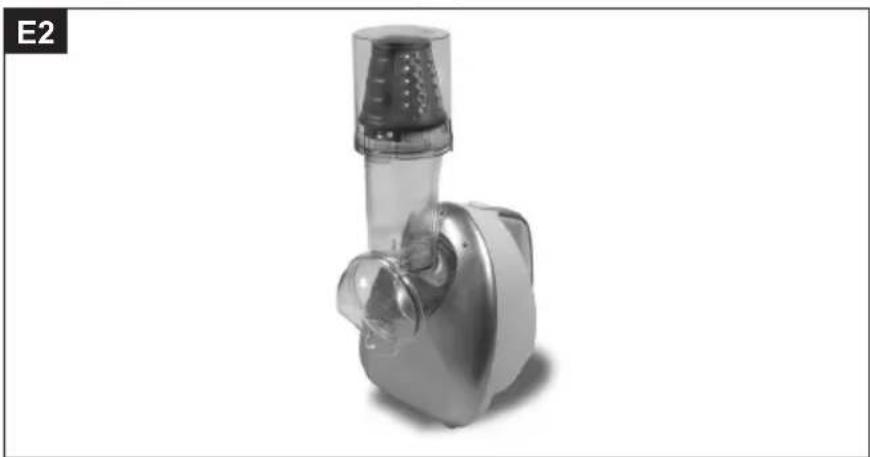

Insert the pusher into the feed shaft ◆ (see image E2).

Insert the splash guard as described in the section Inserting/removing the splash guard (page 21).

Store the appliance and all accessory parts at a dry, clean and frost-free location which is protected against direct sunlight.

Spare parts and other accessories

Item*	Article No. Designation
3, 5, 9	900 690 001	Spare parts Set 1, consisting of:Feed shaft, ■Mounting for■ shredder insert,Splash guard. ■
4, 8	900 690 011	Spare parts Set 2, consisting of:■Pusher,■Shredder insert holder.
6, 7	900 690 016	Grater set
10	900 690 026	Moulds for lollipop shapes

* numbering according to the description of the appliance

Technical data

Model	Sorbet KingIce cream machine
Type number M14.002
Dimensions (W x H x D) 170 x 370 x 215 mm
Approx. net weight. 1.42 kg
Operating voltage 220 - 240 V ~
Mains frequency 50 - 60 Hz
Nominal power 150 W
Operating temperature 10 - 40 °C
Protection class II
Type of protection IP20

Troubleshooting

The following table will help you locate and eliminate minor faults:

Fault Possible cause	Remedy
The appliance does not function	Plug not inserted into socket. Insert plug.
	Automatic circuit breaker in electrical distribution board tripped.	Switch on the automatic circuit breaker again.
The automatic circuit breaker in the electrical distribution board trips.	Too many appliances connected to the same power circuit.	Reduce the number of appliances on the power circuit.
	No fault detected. Contact customer service.
The shredder insert falls out.	The shredder insert was not correctly inserted.	Turn the shredder insert clockwise and switch on the appliance briefly as described in the section Using the appliance (page 21).

NOTE

▶ If you cannot resolve the problem with the steps described above, please contact customer service.

Sommaire

Two grayscale illustrations of a hairdryer device, one showing a glass tube being turned by a black arrow (no text or symbols)

Close-up of a mechanical device with a glass bowl and black arrow pointing to a component (no visible text or symbols)

Close-up of a white and gray industrial blender with a black arrow indicating rotation (no text or symbols)

Laboratory flask with a circular glass lid and curved arrow indicating rotation (no text or symbols)

Close-up of a transparent cylindrical container with dark liquid, labeled 'E1' in the corner (no other text or symbols visible)

Close-up of a metallic mechanical device with a transparent top and base, labeled E2 in the corner (no text or symbols on the device itself)

Elements of Lifestyle

BEEM GmbH

Subject to printing error

For service in other countries contact your local dealer.
