USER MANUAL GDF570SGFBB GE

Safety Instructions 2 - 3

Operating Instructions

Care and Cleaning 22, 23

Getting Started 4-7

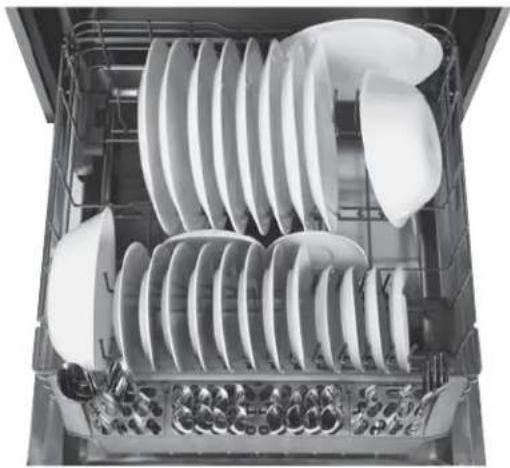

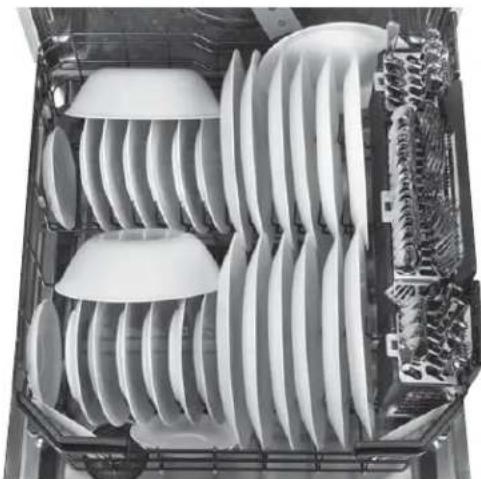

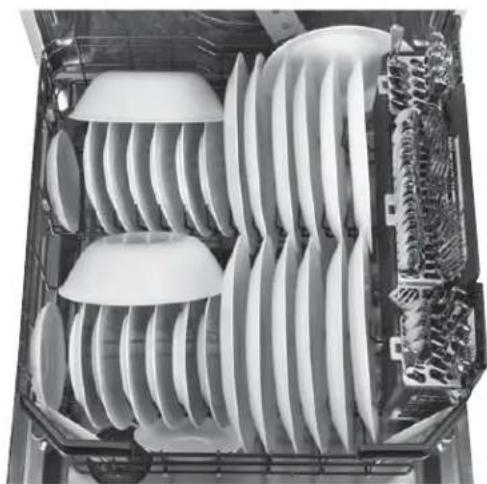

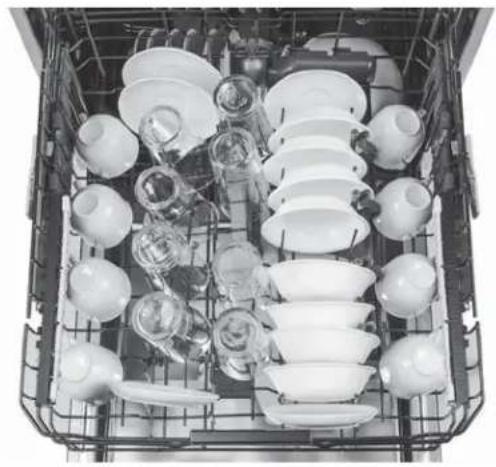

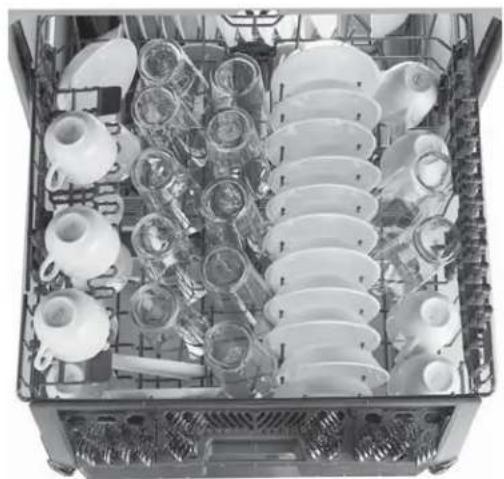

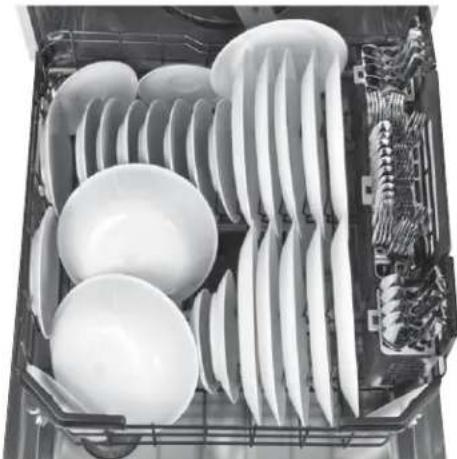

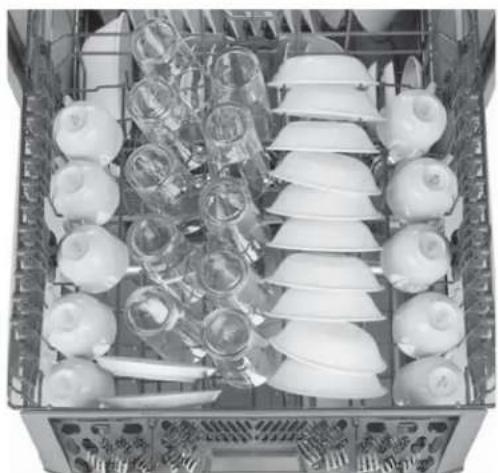

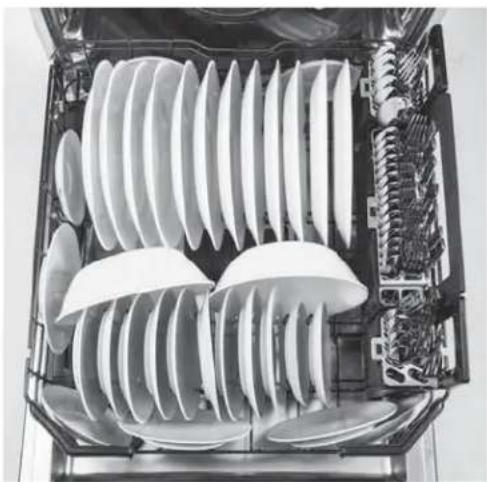

Loading the Dishwasher ..... 10-21

Using the Dishwasher 8-9

Troubleshooting Tips.... 24-26

Consumer Support

Consumer Support...... Back Cover

Warranty 27

Owner's Manual

Dishwashers

CDT 725-765 Series

DDT 575 Series

GDF 570 Series

GDT 580-740 Series

PDT 750-760 Series

Includes GE®, GE Profile™ Series

and GE Café™ Series products

Lave-vaisselle

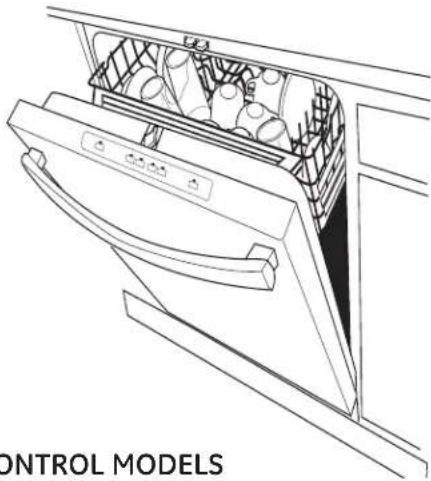

Line drawing of a front control module with visible dish, wheels, and door (no text or symbols)

Line drawing of a kitchen appliance with multiple compartments and control buttons (no text or symbols)

FRONT CONTROL MODELS TOP CONTROL MODELS

Write the model and serial numbers here:

Model # ____

Serial # ____

You can find them on the tub wall, just inside the door.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire, explosion, electric shock, and to prevent property damage, personal injury, or death.

WARNING! WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two or more weeks. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two or more weeks, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke, use an open flame, or use the appliance during this process.

WARNING! PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our Website at GEAppliances.com. In Canada, visit www.GEAppliances.ca.

■ Connect the dishwasher/appliance to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.
■ Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
■ Dispose of discarded appliances and shipping or packing material properly.

■ Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.
■ Use only cord kit WX09X70910 or hard-wire to building electrical. Failure to follow this instruction, could result in risk of fire and personal injury.
■ To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance.

NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

WARNING! When using your dishwasher, follow basic precautions, including the following:

■ Use this appliance only for its intended purpose as described in this Owner's Manual.
■ Use only detergents or wetting agents recommended for use in a dishwasher and keep them out of reach of children. Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.
- Locate sharp items so that they are not likely to damage the door seal.
- Load sharp knives with the handles up to reduce the risk of cut-type injuries.
- Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■ Do not touch the heating element during or immediately after use.
■ Do not operate your dishwasher unless all enclosure panels are properly in place.
■ Do not tamper with controls.
■ Do not abuse, sit on or stand on the door or dish rack of the dishwasher.
■ To reduce the risk of injury, do not allow children to play with, on or inside this appliance at any time.
■ Do not store or use combustible materials including gasoline or other flammable liquids or vapors in the vicinity of this or any other appliance.

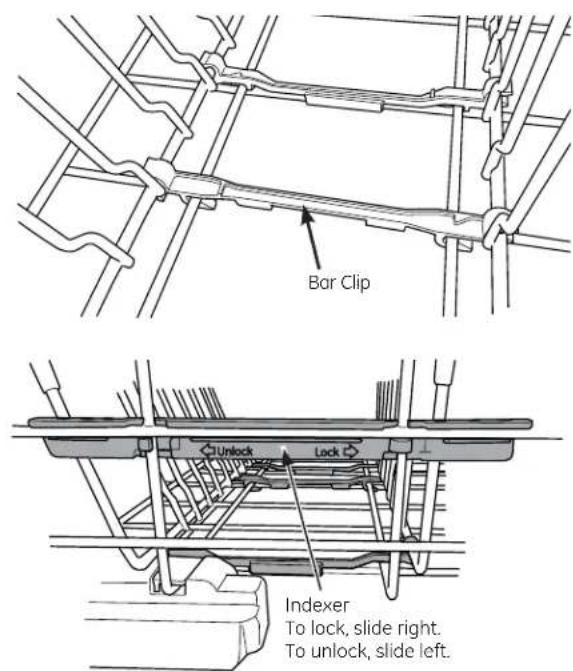

■ Small parts, such as rack clips and filter retaining posts, can be a choke hazard to small children if removed from the dishwasher. Keep out of reach of small children.

⚠ WARNING! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous...even if they will sit for "just a few days." If you are getting rid of your dishwasher, please follow the instructions below to help prevent accidents.

■ Do not allow children to play with, on, or inside this or any discarded appliance.
■ Take off the door of the washing compartment or remove the latch by removing the two screws from the latch receiver inside the tub (as shown).

Two screws

CAUTION: To prevent minor injury and property damage

■ During or after wash cycle, contents may be hot to the touch. Use care before handling.
■ Close supervision is necessary if this appliance is used by or near children. Do not allow children to play around the dishwasher when closing the door, closing the upper rack, or while vertically adjusting the upper rack due to the possibility of small fingers being pinched.

■ Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to the dishwasher and discoloration or staining of the dishwasher may result.

- Load light-weight, plastic items so they do not become dislodged and drop to the bottom of the dishwasher—they might come into contact with the heating element and be damaged.

⚠️ CAUTION: ELECTRICAL REQUIREMENTS

This appliance must be supplied with 120V, 60 Hz, and connected to an individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time-delay fuse.
■ If the electric supply provided does not meet the above specifications, it is recommended that a licensed electrician install an approved outlet.

- Your dishwasher circuit should not be used for any other appliance while the dishwasher is in operation as the dishwasher requires the full capacity of the circuit.

▲NOTICE

■ If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use.
■ If you choose to turn the wall switch off between wash cycles, allow 5-10 seconds after turning the switch on before touching Start to allow the control to initialize.

■ Use only powder, Cascade® All-in-1 ActionPacs™, liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. Cascade® All-in-1 ActionPacs™ Automatic Dishwashing Detergent, and Cascade® Rinse Aid™ rinse agents have been approved for use in all GE dishwashers.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

Getting started!

Features and appearance will vary throughout this manual

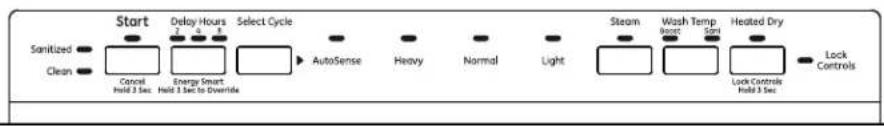

GDF570

Start Sanitized Clean Cancel Hold 3 Sec Delay Hours 4.5 Select Cycle AutoSense Heavy Normal Light Steam Wash Temp Stand Heated Dry Lock Controls Hold 3 Sec Lock Controls

DDT575, GDT580, GDT680

GDT720

Low Rinse Aid

GDT740, PDT750, PDT760

CDT725

CDT765

1 Load Dishwasher

For best dishwashing results, follow the loading guidelines found in the Loading the dishwasher section. No pre-rinsing of normal food soil is required. Scrape off hard soils, including bones, toothpicks, skins, and seeds. Remove leafy vegetables, meat trimmings, and excessive amounts of grease or oil.

2 Add Detergent

Add needed amount of detergent to the detergent dispenser. Use a detergent such as Cascade® Platinum Pacs. See Detergent Dispenser in the Using the dishwasher section.

3 Add Rinse Agent

Add Rinse Agent to the rinse agent dispenser. See Use a Rinse Agent in the Using the dishwasher section.

4

Select Cycle

Press the Select Cycle button for the desired wash cycle. On some models, the light next to the Select Cycle button will be lit to indicate which wash cycle has been selected. On other models, pressing the Select Cycle button will show various cycles in the display window. Press the button until the desired cycle is shown.

NOTE: Actual cycle times vary based on soil level, water temperature, and options selected.

The cycle may be selected with the door in the open position. The cycle will not start until after the door is closed and Start selected within 10 seconds.

AutoSense This cycle automatically senses the soil level and adjusts the wash cycle accordingly. *Time range: 1 hour 50 minutes - 2 hours 10 minutes.

Heavy Everyday dishes are safe to be used in this cycle. *Time: 2 hours 31 minutes.
Normal was used to rate the energy efficiency of this dishwasher.	This cycle is meant for daily, regular, or typical use to completely wash a full load of normally soiled dishes and is designed to conserve both water and energy. *Time range: 1 hour 15 minutes - 1 hour 50 minutes. NOTE: Normal
Light	This cycle is for light to medium soiled dishes. It is safe for china and crystal. *Time: 50 minutes.
Rinse (on some models)	For rinsing partial loads that will be washed later. Do not use detergent. Detergent is not dispensed during the rinse cycle. *Time: 16 minutes.
Express (on some models)	This cycle will quickly wash lightly soiled dishes. *Time: 32 minutes. For faster drying, select Power Dry. The final rinse temperature will be increased. Power Dry will add 15 minutes to the cycle time. When the Clean light comes on, open the door, pull the racks out, and the dishes will “flash” dry in approximately five minutes.

eWash This cycle will efficiently wash dishes using about 2 gallons of water and .8 KWhr. Selecting Power Dry with this cycle (on some models) adds an energy efficient 1 1/2 hour dry period. Drying is accomplished with an efficient 2 watt fan. *Time: 1 hour 3 minutes.

*Washing time only. Does not include drying time, Auto Hot Start, or options. NOTE: If the incoming water temperature is too low, the Auto Hot Start feature may add up to 11 minutes of additional time.

5 Select Options The light by the select

Normal Temp(on some models)	This option is for normally soiled dishes, optimizes wash performance while conserving energy.
Wash TempBoost orBoost Temp	This option increases the temperature to help clean heavily soiled dishes and may increase the overall cycle time.Option may be turnedOn or Offduring the wash cycle. This option will also improve dry performance on the Normalcycle.
Wash TempSani orSanitizeTempfor soil removal	This option raises the water temperature in the final rinse to sanitize your dishware. The cycle length will vary depending on the temperature of your inlet water.NOTE: This option is monitored for sanitization requirements. If the cycle is interrupted during or after the main wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved, the sanitizing conditions may not be met. In these cases, the Sanitized or Cycle Sanitized light will not illuminate at the end of the cycle. Utilizing this option will modify the cycle to meet the requirements of Section 6, NSF 184 and sanitization efficacy.NOTE: NSF certified residential dishwashers are not intended for licensed food establishments.
Heated orPower Dry Off	Shuts off the drying option. Dishes air dry naturally and energy is saved. Open the dishwasher door to speed drying.
Heated orPower Dry Onrinse portion of	Turns on the option for faster drying. This option may add up to 65 minutes to the cycle time.On models with the hidden heater feature, this option boosts the temperature of the dishwasher during the final the cycle then utilizes a fan to circulate air to dry the dishes. This option is not available with the Rinsecycle.
Steam(Prewash)(on some models)	For use with heavily soiled and/or dried-on, baked-on soils. This optionMUSTbe selectedPRIORto starting the cycle. TheSteamoption adds up to 30 minutes to the cycle time. This option is available withHeavy, AutoSense, andNormalcycles.
Pre Soak(on some models)	Use this option to improve wash performance with heavy or dried-on soils. This option is available onHeavy, AutoSense, andNormalcycles and may add up to 30 minutes to the cycle time.
Wash Zones(on some models)	Selecting either the Upper or LowerWash Zoneswill target dishwashing of just one rack. This will shorten the cycle time and conserve energy. This option should be used when dishes are placed in only one rack.
Bottle Wash(on some models)	This option increases the time that the bottle jets are on and may add up to 23 minutes to the cycle time. Use this to wash difficult to clean, dishwasher safe baby bottles, sport bottles, tall coffee cups, etc. See use recommendations in theLoading the dishwashersection.
Delay Hours	Delays the start of a wash cycle up to 8 to 12 hours depending on model. PressDelay Hours, to select the number of hours, then pressStartone time and close door to begin countdown. The cycle will start once allotted time has expired.
ControlLock	You can lock the controls to prevent selections from being made. You can also lock the controls after you have started a cycle to prevent cycle changes. For example, children cannot accidentally start the dishwasher by pressing buttons with this option selected.To LOCK the dishwashercontrol, depending on the model, press and hold the 1 or 2 buttons indicated on the controls for 3 seconds. On some models, it will be theHeated Dry, another theSteamandWash Tempbuttons, and another model is thePre-SoakandBottle Washbuttons. The Control Lock light will turn on to indicate the control is locked.To UNLOCK the dishwashercontrol, depending on the model, press and hold the 1 or 2 buttons indicated on the controls for 3 seconds. The Control Lock light will turn off to indicate the control is unlocked.
EnergySmart	When connected to a smart meter and your electric company, the dishwasher will automatically delay starting a cycle during the more expensive peak demand times, and run when demand is low. However, you can override the delay settings and use the dishwasher as needed. Learn more aboutEnergy Smartunder theUsing the Dishwashersection.

6 Start Dishwasher Start Open

Start	Open door to select the desired options. Press the Start button and close the door within 10 seconds to start the cycle or begin the Delay Hours countdown. The wash cycle will begin shortly after closing the door. The display will turn off if the door remains open for two minutes. To activate the display, close and open the door or press any button.
Interrupt or Pause	To interrupt or pause a dish cycle, slowly open the door. Opening the door will cause the wash cycle to pause. The dishwasher will beep every minute to remind you to close the door. To restart or resume the cycle, press Start, and close the door within 10 seconds.
Cancel	To cancel a wash cycle, press and hold the Start button for 3 seconds and close door. The dishwasher will drain, emit a beep sound, and the wash cycle light will turn OFF.

7 Cycle Indicator Lights and Sounds

Sanitized or Cycle Sanitized or pressing any	Displayed at end of the cycle when Wash Temp Sani or Sanitize Temp has been selected and dishwasher has met requirements for sanitization. See Wash Temp Sani or Sanitize Temp, for complete description. Closing door button will turn off light.
Clean or Cycle Complete	Displayed when a wash cycle is complete. The light stays ON as a reminder that the dishes are clean.
Low Rinse Aid (on some models)	Displayed when rinse agent is low or empty. See page 8 for Use a Rinse Agent. To turn indicator off, press the Pre-Soak or Steam button 7 times within 5 seconds. Repeat this process to turn the Low Rinse Aid indicator back on.
Cycle Status (on some models)	The indicator light on the door front will change color to indicate the wash status. During the wash cycle, the indicator light will be amber. When the wash cycle is complete, the light will change to green.
Sounds	The dishwasher will emit a sound to indicate cycle completion, button presses, and door ajar. To mute all sounds, press the Heated Dry or Power Dry button 7 times within 5 seconds. Repeat this process to turn sounds back on.
Door Wake Up Mode (on some models)	To turn this option ON/OFF, press and hold the START and WASH TEMP pads for 5 seconds, close the door and wait 3 minutes for the dishwasher to go into sleep mode. In the OFF mode, the control display, control sounds, and interior lights (some models) will not respond to the door opening/closing. This mode can be used when observing certain religious holidays such as the Sabbath. To activate the control and interior lights (on some models), press any pad.

Using the dishwasher.

Check the Water Temperature

The entering water should be at least 120^ F ( 49^ C) and not more than 150^ F ( 66^ C) for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer.

Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising.

Energy Smart

Energy Smart enables your dishwasher to reduce energy consumption during periods of high energy costs. If you are in an area where your electricity provider charges variable rates at different times of the day, your dishwasher will inform you of those times when you are paying the highest rate. You can then either delay starting your dishwasher until the rate goes down; or you can override the feature and run your dishwasher at your convenience.

What you will need:

1 Smart Meter that will communicate with your dishwasher. Consult your local electricity provider to determine if the technology is available in your area.
2 An Energy Smart dishwasher model (CDT725-765, DDT575, GDF570, GDT580-740, PDT750-760).
3 An Appliance Communication Module (ACM). Please visit, gebrillion.com to order the communication device that will need to be installed in the dishwasher.

Use a Rinse Agent

Rinse agents, such as Cascade® Complete Rinse Aid are designed for great drying action and to protect against spots and film build-up on your dishes, glasses, flatware, cookware, and plastic.

Filling the Dispenser

The rinse agent dispenser holds 3.5 oz. (104 ml) of rinse agent. Under normal conditions, this will last approximately one month.

1 Make sure the dishwasher door is fully open.
2 Open the Rinse Agent dispenser door.
3 Slowly add rinse agent until the cup is full. You may need to pause several times to allow rinse aid to settle.
4 Clean up any spilled rinse agent with a damp cloth to prevent foam from forming inside the dishwasher.
5 Close the Rinse Agent dispenser door.

Indicator window

Rinse Aid Setting

The amount of rinse agent released into the final wash can be adjusted.

If water drops or hard water spots remain on dishes after the dry cycle, increase the setting.

To adjust the setting

Open the Rinse Agent dispenser door; then turn the adjuster clockwise to increase the amount of rinse agent, counterclockwise to reduce the amount of rinse agent.

Clockwise to reduce water drops and hard water spots

Counterclockwise to reduce foaming

Rinse agent adjuster

Leak Protection (on some models)

If a leak is detected, the dishwasher will drain and the cycle will stop. The display will show "LEAK DETECTED". Call for service.

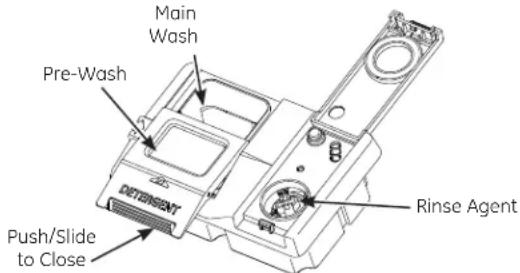

Detergent Dispenser

The detergent dispenser is located in the center of the dishwasher door. It has two compartments. The main wash compartment is found inside the detergent dispenser. To open, press the button on the side of the dispenser. The pre-wash compartment is on the lid of the detergent dispenser. Use the pre-wash compartment only when your water is extremely hard or when you have a heavy soiled load. The pre-wash compartment is not used when tablet or packet detergents are used.

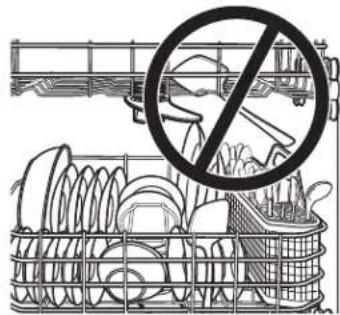

NOTE: Do not load large items in the lower rack where they may block the wash jets from rinsing out the detergent dispenser.

50 Detergent Dispenser

You may use tablet, packet, powder, liquid or gel automatic dishwasher detergent. Make sure you use only detergents specifically labeled for use in automatic dishwashers. Never use liquid hand dish detergent in an automatic dishwasher. Sudsing and poor wash performance will result with the use of improper detergents.

Detergents should be stored in a dry location and in their original container to prevent loss of effectiveness. Place detergent in the cup just prior to starting the dishwasher and then close the cover. The cover will open during the wash cycle.

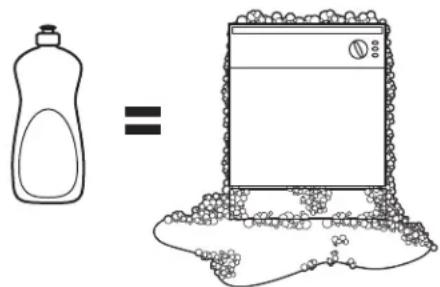

Filling the Detergent Dispenser

GE recommends using detergent in tablet or packet form. Independent testing has shown this form of detergent is very effective in the dishwasher. Cascade® Platinum Pacs are an example of this type of detergent. Simply put a tablet or packet into the main wash compartment and slide to close the detergent cup cover. Please notice that the tablet or packet must be placed in the main wash compartment of the detergent cup. If the tablet or packet is tossed in the bottom of the dishwasher, the detergent will be flushed down the drain in a very short period of time and will thus be wasted. Wash performance will be very poor as a result.

If you choose to use detergent in powder, liquid or gel form, the amount of detergent you use will be determined by the hardness of your water, the temperature of your water, and the food soil load inside the dishwasher. Contact your water company to get information about the hardness of the water in your area. Water hardness is measured in grains per gallon. Use this information and the table above to determine the amount of detergent to use. You may purchase a hard water test strip from GE. Call 1-877-959-8688 and ask for part number WD01X10295. In Canada, call 1-800-661-1616.

Number of Grains/Gal.	Detergent Cups to Fill
Less than 4 Fill	cup to 1/3 full
4 to 8 Fill cup	to 2/3 full
8 to 12 Fill cup	completely full
Greater than 12	Fill both main wash cup and pre wash cup

Main Wash Pre-Wash DINASENT Push/Slide to Close Rinse Agent

Using too much detergent with very soft and/or very hot water may cause a condition called etching on your glassware. Etching is a permanent cloudiness in your glassware. This condition is irreversible. However, using too little detergent will cause poor wash performance.

Use the table as a starting point and then adjust the amount of detergent you use. Use just enough to get good wash performance. Using just the right amount of detergent will provide great wash performance without wasting detergent or etching glassware.

DO NOT USE HAND DISH DETERGENT

Diagram showing a bottle and a washing machine with equals sign, illustrating the equivalence between cleaning and laundry.

NOTE: Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet.

Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated for automatic dishwashers.

Loading the dishwasher.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Upper Rack

The upper rack is primarily for glasses, cups, and saucers. For best wash performance, tilt cup and glass openings toward the center of the rack. Other items such as pots, pans, and plates may be placed in the upper rack. This is also a secure place for dishwasher-safe plastic items. The upper rack can be used for odd sized utensils. Sauce pans, mixing bowls, and other similarly shaped items should be placed face down for best wash performance. Ensure small plastic items are secure so that they cannot fall on the heater at the bottom of the dishwasher, potentially damaging the item. Some models are equipped with a hidden heater, so dishwasher safe plastic items can be placed in the lower rack.

IMPORTANT: Ensure items in the upper rack do not interfere with the 3rd Rack (on some models) when loading and unloading.

IMPORTANT: Ensure that items do not protrude through the bottom of the rack or silverware basket where they will block the rotation of the middle spray arm. This could result in noise during operation and/or poor wash performance.

Illustration showing a prohibition symbol over food containers, with a train and basket of produce in the background.

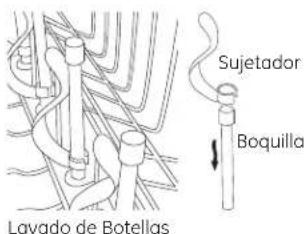

Clip Nozzle Bottle Wash

The Bottle Wash system (on some models) is the ideal location to position baby bottles and tall sports bottles. The Bottle Wash clips hold bottles with small openings in place so water jets are directed inside the bottles to clean hard to reach areas. Clips can be installed or removed by simply slipping the clip opening over the top of the nozzle.

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Sports bottle held in place over a Bottle Wash clip

Pure electrical circuit lines without any symbols

Baby bottle held in place under a Bottle Wash clip

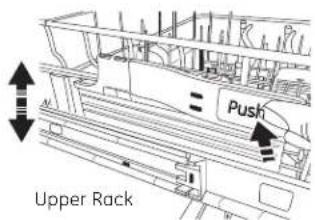

Push Upper Rack

The upper rack allows 2" of adjustment up or down to accommodate large items. The upper rack may be lowered by pushing the long flaps on each side of the rack. This will allow you to lower the rack (see fig. Upper Rack). To raise the rack, lift up on the rack until the rack locks in place.

A CAUTION: A loaded upper rack may be heavier than anticipated. To prevent minor injury or damage to the contents, do not raise or lower the upper rack after the rack is loaded.

Technical line drawing of a mechanical assembly with multiple cylindrical components and connecting rods (no text or symbols)

To add flexibility in loading, the utility shelf (on some models) may be placed in the up or down position or unfolded and placed in the lower unfolded position. The shelf may also be used to secure stemware such as wine glasses. Because these stemware items come in various sizes, slowly push the rack in to ensure the items do not bump into the edges of the dishwasher, which may cause damage to the items.

Place the slots in the utility shelf clips over the vertical rack wires and push down to attach utility shelf onto second wire of rack

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating flow or movement.

Pure technical diagram of a structural framework with no text, numbers, or symbols

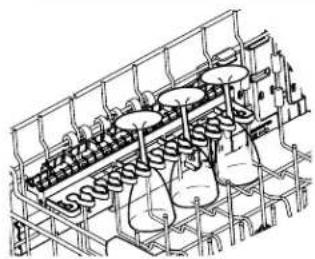

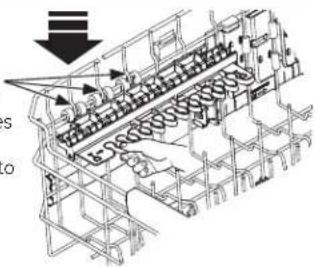

The fold down tines (on some models) provide flexibility for extra-large and hard-to-fit items. The tine rows can be adjusted to a vertical or lay-down position.

Loading the dishwasher.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

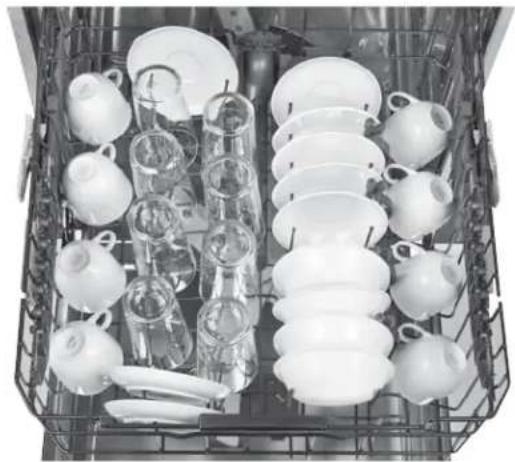

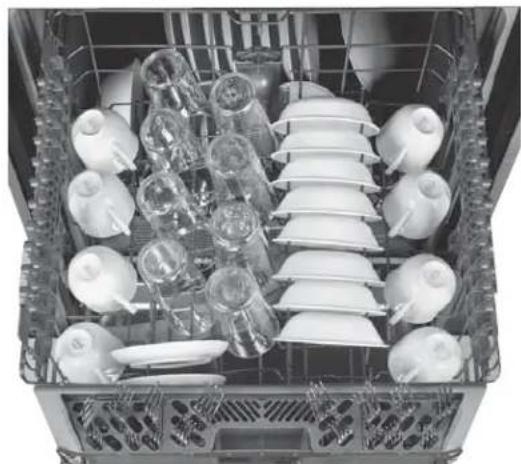

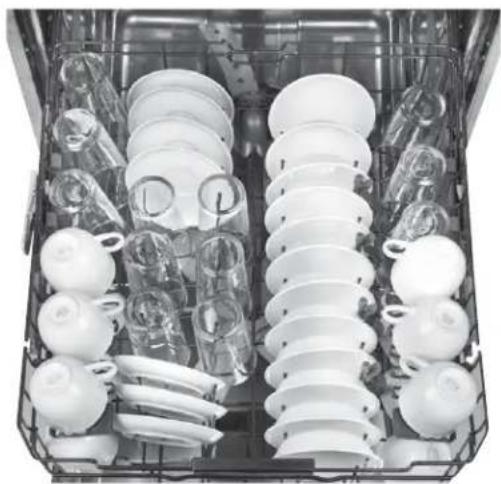

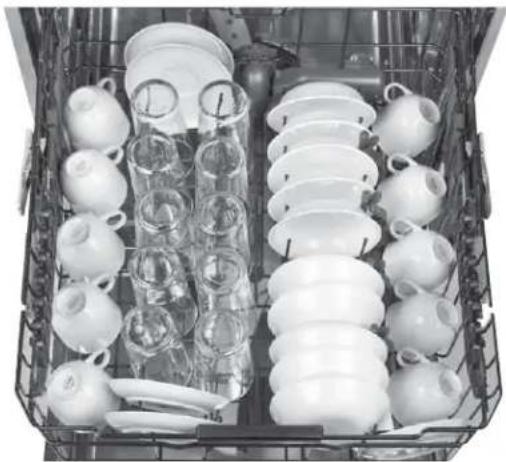

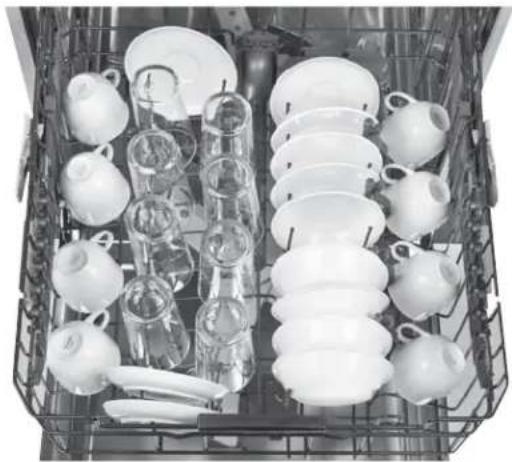

8 Place Settings - Upper Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Black-and-white photo of a multi-tiered kitchen appliance rack with various kitchen items (no visible text or labels)

Models - GDF570 and DDT575

Interior view of a multi-level kitchen appliance with multiple empty compartments and glassware (no visible text or labels)

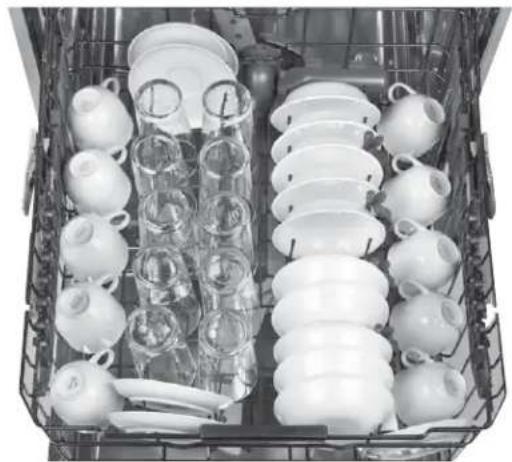

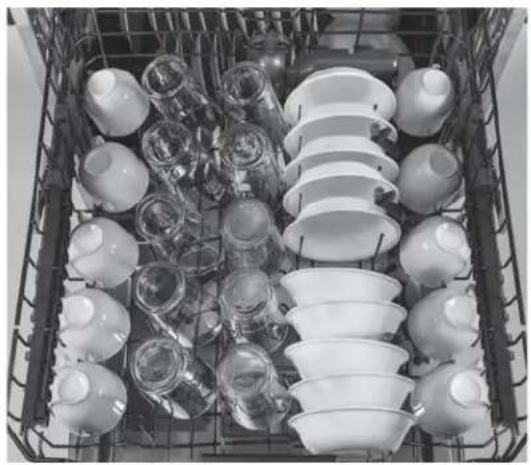

10 Place Settings - Upper Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Interior view of a kitchen appliance with multiple white ceramic dishes and cutlery (no text or labels visible)

Models - GDF570 and DDT575

Interior view of a stainless steel kitchen appliance with multiple dish holders and glassware (no visible text or labels)

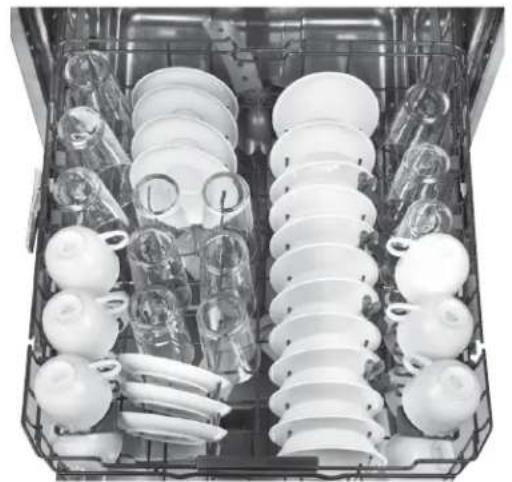

12 Place Settings - Upper Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Interior view of a modern kitchen appliance with multiple plastic dishes arranged in rows (no visible text or labels)

Models - GDF570 and DDT575

Interior view of a multi-level kitchen appliance with plastic kitchenware and washers (no visible text or labels)

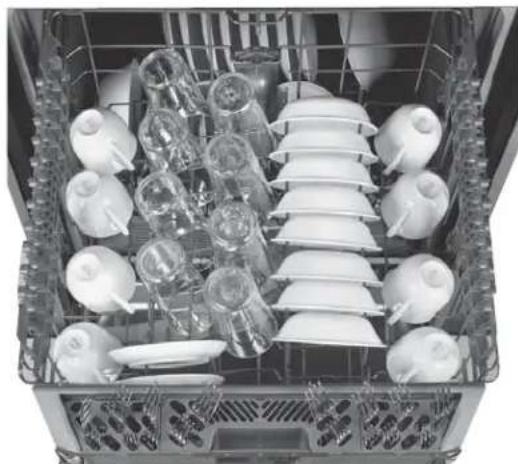

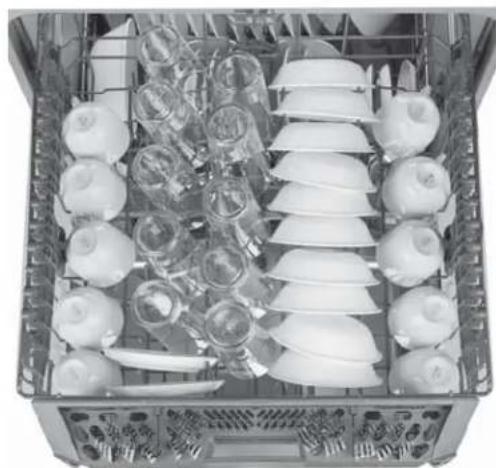

8 Place Settings - Upper Rack Models - PDT760 and CDT765

Top-down view of a multi-level kitchen appliance rack with various kitchen utensils and bowls (no text or labels visible)

10 Place Settings - Upper Rack Models - PDT760 and CDT765

Black-and-white overhead view of a multi-tiered kitchen appliance with plastic cups, bowls, and glassware arranged in rows (no text or symbols visible)

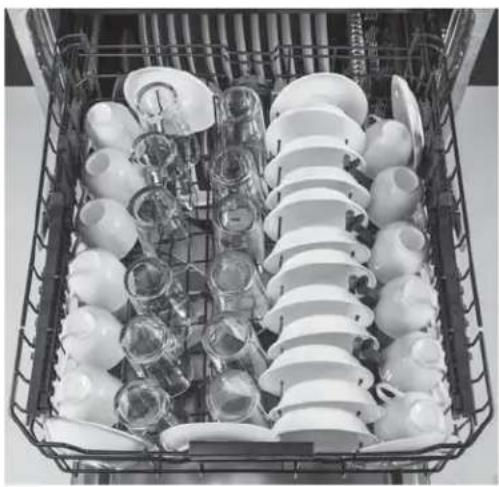

12 Place Settings - Upper Rack Models - PDT760 and CDT765

Black and white photo of a multi-tiered kitchen appliance rack with plastic washers and glassware (no visible text or labels)

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

Lower Rack

The lower rack is best used for plates, saucers and cookware items. Large items, such as broiler pans and baking racks should be placed along the sides of the rack. If necessary, oversized glasses and mugs can be placed in the lower rack to maximize loading flexibility. Plates, saucers and similar items should be placed between the tines in the direction that allows the item to remain secure in the rack.

NOTE: Do not load large items in the lower rack where they may block the wash jets from rinsing out the detergent dispenser.

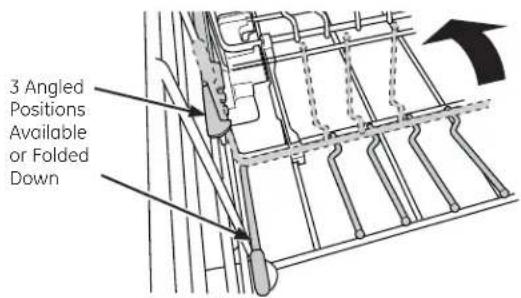

The lower rack fold down tines (on some models) can be adjusted to different upright angles or placed flat to provide flexibility for hard-to-fit or extra-large items.

3 Angled Positions Available or Folded Down

The reversible tine blocks (on some models) are designed to allow greater flexibility in loading dishes. The direction of the tine blocks can be changed to match your preferred loading direction as shown in Figure A or Figure B:

Interior view of an electrical substation with multiple insulators (no visible text or labels)

Figure A Figure B

Interior view of a kitchen appliance showing multiple white insulation or heat sinks (no text or symbols visible)

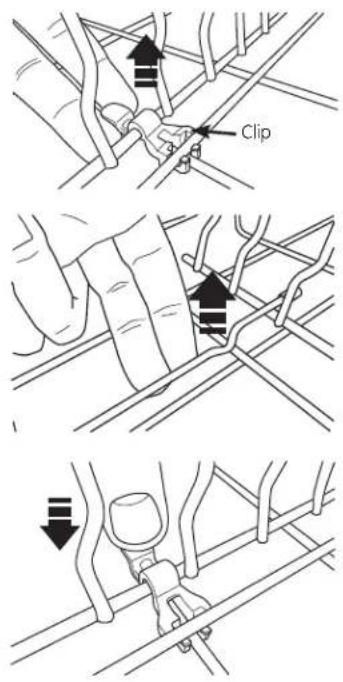

To adjust the tine block direction, remove the clips securing the tine blocks to the racks by pulling up on the tab, then gently flex the retaining wire from the center to unseat the tine block from the lower rack. The tine block may be turned in the opposite direction to reverse loading direction. Secure the tine block to the rack using the same process and be sure to snap the clips back in place.

Clip

WARNING! The clips can be a choke hazard for small children if removed from the dishwasher. Keep out of reach of children.

To change the direction of the fold down tines, lower the tines, then pull away from the bar clips that secure the tines to the rack and remove. Reverse the direction of the tines, orienting the handle on the opposite side of the rack. Reattach the tines to the bar clips by pushing the tines back until they click in place. The indexer will also need to be switched to the opposite side of the dishwasher. To remove the indexer, simply slide it the in the direction labeled "unlock." Then, align the indexer with the rack on the other side and slide in the direction that says "lock" in order to reattach the indexer to the rack.

Bar Clip Unlock Lock Indexer To lock, slide right. To unlock, slide left.

IMPORTANT: It is important to ensure that items do not protrude through the bottom of the rack or the silverware basket where they will block the rotation of the lower spray arm. Also, ensure that large plates, pots, or tall items don't hit the mid spray arm. This could result in noise during operation and/or poor wash performance.

Loading the dishwasher (cont.).

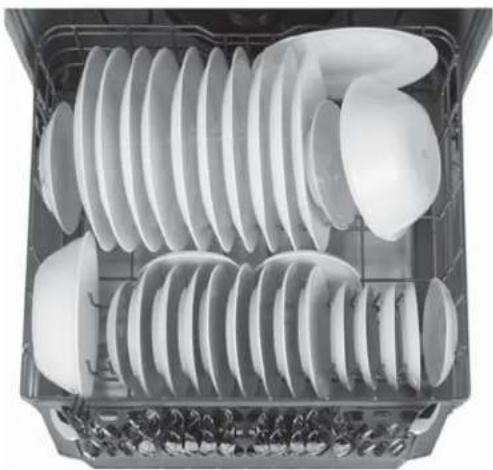

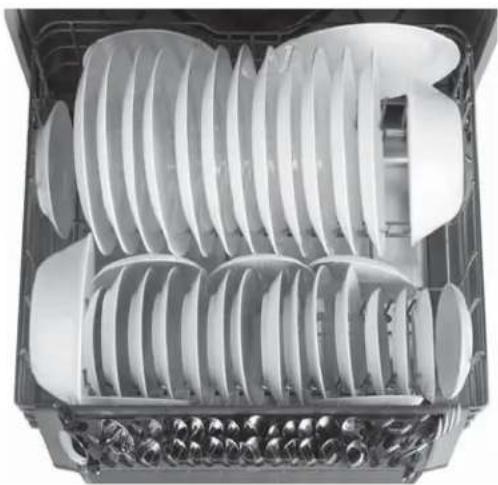

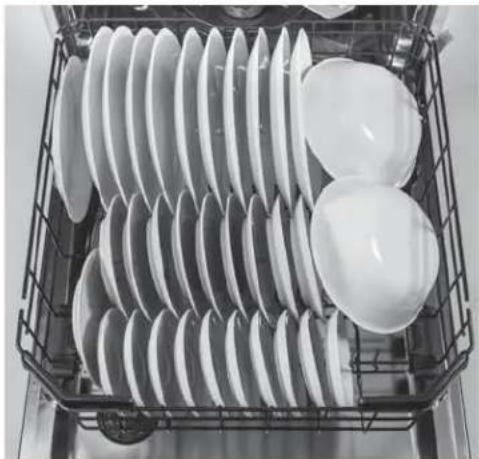

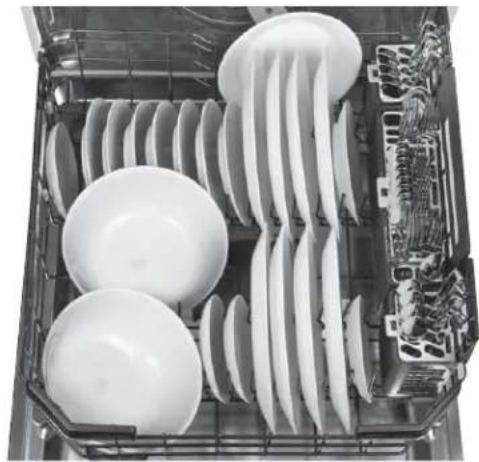

8 Place Settings - Lower Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Interior view of a kitchen appliance with multiple white kitchen plates arranged in rows (no text or symbols visible)

Models - GDF570 and DDT575

Interior view of a kitchen appliance showing multiple white plates arranged in rows (no text or symbols visible)

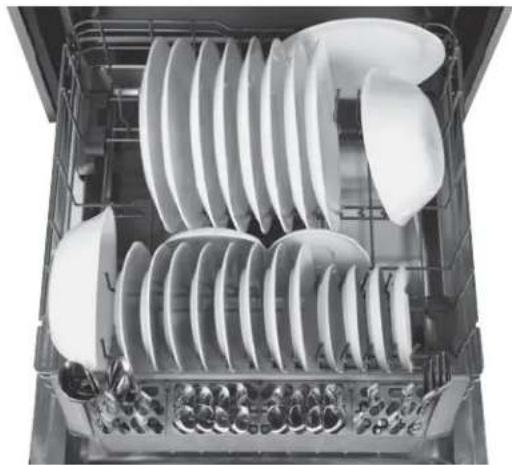

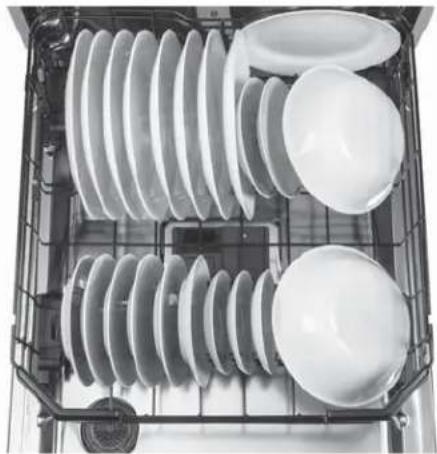

10 Place Settings - Lower Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Interior view of a kitchen appliance showing multiple white plates and utensils (no text or symbols visible)

Models - GDF570 and DDT575

Interior view of a kitchen appliance with multiple plates and dish dividers (no visible text or labels)

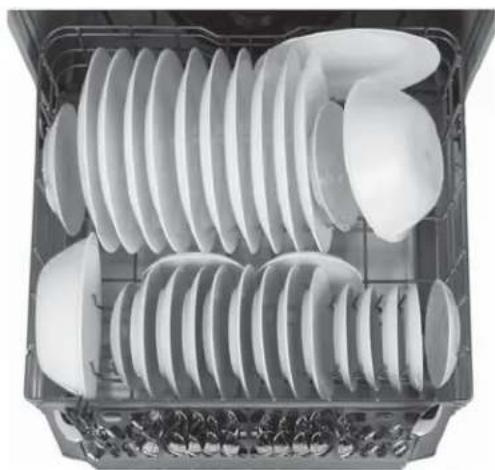

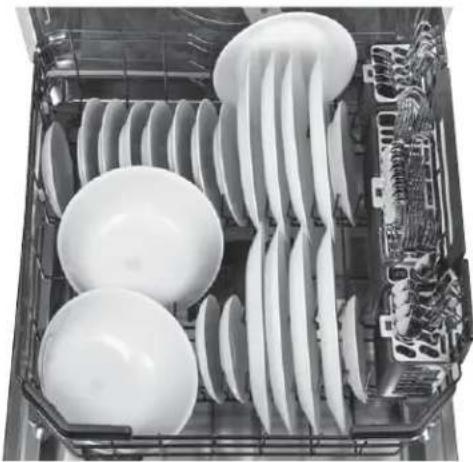

12 Place Settings - Lower Rack

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Interior view of a kitchen appliance showing multiple white plates and mechanical components (no visible text or symbols)

Models - GDF570 and DDT575

Interior view of a stainless steel kitchen appliance showing multiple circular kitchen utensils (no text or symbols visible)

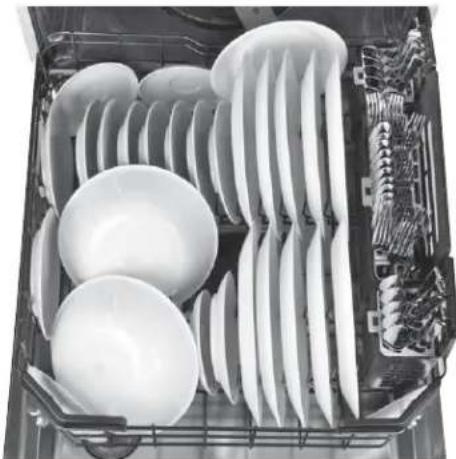

8 Place Settings - Lower Rack

Models - PDT760 and CDT765

Top-down view of a kitchen appliance with multiple white ceramic plates and insulators installed on a grid rack (no text or symbols visible)

10 Place Settings - Lower Rack

Models - PDT760 and CDT765

Black and white photo of a kitchen sink with multiple plates arranged in rows (no text or symbols visible)

12 Place Settings - Lower Rack

Models - PDT760 and CDT765

Interior view of a kitchen appliance showing multiple white ceramic plates and internal components (no text or symbols visible)

Loading the dishwasher (cont.).

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

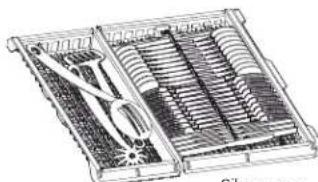

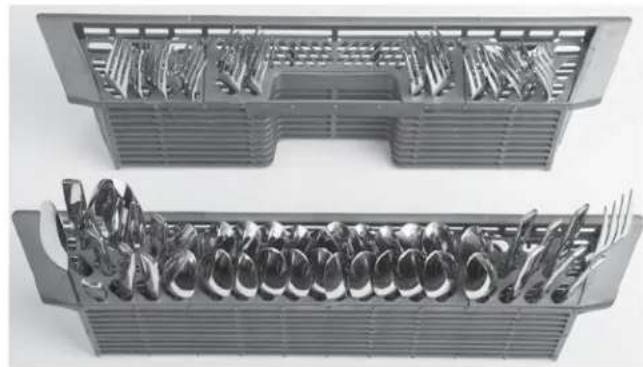

3rd Rack (on some models)

The 3rd rack is the recommended location for silverware and has 2 trays:

The utensil tray holds serving spoons, chop sticks, spatulas, cutlery, whisks, etc. Be sure not to overlap the utensil heads.

Technical illustration of a mechanical assembly with no visible text or symbols

Utensil Tray

The silverware tray holds silverware individually in slots and is positioned by alternating the heads of the silverware.

These trays may be removed to allow for easier loading and unloading, changing the side that the trays are on, or to create extra space for the upper rack.

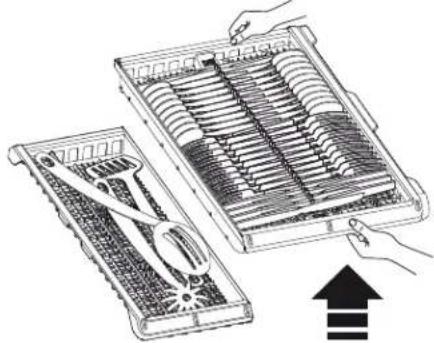

To remove a tray, fully extended the 3rd rack, grasp both the front and back handles on one tray and gently lift the tray out of the rack. To replace the tray, grasp both handles and gently place it on the rack so that the deepest part is towards the center of the rack.

Illustration of hands handling an abacus with a tool, showing mechanical parts and a rising arrow (no text or symbols)

CAUTION! Take care when loading, unloading, or transporting the silverware or utensil trays. The trays may contain sharp or heavy items. If items are dropped from the trays or the trays are dropped, injury could occur.

IMPORTANT NOTES:

■ Do not place cutlery of different materials next to each other in the 3rd rack. Doing show may cause discoloration of the cutlery.
■ The trays are only meant to be used with a GE 3rd rack dishwasher to hold silverware, cooking utensils, and other small items. Using the trays for any other purpose could result in damage to the trays or damage to anything interacting with the trays.
■ Ensure that the 3rd rack is fully closed before shutting the dishwasher door. Shutting the door with the rack partially extended could cause damage to the dishwasher.

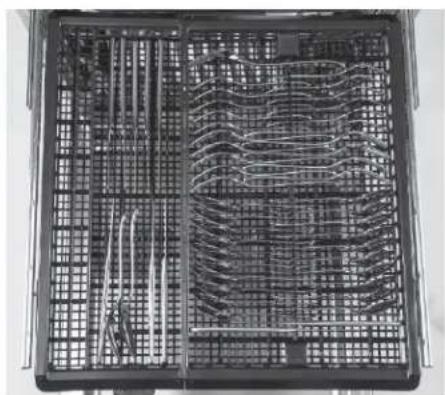

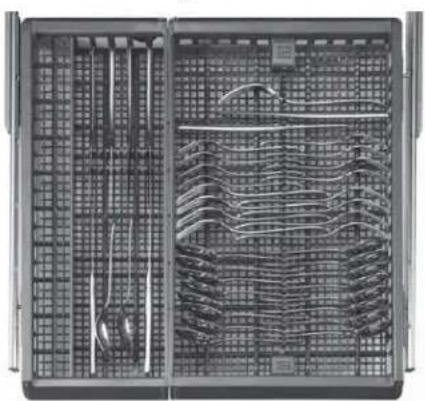

8 Place Settings

Interior view of a stainless steel mixing tray with coiled wires and metal struts (no text or symbols visible)

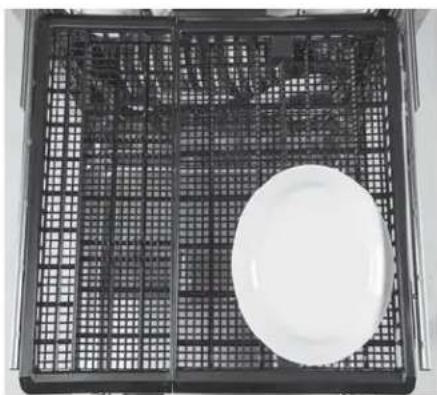

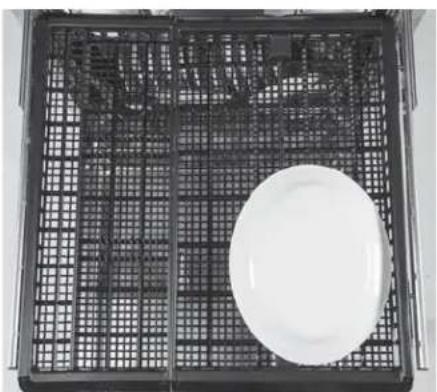

10 Place Settings 12 Place Settings

Top-down view of a black rectangular grating with wavy internal patterns (no text or symbols visible)

Top-down view of a white plate placed on a black metal tray (no text or symbols visible)

*See Silverware Basket section on how to load silverware.

The 3rd rack is also removable to allow extra large items to be placed in the upper rack:

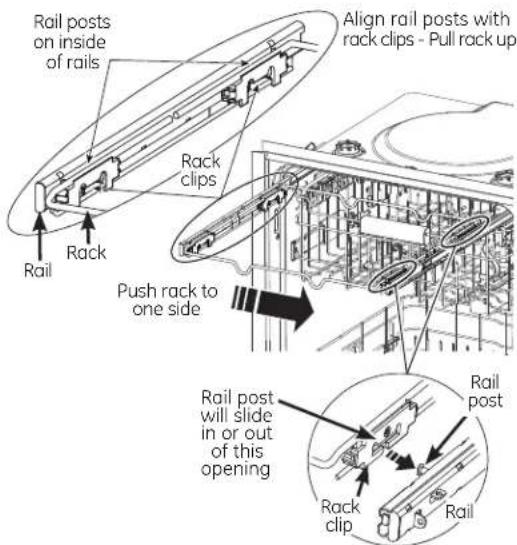

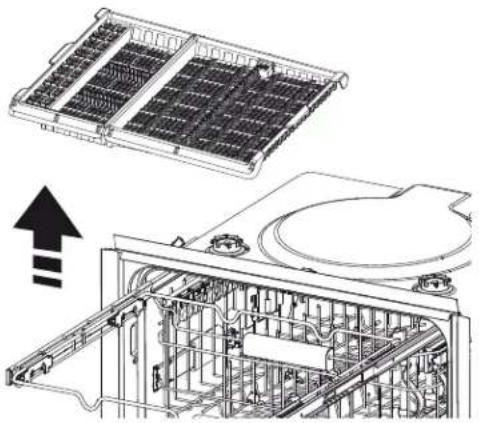

To remove the 3rd rack:

1 Remove the silverware and utensil trays. (See the IMPORTANT NOTES in this section.)

Technical line drawing of a mechanical assembly with internal components and an upward arrow indicating motion (no text or symbols present)

2 Push the rack all the way to one side so that a gap between it and the side rail forms on the other side. Align the side rail posts with the center of the clips on the rack and lift straight up.

Rail posts on inside of rails Rail Rack Rail Rack clips Align rail posts with rack clips - Pull rack up Push rack to one side Rail post will slide in or out of this opening Rail post Rail Rail clip

3 Continuing to hold the rack in the lifted position, repeat on the other side.

4 Once the rack is removed, push the side rails all the way back into the dishwasher.

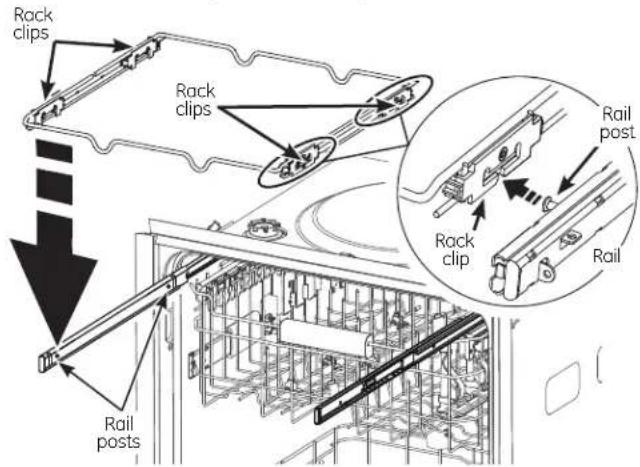

To replace the 3rd rack:

1 Extend both side rails fully out of the dishwasher.
2 Orient the rack so that its side clips are aligned and centered with the posts on the side rail and lower the clips onto the posts.
3 Move the rack to one side of the dishwasher until the clips fall onto the posts.

4 Continuing to hold the rack in the lifted position, repeat on the other side.

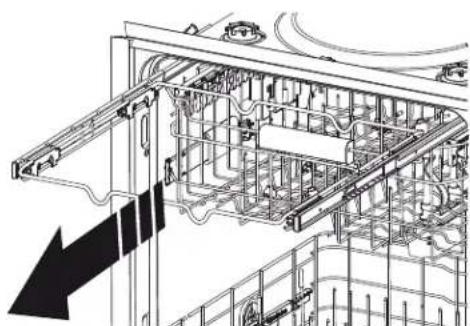

5 Once the rack is replaced, pull it all the way out to lock it in place in its side rails.

Technical line drawing of an electrical cabinet or enclosure with internal components and a downward arrow indicating a component (no text or symbols present)

Pull rack all the way out to lock it in place

6 Replace the silverware and utensil trays.

Rack clips Rack clips Rail posts Rail post Rack clip Rail

Loading the dishwasher (cont.).

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

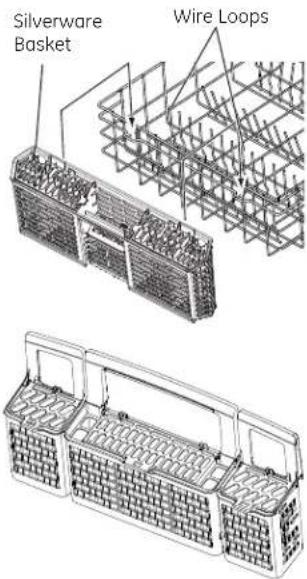

Silverware Basket Wire Loops

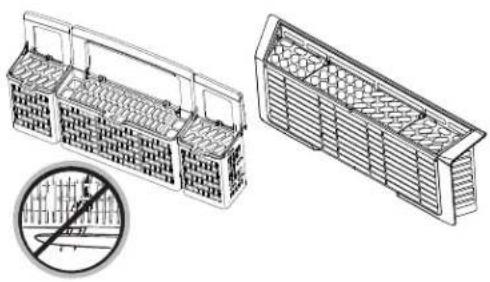

Silverware Basket

Place flatware in the removable silverware baskets. Sharp objects, such as forks and knives, may be placed with the handles facing up, in order to protect your hands. For the best wash performance, place other items such as spoons with the handles facing down. Avoid allowing items to nest together, which may keep them from being properly washed. When loading, distribute items evenly in the basket.

The silverware baskets may also be used for small items, such as measuring spoons, baby bottle nipples, plastic lids, or corn cob holders. The silverware basket covers can be closed to contain small items.

The Easy Access Silverware Baskets (on GDF570 and DDT575 models) may be positioned on the front of either the upper or lower racks. Secure the basket to the rack using the wire loop on the front of the upper and lower racks to engage the tabs on the rear of the basket.

On other models, the silverware basket may be positioned by placing the hooks on the back of the basket over the top wire on the sides of the lower rack.

IMPORTANT NOTE: Do not load large or tall utensils where they may block the detergent dispenser, mid spray arm, or become trapped between the door and the gasket when the door is closed.

Technical line drawings of two plastic crates with internal compartments and a magnified inset showing a cross-section (no text or symbols)

Silverware/flatware is loaded using the silverware basket lids. This ensures great wash performance of the silverware. Loading in this manner prevents nesting and makes sure all items are washed uniformly.

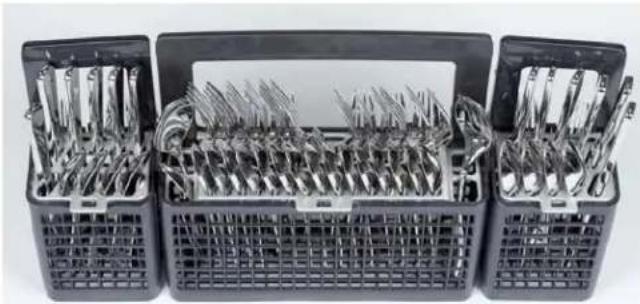

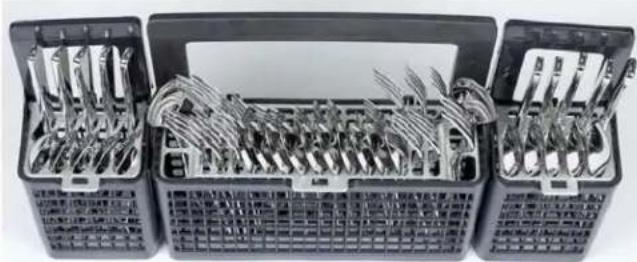

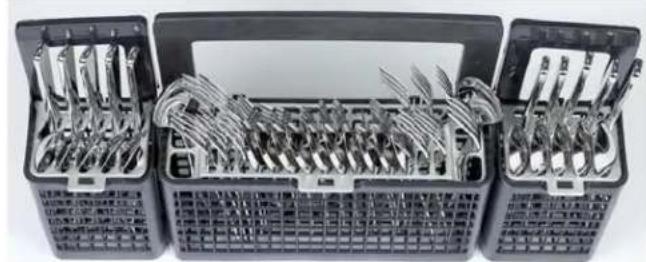

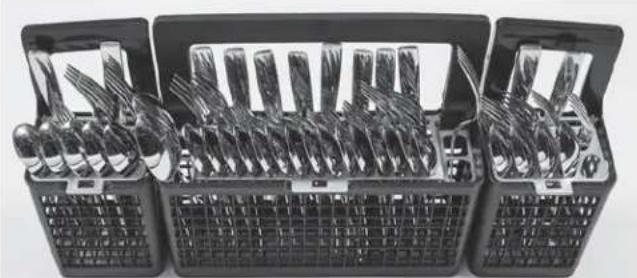

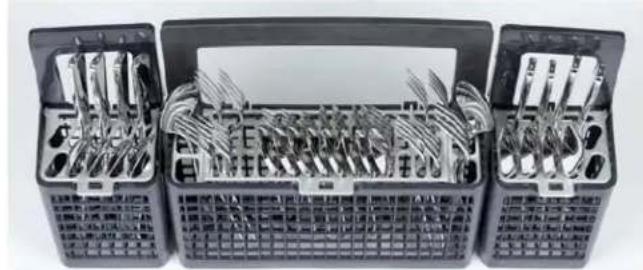

8 Place Settings - Silverware Basket

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Three open metal tool kit cases containing various kitchen utensils (no text or labels visible)

NOTE: For models PDT760 and CDT765, refer to the 3rd Rack in this Loading The Dishwasher section.

Models - GDF570 and DDT575

Top-down view of a modern kitchen utensil with cutlery and spoons (no text or symbols visible)

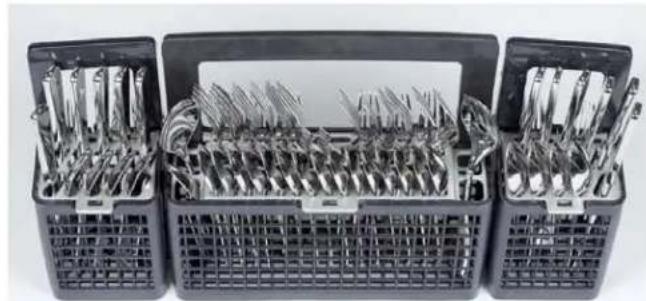

10 Place Settings - Silverware Basket

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Three open metal tool kit cases containing various kitchen utensils (no text or labels visible)

NOTE: For models PDT760 and CDT765, refer to the 3rd Rack in this Loading The Dishwasher section.

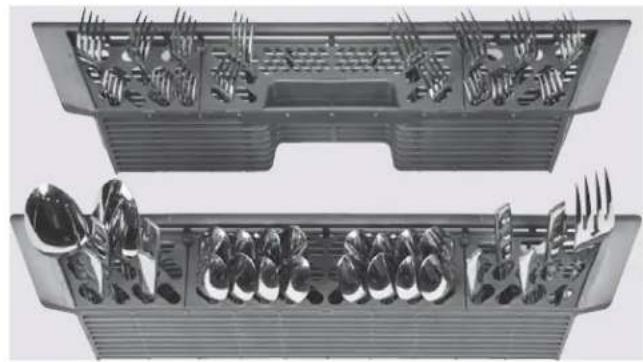

Models - GDF570 and DDT575

Two views of a metal cutting board with cutlery and spoons, no text or symbols visible

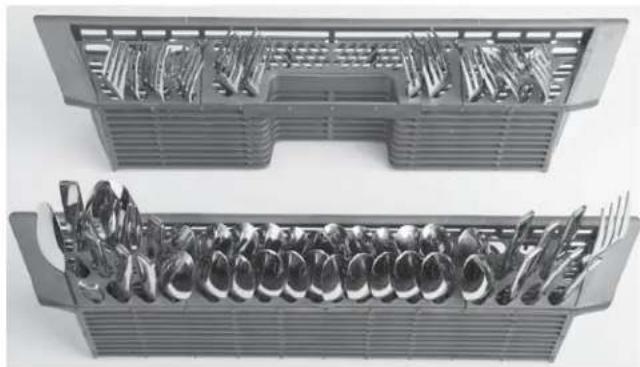

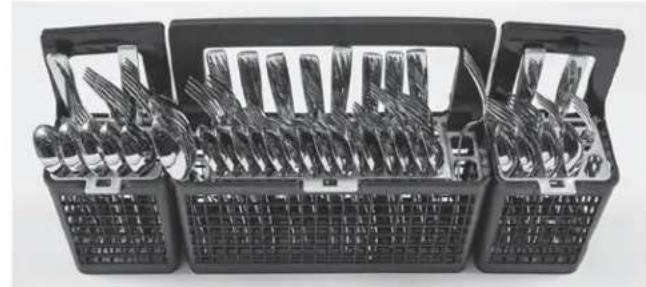

12 Place Settings - Silverware Basket

Models - GDT580, GDT680, GDT720, GDT740, PDT750 & CDT725

Black-and-white photo of a toolbox containing various kitchen utensils arranged in a grid (no visible text or labels)

Models - PDT760 and CDT765

Black-and-white photo of a set of cutlery and utensils in plastic crates (no text or symbols visible)

Models - GDF570 and DDT575

Two views of a plastic kitchen drawer containing various cutlery and utensils (no text or labels visible)

Care and cleaning.

Cleaning the Exterior Door Panel

Before cleaning the front panel, make sure you know what type of panel you have. Refer to the last two letters of your model number. You can locate your model number on the left-hand tub wall just inside the door. If your model number ends with BB, CC, WW, SA or ES then you have a painted door panel. If your model number ends with SS, then you have a Stainless Steel door panel. If your model number ends with II, then you have an Integrated door panel.

Follow the instructions below for cleaning the door panel for your specific model.

Painted Door Panel (model numbers ending in BB-black, CC-bisque, WW-white, SA-silver or ES-slate)

Use a clean, soft, lightly dampened cloth, then dry thoroughly.

Stainless Steel Door Panel (model numbers ending in SS)

For cleaning rust and tarnish, cleaners with oxalic acid such as Bar Keepers Friend Soft Cleanser™ will remove rust, tarnish and small blemishes. Use only a liquid cleanser free of grit and rub in the direction of the brush lines with a damp soft sponge. Do not use appliance wax or polish on the stainless steel.

For other blemishes and marks, use Stainless Steel Magic or a similar product using a clean soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel. You can order Stainless Steel Magic # WX10X29 through GE Parts by calling 877.959.8688. In Canada, call 1-800-661-1616.

Integrated Door Panel (model numbers ending in II)

This is a custom installed door panel, and you will need to refer to the cabinet manufacturers recommendations for proper cleaning.

Cleaning the Control Panel

To clean the control panel, use a lightly dampened cloth. Then dry thoroughly.

Cleaning the Dishwasher Interior

To clean and de-odorize your dishwasher, use citric acid or Lemi Shine®*, a detergent additive. Lemi Shine will break up mineral deposits, and remove hard water film and stains. You can order citric acid #WD35X151 through GE Parts by calling 877-959-8688 or visiting GEApplianceparts.com. In Canada, call 1-800-661-1616. You can purchase Lemi Shine at your local grocery store or by calling GE at the numbers above and ask for WX10X10019.

Stainless Steel Inner Door and Tub

The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a GE dishwasher.

If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.

Cleaning the Filters

Inspect and clean the filters periodically. This should be done every other month or so depending on usage. If there is a decrease in wash performance or dishes feel gritty, this is also an indication the filters need to be cleaned.

Retaining Posts Spray Arm Fine Filter Ultra-Fine Filter

Ultra-Fine Filter

To clean the Ultra-Fine Filter, remove the bottom rack. Twist counterclockwise and remove the Ultra-Fine Filter. Rinse filter with warm soapy water and use a sponge to carefully remove any stubborn particles. Scrubbing with scouring pads or brushes can damage the filter. Once cleaned, replace the Ultra-Fine Filter, and twist clockwise to lock in place.

Fine Filter

To clean the Fine Filter (mesh plate), remove the bottom rack. Remove the Ultra-Fine Filter.

Twist counterclockwise each of the two retaining posts located toward the back bottom of the tub, and remove the Fine Filter. Rinse filter with warm soapy water. Scouring pads or brushes can scratch the filter surface but a soft brush or sponge may be needed to remove stubborn soils or calcium deposits caused by hard water. Once cleaned, replace the Fine Filter, the Ultra-Fine Filter, and twist clockwise the two retaining posts into place.

WARNING! The retaining posts can be a choke hazard for small children if removed from the dishwasher. Keep out of reach of children.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

1 Turn off electrical power to the dishwasher. Remove fuses or trip circuit breaker.

2 Turn off the water supply and disconnect the water inlet line from the water valve.

3 Drain water from the water inlet line and water valve. (Use a pan to catch the water.)

4 Reconnect the water inlet line to the water valve.

Air gap

Check the air gap any time your dishwasher isn't draining well.

Does Your Dishwasher Have an Air Gap?

An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.

The air gap is easy to clean.

1 Turn off the dishwasher and lift off the air gap cover.

2 Remove the plastic cap under the cover and clean with a toothpick.

3 Replace the cap and cover when the air gap is clean.

Before you call for service...

Troubleshooting Tips

Save time and money! Review the charts on the following pages, or visit GEAppliances.com.

In Canada visit www.GEAppliances.ca. You may not need to call for service.

Problem Possible Causes What To Do
Start status indicator light flashing if you wish to cancel the cycle.	The door was opened or the cycle was interrupted.	Press the Start button once and close the door to start the dishwasher. Press the Start button a second time when the dishwasher is running only
Dishwasher BEEPS once every minute open during operation. It will continue beeping until you press Start and close the door.	This is a reminder that your dishwasher door has been left	Press Start and close the door.
Display shows “LEAK DETECTED”	Possible leak is detected	Some models are equipped with leak detection and the cycle will be cancelled if a leak is detected. The display will show “LEAK DETECTED”. Call for service.
Beeping at the end of the cycle (on some models) has been turned on or off.	This is normal. The dishwasher will beep twice at the end of the cycle.	To turn off the double beep indicator (or re-activate it if it was previously turned off), press the Heated Dry button 5 times within 3 seconds. A triple beep will sound to indicate the end-of-cycle beep option
Dishes and flatware not clean	Ultra Fine or Fine filter is clogged	See the Care and cleaning section.
	Low inlet water temperature	Make sure inlet water temperature is correct (see the Using the dishwasher section). Turn on the hot water faucet nearest the dishwasher, let run until the water temperature stops rising. Then start the dishwasher and turn off the faucet. This ensures the entering water is hot. Select Wash Temp Boost or Boost Temp if available.
	Water pressure is temporarily low	Turn on a faucet. Is water coming out more slowly than usual? If so, wait until pressure is normal before using your dishwasher.
	Air gap or disposer is clogged	Clean the air gap or flush the disposer.
	Improper rack loading	Make sure large dishware does not block the detergent dispenser or the wash arms. See the Loading the dishwasher section.
	Poor performing detergent	Use a highly rated detergent such as Cascade® Platinum Pacs.
	Leak detected	Some models are equipped with leak detection and the cycle will be cancelled if a leak is detected. The display will show “LEAK DETECTED”. Call for service.
Spots and filming on glasses and flatware	Extremely hard water	Use rinse agents such as Cascade® Complete Rinse Aid to prevent spots and prevent new film buildup. If water is extremely hard, a softener may be required.
	Low inlet water temperature	Make sure water temperature is at least 120°F (49°C).
	Overloading or improper loading of the dishwasher	Load dishwasher as shown in the Loading Place Settings section.
	Old or damp powder detergent	Make sure detergent is fresh.
	Rinse agent dispenser empty	Refill with rinse agent such as Cascade® Complete Rinse Aid.
	Too little or low performing detergent	Make sure you use the proper amount of highly rated detergent.

Problem Possible Causes What To Do

Cloudiness on glasswarecycle that will get it clean.	Combination of soft water and too much detergent	This is called etching and is permanent. To prevent this from happening, use less detergent if you have soft water. Wash glassware in the shortest
	Low performing phosphate free detergent	SeeA white film on glassware,dishware and the interiorin this Troubleshootingsection.
	Water temperature entering the dishwasher exceeds 150°F (66°C)	This could be etching. Lower the water heater temperature.
Suds in the tub	Wrong detergent	Use only automatic dishwasher detergents to avoid sudsing.Cascade®Automatic Dishwashing Detergents have been approved for use in all GE dishwashers.To remove suds from the tub, open the dishwasher and let suds dissipate.Open the door, press and holdStartfor 3 seconds, and close the door.
	Rinse agent was spilled	Always wipe up rinse agent spills immediately.
Detergent left in dispenser cups	Dishes or utensils are blocking the detergent cup	Reposition the dishes, so the water from the lower spray arm can flush the detergent cup. See theLoading the dishwashersection.Reposition the tall utensils or heavy silverware that may be keeping the dispenser cup door from opening. See theLoading the dishwashersection.Don't place large bowls or pots directly under the detergent dispenser.
Black or gray marks on dishes	Aluminum utensils have rubbed against dishes	Remove marks with a mild, abrasive cleaner.
Dishes don't dry	Low inlet water temperature	Make sure inlet water temperature is at least 120°F.SelectHeated Dry.UseWash Temp BoostorBoost Tempoption.Select a higher cycle, such asWash Temp Sani,Sanitize Temp or Heavy.
	Rinse agent dispenser is empty	Check the rinse agent dispenser and fill as required.
	Additional drying time is needed	Leave door closed after the Clean light appears to allow the fan to run an additional 90 minutes.Note:If you open the door, this fan extension will be cancelled.
Control panel responded to inputs but dishwasher never filled with water	Door may not be completely closed	Make sure the door is firmly closed.
	Water valve may be turned off	Make sure water valve (usually located under the sink) is turned on.
	Flood float may be stuck	Remove Ultra-Fine filter and lightly tap the piece under the ultra fine filter that looks like a salt shaker. Replace the filter.
Stained tub interior	White film on inside surface-hard water minerals	GE recommendsCascade®Complete Rinse Aidto help prevent hard water mineral deposits from forming.Run dishwasher with citric acid to remove mineral deposits. Citric acid (Part number: WD35X151) can be ordered through GE Parts. See back cover for ordering information. Alternatively, purchase Lemi Shine and follow the directions on the label.
Dishwasher won't run	Fuse is blown or circuit breaker is tripped	Replace fuse or reset circuit breaker. Remove any other appliances from the circuit.
	Power is turned off	In some installations, the power to the dishwasher is provided through a wall switch, often located next to the disposer switch. Make sure it is on.
	Control panel is locked	Unlock control panel. See theGetting startedsection.
	Possible leak is detected	Some models are equipped with leak detection and the cycle will be cancelled if a leak is detected. The display will show "LEAK DETECTED". Call for service.
	Proper Start sequence was	See theUsing the dishwashersection.
not followed

Before you call for service...

Problem Possible Causes What To Do
Control panel lights go off when you're setting controls	Time too long between touching of selected buttons unlock (top control).	Each button must be touched within 30 seconds of the others. To relight, touch any button again or open the door and
Water standing in the bottom of the tub	Air gap is clogged	Clean the air gap. See the Care and cleaning section.
	High drain loop or air gap not installed	Refer to the Installation Instructions for proper drain line installation.
Water won't pump out of the tub	Drain is clogged	If you have an air gap, clean it. See the Care and cleaning section.If the dishwasher drains into a disposer, run disposer clear.Check to see if your kitchen sink is draining well. If not, you may need a plumber.
Steam	This is normal	Warm, moist air comes through the vent during drying and when water is being pumped out. This is necessary for drying.
Sanitized or Cycle Sanitized light does not illuminate at the end of the cycle temperature was too low	The door was opened and the cycle was interrupted during final rinse	Do not interrupt the cycle by opening the door during the wash cycle.
	The incoming water	Raise the water heater temperature to between 120^ and 150^ .
Noise Detergent cup opening Water entering dishwasher The motor stops and starts at various times during the cycle Spray arms start and stop at various times Drain pump sounds during pump out Drain pump starts and stops several times during each drain	Normal operating sounds:	These are all normal. No action is required.
	Rattling dishes when the spray arm rotates	Make sure dishes are properly loaded. See the Loading the dishwasher section.
	Rattling silverware against door during wash	Tall utensils may be placed in the upper rack to avoid bumping against inner door during wash cycle.
A white film on glassware, dishware and the interior	This problem is likely caused by a low quality phosphate-free dishwasher detergent	To remove the white film, run your dishes through a dishwasher cycle with citric acid. Use a WD35X151 citric acid kit found online. Otherwise, use Lemi Shine (WX10X10019) found at your local grocery store.
Pour the citric acid in the detergent cup and close the cover. Place the filmed but otherwise clean glassware and dishware in the dishwasher. Leave silverware and other metal items out of the dishwasher. Turn the dishwasher on and let it run through a complete cycle without detergent. The glassware, dishware, and dishwasher should come out film free. Alternatively, a vinegar rinse may be used. Pour 1 cup of vinegar into dishwasher just after the detergent cup opens and let the dishwasher complete its cycle.This may be repeated several times a year as neededThe use of a rinse agent such as Cascade minimize a repeat build up of film. Also, the use of a highly rated detergent such as Cascade® Platinum Pacs will help prevent film build-up.

All warranty service provided by our Factory Service Centers, or an authorized Customer Care® technician. To schedule service, visit us on-line at GEAppliances.com, or call 800.GE.CARES (800.432.2737) in the United States. In Canada, call 1.800.561.3344. Please have serial number and model number available when calling for service.

Staple your receipt here. Proof of the original purchase date is needed to obtain service under the warranty.

Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE improve its products by providing GE with information on your appliance. If you do not want your appliance data to be sent to GE, please advise your technician NOT to submit the data to GE at the time of service.

For The Period Of: GE Will Replace:

One Year

From the date of the Any part of the dishwasher which fails due to a defect in materials or workmanship. During this limited one-year warranty, GE will also provide, free of charge, all labor and in-home

original purchase service to replace the defective part.

What GE Will Not Cover (for customers in the United States):

■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Product not accessible to provide required service.

■ Damage to the product caused by accident, fire, floods or acts of God.
■ Incidental or consequential damage caused by possible defects with this appliance.
■ Cleaning or servicing of the air gap device in the drain line.
■ Damage caused after delivery, including damage from items dropped on the door.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service location for service. Proof of original purchase date is needed to obtain service under the warranty. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

What Is Not Covered (for customers in Canada):

■ Service trips to your home to teach you how to use the product.
■ Improper installation.
If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connecting facilities.

■ Failure of the product if it is abused, misused, or used for other than the intended purpose or used commercially.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage to the product caused by accident, fire, floods or acts of God.
■ Damage caused after delivery.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In home warranty service will be provided in areas where it is available and deemed reasonable by Mabe to provide.

WARRANTOR IS NOT RESPONSIBLE FOR CONSE QUEN TIAL DAMAGES.

Warrantor: MC Commercial, Burlington, ON, L7R 5B6

Line drawing of a front-loading washing machine with visible dish, wheels, and control panel (no text or symbols)

Line drawing of a kitchen appliance with drawer and sink (no text or symbols)
    note right of C: Energy Smart Hold 3 Sec to Override
    note left of F: Launch Controls

GDT740, PDT750, PDT760

CDT725

CDT765

Diagram showing a bottle and washing machine with equals sign, illustrating chemical equivalence or chemical reaction.

Illustration showing a prohibition symbol over food containers, with a crossed-out truck in the background.

Pince Buse Lavage de bouteille

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Pure technical line drawing of a structural framework with no text, numbers, or symbols

Black-and-white photo of a multi-tiered kitchen appliance rack with various kitchen items (no visible text or labels)

Interior view of a multi-level kitchen appliance with multiple empty compartments and glassware (no visible text or labels)

Black and white photo of a kitchen appliance rack with multiple kitchen items including mugs, bowls, and spoons (no text or symbols visible)

Interior view of a stainless steel kitchen appliance with multiple white ceramic dishes arranged in rows (no visible text or labels)

Interior view of a multi-level kitchen appliance with plastic dishes and kitchen utensils (no text or labels visible)

Interior view of a multi-level kitchen appliance with plastic kitchenware and washers (no visible text or labels)

Black and white overhead view of a kitchen appliance rack with multiple kitchen utensils and bowls (no text or symbols visible)

Top-down view of a multi-tiered kitchen appliance rack with various glassware and bowls (no visible text or labels)

Black and white photo of a multi-tiered kitchen appliance rack with plastic washers and glassware (no text or symbols visible)

Interior view of an electrical substation with large insulators (no visible text or symbols)

Figure A Figure B

Interior view of a kitchen appliance showing multiple white ceramic slippers arranged in rows (no text or symbols visible)

Interior view of a kitchen appliance showing multiple white kitchen plates and a rack with mechanical components (no text or symbols visible)

Interior view of a kitchen appliance showing multiple plates and dish dividers (no text or symbols visible)

Interior view of a kitchen appliance with multiple white plates and a rack (no visible text or symbols)

Interior view of a washing machine with multiple plates and dish dividers (no visible text or labels)

Interior view of a washing machine showing multiple white ceramic plates and mechanical components (no text or symbols visible)

Interior view of a multi-tiered appliance with metallic blades and a transparent casing (no visible text or symbols)

Interior view of a washing machine with multiple white ceramic insulators and a grid rack (no text or symbols visible)

Interior view of a kitchen appliance showing multiple white circular plates and internal components (no text or symbols visible)

Overhead view of a kitchen appliance showing multiple white circular plates arranged in a grid (no text or symbols visible)

Illustration of hands assembling a mechanical device with a handle and load, showing internal components and assembly (no text or symbols)

MISE EN GARDE!

Interior view of a rectangular appliance with grid pattern and internal rack structure (no visible text or symbols)

Close-up of a black plastic tray with grid pattern and coiled wire mesh (no text or symbols visible)

Top-down view of a white plate placed on a black perforated tray (no text or symbols visible)

Technical line drawing of a mechanical device interior showing internal components and a top-down view with an upward arrow (no text or symbols)

Technical line drawing of an industrial or mechanical assembly with internal components and a downward arrow indicating motion (no text or symbols present)

Line drawing of a basket with mesh patterns and handle handles (no text or symbols)

Technical line drawings of two plastic basket designs, one with a magnified inset showing a crossed-out wire (no text or symbols)

Three open metal tool kit cases with various tools, no visible text or labels

Top-down view of a modern kitchen utensil with cutlery and cutlery (no text or symbols visible)

Three open metal tool crates containing various metal tools, arranged in a grid pattern (no visible text or labels)

Two views of a plastic kitchen drawer with cutlery and spoons (no text or symbols visible)

Four black plastic tool crates containing various metal tools, arranged in a grid (no visible text or labels)

Black-and-white photo of a toolbox containing various kitchen utensils arranged in rows (no text or labels visible)

Two views of a plastic kitchen drawer with cutlery and utensils arranged in rows (no text or symbols visible)

Coupure antirefoulement

Garant : MC Commercial, Burlington, ON, L7R 5B6

Line drawing of an open kitchen appliance with visible door, wheels, and lid (no text or symbols)

MODELOS DE CONTROL FRONTAL

Line drawing of a kitchen appliance with a drawer and internal compartments (no text or symbols)

MODELOS DE CONTROL SUPERIOR

    subgraph Start
        B
        C
        D
        E
        F
        G
        H
        I
        J
        K
        L
    end

    %% Note: The chart is a schematic representation of a process or system with labeled steps and conditions. The diagram includes symbols for each step and the corresponding process labels.

DDT575, GDT580, GDT680

GDT720

Low Rinse Aid

    F["Delay Hours"] --> G["On"]
    H["Steam"] --> I["Boost"]
    J["Wash Temp"] --> K["Sani"]
    L["Bottle Wash"] --> M["On"]
    N["Heated Dry"] --> O["On"]
    P["Wash Zones"] --> Q["Upper"]
    R["Lower"] --> S["Start"]

    T["Energy Smart Hold 3 Sec to Override"] --> U["Lock Controls"]

    V["Sanitized Clean"] --> W["Start"]

GDT740, PDT750, PDT760

CDT725

CDT765

1 Cargue el Lavavajillas

Diagram showing a bottle and a washing machine with equals sign, illustrating product equivalence or cleaning process.

Illustration showing a prohibition symbol over food items including vegetables and grains, with a railway bridge in the background.

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Pure technical line drawing of mechanical components without any text, numbers, or symbols

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Black-and-white photo of a multi-tiered kitchen appliance rack with various kitchen utensils and glassware (no visible text or labels)

Modelos - GDF570 y DDT575

Interior view of a multi-level kitchen appliance with multiple empty dishes and plastic cups (no visible text or labels)

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Interior view of a multi-level kitchen appliance with multiple white ceramic mugs and glassware arranged in rows (no text or symbols visible)

Modelos - GDF570 y DDT575

Interior view of a stainless steel kitchen appliance with multiple dish units and glassware (no visible text or labels)

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Interior view of a multi-level kitchen appliance with plastic kitchenware and kitchen utensils (no text or labels visible)

Modelos - GDF570 y DDT575

Interior view of a multi-level kitchen appliance with multiple plastic dishes and metal grilles (no visible text or labels)

Overhead view of a multi-level kitchen appliance rack with various kitchen utensils and bowls (no text or symbols visible)

Black-and-white overhead photo of a multi-tiered kitchen appliance with various glassware and bowls (no visible text or labels)

Top-down view of a multi-level kitchen appliance rack with plastic washers and kitchen utensils (no text or symbols visible)

Carga del lavavajillas (cont.).

Interior view of an electrical substation with multiple insulators (no visible text or labels)

Figura A Figura B

Interior view of a kitchen appliance showing multiple cylindrical dish units (no visible text or labels)

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Interior view of a kitchen appliance showing multiple white plates and compartments (no text or symbols visible)

Modelos - GDF570 y DDT575

Interior view of a kitchen appliance showing multiple white plates arranged in rows (no text or symbols visible)

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Interior view of a kitchen appliance with multiple plates and a rack (no visible text or symbols)

Modelos - GDF570 y DDT575

Interior view of a kitchen appliance with multiple plates and dish holders (no visible text or labels)

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Interior view of a multi-level kitchen appliance with multiple white fan compartments and mechanical parts (no visible text or symbols)

Modelos - GDF570 y DDT575

Interior view of a multi-tiered appliance with white ceramic plates and metallic components (no visible text or symbols)

Interior view of a kitchen appliance with multiple white ceramic plates arranged in rows (no text or symbols visible)

Top-down view of a kitchen appliance with multiple plates and bowls arranged in rows (no text or symbols visible)

Interior view of a washing machine showing internal turbine blades and housing (no text or symbols visible)

Carga del lavavajillas (cont.).

Illustration of a hand placing an abacus into a tray with a large 'N' symbol, no text or symbols present

Interior view of a grid-patterned storage unit with metal grating and internal wavy patterns (no text or symbols visible)

Close-up of a grid-patterned metal tray with curved internal structures (no text or symbols visible)

Top-down view of a white plate placed on a black metal gridded tray (no text or symbols visible)

Technical illustration of a mechanical assembly with internal components and an upward arrow indicating motion (no text or symbols present)

Technical line drawing of an industrial machine interior with internal components and a downward arrow indicating motion (no text or symbols)

Line drawing of a basket with woven handles and handle, no text or symbols present

Technical line drawings of two plastic crates with a magnified inset showing a no-smoking symbol (no text or labels present)

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Three open tool kit cases containing various kitchen utensils (no visible text or labels)

Top-down view of a dual-chamber kitchen utensil with cutlery and forked cutlery (no text or symbols visible)

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Three open metal tool kit cases containing various kitchen utensils (no text or labels visible)

Two views of a metal cutting board with cutlery and spoons, no text or symbols visible

Modelos - GDT580, GDT680, GDT720, GDT740, PDT750 y CDT725

Set of four open metal kitchen utensils in plastic crates, arranged in a grid (no text or labels visible)

Modelos - PDT760 y CDT765

Set of metal kitchen utensils in open and closed black crates (no text or labels visible)

Modelos - GDF570 y DDT575

Two views of a plastic kitchen drawer with cutlery and utensils, no text or symbols visible

Cuidado y limpieza.

Garante: General Electric Company. Louisville, KY 40225

General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

Registre su electrodoméstico GEAppliances.com

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner's Manuals, order parts or even schedule service on-line.

Schedule Service

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 800.561.3344

Real Life Design Studio

In the US: GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE's Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, please write to: Director, Consumer Relations, MC Commercial

1 Factory Lane, Suite 310

Moncton, N.B. E1C 9M3

Extended Warranties

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, please consult your local listings for your extended warranty provider.

Parts and Accessories

In the US: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

In Canada, call 800.661.1616

Contact Us

In the US: GEAppliances.com

In Canada: GEAppliances.ca

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park

Louisville, KY 40225

In Canada, please write to: Director, Consumer Relations, MC Commercial

1 Factory Lane, Suite 310

Moncton, N.B. E1C 9M3

Register Your Appliance

In the US: GEAppliances.com

In Canada: GEAppliances.ca

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
