Product type	Decorative range hood
Brand	Siemens
Model	LC85K950
Dimensions (W x H x D approx.)	850 x 600-1100 x 500 mm
Weight (approx.)	15 kg
Power supply	220-240 V ~ 50/60 Hz
Max total power	280 W
Lighting	2 halogen bulbs Osram Dulux S 11W
Number of speeds	4 (including intensive)
Max airflow (approx.)	650 m³/h
Grease filter type	Dishwasher-safe metal filters
Min. installation height (above electric hobs)	400 mm
Min. installation height (above gas hobs)	550 mm
Recommended exhaust diameter	150 mm (round)
Exhaust mode	External exhaust / Recirculation (not supplied)
Functions	On/off, variable speed, lighting, delayed shut-off
Audible signal	Can be disabled
Filter saturation indicator	Yes (audible signal + display 'z')
Surface maintenance	Stainless steel: specific product, direction of polishing; aluminum: soapy water
Bulb replacement	Accessible after removing filter and frame
Repairability index (estimated)	7.5/10 (spare parts available)
Standards	CE, WEEE, anti-interference
Color	Stainless steel

Frequently Asked Questions - LC85K950 SIEMENS

How to turn the Siemens LC85K950 hood on and off?

To turn on the fan, press the + button. To turn it off, press the 0 button or reduce the speed until it stops. The light is operated with the button (in the shape of a bulb).

How to adjust the fan speed?

Use the + (increase) and - (decrease) buttons to cycle through speeds. The intensive speed (letter P) is activated by pressing + several times; it automatically returns to speed 2 after 10 minutes.

How to activate the delayed shut-off?

Press the →| button. The fan then runs for 10 minutes at speed 1 and then turns off automatically. The indicator light →| illuminates during this period.

How to clean the metal grease filters?

Remove the filters by pressing the front and rear tabs. Clean them in the dishwasher or by hand with warm water and dish soap. Avoid harsh detergents. Under normal use, clean them once a month.

What does the audible signal and 'z' display after shut-off mean?

It is the grease filter saturation indicator. As soon as the signal sounds (6 seconds after shut-off) and the letter z is displayed, you must clean the filters promptly. After cleaning, reset the indicator by pressing the 0 button.

How to replace a halogen bulb?

Unplug the hood. Remove the grease filter, then unscrew the filter frame with the supplied Allen key. Replace the defective bulb (Osram Dulux S 11W) by gently pulling it out. Reinstall the frame and filters.

What minimum height should be maintained between the hood and the cooktop?

Above electric hobs: 400 mm. Above gas hobs: 550 mm. For solid fuel cooktops, a closed lid is required and national regulations apply.

Can the hood be used in recirculation mode?

Yes, but the manual states it is mainly designed for external exhaust. For recirculation, an activated carbon filter kit (not supplied) must be installed. Follow the specific installation instructions.

What to do if the hood buttons stop responding?

Disconnect the hood from power by unplugging it or turning off the circuit breaker for about one minute. Reconnect it: the buttons should work again. If the problem persists, contact Siemens customer service.

How to maintain stainless steel surfaces?

Use a special stainless steel cleaner and always wipe in the direction of the polish. Avoid dry cloths and abrasive detergents. For aluminum surfaces, use a soft cloth with soapy water or a mild glass cleaner.

USER MANUAL LC85K950 SIEMENS

Operating and installation instructions

Top-down architectural rendering of a modern kitchen chimney with ventilation grilles and a chimney (no text or symbols visible)

鯖 < 丙 P 簦 嫉

LC 85 K 950

LC 86 K 950

LC 957 KB 70

LC 957 KA 70

Gerätebeschreibung

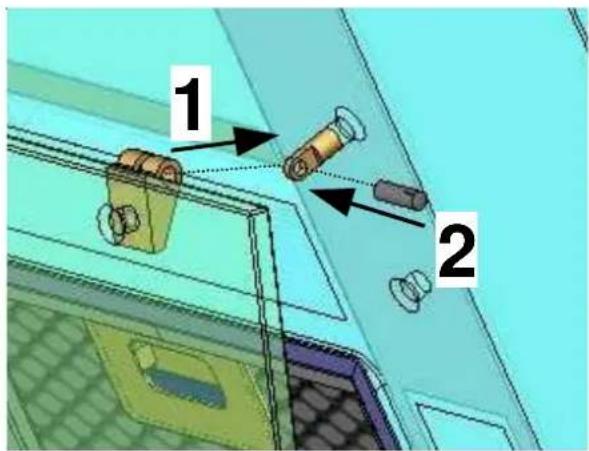

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a device with labeled components and numbered parts, showing internal structure and assembly.

Diagram showing two labeled components (1 and 2) with arrows indicating movement or assembly, likely illustrating a mechanical or electrical assembly.

Vor der Montage

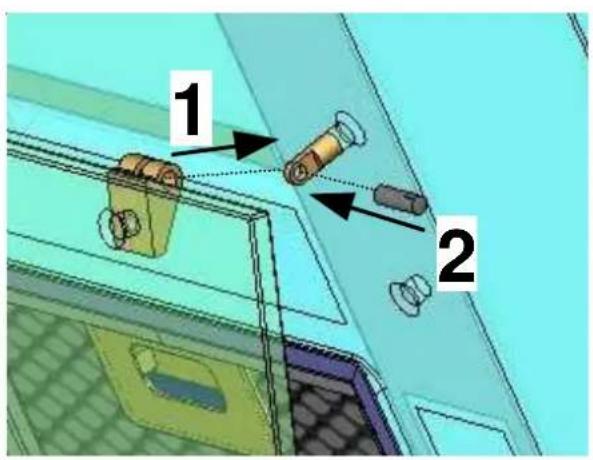

3D rendered mechanical component with a blue checkmark on a green surface (no text or symbols)

3D rendered mechanical component with intersecting blue and purple lines, no visible text or symbols

Montageanleitung

Two schematic diagrams showing fluid flow between a pipe and a container, with no text or symbols present.

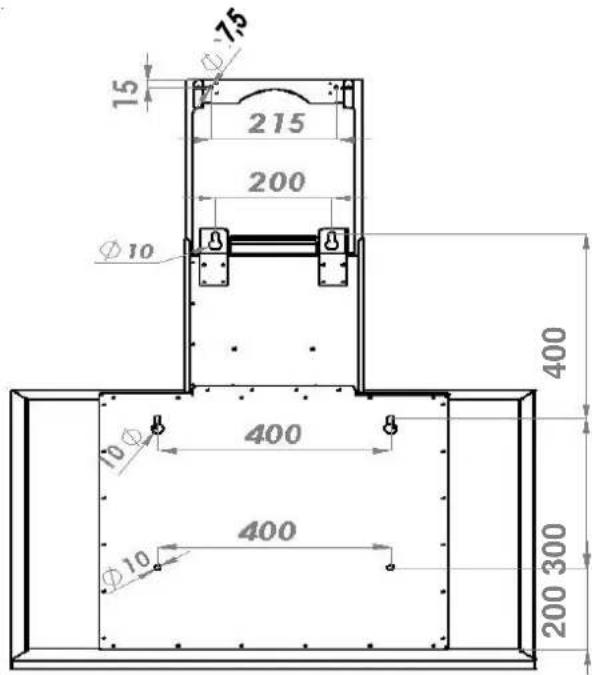

Technical diagram of a mechanical bracket assembly with mounting holes and a magnified inset showing a lightning bolt (no text or symbols present)

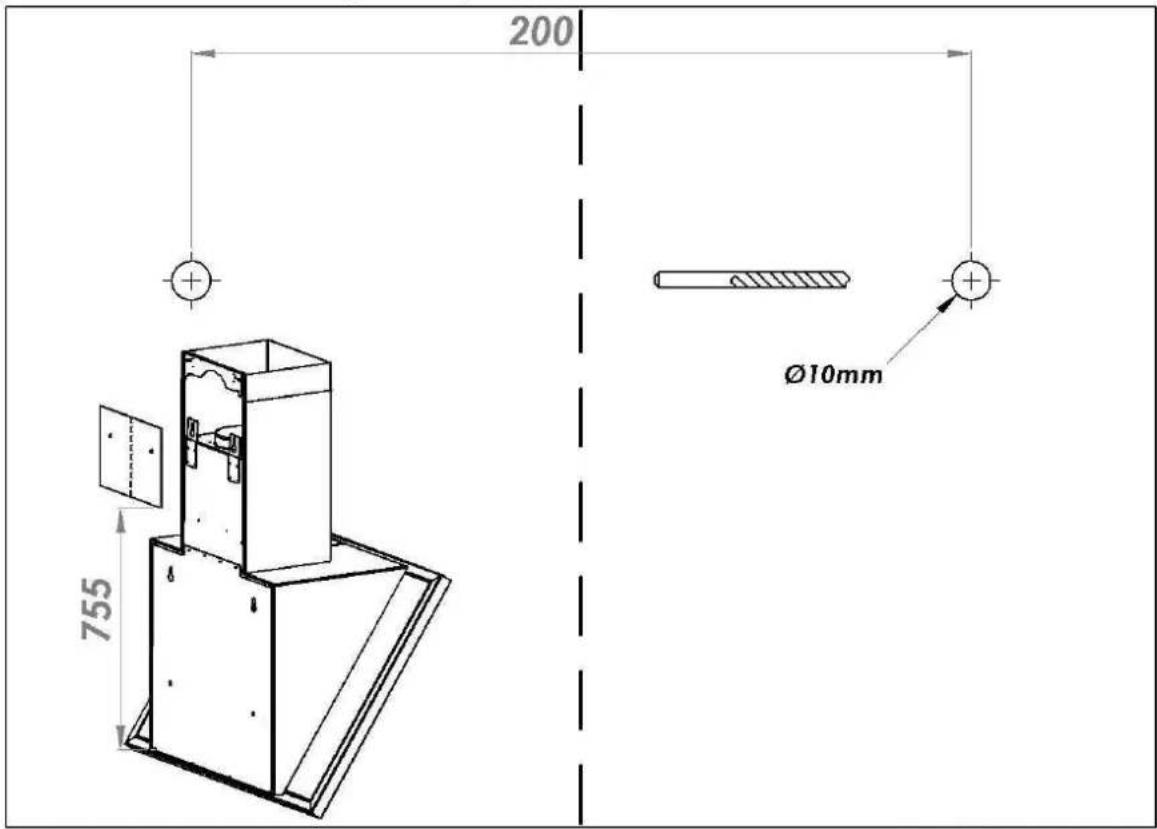

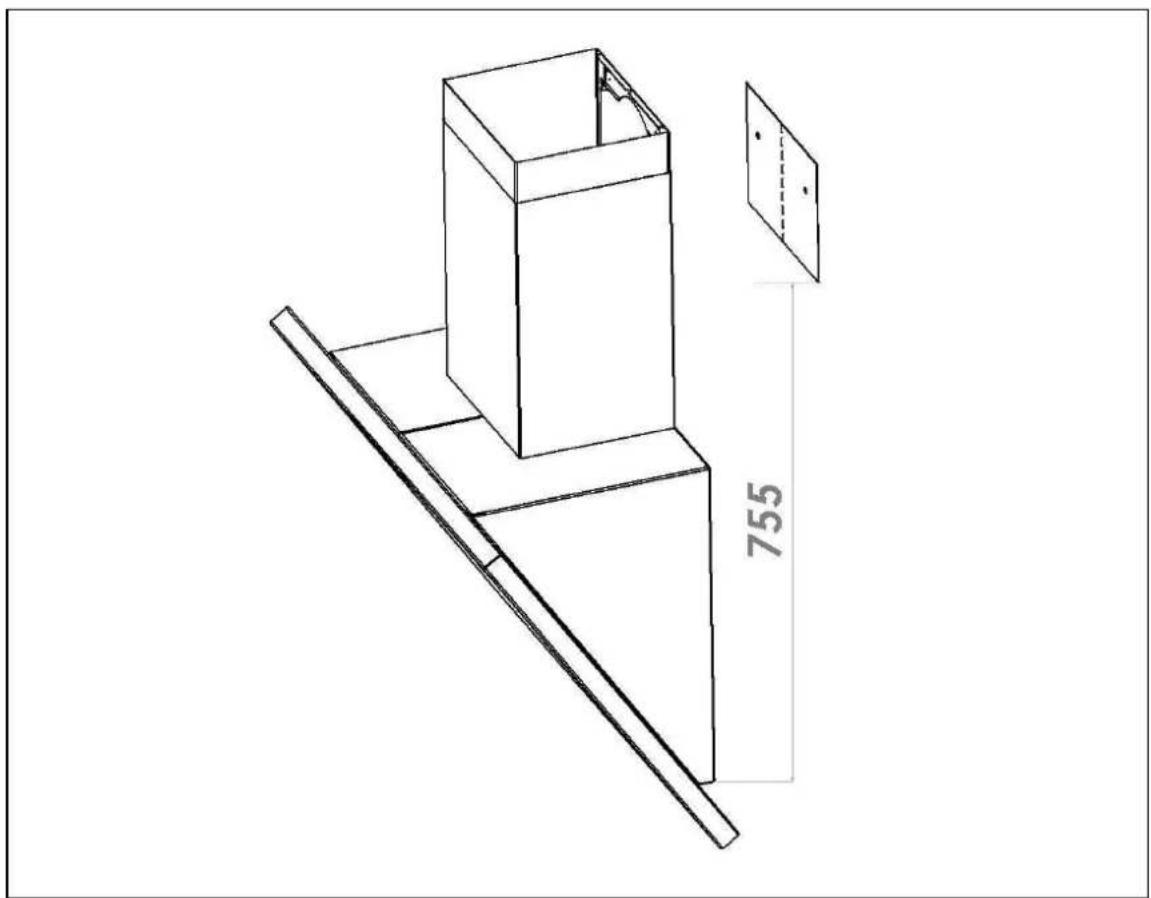

Technical line drawing of a mechanical assembly with a 755-unit dimension label (no text or symbols beyond the dimension)

Montageanleitung

Diagram showing two views of a door frame with a close-up view of the door (no text or symbols present)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Operating Instructions

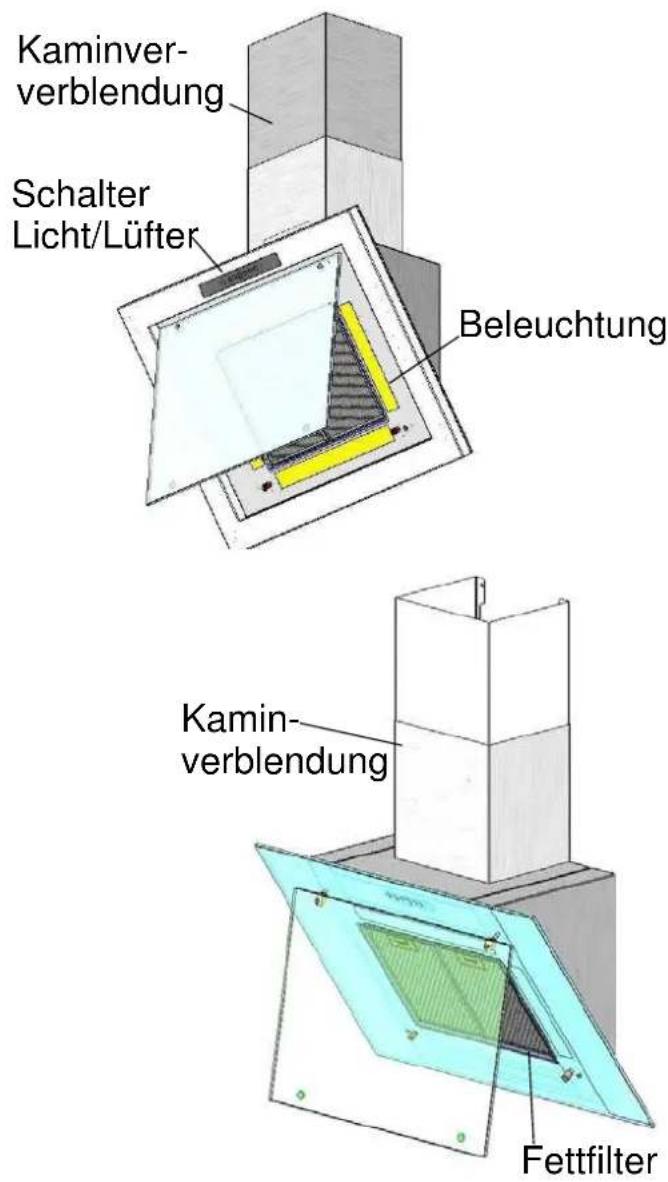

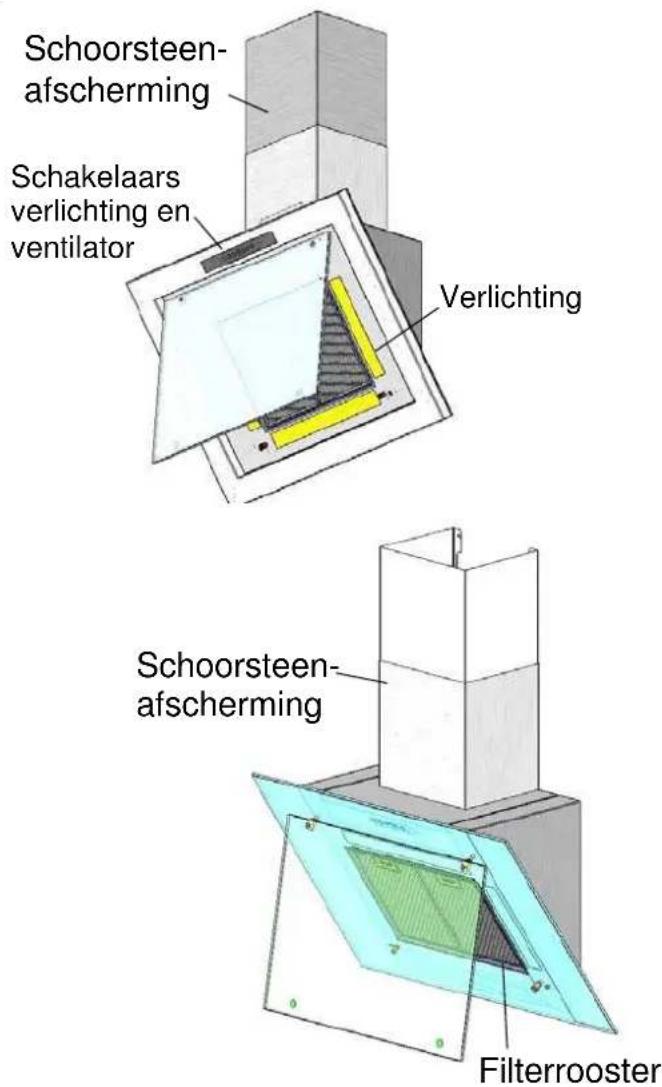

Chimney panelling Light / fan switches Lighting Chimney panelling Filter

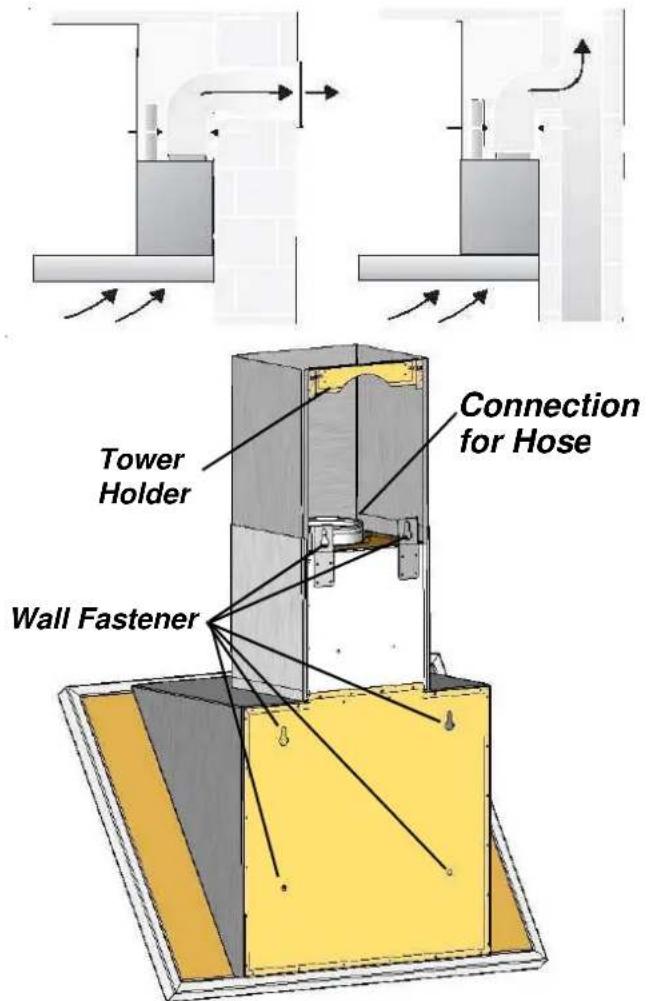

Exhaust-air mode:

• The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.
• The grease filter absorbs the solid particles in the kitchen vapours.
• The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.
⚠️ Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).
This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.
If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.
⚠ An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Operating procedure

Important notes:

The Instructions for use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Before using your appliance for the first; time, please read these instructions for use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.

Please retain the operating and

installation instructions for a subsequent owner.

This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Safety instructions

Do not flambé food directly under the extractor hood.

Risk of grease filter catching fire due ! to flames.

The hotplates must always be covered with a utensil.

Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See; Installation instructions).

Do not use the appliance if damaged.

The appliance is not intended for use by young children or infirmed persons without supervision. Young children should be supervised to ensure they do not play with the appliance.

If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

The appliance may be connected to the mains by a qualified technician only.

Dispose of packaging materials properly (see; Installation instructions).

This extractor hood is designed for domestic use only.

Light bulbs must always be fitted when the extractor hood is in use.

Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

Never operate the extractor hood without a grease filter.

Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

Carefully clean the extractor hood before switching on for the first time.

Operating procedure

Do not place any objects on the extractor hood.

The most effective method of removing vapours produced during cooking is to:

Switch the ventilator ON

as soon as you begin cooking.

Display for fan setting Fan follow-on Light Fan OFF Reduce fan speed Fan ON and increase speed

Switch the ventilator OFF

a few minutes after you have finished cooking.

Acoustic signal:

When a button is pressed, this is verified by an acoustic signal.

Switching off the acoustic signal:

Simultaneously press buttons 0 and + until a signal is emitted after approx. 3 seconds.

Switching on the acoustic signal:

Repeat the process.

Setting the required fan speed:

Press the + button. The fan speed is increased by one step.

Press the - button.

The fan speed is reduced by one step.

Press the 0 button. The displayed 0 goes out shortly afterwards.

Or:

Keep pressing the - button until the fan switches off.

The displayed 0 goes out shortly afterwards.

Intensive setting:

Maximum power is obtained at the intensive setting. It is only required for short intervals.

Keep pressing the + button until a P appears in the display.

If the intensive setting is not cancelled by hand, the fan will automatically switch back to step 2 after 10 minutes.

Fan follow-on:

Press the →| button.

The fan runs for 10 minutes at setting 1.

At the same time the →| display comes on.

Then the fan switches off automatically.

Lighting:

Briefly press the button to switch the light on and off.

The light can be switched on at any time, even though the fan is switched off.

Switching on the light automatically, e.g. via a timer:

Fan and light must be switched off.

Switching on:

Simultaneously press the – and →|buttons.

After approx. 3 seconds the light switches on to acknowledge the setting.

Switching off:

Repeat the process with the light switched on.

After approx. 3 seconds the light switches off to acknowledge the setting.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Saturation indicator: ≡

When the grease filters reach saturation point, an acoustic signal is sounded for 6 seconds after the fan has switched off, and an ≡ appears in the display. The grease filters should be cleaned straight away.

Cleaning the metal grease filters:

In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned one a month.

The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.

The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

When cleaning the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners.

Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

Removing and inserting the metal grease filters:

Only change the grease filter when the front panel is open.

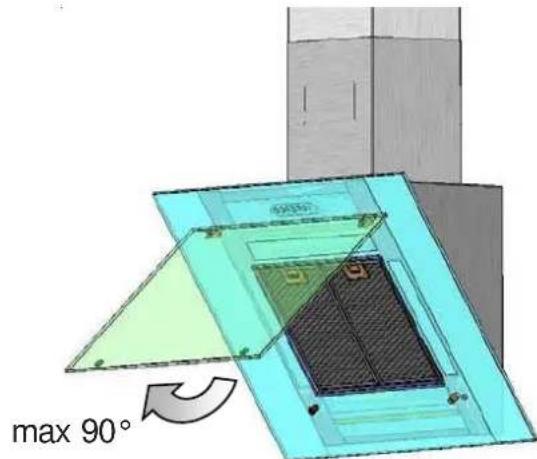

⚠️ Please only pivot the pane to a maximum of 90° as the glass pane could otherwise be destroyed.

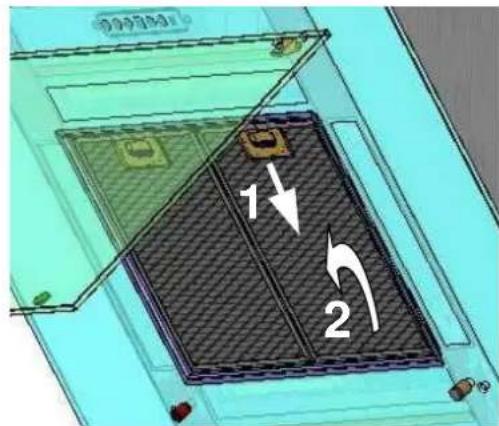

1. Press the catches on the front grease filters and fold down the grease filters

max 90°

1. Press the catches on the rear grease filters and fold down the grease filters.

2. Clean the grease filter.

1 2

1. Insert the clean filters back into the hood.

2. Cancel the in the display.

Press the button 0.

Cleaning and care

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!

Clean the extractor hood with a hot soap solution or a mild window cleaner.

Do not scrape off dried-on dirt but wipe off with a damp cloth.

When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.

Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

Use a mild non-abrasive stainless steel cleaner.

Clean the surface in the same direction as it has been ground and polished.

We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address.

Aluminium and plastic surfaces:

Do not use dry cloths.

Use a mild window cleaning agent.

Do not use aggressive, acidic or caustic cleaners.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.

2. First remove the grease filter (see chapter Grease Filter and Maintenance)

3. Unscrew the grease filter frame by loosening the lens-head screws using the enclosed Allen key. Take particular care when loosening the last screw as the grease filter frame could fall down onto the hob.

4. Replace the defective illuminant (Osram Dulux S 11W) be carefully pulling it out of the holder. Please only use the hood with an illuminant inserted.

1 3 2 3 1 3 1 3

1. Now insert the filter frame again and tighten the 4 cheese-head screws using the Allen key.

2. Restore the power by inserting the mains plug or switching on the fuse.

If you encounter a problem

Note: If the light does not function, check that the bulbs have been inserted correctly.

If an or [appears in the display:

See „Filters and maintenance“ Section.

If is not possible to operate the extractor hood:

Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box.

Wait for approx. 1 minute and then switch it on again.

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

AB - Nr.: FD

Enter the relevant numbers into the box above. The AB - Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Installation Instructions: Important information

Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.

You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.

Please ask your dealer or inquire at your local authority about current means of disposal.

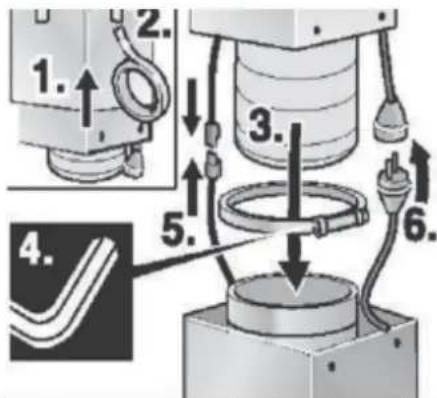

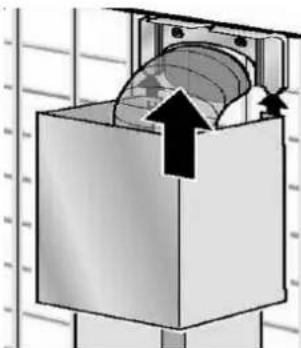

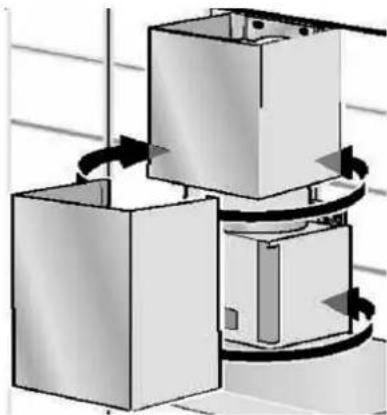

The extractor hood can be used in exhaust air or circulating air mode.

Always mount the extractor hood over the centre of the hob.

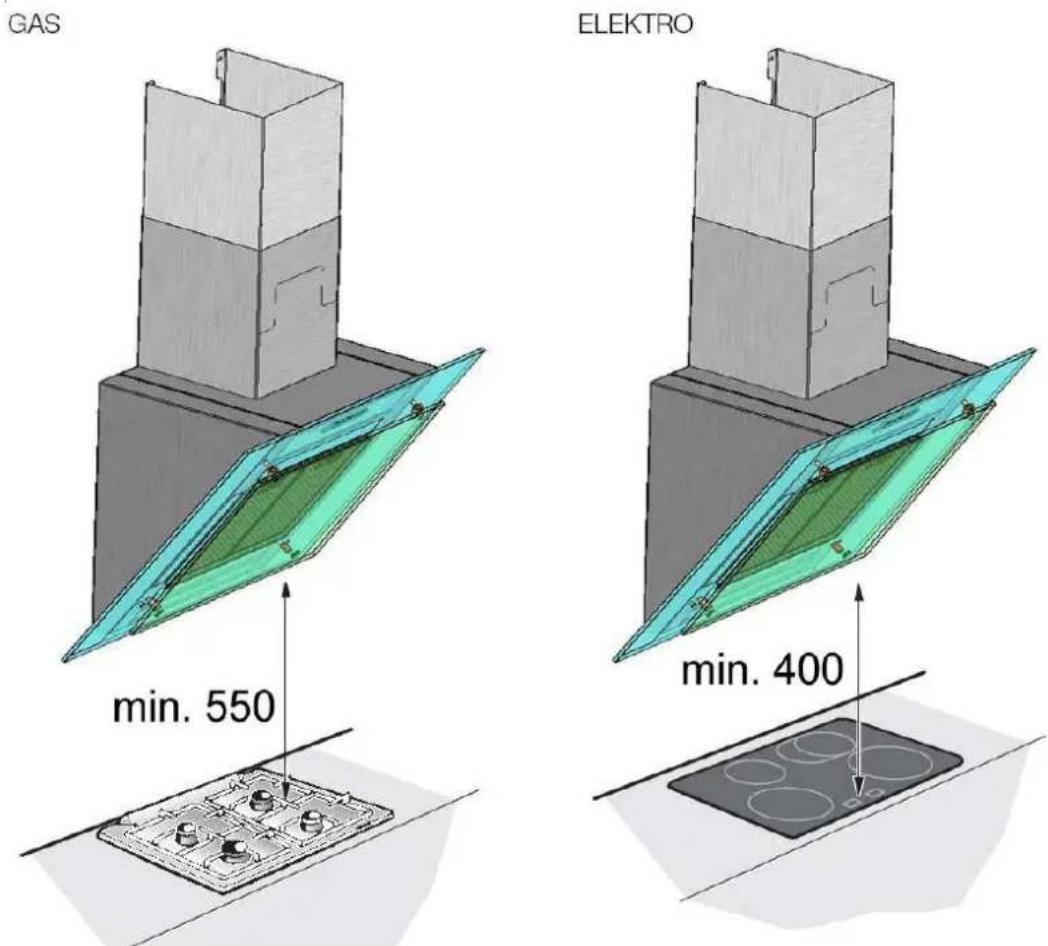

Minimum distance between electric hob and bottom edge of extractor hood: 400 mm,

The extractor hood must not be installed over a solid fuel cooker - a potential fire hazard (e.g. flying sparks) -unless the cooker features a closed, non-removable cover and all national regulations are observed.

The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gas-installation TRGI).

Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.

Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.

Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 550 mm

Installation Instructions

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to

ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Prior to installation

For optimum extractor hood efficiency:

Short, smooth air exhaust pipe.

As few bends in the pipe as possible.

Diameter of pipe to be as large as possible and no tight bends in pipe.

If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Round pipes:

Internal diameter: 150 mm or bigger.

We recommend internal diameters of 150mm or larger.

Flat ducts must have an internal cross-section that equates to that of round pipes.

For exhaust-air mode, ensure that there is an adequate supply of fresh air.

WARNING: THIS APPLIANCE MUST BE

Electrical connection

EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth Blue - Neutral Brown - Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol, or coloured green or green and yellow.

2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.

3. Connect the brown (Live) wire to the terminal marked 'L, or coloured red.

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations. If possible, site the earthed socket directly behind the chimney panelling.

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

Before undertaking any repairs,

always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m.

If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

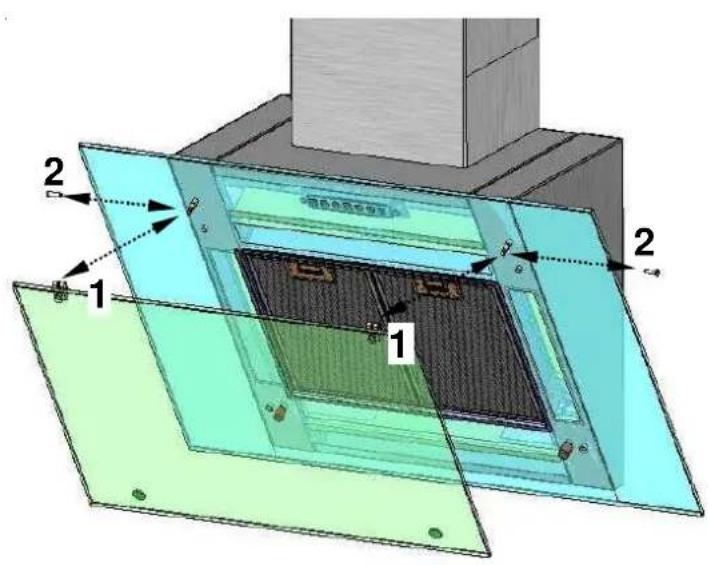

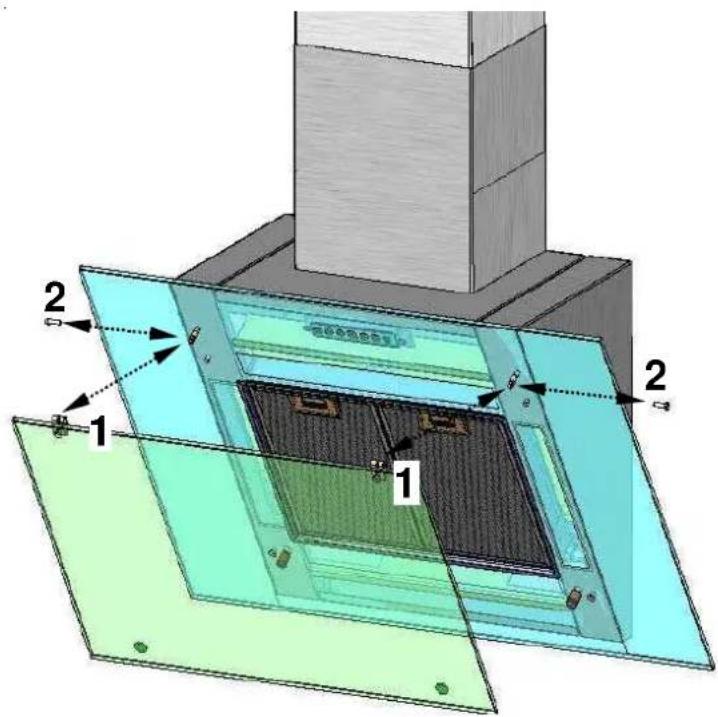

In order to avoid damage during transportation, the front glass panel will be packaged separately from the hood body and must be connected to the hood border after unpacking (see following illustration).

Prior to installation

The glass pane must then be placed on both attachment points. Then the bolts must be pressed in from the outside and/or carefully tapped in. For the bolts to be able to pushed in, the pane must first be positioned precisely so that the bolts can be pressed through the attachments points on the hood.

When installing the bolts, make absolutely sure that they have been pushed in completely. If these are not pushed in completely, the pane could be damaged by falling out. The falling glass could caused additional damage or injuries.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or flow.

3D rendered mechanical component with a blue checkmark on a green surface (no text or symbols)

Diagram showing two labeled components (1 and 2) with arrows indicating movement or assembly, likely illustrating a mechanical or electrical assembly.

3D rendered mechanical component with intersecting blue and purple lines, no visible text or symbols

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

Open glass aperture.

1. Remove the grease filter (refer to operating; Instructions).
2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.

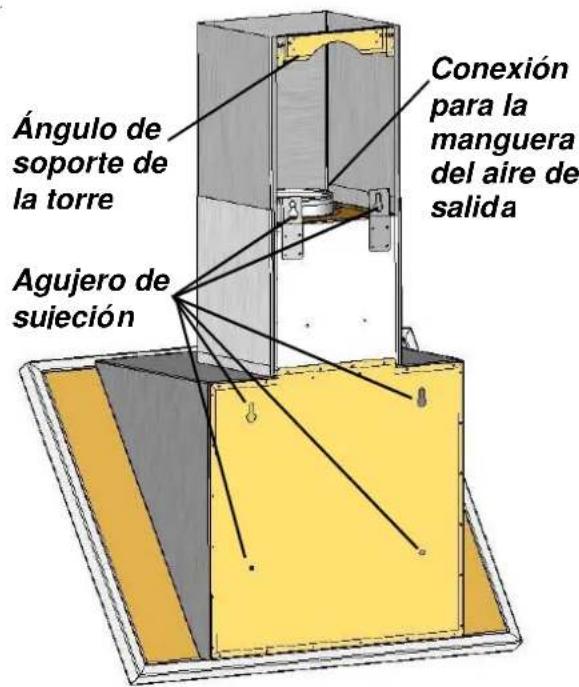

Tower Holder Wall Fastener Connection for Hose

Ensure that the minimum distance between the hob and the extractor hood is maintained - 400 mm for an electric hob and 550 mm for a gas hob. 1.) When using the drilling template, please ensure that the clearance between the bottom edge of the hood body and the bottom edge of the drilling template is 755 mm (see Fig. drilling template).

1. Drill 2x 6 mm ∅ holes for the upper fixing bracket.

15 75 215 200 Ø 10 400 10 400 400 Ø 10 200 300

1. Hole (diameter 10mm) for the attachment of the exhaust hood.

Technical diagram of a mechanical bracket assembly with mounting holes and a magnified inset showing a lightning bolt detail (no text or symbols present)

1. Please be certain to center the exhaust hood over the cooking area.
2. Drill the holes and insert suitable screw anchors flush.
3. Attach suspension (tower holder angle) to the upper tower.
4. Screw machine screws into the screw anchors ( 10 mm) until they protrude by about 20mm.
5. Hang the exhaust hood on the upper attachment points and loosely fasten it using the washers and nuts.
6. Align the exhaust hood (inspect the installation) and tighten the nuts.
7. Additionally secure the exhaust hood with two additional screws.

Installation / Drilling template

200 Ø10mm 755

Technical line drawing of a mechanical assembly with a 755-unit dimension label (no text or symbols beyond the dimension)

Installation

Technical diagram showing a mechanical assembly with numbered steps and a magnified detail view of a component.

1. (Exhaust operation) Cut the exhaust hose to the proper length.
2. (Exhaust hose) Attach and tighten the exhaust hose, be sure that it is free of bends.
3. Bend the retaining grooves on the upper tower outwards approximately 2-3 mm.

Diagram showing two views of a door with a handle, illustrating the angle and direction of movement (no text or symbols present)

1. Slide the upper tower into the retaining tongue on the tower mount until it clicks into place.
2. Pull the under tower slightly outwards and place the upper tower and the exhaust hood module on it. The undertower must be touching the hood.

Diagram of a mechanical device with a curved component and directional arrow (no text or symbols)

1. Connect the hood to the electricity supply.

Diagram of a mechanical assembly with two boxes and rotating arrows indicating motion (no text or symbols)

Ventilation intensive:

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

3D rendered mechanical component with a yellow lever and blue checkmark on a green surface (no text or symbols)

3D rendered mechanical component with intersecting blue and purple lines, no visible text or symbols

Diagram showing two identical mechanical or fluidic device configurations with flow arrows indicating direction (no text or symbols present)

Technical diagram of a mechanical bracket assembly with mounting holes and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with a 755-unit dimension label (no text or symbols beyond the dimension)

Encastrement

Diagram showing two views of a door frame with a switch, no text or symbols present

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical assembly with two boxes and rotating arrows indicating motion (no text or symbols)

Gebruiksaanwijzing

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a mechanical assembly with labeled components and directional arrows

3D rendered mechanical component with a yellow handle and blue checkmark on a green surface (no text or symbols)

3D rendered mechanical component with intersecting blue and purple lines, no visible text or symbols

Inbouwen

Technical diagram of a mechanical clamp or bracket assembly with mounting holes and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with a 755-unit dimension label (no text or symbols beyond the dimension)

Inbouwen

Diagram showing a door opening process with arrows indicating movement, no text or symbols present

Diagram of a mechanical device with a cylindrical component and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Diagram showing two labeled components (1 and 2) with arrows indicating movement or alignment, likely illustrating a mechanical or electrical assembly.

3D rendered mechanical component with a yellow handle and blue checkmark on a green surface (no text or symbols)

Technical diagram of a device with labeled components and numbered parts, showing internal structure and assembly.

3D rendered mechanical component with intersecting blue and purple lines, no visible text or symbols

Montaggio

Two schematic diagrams showing fluid flow between a platform and a valve, with no text or symbols present.

Mechanical assembly diagram showing a bracket with mounting holes and a magnified inset (no text or symbols)

Technical line drawing of a mechanical assembly with a 755-unit dimension label (no text or symbols beyond the dimension)

Montaggio

Diagram showing two views of a door with a handle, illustrating the angle and direction of movement (no text or symbols present)

Diagram of a mechanical device with a curved component and directional arrows, no visible text or symbols

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Diagram showing two labeled components (1 and 2) with arrows indicating movement or assembly, likely illustrating a mechanical or electrical assembly.

3D rendered mechanical component with a yellow bracket and blue checkmark on a green surface (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and numbered parts

3D rendered mechanical component with intersecting blue and purple lines, no visible text or symbols

Montaje

Two schematic diagrams showing fluid flow between a pipe and a container, with no text or symbols present.

Technical diagram of a mechanical bracket assembly with mounting holes and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with a 755-unit dimension label (no text or symbols beyond the dimension)

Montaje

Diagram showing two views of a door with a handle, illustrating the angle and direction of movement (no text or symbols present)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating assembly steps.

1 2

3D rendered mechanical component with a blue checkmark on a green surface (no text or symbols)

3D rendered mechanical component with intersecting blue and purple lines, no visible text or symbols

Montagem

Technical diagram of a mechanical clamp or bracket assembly with mounting holes and alignment lines (no text or symbols)

Technical line drawing of a mechanical assembly with a 755-unit dimension label (no text or symbols beyond the dimension)

Montagem

Diagram showing two views of a door with a handle, illustrating the angle and direction of movement (no text or symbols present)

Diagram of a mechanical device with an upward arrow indicating motion or force, no text or symbols present

Diagram of a mechanical or electrical assembly with two stacked blocks and directional arrows indicating motion (no text or symbols)

Family Line 01805-2223

€ 0,14/min. DTAG

Siemens-Hausgeräte
