HAVIR22 - Radio KONIG - Free user manual and instructions

Product Type	Internet Radio
Brand	Konig
Model	HAVIR22
Power Supply	110-240 V AC, 50/60 Hz
Supported Audio Formats	MP3, WMA, ID3 V1/V2, synchronized lyrics (.txt/.lrc/.smi)
Audio Sources	Internet Radio (World Station, SHOUTcast), Podcasts, USB, Auxiliary, UPnP
Wired Network	Ethernet 10/100 Mbps
Wireless Network	WiFi 802.11 b/g (via optional USB dongle)
Wireless Security	WEP 64/128, WPA-TKIP-PSK, WPA2-AES-PSK
Network Modes	Infrastructure, Ad-hoc
IP Addressing	DHCP (default), Static IP
Recording	Audio recording from Internet radio in MP3 128 Kbps
USB Storage	FAT16/32 mass storage devices
Alarm	Configurable dual alarm
Time Synchronization	Via network
Firmware Update	Yes
Display	Not specified
Maintenance	Clean with a dry cloth. Do not use solvents.
Safety	Do not open, do not expose to water/humidity. Unplug in case of problem.
Warranty	No warranty in case of modification or incorrect use.
General Information	Design and specifications subject to change without notice.

Frequently Asked Questions - HAVIR22 KONIG

How do I connect the Internet radio to my Wi-Fi network?

Insert a Wi-Fi USB dongle (optional) into the USB port, go to the Network menu, select Wizard or Manual Setup, choose your network and enter the password if necessary.

Can I listen to the radio without an Internet connection?

Yes, you can use local sources such as a USB drive with MP3/WMA files or an auxiliary device via the AUX input.

How do I record an Internet radio broadcast?

While playing a station, press the recording button. The radio records in MP3 128 Kbps format to a connected USB drive.

What should I do if the radio does not find any Internet stations?

Check the network connection (Ethernet cable or Wi-Fi), make sure the router is on and Internet access is available. You can also try restarting the device.

How do I set the alarm?

Go to the Alarm menu, choose alarm 1 or 2, set the time, days and audio source (Internet station, USB, etc.).

Can I use a USB drive not formatted in FAT32?

The radio only supports USB drives formatted in FAT16 or FAT32. Other formats will not be recognized.

How do I update the firmware?

Download the latest firmware version from the manufacturer's website, place it on a USB drive, plug it into the radio and follow the instructions in the Update menu.

What do the network icons at the top of the screen mean?

The LAN icon indicates that the Ethernet cable is connected. The WLAN icon indicates the Wi-Fi connection. If the icon is crossed out, there is a connection problem.

Can I listen to the radio via a media server?

Yes, the radio supports UPnP. Connect it to the same network as your media server (PC with server software) and select the Media Server source.

How do I reset the radio to factory settings?

In the Settings menu, find the Reset or Default option. Confirm to erase all settings.

USER MANUAL HAVIR22 KONIG

MANUAL (p. 2) Internet radio

MODE D'EMPLOI (p. 26) Radio Internet

MANUALE (p. 50) Internet radio

HASZNÁLATI UTMUTATO (o. 75.)
Internetrádio

BRUKSANVISNING (s. 100)
Internetradio

MANUAL DE UTILIZARE (p. 124) Radio prin internet

MANUAL DE USO (p. 62) Radio Internet

Internet Radio is a radio system integrated digital audio playback that functions with network connectivity. The system can play MP3/WMA audio files, USB devices and internet radio services such as World Station and SHOUTCast which provide above 15,000 internet radio stations. Internet Radio also supports audio streaming via UPnP Media Server.

1.2 Audio Sources

• Support MP3/ Windows Media ^ audio files (known as WMA)(Included ID3V1 ,2)
• Support static lyrics and syncsed lyrics (.txt/.lrc/.smi)
• Support USB Flash drive
• SHOUTCast Internet Radio (http://www.shoutcast.com)
• Support Podcast
• Support AUX

1.3 Storage

• Support standard USB Mass Storage device (FAT16/32).

1.4 Recording

• Be able to record audio data from internet radio stations (World Station / SHOUTCast) and transfer audio data into 128K MP3 format.

1.5 Networking

• Support Ethernet 10/100 Mbps
  Support Wireless LAN IEEE 802.11 b/g dongle
• Support Infrastructure / Ad-hoc
• Support WEP64/128 and WPA-TKIP-PSK, WPA2-AES-PSK encryption
• Support Proxy Setting
• The system provides a wireless setting wizard to make wireless network setup easier.

1.6 Others

• Support two alarm clock settings
• Support time sync technology (* network available)
• Support firmware upgrade

Chapter 2 Installation

2.1 Installation

NOTE: The proper voltage for Internet Radio is AC 110V~240V/50-60Hz. Be sure to the voltage in your area before plugging in the unit.

2.1.1 Installing onto network (LAN)

• Make sure the internet environment is ready and the network setting is available (ADSL or Cable Modems is highly recommended).
• The default setting of network in your Internet Radio is DHCP. (more network setting please check 11.6 Network)

• Connect the device to an Internet connected router according to the picture. Use a standard network cable.

• Connect the device to a PC according to the picture if it is only going to be used for listening to music that is stored in the computer. Use a crossed network cable.
• When the device is connected like this you can only listen to music which is stored in the computer. The computer must have special software installed. See section Media Server.

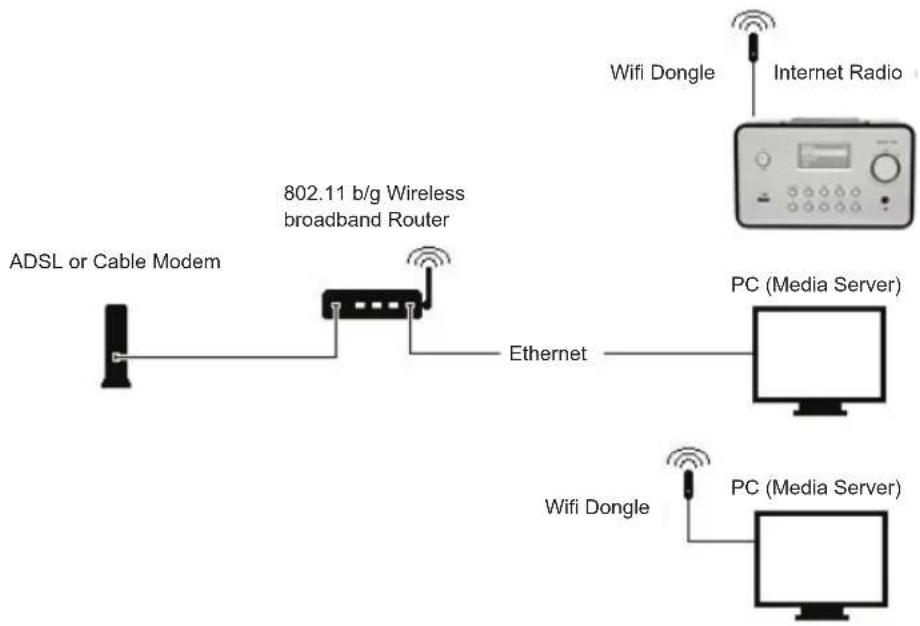

2.1.2 Installation of a wireless network (WLAN)

• Make sure the internet environment is ready and the network setting is available.
• Plug-in Wifi Dongle into Internet Radio (More setting please see 11.6 Network)

• Connect the wireless network dongle to the socket.

• You can connect the device wireless to a computer with a wireless network card.
• When the device is connected like this you can only listen to music which is stored in the computer. The computer must have special software installed. See section Media Server.

2.2 Starting The Equipment for The First Time

When you turn on the equipment for the first time the stereo will try to automatically search for an IP address. If the network is connected to the Internet, the equipment will also synchronize the time with the time server and then goes to standby mode. Usually it will take 6-30 seconds to finish the whole process.

2.3 World Station

2.3.1 Listen to World Station

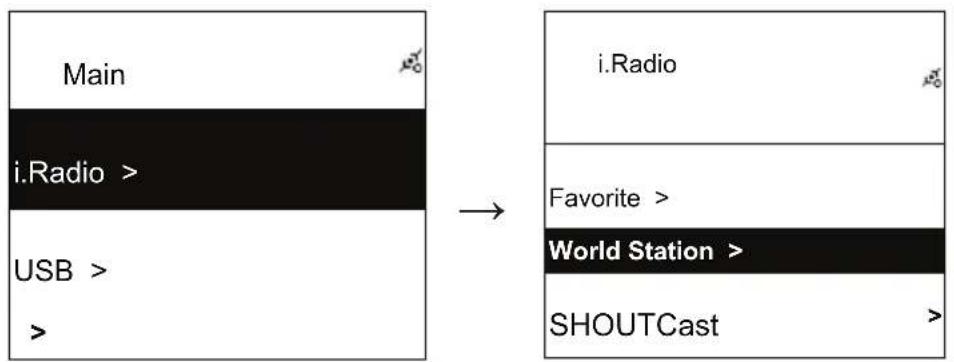

• Go to [Main] menu, choose [i.Radio] and press ENTER/OK button.
• Choose [World Station] and then press ENTER/OK button.
• Scroll up/down to a station and then press ENTER/OK button to play.
• You will hear music after buffering reaches to 100% .

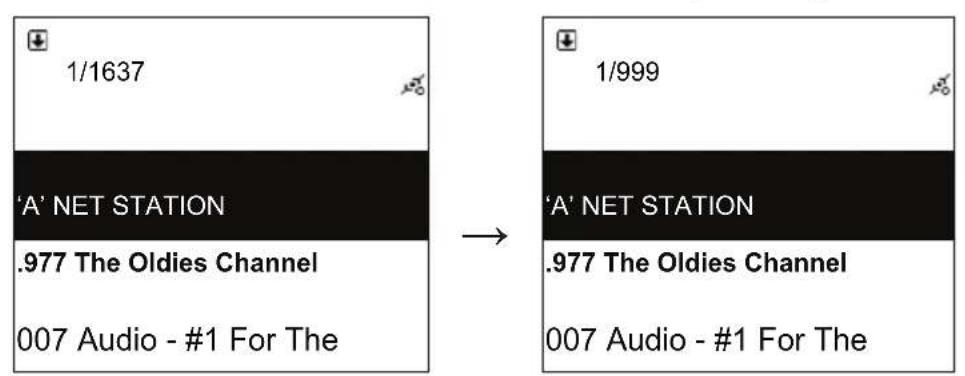

Note: For fast search for an internet radio station, press Right button to jump from radio stations started with alphabet A to alphabet B, alphabet B to alphabet C, and so on. Press Left button to jump backward.

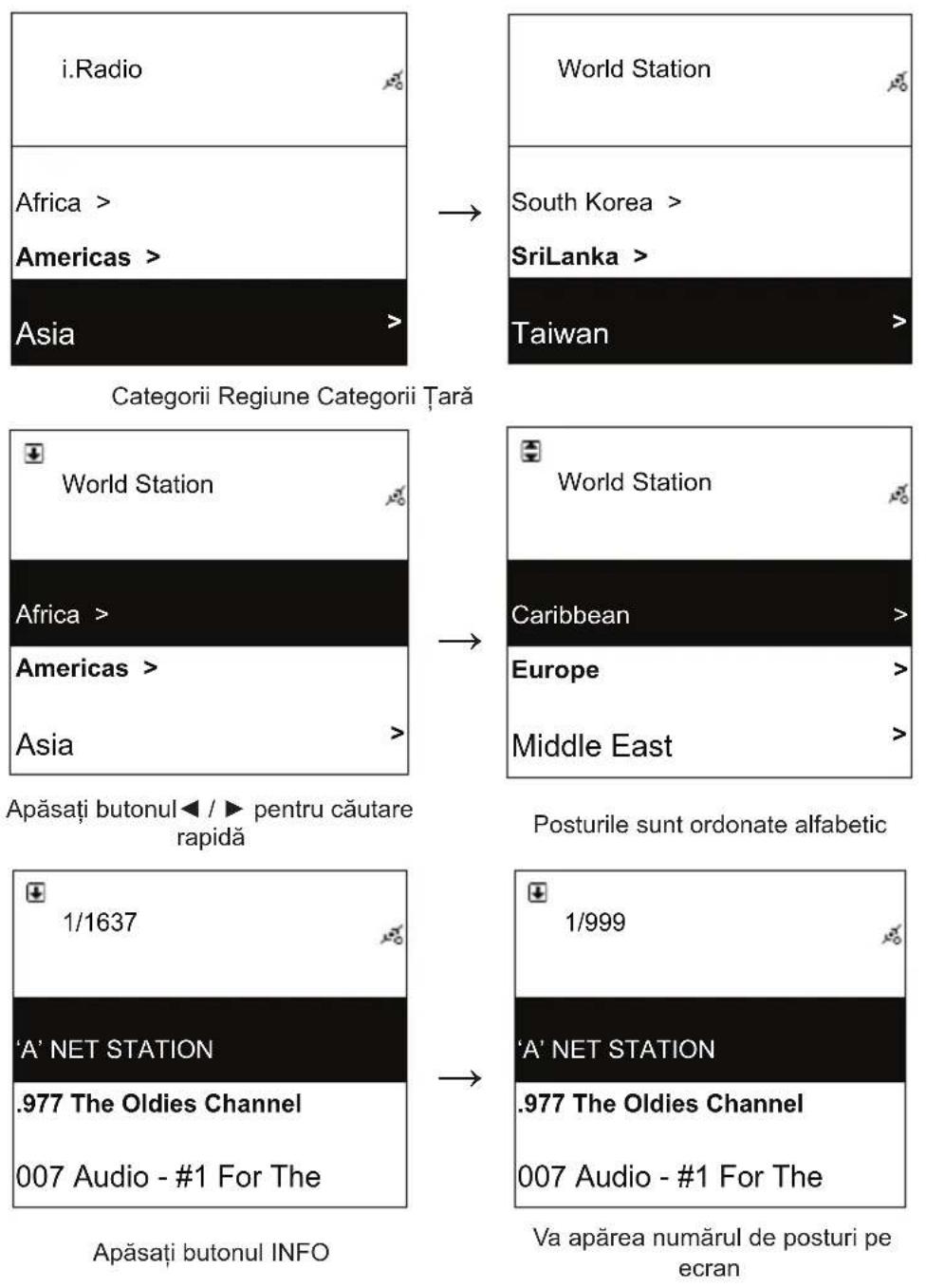

Table 2.3.1

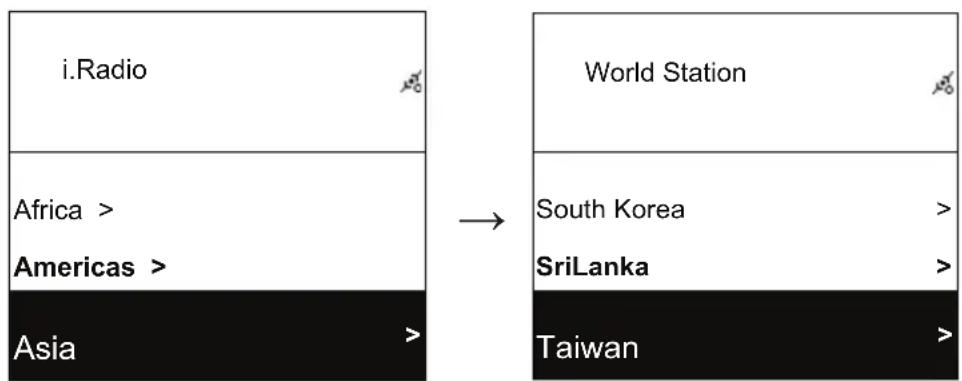

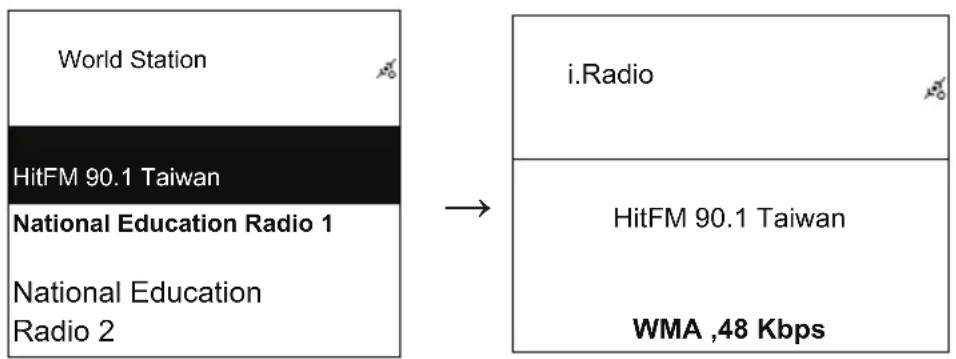

Select i.Radio Choose World Station

Categorized by Area Categorized by Country

Press button for fast search
Press INFO button
The amount of stations will show on the screen

Categorized by alphanumeric order Playing

2.4 Network

• Support LAN (Ethernet) and WLAN (802.11b/g wifi Dongle is optional)
  Support Wi-Fi Encryption WEP64/128, WPA-TKIP-PSK, and WPA2-AES-PSK.
• Support dynamic IP via DHCP (Dynamic Host Configuration Protocol) and static IP. Default setting is Ethernet and DHCP.
• Support Infrastruct mode and Ad-hoc mode.
  Support Upnp.
• Auto-detect and auto-run LAN or WLAN(wireless LAN) environment.

2.4.1 Understanding the Networking States on The System

• The network connectivity status icon will show on the top side of the screen.

Table2.4.1.1 - LAN Status

Title	→	·It is failed to detect the Ethernet cable.
Title	→	·It is successful to detect the Ethernet cable. ·It is failed to get available DHCP information.
Title	→	·It is successful to detect the Ethernet cable. ·It is successful to get available DHCP information

Table 2.4.1.2 - WLAN Status

Title	y	→	·It is failed to detect the USB Wi-Fi adapter.
Title	y	→	·It is successful to detect the USB Wi-Fi adapter. ·It is failed to get available DHCP information.
Title	y	→	·It is successful to detect the USB Wi-Fi adapter. ·It is successful to get available DHCP information.

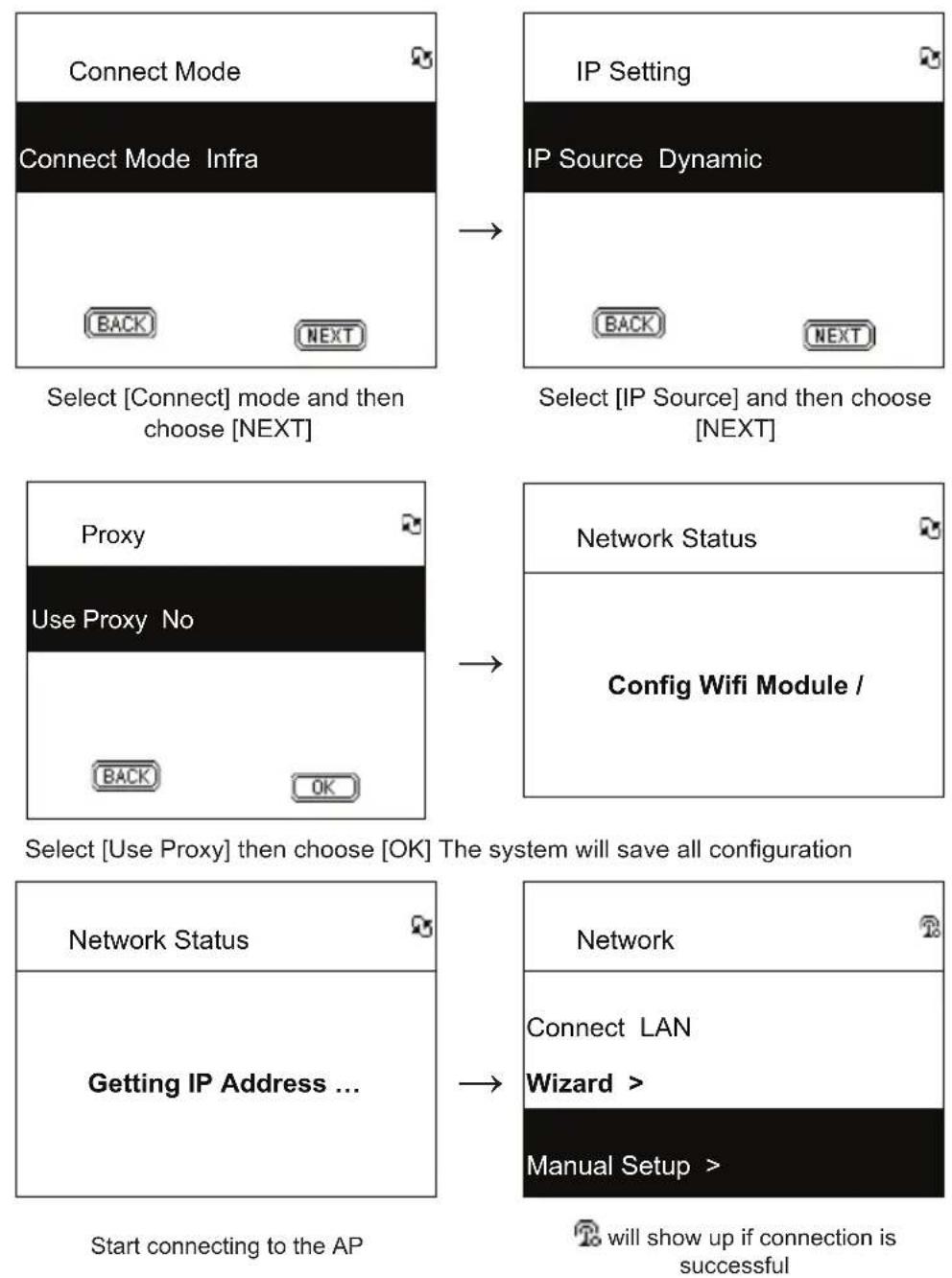

2.4.2 Setting the Wi-Fi Connectivity in infrastruct mode

1. Insert a Wi-Fi USB adapter into the USB connector. (The Wi-Fi USB adapter is optional)
2. then scroll up/down to [Network] and press ENTER/OK button.
3. Select [Manual Setup] and press ENTER/OK button
4. Select [Connect] and press ENTER/OK button
5. Then please follow the steps below:

Table 2.4.2

Network	Network
Connect LAN	Connect WLAN
Wizard >	BACK NEXT
Manual Setup >	Select [WLAN] mode, for example, then choose [NEXT]
SSID	Site Survey
SSID Auto Search	AP01 75% wireless 100%
BACK NEXT
Choose [NEXT] to search any AP available	Available APs listed by signal strength. If an AP is required encryption, it will be marked with a symbol of lock.
Encryption	Passphease
Encryption Mode WPA2	>0 00 00 00 00 00 00 00
Passphrase >	ENTER/OK: Next
Select [Encryption] mode and then choose [NEXT]	Key in the encryption code and then press [ENTER/OK]

2.4.3 Setting the Wi-Fi Connectivity by Wi-Fi Wizard

1. Insert a Wi-Fi USB adapter into the USB connector. (The Wi-Fi USB adapter is optional).
2. Then scroll up/down to [Network] and press ENTER/OK button.
3. Select [Connect] and switch [LAN] to [WLAN].
4. Select [Wizard] and then press ENTER/OK button.
5. Scroll up/down to an access point you want to connect, and then press ENTER/OK button.
6. If the access point that you are selecting is protected, press ENTER/OK button to select the protected AP.
7. To input the encryption key, press UP/DOWN (or numbered key) button to change characters and press LEFT/RIGHT button to shift.
8. Press ENTER/OK after you finish setting.
9. 8icon will show on the topside of the screen if the wireless setting is successful.

Table 2.4.3

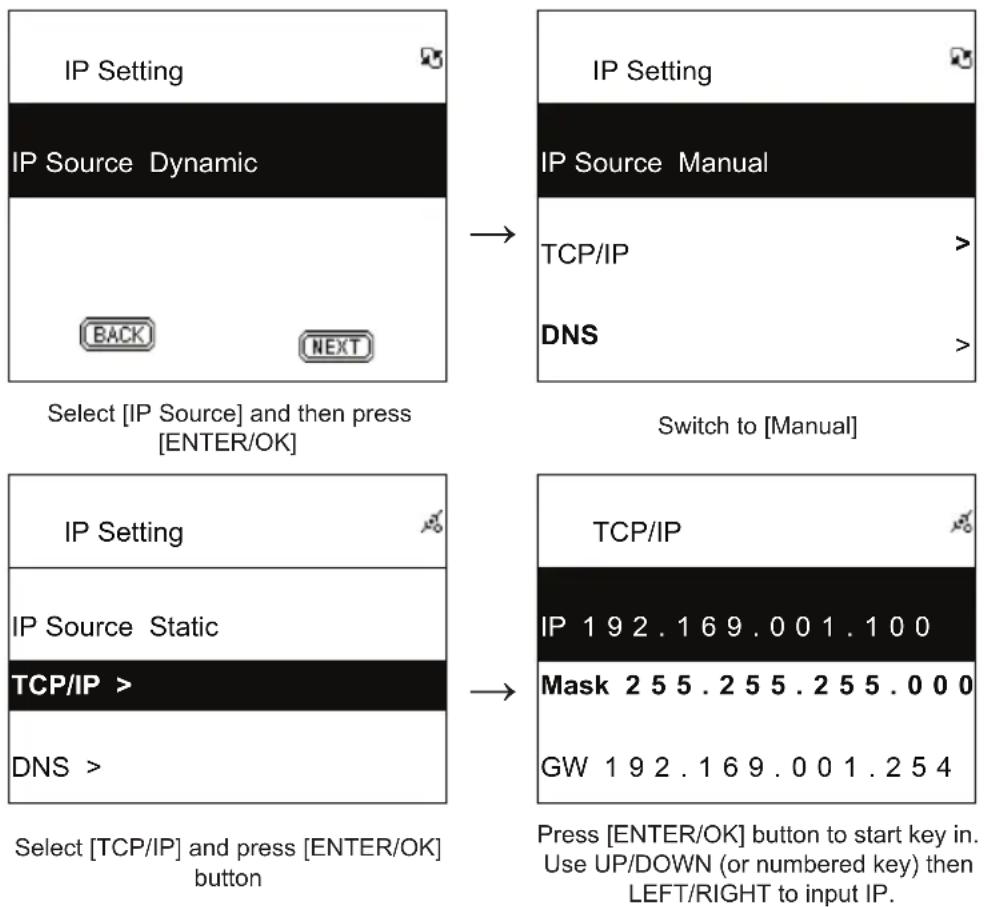

2.4.4 Inputting Static IP

1. Then scroll up/down to [Network] and press ENTER/OK button.
2. Scroll up/down to [IP Setting] and then press ENTER/OK button to enter.
3. Select [IP Source] and press ENTER/OK button to switch [Dynamic] to [Static].
4. Scroll up/down to [TCP/IP] and press ENTER/OK button to start editing.
5. Press UP/DOWN to change characters and press LEFT/RIGHT button to shift.
6. After finishing, press REC button to confirm.

Table 2.4.4

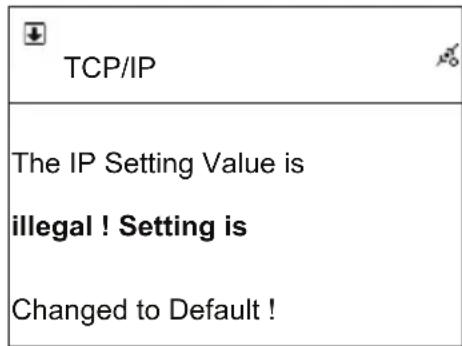

NOTE: When IP setting value (including IP, Subnet Mask, or Gateway) is illegal, IP setting will change to default value.

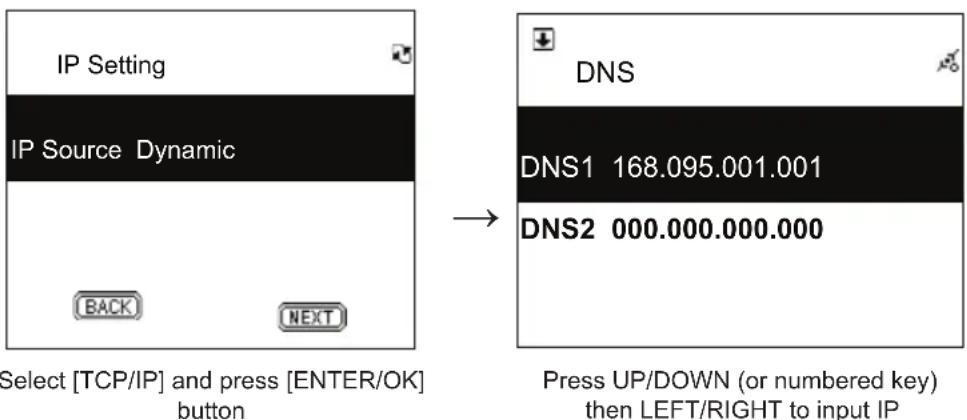

2.4.5 Inputting DNS

1. Then scroll up/down to [Network] and press ENTER/OK button.
2. Scroll up/down to [IP Setting] and then press ENTER/OK button to enter.
3. Select [DNS] and then press ENTER/OK button.
4. Press UP/DOWN button to change characters, then press LEFT/RIGHT button to shift.
5. After finishing, press ENTER/OK button to confirm.

Table 2.4.5

Safety precautions:

To reduce risk of electric shock, this product should ONLY be opened by an authorized technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose

the product to water or moisture.

Maintenance:

Clean only with a dry cloth. Do not use cleaning solvents or abrasives.

Warranty:

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

General:

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Attention:

This product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collections system for these products.

DEUTSCH

Fernbedienung

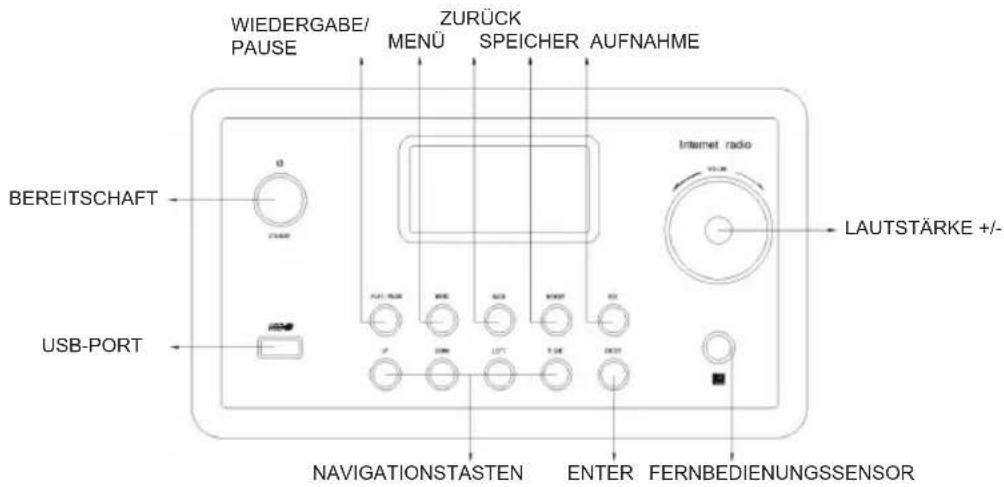

Vorderseite

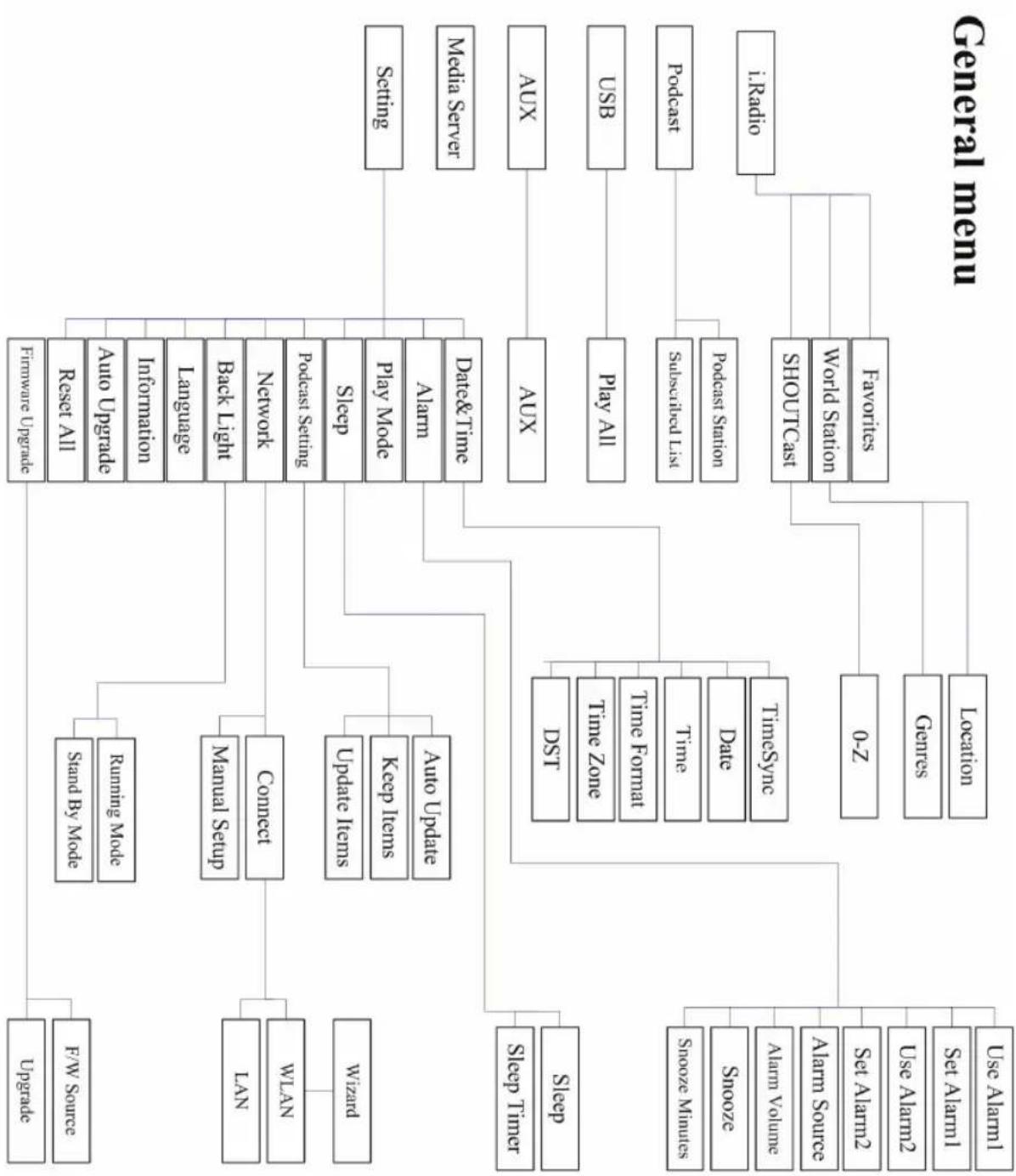

Rückseite

Kapitel 1 Übersicht

1.1 Einführung

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Keep this manual and packaging for future reference.

Achtung:

2.3 World Station (Station Mondiale)

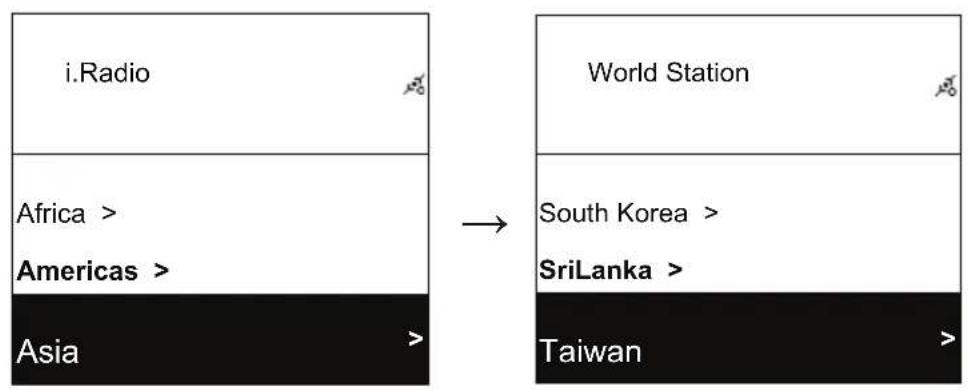

2.3.1 Ecouter la World Station

Selecteer i.Radio Selecteer World Station

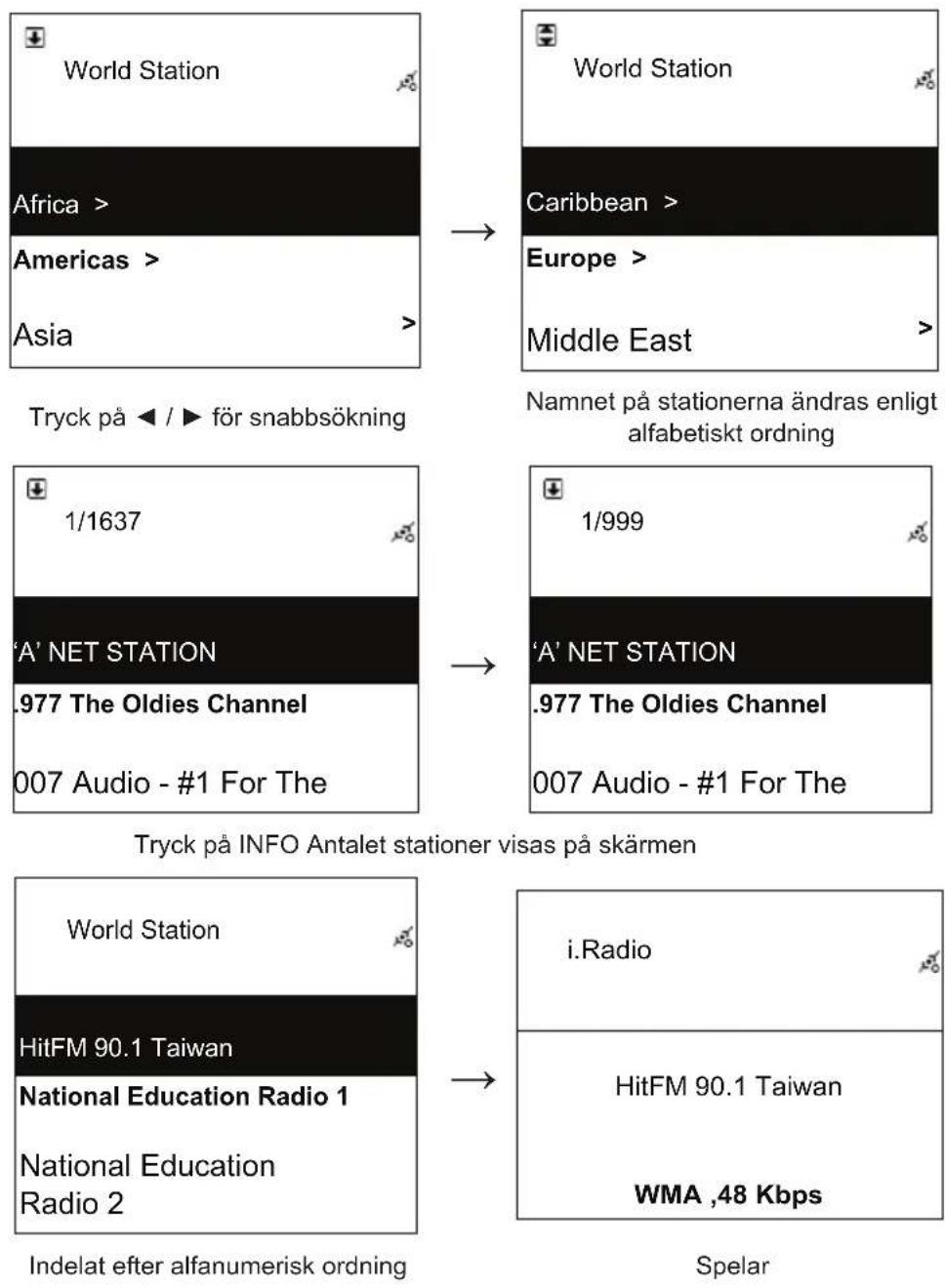

2.3.1 Ascolture World Station
