Fridge-freezer

KIN85.. KIN86..

[en] User manual

Table of contents

1 Safety 4

1.1 General information 4
1.2 Intended use 4
1.3 Restriction on user group..... 4
1.4 Safe transport 4
1.5 Safe installation 5
1.6 Safe use 6
1.7 Damaged appliance 7

2 Preventing material damage ...... 9

3 Environmental protection and saving energy. 9

3.1 Disposing of packaging 9
3.2 Saving energy 9

4 Installation and connection. 9

4.1 Scope of delivery.. 9
4.2 Criteria for the installation location 10
4.3 Installing the appliance 10
4.4 Preparing the appliance for the first time 11
4.5 Connecting the appliance to the electricity supply............ 11

5 Familiarising yourself with your appliance. 12

5.1 Appliance 12
5.2 Control panel 13

6 Features 14

6.1 Shelf. 14
6.2 Bottle shelf 14
6.3 Storage container 14
6.4 Fruit and vegetable container with humidity control .... 14
6.5Butter and cheese compa-. ment. 15
6.6 Door rack. 15
6.7 Accessories 15

7 Basic operation 15
7.1 Switching on the appliance..... 15

7.2 Operating tips 15
7.3 Switching off the appliance..... 15
7.4 Setting the temperature 15

8 Additional functions 16

8.1 Super function 16

9 Alarm. 16
9.1 Door alarm 16
9.2 Fan alarm 16

10 Refrigerator compartment..... 16

10.1 Tips for storing food in the refrigerator compartment 17
10.2 Chill zones in the refrigerator compartment 17
10.3 "OK" sticker 17

11 Freezer compartment. 17

11.1 Freezing capacity 17
11.2 Fully utilising the freezer compartment volume 18
11.3 Tips for storing food in the freezer compartment 18
11.4 Tips for freezing fresh food.... 18
11.5 Shelf life of frozen food at -18 °C............ 18
11.6 Defrosting methods for frozen food 19

12 Defrosting 19

12.1 Defrosting in the refrigerator compartment 19
12.2 Defrosting in the freezer compartment 19

13 Cleaning and servicing. 19

13.1 Preparing the appliance for cleaning 19
13.2 Cleaning the appliance 19
13.3 Cleaning the condensation channel and drainage hole .... 20
13.4 Removing the fittings............ 20

14 Troubleshooting 22
15 Storage and disposal 24
15.1 Taking the appliance out of operation 24
15.2 Disposing of old appliance .... 24
16 Customer Service 25
16.1 Product number (E-Nr.) and production number (FD) 25
17 Technical data 25

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

This appliance is only intended to be fully fitted in a kitchen.

Only use this appliance:

for chilling and freezing food and for making ice cubes.
- In private households and in enclosed spaces in a domestic environment.
Up to an altitude of max. 2000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children must not play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

Children above the age of three years old and younger than eight years old may load and unload the the fridge-freezer.

1.4 Safe transport

WARNING - Risk of injury!

The high weight of the appliance may result in injury when lifted.

Do not lift the appliance on your own.

1.5 Safe installation

WARNING - Risk of electric shock!

Improper installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
• Never equip the appliance with an external switching device, e.g. a timer or remote control.
• When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.
• When installing the appliance, check that the power cable is not trapped or damaged.

If the insulation of the power cord is damaged, this is dangerous.
- Never let the power cord come into contact with heat sources.

WARNING - Risk of explosion!

If the appliance's ventilation openings are sealed, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING - Risk of fire!

It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
  If the power cord is too short, contact Customer Service.
  Only use adapters approved by the manufacturer.

Portable multiple socket strips or portable power supply units may overheat and cause a fire.

• Do not place portable multiple socket strips or power supply units on the back of the appliance.

1.6 Safe use

WARNING - Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
• Do not let children play with small parts.

WARNING - Risk of explosion!

Mechanical devices or other devices may damage the refrigeration circuit; flammable refrigerant may escape and explode.

To accelerate the defrosting process, do not use any other mechanical devices or devices other than those recommended by the manufacturer.

Products which contain flammable propellants and explosive substances may explode, e.g. spray cans.

• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance.

WARNING - Risk of fire!

Electrical devices within the appliance may cause a fire, e.g. heaters or electric ice makers.

• Do not operate electrical devices within the appliance.

WARNING - Risk of injury!

Containers that contain carbonated drinks may burst.

• Do not store containers that contain carbonated drinks in the freezer compartment.

Injury to the eyes caused by escaping flammable refrigerant and hazardous gases.

• Do not damage the tubes of the refrigerant circuit or the insulation.

WARNING - Risk of cold burns!

Contact with frozen food and cold surfaces may cause burns by refrigeration.

• Never put frozen food straight from the freezer compartment into your mouth.
• Avoid prolonged contact of the skin with frozen food, ice and surfaces in the freezer compartment.

CAUTION - Risk of harm to health!

To prevent food from being contaminated, you must observe the following instructions.

• If the door is open for an extended period of time, this may lead to a considerable temperature increase in the compartments of the appliance.
  Regularly clean the surfaces that may come into contact with food and accessible drain systems.
• Store raw meat and fish in suitable containers in the refrigerator so that they do not touch or drip on other food.
• If the fridge/freezer is empty for an extended period of time, switch off the appliance, defrost it, clean it and leave the door open to prevent the formation of mould.

Metal or metal-style parts in the appliance may contain aluminium. If acidic food comes into contact with aluminium in the appliance, aluminium foil ions may pass into the food.

Do not consume soiled food.

1.7 Damaged appliance

WARNING - Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Keep naked flames and ignition sources away from the appliance.
  Ventilate the room.
  Switch off the appliance. Page 15

en Safety

• Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
  ▶ Call after-sales service. → Page 25

2 Preventing material damage

ATTENTION!

Using the base, runners or appliance doors as a seat surface or climbing surface may damage the appliance.

• Do not stand or support yourself on the base, runners or doors. Contamination with oil or fat may cause plastic parts and door seals to become porous.
• Keep plastic parts and door seals free of oil and grease.

Metal or metal-style parts in the appliance may contain aluminium. Aluminium reacts when it comes into contact with acidic foods.

• Do not store unpackaged food in the appliance.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.

3.2 Saving energy

If you follow these instructions, your appliance will use less power.

Selecting the installation location

• Keep the appliance out of direct sunlight.
  Install the appliance as far away as possible from heating elements, cookers and other heat sources:

• Maintain a 30 ~mm clearance to electric or gas cookers.

• Maintain a 300 mm clearance to oil or solid-fuel cookers.

• Never cover or block the exterior ventilation grilles.

Saving energy during use

Note: The arrangement of the fittings does not affect the energy consumption of the appliance.

• Open the appliance only briefly.
• Never cover or block the interior ventilation openings or the exterior ventilation grilles.
• Transport purchased food in a cool bag and place in the appliance quickly.
• Allow warm food and drinks to cool down before storing them.
  Thaw frozen food in the refrigerator compartment to utilise the low temperature of the food.
  Always leave some space between the food and to the back panel.
• Open the freezer compartment door only briefly and then close it properly.

4 Installation and connection

4.1 Scope of delivery

After unpacking all parts, check for any transport damage and for completeness of delivery. If you have any complaints, contact your dealer or our after-sales service Page 25.

The delivery consists of the following:

Built-in appliance
Equipment and accessories
Installation material
Installation instructions
- User manual
- Customer service directory
Warranty enclosure
Energy label
Information on energy consumption and noises

4.2 Criteria for the installation location

WARNING

Risk of explosion!

If the appliance is in a space that is too small, a leak in the refrigeration circuit may result in a flammable mixture of gas and air.

• Only install the appliance in a space with a volume of at least 1m^3 per 8 g refrigerant. The volume of refrigerant is indicated on the rating plate. "Appliance",

Fig. 1/5, Page 13

The weight of the appliance ex works may be up to 65kg depending on the model.

The subfloor must be sufficiently stable to bear the weight of the appliance.

Permitted room temperature

The permitted room temperature depends on the appliance's climate class.

The climate class can be found on the rating plate. "Appliance", Fig.

1/5,Page 13

Climate class	Permitted room temperature
SN	10 °C to 32 °C
N	16 °C to 32 °C
ST	16 °C to 38 °C
T	16 °C to 43 °C

The appliance is fully functional within the permitted room temperature. If an appliance with climate class SN is operated at colder room temperatures, the appliance will not be damaged up to a room temperature of 5^ .

Niche dimensions

Observe the niche dimensions if you install your appliance in the niche. If this is not the case, problems may occur when installing the appliance.

Niche depth

Install the appliance in the recommended niche depth of 560~mm . If the niche depth is smaller, the energy consumption increases slightly. The niche depth must be a minimum 550~mm .

Niche width

An inside niche width of at least 560mm is required for the appliance.

Side-by-side installation

If you want to install two appliances side by side, you must maintain a distance of at least 150mm between the appliances.

4.3 Installing the appliance

Install the appliance in accordance with the enclosed installation instructions.

4.4 Preparing the appliance for the first time

1. Remove the informative material.
2. Remove the protective foil and transit bolts, e.g. remove the adhesive strips and carton.
3. Clean the appliance for the first time. Page 19

4.5 Connecting the appliance to the electricity supply

1. Insert the non-heating appliance plug of the power cable into the appliance.

2. Insert the mains plug of the appliance's power cable in a socket nearby. The connection data of the appliance can be found on the rating plate. "Appliance", Fig. 1/5, Page 13

3. Check the mains plug is inserted properly.

4. The appliance is now ready for use.

5 Familiarising yourself with your appliance

5.1 Appliance

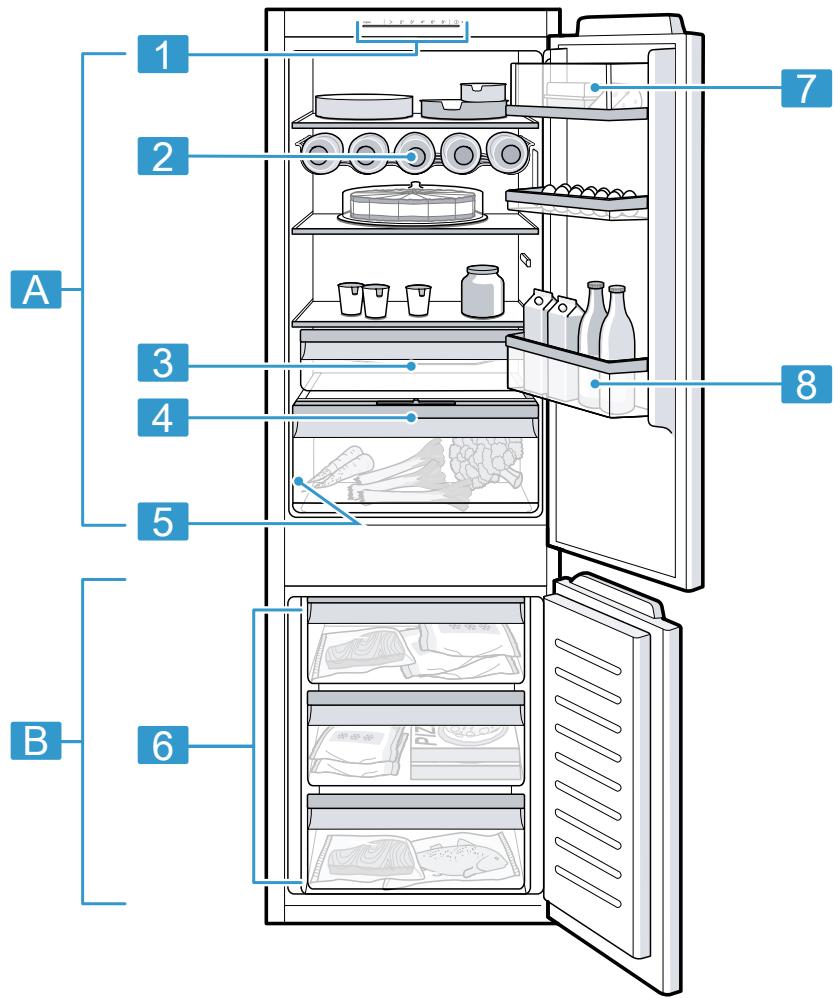

You can find an overview of the parts of your appliance here.

A Refrigerator compartment Page 16

Freezer compartment Page 17

1 Control panel Page 13
2 Bottle shelf Page 14
3 Storage container Page 14

4	Fruit and vegetable container with humidity control → Page 14
5	Rating plate → Page 25
6	Frozen food container → Page 21

7	Butter and cheese compa- ment → Page 15
8	Door storage compartment for large bottles → Page 15
Note: Deviations between your appli- ance and the diagrams may differ with regard to their features and size.

5.2 Control panel

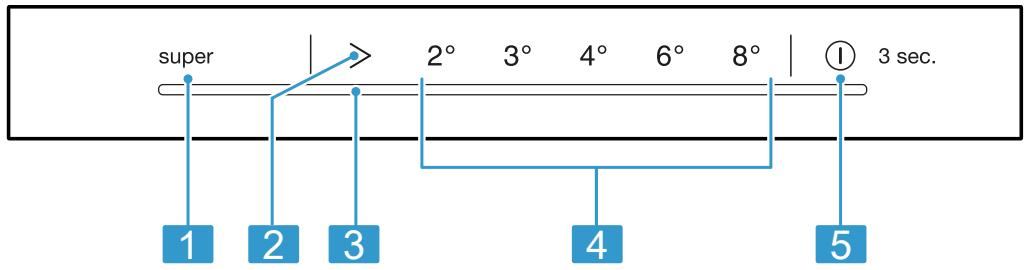

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

2

1	super switches the Super func- tion on or off.
2	> sets the temperature of the refrigerator compartment.
3	> lights up when the alarm is switched on.
4	Displays the set temperature for the refrigerator compa- ment in °C.
5	① switches the appliance on or off.

6 Features

The features of your appliance depend on the model.

6.1 Shelf

To vary the shelf as required, you can remove the shelf and re-insert it elsewhere.

"Removing the shelf", Page 20

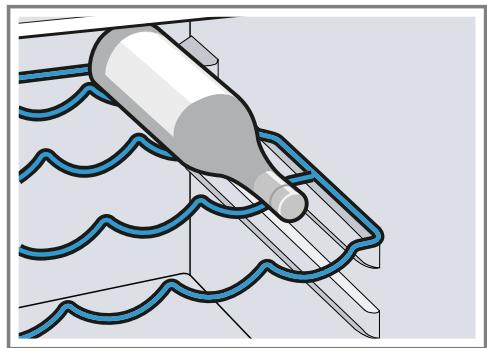

6.2 Bottle shelf

Store bottles securely on the bottle shelf.

To vary the bottle shelf as required, you can remove the bottle shelf and re-insert it elsewhere.

"Removing the shelf", Page 20

6.3 Storage container

The temperatures in the storage container are lower than in the refrigerator compartment. Temperatures below 0^ may occur occasionally. In order to reach temperatures close to 0^ in the storage container, set the refrigerator compartment temperature to 2^ .

Use the lower temperatures in the storage container to store highly perishable food, e.g. fish, meat and sausages.

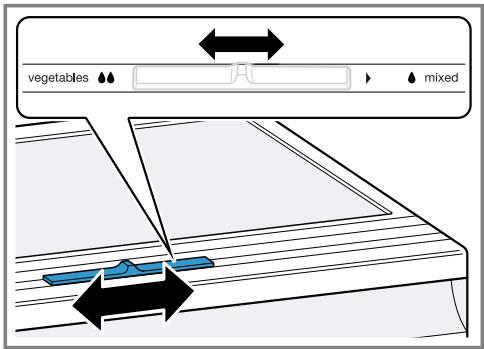

6.4 Fruit and vegetable container with humidity control

Store fresh fruit and vegetables in the fruit and vegetable container.

You can adjust the humidity in the fruit and vegetable container using the humidity controller. This allows fresh fruit and vegetables to be stored for longer than with conventional storage.

The air humidity in the fruit and vegetable container can be set according to the type and amount of food to be stored by moving the humidity control:

• Low humidity required when primarily storing fruit or mixed items, or if the appliance is very full.
• High humidity required when primarily storing vegetables or when the appliance is not very full.

Condensation may form in the fruit and vegetable container depending on the food and quantity stored.

Remove the condensation with a dry cloth and adjust the air humidity in the vegetable container using the humidity controller.

To ensure that the quality and aroma are retained, store fruit and vegetables that are sensitive to cold outside of the appliance at temperatures

of approx. 8^ to 12^ , e.g. pineapple, bananas, citrus fruits, cucumbers, courgettes, peppers, tomatoes and potatoes.

6.5 Butter and cheese compartment

Store butter and hard cheese in the butter and cheese compartment.

6.6 Door rack

To adjust the door racks as required, you can remove the door rack and re-insert elsewhere.

"Removing door rack", Page 21

6.7 Accessories

Use original accessories. These have been made especially for your appliance.

The accessories for your appliance depend on the model.

Egg tray

Store eggs safely on the egg tray.

Ice cube tray

Use the ice cube tray to make ice cubes.

Making ice cubes

1. Fill the ice cube tray with water up to 3/4 and place in the freezer compartment.

If the ice cube tray is stuck to the freezer compartment, loosen it with a blunt implement only (e.g. spoon handle).

1. To loosen the ice cubes, twist the ice cube tray slightly or hold it briefly under flowing water.

7 Basic operation

7.1 Switching on the appliance

1. Electrically connect the appliance. Page 11

Note: If the appliance has been previously switched off using the control panel, press and hold ① for three seconds.

The appliance begins to cool.
2. Set the required temperature. Page 15

7.2 Operating tips

• Once you have switched on the appliance, the set temperature is only reached after several hours. Do not put any food in the appliance until the temperature has been reached.
• The housing around the freezer compartment is temporarily heated slightly. This prevents condensation in the area of the door seal.
• When you close the door, a vacuum may be created. The door is then difficult to open again. Wait a moment until the vacuum is offset.

7.3 Switching off the appliance

Press and hold ① for three seconds.

7.4 Setting the temperature

Setting the refrigerator compartment temperature

Press > repeatedly until the temperature display shows the required temperature.

The recommended temperature in the refrigerator compartment is 4^ .

""OK" sticker", Page 17

Setting the freezer compartment temperature

In order to set the freezer compartment temperature, change the refrigerator compartment temperature Page 15.

The refrigerator compartment temperature influences freezer compartment temperature. Refrigerator compartment temperatures that are set to warm generate warmer freezer compartment temperatures.

8 Additional functions

8.1 Super function

With the Super function, the refrigerator compartment and the freezer compartment cool more intensively. Switch on the Super function 4 to 6 hours before placing food weighing 2kg or more.

In order to utilise the freezing capacity, use the Super function.

"Freezing capacity", Page 17

Note: When the Super function is switched on, increased noise may occur.

Switching on Super function

Press super.
super lights up.

Note: After approx. 50 hours, the appliance switches to normal operation.

Switching off Super function

Press super.

9 Alarm

9.1 Door alarm

If the appliance door is open for a longer period, the door alarm switches on.

After 10 minutes, the interior lighting flashes.

Switching off the door alarm

• Close the appliance door or press >
  The warning tone is switched off.

9.2 Fan alarm

If the freezer compartment fan fails, the fan alarm switches on.

light up, all LEDs on the temperature display flash and a warning signal sounds.

Switching off the fan alarm

1. Press >.
   The warning tone is switched off.
2. The temperature display again indicates the set temperature.
3. Call customer service.

The customer service number can be found in the enclosed customer service directory.

10 Refrigerator compartment

You can keep meat, sausage, fish, dairy products, eggs, prepared meals and pastries in the refrigerator compartment.

The temperature can be set from 2^ to 8^ .

The refrigerator compartment can also be used to store highly perishable foods in the short to medium

term. The lower the selected temperature, the longer the food remains fresh.

10.1 Tips for storing food in the refrigerator compartment

• Only store food when fresh and undamaged.
• Observe the best-before date or use-by date specified by the manufacturer.
• Store food well wrapped or covered.
• Allow hot food and drinks to cool down first before placing in the appliance.

10.2 Chill zones in the refrigerator compartment

The air circulation in the refrigerator compartment creates different chill zones.

Coldest zone

The coldest zone is in the storage container.

Tip: Store highly perishable food such as fish, sausages and meat in the coldest zone.

Warmest zone

The warmest zone is at the very top of the door.

Tip: Store food that does not spoil easily in the warmest zone, e.g. hard cheese and butter. Cheese can then continue to release its aroma and the butter will still be easy to spread.

10.3 "OK" sticker

The "OK" sticker lets you check whether the refrigerator compartment reaches the safe temperature ranges of +4^ C or colder recommended for food.

The "OK" sticker is not included with all models.

If the sticker does not indicate "OK", gradually reduce the temperature.

"Setting the refrigerator compartment temperature", Page 15

Once the appliance is switched on, it may take up to 12 hours until the set temperature is reached.

Correct setting

11 Freezer compartment

You can store frozen food, freeze food and make ice cubes in the freezer compartment.

The temperature in the freezer compartment depends on the temperature in the refrigerator compartment. Long-term storage of food should be at -18^ or lower.

The freezer compartment can be used to store perishable food long-term. The low temperatures slow down or stop the spoilage.

11.1 Freezing capacity

The freezing capacity indicates the quantity of food that can be frozen right through to the centre within a specific period of time.

Information on freezing capacity can be found on the rating plate. "Appliance", Fig. 1/5, Page 13

Prerequisites for freezing capacity

1. Approx. 24 hours before placing fresh food in the appliance, switch on Super function. "Switching on Super function", Page 16
2. Add the food in the top frozen food container first. This is where the food freezes most quickly.
3. Freeze fresh food as close as possible to the side panels.

11.2 Fully utilising the freezer compartment volume

Learn how to store the maximum amount of frozen food in the freezer compartment.

1. Remove all fittings. Page 20
2. Store food directly on the shelves and on the floor of the freezer compartment.

11.3 Tips for storing food in the freezer compartment

• To quickly and gently freeze larger quantities of fresh food, place this in the top frozen food container.
• Place the food over the whole area of the compartments or the frozen food containers.
• Do not bring food which is to be frozen into contact with frozen food.
  To ensure that the air can circulate freely in the appliance, push the frozen food containers in as far as they will go.

11.4 Tips for freezing fresh food

• Freeze fresh and undamaged food only.
• Freeze food in portions.

Cooked food is more suitable than food that can be eaten raw.
Vegetables: Wash, chop up and blanch before freezing.
- Fruit: Wash, pit and perhaps peel, possibly add sugar or ascorbic acid solution.
- Food that is suitable for freezing includes baked items, fish and seafood, meat, game, poultry, eggs without shells, cheese, butter and quark, ready meals and leftovers.
- Food that is unsuitable for freezing includes lettuce, radishes, eggs in shells, grapes, raw apples and pears, yoghurt, sour cream, crème fraîche and mayonnaise.

Packing frozen food

If you select suitable packaging material and the correct type of packaging, you can determine the product quality and prevent freezer burn.

1. Place the food in the packaging.
2. Squeeze out the air.
3. Pack food airtight to prevent it from losing flavour and drying out.
4. Label the packaging with the contents and the date of freezing.

11.5 Shelf life of frozen food at -18^ C

Food	Storage time
Fish, sausages, pre-pared meals and baked goods	up to 6 months
Poultry, meat	up to 8 months
Vegetables, fruit	up to 12 months

The imprinted freezer calendar indicates the maximum storage duration in months at a constant temperature of -18^ .

11.6 Defrosting methods for frozen food

CAUTION

Risk of harm to health!

During the thawing process, bacteria may multiply and spoil the frozen food.

• Do not refreeze food after it has been defrosted or started to defrost.
  Refreeze food only after cooking.
  These items should no longer be stored for the maximum storage period.
• Defrost animal-based food, such as fish, meat, cheese, quark, in the refrigerator compartment.
• Defrost bread at room temperature.
  Prepare food for immediate consumption in the microwave, in the oven or on the hob.

12 Defrosting

12.1 Defrosting in the refrigerator compartment

When the appliance is operating, condensation droplets or frost form on the rear panel of the refrigerator compartment due to functional reasons. The back panel in the refrigerator compartment defrosts automatically.

Condensation runs through the condensation channel into the drainage hole to the evaporation pan and does not have to be wiped away.

To ensure that the condensation can drain and odours do not form, observe the following information:

"Cleaning the condensation channel and drainage hole", Page 20.

12.2 Defrosting in the freezer compartment

The fully automatic NoFrost system ensures that the freezer compartment remains frost-free. Defrosting is not required.

13 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully. Customer Service must clean inaccessible points. Cleaning by customer service can give rise to costs.

13.1 Preparing the appliance for cleaning

1. Switch off the appliance.
   → Page 15
2. Disconnect the appliance from the power supply. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.
3. Take out all of the food and store it in a cool place. Place ice packs (if available) onto the food.
4. Remove all fittings from the appliance. Page 20

13.2 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

• Do not use steam- or high-pressure cleaners to clean the appliance.

Liquid in the lighting or in the controls can be dangerous.

The rinsing water must not drip into the lighting or controls.

ATTENTION!

Unsuitable cleaning products may damage the surfaces of the appliance.

Do not use hard scouring pads or cleaning sponges.
- Do not use harsh or abrasive detergents.
Do not use cleaning products with a high alcohol content.

If liquid gets into the drainage hole, the evaporation pan may overflow.

The rinsing water must not get into the drainage hole.

If you clean fittings and accessories in the dishwasher, this may cause them to become deformed or discolour.

• Never clean fittings and accessory in the dishwasher.

• Prepare the appliance for cleaning.
  → Page 19
  2 Clean the appliance, the fittings and the door seals with a dish cloth, lukewarm water and a little pH-neutral washing-up liquid.

• Dry thoroughly with a soft, dry cloth.
• Insert the fittings.
• Electrically connect the appliance.
• Putting the food into the appliance.

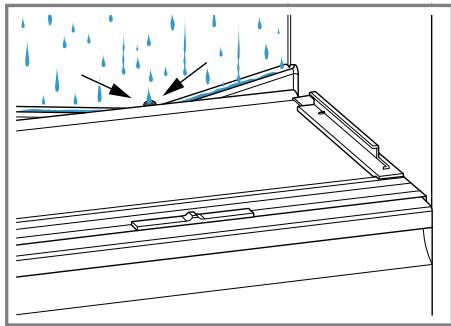

13.3 Cleaning the condensation channel and drainage hole

Regularly clean the condensation channel and drainage hole to ensure that the condensation can drain.

1. Remove the storage container.

$$ \rightarrow \text {P a g e 2 1} $$

1. Carefully clean the condensation channel and the drainage hole, e.g. using a moistened cotton bud.

13.4 Removing the fittings

If you want to clean the fittings thoroughly, remove these from your appliance.

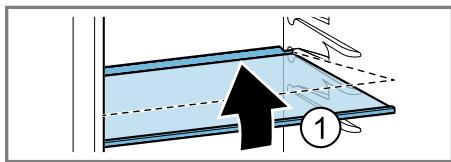

Removing the shelf

Lift the shelf ① and remove it ②.

Removing door rack

• Lift the door rack and remove it.

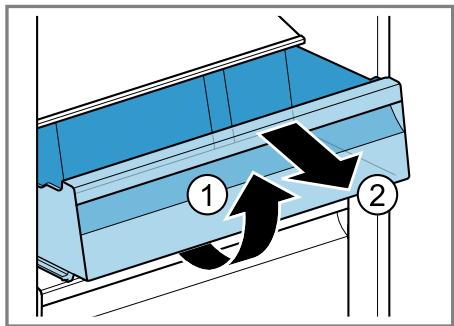

Removing the storage container

1. Pull the storage container out all the way.
2. Lift the storage container at the front ① and remove it ②.

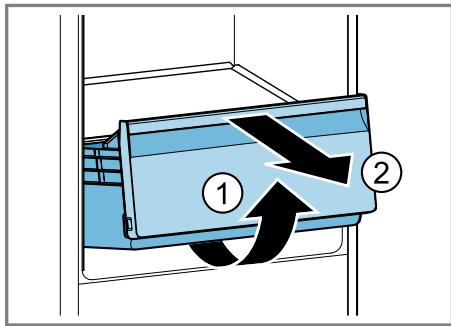

Removing the fruit and vegetable container

1. Pull out the fruit and vegetable container as far as it will go.

2. Lift the fruit and vegetable container at the front ① and remove it ② .

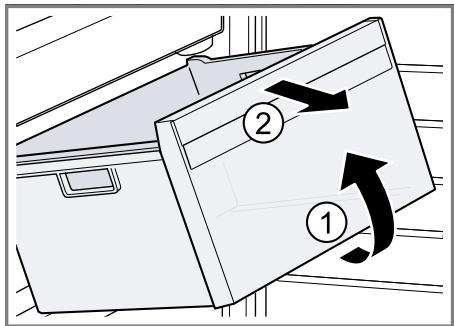

Removing the frozen food container

1. Take out the frozen food container as far as it will go.
2. Lift the frozen food container at the front ① and remove it ②.

14 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

Repairs to the appliance should only be carried out by trained specialist staff.
- Only use genuine spare parts when repairing the appliance.
- If the power cord of this appliance is damaged, it must be replaced with a special connection cable, which is available from the manufacturer or his Customer Service.

Fault	Cause and troubleshooting
The appliance is not cooling, the displays and lighting light up.	Showroom mode is switched on. ► Carry out the appliance self-test. → Page 24 ► Once the appliance self-test has ended, the appliance switches to normal operation.
The LED lighting does not work.	Different causes are possible. ► Call customer service. The customer service number can be found in the enclosed customer service directory.
The temperature differs greatly from the setting.	Different causes are possible. 1. Switch off the appliance. → Page 15 2. Switch the appliance back on after five minutes. → Page 15 - If the temperature is too warm, check the temperature again after a couple of hours. - If the temperature is too cold, check the temperature again on the following day.
The base of the refrigerator compartment is wet.	The condensation channel or drainage hole are blocked. ► Clean the condensation channel and the drainage hole. → Page 20
The appliance hums, bubbles, buzzes, gargles, clicks or crackles.	Not a fault. A motor is running, e.g. refrigerating unit, fan. Refrigerant flows through the pipes. The motor, switches or solenoid valves are switching on or off. Automatic defrosting is running. No action required.
The appliance makes noises.	Fittings wobble or stick. ► Check the removable fittings and, if required, replace these.
	Bottles or containers are touching. ► Move the bottles or containers away from each other.
	Super function is switched on. No action required.

14.1 Power failure

During a power failure, the temperature in the appliance rises; this reduces the storage time and the quality of the frozen food.

Notes

• Open the appliance as little as possible during a power failure and do not place any other food in the appliance.
  Check the quality of the food immediately after a power failure.

• Dispose of any frozen food that has defrosted and is hotter than 5^ C .

• Cook or fry slightly thawed frozen food, and then either consume it or freeze it again.

14.2 Conducting an appliance self-test

1. Switch off the appliance. Page 15
2. Disconnect the appliance from the power supply.

Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

1. Electrically reconnect the appliance after five minutes.
2. Within the first 10 seconds after connecting to the power supply, press and hold > for three to five seconds until an audible signal sounds.
3. If, at the end of the appliance self-test, two audible signals sound and the temperature display indicates the set temperature, your appliance is OK. The appliance switches to normal operation.
4. If, at the end of the appliance self-test, 5 audible signals sound and the temperature display LEDs light up with a different brightness, in

form customer service. The LEDs provide customer service with information about this fault.

15 Storage and disposal

You can find out here how to prepare your appliance for storage. You will also find out how to dispose of old appliances.

15.1 Taking the appliance out of operation

1. Switch off the appliance. Page 15
2. Disconnect the appliance from the power supply.

Unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

1. Remove all of the food.
2. Clean the appliance. Page 19
3. To guarantee the ventilation inside the appliance, leave the appliance open.

15.2 Disposing of old appliance

Valuable raw materials can be reused by recycling.

WARNING

Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

• Leave shelves and containers inside the appliance to prevent children from climbing in.
• Keep children away from the redundant appliance.

WARNING Risk of fire!

If the tubes are damaged, flammable refrigerant and harmful gases may escape and ignite.

• Do not damage the tubes of the refrigerant circuit or the insulation.
• Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

16 Customer Service

If you have any queries, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service. Function-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty applicable to the location, the use of Customer Service is free of charge. The minimum dura

tion of the warranty (manufacturer's warranty for private consumers) in the European Economic Area is 2 years according to the terms of warranty applicable to the location. The terms of warranty do not affect other rights or claims held by yourself under local legislation.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

16.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate.

"Appliance", Fig. 1/5, Page 13
Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

17 Technical data

Refrigerant, cubic capacity and further technical specifications can be found on the rating plate.

"Appliance", Fig. 1/5, Page 13

en Technical data

More information about your model can be found online at https://energylabel.bsh-group.com'. This web address is linked to the official EU EPREL product database. At the time of printing its web address had not yet been published. Please then follow the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively you can also find the model identifier in the first line of the EU energy label.

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom
