USER MANUAL XR-M33 AIWA
For assistance and information, call toll free 1-800-BUY-AIWA.
(United States and Puerto Rico)
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."
Explanation of Graphical Symbols:
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
PRECAUTIONS
Read the Operating Instructions carefully and completely before operating the unit. Be sure to keep the Operating Instructions for future reference. All warnings and cautions in the Operating Instructions and on the unit should be strictly followed, as well as the safety suggestions below.
Installation
1 Water and moisture — Do not use this unit near water, such as near a bathtub, washbowl, swimming pool, or the like.
2 Heat — Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat. It also should not be placed in temperatures less than 5^ ( 41^ ) or greater than 35^ ( 95^ ).
3 Mounting surface - Place the unit on a flat, even surface.
4 Ventilation — The unit should be situated with adequate space around it so that proper heat ventilation is assured. Allow 10cm (4 in.) clearance from the rear and the top of the unit, and 5cm (2 in.) from the each side.
- Do not place the unit on a bed, rug, or similar surface that may block the ventilation openings.
- Do not install the unit in a bookcase, cabinet, or airtight rack where ventilation may be impeded.
5 Objects and liquid entry — Take care that objects or liquids do not get inside the unit through the ventilation openings.
6 Carts and stands — When placed or mounted on a stand or cart, the unit should be moved with care.
Quick stops, excessive force, and uneven surfaces may cause the unit or cart to overturn or fall.
7 Condensation — Moisture may form on the CD pickup lens when:
- The unit is moved from a cold spot to a warm spot
- The heating system has just been turned on
- The unit is used in a very humid room
- The unit is cooled by an air conditioner
When this unit has condensation inside, it may not function normally. Should this occur, leave the unit for a few hours, then try to operate again.
8 Wall or ceiling mounting — The unit should not be mounted on a wall or ceiling, unless specified in the Operating Instructions.
Electric Power
1 Power sources — Connect this unit only to power sources specified in the Operating Instructions, and as marked on the unit.
2 Polarization - As a safety feature, some units are equipped with polarized AC power plugs which can only be inserted one way into a power outlet. If it is difficult or impossible to insert the AC power plug into an outlet, turn the plug over and try again. If it still does not easily insert into the outlet, please call a qualified service technician to service or replace the outlet. To avoid defeating the safety feature of the polarized plug, do not force it into a power outlet.
3 AC power cord
- When disconnecting the AC power cord, pull out by the AC power plug. Do not pull the cord itself.
- Never handle the AC power plug with wet hands, as this could result in fire or shock.
- Power cord should be routed to avoid being severely bent, pinched, or walked upon. Pay particular attention to the cord from the unit to the power socket.
- Avoid overloading AC power plugs and extension cords beyond their capacity, as this could result in fire or shock.
4 Extension cord — To help prevent electric shock, do not use a polarized AC power plug with an extension cord, receptacle, or other outlet unless the polarized plug can be completely inserted to prevent exposure of the blades of the plug.
5 When not in use — Unplug the AC power plug from the power socket if the unit will not be used for several months or more. When the cord is plugged in, a small amount of current continues to flow to the unit, even when the power is turned off.
Outdoor Antenna
1 Power lines — When connecting an outdoor antenna, make sure it is located away from power lines.
2 Outdoor antenna grounding — Be sure the antenna system is properly grounded to provide protection against unexpected voltage surges or static electricity build-up. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information on proper grounding of the mast, supporting structure, and the lead-in wire to the antenna discharge unit, as well as the size of the grounding unit, connection to grounding terminals, and requirements for grounding terminals.

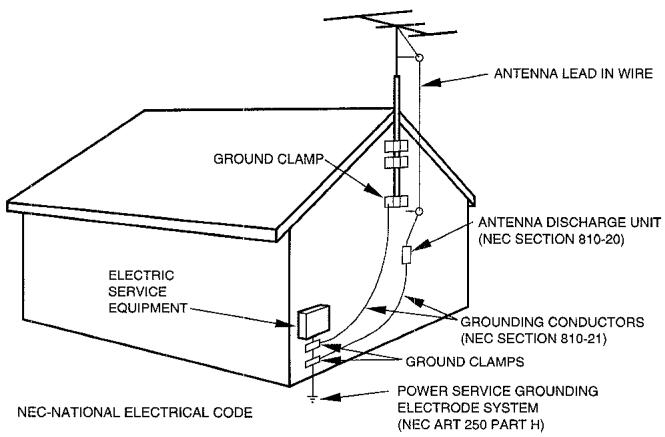

Antenna Grounding According to the National Electrical Code
Maintenance
Clean the unit only as recommended in the Operating Instructions.
Damage Requiring Service
Have the units serviced by a qualified service technician if:
- The AC power cord or plug has been damaged
- Foreign objects or liquid have gotten inside the unit
- The unit has been exposed to rain or water
- The unit does not seem to operate normally
- The unit exhibits a marked change in performance
- The unit has been dropped, or the cabinet has been damaged DO NOT ATTEMPT TO SERVICE THE UNIT YOURSELF.
Owner's record
For your convenience, record the model number and serial number (you will find them on the rear of your set) in the space provided below. Please refer to them when you contact your Aiwa dealer in case of difficulty.
| Model No. | Serial No. (Lot No.) |
| XR-M33 U |
TABLE OF CONTENTS
PRECAUTIONS 1
PREPARATIONS
CONNECTIONS 3
REMOTE CONTROL 5
BEFORE OPERATION 5
SOUND
AUDIO ADJUSTMENTS 6
GRAPHIC EQUALIZER 6
RADIO RECEPTION
MANUAL TUNING 7
PRESETTING STATIONS 8
CD PLAYING
BASIC OPERATIONS 9
PROGRAMMED PLAY 10
TAPE PLAYBACK
BASIC OPERATIONS 11
RECORDING
BASIC RECORDING 12
AI EDIT RECORDING 13
PROGRAMMED EDIT RECORDING 14
CLOCK AND TIMER
SETTING THE CLOCK 15
SETTING THE SLEEP TIMER 15
SETTING THE TIMER 16
OTHER CONNECTIONS
CONNECTING OPTIONAL EQUIPMENT 17
LISTENING TO EXTERNAL SOURCES 17
GENERAL
CARE AND MAINTENANCE 18
TROUBLESHOOTING GUIDE 18
SPECIFICATIONS 19
PARTS INDEX 20
CONNECTIONS
Check your system and accessories
XR-M33 Compact disc stereo cassette receiver
Speakers (L, R)
Remote control
FM antenna
AM antenna
Operating Instructions, etc.
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V AC. Check that the rated voltage matches your local voltage.
IMPORTANT
- Connect the speakers, antennas, and all optional equipment first. Then connect the AC cord.
- There are no differences between the front speakers. Both speakers can be connected as L (Left) or R (Right)

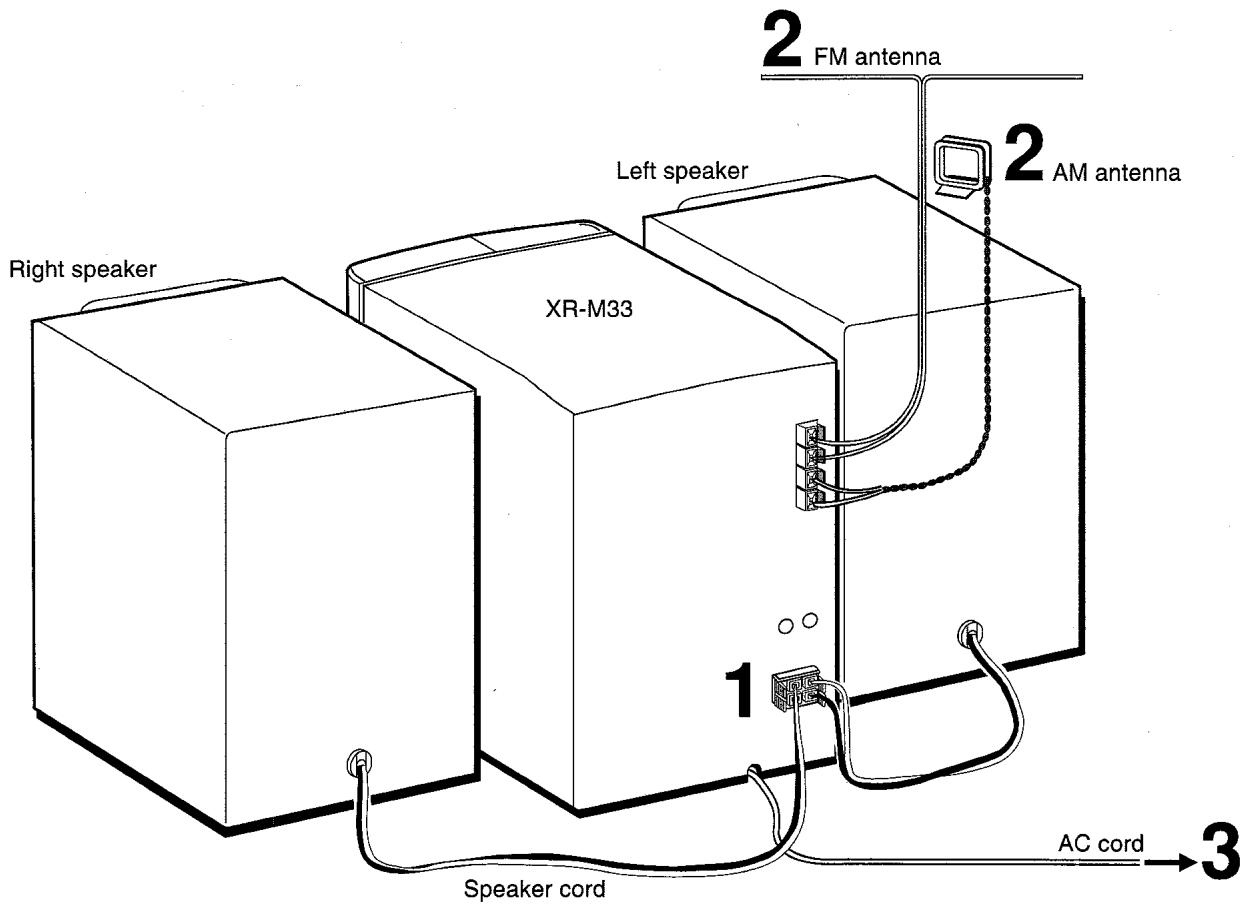

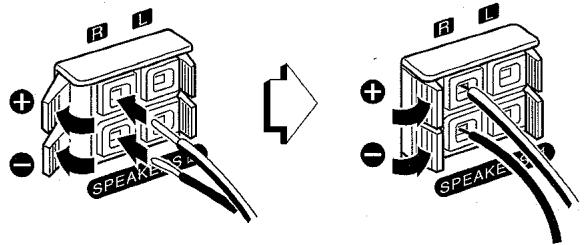

1 Connect the speaker cord to the main unit.
The speaker cord with the white stripe should be connected to terminal and the black cord to terminal.

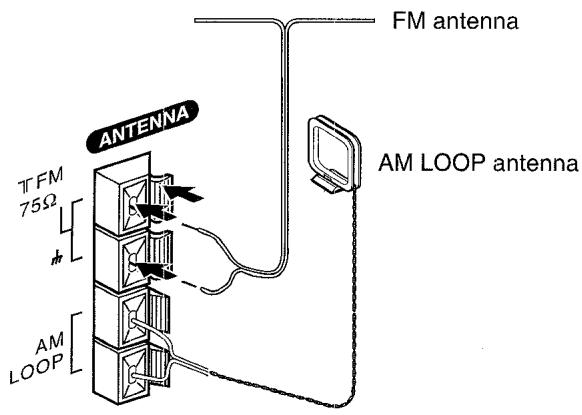

2 Connect the supplied antennas.
Connect the FM antenna to FM 75 Ω terminals and the AM antenna to AM LOOP terminals.
3 Connect the AC cord to an AC outlet.
To stand the AM loop antenna on a surface
Fix the claw to the slot.
To position the antennas
FM feeder antenna:
Extend this antenna horizontally in a T-shape and fix its ends to the wall.
AM loop antenna:
Position for the best reception.
NOTE
- Do not connect any speakers to the unit other than the supplied ones.
- Be sure to connect the speaker cords correctly. Improper connections can cause short circuits in SPEAKERS terminals.
- Do not leave objects generating magnetism, such as credit cards, near the speakers, as these objects may be damaged.
- Do not bring the FM antenna near metal objects or curtain rails.
- Do not bring the AM antenna near other optional equipment, the stereo system itself, the AC cord or speaker cords, since noise will be picked up.
- Do not unwind the AM antenna wire.

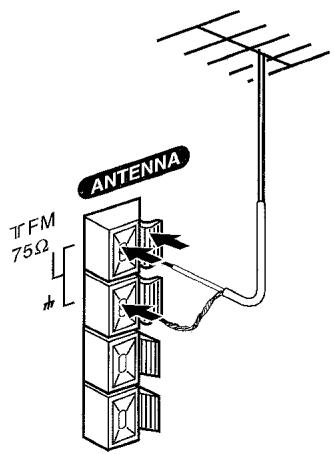

CONNECTING AN OUTDOOR ANTENNA
For better FM reception, use of an outdoor antenna is recommended.
Connect the outdoor antenna to FM 75 terminals.
To connect other optional equipment page 17
REMOTE CONTROL

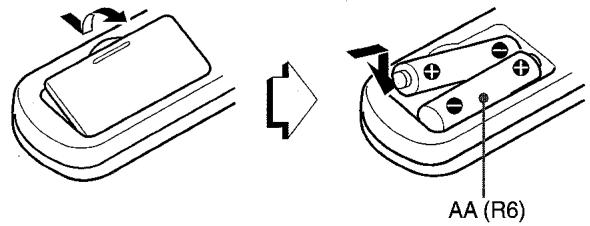

Inserting batteries
Detach the battery cover on the rear of the remote control and insert two size AA (R6) batteries.
When to replace the batteries
The maximum operational distance between the remote control and the sensor on the main unit should be approximately 5 meters (16 feet). When this distance decreases, replace the batteries with new ones.
Using the remote control
The instructions in this manual refer mainly to the buttons on the main unit. Buttons on the remote control with the same names as those on the main unit can be used as well.

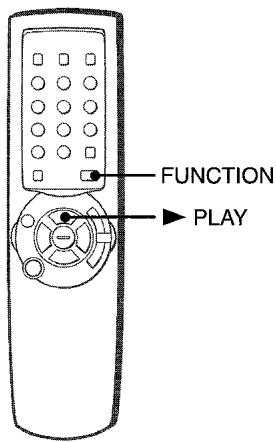

To use FUNCTION on the remote control
The FUNCTION substitutes for the function buttons (TAPE, TUNER, AUX/VIDEO, CD) on the main unit.
Each time FUNCTION is pressed while power is on, the next function is selected cyclically.
▶ PLAY on the remote control
The function is the same as that of on the main unit.
NOTE
- If the remote control is not going to be used for an extended period of time, remove the batteries to prevent possible electrolyte leakage.
-
The remote control may not operate correctly when:
-
The line of sight between the remote control and the remote sensor above DEMO/ECO is exposed to intense light, such as direct sunlight
- Other remote controls are used nearby (those of a television, etc.)

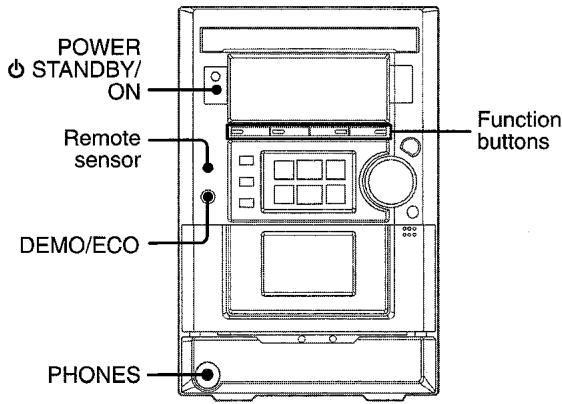

BEFORE OPERATION
To turn the unit on
Press one of the function buttons (TAPE, TUNER, AUX/VIDEO, CD). Playback of the inserted disc or tape begins, or the previously tuned station is received (Direct Play Function).
POWER/STANDBY/ON is also available.
To turn the power off
Press POWER/STANDBY/ON
The unit will return to the ECO mode or clock display depending on the setting before you turn on the unit.
If the previous setting is DEMO, the unit will also return to the clock display.
- If the clock is not set, the unit will always return to the DEMO mode.
DEMO (Demonstration) mode
When the AC cord is connected, the display window demonstrates the functions of the unit. When the power is turned on, the DEMO display is overridden by the operation display.
To cancel DEMO mode
Press DEMO/ECO.
To re-activate the DEMO mode, press DEMO/ECO until the display window demonstrates the functions of the unit.
ECO (Power economizing) mode
Setting this unit to power economizing mode reduces power consumption.
Press DEMO/ECO repeatedly (during power off) until "ECO MODE" is displayed.
The display disappears and the indicator on the POWER/STANDBY/ON button lights up.
DIMMER mode
Press DEMO/ECO twice during power on.
The display is dimmer than usual, press DEMO/ECO again to restore normal display.
Using the headphones
Connect the headphones to PHONES jack with a stereo mini plug (Ø3.5 mm, 1/8 inch).
No sound is output from the speakers while the headphones are plugged in.

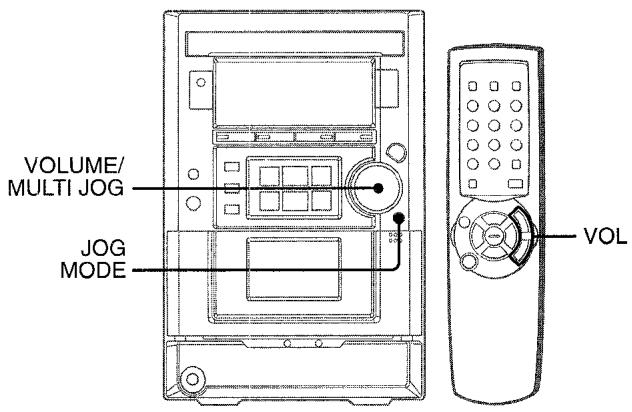

AUDIO ADJUSTMENTS
VOLUME
Turn VOLUME/MULTI JOG on the main unit, or press VOL ( or ) on the remote control.
The volume level is displayed as a number from 0 to MAX (31). The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.
To see the present volume level press DISPLAY on the remote control twice.
SUPER T-BASS SYSTEM
The T-BASS system enhances the realism of low-frequency sound.
Press JOG MODE once.
Within 4 seconds turn VOLUME/MULTI JOG to change the T-BASS level. The level changes as follows.
$$ \begin{array}{l} \text {T - B A S S 0} \longleftrightarrow \text {T - B A S S 1} \longleftrightarrow \text {T - B A S S 2} \longleftrightarrow \text {T - B A S S 3} \ (\text {o f f}) \end{array} $$
Select one of the three levels or the off position to suit your preference.
NOTE
Low frequency sound may be distorted when the T-BASS system is used for a disc or tape in which low frequency sound is originally emphasized. In this case, cancel the T-BASS system.

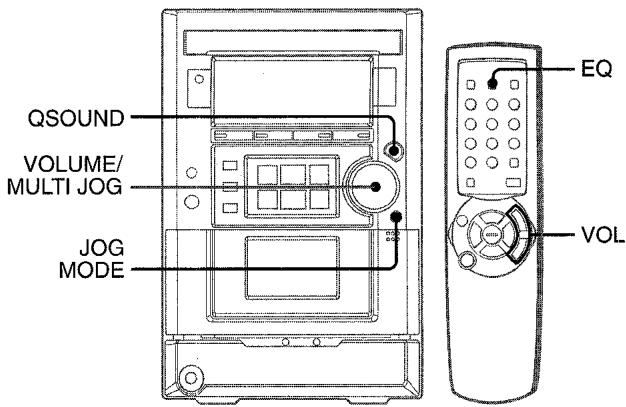

GRAPHIC EQUALIZER
This unit provides the following three different equalization curves.
ROCK: Powerful sound emphasizing treble and bass
POP: More presence in the vocals and midrange
JAZZ: Accented lower frequencies for jazz-type music

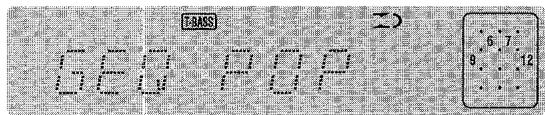

Press JOG MODE twice
The equalization mode is displayed.
Turn VOLUME/MULTI JOG within 4 seconds to select an equalization curve.
The GEQ mode is displayed as follows:
To cancel the selected mode
Turn VOLUME/MULTI JOG until "GEQ OFF" is displayed.
To select with the remote control
Press EQ repeatedly. The GEQ mode is displayed cyclically as follows.
QSOUND
This system provides a rich, three dimensional sound area for stereo sources.
You can enjoy more enhanced sound.

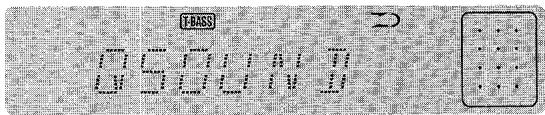

Press QSOUND
To cancel QSOUND
Press QSOUND again. "OFF" is displayed.
- At higher volumes, turning QSOUND on may cause sound distortion. In this case, turn the volume down.

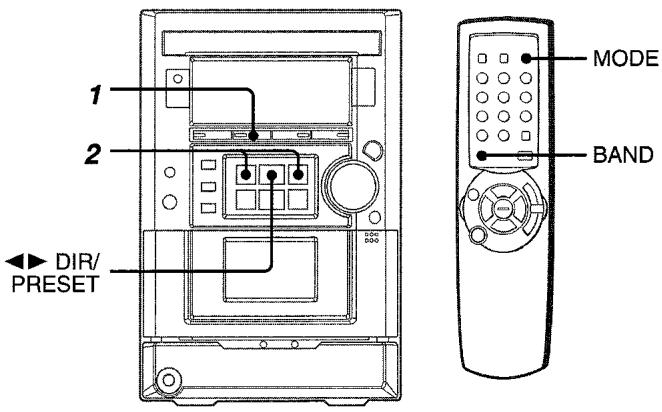

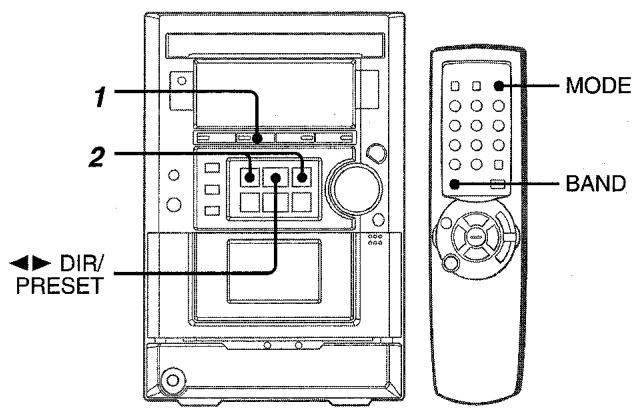

MANUAL TUNING
1 Press TUNER/BAND repeatedly to select the desired band.
When TUNER/BAND is pressed while the power is off, the previously tuned station will be played (Direct Play Function).
To select a band with the remote control
Press BAND repeatedly.

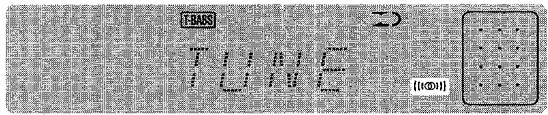

2 Press or to select a station.
Each time the button is pressed, the frequency changes. When a station is received, "TUNE" is displayed for 2 seconds. During FM stereo reception, "(") is displayed.
To search for a station quickly (Auto Search)
Keep or pressed until the frequency starts to change rapidly. After tuning in to a station, the search stops.
To stop the Auto Search manually, press or .
- The Auto Search may not stop at stations with very weak signals.
When an FM stereo broadcast contains noise

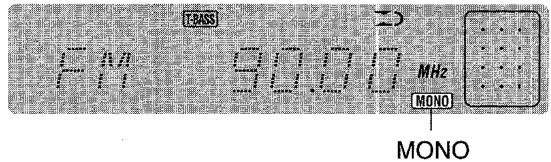

Press MODE on the remote control so that "MONO" appears on the display.
Noise is reduced, although reception is monaural.
To restore stereo reception, press MODE so that "MONO" disappears.
To change the AM tuning interval
The default setting of the AM tuning interval is 10kHz /step. If you use this unit in an area where the frequency allocation system is 9kHz /step, change the tuning interval.
Press POWER/STANDBY/ON while pressing DIR/PRESET during power on.
To reset the interval, repeat this procedure.
NOTE
When the AM tuning interval is changed, all preset stations are cleared. The preset stations have to be set again.

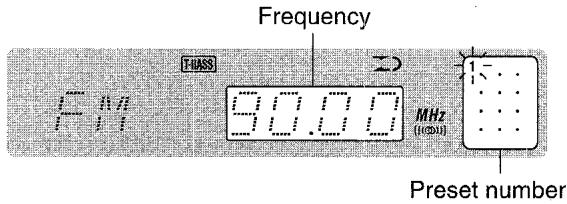

PRESETTING STATIONS
The unit can store a total of 32 preset stations (Each band has a maximum of 20 available preset stations). When a station is stored, a preset number is assigned to the station. Use the preset number to tune in to a preset station directly.
1 Press TUNER/BAND to select a band, and press or to select a station.
2 Press to store the station.
A preset number beginning from 1 in consecutive order for each band is assigned to the station.
3 Repeat steps 1 and 2.
The next station will not be stored if a total of 32 preset stations for all the bands or a total of 20 preset stations for one band have already been stored.
PRESET NUMBER TUNING
Use the remote control to select the preset number directly.
1 Press BAND to select a band.
2 Press numbered buttons 0-9 and +10 to select a preset number.
Example:
To select preset number 20, press +10 , +10 and 0.
To select preset number 15, press +10 and 5.
Selecting a preset number on the main unit
Press TUNER/BAND to select a band. Then, press DIR/ PRESET repeatedly.
Each time DIR/PRESET is pressed, the next ascending number is selected.
To clear a preset station
Select the preset number of the station to be cleared. Then, press , and press within 4 seconds.
The preset numbers of all other stations in the band with higher numbers are also decreased by one.
BASIC OPERATIONS
LOADING DISC
Press CD, then press CD OPEN/CLOSE to open the disc compartment. Load a disc with the label side up. Close the disc compartment by pressing CD OPEN/CLOSE.

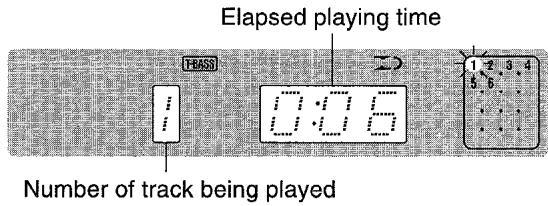

PLAYING DISC
Load a disc.
Press ▲
Play begins with the first track.
To stop play, press
To pause play, press I. To resume play, press again.
To search for a particular point during playback, keep
or pressed and release it at the desired point.
To skip to the beginning of a track during playback, press
or repeatedly.
To remove disc, press CD OPEN/CLOSE.
To start play when the power is off (Direct Play Function)
Press CD. The power is turned on and play of the loaded disc begins.
When CD OPEN/CLOSE is pressed, the power is also turned on and the disc compartment is opened.
To check the remaining time
During play, press DISPLAY thrice on the remote control. The amount of time remaining until all tracks finish playing is displayed. Press DISPLAY again to restore the playing time display.
Selecting a track with the remote control
Press numbered buttons 0-9 and +10 to select a track.
Example:
To select the 25th track, press +10 , +10 and 5.
To select the 10th track, press +10 and 0.
The selected track starts to play and continues to the end of that disc.
NOTE
- When removing the disc, press to stop play before pressing CD OPEN/CLOSE.
- When loading an 8-cm (3-inch) disc, put it onto the inner circle of the tray.
- Do not place more than one compact disc on the disc tray.
- Do not tilt the unit with disc loaded. Doing so may cause malfunctions.
RANDOM/REPEAT PLAY
RANDOM play
All the tracks on the disc can be played randomly.
Press MODE on the remote control until "RANDOM" lights up on the display.
To cancel random, press the button once during play mode or press the button four times during stop mode.
NOTE
- During random play, it is not possible to skip to the previously played track with .
- During random play, direct selection of the tracks with the numbered buttons will cancel random play.
- During random play, "→1" play cannot be performed and remaining time cannot be checked.
REPEAT play
One or all the tracks can be played repeatedly.
To repeat the entire disc, turn on “ ”.
To repeat the desired track, turn on “ 1”.

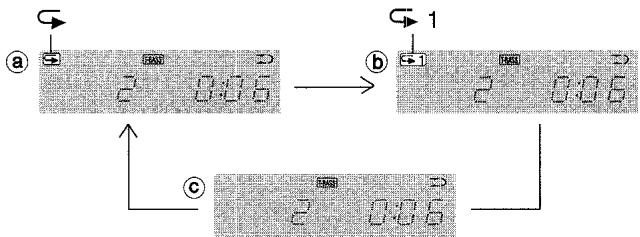

Press REPEAT on the remote control.
Each time REPEAT is pressed, the operations can be selected cyclically.
a C
b
Cancel
NOTE
- During “ ” play, random play can be performed.
- When you start random play during “G→1” play, the repeat play will be canceled.
- To repeat only selected tracks, program the desired tracks (see below) before choosing “ ” function.
- During “ ” play or “ 1” play, remaining time cannot be checked.

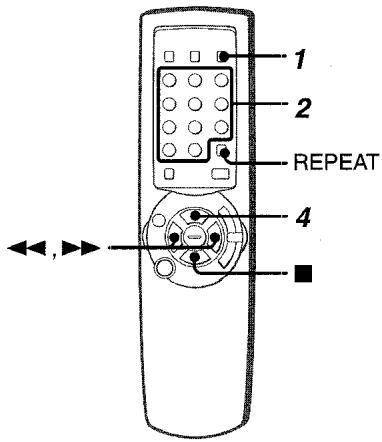

PROGRAMMED PLAY
Up to 30 tracks can be programmed from the inserted disc.
Use the remote control.

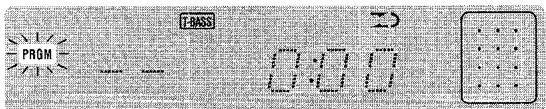

1 Press MODE twice in stop mode.
"PRGM" flashes on the display.
2 Press numbered buttons 0-9 and +10 to program a track.
Example:
To select the 12th track, press +10 and 2.
To select the 20th track, press +10 , +10 and 0 .
3 Repeat step 2 to program other tracks.
4 Press to start play.
To check the program
Each time or is pressed in stop mode, a track number and program number will be displayed.
To clear the program
Press in stop mode.
To add tracks to the program
Before playing, repeat step 2. The track will be programmed after the last track.
To change the programmed tracks
Clear the program and repeat all the steps again.
To play the programmed tracks repeatedly
After programming the tracks, press REPEAT on the remote control, "→" lights up on the display.
NOTE
- During programmed play, the following operations cannot be performed:
- Random play.
-One-track repeat (1) - Checking the remaining time.
- If programmed time is more than 99:59 minutes, or the disc track number 31 and above is programmed, total playing time is shown as --:-- in the display.
BASIC OPERATIONS
INSERTING A TAPE
- You can select a reverse mode to playback one or both sides.
- Use Type I (normal) tapes for playback.
Press TAPE/REV MODE and press EJECT mark to open the cassette holder
Insert a tape with the exposed side down. Push the cassette holder to close.
To select a reverse mode
Each time TAPE/REV MODE is pressed, the reverse mode changes.
To play one side only, select
To play from front side to back side once only, select 工
To play both sides repeatedly, select ()
NOTE
MODE on the remote control can also be used to select the reverse mode.
PLAYING BACK A TAPE

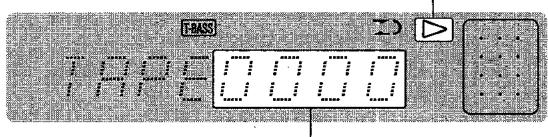

Insert a tape. Then press to start play.
Playback side of the tape
The tape counter indicates the tape running length
: The front side is being played (forward).
: The back side is being played (reverse).
To stop play, press
To pause play, press II. To resume play, press again.
To change the playback side, press DIR/PRESET in play or pause mode.
To fast forward or rewind, press or in stop mode.
Then press to stop the tape.
To start play when the power is off (Direct Play Function) Press TAPE. The power is turned on and play of the inserted tape begins.
To set the tape counter to 0000
Press in stop mode.
The counter is also set to 0000 when the cassette holder is opened.

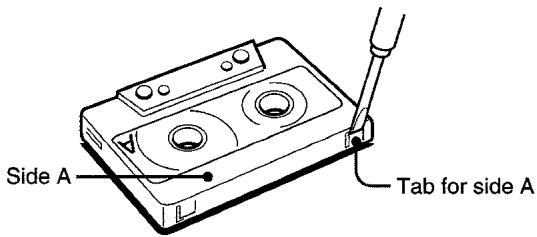

About cassette tapes
- To prevent accidental erasure, break off the plastic tabs on the cassette tape after recording with a screwdriver or other pointed tool.
To record on the tape again, cover the tab openings with adhesive tape, etc.
- 120-minute or longer tapes are extremely thin and easily deformed or damaged. They are not recommended.
- Take up any slack in the tape with a pencil or similar tool before use. Slack tape may break or jam in the mechanism.

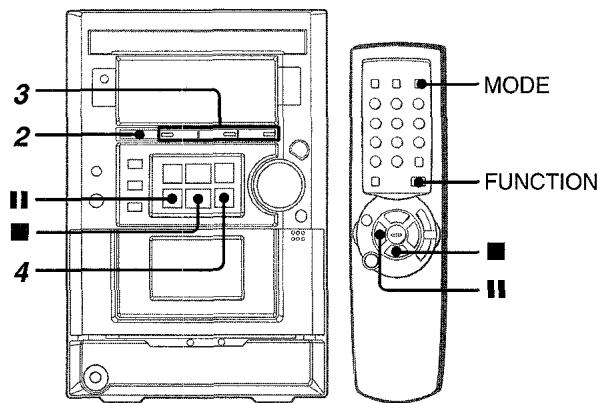

BASIC RECORDING
This section explains how to record from the tuner, CD player, or external equipment.
Preparation
- Use Type I (normal) tapes only.
- Set the tape to the point where recording will start.
1 Insert the tape to be recorded on into deck.
Insert the tape with the side to be recorded on first facing out from the unit and the exposed side down.
2 Press TAPE/REV MODE to select the reverse mode.
To record on one side only, select
To record on both sides, select 工 or (2).
3 Press function (TUNER, AUX/VIDEO or CD) and prepare the source to be recorded.
To record from a CD, press CD and load the disc.
To record from a radio broadcast, press TUNER/BAND and tune in to a station.
To record from a connected source, press AUX/VIDEO and play.
4 Press REC/REC MUTE to start recording.
When the selected function is CD, playback and recording start simultaneously.
To stop recording, press
To pause recording, press (applicable when the source is TUNER or AUX/VIDEO). To resume recording, press it again.
Sound adjustment during recording
The output volume and tone of the speakers or headphones may be freely varied without affecting the recording.
INSERTING BLANK SPACE
Insertion of 4-second blank spaces may help you to locate the beginning of the track on other equipments. This unit can add blank spaces only when the source is TUNER or AUX/VIDEO.
1 Press REC/REC MUTE during recording or while in recording pause mode.
REC on the display flashes for 4 seconds and the tape runs without recording. After 4 seconds, the deck enters the recording pause mode.
2 Press to resume recording.
To insert a blank space of less than 4 seconds, press REC/REC MUTE again while REC is flashing.
To insert blank spaces of more than 4 seconds, after the deck enters the recording pause mode, press REC/REC MUTE again.
Each time REC/REC MUTE is pressed, a 4-second blank space is added.
*This unit does not have the function to locate the beginning of track.
NOTE
Recording cannot be done when TAPE function is selected.
To erase a recording
1 Insert the tape to be erased into the deck.
2 Set the tape to the point where the erasure is to be started.
3 Set the reverse mode by pressing TAPE/REV MODE.
4 Press AUX/VIDEO and turn the connected equipment off.
5 Press REC/REC MUTE to start the erasure.

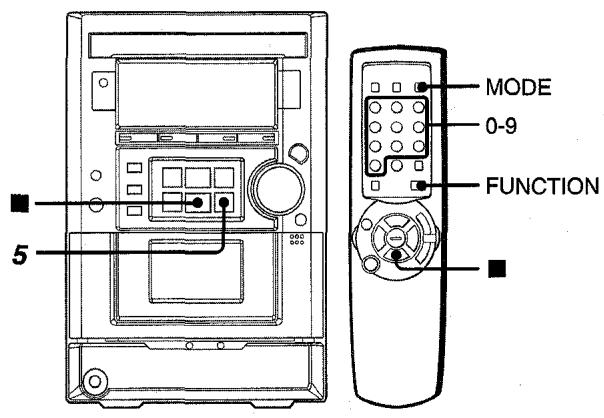

AI EDIT RECORDING
The AI edit recording function enables CD recording without worrying about tape length and track length. When a CD is inserted, the unit automatically calculates the total track length. If necessary, the order of tracks is rearranged so that no track is cut short.
(AI: Artificial Intelligence)
NOTE
Al edit recording will not start from a point halfway into the tape. The tape must be recorded from the beginning of either side.
Use the remote control from steps 2 to 5.
1 Insert the tape into deck.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press FUNCTION repeatedly until "CD" is displayed and load the disc.

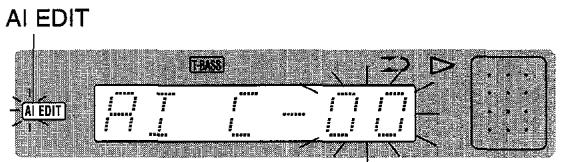

3 Press MODE thrice.
"EDIT" lights up and "Al" flashes on the display.
Each time it is pressed, the display changes as follows.
RANDOM PRGM AI EDIT PRGMEDIT
4 Press numbered buttons 0-9 to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6 and 0.
In a few seconds, the tracks to be recorded on each side of the tape are determined.
- and are also available to designate the tape length.
5 Press TAPE REC/REC MUTE to start recording.
The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.
To stop recording
Press. Recording and CD play stop simultaneously.

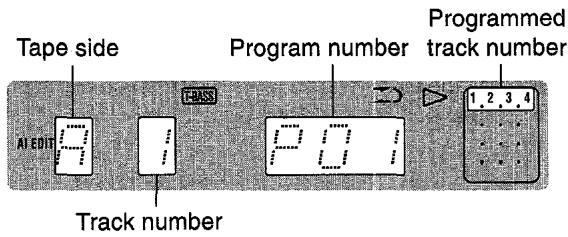

To clear the edit program
Press twice so that "EDIT" disappears on the display.
To check the order of the programmed track numbers Before recording, press MODE to select side A or B, and press or repeatedly.
NOTE
- Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.
- The AI edit function cannot be used with discs containing 31 tracks or more.
PROGRAMMED EDIT RECORDING
In the programmed edit recording function, the track can be programmed while checking the remaining time on each side of the tape as the tracks are programmed.
NOTE
The programmed edit recording will not start from a point halfway in the tape. The tape must be recorded on from the beginning of either side.
Use the remote control from step 2 to 7.
1 Insert the tape into deck.
Insert the tape with the side to be recorded on first facing out from the unit.
2 Press FUNCTION repeatedly until "CD" is displayed and load the disc.

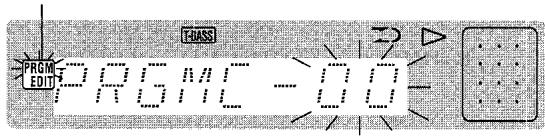

3 Press MODE four times.
"EDIT" lights up and "PRGM" flashes on the display.
PRGM
EDIT

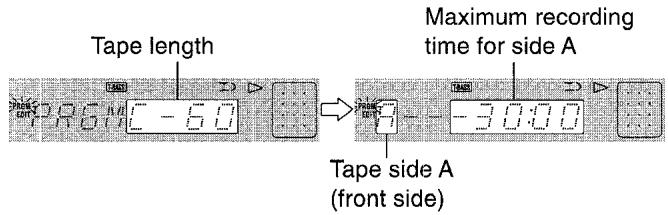

4 Press numbered buttons 0-9 to designate the tape length.
10 to 99 minutes can be specified.
Example: When using a 60-minute tape, press 6 and 0.
- The and are also available to designate the tape length.

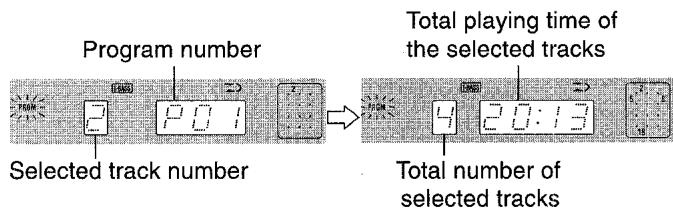

5 Press the numbered buttons 0-9 and +10 to program a track.
Example: To select the 10th track, press +10 and 0 .

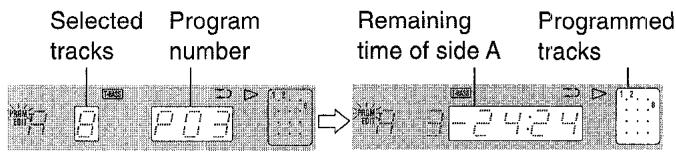

6 Repeat step 5 for the rest of the tracks for side A.
A track whose playing time is longer than the remaining time cannot be programmed.

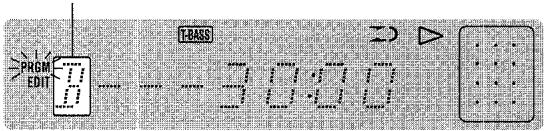

7 Press MODE to select side B and program the tracks for side B.
After confirming "B" on the display, repeat step 5.
Tape side B (reverse side)
8 Press TAPE REC/REC MUTE to start recording.
The tape is rewound to the beginning of the front side, the lead segment is played through for 10 seconds, and recording starts. When recording on the front (side A) ends, recording on the back (side B) starts.
To stop recording
Press. Recording and CD play stop simultaneously.
To check the order of the programmed track numbers
Before recording, press MODE to select side A or B, and press
or repeatedly.
To change the program of each side
Press MODE to select side A or B, and press to clear the program on the selected side. Then program tracks again.
To clear the edit program
Press twice so that "EDIT" disappears on the display.
NOTE
- Recording is inhibited if the erasure prevention tab on either side of the tape is broken off.
- Track number 31 and above cannot be programmed.

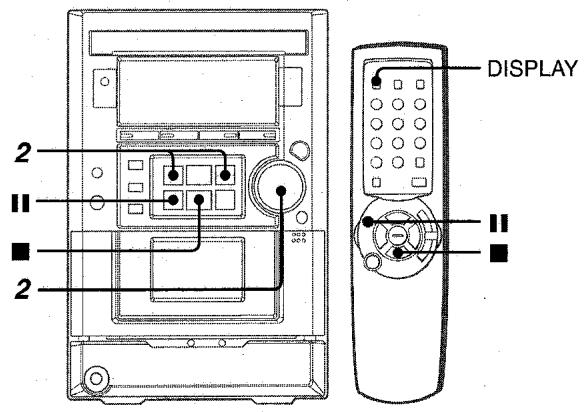

SETTING THE CLOCK
Set the clock during power on.

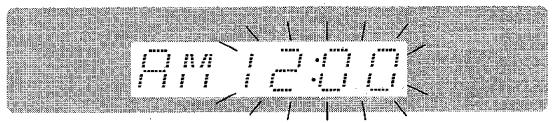

1 Press DISPLAY on the remote control and press within 4 seconds.
The display flashes.
2 Press or or turn VOLUME/MULTI JOG to designate the time, then press I.
Each time or is pressed the time changes by 1 minute. To change the time by 30 minutes, press and hold down or .
To set the clock during power off
1 Press III repeatedly until the time flashes.
2 Press or or turn VOLUME/MULTI JOG to designate the time, then press I.
Each time or is pressed the time changes by 1 minute. To change the time by 30 minutes, press and hold down or .
To display the current time
With power on, press DISPLAY once on the remote control. The time is displayed for 4 seconds.
However, the time cannot be displayed during recording.
When the power is off, press DEMO/ECO repeatedly until the display changes to clock or press Ⅱ once (the time is displayed for 4 seconds).
To switch to the 24-hour standard
With power on, press DISPLAY then press within 4 seconds. Repeat the same procedure to restore the 12-hour standard.
If the clock display flashes
This is caused by a power interruption. The current time needs to be reset.
If power is interrupted for more than approximately 24 hours, all settings stored in memory after purchase need to be reset.
SETTING THE SLEEP TIMER
The unit can be turned off automatically at a specified time.

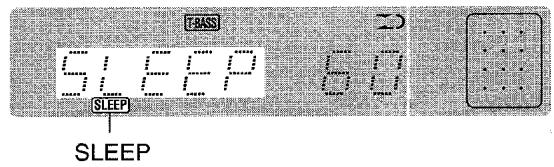

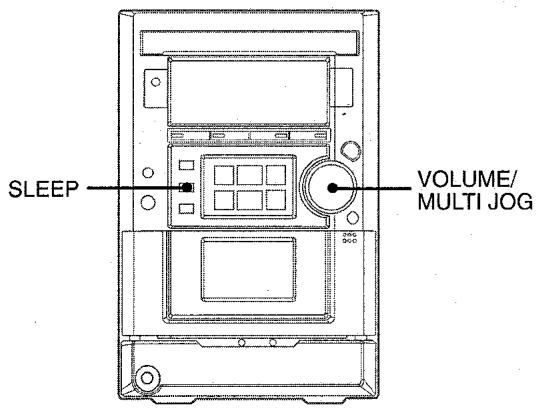

1 Press SLEEP.
2 Within 4 seconds, turn VOLUME/MULTI JOG or press or to specify the time until the power is turned off.
The time changes between 5 and 240 minutes in 5-minute steps.
To check the time remaining until the power is turned off Press SLEEP once. The remaining time is displayed for 4 seconds.
To cancel the sleep timer
Press SLEEP twice so that "SLEEPPoFF" appears on the display.
SETTING THE TIMER
The unit can be turned on at a specified time every day with the built-in timer.
Preparation
Make sure the clock is set correctly. (See page 15).

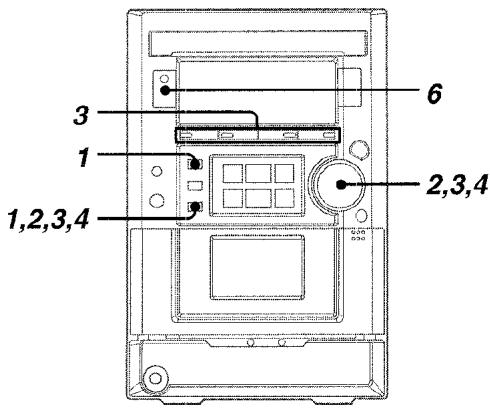

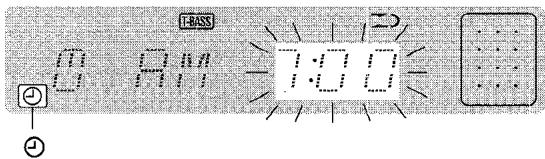

1 Press TIMER once to display “①”, then press ENTER within 6 seconds.
"Θ" is displayed and the time flashes.
NOTE
If you press ENTER after 6 seconds, another operation may start.

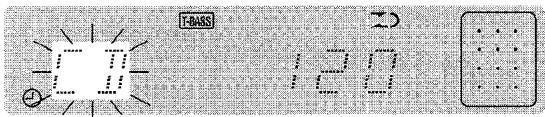

2 Designate the timer-on time by turning VOLUME/MULTI JOG or press or , then press ENTER.
To change the timer-on time by 30 minutes, press and hold down or
After you designate the timer-on time, one of the source names flashes on the display.
3 Press any of the function buttons (TAPE, TUNER, AUX, CD) or turn VOLUME/MULTI JOG or press or to select a source, then press ENTER.
The duration for the timer activated period flashes.
- If TUNER is pressed, the band cannot be selected in this step.
4 Select the duration for the timer-activated period with VOLUME/MULTI JOG or press or then press ENTER.
The duration for the timer-activated period can be set between 5 and 240 minutes in 5-minute steps.
5 Prepare the source.
To listen to a CD, load the disc.
To listen to a tape, insert the tape into deck.
To listen to the radio, tune in to a station.
To listen to the equipment connected toVIDEO/AUX Jacks, set the timer of the connected source (with an external timer) and prepare for the play.
6 Press POWER/STANDBY/ON to turn the unit off after adjusting the volume and tone.
When the timer-on time is reached, the unit turns on and begins play with the selected source.
The volume level is automatically set to 20 when the power is turned off with the volume level set to 21 or more.
To check the specified time and source
Press TIMER. The timer-on time, the selected source name and the duration for the timer-activated period flash alternately for 6 seconds.
To cancel timer standby mode temporarily
Press TIMER repeatedly until “ ” or “ _REC ” disappears on the display.
To restore the timer standby mode, press TIMER once or twice to display "①" or "②"REC".
Using the unit while the timer is set
You can use the unit normally after setting the timer.
Before turning off the power, carry out step 5 to prepare the source, and adjust the volume and tone.
NOTE
- Timer playback and timer recording will not begin unless the power is turned off.
- Connected equipment cannot be turned on and off by the built-in timer of this unit. Use an external timer.
TIMER RECORDING
Timer recording is applicable for TUNER and AUX/VIDEO (with an external timer) sources only.
Press TIMER repeatedly until “ _REC ” appears on the display, then press ENTER within 6 seconds.
- Carry out the steps of "SETTING THE TIMER" from step 2 and insert the tape to be recorded on into deck after step 5.
CONNECTING OPTIONAL EQUIPMENT
Refer to the operating instructions of the connected equipment for details.
- The connecting cords are not supplied. Obtain the necessary connecting cords.
- Consult your local Aiwa dealer for optional equipment.
VIDEO/AUX JACKS
This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio equipment (turntables, LD players, VCRs, etc.).
Connect the red plug to the VIDEO/AUX R jack, and the white plug to theVIDEO/AUX L jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
LISTENING TO EXTERNAL SOURCES
To play equipment connected to theVIDEO/AUX jacks, proceed as follows.

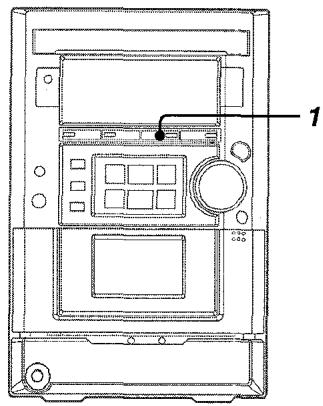

1 Press AUX/VIDEO.
"AUX" appears on the display.
2 Play the connected equipment.
To change a source name in the display
When AUX/VIDEO is pressed, "AUX" is displayed initially. It can be changed to "TV" or "VIDEO".
With the power on, press POWER/STANDBY ON while pressing AUXVIDEO.
Repeat the procedure to select one of the source names.
CARE AND MAINTENANCE
Occasional care and maintenance of the unit and the software are needed to optimize the performance of your unit.
To clean the cabinet
Use a soft and dry cloth.
If the surfaces are extremely dirty, use a soft cloth lightly moistened with mild detergent solution. Do not use strong solvents, such as alcohol, benzine or thinner as these could damage the finish of the unit.
To clean the heads and tape paths
After every 10 hours of use, clean the heads and tape paths with a head cleaning cassette or cotton swab moistened with cleaning fluid or denatured alcohol. (These cleaning kits are commercially available.)
When cleaning with a cotton swab, wipe the recording/playback head, erasure head, capstans, and pinchrollers.
After cleaning the heads and tape paths with a liquid head cleaning cassette or a moistened swab, wait until the cleaned parts are completely dry before inserting the tapes.
To demagnetize the heads
The heads may become magnetized after long-term use. This may narrow the output range of recorded tapes and increase noise. After 20 to 30 hours use, demagnetize the heads with any commercially available demagnetizer.
Care of discs
- When a disc becomes dirty, wipe the disc from the center out with a cleaning cloth.
- After playing a disc, store the disc in its case. Do not leave the disc in places that are hot or humid.
Care of tapes
- Store tapes in their cases after use.
- Do not leave tapes near magnets, motors, television sets, or any source of magnetism. This will downgrade the sound quality and cause noise.
- Do not expose tapes to direct sunlight, or leave them in a car parked in direct sunlight.
TROUBLESHOOTING GUIDE
If the unit fails to perform as described in these Operating Instructions, check the following guide.
GENERAL
There is no sound.
- Is the AC cord connected properly?
- Is there a bad connection? ( page 3)
- There may be a short circuit in the speaker terminals.
Disconnect the AC cord, then correct the speaker connections.
Was an incorrect function button pressed?
Sound is emitted from one speaker only.
- Is the other speaker disconnected?
An erroneous display or a malfunction occurs.
Reset the unit as stated below.
TUNER SECTION
There is constant, wave-like static.
- Is the antenna connected properly? ( page 3)
Is the signal weak?
Connect an outdoor antenna.
The reception contains noise interferences or the sound is distorted.
- Is the system picking up external noise or multipath distortion?
Change the orientation of the antenna.
Move the unit away from other electrical appliances.
CASSETTE DECK SECTION
The tape does not run.
Is deck in pause mode? ( page 11)
The sound is off-balance or not adequately high.
Is the playback head dirty? ( page 18)
Recording is not possible.
- Is the erasure prevention tab on the tape broken off? (→ page 11)
- Is the recording head dirty? ( page 18)
Erasure is not possible.
Is the erasure head dirty? ( page 18)
- Is a metal tape being used?
High frequency sound is not emitted.
- Is the recording/playback head dirty? ( page 18)
CD PLAYER SECTION
The CD player does not play.
- Is the disc correctly placed? (→ page 9)
Is the disc dirty? ( page 18)
Is the lens affected by condensation?
Wait approximately one hour and try again.
To reset
If an unusual condition occurs in the display window or the cassette decks, reset the unit as follows.
1 Press POWER/STANDBY/ON to turn off the power.
2 Press POWER/STANDBY/ON to turn the power back on while pressing. Everything stored in memory after purchase is canceled.
If the power cannot be turned off in step 1 because of a malfunction, reset by disconnecting the AC cord, and connect it again. Then carry out step 2.
SPECIFICATIONS
| Main unit XR-M33 | |
| FM tuner section | |
| Tuning range | 87.5 MHz to 108 MHz |
| Usable sensitivity (IHF) | 13.2 dBf |
| Antenna terminals | 75 ohms (unbalanced) |
| AM tuner section | |
| Tuning range | 530 kHz to 1710 kHz (10 kHz step) |
| 531 kHz to 1602 kHz (9 kHz step) | |
| Usable sensitivity | 350 μV/m |
| Antenna | Loop antenna |
| Amplifier section | |
| Power output | 15 W + 15 W (1 kHz, T.H.D. 10%, 8 ohms) |
| 12 W + 12 W (1 kHz, T.H.D. 1%, 8 ohms) | |
| Total harmonic distortion | 0.07 % (7.5 W, 1 kHz, 8 ohms) |
| Inputs | VIDEO/AUX: 0.4 V |
| Outputs | SPEAKERS: accept speakers of 8 ohms or more |
| PHONES (stereo minijack): accepts headphones of 32 ohms or more | |
| Cassette deck section | |
| Track format | 4 tracks, 2 channels stereo |
| Frequency response | Normal tape: 50 Hz – 15000 Hz |
| Signal-to-noise ratio | 50 dB |
| Recording system | AC bias |
| Heads | Recording/playback head × 1 |
| Erase head × 1 | |
| Compact disc player section | |
| Laser | Semiconductor laser (λ = 780 nm) |
| D-A converter | 1 bit dual |
| Signal-to-noise ratio | 75 dB (1 kHz, 0 dB) |
| Harmonic distortion | 0.1% (1 kHz, 0 dB) |
| Wow and flutter | Unmeasurable |
| General | |
| Power requirements | AC : 120 V, 60 Hz |
| Power consumption | 40 W |
| Dimensions of main unit | 173 × 255.2 × 250 mm |
| (W × H × D) | (67/8 × 10^1/8 × 9^7/8 in) |
| Weight of main unit | 3.5 kg |
| (7 lbs 11oz) | |
Speaker system
| Cabinet type | 2 way, bass reflex (magnetic shield type) |
| Speakers | Woofer: 120 mm (43/4 in) cone type Tweeter: 20 mm (13/16 in) ceramic type |
| Impedance | 8 ohms |
| Output sound pressure level | 87 dB/W/m |
| Dimensions (W × H × D) | 173 × 255 × 195 mm (67/8 × 10 × 73/4 in) |
| Weight | 1.9 kg (4 lbs 3 oz) |
Specifications and external appearance are subject to change without notice.
COPYRIGHT
Please check the laws on copyright relating to recordings from discs, radio or external tape for the country in which the machine is being used.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION
Modifications or adjustments to this product, which are not expressly approved by the manufacturer, may void the user's right or authority to operate this product.
Name
Page

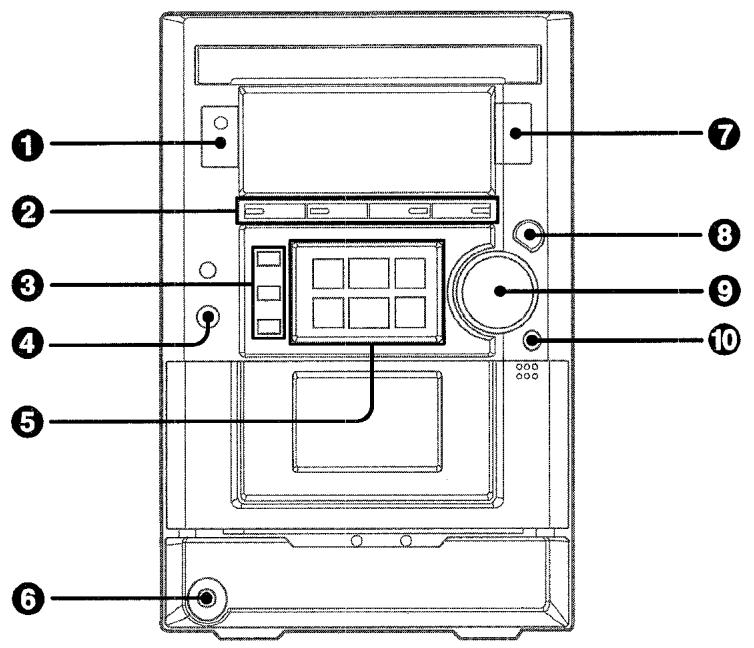

1 POWER/STANDBY/ON 5
TAPE/REV MODE 11
TUNER/BAND 7,8
AUX/VIDEO 17
CD 9
TIMER 16
SLEEP 15
ENTER 16
4 DEMO/ECO 5
5 TUNING 7-11,13,14,16
DIR/PRESET 7-14
TUNING 7-11,13,14,16
II SET. 8-12,16
■ CLEAR 8-14
REC/REC MUTE 12-14
6 PHONES 5
CD OPEN/CLOSE 9
QSOUND 6
9 VOLUME/MULTI JOG 6
10 JOG MODE 5
Name
Page

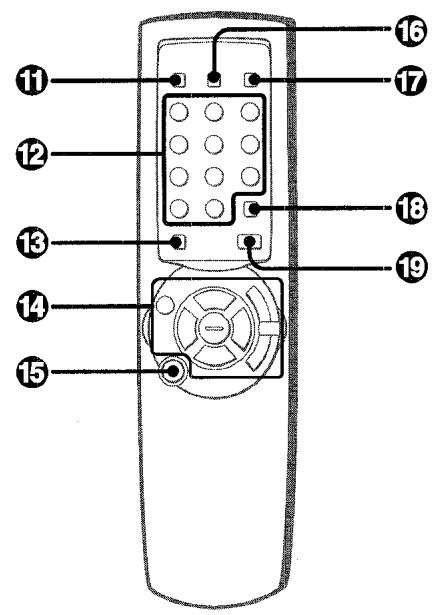

1 DISPLAY 6,15
0-9, +10 8-10,13,14
13 BAND 5
14 PAUSE 8-12,15
7-11,13,14,15
I/7-11,13,14,15
STOP 8-14
▶ PLAY 9-14
VOL ( ,) 6
15 POWER 5
EQ 6
MODE 9,10,13,14
18 REPEAT 10
FUNCTION 5
ADVERTENCIA
PARA REDUCIR EL RIESGO DE INCENDIOS O DESCARGAS ELECTRICAS, NO EXPONGA Este APARATO A LA LLUVIA NI A LA HUMEDAD.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
"CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."
SINTONIZATION MANUAL 7
PREAJUSTE DE EMISORAS 8
REPRODUCCION DE DISCOS COMPACTOS
OPERACIONES BASICAS 9
REPRODUCCION PROGRAMADA 10
REPRODUCCION DE CINTAS
SINTONIZATION MANUAL
Para guitar el disco, pulse CD OPEN/CLOSE.
15 W + 15 W (1 kHz, T.H.D.
10%, 8 ohmios)
12 W + 12 W (1 kHz, T.H.D.
1%, 8 ohmios)
0,07% (7,5W, 1 kHz, 8 ohmios)
VIDEO/AUX:0,4V
Mode DEMO (Demonstration)
RANDOM PRGM AIEDIT PRGMEDIT
Effacement impossible.
For assistance and information,
call toll free 1-800-BUY-AIWA. (United States and Puerto Rico)
