USER MANUAL P120 ZIBRO

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this manual must not use this air conditioner. We strongly recommend keeping this manual in a safe place for future reference.

H

0

A.	Do not use a damaged cable.	G.	Do not immerse in water.
B.	Do not clamp or bend the cable.	H.	Do not spill.
C.	Do not place unevenly.	I.	Do not insert anything.
D.	Do not place in front of an open window.	J.	Do not use an extension cord.
E.	Do not bring in contact with chemicals.	K.	Keep out of the reach of children.
F.	Do not place near a heat source.	L.	Do not repair.

SICUREZZA

K CONDITIONS DE GARANTIE

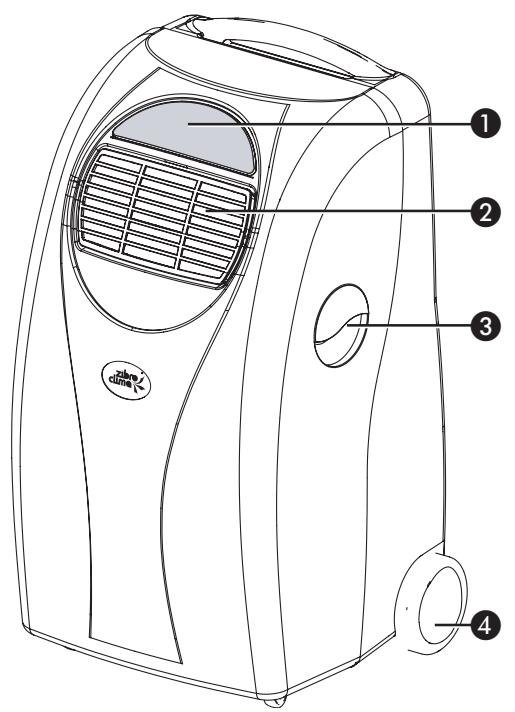

Control panel
Air outlet
3 Handle
4 Casters

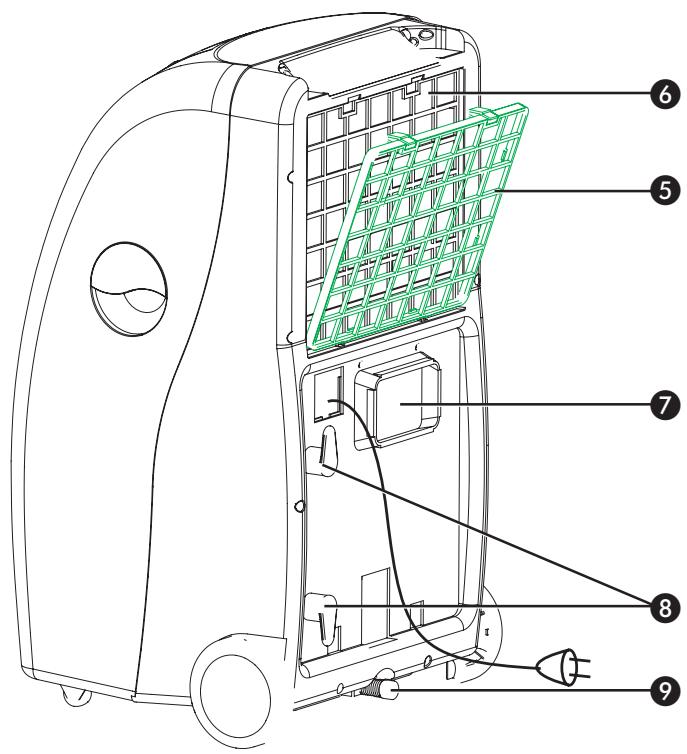

5 Air filter
Air inlet
7 Exhaust air outlet
Cord hanger
Water stopper (rubber plug inside)

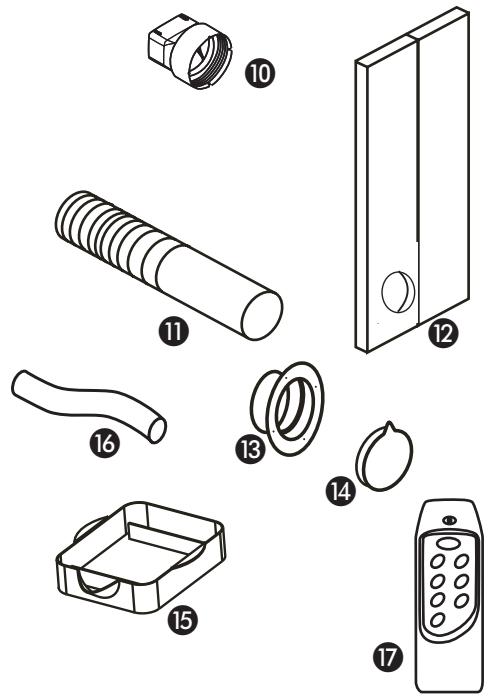

10 Hose adapter
1 Exhaust hose
12 Foam
13 Window connector
14 Cap
Water tray
16 Drain-tube
Remote control

1. READ THE DIRECTIONS FOR USE FIRST.
2. IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

Dear Sir, Madam,

Congratulations on the purchase of your Zibro Clima air conditioner. In addition to air cooling, this air conditioner has two other functions, namely air dehumidification and circulation. The mobile Zibro Clima air conditioner is extremely easy to operate and move. You have acquired a high quality product that will provide you with many years of pleasure, on condition that you use it responsibly. Reading these instructions for use before operating your Zibro Clima will optimise its life span. We wish you coolness and comfort with your Zibro Clima.

Yours sincerely,

PVG International b.v.

Customer service department

IMPORTANT

The unit is designed for indoor operation.

Rating: This unit must be connected to a 230V / 50Hz earthed outlet.

The installation must be in accordance with regulations of the country where the unit is used.

If you are in any doubt about the electrical installation, have it checked and if necessary modified by a qualified electrician.

• The air conditioner is safe. However, as with other electrical appliances, use it with care.
• Keep out of the reach of children.
• Do not clean the air conditioner by spraying it or immersing it in water.
• Do not insert any object into the opening of the air conditioner.
• Disconnect from the mains before cleaning the unit or any of its components.
• Never connect to an electrical outlet using an extension cord. If an outlet is not available, one should be installed by a licenced electrician.
• Any service other than regular cleaning or filter replacement should be performed by an authorized service representative. Failure to do so could result in a loss of warranty.
• A damaged supply cord should be replaced by the manufacturer, its service agent or a qualified person in order to avoid a hazard.

WARNING

• Never operate this appliance if it has a damaged cord or plug. Do not lead the cord over sharp edges.
• Never close the room completely. Avoid under pressure in the room; this disturbs exhaust flow from geyser, (kitchen) exhausters and/or oven.

WARNING

Before using the air conditioner it should be left in an upright position for at least 2 hours.

This unit is portable and can easily be moved from one room to another. In doing so keep this in mind:

The air conditioner must stand upright on an even surface.
- Position not near bath, shower or other wet or damp area.
- Keep for free air circulation at least 50~cm free from any obstacle or curtains.
- Put the round adapter (10) on the exhaust hose. Connect the hose with the rectangular end to the air conditioner.

Using the foam

The adapter (11) fits in the opening of the foam (12). Place the foam in the window and close this as far as possible to refrain the warm air from re-entering the room.

The window connector

Place the window connector (13) in the hole in the glass (diameter 112 millimetre) and connect the exhaust hose. Use the cap (14) to close the opening when the air conditioner is not used.

IMPORTANT

The flexible exhaust hose can be extended from 300 to 1500mm for mounting. This length has been designed especially according to the specifications of the air conditioner. Do not use an extension or exchange for a different hose as that may lead to malfunctioning. The exhaust air must flow freely, any blockage can lead to overheating of the air conditioner. Take care to prevent any bow or bend in the exhaust hose.

C OPERATING THE AIR CONDITIONER

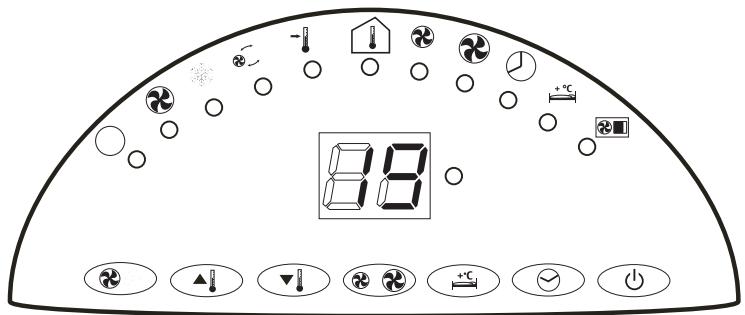

1 ON/OFF

Press to switch the unit on or off. The unit selects the mode depending on the room temperature:

• higher than 23^ C , cooling mode;
• between 20^ C and 23^ C , fan mode.

Time switch

Use to set a working time between 1 and 12 hours. The unit switches off when this time has run down.

3 Mode switch

Select with automatic, cooling or fan. The corresponding LED will lit: , or .

4 Fan speed

Select with the fan speed: low, high. LED will show this.

5 Temperature selection

Set the temperature that must be maintained (in the range from 16^ to 30^ ) with switched and . The display will show the setting.

6 Digital display

When the unit is ON the display shows the room temperature ( 1 is on). Use or to see the set temperature (^-1 is on), after a few of seconds the room temperature will again be displayed.

7 'SLEEP' setting

This setting can only be used when the cooling function is activated. Press +^ . Every hour the temperature setpoint will raise with 1^ , after 2 hours the temperature remains the same. After 12 hours the air-conditioner will automatically turn off. Pressing +^ again de-activates this function. In 'SLEEP' mode the temperature set cannot be changed.

Remote control

The air conditioner can be operated with remote control. Two AAA-batteries are required to use the remote control.

NOTE!

The compressor has been set so that it starts functioning three minutes after the (re)start of the air conditioner.

The cooling will switch off when the room temperature is lower than the set one. Ventilation will however continue to work on the set level. When the room temperature rises above the selected value, the cooling will work again.

AIR FILTER

The Zibro Clima comfort line air-conditioners are equipped with a 3 layer filter package to clean the circulated room air.

1. Screen filter; to remove bigger dust particles.
2. Active carbon filter sheet; to remove odours.
3. 3M Filtrete filter; to remove unhealthy particles from the air such as pollen, bacteria, animal dander and dust.

The filter holder on the backside of the unit can be opened. Active carbon filter and 3M Filtrete filter can be removed. Screen filter is part of the filter holder.

1. The Screen filter has to be cleaned regularly with a vacuum cleaner to avoid blocking of the air flow.
2. The Active carbon sheet can be cleaned with a vacuum cleaner when dusty but has to be changed at the same time as the 3M Filtrete filter.
3. The positive/negative electro statically charged 3M Filtrete filter is recommended to be changed every 3 months. Unusual dirt, construction work, pets, the presence of smokers and running the air-conditioning unit continuously can shorten the life time of the 3M Filtrete filter.

New filter

Recommended change of filter

NOTE!

• Replacement filter packages are available at your dealer.
• To run the unit without Active carbon sheet and/or 3M Filtrete package does not bring any harm to the air-conditioner. In that case unhealthy dust is not removed.

E AIR FLOW

Turn the roller to control the air flow direction of the vertical louvres. Move the air vent directly to adjust the air flow direction of the horizontal louvres.

F EMPTYING THE WATER TANK

The power LED changes to green when the water tank is full, the compressor is stopped and the fan only circulates the air.

1 Switch off the unit and remove the plug from the mains.
Place the water tray flat on the floor under the drain.
3 Remove the drain knob.
4 Remove the rubber plug and fill the water tray then replace the plug to stop the water flow. Empty the tray and repeat this process until all water has been removed.
5 Replace the rubber plug and the drain knob, plug the unit in and switch on. LED should be off.

NOTE!

When the air conditioner is in use, under normal circumstances the condensed water will be drained through the air outlet-tube.

G CONTINUOUS DRAINAGE

Switch off the unit and remove the plug from the mains.
2 Remove the drain knob.
3 Remove the rubber plug.
4 Connect the drain tube into the water outlet and extend with extra water tube as needed.
Place the other end in a normal drain. Make sure that the tube is free from twists and bends. The tube must decline over its entire length.

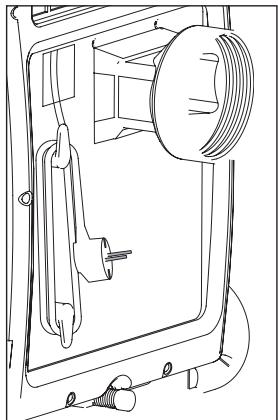

Dehumidification

If the unit will be used mainly as dehumidifier, do not connect the exhaust hose and let the warm air return in the room. Continuous drainage is then necessary and more efficient.

H CLEANING

First of all switch off the unit and pull the plug.

Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleansing solutions. Clean the screenfilter regularly with a vacuum cleaner. See also chapter D "Air filter".

NOTE!

Never use the air conditioner without screenfilter.

STORAGE

1 Empty the watertank (E).
2 Clean and replace the filter.
3 Put the unit in fan mode for a couple of hours to ensure that the inside becomes completely dry.
Store cable as shown, protect the unit against dust and store in a dry place not accessible to children.

Problem	Cause	Solution
The unit does not function		Connect to a functioning outlet and switch on
	Water tank indicator is on	Empty water tank
	Room temperature outside operating temperature range
The unit does not seem to perform	In direct sunlight	Close curtains
	Windows or doors open, many people or heat source in room
	Dirty filter	Clean or replace filter
	Air inlet or air outlet blocked	Remove blockage
	Room temperature lower than selected value	Change temperature selection
The unit is noisy	Unit stands uneven	Place on even surface (less vibrations)
The compressor does not work	Overheat protection probably activated	Wait until room temperature lowers

Never try to repair or dismantle the air conditioner yourself. Incompetent repairs result in loss of warranty and can endanger the user.

K GUARANTEE CONDITIONS

The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non genuine parts are fitted or repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the air conditioner or air conditioner components shall always be for the account of the purchaser.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the air conditioner to your dealer for repairs if these instructions do not provide a solution.

To be used as indication, subject to modifications

Model		P100	P120
Cooling capacity *
- enthalpy difference (nom)	Btu/hr	10000	12000
- enthalpy difference	kW	2.9	3.5
- conform EC regulation	W	2200	2500
Power consumption	W	880	960
Current nom.	A	4.0	4.2
Mains (1PH)	V/Hz	220 - 240 / 50
Air delivery max.	m³/h	360
Dehumidification max. **	L/24h	18	24
Room size	m³	75	85
Compressor model		rotary
Refrigerant	gr	R407C / 470	R407C / 480
Thermostat range	°C	18 - 32
Fan speeds		2
Noise level	dB	52 - 58
Dimensions (b x d x h)	mm	380 x 400 x 750
Weight	kg	29	31
Unit protection		IP 20

• Cooling capacities are measured at 27^ C, 60 % RH
  ** Moisture removal at 32^ , 80% RH
