GENERAL SAFETY

For safety reasons, please read this manual carefully before operating. Persons who are not familiar with this manual must not use this air conditioner. We strongly recommend keeping this manual in a safe place for future reference.

A. Do not use a damaged cable.
B. Do not clamp or bend the cable.
C. Do not place unevenly.
D. Do not place in front of an open window.
E. Do not bring in contact with chemicals.
F. Do not place near a heat source.
G. Do not immerse in water.
H. Do not spill.
I. Do not insert anything.
J. Do not use an extension cord.
K. Keep out of the reach of children.
L. Do not repair.

>10%

C

VEILIGHEID ALGEMEEN

Simple line drawing of a window frame with diagonal lines and a gray rectangle at the bottom (no text or symbols)

D

NOTIUNI GENERALE DE SIGURANTA

Black and white illustration of an oil barrel with a diagonal line crossing it, no text or symbols present.

E

VŠEOBECNÁ BEZPEČNOST

Simple line drawing of a spray bottle on a cube with diagonal lines (no text or symbols)

H

Hand holding a pen over a grid-like object with diagonal lines (no text or symbols)

|

Pure electrical circuit lines without any symbols

J

Symbolic illustration of a dog holding a horse, crossed out by diagonal lines (no text or labels)

K

Abstract geometric pattern with diagonal lines and shaded shapes (no text or symbols)

L

WICHTIGE TEILE

Technical diagram of a multi-tiered air conditioner unit with numbered components for identification.

Technical diagram of a portable air purifier with numbered components labeled 1 to 5

Diagram showing 17 labeled parts of household appliances and devices, including a bolt, bulb, door, and remote control.

Diagram of a device control panel with labeled buttons and indicators, including a 88 timer display and various function icons.

Line drawing of a portable air conditioner unit with a red circular button indicating a cooling zone (no text or symbols)

Line drawing of an air conditioner unit with fan and wheels (no text or symbols)

J | FEHLERBEHEBUNG

Technical diagram of a portable air purifier with numbered components and labeled parts

Technical diagram of a refrigerated air conditioner unit with numbered components for identification.

Labeled diagram of household appliances and fixtures including a bolt, funnel, door, and remote control

Madame, Monsieur,

Diagram of a device control panel with labeled buttons and indicators, including numeric display and function icons.

Line drawing of a portable air conditioner unit with fan and wheels (no text or symbols)

J | PANNES

K | CONDITIONS DE GARANTIE

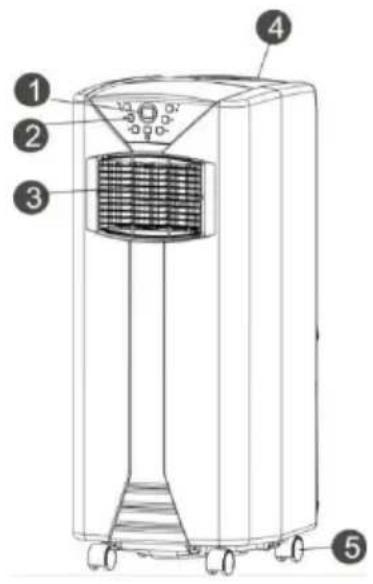

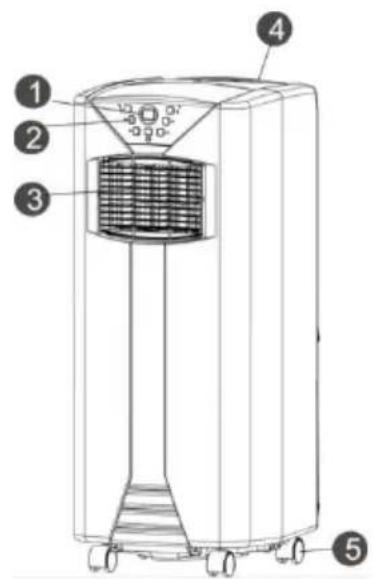

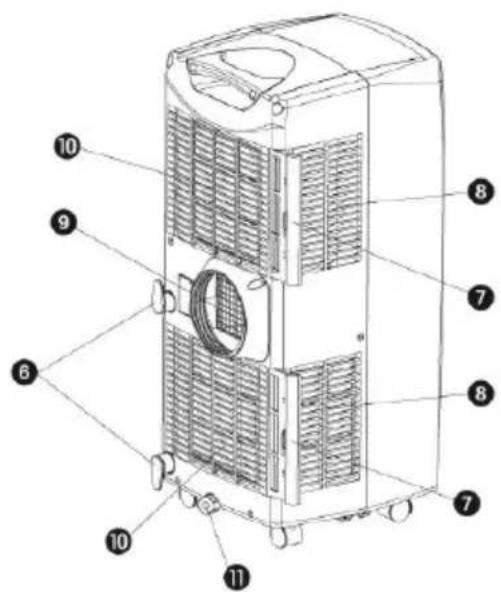

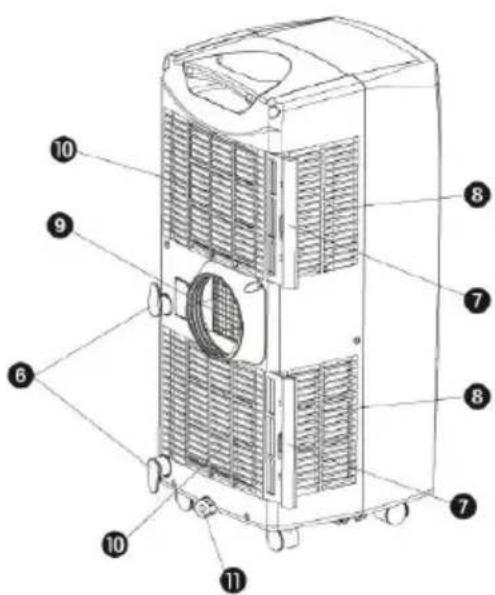

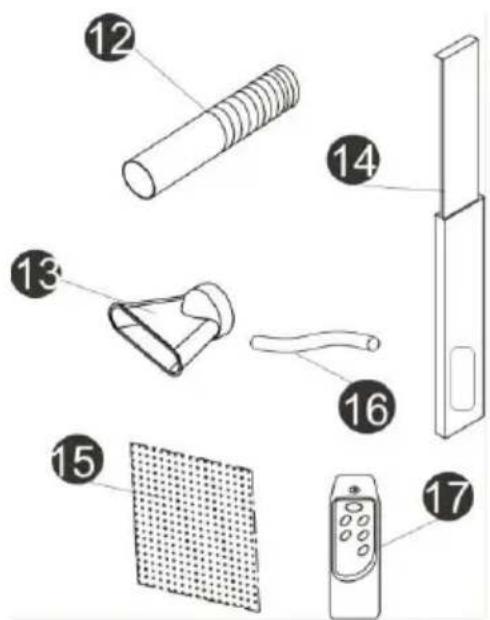

1. Read the instructions for use first.

2. In case of doubt, please contact your salesman.

3. Display window

4. Operating buttons
5. Air outlet
6. Carrying handle
7. Caster
8. Cord storage
9. Air filter
10. Air inlet
11. Exhaust air outlet
12. Air inlet
13. Water stopper / drainage

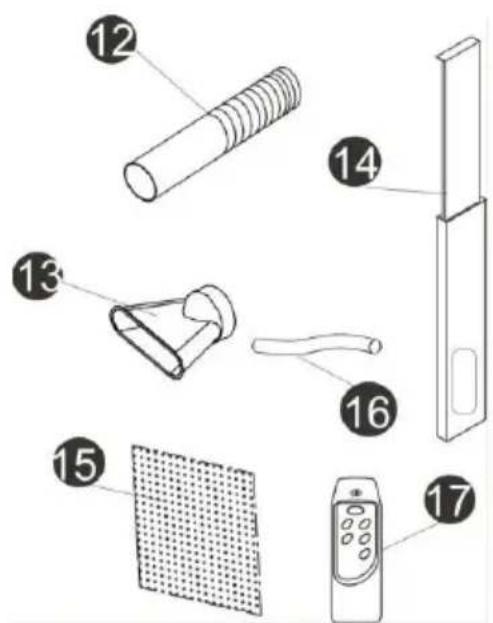

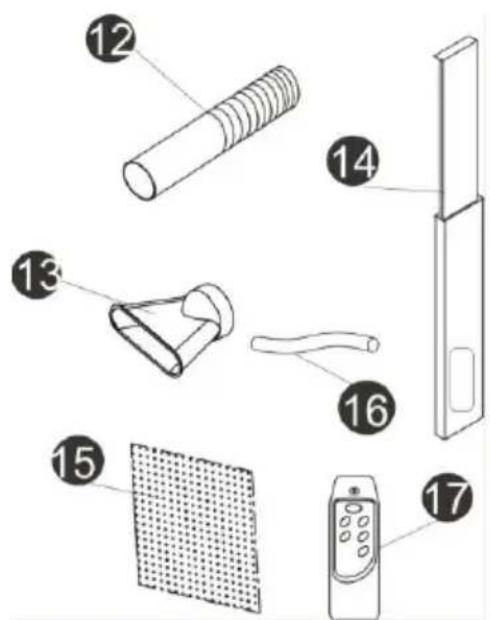

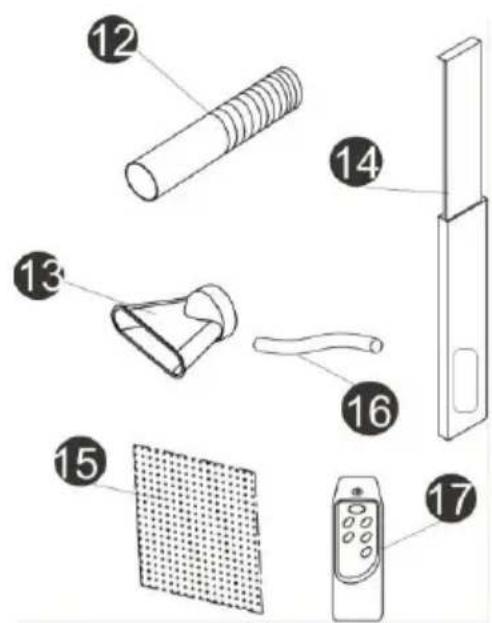

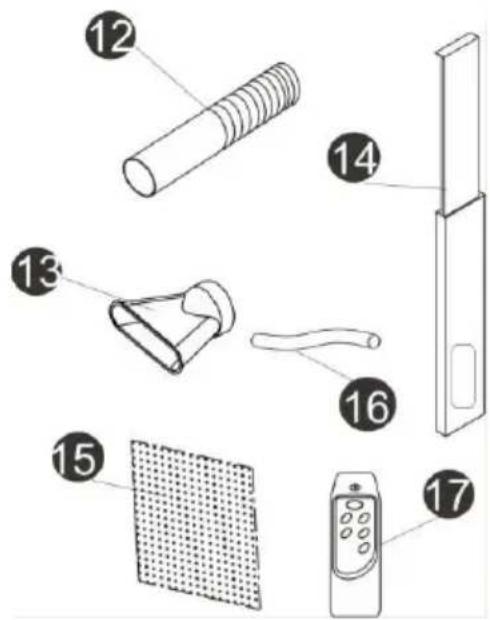

14. Exhaust hose
15. Flat adapter
16. Extendable window spacer
17. Active carbon filter
18. Drain tube for continuous drainage
19. Remote control

Technical diagram of a portable air conditioner unit with numbered components and labeled parts

Technical diagram of a multi-tiered air conditioner unit with numbered components for identification.

Labeled diagram of household appliances including a bolt, funnel, door, and remote control

Dear Sir, Madam,

Congratulations on the purchase of your air conditioner. This air conditioner has three functions in addition to cooling the air, namely, air dehumidification, circulation and filtration. The mobile air conditioner is extremely easy to operate and move. You have acquired a high quality product that will provide you with many years of pleasure, on condition that you use it responsibly. Reading these instructions for use before operating your air conditioner will optimise its life span. We wish you coolness and comfort with your air conditioner.

A | SAFETY INSTRUCTIONS

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as an air conditioner in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

Important!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• The installation must be completely in accordance with local regulations, ordinances and standards.
• The device is suitable exclusively for use in dry places, indoors.
• Check the mains voltage. This device is suitable exclusively for earthed sockets – connection voltage 230 Volt/ 50 Hz.
• The device MUST always have an earthed connection. You may absolutely not connect the device if the power supply is not earthed.
• The plug must always be easily accessible when the device is connected.
• Read these instructions carefully and follow the directions.

Before connecting the device, check that:

• The connection voltage corresponds to that on the type plate.
• The socket and power supply are suitable for the device.
• The plug on the cable fits the socket.
• The device is on a stable and flat surface.

Have the electrical installation checked by a recognised expert if you are not sure that everything is in order.

• The airconditioner is a safe device, manufactured in accordance with CE safety standards. Nevertheless, as with every electrical device, exercise caution when using it.
• Never cover the air inlets and outlets.
  • Empty the water reservoir through the water drain K before moving it.
• Never allow the device to come into contact with chemicals.
• Do not insert objects into the openings of the device.
• Never allow the device to come into contact with water. Do not spray the device with water or submerge it as this may cause a short circuit.
• Always take the plug out of the socket before cleaning or replacing the device or a part of the device.
• NEVER connect the device with the aid of an extension cable. If a suitable, earthed socket is not available, have one fitted by a recognised electrician.
• Always consider the safety of children in the vicinity of this device, as with every electrical device.
• Always have any repairs – beyond regular maintenance – carried out by a recognised service engineer. Failure to do so may lead to invalidation of the guarantee.
  • Always take the plug out of the socket when the device is not in use.
• A damaged electricity cable may only be replaced by the supplier or an authorised person/service point.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

Attention

- Never seal the room - where this device will be used – completely airtight. This will prevent under pressure in this room. Under pressure can disrupt the safe operation of geysers, ventilation systems, ovens, etc.

- Failing to follow the instructions may lead to nullification of the guarantee on this device.

B | INSTALLATION

Warning

Before using the air conditioner it should be left in an upright position for at least 2 hours.

This unit is portable and can easily be moved from one room to another. In doing so keep this in mind:

1. Ensure that the unit is positioned upright and on a level surface.
2. Do not operate the unit inside the bathroom, shower, or in any other very humid environment.
3. Please keep a distance of 50 cm between the unit and the wall or other objects to ensure proper air circulation.
4. One end oft he hose must be attached to the air outlet at the back of the unit. Attach the other end of the hose to the outward adapter 13
5. Ensure that the window air outlet has a free flow outside. Close the window or door as much as possible to prevent outside air from entering the room.

This air conditioner is provided with foam strips. If you guide the exhaust hose through the window, a gap is created which can be closed with help of the foam strips. Guide the exhaust hose through the foam strip.

Important

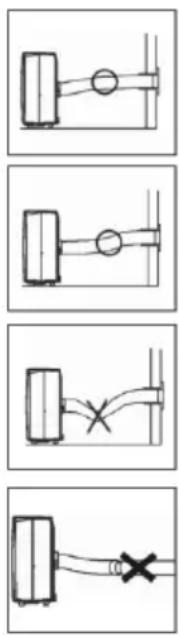

The flexible exhaust hose should be less than 1m during operation, which provides the best performance. This length has been designed especially according to the specifications of the air conditioner. Do not use an extension or exchange for a different hose as that may lead to malfunctioning. The exhaust air must flow freely, any blockage can lead to overheating of the air conditioner. Take care to prevent any bow or bend in the exhaust hose.

C | OPERATION

Diagram of a device control panel with labeled buttons and indicators, including 88 timer display and function icons.

1. Auto mode indicator
2. Cooling mode indicator
3. Air circulation mode indicator
4. Mode button
5. Timer operation indicator
6. Timer button
7. Full water indicator
8. Temperature up button
9. Display
10. Remote control receiver
11. On / Off button
12. High fan speed indicator
13. Low fan speed indicator
14. Fan speed button
15. Sleep indicator
16. Sleep button
17. Compressor operation indicator

18. Temperature down button

19. Insert the plug into the wall outlet.

20. Press the ⏻-button, to switch on the air conditioner. The air conditioner starts in the automatic mode :

21. If the ambient temperature is higher than 23^ C, the unit will work in cooling mode.

22. If the ambient temperature is < 23^ , the unit will work in air circulation mode..

23. With the Ⓞ-button you can change the operating mode of the unit. By pressing the

◎-button the following modes appear:

× Automatic mode
* Cooling mode
Air circulation mode

Cooling

When the unit is in the cooling mode, the following functions apply:

- The fan speed can be adjusted by pressing the -button:

Maximum setting
* Lowest setting

The temperature can be set by pressing the and buttons, anywhere between 18^ C en 32^ C. The display will show the set temperature for 8 seconds and the “set temp” will light up. Fifteen seconds after setting the required temperature, the display will show the room temperature. The pre-set temperature for this unit is 24^ C for cooling.

It depends on the environment whether the required temperature will be reached. It is not a malfunction of the air conditioner if the room temperature remains above the “set temp”. It could well be that the heat load of the room is too much.

Air Circulation

In this mode the unit only circulates air; the unit will not cool or dehumidify.

The air is filtered. When the unit is in this mode, the following functions apply:

- The fan speed can be adjusted by pressing the -button:

Maximum setting Lowest setting

In auto mode, the unit will choose the ventilation speed automatically according to the ambient temperature. The speed switch cannot be changed in this mode.

1. When the unit is switched off the most recent setting will be stored in memory.

2. The timer function allows you to switch the unit on or off at a certain time:

3. Press TIMER button to set the operating hours you desired (1 to 12 hours, the timer indicator will light on). When the set time has been reached, the machine will turn off automatically. The display window will show the hour(s) you set as you press TIMER button. If the timer button is not pressed, the unit will work continuously.

4. By pressing the timer but without turning on the other functions, you can PRE-SET the time for the machine to work. For example, if you press the timer to '2', the unit will work automatically after 2 hours.

Note!

The compressor has been set so that it starts functioning three minutes after the (re)start of the air conditioner. The cooling will switch off when the room temperature is lower than the set temperature. Air circulation will however continue to work on the set level. When the room temperature rises above the set temperature, the cooling will work again.

Sleep Mode

By pressing the Sleep button, the set temperature will increase 1^ C at the first hour, another 1^ C at the second hour. The unit will then keep its temperature. The ventilation will remain at low speed. After pressing the sleep button again, the set temperature and ventilation speed will return to the pre-selected one.

Note!

This function is not available in the Auto or Fan mode.

Remote Control

A. Power on / off button
B. Temperature + / - buttons
C. Fan Speed button
D. Timer button
E. Function button
F. Sleep button

The remote control works in combination with the control panel. Aim the front end of the remote control at the control panel. The maximum operating distance from the air conditioner is approximately 5 metres.

Place 2 pieces of AAA Batteries before use.

A E B D B C F

D | AIR FILTER

Place the loose filters in the filter holder.

• Take the filter holder out of the air conditioner
- Open the filter holder and place the active carbon filter in the filter holder.
- Place the filter fixing component back in the holder.
- Place the filter holder back in the air conditioner.

The screen filter has to be cleaned once a week with a vacuum cleaner to avoid blocking of the air flow.

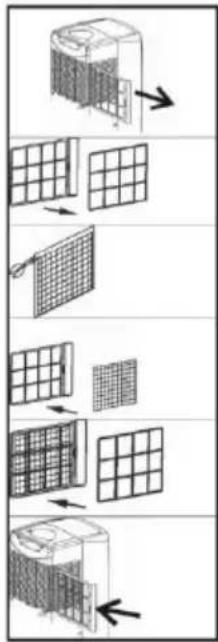

To take out and place back the screen filter, see pictures at the side.

Caution!

Never use the air conditioner without the air filter.

E | AIR FLOW

Move the air vent directly to adjust the air flow direction.

Diagram illustrating the step-by-step installation of a solar panel array, showing structural changes from top to bottom.

Line drawing of a portable air conditioner unit with a grid vent and a red circular highlight (no text or symbols)

F | EMPTY INTERNAL WATER CONTAINER

Under extreme (environmental) circumstances it may be necessary to empty the internal water container regularly. When the internal water container is full the 📄ight will flash and the unit will beep continuously. Touch any button to stop the beeping. The unit will switch off automatically. To empty the water container do the following:

1. Do not move the unit. Drastic movements can cause water leakage.
2. Switch off the unit and remove the plug from the wall outlet.
3. Place a pan or appropriate tray on the floor underneath the drain hole.

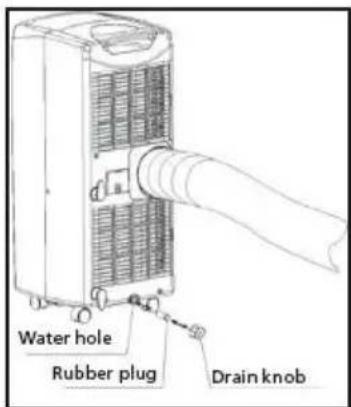

4. Remove the drain knob and rubber plug from the drain tube and let the water run out (± 0.8 L).
5. Replace the rubber plug and the drain knob and switch on the unit. The warning light should be off.

Water hole Rubber plug Drain knob

Note!

When the air conditioner is in use, under normal circumstances the condensed water will be drained through the air outlet-tube.

Dehumidification

If the unit will be used mainly as dehumidifier, do not connect the exhaust hose and let the warm air return in the room. Continuous drainage is then necessary and more efficient.

You must, however, use a water drain tube, placing its discharge end at a suitable drainage point.

G | CONNECTION TO A PERMANENT DRAIN

1. First switch the device off and pull the plug out of the socket.
2. Place a pan or container on the ground under the water drain in order to catch any remnant water.
3. Remove the rubber plug from the water drain .
4. Slide a water drain hose over the water drain . 11
5. Lead the other end of the water drain hose to suitable place (drain/sink). Ensure that the drain hose is not twisted or kinked.

Attention

The hose must be descending along ist entire length.

H | MAINTENANCE

Warning

Switch off the unit and remove the electrical plug from the mains before cleaning the appliance or filter, or before replacing the filters.

Clean the housing with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleansing solutions. For maintenance of the filters, refer to Chapter D "Air Filter".

Note!

Never use the air conditioner without screenfilter.

I | STORAGE

1. Empty the internal water container (refer to Chapter F)
2. Clean and replace the filter (see also chapter D).
3. Put the unit in air circulation mode for 2 hours to ensure that the inside becomes completely dry.
4. Store cable as shown, protect the unit against dust and store in a dry place.

Line drawing of an air conditioner unit with fan and vent slots (no text or symbols)

J | TROUBLE SHOOTING

Problem	Cause	Solution
The unit does not function	No power supply	Connect to a functioning outlet and switch on
	Water tank indicator is on	Empty the internal water container (refer to Chapter F)
The unit does not seem to perform	In direct sunlight	Close curtains
	Windows or doors open, many people or heat source in room	Close doors and windows, or place an extra air conditioner
	Dirty filter	Clean filter.
	Air inlet or air outlet locked	Remove blockage
	Room temperature lower than selected value	Change temperature selection
The unit is noisy	Unit stands uneven	Place on even surface (less vibrations)
The compressor does not work	Overheat protection probably activated	Wait 3 minutes until the temperature has decreased, and turn on the unit again
Remote control does not function	Distance too great	Make sure the remote control is correctly aimed at the control panel < 5m
	Remote control signal not detected by control panel
	Batteries empty	Replace the batteries

Never try to repair or dismantle the air conditioner yourself. Incompetent repairs result in loss of warranty and can endanger the user.

K | GUARANTEE CONDITIONS

The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All material and manufacturing defects will be repaired or replaced free of charge within this period. The following rules apply:

1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non genuine parts are fitted or repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifications have been made to the product nor to the purchase invoice.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this instruction booklet.
7. Transportation costs and the risks involved during the transportation of the air conditioner or air conditioner components shall always be for the account of the purchaser.
8. Damage caused by not using suitable Zibro filters is not covered by the guarantee.

To prevent unnecessary expense, we recommend that you always first carefully consult the instructions for use. Take the air conditioner to your dealer for repairs if these instructions do not provide a solution.

L | TECHNICAL DATA

Tob e used as indication, subject to modifications.

Model		Nanyo 25AA
Cooling capacity*	W	2'500
EE Class		A
EER*		2.65
Power consumption	kW	0.94
Current nom.	A	4.3
Mains	V / Hz / PH	230 / 50 / 1
Air delivery max.	m3 / h	355
Dehumidification max.**	L / 24 h	24
Room size	m3	50 – 80
Compressor type		Rotary
Refrigerant	type / gr	R-410A / 390
Thermostat range	°C	18 – 32
Fan speeds		2
Max. sound pressure level	dB (A)	57
Dimensions (w x h x d)	mm	305 x 752 x 383
Nett weight	kg	22
Unit protection		IP X0
Remote control		Yes
Fuse rating		50T or 50F, 250 VAC, 2A

* Conform EN14511-2007
** Moisture removal at 32 °C, 80% RH

Environmental information: This equipment contains fluorinated greenhouse gases covered by the Kyoto Protocol. It should only be serviced or dismantled by professional trained personnel.

This equipment contains R410A refrigerant in the amount as stated in the table above. Do not vent R410A into atmosphere: R410A, is a fluorinated greenhouse gas with a Global Warming Potential (GWP) = 1975.

Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

BELANGRIJKE ONDERDELEN

Technical diagram of a portable air conditioner unit with numbered components labeled 1 to 5

Technical diagram of a refrigerated air conditioner unit with numbered components for identification.

Diagram showing labeled parts of household appliances including a bolt, bulb, lamp, and remote control

Diagram of a device control panel with labeled buttons and indicators, including 88 timer display and various function icons.

LET OP!

Line drawing of a portable air conditioner unit with a grid cover and cooling fan (no text or symbols)

F | LEGEN WATERRESERVOIR

Line drawing of a portable air conditioner unit with fan and wheels (no text or symbols)

J | STORINGEN

Technical diagram of a portable air purifier with numbered components and labeled parts

Technical diagram of a multi-tiered air conditioner unit with numbered components for identification.

Diagram showing 17 labeled parts of household appliances and devices, including a bolt, lamp, and remote control.

E | DIRECTIA CURENTULUI DE AER

Line drawing of a portable air conditioner unit with a grid and cooling fan (no text or symbols)

F | GOLIREA REZERVORULUI DE APĂ

Line drawing of a large industrial air conditioner unit with fan and vent slots (no text or symbols)

J | REMEDIERE DEFECTIUNI

Technical diagram of a portable air purifier with numbered components and labeled parts

Technical diagram of a multi-tiered air conditioner unit with numbered components for identification.

Labeled diagram of household appliances including a bolt, bulb, lamp, and remote control unit

Vážený zákazníku,

Diagram of a device control panel with labeled buttons and indicators, including numeric display, function icons, and status indicators.

E | NASTAVENÍ SMĚRU PROUDĚNÍ VZDUCHU

Line drawing of a large industrial air conditioner unit with fan and wheels (no text or symbols)

J | ODSTRAŇOVÁNÍ POTÍŽÍ

Technical diagram of a portable air purifier with numbered components and labeled parts

Technical diagram of a multi-tiered air conditioner unit with numbered components for identification.

Labeled diagram of household appliances including a screw, bulb, refrigerator, and remote control

Vážené dámy a páni,

Diagram of a device control panel with labeled buttons and indicators, including 88 timer display and function icons.

Line drawing of a portable heater with a grid and cooling fan (no text or symbols)

F | VYPRÁZDNENIE VODNEJ NÁDRZE

Line drawing of a large industrial air conditioner unit with fan and vent (no text or symbols)

J | ODSTRÁNENIE PORUCHY

Technical diagram of a portable air conditioner unit with numbered components and labeled parts

Technical diagram of a refrigerated air conditioner unit with numbered components for identification.

Labeled diagram of household appliances including a bolt, funnel, door, and remote control

Bäste kund,

Diagram of a device control panel with labeled buttons and indicators, including 88 timer display and function icons.

Diagram of a portable air conditioner unit with cooling fan and ventilation grille (no text or labels)

F | TÖMMA VATTENBEHÅLLAREN

Line drawing of an air conditioner unit with fan and vent (no text or symbols)

J | FELSÖKNING
