USER MANUAL LATW Salon Laser Tweezer RIO

This product MUST be used responsibly

Read all instructions thoroughly before use and retain for future reference

Woman applying a medical or cosmetic device with a white band, against a soft gradient background (no text or symbols visible)

808nm wavelength

Wearing laser safety goggles is unnecessary as the product has been designed with inbuilt safety features.

CLASS 1 LASER PRODUCT

ClaSS 1 PProdUCT ConTaining Cla SS 3B laSeR

WARNINGS

• Read all instructions thoroughly and retain for future reference.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and under-hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be children without supervision.

• Not suitable for Afro-Caribbean or black skin complexions. Not suitable for grey hair.

• Do NOT treat the following areas: tattoos, pimples, warts, black spots, birthofmarks, burns, nipples, eczema, eyelashes or hair near the eyes.
• Do NOT treat the same hair/area repeatedly in any one session.
• Do NOT use after drinking alcohol or if you are feeling unwell or fatigued.
• Do Not use near flammable materials.

WARNINGS

• Do NOT override any safety features or open the unit.
• Only use with the power adapter supplied.

- Power levels should be selected based on your skin type as defined in the ‘Fitzpatrick Skin Types’ section.

Note

- Laser hair removal should not cause discomfort. If you feel any discomfort or soreness the setting may be too high or your skin tone (colour) is not suitable for use with this product.

INTRODUCTION

Laser hair treatment gives a long term solution to permanent hair reduction. Treating hairs to kill the hair root permanently has a high success rate, giving lasting results. This guide will help you to achieve the hair reduction you are looking for, so please read it carefully.

If you have any questions or suggestions, please call our customer care representatives on 01242 702345. They will be delighted to help you get the best results from your Salon Laser Tweezer.

1 Wand
2 DC power socket (on the back)
3 Keyswitch
4 Enable button
5 Power level increase button (+)
6 Power level decrease button (-)
7 Power level indicators
8 Wand - treatment button
9 Laser Shroud
10 Wand - Skin sensors
11 Wand - Orange light
12 Wand - White light
13 Laser aperture
14 Mains adapter
15 Keys

WAND

Close-up of a medical device with numbered annotations (8 and 9) pointing to internal components (no readable text or symbols beyond labels)

13 10 11 12 10 LAYER APARTURE

7

HOW DO LASERS WORK?

Lasers deliver an intense beam of light which are made up of a single wavelength or colour. Skin is essentially transparent to light in the wavelength range of 600-1100nm (nano meters), while melanin containing structures will absorb laser energy of this wavelength. It is therefore possible to target the hair follicle which has a concentration of melanin without affecting the surrounding area.

The light energy absorbed by the melanin pigment results in the rapid heating up of the hair follicle. This heat destroys the cells (papilla) responsible for hair growth. If adequate heating is achieved, then the follicle is permanently disabled resulting in a permanent reduction in hair growth.

SUITABLE SKIN TYPES

Melanin in the epidermis also absorbs the energy and limits the depth of penetration of the laser light into the skin. Using a light wavelength of 808nm enables treatment of relatively dark skin as well as fair-skin types. However, laser hair treatment is not suitable for Afro-Caribbean or black skin complexions. Laser treatment is also ineffective in removal of white or grey hair. Electrolysis should be considered as an alternative treatment.

PATCH TEST

As a guide, skin colours are classified by the Fitzpatrick skin phototypes as described in the table opposite.

24 hours before treatment check for any reaction by testing a few hairs in the area to be treated.

The (+) and (-) buttons increase or reduce power levels. Treat 2–3 hairs on each power level up to the maximum power level for your skin type (see table). If you feel any discomfort the previous lower power level is the maximum power level you should use.

After 24 hours if any of the test areas appear red or inflamed for any particular power level, select a lower level for treatment.

NOTE: Skin colour varies on different areas of the body, you may find that you need different power level settings for different areas. Each area should be tested for the appropriate maximum power level.

FITZPATRICK SKIN PHOTOTYPES

Power levels should be selected based on your skin type as defined below.

Skin Type	Skin Colour	Tanning History	Maximum Power Level
I	Very fair, “transparent”	Always burns, never tans	Subject to patch test all 5 power levels can be used	54321
II Fair Always burns
III Fair to light olive Burns mildly			Subject to patch test power levels 1, 2 and 3 can be used	321
IV Olive/Brown		Rarely burns, tans with ease
V Dark brown Very rarely burns			NOT suitable for Laser Hair Removal treatment
VI Black Never burns

INSTRUCTIONS FOR USE

• Do not use any hair removal method that plucks the hair from the follicle, as this renders the treatment ineffective.
• Remove all jewellery in the vicinity of the treatment area.
• Ensure you have patch tested the area to be treated 24 hours prior to treatment and are aware of your maximum power level.

STEP 1

The hair needs to be visible enough for the laser to be aimed at the base of the hair. Long hairs may be trimmed before treatment if necessary.

You may find it helpful to use a mirror for treating hard to see areas, such as the face and underarms. A mirror with 5–10 times magnification is ideal for this.

STEP 2

Plug the Adapter into the socket on the back of the unit and into the Mains.

INSTRUCTIONS FOR USE

STEP 3

Use the Key to unlock the Keyswitch.

The unit will emit 3 beeps and the 1st power level button will flash blue.

STEP 4

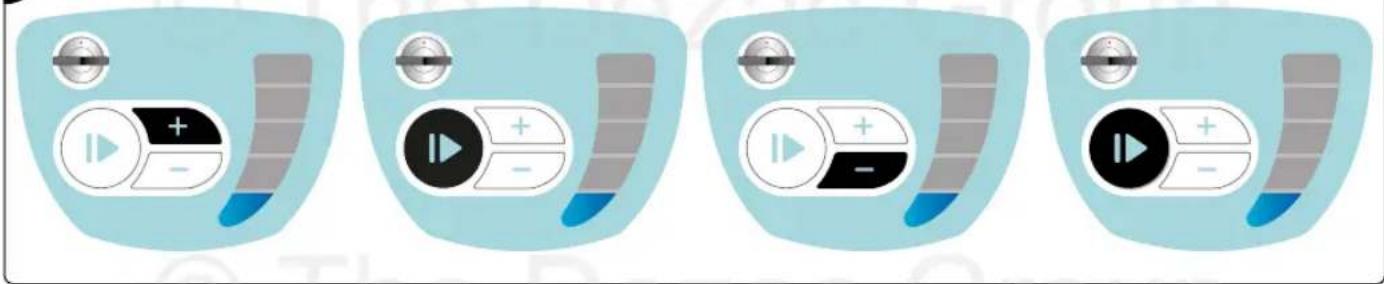

Enter the security code by pressing the buttons (highlighted in black) in the following order:

4

Four identical blue and gray interface buttons with play/pause icons, no text or symbols present

Note: The unit will power off if the code is incorrectly entered. Turn the key off, wait a few seconds and then turn the key back on and enter the correct security code.

INSTRUCTIONS FOR USE

STEP 5

Use the + and - buttons to set the power level.

Important: Do NOT exceed the maximum power level for your skin type.

STEP 7

Place the wand over the hair you wish to treat. Ensure both skin sensors are in contact with the skin (you may need to apply gentle pressure).

The white 'ready' light will illuminate.

STEP 6

Press the enable button once. The power level button(s) selected will fully illuminate and the orange light on the wand will illuminate.

Note: Each time the power setting is adjusted, you will need to press the enable button to continue.

STEP 8

HALF press the treatment button on the wand.

A red guide light will appear.

You can move the wand while maintaining contact with the skin to target around where the hair meets the skin. Ensure both skin sensors do remain in contact with the skin.

INSTRUCTIONS FOR USE

STEP 9

FULLY press the button on the wand for treatment.

The white light will go out and the red laser will be visible. You will hear a series of beeps.

Note: Do NOT move the wand during treatment.

STEP 10

When treatment ceases the amber light will come back on. Both skin sensors must be removed briefly from the skin before treating the next hair. Return to Step 8 for your next treatment.

AFTER USE

Turn the key anticlockwise to the OFF position to lock. Remove and store the key in a safe place away from children.

Notes:

• You may feel a 'pin prick' sensation during treatment, however, most people do not feel anything.
  • Sometimes you may smell faint burning or even see a very, small line of smoke as the hair is treated.
• Successfully treated hairs do not always fall out immediately, but are shed over time as they are released from the hair follicle; light rubbing can encourage this.
• If no buttons are pressed after 20 minutes the unit will enter energy saving mode. The orange light will flash and power level 1 will remain on. To restart, turn the key off and back on again and return to Step 4 of 'Instructions For Use'.

THE HAIR GROWTH CyCLE

© The Dezac Group Anagen Growing Phase Catagen Degradation Phase Telogen Resting Phase Early to mid Anagen Regrowing Phase Anagen New growing Phase

WHY IS A SERIES OF TREATMENTS REQUIRED?

Everyone's hair grows differently, depending on age, weight, metabolism, hormones, ethnicity, medications and other factors. However, all hair goes through three distinct growth phases:

Active Growth phase (called the anagen phase), Degradation phase (catagen phase), during which the hair stops growing but is not yet shed, and the Resting phase (telogen phase), when a hair falls out and a new hair begins to form.

Laser treatment is effective when the hair is in the active growth phase. At any one time there is only a percentage of hairs in the Active Growth phase (the actual percentage varies from one body area to another). Some follicles are destroyed, others may be reduced to producing only vellus hairs (light fine hairs) and some are disabled helping prevent hair regrowth.

To catch all hairs in the Active growth phase, several treatments are required over many months (a minimum of six over six months). Thereafter a quick treatment every 4 to 6 weeks is undertaken to ensure disabled hairs remain dormant and to maintain permanently hair free skin.

Body Site	Follicle Density per square cm	Resting Phase	Time in Resting Phase	Active Growth
Head 350		15%	3 months	83%
Arms 80		18%	5 months	79%
Legs 60		18%	6 months	79%
Beard 500		68%	10 weeks	30%
Upper Lip 350		64%	6 weeks	34%
Armpit 65		28%	3 months	69%
Chest/Back 70		28%	3 months	69%
Pubic 70		25% 3 months	71%

QUESTIONS AND ANSWERS

How should I prepare my skin for laser hair removal?

Laser hair removal does not require any special skin preparations, although you should ensure your skin is clean. Laser hair removal is most effective on pale skin so we recommend avoiding sunbathing, sun beds and fake tanning if possible.

How should I prepare the hairs for laser hair removal?

The hair needs to be visible enough for the laser to be aimed at the base of the hair. Long hairs may be trimmed before treatment if necessary.

How will my skin appear after the treatment?

Generally no perceptible changes will be apparent. A slight redness after treatment may occur but will normally fade over 24 hours. Any localised redness after treatment is caused by the destruction of the hair follicles and is quite normal. However, if any redness remains after 24 hours this would indicate you have selected too high a power level for your skin type. Please refer to the "Patch Test" section. Also note, any longer lasting redness will also disappear.

After Laser Hair Removal is there anything to avoid?

Sun exposure or deep tanning should be avoided for at least a week. If the skin is exposed use a sunscreen. Also avoid using abrasive cleansers or skin peeling treatments. Avoid swimming in chlorinated water or using a hot tub for 48 hours. The chlorine in the water can result in itchiness.

Is there any aftercare routine I should follow?

If you wish, you can apply an unperfumed soothing lotion, an ice pack or wet towel to cool the treated area. Take care to keep the treated area particularly clean for 3 days. Ideally, use an anti-bacterial soap twice daily. When treating the underarms, avoid using antiperspirant deodorant for 2–3 days.

How often can I repeat Laser Hair Removal treatment?

As long as the hair follicle or surrounding skin is not red, sore or inflamed, treatment can be repeated after 24 hours. Most people wait 3–4 weeks between treatments to see which hairs have been shed and to identify new regrowth. The timing for follow on treatments is not critical. Choose a time which is convenient for you. Avoid excessive treatment on the same region at one time. This may cause reddening and swelling.

QUESTIONS AND ANSWERS

How many treatments will I need?

Laser hair reduction is generally considered to be effective and permanent after 6 treatments over a 6 month period. This varies from person to person and depends on the area you are treating, hair density, your hair's growth cycle and colour. Dark hair on fair skin responds to laser therapy best, but both dark and fair hair may take several treatments for long-term results. Some individuals may require more, and some fewer treatments, to achieve satisfaction. Initially with each treatment you will notice a gradual thinning/reduction of hair growth in the treated area. Women who suffer excessive hair growth due to male type hormones are likely to require long term maintenance.

What areas can I treat?

Most body hair can be removed using Laser hair removal - the most common areas are the face, underarms, legs, chest, back and bikini line.

Can I use Laser Hair Removal on sensitive skin?

Yes, the laser reacts with the hair, so the surrounding skin will not be affected.

What does it feel like?

Most people don't feel anything, although one or more mild 'pin prick' sensations may be felt.

Which part of the hair should I aim at?

It is essential to aim at the base of the hair where it meets the skin.

Can I use other hair removal methods between treatments?

Because Laser treatment needs a hair to be present in the follicle, hair removal methods which pluck the hair, such as waxing, epilators and tweezing are NOT suitable for use between treatments. Bleaching hairs is also NOT suitable as it removes the pigment and renders the laser ineffective. Shaving, micro-dermabrasion discs and cream depilatories are ideal for use between treatments.

SALON LASER TWEEZER™

TROUBLESHOOTING

I have lost my keys.

- Make a note of the serial number of your product from the base of the unit and call our Customer Care on (0) [phone] who will be happy to send you a replacement key.

The lights on the unit are working but no laser is emitted on pressing the button.

- Ensure the 2 skin sensors are making contact with the skin.

No lights are working on the unit.

• Ensure the adapter is turned on at the wall and the power lead is fully inserted in the back of the unit.
• If controls on either main unit or wand are left untouched for 20 minutes the unit will enter energy saving mode. To restart, turn the key off and back on again.

The unit is not responding and one of the power level lights is flashing.

- This indicates a lockout. If you experience a 'lockout', simply reset the unit by turning it off with the key. Wait 5 seconds before turning the unit on again.

UNIT MAINTENANCE

• After use always unplug the adapter and store out of reach of children.
• Always store the wand on the main unit and do not use it for any other purpose than intended.
- Do NOT dissemble or repair. If you have any problems using the product, contact our Customer Care Department.
- Misuse of the unit can cause harm. Do NOT override any safety features or open the unit or wand.
• Only use this product with the adapter supplied.
• To protect the laser, do not store at temperatures exceeding 40^ C.
• After use, wipe the wand clean with a slightly damp cloth. The main unit can also be wiped over.
- While unplugged, regularly clean the laser shroud and skin sensors with a cotton bud, to ensure optimum laser output.
• Do not immerse the main unit or wand in water.
- If you experience unexpected behaviour of this product then it is possible some external electromagnetic interference is responsible. You should remove this source and restart the product to restore full operation. At no time will the laser fire unintentionally.

PRODUCT SAFETY

Due to the divergent laser beam, there is not any threat to life or physical condition by directing the laser beam accidentally at persons if the lens has not been tampered with. The laser mechanism must only be adjusted by the Dezac Group or its nominated service agents.

This product complies with European safety standards.

CUSTOMER CARE

If you have any questions, or if you experience any difficulties with this product, please call our Rio Careline on 01242 702345 or email us at: [e-mail]

To register your two year guarantee online visit: www.riobeauty.com/warranty_online.htm

DISPOSAL

The Waste of Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill.

The product is classed as Electrical or Electronic equipment so please ensure that at the end of the life of this product it is disposed of in the correct manner in accordance with local authority requirements. It must NOT be disposed of with household waste.

SALON LASER TWEEZER™

UK

www.riobeauty.com

Rio, Dezac and Salon Laser Tweezer are trademarks of The Dezac Group Ltd. © The Dezac Group Ltd 2012 Manufactured by The Dezac Group Ltd. PO Box 17, Cheltenham, England GL53 7ET

1-IN-LATW-UK/2.0

PATENTS PENDING
