USER MANUAL FI8919W FOSCAM

Outdoor Pan/Tilt Wireless IP Camera

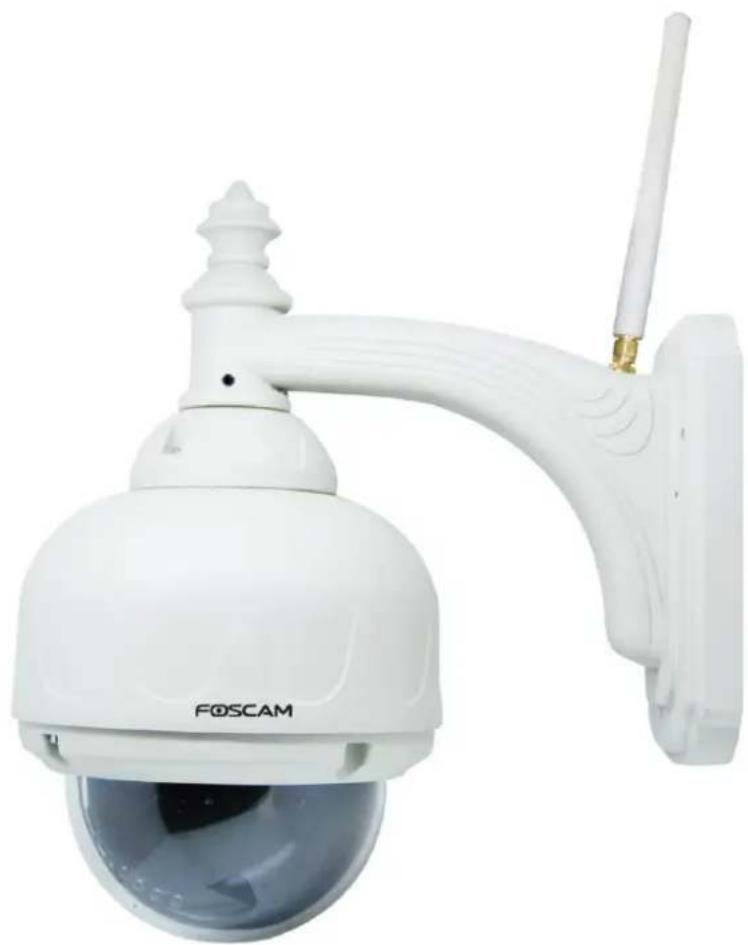

White FOSCAM security camera with mounted antenna and spherical base (no text or symbols visible on device body)

Table of Contents

1 Overviews....2

1.1 Key Features....3
1.2 Read Before Use ....3
1.3 Packing Contents....4
1.4 Physical Description....4

2 Surveillance Software GUI....7

2.1 Login Window ....7
2.2 Surveillance Window....9

3 Advanced Camera Settings 16

3.1 Device Status....16
3.2 Alias Settings ....18
3.3 Date & Time Settings ....18
3.4 User Settings....19
3.5 Multi-Device Settings ....20
3.6 Basic Network Settings....26
3.7 Wireless Settings ......29

3.8 ADSL 33

3.9 UPnP Settings....34

3.10 DDNS Service Settings....35

3.11 Mail Service Settings....40

3.12 MSN Setting....42

3.13 FTP Service Settings 44

3.14 Alarm Service Settings....47

3.15 PT Settings....53

3.16 Upgrade Device Firmware ....54

3.17 Backup & Restore Settings....56

3.18 Restore Factory Settings ....56

3.19 Reboot Device ....57

3.20 Log 57

3.21 Back 57

4 Phone APPs....58

4.1 APP for Android cell phones ....58
4.2 APP for iPhones....66
5.1 Frequently Asked Questions....73
5.2 Default Parameters....77
5.3 Specifications....77

5 APPENDIX....73

6 OBTAINING TECHNICAL SUPPORT....78

1 Overviews

FOSCAM FI8919W is an integrated wireless IP Camera with a color CMOS sensor. It combines a high quality digital video camera, with a powerful web server, to bring clear video to your desktop from anywhere on your local network or over the Internet.

With flexible 355-degree pan and 90-degree tilt, FI8919W gives users more comprehensive control over a monitored site. The IPCAM supports IR-CUT, when light conditions turns poor, the IR cut filter will be automatically removed to accept IR illumination. Meanwhile, the camera switches itself automatically from color to black and white, assuring optimal image quality at all times.

The IPCAM is based on the TCP/IP standard. There is a WEB server inside which could support Internet Explore. Therefore the management and maintenance of your device is simplified by using the network to achieve the remote configuration, start-up and to upgrade the firmware.

FI8919W is designed for outdoor surveillance applications such as gardens, courtyards or parks. Controlling the IPCAM and managing images are simplified by using the provided web interface across the network utilizing wireless connectivity.

FOSCAM provides Phone APPs for Android and iPhone users, please search "Foscam ip cam viewer" and install it through APP Store, then you can view your camera directly as a computer.

1.1 Key Features

• Powerful high-speed video protocol processor
• 300K Pixels
  • IR night vision (Range: 15m)
  • Pan 355 degree, tilt 90 degree
• Optimized MJPEG video compression for transmission
• Multi-level users' management and passwords definition
• Embedded Web Server for users to visit by IE
• Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
• Embedded FOSCAM DDNS (dynamic domain name service) Service
• Motion detection activates alarm
  • Supports image snapshot
• Supports multiple network protocols: HTTP/TCP/IP/UDP/STMP/DDNS/SNTP/DHCP/FTP
  • Supports WEP/WPA/WPA2 encryption
  • Supports WPS(Wi-Fi Protected Set-up)
  • Supports Daylight Saving Time
• Supports MSN
• Supports Gmail as sender on mail service settings
• Providing Phone APPs for Android and iPhone users
• Providing Central Management Software to manage or monitor multi-cameras

1.2 Read Before Use

Please first verify that all contents received are complete according to the Package Contents listed below. Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Installation Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.

1.3 Packing Contents

• IPCAM×1	• CD×1
• Wi-Fi Antenna×1	• Quick Installation Guide×1
• DC Power Supply×1	• Warranty Card×1
• Mounting bracket×1(option)
• Network Cable×1

1.4 Physical Description

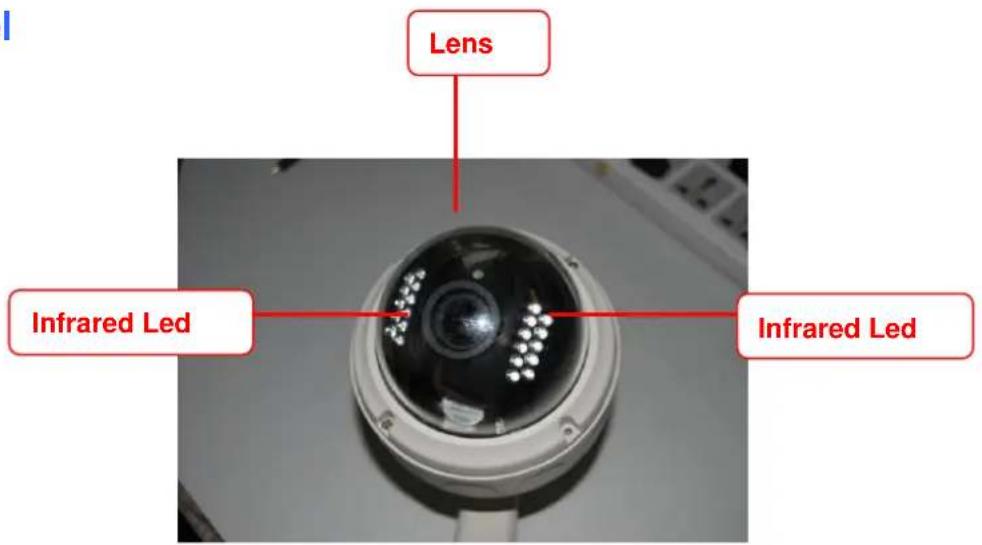

Front Panel

Lens Infrared Led Infrared Led

Figure 1.1

Infrared LED: 22 IR LEDs, night visibility up to 15 meters

LENS: CMOS sensor with fixed focus lens

Back View

Antenna F0SCAM

Figure 1.2

WIFI Antenna: Wireless Antenna

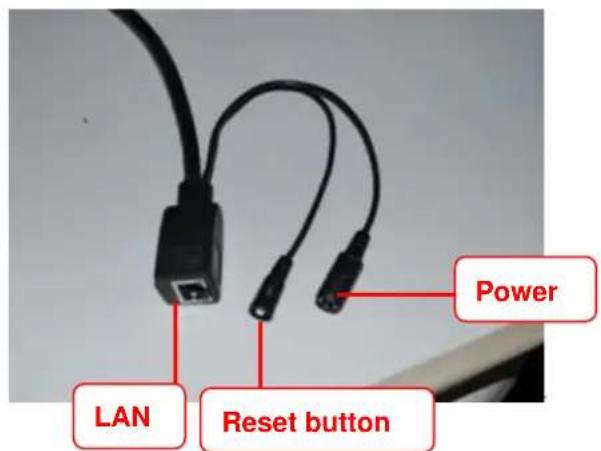

Interface View

Power LAN Reset button

Figure 1.3

LAN: RJ-45/10-100 Base T

Power: DC 12V/2A Power supply

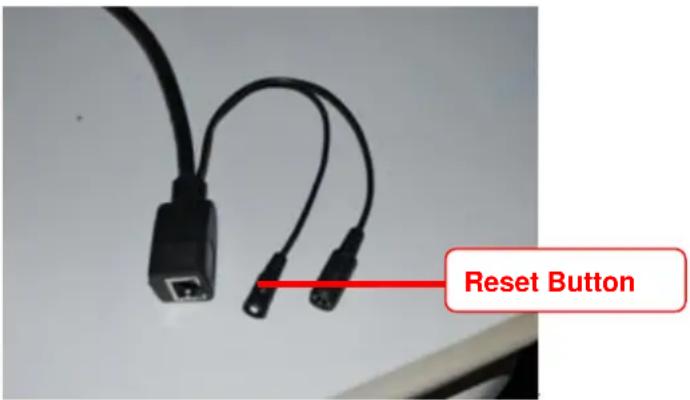

Reset button:

1) Press and hold down the RESET BUTTON about 10 seconds. when released the IP camera will be reset back to factory default settings. You must power on the camera before reset.

2) Press and hold down the RESET BUTTON about 4 seconds, then press the WPS button on

the router, you can use the WPS function. (For more details: please read Wireless Settings in the User Manual)

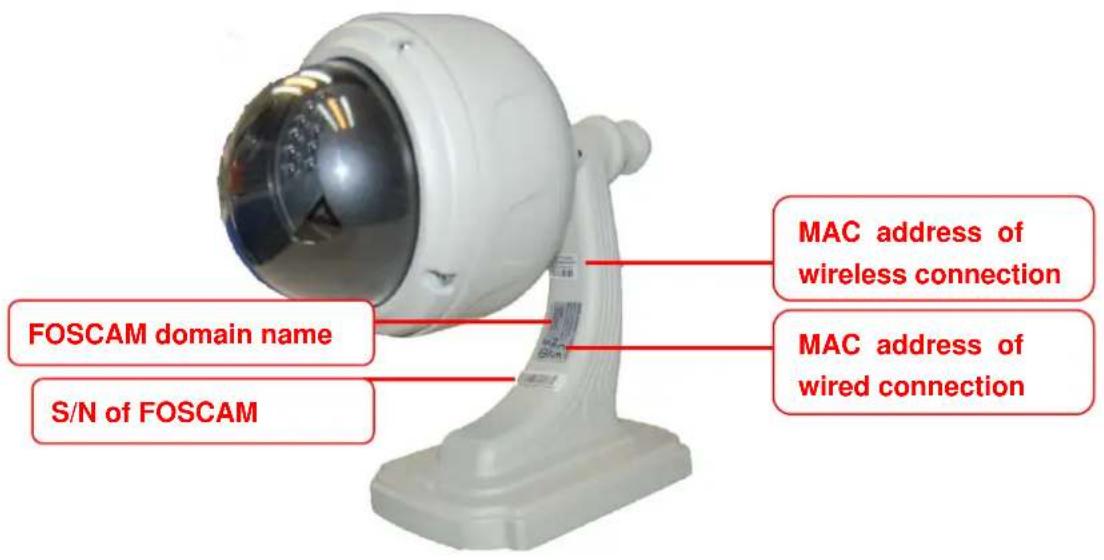

Bottom View

There are up to three labels located on the body of the camera; this is an important feature of original Foscam cameras. If your camera does not have labels as shown in Figure 1.3, it may be a clone one. Cloned Foscam cameras can not use original firmware and are not eligible for warranty or technical services.

MAC address of wireless connection MAC address of wired connection FOSCAM domain name S/N of FOSCAM

Figure 1.3

2 Surveillance Software GUI

Please refer to the Quick Installation Guide if you install the camera at first time. After finishing quick installation, you can take time to learn the operation of the software.

2.1 Login Window

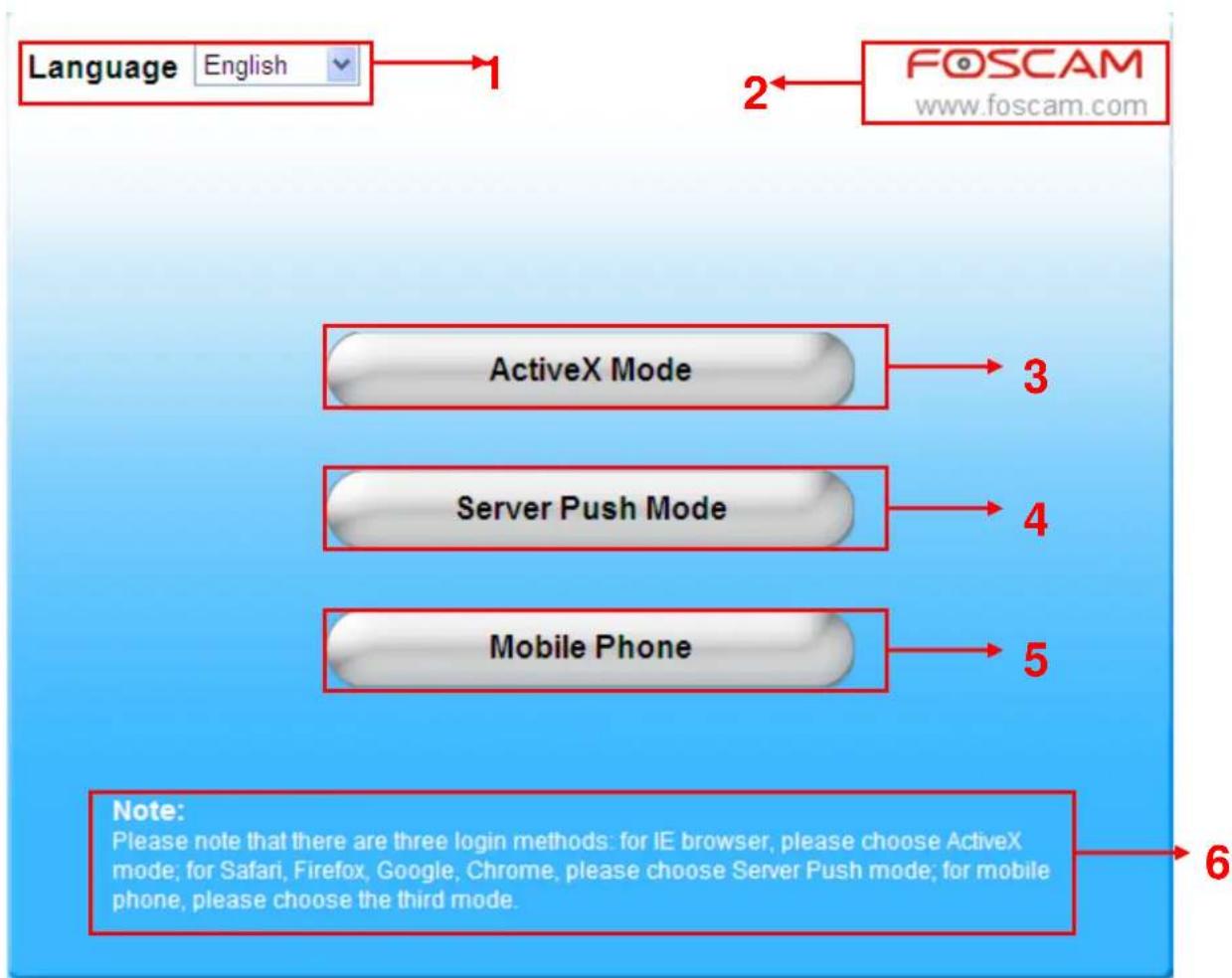

Language English 1 2 FOSCAM www.foscam.com ActiveX Mode 3 Server Push Mode 4 Mobile Phone 5 Note: Please note that there are three login methods: for IE browser, please choose ActiveX mode; for Safari, Firefox, Google, Chrome, please choose Server Push mode; for mobile phone, please choose the third mode. 6

Figure 2.1

Please check the login window above, it was divided to 6 sections from no. 1 to 6.

Section1 Select Language

FOSCAM camera supports multi-languages, such as English, Spanish, Deutsch and so on. You can select the language you need via pull down the dropdown toolbar and click on the language to switch.

Section2 FOSCAM Website Link

There is an access link to Foscam website homepage, if you need tech support you can contact Foscam directly.

Section3 ActiveX Mode

If your PC is windows based OS, such as Windows XP, Windows7, Windows Vista and you are using IE-based browsers like IE6, IE7, IE8, please choose IE ActiveX Mode login mode.

Section4 Server Push Mode

If you are using non-IE based browser, like Firefox, Safari, Google Chrome please choose Server Push Mode.

Section5 Mobile Phone

If you are using the Mobile to access the camera, here you need to select Mobile Phone login mode.

Section6 Note

Note that when you login the camera, please select the corresponding login mode.

2.2 Surveillance Window

Select the ActiveX mode and you will enter the surveillance window.

FOSCAM Outdoor Pan/Tilt IP Camera 1 Anonymous 2 OSD disabled Add OSD on record enable Resolution 640*480 Mode 50 Hz Fps Max Brightness - 14 + Contrast - 6 + Preset Set 1 Go Default All Flip Mirror 4 Device Management 7 Figure 2.2

Section1 Device Name

Default device name is Anonymous. You can define a name for your camera as you like (Please go to chapter 3.1 and read how to set it)

Section2 Multi-Device Window

The firmware inside the camera supports up to maximum of 9 cameras being monitoring at the same time. You can add other cameras in multi-device setting (read chapter 3.5).

FOSCAM Outdoor Pan/Tilt IP Camera Anonymous OSD disabled Add OSD on record enable Resolution 640*480 Mode 50 Hz Fps Max Brightness - 14 + Contrast - 6 + Preset Set Go Default All Flip Mirror Device Management

. Figure 2.3

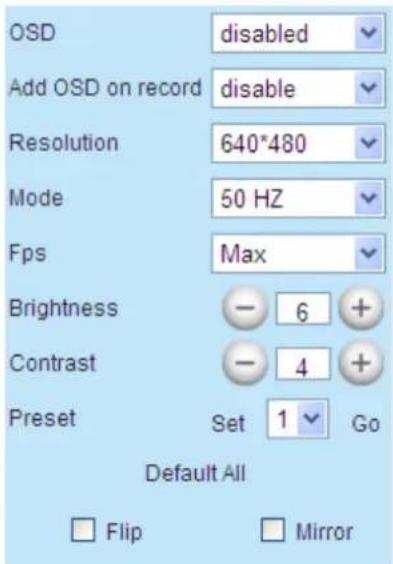

Section3 Image Parameters Settings

OSD disabled Add OSD on record disable Resolution 640*480 Mode 50 HZ Fps Max Brightness - 6 + Contrast - 4 + Preset Set 1 Go Default All Flip Mirror

OSD

OSD is used to add timestamp on the video. There are five text colors to choose from: Black, red, yellow, white, blue.

Add OSD on record

Select this option if you want to add a timestamp to recordings.

Resolution

1) 320x240----QVGA
2) 640x480----VGA

There are two resolutions, the bigger one (VGA) is 640x480 pixels, and the smaller one (QVGA) is 320x240 pixels. The bigger the resolution, the better of the image quality is, but the lower the frame rate is. If you are accessing the camera via internet and want to get more fluent video streaming, please select resolution QVGA 320x240.

Mode

1) 50HZ ----Indoor surveillance (Region: Europe, China)
2) 60HZ ----Indoor surveillance (Region: USA, Canada)
3) Outdoor----Outdoor surveillance (Region: All over the world)

There are three options within the menu of Mode: 50HZ, 60HZ and Outdoor. It depends on the frequency of the electricity and surveillance model (indoors & outdoor). Please choose outdoor mode, when the camera was installed outside.

Eps

1) Max---- Maximum frame rate
2) 20fps, 15fps, 10fps, 5fps,4fps,3fps,2fps,1fps, 5fps, 1fps ,1/2fps,1/3fps,1/4fps,1/5fps----customized frame rate

You can choose option within the menu of Fps to adjust the frame rate. It is often used in LAN network when you want to lower the frame rate, so that you can save more bandwidth.

Brightness

Default parameter is 6, you can adjust the brightness of the image by clicking plus or minus button.

Contrast

Default parameter is 4, you can adjust the contrast of the image by clicking plus or minus button.

Preset/Go

1) Preset----Support 8 preset position, which is considered enough for DIY home & small business surveillance market

2) Set---- Click Set to save the position you need the camera to remember
3) Go---- Click Go to make the camera move the preset position
4) Number button from 1 to 8----You can click the number button with preset position, and the camera will go to the preset position.

How to do preset position?

We can start preset settings from position 1.

Firstly, select no. 1 within the menu of Preset on the panel.

Secondly, move the camera and stop at a place where you want make preset position.

Thirdly, click set button to save it as position 1 and you have done preset of position 1.

After that, you can select no. 2 within the menu of Preset on the panel, and move the camera and stop at another place, and set as preset position 2. You can do all the 8 preset positions with this method.

If you want to see the preset position you have set, such as the position 1, only select the set no.1, and click go button, the camera will go to position no.1.

Flip & Mirror

You can flip the image by enabling Flip button, or mirror the image by enabling Mirror button.

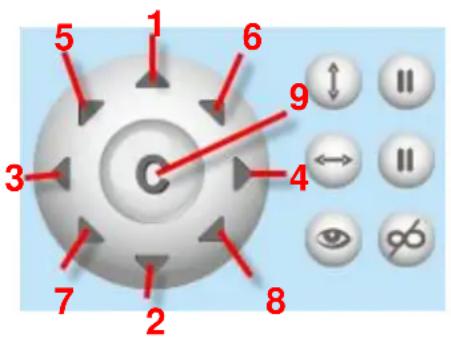

Section4 Pan/Tilt Control

1 2 3 4 5 6 7 8 9 10 ← II ← II ∞

1----Up control button,
3----Left control button,
5---- Up-Left control button
7---- Down-Left control button
9----Go to center

2----Down control button,

4----Right control button,

6---- Up-Right control button

8---- Down-Right control button

: Click this icon; camera will rotate up and down. Click to stop. : Click this icon; camera will rotate left and right. Click to stop. : Click this icon, all the IR lights will turn on. Click to turn off them.

Section5 Device Management

Device Management ----Path to Administrator Control Panel, Click it, and it will lead to Administrator Control Panel.

Section6 Record & Snapshot & Full Screen Buttons

1 2 3

1----Record Button Click it and it pop-up a path-setting window, you can select the storage path and the record file name. At the same time the record icon changes to ,, Click it again and stop recording.
2----Snapshot Click it to make snapshot and it pop-up a window which picture you snapshot, right click in the window and save the picture to anywhere you want.
3----Full Screen Click it to make full-screen or you can double click the surveillance screen to make full-screen.

Section7 Play/Stop Buttons

1 2

1----Play Click it to play the video of the camera
2----Stop Click it to stop the video of the camera

Onscreen Mouse Control

Double click right mouse on the surveillance window, then left click on the screen to indicate the camera move direction you prefer, press the left mouse and the camera' Len will move to the corresponding direction.. Double click right mouse again, cancel onscreen mouse control.

For example, double click right mouse, then left click on the up corner of the screen, you can see the arrow, press the left mouse, and the camera's lens will moving towards the up direction.

Double click right mouse again, cancel onscreen mouse control.

FOSCAM Outdoor Pan/Tilt IP Camera Anonymous OSD disabled Add OSD on record enable Resolution 640*480 Mode 50 HZ Fps Max Brightness - 14 + Contrast - 6 + Preset Set Go Default All Flip Mirror Device Management

Figure 2.4

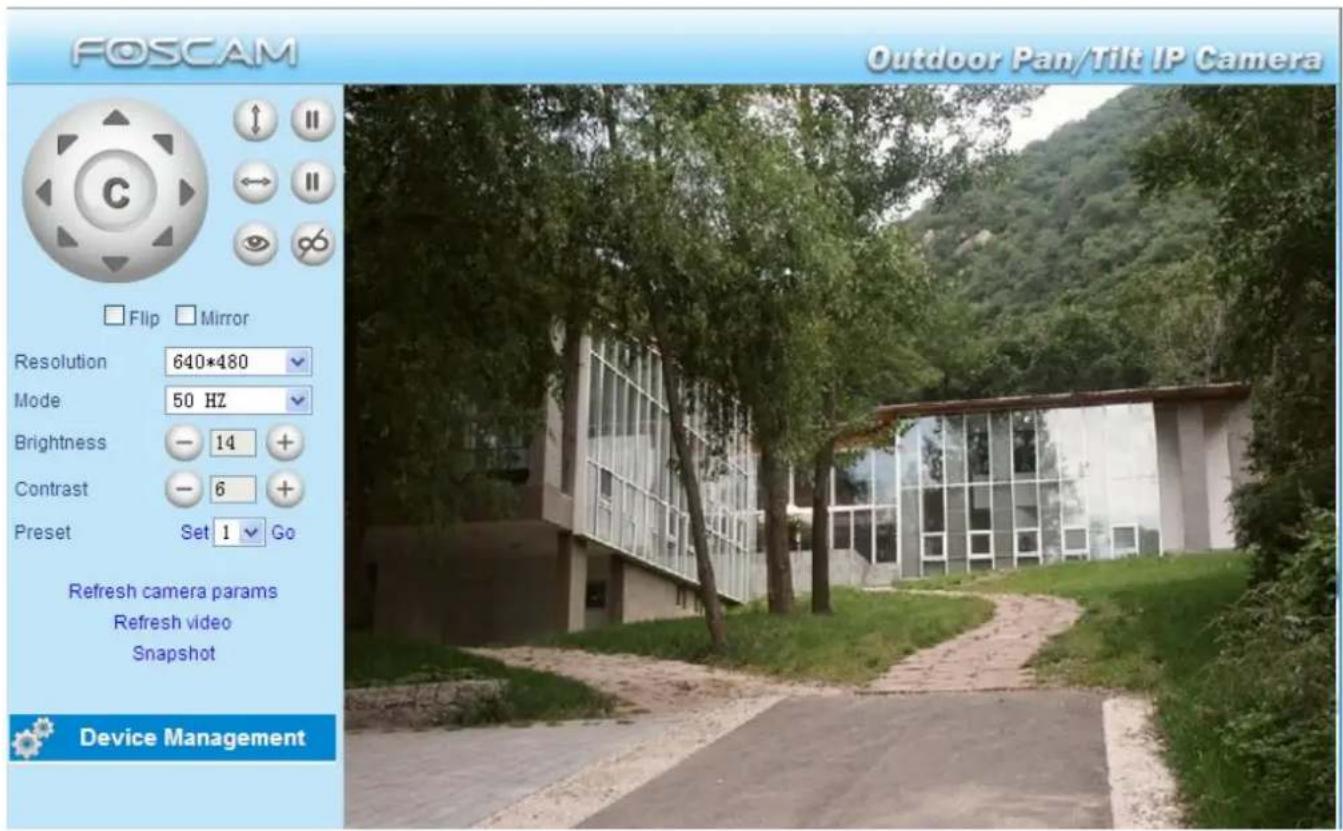

NOTE:

Record and multi-device function are controlled by ActiveX controller, therefore Firefox or Google Chrome, Safari browsers will not allow these functions.

For Firefox, Google Chrome, Safari, you should select the Server Push Mode and you can see the following screen:

FOSCAM Outdoor Pan/Tilt IP Camera Flip Mirror Resolution 640*480 Mode 50 HZ Brightness -14 + Contrast -6 + Preset Set 1 Go Refresh camera params Refresh video Snapshot Device Management

Figure 2.5

3 Advanced Camera Settings

Click the bar "Device Management", goes to Administrator Control Panel to make advanced camera settings.

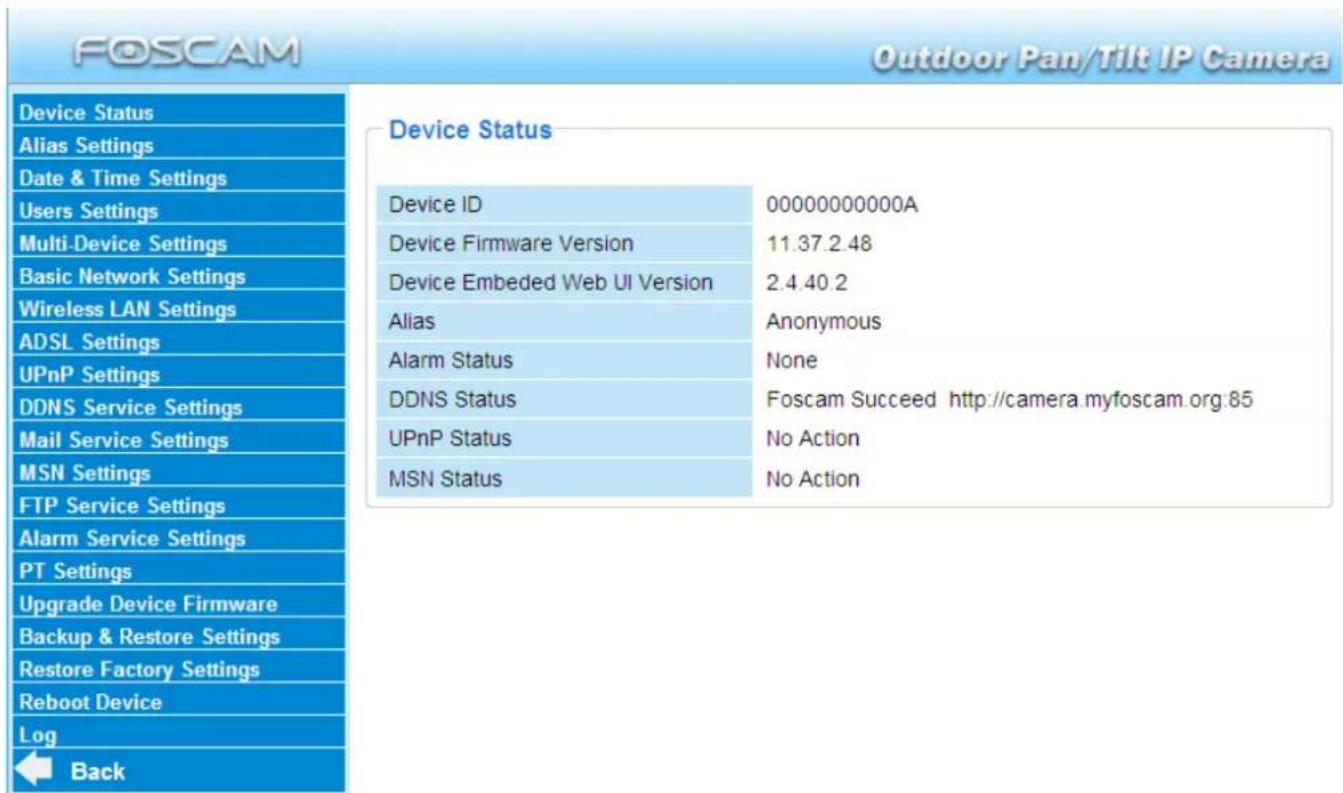

3.1 Device Status

Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Device Status Device ID 00000000000A Device Firmware Version 11.37.2.48 Device Embedded Web UI Version 2.4.40.2 Alias Anonymous Alarm Status None DDNS Status Foscam Succeed http://camera.myfoscam.org:85 UPnP Status No Action MSN Status No Action

Figure 3.1

1----Device ID MAC ID of the camera by wired connection
2----Device Firmware Version System Firmware version of the camera
3----Device Web UI Version Web UI firmware version of the camera
4----Alias Name of the camera
5----Alarm Status The status of Alarm Service Setting
6----DDNS Status The status of DDNS Setting
7----UPnP Status The status of UPnP Setting
8----MSN Status The status of MSN Setting

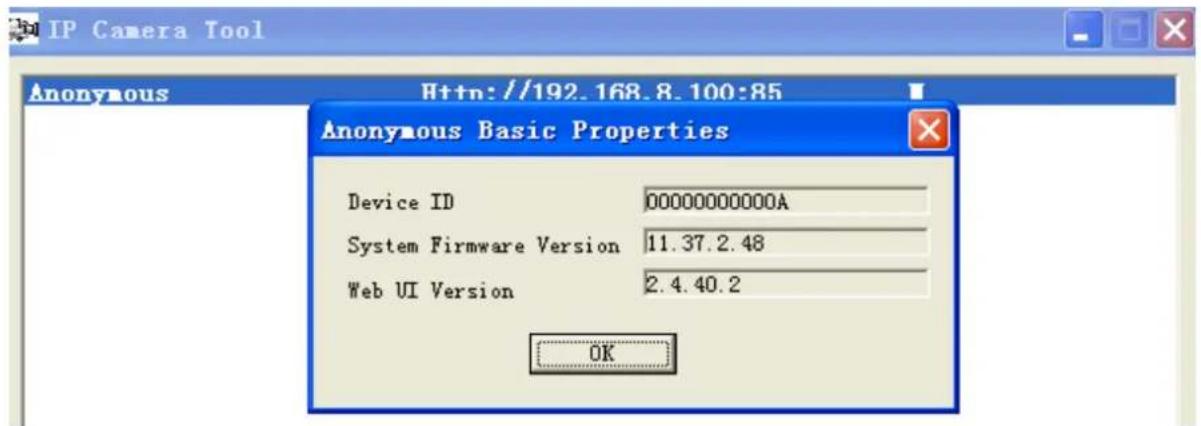

Another Way:

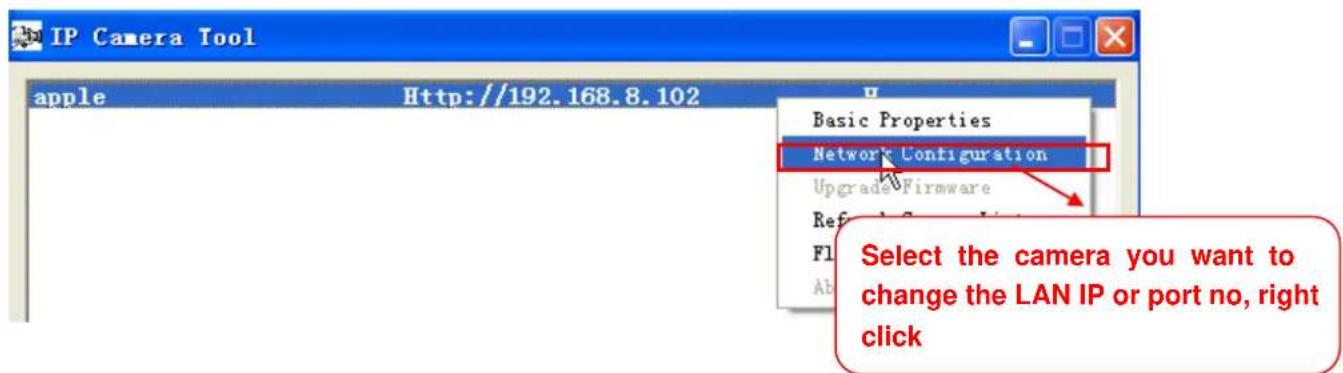

Double click the icon "IP Camera.exe" Tool, select the camera IP, right click and select the Basic Properties, you can also see the Firmware Version and MAC Address, such as the following screen:

IP Camera Tool Anonymous Http://192.162.5-108-2021 Basic Properties Network Configuration Upgrade Firmware Refresh Camera List Flush Arp Buffer About IP Camera Tool

Figure 3.2

IP Camera Tool Anonymous Http://192.168.8.100:85 Anonymous Basic Properties Device ID 00000000000A System Firmware Version 11.37.2.48 Web UI Version 2.4.40.2 OK

Figure 3.3

3.2 Alias Settings

Default alias is Anonymous. You can define a name for your camera here such as apple. Click Submit to save your changes. The alias name supports special characters.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings Alias Settings Alias apple Attention: Alias cannot contain any of the following characters. / - * ? * < > |. Otherwise, it cannot create a recording file. Submit Refresh Click the option here to modify the device name Enter the device name as you like. Use different names to identify multi-cameras FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back

Figure 3.4

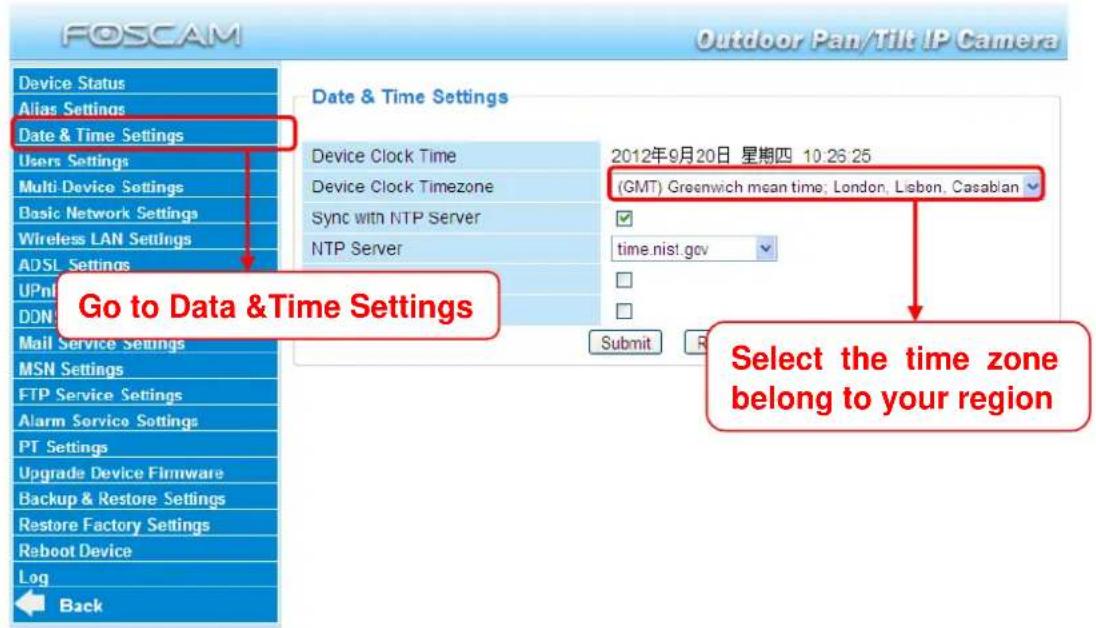

3.3 Date & Time Settings

Choose the time zone of your country. You can choose Sync with NTP Server or Sync with PC Time. If your country implements the Daylight Saving Time, that option can also be selected.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnl DON Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Date & Time Settings Device Clock Time 2012年9月20日 星期四 10:26:25 Device Clock Timezone (GMT) Greenwich mean time; London, Lisbon, Casablan Sync with NTP Server ✓ NTP Server time.nist.gov Submit Go to Data &Time Settings Select the time zone belong to your region

Figure 3.5

3.4 User Settings

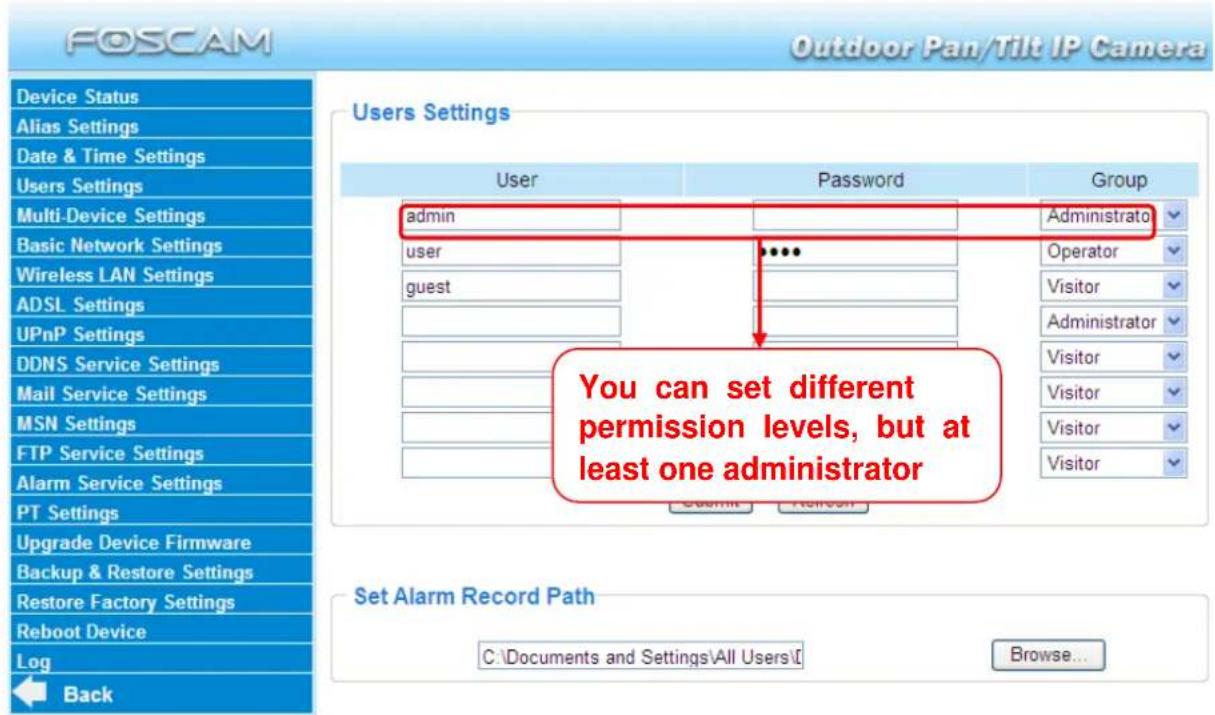

Here you can create users and set permission levels, visitor, operator or administrator. Click Submit to save these settings. The camera will reboot.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Users Settings User Password Group admin Administrator user Operator guest Visitor You can set different permission levels, but at least one administrator Submit Refresh Set Alarm Record Path C:\Documents and Settings\All Users\C Browse...

Figure 3.6

Here you can also set one important file locations for the camera, the Alarm Record Path. Simply click Browse and choose the path to the required folder.

The Alarm Record Path location is used to store automatically recorded files when the camera is activated by motion. (See set motion alarm. Figure 3.39) The default path for Alarm Record Path is C:\Documents and Settings\All Users\Documents.

NOTE: In Windows7 or Vista, if you cannot set the paths.:

Windows7 or Vista's security level is higher than Windows XP/2000. For "set record path" function, user should add the Device IP address to the Internet Explorer's 'Trusted sites' first. The step is: IE browser→Tool→Internet Proper→Security→Trusted sites→Sites→Add

3.5 Multi-Device Settings

If you want to view multi-surveillance screens on one window, you need to login one camera, and set it as the main device, and do Multi-Device Settings, add other cameras to the first one camera. Before you do multi-cams settings, you need to assign different port such as 81, 82, 83, 84, 85, 86, 87, 88 to the cameras if there is 8 cams installed.

The firmware within the camera can support a maximum of 9 devices monitoring all at the same time.

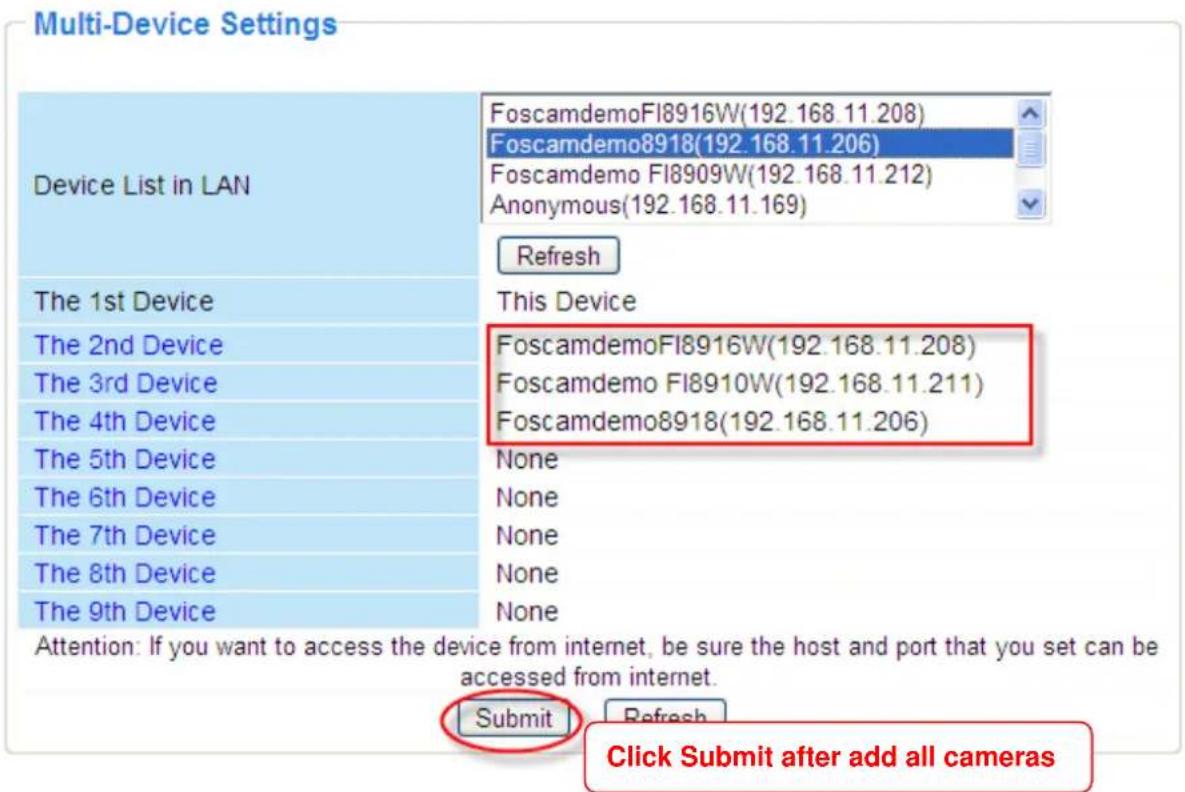

3.5.1 Add cameras in LAN

In Multi-Device Settings page, you can see all devices searched in LAN. The 1st Device is the default one. You can add more cameras in the list in LAN for monitoring. The camera's software supports up to 9 IP Cameras online simultaneously. Click The 2nd Device and click the item in the Device List in LAN, the Alias, Host and Http Port will be filled in the boxes below automatically. Enter the correct username and password then click Add. Add more cameras in the same way. After all cameras have been added, choose Submit.

Multi-Device Settings Device List in LAN Foscamdemo8918(192.168.11.206) Foscamdemo FI8910W(192.168.11.211) FoscamdemoFI8916W(192.168.11.208) Anonymous(192.168.11.169) Refresh The 1st Device This Device The 2nd Device None Alias FoscamdemoFI8916W Host 192.168.11.208 HTTP Port 8916 User admin Password Add Remove The 3rd Device None The 4th Device None The 5th Device None The 6th Device None The 7th Device None 1 Click it, alias, host and HTTP Port will be filled in the following boxes automatically 2 Enter the User name and password of the 2nd camera 3 Click Add to take effect

Figure 3.7a

Multi-Device Settings Device List in LAN FoscamdemoFI8916W(192.168.11.208) Foscamdemo8918(192.168.11.206) Foscamdemo FI8909W(192.168.11.212) Anonymous(192.168.11.169) Refresh The 1st Device This Device The 2nd Device FoscamdemoFI8916W(192.168.11.208) Foscamdemo FI8910W(192.168.11.211) Foscamdemo8918(192.168.11.206) None None None None None None Attention: If you want to access the device from internet, be sure the host and port that you set can be accessed from internet. Submit Refresh Click Submit after add all cameras

Figure 3.7b

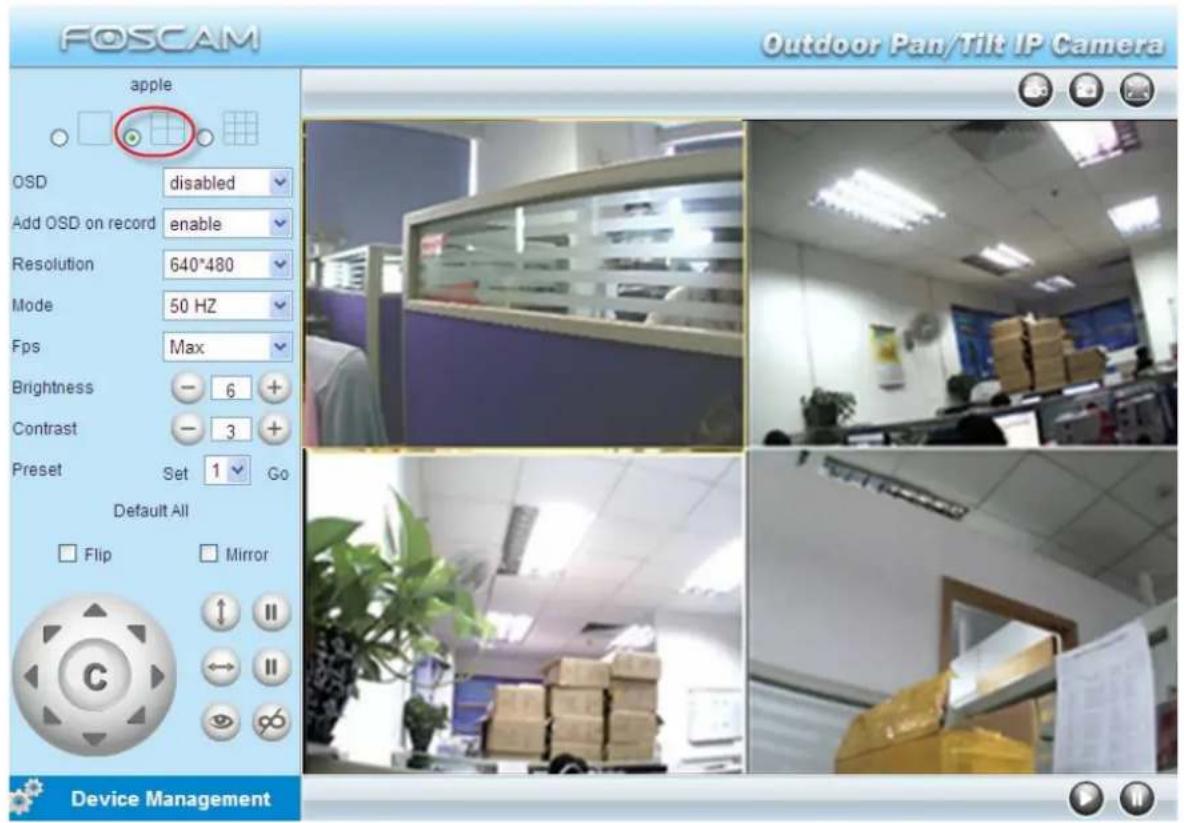

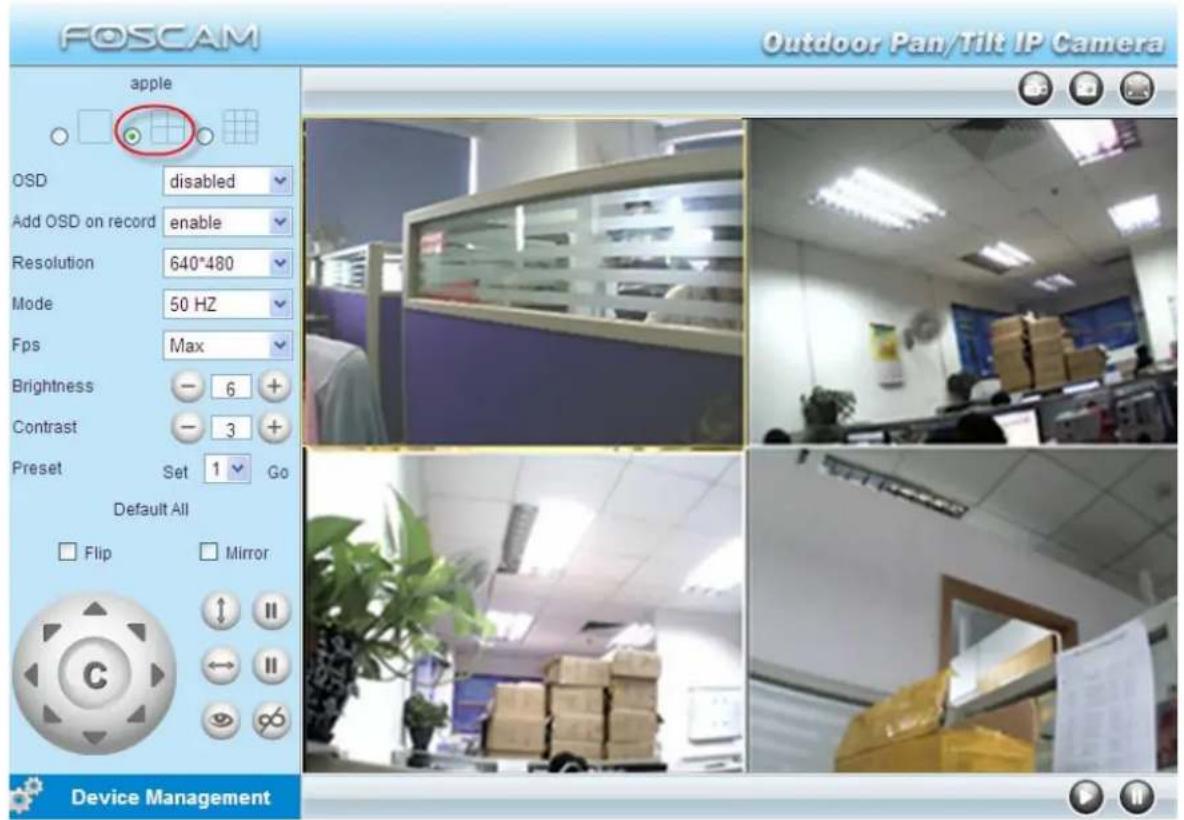

Back to Surveillance Windows, and click Four Windows option, you will see four cameras you added.

FOSCAM Outdoor Pan/Tilt IP Camera apple OSD disabled Add OSD on record enable Resolution 640*480 Mode 50 Hz Fps Max Brightness - 6 + Contrast - 3 + Preset Set 1 Go Default All Flip Mirror Device Management

Figure 3.8

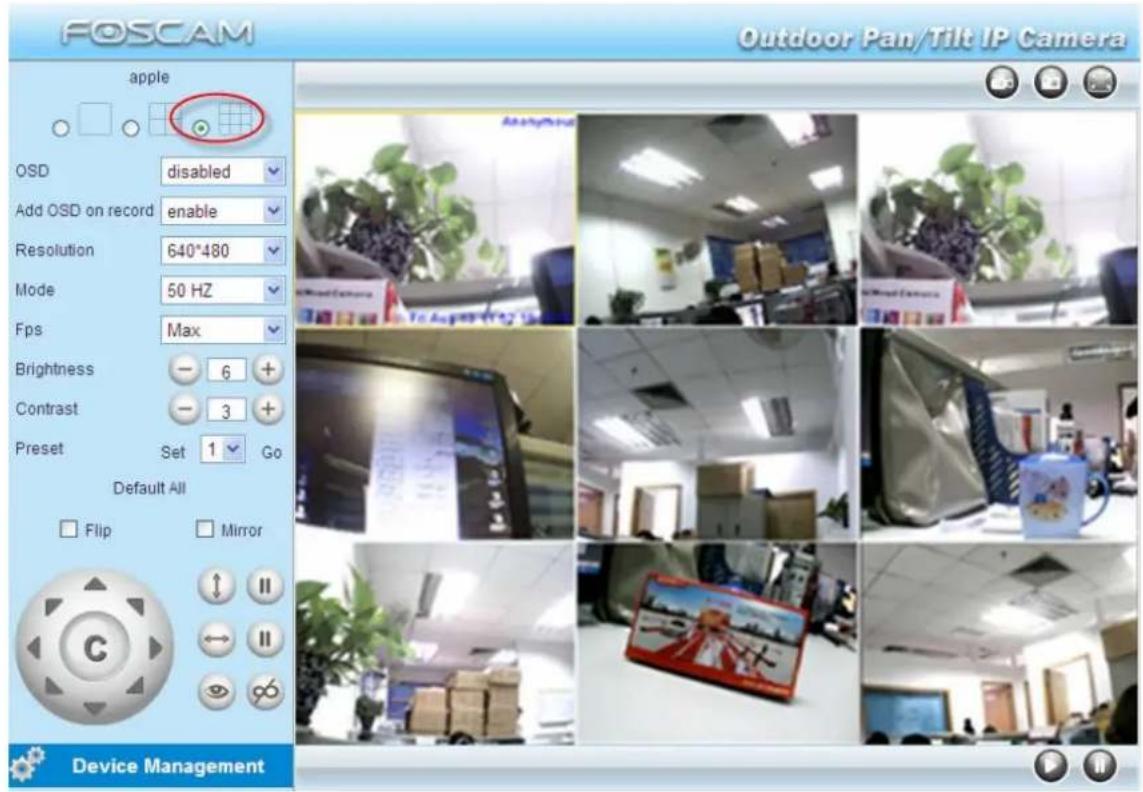

FOSCAM Outdoor Pan/Tilt IP Camera apple OSD disabled Add OSD on record enable Resolution 640*480 Mode 50 Hz Fps Max Brightness - 6 + Contrast - 3 + Preset Set 1 Go Default All Flip Mirror Device Management

Figure 3.9

3.5.2 Add cameras in WAN

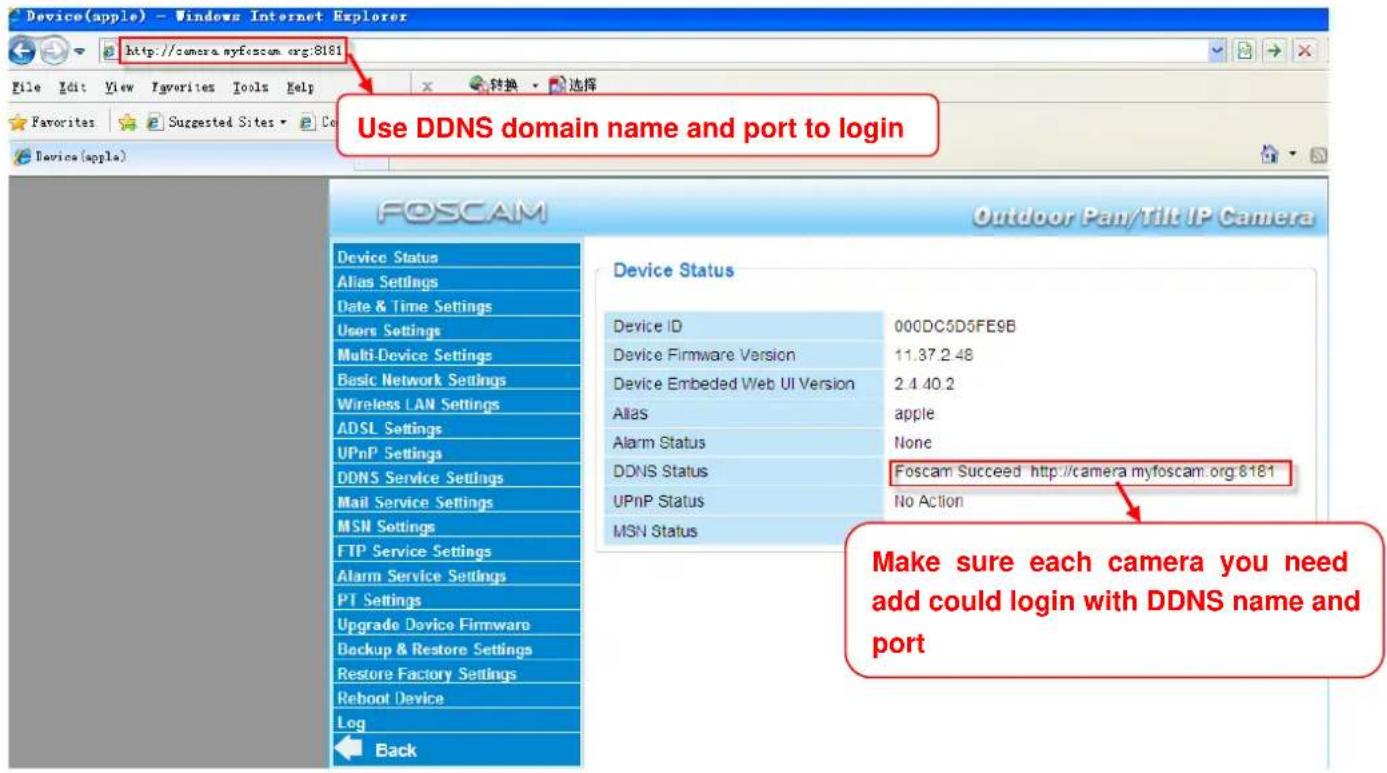

If you want to view all cameras via the internet(remote computer), you will need to add them using DDNS domain name. Firstly, make sure all of the cameras you added can be accessed through the internet. (Read How to configure DDNS settings in chapter 3.10) Login to the first camera using a DDNS domain name and port.

Device(apple) - Windows Internet Explorer http://camera.myfoscam.org:8181 File Edit View Favorites Tools Help Favorites Suggested Sites Co Device(apple) Use DDNS domain name and port to login FOSCAM Outdoor Pan/Tilt IP Camera Device Status Device ID 000DC5D5FE9B Device Firmware Version 11.37.2.48 Device Embedded Web UI Version 2.4.40.2 Alias apple Alarm Status None DDNS Status Foscam Succeed http://camera.myfoscam.org:8181 UPnP Status No Action MSN Status Make sure each camera you need add could login with DDNS name and port Device Status Device ID Device ID 000DC5D5FE9B Device Firmware Version 11.37.2.48 Device Embedded Web UI Version 2.4.40.2 Alias apple Alarm Status None DDNS Status Foscam Succeed http://camera.myfoscam.org:8181 UPnP Status No Action MSN Status Device Status Device ID Device ID 000DC5D5FE9B Device Firmware Version 11.37.2.48 Device Embedded Web UI Version 2.4.40.2 Alias apple Alarm Status None DDNS Status Foscam Succeed http://camera.myfoscam.org:8181 UPnP Status No Action MSN Status Device Status Device ID 000DC5D5FE9B Device ID 11.37.2.48 Device Firmware Version 11.37.2.48 Device Embedded Web UI Version 2.4.40.2 Alias apple Alarm Status None DDNS Status Foscam Succeed http://camera.myfoscam.org:8181 UPnP Status No Action MSN Status

Figure 3.10

If you have several cameras, you can use the same DDNS domain name; you only need to set a different port number for each camera.

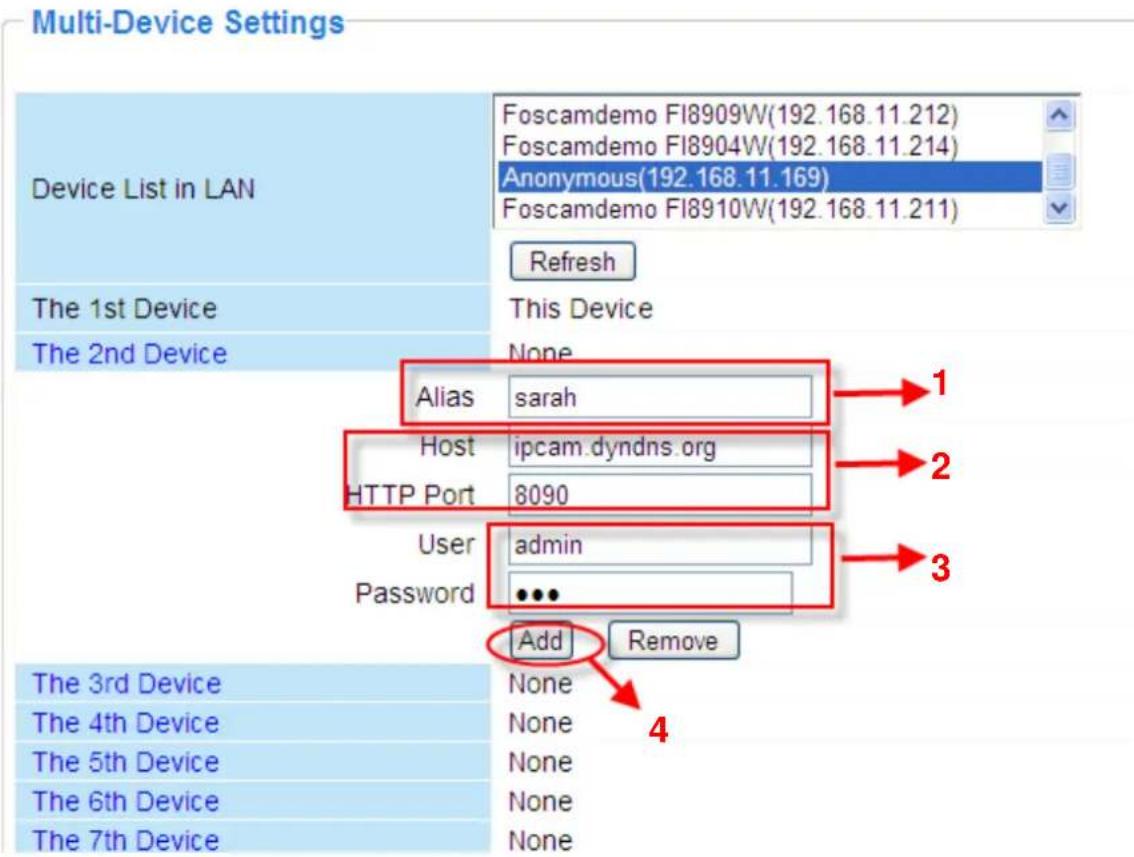

Click Multi-Device Settings. Choose The 2nd Device. Fill in the 2nd camera's name, DDNS domain name, port number. Enter user name and password and then choose Add. (Figure 3.11)

NOTE: Here the Host must be entered as the second camera's DDNS domain name, not its LAN IP.

Multi-Device Settings Device List in LAN Foscamdemo FI8909W(192.168.11.212) Foscamdemo FI8904W(192.168.11.214) Anonymous(192.168.11.169) Foscamdemo FI8910W(192.168.11.211) Refresh The 1st Device This Device The 2nd Device Alias sarah Host ipcam.dyndns.org HTTP Port 8090 User admin Password •••• Add Remove The 3rd Device None 4 The 4th Device None The 5th Device None The 6th Device None The 7th Device None

Figure 3.11

1---- The 2nd camera's name
2---- Fill in the 2nd camera's DDNS host not LAN IP
3 ---- Enter the 2nd camera's user name and password
4---- Click Add button and to take effect

Add the other cameras in the same way. Click Submit to save.

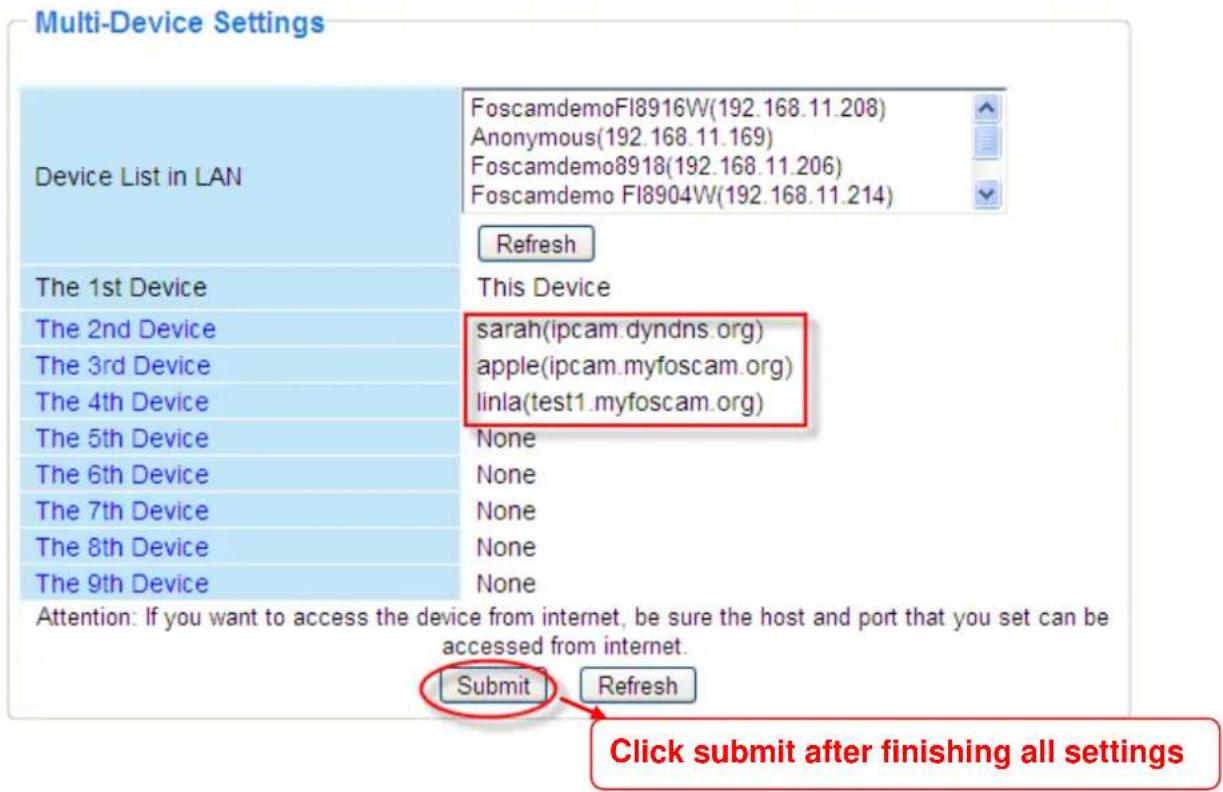

Multi-Device Settings Device List in LAN FoscamdemoFI8916W(192.168.11.208) Anonymous(192.168.11.169) Foscamdemo8918(192.168.11.206) Foscamdemo FI8904W(192.168.11.214) Refresh The 1st Device This Device The 2nd Device sarah(ipcam.dyndns.org) The 3rd Device apple(ipcam.myfoscam.org) The 4th Device linla(test1.myfoscam.org) The 5th Device None The 6th Device None The 7th Device None The 8th Device None The 9th Device None Attention: If you want to access the device from internet, be sure the host and port that you set can be accessed from internet. Submit Refresh Click submit after finishing all settings

Figure 3.12

Return to video window. You will see all of the cameras accessible through the internet. When you are away from home, you can use the first camera's DDNS domain name and port to view all the cameras via internet.

FOSCAM Outdoor Pan/Tilt IP Camera apple OSD disabled Add OSD on record enable Resolution 640*480 Mode 50 Hz Fps Max Brightness - 6 + Contrast - 3 + Preset Set 1 Go Default All Flip Mirror Device Management

Figure 3.13

3.6 Basic Network Settings

If you want to set a static IP for the camera, select Basic Network Settings. Keep the camera in the same subnet of your router or computer.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Basic Network Settings Obtain IP from DHCP Server IP Address 192.168.0.109 Subnet Mask 255.255.255.0 Gateway 192.168.0.1 DNS Server 192.168.0.1 HTTP Port 8181 Submit Refresh

Figure 3.14

Changing settings here is the same as using the IP Camera Tool. (Figure 3.17/3.18) It is recommended that you use the subnet mask, gateway and DNS server from your locally attached PC. If you don't know the subnet mask, gateway and DNS server, you can check your computer's local area connection as follows:

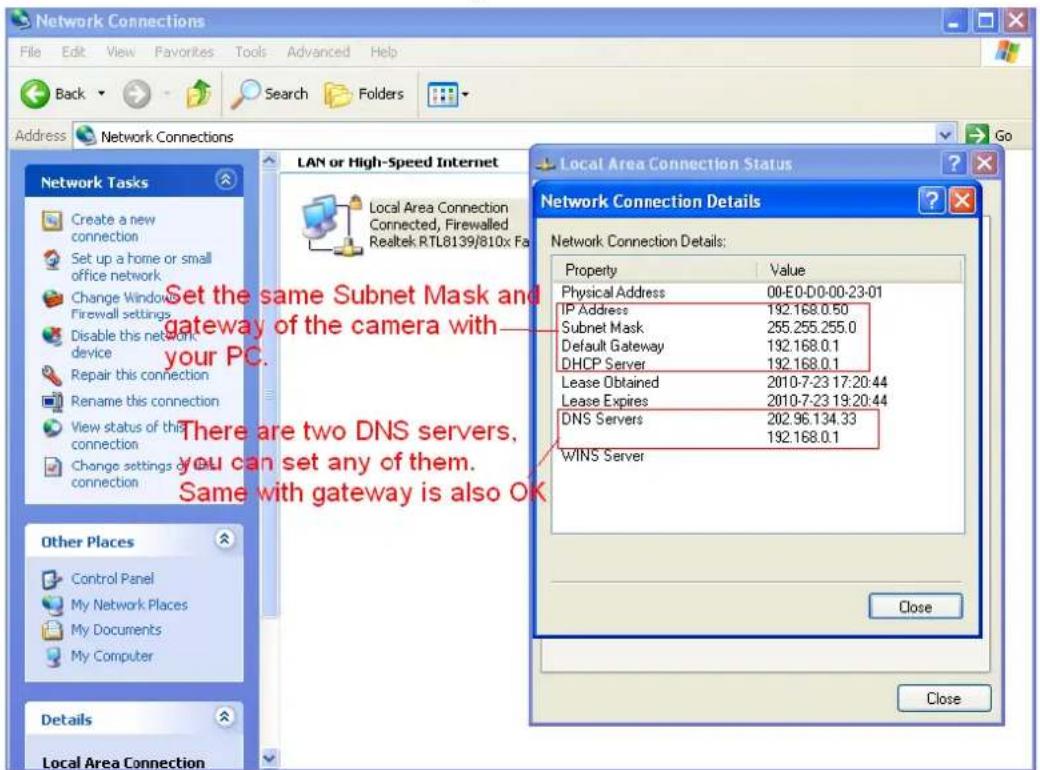

Control Panel→Network Connections→Local Area Connections → Choose Support→Details.

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections LAN or High-Speed Internet Local Area Connection Status General Support Connection status Address Type: Assigned by DHCP IP Address: 192.168.0.50 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.0.1 Details... Click here Windows did not detect problems with this connection. If you cannot connect, click Repair. Repair Close Network Tasks Create a new connection Set up a home or small office network Change Windows Firewall settings Disable this network device Repair this connection Rename this connection View status of this connection Change settings of this connection Other Places Control Panel My Network Places My Documents My Computer Details Local Area Connection

Figure 3.15

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections LAN or High-Speed Internet Local Area Connection Connected, Firewalled Realtek RTL8139/810x Fa Network Tasks Create a new connection Set up a home or small office network Change Windows Firewall settings Disable this network device Repair this connection Rename this connection View status of this connection Change settings of this connection Other Places Control Panel My Network Places My Documents My Computer Details Local Area Connection Local Area Connection Status Network Connection Details Network Connection Details: Property Value Physical Address 00-E0-D0-00-23-01 IP Address 192.168.0.50 Subnet Mask 255.255.255.0 Default Gateway 192.168.0.1 DHCP Server 192.168.0.1 Lease Obtained 2010-7-23 17:20:44 Lease Expires 2010-7-23 19:20:44 DNS Servers 202.96.134.33 WINS Server Close Close

Figure 3.16

If you don't know the DNS server, you can use the same settings as the Default Gateway.

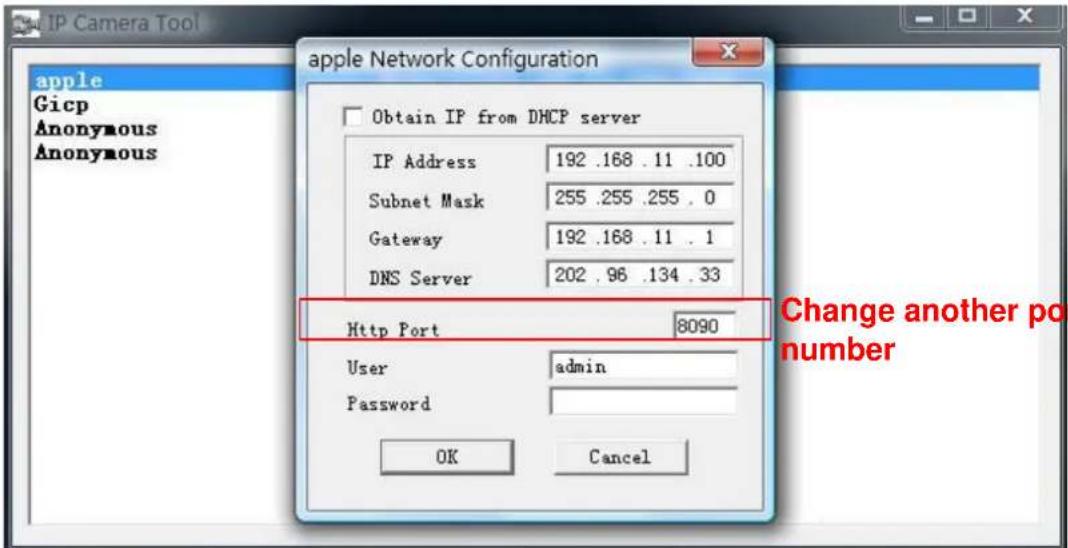

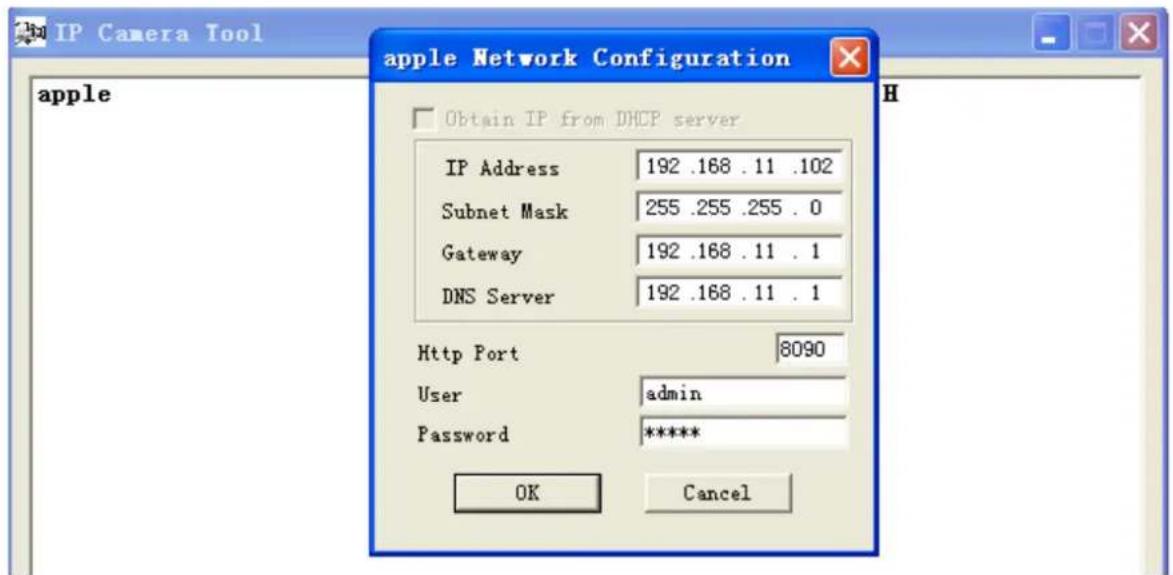

Another way to change the camera's LAN IP and HTTP Port no.

Open the IP Camera Tool, select the camera you want to change the port no, right click on the IP address link, and goes to Option "Network Configuration", it pops up another dialogue showed as the following screen

IP Camera Tool apple Http://192.168.8.102 Basic Properties Network Configuration Upgrade Firmware Ref Fl Ab Select the camera you want to change the LAN IP or port no, right click

Figure 3.17

IP Camera Tool apple Network Configuration Obtain IP from DHCP server IP Address 192 .168 .11 .102 Subnet Mask 255 .255 .255 . 0 Gateway 192 .168 .11 . 1 DNS Server 192 .168 .11 . 1 Http Port 8090 User admin Password ***** OK Cancel

Figure 3.18

IP Address: Fill in the IP address assigned and make sure it is in the same subnet as your computer or router. (I.e. the first three sections are the same)

Subnet Mask: The default subnet mask of the equipment in our LAN is: 255.255.255.0. You can find the subnet mask in the basic information of your router or the locally-attached of your PC.

Gateway: Make sure it is in the same subnet with PC's IP address. The gateway is your router's LAN IP.

DNS Server: IP address of your ISP network provider. You can find the DNS server in your router or check the locally-attached address of your computer. Your PC contains your PC's IP address, gateway and DNS server. Normally, there are two DNS servers. Here you can also set the DNS server the same with gateway.

Http Port: The default Lan port is 80. You can set another port number, such as port 8005, 8100. etc.

User&Password: Default administrator user name is admin with no password.

NOTE:

If the prompt “Subnet doesn’t match, dbclick to change!” appears, please enable DHCP set camera’s IP address and gateway once again.

3.7 Wireless Settings

Wireless Lan Settings support three modes: Infra(Do wireless lan settings manually) and WPS (Wi-FI Protected Set-up) and Adhoc..

If your router does not support WPS function, please go to chapter 3.7.1 and make wireless connection settings manually.

If your router supports WPS function, please go to chapter 3.7.2 and make wireless connection settings quickly.

If there is no wireless router, please go to chapter 3.7.3 and connect the IPCAM directly to a host in a peer_to_peer environment.

3.7.1 Infrastructure Mode

Step 01) Please choose "Device Management" and goes to the option Wireless LAN Settings, click "Wireless LAN Settings". Then enable "Using Wireless LAN".

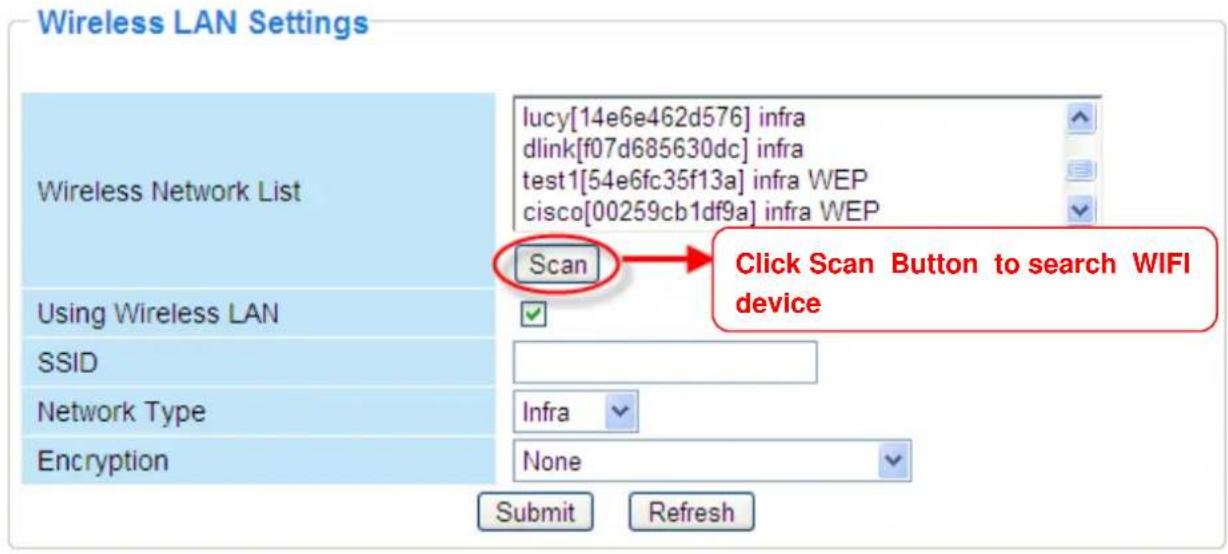

Click the Scan button and the camera will detect all WIFI devices around the area. It should also display your router in the list. (Figure 3.19)

Wireless LAN Settings Wireless Network List Lucy[14e6e462d576] infra dlink[f07d685630dc] infra test1[54e6fc35f13a] infra WEP cisco[00259cb1df9a] infra WEP Scan Click Scan Button to search WIFI device Using Wireless LAN SSID Network Type Infra Encryption None Submit Refresh

Figure 3.19

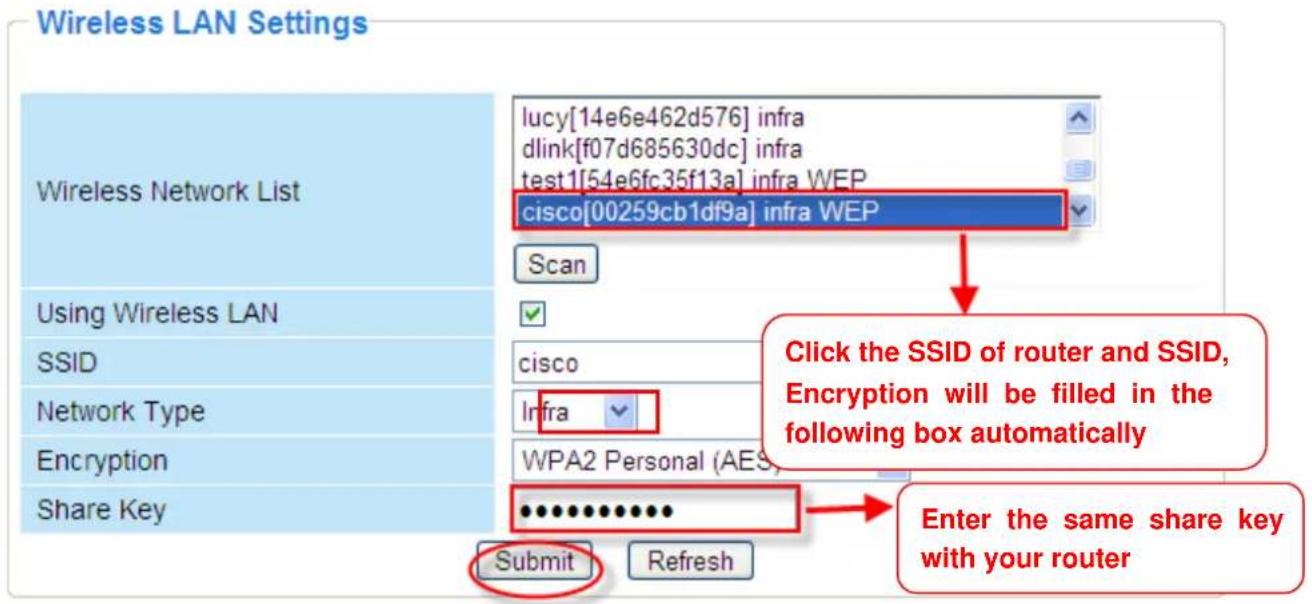

Step 02) Click the SSID of your router in the list, the corresponding information (SSID & Encryption) will be filled in the following boxes automatically.

You will only need to fill in the share key. Make sure that SSID, Encryption and share key you filled in for the camera are exactly the same for your router.

Wireless LAN Settings Wireless Network List lucy[14e6e462d576] infra dlink[f07d685630dc] infra test1[54e6fc35f13a] infra WEP cisco[00259cb1df9a] infra WEP Scan Using Wireless LAN SSID cisco Network Type Infra WPA2 Personal (AES) Encryption Share Key Submit Refresh Click the SSID of router and SSID, Encryption will be filled in the following box automatically Enter the same share key with your router

Figure 3.20

Step 03) Please click on the Submit button after all settings have been entered, the camera will reboot. After the camera has completed the reboot process, wait 10 seconds and disconnect the network cable.

The LAN IP address will disappear on the window of IP Camera Tool when the camera gets restarted. Just wait for around 1 minute, the camera will get wireless connection, and the LAN IP

of the camera will be showed again on the window of the IP Cam Tool. You have done wireless connection of the camera successfully. If the camera has a dynamic IP, after the wireless settings, the IP will be changed.

Note If fail to make WiFi connection, please refer to seller or us for help.

3.7.2 WPS (Wi-Fi Protected Set-up)

Step 01) Please press and hold the RESET button for four seconds.

Reset Button

Step 02) Press the WPS button on your router within 60 seconds. The WPS button is usually on the back or side of your router. On some routers, you may need to log in to the web interface and click on an on-screen button to activate the WPS feature. If you are not sure where the WPS buttons is on your router, please refer to your router's User Manual.

The camera will automatically create a secure wireless connection to your router. If you have plugged in the network cable, please plug it out. While connecting, the green network light will blink quickly and the wireless settings will take effect. The IP Camera Tool will search the camera's LAN IP. Make sure the PC and the camera share the same subnet.

Note

1 During the WPS Settings, you must press the Reset button only for four seconds, or else, the camera may be reset back to factory default settings if you press and hold on the reset button above 10 seconds.
2 The security mode of router cannot be WEP, or else the WPS settings may be failed.

3.7.3 Adhoc Mode

Under this mode, the IPCAM will directly connect to a host in a peer_to_peer environment.

Make sure the PC has plugged in the wireless network card.

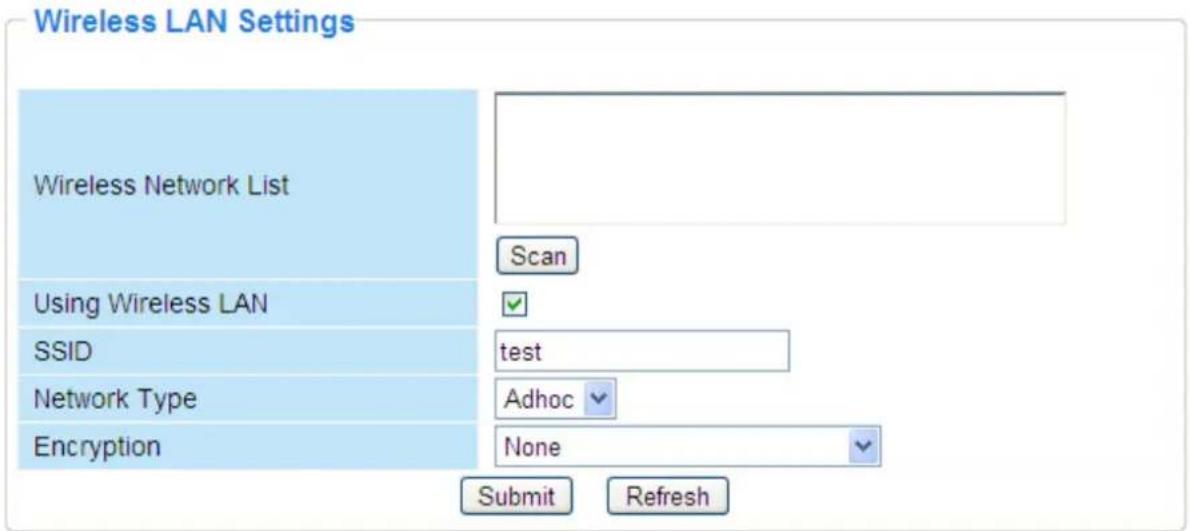

Step 01) Enable wireless and choose Adhoc mode.

Fill in a SSID to identify the IPCAM and then set the security mode, you can choose none or others. Click Apply.

Wireless LAN Settings Wireless Network List Scan Using Wireless LAN ✓ SSID test Network Type Adhoc Encryption None Submit Refresh

Figure 3.21

Step 02) Plug out the network cable and the camera will restart..

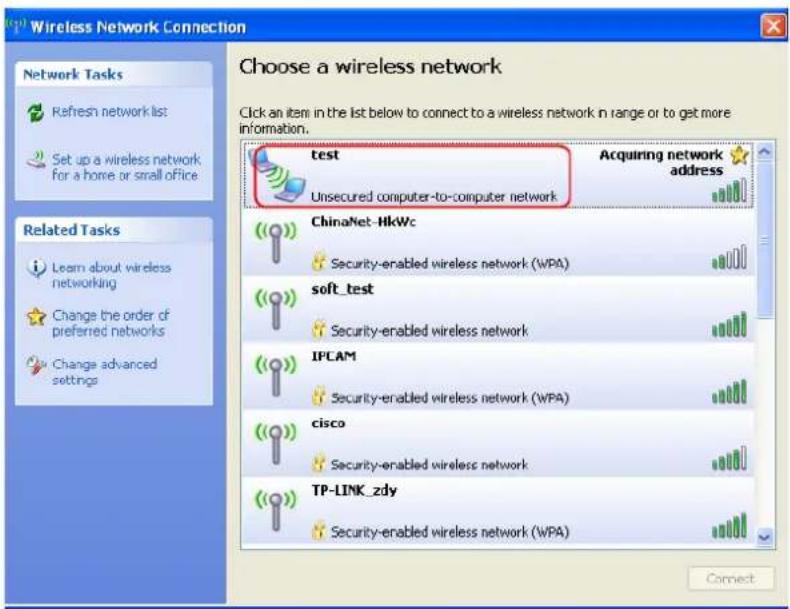

Open the wireless network card of PC and search the wireless network around the area. You can find the SSID you filled for the camera (Figure 3.21).

Wireless Network Connection Choose a wireless network Click an item in the list below to connect to a wireless network in range or to get more information. Network Tasks Refresh network list Set up a wireless network for a home or small office Related Tasks Learn about wireless networking Change the order of preferred networks Change advanced settings test Acquiring network address Unsecured computer-to-computer network ChinaNet-HkWc Security-enabled wireless network (WPA) soft_test Security-enabled wireless network IPLAM Security-enabled wireless network (WPA) cisco Security-enabled wireless network TP-LINK_zdy Security-enabled wireless network (WPA) Connect

Figure 3.22

Step 03) Disabled the wired connection of the PC. Select the SSID you filled at Figure3.21 for your camera and enter the same key with your camera. Make sure PC and Camera share the same subnet.

Open the IP Camera Tool, you can search the camera LAN IP again.

3.8 ADSL


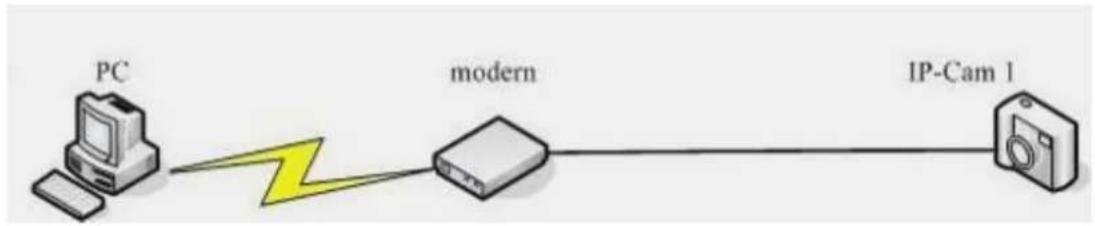

Figure 3.23

If you are connecting the camera directly to a ADSL modem, you can do ADSL settings with your ADSL account &password provided by the ISP, then make the camera connected to the network.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back ADSL Settings Using ADSL Dialup ADSL User sz254126857474 ADSL Password ************ Submit Refresh Enter the ADSL user and password

Figure 3.24

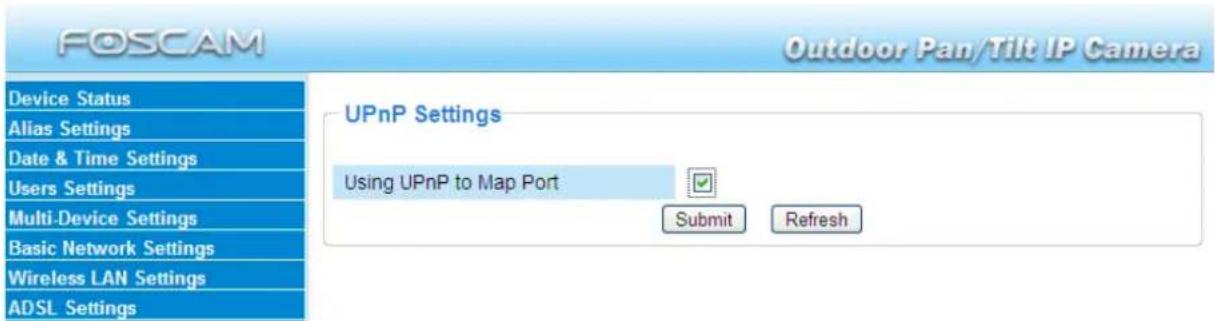

3.9 UPnP Settings

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings Using UPnP to Map Port Submit Refresh

Figure 3.25

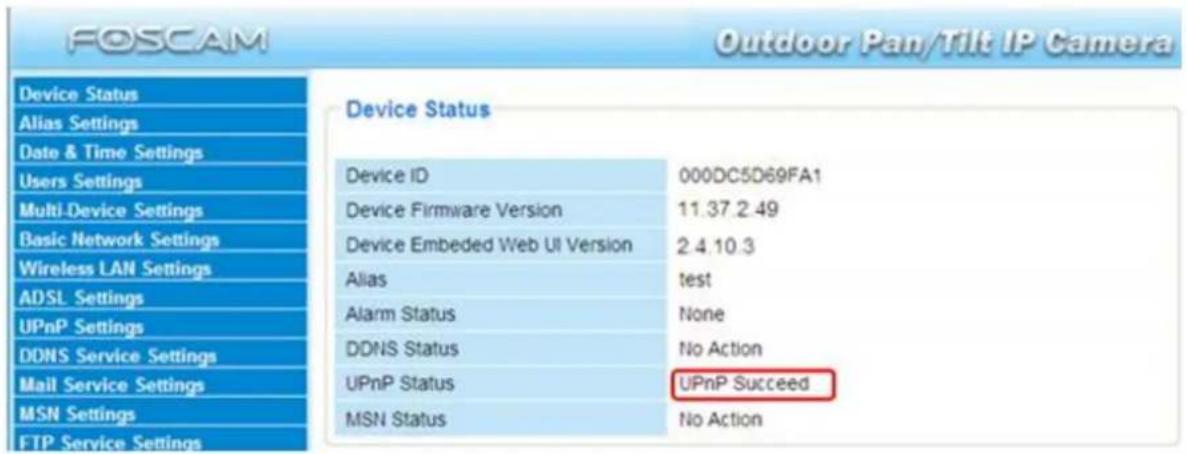

The default UPnP status is closed. You can select the checkbox and open UPnP, then the camera's software will be configured for port forwarding. Back to the "Device Status" panel, you can see the UPnP status:

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Device Status Device ID 000DC5D69FA1 Device Firmware Version 11.37.2.49 Device Embedded Web UI Version 2.4.10.3 Aliasaled funds Alarm Status None DDNS Status No Action UPnP Status UPnP Succeed MSN Status None Action

There may be issues with your routers security settings, and sometimes may error. We recommend you configure port forwarding manually on your router (Figure 3.30).

3.10 DDNS Service Settings

FOSCAM camera has embedded a unique DDNS domain name when producing, and you can directly use the domain name, you can also use the third party domain name.

FOSCAM domain name

Here take camera.myfoscam.org for example. Go to option of DDNS Service Settings on the administrator panel, you can see the domain name.

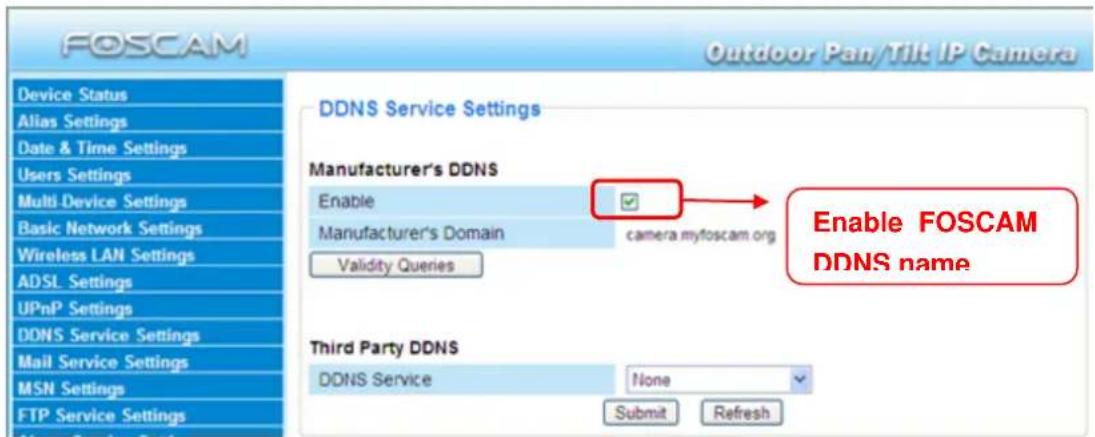

Please enable the FOSCAM DDNS name first.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings DDNS Service Settings Manufacturer's DDNS Enable Manufacturer's Domain camera myfoscam.org Validity Queries Third Party DDNS DDNS Service None Submit Refresh Enable FOSCAM DDNS name

Figure 3.26

Enable: Open or close the FOSCAM domain name. The default status of FOSCAM domain name is open.

Validity Queries: Check the validity of embedded domain name.

Now you can use http:// Domain name + HTTP Port to access the camera via internet.

Take hostname camera.myfoscam.org and HTTP Port no. 88 for example, the accessing link of the camera via internet would be http://camera.myfoscam.org:88

Note: If you want to use the manufacturer's domain name, please select None as the Third Party DDNS and enable the Manufacturer's domain name, then click submit

Third Party Domain Name Settings

User can also use third part DDNS, such as www.no-ip.com. ,www.dyndns.com

Here take www.no-ip.com for example:

① Step 1, Go to the website www.no-ip.com to create a free hostname

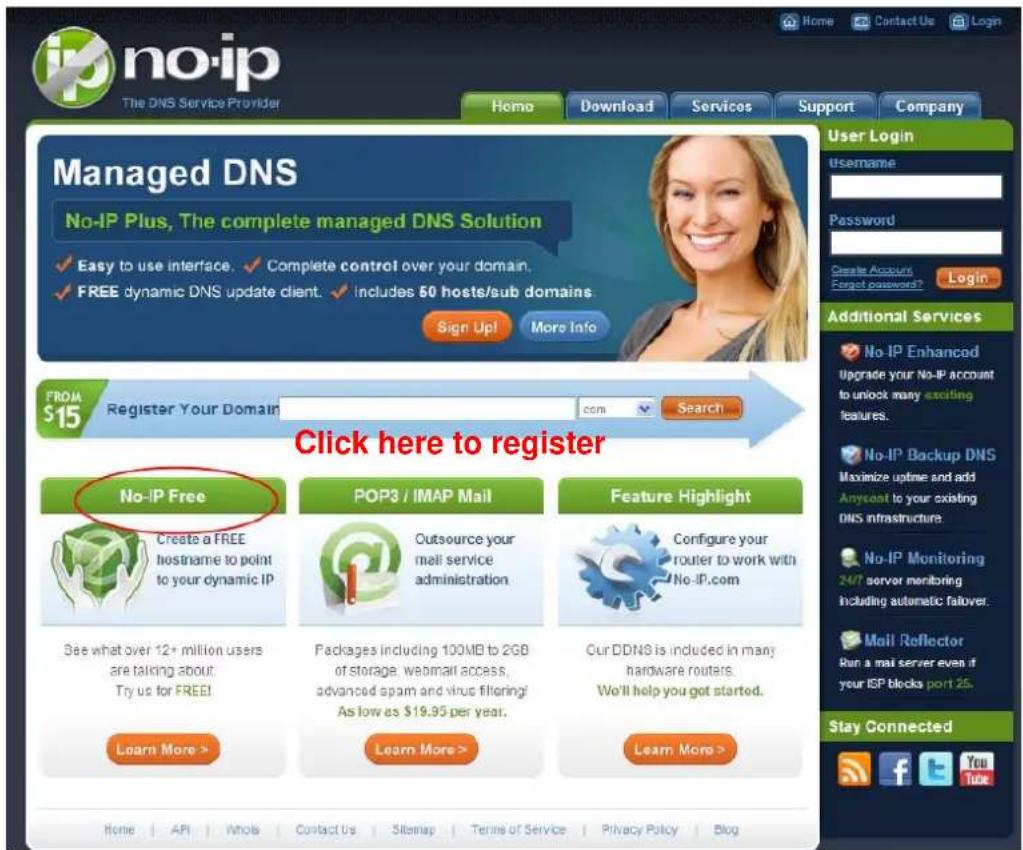

Firstly: Login on www.no-ip.com and click No-IP Free to register.

no-ip The DNS Service Provider Home Download Services Support Company Managed DNS No-IP Plus, The complete managed DNS Solution ✓ Easy to use interface. ✓ Complete control over your domain. ✓ FREE dynamic DNS update client. ✓ Includes 50 hosts/sub domains Sign Up! More Info FROM $15 Register Your Domain com Search User Login Username Password Create Account? Forget password? Login Additional Services ✓ No-IP Enhanced Upgrade your No-IP account to unlock many exciting features. ✓ No-IP Backup DNS Maximize uptime and add Anyone to your existing DNS infrastructure ✓ No-IP Monitoring 247 server monitoring including automatic falover. ✓ Mail Reflector Run a mail server even if your ISP blocks port 25. Stay Connected ✓ Facebook YouTube

Figure 3.27

Please register an account step by step according to instructions on www.no-ip.com

After registration, please login your email which used to register. You will receive an email from website, please click the link to activate your ACCOUNT as indicated in email.

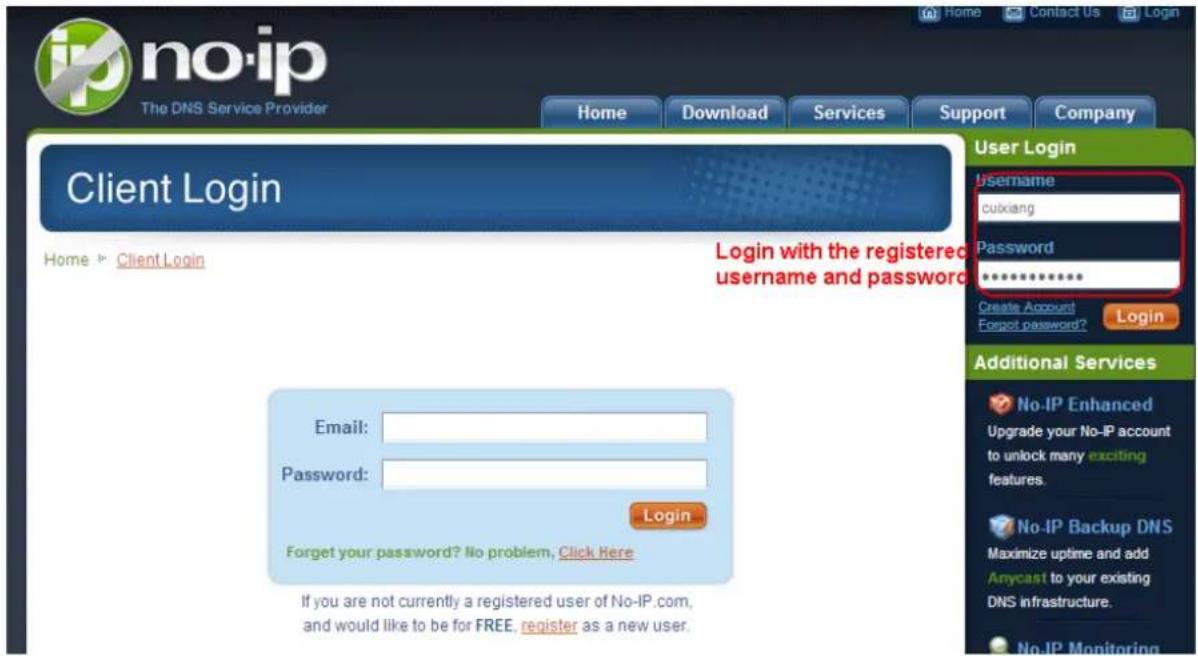

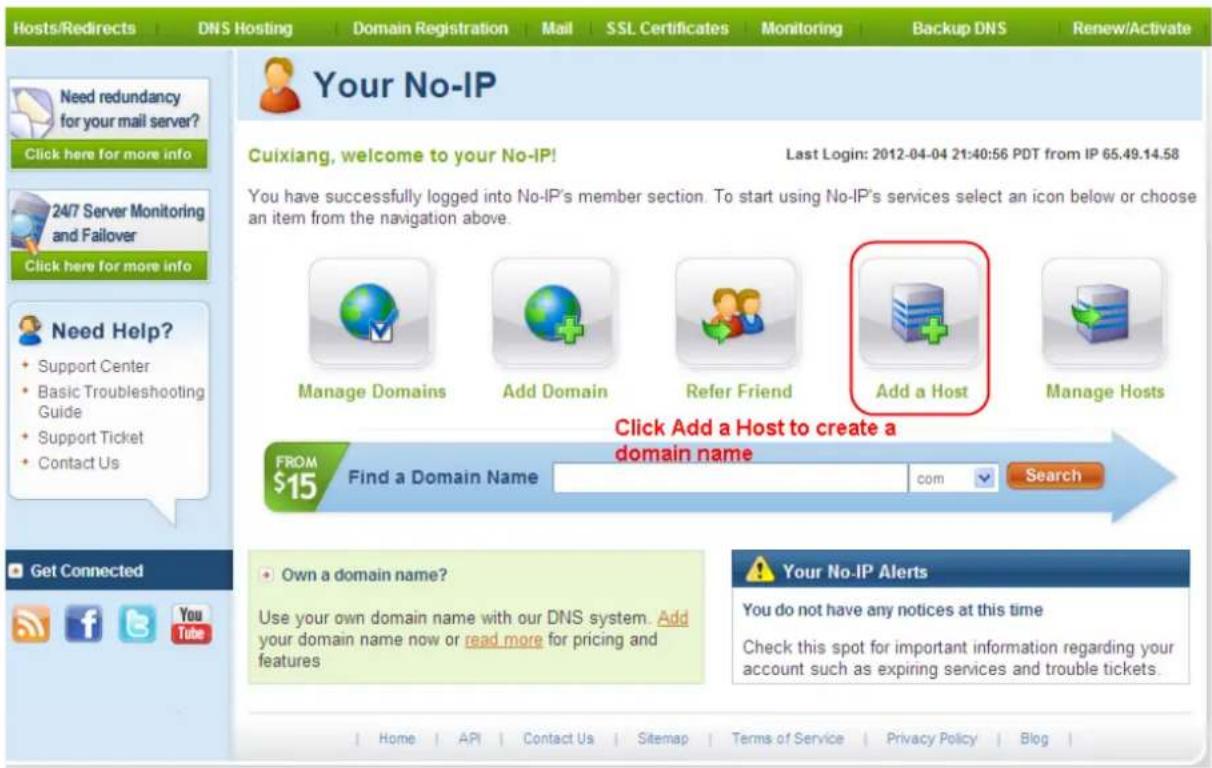

Secondly: Login the link with the registered username and password to create your domain name.

no-ip The DNS Service Provider Home Download Services Support Company Client Login Home Client Login Login with the registered username and password Email: Password: Login Forget your password? No problem, Click Here If you are not currently a registered user of No-IP.com, and would like to be for FREE, register as a new user. User Login Username cuixiang Password ****** Create Account Forgot password? Login Additional Services No-IP Enhanced Upgrade your No-IP account to unlock many exciting features. No-IP Backup DNS Maximize uptime and add Anycast to your existing DNS infrastructure. No-IP Monitoring

Figure 3.28

Hosts/Redirects DNS Hosting Domain Registration Mail SSL Certificates Monitoring Backup DNS Renew/Activate Need redundancy for your mail server? Click here for more info 24/7 Server Monitoring and Failover Click here for more info Need Help? • Support Center • Basic Troubleshooting Guide • Support Ticket • Contact Us Your No-IP Cuixiang, welcome to your No-IP! Last Login: 2012-04-04 21:40:56 PDT from IP 65.49.14.58 You have successfully logged into No-IP's member section. To start using No-IP's services select an icon below or choose an item from the navigation above. Manage Domains Add Domain Refer Friend Add a Host Manage Hosts Click Add a Host to create a domain name FROM $15 Find a Domain Name kom Search Get Connected Own a domain name? Use your own domain name with our DNS system. Add your domain name now or read more for pricing and features Your No-IP Alerts You do not have any notices at this time Check this spot for important information regarding your account such as expiring services and trouble tickets. Home API Contact Us Sitemap Terms of Service Privacy Policy Blog

Figure 3.29

Please create the domain name step by step according to instructions on www.no-ip.com

Step 2, DO DDNS Service Settings within the Camera

Please set DDNS Service Settings within the camera by hostname, a user name and password you've got from www.no-ip.com

Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly, goes to option of DDNS Service Settings on the administrator panel.

Secondly, disable the Manufacturer's domain name and select No-Ip as a server in the Third Party DDNS.

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect. The camera will restart and to take the DDNS settings effective.

Fourthly, after the restart, login the camera, and go to option of Device Status on the administrator panel, and check if the DDNS status is successful.

If failed, please double check if you have input the correct hostname, user name, and password, and try to redo the settings.

Note

The Third Party DDNS and the Manufacturer's Domain Name cannot work at the same time. If you have set Third Party DDNS and meanwhile you enabled the Foscam Domain Name, the Third Party DDNS will take effect.

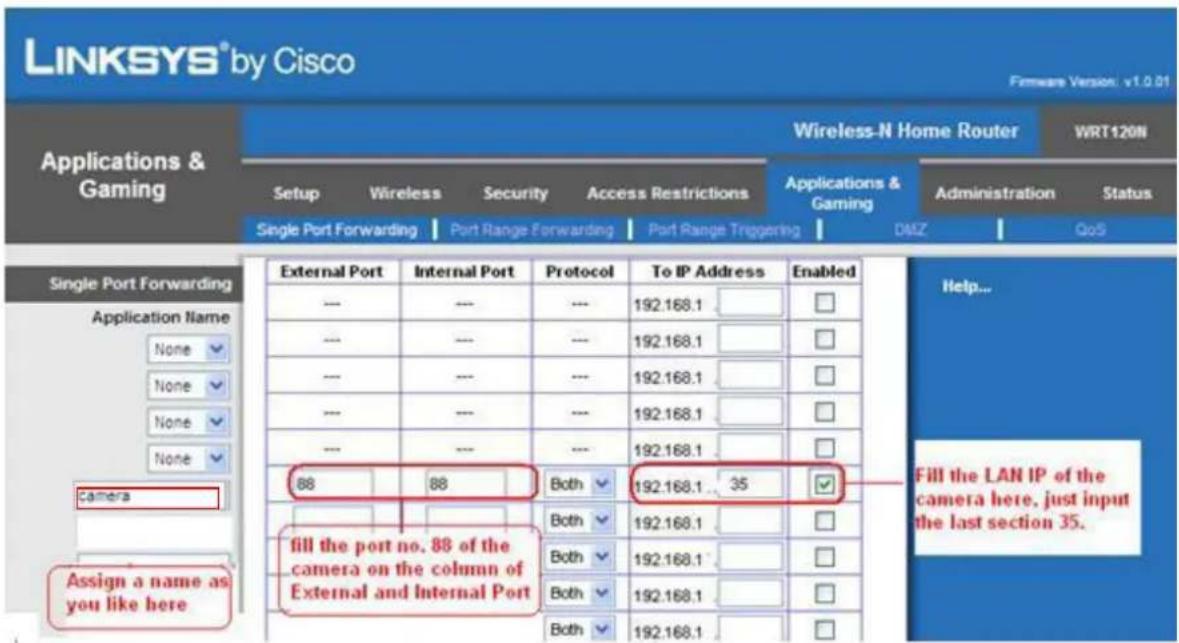

② Do port forwarding within the router

Example: The camera's LAN IP address is http://192.168.1.35:88,

Firstly, login the router, goes to the menu of Port Forwarding or Port Trigger (or named Virtue Server on some brands of router). Take Linksys brand router as an example, Login the router, and goes to Applications & Gaming->Single Port Forwarding.

Secondly, Create a new column by LAN IP address & HTTP Port No. of the camera within the router showed as below.

LINKSYS® by Cisco Firmware Version: v1.0.01 Applications & Gaming Wireless-N Home Router WRT120N Setup Wireless Security Access Restrictions Applications & Gaming Administration Status Single Port Forwarding Port Range Forwarding Port Range Triggering DAEZ QoS Single Port Forwarding Application Name None ✓ None ✓ None ✓ Camera Assign a name as you like here External Port Internal Port Protocol To IP Address Enabled --- --- --- 192.168.1 --- --- --- 192.168.1 --- --- --- 192.168.1 --- --- --- 192.168.1 88 88 Both 192.168.1 35 ✓ Both 192.168.1 Both 192.168.1 Both 192.168.1 Both 192.168.1 Both 192.168.1

Figure 3.30

③ Use domain name to access the camera via internet

After the port forwarding is finished, you can use the domain name+ http no. to access the camera via internet. Take hostname ycxgwp.no-ip.info and http no. 88 for example, the accessing link of the camera via internet would be http://ycxgwp.no-ip.info:88

3.11 Mail Service Settings

If you want the camera to send emails when motion has been detected, Mail Service Settings will need to be configured.

Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Mail Service Settings Sender [e-mail] Receiver 1 [e-mail] Receiver 2 Receiver 3 Receiver 4 SMTP Server smtp.gmail.com SMTP Port 25 Transport Layer Security STARTTLS Gmail only supports TLS at port 465 STARTTLS at port 25/587. Need Authentication ✓ SMTP User [e-mail] SMTP Password ****** Test Please set first, and then test. Report Internet IP by Mail ✓ Submit Refresh Figure 3.31 5

1---- Sender Mailbox for sender must support SMTP

2---- Receiver Mailbox for receiver need not support SMTP, you can set 4 receivers

3---- SMTP Server/ Port Enter SMTP server for sender. SMTP port is usually set as 25. Some SMTP servers have their own port, such as 587 or 465 and Transport Layer Security usually is None. If you use Gmail, Transport Layer Security must be set to TLS or STARTTLS and SMTP Port must be set to 465 or 25 or 587, which port you choose should be decided by which Transport Layer Security you select.

4---- SMTP user ID account of the sender email address

5----Submit Click Submit to take effect

6----Test Click Test to see if SMTP has been successfully configured.

NOTE: Click Submit first before choosing Test.

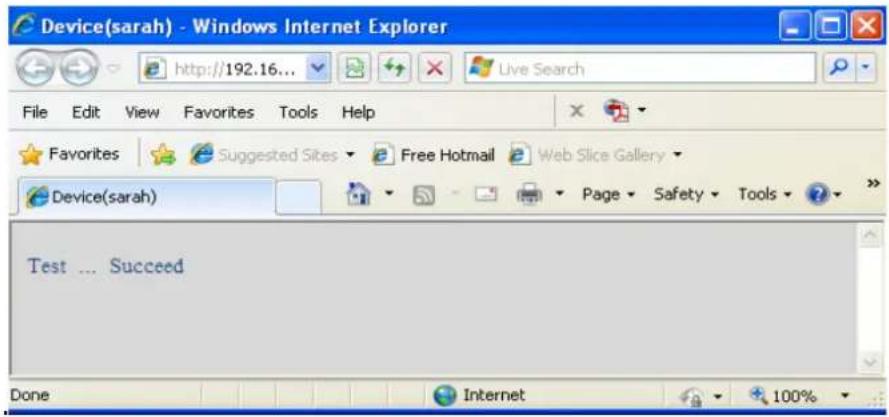

Click Test to see if SMTP has been successfully configured.

Device(sarah) - Windows Internet Explorer http://192.16... File Edit View Favorites Tools Help Favorites Suggested Sites Free Hotmail Web Slice Gallery Device(sarah) Test ... Succeed Done Internet 100%

Figure 3.32

If the test fails with one of the following errors after clicking Test, verify that the information you entered is correct and again select Test.

1) Cannot connect to the server
2) Network Error. Please try later
3) Server Error
4) Incorrect user or password
5) The sender is denied by the server. Maybe the server need to authenticate the user, please check it and try again
6) The receiver is denied by the server. Maybe because of the anti-spam privacy of the server
7) The message is denied by the server. Maybe because of the anti-spam privacy of the server
8) The server does not support the authentication mode used by the device

Report Internet IP by Mail—If selected, you will receive emails which contains internet IP information such as When the camera is powered or the Internet IP has changed. (For example: IPCAM's urls is http://119.123.207.96:8068). Make sure the port is mapped to the router correctly.

3.12 MSN Setting

If you want the camera send its current internet IP address to you or your friends, please set MSN settings.

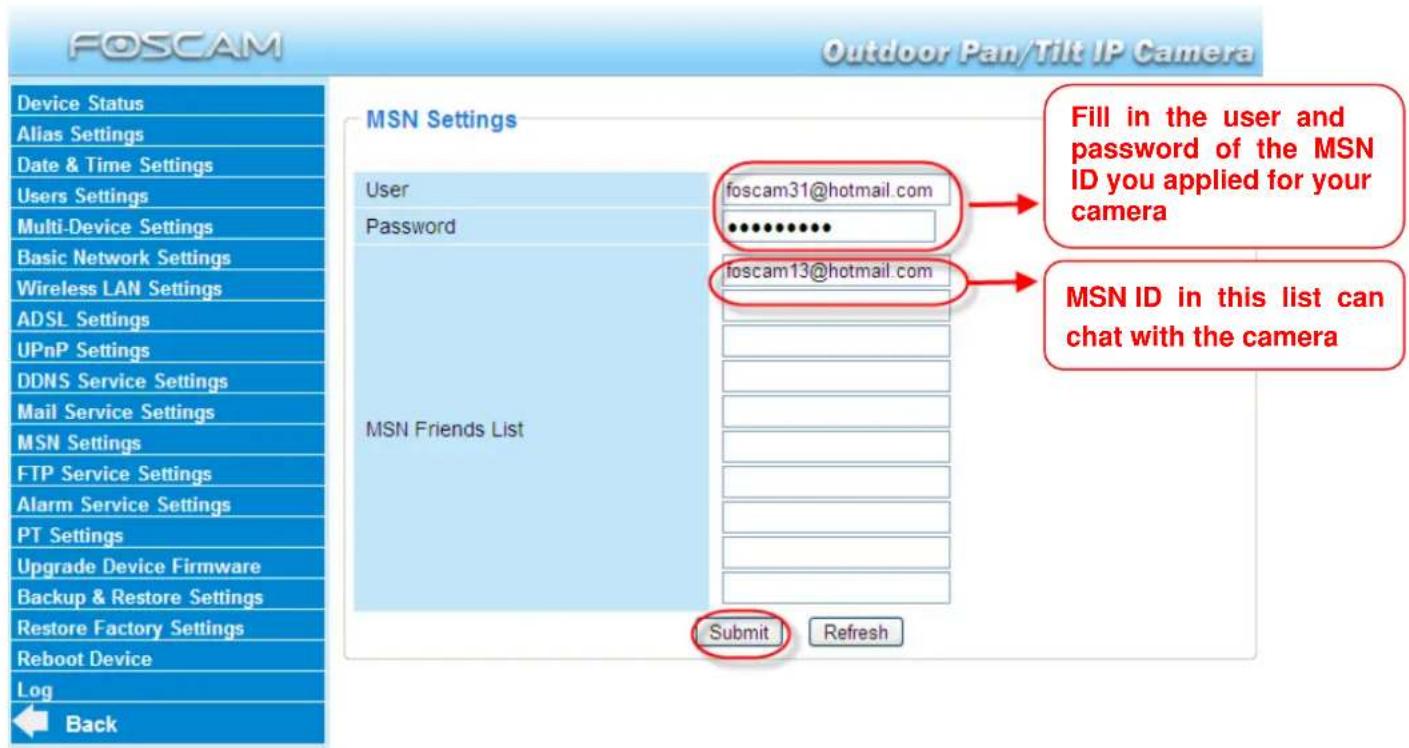

Acquire an MSN ID for the IPCAM first, then follow the instructions as per Figure 3.33.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back MSN Settings User [e-mail] Password [e-mail] MSN Friends List Submit Refresh Fill in the user and password of the MSN ID you applied for your camera MSN ID in this list can chat with the camera

Figure 3.33

Click Submit and go to the "Device Status" screen and verify the MSN settings are succeed.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Device ID 000DC5D5FE9B Device Firmware Version 11.37.2.48 Device Embedded Web UI Version 2.4.40.2 Alias apple Alarm Status None DDNS Status Foscam Failed UPnP Status No Action MSN Status Succeed

Figure 3.34

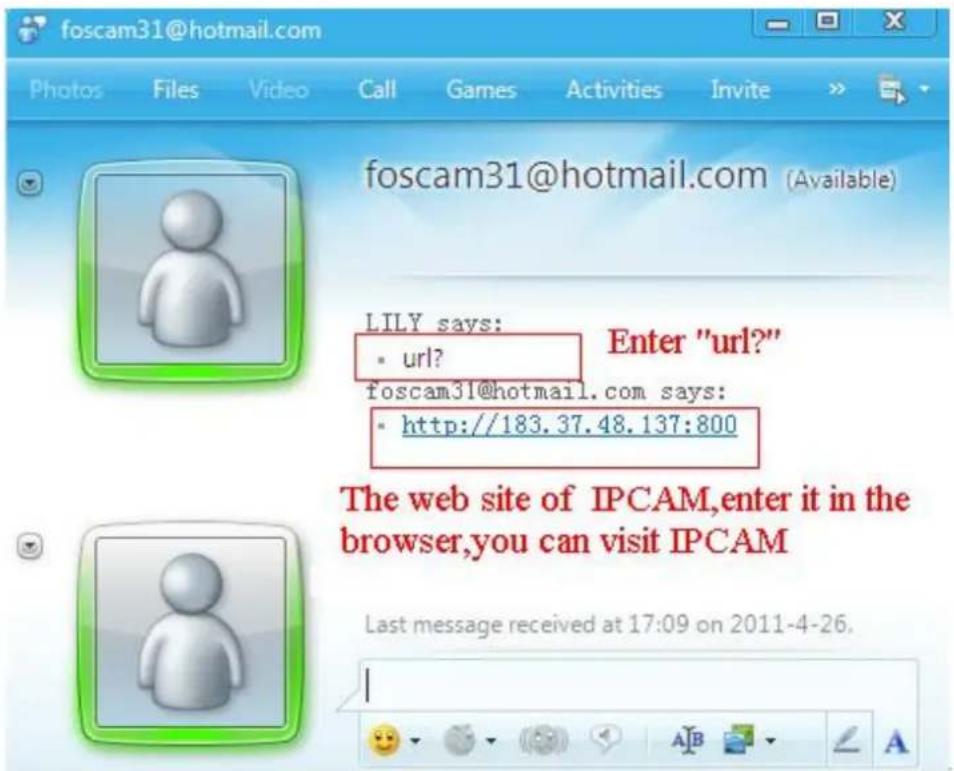

When the MSN ID in the Friends list login the MAN, he can chat with camera. For example:

Foscam13(this account contained in the Friends list) log in MSN, and double click the camera's account (foscam31), then enter "url?", the camera will send it's current IP address to you.

[e-mail] Photos Files Video Call Games Activities Invite [e-mail] (Available) LILY says: • url? Enter "url?" [e-mail] says: • http://183.37.48.137:800 The web site of IPCAM,enter it in the browser,you can visit IPCAM Last message received at 17:09 on 2011-4-26.

Figure 3.35

Note: Create a new MSN account for the camera, do not use the same MSN account as you

would like to chat with your friends. When the camera login uses the MSN account, this account cannot be used for anything else when the camera works.

3.13 FTP Service Settings

If you want to upload images to your FTP server, you can set FTP Service Settings.

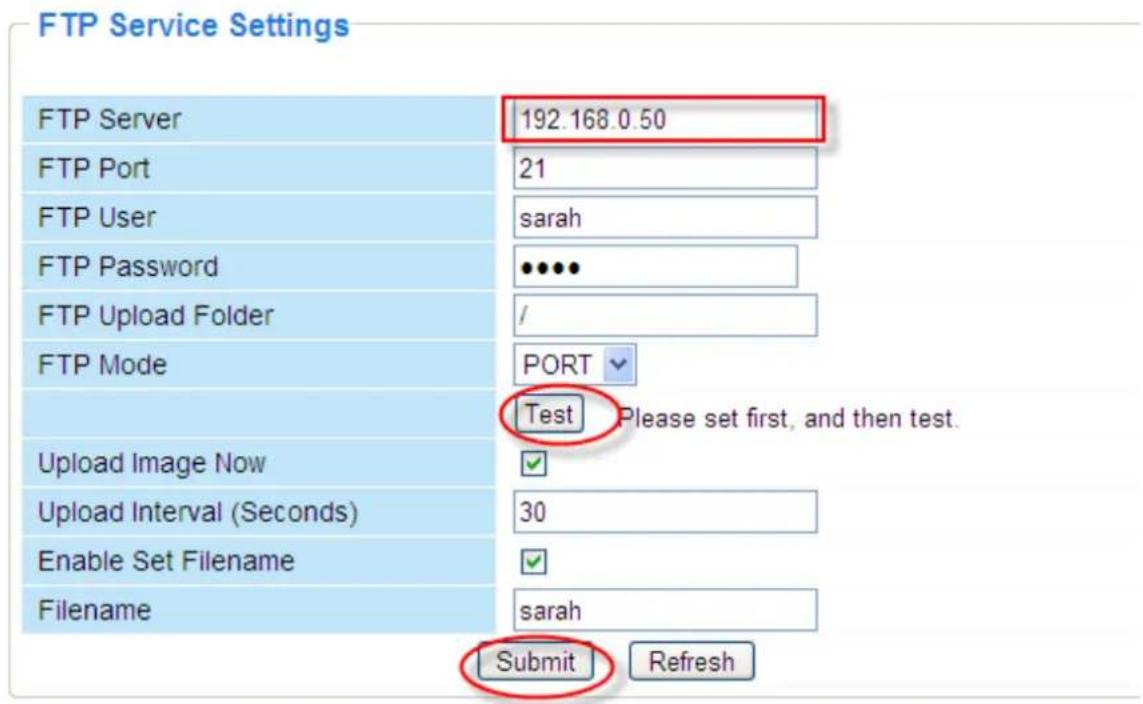

FTP Service Settings FTP Server 192.168.0.50 FTP Port 21 FTP User sarah FTP Password ••••• FTP Upload Folder / FTP Mode PORT Test Please set first, and then test. Upload Image Now ✓ Upload Interval (Seconds) 30 Enable Set Filename ✓ Filename sarah Submit Refresh

Figure 3.36

FTP Service Settings FTP Server ftp.mgenseal.com FTP Port 21 FTP User [e-mail] FTP Password ••••• FTP Upload Folder / FTP Mode PORT Test Please set first, and then test. Upload Image Now ✓ Upload Interval (Seconds) 30 Enable Set Filename ✓ Filename sarah Submit Refresh

Figure 3.37

FTP server: If your FTP server is located on the LAN, you can set as Figure 3.36.

If you have an FTP server which you can access on the internet, you can set as Figure 3.37.

FTP Port: Usually the port is 21.

FTP Upload Folder: Make sure that the folder you plan to store images exists as the camera can't create the folder itself. Also, the folder must be read/writable.

FTP Mode: The camera supports standard (POST) mode and passive (PASV) mode

Upload Image Now: This option will upload images continuously when you enable the checkbox

Enable Set Filename: When you enable this option the uploaded image will be named according to the filename you enter. The next image will overwrite the filename of the previous image. Hence there will only be one image, the last uploaded.

Filename: See the above option.

Note: You cannot change the name of the alarm image.

Upload Interval refers to the time between the current image and the next image being uploaded.

Click Submit to save these settings. Click Test, the following screen displays if successful.

Device(sarah) - Windows Internet Explorer http://192.168.0.109-8100/ File Edit View Favorites Tools Help Favorites Suggested Sites Free Hotmail Web Slice Gallery Device(sarah) Test ... Succeed Done Internet 100%

Figure 3.38

The following errors may occur:

1) Can not connect to the server. Check if the FTP Server is correct.
2) Network Error. Please try later.
3) Server Error.
4) Incorrect user or password. Check the username and password.
5) Cannot access the folder. Verify the folder exists and your account is authorized
6) Error in PASV mode. Verify the server supports PASV mode.
7) Error in PORT mode. PASV mode should be selected if the device is behind a NAT.
8) Cannot upload file. Verify your account is authorized
If an error occurs check the parameters you entered are correct. The filename format of the image is similar to 00606E8C1930(sarah)_0_20100728114350_25.jpg
Check if your FTP server supports this file name format.

3.14 Alarm Service Settings

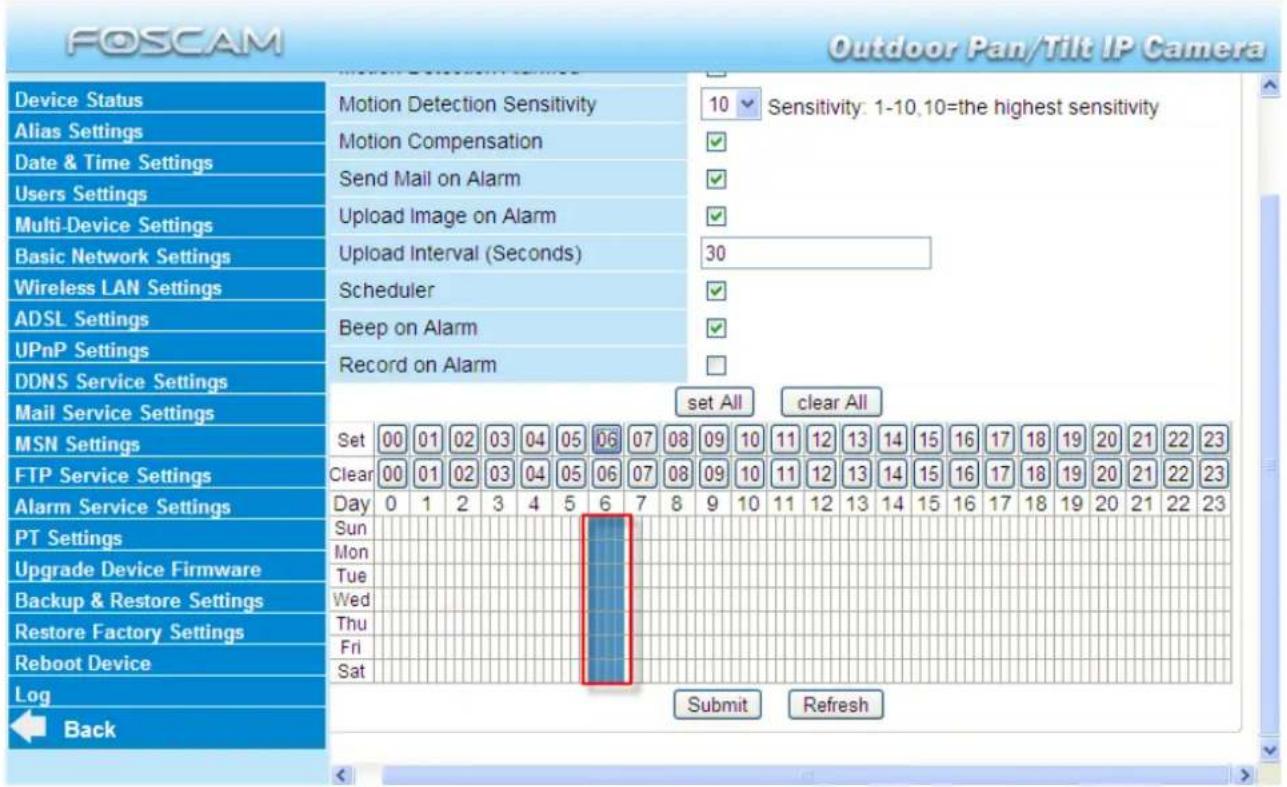

IP Camera supports Motion Detection Alarmed, when the motion has been detected, it will send email alerts or upload images or record.

Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Outdoor Pan/Tilt IP Camera Alarm Service Settings Motion Detection Alarmed ✓ 1 Motion Detection Sensitivity 10 ✓ Sensitivity: 1-10,10=the highest sensitivity Motion Compensation ✓ 3 Send Mail on Alarm Upload Image on Alarm Scheduler Beep on Alarm Record on Alarm Submit Refresh

Figure 3.39

1---- If you want to set Motion Detection Alarmed, select the checkbox
2---- The larger the number, the higher the motion sensitivity will be
3---- Select this option to reduce false alarms when light changes

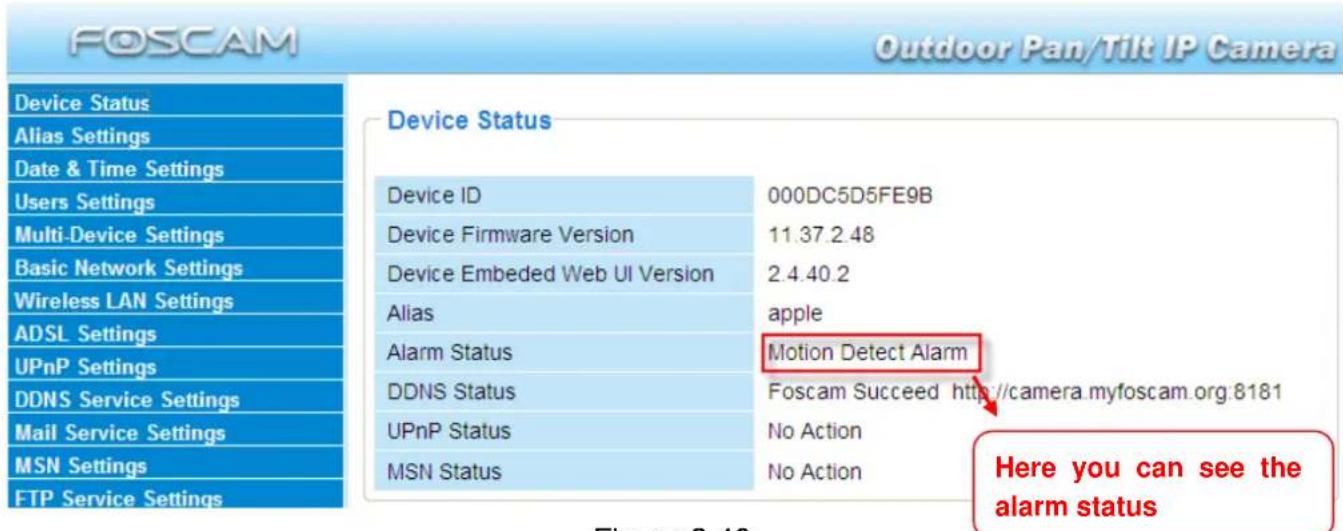

If motion is detected after you enable Motion Detection Armed Detection Alarmed, the Alarm Status will turn to Motion Detect Alarm.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Device Status Device ID 000DC5D5FE9B Device Firmware Version 11.37.2.48 Device Embedded Web UI Version 2.4.40.2 Alias apple Alarm Status Motion Detect Alarm DDNS Status Foscam Succeed http://camera.myfoscam.org:8181 UPnP Status No Action MSN Status No Action Here you can see the alarm status

Figure 3.40

There are four alarm indicators:

1) Camera will send emails when motion is activated.

If you want to receive images when motion is detected, you must set Mail Service Settings first.

(Figure 3.31) Then set motion alarm as follows:

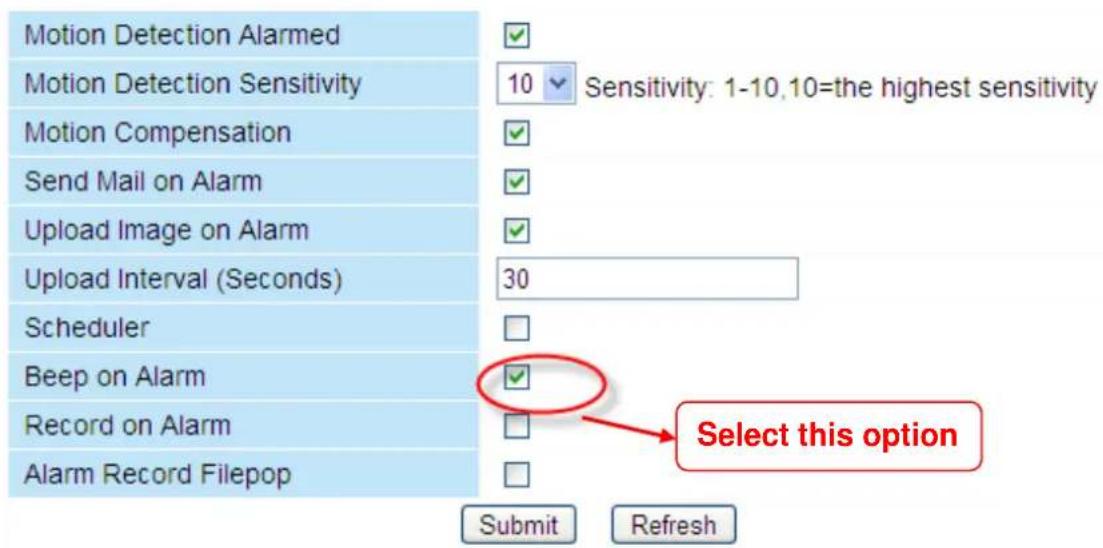

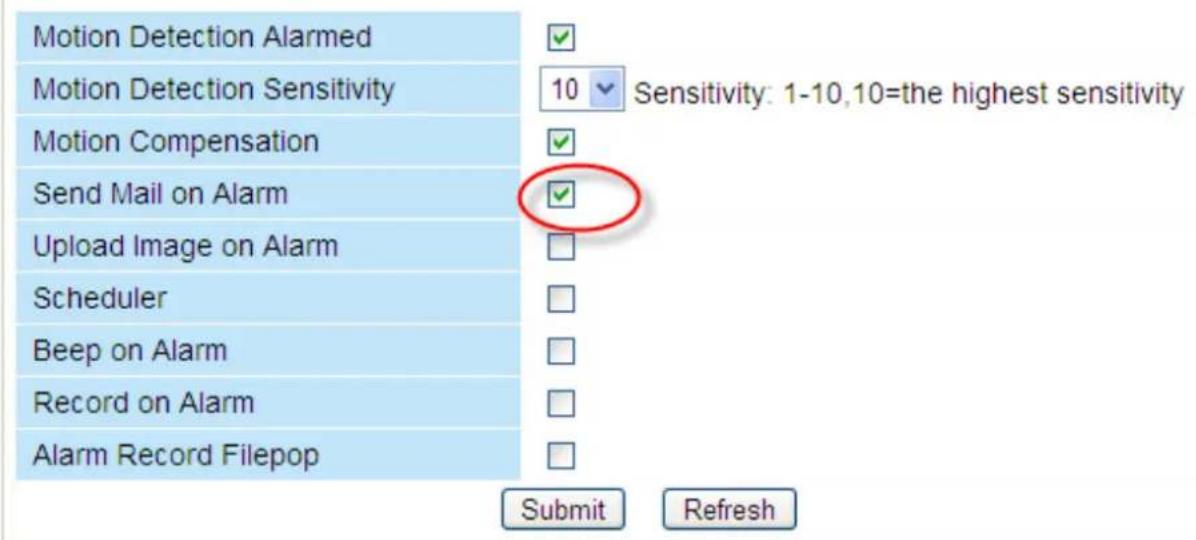

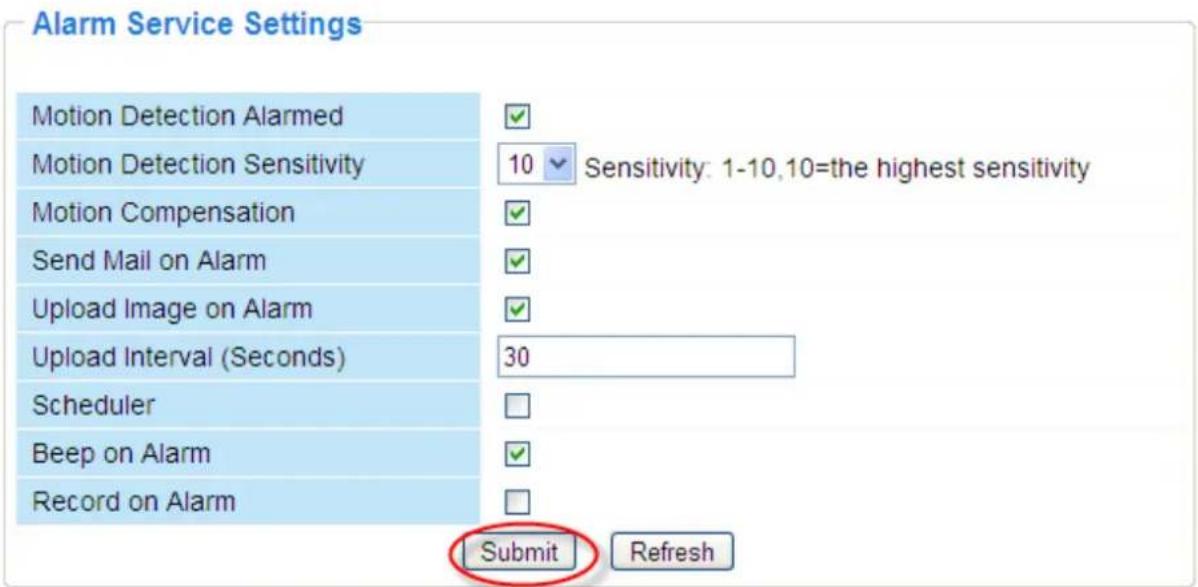

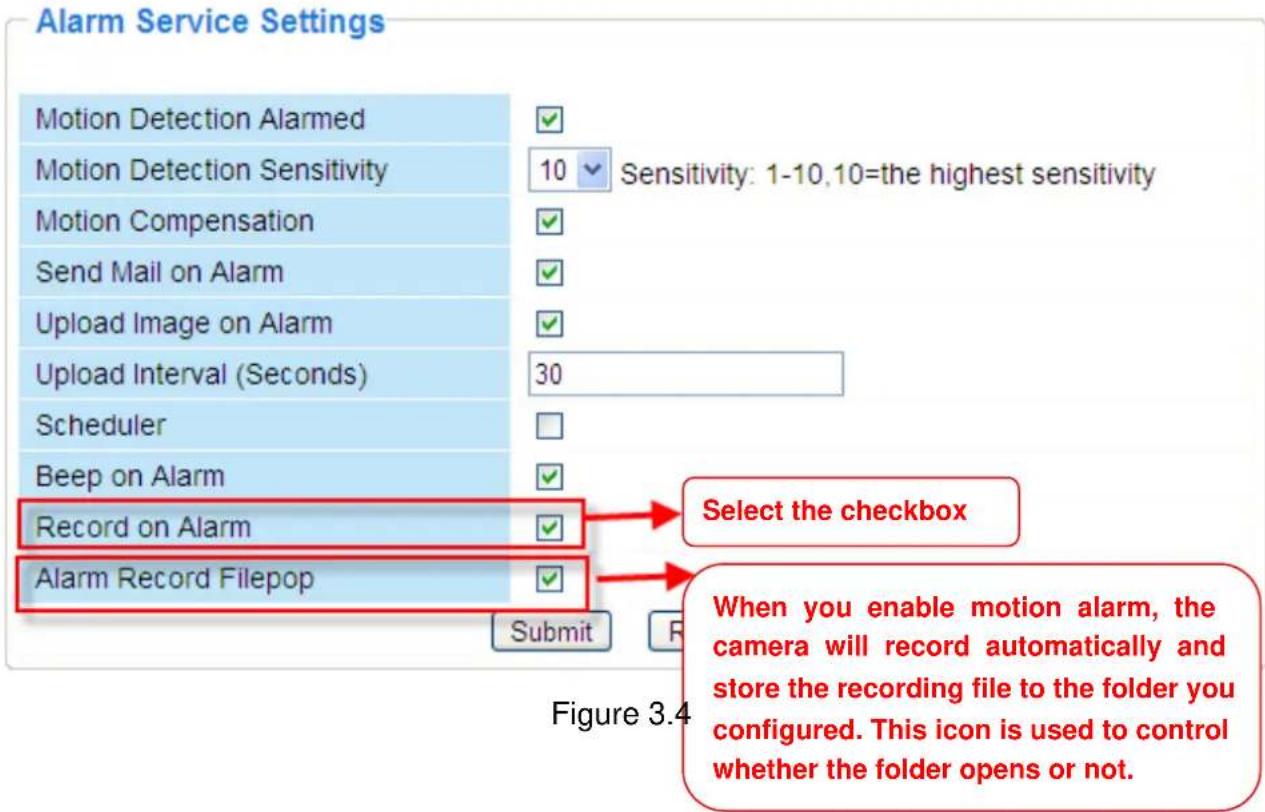

Alarm Service Settings

Motion Detection Alarmed Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation Send Mail on Alarm Upload Image on Alarm Scheduler Beep on Alarm Record on Alarm Alarm Record Filepop Submit Refresh

Figure 3.41

2) Upload images via FTP server when motion trigger.

To upload images to an FTP server when motion is detected, you must set FTP Service Settings(Figure 3.36/3.37) first and then set motion alarm as pictured below

Alarm Service Settings Motion Detection Alarmed Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation Send Mail on Alarm Upload Image on Alarm Select this option Upload Interval (Seconds) 30 Scheduler Beep on Alarm Record on Alarm Alarm Record Filepop Set an interval for images to upload Submit Refresh

Figure 3.42

3) You can hear the beep sound when the alarm has been detected.

Alarm Service Settings

Motion Detection Alarmed Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation Send Mail on Alarm Upload Image on Alarm Upload Interval (Seconds) 30 Scheduler Beep on Alarm Record on Alarm Alarm Record Filepop Submit Refresh Select this option

Figure 3.43

4) The camera will record automatically for one minute after motion is detected. You can find the recording file in the folder which you set previously. (Figure 3.6)

Alarm Service Settings Motion Detection Alarmed Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation Send Mail on Alarm Upload Image on Alarm Upload Interval (Seconds) 30 Scheduler Beep on Alarm Record on Alarm Alarm Record Filepop Submit Select the checkbox When you enable motion alarm, the camera will record automatically and store the recording file to the folder you configured. This icon is used to control whether the folder opens or not. Figure 3.4

Alarm Scheduler:

Here are two ways to set the alarm.

1) Alarm at any time when motion is detected.

Don't select Scheduler. Click Submit and the camera will alarm at any time when motion is detected.

Alarm Service Settings Motion Detection Alarmed Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation Send Mail on Alarm Upload Image on Alarm Upload Interval (Seconds) 30 Scheduler Beep on Alarm Record on Alarm Submit Refresh

Figure 3.45

Another Way: select Scheduler, and click "set All", you will see all time boxes turn blue as in the following picture. Click Submit and the camera will alarm at any time when motion is detected.

Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation ✓ Send Mail on Alarm ✓ Upload Image on Alarm ✓ Upload Interval (Seconds) 30 Scheduler ✓ Beep on Alarm ✓ Record on Alarm set All clear All Set 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Clear 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Day 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Sun Mon Tue Wed Thu Fri Sat Submit Refresh

Figure 3.46

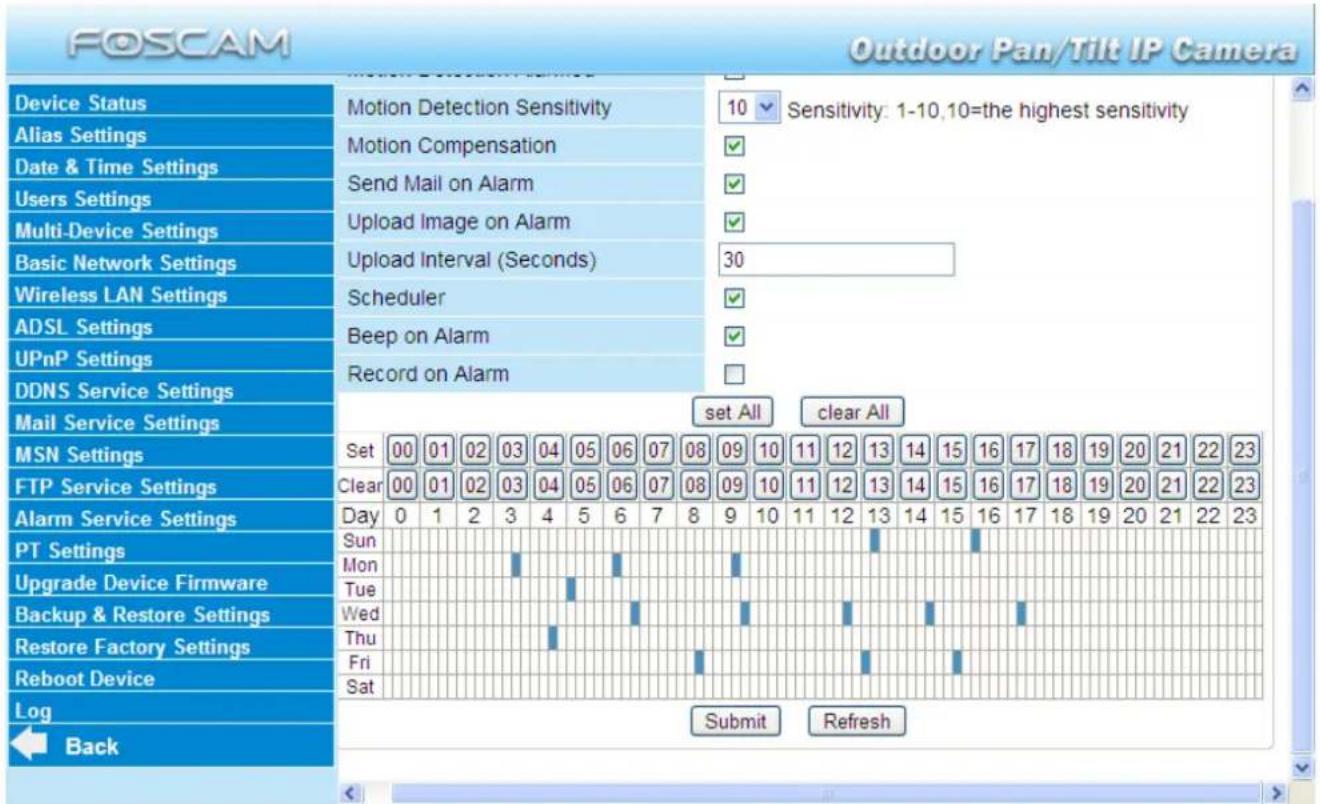

2) Specify an alarm schedule.

If you want the camera to alarm during set times select Scheduler and set time range.

If you want to select one serial area, you can click any number between 00 and 23 on the first row, the corresponding column will be selected and it will turn blue. For example, click the number "06" on the first row, you can see the column turn blue. That means the camera will alarm when motion is detected between 6 and 7 o'clock every day. Click the number "06" on the second row, you can cancel the corresponding column you set. And it will turn grey.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation ✓ Send Mail on Alarm ✓ Upload Image on Alarm ✓ Upload Interval (Seconds) 30 Scheduler ✓ Beep on Alarm ✓ Record on Alarm set All clear All Set 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Clear 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Day 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Sun Mon Tue Wed Thu Fri Sat Submit Refresh

Figure 3.47

If you want to select discrete area, you click the left button on the box of time range. It will turn blue. If you want to delete it, just click the left button and it will turn grey.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Motion Detection Sensitivity 10 Sensitivity: 1-10,10=the highest sensitivity Motion Compensation ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Set 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Clear 00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Day 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 Sun Mon Tue Wed Thu Fri Sat set All clear All Submit Refresh

Figure 3.48

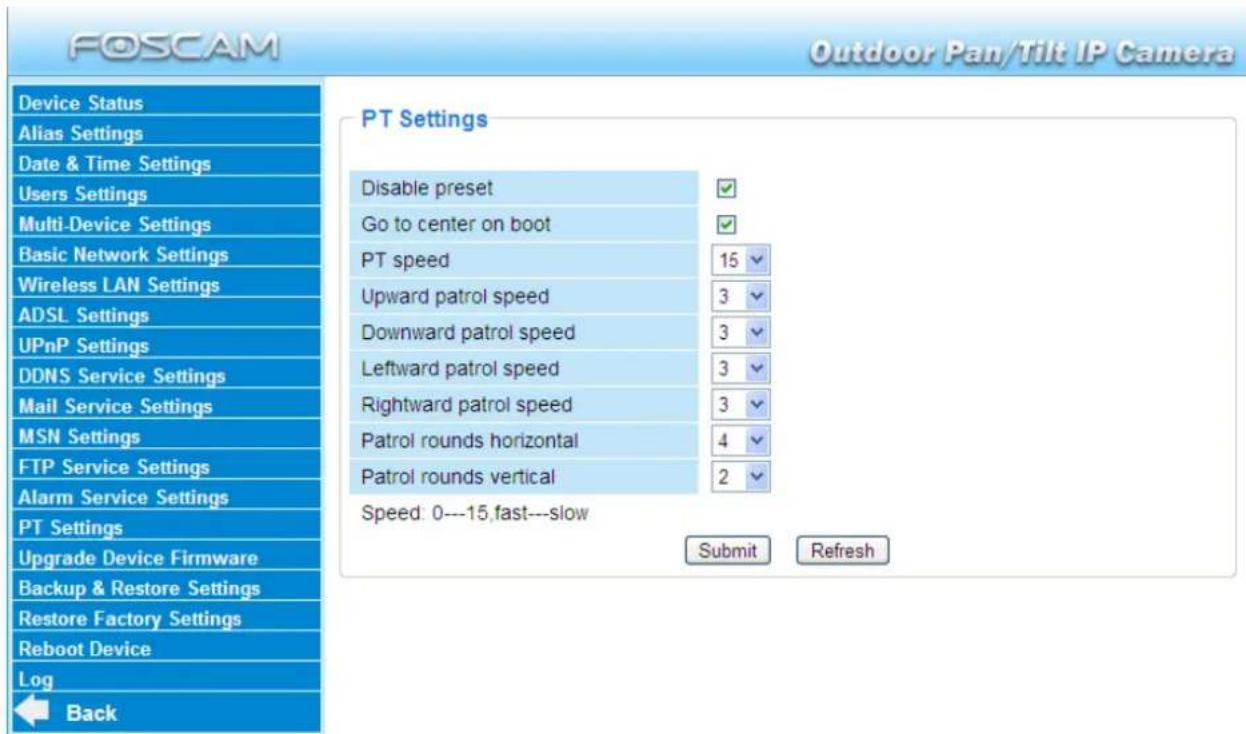

3.15 PT Settings

You can set pan/tilt speed. Normally, PT speed is 3. The larger the setting number, the lower speed. Don't enable the checkbox "disable preset" if you want to use the function of preset, it will be effective after you reboot device.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back PT Settings Disable preset ✓ Go to center on boot ✓ PT speed 15 ✓ Upward patrol speed 3 ✓ Downward patrol speed 3 ✓ Leftward patrol speed 3 ✓ Rightward patrol speed 3 ✓ Patrol rounds horizontal 4 ✓ Patrol rounds vertical 2 ✓ Speed: 0---15,fast---slow Submit Refresh

Figure 3.49

Patrol rounds horizontal: Set the round between 1 and 10, then click Submit. Back to surveillance window. Click the Horizon patrol button, the camera will patrol the rounds horizontally you set and then stop if you don't click Stop horizon patrol button. For example, you set 4 for the patrol rounds. Click submit and back to surveillance window. Click the Horizon patrol button and do not click the Stop horizon patrol button, the camera will patrol 4 rounds and then stop automatically.

Patrol rounds vertical: Set the round between 1 and 10, then click submit. Back to surveillance window Click the Vertical patrol button, the camera will patrol the rounds vertically you set and then stop if you don't click Stop vertical patrol button.

3.16 Upgrade Device Firmware

When you upgrade the camera, please upgrade system firmware first and then upgrade the Web UI.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Upgrade Device Firmware Upgrade Device Embedded Web UI Upgrade system firmware Upgrade Web UI

Figure 3.50

Click Browse, choose the correct bin file and then click Submit to upgrade.

Don't shut down the power during upgrade until the IP camera tool finds the camera again.

Upgrade Firmware by IP Camera Tool

Double click the IP Camera Tool shot icon, select the Camera IP that you want to upgrade the firmware. Then select Upgrade Firmware and enter the username and password, choose the firmware file, and upgrade.

IP Camera Tool Anonymous Http://192.168.8.101-2008 Basic Properties Network Configuration Upgrade Firmware Refresh Camera List Flush Arp Buffer About IP Camera Tool

Figure 3.51

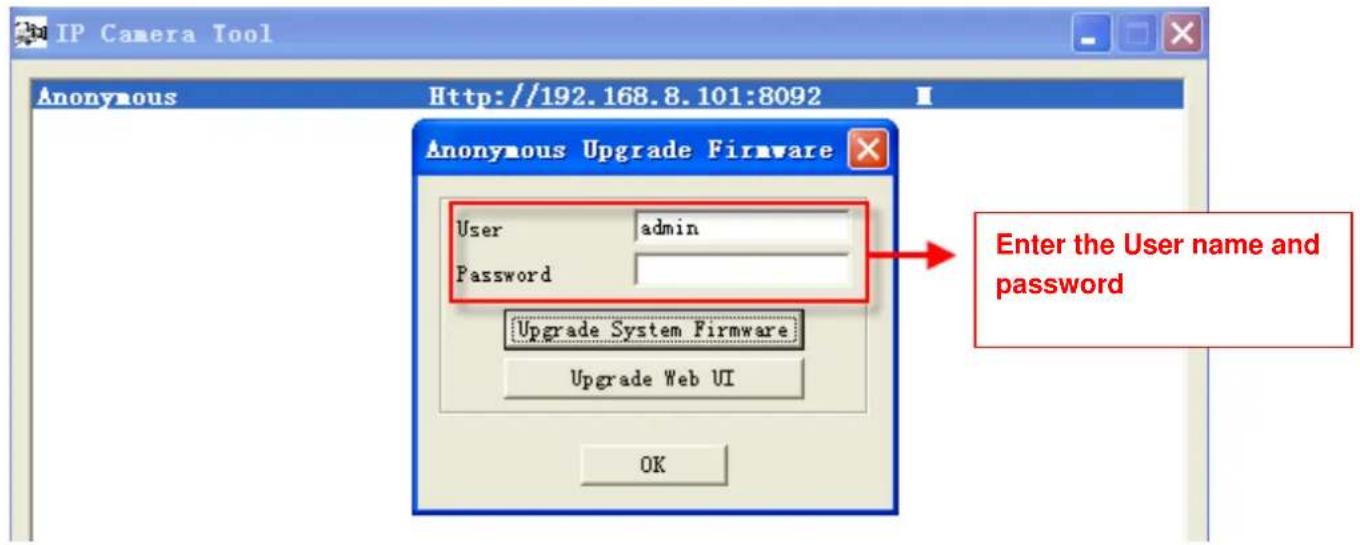

IP Camera Tool Http://192.168.8.101:8092 Anonymous Upgrade Firmware User admin Password Upgrade System Firmware Upgrade Web UI OK Enter the User name and password

Figure 3.52

CAUTION: If your camera works well with the current firmware, we recommend not upgrading. Please don't upgrade the firmware unnecessarily. Your camera may be damaged if misconfigured during an upgrade.

NOTE:

1) Please ensure you have download the correct firmware package for your camera before upgrading. Read the upgrade documentation (readme.txt file) in the upgrade package before you upgrade.
2) Upon downloading the firmware check the sizes of the .bin files. They must match the size in the readme.txt file. If not, please download the firmware again until the sizes are the same. Your camera will not function correctly if a corrupt .bin file is used.
3) Normally, only Device WEB UI need to be upgrade, please do not try to upgrade the Device Firmware.
4) Never shut down the power of the camera during upgrade until the IP camera restart and get connected.

3.17 Backup & Restore Settings

Click Submit to save all the parameters you have set. These parameters will be stored in a bin file for future use. The bin file can be reloaded to restore the parameters that were set.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings Backup & Restore Settings Backup Submit Restore Browse... Submit Click Submit to store parameters Load the parameters bin file

Figure 3.53

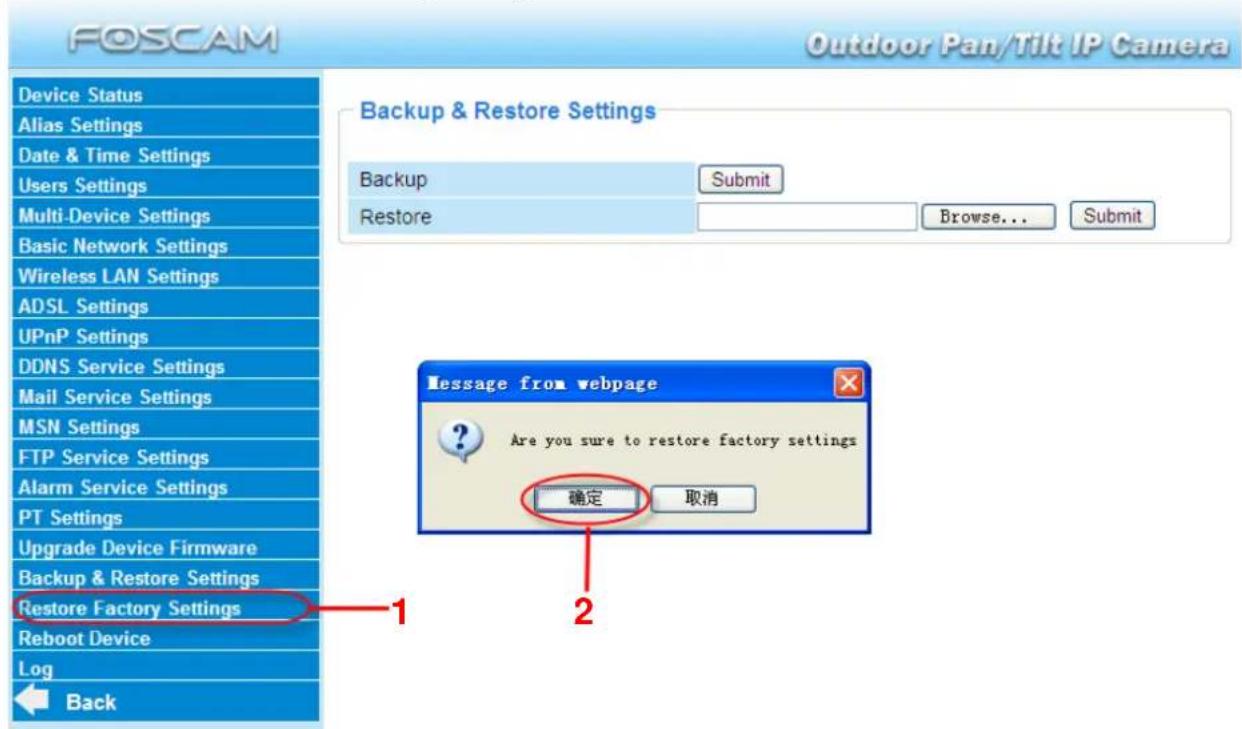

3.18 Restore Factory Settings

All parameters will return to factory settings if selected.

FOSCAM Outdoor Pan/Tilt IP Camera Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Backup & Restore Settings Backup Submit Restore Browse... Submit Message from webpage Are you sure to restore factory settings 确定 取消 1 2

Figure 3.54

3.19 Reboot Device

Click Reboot Device to reboot the camera. This is similar to unplugging the power to the camera.

3.20 Log

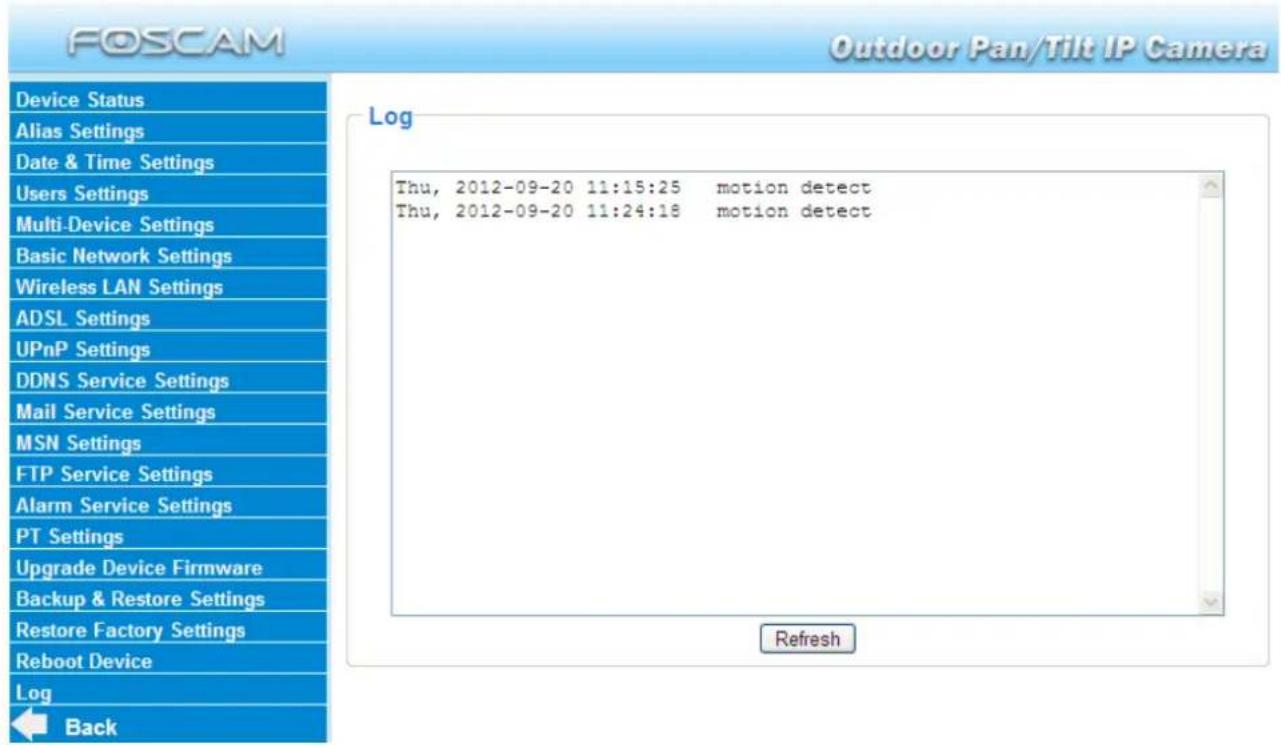

The log record shows who accessed the camera and when. (Figure 3.55).

Device Status Alias Settings Date & Time Settings Users Settings Multi-Device Settings Basic Network Settings Wireless LAN Settings ADSL Settings UPnP Settings DDNS Service Settings Mail Service Settings MSN Settings FTP Service Settings Alarm Service Settings PT Settings Upgrade Device Firmware Backup & Restore Settings Restore Factory Settings Reboot Device Log Back Log Thu, 2012-09-20 11:15:25 motion detect Thu, 2012-09-20 11:24:18 motion detect Refresh

Figure 3.55

3.21 Back

This will take you back to the surveillance window.

4 Phone APPs

With Phone APPs, you can view your camera directly as a computer anywhere, anytime. This section shows the user how to set up the iPhone, and Android mobile phones to view Foscam cameras with Phone APPs.

4.1 APP for Android cell phones

There are two ways to install the phone App :

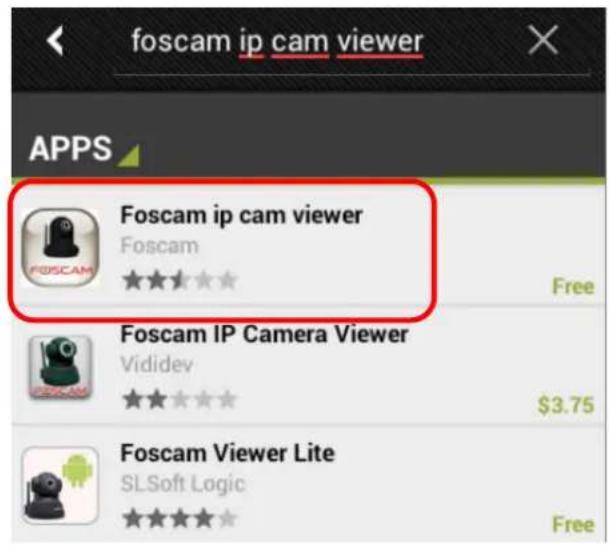

1) Search the APP "Foscam ip cam viewer" in the Google Play directly if your cell phone has installed Google Play.

foscam ip cam viewer Foscam ip cam viewer Foscam ★★★★★ Foscam IP Camera Viewer Vididev ★★★★★ $3.75 Foscam Viewer Lite SLSoft Logic ★★★★★ Free

Figure 4.1

Download and install the phone view app, then you can see the shortcut icon in your cell phone screen.

Foscam FoscamIPC

2) Enter http://play.google.com in the URL field of the browser, then search the APP "Foscam ip cam viewer". Download and install the APP.

Click the shortcut icon

and login Phone APP.

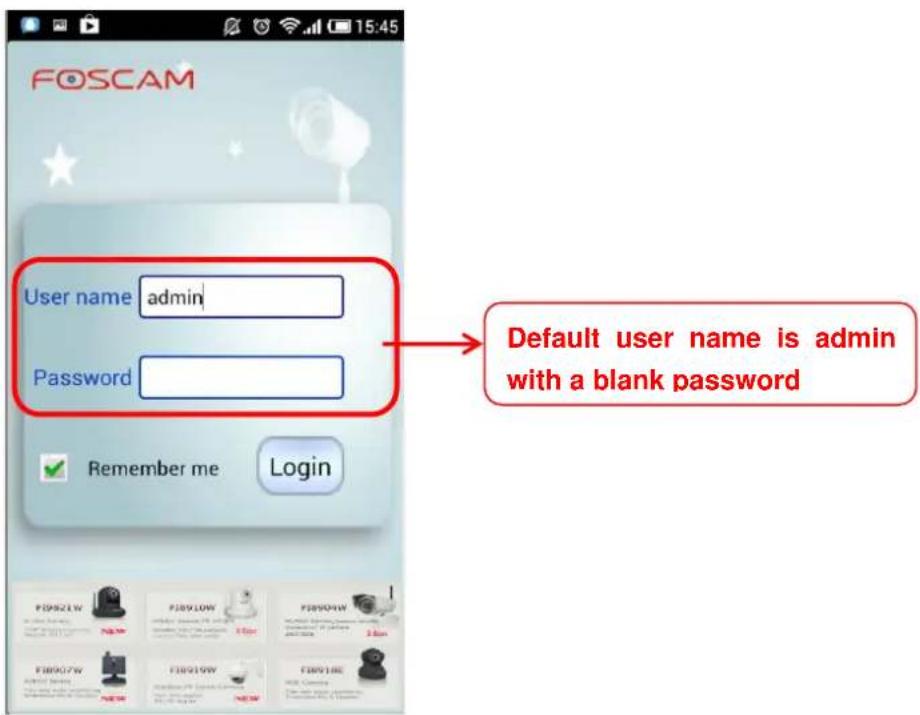

FOSCAM User name admin Password Default user name is admin with a blank password Remember me Login FOSCAM FOSCAM FOSCAM FOSCAM FOSCAM FOSCAM FOSCAM

Figure 4.2

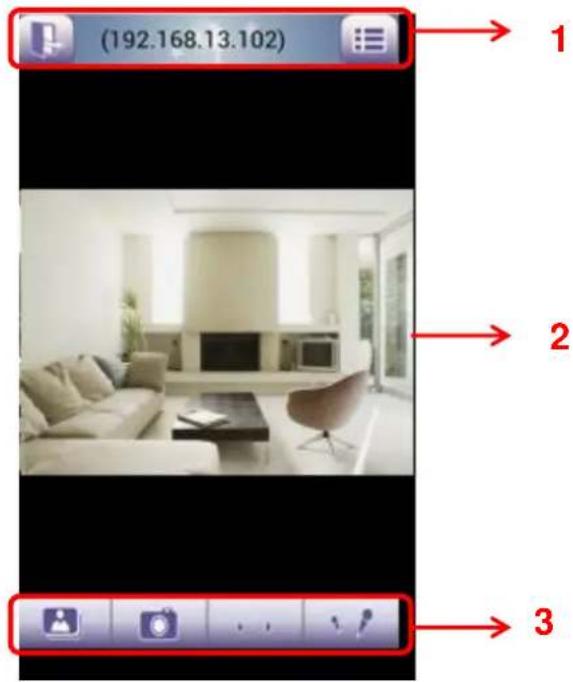

Enter the user name and password then click Login button, you can see the following surveillance windows:

(192.168.13.102) 1 2 3

Figure 4.3

The default surveillance window is black, you need to add devices to it and then connect the device.

Please check the login window above, it was divided to 3 sections from no. 1 to 3.

Section1 Exit / Go to Device List Buttons

Click this icon and exit Phone App

Click this icon and back to Device List page to add cameras to the software

Section2 Live view window

If the camera supports PT function, here slide on the screen with your finger, the camera will rotate follow your finger direction.

Section3 Playback/ Snapshot/Audio/Talk buttons

Playback Click this icon to play the pictures you have captured.

Snapshot Click it to make snapshot.

Audio button Click it and you will hear sound captured by the camera's built-in

microphone. Make sure the camera supports Audio. Click the icon again and stop Audio.

Talk button Click it then talk through your cell phone's microphone which will transmit

through the camera's speaker. People will hear your talking through the camera's built-in speaker. Make sure the camera supports Talk.

Click the icon again and stop talking.

How to add cameras to the Phone APP

The following steps are required before adding cameras to the APP:

1) Install the IP Camera(s) which wants to be monitored.
2) Login the IP Camera(s) by web browser and set the IP address, port, username & password and make sure the camera can be accessed by browsers.
3) DDNS setting is a plus whenever you want to add the devices by WAN.

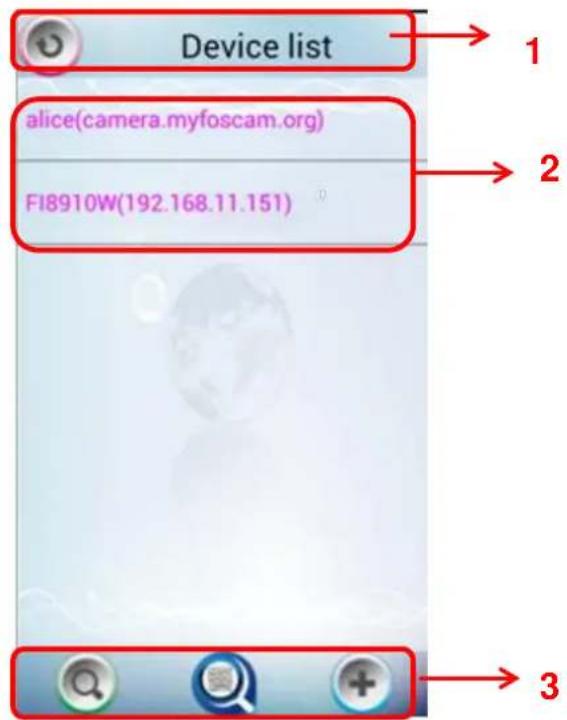

Click the button and go to Device List page, this section will show you how to add cameras in LAN or in WAN.

Device list alice(camera.myfoscam.org) FI8910W(192.168.11.151)

Figure 4.4

Section1 Back button

: Click this icon and back to the surveillance window

Section2 Device List

Here will list all cameras that added to the software.

Section3 Add device buttons

Add device in LAN

Click this icon and the APP will search all cameras in LAN automatically. Such as the following screen:

Device list Please select camera FI8910W_(192.168.1 1.151)

Figure 4.5

Select the camera IP and click OK to add cameras in LAN, then you can see the camera in the Device List.

Add device through scanning UID (User Identification) number

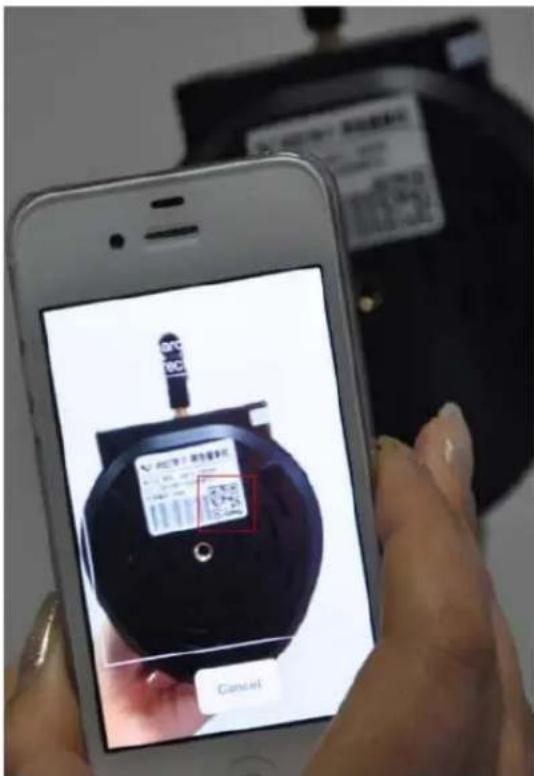

: UID Scan. Click this icon and scan the UID no. in the camera body, then the camera can be added to the App.

Smartphone screen displaying a blood glucose meter with a QR code scanning interface, held by a hand holding a camera.

Figure 4.6

Normally each camera has one unique UID and UID is used for PnP function. Now our camera does not support UID number, so here you cannot allow to use UID to add device.

Add device in WAN

Click this icon and you can add cameras in WAN manually.

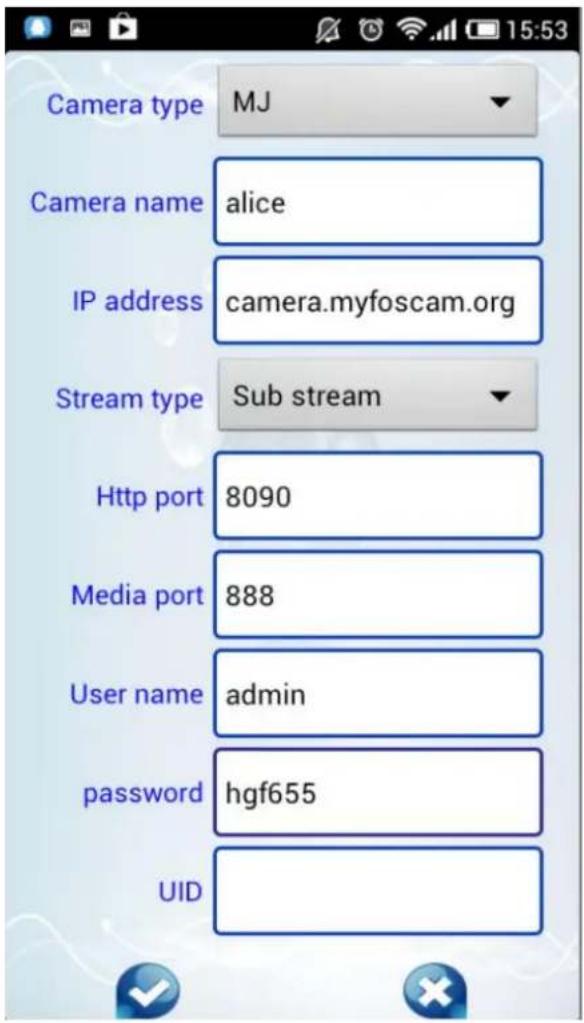

Click this icon and it pops up the following screen, here you can add cameras manually.

Camera type MJ Camera name alice IP address camera.myfoscam.org Stream type Sub stream Http port 8090 Media port 888 User name admin password hgf655 UID

Figure 4.7

Camera Type: Our Company produces two series cameras: MJ and H.264. Here select the camera type that you want to add.

Camera name: The Camera name is a unique name that you can give to your device to help you identify it.

IP address: Fill in the camera's DDNS host or WAN IP not LAN IP.

Stream type: It has two types: Main stream and Sub stream. For cell phones, we recommend you to select Sub stream to get more fluent video.

Http / Media port: For MJ cameras, here share the same port.

User name &Password: The camera's user name and password.

UID: If your camera supports UID, here you may fill in the UID no.. Now FOSCAM camera does not support UID.

Click the icon to add camera then you can see the camera in the Device List.

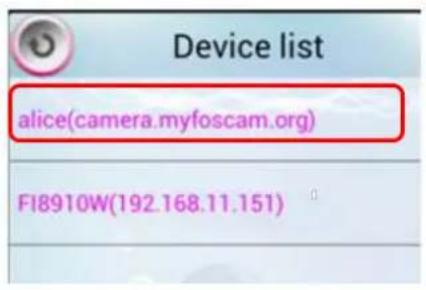

Device list alice(camera.myfoscam.org) FI8910W(192.168.11.151)

Select one IP address and click it, then you can enter the surveillance window.

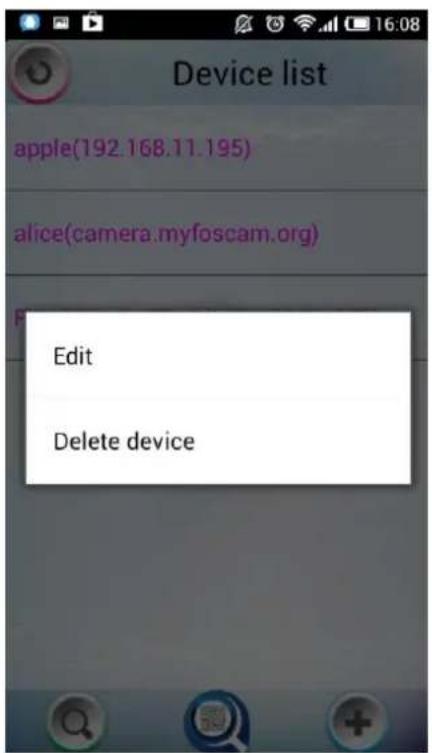

Select one IP address in the Device List and press it for a moment, it pop up the following screen:

Device list apple(192.168.11.195) alice(camera.myfoscam.org) Edit Delete device

Figure 4.8

Edit: Re-edit the camera's information, such as the Http / Media port, user name and password, and so on. Click Edit and you can go to Add camera page (Figure 4.7).

Delete device: Delete the camera from the Device List.

4.2 APP for iPhones

If you use iPhone, please search the APP "Foscam ip cam viewer" and install it through APP Store, then you can see the shortcut icon in your cell phone screen.

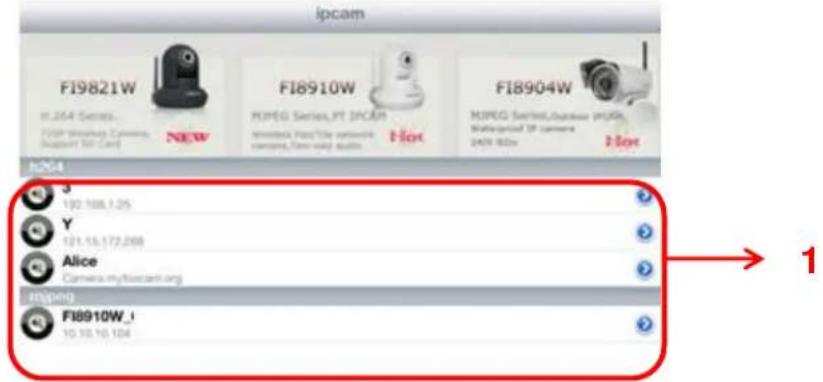

Click the icon and you can go to "ipcam table" page directly:

ipcam FI9821W N,264 Series... F19821W F19821W F18910W New FI8910W New FI8904W New FI8904 192.168.1.25 Y 121.15.172.268 Alice Camera.mybiocam.org F18910W_ 10.15.10.104

Figure 4.9 2

The default device list is null, you need to add cameras to it.

Section1 Camera list

Here will list all cameras that added to the software.

Click this icon and back to ipcam table page, here you can see all cameras that have to the software.

: Click this icon and back to add ipcam page, here you can add cameras in LAN or in

WAN to the software.

How to add cameras to the APP

The following steps are required before adding cameras to the App:

1) Install the IP Camera(s) which wants to be monitored.
2) Login the IP Camera(s) by web browser and set the IP address, port, username & password and make sure the camera can be accessed by browsers.
3) DDNS setting is a plus whenever you want to add the devices by WAN.

If you want to add cameras to the App, please click this icon add ipcam go to "add ipcam" page(Figure 4.10).

add h264 mpeg FI8910W 10.10.10.10-

Click this icon and go to "add ipcam" page

Figure 4.10

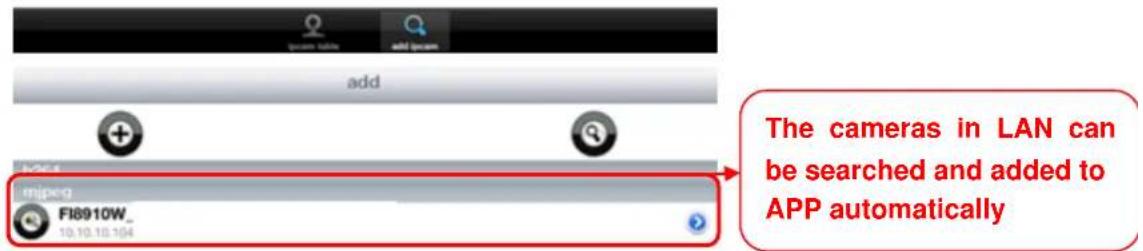

Add device in LAN

Click this button automatically.

and the APP will search all cameras in LAN, then add it to APP

The cameras in LAN can be searched and added to APP automatically

Figure 4.11

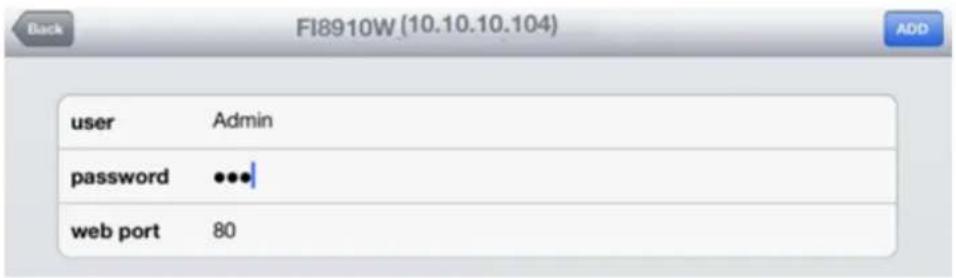

There is a icon after the camera name, click it and you can enter the user name, password and web port to login the camera.

Back FI8910W (10.10.10.104) ADD user Admin password ●●● web port 80

Figure 4.12

Add device in WAN

Step 1: Click the Add Camera icon to add cameras manually.

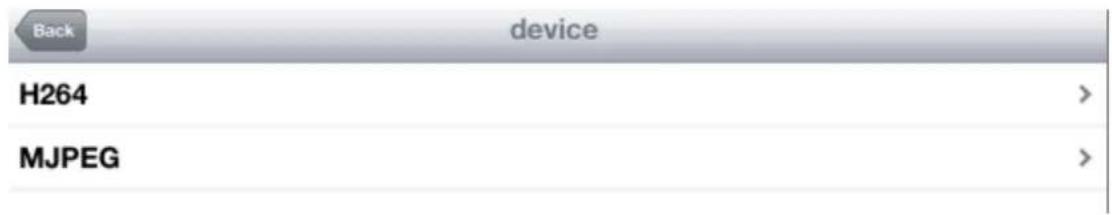

Step 2: Select the camera type: mjpeg or h.284 (Figure 4.13), then enter the camera's basic information like camera name, ip, http/media port, user name, password and so on(Figure 4.14).

Back device H264 > MJPEG >

Figure 4.13

Back H264 ADD UID device name Alice ip Camera.myfoscam.org user Admin password media port 80 web port 80 stream type sub stream >

Figure 4.14a Add H.264 Device Page

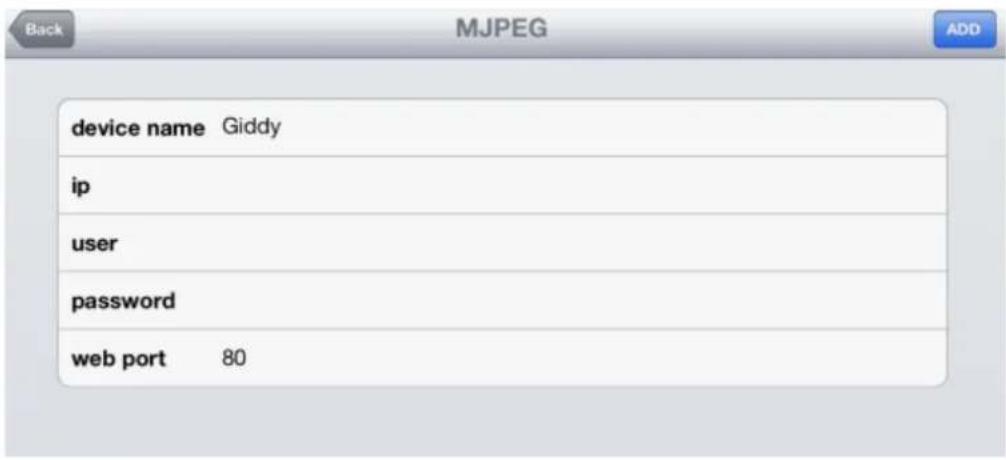

device name Giddy ip user password web port 80

Figure 4.14b Add MJPEG Device Page

UID: If your camera supports UID, here you scan UID number. Now FOSCAM camera does not support UID.

Device name: The Device name is a unique name that you can give to your device to help you identify it.

IP address: Fill in the camera's DDNS host or WAN IP not LAN IP.

User &Password: The camera's user name and password.

Media / Web port: For MJPEG cameras, here only support web port.

Stream type: It has two types: Main stream and Sub stream. For cell phones, we recommend you to select Sub stream to get more fluent video.

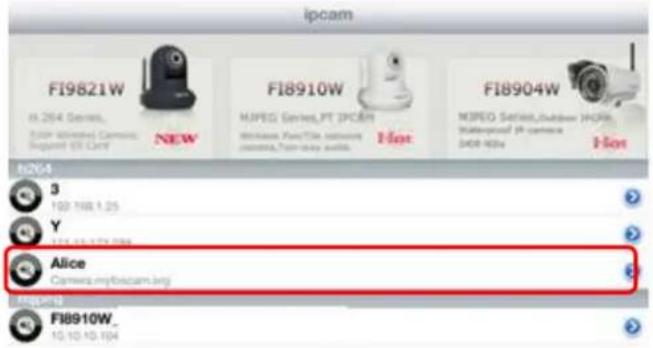

Step 3: Click Add button ADD to add cameras, then you can see the camera name in the "ip cam table" page.

ipcam FI9821W R-264 Series, EOP Windows CMOS: Support EX CNT NEW FI8910W MJPEG Series,PT IPCM Windows Pane/TCE: network camera,Tone-way switch Hot FI8904W MJPEG Series,Outflow: HCPB, Waterproof: IP camera HDR 103s Hot t264 3 100 168.1.25 Y 171.15.177.096 Alice Camera.mptobcam.org FI8910W_ 10.10.10.104

Figure 4.15

Surveillance windows

Back to “ipcam table” page and you can see all cameras that have added. There is a icon after one camera name, click this icon and you can alter the camera’s user name, password, media port and http port.

ipcam FI9821W H.264 Series, 720P Wireless Camera, Support SD Card NEW FI8910W MJPEG Series, PT IPCAM Wireless Part/Tile network Camera, Two-way audio Hot FI8904W MJPEG Series, Outdoor IPCAM, Waterproof IP camera 240R LEDs Hot h264 3 192.168.1.25 Y 121.15.172.288 Alice Camera.myloscam.org mjpeg FI8910W. 10.10.10.104

Figure 4.16

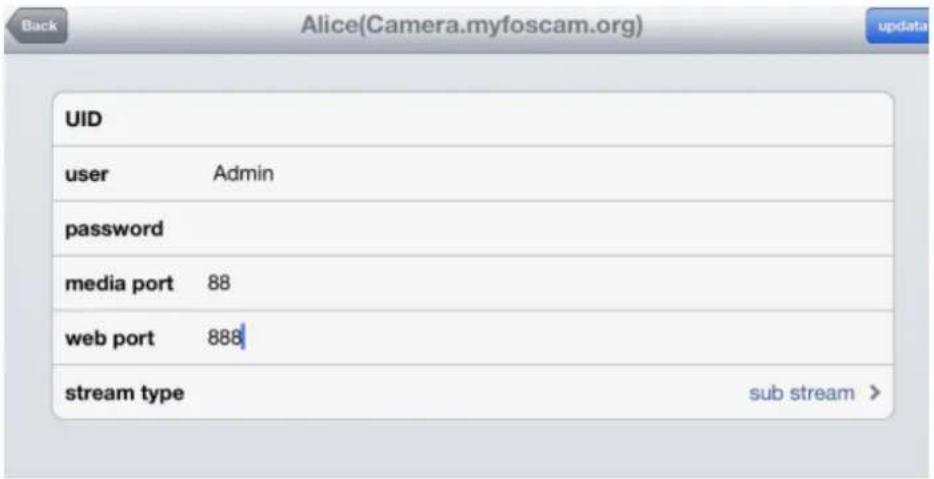

Back Alice(Camera.myfoscam.org) uid user Admin password media port 88 web port 888 stream type sub stream >

Figure 4.17

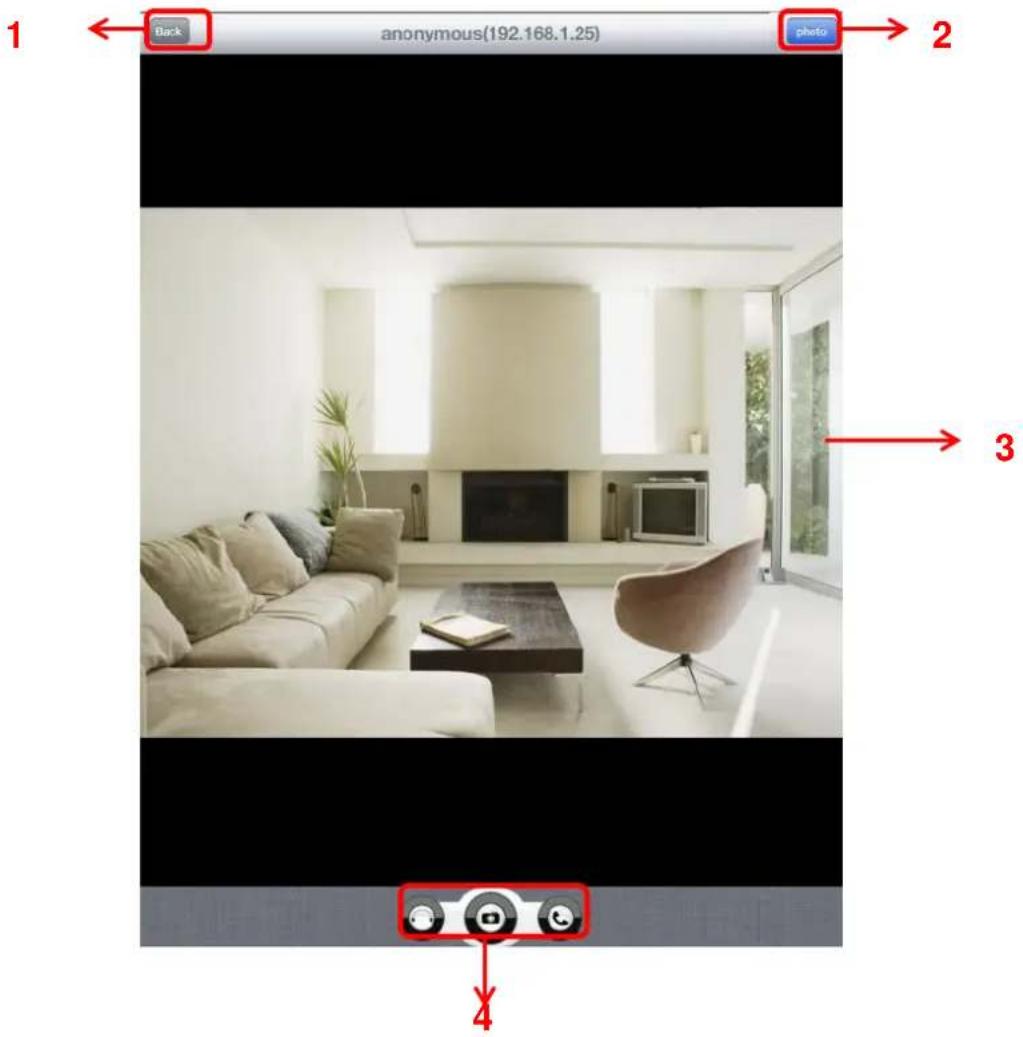

Click one camera ip and you can see the live video.

000 145 unknown(192.168.1.25) 75 unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unknown unl

Figure 4.18

Please check the login window above, it was divided to 4 sections from no. 1 to 4.

Section1 Back Button

Click this icon and back to "ipcam table" page.

Section2 Photo Button

Click this icon and look the photos you have captured.

Section3 Live view window

If the camera supports PT function, here slide on the screen with your finger, the camera will rotate follow your finger direction.

Section4 Snapshot/Audio/Talk buttons

Audio ← Snapshot Talk →

Snapshot

Click it to make snapshot.

Audio button

Click it and you will hear sound captured by the camera's built-in microphone. Make sure the camera supports Audio. Click the icon again and stop Audio.

Talk button

Click it then talk through your cell phone's microphone which will transmit through the camera's speaker. People will hear your talking through the camera's built-in speaker. Make sure the camera supports Talk.

Click the icon again and stop talking.

5 APPENDIX

5.1 Frequently Asked Questions

NOTE: Always verify network connections are working by checking the status of the indicators on the network server, hub and network card.

5.1.1 I have forgotten the administrator username and/or password

To reset the administrator username and password, press and hold down the RESET BUTTON for 10 seconds. Upon releasing the reset button, the username and password will return to the factory default administrator username and password. Please power on the camera before reset Default administrator username: admin

Default administrator password: No password

5.1.2 Subnet doesn't match, dbclick to change

If the IP Camera Tool shows the error "Subnet doesn't match, dbclick to change!", select Obtain IP from DHCP server.

IP Camera Tool Anonymous Network Configur... Anonymous Obtain IP from DHCP server IP Address 0 . 0 . 0 . 0 Subnet Mask 0 . 0 . 0 . 0 Gateway 0 . 0 . 0 . 0 DNS Server 0 . 0 . 0 . 0 Http Port 8092 User admin Password OK Cancel

If this error still exists after obtaining an IP from the DHCP server, check the local area connection of your computer and verify the subnet and gateway of the camera which should be the same subnet of your computer.

5.1.3 No Pictures Problems

Video streaming is managed by the ActiveX controller. If the ActiveX controller isn't installed correctly you will see no video image. There are two ways to resolve this problem:

1) Reinstall "IP Camera Tool" and ActiveX controller (recommended).
2) Download ActiveX controller and set the security setting of IE: IE browser→Tool→Internet Proper→Security→Custom Level→ActiveX control and Plug-ins. The first three options of front should be set to be "Enable", The ActiveX programs read by the computer will be stored. As follows:

Enable: Download unsigned ActiveX controls

Enable: Initialise and script ActiveX controls not marked as safe

Enable: Run ActiveX controls and plug-ins

Internet Options General Security Privacy Content Connections Programs Advanced Select a zone to view or change security settings. Internet Local intranet Trusted sites Rest Internet This zone is for Internet websites, except those listed in trusted and restricted zones. Security level for this zone Allowed levels for this zone: Medium to High Medium-high - Appropriate for most websites - Prompts before downloading potenla content - Unsigned ActiveX controls will not be Custom level... Reset all zones OK Cancel Security Settings - Internet Zone Settings Disable Enable Download signed ActiveX controls (not secure) Disable Enable (not secure) Prompt (recommended) Download unsigned ActiveX controls (not secure) Disable (recommended) Enable (not secure) Prompt Initiate and script ActiveX controls not marked as safe for a Disable (recommended) Enable (not secure) Prompt Run ActiveX controls and plug-ins Administrator approved *Takes effect after you restart Internet Explorer Reset custom settings Reset to: Medium-high (default) Reset... OK Cancel

Figure 5.1

If you allow the ActiveX to run, but still can not see living video and a red cross in the centre of the video. Please select another port number. Don't use port 80, use port 85, 8005.etc.

IP Camera Tool apple Gicp Anonymous Anonymous Obtain IP from DHCP server IP Address 192 .168 .11 .100 Subnet Mask 255 .255 .255 . 0 Gateway 192 .168 .11 . 1 DNS Server 202 .96 .134 .33 Http Port 8090 User admin Password OK Cancel Change another po number

Figure 5.2
NOTE: Make sure that your firewall or anti-virus software does not block the camera or ActiveX. If you cannot see live video, try shutting down the firewall or anti-virus software and try again.

5.1.4 Can't access IP camera on internet

Possible reasons why camera is not accessible on the internet:

1) ActiveX controller is not installed correctly
2) The port which the camera uses is blocked by a Firewall or Anti-virus software. Try changing to another port number. (Figure 5.2)
3) Port forwarding is not successful (Figure 3.30)
Double check these settings and make sure they are correct.

5.1.5 IP Camera Tool could not find camera's IP

Verify that the network cable is securely fastened to the camera.

Make sure that DHCP is enabled on your router, do not enable MAC address filter.

Make sure that the firewall or anti-virus software does not block the camera. You can add the camera as a trusted site on your firewall or anti-virus software.

5.1.6 UPnP always failed

UPnP only contains port forwarding in our recent software. Sometimes, it may be fail to do port forwarding automatically because of the firewall or anti-virus software. It may also be due to the router's security settings. We recommend manually configuring port forwarding the camera can be viewed on the internet.

5.1.7 Couldn't find the shortcut on the desktop after install IP camera tool

If you use Windows7 or Vista and the shortcut is missing after installing the IP camera tool, check the path of IP Camera program.

For example, if it was pointing to C:\Windows\System32\IPCamera.exe.

Please fix this by pointing the shortcut to the correct path

C:\Windows\SysWOW64\IPCamera.exe. After this you should be able to use the shortcut without any problems.

5.1.8 I can't change the record path

When you use Windows7 or Vista, you may be not able to change the record path because of the security settings of computer. Please add the camera as a trusted site to resolve this issue.

The steps are

IE browser→Tool→Internet Properties→Security→Trusted sites→Sites→Add

5.1.9 I can't find multi-device settings and record icon

Record and multi-device functionality are controlled by the ActiveX controller.

These functions are not available in Firefox, Google Chrome and Safari.

5.1.10 Camera cannot connect using wireless

If your camera cannot connect wirelessly after you set the wireless settings, unplug / plug the power cable. (for more details: Wireless LAN settings in chapter 3.7)

Usually, camera can't connect wireless mainly because of incorrect settings.

Verify that the SSID is correct; use the same encryption for router and camera. Share key should not contain special characters, only word and number will be better. Disable MAC address filtering.

5.1.11 Can't see other cameras listed in multi-device when using remote

access

If you want to view all the cameras via the WAN, verify that each camera added in the multi-device settings can be accessed by using the DDNS name and port number. Use the DDNS domain name not the camera's LAN IP. (For more details see: How to add cameras in WAN)

5.1.12 Only see black screen or undefined characters when using remote login

If you could access the login page remotely, this indicates that your DDNS settings are correct. If you are unable to see live video but only some undefined characters, this may be due to the internet speed issues or the camera using Wi-Fi.

5.2 Default Parameters

Default network Parameters

IP address: obtain dynamically

Subnet mask: 255.255.255.0

Gateway: obtain dynamically

DHCP: Disabled

DDNS: Embedded FOSCAM domain name

Username and password

Default administrator username: admin

Default administrator password: No password

5.3 Specifications

ITEMS		FI8919W
Image Sensor	Image Sensor	Color CMOS Sensor
	Display Resolution	640 x 480 Pixels(300k Pixels)
	Lens	f: 4mm
	Mini. Illumination	2Lux
Lens	Lens Type	Glass Lens
	IR_CUT	Filter will switch automatically
	Viewing angle	40 degrees
Video	Image Compression	MJPEG
	Image Frame Rate	15fps(VGA),30fps(QVGA)
	Resolution	640 x 480(VGA), 320 x 240(QVGA)
	Flip Mirror Images	Vertical / Horizontal
	Light Frequency	50Hz, 60Hz or Outdoor
	Video Parameters	Brightness, Contrast
Communication	Ethernet	One 10/100Mbps RJ-45
	Supported Protocol	HTTP,FTP,TCP/IP,UDP,SMTP,DHCP,PPPoE,DDNS,UPnP,GPRS
	Wireless Standard	IEEE 802.11b/g/n
	Data Rate	802.11b: 11Mbps(Max.) 802.11g: 54Mbps(Max.)802.11n: 150Mbps(Max.)
	Wireless Security	WEP & WPA & WPA2 Encryption
	Infrared Light	22 IR LEDs, Night visibility up to 15 meters
	Dimension	127(L) x212(W) x230mm(H)
	Gross Weight	2150g (Color Box Size: 314 x271 x162mm )
	Net Weight	1535g
Power	Power Supply	DC 12V/2.0A (EU,US,AU adapter or other types optional)
	Power Consumption	13.5Watts (Max.)
Environment	Operate Temper.	0° ~ 55°C (32°F ~ 131°F)
	Operating Humidity	20% ~ 85% non-condensing
	Storage Temper.	-10°C ~ 60° (14°F ~ 140°F)
	Storage Humidity	0% ~ 90% non-condensing
PC Requirements	CPU	2.0GHZ or above
	Memory Size	256MB or above
	Display Card	64M or above
	Supported OS	Microsoft Windows 2000/XP/Vista/Windows7-32bit/Windows7-64bit/Windows8- 32bit/Windows8-64 bit / mac
	Browser	IE 6.0, IE7.0, IE8.0,IE9.0, Firefox2.0,Firefox3.0, Google Chrome, Safari or other standard browsers
Certification	CE,FCC

6 OBTAINING TECHNICAL SUPPORT

While we hope your experience with the IPCAM network camera is enjoyable and easy to use, you may experience some issues or have questions that this User's Guide has not answered. If you have problem with FOSCAM IP camera, please first contact FOSCAM reseller for solving the problems. If our reseller cannot provide service, pls contact our service department: [e-mail].
