USER MANUAL RFMCTSXFMMIK Sussex

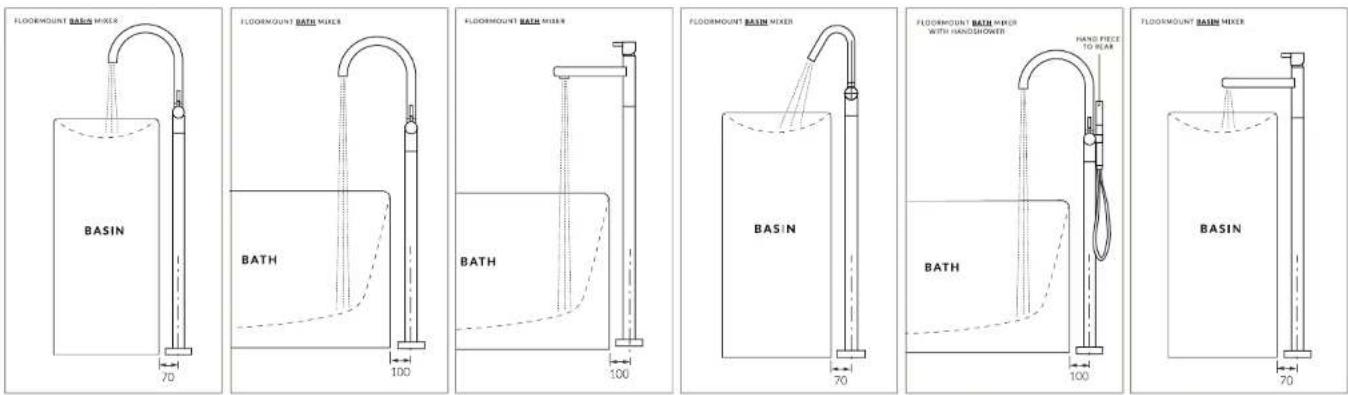

Floormount mixer Fixing distances

SUSSEX

Product code

RFMCT Floormount mixer

RFMCT-V Floormount mixer - Vertex

RFMBMCT Floormount basin mixer

RFMBMCT-V Floormount basin mixer - Vertex

RFMHT Floormount mixer with hand shower

RFMHT-V Floormount mixer with hand shower - Vertex

Circa

Floormount mixer Concrete floor Rough-in

SUSSEX

FIG 1 COLCRIDE SIDES REQUIREMENTS 50mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 30mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 20mm x 30mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 16mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 18mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 15mm x 18mm x 15mm x 15mm x 15mm x 15mm x 15mm x 18mm x 15mm x 15mm x 15mm x 15mm x 18mm x 40 mm x 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 mm 40 m

FIG 2 FIXING AND CONNECTIONS (IFXING VALVE) DO NOT PRESSURE PLATE BOW DRAMETER CONNECTION RATING FLOOR/LEFT RIGHT VOLTAGE FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM FORUM

FIG 3 FRIES AND CONNECTED VALVE BACK FILLED RICKS

Technical line drawing of a mechanical component with a central cylindrical feature and surrounding holes (no text or symbols)

*To install this floormount fixing valve, a 50mm step down (recess) is required in the concrete slab. The floormount fixing valve is supplied with end caps, pressure plate and fixing bolts. Leave intact until final fit off with the floormount rebar.

New concrete floor (pre-pour)

*To install the Floormount Fixing Valve a 50mm step down (recess) is required in the concrete surface where the floormount is to be located.

- The recess area is to be a minimum of 200 x 300mm to allow enough room for the fixing valve to be fitted. NOTE: This can be a larger area if unsure of exact mounting position.

Important: the recess area is required to be 50mm deep and must be flat and level.

Existing concrete floor

• Cut 400 x 400mm section through concrete slab where the floormount mixer is to be located (Fig. 1).
• Remove cut section and drill for the appropriate concrete 'tie-rods' into side walls of cavity.
• Fit 'tie-rods' and pour concrete to create a 50mm step down (recess) from the original concrete floor surface (Fig. 1).
  NOTE: Recess area must be flat and level.
• Hot and cold lines can be chased into the recessed area by cutting a minimum 50 x 50mm channel (Fig. 1).

Fixing and connections (Fig. 2 & 3)

• Connect 1/2" elbows (or male/female nipples) to Fixing Valve in preparation for the hot/cold water lines.
• Postion fixing valve into concreted recess area.
  NOTE: Align "Front" to face bath or wash vessel.

- Mark and drill for 8mm "dyna bolt" or other appropriate anchoring bolts (not supplied).

• Fix Floormount Fixing Valve and complete hot and cold water line connections.
• Ensure the valve is level and well anchored.
• Tighten "end caps" and perform water testing, and ensure there are no water leaks.
• Leave end caps, pressure plate and fixing bolts in the valve to protect the threads until final fit-off.

Back-filled recess (Fig. 4)

• Once all water connections are made and tested, fill in the recessed area and channelling up to the Fixing Valve with a mortar mix.
• After mortar has set, seal the area between mortar and the Fixing Valve.

Circa

Floormount mixer Wooden floor Rough-in

SUSSEX

FIG 1 CONCRETE BOXES REQUIREMENTS W H M N M M M

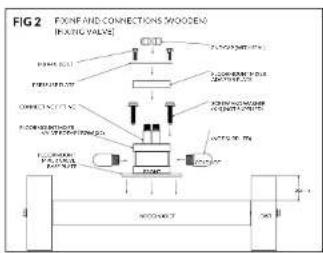

FIG 2 FIXING AND CONNECTIONS WOODEN [PIKING VALVE] FLOOR (R) FLOOR (L) CONNECTIC (C) FLOOR (B) FLOOR (A) MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED MOUNTED

FIG 3 FIXED AND CONNECTED VALVE BACK FILLED ACCESS H10 MELT 200 200 200 JOGT P-504N JOGT B

FIG 4 F1 out out0000 out0000 B B

Rough-in (Wooden floor)

• Fix a 100x50mm min noggin. 50mm below the top of the joists in the position where the floormount mixer is to be located (Fig. 1).
  NOTE: the floormount mixer has been supplied to suit a concrete installation. Some parts need to be changed to suit a wooden floor.
• To suit wooden flooring, remove the m8x25mm bolts and the pressure plate. Using a 6mm allen key, remove the two connection fittings (O-ring sealed) and replace with the longer version (tighten well).
• Add the Floormount Mixer Adapted Plate. Replace the Pressure Plate and loosely fit the M8x40mm bolts (Fig. 2). NOTE: the shorter connection fittings and M8x25mm bolts will not be required.
• Add appropriate elbows or 1/2" BSP nipples to allow for hot/cold water connections (not supplied).
• Secure Floormount Mixer Valve to coggin using appropriate wood screws (not supplied).
  NOTE: "FRONT" to face water vessel.
• Complete hot/cold water connections.
• Ensure the valve is level and well anchored.

Fixing and connections (Fig. 2 & 3)

• Connect 1/2" elbows (or male/female nipples) to Fixing Valve in preparation for the hot/cold water lines.
• Position fixing valve into concreted recess area.
  NOTE: Align "Front" to face bath or wash vessel.
• Mark and drill for 8mm "dyna bolt" or other appropriate anchoring bolts (not supplied).
• Fix Floormount Fixing Valve and complete hot and cold water line connections.
• Ensure the valve is level and well anchored.
• Tighten "end caps" and perform water testing, and ensure there are no water leaks.
• Leave end caps, pressure plate and fixing bolts in the valve to protect the threads until final fit-off.

Back-filled recess (Fig. 4)

• Once all water connections are made and tested, fill in the recessed area and channelling up to the Fixing Valve with a mortar mix.
• After mortar has set, seal the area between mortar and the Fixing Valve.

Circa

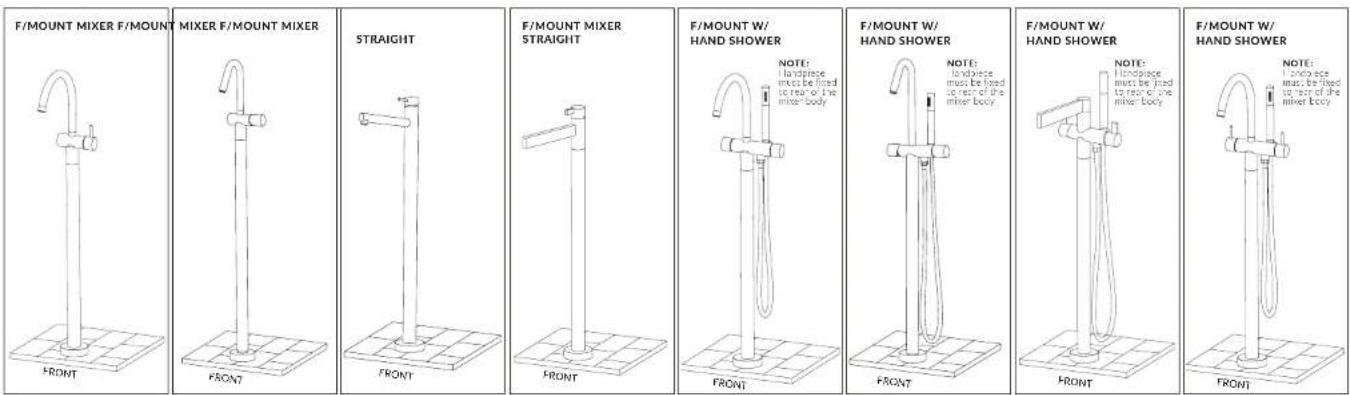

Floormount mixer Installation kit Fit-off

SUSSEX

Circa

Floormount mixer Concrete floor Fit-off

SUSSEX

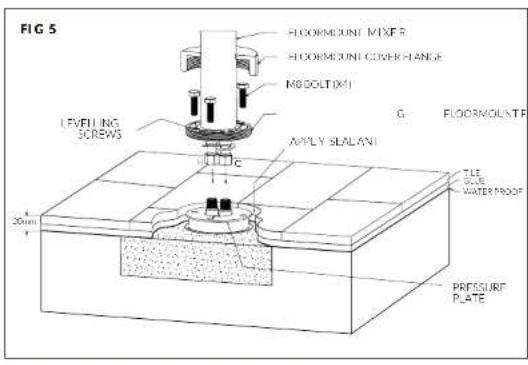

FIG 5 FLOORMOUNT MIXER FLOORMOUNT COVER FLANGE N8 DOLT (X) LEVELING SCREWS G FLOORMOUNT APPLY SEALANI 20mm TLE GLASS WATER FROOF PRCESSURE PLATE

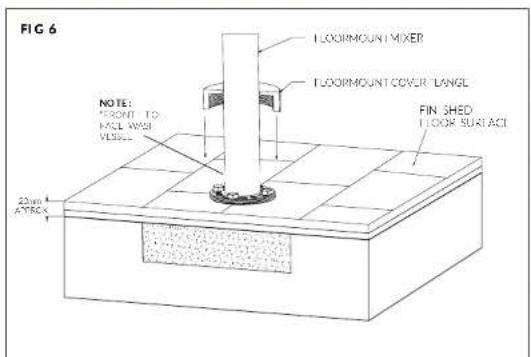

FIG 6 NOTE: FRONT TO MALL WITH VEGET 22mm AYRCK FLOORMOUNT MIXER FLOORMOUNT COVER LANGE FIN SHED FLOOR SURFACE

susbsextaps.com.au

Fit-off (Concrete floor)

• Prior to installing, ensure floor around fixing valve is completely sealed.
• Raise the floormount cover flange.
• Remove "end caps" and retain if required.
• Connect hot and cold hoses from Floormount Mixer (a second person may be required to assist).
  NOTE: the hose connection has a self sealing fitting. No sealant is required.
• Tighten the hex nuts of the hose fittings using an appropriate spanner (tighten well).
• Carefully lower the mixer to meet the pressure plate.
  NOTE: "Front" of Floormount Mixer must face the bath or wash vessel.
• Align and fit supplied M8 bolts.
• Before fully tightening, allow water flow and check for water leaks.
• Tighten M8 bolts and check Floormount Mixer is level. If levelling is required, loosen M8 bolts and adjust levelling screws as required.
• To complete the installation, lower the cover flange until it meets the finished floor surface.
• Check mixer function and look for any leaks.

Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003 Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c Copyright © Sussex Taps.

Circa

Floormount mixer Wooden floor Fit-off

SUSSEX

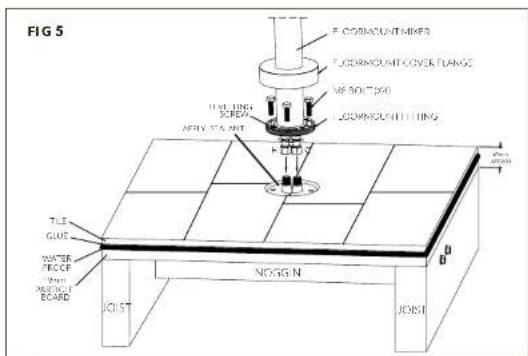

FIG 5 FLOORMOUNT MIPER FLOORMOUNT COVER FLANGE ME SOFT (54) FLOORMOUNT FITTING FLUING SCREW AFRY TO A PCT TILE GLUSE WATER FROCF WATER PERECTION BOARD NOYGIN B JOIST JOIST

FIG 6 NOTE: TIGHT TO FALL WASH VESEL FLOOR MOUNT MIXER FLOOR MOUNT COVER FLANGE INSHLD FLOOR SURFACE L1 A2 B3 C4 D5 E6 F7 G8 H9 I0

susbsextaps.com.au

Fit-off (Wooden floor)

• Prior to installing, ensure floor around fixing valve is completely sealed.
• Raise the floormount cover flange.
• Remove "end caps" and retain if required.
• Connect hot and cold hoses from Floormount Mixer (a second person may be required to assist).
  NOTE: the hose connection has a self sealing fitting. No sealant is required.
• Tighten the hex nuts of the hose fittings using an appropriate spanner (tighten well).
• Carefully lower the mixer to meet the pressure plate.
  NOTE: "Front" of Floormount Mixer must face the bath or wash vessel.
• Align and fit supplied MB bolts.
• Before fully tightening, allow water flow and check for water leaks.
• Tighten MB bolts and check Floormount Mixer is level. If levelling is required, loosen MB bolts and adjust levelling screws as required.
• To complete the installation, lower the cover flange until it meets the finished floor surface.
• Check mixer function and look for any leaks.

Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003 Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c Copyright © Sussex Taps.
