USER MANUAL RGB-11X7L Genaray

RGB-6X3S / RGB-8X5M / RGB-11X7L

$$ 6 \times 3 / 8 \times 5 / 1 1 \times 7 R G B $$

ON-CAMERA LED LIGHTS

USER MANUAL

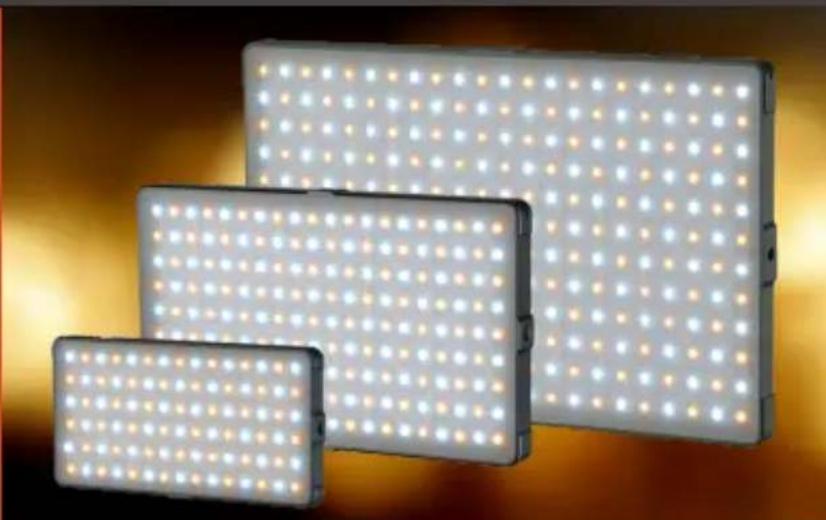

Three LED growers with grid of glowing spots, displayed against a warm gradient background (no text or symbols visible)

genaray®

6×3/8×5/11×7 RGB

INTRODUCTION

THANK YOU FOR CHOOSING GENARAY

Genaray's rugged on-camera LED lights are a great addition to any vlogger's and influencer's kit. Compatible with DSLRs, camcorders, and smartphones, these LEDs can throw a lot of light at a subject to brighten and sharpen their camera appearance. Use the small RGB-6X3S to add an accent or a kiss of color on a background or a subject's hair. Use the medium RGB-8X5M as a key light for close-lighting subjects with a diffuse beam. Use the RGB-11X7L to illuminate several subjects or a larger area. All lights operate with an easy-to-use interface that will let you adjust settings and switch lighting scenes in seconds.

The lights boast three operating modes that will set the perfect tone and mood, whether indoors or on the go. Set precise color temperature and brightness in CCT mode, or use the 360-degree color spectrum to find the right hue and saturation in RGB mode. Twenty-one preset effects are also available to add realism or a touch of drama to a scene.

PRECAUTIONS

• Please read and follow these instructions, and keep this manual in a safe place.
• Keep this product away from water and flammable gases or liquids.
• Use only the correct, recommended voltage.

• Do not attempt to disassemble or repair this product.

• Clean this product with only a soft, dry cloth.

• To avoid damage to this product, be careful not to overtighten or improperly thread any of the threaded fittings.
• All images are for illustrative purposes only.

LED Light (RGB-6X3S shown)

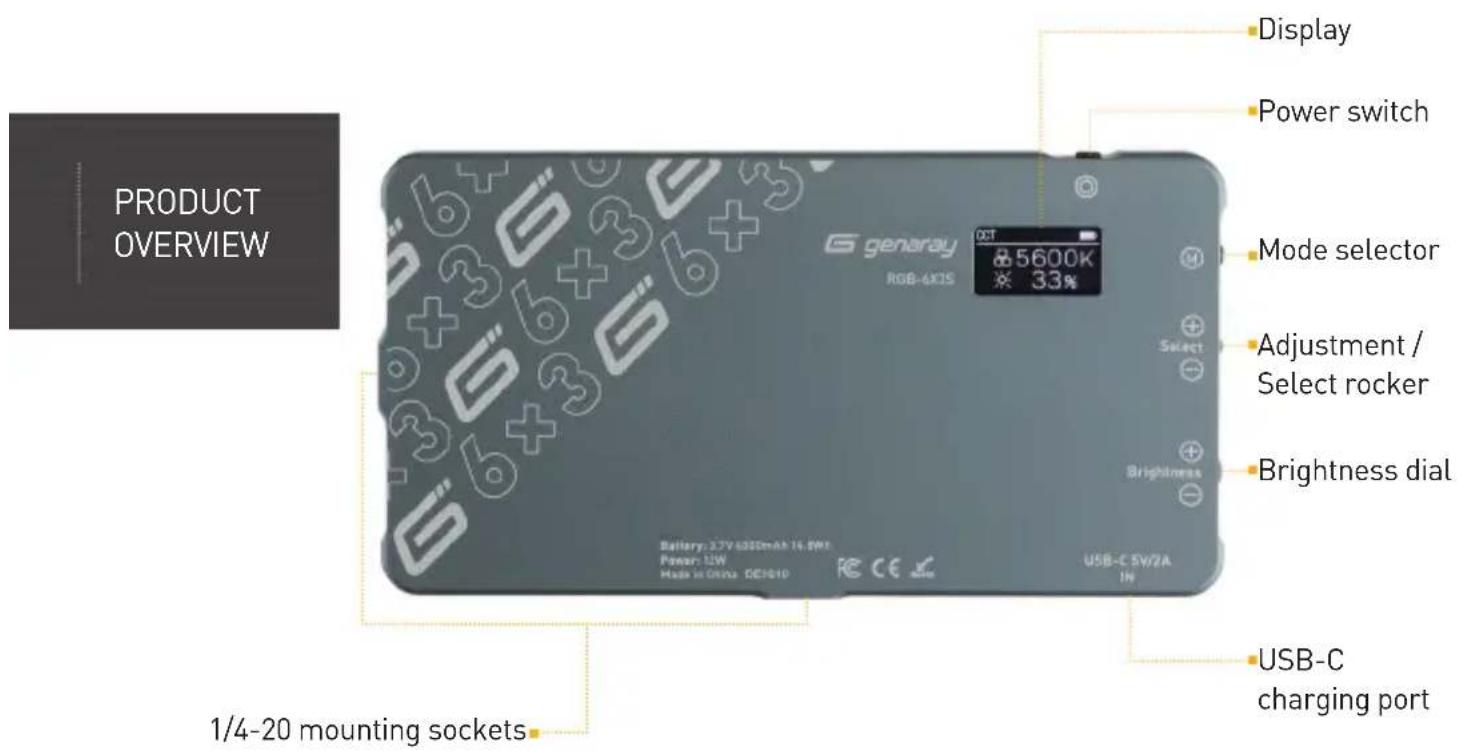

PRODUCT OVERVIEW g genaray RGB-6X15 Display Power switch Mode selector Adjustment / Select rocker Brightness dial Brightness USB-C 5V/2A IN Battery: 2.7V 6000mAh 14.8kW Power: 1.0W Made in China: GE1010 USB-C charging port 1/4-20 mounting sockets

Display

Mode indicator Battery indicator

Color

Temperature display

Brightness display

CCT

5600K

65%

CONTENTS INCLUDE

• RGBAW LED Light
• Cold-shoe adapter
• USB-C to USB-A charging cable
• Carry pouch

POWERING THE LIGHT

The light is powered by an internal rechargeable battery.

Attach the included USB cable to the light's USB-C port to charge the battery.

When the light is powered on, it opens to the most recent settings.

BATTERY INDICATOR

The battery indicator will flash when the battery is charging. When the indicator stops flashing, the battery is fully charged.

	100% to 80%
	80% to 60%
	60% to 40%
	40% to 20%
	20% to 0%

OVERHEATING PROTECTION

The light will automatically shut off to prevent overheating. Running the light in a high-temperature environment or for long continuous use will automatically trigger overheat protection.

Wait a few minutes for the light to cool off before resuming operation.

MOUNTING THE LIGHT

Use the 1/4-20 sockets to mount the light in vertical or horizontal orientation.

MOUNTING TO A TRIPOD, BALLHEAD, OR UMBRELLA BRACKET

Screw the light onto a tripod or light stand's 1/4-20 stud, and tighten until secure.

Gularity 3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+3G+2 Battery: 1.7V (2020/11/2021) 5.6MB Power: 100 Auto: 400000 MHz Reset: 0.000000 MHz Reset: 0.000000 MHz Reset: 0.000000 MHz Reset: 0.000000 MHz Reset: 0.000000 MHz Reset: 0.000000 MHz Reset: 0.000000 MHz Reset: 0.000000 MHz Reset : 1.5V (2021/11/2021) 5.6MB Power : 1.5V Auto : 40000 MHz Reset : 1.5V (2021/11/2021) 5.6MB Reset : 1.5V (2021/11/2021) 5.6MB Reset : 1.5V (2021/11/2021) 5.6MB Reset : 1.5V (2021/11/2021) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11-21) 5.6MB Reset : 1.5V (2021/11-21) 5.6MB Reset : 1.5V (2021/11-21) 5.6MB Reset : 1.5V (2021/11-21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11 / 2021/11/21) Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB Reset : 1.5V (2021/11/21) 5.6MB

MOUNTING TO A CAMERA

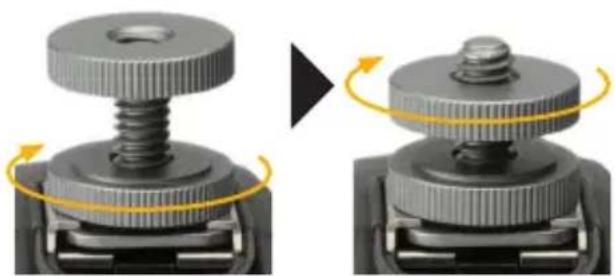

1. Slide the cold-shoe adapter completely into the camera's hot shoe, and tighten the adapter's bottom locking wheel until it's snug against the light.
2. Turn the top locking wheel clockwise to expose the 1/4-20 screw.

Mechanical assembly diagram showing a mechanical component before and after rotation, with no visible text or symbols.

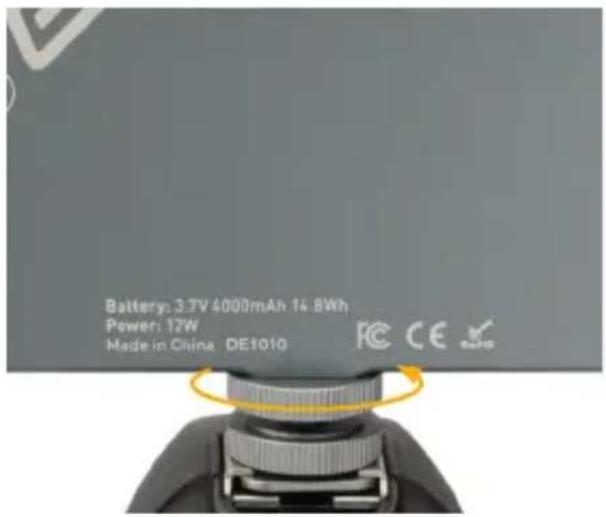

1. Screw the light onto the shoe-mount adapter until it's aimed correctly. Then tighten the top locking wheel until it's snug against the light.

Battery: 3.7V 4000mAh 14.8Wh Power: 12W Made in China DE1010

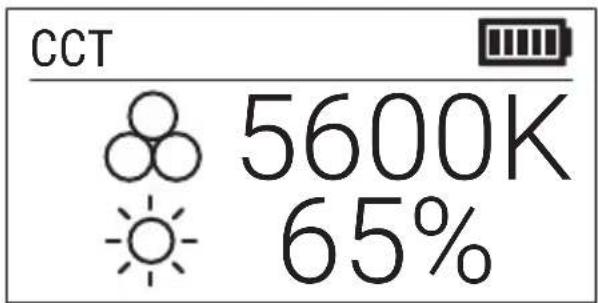

OPERATING MODES CCT MODE

Press the Mode selector to cycle through the three operating modes: CCT, HSI, and Effects.

CCT Mode: Select the color temperature and brightness for your shoot.

HSI (Hue, Saturation, Intensity) Mode: Select a hue from the color wheel, and adjust the saturation and brightness.

Effects: Select one of the 21 lighting effects to add realism, drama, or a little fun to your video.

CCT 5600K 65%

Adjustment rocker: Adjusts the color temperature from 2500 to 9900 K.

Brightness dial: Adjusts the brightness from 1% to 100% in 1% increments.

HSI MODE

HSI

H:250°-85%

S: 25%

Adjustment rocker: Press the rocker to switch from hue to saturation adjustment. A prompt indicates the value that can be edited.

Hue: 0^ to 360^ in 1^ increments.

Saturation: 0 to 100 in increments of 1.

Brightness dial: Adjusts the brightness from 1% to 100% in 1% increments.

EFFECTS MODE

EFFECT

▶E-1 75%

Chase slow

Adjustment rocker: Press the rocker to cycle through the seven banks of effects.

Turn the rocker up or down to cycle through the three effects in each bank.

Each effect begins to play when it's selected.

Brightness dial: Adjusts the brightness from 1% to 100% in 1% increments.

USB-A OUTPUT PORT

LIST OF EFFECTS

Bank A: Flash / Fast Flash / TV Screen

Bank B: Candle / Flame 1 / Flame 2

Bank C: Police / Ambulance / Fire Truck

Bank D: Strobe Lights 1 (Slow) / Strobe Lights 2 (Mid) / Strobe Lights 3 (Fast)

Bank E: Chase Slow / Chase Mid / Chase Fast

Bank F: Fireworks 1 / Fireworks 2 / Fireworks 3

Bank G: Club 1 / Club 2 / Romantic

(RGB-8X5M and RGB-11X7L only)

Use the USB-A output port and a compatible cable to power or charge small devices like a tablet or smartphone.

PRODUCT SPECIFICATIONS

LIGHT FIXTURE

Beam Angle: 120°

Color Temperature: 2500 to 9900 K

Color Accuracy Standard:

RGB-6X3S: CRI 96, TLCI 99 at 5600 K

RGB-8X5M: CRI 96.2, TLCI 99 at 5600 K

RGB-11X7L: CRI 95.6, TLCI 99 at 5600 K

Cooling System: Passive

Dimming: 1% to 100% (Continuous)

Display: RGB-6X3S: TFT

RGB-8X5M / RGB-11X7L: OLED

Housing Material: Aluminum

Light Intensity @3 ft.: RGB-6X3S: 354 lx at 5600 K

RGB-8X5M: 577 lx at 5600 K

RGB-11X7L: 644 lx at 5600 K

Number of LEDs:

RGB-6X3S: 135 (45 white, 45 amber, 45 RGB)

RGB-8X5M: 276 (90 white, 90 amber, 96 RGB)

RGB-11X7L: 396 [132 white, 132 amber, 132 RGB]

Expected Lamp Life: 50,000 hr.

Dimensions (H × W × D):

RGB-6X3S: 5.9×3.1×0.5 in. (15×8×1.2 cm)

RGB-8X5M: 7.9 × 4.8 × 0.6 in. (20 × 12.1 × 1.5 cm)

RGB-11X7L: 11 × 7.1 × 0.6 in. (28 × 18 × 1.5 cm)

Weight: RGB-6X3S: 7 oz. (200 g)

RGB-8X5M: 1.1 lb. (508 g)

RGB-11X7L:2.2 lb.(992 g)

CONNECTORS

Battery Plate: Built-in battery

Power Output Connector:

USB Standard-A 5V/2A

(RGB-8X5M / RGB-11X7L only)

Power Input Connector: Type-C 5V/2A

MOUNTING

Fixture Mount:

RGB-6X3S: 1/4-20 thread (×2), cold-shoe adapter RGB-8X5M: 1/4-20 thread (×3), cold-shoe adapter RBG-11X7L: 1/4-20 thread (×3), cold-shoe adapter

POWER

DC Input Power:

RGB-6X3S: USB Type-C 5V/2A RGB-8X5M: USB Type-C 5V/2A RGB-11X7L: USB Type-C 5V/3A, 9V/2.6A, 12V/2A

DC Output Power:

USB Standard-A 5V/2A (RGB-8X5M and RGB-11X7L only)

Power Source:

RGB-6X3S: DC, built-in battery 3.7 V 4000 mAh RGB-8X5M: DC, built-in battery 3.7 V 10,000 mAh RGB-11X7L: DC, built-in battery 3.7 V 23,000 mAh

Max Power Consumption: RGB-6X3S: 12 W RGB-8X5M: 18.5 W RGB-11X7L: 24 W

Charging Time: RGB-6X3S: 3 hr. RGB-8X5M: 4.5 hr. RGB-11X7L: 7 hr.

Run Time: RGB-6X3S: 80 min. at max brightness RGB-8X5M: 95 min. at max brightness RGB-11X7L: 4.5 hr. at max brightness

PHYSICAL

Operating Temperature: 14°F to 95°F (-10°C to 35°C)

Storage Temperature: 14°F to 140°F [-10°C to 60°C]

ONE-YEAR LIMITED WARRANTY

This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by Genaray. If the product has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at [e-mail]. © 2024 Genaray. All Rights Reserved.
