USER MANUAL Grand Touring GTO6427 JBL

for purchasing a JBL ^® Grand Touring ^® Series automotive speakers. We've organized this manual to make your installation as simple and trouble-free as possible.

Please read it thoroughly before proceeding. Remember to keep your sales receipt and this manual in a safe place so both are available for future reference.

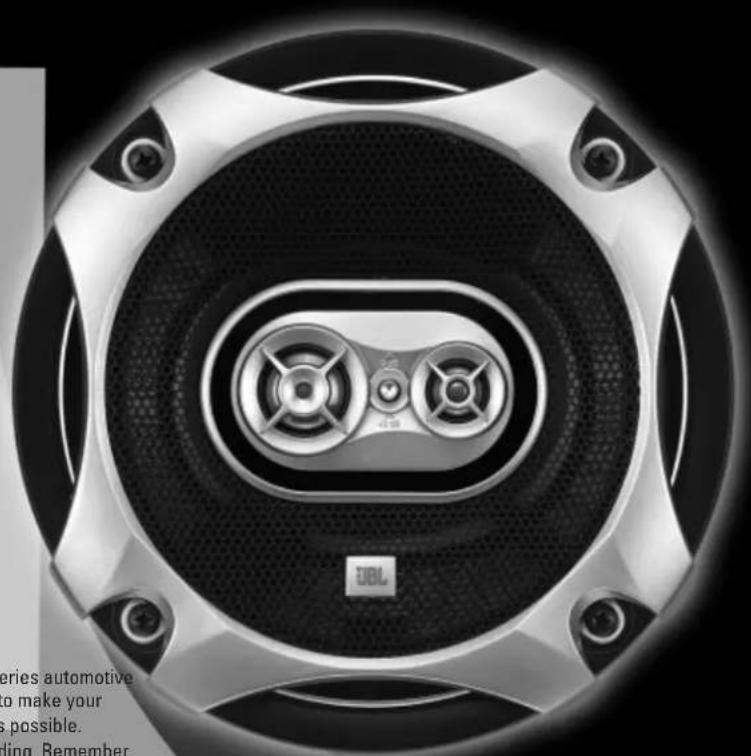

Close-up of a JBL speaker with visible grille and buttons, no text or symbols on the device itself.

JBL

ABOUT THESE INSTRUCTIONS

Installation of automotive stereo components can require extensive experience with a variety of mechanical and electrical procedures. Although these instructions explain how to install Grand Touring Series multielement speakers in a general sense, they do not show the exact installation methods for your particular vehicle. If you do not feel you have the necessary experience, do not attempt the installation yourself – instead, ask your authorized JBL car audio dealer about professional installation options.

LOUD MUSIC AND HEARING

Playing loud music in an automobile can hinder your ability to hear traffic as well as permanently damage your hearing. The maximum volume levels achievable with JBL speakers, combined with high power amplification, may exceed safe levels for extended listening. We recommend using low volume levels when driving. JBL accepts no liability for hearing loss, bodily injury or property damage as a result of use or misuse of this product.

REAR DECK PRECAUTION

In some cars, the fuel tank may be located directly beneath the rear deck. Before installation, make sure there is adequate speaker basket clearance before considering this location.

INSTALLATION TIPS

• Always wear protective eyewear when using any tools.
- Turn off all audio components and other electrical devices before you start. Disconnect the (−) negative lead from your vehicle's battery.
- Keep speakers in their package until final installation. When moving a speaker, always rest it with the cone or dome facing up. Never use force to install any speaker.
- Check clearances on both sides of a planned mounting surface before drilling any holes or installing any screws. Remember that the screws can extend behind the surface.
- At the installation sites, locate and make a note of all fuel lines, hydraulic brake lines, vacuum lines and electrical wiring. Use extreme caution when cutting or drilling in and around these areas.
- Before drilling or cutting holes, use a utility knife to remove unwanted fabric or vinyl to keep material from snagging in a drill bit or saw.
- For door installations, check the clearance with the windows throughout the range of the window's travel, and verify that a mounted speaker will not interfere with the window crank or power window mechanism.
- If mounting speakers elsewhere, check for clearance around rear deck torsion bars, glove box or other structural elements.
- Do not mount speakers where they will get wet.

INSTALLATION

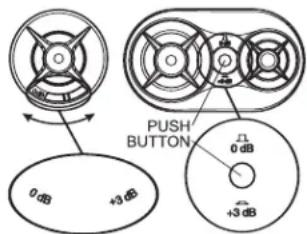

UNIPOINT™ ROTATING TWEETER

Figure 1. Turn the angled tweeter on the GTO527, GTO627, GTO6527, GTO8627 and GTO927 to aim the sound at the listener.

TWEETER LEVEL CONTROL
Figure 2. Move the tweeter level control switch on the GT0527, GT0627, GT0637, GT06527, GT06527S, GT06537, GT0837, GT08627, GT0927 and GT0937 to select 0dB (reference) or +3dB.

PUSH BUTTON 0 dB +3 dB +3 dB

JBL

INSTALLATION

Figure 3. Modifying the GT0427 to be installed in locations requiring fewer than four mounting "ears."

Line drawing of a hand turning a mechanical component (no text or symbols)

Note: Grip the tab and bend to detach it from the speaker.

Figure 4. Mounting GTO speakers in factory locations without grilles.

Technical line drawing of a mechanical component with concentric circles and mounting holes (no text or symbols)

Figure 5. Mounting GTO speakers using the supplied grilles.

Technical line drawing of a mechanical assembly with three circular components and directional arrows (no text or symbols)

Note: The GT08627, GT06427 and GT0327 speakers are designed to be installed under factory grilles. Consequently, no grilles are packaged with these models.

INTERMOUNT III (patent no. 6,505,705) MOUNTING RINGS The GT0627 and GT0637 are packaged with two different speaker adapter rings. The rings will allow the speakers to be installed into various factory 6', 6-1/2' and 6-3/4' openings. The metal ring can be mounted in many European vehicles, Japanese vehicles or vehicles with 6' speaker locations. The plastic ring can be mounted in many vehicles using 6-3/4' speaker locations or three-point mounting frames.
Figure 6. Mounting the GT0627 or GT0637 using the supplied metal ring. Installation with the plastic ring is similar.

FOAM GASKET MOUNTING RING

Figure 7. Mounting the GT0627 or GT0637 in a standard speaker location.

FOAM GASKET

SPECIFICATIONS

Type

3-1/2"Two-way

4"Two-way

5-1/4"Two-way

6-1/2"Two-way

6-1/2"Three-way

4" x 6"Two-way

165mmTwo-way

Shallow 165mmtwo-way

165mmThree-way

8"Three-way

6' x 8" (5" x 7")Two-way

6" x 9"Two-way

6" x 9"Three-way

PowerHandling

25W RMS,75W Peak

35W RMS,105W Peak

45W RMS,135W Peak

60W RMS,180W Peak

60W RMS,180W Peak

40W RMS,120W Peak

60W RMS,180W Peak

55W RMS,165W Peak

60W RMS,180W Peak

100W RMS,300W Peak

60W RMS,180W Peak

100W RMS,300W Peak

100W RMS,300W Peak

Sensitivity(2.83V/1m)

89dB

90dB

91dB

92dB

92dB

91dB

92dB

92dB

92dB

94dB

92dB

94dB

94dB

FrequencyResponse

90Hz – 20kHz

90Hz – 20kHz

70Hz – 21kHz

55Hz – 21kHz

55Hz – 21kHz

75Hz – 21kHz

55Hz – 21kHz

55Hz – 21kHz

55Hz – 21kHz

50Hz – 21kHz

50Hz – 21kHz

50Hz – 21kHz

50Hz – 21kHz

Impedance

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

2 Ohms

MountingDepth

1-7/16"(37mm)

2"(51mm)

2-5/16"(59mm)

2-1/16"(53mm)

2-1/16"(53mm)

1-13/16"(47mm)

2-3/8"(61mm)

1-13/16"(47mm)

2-3/8"(61mm)

2-3/4"(70mm)

2-1/4"(58mm)

2-15/16"(75mm)

2-15/16"(75mm)

CutoutDiameter

3-3/16"(81mm)

3-1/2"(89mm)

4-11/16"(120mm)

5-1/16"(129mm)

5-1/16"(129mm)

3-7/16" x 5-13/16"(88mm x 148mm)

5-11/16"(145mm)

5-11/16"(145mm)

5-11/16" x 3/16"(145mm)

(183mm)

4-15/16" x 7-3/16"(126mm x 183mm)

5-15/16" x 8-11/16"(151mm x 221mm)

5-15/16" x 8-11/16"(151mm x 221mm)

OverallDiameter

3-7/16"(88mm)

3-15/16"(101mm)

5-1/8"(131mm)

6-1/4"(159mm)

6-1/4"(159mm)

3-3/4" x 6-1/8"(96mm x 156mm)

6-9/16" x 6-9/16"(167mm)

6-9/16" x 6-9/16"(167mm)

9-1/2"(167mm)

(242mm)

5-11/16" x 8"(145mm x 204mm)

6-1/2" x 9-1/4"(166mm x 235mm)

6-1/2" x 9-1/4"(166mm x 235mm)

GENERAL CARE

The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.

These products are designed for mobile applications and are not intended for connection to the mains.

A valid serial number is required for warranty coverage.

Features, specifications and appearance are subject to change without notice.

Not all models are available in all markets.

JBL Consumer Products

250 Crossways Park Drive, Woodbury, NY 11797 USA

516.255.4JBL (4525) (USA only) www.jbl.com

© 2005 Harman International Industries, Incorporated. All rights reserved.

JBL, Harman International and Grand Touring Series are trademarks of Harman International Industries, Incorporated, registered in the United States and/or other countries. Unipoint is a trademark of Harman International Industries, Incorporated

Part No. GTMEOM12/05

H A Harman International® Company

Declaration of Conformity

We, Harman Consumer Group International

2, route de Tours

declare in own responsibility that the products described In this owner's manual are in compliance with technical standards:

EN 61000-6-3:2001

EN 61000-6-1:2001

Klaus Lebherz

Harman Consumer Group International
