USER MANUAL AXLOC-BM1 AXESS

AXLOC-BM1 INSTALLATION INSTRUCTIONS

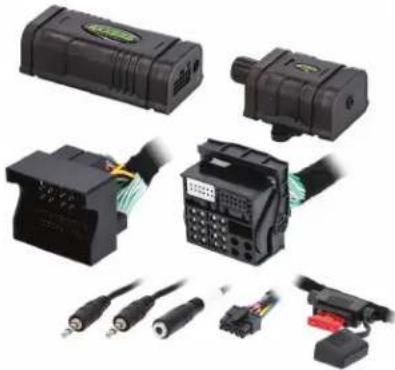

Collection of various electronic components and connectors, including a black plastic enclosure, cable, and connectors (no visible text or symbols)

BMW/MINI/VW LOC (Line Output Converter) AXLOC-BM1 (for Non-Amplified Vehicles) 2001-2017

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle specific applications.

• Designed to provide (2) channels of low-level audio output from the factory system.
• Allows for the installation of an amplifier for speakers or subwoofers.
• Gain Controller included to adjust the overall output.
• 12v-500mA remote wire activated with signal sense.
• 55-watts per channel.
• Designed for non-amplified vehicles.

Note: A single pole double throw (SPDT) relay is recommended when installing multiple amplifiers.

APPLICATIONS

BMW	Mini	Volkswagen
3-Series 2002-2006	Clubman 2008-2014	Beetle 2012-2015		Jetta Sportwagon	2010-2014
5-Series 2001-2003	Convertible 2009-2015	CC 2009-2017		Passat	2002-2015
M3 2002-2006	Coupe 2012-2015	EOS	2007-2016	R32	2007-2008
X3 2004-2010	Hatchback 2007-2013	Golf	2002-2014	Tiguan	2009-2015
X5 2001-2006	Roadster 2012-2015	GTI	2006-2014	Toureg	2004-2010
Z4 2003-2008		Jetta	2002-2015

For dash disassembly instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the Vehicle Fit Guide for Radio Install Kits.

TABLE OF CONTENTS

Applications....1

Installation 2

Diagram 3

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun, solder, and heat shrink
• Tape • Wire cutter • Zip-ties

KIT COMPONENTS

• AXLOC-BM1 Wiring Harness
• Gain Controller
• 12v-500mA Remote Wire
• Auxiliary Cable

ATTENTION: With the key out of the ignition, disconnect the negative battery terminal before installing this product. Ensure that all installation connections, especially the air bag indicator lights, are plugged in before reconnecting the battery or cycling the ignition to test this product.

NOTE: Refer also to the instructions included with the aftermarket accessory before installing this device.

INSTALLATION

1. Disconnect the harness from the factory tuner and install the AXLOC-BM1 harness provided with this kit.
2. Mount the gain controller in a suitable location, and connect the auxiliary cable to the BASS KNOB, then to the Gain Connector of the AXLOC harness.

3. Install the aftermarket amplifier and run an RCA pair (sold separately) to the line converter.

4. Connect the remote wire, plug in the device and secure all connections prior to testing.

NOTE: If the vehicle is equipped with active noise cancellation microphones (ANC), it is recommended that they are disabled to prevent potential noise when installing subwoofers.

DIAGRAM

TO RADIO CD-AXLOC-BM Remote Gain Cont. TO VEHICLE Aux. Cable NOTE: If using external Bass knob, make sure your "Output Level Adjustment" knob is turned all the way down (turned all the way to the left). Output Level Adjustment Line Out Converter Line Out Converter (Front View) Bass Knob (Top View) Bass Knob (Front View)

REV. 12/15/22 INSTAXLOC-BM1

AXLOC-BM1 INSTALLATION INSTRUCTIONS

Having difficulties? We're here to help.

Contact our Tech Support line at: 386-357-1187

Or via email at: [e-mail]

Tech Support Hours (Eastern Standard Time)

Monday - Friday: 9:00 AM - 7:00 PM

Saturday: 10:00 AM - 7:00 PM

Sunday: 10:00 AM - 4:00 PM

KNOWLEDGE IS POWER

Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry. Log onto www.installerinstitute.edu or call 386-672-5771 for more information and take steps toward a better tomorrow.

Metra recommends MECP certified technicians
