USER MANUAL SC-JE50S63 Scarlett

White SCARLETTO Simple 30 blender with clear glass and control panel (no visible text or symbols on device body)

QR code with a gift box and ribbon symbol above it

GB DESCRIPTION

1. Pusher
2. Lid with a hole for the pushrod
3. Feeding neck
4. Knife
5. Filter
6. Juice container
7. Pulp container
8. Screw
9. Rubber seal
10. Juice spout with cover
11. Upper body part
12. Housing
13. I/O/R switch
14. Cleaning brush

Technical line drawing of a cylindrical device with internal components and measurement annotations (no readable text or symbols)

Diagram of a mechanical device with a top component and internal components, showing rotational motion (no text or symbols)

РАЗБОРКА:

• Please read these operating instructions carefully before connecting your device to the power supply, in order to avoid damage due to incorrect use.
• Before the first switching on check that the voltage indicated on the rating label corresponds to the mains voltage in your house.
• Incorrect operation and improper handling can lead to malfunction of the appliance and injuries to the user.
• Do not use outdoors.
• The appliance is intended for use only in domestic aims. The unit is not intended for industrial and commercial use, and also for use in:

- kitchen area for the stuff of shops, offices and the other industrial places

- farm houses

– hotels, motels, rest homes and other similar places by residents.

- Do not disassemble the juice extractor when it is plugged to the power supply. Always unplug the appliance from the power supply before cleaning and when not in use.

- To prevent risk of electric shock and fire, do not immerse the appliance in water or any other liquids. If it has happened, unplug it immediately and check in a service center.

- The appliance is not intended for use for physically, sensory or mental disabled person (including children) or for person with lack of life experience or knowledge, if only they are under supervision or have been instructed about the use of the unit by responsible person.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children.

- Children must be under control in order not to be allowed to play with the appliance.

- Do not leave the appliance switched on when not in use.

- Do not use other attachments than those supplied.

- In case of power cord is damaged, its replacement should be done by the manufacture or service department or the other high-skill person to avoid any danger.

- Do not attempt to repair, adjust or replace parts in the appliance. Check and repair the malfunctioning appliance in the nearest service center only.

- Keep the cord away from sharp edges and hot surfaces.

- Do not pull, twist, or wrap the power cord around the appliance.

- Do not place the appliance near gas or electric oven or store at heated surface.

- Avoid contacting with moving parts.

- Always make sure the feeding tube is fastened correctly before switching on. The unit is designed to shut off automatically if feeding tube is not fastened securely in place.

- Do not push products into the appliance by fingers while it is in operation. If food becomes lodged in feeder tube, use pusher to push it down. If this doesn't work, turn the motor off, unplug unit, and then disassemble juice extractor to remove remaining food.

- Do not run juice extractor continuously for longer than 10 minutes. Turn off switch and let it rest for at least 10 minute to cool down the motor, otherwise the motor may be damaged.

- Every time make sure that the appliance is unplugged and all moving parts with motor are stopped completely before disassembling and cleaning.

- Be sure to switch off the unit after each use.

- Do not overload appliance with products.

- It is not recommended to keep the non-loaded unit more than 1 minute.

IM024

• If the product has been exposed to temperatures below 0^ for some time it should be kept at room temperature for at least 2 hours before turning it on.
• The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.
• Manufacturing date is indicated on the unit and/or on packing as well as in accompanying documents in the following format XX.XXXX where first two figures XX is the month of production, and following four figures XXXX is the year of production.

PREPARATION FOR USE

• The juice extractor is used for preparation of fresh juice of vegetables, fruits, greenery, berries and fruit.
- Unpack the unit and check the unit and accessories for damage.
• Thoroughly wash and dry all parts that come into contact with food.
- Wipe the outside surface of the housing with slightly damp cloth.

ASSEMBLY/DISASSEMBLY

ASSEMBLY:

• Before assembly make sure that the appliance is disconnected from mains and the motor is not running.
  • Install the upper body part on the motor part of the device.
  • Install the screw inside the juice container and slightly push it down.

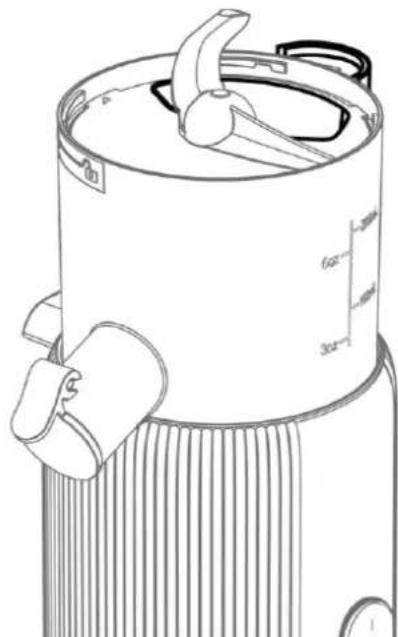

  • Install the filter on the screw according to the picture below.

Technical line drawing of a cylindrical device with internal components and measurement annotations (no readable text or symbols)

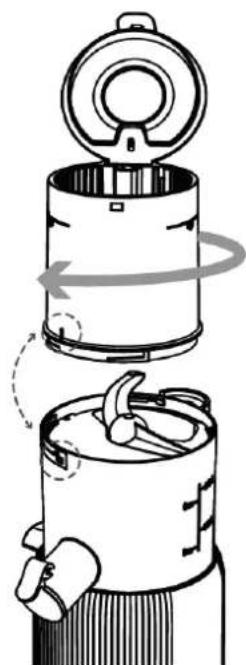

- Install the neck.

Diagram of a mechanical device with a top component and internal components, showing rotational motion (no text or symbols)

DISASSEMBLY:

• Disconnect the appliance from mains.
• Remove the pusher.
• Remove the neck by opening the lid and rotating the neck counterclockwise. (WARNING! Neck could be removed only after opening the lid)
• Remove the filter.
• Remove the screw.
• Remove the upper body part (11)

OPERATION

- Wash vegetables/fruits thoroughly. Peel fruits and remove seeds.

WARNING:

• Do not use the juicer for making coco juice.

• Use the juicer for making juice from:

• Fruits: apples, oranges, pineapples, bananas, date plums, avocado, peach, mango, etc.

• Vegetables: both for hard ones (carrot, beet, cabbage, potato, batata, Canada potato), both for soft ones (cucumber, pepper, onion, garlic), etc.
• Berries: strawberry, raspberry, pomegranate, grapes, currant, gooseberry, bilberry, etc.
• Greenery: celeriac, puppet, fennel, aloe, ginger, etc.

• Leguminosae: soybeans and nuts.

• Before operation, make sure that the neck is fixed firmly, lid is closed

• Connect the juice extractor to mains.
• Place the juice container under the juice spout. Place the cake container under the cake spout.
• To switch the juice extractor on, set the I/O/R switch into the "I" position.
• Load prepared fruits or vegetables into the juice extractor and gently press them with the pusher. NEVER PUSH FRUITS/VEGETABLES BEING LOADED INTO EXTRACTOR WITH FINGERS OR OTHER FOREIGN OBJECTS!

- Load fruits/vegetables only when the motor is running.

• To switch the juice extractor off, set it into the "O" position.
• The lip of the juicer is equipped with cover which can be used as anti-drip system, which prevents leaking the juice after the operation is finished.
• In order to get the cleanest juice it is necessary to use no more than one glass of products.
• During the process of juicing make sure the volume of the juice will not exceed 200 ml mark inside juicing container – open the juice spout.
• The juicer is equipped with reverse function. If the juice extractor is plugged up, set the switch to the "R" position. The screw will start rotating in the opposite direction.
• NOTE: Do not directly turn the switch from “I” to “R”, otherwise, the machine may be destroyed Turn to “0” and waiting for the machine completely stop and then turn into next speed.
• ATTENTION! Do not exceed the maximum content indicated on the bowl with mark.
  • After operation, switch the appliance off and disconnect it from mains.

ADVANTAGES

- Technology «Soft Press» allows to receive juice with max content of vitamins, antioxidants and other nutrients. The juice extractor cannot be used for making juice from bananas.

- You can find recepies of different types of juices by following this QR code

CLEANING

• Remove and wash all removable parts in warm soapy water. Rinse filter assembly from under side for easy removal of residue from strainer holes.
• Do not use steel woods, abrasive cleaners or scouring pad on appliance.
• To clean the outside of the motor unit, use a damp sponge.
• Never immerse the body in water.
• Some vegetables, such as carrots, may cause discoloration of the plastic. Reduce this by washing parts immediately after use with small amount of non-abrasive cleaner on a cloth, rub gently, then rinse well and dry.
• The grating filter must be replaced as soon as any signs of damage or wear and tear appear.

STORAGE

- Store assembled cleaned and dried juice extractor in a dry place.

The symbol on the unit, packing materials and/or documentations means used electrical and electronic units should not be toss in the garbage with ordinary household garbage. These units should be pass to special receiving point.

For additional information about actual system of the garbage collection address to the local authority. Valid utilization will help to save valuable resources and avoid negative work on the public health and environment which happens with incorrect using garbage.
