USER MANUAL GE83MDT SAMSUNG

Owner's Instructions & Cooking Guide

imagine the possibilities

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.

100 % Recycled Paper

This manual is made with 100% recycled paper.

SAMSUNG

contents

Quick look-up guide 11

Oven features 12

Oven 12

Control panel 13

Accessories 13

Oven use 14

How a microwave oven works 14

Checking that your oven is operating correctly 14

Setting the time 15

Cooking/Reheating 15

Power levels 16

Adjusting the cooking time 16

Stopping the cooking 16

Setting the energy save mode 16

Using the auto thai cuisine features 17

Using the quick meal programmes 17

Using the soup/rice programmes 18

Using the thai menu programmes 19

Using the grill menu programmes 20

Using the auto power defrost features 22

Using the auto power defrost programmes 23

Using the manual crusty cook function 23

Using the manual crusty cook setting 24

Choosing the accessories 25

Grilling 25

Combining microwaves and the grill 26

Multistage cooking 26

Switching the beeper off 27

Safety-locking your microwave oven 27

Cookware guide 28

Cooking guide 29

Troubleshooting and error code 37

Troubleshooting 37

Error code 37

Technical specifications 38

safety information

USING THIS INSTRUCTION BOOKLET

You have just purchased a SAMSUNG microwave oven. Your Owner's Instructions contain valuable information on cooking with your microwave oven:

• Safety precautions
  • Suitable accessories and cookware
• Useful cooking tips
• Cooking tips

LEGEND FOR SYMBOLS AND ICONS

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage.

Warning; Fire hazard Warning; Hot surface
Warning; Electricity Warning; Explosive material
Do NOT attempt. Do NOT touch
Do NOT disassemble. Follow directions explicitly.
Unplug the power plug from the wall socket. Make sure the machine is grounded to prevent electric shock.
Call the service center for help. Note
Important

English - 2

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

Make sure that these safety precautions are obeyed at all times.

Before using the oven, confirm that the following instructions are followed.

WARNING

(Microwave function only)

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
This appliance is intended to be used in household only.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
Only use utensils that are suitable for use in microwave ovens.
When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignitions.

The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
WARNING: The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
☒ Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
★ The oven should be cleaned regularly and any food deposits removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
☐ The appliance is not intended for installing in road vehicles, caravans and similar vehicles etc.
★ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
WARNING: Liquids or other foods must not be heated in sealed containers since they are liable to explode;

☐ The appliance should not be cleaned with a water jet.
★ This oven should be positioned proper direction and height permitting easy access to cavity and control area.
Before using the your oven first time, oven should be operated with the water during 10 minute and then used.
If the oven generates a strange noise, a burning smell, or smoke is emitted, unplug the power plug immediately and contact your nearest service center.
The microwave oven has to be positioned so that plug is accessible.
☒ The microwave oven is intended to be used on the counter or counter top use only, the microwave oven shall not be placed in a cabinet.

WARNING

(Oven function only) - Optional

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
WARNING: Accessible parts may become hot during use. Young children should be kept away.
A steam cleaner is not to be used.
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.
WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
The temperature of accessible surfaces may be high when the appliance is operating.
The door or the outer surface may get hot when the appliance is operating.
Keep the appliance and its cord out of reach of children less than 8 years.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
☐ Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. ☐ Appliances are not intended to be operated by means of an external timer or separate remote-control system.

Place the oven on a flat level surface 85 cm above the floor. The surface should be strong enough to safety bear the weight of the oven.

1. When you install your oven, make sure there is adequate ventilation for your oven by leaving at least 10 cm (4 inches) of space behind and, on the side oven and 20 cm (8 inches) of sp

1. Remove all packing materials inside the oven.
2. Install the roller ring and turntable. Check that the turntable rotates freely. (Turntable type model only)
3. This microwave oven has to be positioned so that plug is accessible.
   If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. For your personal safety, plug the cable into a proper AC earthed socket.

Do not install the microwave oven in hot or damp surroundings like next to a traditional oven or radiator. The power supply specifications of the oven must be respected and any extension cable used must be of the same standard as the power cable supplied with the oven. Wipe the interior and the door seal with a damp cloth before using your microwave oven for the first time.

The following parts of your microwave oven should be cleaned regularly to prevent grease and food particles from building up:

• Inside and outside surfaces
- Door and door seals
- Turntable and Roller rings (Turntable type model only)

ALWAYS ensure that the door seals are clean and the door closes properly.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

1. Clean the outside surfaces with a soft cloth and warm, soapy water. Rinse and dry.
2. Remove any splashes or stains on the inside surfaces of oven with a soapy cloth. Rinse and dry.
3. To loosen hardened food particles and remove smells, place a cup of diluted lemon juice in the oven and heat for ten minutes at maximum power.

4. Wash the dishwasher-safe plate whenever necessary.
   DO NOT spill water in the vents. NEVER use any abrasive products or chemical solvents. Take particular care when cleaning the door seals to ensure that no particles:

5. Accumulate

6. Prevent the door from closing correctly

√ Clean the microwave oven cavity right after each use with a mild detergent solution, but let the microwave oven cool down before cleaning in order to avoid injury.

When cleaning the upper part inside the cavity, it will be convenient to turn heater downward by 45° and clean it.

(Swing heater model only)

STORING AND REPAIRING YOUR MICROWAVE OVEN

A few simple precautions should be taken when storing or having your microwave oven serviced.

The oven must not be used if the door or door seals are damaged:

• Broken hinge
  • Deteriorated seals
  • Distorted or bent oven casing

Only a qualified microwave service technician should perform repair

NEVER remove the outer casing from the oven. If the oven is faulty and needs servicing or you are in doubt about its condition:

• Unplug it from the wall socket
• Contact the nearest after-sales service centre

If you wish to store your oven away temporarily, choose a dry, dustfree place.

Reason : Dust and damp may adversely affect the working parts in the oven.

This microwave oven is not intended for commercial use.
The Light bulb should not be replaced in person for safety reasons.

Please contact nearest authorised

Samsung customer care, to arrange for a qualified engineer to replace the bulb.

WARNING
	Only qualified staff should be allowed to modify or repair the appliance.	√	√	√
	Do not heat liquids and other food in sealed containers for microwave function.	√	√	√
	For your safety, do not use high-pressure water cleaners or steam jet cleaners.	√	√	√
	Do not install this appliance; near heater, inflammable material; in a humid, oily or dusty location, in a location exposed to direct sunlight and water or where gas may leak; on un level ground.	√	√	√
	This appliance must be properly grounded in accordance with local and national codes.	√	√	√
	Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.	√	√	√

English - 8

	Do not pull or excessively bend or place heavy objecton the power cord.	√	√	√	√
	In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the power plug.	√	√	√	√
	Do not touch the power plug with wet hands.	√	√	√	√
	Do not turn the appliance off by unplugging the power plug while an operation is in progress.	√	√	√	√
	Do not insert fingers or foreign substances, if any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service centre.	√	√	√	√
	Do not apply excessive pressure or impact to the appliance.	√	√	√	√
	Do not place the oven over a fragile object such as a sink or glass object.	√	√
	Do not use benzene, thinner, alcohol, steam cleaner or high pressure cleaner to clean the appliance.	√	√	√	√
	Ensure that the power voltage, frequency and current are the same as those of the product specifications.	√	√		√
	Plug the power plug into the wall socket firmly. Do not use a multiple plug adapter, an extension cord or an electric transformer.	√	√	√
	Do not hook the power cord on a metal object, insert the power cord between the objects or behind the oven.	√	√	√
	Do not use a damaged power plug, damaged power cord or loose wall socket. When the power plug or power cord is damaged, contact your nearest service centre.	√	√	√	√

	Do not pour or directly spray water onto the oven.	√	√
	Do not place objects on the oven, inside or on the door of the oven.	√	√	√
	Do not spray volatile material such as insecticide onto the surface of the oven.	√	√
	Do not store flammable materials in the oven. Take special care when heating dishes or drinks that contain alcohol as alcohol vapours may contact a hot part of the oven.	√		√	√
	Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door.	√	√	√	√
	WARNING: Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container; To prevent this situation ALWAYS allow a standing time of at least 20 seconds after the oven has been switched off so that the temperature can equalize. Stir during heating, if necessary, and ALWAYS stir after heating. In the event of scalding, follow these FIRST AID instructions:Immerse the scalded area in cold water for at least 10 minutes.Cover with a clean, dry dressing.Do not apply any creams, oils or lotions.	√	√	√	√

English - 9

CAUTION
Only use utensils that are suitable for use in microwave ovens; DO NOT use any metallic containers, Dinnerware with gold or silver trimmings, Skewers, forks, etc.Remove wire twist ties from paper or plastic bags.Reason: Electric arcing or sparking may occur and may damage the oven.	√		√
Do not use your microwave oven to dry papers or clothes.	√		√
Use shorter times for smaller amounts of food to prevent overheating and burning food.	√		√
Do not immerse the power cable or power plug in water and keep the power cable away from heat.	√	√
Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended; Also do not heat airtight or vacuum-sealed bottles, jars, containers, nuts inshells, tomatoes etc.			√
Do not cover the ventilation slots with cloth or paper.They may catch fire as hot air escapes from the oven. The oven may also overheat and switch itself off automatically, and will remain off until it cools sufficiently.	√		√
Always use oven mitts when removing a dish from the oven to avoid unintentional burns.			√
Stir liquids halfway during heating or after heating ends and allow the liquid stand at least 20 seconds after heating to prevent eruptive boiling.			√
Stand at arms length from the oven when opening the door to avoid getting scalded by escaping hot air or steam.			√

	Do not operate the microwave oven when it is empty. The microwave oven will automatically shut down for 30 minutes for safety purposes. We recommend placing a glass of water inside the oven at all limes to absorb microwave energy in case the microwave oven is started accidentally.			√
	Install the oven in compliance with the clearances stated in this manual. (See installing your microwave oven.)		√
	Take care when connecting other electrical appliances to sockets near the oven.	√	√	√

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY.(MICROWAVE FUNCTION ONLY)

Failure to observe the following safety precautions may result in harmful exposure to microwave energy.

(a) Under no circumstances should any attempt be made to operate the oven with the door open or to tamper with the safety interlocks (door latches) or to insert anything into the safety interlock holes.
(b) Do NOT place any object between the oven door and front face or allow food or cleaner residues to accumulate on sealing surfaces. Ensure that the door and door sealing surfaces are kept clean by wiping after use first with a damp cloth and then with a soft dry cloth.
(c) Do NOT operate the oven if it is damaged until it has been repaired by a qualified microwave service technician trained by the manufacturer. It is particularly important that the oven door closes properly and that there is no damage to the:

(1) door (bent)
(2) door hinges (broken or loose)
(3) door seals and sealing surfaces

(d) The oven should not be adjusted or repaired by anyone other than a properly qualified microwave service technician trained by the manufacturer.

Samsung will charge a repair fee for replacing an accessory or repairing a cosmetic defect if the damage to the unit and/or damage to or loss of the accessory was caused by the customer. Items this stipulation covers include:

(a) A Dented, Scratched, or Broken Door, Handle, Out-Panel, or Control Panel.
(b) A Broken or missing Tray, Guide Roller, Coupler, or Wire Rack.

• Use this appliance only for its intended purpose as described in this instruction manual. Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models, the characteristics of your microwave oven may differ slightly from those described in this manual and not all warning signs may be applicable. If you have any questions or concerns, contact your nearest service centre or find help and information online at www.samsung.com.
• This microwave oven is supposed for heating food. It is intended for domestic home-use only. Do not heat any type of textiles or cushions filled with grains, which could cause burns and fire. The manufacturer cannot be held liable for damage caused by improper or incorrect use of the appliance.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possible result in a hazardous situation.

quick look-up guide

If you want to cook some food.

1. Place the food in the oven. Select the power level by pressing the Microwave (button once or more times.
2. Select the cooking time by pressing the 10 min, 1 min or 10 s button as required.
3. Press the Start (button.

Result: Cooking starts.

The oven beeps four times when cooking is over.

If you want to defrost some food.

1. Place the frozen food in the oven. Press the Defrost 🎨 button once or more times according to the type of food to be defrosted.
2. Select the weight by pressing the kg and 100 g buttons as required.
3. Press the Start (button.

If you want to add an extra minute.

Leave the food in the oven.

Press +30 s once or more times for each extra 30 seconds that you wish to add.

+30s +30วินาที

English - 11

If you want to grill some food.

1. Preheat the grill to the required temperature, by pressing the Grill (10 min, time setting (10 min, 1 min and 10 s) and Start (4 button.
2. After preheating is finished, Open the door and Place the food on the rack in the oven. Press the Grill (1) button. Select the cooking time by pressing the 10 min, 1 min and 10 s buttons.
3. Press the Start (button).

oven features

OVEN

1 2 3 4 5 6 8 9 11 10 127

1. DOOR
2. VENTILATION HOLES
3. GRILL
4. LIGHT
5. DISPLAY

6. DOOR LATCHES

7. TURNTABLE

8. COUPLER
9. ROLLER RING
10. SAFETY INTERLOCK HOLES
11. OPEN DOOR PUSH BUTTON
12. CONTROL PANEL

English - 12

CONTROL PANEL

1. AUTO POWER DEFROST FEATURE SELECTION
2. AUTO THAI CUISINE FEATURE SELECTION
3. GRILL MODE BUTTON
4. MICROWAVE MODE BUTTON
5. TIME SETTING BUTTON

6. STOP/CANCEL BUTTON

7. ENERGY SAVING BUTTON

8. WEIGHT SELECTION
9. MICROWAVE+GRILL MODE BUTTON
10. CLOCK SETTING BUTTON
11. +30 s BUTTON
12. START BUTTON

ACCESSORIES

Depending on the model that you have purchased, you are supplied with several accessories that can be used in a variety of ways.

1. Roller ring, to be placed in the centre of the oven. Purpose: The roller ring supports the turntable.
2. Turntable, to be placed on the roller ring with the centre fitting to the coupler.
   Purpose: The turntable serves as the main cooking surface; it can be easily removed for cleaning.
3. Grill rack, to be placed on the turntable. Purpose: The metal rack can be used in grill and combination cooking.
4. Crusty plate, see page 23 to 25.
   Purpose: The crusty plate when using auto crusty cook function or manual crusty cook function.
   DO NOT operate the microwave oven without the roller ring and turntable.

English - 13

oven use

Microwaves are high-frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour.

You can use your microwave oven to:

• Defrost
• Instant Reheat/Cook
  • Cook

Cooking Principle.

1. The microwaves generated by the magnetron are distributed uniformly as the food rotates on the turntable. The food is thus cooked evenly.
2. The microwaves are absorbed by the food up to a depth of about 1 inch (2.5 cm). Cooking then continues as the heat is dissipated within the food.
3. Cooking times vary according to the recipient used and the properties of the food:

• Quantity and density
- Water content
- Initial temperature (refrigerated or not)

As the centre of the food is cooked by heat dissipation, cooking continues even when you have taken the food out of the oven. Standing times specified in recipes and in this booklet must therefore be respected to ensure:

• Even cooking of the food right to the centre
• The same temperature throughout the food

CHECKING THAT YOUR OVEN IS OPERATING CORRECTLY

The following simple procedure enables you to check that your oven is working correctly at all times. Open the oven door by pushing the large button in the bottom right-hand corner of the control panel. First, place a bowl of water on the turntable. Then, close the door.

1. Press the Microwave (A) button and set the time to 4-5 minutes by pressing the 1 min button the appropriate number of limes.

Result: The oven heats the water for 4 to 5 minutes. The water should then be boiling.

The oven must be plugged into an appropriate wall socket. The turntable must be in position in the oven. If a power level other than the maximum is used, the water takes longer to boil.

SETTING THE TIME

Your microwave oven has an inbuilt clock. When power is supplied, ":0", "88:88" or "12:00" is automatically displayed on the display. Please set the current time. The time can be displayed in either the 24-hour or 12-hour notation. You must set the clock:

- When you first install your microwave oven - After a power failure

Auto energy saving function

If you do not select any function when appliance is in the middle of setting or operating with temporary stop condition, function is canceled and clock will be displayed after 25 minutes. Oven Lamp will be turned off after 5 minutes with door open condition.

1. To display the time in the...

24-hour notation.

12-hour notation.

Press the Clock ⏻ button once or twice.

1. Set the hour with the h button and the minutes with the min button.

1. When the right time is displayed, press the Clock (i) button again to start the clock.

Result: The time is displayed whenever you are not using the microwave oven.

COOKING/REHEATING

The following procedure explains how to cook or reheat food. ALWAYS check your cooking settings before leaving the oven unattended. First, place the food in the centre of the turntable. Then, close the door.

1. Press the Microwave (button.

Result: The 800 W (maximum cooking power) indications are displayed:

Select the appropriate power level

by pressing the Microwave (button again until the corresponding wattage is displayed. Refer to the power level table on the next page.

1. Set the cooking time by pressing the 10 min, 1 min and 10 s button.

2. Press the Start (button.

Result: The oven light comes on and the tumtable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Never switch the microwave oven on when it is empty.

03 OVEN USE

POWER LEVELS

You can choose among the power levels below.

Power level	Output
	MWO GRILL
HIGH 800 W -
MEDIUM HIGH 600 W -
MEDIUM 450 W -
MEDIUM LOW 300 W -
DEFROST 80 W -
LOW/KEEP WARM 100 W -
GRILL - 1100 W
COMBI I (300W) 1100 W
COMBI II (300W)	450 W 1100 W
COMBI III (300W)	300 W 1100 W

If you select higher power level, the cooking time must be decreased.
If you select lower power level, the cooking time must be increased.

ADJUSTING THE COOKING TIME

You can increase the cooking time by pressing the +30 s button once for each 30 seconds to be added.

1. Press the +30 s button once for each 30 seconds to be added.

1. Press the Start (◇) button.

STOPPING THE COOKING

You can stop cooking at any time to check the food.

1. To stop temporarily; Open the door.

Result:

Cooking stops. To resume cooking, close the door and press Start (◇) again.

1. To stop completely; Press the Stop (▽) button.

Result:

The cooking stops. If you wish to cancel the cooking settings, press the Stop (☑) button again.

You can cancel any setting before starting cooking by simply pressing Stop (☑) button.

SETTING THE ENERGY SAVE MODE

The oven has an Energy save mode. This facility saves electricity when the oven is not in use.

• Press the Energy Saving (▶) button. Result: Display off.
• To remove energy save mode, open the door or press the Energy Saving (▶) button and then display shows current time. The oven is ready for use.

English - 16

USING THE AUTO THAI CUISINE FEATURES

The 27 auto Thai Cuisine features include/provide pre-programmed cooking times. You do not need to set either the cooking times or the power level. You can adjust the auto Thai Cuisine category by press the Auto Thai Cuisine (Quick Meal, Soup/Rice, Thai Menu, Grill Menu) button. First, place the food in the center of the turntable and close the door.

1. Press the Auto Thai cuisine (Quick Meal, Soup/Rice, Thai Menu, Grill Menu) button which you want to cook.

1. Select the category of food that you are cooking by pressing the Auto Thai cuisine button. Refer to the table on the following page for a description of the various preprogrammed settings.

• Quick Meal: Press Quick Meal ( ) Button (1\~6)
• Soup/Rice : Press Soup/Rice ( ) Station (1-6)
• Thai Menu : Press Thai Menu ( ) button (1-7)

• Grill Menu : Press Grill Menu ( ) Button (1\~8)

• Press the Start (button).

USING THE QUICK MEAL PROGRAMMES

The following table presents the various Quick meal Programmes, quantities, standing times and appropriate recommendations.

Code	Food	Serving size	Ingredients Recommendations
1	Instant noodle	1 Serves	1 pack instant noodle, 1 egg, 100 g - favorite vegetable, 100 g - ground pork, 2 cup - water- In pack Seasoning powder
2	Frozen shrimp dumpling (Kanom jeeb kung)	12 pcs	1 pack frozen shrimp dumpling
3	Frozen chinese bun (Salapao sai moo)	9 pcs	1 pack frozen bun (salapao sai moo)
4	Frozen wonton shrimp (Keaw kung)	1 Serve	1 pack frozen wonton shrimp (keaw kung)

Code	Food	Serving size	Ingredients Recommendations
5	Frozencongee with grouper fish (Kow tom pla kao)	1 Serve 1	pack frozencongee with grouper (kao tom pla kao)1. Used folk stab cover for 3-4 times.2. Used MW 800 watt for 612 minutes.3. Bring out take off cover. serve.
6	Frozen spaghetti with chicken sauce	1 Serve 1	pack frozen spaghetti with chicken sauce1. Cut off outside package.2. Used folk stab inside package cover for 3-4 times.3. Used MW 800 watt for 5 minutes.4. Bring out take off cover. serve.

USING THE SOUP/RICE PROGRAMMES

The following table presents the various Soup/Rice Programmes, quantities, standing times and appropriate recommendations.

Code Food	Serving size	Ingredients Recommendations
1 Rice 2-3	Serves	1 cup - rice, 2 cups - water for cooking- Water for cleaned rice

Code	Food	Serving size	Ingredients Recommendations
2 Brown rice		2-3 Serves	1 cup - brown rice, 2 cups - water for cooking- Water for cleaned rice
3 Sticky rice 2-3		Serves	1 cup - sticky rice, 2 cups - water for cooking- Water for cleaned rice
4 Clear broth soup with soft tofu and seaweed		4 Serves	100 g - Chopped ground pork, 2 strips- Soft tofu, 14 cup- Dried seaweed, 2 roots - blended coriander root, 1 tb- oyster sauce, 1 tb- Fish sauce, 14 ts- Pepper, 14 cup- Spring onion, 1 tb - Chopped coriander, 500 ml - Water

English - 18

Code	Food	Serving size	Ingredients Recommendations
5	Tom yum soup with shrimp	4 Serves	150 g - shrimp, 1 cup - mushroom, 4 pieces - sliced galangal, 14 cup - sliced kaffir lime leave, 2 lemongrass, 4 tomatoes, 1 tb - chili paste, 14 cup - Evaporated milk, 3 tbs - fish sauce, 3 tbs - lime juice, 10 chili, 500 ml - waterCoriander leave for decorate
6	Green curry chicken soup	4 Serves	200 g - Chicken cut, 2 tb - Green curry paste, 500 ml - Coconut milk, 1 cup - cut in squared, egg plant, 1 tb - Fish sauce, 1 ts - Palm sugar, 14 cup - Sweet basilPaprika slide for decorate

USING THE THAI MENU PROGRAMMES

The following table presents the various Thai menu Programmes, quantities, standing times and appropriate recommendations.

Code	Food	Serving size	Ingredients Recommendations
1	Porkcongee/porridge	1 Serve	cup - cockedRice, 1⁄2 cup - Pork chopped, 500 ml - water, 1 tbs - Oyster sauce, 3⁄4 ts - Pepper ground, 1 tbs - soybean sauceCoriander and spring onion chop to decorate.
2	Spaghetti 2 Serves 80 g	-	spaghetti,500 ml - water,1⁄2 tb - olive oil, Pinch of salt
3	Steam egg (Egg custard)	2 Serves	2 Fresh egg, 3⁄4 cup - water, 1 tbs - soy sauce, 3⁄4 ts - salt, 2 tbs - Evaporated milk, 1⁄2 cup - kani crab, 4 boil shrimps

03 OVEN USE

English - 19

Code	Food	Serving size	Ingredients Recommendations
4	Spaghetti cream sauce	1 Serve	80 g - cooked spaghetti, 1 tb - Plain four, 12 cup - water, 12 cup - cooked ham, 14 cup - onion dice, 2 tbs - salt butter, 3 bay leave, 100 ml - wipcream, 12 cup - mushroom, 14 ts - salt, 2 tbs - mozzarella cheese
5	Coconut custard	2 Serves	3 duck egg, 12 cup - palm/Coconut sugar, 1 cup - coconut milk, 2-3 leaf pandan, 1 cup - small dice pumpkin
6	Banana in coconut milk	1-2 Serves	100 g - sliced banana, 150 ml - coconut milk, 3 tbs - palm sugar, 1 cup - water, 14 ts - Salt
7	Omelets 2 Serves	2 egg,	1 tb - dice tomato, 1 tb - dice onion, 12 tb - soy sauce, 1 tb - butter

USING THE GRILL MENU PROGRAMMES

The following table presents the various Grill menu Programmes, quantities, standing times and appropriate recommendations.

Code	Food	Serving size	Ingredients Recommendations
1	Garlic bread	10 pcs	0 piece French bread, 2 tb - butter, 12 ts - salt, 1 tb - garlic1. Mixed butter salt and garlic together then spread on the bread.2. Place on Grill rack and Grill for 3 minutes, serve.
2	Shrimp chop canape (Kan num ban na krung)	2-4 Serves	4 Sandwich bread, 12 cup - Shrimp chop, 1 ts - crush garlic, 14 ts - ground pepper, 1 ts - crush Coriander root, 12 tbs - Oyster sauce Coriander and slice paprika fo decorate1. Mix shrimp garlic pepper and oyster sauce together.2. Cut 1 bread in to 4 piece then spread on with shrimp.3. Put on the rack and use MW+Grill 600 watt for 4 minutes. serve.
3	New Orleans chicken wings	2 Serves	250 g - chicken wings, 2 tbs - oyster sauce, 12 tbs - pepper, 1 tbs - chili sauce (Sriracha brand), 1 bay leave1. Mixed oyster sauce, bay leave, pepper, chili sauce together then marinate with chicken wings leave for 15 minutes.2. Put it on crusty plate use MW+Grill 600 watt for 4 minutes.3. Turn the bottom back use MW+Grill 600 watt for 4 minutes. serve.

English - 20

Code	Food	Serving size	Ingredients Recommendations
4	Grilled whole chicken	4 Serves	1 whole chicken (500 gram.), 12 tbs - sugar, 3 tbs - oyster sauce, 2 tbs - soybean sauce, 12 tbs - pepper, 2 coriander root, 2 tbs - garlic, 2 tbs - oil, 1 tbs - Chinese wine (shao hsing)
			1. Used mortar to crush coriander root garlic and pepper together. Then mix with sugar, oyster sauce, soybean sauce, Chinese wine and oil together.2. Marinate all to chicken about 20 minutes.3. Put chicken in to crusty plate use MW+Grill 600 watt for 15 minutes.4. Tum the bottom up and use MW+Grill 600 watt for 15 minutes. serve.
5	Grilled fish with salt	4 Serves	500 g - Sea bass, 2 tbs - Salt, 2 tbs - Garlic, 1 ts - Pepper, 1 tb - coriander root, 2 piece crush Lemongrass
			1. Put all herb in fish's stomach, and Spring salt on the fish then put on crusty plate.2. Put into the microwave use MW+Grill 600 watt for 20 minutes.3. Serve hot with seafood dip.

Code	Food	Serving size	Ingredients Recommendations
6 Pork satay 20 pcs Pork satay			Pork satay1. Mix curry powder, lemongrass coriander root, milk, salt sugar and oyster sauce.2. Marinate with pork for 15 minutes and then stab with stick.3. Put on grill rack use grill for 10 minutes.4. Then turn bottom up use grill again for 10 minutes, serve with dip and side dish.Peanut dip1. Mix all ingredients except peanut together put in microwave use MW 800 watt for 212 minutes.2. Bring out add crush peanut, prepare for serve.Cucumber side dish1. Mix vinegar salt sugar together use MW 800 watt 112 minutes, bring out add with cucumber, onion and paprika prepare for serve.
			ingredient250 g - slice pork, 1 tbs - Curry powder, 1 tbs - Crush lemongrass, 1 tbs - coriander root, 2 tbs - evaporate milk, 14 ts - salt, 1 tbs - oyster sauce, 2 ts - sugarPeanut dip 12 cup - crush peanut, 3 tbs - chili paste, 2 cup - coconut milk, 4 tbs - palm sugar, 3 tbs - tamarind juice, 112 saltCucumber side dish 14 cup - Vinegar, 12 ts - salt, 2 tbs - sugar, 14 cup - Cucumber slice, 14 cup - red onion slice, 2 tbs - paprika slice

English - 21

Code	Food	Serving size	Ingredients Recommendations
7	Chicken teriyaki	2-4 Serves	500 g - Chicken thigh with skin, 2 tb - Teriyaki sauce, Vegetable
8	Grilled spare rib	2 Serves	350 g - spare rib, 2 tbs - chopped onion, 1 tb - chopped ginger, 12 tb - mustard, 2 tbs - ketchup, 1 tb - chili sauce, 3 bay leave, 1 tb - cooking sauce, 1 tb - oyster sauce, 1 tb - paprika
			1. Marinate Chicken with teriyaki sauce as well.2. Put the chicken on crusty plate use MW+Grill 600 watt for 5 minutes then turn up the chicken thigh and use MW+Grill for 5 minutes then serve hot with vegetable.

USING THE AUTO POWER DEFROST FEATURES

The Auto power defrost feature enable you to defrost meat, poultry, fish and bread/cake. The defrost time and power level are set automatically. You simply select the programme and the weight.

Use only dishes that are microwave-safe.

First, place the frozen food in the centre of the turntable and close the door.

1. Select the type of food that you are cooking by pressing the Defrost 🎨 button one or more times. (Refer to the table on the following page.)

1. Select the food weight by pressing the kg and 100 g button. It is possible to set up to a maximum of 1500 g.

Kg 100g

• Defrosting begins.
  • The oven beeps halfway through
  defrosting to remind you to turn the food over.
• Press Start ( ) button again to finish defrosting.

You can also defrost food manually. To do so, select the microwave cooking/reheating function with a power level of 180 W. Refer to the section entitled "Cooking/Reheating" on page 15 for further details.

English - 22

USING THE AUTO POWER DEFROST PROGRAMMES

The following table presents the various Auto Power Defrost programmes, quantities, standing times and appropriate recommendations. Remove all kinds of package material before defrosting. Place meat, poultry, fish and bread/cake on a ceramic plate.

Code	Food Portion	Standing time	Recommendations
1 Meat	200-1500 g 20-60 min.	Shield the edges with aluminium foil. Tum the meat over when the oven beeps. This programme is suitable for beef, lamb, pork, steaks, chops and minced meat.
2 Poultry	200-1500 g 20-60 min. Shield the leg and wing tips with aluminium foil. Tum the poultry over when the oven beeps. This programme is suitable for whole chicken and chicken portions.
3 Fish	200-1500 g 20-50 min. Shield the tail of the whole fish with aluminium foil. Tum the fish over when the oven beeps. This programme is suitable for whole fishes and fish fillets.
4 Bread/Cake	125-625 g 5-20 min.	Put bread on a piece of kitchen paper and turn over, as soon as the oven beeps. Place cake on a ceramic plate and if possible, turn over, as soon as the oven beeps. (Oven keeps operating and is stopped, when you open the door. This programme is suitable for all kinds of bread, sliced or whole, as well as for bread rolls and baguettes. Arrange bread rolls in a circle. This programme is suitable for all kinds of yeast cake, biscuit, cheese cake and puff pastry. It is not, suitable for short/crust pastry, fruit and cream cakes as well as for cake with chocolate topping.

Select the Manual Defrosting function with a power level of 180 W if you want to defrost food manually. For further details on manual defrosting and defrosting time, refer to the page 33.

USING THE MANUAL CRUSTY COOK FUNCTION

This crusty plate allows you to brown food not only on the top with the grill, but also the bottom of the food turns crispy and brown due to the high temperature of the crusty plate. Several items which you can prepare on the crusty plate can be found in the chart (see next page).

The crusty plate can also be used for bacon, eggs, sausages, etc.

1. Place the crusty plate directly on the turntable and preheat it with highest Microwave-Grill-Combination [600 W + Grill (W)] following the times and instructions in the chart.

Always use oven gloves to take out the crusty plate, as will become very hot.

1. Brush the plate with oil if you are cooking food, such as bacon and eggs, in order to brown the food nicely.

Please note that the crusty plate has a teflon layer which is not scratch-resistant. Do not use any sharp objects like a knife to cut on the crusty plate.

Use plastic accessories to avoid scratches on the surface of the crusty plate or remove the food from the plate before cutting.

1. Place the food on the crusty plate.

Do not place any objects on the crusty plate that are not heat-resistant; e.g. plastic bowels.

Never place the crusty plate in the oven without turntable.

1. Place the crusty plate on the metal rack (or turntable) in the microwave.

2. Select the appropriate cooking time and power. (Refer to the table on the side)

English - 23

How to clean the Crusty Plate

Clean the crusty plate with warm water and detergent and rinse off with clean water. Do not use a scrubbing brush or a hard sponge otherwise the top layer will be damaged.

Please Note

The crusty plate is not dishwasher-safe.

USING THE MANUAL CRUSTY COOK SETTING

We recommend to preheat the crusty plate directly on the turntable. Preheat crusty plate with 600 W + Grill (Junction for 3-5 minutes. Follow the times and instructions in the table.

Food	Serving size	Preheating time	Power	Cooking time (min.)	Recommendations
Bacon 4 slices(80 g)		3 min. 600 W+ Grill		312 -4 Preheat crust plate. Put slices side by side on crust plate. Put crust plate on rack.
Grilled tomatoes	200 g(2 pcs)	3 min. 450 W+ Grill		4-5 Preheat crust plate. Cut tomatoes in halves. Put some cheese on top. Arrange in a circle on crust plate. Put crust plate on rack.
Baked potatoes	250 g500 g	3 min. 600 W+ Grill		5-68-9	Preheat crust plate. Cut potatoes in halves. Put them on the crust plate with the cut-side to the bottom. Arrange in a circle. Put the plate on the rack.

Food	Serving size	Preheating time	Power	Cooking time (min.)	Recommendations
Frozen burger	2 pieces (125 g)	3 min. 600	W+ Grill	7-7 12 Preheat crust plate. Put frozen burger side by side on the crust plate. Put crust plate on rack. Turn over after 4-5 min.
Frozen baguettes	200-250 g (2 pcs)	3 min. 450	W+ Grill	8-9 Preheat crust plate. Put baguettes with topping (e.g. tomato-cheese) side by side on the plate. Put crust plate on rack.
Frozen pizza	300-400 g	5 min. 450 W	+ Grill	9-11 Preheat the crust plate. Put the frozen pizza on the crust plate. Put crust plate on rack.
Frozen mini-pizza-snack	9x30 g (270 g)	3 min. 300	W+ Grill	9-10 Preheat crust plate. Distribute pizza snacks evenly on crust plate. Put the plate on the rack.
Chilled pizza	300-350 g	5 min. 450 W	+ Grill	6 12 -7 12 Preheat crust plate. Put the chilled pizza on the plate. Put crust plate on rack.

English - 24

Food	Serving size	Preheating time	Power	Cooking time (min.)	Recommendations
Frozen Fish fingers	150 g(5 pcs)	4 min. 600 W+ Grill		7-8 Preheat crust plate. Brush plate with 1 tbsp. oil. Put fish fingers in a circle on the plate. Turn over after 4 min (5 pcs) or after 6 min. (10 pcs).
	300 g(10 pcs)	4 min. 600 W+ Grill		9-10
Frozen chicken nuggets	125 g250 g	4 min. 600 W+ Grill		5-67-8	Preheat crust plate. Brush plate with 1 tbsp. oil. Put chicken nuggets on the plate. Put crust plate on rack. Turn over after 3 min (125 g) or 5 min. (250 g).

CHOOSING THE ACCESSORIES

Use microwave-safe recipients; do not use plastic containers, dishes, paper cups, lowels, etc.

If you wish to select the combined cooking mode (grill and microwave), use only dishes that are microwave-safe and oven-proof.

For further details on suitable cookware and utensils, refer to the Cookware Guide on page 28.

GRILLING

The grill enables you to heat and brown food quickly, without using microwaves. To this aim, a grill rack is supplied with your microwave oven.

1. Preheat the grill to the required temperature, by pressing the Grill (U) button, time setting (10 min, 1 min and 10 s) and Start (Button).

1. After preheating is finished, Open the door and place the food on the rack.

1. Press the Grill (U) button. Select the cooking time by pressing the 10 min, 1 min and 10 s buttons. (The maximum grilling time is 60 minute.)

1. Press the Start (button).

Result: The oven light comes on and the turntable starts rotating.

1) Cooking starts and when it has finished the oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

Do not worry if the heater turns off and on while grilling. This system is designed to prevent overheating of the oven.
Always use oven gloves when touching the dishes in the oven, as they will be very hot.

COMBINING MICROWAVES AND THE GRILL

You can also combine microwave cooking with the grill, to cook quickly and brown at the same time.

ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly.

ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot.

1. Open the oven door by pushing the large button in the bottom right-hand corner of the control panel. Place the food on the rack and the rack on the turntable. Close the door.

1. Press the MW+Grill (750lon.

Result: The following indications are displayed: 600 W (microwave and grill mode) 600 W (out power)

Select the appropriate power level by pressing the MW+Grill (☐U) button again until the corresponding power level is displayed.

You cannot set the temperature of the grill.

1. Set the cooking time by pressing the 10 min, 1 min and 10 s buttons. The maximum cooking time is 60 minutes.

1. Press the Start (button).

Result: Combination cooking starts. When it has finished.

1) The oven beeps four times.
2) The end reminder signal will beep 3 times (once every minute).
3) The current time is displayed again.

The maximum microwave power for the combined microwave and grill mode is 600 W.

MULTISTAGE COOKING

Your microwave oven can be programmed to cook food up to three stages.

Example: You wish to defrost food and cook it without having to reset the oven after each stage. You can thus defrost and cook a 500 g fish in three stages:

• Defrosting
• Cook I
  • Cook II

You can set between two and three stages in multistage cooking. If you set three stage, the first stage must be defrosting. Don't press Start (button until you've set the final stage.

1. Press the Defrost ( ^** ) button once or more times.

1. Set the weight by pressing the kg and 100 g buttons the appropriate number of times (500 g in the example).

1. Press the Microwave (3) button. The microwave mode (I):

if necessary, set the power level by pressing the Microwave (button again one or more times. (600 W in the example)

1. Set the cooking time by pressing the 10 min, 1 min and 10 s buttons the appropriate number of times (4 minutes in the example).

1. Press the Grill (I) button. The grill mode (II):

1. Set the cooking time by pressing the 10 min, 1 min and 10 s buttons the appropriate number of times (5 minutes in the example). (The maximum grilling time is 60 minutes.)

1. Press the Start (button).

Result: The three modes [defrosting and cooking (I, II)] are selected one after the other. According to the defrosting mode that you have chosen, the oven may beep halfway through defrosting to remind you to turn the food over. When cooking is over, the oven beeps four times. • The end reminder signal will beep 3 times (once every minute). • The current time is displayed again.

SWITCHING THE BEEPER OFF

You can switch the beeper off whenever you want.

1. Press the Stop (☑) and Start (◇) buttons at the same time.

Result: The oven will not beep each time you press any button.

1. To switch the beeper back on, press the Stop (☑) and Start (☐) buttons again at the same time.

Result: The oven operates with the beeper on again.

Your microwave oven is fitted with a special Child Safety programme, which enables the oven to be "locked" so that children or anyone unfamiliar with it cannot operate it accidentally.

The oven can be locked at any time.

1. Press the Stop (▽) and Clock (◀) buttons at the same time.

Result: The oven is locked (no functions can be selected).

1. To unlock the oven, press the Stop ( ) and Clock ( ) buttons again at the same time.

Result: The oven can be used normally.

English - 27

03 OVEN USE

cookware guide

To cook food in the microwave oven, the microwaves must be able to penetrate the food, without being reflected or absorbed by the dish used. Care must therefore be taken when choosing the cookware. If the cookware is marked microwave-safe, you do not need to worry. The following table lists various types of cookware and indicates whether and how they should be used in a microwave oven.

Cookware Microwave-safe	Comments
Aluminum foil	√ ✘ Can be used in small quantities to protect areas against overcooking.Arcing can occur if the foil is too close to the oven wall or if too much foil is used.
Browning plate	√ Do not preheat for more than eight minutes.
China and earthenware	√ Porcelain, pottery, glazed earthenware and bone china are usually suitable, unless decorated with a metal trim.
Disposable polyester cardboard dishes	√ Some frozen foods are packaged in these dishes.
Fast-food packaging
• Polystyrene cups containers	√ Can be used to warm food.Overheating may cause the polystyrene to melt.
• Paper bags or newspaper	✗ May catch fire.
• Recycled paper or metal trims	✗ May cause arcing.
Glassware
• Oven-to-table ware	√ Can be used, unless decorated with a metal trim.

Cookware Microwave-safe		Comments
Fine glasswareGlass jars	√	Can be used to warm foods or liquids. Delicate glass may break or crack if heated suddenly.Must remove the lid. Suitable for warming only.
	√
MetalDishesFreezer bag twist ties	✕✕	May cause arcing or fire.
PaperPlates, cups, napkins and Kitchen paperRecycled paper	√✕	For short cooking times and warming. Also to absorb excess moisture.May cause arcing.
PlasticContainersCling filmFreezer bags	√√√✕	Particularly if heat-resistant thermoplastic. Some other plastics may warp or discolour at high temperatures. Do not use Melamine plastic.Can be used to retain moisture.Should not touch the food. Take care when removing the film as hot steam will escape.Only if boilable or oven-proof.Should not be airtight. Prick with a fork, if necessary.
Wax or grease-proof paper	√	Can be used to retain moisture and prevent spattering.

√ : Recommended √x : Use caution x : Unsafe

cooking guide

MICROWAVES

Microwave energy actually penetrates food, attracted and absorbed by its water, fat and sugar content.

The microwaves cause the molecules in the food to move rapidly. The rapid movement of these molecules creates friction and the resulting heat cooks the food.

COOKING

Cookware for microwave cooking:

Cookware must allow microwave energy to pass through it for maximum efficiency. Microwaves are reflected by metal, such as stainless steel, aluminium and copper, but they can penetrate through ceramic, glass, porcelain and plastic as well as paper and wood. So food must never be cooked in metal containers.

Food suitable for microwave cooking:

Many kinds of food are suitable for microwave cooking, including fresh or frozen vegetables, fruit, pasta, rice, grains, beans, fish, and meat. Sauces, custard, soups, steamed puddings, preserves, and chutneys can also be cooked in a microwave oven. Generally speaking, microwave cooking is ideal for any food that would normally be prepared on a hob. Melting butter or chocolate, for example (see the chapter with tips, techniques and hints).

Covering during cooking

To cover the food during cooking is very important, as the evaporated water rises as steam and contributes to cooking process. Food can be covered in different ways: e.g. with a ceramic plate, plastic cover or microwave suitable cling film.

Standing times

After cooking is over food the standing time is important to allow the temperature to even out within the food.

Cooking guide for frozen vegetables

Use a suitable glass pyrex bowl with lid. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir twice during cooking and once after cooking. Add salt, herbs or butter after cooking. Cover during standing time.

Food Portion Power			Time (min.)	Standing time (min.)	Instructions
Spinach 150 g	600 W 4 12 -5 12 2-3	Add 15 ml	(1 tbsp.)		cold water.
Broccoli 300 g	600 W 9	10 2-3 Add	30 ml (2 tbsp.)		cold water.
Peas 300 g 600	W 7 12 -8 12 2-3 Add		15 ml (1 tbsp.)		cold water.
Green beans 300 g 600		W 8-9 2-3	Add 30 ml	(2 tbsp.)	cold water.
Mixed vegetables (Carrots/ Peas/ Corn)	300 g 600 W 7 12 -8 12 2-3 Add		15 ml (1 tbsp.)		cold water.
Mixed vegetables (Chinese style)	300 g 600 W 8-9	2-3 Add	15 ml (1 tbsp.)		cold water.

04 COOKWARE GUIDE

English - 29

Cooking guide for rice and pasta

Rice: Use a large glass pyrex bowl with lid - rice doubles in volume during cooking. Cook covered. After the cooking time is over, stir before standing time and salt or add herbs and butter. Remark: the rice may not have absorbed all water after the cooking time is finished.

Pasta: Use a large glass pyrex bowl. Add boiling water, a pinch of salt and stir well. Cook uncovered. Stir occasionally during and after cooking. Cover during standing time and drain thoroughly afterwards.

Food Portion Power		Time (min.)	Standing time (min.)	Instructions
White rice (Parboiled)	250 g 800 W 16-17	5 Add 500 ml		cold water.
Brown rice (Parboiled)	250 g 800 W 21-22	5 Add 500 ml		cold water.
Mixed rice (Rice + Wild rice)	250 g 800 W 17-18	5 Add 500 ml		cold water.
Mixed corn (Rice + Grain)	250 g 800 W 18-19	5 Add 400 ml		cold water.
Pasta 250 g 800 W 11-12 5	Add 1000 ml			hot water.

Cooking guide for fresh vegetables

Use a suitable glass pyrex bowl with lid. Add 30-45 ml cold water (2-3 tbsp.) for every 250 g unless another water quantity is recommended - see table. Cook covered for the minimum time - see table. Continue cooking to get the result you prefer. Stir once during and once after cooking. Add salt, herbs or butter after cooking. Cover during a standing time of 3 minutes.

Hint: Cut the fresh vegetables into even sized pieces. The smaller they are cut, the quicker they will cook.

All fresh vegetables should be cooked using full microwave power (800 W).

Food Portion		Time (min.)	Standing time (min.)	Instructions
Broccoli 250 g	500 g	4-4 12 7-7 12	3 Prepare even sized florets.Arrange the stems to the centre.
Brussels sprouts	250 g 5 12 -6 12		3 Add 60-75 ml (5-6 tbsp.) water.
Carrots 250 g	4 12 -5 3 Cut carrots into even sized slices.
Cauliflower 250 g500 g		5-5 12 8 12 -9	3 Prepare even sized florets. Cut big florets into halves. Arrange stems to the centre.
Courgettes	250 g 3 12 -4 3 Cut courgettes into slices. Add 30 ml (2 tbsp.) water or a knob of butter. Cook until just tender.
Egg plants	250 g 3 12 -4 3 Cut egg plants into small slices and sprinkle with 1 tablespoon lemon juice.
Leeks	250 g 4 12 -5 3 Cut leeks into thick slices.
Mushrooms	125 g250 g	1 12 -23-3 12	3 Prepare small whole or sliced mushrooms. Do not add any water. Sprinkle with lemon juice. Spice with salt and pepper. Drain before serving.

English - 30

Food Portion	Time (min.)	Standing time (min.)	Instructions
Onions 250 g	512 -6 3 Cut onions	into slices or halves.Add only 15 ml (1 tbsp.) water.
Popper 250 g	412 -5 3 Cut pepper	into small slices.
Potatoes 250 g	500 g	4-5 712 - 812	3 Weigh the peeled potatoes and cut them into similar sized halves or quarters.
Turnip cabbage	250 g 5-	512 3 Cut turnip cabbage into small cubes.

REHEATING

Your microwave oven will reheat food in a fraction of the time that conventional ovens hobs normally take.

Use the power levels and reheating times in the following chart as a guide. The times in the chart consider liquids with a room temperature of about +18 to +20 °C or a chilled food with a temperature of about +5 to +7 °C.

Arranging and covering

Avoid reheating large items such as joint of meat – they tend to overcook and dry out before the centre is piping hot. Reheating small pieces will be more successful.

Power levels and stirring

Some foods can be reheated using 800 W power while others should be reheated using 600 W, 450 W or even 300 W.

Check the tables for guidance. In general, it is better to reheat food using a lower power level, if the food is delicate, in large quantities, or if it is likely to heat up very quickly (mince pies, for example).

Stir well or turn food over during reheating for best results. When possible, stir again before serving.

Take particular care when heating liquids and baby foods. To prevent eruptive boiling of liquids and possible scalding, stir before, during and after heating. Keep them in the microwave oven during standing time. We recommend putting a plastic spoon or glass stick into the liquids. Avoid overheating (and therefore spoiling) the food.

It is preferable to underestimate cooking time and add extra heating time, if

necessary.

Heating and standing times

When reheating food for the first time, it is helpful to make a note of the time taken – for future reference.

Always make sure that the reheated food is piping hot throughout.

Allow food to stand for a short time after rehealing - to let the temperature even out.

The recommended standing time after rehealing is 2-4 minutes, unless another time is recommended in the chart.

Take particular care when heating liquids and baby food. See also the chapter with the safety precautions.

REHEATING LIQUIDS

Always allow a standing time of at least 20 seconds after the oven has been switched off to allow the temperature to even out. Stir during heating, if necessary, and ALWAYS stir after heating. To prevent eruptive boiling and possible scalding, you should put a spoon or glass stick into the beverages and stir before, during and after heating.

REHEATING BABY FOOD

BABY FOOD: Empty into a deep ceramic plate. Cover with plastic lid. Stir well after reheating!

Let stand for 2-3 minutes before serving. Stir again and check the temperature.

Recommended serving temperature: between 30-40 °C.

BABY MILK: Pour milk into a sterilised glass bottle. Reheat uncovered. Never heat a baby's bottle with teat on, as the bottle may explode if overheated. Shake well before standing time and again before serving! Always carefully check the temperature of baby milk or food before giving it to the baby. Recommended serving temperature: ca. 37 °C.

REMARK: Baby food particularly needs to be checked carefully before serving to prevent burns.

Use the power levels and times in the next table as a guide lines for reheating.

English - 31

Reheating baby food and milk
Use the power levels and times in this table as guide lines for reheating.

Food Portion Power Time			Standing time (min.)	Instructions
Baby food (Vegetables + Meat)	190 g 600 W 30 sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby pomidge (Grain + Milk + Fruit)	190 g 600 W 20 sec. 2-3 Empty into ceramic deep plate. Cook covered. Stir after cooking time. Stand for 2-3 minutes. Before serving, stir well and check the temperature carefully.
Baby milk 100 ml 300 W 30-40 sec. 2-3 Stir or min.				and pour into a sterilized glass bottle. Place into the centre of turn-table. Cook uncovered. Shake well and stand for at least 3 minutes. Before serving, shake well and check the temperature carefully.

Reheating liquids and food
Use the power levels and times in this table as a guide lines for reheating.

Food Portion Power			Time (min.)	Standing time (min.)	Instructions
Drinks (coffee, tea and water)	150 ml (1 cup)250 ml (1 mug)	800 W	1-1 12 1-21 12 -2	Pour in to a	ceramic cup and reheat uncovered. Place cup (150 ml) or mug (250 ml) in the centre of tumtable, Stir carefully before and after standing time.
Soup (chilled)	250 g 8	00 W 3-3	12 2-3 Pour into a deep ceramic plate. Cover with plastic lid, Stir well after reheating. Stir again before serving.
Stew (chilled)	350 g 6	00 W 5 12 -6 12 2-3	Put stew in a		deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Pasta with sauce (chilled)	350 g 6	00 W 4 12 -5 12 3	Put pasta (e.g. spaghetti or egg noodles) on a flat ceramic plate. Cover with microwave cling film. Stir before serving.
Filled pasta with sauce (chilled)	350 g 6	00 W 5-6	3	Put filled pasta (e.g. ravioli, tortellini) in a deep ceramic plate. Cover with plastic lid. Stir occasionally during reheating and again before standing and serving.
Plated meal (chilled)	350 g 6	00 W 5 12 -6 12 3	Plate a meal of		2-3 chilled components on a ceramic dish. Cover with microwave cling-film.

English - 32

MANUAL DEFROSTING

Microwaves are an excellent way of defrosting frozen food. Microwaves gently defrost frozen food in a short period of time. This can be of great advantage, if unexpected guests suddenly show up.

Frozen poultry must be thoroughly thawed before cooking. Remove any metal ties and take it out of any wrapping to allow thawed liquid to drain away.

Put the frozen food on a dish without cover. Turn over half way, drain off any liquid and remove any giblets as soon as possible.

Check the food occasionally to make sure that it does not feel warm.

If smaller and thinner parts of the frozen food start to warm up, they can be shield by wrapping very small strips of aluminium foil around them during defrosting.

Should poultry start to warm up on the outer surface, stop thawing and allow it to stand for 20 minutes before continuing.

Leave the fish, meat and poultry to stand in order to complete defrosting.

The standing time for complete defrosting will vary depending on the quantity defrosted. Please refer to the table below.

Hint: Flat food defrosts better than thick and smaller quantities need less time than bigger ones. Remember this hint while freezing and defrosting food.

For defrosting of frozen food with a temperature of about -18 to -20 °C, use the following table as a guide.

All frozen food should be defrosted using defrosting power level (180 W,

Food Portion	Time (min.)	Standing time (min.)	Instructions
Meat
Minced beef 250 g	6 12 -7 12	5-25 Place the meat on a flat ceramic plate. Shield thinner edges with aluminium foil.
Pork steaks 250 g 7 12 -8 12	10-12		Turn over after half of defrosting time!

Food Portion		Time (min.)	Standing time (min.)	Instructions
Poultry
Chicken pieces	500 g(2 pcs)	14 12 -15 12	15-40 First, put chicken piecesfirst skin-side down, wholechicken first breast-sidedown on a flat ceramicplate. Shield the thinnerparts like wings and endswith aluminium foil. Turnover after half of defrostingtime!
Whole chicken	900 g 28-30
Fish
Fish fillets 200 g	(2 pcs)400 g(4 pcs)	6-7 5-112-13	Put frozen fish in the middleof a flat ceramic plate.Arrange the thinner partsunder the thicker parts.Shield narrow ends withaluminium foil. Turn overafter half of defrosting time!
Fruits
Berries 250 g	6-7 5-10	Distribute fruits on a flat,	round glass dish (with alarge diameter).
Bread
Bread rolls(Each about.50 g)	2 pcs4 pcs	12 -12-2 12	5-20 Arrange rolls in a circleor bread horizontally onkitchen paper in the middleof turntable.Turn over after half ofdefrosting time!
Toast/sandwich	250 g 4 12 -5
Germanbread (Wheat+ Rye flour)	500 g 8-10

05 COOKING GUIDE

English - 33

GRILL

The grill-heating element is located underneath the ceiling of the cavity. It operates while the door is closed and the turntable is rotating. The turntable's rotation makes the food brown more evenly. Preheating the grill for 3-4 minutes will make the food brown more quickly.

Cookware for grilling:

Should be flameproof and may include metal. Do not use any type of plastic cookware, as it can melt.

Food suitable for grilling:

Chops, sausages, steaks, hamburgers, bacon and gammon rashers, thin fish portions, sandwiches and all kinds of toast with toppings.

Important remark:

Whenever the grill only mode is used, make sure that the grill-heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. Please remember that food must be placed on the high rack, unless another instruction is recommended.

MICROWAVE + GRILL

This cooking mode combines the radiant heat that is coming from the grill with the speed of microwave cooking. It operates only while the door is closed and the turntable is rotating. Due to the rotation of the turntable, the food browns evenly. Three combination modes are available with this model: 600 W + Grill, 450 W + Grill and 300 W + Grill.

Cookware for cooking with microwave + grill

Please use cookware that microwaves can pass through. Cookware should be flameproof. Do not use metal cookware with combination mode. Do not use any type of plastic cookware, as it can melt.

Food suitable for microwave + grill cooking:

Food suitable for combination mode cooking include all kinds of cooked food which need reheating and browning (e.g. baked pasta), as well as foods which require a short cooking time to brown the top of the food. Also, this mode can be used for thick food portions that benefit from a browned and crispy top (e.g. chicken pieces, turning them over half way through cooking). Please refer to the grill table for further details.

Important remark:

Whenever the combination mode (microwave + grill) is used, make sure that the grill heating element is under the ceiling in the horizontal position and not on the back-wall in the vertical position. The food should be placed on the high rack, unless another instruction is recommended. Otherwise it has to be placed directly on the turntable. Please refer to the instructions in the following chart.

The food must be turned over, if it is to be browned on both sides.

Grill Guide for frozen food
Use the power levels and times in this table as guide lines for grilling.

Fresh food	Portion Power	1st side time (min.)	2nd side time (min.)	Instructions
Bread rolls (Each ca. 50G)	2 pcs4 pcs	MW+Grill300 W + Grill 1-112 2-212	Grill only1-21-2	Arrange rolls in a circle on rack.Grill the second side of the rolls up to the crisp you prefer.Stand for 2-5 minutes.
Baguettes + Topping (Tomatos, Cheese, Ham, Mushrooms)	250-300 g (2 pcs)	450 W + Grill8-9 - Put frozen		baguettes side by side on the rack. After grilling stand for 2-3 minutes.
Gratin (Vegetables potatoes)	400 g 450 W + Grill13-14 - Put frozen			gratin into a small, round glass pyrex dish. Put the dish on the rack.After cooking stand for 2-3 minutes.

Fresh food Portion Power			1st side time (min.)	2nd side time (min.)	Instructions
Pasta (Cannelloni, Macaroni, Lasagne)	400 g MW+Grill 600		W + Grill 14-15	Grill only 2-3	Put frozen pasta into a small flat rectangular glass pyrex dish. Put the dish directly on the turntable. After cooking stand for 2-3 minutes.
Chicken nuggets	250 g 450 W + Grill		5-5 12 3	3 12 Put chicken nuggets on the rack
Oven chips 250 g 450 W +		Grill	9-11 4-5	Put oven chips evenly on baking paper on the rack.

Grill Guide for fresh food

Preheat the grill with the grill-function for 4 minutes. Use the power levels and times in this table as guide lines for grilling.

Fresh food	Portion Power		1st side time (min.)	2nd side time (min.)	Instructions
Toast slices	4 pcs(each 25 g)	Grill only 4-5 4 12 -5 12	Put the toaest slices side by side on the rack.
Bread rolls(Already baked)	2-4 pieces	Grill only 2-3	2-3 Put bread rolls first with the bottom side up in a circle directly on the turntable.
Grilled tomatoes	200 g(2 pcs)400 g(4 pcs)	MW+Grill	300 W + Grill4 12 -5 12 7-8	Grill only 2-3	Cut tomatoes into halves. Put some cheese on top.Arrange in a circle in a flat glass pyrex dish. Place it on the rack.
Toast hawaii(Pineapple, Ham,Cheese slices)	2 pcs(300 g)	450 W + Grill	3 12 -4	-	Toast the bread slices first. Put the toast with topping on the rack. Put 2 toasts opposite directly on the rack. Stand for 2-3 minutes.
Baked potatoes	250 g500 g	600 W + Grill	4 12 -5 12 8-9	-	Cut potatoes into halves. Put them in a circle on the rack with the cut side to the grill.

05 COOKING GUIDE

English - 35

Fresh food	Portion Power		1st side time (min.)	2nd side time (min.)	Instructions
Chicken pieces	450-500 g(2 pcs)	300 W + Grill	10-12	12-13 Prepare	cheicken pieces with oil and spices. Put them in a circle with the bones to the middle. Put one chicken piece not into the centre of the rack. Stand for 2-3 minutes.
Lamb chops/beef steaks(Medium)	400 g(4 pcs)	Grill only	12-15	9-12 Brush the lamb chops with oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes.
Pork steaks	250 g(2 pcs)	MW+Grill	300 W + Grill7-8	6-7 Grill only Brush the pork steaks with oil and spices. Lay them in a circle on the rack. After grilling stand for 2-3 minutes.
Baked apples	1 apple(ca. 200 g)2 apples(ca. 400 g)	300 W + Grill	4-4 12 6-7	- Core	the apples and fill them with raisins and jam. Put some almond slices on top. Put apples on a flat glass pyrex dish. Place the dish directly on the turntable.

SPECIAL HINTS

MELTING BUTTER

Put 50 g butter into a small deep glass dish. Cover with plastic lid. Heat for 30-40 seconds using 800 W, until butter is melted.

MELTING CHOCOLATE

Put 100 g chocolate into a small deep glass dish. Heat for 3-5 minutes, using 450 W until chocolate is melted. Stir once or twice during melting. Use oven gloves while taking out!

MELTING CRYSTALLIZED HONEY

Put 20 g crystallized honey into a small deep glass dish. Heat for 20-30 seconds using 300 W, until honey is melted.

MELTING GELATINE

Lay dry gelatine sheets (10 g) for 5 minutes into cold water. Put drained gelatine into a small glass pyrex bowl. Heat for 1 minute using 300 W. Stir after melting.

COOKING GLAZE/ICING (FOR CAKE AND GATEAUX)

Mix instant glaze (approximately 14 g) with 40 g sugar and 250 ml cold water. Cook uncovered in a glass pyrex bowl for 3½ to 4½ minutes using 800 W, until glaze/icing is transparent. Stir twice during cooking.

COOKING JAM

Put 600 g fruits (for example mixed berries) in a suitable sized glass pyrex bowl with lid. Add 300 g preserving sugar and stir well. Cook covered for 10-12 minutes using 800 W. Stir several times during cooking. Empty directly into small jam glasses with twist-off lids. Stand on lid for 5 minutes.

COOKING PUDDING

Mix pudding powder with sugar and milk (500 ml) by following the manufacturers instructions and stir well. Use a suitable sized glass pyrex bowl with lid. Cook covered for 6½ to 7½ minutes using 800 W. Stir several times well during cooking.

BROWNING ALMOND SLICES

Spread 30 g sliced almonds evenly on a medium sized ceramic plate. Stir several times during browning for 3½ to 4½ minutes using 600 W. Let it stand for 2-3 minutes in the oven. Use oven gloves while taking out!

English - 36

troubleshooting and error code

TROUBLESHOOTING

If you have any of the problems listed below try the solutions given.

This is normal.

• Condensation inside the oven.
• Air flow around the door and outer casing.
• Light reflection around the door and outer casing.
- Steam escaping from around the door or vents.

The oven does not start when you press the (button.

• Is the door completely closed?

The food is not cooked at all.

• Have you set the timer correctly and/or pressed the ( ) button?
  • Is the door closed?
• Have you overloaded the electric circuit and caused a fuse to blow or a breaker to be triggered?

The food is either overcooked or undercooked.

• Was the appropriate cooking length set for the type of food?
• Was an appropriate power level chosen?

The light bulb is not working.

- The Light bulb should not be replaced in person for safety reasons. Please contact nearest authorised Samsung customer care, to arrange for a qualified engineer to replace the bulb.

The oven causes interference with radios or televisions.

• Slight interference may be observed on televisions or radios when the oven is operating. This is normal. To solve this problem, install the oven away from televisions, radios and aerials.
• If interference is detected by the oven's microprocessor, the display may be reset. To solve this problem, disconnect the power plug and reconnect it. Reset the time.

Smoke and bad smell when initial operating.

- It's a temporary condition by new component heating. Smoke and smell will disappear completely after 10 minutes operation. To remove smell more quickly, please operate microwave oven with putting lemon formation or lemon juice in the cabinet.

Sparking and cracking occur inside the oven (arcing).

• Have you used a dish with metal trimmings?
• Have you left a fork or other metal utensil inside the oven?
  • Is aluminum foil too close to the inside walls?

If the above guidelines do not enable you to solve the problem, then contact your local SAMSUNG customer service centre. Please have the following information read:

• The model and serial numbers, normally printed on the rear of the oven
• Your warranty details
  • A clear description of the problem

Then contact your local dealer or SAMSUNG aftersales service.

ERROR CODE

"SE" message indicates.

- The "SE" message is Clean the keys and check if there is water on the surface around key. Turn off the microwave oven and try setting again. If it occurs again, call your local SAMSUNG Customer Care Centre.

technical specifications

SAMSUNG strives to improve its products at all times. Both the design specifications and these user instructions are thus subject to change without notice.

Model GE83MDT
Power source 220 V ~ 50 Hz
Power consumption
Microwave	1200 W
Grill	1050 W
Combined mode	2250 W
Output power 100 W / 800 W (IEC-705)
Operating frequency 2450 MHz
Magnetron OM75P(31)
Cooling method Cooling fan motor
Dimensions (W x H x D)
Outside	489 x 275 x 355 mm
Oven cavity	330 x 211 x 324 mm
Volume 23 liter
Weight
Net 13 kg approx

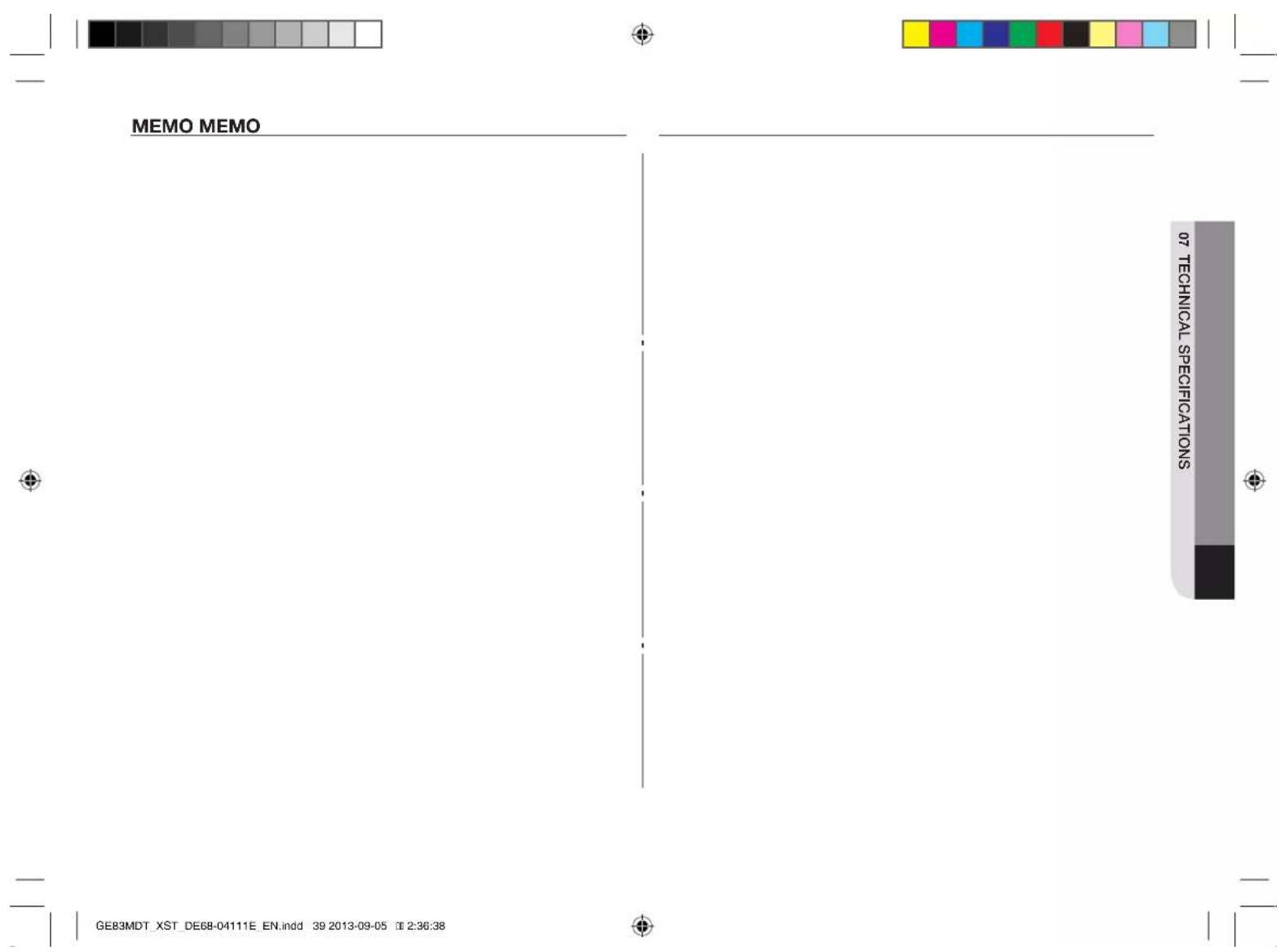

MEMO

English - 38

SAMSUNG

QUESTIONS OR COMMENTS

COUNTRY CALL OR VISIT US ONLINE AT
AUSTRALIA 1300 362 603		www.samsung.com/au
NEW ZEALAND 0800 SAMSUNG (0800 726 786)		www.samsung.com/nz
CHINA 400-810-5858		www.samsung.com
HONG KONG (852) 3698 4698		www.samsung.com/hk (Chinese)www.samsung.com/hk_en (English)
INDIA 1800 3000 82821800 266 8282		www.samsung.com/in
INDONESIA021-5699-7777	0800-112-8888 (Toll Free)	www.samsung.com/id
JAPAN 0120-327-527		www.samsung.com
MALAYSIA 1800-88-9999		www.samsung.com/my
BILIPPINES021422211F [Other]	1-800-10-7267864 [PLDT]1-800-8-7267864 [Globe landline and Mobile]andline]	www.samsung.com/ph
SINGAPORE 1800-SAMSUNG(726-7864)		www.samsung.com/sg
THAILAND 0-2689-32321800-29-3232		www.samsung.com/th
TAIWAN	0800-329-999	www.samsung.com/tw
VIETNAM	1 800 588 889	www.samsung.com

DE68-04111E
