USER MANUAL DS-2CE56D0T-I2FB Hikvision

DOT Series Turret Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Model

DS-2CE56DOT-I2FB

DS-2CE56DOT-I2PFB

This manual may contain technical incorrect places or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards

listed under the Low Voltage Direcve 2014/35/EU, the EMC Direcve 2014/30/EU, the RoHS Direcve 2011/65/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (baery direcve): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for speci baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon, see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Warning

This is a class A product. In a domesc environment this product may cause radio interference in which case the user may be required to take adequate measures.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons".

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical speciaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
• Make sure that the device is rmly xed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn o the power at once and unplug the power cord, and then contact the service center.
• Never aempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not touch senor modules with ngers.
• Do not place the camera in extremely hot, cold (the operang temperature shall be -40^ to 60^ ), dusty or damp locaons, and do not expose it to high electromagnetic radiation.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
• Do not expose the device to high electromagnec radiaon or extremely hot, cold, dusty or damp environment.
• To avoid heat accumulaon, good venlaon is required for the operang environment.
• Keep the camera away from liquid while in use for non-water-proof device.

- While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

Mark Descripon
Table 0-1 Mark Descripon

Mark	Descripon
——	DC Voltage

1.1 Product Features

The main features are as follows:

● High performance CMOS sensor

- IR cut lter with auto switch

- OSD menu with congorable parameters

● Auto white balance

- SMART IR mode

- 3-axis adjustment

1.2 Overview

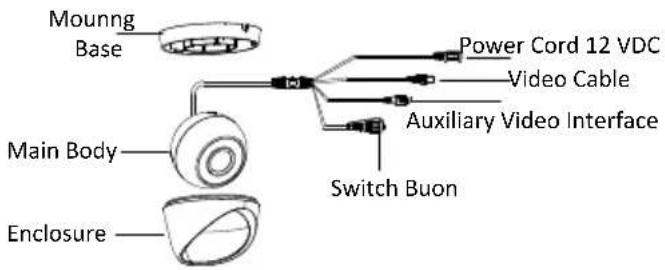

Mouning Base Power Cord 12 VDC Video Cable Auxiliary Video Interface Main Body Switch Buon Enclosure

Figure 1-1 Overview of the Camera

Note:

1) Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

2) The Auxiliary Video Interface is for the professional personnel debugging or maintenance.

Before you start:

● Make sure that the device in the package is in good condition and all the assembly parts are included.
● Make sure that all the related equipment is power-o during the installaon.

- Check the specicaon of the products for the installaon environment.

- Check whether the power supply is matched with your required output to avoid damage.

● Make sure the wall is strong enough to withstand three mes the weight of the camera, and the mount.

- If the wall is cement, insert expansion screws before installing the camera. If the wall is wooden, use self-tapping screw to secure the camera.

- If the product does not funcon properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.1 Ceiling Mounng

Steps:

1. Disassemble the camera.

1) Rotate the camera to align the notch to the round mark.
2) Pry the moung base to remove the enclosure by using a tool, e.g., a coin.

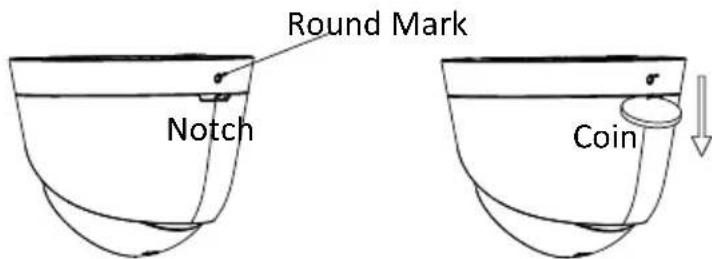

Round Mark Notch Coin

Figure 2-1 Disassemble the Camera

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. Drill the screw holes, and the cable hole (oponal) on the ceiling according to the drill template.

Drill Template A Hole A: Route cables through the ceiling Hole B: Side outlet Hole 1: Fix the mounting base Please use ∅ 5.5mm drill to install expansion screws B

Figure 2-2 The Drill Template

Note:

Drill the cable hole, when adopng the ceiling outlet to route the cable.

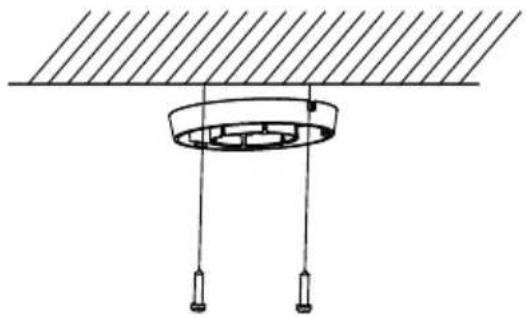

1. Aach the moung base to the ceiling, and secure it with supplied screws.

Simple line drawing of a ceiling lamp with two hanging pins and a shaded floor (no text or symbols)

Figure 2-3 Aach the Mounng Base to Ceiling

Note:

- The supplied screw package contains self-tapping screws, and expansion bolts.

- For cement wall/ceiling, expansion bolts are required to install the camera. For wooden wall/ceiling, self-tapping screws are required.

1. Route the cables through the cable hole, or the side opening.

2. Put the main body back to the enclosure.

3. Align the camera with the moung base, and secure the camera on it.

Technical line drawing of a mechanical component with a cylindrical housing and mounting bracket (no text or symbols)

Figure 2-4 Secure the Camera on the Mounting Base

1. Connect the corresponding cables.

2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below to get an opmum angle.

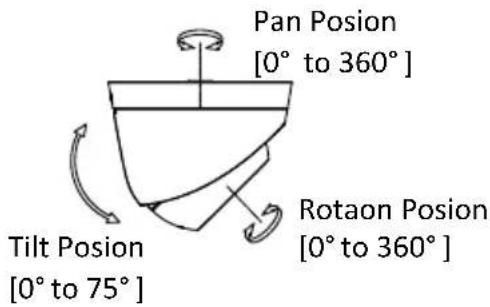

Pan Posion [0° to 360°] Tilt Posion [0° to 75°] Rotaon Posion [0° to 360°]

Figure 2-5 3-axis Adjustment

1). Hold the camera body and rotate the enclosure to adjust the pan posion [0° to 360°].

2). Move the camera body up and down to adjust the tilt posion [0° to 75°].

3). Rotate the camera body to adjust the rotaon posion [0° to 360°].

2.2 Wall Mounng

Before you start:

You need to purchase a wall mount in advance.

Steps:

1. Drill screw holes on the wall according to the holes of the mount.

2. Install the mount to the wall by aligning the four screw holes of the mount with expansion screws on the wall.

3. Secure the mount on the wall.

Technical line drawing of a mechanical bracket assembly (no text or symbols)

Figure 2-6 Secure the Mount on the Wall

1. Install the moung base of the camera to the mount, and secure them with two M4 screws.

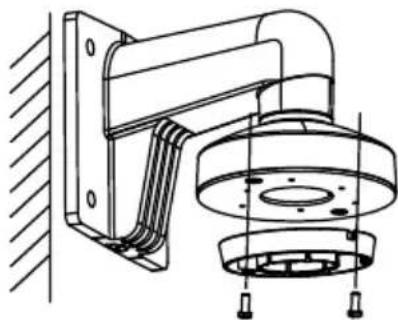

Technical line drawing of a mechanical assembly with mounting bracket and flange (no text or symbols)

Figure 2-7 Install the Mounting Base to the Mount

1. Route the cables through the mount.

2. Repeat steps 6 to 9 of 2.1 Ceiling Mounng to nish the installaon.

Follow the steps below to call the menu.

Note:

The actual display may vary with your camera model.

Steps:

1. Connect the camera with the TVI DVR, and the monitor, shown as the gure 3-1.

Camera TVI DVR Monitor

Figure 3-1 Connecon

1. Power on the camera, TVI DVR, and the monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ button, or call the preset No. 95.

Figure 3-2 Main Menu Overview

1. Click the direcon arrow to control the camera.

1). Click up/down direcon button to select the item.
2). Click Iris + to conrm the selecon.
3). Click le/right direcon buon to adjust the value of the selected item.

3.1 FORMAT

You can select the video format to 1080P@25fps, 1080P@30fps.

3.2 LANGUAGE

English is available.

3.3 MAIN MENU

AE (Auto Exposure)

You can adjust BRIGHTNESS, EXPOSURE MODE, AGC, DWDR in this secon.

● BRIGHTNESS

Brightness refers to the brightness of the image. The higher the value is, and more brighter the image is.

● EXPOSURE MODE

You can set the EXPOSURE MODE to GLOBAL, BLC, or HLC.

GLOBAL

GLOBAL refers to the normal exposure mode which adjusts lighng distribuon, variaons, and non-standard processing.

BLC (Backlight Compensaon)

The BLC (backlight compensaon) funcon can compensate light to the object in the front to make it clear, but this causes the overexposure of the background where the light is strong.

HLC (Highlight Compensaon)

HLC stands for highlight compensation. The camera detects the strong spots (the over-exposure poron of image), then reduce the brightness of the strong spots to improve the overall images.

● AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light conditions. The AGC level can be set to HIGH, MIDDLE, or LOW.

Note:

The noise will be amplified when the AGC is on.

● DWDR (Digital Wide Dynamic Range)

Digital wide dynamic range gives the camera the ability to view dark areas of the given image as well as extremely lighted porons of the image, or areas of high contrast.

WB (White Balance)

White balance, the white rendition funcon of the camera, is to adjust the color temperature according to the environment. It can remove unrealisc color casts in the image. You can set WB mode to AUTO (ATW), or MANUAL (MWB).

AUTO

Under AUTO mode, white balance adjusts automacally according to the color temperature of the scene illuminaon.

- MANUAL

You can set the R-GAIN/B-GAIN value to adjust the shades of red/blue color of the image.

WB MODE ←MWB > RGAIN ←64 > BGAIN ←64 > RETURN ←↓ >

Figure 3-1 WB

DAY/NIGHT

You can select the DAY/NIGHT as B/W, SMART, or COLOR.

B/W

The image is black and white all the me.

SMART

SMART refers to Smart IR. The funcon is used to adjust the light to its most suitable intensity, and prevent the image from overexposure.

DAY/NIGHT

MODE	SMART
INFRARED	ON
SMART IR	1
RETURN

Figure 3-2 DAY/NIGHT

- COLOR

The image is colorful in day mode all the me.

VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. IMAGE MODE, CONTRAST, SHARPNESS, COLOR GAIN, DNR, and MIRROR are adjustable.

VIDEO SETTINGS

IMAGE MODE	STD
CONTRAST	5
SHARPNESS	5
COLOR GAIN	5
DNR	5
MIRROR	OFF
RETURN

Figure 3-3 VIDEO SETTINGS

- IMAGE MODE

IMAGE MODE is used to adjust the image saturaon, and you can set it to STD (Standard), or HIGH-SAT (High Saturaon).

- CONTRAST

This feature enhances the dience in color and light between parts of an image. You can set the CONTRAST value from 1 to 10.

- SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce. You can set the SHARPNESS value from 1 to 10.

- COLOR GAIN

COLOR GAIN is determined by a combinaon of light intensity and how much it is distributed across the spectrum of dierent wavelengths.

● DNR (Digital Noise Reduction)

The DNR funcon can decrease the noise eect, especially when capturing moving images in poor light conditions, and delivering more accurate and sharper image.

- MIRROR

OFF, H, V, and HV are selectable for mirror.

OFF: The mirror funcon is disabled.

H: The image flips 180^ horizontally.

V: The image ips 180° vercally.

HV: The image flips 180^ both horizontally and vertically.

3.4 RESET

Reset all the sengs to the factory default.

3.5 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the sengs, and exit the menu.
