USER MANUAL Contessa ster Gravel 15 SCOTT

Black and white exterior view of a modern SLIFT cycling bike with visible wheel, suspension, and front wheel (no text or symbols on the bike itself)

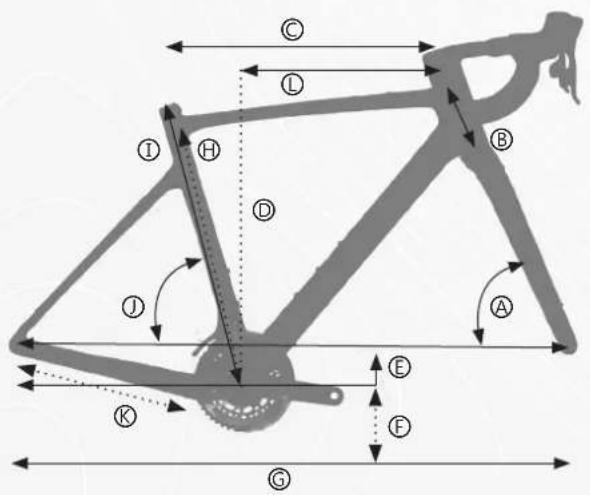

Geometry & Technical Data:

C L B H D A J E F K G

Seatpost: Addict Aero

Seatpost Clamp: Addict Aero

Fork Steerer: 11/4 - 11/2

Headset: IS52 /31,8 - IS 52/40

Rear Axle: 142mm

Front Axle: 100mm

BB Housing: 41x86.5mm

Max/Min Front Rotor: 180/160mm

Max/Min Rear 160/140mm Rotor:

Tyre Width Max: 45mm

For full installation, please only take your bike to an Authorised Scott Dealer for assistance.

Tyre sizes often vary from brand to brand. Always ensure the frame, & fork tyre clearance is adequate when replacing the tyres.

MY22 ADDICT GRAVEL

XSmall Small Medium Large X/Large

A head tube angle		70° 70° 71° 71° 71°
B head tube length		95 mm 122 mm 140 mm 166 mm 187 mm
C top tube horizontal		518 mm 534.5 mm	554.5 mm 578.5 mm		592.5 mm
D standover height		759 mm 786 mm	807 mm 828 mm		847 mm
E BB offset		-71 mm	-71 mm	-71 mm	-71 mm	-71 mm
F BB height		283 mm 283 mm	283 mm	283 mm	283 mm
G wheel base		1009.4 mm	1022.9 mm	1029.2 mm	1048.7 mm	1063.5 mm
H BB center to toptube center		447 mm	477 mm	498 mm	516 mm 536 mm
I BB center to top of seattube		477 mm	507 mm	528 mm	546 mm	566 mm
J seat angle		74.5°	74°	73.5°	73°	73°
K chainstay		425 mm	425 mm	425 mm	425 mm	425 mm
L reach		374.1 mm	378.4 mm	387.1 mm	398.2 mm	406.1 mm
stack		519 mm 544.4 mm	565.3 mm 589.9 mm		609.7 mm
Trail		75.6 mm	75.6 mm	69 mm 69 mm	69 mm
Fork Rake		50 mm	50 mm	50 mm 50 mm	50 mm

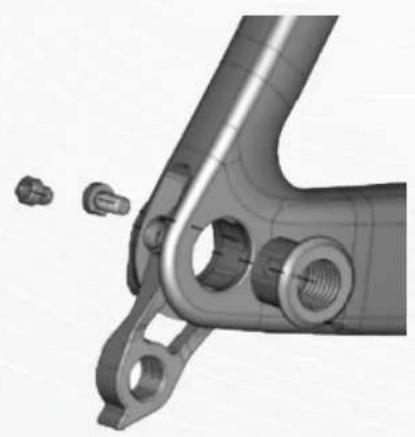

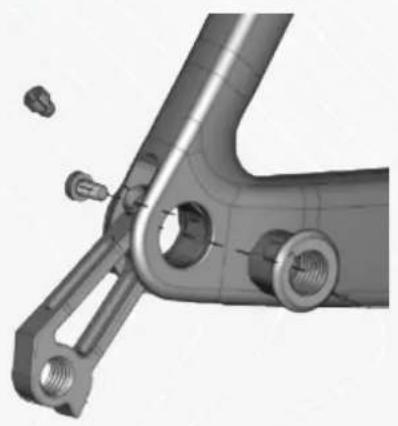

Axles & Dropouts:

The new Addict Gravel will have same dropout as the Addict RC and the rest of the Addict family. The Hanger comes in standard and DM options and includes dropout, threaded axle cap, and fixation bolt.

277544 SCO Dropout Addict RC 20

277545 SCO Dropout Addict RC direct mount 20

Mechanical assembly diagram showing a bent pipe joint with bolts and mounting holes (no text or symbols)

3D mechanical component with threaded fastener and mounting bracket (no text or symbols visible)

Front and rear axles are available in two variations;

Standard version:

283340 SCO Axle Foil/Addict/Speedster D R 21

283341 SCO Axle Foil/Addict/Speedster D F 21

Tapered version:

277029 SCO Axle rear Addict RC/Plasma 6 TP 20

277030 SCO Axle rear Addict RC/Plasma 6 20

Seatclamp:

The Addict Gravel will share the D-shaped Syncros Duncan Aero SL seatposts and seatclamp from the Addict RC.

277543 SCO Seatclamp Addict RC 20

3D rendered mechanical component with layered structure and a small sphere (no text or symbols)

Cockpit:

The new Addict Gravel will have fully integrated cable routing through the stem and headset, with a gravel specific handlebar from Syncros with 16-degree flare and shorter reach.

The Addict Gravel will have two different stem/handlebar options depending on the bike model.

288087, 288088, 288089, 288090, and Creston iC SL X 288123 SYN Stem RR 2.0

The Addict Gravel will use the same headset kit for both Creston iC SL X combo and the RR2.0/RR2.5 stem.

288249 SYN Headset IS52/31.8 - IS52/42

There will be two headset spacer kits, one kit for the Creston iC SL X combo and one kit for RR2.0/RR2.5 stem.

3D rendered mechanical assembly showing a multi-tiered cylindrical component with mounting holes (no text or symbols visible)

277547 SCO Stem spacer kit SY Crest iC

290055 SCO Headset spacer kit Add-Speed-Grav 22

Stacked 3D mechanical parts in grayscale, no text or symbols visible

294283 SCO Stem cable cover Speed/Addict 22

The Stem Cable Cover is size specific to the RR2.0/2.5 stem.

Black handheld device with red LED and black port, no visible text or symbols

XXS: 83 mm

XS: 93 mm

Small: 103 mm

Medium/Large: 113 mm

XL/XXL: 123mm

277550 SCO Stem steerer cap SY Crest iC

Creston iC SL X will use the same Stem cap as Addict RC Creston Handlebars, not size specific.

Hand holding a black 3D object with a small dark spot, no text or symbols visible

275472 SCO Stem hardware kit Fras iC, Crest iC

You will be able fit the Addict RC IC CRESTON and RR1.5 Stems and Handlebars to the MY22 Addict Gravel if the correct spacer kit is fitted.

3D rendering of a mechanical component with brown cylindrical pins and a white housing (no text or symbols)

FD / Chainguide:

290023 SCO FD kit Addict Gravel 22

Includes chainguide, FD mount and FD cable guide blanks

Disassembled black metal bracket components laid out on a white surface, including a handle and multiple clips (no text or symbols visible)

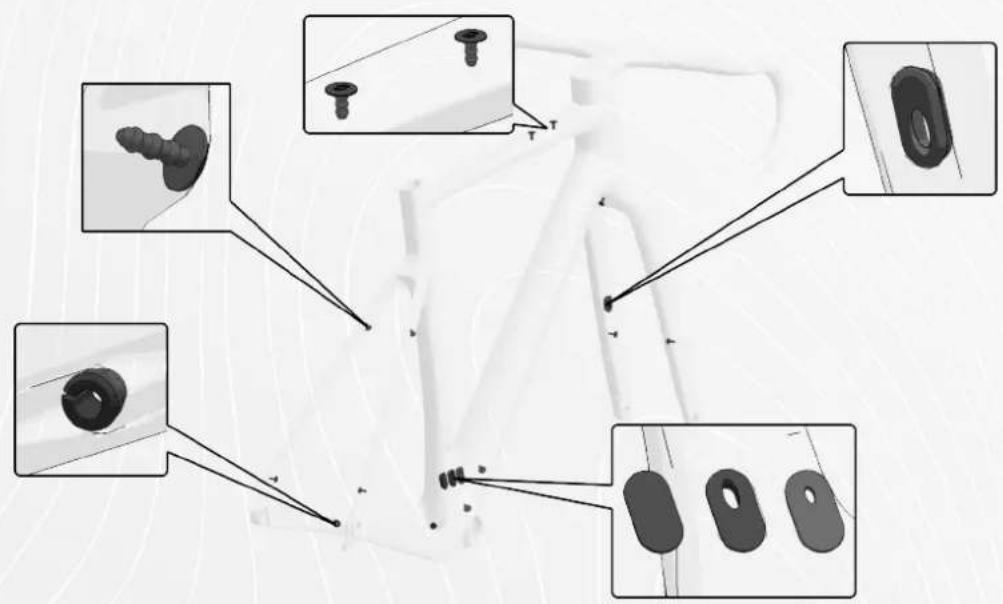

Cable Guides & Protection Kits:

The new Addict Gravel has several mounts for fitting of bags, fenders, and extra bottle cages.

The following kit contains the cable guides and blanks for the different frame and fender mounts.

290022 SCO Cableguide / blank set Addict GR 22

Technical diagram of a mechanical component with multiple close-up views and mounting features (no text or symbols)

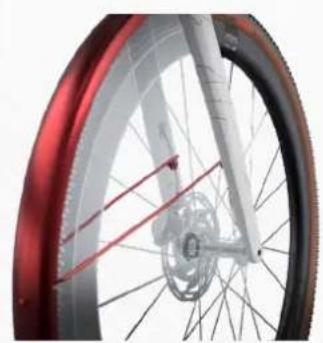

Dedicated fenderset for the Addict Gravel:

288344 SYN Road gravel fender set for AL/CB

Two curved black metal arches with attached fasteners, shown against a plain white background (no text or symbols)

Close-up of a bicycle wheel with red rim and white spokes, showing tire alignment lines (no text or symbols)

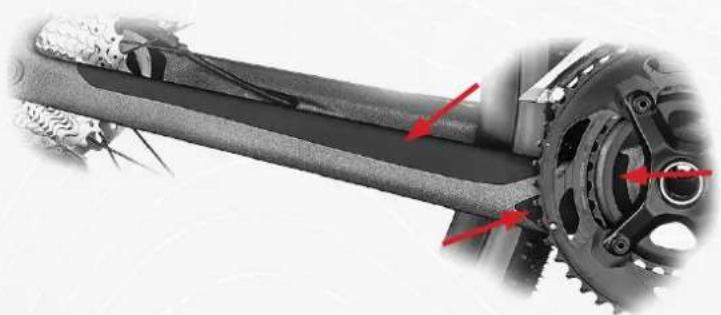

290019 SCO C-Stay protection kit Addict gra 22

Mechanical assembly diagram showing a chain with red arrows indicating motion or force directions (no text or symbols present)

Cable Routing:

3D mechanical assembly diagram showing exploded and assembled parts with colored wires and connectors (no text or symbols)

GUARANTEE ON SCOTT BIKES

What is covered?

This warranty covers defects in materials and workmanship at the time of transfer of risks in frames, swingarms and forks (provided it is a SCOTT fork) on SCOTT branded bikes sold completely assembled by SCOTT or an authorized SCOTT dealer (“Product”).

How long does coverage last?

This voluntary manufacturer's warranty is limited to five years for frames and swingarms, respectively two years for forks, from the date of purchase of the Product and is limited to the first purchaser of the Product and subject to the prior registration of your SCOTT bike on www.scott-sports.com within 10 days as of the date of purchase.

Transfer of the Product from the first purchaser to another person terminates this limited warranty.

The limited warranty of five years for the frames and swingarms shall only be granted in a maintenance service has been effected case once a year according to maintenance requirements as set forth in the manual. The effected annual maintenance service shall be confirmed by stamp and signature. In case such an annual maintenance service has not been effected the warranty of five years for the frame shall be reduced to three years. Costs for maintenance and service have to be borne by the owner of the Product.

On Gambler, Voltage Fr and Volt-X the warranty period is limited to two years.

Repaired or replaced Products are covered for the remainder of the original warranty period and subject to the conditions outlined in the original warranty, to the extent permitted by law.

Hereby SCOTT grants a worldwide voluntarily manufacturer's warranty. To the extent permitted by law and unless a shorter duration is stipulated by law, any warranties implied by law are limited in duration to maximum five, respectively two years, from the date of purchase of the Product and are limited to the first purchaser of the Product.

What will SCOTT do in the event of a guarantee case?

SCOTT will replace the defective product with a product of a quality or nature and similar level, will repair or refund the purchase price (after presentation of the proof of purchase of the product), in its sole discretion. Non-defective components are replaced at your expense. In such a case, we will contact you before replacing the non-defective part for your agreement.

What does this limited warranty not cover?

This limited warranty does not cover defects which did not exist before the transfer of risks. This limited warranty does not cover Products used in rental operations. This limited warranty does not cover purchases of not completely assembled bikes.

This limited warranty does not cover any defect caused by “wear and tear” (a complete list of all parts of “wear and tear” can be found in the manual), accident, neglect, improper handling, colour fade due to exposure to sunlight, abuse, misuse, an act of God, improper assembly, non-compliance with recommended maintenance and care procedures, improper or incorrectly performed maintenance or repairs performed by someone other than an authorized SCOTT dealer, use of parts or devices not consistent with the Product, and

alteration of the Product. All Products come with a manual; please carefully follow the instructions located there or affixed elsewhere to the Product. To the extent permitted by law, consequential and incidental damages are not recoverable under this limited warranty.

How do you make a claim under this limited warranty?

To make a claim under this limited warranty, you must notify SCOTT of the claimed defect within the warranty period and timely return the Product to SCOTT at your expense for inspection. Please contact your authorized SCOTT dealer, call SCOTT's customer service or the national SCOTT distributor (dealer locator: www.scott-sports.com). All returned Products must be accompanied by proof of purchase (receipt) from an authorized SCOTT dealer or this limited warranty will not apply. In case of replacement or refund, the returned Product becomes the property of SCOTT.

A protocol for the handing over of the Product (which you will find at the end of the manual) will remain in copy at the SCOTT dealer after acceptance and signature of the consumer. It is obligatory to show this protocol of handing over together with the defective part in case of a warranty claim given that it provides evidence of purchase or this limited warranty will not apply.

How do state laws affect your rights under this limited warranty?

This limited warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Recommendation:

We strongly recommend that you use only authorized SCOTT dealers for yearly maintenance services and for repairs, as improper or incorrectly performed maintenance or repairs voids this limited warranty. Costs for maintenance service have to be borne by the consumer.

SCOTT Bike Warranty Periods Year 1 Year 2 Year 3 Year 4 Year5 SCOTT Bikes Gambler, Voltage FR, Volt X Regular Warranty Period Option for prolongation according to maintenance intervals shown in manual attached to bike!
