OPEN DISPLAY MERCHANDISER
Commercial refrigerator Service Manual
Please read this manual completely before attempting To install or operate this equipment!
◇ MAIN COMPONENTS
- Compressor
- Overload protector
- Starting capacitor, Run capacitor
- Condenser fan motor, evaporator motor
- Thermostat(Refrigeration controller)
- ballast
◇ WIRING DIAGRAM
◇ TEMPERATURE CONTROL INSTRUCTION
◇ PART NAME
◇ TCGB\*\*-\*(-(\*), TCGB\*\*-\*-CO-(\*) (SVC PART LIST)
◇ MAIN COMPONENTS
- Compressor
| Manufacturer SAMSUNG. Tecumsch. | |
| Designation 11K6A1C2U CAJ4476V | |
| Electrical Rating 5.5 A 11.0 A | |
| V, 1Hz, Phase 115 V, 60 Hz, 1 Pi | |
| LRA 28.0 A 54 A | |
| Refrigerant R-134a |
- Overload Protector
| Manufacturer KLIXON KLIXON | ||
| Model or Designation 4TM801SFBZZ-53 | CAR38014-3057 | |
- Starting Capacitor, Run Capacitor
| Rating, nF, V | 250 nF, 160v | |
| Rating, nF, V | 20 nF, 350 V |
- Condenser Fan Motor, Evaporator Fan Motor
| Manufacturer Geenam Electric | |
| Model | SE-013 |
| Rating V, Hz, Phase, A or W | 115 V, 60 Hz, 1 Ph, 0.8 A, 9 W |
- Thermostat (Refrigeration Controller)
| Manufacturer | Q-MAX |
| Designation | QGTN-24HJ |
| Electrical Rating, Minimum V, FLA, LRA | Output: 250 V ac, 1 A |
- Ballast
| Manufacturer | SZ.TEYUAN |
| Model | TBE-31CFW |
◇ WIRING DIAGRAM
The temperature control is located near the back left hand side underneath the bottom shelf.
- The original setting for the control is Normal.
- The working temperature is from 37°F to 40°F.


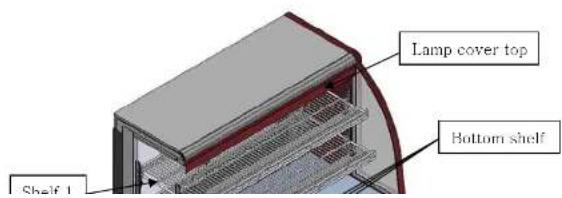

Lamp cover top Bottom shelf Shelf 1


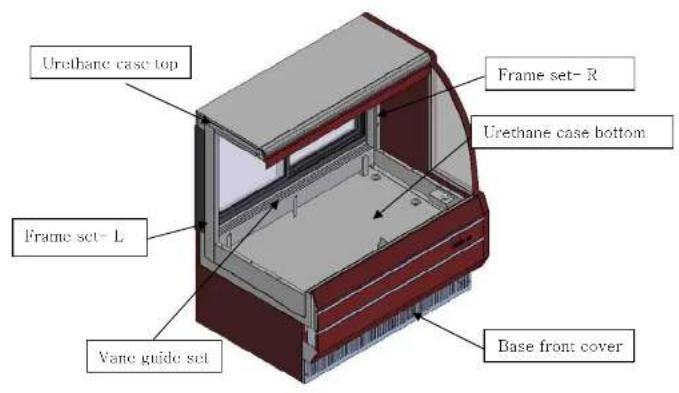

Urethane case top Frame set- R Urethane case bottom Frame set- L Vane guide set Base front cover


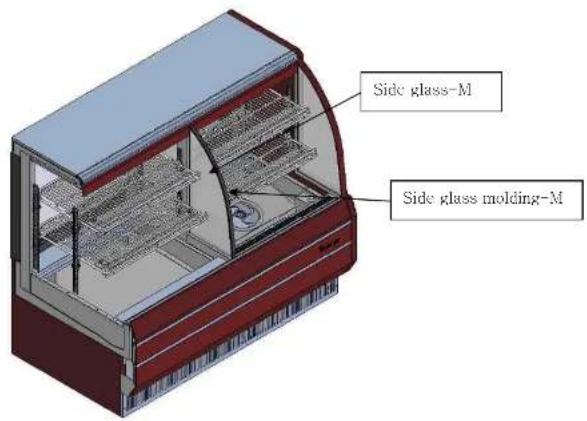

Side glass-M Side glass molding-M


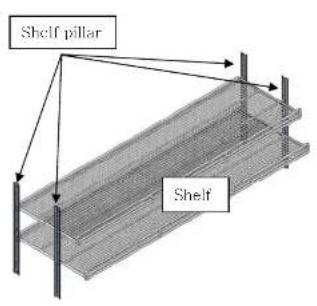

Shelf pillar Shelf


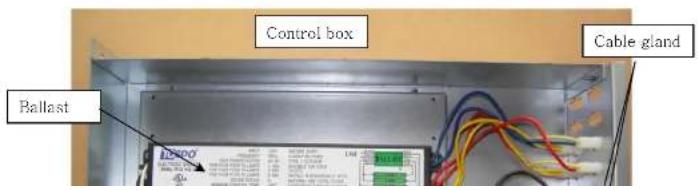

Control box Ballast Cable gland
| 12 | Cable gland 2 2 2 2 2 | 2 | ||||||
| 13 | C o m | p | c | o | s | s | o | r |
| 14 | Condenser 1 1 1 1 1 | |||||||
| 15 | Condenser Motor Bracket | 1 1 1 | 1 1 1 | |||||
| 16 | Control box 1 1 1 1 1 | 1 | ||||||
| 17 | C o o | 1 | c | r | 1 | 1 | ||
| 18 | Defroster Timer 1 1 1 | 1 1 1 | ||||||
| 19 | D o o | r | f | r | a | m | e | |
| 20 | D o o | r | G | l | a | s | e | |
| 21 | Door rail | 2 2 2 | 2 2 2 | |||||
| 22 | Door Roller | 4 4 4 | 4 4 4 | |||||
| 23 | D o o | r | s | c | t | - | L | |
| 24 | D o o | r | s | c | t | - | R | |
| 25 | Door Slugper | 4 4 4 | 4 4 4 | |||||
| 26 | D r a | i | n | f | i | l | e r | |
| 27 | F a n | b | l | a | d | e | l | |
| 28 | F a n | b | l | a | d | e | 2 | |
| 29 | Fan cover | 1 1 1 | 1 1 1 | |||||
| 30 | Fan motor | 2 2 3 | 3 2 2 |
◇ TCGB**-*(-), TCGB**-*-CO-(*) (SVC PART LIST)
| NAME | TCGB-96 | TCGB-18 | TCGB-40 | TCGB-72 | TCGB-93-CO | TCGB-72-CO | REMARK | |
| 31 | Ferr motor lemped 170 | 1 | 1 | 2 | 2 | 1 | 1 | |
| 44 | L a m | p | c | o | v | e | r | |
| 45 | Lamp socket 6 6 6 12 | 12 12 | ||||||
| 46 | Lamp switch 1 1 1 1 1 | 1 | ||||||
| 47 | M a g | n | e | 1 | i | z | z o | |
| 48 | F o w | e | r | s | w | i | t r | |
| 49 | Safety tube 3 3 3 6 6 d | |||||||
| 50 | Shelf 1 | 1 1 1 | 1 2 2 | |||||
| 51 | Shelf 2 | 1 1 1 | 1 2 2 | |||||
| 52 | Shelf bracket | 8 8 | 8 | 8 | 16 16 | |||
| 53 | Shelf pillar | 4 4 | 4 4 | 8 8 | ||||
| 54 | Side glass molding L | 1 | 1 | 1 | 1 | 1 | 1 | |
| 55 | Side glass molding R 1 | 1 1 | 1 1 | |||||
| 56 | Side glass-L | 1 1 | 1 1 | 1 1 | ||||
| 57 | Side glass-M | 1 | 1 | |||||
| 58 | Side glass-R | 1 1 | 1 1 | 1 1 | ||||
| 59 | S t d | e | p | a | n | e | l | |
| 60 | S t d | e | p | a | n | e | l | |
| 61 | Suction grill | 1 1 | 1 1 | 1 1 |
| 0 | D | |
| 1 | L | A |
| 1 |
◇ TCGB**-**-(*), TCGB**-**-CO-(*) (SVC PART LIST)
| NAME | TCGR-36 | TCGR-48 | TCGR-00 | TCGR-72 | TCGR-60-CO | TCGR-72-CO | REMARK | |
| 62 | Suction grill bracket | 1 | 1 | 1 | 1 |
