USER MANUAL MegaPix IVA+ DWC-MPVA5WI28T Digital Watchdog

MEGApix® 5MP vandal ball IP camera

DWC-MVA5Wi28T / DWC-MPVA5Wi28T

Close-up of a white industrial water heater with 'DW' branding on top (no other text or symbols visible)

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning

This symbol indicates that dangerous voltage consisting of a risk of electric shock is present within this unit.

Precaution

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

To prevent damage which may result in fire or electric shock hazards, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product
2. Incorrectly connecting the power supply or replacing the battery may cause an explosion, fire, electric shock, or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause excessive heat generation or fire.

Precaution

Operating

• Before using, make sure the power supply and all other parts are properly connected.
- While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and contact your dealer.

Handling

• Do not disassemble or tamper with parts inside the camera.
• Do not drop the camera or subject it to shock or vibration as this can damage the camera.
• Clean the clear dome cover with extra care. Scratches and dust can ruin the quality of the camera image.

Installation and Storage

Do not install the camera in areas of extreme temperature

Important Safety Instructions

1. Read these instructions. - All safety and operating instructions should be read before installation or operation.

2. Keep these Instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this device near water. - For example: near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.

6. Clean only with a dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install following the manufacturer's instructions. - Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from overheating. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surfaces. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhered to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during lightning storms or when unused for long periods.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in

Table of Contents

Introduction

Product and accessories....5

Parts identification....6

Installation

Disassemble the camera....7

Factory reset....7

Installation....8

Cabling....10

Network Setup

DW IP finder....11

Web Viewer

Login to the camera....12

GUI overview....13

Camera Settings

Settings > Video and audio setup....14

Settings > Camera setup > Image adjustment....21

Settings > Camera setup > Exposure settings....22

Settings > Camera setup > Day and night settings....23

Settings > Camera setup > Backlight settings....24

Settings > Camera setup > White Balance settings....25

Settings > Camera setup > Image enhancement settings....26

Settings > Camera setup > Video enhancement....27

Settings > Network setup....28

Introduction -

Product and accessories

Camera Cables

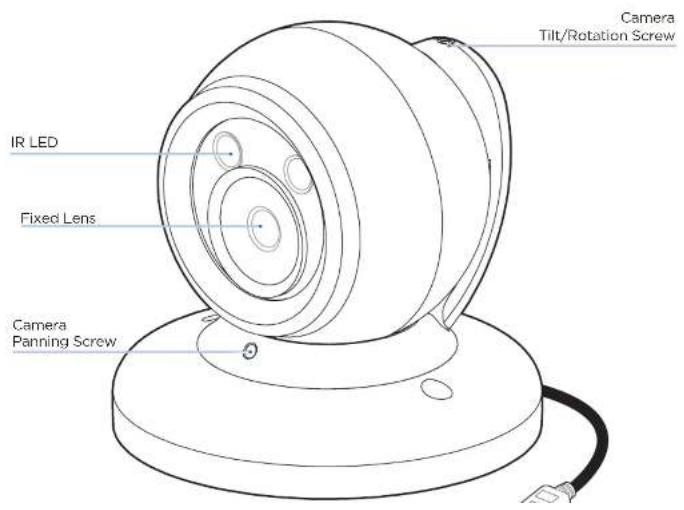

Introduction - Part names

Camera Tilt/Rotation Screw IR LED Fixed Lens Camera Panning Screw

Installation - Disassembling the camera

Before installing your camera, read the following cautions.

1. Make sure the mounting surface can hold up to five times the weight of your camera.
2. Do not let cables get caught in improper places or the electric line cover gets damaged. It may cause a breakdown or fire.
3. When installing your camera, do not allow any unauthorized personnel to approach the installation site. If you have any valuable things under the place, move them away.

Technical line drawing of a mechanical component with concentric rings and a highlighted section (no text or symbols)

To reset the camera, detach the ball module from the base by rotating it counter-clockwise.
Do not touch any other parts of the camera.
2 Press the reset button on the base of the camera's lens module. Pressing the button for five (5) seconds will initiate a camera-wide reset of all the settings, including network settings.
When replacing the camera's ball module into place, make sure no cables are caught or got disconnected. Rotate the ball module clockwise until it is secured in place.

Warning: If you press the 'Reset' button, you will lose all setting data. If needed, please, make a note for further installation.

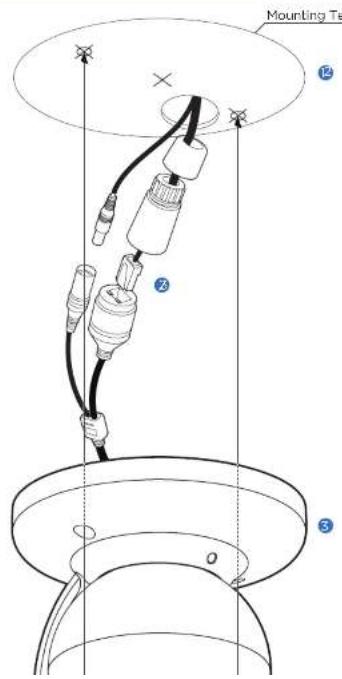

Installation - Installation

Mounting Tool ① ② ③

Mounting Template

Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the wall or ceiling.

2 Connect the network cable and power cable respectively. See 'Installation - Cabling' for details.

To use the camera's waterproof wiring: a. Install the LAN cable into (a). b. (b) will be assembled to (a) with a 1/4 tum. c. Thread (c) tightly to (b).

NOTE: To ensure moisture seal, make sure the o-ring is in place between (a) and (b). In extreme environments use of an outdoor rated scaler is recommended.

NOTE: When using the waterproof cap, crimp the RJ45 connector after passing the cable through the waterproof cap.

③ Use the two mounting screws to mount the camera on the mounting surface. ■ Loosen the pan/tilt/rotate screws a little before fixing the camera.

Installation - Adjusting the camera's angle

Panning 360° Rotation 360° Tilting 90°

Installation - Cabling

Two cabling options

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly.

A non-PoE switch will require an adaptor for power transmission.

1. Using a PoE-Enabled Switch

The camera is PoE-compliant, allowing transmission of power and data via a single Ethernet cable. PoE eliminates the need for the different cables used to power, record, or control the camera. Follow the illustration below to connect the camera to a PoE-enabled switch using an Ethernet cable.

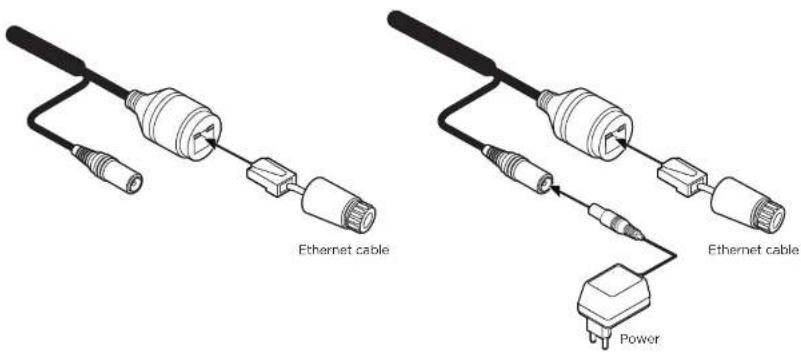

2. Using a Non-PoE Switch

If a PoE-enabled switch is not used, use a power adaptor for power transmission and non-PoE switch for data transmission.

Follow the illustrations below to connect the camera without a PoE-enabled Switch.

Ethernet cable Ethernet cable Power

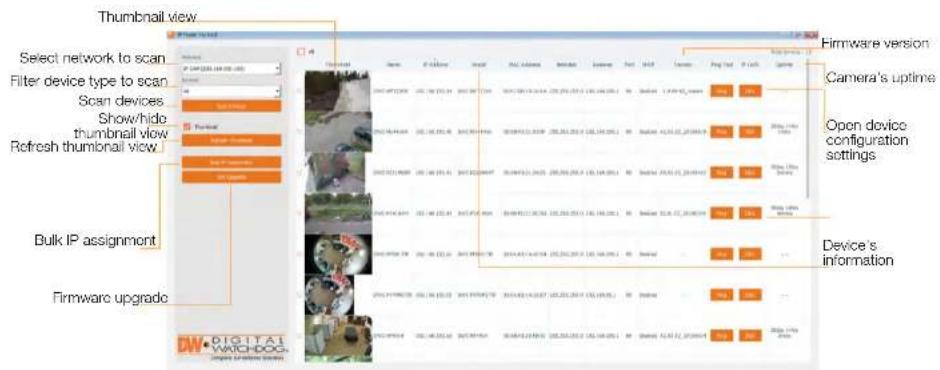

Network setup - DW IP Finder™

Thumbnail view Select network to scan Filter device type to scan Scan devices Show/hide thumbnail view Refresh thumbnail view Bulk IP assignment Firmware upgrade Firmware version Camera's uptime Open device configuration settings Device's information

Go to: http://www.digital-watchdog.com and search for 'IP Finder' on the quick-search bar at the top of the page.
② The latest IP Finder software will appear in the search results. Click on the link to download the file to your computer.
3 The software will scan your network for all supported cameras and display the results in the table. Allow up to 5 seconds for the IP Installer to find the camera on

Camera Settings Camera name: DWD-H0421735 MAC Address: 96.10kF1.26 AA-RE IP Configuration Mode DWC Static IP IP Address: 192.108.1_103 Network: 255.255.255.0 Gateway: 192.108.1_1 DNS: 192.108.4C_3 Ports Web Port: 100

Web Viewer Screen - Basic Screen (Default)

The password of the admin account has not been changed from the default. Please change the admin's password to access the web management and connect to the VMS/NVR system. CHANGE OUTPUT

Password change is required at the initial connection in a factory reset state.

You cannot see the image, and the setup button is disabled.
② Change the password with the CHANGE PASSWORD button.

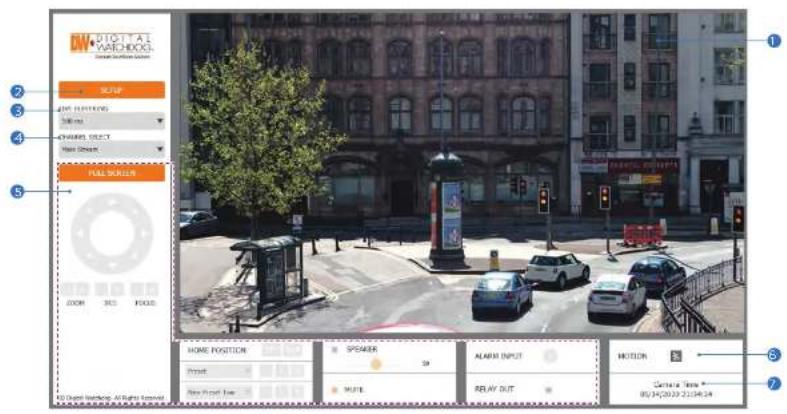

Web Viewer Screen - Basic Screen

DIGITAL VARIHBOOK SETUP MINI SWITCHING Sailing CHANNELS SELECT Next Stream FULL SCREEN ROOM 303 POCUS HOME POSITION SPAKER ALABAT INPUT MOTION 40 Digital Switching All Rights Reserved New Door Time MAKE OUT Camera Time 05:14:20:29 22:14:24

The web viewer is optimized with Internet Explorer 10 (or above) and Mozilla Firefox.
- "If VLC is not installed or the VLC plugin is not supported (Chrome), 'Live Buffering' and 'Channel Select' (subjects 3 and 4 in the diagram) will display as 'Live Viewer'. If so, select HTML5 (MJPEG) from the Live Viewer menu to view the video.
Live video display. This is the region for the live video stream from the camera.

Setup - Video & Audio Setup

Video Configuration

V VIDEO&AUDIO VIDEO OSO ROI AUDIO PRIMACY MASK • CAMERA • NETWORK • TRIGGEN ACTION • EVENTS • SECURITY • SYSTEM VIDEO CONFIGURATION Balance Code: Caser: H.264 Description: channel 1 Revision: 200x1514 Frame Rate (RPS) GDP: 30 [1 - 15] Profile: High Bitmap Mode: RGB Target Block: 500 [ 100bps - 50Mbps ] Quality: [1 - 1] Smart Select Control: GB Extension Option: Off © Digital Watchdog. All Rights Reserved. TITLE

Detail Page - When you select an item from the menu, you can set the details for the selected item.
2 Setup Menu

Video and Audio

[VIDEO, OSD, ROI, PRIVACY MASK]

Setup - Video & Audio Setup

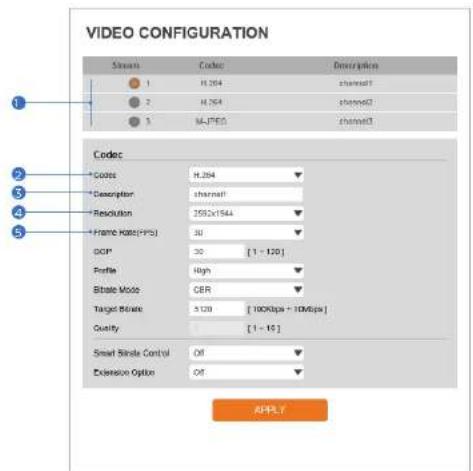

Video Configuration

VIDEO CONFIGURATION Stream Codec Description 1 R.264 channel1 2 R.264 channel2 3 R.JPED channel3 Codes Code: R.264 Description: channel Resolution: 350x1944 Frame Rate(FFS): 30 GCP: 30 [1 - 120] Profile: High State Mode: CBR Target Rate: 3.128 [100Kbps + 10Mbps] Quality: [1 - 16] Small State Control Off Extension Option Off APPLY

Live Video Channel Setup - The video can be configured to various settings with a combination of codec and resolution. The camera performance should be considered when setting multiple channels, as the performance of the camera will be affected.
H.265 (HEVC) codec with higher bitrate may cause unstable live streaming or reload the webpage.
② Codec - Choose the video codec. Depending on the selected codec, the subcategories may be changed

Setup - Video & Audio Setup

Video Configuration

VIDEO CONFIGURATION System Codes Descriptions 1 H.264 channel1 2 H.264 channel2 3 M.JPEG channel3 Codes H.264 Description channel1 Resolution 2502x1044 Frame Rate(TPS) 30 TCP 30 [1-120] Profile High Bitrate Mode CBR Target Rate 5128 (100Kbps - 10Mbps) Quality [1-10] Smart Bitrate Control Off Extension Option Off APPLY

6 GOP(Group of Pictures) Size - Set up the number of frames (P-frame) which contain only changed information based on the basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size bigger, only the number of P-frames is bigger.

As a result, the video resolution will be low but 'File size' and 'Bit-rate can be decreased.

GOP(Group of Pictures) Size -

I-frame and P-frame creation for MPEG4, H.264, and H.265 (HEVC) video compression. 'I-frame', also known

Setup - Video & Audio Setup

Video Configuration

VIDEO CONFIGURATION Stream Codes Description 1 H.264 2000001 2 H.264 channel0 3 M-FPEG channel1 Code Code: H.264 Description: Channel Resolution: 255x1944 Frame Rate(°/Hz) 30 GCP 30 [1 - 120] Profile High Bitrate Mod. GPR Target Bitrate S120 [100Kbps - 10Mbps] Quality [1 - 10] Smart Bitrate Control Off Extension Option Off APPLY

9 Target Bitrate - If Bitrate Control is set to be CBR, you can set the Target Bitrate.
Quality - For VBR control mode, The Target Quality of video can be setup.
Smart Core - Off / Smart.RC

Setup - Video & Audio Setup

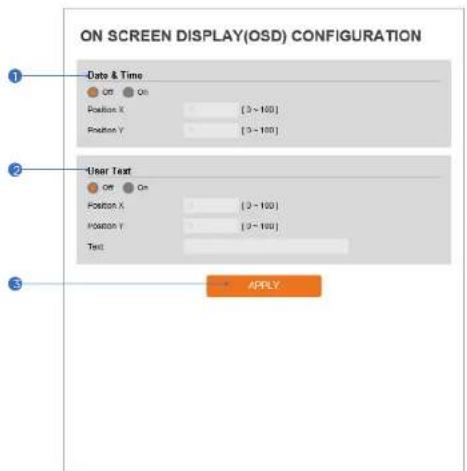

OSD Configuration

ON SCREEN DISPLAY(OSD) CONFIGURATION Date & Time Off On Position X [3 - 100] Position Y [3 - 100] User Text Off On Position X [3 - 100] Position Y [3 - 100] Text APPLY

Date / Time - Display the current time.
② User Text - Output the TEXT entered by the user. Support a maximum of 30 characters.
3 Click 'Apply' to save all settings.

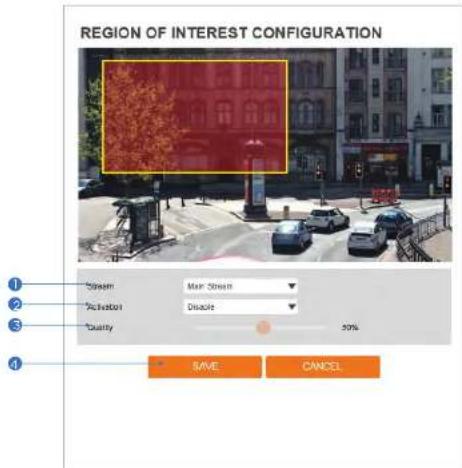

Setup - Video & Audio Setup Region of Interest Configuration

REGION OF INTEREST CONFIGURATION Stream Main Stream Activation Disable Quality 30% SAVE CANCEL

The region of Interest function gives a more efficient picture quality for the Indicated area to improve the qualities of movement in the scene without compromising the bandwidth.

Stream - Select the Stream.

Currently supports only H.264, H.265 (HEVC).

The function is not supported in the MJPEG codec.

Setup - Video & Audio Setup Privacy Mask Configuration

PRIVACY MASK CONFIGURATION ① Activation On Off ② Open Alert ③ CLEAR AREA SAVE CANCEL

Use this function to mask areas that you want to hide on-screen to protect privacy.

Activation - Enable or disable the privacy mask function.
② Area - Select the Area1 - Area16 and Set the privacy area.

Setup - Camera Setup

Camera Image Adjustment

IMAGE ADJUSTMENT 1 Sharpness +50 2 Brightness +50 3 Contrast +50 4 Satisfaction +25 5 Hue +50 6 SAVE CANCEL DEFAULT

Sharpness - The higher the number, the sharper the lines in the image will appear.
② Brightness - The higher the number, the brighter the image will appear.
3 Contrast - The higher the number, the stronger the contrast between colors in the image will appear.

Setup - Camera Setup

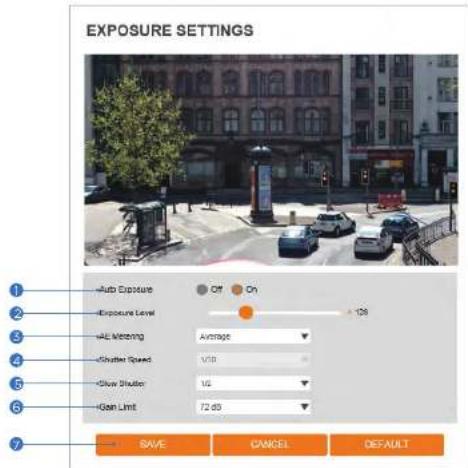

Camera Exposure Settings

EXPOSURE SETTINGS 1 2 3 4 5 6 7 Auto Exposure Off On Exposure Level 128 ALL Meeting Average Shutter Speed V10 Slow Shutter 16 Gain Limit 72 dB SAVE CANCEL DEFAULT

Auto Exposure - Automatic exposure (AE) automatically sets the aperture or shutter speed, based on the external lighting conditions for the photo.
Exposure Level • The higher the number, the brighter the image will appear.
3 AE metering - AE metering mode refers to how a camera determines the exposure.

Setup - Camera Setup

Camera Day & Night Settings

DAY&NIGHT SETTINGS Day & Night Auto Day Night Schedule Color Level S Night Level S Transition Time Malls Day -> Night Time 0 -100 Night -> Day Time S - $100 SAVE CANCEL DEFAULT

Day & Night

• Auto: In this mode, the IR cut filter is removed automatically depending on the light condition around.
• Day: In this mode, the IR cut filter is applied to the image sensor all the time. Thus, the sensitivity will be reduced in the dark light condition, but the better color reproduction performance is obtained.
• Night: In this mode, the IR cut filter on the image sensor is removed all the time. The sensitivity will be enhanced in the dark light condition, but the image is black and white.

Setup - Camera Setup

Camera Backlight Settings

BACKLIGHT SETTINGS WDP(Wide Dynamic Range) Off SAVE CANCEL DEFAULT

This feature is used when lighting conditions may cause detail loss in the camera's view due to high contrast.

WDR (Wide Dynamic Range) - Enable or disable the WDR function.

2 Click 'Save' to save all settings.

Click 'Cancel' to return to the previous setting.

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 99.

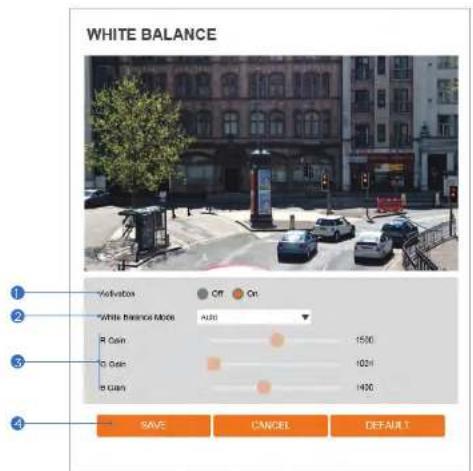

Setup - Camera Setup Camera White Balance

WHITE BALANCE 1 2 3 4 0 0 White Balance Mode A20 R Gain 1500 G Gain 1024 R Gain 1400 SAVE CANCEL DEFAULT

Activation - Enable or disable the White Balance function
2 White Balance Mode - Select White Balance depending on the lighting conditions.
RGB Gain - The R/G/B gain can be set only when the White Balance Mode is set to Manual.

Setup - Camera Setup Camera Image Enhancement

IMAGE ENHANCEMENT 1 SD Noise Reduction 2 Mirror 3 Flip 4 Save CANCEL DEFAULT

3D Noise Reduction - 3DNR function suppresses digital noise and retains good video quality in low light conditions.
2 Mirror - Reverse the video from side to side.
3 Flip - Reverse the video from up to down.

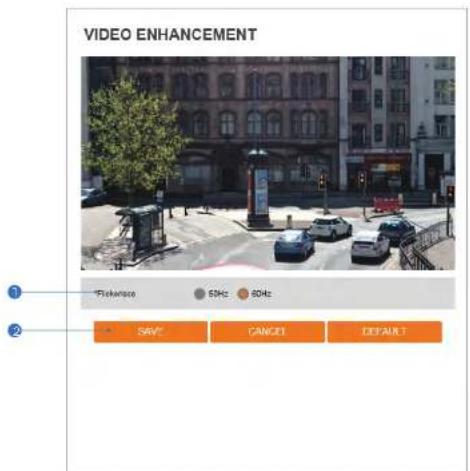

Setup - Camera Setup Video Enhancement

VIDEO ENHANCEMENT 1 2 3 4 5 6 7 8 9 10 SAV CANCE DEFAULT

Flicker - In case of flickering video, adjust the flickering values in this menu.

② Click 'Save' to save all settings.

Click 'Cancel' to return to the previous setting.
Click 'Default' to settings to the factory defaults.

Setup - Network Setup

Network Status

NETWORK STATUS

MAC Address	00:00 D:11:22:38
IP Address	162.168.1.26
Subtotal Break	256.255.9.9
Default Gateway	152.163.1.1
Preferred DNS Server	192.160.1.1
Alternate DNS Server
HTTP Port	80
HTTPS Port	443
RTSP Port	554

This menu displays the camera's current network settings. To make any changes to the settings, you must go to the appropriate network settings tab.

Setup - Network Setup

Network Settings

NETWORK SETTINGS Host Name: DNS Network Type Static Dynamic IP setup IP Address 200000000 Subnet Mask 20100000 Default Gateway 20000000 Preferred DNS Server 20100000 Alternate DNS Server Port Setup HTTP Port 80 [Default 89, 1025 - 60000] HTTPS Port 443 [Default 443, 1025 - 60000] RISP Port 554 [Default 554, 1025 - 60000] → APPLY

Network Type - Define the network IP address type. Select Static Mode for a fixed IP or Dynamic Mode for a dynamic IP address. If you select Static Mode, enter the camera's IP Address, Subnet Mask, Gateway, DNS Server, and all ports. If you select Dynamic Mode, the IP address will be assigned automatically by the DHCP network requirements. If you click 'Apply', the system will reboot and you will have to reconnect the camera using the new IP address.

Setup - Network Setup

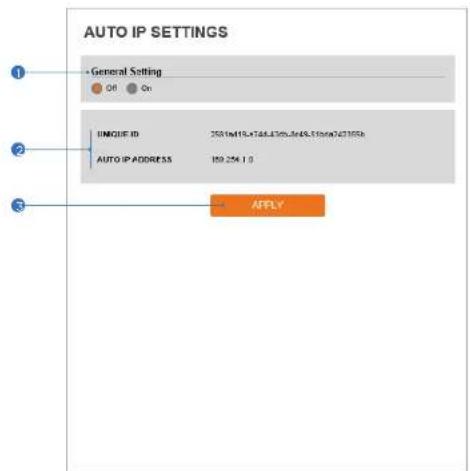

Auto IP Settings

AUTO IP SETTINGS General Setting OB On UNIQUE ID 25016418-4748-4736-2445-51960247365b AUTO IP ADDRESS 159.254 1.0 APPLY

General Setting - Enable or disable the Auto IP Settings.
2 Auto IP Settings Information - Display the camera's Unique ID and Auto IP address.
3 Click 'Apply' to save all settings.

Setup - Network Setup

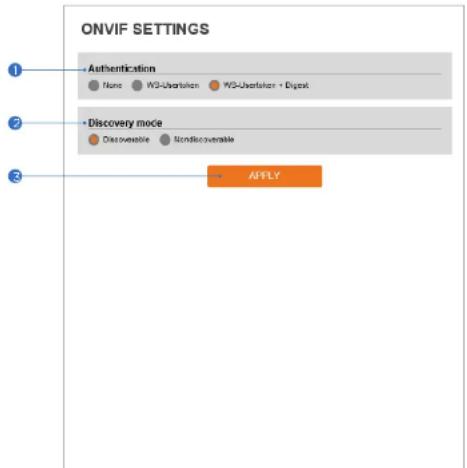

ONVIF Settings

ONVIF SETTINGS Authentication None WG-Validation WD-Validation - Digest Discovery mode Discoverable Nordiscoverable APPLY

1 Authentication

None: Allow access to the camera without ONVIF authentication.

WS - Usertoken: Allow access to the camera with WS-User Token of ONVIF authentication.

WS - Usertoken + Digest: Allow access to the camera with WS-User Token and Digest of

ONVIF authentication.

Setup - Network Setup

UPNP Settings

UPNP SETTINGS General Setting ON On Device Information Friendly Name APPLY

General Setting - Enable or disable the UPNP function.
2 Friendly Name - Define the friendly name. Support a maximum of 30 characters and special characters.

- Do not use: / - ! \$ ( ) { } [ ];

- Acceptable special characters include; @ , _ -

2017年1月1日

Setup - Network Setup

DDNS Settings

DDNS SETTINGS 1 2 3 CREATE PLASTIC DRANS ADAMS www.no-tp.com Host Name: User Name: Password: APPLY

DDNS Disable - If it is selected, DDNS service does not work.
Public DDNS - To use public DDNS service, select a site address listed on the list. After filling out the Host Name of the site, the setup is completed by entering username and Password registered in that DDNS site.

Setup - Network Setup

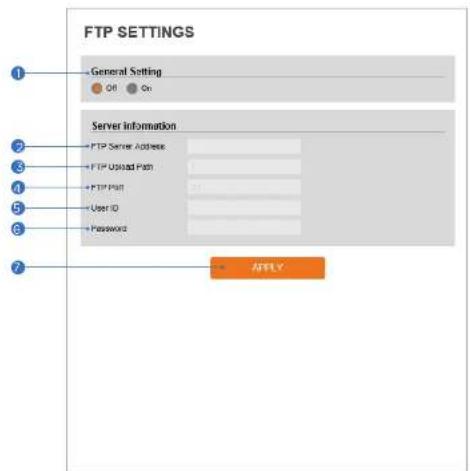

FTP Settings

FTP SETTINGS General Setting OB On Server information FTP Server Address FTP Uslaid Path FTP Print User ID Password APPLY

To transfer/save the image to the relevant sites through FTP, then FTP needs to be setup.

General Setting - Enable or disable the FTP function.
2 FTP Server Address - Define FTP Server IP Address. If the IP Address form is incorrect, a message box will be shown to try again.

Setup - Network Setup

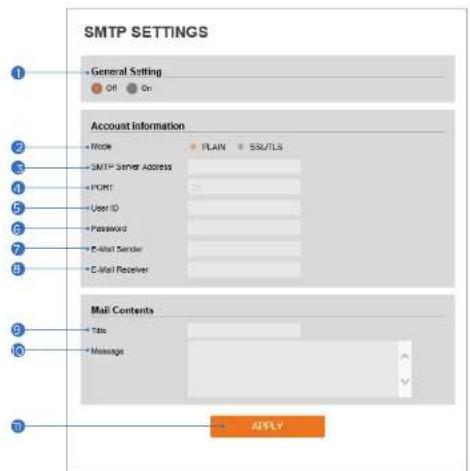

SMTP Settings

SMTP SETTINGS General Setting OB On Account information Node PLAIN SSL/LS SMTP Server Address PORT User ID Password E-Mail Sender E-Mail Receiver Mail Contents Title Message APPLY

To send/save the image to the relevant sites by Email, SMTP needs to be setup.

General Setting - Enable or disable the SMTP function.
Mode - Select the security mode of SMTP from Plain or SSL / TLS. After checking the account setup of your SMTP Server, you may select one.

Setup - Network Setup

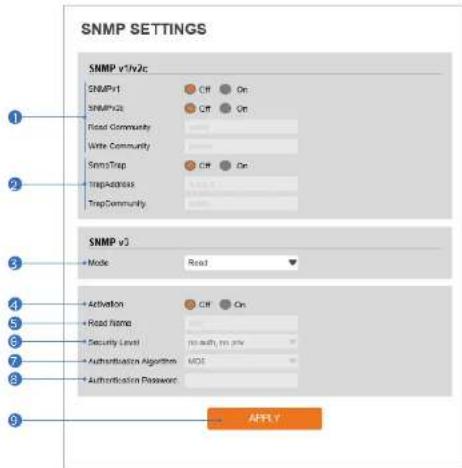

SNMP Settings

SNMP SETTINGS SNMP v1/v2c SNMPv1 Off On SNMPv2c Off On Fixed Community Write Community SNPSTrap Off On TrapAddress SNPS TrapCommunity SNMP v3 + Mode Read + Activation Off On + Read Name Security Level non auth, no priv + Authentication Algorithm UIDE + Authentication Password APPLY

SNMPv1/SNMPv2 - Select the SNMPv1/SNMPv2 option and type the names of Read and Write communities.

SNMP trap can be used to check periodically for operational thresholds or failures that are defined in the MIB.

SNMP Trap - Enable or disable the SNMP trap.

Setup - Network Setup

RTSP Information

RTSP INFORMATION 1 2 3 4 5 6 RTSP Global Setting Target Stream Multi Stream ▼ Session Timeout Time Out [Default: 30-120] QoS Setting GSCP 0 [0-255] Rtp Multicast MULTICAST Stop Start IP 0.0.0 PORT 0 [H24-R600] ITL 0 [H-255] APPLY No Reference IP Port Type 1 192 100 A 100 OS48 TCP

Target Stream - Select the stream you want to set.
② Time out - Set the RTSP time out.
The session is disconnected after the specified time out.
3 QoS Setting - Set the quality of service to ensure data transfer performance.

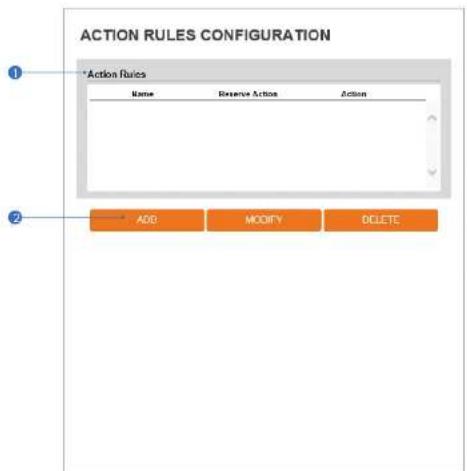

Setup - Trigger Action Setup Action Rules Configuration

ACTION RULES CONFIGURATION Action Rules Name Reserve Action Action ADD MODIFY DELETE

Action rules List - It indicates the custom action rule information added to the Action rules list.

② Click 'Add' to add custom action rules.

Click 'Modify' to modify selected items from the action rules list.
Click 'Delete' to delete selected items from the action rules list.

Setup - Trigger Action Setup Action Rules Add / Modify

ACTION RULES CONFIGURATION Action Rules Name Reserve Action Action SWTP 1 / 5 SNTP FTP 1 / 5 FTP RECORD 1 / 5 RECORD ADD MODIFY DELETE

Name - Define the name of the action rules. Input text cannot exceed the limit (3-15 characters).

Action1 - Action5 - Select the action to take if the event occurs.

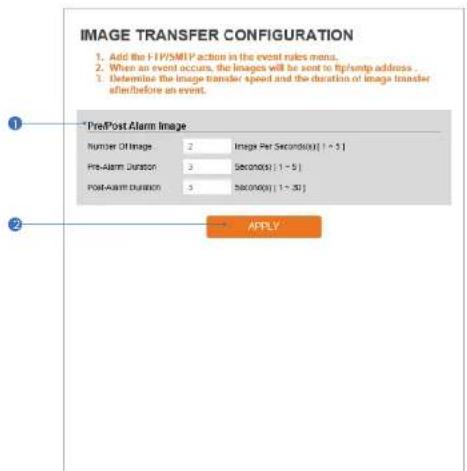

Setup - Trigger Action Setup Image Transfer Configuration

IMAGE TRANSFER CONFIGURATION 1. Add the FP/SMF action in the event rules menu. 2. When an event occurs, the images will be sent to fp/swp address . 3. Determine the image-transfer speed and the duration of image transfer after/before an event. *PrePost Alarm Image Number Of Image: 2 Images Per Second(s) [ 1 - 5 ] Pre-Alarm Duration: 3 Second(s) [ 1 - 5 ] Post-Alarm Duration: 5 Second(s) [ 1 - 30 ] APPLY

Pre / Post Alarm Image - Image Transfer due to event is configured by setting image transfer rate and Pre / Post alarm duration.

	Descriptions
Number of images	Define the number of images transferred per second.
Balance	Balance

Setup - Event Setup

Event Rules Configuration

EVENT RULES CONFIGURATION Event Rules Name Reserve Event Schedule Action ADD MODIFY DELETE

Event Rules List - It indicates the custom Event Rule information added to the Event Rules list.

② Click 'Add' to add custom event rules.

Click 'Modify' to modify selected items from the event rules list.
Click 'Delete' to delete selected items from the event rules list.

Setup - Event Setup

Event Rules Configuration

EVENT RULES CONFIGURATION General Name: NewRule Event Condition Event: NONE Action Rules: NONE SAVE CANCEL

Name - Define the Event rule name.
Event - Select the event among motion detection, network disconnection, illegal login detected, temperature critical, schedule, sensor detection. Click 'Cancel' to return to the previous setting.

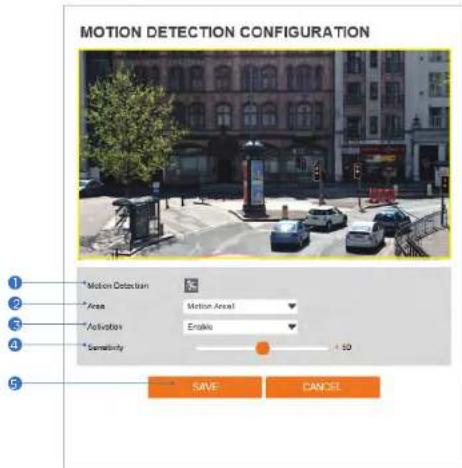

Setup - Event Setup Motion Detection Configuration

MOTION DETECTION CONFIGURATION Motion Detection Area Motion Area1 Activation Enable Sensitivity + SD SAVE CANCEL

Motion Detection - It shows the Motion event status.

Event Alert Icon( ) appears if 'Motion Detection' is activated.

② Area - Set the motion detected area. Click in the display window to draw the motion area. You can set up to four areas.

Setup - Event Setup Temperature

TEMPERATURE General Setting * Mode Fahrenheit * Threshold 150 [122 - 242] * Temperature 113.15 APPLY

Mode - Select Fahrenheit or Celsius.
Threshold - Define the temperature at which the event trigger occurs.
3 Temperature - It indicates the current temperature of the IP camera.

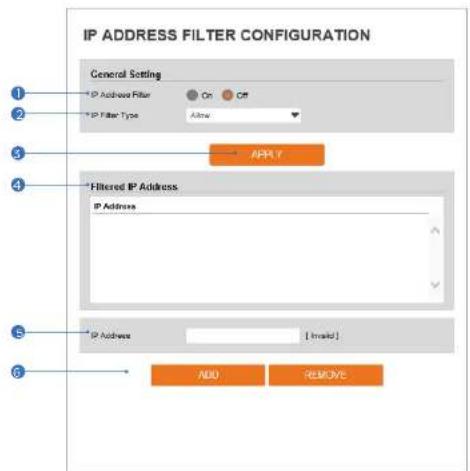

Setup - Security Setup IP Address Filter Configuration

IP ADDRESS FILTER CONFIGURATION General Setting IP Address Filter On Off IP Filter Type Address APPLY Filtered IP Address IP Address IP Address [ Inade] ADD REMOVE

IP Address Filter - Enable or disable the IP filter function.
② IP Filter Type - Select the recording IP filter type.
3 Click 'Apply' to save the settings.

Setup - Security Setup RTSP Authentication Configuration

RTSP AUTHENTICATION CONFIGURATION 1 RTSP Authentication Encoe License 2 APPLY

RTSP Authentication - Enable or disable the RTSP authentication.
② Click 'Apply' to save all settings.

Setup - Security Setup IEEE 802.1X Configuration

IEEE 802.1X CONFIGURATION General Setting * IEEE 802.1x Protocol EATOL Version ID Password Polypos Password CA Certificate Certificate On Off None NONE APPLY

The feature is needed when connecting the camera to the network protected by the IEEE 802.1X.

IEEE 802.1x - Enable or disable the IEEE 802.1x feature.
2 Protocol

- MD5: It provides one-way password-based network authentication of the client.

1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 1. 90.

Setup - Security Setup

HTTPS Configuration

HTTPS CONFIGURATION 1. If no certificates are available go to certificates to manage. Certificates * Certificate NONE HTTPS connection Policy WEB HTTP and HTTPS DAVE HTTP HTTP OVER HTTP HTTP APPLY

HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications.

Certificate - Select an installed certificate.

If you cannot select a certificate, please install the certificate from the Security->Certificates menu.

2 HTTPS connection Policy - Select one of "HTTP", "HTTPS", "HTTP and HTTPS" depending on the connected

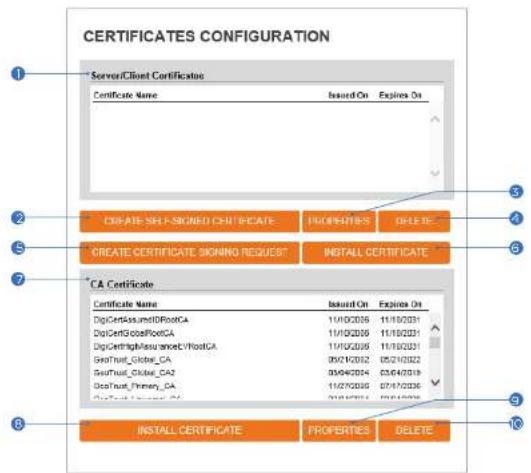

Setup - Security Setup Certificates Configuration

CERTIFICATES CONFIGURATION Server/Client Certificate Certificate Name Issued On Expires On CREATE SET-SIGNED CERTIFICATE PROPERTIES DELETE CREATE CERTIFICATE SIGNING REQUEST INSTALL CERTIFICATE CA Certificate Certificate Name Issued On Expires On DigitCertified/RecordCA 11/02/2016 11/10/2021 DigitCertified/RecordCA 11/02/2016 11/10/2021 DigitCertified/Assurance/RecordCA 11/02/2016 11/10/2021 GrantTrust_Globet_CA 09/21/2012 05/21/2022 GrantTrust_Globet_CA2 09/44/2014 03/44/2018 DateTrust_Primary_CA 11/27/2016 07/17/2026 GrantTrust_###_CA 07/17/2016 07/17/2026 INSTALL CERTIFICATE PROPERTIES DELETE ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Server/Client Certificates - Shows the installed certificates.
2 Create Self-Signed Certificate - A self-signed SSL certificate is an identity certificate signed by its creator, thought they are considered to be less trustworthy.
3 Properties - Shows information about the selected certificate.

Setup - Security Setup

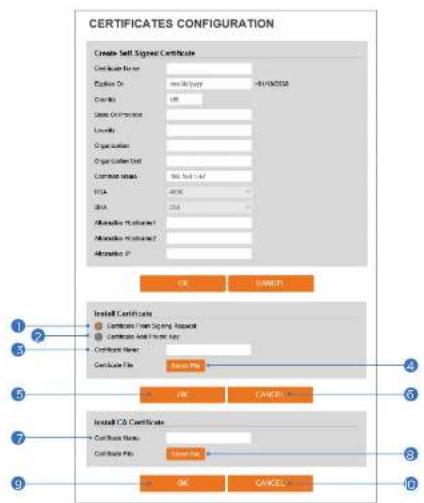

Certificates Configuration

CERTIFICATES CONFIGURATION Create Self-Signed Certificate Certificate Name: Date Date: 09/11/2018 Certificate No: 100 Date Date: 09/11/2018 Signature Signature Type: Signature Name: Signature Address: Signature ID: Signature Account: Signature Name: Signature Name: Signature Date: Signature Date: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature Name: Signature N: OK CAMKETI Install Certificate Certificate Type Signing Request Certificate Type Sign Request Key Certificate Name: Certificate File: Start File: OK CAMKETI Install CIB Certificate Certificate Name: Certificate File: Start File: OK CAMKETI Install Certificate Certificate Name: Certificate File: Start File:

Detail for Install Certification.
Certificate From Signing Request - Select to install a signed certificate returned from the CA.
Certificate And Private Key - Select to install Certificate And Private Key to install a certificate and private key.

Setup - Security Setup Service Configuration

SERVICE CONFIGURATION SS4 Enable Disable APPLY

SSH - Enable or disable the SSH function.
② Click 'Apply' to save all settings.

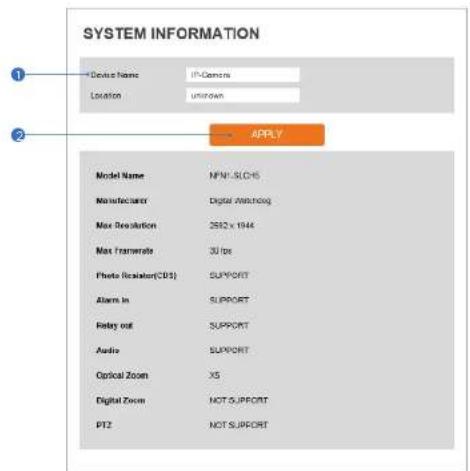

Setup - System Setup System Information

SYSTEM INFORMATION Device Name IP-Camera Location UNIFORM

APPLY

Model Name NPMI-SLOHS Manufacturer Digital WebLogic Max Resolution 2002 x 1944 Max Framerate 30 fps Photo Restoration(CDS) SUPPORT Alarm In SUPPORT Retry out SUPPORT Audio SUPPORT Optical Zoom X5 Digital Zoom NOT SUPPORT PT2 NOT SUPPORT

System Capability Information.

Device Name - You can define the device name.
② Click 'Apply' to save all settings.

Setup - System Setup System Diagnostics

SYSTEM DIAGNOSTICS

Uptime

Olay 19th 15mins

SD Card

SD card male speed 11.5000/s

SD card next speed: 301.1MBS

NAND

NAND wide speed 145.7MB/s

NAND and speed: 369 mB/s

EEPROM

DEPRON read OR

Audio

FUSE ACK OR

System Files

file system OK

NTP Status

NTP: Co

Conrolt Busson

Last NTP Connected Data Time: 2020-5-14 20:50:3

Shows basic hardware functions after inspection.

Shows Uptime, SD card, NAND, EEPROM, Audio chip, Important file system, and NTP Status.

Warning:

If the camera is abnormally terminated, a download button will appear on the diagnostics page to download a

Setup - System Setup

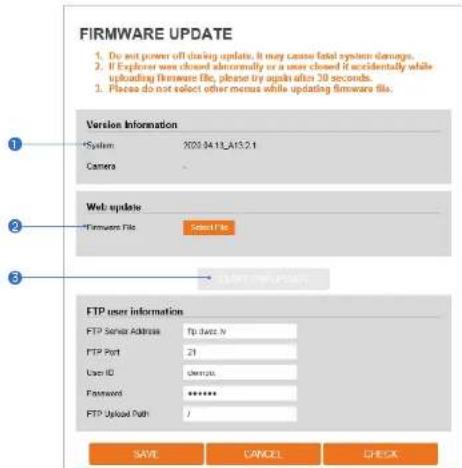

Firmware Update

FIRMWARE UPDATE 1. Do not power off clapping update, it may cause fatal system damage. 2. If Explorer was closed alarmingly or a user closed if accidentally while uploading firmware file, please try again after 30 seconds. 3. Please do not select other menus while updating firmware file. Version Information +System: 2020.34.11_A15.2.1 Camera Web update Firmware File Select File FTP User information FTP Server Address TP Server IV FTP Port 21 User ID #### Password ******* FTP Upload Path / SAVE CANCEL CHECK

Version Information - It shows the current Firmware Version in the system.
Web Update - Select the Firmware file in your computer by clicking [Select file] button.
Start F / W Update · Click this button to start the update. Progress of uploading will be displayed using Progress Bar. If you assign the wrong file name, an error message will be shown.

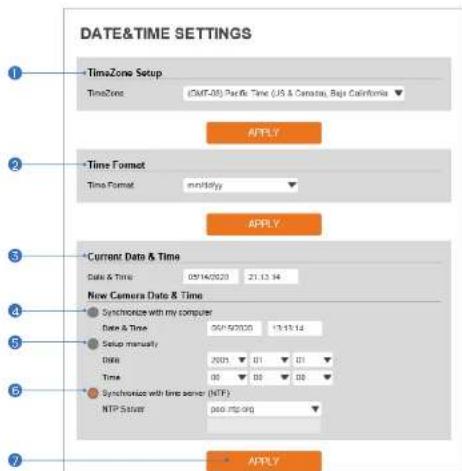

Setup - System Setup Date & Time Settings

DATE&TIME SETTINGS TimeZone Setup TimeZone (GMT-05) Pacific Time (US & Canada, Baja California) APPLY Time Format Time Format: mm/day APPLY Current Date & Time Date & Time 05/14/2020 21.13.14 New Camera Date & Time Synchronize with my computer Date & Time 05/14/2020 13:13:14 Setup manually Date 2001 01 01 Time 00 00 00 Synchronize with time series (NTF) NTP Subset p60.mg.org APPLY

TimeZone Setup - Choose the time zone for the camera. It will be activated after clicking the 'Apply' button. Before setting below 'New Camera Date and Time', set correct Timezone first.
Time Format - Select the time format yy-mm-dd or mm/dd/yy.
3 Current Date and Time - Shows the current date and time setting in the Camera.

Setup - System Setup

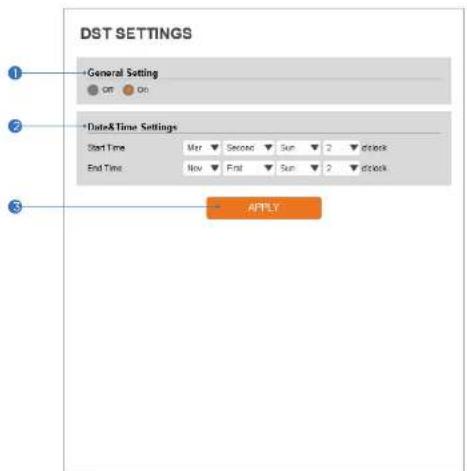

DST Settings

DST SETTINGS General Setting On Do Date&Time Settings Start Time Mar Second Sun 2 clock End Time Nov First Sun 2 clock APPLY

Daylight Saving Time (DST) is the practice of setting the clocks forward one hour from standard time during the summer months,

and back again in the fall, to make better use of natural daylight.

General Setting - Enable or disable the DST function.

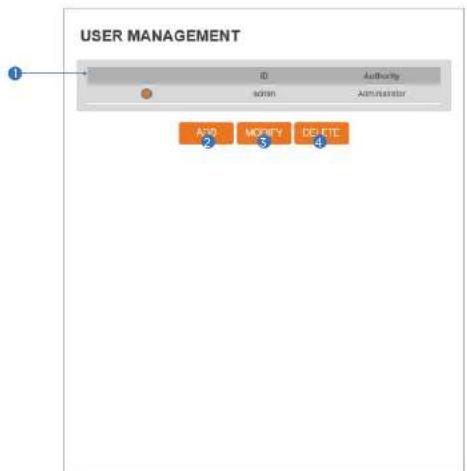

Setup - System Setup Users Management

USER MANAGEMENT ID Authority admin Administrator ADD MODIFY DELETE 1 2 3 4

Users - List all the user accounts for authentication.
2 Add - Register a new user.

ID	Enter a new user ID. Admin already exists.
Password	Enter the user password. (Check the password)

Setup - System Setup

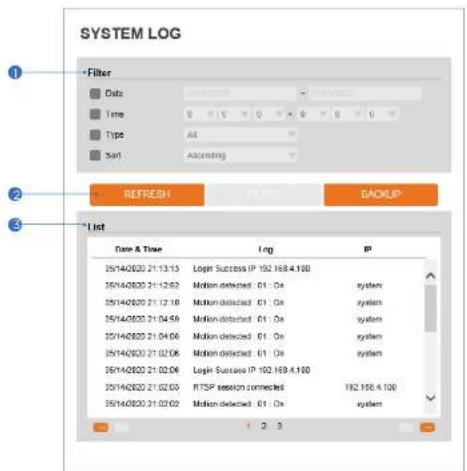

System Log

SYSTEM LOG Filter Data Time Type Size According REFRESH FILTER BACKUP List Date & Time Log IP 3514/08/20 21:13:13 Login Success IP 192.168.4.180 3514/08/20 21:12:52 Motion detected 01:0s system 3514/08/20 21:12:18 Motion detected 01:0s system 3514/08/20 21:04:56 Motion detected 01:0s system 3514/08/20 21:04:06 Motion detected 01:0s system 3514/08/20 21:02:06 Motion detected 01:0s system 3514/08/20 21:02:06 Login Success IP 192.169.4.180 3514/08/20 21:02:05 RTSP session connected 192.169.4.180 3514/08/20 21:02:02 Motion detected 01:0s system

Filter - Select a date, time, sort, or type of log to filter the log.
② Click the 'Refresh' button to refresh the log list.
Click 'Filter' to view the filtered log
Click 'Backup' to backup the filtered log.

Setup - System Setup Factory Reset

FACTORY RESET ALL Exclude network settings and user settings 2 APPLY

Reset to the factory defaults - Return the setup to the factory default.

All - Reset all settings to the factory defaults.

Except Network Settings and User Settings - Reset all camera settings to factory default except for the network settings.

Setup - System Setup

Restart

The page at 192.168.1.116 says: Do you want to restart the system? OK Cancel

If you click the 'RESTART' menu, a message box will be shown to confirm. Click the 'OK' button to restart.

Setup - System Setup

System Open Source License

SYSTEM OPEN SOURCE LICENSE

Open Source Name	Version	Licensee
bzipbox	1.32.0	GPLv2
slic4b	1.1.6	GPLv2.1
blight2	2.32.3	LCPLv2
Bognulla	3.4.2	LCPLv2.1
Ribbon-C	0.121-2D183205	JSON License
libust	7.86.0	MITC derivative License
libft	3.1	MIT License
Boginpyt	1.0.1	LCPLv2.1
libt	3.4.0	LCPLv2.1
Bcogg	1.3.2	BSD45N Lcc190
Rotcomprazole	0.1.0	GPLv2
Interimus	2.7	Public domain
Iodrite	1.0.27	LCPLv2.1
Iodash2	1.9.0	BED
Iodesh1	4.13	GPLv3

This menu will show you all the list of System Open Source License in the camera. Open Source Name / Version / License.

Network Setup - Quick Start of Network Connection

Follow the steps below to complete the initial network setup.

Do not power on the IP camera until instructed.

① Temporarily disable any proxy servers configured in internet Explorer.

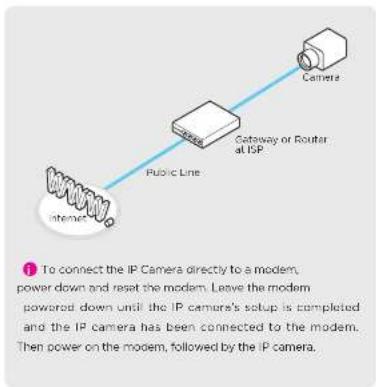

If connecting the IP camera directly to a modem, power down and reset the modem. Leave the modem powered down until the camera's configuration is complete and the IP Camera has been connected to the modem.

Connect the IP camera to the configured network.

② Open the DW IP Finder on a PC on the same network as the camera and search for the camera.

If you have a DHCP server, it will automatically set the camera's IP address and network settings.

If you do not have a DHCP server, the camera's IP address is set by default to 192.168.180 after one minute in this case, the PC's IP address must be changed to match the camera's IP address settings to be able to access the camera.

⑤ If multiple cameras are added at the same time, each camera can be identified by its mac address.

4 Click on the camera's IP address and connect to the web page.

5 Default ID/password are both: admin.

⑥ Familiarize yourself with the viewer interface.

Access your IP Camera via the Internet (from a different network from the one your camera is):

If you use a static IP address assigned by your ISP: 1. Open Internet Explorer.

1. Type the address of the IP camera.

2. If you use a router, enter the routers' static IP and the web port number of the IP camera.

If you have a dynamic address provided by your ISP

1. Open Internet Explorer and go to your DDNS website.

2. Register the IP camera.

3. Reboot the IP camera.

4. Give the DDNS server 10 minutes to locate your IP camera's IP information.

5. Click the refresh button in Internet Explorer.

6. After your camera is connected, select your camera.

Network Setup - DDNS Registration

If you have a DYNAMIC IP service from your Internet Service Provider (ISP), you can't tell the current IP address of the IP Camera. To solve this problem, you have to register with our DDNS service.

At first, you have to check if you are using dynamic addressing. If so, register your IP Video Server on our DDNS website before you configure, setup, or install the IP Camera.

Even though your IP is not dynamic, you will get benefit if you register to DDNS. In this case, just remember 'hostname.dyndns.com/gate1' instead of a complicated series of numbers like http://201.23.4.76:8078.

For more details, contact our Support Center.

To use a public DDNS called 'DynDNS' or 'no-IP', refer to the detailed information on how to use the service. (Visit: http://www.dyndns.com or http://www.no-ip.com)

Network Setup - Guide to the Network Environment

Please configure the IP Camera at the installation site. You must determine your network scenario to configure the IP Camera with the proper TCP/IP settings. This tutorial will guide you through the process. Before actually configuring the IP Camera, determine settings to be applied. Record those settings to be used to configure your IP Camera for reference.

When configuring your IP Camera, treat the IP Camera as another PC on your network. You will assign it to several addresses and other TCP/IP properties to match your current network.

This step-by-step tutorial will teach what IP addresses and network configurations should be assigned based on the network scenario.

Before you begin, locate any information and settings received from your Internet Service Provider (ISP). You may need to refer to these IP addresses at a later time during the configuration.

Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway

4 If prompted for ID and password, use 'admin' for both entries. The default web port number is 80. If port 80 is blocked by the ISP, use a value between 1025 - 60000. If TCP port 80 is blocked, contact your ISP.

The following descriptions are several basic network scenarios. Determine which scenario describes your network. If your network does not match one of the scenarios below and you are unsure how to setup your IP camera, contact your network administrator.

You cannot control the rectangular gray areas and only the ISP has access to the devices.

Network Setup - Setup Case A, B

Case A: Dynamic IP + Personal Router [Most SOHO]

Configure your IP Camera's TCP/IP properties:

1 Network Type: STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP camera).
② Internet Address: A private IP address such as 192.168.0.200 (example)

You need to assign an IP address to the IP Camera just as you do with PC.

The IP address you assign must be unique to your network and match your network as well. For information on how to choose a unique IP and match your network, read the FAQ.
The IP address you assign must be a private IP. For information on how to choose a private IP please, read the FAQ.

③ Subnet Mask: 255.255.255.0 (example)

① You must use the same subnet mask as the one you noted under 'Current TCP/IP Settings'.
4 Default Gateway: 192.168.0.1 (example)
① This IP address must be the IP address of your router, (private or LAN side) ② Use the same Default Gateway you noted under 'Current TCP/IP Settings'.
5 Preferred DNS Server: Use the 1st DNS Server from

Case B: Static(Fixed) IP + Personal Router [Efficient]

Camera

Network Setup - Setup Case C, D

Case C: Static(Fixed) IP [Dedicated line directly to the IP Camera]

Configure your IP Camera's TCP/IP properties:

Network Type: STATIC
Internet Address: A static IP address received from your ISP such as 24.107.88.125 (example)
You need to assign an IP address to the IP Camera just as you do with PC.
Subnet Mask: Subnet mask assigned from your ISP such as 255.255.255.240 (example)
4 Default Gateway: 24.107.88.113 (example)

Case D: Dynamic IP + DSL/Cable Modem [Connected directly to the IP Camera]

Configure your IP Camera's TCP/IP properties:

1 Network Type: DYNAMIC
② DDNS Server: Use the DDNS server
① This is the same site you will register later to

Network Setup - Port Forwarding

After entering the correct TCP/IP settings, you are ready for 'Port Forwarding' (Cases A, B).

Please record the TCP/IP settings of your IP camera for future reference. You may need this information to access your IP Camera and to configure 'port forwarding'.

IP camera TCP/IP settings
IP address
Subnet mask
Default gateway
Preferred DNS server
DDNS server
Web port

After clicking 'Apply', the system will prompt for a reboot. Please allow the system 50 seconds to reboot and accept the changes. After 50 seconds, close the configuration screen. The view will display 'Trying to Reconnect'.

If the ACTIVE light on the IP Camera has gone off and is now back on again flashing, the IP Camera has rebooted. After the system reboots completely, remove the power supply from the unit and close Internet Explorer.

Return your PC/Laptop TCP/IP properties to their

Network Setup - Starting IP Camera

After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location.

Locate the serial number located on the label attached to the bottom of the IP camera, you will need this for DDNS registration.
2 Connect the IP Camera to your router or cable/DSL modem (per your network scenario) via a Cat5/Se UTP Ethernet network cable.
③ Supply power to the IP camera.
4 After 1 minute, verify the IP camera indicators: - LINK: Flickering/Solid
5 After configuring port forwarding on your computer (if necessary), access your IP camera on your local network by opening Internet Explorer and specifying the IP address and web port assigned to the IP camera.

Examples: http://192.168.0.200.8898 or http://24.106.88.123

If you left your web port as 80, you do not need to specify the port in the address bar to access the IP camera.

⑤ Access your IP camera via the Internet :

If you use cases B, C: 1. Open Internet Explorer.

Appendix FAQ

1. My POWER light Is not on?

Power is not being supplied to the unit. Please use the power supply shipped with the unit and verify that a power source is active from the attached power outlet used to connect the adapter. You can test this by plugging in any other electrical device and verify its operation. After using the power supply shipped with the product, check the power source, and reinserting the power connector into the IP Camera, please call our Support Center. The power supply may be defective.

2. My ACTIVE light is not flashing?

Verify the power supply to the unit. Power off the unit and back on again, wait 1 minute, if the ACTIVE light still does not begin to flash, you will have to set the unit to its factory default (THIS WILL DELETE ANY CONFIGURATION AND SET THE UNIT TO THE FACTORY DEFAULTS). Power on the unit and insert the end of a paper clip into the small recessed opening on the back of the unit. Use the clip to press the button located within that opening.

3. My LINK light is not flashing or solid?

Verify the cable connection, 99% of the time the cable's connection to the unit is causing this problem. Try using a different network cable or crossover cable (for PC connection only). Try reinserting the cable, if this still doesn't solve the problem call our Support Center.

4. I can access the video server on my LAN, but not from the Internet.

Verify that your router (if applicable) has port forwarding properly configured. If accessing from our DDNS service,

8. How do I "PING" an IP address?

1) Open an MS-DOS (or Command) prompt 2) At the prompt type - "ping xxx.xxx.xxx.xxx" (without the quotes and replace the "x" s with an IP address) 3) Press Enter

9. I'm accessing my video server remotely over the Internet and the video stream is choppy, is this normal?

Yes. The frames per second received remotely are determined by your bandwidth capabilities both at your site where the IP Camera is installed and your remote location. The lower of the two sites will determine how fast your video stream is received. It is recommended to have at least a 256Kb/sec upstream connection from the site where the IP Camera is installed. Lower speeds will operate properly but provide poor remote performance. The Faster the internet connection at both ends, the faster the video stream.

10. How do I enable or check VLC on my browser

Internet Explorer Open Internet Explorer > Tools on the menu bar > Internet Options > Security Tab > Custom Level > Scroll down and verify that you are prompted or have enabled plug-ins to be downloaded and executed. > click OK > restart browser

Chrome

Open Chrome > Chrome menu settings > Advanced settings > Individual information - content settings > Run automatically

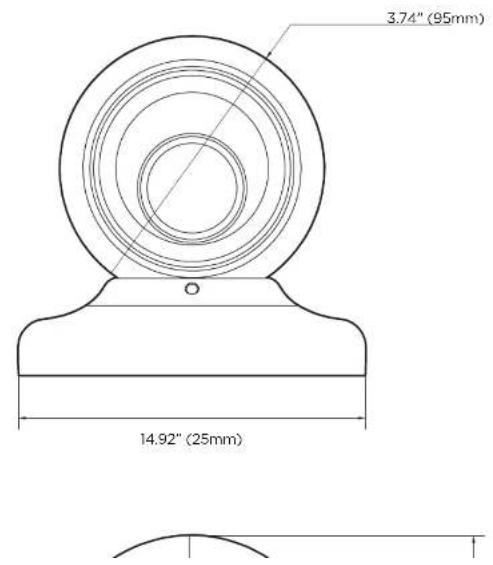

Specifications - Dimension

Unit: inches (mm)

3.74" (95mm) 14.92" (25mm)

Specification

CAMERA
Image sensor	1/28" 2IMP/1080p CMOS
Total pixels	1945 (H) X 1109 (V)
Focal length	2.8mm, F2.0
Field angle	Dr: 127°, H: 110°, V: 59°
Shutter speed	Auto / manual (1/15 - 1/32000), anti-flicker, slow shutter (7/2 l 1/3 l 1/5 1/6 l 1/7.5 l 1/10)
MIN. illumination	0.05 lux (color). 0 lux with IR (F2.0)
IR	H2IR, 80ft
WDR	True WDR (DOL)
Day and night	TDN (true day and night)
DNR	3D-DNR
Privacy zone	16 programmable zone
AGC	Auto
Other image processing	Exposure, white balance, sharpness, DLC brightness, contrast, saturation, hue

SECURITY AND NETWORK
Network protocol	IPv4:TCP/IP/UDP/AutoIP/RTP(UDP/TCP)/RTSP/NTP/HTTP/HTTPS/SSL/DNS/DDNS/DHCP/FTP/SMTP/CMP/SNMPV1/v2/v3(MIB-2)/ONVIF
Security	HTTPS (SSL), IP filtering, 802.1x,Digest Authentication
Plug-in	CGI, API, ONVIF

GENERAL
Support languages	English
Power	(Adaptor is not included)DC12V max 5.7WPOE ILEE 802.3a Class3 max 7.2W
Temperature	-4°F - 122°F (-20°C - 50°C)
Material	Aluminum die-casting
Dimensions (DXH)	4.92" x 4.8" (125 x 122 mm)
Weight	1.76lbs (0.8kg)
Certification	FCC, CE, ROHS, IP67, IK10

ENCODER (VIDEO AND AUDIO)
Video Compression	H.265, H.264, MJPEG
H.264 profile	MP/HP
H.265 profile	MP
Multiple profile

Warranty Information

Digital Watchdog (referred to as "the Warrantor") warrants the Camera against defects in materials or workmanship as follows:

Labor: For the initial five (5) years from the date of the original purchase if the camera is determined to be defective, the Warrantor will repair or replace the unit with the new or refurbished product at its option, at no charge.

Parts: Also, the Warrantor will supply replacement parts for the initial two (2) years.

To obtain warranty or out of warranty service, please contact a technical support representative at:

1+ [phone], Monday through Friday from 9:00 AM to 8:00 PM EST.

A purchase receipt or other proof of the date of the original purchase is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damages which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, setup adjustments, improper antenna, inadequate signal pickup, maladjustments of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

Limits and Exclusions

There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including without limitation, damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for a particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights from vary from state to state.

If the problem is not handled to your satisfaction, then write to the following address:

Digital Watchdog, Inc. ATTN: RMA Department 16220 Bloomfield Ave Cerritos, CA 90703

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Cost of such service calls are the responsibility of the purchaser.

DW• DIGITAL WATCHDOG®

Complete Surveillance Solutions

DW ^® East Coast office and warehouse: 5436 W Crenshaw St, Tampa, FL USA 33634

DW® West Coast office and warehouse: 16220 Bloomfield Ave, Cerritos, CA USA 90703

PH: 866-446-3595 | FAX: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support PH:

USA & Canada 1+ 866-446-3595

International 1+813-888-9555

French Canadian: 1+514-360-1309
