USER MANUAL MegaPix CaaS DWC-PVF5M1TIRC6 Digital Watchdog

180°, 360° fisheye view camera

DWC-PVF5M1TIRC6 / DWC-PVF5M1TIRC1

Close-up of a white and black electronic device with a 'DW' logo on top (no other text or symbols visible)

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warning Precaution

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet. Using any other adapter could cause fire, electrical shock, or damage to the product
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or damage to th product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause excessive heat generation or fire

Precaution

Operating

- Before using, make sure power supply and all other parts are properly connected. - While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately and contact your dealer.

Handling

- Do not disassemble or tamper with parts inside the camera. - Do not drop the camera or subject it to shock or vibration as this can damage the camera. - Clean the clear dome cover with extra care. Scratches and dust can ruin the quality of the camera image.

Installation and Storage

Do not install the camera in areas of extreme temperature

Important Safety Instructions

1. Read these instructions. - All safety and operating instructions should be read before installation or operation.

2. Keep these instructions. - The safety, operating and use instructions should be retained for future reference.

3. Heed all warnings. - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions. - All operating and use instructions should be followed.

5. Do not use this device near water. - For example: near a bath tub, wash bowl, kitchen sink, laundry tub, in a wet basement; near a swimming pool; etc.

6. Clean only with dry cloth. - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product, and to protect it from over-heating. The openings should never be blocked by placing the product on bed, sofa, rug or other similar surfaces. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhere to.

8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug the apparatus during lightning storms or when unused for long periods of time.

Table of Contents

Introduction

Product & Accessories....5

Parts Name 6

Installation

Disassembling the Camera....7

Installation....8-11

Factory Reset....7

Cabling....12

SD Memory Card....13

Network Setup

DW IP Finder....14

Network Connection 15

DDNS Registration....16

Network Environments....17-19

Port Forwarding....20

Starting the IP Camera....21

Web Viewer

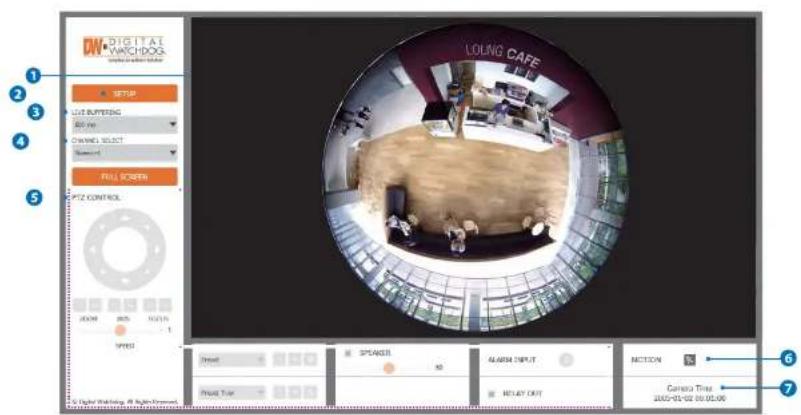

GUI Overview....22

Camera Settings

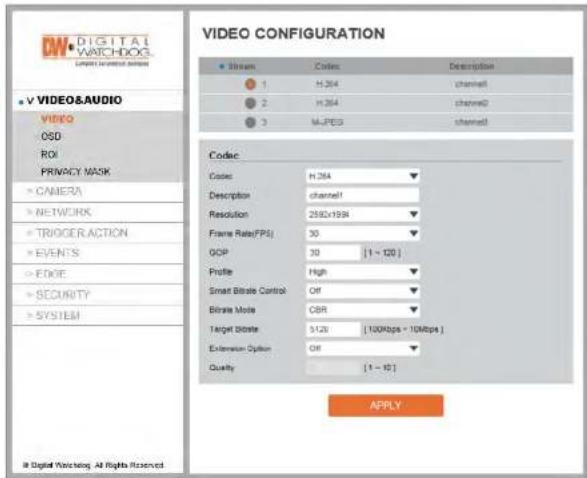

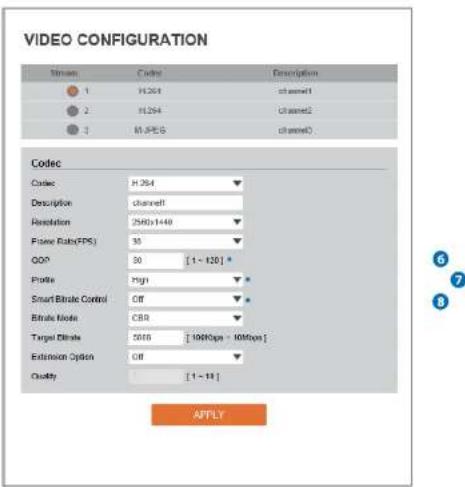

Setup > Video & Audio Setup > Video Configuration....23-26

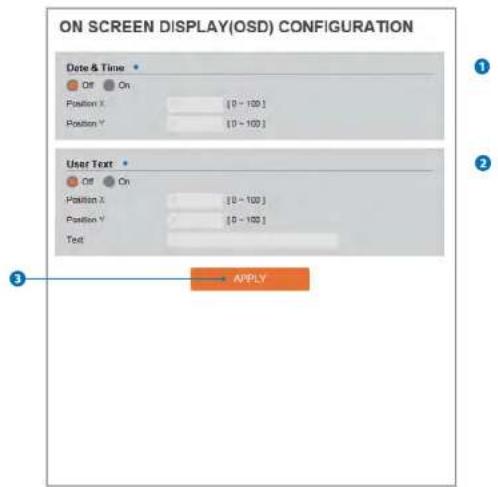

Setup > Video & Audio > OSD Configuration....27

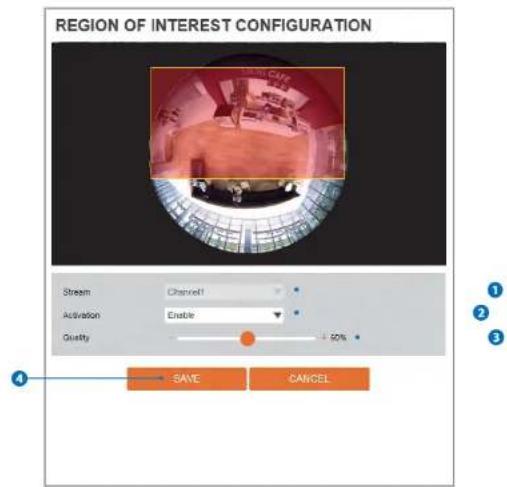

Setup > Video & Audio > Region of Interest Configuration 28

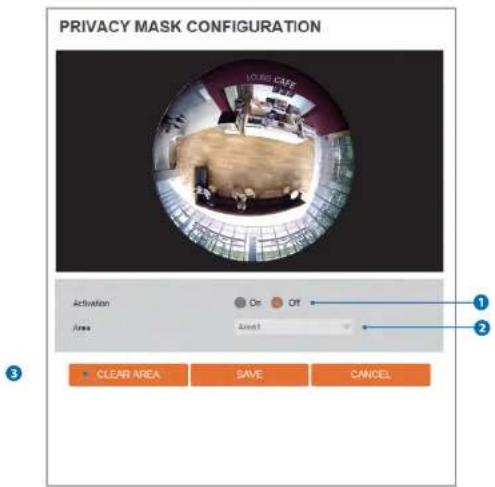

Setup > Video & Audio > Privacy Mask Configuration....29

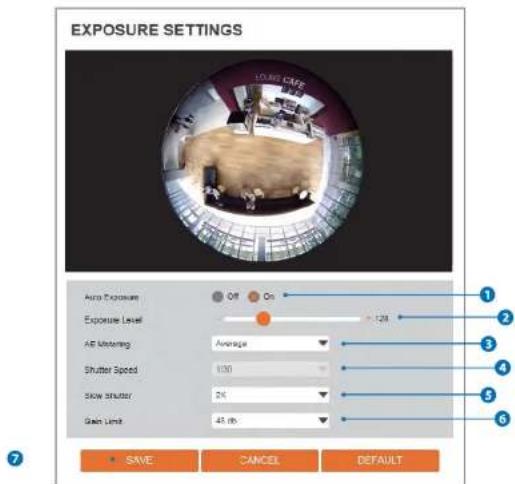

Setup > Camera > Camera Image adjustment and Enhancement....30-35

Folius, Fomona, Vidal, Fokkermont

Introduction - Product & Accessories

Introduc

Part Name

Fisheye lens

Installation - Disassemble the camera

Before installing your camera, you have to read the following cautions.

1. You have to check whether the location can bear five times of the weight of your camera.
2. Don't let the cable to be caught in improper place or the electric line cover to be damaged. Otherwise it may cause a breakdown or fire.
3. When installing your camera, don't allow any person to approach the installation site. If you have any valuable things under the place, move them away.

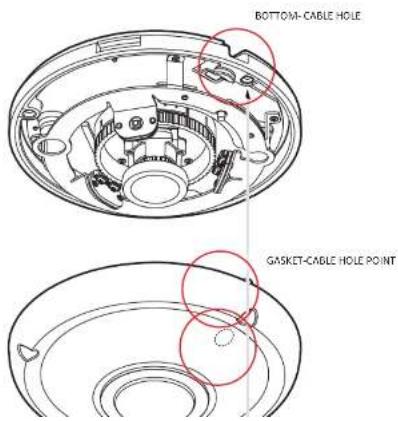

BOTTOM-CABLE HOLE GASKET-CABLE HOLE POINT

1 Detach the dome cover by torx wrench provided from bottom case before installation the camera.

1. The camera includes a sensor at the camera's module. For the sensor to function properly, the camera's dome includes a special hole the sensor.
2. When assembling the camera together, please make sure the sensor hole in the camera's dome is positioned right on top of the sensor on the camera's module.

Installation - Installation

Template Sheet

1 Detach the camera's cover dome from the camera's module by unscrewing the three cover dome screws using the L-wrench.
② Use the camera or mounting template to mark and drill the necessary holes in the wall or ceiling.
3 Pull wires through and make connections. Put the Lan cable into (a), then (b) will be assembled to (a) tightly. As a final step, (c) need to be assembled to (b) without making any space.

4 Using two (2) included screws, mount and secure the camera to the mounting surface.
5 Secure the camera's cover dome onto the camera base to complete the installation.
⑤ Detach the protection film from the dome cover.

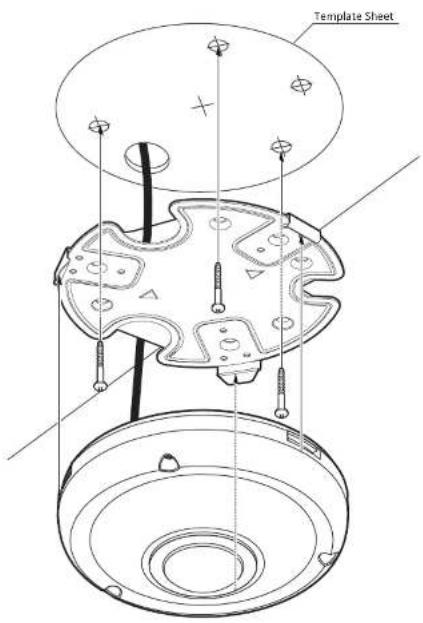

Installation - Installation Using Mount Plate

Template Sheet

1 Detach the camera's cover dome from the camera's module by unscrewing the three cover dome screws.
2 Using the metal mount plate, mark and drill the necessary holes in the wall or ceiling.
3 Pull wires through and make connections.
4 Using the three (3) included screws, mount and secure the camera to the wall or ceiling.
5 Attach the camera base to the metal mount by snapping it into place using the two metal handles.
6 Secure the camera's cover dome onto the camera base to complete the installation.
7 Detach the protection film from the dome cover.

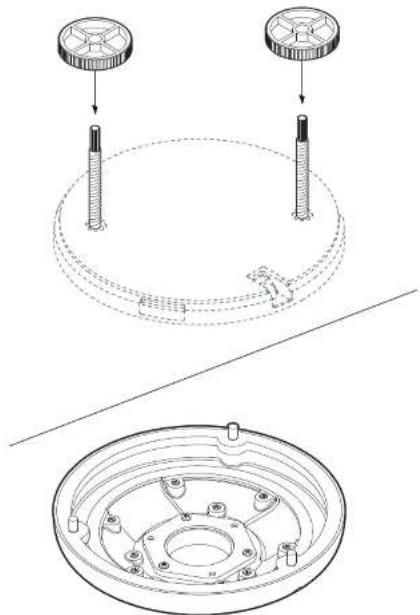

Installation - Installation Using Mount Bolt & Nut

Technical diagram showing mechanical assembly with two circular components and a separate circular component with mounting holes.

Using the template sheet, make and drill the cabling holes on the wall/ceiling.
2 Secure the two long mounting screws to the camera's base.
3 Pass the wires through the mount bracket and make all necessary connections.

Installation - Installation Using Mount Bolt & Nut

Technical diagram showing mechanical assembly with two circular components and a separate circular component with mounting holes.

4 Mount the camera to the mounting surface by using the 2 mounting nuts. Rotate the locking discs over the screws until the camera is held tightly from the mounting surface.

5 Secure the camera's cover dome onto the camera base to complete the installation.
6 Detach the protection film from the dome cover.

Installation - Cabling

Two Options

Use a PoE-enabled switch to connect data and power through a single cable and begin viewing and recording images instantly. A non-PoE switch will require an adaptor for power transmission.

1. Using a PoE-Enabled Switch

The Camera is PoE compliant, allowing transmission of power and data via a single Ethernet cable. PoE eliminates the need for the different cables used to power, record, or control the camera. Follow the illustration below to connect the camera to a PoE-enabled switch using an Ethernet cable.

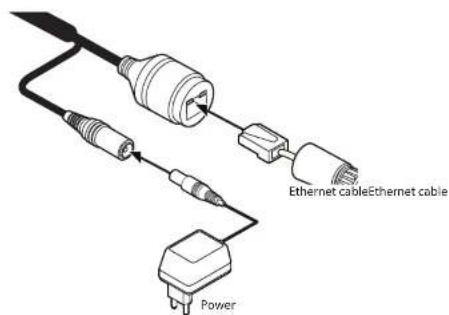

2. Using a Non-PoE Switch

If a PoE-enabled switch is not used, use a power adaptor for power transmission and non-PoE switch for data transmission. Follow the illustrations below to connect the camera without a PoE-enabled Switch.

Line drawing of a cable connector with two connectors and a plug (no text or symbols)

Ethernet cable Ethernet cable Power

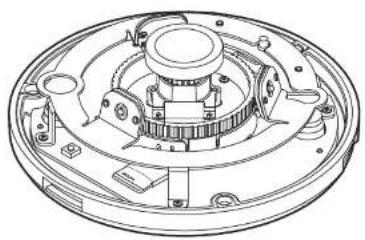

Installation - SD Memory Card

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Warning: Do not remove the built-in micro SD card which has been qualified CAAS TM purpose. Make sure check the built-in micro SD card at the system before installation. (Other Micro SD cards may not work properly.)

DWC-PVF5M1TIRC6	64GB based model
DWC-PVF5M1TIRC1	128GB based model

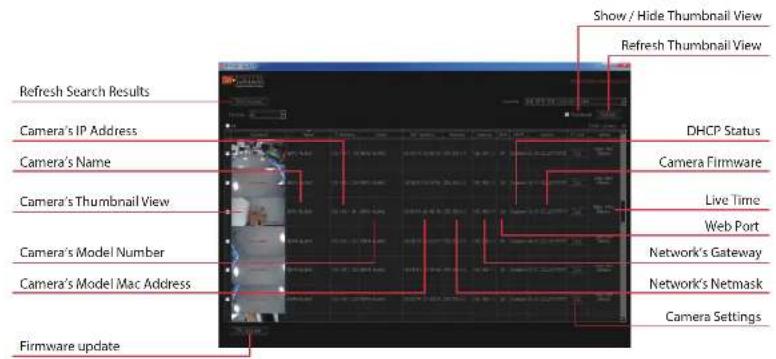

Network Setup - DW IP Finder™

Show / Hide Thumbnail View Refresh Thumbnail View Refresh Search Results Camera's IP Address Camera's Name Camera's Thumbnail View Camera's Model Number Camera's Model Mac Address Firmware update DHCP Status Camera Firmware Live Time Web Port Network's Gateway Network's Netmask Camera Settings

Go to: http://www.digital-watchdog.com and search for 'IP Finder' on the quick search bar at the top of the page.
The latest IP Finder software will appear in the search results. Click on the link to download the file to your computer.
The software will scan your network for all supported cameras and display the results in the table. Allow up to 5 seconds for the IP Installer to find the camera on the network.
you can press the 'Refresh List' to search the network

CNC Control Panel Camera Name: LEFF 4LA72 IP Configuration Mode: ● DHCP ● Static IP IP Address: 192 168.1 .168 Network: 355 255.0 .0 Gateway: 192 168.1 .1 DNS: 230 248 252.2 MAC Address: DDXG F1 200A002 Ports Web Port: 89 Control Port: 0 Video Port: 0 Audio Transmit: 0 Audio Receive: 0 Username: admin Password: ****

Network Setup -

Quick Start of Network Connection

Please follow the steps below to complete the initial setup of the network function.

Please do not power on the IP Camera until instructed.
① Temporarily disable any proxy servers configured in internet Explorer.
If connecting the IP Camera directly to a modem, power down and reset the modem. Leave the modem powered down until configurations are finalized with the IP Camera and the IP Camera has been correctly connected to the modem.

1. Connect the IP Camera and PC to the configured network.

2. Open the IP Installer on a PC, then search for the IP camera.

If you have a DHCP server, it will automatically set the Camera IP. If you do not have a DHCP server, Camera IP is set to 192.168.1.80 after one minute. In this case, PC IP must be changed to the IP to be able to access the 192.168.1.80.

1. If multiple numbers of camera are connected it should be distinguished by the mac address of the Camera.

2. Click the Camera IP, and connect to the WEBPAGE.

3. Default ID/Password to access IP Camera are both the word: admin.

4. Familiarize yourself with the Viewer Interface Screen.

5. please install VLC to display live video.

6. The IP setting can be set to 'STATIC' at IP Installer or web viewer followed by Setup -> Network -> Network Settings

7. If the IP Camera is connected to a network which utilizes a router, you must have Port Forwarding configured on your

11. Access your IP Camera via the Internet :

If you use a static IP address assigned by your ISP
1) Open Internet Explorer.
2) Type the IP of the IP Camera.
3) If you use a router, type the routers' static IP and the web port number of the IP Camera.

If you have a dynamic address provided by your ISP

1) Open Internet Explorer and visit the DONS website.
2) Register the IP Camera.
3) Reboot the IP Camera.
4) Give the DDNS server 10 minutes to locate your IP Camera's IP information.
5) Click the refresh button in the Internet Explore.
6) After your camera is connected, select your camera.

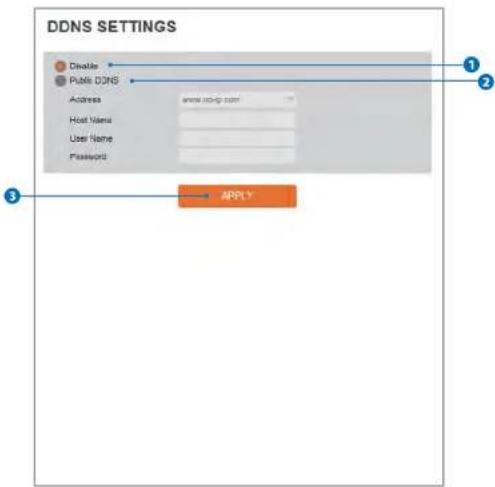

Network Setup - DDNS Registration

If you have DYNAMIC IP service from your Internet Service Provider (ISP), you can't tell the current IP address of the IP Camera. To solve this problem, you have to register to our DDNS service.

At first, you have to check if you are using dynamic addressing. If so, register your IP Video Server on our DDNS website before you configure, setup, or install the IP Camera.

Even though your IP is not dynamic, you will get benefit if you register to DDNS. In this case, just remember 'hostname.dyndns.com/gate1' instead of complicated series of numbers like http://201.23.4.76:8078.

For more details, contact our Support Center.

To use a public DDNS called 'dyndns' or 'no-ip', refer to the detail information on how to use the service. (Visit the web site: http://www.dyndns.com or http://www.no-ip.com)

Network Setup -

Guide to Network Environment

Please configure the IP Camera at the installation site. You must determine your network scenario in order to configure the IP Camera with the proper TCP/IP settings. This tutorial will guide you through the process. Before actually configuring the IP Camera, determine settings to be applied. Record those settings to be used to configure your IP Camera for reference.

When configuring your IP Camera, treat the IP Camera as another PC on your network. You will assign it several addresses and other TCP/IP properties to match your current network.

This step-by-step tutorial will teach what IP addresses and network configurations should be assigned based on the network scenario.

1. The following descriptions are several basic network scenarios. Determine which scenario describes your network. If your network does not match one of the scenarios below and you are unsure how to setup your IP Camera, contact your network administrator and then call our Support Center.

You cannot control the rectangular gray areas and only the ISP has access to the devices.

1. Before you begin, locate any Information and settings received from your Internet Service Provider (ISP). You may need to refer to these IP addresses at a later time during the configuration.

Current TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Primary DNS Server
Secondary DNS Server (Option)

Secondary DNS Server (Option)

Network Setup - Setup Case A, B


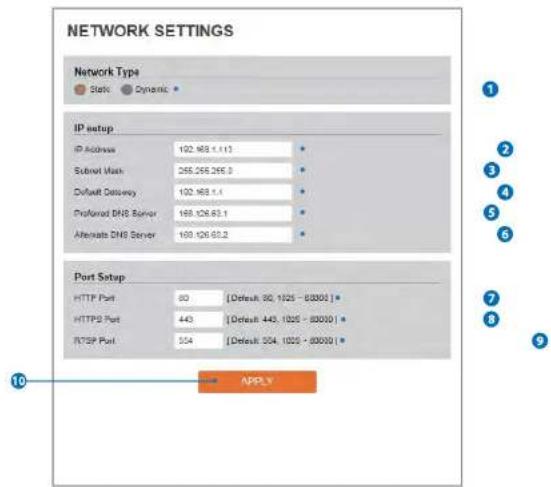

Configure your IP Camera's TCP/IP properties as follows :

1. Network Type: STATIC (even though you have Dynamic IP from your ISP, use STATIC on the IP Camera)

2. Internet Address A private IP address such as 192.168.0.200 (Example)

You need to assign an IP address to the IP Camera just as you do with PC.
①The IP address you assign must be unique to your network and match your network as well. For information on how to choose a unique IP and match your network, read the FAQ.
The IP address you assign must be a private IP. For information on how to choose a private IP please, read the FAQ.

1. Subnet Mask: 255.255.255.0 (Example)

You must use the same subnet mask as the one you noted under 'Current TCP/IP Settings'.
2. Default Gateway : 192.168.0.1 (Example)
This IP address must be the IP address of your router. (private or LAN side)
Use the same Default Gateway you noted under 'Current TCP/IP Settings'.
3. Preferred DNS Server: Use the 1st DNS Server from 'Assigned IP Address from My ISP'.

If you did not receive any IP addresses from your ISP, contact the ISP and acquire the IP address of their DNS server.
4. DDNS Server : Use the DDNS server.
This is the same site you will register later to accommodate dynamic IP from your ISP.

Network Setup - Setup Case C, D

Configure your IP Camera's TCP/IP properties as follows :

1. Network Type : STATIC
2. Internet Address: A static IP address received from your ISP such as 24.107.88.125 [Example]

You need to assign an IP address to the IP Camera just as you do with PC.
3. Subnet Mask : Subnet mask assigned from your ISP such as 255.255.255.240 (Example)
4. Default Gateway : 24.107.88.113 (Example)
i Use the assigned default gateway from your ISP
5. Preferred DNS Server : Use the 1st DNS Server from 'Assigned IP Address from My ISP'
If you have not received any IP addresses from your ISP, contact them to require the IP address of their DNS range.

To connect the IP Camera directly to a modem, power down and reset the modem. Leave the modem powered down until configurations are finalized with the IP Camera and the IP] Camera has been connected correctly to the modem. Then power on the modem, followed by the IP Camera.

Configure your IP Camera's TCP/IP properties as follows :

1. Network Type: DYNAMIC
2. DDNS Server: Use the DDNS server
   This is the same site you will register later to accommodate dynamic IP from your ISP.
3. Web Port: 80
   You may select any number between 1025 \~ 60000.

Network Setup - Port Forwarding

After entering the correct TCP/IP settings, you are ready for 'Port Forwarding'(Cases A, B).

1. Please record the TCP/IP settings of your IP Camera for future reference. You may need this information to access your IP Camera and to configure 'Port Forwarding'.

IP Camera TCP/IP Settings
IP Address
Subnet Mask
Default Gateway
Preferred DNS Server
DDNS Server
Web Port

1. After clicking 'Apply', the system will prompt for reboot. Please allow the system 50 seconds to reboot and accept the changes. After 50 seconds, close the configuration screen. The view will display 'Trying to Reconnect'. If the ACTIVE light on the IP Camera has gone off and is now back on again flashing, the IP Camera has rebooted. After the system reboots completely, remove the power supply from the unit and close Internet Explorer.
2. Return your PC/Laptop TCP/IP properties to their original settings.
3. Before installing the IP Camera, you must use 'Port Forwarding' on your personal router (Cases A, B).

You will need to forward 1 ports:

- Web Port

All the ports will be forwarded to the IP address you assigned to the IP Camera.

In the example above, you would forward:

- 8888 >192.168.0.200

Network Setup - Starting IP Camera

After forwarding correctly the Web Port, through your router (if applicable), install the IP Camera in a proper location.

1. Locate the serial number located on the label attached to the bottom of the IP Camera, you will need this for DDNS registration.
2. Connect the IP Camera to your router or cable/DSL modem (per your network scenario) via a Cat5/Se UTP Ethernet network cable.
3. Supply power to the IP Camera.
4. After 1 minute, verify the IP Camera indicators:

- LINK : Flickering/Solid

1. After configuring Port Forwarding on your computer (If necessary), access your IP Camera on your local network by opening Internet Explorer and specifying the IP address and Web Port assigned to the IP Camera.

Examples: http://192.168.0.200:8888 or http://24.106.88.123 If you left your Web Port set to 80, do not need to specify the port in the Address Bar to access the IP Camera.

1. Access your IP Camera via the Internet :

If you use Case B, C

1) Open Internet Explorer.

2) Type the IP of the IP Camera.

If you use Case A, D

1) Open Internet Explorer.
2) Visit the DDNSwebsite.
3) Register the IP Camera.
4) Give the DDNS server 10 minutes (MAX) to locate your IP Camera's IP information. You may reboot the server to send an immediate request to our DDNS server.

Web Viewer Screen -

Basic Screen

DIGITAL WATCHDOG SETUP LIVE BUFFERING 800 PM CHANNEL SELECT Number FULL SCREEN MPTZ CONTROL 1 2 3 4 5 SPEED SPONSER K0 ALABRA INPUT RESET Camera Time 2002-01-02 00:00:00 Private Tree Relay Exit

※ Web viewer is optimized with explorer10 or above version and Firefox.
If VLC is not installed or VLC plugin is not supported (Chrome), Live buffering and Channel select menu on 3, 4 will be changed to Live Viewer menu, and then if HTML5(MUPEG) is selected on Live Viewer menu, then you can check the video.
1 Live video display. This is the region for live video stream from the camera.

Setup - Video & Audio Setup

Video Configuration

1

2

VIDEO &AUDIO VIDEO OSD ROI PRIVACY MASK * CAMERA * NETWORK * TRIGGER ACTION * EVENTS * EDGE * SECURITY * SYSTEM VIDEO CONFIGURATION Stream Codes Description 1 H.264 channel0 2 H.264 channel0 3 MA.PES channel0 Codec Codes H.264 Description channel1 Resolution 2592x1994 Frame Rate(FPS) 30 GDP 30 [1 - 128] Profile High Smart Bitrate Control Off Bitrate Mode CBR Target Bitrate 5126 [100Kbps - 10Mbps ] Extension Option Off Quality [1 - 15] APPLY © Digital Monitoring. All Rights Reserved

1 Detail Page - When you selects an item from the menu, you can set the details for the selected item.
2 Setup Constitution

Video&Audio

[VIDEO, OSD, ROI, PRIVACY MASK]

Camera

Setup - Video & Audio Setup

Video Configuration

VIDEO CONFIGURATION Stream Code Description 1 H.264 channel1 2 H.294 channel2 3 M-FES channel0 Codec Code: H.264 Description channel1 Resolution 2590x1440 Frame Rate(FPS) 30 GDP 30 [1 - 120] Profile High Smart Bitrate Control Off Bitrate Mode CBR Target Bitrate 5010 [100Kbps - 10Mbps] Extension Option Off Quality [1 - 18] APPLY

Live Video Channel Setup - The video can be configured to variety settings with a combination of codec and resolution. The camera performance has to be considered when setting multiple channels. This effects on the performance of the camera.

2 Codec - Choose the video codec. According to the selected codec, the subcategories can be changed automatically.

3 Description - Input the additional description about the selected channel. Max. 30 alphabets are allowed (including space). For the description, English alphabet numbers and model characters: 2, 4, 6, 8, 10, 12

Setup - Video & Audio Setup

Video Configuration

VIDEO CONFIGURATION Stream Codec Description 1 H:264 cchannel1 2 H:254 cchannel2 3 H:F:EG cchannelC Codec Codec H:264 Description channel1 Resolution 2590x1440 Frame Rate(FPS) 30 GDP 30 [1 - 120] * Profile High Smart Bitrate Control Off Bitrate Mode CB8 Target Bitrate 5010 [10Kbps - 10Mbps] Extension Option Off Quality [1 - 18] APPLY

6 GOP(Group of Pictures) Size - Set up the number of frames (P-frame) which contain only changed information based on basic frame (I-frame). Regarding videos with lots of movement, if you set GOP size bigger, only the number of P-frames is bigger. As a result, video resolution will be low but 'File size' and 'Bit-rate can be decreased.

GDP(Group of Pictures) Size is.

I-frame and P-frame can be created for MPEG4 and H.264 video compression. I-frame(key-frame) means the whole image data for one specific scene of video. P-frame is image data which has been changed information compared to I-frame GOP is made up of one I-frame and corresponding, several B-frame. To improve video quality, the number of B-frame small and to decrease image size, set the number of B-frame high

Setup - Video & Audio Setup

Video Configuration

VIDEO CONFIGURATION Stream Codict Description 1 H264 channel1 2 H264 channel2 3 M-PES channel0 Codec Code: H264 Description channel1 Resolution 2500x1448 Pulse Ratio(FPS) 30 QOP 30 [1 - 120] Profile Pigh Smart Bitrate Control Off Bitrate Mode CBR Target Bitrate 5018 [10Kbps + 10Mbps] Extension Option Off Quality [1 - 11] AFTLY

9 Bitrate Mode - Select the bitrate control scheme of video compression from CBR (Constant Bit Rate) or VBR (Variable Bit Rate).

CBR - To guarantee the designated constant bit rate, the quality of video are controlled in this mode. Therefore, the quality of video is likely to be varying when network traffic is changing.

VBR - To guarantee the designated quality, the bit rate of video stream is changed in this mode. Therefore, the frame rate of video is likely to be varying when network traffic is changing.

Setup - Video & Audio Setup

OSD Configuration

ON SCREEN DISPLAY(OSD) CONFIGURATION Date & Time Off On Position X [0 - 100] Position Y [0 - 100] User Text Off On Position X [0 - 100] Position Y [0 - 100] Text APPLY

Date / Time - Display the current time.
2 User Text - Output the TEXT entered by the user. Support a maximum of 30 characters.
3 Click 'Apply' to make above setting effective.

Setup - Video & Audio Setup

Region of Interest Configuration

REGION OF INTEREST CONFIGURATION Stream Channel Activation Enable Quality 50% SAVE CANCEL

Region of interest function gives much more efficiency picture quality for indicated area to improve picture qualities of movement scene at the same bandwidth.

1 Stream - Select the Stream.
Currently it supports only Channel1
2 Activation - The Region of interest can be enable or disable.

Setup - Video & Audio Setup

Privacy Mask Configuration

PRIVACY MASK CONFIGURATION LIFE CARE Activation On Off Area Amount CLEAR AREA SAVE CANCEL

Use this function to mask areas that you want to hide on screen to protect privacy.

1 Activation - The Privacy mask function can be enable or disable.
2 Area - Select the Area1 \~ Area16 and Set the privacy area.
A. This is not to save the current solution.

Setup - Camera Setup

Camera Image Adjustment

IMAGE ADJUSTMENT LIFE CAFF Sharpness + 51 ° Brightness + 51 ° Contrast + 51 ° Saturation + 26 ° Hue + 49 ° SAVE CANCEL DEFAULT

1 Sharpness - Using this control, sharpness of image can be adjusted to meet your preference.
2 Brightness - Using this control, brightness of image can be adjusted to meet your preference.
3 Contrast - Using this control, contrast of image can be adjusted to meet your preference.
Saturation Using this control Saturation of image can be adjusted to meet your preferences.

Setup - Camera Setup

Camera Exposure Settings

EXPOSURE SETTINGS Auto Exposure Off On Exposure Level 128 All Steering Average Shutter Speed 100 Slow Stubble 24 Gain Limit 45 mb SAVE CANCEL DEFAULT

1 Auto Exposure - Automatic exposure(AF) automatically sets the aperture or shutter speed, based on the external lighting conditions for the photo.
2 Exposure Level - If this value is increases, the image becomes brighter.
3 AE metering - AE metering mode refers to the way in which a camera determines the exposure.

Setup - Camera Setup

Camera Day & Night Settings

DAY&NIGHT SETTINGS 10:00 CAFE Day & Night Auto Day Night Schedule Hour Level 5 R/W Level 5 Transition Time Middle Day -> Night Time 10 00 Night -> Day Time 5 00 SAVE CANCEL DEFAULT

1 Day & Night

- Auto: In this mode, the IR cut filter is removed automatically depending on the light condition around.

- Day: In this mode, the IR cut filter is applied to the image sensor all the time. Thus, the sensitivity will be reduced in the dark light condition but the better color reproduction performance are obtained.

- Night: In this mode, the IR cut filter on the image sensor is removed all the time. The sensitivity will be enhanced in the dark light condition but the image is black and white.

Schedule in this grade. (No / All) grade is connected accordance with the scheduled time

Setup - Camera Setup

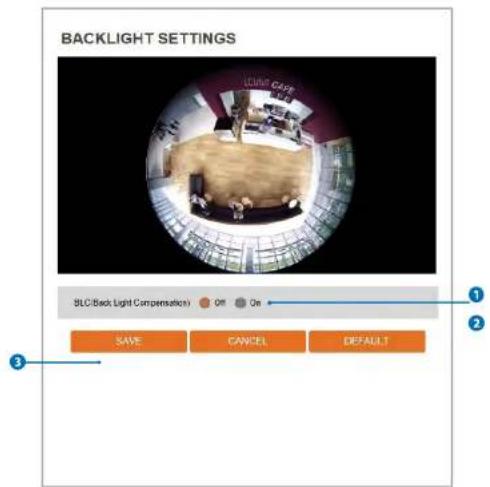

Camera Backlight Settings

BACKLIGHT SETTINGS 3LC (Back Light Compensation) OFF On SAVE CANCEL DEFAULT

This is a feature used for problematic light conditions where the contrast from light to dark areas is very high.

BLC (Back Light Compensation) - The BLC function can be enable or disable.
3 Click 'Save' to save the current settings.
Click 'Cancel' to return to the previous setting.

Setup - Camera Setup Camera White Balance

WHITE BALANCE 10-RB CAFF Activation Off Cm White Balance Mode Auto R Gain 1590 G Gain 1024 B Gain 1400 SAVE CANCEL DEFAULT

1 Activation - White Balance can be enable or disable.
2 White Balance Mode - Select White Balance depending on the lighting conditions.
3 RGB Gain - The R/G/B gain can be set only when the White Balance Mode is set to Manual.

A. 10.1.15.17 to save the current solution

Setup - Camera Setup

Camera Image Enhancement

IMAGE ENHANCEMENT LARGE CAFF 3D Noise Reduction Mixer Flip Off On Off On SAVE CANCEL DEFAULT

3D Noise Reduction - 3DNR function enables to suppress noise and retain good video quality in low light conditions.
2 Mirror - Reverse the video from side to side.
3 Flip - Reverse the video from up to down.
A. This is not a series of lines that can be extracted from the image.

Setup - Camera Setup

Video Enhancement

VIDEO ENHANCEMENT LO BE CAFE Pickiness 5GHz 5GHz SAVE CANCEL DEFAULT

1 Flicker - This function Enable to enhance the flicker situation.
② Click 'Save' to save the current settings.
- Click 'Cancel' to return to the previous setting. - Click 'Default' to settings to the factory default

Setup - Network Setup

Network Status

NETWORK STATUS

MAC Address	001033F 2F 8C 03
IP Address	192 168.1.44
Subnet Mask	255 265 3.0
Default Gateway	192 168.1.1
Preferred DNS Server	200 246 252.2
Alternate DNS Server	164 124 101.2
HTTP Port	80
HTTPS Port	443
RTSP Port	554

This menu will show you all the information of Network setting in the camera. However, you cannot change those here.

Setup - Network Setup

Network Settings

NETWORK SETTINGS Network Type Static Dynamic IP setup IP Address 102.168.1.113 Submit Mesh 255.255.255.3 Default Devency 102.168.1.1 Diversified DNS Server 169.126.83.1 Alternations DNS Server 169.126.83.2 Port Setup HTTP Port 80 [Default: 80, 1025 - 80000] HTTP2 Port 443 [Default: 445, 1025 - 80000] RTSP Port 554 [Default: 554, 1025 - 80000] APPLY

Network Type - Define network IP address type from the Static Mode for the fixed IP or the Dynamic Mode by the dynamic IP address. If you select the Static Mode, you must fill out IP Address, Subnet Mask, Gateway, DNS Server and all ports. If you select the Dynamic Mode, the IP address will be allocated automatically by DHCP equipment. If you click the Apply button to update changes, the system will be re-booted. In this case, you have to reconnect the camera using new IP address.
2 IP Address - Define the IP address. The address is consisted of four numbers separated by dots and the range of each number is

Setup - Network Setup

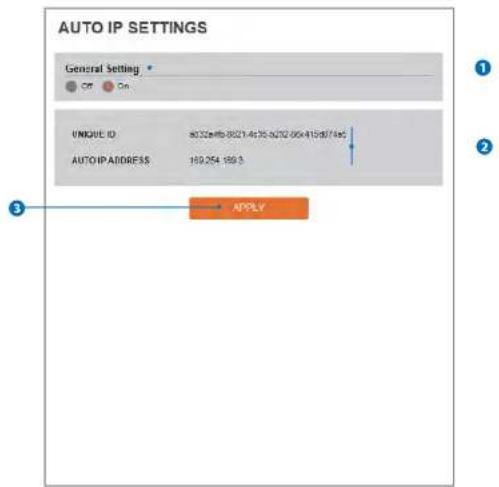

Auto IP Settings

AUTO IP SETTINGS General Setting OFF On UNICE ID 80324MB-8021-4635-6202-804-410967/465 AUTO IP ADDRESS 169.254 169.3 APPLY

1 General Setting - Auto IP Settings function can be enable or disable.
2 Auto IP Settings Information - It displays the unique id or Auto IP address.
3 Click 'Apply' to make above setting effective.

Setup - Network Setup

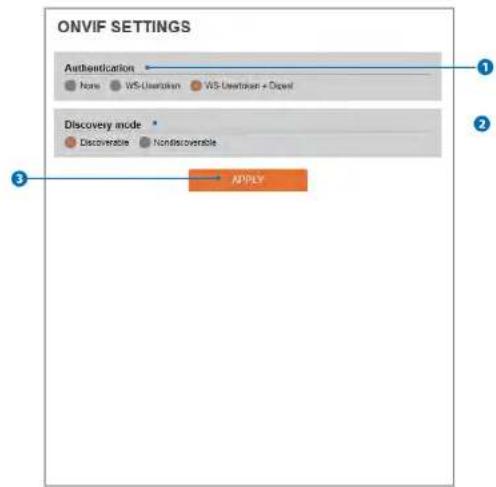

ONVIF Settings

ONVIF SETTINGS Authentication None WS-Uwrtaven WS-Uwrtaven + Dripel Discovery mode Discoverable Nondiscavable APPLY

① Authentication
None: Allows to access without ONVIF authentication.
WS - Usertoken: Allows to access with WS-User Token of ONVIF authentication.
WS - Usertoken + Digest: Allows to access with WS-User Token and Digest of ONVIF authentication.
2 Discovery Mode - The discovery function can be enable or disable.

Setup - Network Setup

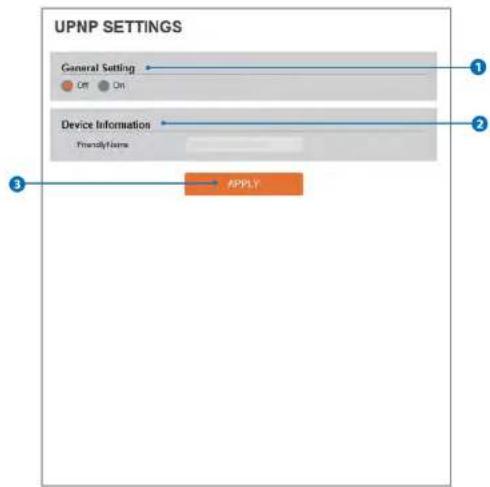

UPNP Settings

UPNP SETTINGS General Setting Off On Device Information FriendlyName APPLY

General Setting - UPNP function can be enable or disable.
2 Friendly Name - Define the friendly name.
3 Click 'Apply' to make above setting effective.

Setup - Network Setup

DDNS Settings

DDNS SETTINGS Disable Public DONS Address Host Name User Name Password APPL*

1 DDNS Disable - If it is selected, DDNS service does not work.
2 Public DDNS - To use public DDNS service, select a site address listed in the list. After filling out the Host Name of the site, the setup is completed by entering User Name and Password registered in that DDNS site.

DDNS Provider	Site Address
DusDNS	www.dusDNS.com

Setup - Network Setup

FTP Settings

FTP SETTINGS General Setting Off On Server information FTP Server Address FTP Upload Path FTP Port User ID Password APPLY

To transfer / save the image to the relevant sites through FTP, then FTP needs to be setup.

1 General Setting - FTP function can be enable or disable.
2 FTP Server Address - Define FTP Server IP Address. If IP Address form is incorrect, a Message box will be shown to try again.
STD Unlead Path. Defining paths in STD converter → video, Earth-north maps, English Linkshots, numbers and special characters

Setup - Network Setup

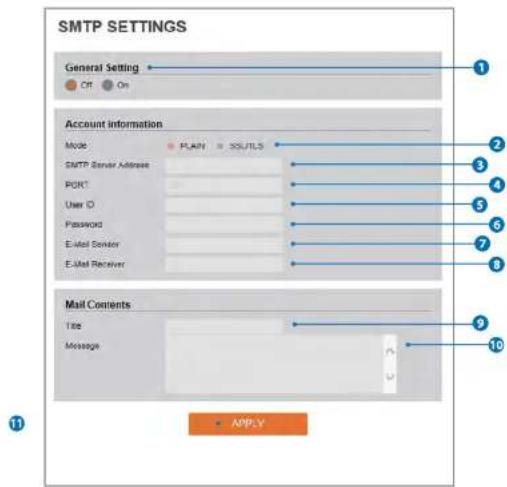

SMTP Settings

SMTP SETTINGS General Setting Off On Account information Mode PLAN SS/ULS SMTP Server Address PORT User ID Password E-mail Sender E-Mail Receiver Mail Comments Title Message APP.V

To send / save the image to the relevant sites by Email, SMTP needs to be setup.

General Setting - SMTP function can be enable or disable.
2 Mode - Select Security mode of SMTP from Plain or SSL / TLS. After checking account setup of your SMTP Server, you may select one.

Setup - Network Setup

SNMP Settings

SNMP SETTINGS SNMP v1/v2c SNMP.v1 Off On SNMP.v2 Off On Host Community Wide Community SampTrip Off On TrapStatus TrapCommunity SNMP v3 Mode Read Activation Off On Read Name Security Level no such no key Authentication Algorithm MCS Authentication Password Private-Key Algorithm DCO Private-Key Password APPLY

SNMPv1/SNMPv2 - Select the SNMPv1/SNMPv2 option and type the names of Read community and Write community.
SNMP trap can be used to check periodically for operational thresholds or failures that are defined in the MIB.
2 SNMP Trap - SNMP trap can be enable or disable.

CMM10 contains quantum security, a higher security level which allows you to set the Authentication protocol and the

Setup - Network Setup

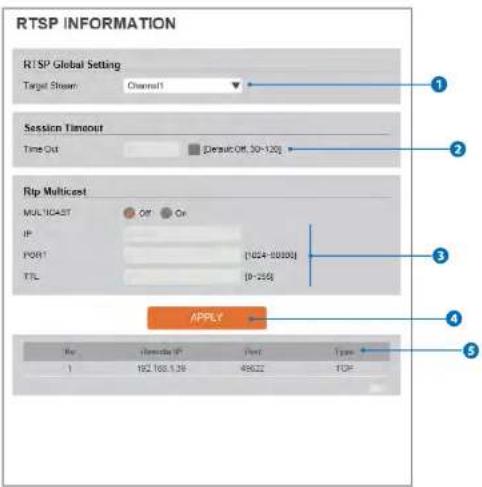

RTSP Information

RTSP INFORMATION RTSP Global Setting Target Stream Channel1 Session Timeout Time Out [Default:Off, 30-120] Rip Multicast MULTICAST Off On IP PORT [1024-00000] TTL [9-256] APPLY No Reference IP Port Type 1 192.188.1.36 49622 TOF

1 Target Stream - Select the channel you want to set.
2 Time out - Set the RTSP time out.
The session is disconnected after the specified time put.
3 RTP Multicast - Check RTP Multicast On/Off. To activate RTP Multicast.

Setup - Trigger Action Setup Action Rules Configuration

ACTION RULES CONFIGURATION Action Rules Name Reserve Action Action ADD MODIFY DELETE

1 Action rules List - It indicates the custom action rule information added to Action rules list.
2 Click 'Add' to add custom action rules.
- Click 'Modify' to modify selected item from the action rules list. - Click 'Delete' to delete selected item from the action rules list.

Setup - Trigger Action Setup Action Rules Add / Modify

ACTION RULES CONFIGURATION General Setting Name NewAction Action1 NONE Action2 NONE Action3 NONE Action4 NONE Action5 NONE SAVE CANCEL

1 Name - Define name of action rules.
2 Action1 \~ Action5 - Select the action to take if the event occurs.
3 Click 'Save' to save the current settings.
Click 'Cancel' to return to the previous menu.

Setup - Trigger Action Setup Image Transfer Configuration

IMAGE TRANSFER CONFIGURATION Pre/Post Alarm Image Number Of Image 2 Image Fail Seconds(s) [1 - 5] Pre-Alarm Duration 3 Second(s) [1 - 5] Post-Alarm Duration 3 Second(s) [1 - 30] APPLY

1 Pre / Post Alarm Image - Image Transfer due to event is configured by setting Image transfer rate and Pre / Post alarm duration.

	Descriptions
Number of Image	Define Number of image transferred per second.
One alarm Direction	Define duration of image transfer before an event.

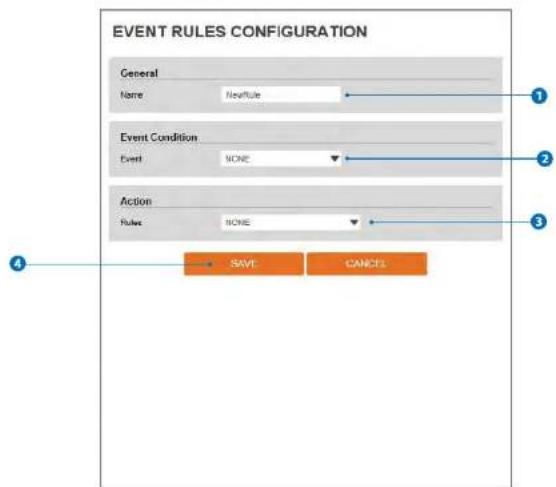

Setup - Event Setup

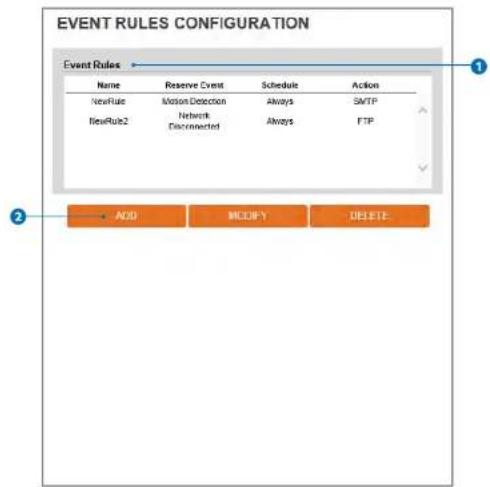

Event Rules Configuration

EVENT RULES CONFIGURATION Event Rules Name Reserve Event Schedule Action NewRule Motion Detection Always SWTP FlexRule2 Network Disconnected Always FTP ADD MICDFY DELETE.

1 Event Rules List - It indicates the custom Event Rule Information added to Event Rules list.
2 Click 'Add' to add custom event rules.
- Click 'Modify' to modify selected item from the event rules list. - Click 'Delete' to delete selected item from the event rules list.

Setup - Event Setup

Event Rules Configuration

EVENT RULES CONFIGURATION General Name: NewRule Event Condition Event: NONE Action Rules: NONE SAVE CANCEL

1 Name - Define the Event rule name.
2 Event - Select the event among motion detection, network disconnection, temperature critical.
Click 'Cancel' to return to the previous setting.
You need a event one more.
3 Rules - Select the action rule defined in the Trigger Action-Action rule menu.

Setup - Event Setup

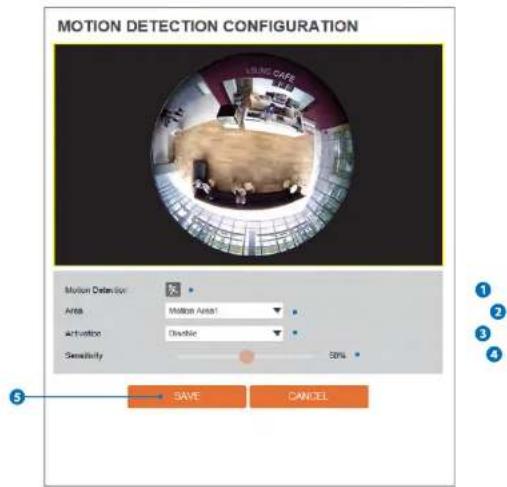

Motion Detection Configuration

MOTION DETECTION CONFIGURATION Motion Detection Area Motion Area1 Activation Disable Sensitivity 5% SAVE CANCEL

1 Motion Detection - It shows the Motion event status.

Event Alert Icon! Appears if 'Motion Detection' is activated.

2 Area - Set the motion detected area.

You can set up to four areas.

Alication: Flexible on Disability detection functions

Setup - Event Setup

Temperature

TEMPERATURE General Setting Mode: Fathreshib Threshold: 150 [122 - 212] Temperature: 120 °F → APPLY

1 Mode - Select the either Fahrenheit and Celsius.
2 Threshold - Define the temperature at which the event trigger is occurred.
3 Temperature - It Indicates the current temperature of the IP camera.

1. 17:14

DW SPECTRUM® EDGE Version S.1.0.17702 Status Spectrum Edge is installed mediawares is running with pid 409 server is alive Spectrum Edge Install Select File DW Spectrum® Edge Control START STOP RESTART REMOVE

Version - Displays the version of DW Spectrum® edge (media server) installed in the camera.
Status - Displays the status of the DW Spectrum ^® edge (media server) installed in the camera. Wait until the status of the server is marked as 'alive'.
3 Select a new version of DW Spectrum® edge (media server) file to update and upload.

Setup - Edge Setup

Storage Configuration

1. IF SD Card does not automatically mount, you must format for mounting SD card.

Name	Mounted	Size	Used(%)	Available
seconds	0	29.5G	4%	28.5G

Display the SD card information mounted from device.

When you select the item in Storage list, You can set the functions related to the SD card.

Setup - Edge Setup

Storage Configuration

STORAGE CONFIGURATION Notice 1. IF SD Card does not automatically mount, you must format for mounting SD card. SD CARDID Storage Size 4.0K / 7.4G Unmount UNMACOUNT Format FORMAT

1 Storage Size - Total capacity of SD card and the remainder of It are displayed.
2 Unmount - Remove the SD card from the device. UNMOUNT cannot be done when EDGE (Media server) is running.
3 Format - Delete the all contents that stored in SD card. FORMAT cannot be done when EDGE (Media server) is running.

Setup - Security Setup

IP Address Filter Configuration

IP ADDRESS FILTER CONFIGURATION General Setting IP Address Filter Or Off IP Filter Type Allow APPLY Filtered IP Address* IP Address IP Address [Include] ADD REMOVE REMOVE ALL

IP Address Filter - IP filter function can be enable or disable.
2 IP Filter Type - Select the recording IP filter type.
3 Click 'Apply' to make above setting effective.
File-in address: Disclerately Eland in address

Setup - Security Setup

RTSP Authentication Configuration

RTSP AUTHENTICATION CONFIGURATION RTSP AUTHENTICATION Enugu Diagele ASP6 V

①

1 RTSP Authentication - RTSP Authentication can be enable or disable.
2 Click 'Apply' to make above setting effective.

Setup - Security Setup

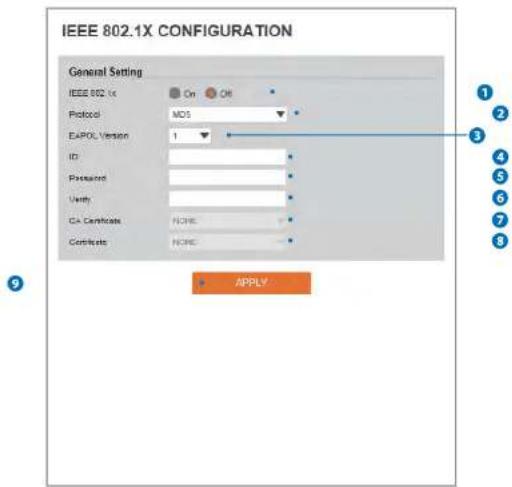

IEEE 802.1X Configuration

IEEE 802.1X CONFIGURATION General Setting IEEE 802.1c On Off Protocol MDS EAPOL Version 1 ID Password Unity CA Certificate NONE Certificate NONE APPLY

The feature is needed when connecting the camera to the network protected by the IEEE 802.1X.

1 IEEE 802.1x - The IEEE 802.1x feature can be enable or disable.

2 Protocol

- MD5 : It provides one-way password-based network authentication of the client.

Setup - Security Setup

HTTPS Configuration

HTTPS CONFIGURATION 1. If no certificates are available go to certificates to manage. Certificates Certificate NONE HTTPS connection Policy Administrator HTTP and HTTPS Operator HTTP and HTTPS View HTTP and HTTPS APP.LY

HTTPS encrypts session data over SSL or TLS protocols instead of using plain text in socket communications.

1 Certificate - Select an installed certificate.
If you can not select a certificate, please install the certificate from the Security->Certificates menu.
2 HTTPS connection Policy - Select one of "HTTP", "HTTPS", "HTTP and HTTPS" depending on the connected user authority.

Setup - Security Setup

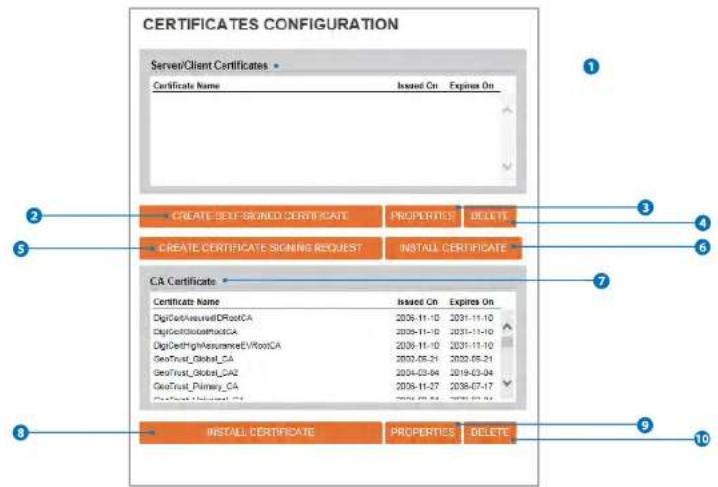

Certificates Configuration

CERTIFICATES CONFIGURATION Server/Client Certificates * Certificate Name Issued On Expires On CREATE SELF-SIGNED CERTIFICATE PROPERTIES DELETE CREATE CERTIFICATE SIGNING REQUEST INSTALL CERTIFICATE CA Certificate * Certificate Name Issued On Expires On DigitSetAvailableDRoutCA 2006-11-10 2031-11-10 DigitSetAvailableEVitca CA 2006-11-10 2031-11-10 DigitSetHighPerformanceEVitca CA 2006-11-10 2031-11-10 GeoTrust_Global_CA 2006-05-24 2030-05-24 GeoTrust_Global_CA2 2004-03-04 2019-03-04 GeoTrust_Pirmary_CA 2006-11-27 2038-07-17 INSTALL CERTIFICATE PROPERTIES DELETE 1 2 3 4 5 6 7 8 9 10

1 Server/Client Certificates - It show the installed certificates.
2 Create Self-Signed Certificate - A self-signed SSL certificate is an identity certificate signed by its own creator, but they are considered to be less trustworthy.

Setup - Security Setup

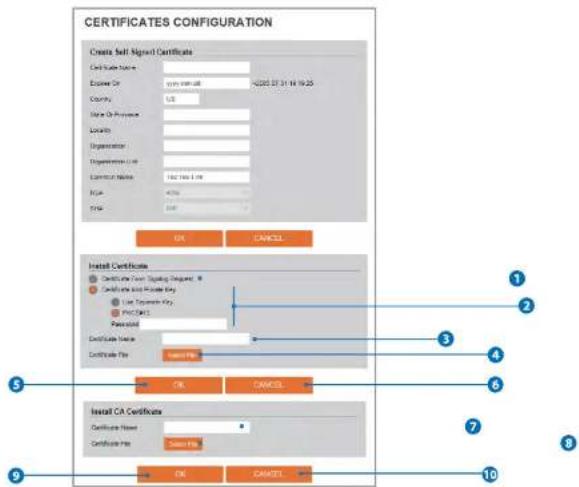

Certificates Configuration

CERTIFICATES CONFIGURATION Create Self Significant Certificate Certificate Name: system.missult 2005.07.31 19:25 Country: US Name Of Province: Locality: Organization: Organizational: USA Copyright Name: 100,000,000 Type: 4/36 Date: January 2005 OK CANCEL Install Certificate Certificate Type: Signaling Signature # Certificate Name: Auto-Trauma Copy Use Temporary Copy PROCAT Password Certificate Name: Certificate File: Select PDF OK CANCEL Install CA Certificate Certificate Name: Certificate File: Select PDF OK CANCEL ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨

Detail for Install Certification.
1 Certificate From Signing Request - Select to install signed certificate returned from the CA.
2 Certificate And Private Key - Select to install Certificate And Private Key to install a certificate and private key. - Use Separate Key : Too install certificate uploading Certificate and Private Key file.

Setup - Security Setup

Service Configuration

SERVICE CONFIGURATION Telnet Enable Disable APPLY

Telnet - The Telnet function can be enable or disable.
2 Click 'Apply' to make above setting effective.

Setup - System Setup

System Information

SYSTEM INFORMATION Device Name: IP-Census AFFLY Model Name: NSPC-ALAH Manufacturer: IP10 Max Resolution: 1000p Max From-rate: 30 fps Photo Resistor(CUS) SUPPORT Alarm In: NOT SUPPORT Rotary out: NOT SUPPORT Audio: NOT SUPPORT Optical Zoom: NOT SUPPORT Digital Zoom: NOT SUPPORT PID: NOT SUPPORT

System Capability information.

1 Device Name - You can define the device name.
② Click 'Apply' to make above setting effective.

Setup - System Setup

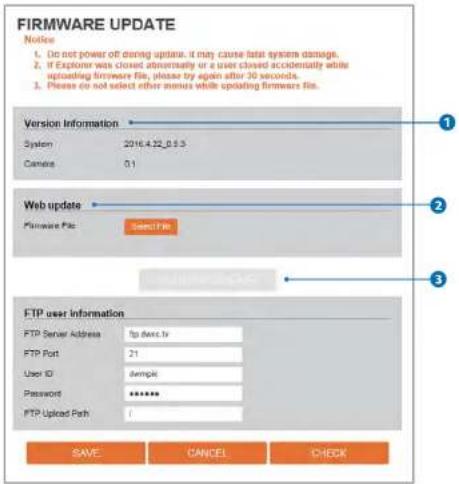

Firmware Update

FIRMWARE UPDATE Notice 1. Do not power off during update, it may cause fatal system damage. 2. If Explorer was closed alternately or a user closed accidentally while uploading firmware file, please try again after 30 seconds. 3. Please do not select other menus while updating firmware file. Version Information System 2016.4.12_0.5.3 Camera 0.1 Web update Firmware File Select File FTP server address FTP server Address ftp.dwtc.lv FTP Port 21 User ID dampk Password ***** FTP Upload Path 0 SAVE CANCEL CHECK

1 Version Information - It shows the current Firmware Version in the system.
2 Web Update - Select the Firmware file in your computer by clicking [Select file] button.
3 Start F / W Update - Click this button to start update. Progress of uploading will be displayed using Progress Bar. If you assign the wrong file name, an error massage will be shown.

Setup - System Setup

Firmware Update

FIRMWARE UPDATE Notice 1. Do not power off during update, it may cause total system damage. 2. If Explorin was closed abnormally or a user closed accidentally while uploading firmware file, please try again after 30 seconds. 3. Please do not select other menus while updating firmware file. Version Information System 2016.4.22_0.9.3 Camera 0.1 Web update File name File Select File FTP user information FTP Server Address: fp there by FTP Port: 21 User ID: sample Password: ****** FTP Upload Path: 1 SAVE CANCEL CHECK

FTP Server Address - Define FTP Server IP Address. If IP Address form is Incorrect, a Message box will be shown to try again.
5 FTP Port - Define the FTP Server Port. If Port Is not appropriate, It Is impossible to access to FTP Server.
6 User ID - Define User ID to access to the FTP Server. Fill out the correct User ID registered in the FTP Server.

Setup - System Setup

Date & Time Settings

DATE&TIME SETTINGS TimeZone Setup TimeZone (GMT-08) Pacific Time (US & Canada), Baja California APR.LY Time Format: Time Format: min/day APR.LY Current Date & Time Date & Time 07/12/2017 23:17:24 New Camera Date & Time Synchronize with my computer Date & Time 09/12/2017 15:17:41 Setup manually Date 2005 01 01 Time 00 00 30 Synchronize with time server (NTP) NTP Server pool.ntc.org APR.LY

1 TimeZone Setup - Choose TimeZone for camera. It will be activated after clicking 'Apply' button.
Prior to setting below 'New Camera Date & Time', set correct Timezone first.
2 Time Format - Select the time format yy-mm-dd or mm/dd/yy.
3 Current Date & Time - Shows the current date and time setting in the Camera.

Setup - System Setup

Users Management

USER MANAGEMENT ID Authority admin Administrator ADD 2 MODIFY 3 DELETE 4

1
1 Users - List all the user accounts for authentication.
2 Add - Register a new user

Setup - System Setup

System Log

SYSTEM LOG Filter Date Time Type Sort 0 0 0 0 0 0 0 All Decoding REFRESH List Date & Time Log IP 2005/01/01-03:07:14 Change video encoder config 192.168.1.39 2005/01/01-03:00:20 RTSP session connected 192.168.1.39 2005/01/01-03:03:19 RTSP session connected 192.168.1.39 2005/01/01-03:03:17 RTSP session connected 192.168.1.39 2005/01/01-03:03:15 Network initialized system 2005/01/01-03:03:15 Sensor alarm accrued : 1 : Off system 2005/01/01-03:03:15 System initialized system 2005/01/01-03:45:47 System terminated system 2005/01/01-03:45:46 Factory default 192.168.1.39 2 3 4 5 6 7 8 9 10

1 Filter - Select a date, sort or type of log to filter the log.
2 Click the 'Refresh' button to refresh the log list.
Click 'Filter' to view the filtered log.
3 System Log List - The filtered log is displayed.

Setup - System Setup

Factory Reset

DEFAULT SET 1 All Except network setting 2 APPLY

1 Reset to the factory defaults - Return the setup to the factory default.

All - Reset all Settings to the factory defaults.

Except Network Settings - Except Network related settings, reset all others to the factory default.

2 Click 'Apply' to make above setting effective.

Setup - System Setup

Restart

The page at 192.168.1.116 says: Do you want to restart the system? OK Cancel

If you click the 'RESTART' menu, a message box will be shown to confirm. Click the 'OK' button to restart.

Appendix

A : Current TCP/IP Settings

If your IP settings are obtained automatically, you could use the MS-DOS prompt (or Command Prompt) to determine your IP address. For information on how to do this, please read the FAQ.

1. Windows 7 Users 2. Windows 10 Users

    G["Start"] --> H["Settings"]
    H --> I["Network & Internet"]
    I --> J["Click on Change adapter options in Ethernet"]
    J --> K["Select the Ethernet, Right click and choose Properties"]
    K --> L["Select Internet Protocol Ver.4 (TCP/IPv4)"]

Appendix -

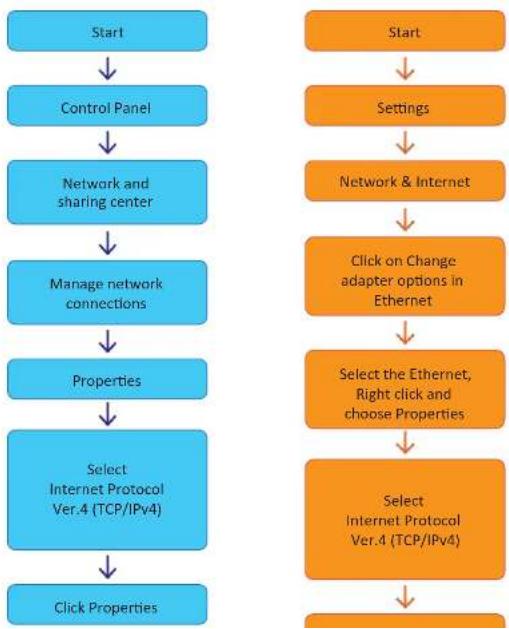

B: Changing IP address and subnet mask

1. Windows 7 Users 2. Windows 10 Users

    H["Start"] --> I["Settings"]
    I --> J["Network & Internet"]
    J --> K["Click on Change adapter options in Ethernet"]
    K --> L["Select the Ethernet, Right click and choose Properties"]
    L --> M["Select Internet Protocol Ver.4 (TCP/IPv4)"]
    M --> N["End"]

Appendix - FAQ

1. My POWER light is not on?

Power is not being supplied to the unit. Please use the power supply shipped with the unit and verify that a power source is active from the attached power outlet used to connect the adapter. You can test this by plugging in any other electrical device and verify its operation. After using the power supply shipped with the product, checking the power source, and reinserting the power connector into the IP Camera, please call our Support Center. The power supply may be defective.

2. My ACTIVE light is not flashing?

Verify the power supply to the unit. Power off the unit and back on again, wait 1 minute, if the ACTIVE light still does not begin to flash, you will have to set the unit to its factory default (THIS WILL DELETE ANY CONFIGURATION AND SET THE UNIT TO THE FACTORY DEFAULTS). Power on the unit and Inert the end of a paper clip into the small recessed opening on the back of the unit. Use the clip to press the button located within that opening.

3. My LINK light is not flashing or solid?

Verify the cable connection. 99% of the time the cable's connection to the unit is causing this problem. Try using a different network cable or crossover cable (for PC connection only). Try reinserting the cable, if this still doesn't solve the problem call our Support Center.

1. I can access the video server on my LAN, but not from the Internet. Verify that your router (If applicable) has port forwarding properly configured. If accessing from our DDNS service, verify correct serial number. Firewall issues may prevent user access.

2. How do I open an MS-DOS or Command Prompt? Start > (All) Programs > Accessories > Command Prompt

3. How do I "PING" an IP address?

1) Open an MS-DOS (or Command) prompt

2) At the prompt type - "ping xxx.xxx.xxx.xxx" (without the quotes and replace the "x" s with an IP address)

3) Press Enter

1. I'm accessing my video server remotely over the Internet and the video stream is choppy, is this normal? Yes. The frames per second received remotely are determined by your bandwidth capabilities both at your site where the IP Camera is installed and your remote location. The lower of the two sites will determine how fast your video stream is received. It is recommended to have at least a 256Kb/sec upstream connection from the site where the IP Camera is installed. Lower speeds will operate properly, but provide poor remote performance. The Faster the Internet connection at both ends, the faster the video stream.

10. How do I enable or check VLC on mybrowser

Internet Explorer

Open Internet Explorer > Tools on the menu bar > Internet Options > Security Tab > Custom Level > Scroll down and verify that you are prompted or have enabled plug-ins to be downloaded and executed. > click OK > restart browser.

Chrome

Open Chrome > Chrome menu settings > Advanced settings > Individual information - content settings > Run automatically

1. How do I reset the unit to factory defaults?

Refer to the previous functions page and find the reset button. Power ON the unit and use a paper clip to push the reset button within that opening. You should then see the ACTIVE light tube

Specifications -

Dimension

Unit: Inch (mm)

Technical drawing of concentric circular components with mounting holes (no text or symbols)

4.9" (125mm)

Warranty Information

Digital Watchdog (referred to as "the Warrantor") warrants the Camera against defects in materials or workmanships as follows:

Labor: For the initial five (5) years from the date of original purchase if the camera is determined to be defective, the Warrantor will repair or replace the unit with new or refurbished product at its option, at no charge.

Parts: In addition, the Warrantor will supply replacement parts for the initial five (5) years.

To obtain warranty or out of warranty service, please contact a technical support representative at 1+ [phone], Monday through Friday from 9:00AM to 8:00PM EST.

A purchase receipt or other proof of the date of the original purchase is required before warranty service is rendered. This warranty only covers failures due to defects in materials and workmanship which arise during normal use. This warranty does not cover damages which occurs in shipment or failures which are caused by products not supplied by the Warrantor or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustments of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, rental use of the product or service by anyone other than an authorized repair facility or damage that is attributable to acts of God.

Limits & Exclusions

There are no express warranties except as listed above. The Warrantor will not be liable for incidental or consequential damages (including, without limitation, damage to recording media) resulting from the use of these products, or arising out of any breach of the warranty. All express and implied warranties, including the warranties of merchantability and fitness for particular purpose, are limited to the applicable warranty period set forth above.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may also have other rights from vary from state to state.

If the problem is not handled to your satisfaction, then write to the following address:

Digital Watchdog, Inc.

ATTN: RMA Department

5436 W Crenshaw St

Tampa, FL 33634

Service calls which do not involve defective materials or workmanship as determined by the Warrantor, in its sole discretion, are not covered. Cost of such service calls are the responsibility of the purchaser.

DW DIGITAL WATCHDOG™

Complete Surveillance Solutions

Headquarters Office: 5436 W Crenshaw St, Tampa, FL 33634

Sales Office: 16220 Bloomfield Ave., Cerritos, California, USA 90703

PH: 866-446-3595 | FAX: [phone]

www.Digital-Watchdog.com

[e-mail]

Technical Support PH:

USA & Canada 1+ [phone]

International 1+ [phone]

French Canadian 1+ [phone]

Technical Support Hours: Monday-Friday

9:00am to 8:00pm Eastern Standard Time
