USER MANUAL V-CF761RTV LG

Model	VC4916GRTV.CQZPLGT
Language	English+Chinese
Page	28	Color(cover/body)	4/2
Material	Weight 100g	Size(W*H)	150 x 220(mm)
Date	2009.11.04	Designer	qiaoliang
Part No.	MFL62558816	Description	Owner's manual

Chage Record

No.	Change content	ECO No.	Date	Designer	Confirm
1
2
3
4
5
6
7
8
9

使用说明书

Interior view of a modern bedroom with a person in white robe standing near a window overlooking a cityscape (no visible text or symbols)

吸尘器

强劲吸力

V-CF761RTV

Illustration showing a bottle emitting smoke next to a cartoon vacuum cleaner, with no visible text or symbols.

Illustration of a girl in uniform waving while pulling an electrical plug (no text or symbols)

警告

Line drawing of a vacuum cleaner with no visible text or symbols

Illustration of a medical or anatomical structure with three curved elements emitting smoke (no text or symbols)

Cartoon illustration of a smiling character waving beside a faucet (no text or symbols)

Illustration of a cartoon character holding a pointer, no text or symbols present

警告

Illustration of a vacuum cleaner connected to a power outlet (no text or symbols)

Line drawing of a vacuum cleaner with a no-smoking symbol (no text or labels)

Illustration of a woman kneeling beside a cartoon-style vacuum cleaner (no text or symbols present)

Cartoon illustration of a smiling vacuum cleaner next to a door, with no text or symbols present.

Illustration of a vacuum cleaner connected to a pink bottle (no text or symbols present)

Illustration of a small table with a pink cup and a vacuum cleaner (no text or symbols)

Illustration of a girl pouring liquid from a bucket into a pink barrel (no text or symbols)

Illustration of a curved medical or surgical device with a pink arrow indicating direction (no text or symbols)

Illustration of a mop being inserted into a tray, showing the handle and base (no text or symbols)

使用

Illustration of a mechanical component with curved arrows indicating rotation or motion (no text or symbols)

清洁

① 用尖吸嘴清洁

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

② 用棉质抹布擦拭

Line drawing of a hand using a tool to adjust or install a mechanical component (no text or symbols present)

集尘桶的拆卸/清理方法

Line drawing of a hand holding a vacuum cleaner with a handle, showing mechanical components and airflow direction (no text or symbols)

Illustration of hands folding a folded paper or plastic sheet with a pink curved arrow indicating rotation (no text or symbols)

Illustration of three plastic containers with pink powders falling into a trash bin (no text or symbols)

3 倒掉灰尘

灰尘分离器的清理方法

Diagram showing a magnified view of an eye within a mechanical housing, with a red arrow indicating the direction.

1 检查灰尘分离器内部是否有灰尘。

Hand holding a mechanical component with a red arrow indicating motion (no text or symbols)

② 握住灰尘分离器盖的手柄拆卸盖子。

Illustration of a hand pouring liquid into a trash bin with pink particles (no text or symbols)

③ 倒掉灰尘。

Illustration of a pink mechanical component with a central bore and flange (no text or symbols)

4 堵住灰尘分离器盖的小孔，抖掉灰尘。

清洗方法

Line drawing of a spray gun pouring liquid into three containers (no text or symbols)

Illustration of three kitchen utensils inside a pink circular frame (no text or symbols)

Illustration of a hand using a device to adjust a component, with an inset showing a magnified view of the component (no text or symbols present)

Illustration of hands holding a container with a lid and handle, no text or symbols present

② 安装灰尘分离器和集尘桶。

Line drawing of a hand holding a vacuum cleaner with a pink arrow indicating the handle (no text or symbols present)

③ 将集尘桶安装在吸尘器上。

Line drawing of a hand holding a vacuum cleaner with a purple arrow indicating left motion (no text or symbols)

一手按住主机盖按钮，另一手取下集尘桶。

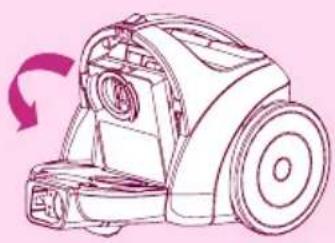

Line drawing of a vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

Line drawing of hands holding a camera lens (no text or symbols)

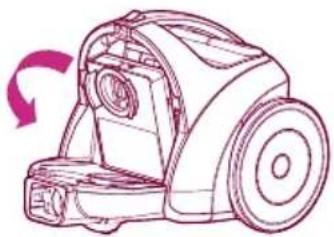

③ 打开电机保护过滤器。

Illustration of a pink notebook being folded with a pencil, showing mechanical components (no text or symbols)

4 取出过滤海绵。

清洗方法

Illustration of a faucet pouring liquid into a container with a lid, showing mechanical components (no text or symbols)

1 冲洗干净

Illustration of a hand cleaning a pink cloth and a plastic bag (no text or symbols)

② 彻底去除水分

Illustration of a pink circular background with three abstract geometric shapes (no text or symbols)

Illustration of a pink notebook being folded with a pencil, showing the process (no text or symbols)

1 将电机保护过滤器装入过滤器外壳内。

② 盖上过滤器盖。

Line drawing of a vacuum cleaner device (no text or symbols)

③ 将组装好的过滤器放入安装部位。

Line drawing of a vacuum cleaner with motion lines indicating airflow (no text or symbols)

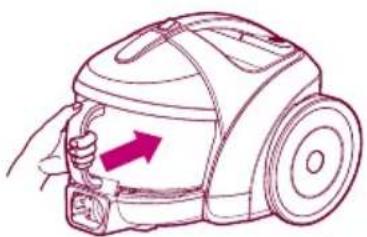

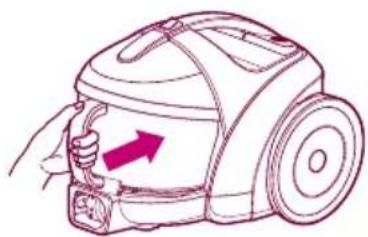

4 装入集尘桶。

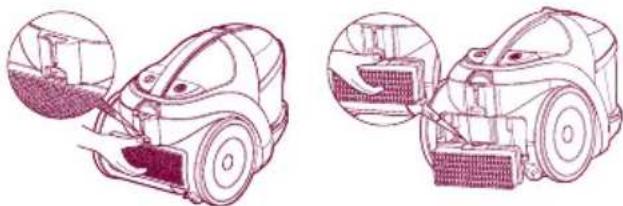

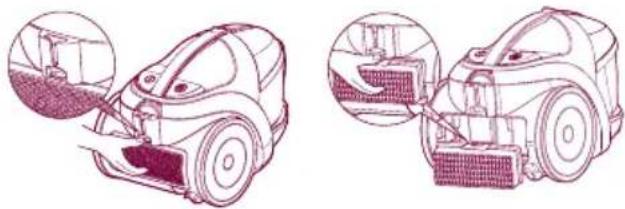

拆卸方法

Illustration of a hand placing a plastic bag onto a trash bin (no text or symbols)

1 抖动排气过滤器进行清洁。

安装方法

Illustration of two different types of vacuum cleaner designs, shown from front and side views (no text or symbols present)

Illustration of a cartoon girl with pink hair and a hat, enclosed in a pink circular frame (no text or symbols)

使用吸尘器后的保管方法

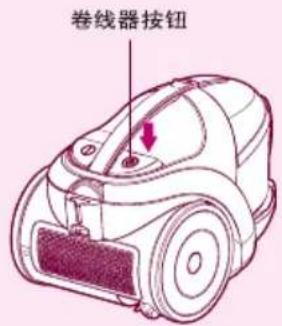

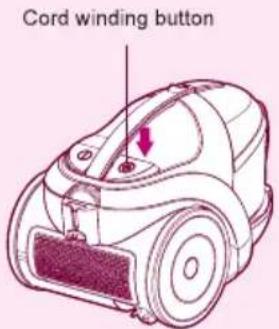

卷线器按钮

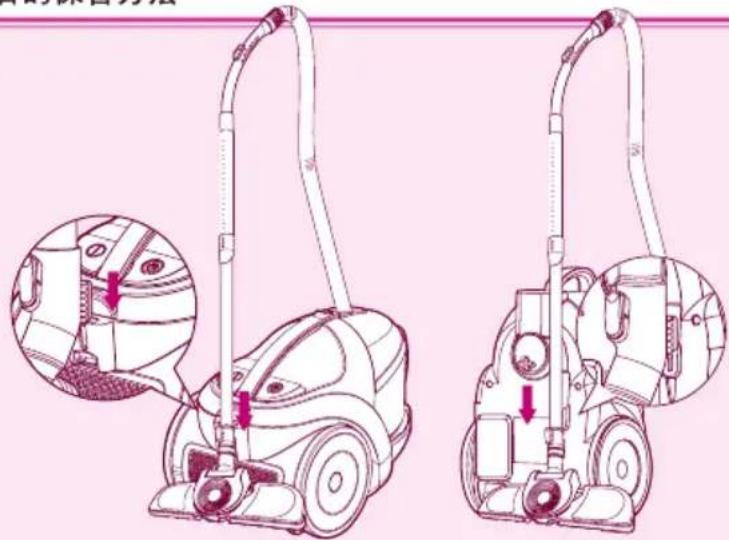

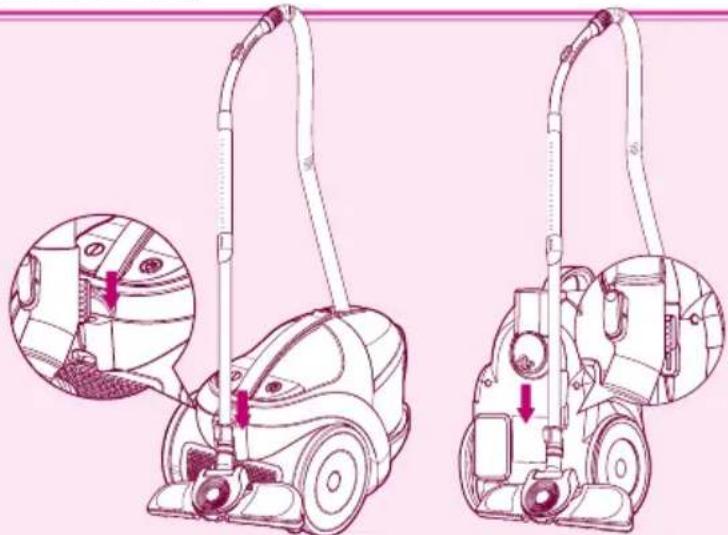

Diagram showing two views of a vacuum cleaner with labeled parts and directional arrows indicating inspection or repair steps.

Line drawing of a hand holding a vacuum cleaner with a purple arrow indicating left motion (no text or symbols)

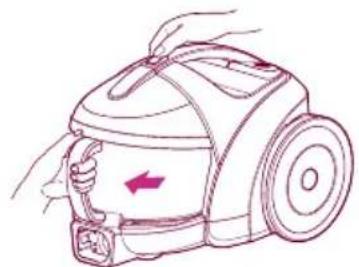

一手按住主机盖按钮，另一手取下集尘桶。

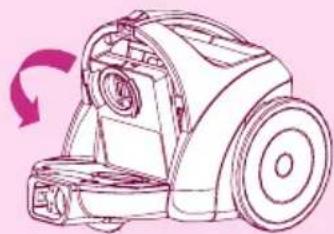

Line drawing of a vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

Line drawing of a hand holding a camera lens (no text or symbols)

③ 打开电机保护过滤器。

Illustration of a hand using a computer to interact with a pink notebook and pen, showing motion arrows (no text or symbols)

4 取出过滤海绵。

清洗方法
(用凉水清洗)

Illustration of a faucet pouring liquid into a container with a tool nearby (no text or symbols)

1 冲洗干净

Illustration of hands cleaning a pink plastic sheet with a battery and paper (no text or symbols)

② 彻底去除水分

Illustration of three electronic devices in a pink circular frame (no text or symbols)

Product specifications 15

Attention before using the appliance 16 - 17

Assembling and adjusting the Cleaner 18

Parts description and assembly

Accessories

Adjusting the cleaner

Using crevice tool and corner nozzle 19

How to separate or empty the dust box 20

How to empty the dust separator

How to clean and assemble the dust box

and separator 21

Cleaning

Assembling

How to separate, clean and assemble the

protection filter of the motor 22

Disassembling

Cleansing

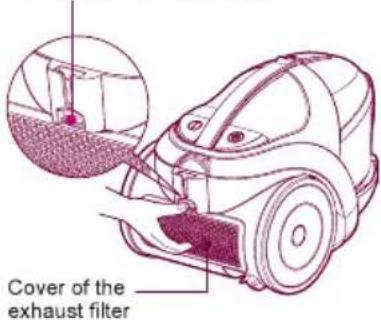

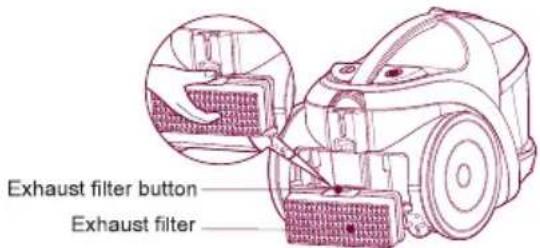

How to separate, clean and assemble exhaust filter 23

Disassembling

Cleansing

Assembling

Check before reporting the trouble 24

If you have a problem 25 26

Packing List 27

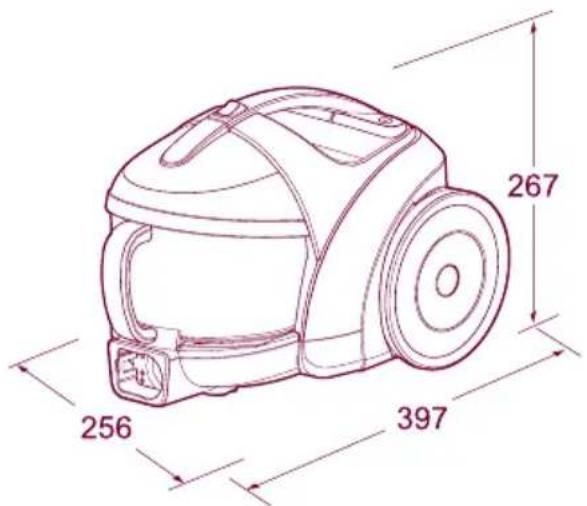

Product specifications

267 256 397

Model: V-CF761RTV

220V\~50Hz

IEC: 1400W

MAX: 1600W

Suction Power: 400W

Net Weight: 4.5Kg

Dust Capacity: 1.2L

Dimension: 256mm x 397mm x 267mm

This appliance complies with the

following GB Directives:

GB4706.1-2005

GB4706.7-2004

GB17625.1-2003

GB4343-2003

※ You will not be informed otherwise of any changes in appearance and standard deriving for improvement of product quality.

Attention before using the appliance

Please read all the following information, which contains important instructions for the safety, the use of the appliance.

DANGER

May immediately cause serious injury or death.

WARNING

May possibly cause serious injury or death.

ATTENTION

May possibly cause losses of property or light injury.

DANGER

Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

Safety warning illustration showing a fire extinguisher and a cartoon character inside a vehicle, with no visible text or symbols.

Please turn off the power before pulling out the plug to prevent fire or electric shock. Never handle plug or appliance with wet hands. (Do not use the appliance on the power above 220V.)

Illustration showing a female character holding a phone with a no-smoking symbol nearby

WARNING

Avoid picking up hard, sharp objects with the cleaner. They may damage the cleaner and the tank.

Do not vacuum the objects like hair ball or big paper ball, otherwise the hose is possibly blocked up. Please clear the hose in time when it is blocked.

Line drawing of a vacuum cleaner with handle and wheels (no text or symbols)

Independently use a socket when the current is ≥15A. It may cause fire when many electric appliances share one socket. In order to avoid the needless danger, you had better not use the prolonged thread of power cord. The current at most 6A is allowed

per cord. towed

To avoid the danger of fire or electric shock, do not vacuum liquid, blade, flammable substances, or small particles like cement and gesso in cleaning.

Cartoon illustration of a character washing a vacuum cleaner with a faucet above (no text or symbols)

Unplug cleaner when not in use. Turn off all controls before unplugging.

Illustration of a cartoon vacuum cleaner with a no-smoking symbol (no text or labels)

Attention before using the appliance

WARNING

Do not let the power cord near the electric heater or other heat source, lest that the cleaner should be deformed or it should cause fire. Do not use the appliance when the power cord or plug is damaged. The damaged power cord or plug must be replaced in the approved service station.

Illustration of a vacuum cleaner connected to a power strip (no text or symbols)

Close supervision is necessary when any appliance is used by or near children. Do not allow vacuum cleaner to be used as a toy or to run unattended at any time.

Do not operate the appliance for long when the nozzle inlet or nozzle outlet is blocked, which may have it deformed or damaged.

Line drawing of a vacuum cleaner with handle and exhaust plume (no text or symbols)

In using the appliance, pay attention to the electrostatic effect generated on the telescopic tube and cleaner body.

Line drawing of a vacuum cleaner with motion lines indicating airflow (no text or symbols)

ATTENTION

Do not allow the non-professional maintenance people to repair.

Illustration of a cartoon character kneeling next to a robotic vacuum cleaner (no text or symbols present)

Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

Illustration of a cartoon vacuum cleaner inside a room with a door (no text or symbols)

In winding the power cord, hold the plug before pressing the button of the cord reel. Do not pull the power cord beyond the red warning line, other wise the power cord may be damaged or unable to be wound up. Pay attention to the plug in winding the cord to avoid damaging the surrounding objects.

Illustration of a vacuum cleaner connected to a bottle, with no visible text or symbols

Do not bend, stamp on, or drag the hose. Do not continue to use the hose if it is damaged.

Do not use any heavy or sharp object to press the power cord.

Line drawing of a vacuum cleaner next to a small table with a pink cup (no text or symbols)

Do not use without dust tank or filters in place. Change tank frequently when picking up very fine materials such as powder.

Illustration of a woman pouring liquid from a bucket next to an electric vacuum cleaner (no text or symbols present)

Keep hair, loose clothing, fingers, feet and all parts of body away from the nozzle or movable portion.

Illustration of a girl waving next to a hand vacuum cleaner (no text or symbols)

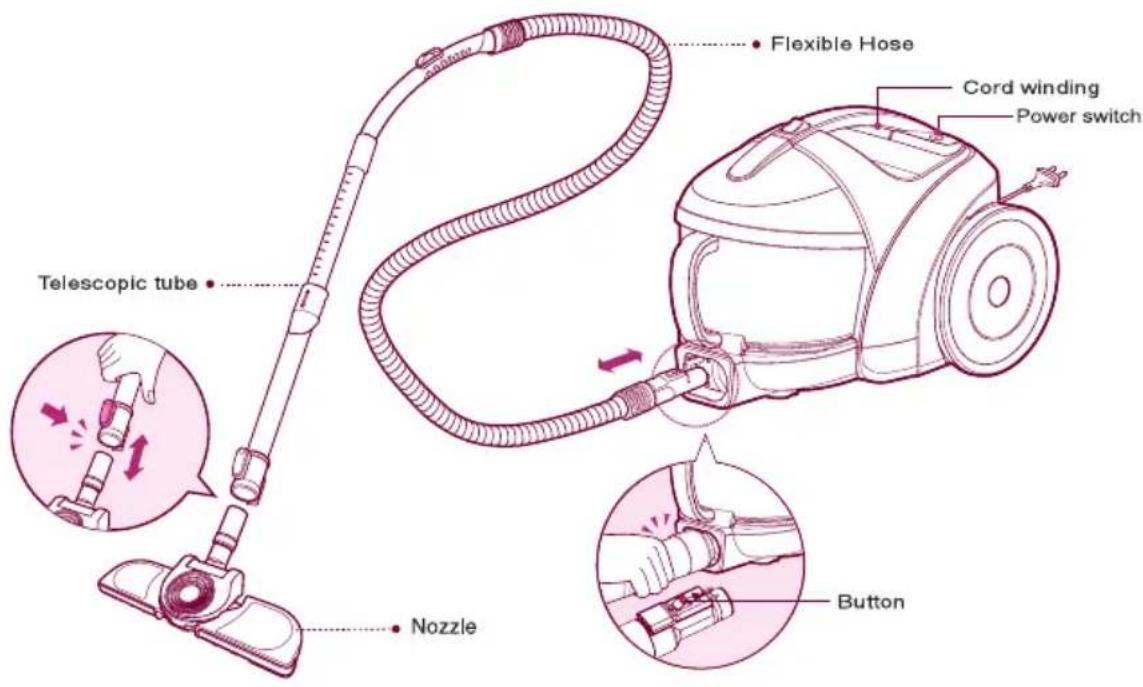

Parts description and assembly

Flexible Hose Cord winding Power switch Telescopic tube Nozzle Button

Accessories

- Corner Nozzle

- Crevice tool

- Telescopic tube

- Hose

Adjusting the Cleaner

Use it as shown in the diagram

MIN MAX

Slide the rotary control knob to adjust the Suction power

Illustration of a curved medical or surgical device with a pink arrow pointing to a specific point (no text or symbols present)

The flexible hose handle has a manual air flow regulator which allows you to briefly reduce the suction level.

Using crevice tool and corner nozzle

Using crevice tool

Use it as shown in the diagram

Using method

Nozzle, Crevice can be used for cleaning the place hard to reach.

Using corner nozzle

Assembling

Corner nozzle can be used to clean common floor, also can be used to clean corner when be puckered.

Line drawing of a mop being inserted into a handle, showing mechanical assembly (no text or symbols)

Cleaning

1 Use crevice tool to clean

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Using

Corner nozzle makes you more convenient to clean corner and small space.

Illustration of a mechanical component with curved arrows indicating rotation (no text or symbols)

② Use calico dishcloth to clean

Line drawing of a hand using a mechanical tool to adjust or install a component (no text or symbols present)

How to separate or empty the dust box

Warning: • Empty the box when the dust settles up to the MAX line.

• Too much dust beyond this line may reduce the inhaling power.
  • Dust box should be cleaned at least once per 3 months.

Line drawing of a hand holding a device with arrows indicating motion (no text or symbols)

Detach the dust tank when press the button.

Illustration of hands assembling or adjusting a mechanical component with a pink curved arrow indicating rotation (no text or symbols)

Uncover the dust tank cover by holding its handles.

Illustration of two containers with plastic cups pouring liquid into a trash bin (no text or symbols)

Empty the dust tank.

How to empty the dust separator

Warning: · Check the inside of the dust separator when cleaning the dust box.

• Clean the inside of the dust separator, because too much foreign substance such as waste paper or plastic in the dust separator may reduce the inhaling power.
  • Dust separator should be cleaned at least once per 3 months.

Diagram showing an eye with a magnified view of the internal structure, labeled with a red arrow pointing to the eye.

Check if the dust has settled in the dust separator.

Hand holding a mechanical component with a mesh pattern, no visible text or symbols

Separate the cover by holding its handle.

Illustration of a trash bin with a container pouring liquid into it (no text or symbols)

Empty the separator.

Illustration of a pink plastic mechanical component with layered circular features (no text or symbols)

Remove the dust from the small holes cover of the separator.

How to clean and assemble the dust box and separator

Cleaning

Line drawing of a spray gun pouring liquid into a container with another handle (no text or symbols)

• Cleanse the dust box, separator and its cover with running water.

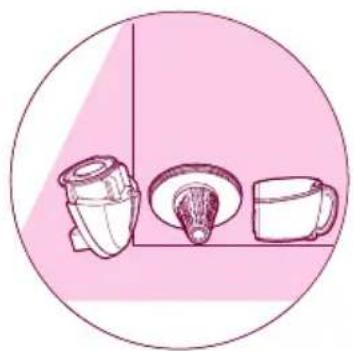

Illustration of kitchen utensils and a cup arranged in a circular frame (no text or symbols)

• Dry them in the well-ventilated shade for a day before using.

Assembling

Illustration of hands using a device to adjust a component, with an inset showing a magnified view of the device (no text or symbols present)

1 Attach the cover by inserting the spiral in the cover into the groove.

Illustration of hands holding a container with a lid, showing a downward arrow (no text or symbols)

② Assemble the dust separator and box.

Line drawing of a hand using a vacuum cleaner to press or install a device with a pink arrow indicating the handle (no text or symbols present)

3 Attach the assembled dust box to the body of the cleaner.

Warning: Do not push the button when you carry the vacuum cleaner. If push the button, it is easy to detach the dust tank from the vacuum cleaner If you use the cleaner without assembling the cover of the dust separator, it will increase the noise and reduce the inhaling power when cleaning. So check the assembling once again.

Disassembling

Line drawing of a hand holding a vacuum cleaner with a pink arrow indicating left motion (no text or symbols)

1 Detach the dust tank when press the button.

Line drawing of hands operating a mechanical device (no text or symbols)

3 Separate it from the filter cover.

Line drawing of a vacuum cleaner with a circular arrow indicating rotational motion (no text or symbols)

② Detach the protection filter of the motor from the body after disassembling the dust box.

Illustration of a hand holding a keyboard and a pink notebook, with arrows indicating motion or transformation (no text or symbols)

4 Detach the filter.

Cleansing

Illustration of a faucet pouring liquid into a container with a tool nearby (no text or symbols)

1 Clean with running water.

Illustration of a hand cleaning a pink cloth and a plastic clip (no text or symbols)

② Remove the water completely.

Illustration of three electronic devices in a pink circular frame (no text or symbols)

3 Dry in the well-ventilated shade for a day before using.

Warning: • Assembling is done in reverse order of disassembling.

- If you use the cleaner without assembling the protection filter of the motor, noise increases and dust gets into the motor when cleaning, thus leading to the shorter life of the cleaner. So check the assembling once again.

Illustration of a pen being inserted into a stack of paper, showing the process with arrows indicating movement (no text or symbols)

1 Put the filter into the case.

2 Cover the filter.

Line drawing of a vacuum cleaner device (no text or symbols)

3 Fix the assembled filter.

Line drawing of a vacuum cleaner with handle and control panel (no text or symbols)

4 Assemble the dust tank.

How to separate, clean and assemble exhaust filter

Disassembling

The exhaust filter should be cleaned at least once half a year. Allow exhaust filter to dry in a shaded location for a dry.

Cover button of the exhaust filter

Cover of the exhaust filter

Exhaust filter button Exhaust filter

Cleansing

Illustration of a hand pouring liquid into a container with bubbles (no text or symbols)

Assembling

Technical line drawings of two different vacuum cleaner designs (no text or symbols)

1 Shake off the exhaust filter.

2 Insert the exhaust filter and join the cover properly until you hear the click of the button.

Illustration of a cartoon character with pink hair and a red lipstick, enclosed in a circular frame (no text or symbols)

How to keep the cleaner after using

Cord winding button

Illustration of a vacuum cleaner with two views showing mechanical components and a close-up inset (no text or symbols)

• The cord winds up when you press the button.
- Insert the spiral of the inhaler into the groove in the back or at the bottom of the body

Check before reporting the trouble

You won't be happy to waste money by calling for service when there is no trouble with the cleaner. Here is good advice to follow for trouble shooting before calling for service. Read the instructions carefully, and you can remove the trouble by yourself.

If inhaling is not well done?

Stage 1

Check if the control button of the inhaling power has been put to "MAX".

Stage 2

Clean the protection filter of the motor.

Disassembling

Line drawing of a hand holding a small device with a purple arrow indicating left motion (no text or symbols)

1 Uncover the body by pressing the button of the cover.

Line drawing of a hand holding a camera lens (no text or symbols)

3 Separate the filter from the cover by holding the handle of the case.

Line drawing of a vacuum cleaner with a circular arrow indicating rotation (no text or symbols)

② Detach the protection filter of the motor from the body after disassembling the dust box.

Illustration of a hand holding a keyboard and a pink notebook, with arrows indicating motion (no text or symbols)

4 Detach the protection filter of the motor.

Cleansing

(with cold water)

Illustration of a faucet pouring liquid into a container with a plastic bag nearby (no text or symbols)

1 Cleanse it with running water.

Illustration of hands holding a pink envelope and a clipboard, with no visible text or symbols

2 Remove the water completely.

Illustration of three electronic devices in a pink circular frame (no text or symbols)

6 Dry it in the well-ventilated shade for a day before using.

If you have a problem

If you have a problem

If a minor problem occurs, it usually can be solved quite easily when the cause is found by using the check list below.

Problem:

The noise increases and the hose shrink. Suction power is abruptly weakened.

Help:

Check the dust tank and suction inlet.

Solution

1 Dust tank full. (Arrive at MAX line) Empty dust tank.

Is it full? Empty the dust tank in time!

② Motor filter dirty.

Clean the motor filter with brush and water, allow to dry and replace in cleaner.

Is the filter OK? Then check the suction inlet.

③ When checking the suction inlet, adjust the suction level to the maximum.

First step

Turn cleaner off and disconnect from electrical outlet, then disconnect nozzle from telescopic tube. Check if it is blocked, and remove any blockages.

If there is still a problem, proceed the second step.

Second step

Disconnect the telescopic tube from hose. Check if it is blocked, and remove any blockages.

If there is still a problem, proceed the third step.

Third step

Plug cleaner in, turn on, and check hose end for suction. Remove any obstructions.

If there is also a problem, clean the filter.

Please check before notifying malfunction

If you doubt the product meets with malfunction, please check the cause of such malfunction before contacting with the after-sales service center or agent, so as to ensure efficiency of repair.

Malfunction

The vacuum does not work?

The vacuum does not work?

Cartoon illustration of a character using a vacuum cleaner (no text or symbols)

Peculiar smell exists inside the vacuum cleaner

The power cord can not be scrolled thoroughly into the vacuum cleaner or the power cord can not be fully pulled.

The vacuum cleaner or the discharged air is too heat.

Inner wall of the hose is too dirt.

Check

• Is the plug inserted?
• Is the socket powered on?
• If the hose inserted?
- If the motor heat protection opened?

Troubleshooting

• Insert the plug tight (This product is applicable for 220V)
• Verify the power of socket is on
• Insert the hose tight

• Restart in 2 hours

• When the vacuum cleaner's suction is too large or the motor is under high speed running, they do not belong to the abnormal conditions. So, please use the vacuum cleaner properly.

• If it is the noise rather than the normal motor sound, please phone the repair center.
  • The duster collector is filled up.
  • The filter is clogged.
  • Suction inlet is jammed.
  • Drawtube is clogged.
• Hose is clogged.
  • Clean out the dust collector.
• Purge the sponge filter with water and air-dry in the shady and cool place for one day.
  • Take out the sucked objects before use.
• Take out the objects inside the drawtube before use.

• Take out the objects inside the hose before use.

• When the motor is running, the rubber band used for fixing the motor will produce a little smell due to the heat, but it will not affect the operation or damage the machine.

• When the machine sucks some water accidentally or the dust collector is not cleaned for a long period of time, the peculiar smell will be produced. So, clean up the dust collector timely.

• Pull out part of the power cord and then re-scroll it.

• Please put forth your strength to pull out the power cord, which will not be damaged.
• The power cord entwined inside the machine or it is caused by high temperature in the summer.
• The cord is bended inside the machine or not coiled around the winder. After the winder is started, the normal operation could be realized.

• Is the suction normal?

- The heat air discharged from the machine is arising from the heat produced by motor. So, the temperature is normal, please use the machine continuously.

- Never suck the water because after mixing of the water and dust, the tube wall will be polluted and the motor will be damaged.

Packing List

Packing List

Vacuum Cleaner 1

Owner's Manual 1

Crevice tool 1

Hose 1

Telescopic tube 1

Corner Nozzle 1

Card, Service 1

LG 电子

400-819-9999

售后热线

一号通

LG 电子 (天津)电器有限公司

地址: 中国·天津市北辰区兴淀公路

传真: [phone]

邮编: 300402
