USER MANUAL ZenFone Ares ZS572KL ASUS

Road safety comes first. We strongly recommend not to use your device when driving or operating any type of vehicle.

This device should only be used in environments with ambient temperatures between 0^ C ( 32^ F) and 35^ C ( 95^ F).

Turn off your device in restricted areas where the use of mobile devices is prohibited. Always obey rules and regulations when in restricted areas, such as, in aircraft, movie theater, in hospitals or near medical equipment, near gas or fuel, construction sites, blasting sites and other areas.

Use only AC adapters and cables approved by ASUS for use with this device. Refer to the rating label on the bottom of your device and ensure that your power adapter complies with this rating.

Do not use damaged power cables, accessories, and other peripherals with your device.

Keep your device dry. Do not use or expose your device near liquids, rain, or moisture.

You can put your device through x-ray machines (such as those used in conveyor belts for airport security), but do not expose the device to magnetic detectors and wands.

The device screen is made of glass. If the glass gets broken, stop using the device and do not touch the broken glass parts. Immediately send device for repair to ASUS-qualified service personnel.

Do not listen at high volume levels for long periods to prevent possible hearing damage.

Disconnect the AC power before cleaning your device. Use only a clean cellulose sponge or chamois cloth when cleaning your device screen.

Send device for repair to ASUS-qualified service personnel only.

Proper disposal

Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions.

DO NOT throw the battery in municipal waste. The symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

DO NOT throw this product in municipal waste. This product has been designed to enable proper reuse of parts and recycling. The symbol of the crossed out wheeled bin indicates that the product (electrical, electronic equipment and mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw this product in fire. DO NOT short circuit the contacts. DO NOT disassemble this product.

WARNING

Cancer and Reproductive Harm-

www.P65Warnings.ca.gov

ZenTalk Fans Forum

(http://www.asus.com/zentalk/global_forward.php)

QR code image containing encoded data, no visible human-readable text

NOTE: The app descriptions shown in this manual are for reference purposes only, and may not exactly match what you see on your device.

Contents

1 Basics

Welcome!......7

Get your ASUS Phone ready! 8

Starting for the first time 16

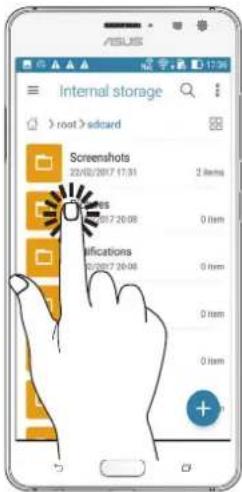

Using the touchscreen....18

2 There's no place like Home

Zen Home features 21

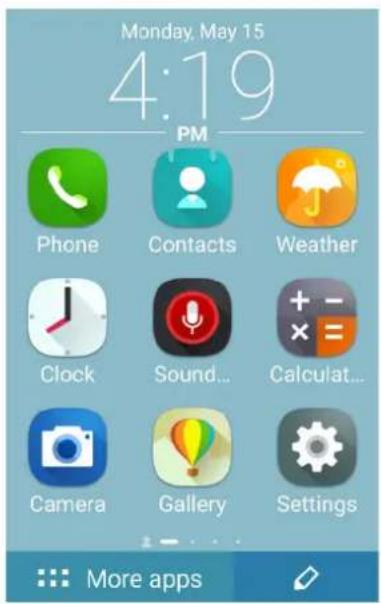

Home screen 21

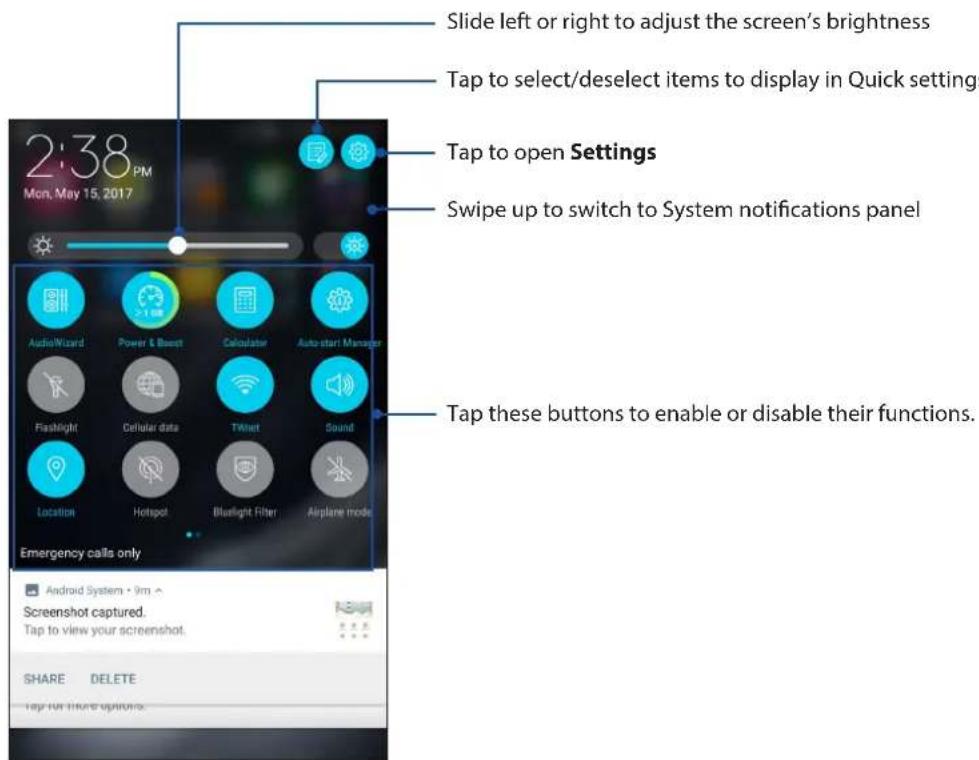

Quick settings....23

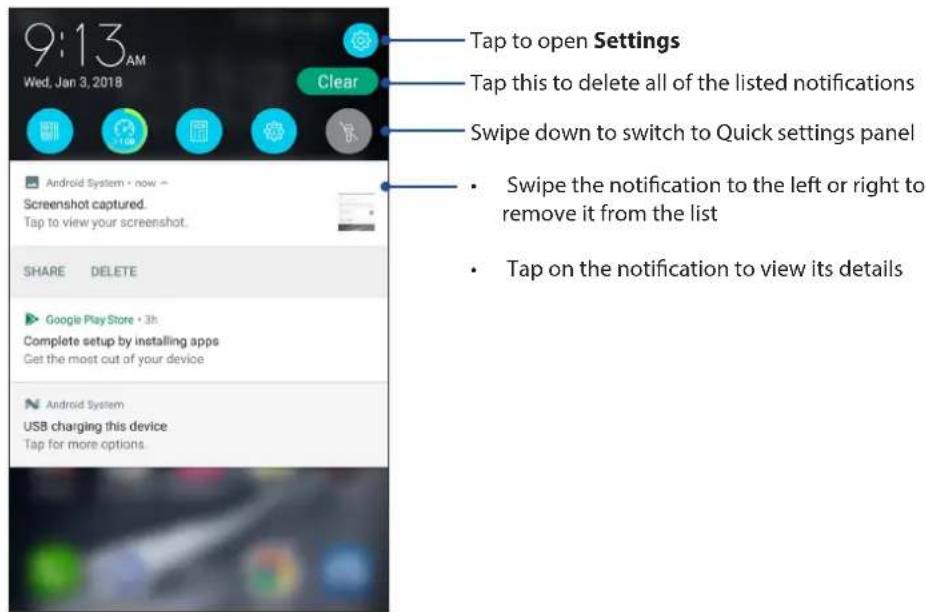

System notifications....24

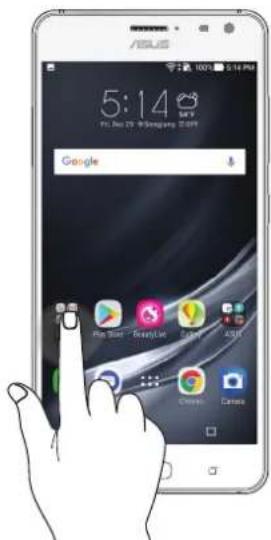

Personalizing your Home screen....25

App & Widgets 25

Wallpapers 26

Easy Mode....27

Setting up the date and time....30

Setting up your ringtone and alert sounds....30

Lock Screen 31

Customizing your lock screen....31

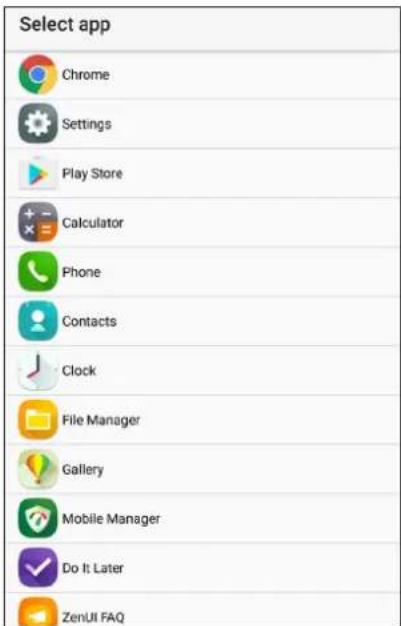

Customizing the quick access buttons....32

Fingerprint ID sensor....33

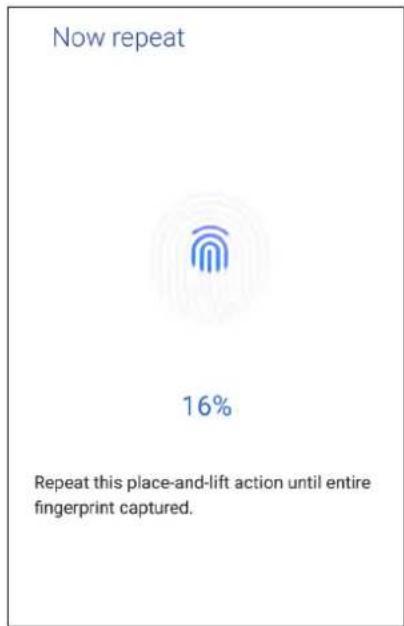

Starting your ASUS phone for the first time....33

Setting up fingerprint ID from Settings 34

3 Work hard, play harder

Chrome 36

Launching Chrome 36

Sharing pages....37

Bookmarking pages 37

Clearing the browsing data 37

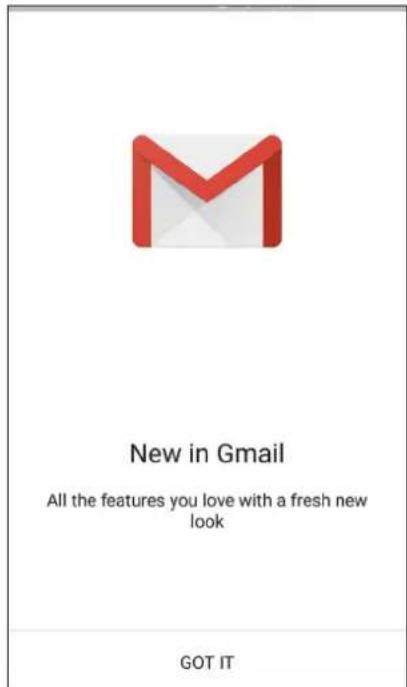

Gmail....38

Google Calendar 39

Creating events 39

Editing or removing events 39

Creating reminders....40

Editing or removing reminders....40

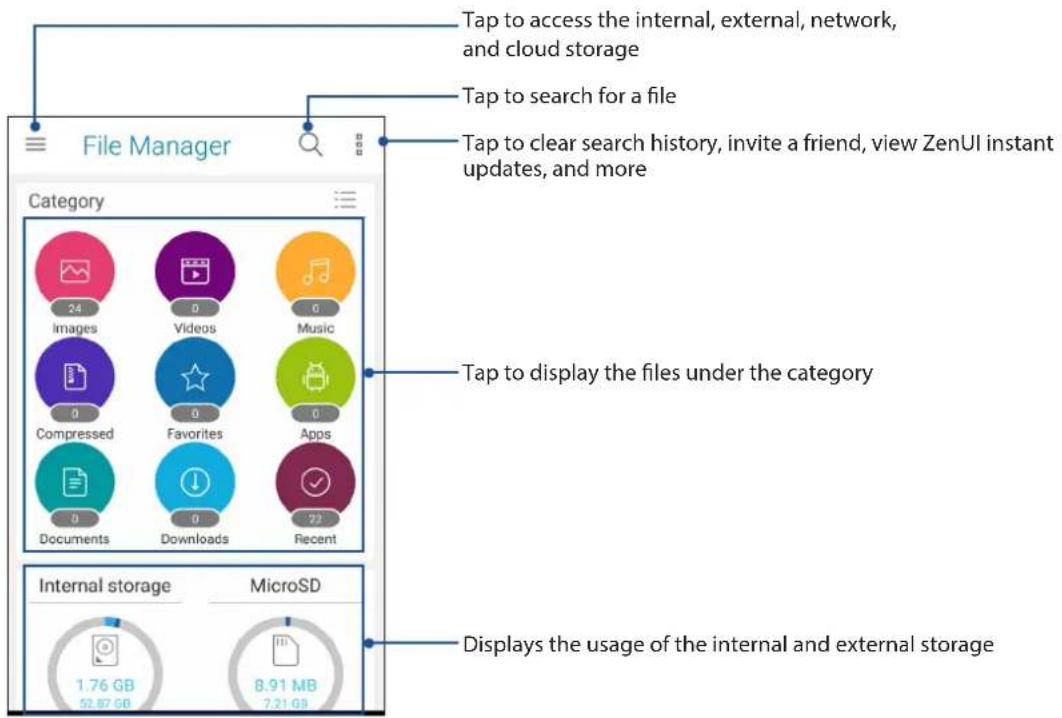

File Manager....41

The Cloud....42

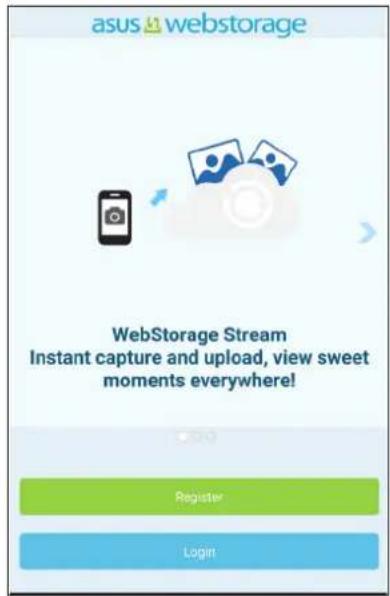

ASUS WebStorage 42

ZenUI FAQ....43

4 Keeping in touch

Call in style 44

Dual SIM feature....44

Making calls....46

Receiving calls 48

Other call options....49

Managing multiple calls....50

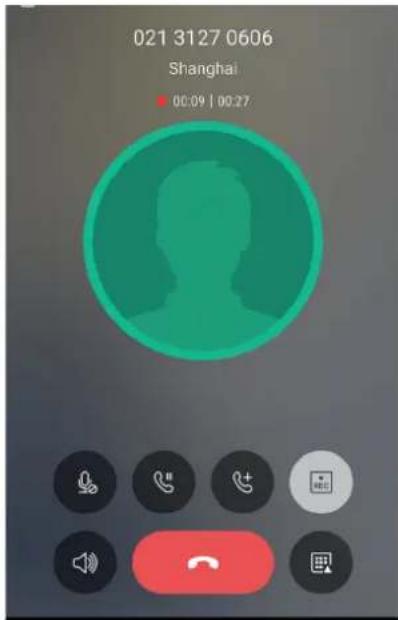

Recording calls 50

Managing contacts 51

Contacts Settings 51

Setting up your profile ....51

Adding contacts....52

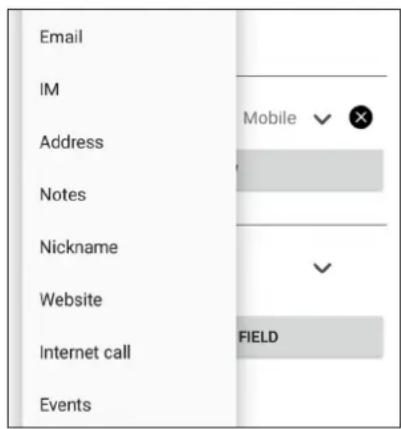

Setting up your VIPs ....53

Marking your favorite contacts ....55

Importing contacts....55

Exporting contacts....56

Managing your block list 56

Social networking with your contacts....57

Send messages and more 58

Google Messenger....58

5 Fun and entertainment

Using a headset....59

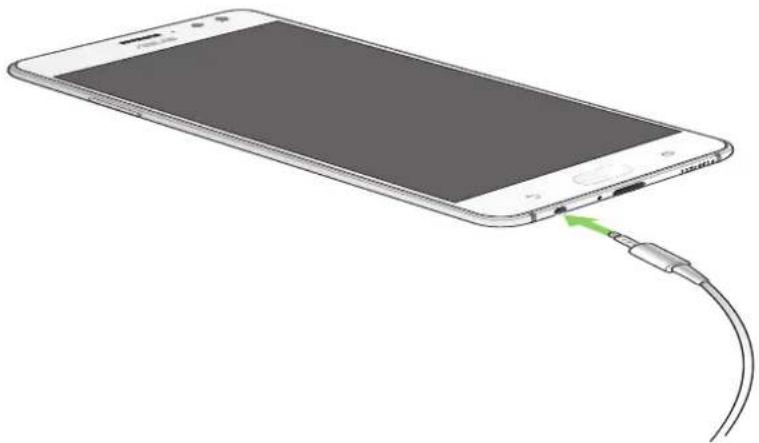

Connecting the audio jack....59

Google Play Music 60

6 Your precious moments

Capture moments 61

Launching the Camera app ....61

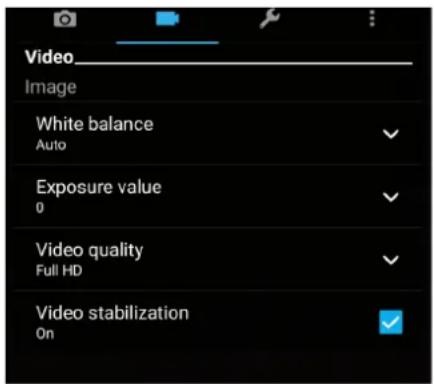

Advanced camera features ....65

Using the Gallery 70

Viewing files from your social network or cloud storage....70

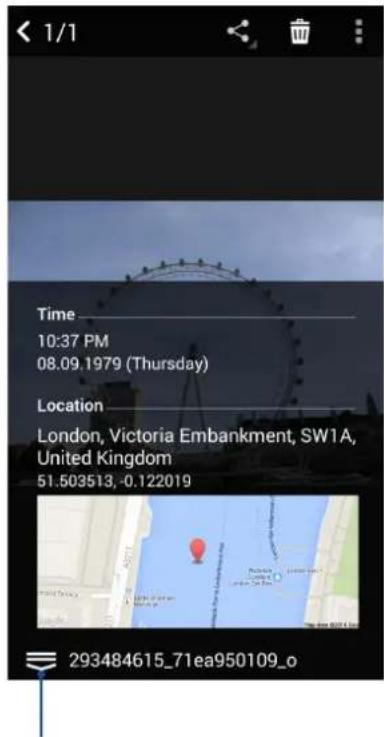

Viewing the photo location....71

Sharing files from the Gallery....72

Deleting files from the Gallery....72

Editing images....72

7 Staying connected

Mobile network....73

Enabling the mobile network....73

Wi-Fi 73

Enabling Wi-Fi....73

Connecting to a Wi-Fi network....74

Disabling Wi-Fi....74

Bluetooth ^® 74

Enabling Bluetooth ^® 74

Pairing your ASUS Phone to a Bluetooth ^® device....75

Unpairing your ASUS Phone from the Bluetooth® device....75

Tethering 76

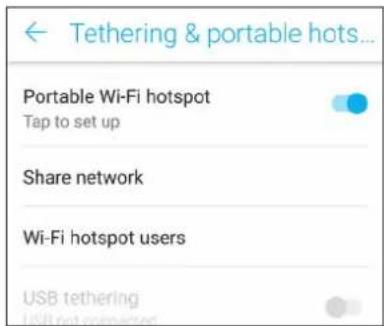

Wi-Fi Hotspot 76

Bluetooth Tethering....77

8 Travel and Maps

Weather 78

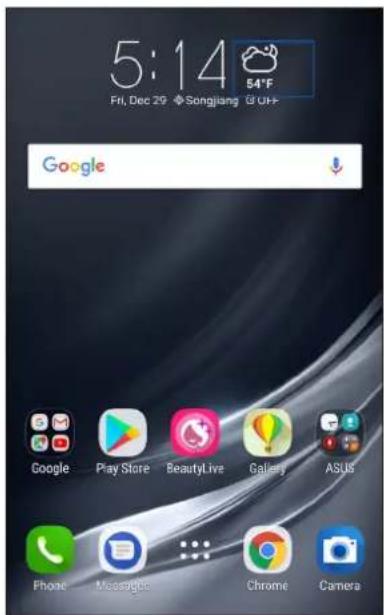

Launching the Weather app....78

Weather home screen....79

Clock 80

World Clock....80

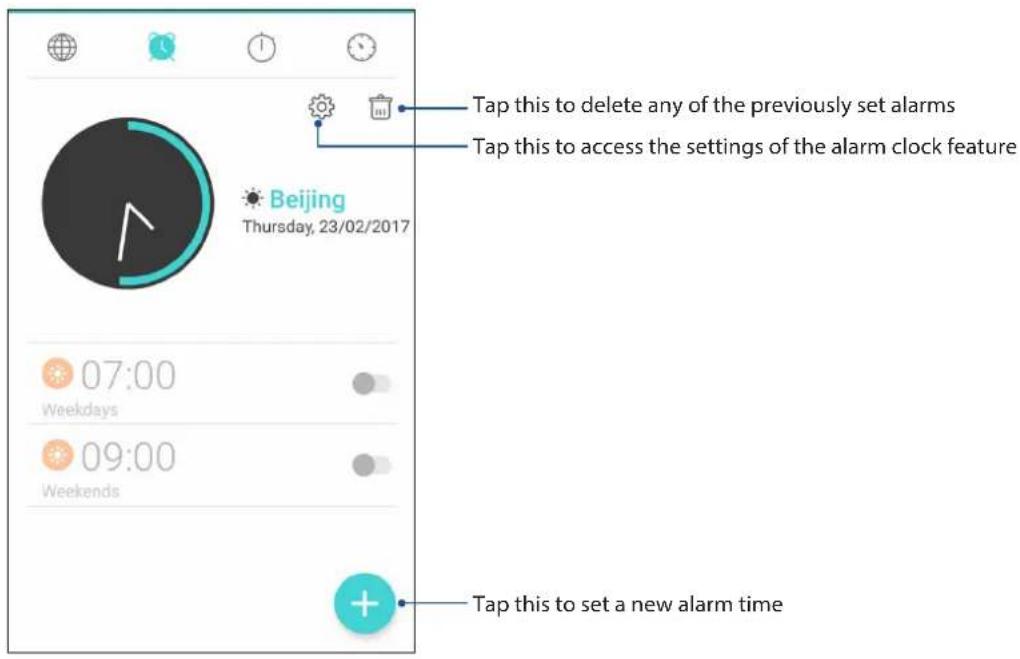

Alarm clock....81

Stopwatch 81

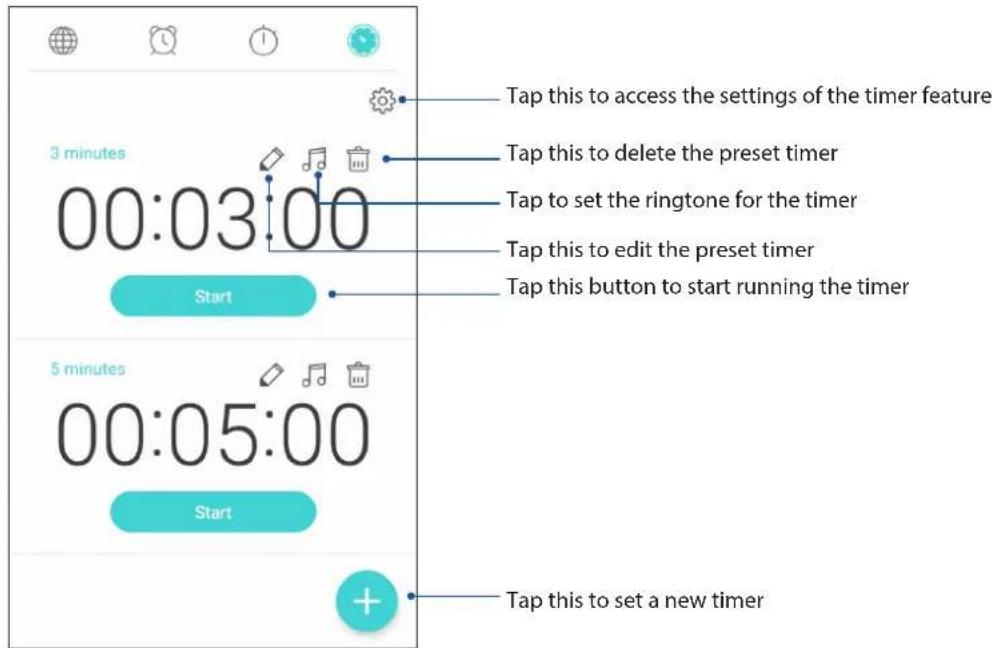

Timer 82

9 Zen Everywhere

Special Zen Tools....83

Calculator 83

Sound Recorder 84

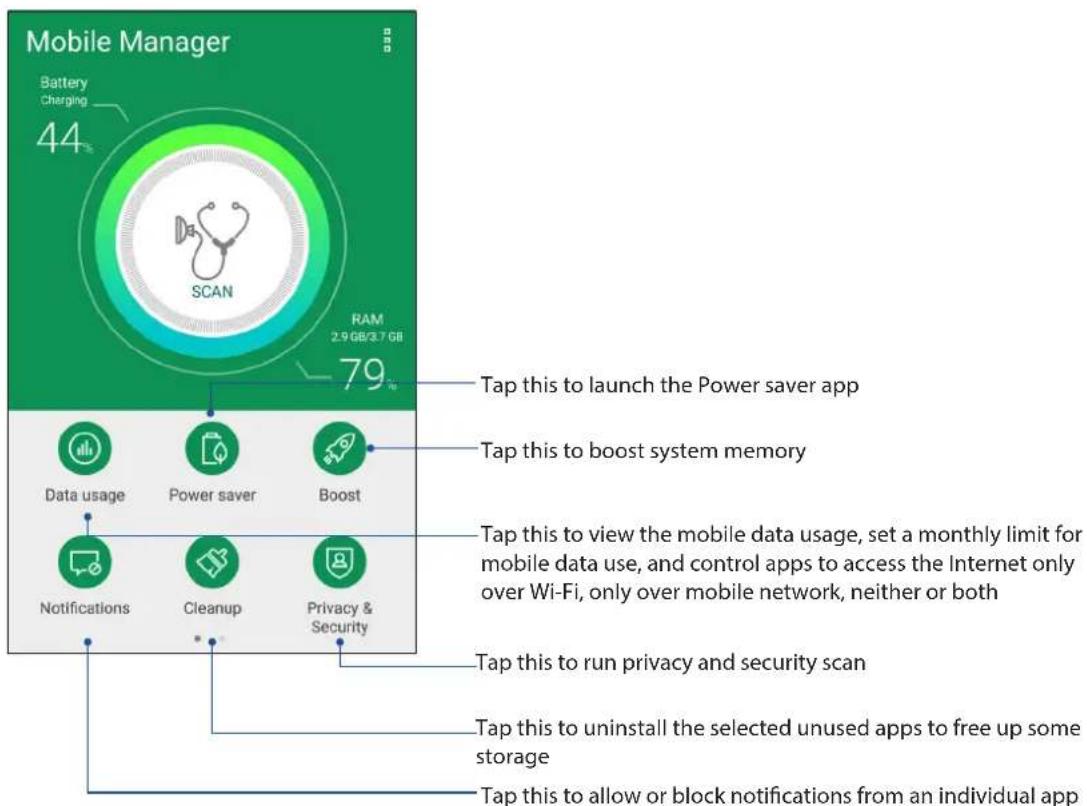

Mobile Manager....86

10 Maintain your Zen

Keeping your device up-to-date....87

Updating your system 87

Storage 87

Backup and reset 87

Securing your ASUS Phone 88

Appendix

Safety information....91

Index

Welcome!

Explore the intuitive simplicity of ASUS Zen UI!

ASUS Zen UI is a charming and intuitive interface exclusively for ASUS Phones. It provides you with special apps, which are integrated in or with other apps, to fit your unique individual needs and make your life easier while letting you have fun with your ASUS Phone.

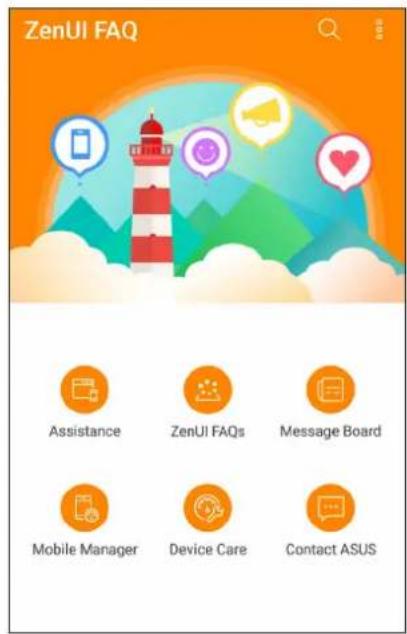

ZenUI FAQ

Find answers from FAQs (Frequently Asked Questions) or provide your feedbacks in the user forum.

Camera

With PixelMaster technology, capture those precious moments in vivid and high-quality photos and videos.

NOTE: Availability of ASUS Zen UI apps vary per region and ASUS Phone model. Tap from your Home screen to check the apps available on your ASUS Phone.

Get your ASUS Phone ready!

Parts and features

Take a hold of your device and have it running in a jiffy.

Microphone Receiver LED indicator Front camera Proximity sensor and light sensor Volume key Power key Touch screen display Fingerprint sensor Touch keys Audio jack Speaker USB Type-C port Microphone Laser focus Rear camera RGB sensor/ Camera flash Nano SIM1, Nano SIM2/ microSD combo card slot ASUS

WARNING!

• To avoid network connection and battery issues:
• DO NOT place a metallic sticker on the antenna area.
• DO NOT use a metallic protective frame/case on your ASUS Phone.
- DO NOT cover the antenna area with your hands or other objects while using some functions such as making calls or using the mobile data connection.
• We recommend that you use ASUS-compatible screen protectors. Using non-ASUS-compatible screen protectors may cause your ASUS Phone's sensor to malfunction.

NOTES:

• Both Nano SIM card slots support GSM/GPRS/EDGE, WCDMA/HSPA+/DC-HSPA+, FDD-LTE, and TD-LTE DSDS network bands. But only one Nano SIM can connect to FDD-LTE, and TD-LTE at a time.
• The microSD card slot supports microSD and microSDXC card formats.

IMPORTANT!

• We do not recommend using a screen protector as it can interfere with the proximity sensor. If you want to use a screen protector, ensure that it does not block the proximity sensor.
- Keep the device, particularly the touch screen, dry all the time. Water or other liquids can cause the touch screen to malfunction.

Installing a Nano SIM card / memory card

A Nano subscriber identity module (Nano SIM) card stores information, such as your mobile phone number, contacts, messages and other data that gives you access to a mobile network.

Your ASUS Phone comes with two Nano SIM card slots that allow you to set up and use two mobile network services without having to carry two mobile devices at the same time.

CAUTION!

• This device is designed for use with a mobile carrier-approved Nano SIM card only.
• We do not recommend the use of trimmed SIM cards in the Nano SIM card slots.
• Turn off your device before inserting a Nano SIM card.
- Be extra careful when handling Nano SIM cards. ASUS is not responsible for any loss or damage incurred to your Nano SIM cards.

Your ASUS Phone supports a microSD™ and microSDXC™ memory card with up to 200GB capacity.

NOTE: Some memory cards may not be compatible with your ASUS Phone. Ensure that you use only compatible memory cards to prevent loss of data, damage to your device or memory card, or both.

CAUTION! Be extra careful when handling a memory card. ASUS is not responsible for any data loss or damage incurred to your memory card.

To install a Nano SIM card / memory card:

1. Push a pin into the hole on the Nano SIM / MicroSD card tray to eject it.
2. Insert the Nano SIM or MicroSD card(s) into the card slot(s).

Diagram illustrating smartphone battery charging process with magnified views showing device insertion and charging mode

IMPORTANT!

- You can only use the Nano SIM2 card or the MicroSD card at a time.

- When two SIM cards are inserted, only one SIM card slot supports 4G/3G/2G service. The other SIM card slot only supports 2G/3G service.

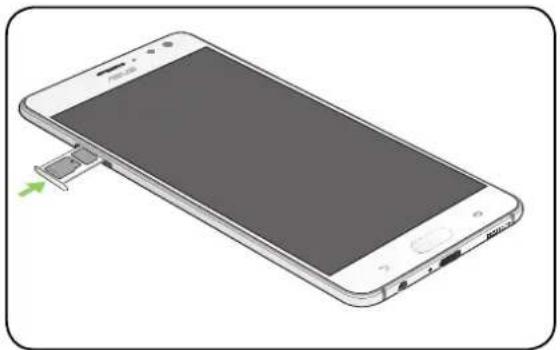

3. Push the tray to close it.

Illustration of a smartphone with an attached USB port, showing the screen and cable (no text or symbols)

CAUTION!

• Do not use sharp tools or solvent on your device to avoid scratches on it.
  • Use only a standard Nano SIM card on your ASUS Phone.

Removing a Nano SIM /memory card

CAUTION!

- Be extra careful when handling a Nano SIM card / memory card. ASUS is not responsible for any data loss or damage incurred to your Nano SIM cards / memory card.

- Eject the memory card properly to safely remove it from device. To eject the memory card, tap

Settings > Storage & USB, then under Portable storage, click ▲ beside SD card.

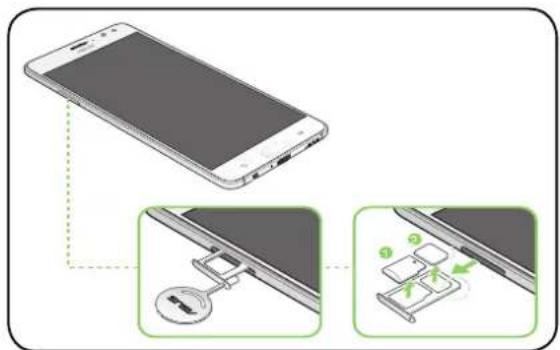

To remove a Nano SIM card / memory card:

1. Push a pin into the hole on the Nano SIM / MicroSD card tray to eject it.

2. Remove the Nano SIM or MicroSD card(s) from the card slot(s).

Diagram illustrating smartphone port connection with labeled steps and component diagrams

1. Push the tray to close it.

Illustration of a smartphone with an attached USB port and a green arrow indicating the next port (no text or symbols present)

Charging your ASUS Phone

Your ASUS Phone comes partially charged but you must charge it fully before using it for the first time. Read the following important notices and cautions before charging your device.

IMPORTANT!

• For safety purposes, use ONLY the bundled power adapter and cable to avoid damaging your device and prevent the risk of injury.
• Peel off the protective film on the AC power adapter and USB Type C cable before using it with your device.
• Ensure to plug the AC power adapter to a compatible power outlet. You can plug the AC power adapter to any compatible 100\~240 V outlet.
• The output voltage of the AC power adapter for this device is +5V 2A, 10W / +9V 2A, 18W.
• When using your ASUS Phone while plugged-in to a power outlet, the power outlet must be near your device and easily accessible.
  • To conserve electricity, unplug the AC power adapter from the power outlet when not in use.
• Do not place heavy objects on top of your ASUS Phone.

CAUTION!

• While charging, your ASUS Phone can become warm. This is normal, however, if your device becomes unusually hot, disconnect the USB Type C cable from your device and send the device, including the AC power adapter and cable to an ASUS-qualified service personnel.
• To prevent any damage to your ASUS Phone, AC adapter, or USB Type C cable. Ensure that the USB Type C cable, AC adapter, and your device are connected properly before charging.

To charge your ASUS Phone:

1. Connect the USB Type C cable to the power adapter.
2. Connect the USB Type C cable to your ASUS Phone.
3. Plug the AC power adapter to a grounded power outlet.

Diagram showing connection between a power adapter and a smartphone via USB cable, with numbered annotations indicating components.

IMPORTANT!

• When using your ASUS Phone while it is plugged to a power outlet, the grounded power outlet must be near to the unit and easily accessible.
• When charging your ASUS Phone through your computer, ensure that you plug the USB Type C cable to your computer's USB 2.0 / USB 3.0 port.
• Avoid charging your ASUS Phone in an environment with ambient temperature of above 35 °C (95°F).
• Charge your ASUS Phone for eight (8) hours before using it in battery mode for the first time.
• The status of battery charge is indicated by the following icons:

Low

Not Charging

Charging

Full

NOTES:

• For safety purposes, use ONLY the bundled power adapter and cable to avoid damaging your device and prevent the risk of injury.
  • For safety purposes, use ONLY the bundled power adapter and cable to charge your ASUS Phone.

• The input voltage range between the wall outlet and this adapter is AC 100V - 240V. The output voltage of the device is +5V=2A, 10W / +9V =2A, 18W.

• When fully-charged, disconnect the USB cable from your ASUS Phone first before unplugging the AC power adapter from the power outlet.

NOTES:

• You can use your device while charging but it may take longer to fully charge the device.
• Charging your device via USB port of a computer may take longer to fully charge the device.
• If your computer does not provide enough power for charging via USB port, charge your ASUS Phone using the AC power adapter plugged to a power outlet instead.

Using NFC

You can use NFC in the following two scenarios:

Reader mode: Your phone reads information from a contactless card, NFC tag, or other NFC devices.

Place the NFC area of your phone on the contactless card, NFC tag, or NFC device.

Line drawing of two hands inserting a smartphone into a device (no text or symbols visible)

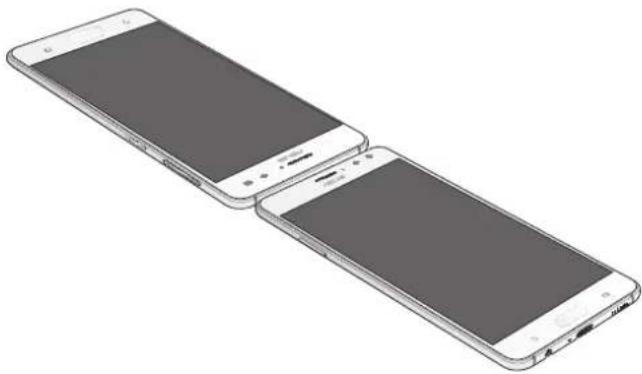

Peer-to-Peer mode: Transfers photos, contacts, or other data between your phone and an NFC-enabled smartphone.

Bring the NFC areas of both smartphones together, without any space between them.

Two smartphone screens shown side by side, one blank and one open, with no visible text or symbols.

Turning your ASUS Phone on or off

Turning your device on

To turn your device on, press and hold the power button until your device vibrates and starts up.

Turning your device off

To turn your device off:

1. If your screen is turned off, press the power button to turn it on. If your screen is locked, unlock the device screen.
2. Press and hold the power button, then when prompted, tap Power off then tap OK.

Sleep mode

To put your device in sleep mode, press the power button once until the screen turns off.

ASUS Power key

Starting for the first time

When you turn your ASUS Phone on for the first time, Setup Wizard will guide you through the setup process. Follow the onscreen instructions to select your language, select input methods, set up your mobile network, Wi-Fi and security features, sync accounts, and configure your location services.

Use your Google or ASUS account to set up your device, if you do not have a Google or ASUS account yet, go ahead and create one.

Google Account

Using a Google Account allows you to fully utilize these Android OS features:

• Organize and see all your information from anywhere.
  • Automatically backup all your data.
• Leverage Google services conveniently from anywhere.

ASUS Account

Having an ASUS Account gets you to enjoy the following perks:

• Personalized ASUS support service and warranty extension for registered products.
  • Free 5 GB of Cloud storage space.
• Receive the latest device and firmware updates.

Battery power conservation tips

The battery charge is the lifeline of your ASUS Phone. Here are some battery power conservation tips that helps preserve the power of your ASUS Phone battery.

• Close all running apps that are not in use.
• When not in use, press the power button to put the device in sleep mode.
  – Decrease brightness of display.
• Keep the speaker volume to a low level.
• Disable Wi-Fi feature.
• Disable Bluetooth feature.
• Disable the screen auto-rotate feature.
• Disable all auto-sync features in your device.

Using the touchscreen

Use these gestures on the touchscreen to launch apps, access some settings, and navigate your ASUS Phone.

Launching apps or selecting items

Do any of the following:

• To launch an app, simply tap on it.

• To select an item such as in File Manager app, simply tap on it.

ASUS APPS MAGNETS Google Appell SmartBox Sales Sales Sales Sales Settings Settings 671 10.00 AM

Internal storage > root > sdcard Screenshots 22/02/2017 17:31 yes 2017 20:08 0 item ifications 2017 20:08 0 item 0 item 0 item +

Moving or deleting items

Do any of the following:

• To move an app or widget, tap and hold then drag it to the location where you want it to be.
• To delete an app or widget from the Home screen, tap and hold then drag it up to Remove.

ASUS 5:14 Fri Dec 29 - Samsung 2024 Google Play Sound - BeattyLive - Apple - ASUR Control - Camera

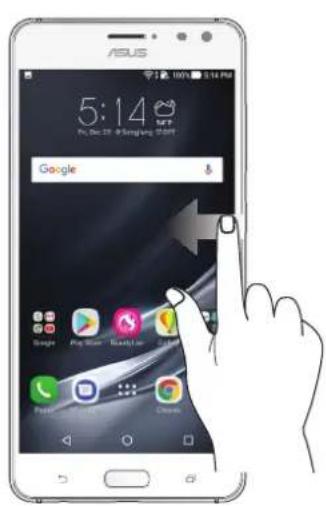

Moving through pages or screens

Do any of the following:

- Swipe your finger to the left or to the right to switch between screens or to flip through a Gallery of images.

- Scroll your finger up or down to go through web pages or list of items.

ASUS 5:14 PM Fri, Dec 25 @ Samsung 0:00 PM Google Google Play Music ReadyLive Play Music Play Music Play Music

ASUS Chromebook Flip C302CA Meet the running Compatible Chromebook The ASUS Chromebook Flip C302 packs brilliant and innovative features into its compact and stylish design including a beautiful 16:9 wide- viewing angle 1520 x 1060 FHD

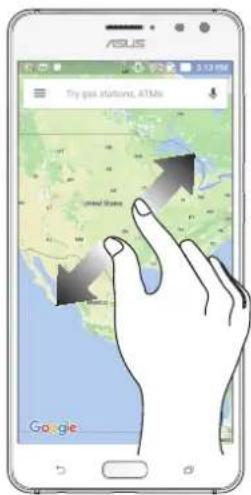

Zooming in

Spread apart your two fingers on the touch panel to zoom in an image in Gallery or Maps, or zoom in a web page.

Try gas stations, ATMs United States Google

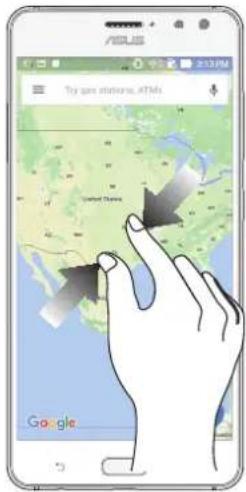

Zooming out

Bring together your two fingers on the touch panel to zoom out an image in Gallery or Maps, or zoom out of a web page.

ASUS Try gas stations, ATMs Control Windows Google

NOTE: You may not be able to zoom in/out of some web pages as these pages may have been designed specifically to fit your mobile screen.

There's no place like Home

2

Zen Home features

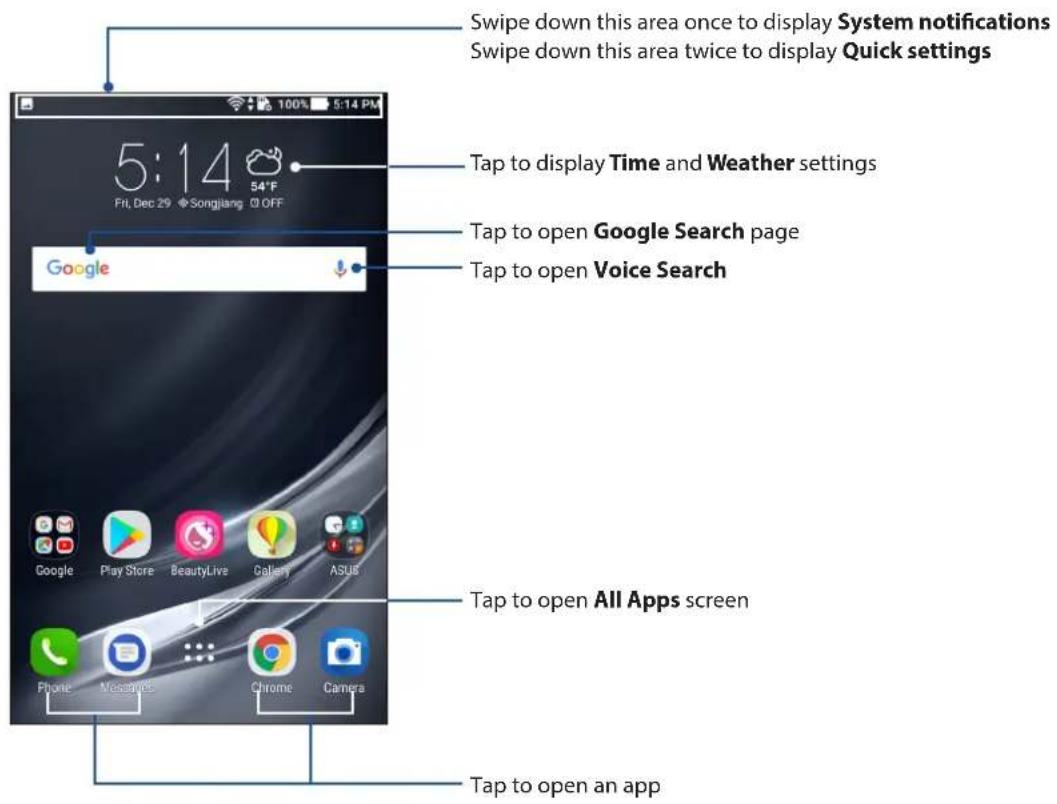

Home screen

Get reminders of important events, app and system updates, weather forecasts, and text messages from people who really matter to you, right from your Home screen.

Swipe down this area once to display System notifications Swipe down this area twice to display Quick settings 5:14 54°F Fri, Dec 29 ♦ Songjiang ⬆ OFF Tap to display Time and Weather settings Tap to open Google Search page Tap to open Voice Search Google Google Play Store BeautyLive Gallery ASUS Phone Messages Chrome Camera Tap to open All Apps screen Tap to open an app

Understanding notification icons

These icons are shown on the status bar and will guide you of the current status of your ASUS Phone.

	Mobile networkShows the signal strength of your mobile network.
	Nano SIM 1 cardShows that a Nano SIM card is inserted in Nano SIM 1 card slot.
	Nano SIM 2 cardShows that a Nano SIM card is inserted in Nano SIM 2 card slot.NOTE: If the SIM card icon is displayed in green, it indicates that it is set as the preferred network.
	MessagesShows that you have an unread message.
	Wi-FiShows the signal strength of your Wi-Fi connection.
	BluetoothShows that Bluetooth is turned on.
	Battery lifeShows the battery status of your ASUS Phone.
	MicroSD cardShows that a MicroSD card is inserted in your ASUS Phone.
	ScreenshotsShows that you took screenshots of your ASUS Phone.
	Airplane modeShows that your ASUS Phone is on Airplane mode.
	Wi-Fi HotspotShows that Wi-Fi hotspot of your ASUS Phone is enabled.
	Do not disturbShows that Mute mode is enabled.
	Vibrate modeShows that Vibrate mode is enabled.
	Download statusShows the download status of an app or file.

Quick settings

The Quick settings panel provides a one-tap access to some of the wireless features and settings of your ASUS Phone. Each of these features are represented by a button.

To launch the Quick settings panel, swipe down twice from the top of your screen.

NOTE: A blue button indicates that the feature is currently enabled while a gray button indicates a disabled feature. The green buttons refer to individual utilities that you can quickly access via the Quick Settings Notification Panel.

Slide left or right to adjust the screen's brightness Tap to select/deselect items to display in Quick settings Tap to open Settings Swipe up to switch to System notifications panel Tap these buttons to enable or disable their functions. 2:38 PM Mon, May 15, 2017 AudioWizard Power & Beaser Calculator Auto-start Manager Flashlight Cellular data TWet Sound Location Hotspot Bluelight Filter Airplane mode Emergency calls only Android System + 9m Screenshot captured. Tap to view your screenshot. SHARE DELETE Tap for future options.

Adding or removing buttons

To add or remove existing buttons from the ASUS Quick Settings notification panel:

1. Launch Quick settings then tap

1. Tap and drag the button to add or remove it from the ASUS Quick Setting Notification Panel.

2. Tap to go back and view the current ASUS Quick Settings notification panel.

System notifications

From System notifications, you can see the latest updates done and system changes made on your ASUS Phone. Most of these changes are data and system-related.

To launch the System notifications panel, swipe down from the top of your screen.

9:13 AM Wed. Jan 3, 2018 Clear Tap to open Settings Tap this to delete all of the listed notifications Swipe down to switch to Quick settings panel • Swipe the notification to the left or right to remove it from the list • Tap on the notification to view its details Android System + now → Screenshot captured. Tap to view your screenshot. SHARE DELETE Google Play Store · 3h Complete setup by installing apps Get the most cut of your device Android System USB charging this device Tap for more options.

Personalizing your Home screen

Stamp your own personality on your Home screen. Select an attractive design as your wallpaper, add shortcuts for quick access to your favorite apps, and add widgets for a quick review of important info. You can also add more pages so you can add and quickly access or view more apps or widgets on your Home screen.

To launch the Manage Home screen:

• Tap and hold an empty area on your Home screen.
• Swipe up from the bottom of your Home screen.

Manage Home Apps & widgets Home edit Wallpapers Icon packs ZenUI theme Lock apps Preferences System settings More

App & Widgets

App shortcuts make it easier to quickly-access your often-used or favorite apps from your Home screen. You can add, remove, or group your apps into one folder.

You can put widgets, which are small dynamic apps, on your Home screen. Widgets provide you with quick-views of the weather forecast, calendar events information, battery status, and more.

Adding app shortcuts or widgets

To add an app shortcut or a widget:

1. Tap and hold an empty area on your Home screen and select Apps & Widgets.
2. From the All Apps list or the Widgets screen, tap and hold an app or a widget, then drag it to an empty area on your Home screen.

Removing app shortcuts or widgets

From your Home screen, tap and hold an app or widget, then drag it to Remove on top of your screen. The app that you've removed from your Home screen will remain in the All Apps screen.

Grouping your app shortcuts in a folder

Create folders to organize your app shortcuts on your Home screen.

1. On your Home screen, tap and drag an app onto another app and a folder will appear with an automatically assigned name.
2. If you want to change the folder name, tap the folder and tap the folder name to assign a new name to this folder.

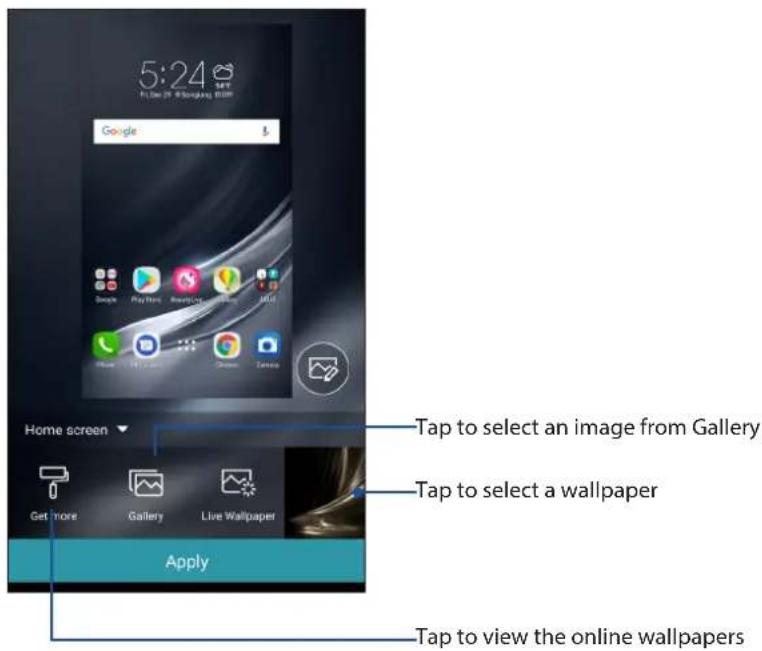

Wallpapers

Let your apps, icons, and other Zen elements sit on an attractively designed wallpaper. You may add a translucent background tint to your wallpaper for readability and clarity. You can also select an animated wallpaper to make your screen come alive.

5:24 Google Home screen Get More Gallery Live Wallpaper Apply Tap to select an image from Gallery Tap to select a wallpaper Tap to view the online wallpapers

Applying wallpaper

To apply wallpaper:

1. Tap and hold an empty area on your Home screen and select Wallpapers.
2. Select a wallpaper, then tap Apply.
3. Select to set wallpaper to Home screen, Lock screen or Home and lock screen.

Applying an animated wallpaper

To apply an animated wallpaper:

1. Tap and hold an empty area on your Home screen and select Wallpapers.
2. Tap Live Wallpaper.
3. Select an animated wallpaper, then tap Set Wallpaper.

NOTE: You can also set up your wallpaper settings from ⋆⋯> Settings > Display > Wallpaper.

Editing your Home screen

You can extend your Home screen, select a scroll effect, change the icon and font, adjust the size and color of the icon and font, and align the icons to the top or bottom of your screen.

1. Tap and hold an empty area on your Home screen and select Home edit.
2. Tap a feature to edit your Home screen.

Icon size Icon alignment Scroll effects Font size

Easy Mode

Navigate your ASUS Phone better with Easy Mode, an intuitive interface with large icons, buttons, and font size for better readability and easier user experience. You can also quickly do your core tasks such as making calls, sending messages, and more in Easy Mode.

Enabling Easy Mode

To enable Easy Mode:

1. Launch the Settings screen by doing any of the following:

- Launch Quick settings then tap

- Tap >Settings.

1. Scroll down the Settings screen and select Easy Mode.

2. Slide Easy Mode to ON.

Adding shortcuts

In Easy Mode, you can add up to thirty-six (36) app shortcuts on the Home screen.

1. Swipe to the right of the Home screen, then tap

1. From the All apps screen, select the app that you want to add to the list.

Removing shortcuts

Do the following:

1. Tap

1. Select the app or apps that you want to remove from the list, then tap Delete.

Monday, May 15 4:19 PM Phone Contacts Weather Clock Sound... Calculat... Camera Gallery Settings More apps

Chrome Add More apps

Adding contacts

In Easy Mode, you can add your frequently contacts on the Home screen.

1. Swipe to the left of the Home screen, then tap
2. From the Contacts screen, select the contact that you want to add to the list.

Removing contacts

Do the following:

1. Swipe to the left of the Home screen, then tap Edit contacts.
2. Select the contact or contacts that you want to remove from the list, then tap Delete.

Add Edit contacts

Disabling Easy Mode

To disable Easy Mode:

1. Swipe down from the top of your screen then tap
2. Select Easy Mode from the Settings screen.
3. Slide Easy Mode to OFF.

Setting up the date and time

By default, the date and time displayed on your Home screen automatically syncs with your mobile provider's settings.

To change the date and time settings:

1. Launch the Settings screen by doing any of the following:

- Launch Quick settings then tap

- Tap >Settings.

1. Scroll down the Settings screen and select Date & time.

2. Slide Automatic date & time and Automatic time zone to OFF.

3. Adjust the date and time.

4. Select the time zone and manually set the date and time.

5. You can opt to use the 24-hour format, if you prefer.

NOTE: See also Clock.

Setting up your ringtone and alert sounds

Set up the sound for your phone ringtone, notifications such as text messages, emails, and event alerts. You can also choose to enable or disable the dial pad touch tones, touch sounds, screen lock sound, or you can choose to have your ASUS Phone vibrate when you tap on it.

To set up the sound settings:

1. Launch the Settings screen by doing any of the following:

- Launch Quick settings then tap

- Tap >Settings.

1. Scroll down the Settings screen and select Sound & Vibration.

2. Set up your preferred sound settings.

Lock Screen

By default, the lock screen appears after turning on your device and while waking it up from sleep mode. From the lock screen, you can proceed to your device's Android® system by swiping on your touch screen panel.

Your device's lock screen can also be customized to regulate access to your mobile data and apps.

Customizing your lock screen

If you want to change your lock screen settings from the default Swipe option, refer to the following steps:

1. Launch Quick settings then tap

1. Scroll down the Settings screen and select Lock screen.

Lock screen Location ON / High accuracy Fingerprint Easy mode Kids mode

1. In the next screen, tap Screen lock.

≡ Lock screen Device security Screen lock None

1. Tap the screen lock option you would like to use.

NOTE: For more details, see Securing your ASUS Phone.

Customizing the quick access buttons

By default, your lock screen includes quick access buttons for these apps: Phone, Messenger, and Chrome. Change this default settings and customize these buttons to launch other apps on the lock screen using the following steps:

1. Launch Quick settings then tap

1. Scroll down the Settings screen and select Lock screen.

2. Under Display, tap Quick access.

3. Select which button you would like to customize.

Tap app icon to replace with another app. Long tap and drag to rearrange.

1. Tap the app you would like to preset on the quick access button you chose to configure.

NOTE: Scroll up or down to view the current list of apps you can preset.

Select app Chrome Settings Play Store Calculator Phone Contacts Clock File Manager Gallery Mobile Manager Do It Later ZenUI FAQ

Fingerprint ID sensor

Fingerprint ID sensor prevents others from using your ASUS phone without your permission. You can use your fingerprint to unlock your device, access your phone calls and data. When you set up your fingerprint ID, you also need to set up your screen lock method for device startup.

Starting your ASUS phone for the first time

To set up your fingerprint ID when using your ASUS Phone for the first time:

1. Ensure that the fingerprint identification module and your finger are clean and dry.
2. From the Welcome page, follow the on-screen instructions to the Protect your phone page and tick Set up fingerprint.
3. Click NEXT to choose a screen lock method, and then follow the instructions to the Locate fingerprint scanner page, and click NEXT.
4. Find the fingerprint scanner on the front of your device, adjust your finger and try to cover different areas of your finger repeatedly until your fingerprint is captured.

Now repeat 16% Repeat this place-and-lift action until entire fingerprint captured.

1. Click NEXT to complete the setup.

Setting up fingerprint ID from Settings

To set up your fingerprint ID from Settings:

1. Ensure that the fingerprint scanner and your finger are clean and dry.
2. Launch the Settings screen by doing any of the following:

- Launch Quick settings then tap

- Tap >Settings.

1. Scroll down the Settings screen and select Fingerprint.

Settings Personal Themes Lock screen Location ON / High accuracy Fingerprint Easy mode

1. Tap the controls that you want to enable or disable.

≡ Fingerprint Touch Controls Answer incoming calls Tap and hold on the fingerprint sensor to answer incoming calls. Fingerprint ID Manage Fingerprints

1. Tap Manage Fingerprints and select the screen lock option you would like to use, and follow the on-screen instructions to set up the screen lock function.

NOTE: For more details, see Securing your ASUS Phone.

1. Click NEXT on the Locate fingerprint scanner page.
2. Repeatedly place-and-lift your finger on the scanner until your fingerprint is captured.
3. Click DONE to complete the setup.

Work hard, play harder

3

Chrome

Chrome for Android lets you enjoy the same fast, secure and stable web browsing experience as that on the desktop Chrome. Sign in to your Google account to sync tabs, bookmarks, and browsing history across all your devices. If you don't have a Google account, register for one.

NOTE: For details on creating a Google account, see Gmail.

IMPORTANT! Before doing any Internet surfing or Internet-related activities, ensure that your ASUS Phone is connected to a Wi-Fi or mobile network. For more details, see Staying connected.

Launching Chrome

From your Home screen, do any of the following to launch Chrome:

• Tap Chrome.
• Tap >Chrome.

https://www.as ROG Rapture GT New tab New incognito tab Bookmarks Recent tabs History Downloads Share... Find in page Add to Home screen Request desktop site Settings Help & feedback

Sharing pages

Share interesting pages from your ASUS Phone to others via an email account, cloud storage account, Bluetooth, or other ASUS Phone apps.

1. Launch Chrome.
2. From a web page, tap ▪> Share...
3. Tap the account or app that you want to use as medium in sharing the page.

Bookmarking pages

Bookmark your favorite pages or websites so you can go back and browse them again.

To bookmark a page:

From the page, tap ▪ > ☆. To view your favorite pages, tap ▪>Bookmarks, then select the page you want to view or access.

Clearing the browsing data

Clear the browsing data that are temporarily stored in your ASUS Phone to improve the loading performance of your Chrome browser. The browsing data includes browsing history, cache, cookies/site data, saved passwords, and autofill data.

1. Launch the browser.
2. Tap ▪ > Settings > Privacy > Clear browsing data.
3. Select the browsing data that you want to delete.
4. When done, click CLEAR DATA.

Gmail

Use Gmail to set up your Google account to get into Google-related services and apps as well as receive, send, and browse emails right from your ASUS Phone. You can also set up other email accounts such as Yahoo or your work email account via Gmail.

IMPORTANT! Your ASUS Phone must be connected to a Wi-Fi or mobile network so you can add an email account or send and receive emails from added accounts. For more details, see Staying connected.

To set up your Google account:

1. From your Home screen, do any of the following to launch Gmail:

- Tap Google > Gmail.

- Tap Google > Gmail.

1. Tap Add an email address.

2. Select Google, then tap Next.

3. Enter your email address. To create a new Google account, tap Or create a new account.

4. Follow the next steps to sign in to your Google account.

NOTE: If you want to set up your work account on your ASUS Phone, ask for the email settings from your network administrator.

New in Gmail All the features you love with a fresh new look GOT IT

Google Calendar

Bring your schedule to life and keep track of all your important events or reminders. Events that you create or edit will automatically sync with all Google Calendar versions that you've logged into.

Creating events

To create an event:

1. From the Home screen, tap Google > Calendar.

2. Tap then tap Event.

3. Enter your event name, and select the date and time for the event. You may set the event as an all-day or recurring event.

- All-day event: From the All day field, move the slider to the right.

- Recurring event: Tap More options > C, then select how often you want the event to recur or repeat.

1. To set the time zone, tap More options > 📋, then enter the country whose time zone you want displayed.

2. From the Add location field, enter the venue or location of the event.

3. Tap 🔔, then you may select or set the time or day to get a notification or reminder about the event.

4. From the Invite people field, enter the email addresses of your guests to the event.

5. You may also add note or attachment from the Add note or Add attachment field.

6. Once finished, tap SAVE.

Editing or removing events

To edit or remove an event:

1. From the Home screen, tap Google > Calendar.

2. Tap the event that you want to edit or delete.

3. To edit the event, tap and make the necessary changes. To remove the event, tap Delete, then tap OK to confirm the deletion.

Creating reminders

To create a reminder:

1. From the Home screen, Google > Calendar.

2. Tap + then tap Reminder.

3. Enter your reminder name and tap DONE.

4. Set the date and time for the reminder. You may set the reminder as an all-day or recurring reminder.

- All-day reminder: From the All day field, move the slider to the right.

- Recurring reminder: Tap, then select how often you want the reminder to recur or repeat.

1. Once finished, tap SAVE.

Editing or removing reminders

To edit or remove a reminder:

1. Tap Google > Calendar.
2. Tap the reminder that you want to edit or delete.
3. To edit the reminder, tap and make the necessary changes. To remove the reminder, tap > Delete, then tap OK to confirm the deletion.

File Manager

Using File Manager allows you to easily locate and manage your data on the internal storage of your ASUS Phone and its connected external storage devices.

To launch File Manager, tap ●●●● File Manager.

Tap to access the internal, external, network, and cloud storage Tap to search for a file Tap to clear search history, invite a friend, view ZenUI instant updates, and more Category Images Videos Music Compressed Favorites Apps Documents Downloads Recent Tap to display the files under the category Internal storage MicroSD Displays the usage of the internal and external storage

IMPORTANT! Before accessing files saved on the network and cloud storage, ensure that Wi-Fi or mobile network is enabled on your ASUS Phone. For details, see Staying connected.

The Cloud

Back up your data, sync files among different devices, and share files securely and privately via a Cloud account such as ASUS WebStorage, Drive, OneDrive, and Dropbox.

ASUS WebStorage

Register for or sign in to ASUS WebStorage and get free cloud storage. Automatically upload newly captured photos for instant sharing, sync files among different devices, or share files via your ASUS WebStorage account.

IMPORTANT! Ensure that Wi-Fi or mobile network is enabled on your ASUS Phone. For details, see Staying connected.

asus @ webstorage WebStorage Stream Instant capture and upload, view sweet moments everywhere! Register Login

ZenUI FAQ

Find answers from FAQs (Frequently Asked Questions) or directly interact with other Zen UI users to find and share solutions about ZenUI apps.

To access ZenUI FAQ:

1. Tap > ASUS > ZenUI FAQ.

2. Tap ZenUI FAQs, then select the app that you want to find answers for.

ZenUI FAQ Assistance ZenUI FAQs Message Board Mobile Manager Device Care Contact ASUS

Keeping in touch

4

Call in style

Dual SIM feature

The dual SIM feature of your ASUS Phone lets you manage the settings of the installed Nano SIM cards. With this feature, you can enable/disable Nano SIM cards, assign SIM names, or set one as a preferred network.

Dual SIM card settings SIM 1 Available SIM 2 Available SIM card information SIM 1 name: SIM 1 CMCC (CHINA MOBILE) Add number SIM 2 name: SIM 2 Unknown carrier Add number Preferred SIM card Voice call Always ask SMS messages SIM 1 (Available)

Renaming your Nano SIM cards

Change the names of your Nano SIM cards on your ASUS Phone so that you can identify them easily.

To change the names of your Nano SIM cards, tap SIM1 name: SIM1 or SIM2 name: SIM2 then key in the names for your Nano SIM cards.

NOTE: If your SIMs have different mobile service providers, we recommend you to use the names of these providers for your SIM names. If both SIMs have the same mobile service provider, we recommend you to use the mobile numbers for your SIM names.

Assigning a preferred SIM card

Assign a SIM card as your preferred SIM for voice calls, SMS messages, and data services.

SIM card for voice calls

When you make a call, your ASUS Phone automatically uses the preferred SIM card to connect the call.

To assign a SIM card for voice calls, tap Voice call then tap the SIM that you want to use.

Voice call SIM 1 (Available) SIM 2 (Available) Always ask Cancel

IMPORTANT! You can only use this feature if you make a call from your contacts list.

SIM card for SMS messages

To assign a SIM card for SMS messages, tap SMS messages then select from SIM1 or SIM2.

SMS messages SIM 1 (Available) SIM 2 (Available) Cancel Data service network

SIM card for data service

To assign a SIM card for data service, tap Data service network then select from SIM1 or SIM2.

Data service network SIM 1 (Available) SIM 2 (Available) Cancel

Making calls

Your ASUS Phone offers you many ways to make a call. Call your friends from your contacts list, smart dial to quickly place a call, or enter a speed-dial number to call your frequently-called contact.

NOTE: Organize your contacts in the Contacts app. For details, see Managing contacts.

Launching the Phone app

From your Home screen, do any of the following to launch the Phone app:

• Tap
• Tap

Dialing a phone number

Use the Phone app to directly dial a phone number.

1. From your Home screen, tap 🎨Phone then tap the number keys.
2. Select from call buttons SIM1 or SIM2 to dial the number.

NOTE: The labels of the call buttons may vary depending on the setting that you made to your SIM cards. For more details, see Dual SIM feature.

Dialing an extension number

When you need to call an extension number, you can do any of these steps to skip the voice prompts.

Prompting for confirmation of an extension number

You can insert a confirmation prompt for the extension number after dialing the main number.

1. From the Phone app, enter the main number.
2. Select from call buttons SIM1 or SIM2 to make the call.
3. When prompted, tap Yes to confirm the extension number.

4. Tap to end the call.

5. To insert a confirmation prompt, tap and hold # until a semi-colon (;) appears.

Auto-dialing an extension number

You can insert a short or long pause after dialing the main number, then the extension number is dialed automatically.

1. From the Phone app, enter the main number.
2. To insert a pause, tap and hold * until a comma (,) appears.
3. Enter the extension number.

4. Select from call buttons SIM1 or SIM2 to place the call.

5. Tap to end the call.

Smart dialing your contacts

As you enter the first few numbers or letters of your contact's name, Smart Dial filters through your contacts list or call logs and provide you with possible matches. You can check if the contact you're trying to reach is on the list of possible matches, then you can quickly place that call.

1. Launch the Phone app then enter the number or name of the contact.
2. From the list of possible matches, tap the contact you wish to call. If the contact is not on list, enter the complete number or name of the contact.
3. Select from call buttons SIM1 or SIM2 to make the call.

NOTE: The labels of the call buttons may vary depending on the setting that you made to your SIM cards. For more details, see also Dual SIM feature.

Calling from Contacts app

Use the Contacts app to make a call from your contacts list.

1. Launch the Contacts app.
2. Tap the contact name then tap the number that you wish to dial.

3. If there are two SIM cards installed, tap the SIM card from which you want to make the call.

4. Tap to end the call.

NOTE: To view all contacts from all contact accounts, tap Contacts to display dropdown list then tick all accounts.

Calling your favorite contacts

When you add a contact to your Favorites list, you can quickly call the contact from the Phone app.

1. Launch the Contacts app.
2. Tap 📋 > Favorites to display your Favorites list, then tap your favorite contact whom you want to call.
3. Tap to end the call.

Receiving calls

The touch screen of your ASUS Phone lights up when there is an incoming call. The display of the incoming call also varies, depending on the status of your ASUS Phone.

Answering calls

There are two ways to answer a call depending on the status of your ASUS Phone:

• If your device is active, tap Answer or to reject a call, tap Dismiss.
• If your device is locked, drag 📋 to 📞 to answer or to 🌐 to reject the call.

Managing your call logs

From your call logs, you can call back your missed calls, save calls to your contacts list, or redial your recently-called number or contact.

Saving calls to Contacts

You can add a call/number from your call logs to your contacts list.

1. From the Phone app, tap 📄 to display your call logs.
2. Tap >beside the number that you want to add to your contacts list.
3. Tap beside the number.
4. Tap Create new contact to add a new entry to your contacts list.

Tap Add to an existing contact, select a contact, then tap √ if you want to overwrite the contact's number with this new one.

Redialing your last-called number

To redial your last-called number:

1. From the Phone app, tap 📄 to display your call logs.
2. Tap Call to display your last-called number, then tap Call again to redial the number.
3. Tap to end the call.

Other call options

During an active call, tap

tap any of the possible call options for when a call is in progress.

Microphone

Turns the microphone for the active call on or off. When the microphone is off or in mute mode, you can hear the caller but the caller can't hear you.

Speakerphone

Turns the speakerphone on or off.

Call on hold

Puts an active call on hold.

Conference call

When you have subscribed to a conference call service with your mobile service provider, this icon allows you to add a contact or contacts in an active call.

NOTES:

• The number of participants in the conference call depend on your conference call subscription. You can inquire from your mobile service provider about this service.
  • For more details on conference call, see Managing multiple calls.

Record

Records an active call.

IMPORTANT! Before recording an active call, it is dictated by most local laws to ask permission from the other person or persons on the other line.

NOTE: For more details, refer to the section Recording calls.

Managing multiple calls

Your ASUS Phone provides you the convenience of making or taking two calls.

Answering another call

While you are talking on your ASUS Phone, you can hear a beeping sound, indicating of another incoming call. Tap Answer on the touch screen to receive an incoming call while on an active call.

Recording calls

Your ASUS Phone allows you to record a conversation for future reference or information.

1. Call a contact or dial a number.

2. Tap record the call.

IMPORTANT! Before recording a call, ensure that you ask for permission from the other party or parties.

021 3127 0606 Shanghai 00:09 | 00:27

1. To stop recording, tap This icon appears on the system notification bar.

2. Swipe down from the top of the screen, then tap Call recording saved notification to view the recorded conversation.

4:55 PM Mon, May 15, 2017 Clear Telecom Service Call recording saved Click to view the recorded file Android System • now

Managing contacts

Organize your contacts and easily stay in touch with them via calls, SMS messages, emails, or social networks. Group your contacts as Favorites to quickly get in touch with them, or group them as VIPs to get notified about any upcoming events, missed calls, or unread messages.

You can also sync your contacts with your email or social network accounts, link contacts' info for easy access in one place, or filter the contacts you want to keep in touch with.

To launch the Contacts app, tap 🐘Contacts.

Contacts Settings

Select how you would want to display your contacts from the Contacts settings. Such display options include displaying only those contacts with phones, sorting list by first/last name, or viewing contact names as first/last names first. To set up your Contacts settings, tap 0 >>

Settings from the Contacts app.

Setting up your profile

Make your ASUS Phone truly your own and set up your profile info.

1. Launch the Contacts app then tap Set up my profile or ME.

NOTE: ME appears when you've set up your Google account on your ASUS Phone.

1. Fill in your info such as mobile or home number. To add other info, tap Add another field.

2. When you've completed your info, tap √

Adding contacts

Add contacts to your device, corporate, Google, or other email accounts and fill in more important contact information such as contact numbers, email addresses, special events for VIPs, and more.

1. Launch the Contacts app then tap +

2. Select Device.

NOTES:

• You can also save the contact to your SIM card or an email account.
  • If you don't have an email account, tap ADD ACCOUNT then create one.

• Fill in the necessary information such as mobile or home number, email address, or group where you want to put the contact in.

• After filling in the information and you want to add more contact numbers or email addresses, tap Add new.
• If you want to add other contact information, tap Add another field.
• When you've completed the info, tap √

Adding an extension number to a contact number

You can add a contact's extension number to skip the voice prompts when making a call.

1. In the contact's information screen, enter the contact's main number and extension number in either of these two ways:

2. Insert a comma (,) after the main number, then enter the contact's extension number. There'll be a short pause before the extension number is dialed automatically. To extend the pause, tap Pause to insert another comma.

3. Insert a semi-colon (;) after the main number, then enter the contact's extension number. When dialing the contact number, you'll be prompted to confirm the extension number. Tap Yes on the confirmation message.

4. When you've completed the info, tap √

Customizing your contact's profile

Edit your contact's info, add a photo, set a ringtone, or take a photo as a cover for your contact's profile.

1. Launch the Contacts app then select the contact whose info or profile you want to edit or customize.

2. Make the changes from the contact's profile page.

Tap to edit your contact's info Tap to add your contact's profile cover from Gallery or by capturing a photo You can display a Facebook profile cover as the theme cover for a Facebook contact Tap to add your contact's photo from Gallery or by capturing a photo Actions Mobile [phone]

Setting up your VIPs

Group your contacts as VIPs to get notified about upcoming anniversaries, birthdays, and other important events. You'll also get alerts about any unread messages or emails, or any missed calls from your VIPs.

Setting up your VIP from the contact's info screen

To set up your VIP from the contact's info screen:

1. Launch the Contacts app then tap the contact you want to set up as a VIP.
2. Tap to display the contact's info screen.
3. In your selected contact's screen, select VIP under the Groups field.
4. When finished, tap √The contact is added to your VIP list.

Setting up your VIP from the VIP screen

To set up your VIP from the VIP screen:

1. Launch the Contacts app.

2. Tap >VIP.

3. In the VIP screen, tap +

4. Select the contact or contacts you want to group as VIPs, then tap - The contact or contacts are added to your VIP list.

Adding an event to a VIP contact

You can add an event to a VIP contact such as anniversary, birthday, and other important events.

1. Launch the Contacts app, tap the contact you want to add an event detail to, then tap

1. In the contact's info screen, tap Add another field > Events.

Email IM Address Notes Nickname Website Internet call Events Mobile ✓ ✗ FIELD

1. Select the date for the event, then tap Set.
2. Ensure that you select VIP under the Groups field. When finished, tap √
3. The contact's special event will appear in your calendar of events. If you want to get an event alert, set the reminder time in the Calendar app.

Marking your favorite contacts

Set your frequently-called contacts as your favorites to be able to call them quickly from the Phone app.

1. From the Home screen, tap 🎨Contacts.

2. Select the contact that you want to mark as a favorite.

3. Tap ★The contact is added to your Favorites List in the Phone app.

NOTES:

• To view your Favorites list, tap from the Home screen, then tap > Favorites.
• For more details, refer to the section Calling your favorite contacts.
- You can also set a favorite contact as a VIP. For more details, refer to the section Setting up your VIPs.

Importing contacts

Import your contacts and their respective data from one contact source to your ASUS Phone, email account, or a SIM card.

1. Tap ●●●> Contacts then tap ■ > Manage contacts.
2. Tap Import/export then select from the following importing options:

a. Import from SIM 1 card/Import from SIM 2 card

b. Import from storage

1. Select from the following accounts to save the contact:

a. Device

b. SIM1/SIM2

1. Tick to select the contacts that you wish to import and when done, tap

Exporting contacts

Export your contacts to any of the storage accounts in your ASUS Phone.

1. Tap > Contacts then tap > Manage contacts.

2. Tap Import/export then select from the following exporting options:

a. Export to SIM 1 card/Export to SIM 2 card
b. Export to storage

1. Tap to select the contacts from the following accounts:

a. All contacts
b. Device
c. SIM1/SIM2

1. Tick the contacts that you want to export.

2. When done, tap √

Managing your block list

Blocking contacts or numbers

Create your list of blocked contacts or numbers to avoid receiving any unwanted calls or messages. Your blocked calls and messages will be saved to the Block List archive.

1. Tap > Contacts then tap > Manage contacts > Block list.

2. Tap ,then do any of the following:

3. To block a contact, tap Choose from contacts, then select the contact you want to block from your contacts list.
   • To block a number from the recent call logs, tap Choose from recent call logs, then select the contact you want to block from your contacts list.
   • To block a number, tap Enter a number then enter the number that you want to block.

4. To block a SIP number, tap Enter a SIP number then enter the number that you want to block.

5. When done, tap √

Unblocking contacts or numbers

You may remove a blocked contact or number from your list and receive calls or messages from the contact or number again.

1. Tap > Contacts then tap > Manage contacts > Block list.

2. Tap and hold on the contact or number that you want to unblock then tap Remove from block list.

Social networking with your contacts

Integrating the social network accounts of your contacts makes it easier for you to view their profiles, news, and social feeds. Stay updated with the activities of your contacts in real time.

IMPORTANT! Before you can integrate social network accounts of your contacts, you need to log in to your social network account and sync its settings.

Syncing your social network account

Sync your social network account to add the social network accounts of your contacts to your ASUS Phone.

1. Do any of the following to launch the Settings app:

- Launch Quick settings then tap

- Tap >Settings.

1. From the Settings screen, tap your social network account under Accounts section.

2. Slide Contacts to ON to sync the social network accounts of your contacts.

3. Launch the Contacts app to view your contacts list.

4. To view only your contacts with social network accounts, tap Contacts to display then untick the other contact sources, leaving the social network name checked.

5. When done, tap ↻.

Send messages and more

Google Messenger

Google Messenger, an intuitive and delightful app, lets you send/receive SMS/MMS messages, as well as send group texts, photos, or audio messages. You can add emojis or stickers to your messages, share your location, archive your messages, and easily block SMS senders. You can also take photos or record videos and easily share these files.

Sending messages

1. From the Home screen, tap

1. Tap +, then select the contact whom you want to send a message to.
2. Start composing your message in the message field.
3. When you're done, select the SIM account where you're going to send your message from.

Replying to messages

1. Tap your message alert from your Home screen or Lock screen.
2. Start composing your reply in the message field.
3. When you're done, select the SIM account where you're going to send your reply from.

Fun and entertainment

5

Using a headset

Have the freedom to do other things while you're in a call or enjoy listening to your favorite music, using a headset.

Connecting the audio jack

Insert the 3.5mm headset jack into the audio port of your device.

Illustration of a smartphone with a cable inserted into its port, showing the cable's connector (no text or symbols present)

WARNING!

• Do not insert other objects into the audio jack port.
• Do not insert a cable with electric power output into the audio jack port.
• Listening at a high volume for long periods can damage your hearing.

NOTES:

• We highly recommend to use only compatible headsets or the bundled headset with this device.
- Unplugging the audio jack while listening to music, automatically pauses the music played.
- Unplugging the audio jack while watching a video, automatically pauses the video playback.

Google Play Music

With Google Play Music, you can stream your favorite music, create playlists, or listen to the radio. You can also store up to 50,000 music files to the cloud for free. You can also subscribe to Google Play Music for unlimited and ad-free access to millions of music files that you can add to your own music library.

Setting up your Google Play Music

Sign in to your Google or Gmail account to be able to use Google Play Music. Once you've signed in to your account, all music files on your ASUS Phone, including the uploaded or purchased ones from Google Play, are added to your library.

To set up your Google Play Music:

1. From the Home screen, Google > Play Music.

2. Tap ≡ then tap Settings > Tap to choose account.

3. Enter your account, then tap ADD ACCOUNT.

4. Follow the next instructions to sign in to your account.

NOTES:

• Google Play Music subscription is only available in some countries or region.
  • For more details on using Google Play Music, visit https://support.google.com.

Your precious moments

6

Capture moments

Launching the Camera app

Capture images and record videos using your ASUS Phone's Camera app. Refer to any of the steps below to open the Camera app.

From the lock screen

Drag any direction until the camera app is launched.

From the home screen

Tap

Using Camera for the first time

After launching the Camera for the first time, two consecutive features appear to help you get started: Tutorial and Image locations.

Tutorial

If it is your first time to use your ASUS Phone's camera, you will encounter the following tutorial screen after launching the Camera app. Refer to the following steps to proceed from this screen.

1. On the Tutorial screen, tap Skip if you want to skip viewing or Start to view the basic tutorial about using Camera.
2. After tapping either of these options, you will then proceed to the Remember Photo Locations screen.

Photo Locations

After going through the Tutorial screen, the Remember Photo Locations screen appears to help you create automatic location tags for your images. Refer to the following steps to proceed from this screen:

1. On the Remember Photo Locations screen, tap No thanks to proceed to the camera screen or Yes to set up location tagging for your captured images.
2. Slide Location to ON to enable the location tagging feature.
3. Tap Agree on the next screen to fully enable the feature and proceed to the Camera screen.

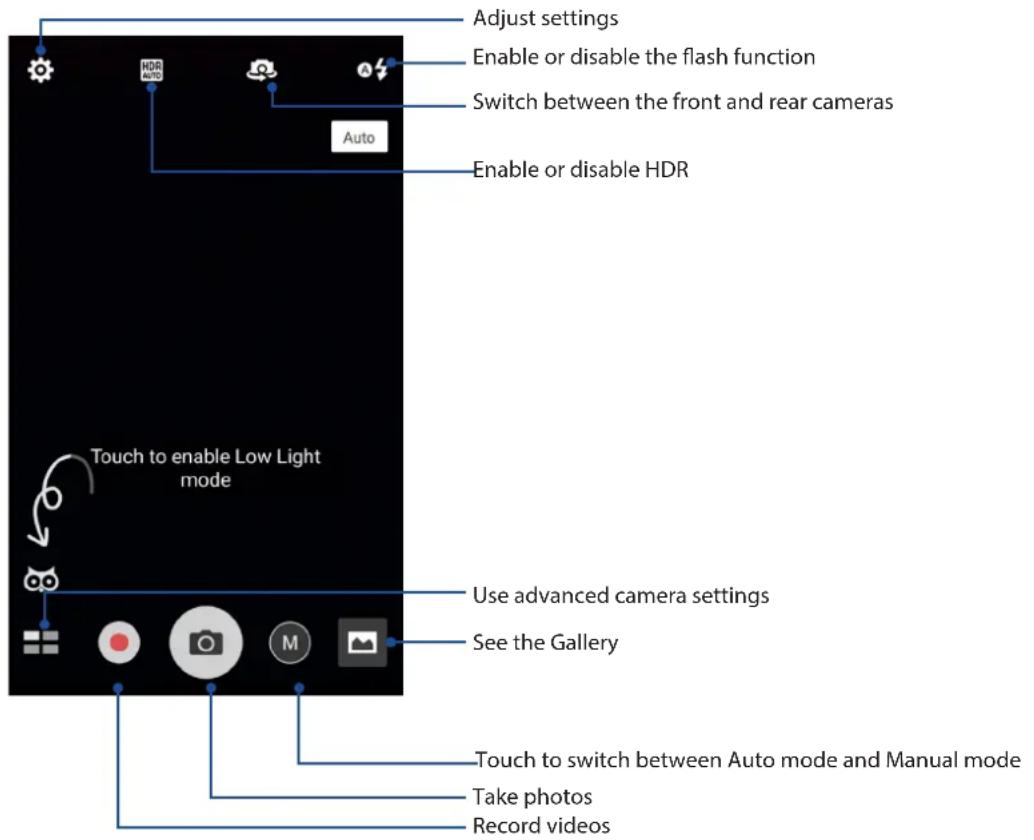

Camera home screen

Your ASUS Phone's camera is equipped with auto-scene detection and auto-image stabilizer features. It also features a video stabilization function that helps prevent shakiness while video recording.

Tap the icons to start using your camera and explore the image and video features of your ASUS Phone.

Adjust settings Enable or disable the flash function Switch between the front and rear cameras Auto Enable or disable HDR Touch to enable Low Light mode Use advanced camera settings See the Gallery Touch to switch between Auto mode and Manual mode Take photos Record videos

Image settings

Adjust the appearance of your captured images by configuring your camera's settings using the steps below.

IMPORTANT! Apply the settings first before taking images.

1. On the camera's home screen, tap

1. Scroll down and configure the available options.


Configure the image quality using these options.

Camera Image White balance Auto ISO Auto Exposure value 0 Optimization Auto Off Manual

Shoot mode

Set your shutter speed to Timer mode.

Shoot mode Touch shutter off Self timer off

Focus & exposure

Enable Touch auto-exposure or Face detection under this option.

Focus & exposure Focus mode Smart-AF Metering mode Center-weighted Touch auto-exposure On Face detection On

Video settings

Adjust the appearance of your recorded videos by configuring your camera's settings using the steps below.

IMPORTANT! Apply the settings first before taking images.

1. On the camera's home screen, tap

1. Scroll down and configure the available options.


Configure the video quality using these options.

Video Image White balance Auto Exposure value 0 Video quality Full HD Video stabilization On

Focus & exposure

Enable Touch auto-exposure under this option.

Focus & exposure Touch auto-exposure Off Others Display Smart brightness

Advanced camera features

Explore new ways of capturing images or videos and make captured extra special moments using the advanced camera features of your ASUS Phone.

IMPORTANT! Apply the settings first before taking images. Available features may vary per model.

Time Rewind

After selecting Time Rewind, your shutter starts taking burst shots two seconds before you actually press the shutter button. As a result, you get a timeline of images where you can choose the best image to save on your Gallery.

NOTE: The Time Rewind feature can only be used on the rear camera.

Capturing Time Rewind photos

1. From the Camera app's home screen, tap
   ime Rewind.
2. Tap to start capturing photos.
3. Adjust the time (in seconds) that you want your captured photo to play in reverse or rewind mode.
4. Tap ☑ when finished.

Using the Time Rewind viewer

1. After pressing the shutter, the Time Rewind viewer appears onscreen on top of a captured photo. Rotate the button on the viewer to browse through the photos you just took.

NOTE: Tap Best to view the best photo suggestion from the timeline.

1. Select a photo then tap Done to save it to Gallery.

Low light

Using PixelMaster, your camera's light sensitivity is increased by up to 400% to enhance noise reduction and boost color contrast by up to 200% . Use this mode to transform any subject into a great photo or video—with or without ample natural lighting.

Capturing Low light photos

1. From the Camera app's home screen, tap

.low light.

1. Tap 📄 to start capturing photos.

Capturing Low light videos

1. From the Camera app's home screen, tap Low light.

2. Tap to start recording a video.

HDR Pro

The High-dynamic-range (HDR) feature allows you to take more detailed images for low-light and highly contrasting scenes. HDR is recommended for use when taking images on brightly lit locations, helping balance out the colors produced on your image.

Capturing HDR photos

1. From the Camera app's home screen, tap HDR Pro.

2. Tap to start capturing HDR photos.

Panorama

Capture images from various angles using Panorama. Images captured from a wide angle perspective are automatically stitched together using this feature.

Capturing panoramic photos

1. From the Camera app's home screen, tap Panorama.

2. Tap then pan your ASUS Phone to the left or right to capture the scenery.

NOTE: While panning your ASUS Phone, a timeline of thumbnails appears on the lower part of your screen as it captures the scenery.

1. Tap ☑ when finished.

Selfie

Take advantage of your rear camera's high megapixel specs without worrying about pressing the shutter button. Using face-detection, you can set your ASUS Phone to detect up to four faces using the rear camera then automatically capture your selfie or group selfie.

Capturing Selfie photos

1. From the Camera app screen, tap 📄 Selfie.

1. Tap ☐ choose how many people should be included in the photo.
2. Use the rear camera to detect faces and wait for your ASUS Phone to start beeping, counting down until it captures the photo.
3. Tap ☑ to save the photo.

Depth of field

Take macro shots with a soft background using the Depth of field. This feature suits close up photos of subjects for a more defined and dramatic result.

Capturing photos with depth of fields

1. From the Camera app screen, tap Depth of field.
2. Tap 📄 tart capturing macro photos.

Miniature

Simulate the tilt-shift effect of DSLR lenses via the Miniature feature. Using this feature allows you to focus on specific areas of your subject, adding a bokeh effect that can be used on both photos and video using your ASUS Phone.

Capturing Miniature photos

1. From the Camera app screen, tap Miniature.
2. Tap to select your focus area, then use your two fingers to adjust the focus area's size and position.
3. Tap to decrease or decrease the background blur. Tap or increase or decrease saturation.
4. Tap 📄 capture Miniature photos.

Smart remove

Eliminate unwanted details immediately after capturing the image using the Smart remove feature.

Capturing Smart remove photos

1. From the Camera app screen, tap ■ Smart remove.
2. Tap Capturing photos that can be edited using Smart remove.
3. On the captured photo, tap the outline around the detected moving object to delete it.
4. Tap ☑ to save the photo.

All Smiles

Capture the perfect smile or the wackiest facial expression from a range of photos using the All Smiles feature. This feature lets you take five consecutive photos after pressing the shutter button, automatically detecting faces on the image for comparison.

Capturing All smiles photos

1. From the Camera app's home screen, tap All smiles.
2. Tap ☐ start capturing photos that can be edited using All Smiles.
3. Touch the subject's face, then select the subject's best facial expression.
4. Swipe down from the top, then tap ☑ to save the photo.

Beautification

Have fun during and after taking photos of your family and friends using the Beautification feature of your ASUS Phone. When enabled, this feature allows you to make live beauty enhancements on your subject's face before you press the shutter button.

Capturing Beautification photos

1. From the Camera app's home screen, tap □ Beautification.
2. Tap to start capturing the photo.
3. Tap the thumbnail to preview the photo and display the Beautification settings.
4. Tap and select your preferred Beautification feature, then tap to save the photo.

GIF animation

Create GIF (Graphics Interchange Format) images straight from your ASUS Phone's camera using the GIF animation feature.

Capturing GIF animation photos

1. From the Camera app's home screen, tap GIF Animation.
2. Long press to start capturing burst photo for GIF animation.
3. Make your preferred adjustments to the GIF animation settings.
4. Tap ☑ when finished.

Time lapse

The time lapse video feature of your ASUS Phone allows you to capture stills for automatic time lapse playback. In effect, events seem to move in a fast-forward manner though they actually occurred and were recorded between long intervals.

Recording Time lapse videos

1. From the Camera app's home screen, tap 📁 Time lapse.
2. Tap then select the time lapse interval.
3. Tap to start taking Time lapse videos.

Night

Take well-lit photos even on night time or on low-light situations using the Night feature of your ASUS Phone.

NOTE: Keep your hands steady while before and while the ASUS Phone is capturing the image to prevent blurry results.

Capturing Night photos

1. From the Camera app's home screen, tap Night.
2. Tap 📄 for start capturing Night photos.

Using the Gallery

View images and play videos on your ASUS Phone using the Gallery app.

This app also allows you to edit, share, or delete image and video files stored in your ASUS Phone. From Gallery, you can display images in a slideshow or tap to view the selected image or video file.

To launch Gallery, tap 🎨 Gallery.

Viewing files from your social network or cloud storage

By default, your Gallery displays all the media files on your ASUS Phone according to their album folders.

To view the media files from other locations accessible via your ASUS Phone:

1. From the main screen, tap

1. Tap any of the following source locations to view their respective media files.

Gallery Device All photos Videos Albums Events wall People Location Trash My cloud + Add cloud service

NOTES:

• You can download photos to your ASUS Phone from your cloud account and use them as your wallpaper or a contact's cover image.
• For details on adding cover images to your contacts, see Customizing your contact's profile.
• For details on using photos or images as your wallpaper, see Wallpapers.

IMPORTANT! Internet connection is required for viewing photos and videos under ASUS HomeCloud and My cloud.

Viewing the photo location

Enable the location access on your ASUS Phone, and get the location details on your photos. Your photos' location details include the area where the photos are taken, as well a map of the location via Google Map or Baidu (in China only).

To view the details of a photo:

1. Turn on the location access from >Settings > Location.

2. Ensure that you have shared your location to Google Map or Baidu.

3. Launch the Gallery app, and select the photo whose photo details you want to view.

4. Tap the photo then tap

Time 10:37 PM 08.09.1979 (Thursday) Location London, Victoria Embankment, SW1A, United Kingdom 51.503513, -0.122019 293484615_71ea950109_o

Tap to show the photo location details

Sharing files from the Gallery

1. From the Gallery screen, tap the folder where the files you want to share are located.
2. After opening the folder, tap to activate file selection.
3. Tap the files you want to share. A check mark appears on top of the image you select.
4. Tap 📄 can select from the list where you want to share the images.

Deleting files from the Gallery

1. From the Gallery screen, tap the folder where the files you want to delete are located.
2. After opening the folder, tap to activate file selection.

3. Tap the files you want to delete. A check mark appears on top of the image you select.

4. Tap

Editing images

The Gallery also features its own image editing tools that you can use to enhance images saved on your ASUS Phone.

1. From the Gallery screen, tap the folder where the files are located.
2. After opening the folder, tap the image you want to edit.

3. Once the image is opened, tap it again to show its functions.

4. Tap Open the image editing toolbar.

5. Tap any of the icons on the editing toolbar to apply changes to the image.

Staying connected

7

Mobile network

When there's no available Wi-Fi network that you can connect to, you can enable your mobile network's data access for Internet connection.

Enabling the mobile network

1. Do any of the following to launch the Settings screen:

- Launch Quick settings then tap

- Tap Settings.

1. Tap More > Cellular networks.

2. Slide Data enabled to ON, and configure the other mobile network settings, if necessary.

NOTES:

• If you access the Internet via your mobile network, additional charges will be incurred depending on your data plan.
• For more details on your mobile network charges/fees and settings, contact your mobile service provider.

Wi-Fi

The Wi-Fi technology of your ASUS Phone gets you connected to the wireless world. Update your social media accounts, browse the Internet, or exchange data and messages wirelessly from your ASUS Phone.

Enabling Wi-Fi

1. Launch the Settings screen by doing any of the following:

2. Launch Quick settings then tap > Wi-Fi.

3. Tap > Settings > Wi-Fi.

4. Slide the Wi-Fi switch to the right to turn on the Wi-Fi.

NOTE: You can also enable the Wi-Fi from Quick Settings screen. Refer to section Quick Settings on how to launch Quick Settings screen.

Connecting to a Wi-Fi network

1. On the Settings screen, tap Wi-Fi to display all detected Wi-Fi networks.
2. Tap a network name to connect to it. For a secured network, you may be prompted to key in a password or other security credentials.

NOTES:

• Your ASUS Phone automatically reconnects to the network that you connected with previously.
• Turn off the Wi-Fi feature when you're not using it to help save battery power.

Disabling Wi-Fi

To disable Wi-Fi:

1. Launch the Settings screen by doing any of the following:

2. Launch Quick settings then tap > Wi-Fi.

3. Tap > Settings > Wi-Fi.

4. Slide the Wi-Fi switch to the left to turn off the Wi-Fi.

NOTE: You can also disable the Wi-Fi from Quick Settings screen. See Quick Settings on how to launch Quick Settings screen.

Bluetooth®

Use the Bluetooth feature of your ASUS Phone to send or receive files and stream multimedia files with other smart devices over short distances. With Bluetooth, you can share your media files with your friends' smart devices, send data for print with a Bluetooth printer, or play music files with a Bluetooth speaker.

Enabling Bluetooth®

1. Do any of the following to launch the Settings screen:

2. Launch Quick settings then tap 📞 > Bluetooth.

3. Tap > Settings > Bluetooth.

4. Slide the Bluetooth switch to the right to turn on the Bluetooth.

NOTE: You can also enable the Bluetooth from Quick Settings screen. See Quick Settings on how to launch Quick Settings screen.

Pairing your ASUS Phone to a Bluetooth ^® device

Before using the Bluetooth feature of your ASUS Phone in full scale, you have to pair it first with the Bluetooth device. The ASUS Phone automatically stores the pairing connection of the Bluetooth device.

1. On the Settings screen, tap Bluetooth to display all available devices.

IMPORTANT!

• If the device that you want to pair is not in the list, ensure to enable its Bluetooth feature and is discoverable.

• See the user guide that came with your device to learn how to enable its Bluetooth and and set it to discoverable.

• Tap > Refresh to scan for more Bluetooth devices.

• In the list of available devices, tap the Bluetooth device that you want to pair with.
• Ensure that the same passkey show on both devices, then tap PAIR.

NOTE: Turn off the Bluetooth feature when you're not using it to help save battery power.

Unpairing your ASUS Phone from the Bluetooth® device

1. On the Settings screen, tap Bluetooth to display all available and paired devices.
2. In the list of paired devices, tap of Bluetooth device that you want to unpair, then tap Forget.

Tethering

When Wi-Fi service is not available, you can use your ASUS Phone as a modem or turn it into a Wi-Fi hotspot to get Internet access on your laptop, tablet, and other mobile devices.

IMPORTANT! Most mobile service providers may require a data plan for you to be able to use the tethering function. Contact your mobile service provider about availing of this data plan.

NOTES:

• Internet access via tethering may be slower than the standard Wi-Fi or mobile connection.
  • Only a limited number of mobile devices can tether to your ASUS Phone for Internet access.
  • Turn off the tethering feature when you're not using it to help save battery power.

Wi-Fi Hotspot

Turn your ASUS Phone into a Wi-Fi Hotspot to share Internet connection with other devices.

1. Do any of the following to launch the Settings screen:

- Launch Quick settings then tap

- Tap >Settings.

1. Tap More > Tethering & portable hotspot.

2. Tap Portable Wi-Fi hotspot to set up.

3. Assign a unique SSID or network name and a strong 8-character password for your Wi-Fi hotspot. When done, tap Save.

Set up Wi-Fi hotspot Set up Allowed devices Network name My ASUS Hide SSID Security WPA2 PSK Password ********** The password must have at least 8 characters. Show password Select AP Band 2.4 GHz Band Disable Wi-Fi hotspot when inactive Cancel Save

1. From the Tethering screen, slide Portable Wi-Fi hotspot to ON.

Tethering & portable hots... Portable Wi-Fi hotspot Tap to set up Share network Wi-Fi hotspot users USB tethering

1. Connect other devices to your ASUS Phone's hotspot connection the same way you connect to a Wi-Fi network.

Bluetooth Tethering

Enable Bluetooth on your ASUS Phone and use it as a modem for Internet access on your Bluetooth-enabled mobile devices such as a laptop or a tablet.

1. Enable Bluetooth on your ASUS Phone and the other device.

2. Pair both devices.

NOTE: For details, see Pairing your ASUS Phone to a Bluetooth® device.

1. From the Settings screen, tap More > Tethering & portable hotspot, then silde Bluetooth tethering to ON. You can now surf the Internet or do Internet-related activities on your ASUS Phone.

Tethering & portable hots... Portable Wi-Fi hotspot Tap to set up Share network Wi-Fi hotspot users USB tethering USB not connected Bluetooth tethering Sharing this device's Internet connection

Travel and Maps

8

Weather

Get real-time weather updates straight from your ASUS Phone using the weather app. Using Weather, you can also check other weather details from around the world.

Launching the Weather app

From your Home screen, launch the Weather app using either of the following options:

- Tap > Weather.

- From your ASUS Phone's home screen, tap the weather icon.

5:14 Fri, Dec 29 ◆ Songjiang G OFF+ Google Google Play Store BeautyLive Gallery ASUS Phone Messaging Chrome Camera

Weather home screen

Set up and get your current location's weather updates as well as other parts of the world.

Songjiang Shanghai, China Tap to search for a city's weather info Tap to get the area's current weather info, refresh the weather info, edit the location list, or configure the weather settings Overcast 6°C Low 1°C | High 7°C RealFeel® 2°C AccuWeather Hourly forecast > FRI SAT SUN MON TUE WED THU 5% 1% 2% 0% 1% 1% 0% 9°C 12°C 14°C 16°C 17°C 15°C 12°C 1°C 3°C 5°C 5°C 7°C 3°C 4°C Extended forecast > TU:23.55R Load update: 16:20

Clock

Customize the time zone settings of your ASUS Phone, set alarms, and use your ASUS Phone as a stop watch using the Clock app.

Launching Clock

Launch the Clock app using either of the following options:

• Tap >Clock.
• From your ASUS Phone's home screen, tap the digital clock display.

5:14 Fri. Dec 29 ◎ Songjiang ⬆ OFF Google Google Play Store Beautiful live Gallery ASUS

World Clock

Tap to access the world clock settings of your ASUS Phone.

Tap this to toggle between the weather forecast and the world clock's map Tap this to set your clock on night mode Tap this to edit the cities marked on your world clock Tap this to access the Clock app settings Songjiang 6:09 PM MON 5/15/17 Current weather > Songjiang 5/15/17 70°F 6:09 PM Tap this to add a new city to mark on your world clock's map.

Alarm clock

Tap to access the alarm clock settings of your ASUS Phone.

Tap this to delete any of the previously set alarms Tap this to access the settings of the alarm clock feature Beijing Thursday, 23/02/2017 07:00 Weekdays 09:00 Weekends Tap this to set a new alarm time

Stopwatch

Tap to use your ASUS Phone as a stopwatch.

00:00.00 00:00.00 Start Tap this button to start running the stopwatch feature Press the "Start" button to start the stopwatch.

Timer

You may set multiple timer options for your ASUS Phone. To do this, follow the steps below:

Setting the timer

1. Tap to access the timer feature of your ASUS Phone.

Tap this to access the settings of the timer feature Tap this to delete the preset timer Tap to set the ringtone for the timer Tap this to edit the preset timer Tap this button to start running the timer 3 minutes 00:03:00 Start 5 minutes 00:05:00 Start + Tap this to set a new timer

Zen Everywhere

9

Special Zen Tools

Calculator

One-swipe and a tap is all it takes to launch your Calculator. When you open the Quick settings panel, the Calculator icon is there visibly on top of the list. Tap it to get started with your computations.

2:38 PM Mon, May 15, 2017 Tap this to enable the calculator AudioWizard Power & Boost Calculator Auto-start Manager Flashlight Cellular data Twinet Sound Location Hotspot Bluelight Filter Airplane mode Emergency calls only Android System • 9m • Screenshot captured. Tap to view your screenshot. SHARE DELETE Tap for more options.

Calculator screen

≡ CalculatorDeg
C	+/-	%	DEL
7	8	9	÷
4	5	6	×
1	2	3	-
0	.	=	+

Sound Recorder

Record audio files using your ASUS Phone by enabling the Sound Recorder app.

Launching Sound Recorder

To launch Sound Recorder, tap sound Recorder.

Tap to customize the Sound Recorder settings Tap to view the list of saved audio recording files 00:00:00 Record Tap to start audio recording

Pausing a recording

During a paused recording, you can choose to resume, delete, or save the recording.

Voice 1 00:00:12 Tap to delete the recording Tap to resume the recording Tap to save the recording Delete Record Done

Recording List

From the Recording List, you can play, rename, share, or delete a saved audio recording file.

To view your recording list, tap 📄m the Sound Recorder main screen.

Recording List Voice 1 23/02/2017 16:38 941K 00:00:13 Tap to share, rename, or delete your selected recording Tap to play/pause your selected recording Voice 1 00:00:00/00:00:13

Mobile Manager

Mobile Manager provides an integrated interface for several apps that are designed to optimize device performance, manage the phone power, storage usage and system notifications.

To launch the ASUS Mobile Manager app, tap from your Home screen then tap Mobile Manager.

Mobile Manager Battery Charging 44% SCAN RAM 2.9 GB/3.7 GB 79% Tap this to launch the Power saver app Tap this to boost system memory Data usage Power saver Boost Tap this to view the mobile data usage, set a monthly limit for mobile data use, and control apps to access the Internet only over Wi-Fi, only over mobile network, neither or both Notifications Cleanup Privacy & Security Tap this to run privacy and security scan Tap this to uninstall the selected unused apps to free up some storage Tap this to allow or block notifications from an individual app

Maintain your Zen

10

Keeping your device up-to-date

Keep your ASUS Phone in the loop of Android system updates and upgraded apps and features.

Updating your system

1. Tap • then tap Settings.
2. On the Settings screen, slide down to display other items then tap About.
3. Tap System update then tap Check Update.

NOTE: You can preview the last time your ASUS Phone's system was updated at the Last update check: of the System update window.

Storage

You can store data, apps, or files on your ASUS Phone (internal storage), on an external storage, or on an online storage. You need an internet connection to transfer or download your files on an online storage. Use the bundled USB cable to copy files to or from the computer to your ASUS Phone.

Backup and reset

Back up data, Wi-Fi passwords, and other settings to Google servers using your ASUS Phone.

1. Tap • then tap Settings > Backup & reset.

2. From the Backup & reset window, you can:

3. Back up my data: This feature backs up your data, Wif-Fi passwords, and other settings to Google servers when enabled.

4. Backup account: Allows you to specify the account you to be associated when you save your backup.
5. Automatic restore: This feature facilitates restoration of backed up settings and data when you reinstall an app.
6. Network settings reset: This will reset all network settings including Wi-Fi, Cellular network and Bluetooth settings.
   • Factory data reset: Erases all data on phone.

Securing your ASUS Phone

Use the security features of your ASUS Phone to prevent unauthorized calls or access of information.

Unlocking your screen

When the screen is locked, you can open it with the security unlocking options that the ASUS Phone offers you.

1. Tap ●●● then tap Settings > Lock screen.

2. Tap Screen lock then select an option to unlock your ASUS Phone.

NOTES:

• Refer to section Unlock screen options for more information.
• To deactivate the unlock screen option that you set, tap None on Choose screen lock screen.

Unlock screen options

Choose from these options to lock your ASUS Phone.

Swipe

Swipe up to unlock your ASUS Phone.

6:14 Mon. May 15 ♦ Songjiang OFF, Cloudy Swipe up to unlock Charged

PIN

Key in at least four numbers to set a PIN.

Choose your PIN ...... Cancel Continue 1 2 3 4 5 6 7 8 9 × 0 Next

IMPORTANT! Ensure to remember the PIN that you created to unlock your device.

Pattern

Slide your finger on the dots and create a pattern.

Choose your pattern Pattern recorded Clear Continue

IMPORTANT! You can create a pattern with a minimum of four dots. Ensure to remember the pattern that you created to unlock your device.

Password

Key in at least four characters to create a password.

Choose your password ...... Cancel Continue 123 1 2 3 4 5 6 7 8 9 0 q w e r t y u i o p a s d f g h j k l ↑ z x c v b n m 1@# , ... Next

IMPORTANT! Ensure to remember the password that you created to unlock your device.

Configuring the other screen security features

Aside from the mode of screen lock, you can also do the following on the Screen security window:

- Quick Access: Slide the Quick Access switch to ON to launch apps on the lock screen.

Setting your ASUS Phone identity

Know your ASUS Phone's identity such as serial number, IMEI (International Mobile Equipment Identity) number, or model number.

This is important, as when you may lose your ASUS Phone, you can contact your mobile carrier and provide the information to blacklist the unauthorized use of your ASUS Phone.

To display your ASUS Phone's identity:

1. Tap : then tap Settings.

2. On the Settings screen, slide down to display other items then tap About. The About screen displays the status, legal information, model number, operating system version, hardware, and software information of your ASUS Phone.

3. To see the serial number, SIM contact number, and IMEI of your ASUS Phone, tap Status.

Appendix

Safety information

CAUTION! Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

ASUS Phone care

- Use your ASUS Phone in an environment with ambient temperatures between 0 °C (32 °F) and 35 °C (95 °F).

The battery

WARNING: Disassembling the battery by yourself will void its warranty and may cause serious harm.

Your ASUS Phone is equipped with a high performance non-detachable Li-polymer battery. Observe the maintenance guidelines for a longer battery life.

• Do not remove the non-detachable Li-polymer battery as this will void the warranty.
• Avoid charging in extremely high or low temperature. The battery performs optimally in an ambient temperature of +5 °C to +35 °C.
• Do not remove and replace the battery with a non-approved battery.
• Use only ASUS battery. Using a different battery may cause physical harm/injury and may damage your device.
• Do not remove and soak the battery in water or any other liquid.
• Never try to open the battery as it contains substances that might be harmful if swallowed or allowed to come into contact with unprotected skin.
• Do not remove and short-circuit the battery, as it may overheat and cause a fire. Keep it away from jewelry or metal objects.
• Do not remove and dispose of the battery in fire. It could explode and release harmful substances into the environment.

• Do not remove and dispose of the battery with your regular household waste. Take it to a hazardous material collection point.

• Do not touch the battery terminals.

• To avoid fire or burns, do not disassemble, bend, crush, or puncture the battery.

NOTES:

• Risk of explosion if battery is replaced by an incorrect type.
• Dispose of used battery according to the instructions.

The charger

- Use only the charger supplied with your ASUS Phone.

Caution

Your ASUS Phone is a high quality piece of equipment. Before operating, read all instructions and cautionary markings on the (1) AC Adapter.

• Do not use the ASUS Phone in an extreme environment where high temperature or high humidity exists. The ASUS Phone performs optimally in an ambient temperature between 0 °C (32 °F) and 35 °C (95 °F).
• Do not disassemble the ASUS Phone or its accessories. If service or repair is required, return the unit to an authorized service center. If the unit is disassembled, a risk of electric shock or fire may result.
• Do not short-circuit the battery terminals with metal items.

Canada, Industry Canada (IC) Notices

This device complies with Industry Canada's licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Radio Frequency (RF) Exposure Information

The radiated output power of the Wireless Device is below the Industry Canada (IC) radio frequency exposure limits. The Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized. This device has been evaluated for and shown compliant with the IC Specific Absorption Rate ("SAR") limits when installed in specific host products operated in portable exposure conditions.

Canada's REL (Radio Equipment List) can be found at the following web address: http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng

Additional Canadian information on RF exposure also can be found at the following web address: http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng

http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

CAN ICES-3(B)/NMB-3(B)

This Class B digital apparatus complies with Canadian ICES-003.

This device and its antenna(s) must not be co-located or operated in conjunction with any other antenna or transmitter, except tested built-in radios. The County Code Selection feature is disabled for products that are marketed in the US/ Canada.

The IC ID for this device is 3568A-A002.

EU Radio Equipment Directive Compliance

Simplified EU Declaration of Conformity

Hereby, ASUSTek Computer Inc. declares that the radio equipment ASUS_A002 is in compliance with Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/support/. (Search for ZS572KL)

RF Output Table

Items Maximum Radio-Frequency Output Power Table
Bluetooth	Bluetooth RF (2400~2483.5 MHz) 5.5 (dBm)
	Bluetooth 4.0-LE (2400~2483.5 MHz) -4 (dBm)
WLAN	2.4GHz 802.11b (2400~2483.5 MHz) 16.5 (dBm)
	2.4GHz 802.11g (2400~2483.5 MHz) 16.5 (dBm)
	2.4GHz 802.11n HT20 (2400~2483.5 MHz) 16.5 (dBm)
	5GHz 802.11a (5150~5250; 5250~5350; 5470~5725 MHz)	16.5 (dBm)
	5GHz 802.11an HT20 (5150~5250; 5250~5350; 5470~5725 MHz)	16.5 (dBm)
	5GHz 802.11an HT40 (5150~5250; 5250~5350; 5470~5725 MHz)	16.5 (dBm)
	5GHz 802.11ac HT80 (5150~5250; 5250~5350; 5470~5725 MHz)	16.5 (dBm)
GSM	GSM 900 Burst (880~915; 925~960 MHz) 32.5 (dBm)
	GSM 1800 Burst (1710~1785; 1805~1880 MHz) 30 (dBm)
WCDMA	WCDMA Band I (1920~1980; 2110~2170 MHz) 21.5 (dBm)
	WCDMA Band VIII (880~915; 927~960 MHz) 24 (dBm)
LTE	LTE Band I (1920~1980; 2110~2170 MHz) 22 (dBm)
	LTE Band III (1710~1785; 1805~1880 MHz) 23 (dBm)
	LTE Band VII (2500~2570; 2620~2690 MHz)	23 (dBm)
	LTE Band VIII (880~915; 927~960 MHz)	23.5 (dBm)
	LTE Band XX (832~862; 791~821 MHz)	24 (dBm)
	LTE Band XXVIII (703~748 MHz)	24 (dBm)
	LTE Band XXXVIII (2570~2620 MHz)	23 (dBm)
	LTE Band XL (2300~2400 MHz)	24 (dBm)

The Wi-Fi operating in the band 5150-5350MHz shall be restricted to indoor use for countries listed in the table below:

AT	BE	BG	CZ	DK	EE	FR
DE	IS	IE	IT	EL	ES	CY
LV	LI	LT	LU	HU	MT	NL
NO	PL	PT	RO	SI	SK	TR
FI	SE	CH	UK	HR

RF Exposure Information

This ASUS product has been tested and meets applicable European SAR limits. The SAR limit is 2.0 W/kg in countries that set the limit averaged over 10 grams of tissue. The specific maximum SAR values for this device are as follows:

• Head: 0.85 W/Kg
  • Body: 1.59 W/Kg

When carrying this device or using it while worn on the body, either use an approved accessory such as a holster or otherwise maintain a distance of 0.5 cm from the body to ensure compliance with RF exposure requirements.

CE Marking

Using GPS (Global Positioning System) on your ASUS Phone

To use the GPS positioning feature on your ASUS Phone:

• Ensure that your device is connected to the Internet before using Google Map or any GPS-enabled apps.
• For first-time use of a GPS-enabled app on your device, ensure that you are outdoors to get the best positioning data.
• When using a GPS-enabled app on your device inside a vehicle, the metallic component of the car window and other electronic devices might affect the GPS performance.

Prevention of Hearing Loss

To prevent possible hearing damage, do not listen at high volume levels for long periods.

Laser safety information

CLASS 1 LASER PRODUCT

Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

India E-Waste (Management) Rules,2016

This product complies with the "India E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls (PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

Regional notice for Singapore

Complies with IMDA Standards DB103778

This ASUS product complies with IMDA Standards.

General Usage (typical body-worn) (for Japan)

This device (front & rear side) should be operated under a seperation distance of 5 mm from the human body.

* The other four sides are not in close proximity to the human body at the general use as described above.

Coating notice

IMPORTANT! To provide electrical insulation and maintain electrical safety, a coating is applied to insulate the device except on the areas where the I/O ports are located.

Green ASUS notice

ASUS is devoted to creating environment-friendly products and packaging to safeguard consumers' health while minimizing the impact on the environment. The reduction of the number of the manual pages complies with the reduction of carbon emission.

For the detailed user manual and related information, refer to the user manual included in the ASUS Tablet or visit the ASUS Support Site at http://support.asus.com/.

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for detailed recycling information in different regions.

Model name: ASUS_A002(ZS572KL)

Manufacturer: ASUSTeK Computer Inc.

Address: 4F, No.150, LI-TE RD., PEITOU, TAIPEI 112, TAIWAN

Authorised representative in Europe: ASUS Computer GmbH

Address: HARKORT STR. 21-23, 40880 RATINGEN, GERMANY

Index

A

Advanced camera features 65

All Smiles 68

- see also Advanced camera features 65

App shortcuts 25

- adding 25

- removing 25

ASUS Phone 8

- charging 12

- microSD card 9

- nano SIM card 9

- parts and features 8

-turning on/off 15

B

Backup and reset 87

Beautification68

- see also Advanced camera features 65

block list 56

- blocking 56

- unblocking 57

Bluetooth74

- enabling 74

- pairing 75

- see also Bluetooth Tethering 77

- unpairing 75

BluetoothTethering77

- see also Tethering 76

C

Calculator83

Call logs 48

- redial your last-called number 49

- saving calls to Contacts 48

Calls46

- answering 48

- calling from Contacts 47

- calling your favorite contacts 48

- dialing a phone number 46

- launching the Phone app 46

- other call options 49

- receiving 48

- recording 50

- see also Contacts 51

- see Call logs 48

- see Extension number 46

- see Multiple calls 50

- see Smart Dialing 47

Camera61

- Camera home screen 62

-first-time use 61

- image settings 63

- focus & exposure 63

- image 63

- shoot mode 63

- launching 61

- see Advanced camera features 65

- video settings 64

Chrome36

- bookmarking pages 37

-clearing the browser cache 37

- launching 36

- sharing pages 37

Clock80

- alarm clock 81

- launching 80

- stopwatch 81

- timer 82

- world clock 80

Cloud42

Contacts51

- adding 52

- adding an extension number 52

- contacts settings 51

- customizing your contact's profile 53

-exporting 56

- importing 55

- see also Block list 56

- see also Social networking 57

- setting up your profile 51

D

Date and time 30

- setting up 30

Depth of field 67

- see also Advanced camera features 65

Dual SIM feature 44

- assigning 45

- renaming 44

E

Easy Mode 27

- adding contacts 29

- adding shortcuts 28

- disabling 29

-enabling 27

- removing contacts 29

- removing shortcuts 28

Extension number 46

- auto dialing 47

- confirmation prompt 46

- dialing 46

F

Favorite contacts 48

- calling 48

- marking 55

File Manager 41

Fingerprint33

- setting up fingerprint ID from Settings 34

- manage Fingerprints 35

- starting your ASUS phone for the first time 33

- locate finger print scanner 33

- protect your phone 33

G

Gallery70

-deleting files 72

-editing images 72

- sharing files 72

- viewing files from social network or cloud storage70

- viewing the photo location 71

GIF animation 69

- see also Advanced camera features 65

Gmail38

Google Calendar 39

- creating events 39

- creating reminders 40

-editing or removing events 39

- editing or removing reminders 40

Google Messenger 58

- replying to messages 58

- sending messages 58

Google Play Music 60

- setting up your Google Play Music 60

H

HDR66

- see also Advanced camera features 65

Headset59

- connecting 59

Home screen 21

- notification icons 22

- personalizing 25

- see also App shortcuts 25

- see also Easy Mode 27

- see also Wallpapers 26

- see also Widgets 25

L

Lock screen 31

- customizing 31

- customizing the quick access buttons 32

- see also Securing your ASUS phone 88

Low light 65

- see also Advanced camera features 65

M

Managing your call logs 48

- redialing your last-called number 49

- saving calls to Contacts 48

Miniature67

- see also Advanced camera features 65

Mobile Manager 86

Mobile network 73

- enabling 73

Multiple calls 50

- answering another call 50

N

Night69

- see also Advanced camera features 65

P

Panorama66

- see also Advanced camera features 65

Q

Quick settings 23

- adding or removing buttons 23

R

Ringtone30

- setting up 30

- sound & vibration 30

S

Security88

Selfie66

- see also Advanced camera features 65

Smart Dialing 47

Smart remove 68

- see also Advanced camera features 65

Social networking 57

- syncing 57

Sound Recorder 84

- pausing a recording 85

- recording list 85

Storage87

System87

- updating 87

System notifications 24

T

Tethering76

- bluetooth tethering 77

- Wi-Fi hotspot 76

Time lapse 69

- see also Advanced camera features 65

Time Rewind 65

- see also Advanced camera features 65

Touchscreen18

- launching apps or selecting items 18

- moving or deleting items 18

- moving through pages or screens 19

-zooming in 19

-zooming out 20

V

VIPs53

- adding an event 54

- setting up from the contact's screen 53

- setting up from the VIP screen 54

W

Wallpapers26

-animated wallpaper 27

Weather78

- launching 78

- weather home screen 79

WebStorage42

Widgets25

Wi-Fi73

- connecting 74

- disabling 74

- enabling 73

- see also Wi-Fi Hotspot tethering 76

Z

Zen UI 7

ZenUI FAQ 43
