USER MANUAL VTC-IRX36/3895 Vitek
- 550 TVL (Color) / 580 TVL (B/W)
- 3.8\~9.5mm / F1.2 Externally Adjustable Varifocal Auto Iris Lens
• 36 IR LEDs with 120' Range
• 0 Lux Operation (IR LEDs On)
- IP66 Weatherproof Rated
• 12VDC/24VAC Dual Voltage Operation
CONTENT VERIFICATION
Prior to the installation of this cameras, please verify that the packaging contains the following:
- One IRX36/3895 Camera
- One Secondary Video Output Cable
- One Sunshield
- One Instruction manual
- One Accessory Pack containing
a. Allen Wrench
b. Brass Screw Driver
c. Sunshield Thumb Set Screw
If any of the contents are missing, please contact the Vitek Customer Help Desk immediately.
FEATURE HIGHLIGHTS
EMPHASIS ON USER FRIENDLINESS
The VTC-IRX36/3895 features Sony HQ1 technology with high resolution of 550 horizontal TV lines and weather resistant housing with easy external adjustment of camera features.
- Zoom and focus can be easily adjusted without opening the camera.
- External DC level controller provides easy iris adjustment for brightness control.
- Secondary video output adds convenience to the adjustment of the viewing angle, direction, brightness, focus and zoom adjustment after installation.
- Multi-directional mounting bracket allows installation of the camera virtually on any surface and feed-through minimizes potential vandalism while improving the aesthetics of the installation.
- ICR Vari-focal DC Auto Iris Lens at 3.8\~9.5 mm F1.2

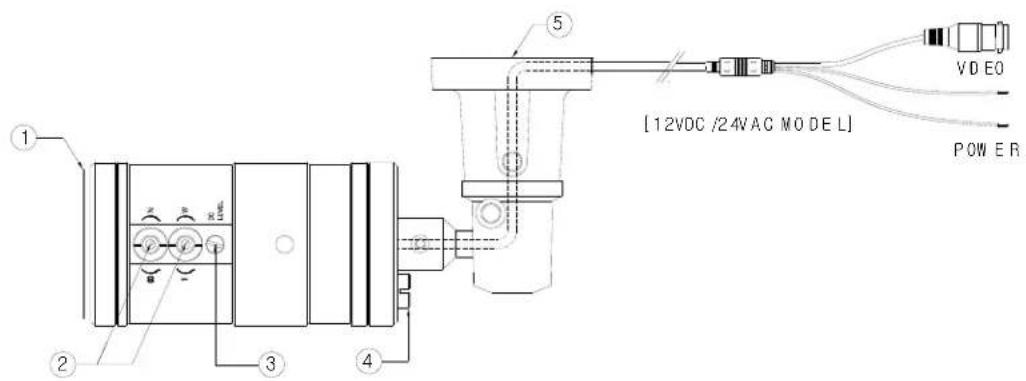

VTC-IRX36/3895 LAYOUT / FUNCTIONS
- The blue protective film must be removed before usage.
② Focus/Zoom Screws
- Adjust the angle of view by turning the zoom screw to "W" for wider field of view, and to "T" for narrower field of view.
- Adjust the focus screw to "N" or to "∞" until the sharpest focus is achieved.
③ DC Level Volume Cap
- Remove this cap to adjust DC Iris Level.
- Turn the DC lever clockwise for a brighter picture, and counter-clockwise for a darker picture.
④ Service Video Port
- Remove this cap and connect the supplied service monitor cable to connect to a VTM-LCD351 service monitor for final adjustments.
⑤ Feed-Through Mounting Bracket
- Use the supplied screws to mount bracket base to the desired location.
WIRING CONNECTIONS
The camera should be powered by the following power supplies:
12VDC 1000mAmps or 24VAC 20VA, CSA Certified Class 2 Power Supply.
For optimum video signal, use 95% copper shielded coax cable. Twisted pair or Category 5e cable may also be used with optional VT-TR1M Passive Video Transceivers. Maximum cable distance for 95% copper braid coax is approximately 800 feet. For Category 5e or twisted pair, 1500 feet using VT-TR1M transceivers.

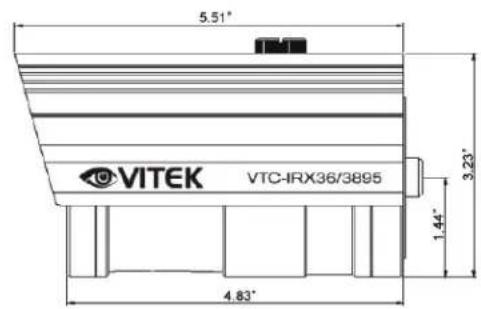

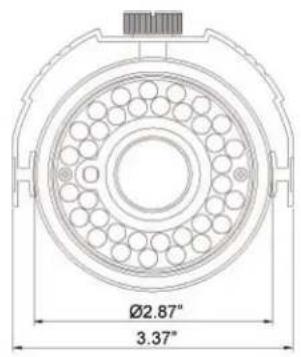

DIMENSIONS
SPECIFICATIONS
| Image Sensor 1/3" (Interline transfer type color CCD (SONY) | |
| Effective Pixels 768H x 494V (380K pixels) | |
| Scanning System 525 Lines 2 : 1 Interlace | |
| Scanning Frequency 15.734KHz (H), 59.94Hz (V) | |
| Resolution 550 TV – Lines , 580 TV – Lines (B/W) | |
| Shutter Speed 1/60 | |
| S/N Ratio More than 48dB (AGC Off) | |
| Sync. System Internal | |
| Min. Illumination 0Lux (IR LED ON) | |
| White Balance ATW / AWC selectable | |
| Video Output VBS 1.0 Vp-p (75ohm load) | |
| Lens Vari-Focal DC Auto Iris IR Lens 3.8 ~ 9.5 mm F1.2 | |
| Power Supply DC12V±10% / AC 24V±10% | |
| Power Consumption IR LED On / 600mA, IR LED Off / 240mA | |
| Operating Temp. 14° ~ 122° F (-10° ~ + 50°) | |
| Operating Humidity 90% RH max. | |
| No. of I.R. LEDs 36 Pieces Infrared LED | |
| Wave Length | 850NM |
| Angles of I.R. LEDs | 30° |
| Viewing Distance | Max 120 Feet |
| Dimensions | 73mm (∅) × 122mm (L) / 2.874 in. (∅) x 4.803 in. (L) |
