USER MANUAL 99-7346B Metra

INSTALLATION INSTRUCTIONS FOR PART 99-7346B

APPLICATIONS

Hyundai Elantra 2011-up 99-7346B

KIT FEATURES

• ISO DIN head unit provision with pocket
- DDIN head unit provisions
- Painted black to match factory finish

Interior view of a car dashboard and infotainment system (no visible text or symbols)

KIT COMPONENTS

• A) Radio Trim Panel • B) DDIN Brackets • C) Pocket • D) (4) #8 x 3/8" Truss-head Phillips screws

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • 70-7304

Antenna Adapter: • Not Required

TOOLS REQUIRED

- Panel removal tool - Phillips screwdriver - Socket Wrench

Table of Contents

Dash Disassembly

— Hyundai Elantra 2011-up .... 2

Kit Assembly

• ISO DIN head unit provision with pocket 3
• DDIN head unit provisions .... 3

CAUTION: Metra recommends disconnecting the negative battery terminal before beginning any installation. All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the aftermarket radio.

99-7346B

Dash Disassembly

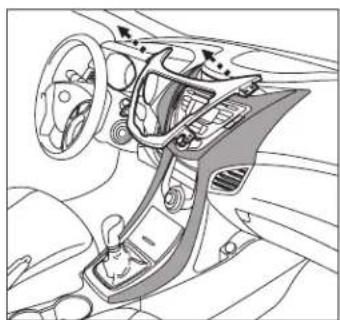

1. Remove trim panels from each side of center console. (Figure A)

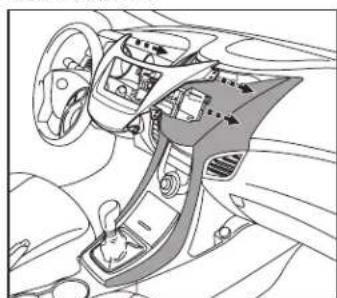

2. Remove (4) Phillips screws from radio trim panel. Gently pry radio trim panel from dash. (Figure B)

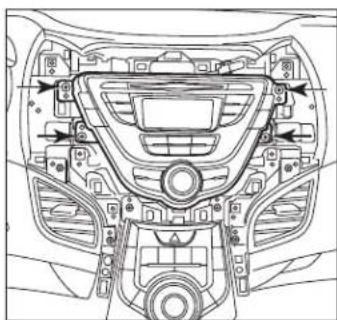

3. Remove (4) Phillips screws securing radio chassis to sub dash. Disconnect and remove radio chassis. (Figure C)

Continue to kit assembly

Technical diagram of a car dashboard and steering wheel assembly (no text or labels)

(Figure A) (Figure B) (Figure C)

Technical diagram of a car interior showing dashboard, steering wheel, and dashboard lift (no text or labels)

Technical line drawing of a car dashboard with no visible text or symbols

99-7346B

Kit Assembly

ISO DIN head unit provisions with pocket

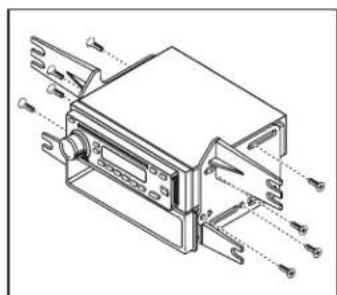

1. Mount the radio to the brackets with screws included with the radio. (Figure A)
2. Mount the radio brackets to the pocket with the screws supplied. (Figure A)
3. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
4. Mount assembly into the sub dash. (Figure B)

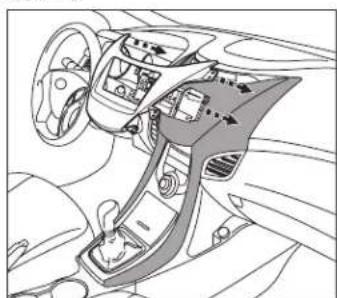

5. Reassemble dash in reverse order of disassembly using 99-7346B trim panel instead of factory panel. (Figure B)

Technical line drawing of a mechanical device with mounting holes and internal components (no text or symbols)

(Figure A) (Figure A)

Diagram of a car interior showing dashboard, steering wheel, and dashboard lift (no text or labels)

(Figure B) (Figure B)

Double DIN head unit provisions

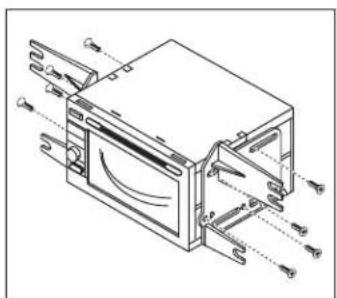

1. Mount the radio to the DDIN brackets with screws included with the radio. (Figure A)
2. Locate the factory wiring harness and antenna plug in the dash. Metra recommends using the proper mating adapters from Metra and/or AXXESS.
3. Mount assembly into the sub dash. (Figure B)
4. Reassemble dash in reverse order of disassembly using 99-7346B trim panel instead of factory panel. (Figure B)

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

Diagram of a car interior showing dashboard, steering wheel, and air vent (no text or labels)
