USER MANUAL DD522BK Caple

Downdraft Hood Instruction Manual

DD903BK & DD522BK

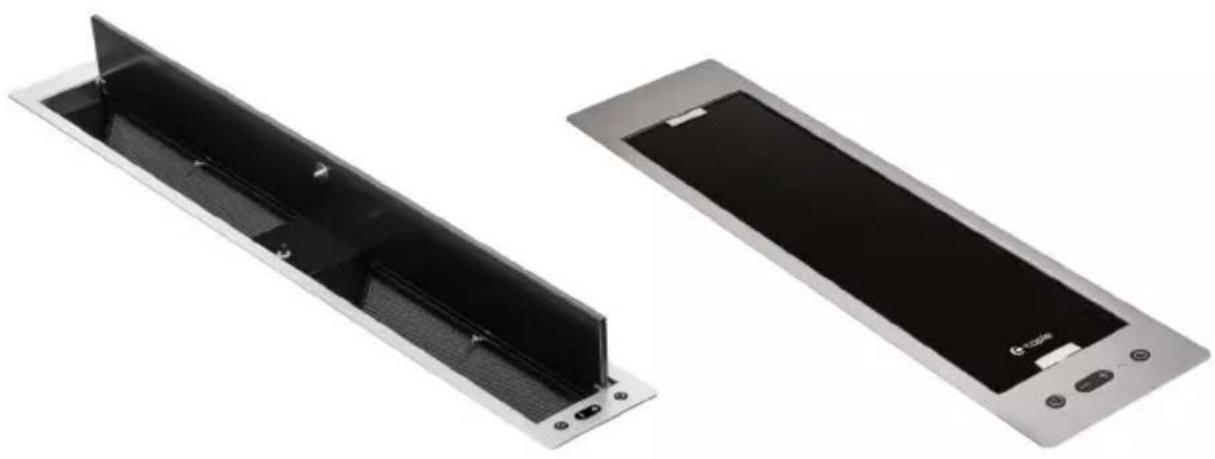

Two views of a device showing internal components and mounting points (no text or symbols visible)

CONTENTS

Safety Instructions 3

Safety Instructions and Warnings 4

Dimensions 8

Installation 8

Grease Filter Removal, Installing the Activated Charcoal Filter 16

Electrical Connection 17

Operating the Downdraft Extractor 19

Cleaning the Extractor 21

Troubleshooting 22

Aftersales Service 23

Caple Contact Details 24

INTRODUCTION

Thank you for choosing this Caple downdraft extractor.

To ensure that you get the best results from your new downdraft extractor, we strongly suggest that you read this instruction manual thoroughly before use. If treated with care, your Caple product should give you years of trouble-free use.

To register ownership, please ensure you complete and return the guarantee card supplied with the appliance or visit www.caple.co.uk and register here.

This instruction manual is designed to provide you with all the required information related to the installation, use and maintenance of the appliance.

This downdraft extractor is designed to extract unpleasant odours and cooking vapours from the kitchen. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and use.

Please read this manual carefully before using your appliance. It contains important safety advice; it explains how to use and look after your appliance so that it will provide you with many years of reliable service.

Should a fault arise, please first consult the "Troubleshooting" section. You can often rectify minor problems yourself, thus saving unnecessary service costs.

Please keep this manual in a safe place and pass it on to new owners for their information and safety.

SAFETY INSTRUCTIONS

AND WARNINGS:

These hoods have been designed for personal use in the home. The appliance must be used by adults. Make sure that the appliance is out of reach of children and that they do not use it to play with. Make sure that children do not operate the controls.

• When the appliance is delivered, check the overall appearance of the packaging.
• Any remarks should be written on the delivery note, of which you keep a copy. Your appliance is designed for normal domestic use. It is not designed for commercial or industrial use, or for purposes other than those for which it was designed.
• Any consequences of or damage from incorrect installation or incorrect use of the appliance will not be covered by the manufacturer's guarantee.
• Do not ever change or try to change the characteristics of this appliance. This would be a danger. Repairs must be performed only by a Caple approved engineer.
• Always disconnect the hood before carrying out cleaning or maintenance operations.

• Adequately ventilate the room when a cooker hood and other appliances, powered by energy other than electricity, are used simultaneously, so that the hood does not suck any-combustion fumes.

• Do not cook food over open flames (flambé) or operate gas hobs without pots or pans on them while using the hood (the flames may get sucked into the hood causing damage to the appliance).

• Frying under the appliance must be done under constant supervision as hot oils and fats may ignite.
• Respect the guidelines for cleaning and replacement of grease filters. Accumulated deposits of grease are a fire hazard.
• This appliance must not be used near hobs powered by wood or coal or in any case, near hobs with power levels that could damage the appliance.
• Never use steam or high pressure devices for cleaning your hood (regulations regarding electrical safety).
• Never use the cooker hood without the grease filters fitted.
• This appliance is intended to be used in household and similar applications such as:

  Staff kitchen areas in shops, offices and other working environments.
  Farm Houses.
  By clients in hotels, motels and other residential type environments.
  Bed and breakfast type environments.

We are constantly seeking to improve our products, we reserve the right to modify their technical, functional, or aesthetic characteristics deriving from their upgrading.

In the event a downdraft is installed with an external motor, for normal downdraft operation, it is necessary to use an external motor made by the same manufacturer.

The air collected must not be conveyed into a flue used for smoke or fumes from appliances powered by anything other than electricity (central heating systems, etc.). As far as discharging exhaust air is concerned, please follow the guidelines given by competent authorities.

There must be a minimum space of 50mm between the edge of a gas hob and the downdraft frame.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. This appliance is marked according to the European directive on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local council, your household waste disposal service or the retailer where you purchased the product.

WARRANTY

Your new appliance is covered by warranty. The warranty card is enclosed - if it is missing, you must provide the following information to your retailer in order to receive a replacement: date of purchase, model and serial number. Registration can also be completed online by visiting www.caple.co.uk.

Ensure you keep your warranty card safe, you may need to show it to Caple Service together with proof of purchase. If you fail to show your warranty card you will incur all repair charges.

Spare parts are only available from Caple Service and spare parts authorised centres.

CE DECLARATIONS OF CONFORMITY CE

This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility (EMC).

UKCA DECLARATIONS OF CONFORMITY

This appliance has been manufactured to the strictest standards and complies with all applicable legislation.

TECHNICAL FICHE

This appliance conforms to all current and applicable energy regulations. To view the Technical Fiche that supports the energy labelling data, please visit the product page on our website www.caple.co.uk.

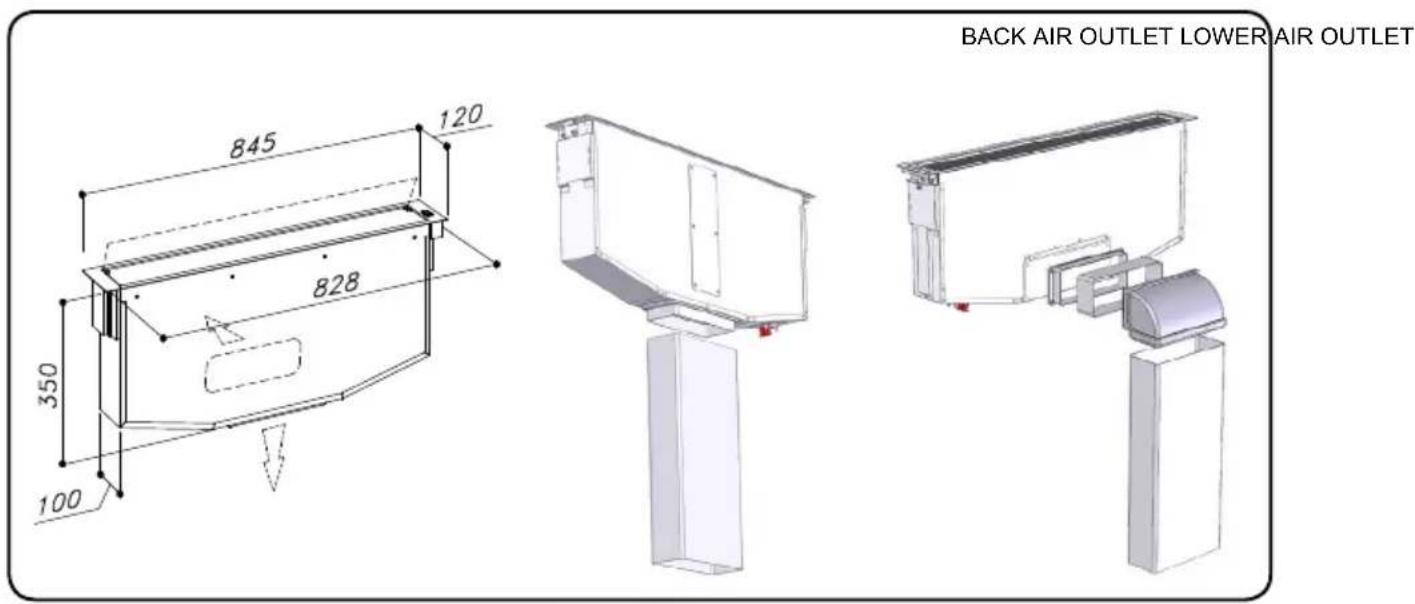

DESCRIPTION OF THE APPLIANCE

DD903BK

BACK AIR OUTLET LOWER AIR OUTLET 845 120 828 350 100

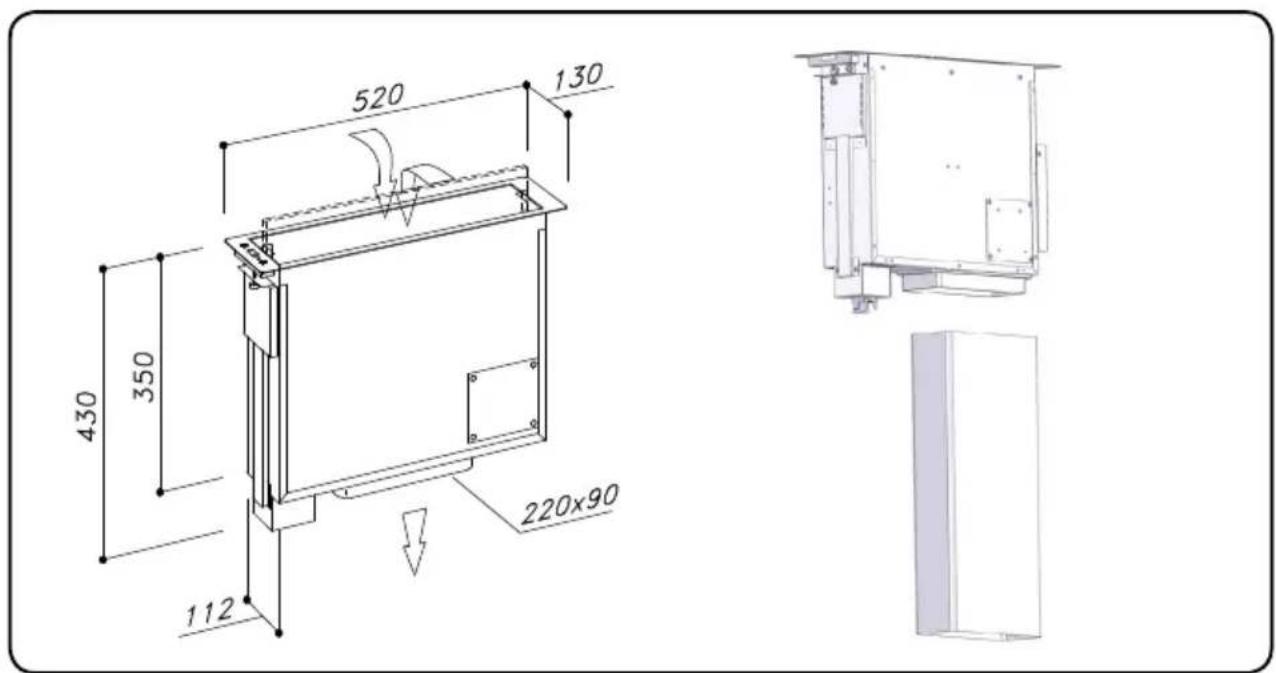

DD522BK

520 130 430 350 220x90 112

INSTALLATION

1. Before carrying out the appliance installation, please check that all components are not damaged, in such a case contact your retailer and do not carry out any installation operation. Furthermore, please read carefully all of the following installation instructions.

Use an air exhausting pipe whose maximum length does not exceed 5 metres.
Limit the number of elbows in the piping, since each elbow reduces the air capacity of 1 linear metre. (eg. if you use no. 2 × 90^ elbows, the length of piping should not exceed 3 metres).
Avoid abrupt direction changes.
Use a 150mm constant diametre rigid ducting pipe for the whole length.
Use piping approved by standards in force.

The manufacturer shall not be deemed responsible for air capacity or noise problems caused by failure to comply with the above instructions and no warranty on the product shall be provided.

1. Before making the hole, check that there are no structural or other parts inside the cabinet, where the appliance is to be placed, which could hinder a proper installation. Check that the dimensions of the Downdraft and the ones of hob are compatible with the cabinet so that the installation can be carried out properly.

Fig. 1

Line drawing of a mechanical device with a top component and a base, showing no text or symbols.

Fig. 2

Technical diagram of a mechanical device with red arrows indicating motion or force direction (no text or symbols present)

1. Make a rectangular opening

DD903BK: 102 x 832mm

DD522BK: 114 x 486mm

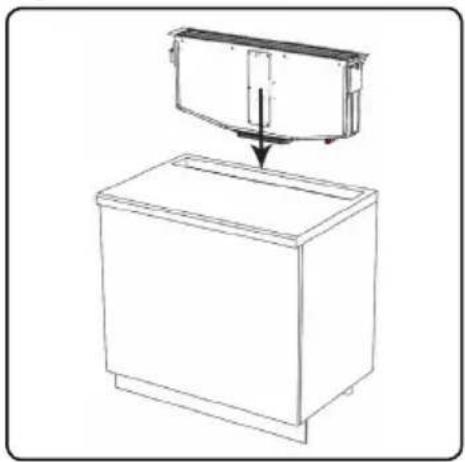

Fit the product in the opening, by inserting it from above as shown in fig. 1.

1. Secure the product inside the furniture by using the specific brackets provided. Proceed to the installation of the brackets in the sides of the product, in the specific hooks, as shown in Fig. 2.

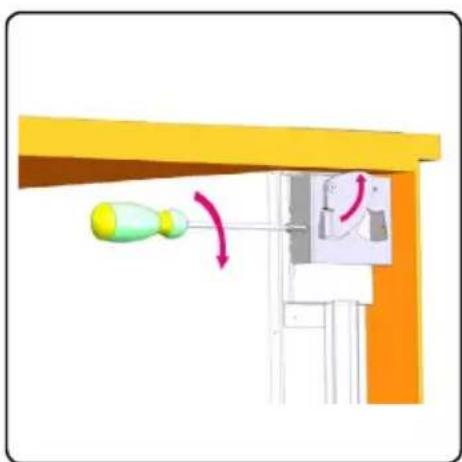

2. Then tighten the screws manually, as in fig.3, to secure the product to the furniture. Before tightening the screws, make sure that the product is perfectly balanced. Pay attention in order not to tighten the screws too much.

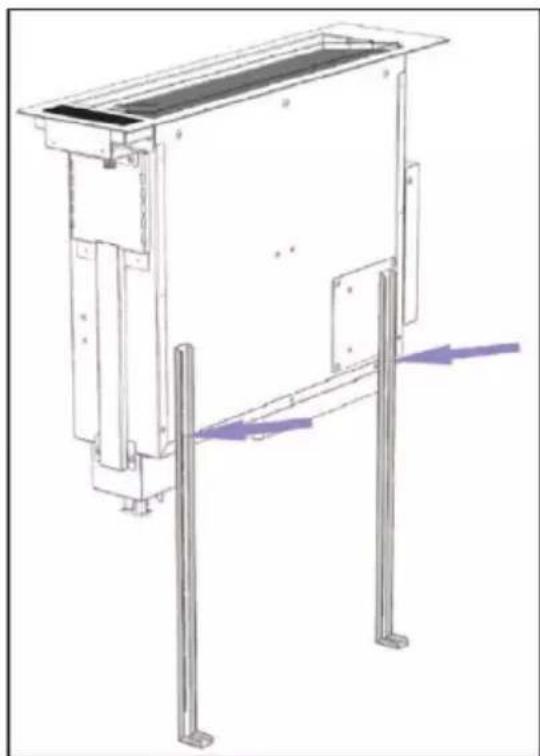

For the DD522BK if the structure of the cabinet does not allow to use the brackets in fig. 2, it is possible to use the alternative brackets, as in figure 13.

Diagram showing a yellow object with a green arrow and red curved arrows pointing to a device or fixture (no text or symbols present)

Fig. 3

Technical line drawing of a mechanical assembly with vertical supports and a central component (no text or symbols)

Fig. 13

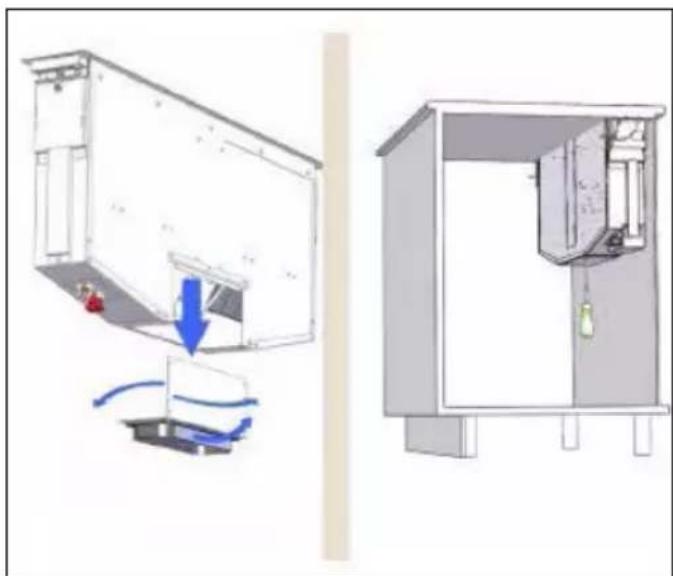

1. If the Downdraft is equipped with an external motor, fit the external motor then install the exhaust air ducting according to the relevant installation diagrams:

1. Then fit the air outlet ducts between the external motor and the product. Select the air outlet among the two available options and fit the adaptor supplied with the appliance. DD903BK: If you intend to use the rear air exit, you will first have to remove the flange from product, install the product in the furniture then restore the flange as shown in fig. 4.

Technical illustration of a cabinet with internal components and a blue arrow indicating motion (no text or symbols)

Fig. 4

Fig. 5

3D rendering of two colored electronic components on a base plate (no text or symbols visible)

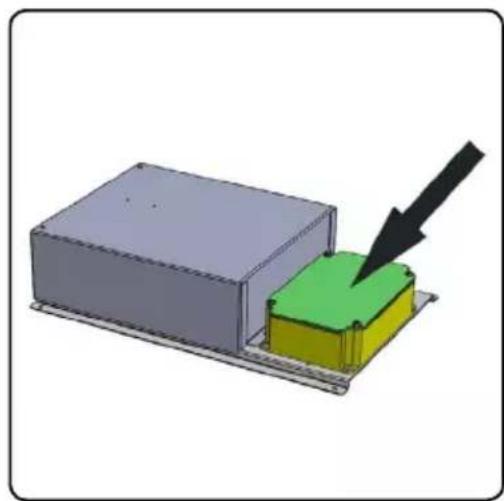

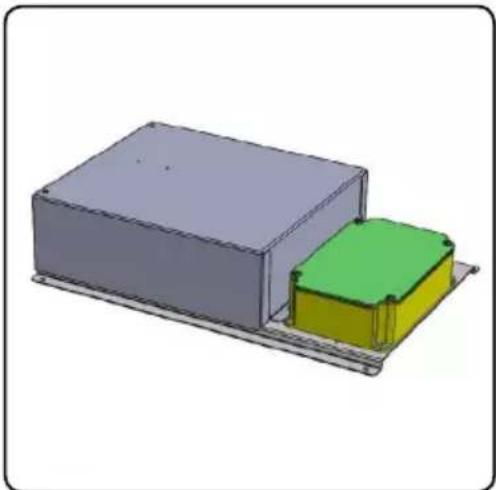

1. Place the metal box containing the electronic components in an easily reachable area for possible technical assistance operations, by connecting the related connectors (fig. 5).

Fig. 6

3D diagram of a mechanical assembly with a green block and gray housing, showing a black arrow pointing to a component (no text or symbols)

1. If the product is equipped with external motor, connect the motor unit cable to the specific terminal board found in the plastic box shown in fig. 6.

2. Power the downdraft.

Fig. 7

Diagram of a desktop computer setup with two monitors and a blue arrow indicating rotation (no text or symbols)

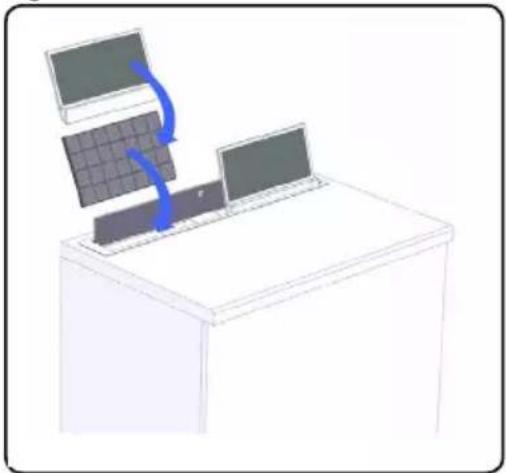

1. If the appliance is to be used in the recirculation mode, place the charcoal filters behind the grease filters (see fig 7) and then settle the front glass by sticking the magnets into the specified seats.

HOW THE DOWNDRAFT WORKS

This appliance is intended to extract cooking fumes, greases and vapours. It has been designed to work in either ventilation mode or in recirculation mode.

EXTERNALLY VENTED MODE

The downdraft can be installed in this mode with outside discharge of extracted air: in this case it is necessary to connect the ducting channel to the outside wall (ducting pipes are not supplied with this product).

The minimum distance between the Down-draft (closed) and the surface above it must be at least 400mm. It is the manufacturer of the hob who determines the clearance required and the clearance quoted by the hob manufacturer must be followed.

In the absence of any instructions supplied with a gas hob, tere must be a minimum space of 50mm between the edge of a gas hob and the downdraft frame.

RECIRCULATION MODE

In case fumes and vapours cannot be extracted outside, the appliance can be used in recirculation mode. Activated charcoal filters are required for this type of extractor:

2 x CAP66CF charcoal filters are required for the DD903BK

1 x CAP72CF charcoal filter is required for the DD522BK.

These can be purchased directly from www.caple.co.uk or by calling our sales office on 0117 938 1900.

Air recycled through the charcoal filters is recirculated back into the room via a 5mm ventilation slot in the kitchen plinth (fig 8a) or a plinth grill (fig 8b).

NOTE:

Universal plinth grille (GRILL/SENSE600) can be purchased at www.caple.co.uk

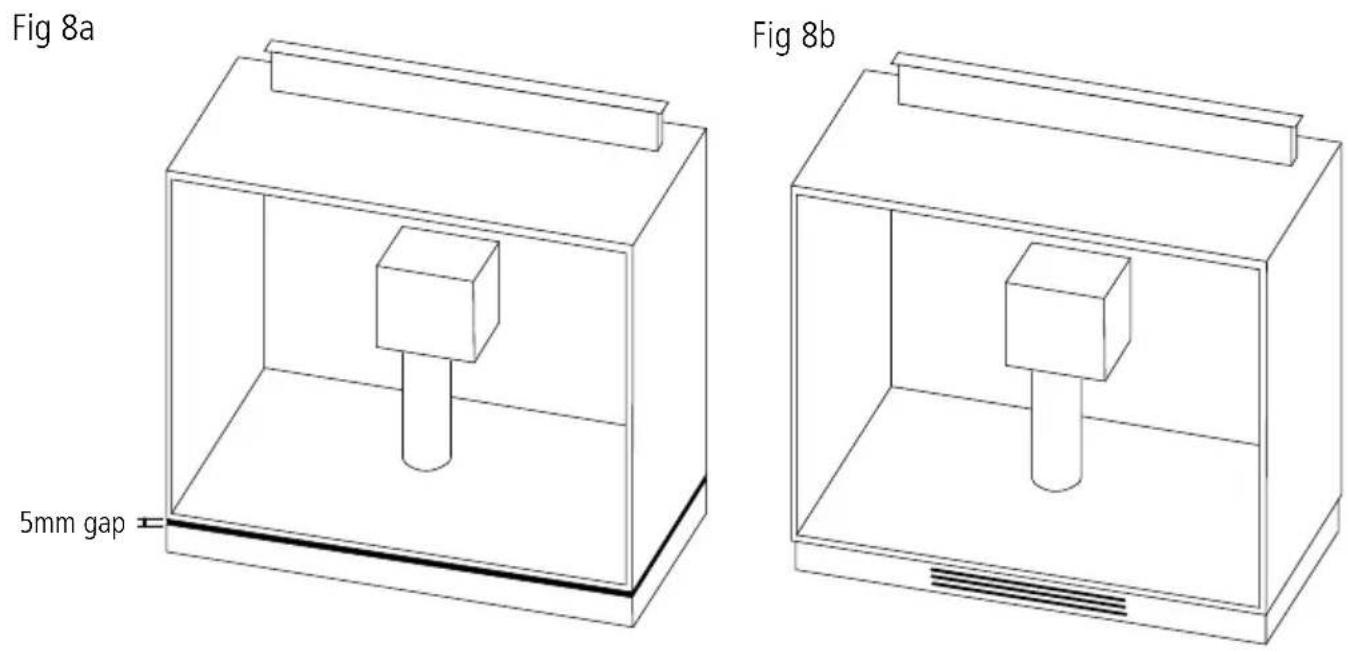

Fig 8a 5mm gap Fig 8b

CAUTION:

Installation must comply with the regulations in force regarding the ventilation of enclosed environments. The use of discontinued ducts is not allowed without the approval of a qualified technician.

REMOVAL OF GREASE FILTER, AND MOUNTING THE CHARCOAL FILTER

The removal and fitting of the grease and charcoal filters need to be carried out with the downdraft in the open position (see figure 7). To open the downdraft, push the ⏻ key. Remove the grease filter first and then pull the plastic key of the charcoal filter panel to disengage it from it's setting. Follow these steps in reverse order to insert the active charcoal filter.

NOTE:

To maintain effective use of your downdraft, the charcoal filter should be replaced at least every 6 months.

WARNING

Place the metal box containing the electronic components at a distance of no less than 65cm from the hobs or in any case, 65cm from the suctioning surface of the cooker hood.

After having replaced the filters, reinstall the front stainless steel panel, otherwise the Downdraft is not able to function.

NOTE

We recommend installing the metal box containing the electronic components at least 10cm above floor level and at a suitable distance from all heat sources (e.g. ovens or hobs).

CAUTION

This appliance is fitted with an H05 VVF 3 conductor, 0.75 mm ^2 (neutral, phase, and ground) power cord. This can be connected up to a 220 - 240V monophase electrical network through a CEI 60083 approved power socket, which must remain accessible after installation, in compliance with installation regulations.

We decline any responsibility in case of accidents caused by a lack of ground connection or incorrect ground connection. The appliance must be fed through a differential protection device (RCD), with a nominal residual current not exceeding 30mA. If the power cord is damaged, call Caple Service to avoid any risk.

WARNING

The downdraft connection to the electrical network must be carried out only by professional and qualified technicians. The downdraft must be connected to a properly installed and suitable electrical network. The electrical system must comply with VDE0100 standard.

DANGER

If the cooker hood presents any anomaly, disconnect the appliance or remove the fuse corresponding to the appliance power disconnecting line.

If the appliance has no plug or if the plug is not easily accessible, then a device needs to be fitted to cut it off from the electric network; this device must have an opening distance between contacts on all poles of at least 3mm.

ELECTRICAL CONNECTION

While installing the appliance and carrying maintenance operation, make sure it is disconnected from the electrical network or the fuses are cut out or removed.

Check that:

Power is enough.
Feeder lines (mains) are in good condition.
The cable diametre complies with installation regulations.

PUSH BUTTON CONTROL PANEL

10 minute timer, after which the motor is turned off and the front is closed. The setting of the function is signalled by indicator the motor speed indicator flashing.

○E MOTOR SPEED INDICATOR

The LED gives off four different colours, depending on the set speed.
First speed colour: WHITE
Second speed colour: GREEN
Third speed colour: BLUE
Fourth speed colour: RED

The key is only active with open top (45° 90°). For each selection of the function there is an increase of the motor speed, up to the fourth speed.
The key is only active with open top (45° 90°). Each time you select the function you have a speed decrease of the motor, up to the first speed.

When the product is switched off, the first touch activates the top panel until it reaches the intermediate opening of 45^ . As the intermediate opening is reached, the motor is automatically set to the 2nd speed. Another press will start full opening ( 90^ ) of the top panel, maintaining the speed of the motor. Another press will stop the motor and completely close the top panel.

NOTE:

When the top panel is opened at 45^ , hold down the ⏻ button for 3 seconds, the top panel will close and the motor turns off.

When the top panel is closed, hold down the ⏻ button for 3 seconds, the top panels opens by 90° and the motor is activated at the second speed.

WARNING:

The product DD522BK allows the opening of the glass top only by 90^ (no 45^ opening is possible).

TIMING

This product is equipped with intelligent electronics which include a timer device for speed controls when the air capacity exceeds 650m^3/h . Internal motor models, with maximum air capacity higher than 650m^3/h , are equipped with a timer device that automatically switches the speed from 4th to 3rd speed, after 6 minutes operation.
External motor models are equipped with remote motors that, as for internal motor versions, include a timer device that switches down the speed when it exceeds 650 m^3/h . (See External Motors Instructions). Remote motors, whose air capacity exceeds 650 m^3/h at both 4th and 3rd speed, will have the following by default timer control functions: The speed is automatically switched from 4th to 2nd speed, after 6 minutes operation.

If the appliance is working at 3rd speed, it is automatically switched to 2nd speed, after
7 minutes operation. Operation speeds can also be changed during operation. The energy consumption of the appliance in standby mode is lower than 0.5W.

OTHER FUNCTIONS:

AUTOMATIC TURN OFF

After 4 hours of continuous operation from the last setup, the appliance turns off automatically.

GREASE FILTERS SATURATION

After 30 hours of operation, the speed indicators will all flash simultaneously, signalling the grease filters saturation. To reset this alarm, hold the "TIMER" button down for at least 3 seconds, while the extractable unit is open.

Careful maintenance ensures the correct operation and optimal performance.

CAUTION:

The hood must be disconnected from the electrical network, both by unplugging the appliance from the socket and activating the magnetic circuit breaker (safety cut-out), before removing the metal grease filters. After cleaning operations, replace the metal grease filters as outlined in the installation instructions.

MAINTENANCE HOW TO PROCEED? ACCESSORY PRODUCTS TO USE
Cleaning external surfaces and accessories	Do not use metallic scrubbers, abrasive products, or hard brushes.	To clean the external surfaces of the downdraft and the light housing screen use only commercially available household detergents diluted in water. Then rinse with clean water and dry with a soft cloth.
Grease filters After 30 hours of operation, the downdraft will signal the grease filter saturation.Saturation is indicated by the flashing RED colour LED speed indicator, when the cooker hood is off.To reset, hold down the timer button for at least 3 seconds, while the carriage is open.	The grease filters can be washed by hand or in the dishwasher. These filters need to be cleaned on a regular basis, because otherwise they may represent a fire risk.Refit the grease filters and front panel, making sure that they are properly fitted at the sides so that it does not cause the downdraft to stop operating.
Active charcoal filter In the recirculation mode, the active charcoal filter must be replaced periodically.To remove the charcoal filter first of all, it is necessary to remove the grease filter and then pull the plastic key of the panel itself, in order to disengage it from its seating.Follow these steps in reverse order to insert the active charcoal filter.Replace the used charcoal filter on an average of every six months.

TROUBLESHOOTING

PROBLEM SOLUTION
The downdraft does not work Check that:	» There is not a power outage.» A specific speed has actually been selected.» The red reset key, found over the electrical system box, is pushed.
The downdraft has low performance Check that:	» The motor speed selected is sufficient for the quantity of fumes and vapours present in the room.» The kitchen is ventilated well enough to allow air for intake.» The charcoal filter is not worn out. (Recirculation mode only).» The air outlet channel is free and compliant with paragraph no.2.» The non-return valves of the suctioning unit are free to rotate.
The downdraft stops in the middle of operation.	Check that:» There is not a power outage.» The omnipolar device has not tripped.

AFTER SALES SERVICE

Any maintenance operation on your appliance should be carried out by:

Either your retailer;
A Caple approved engineer, or similarly qualified personnel.

If a problem still persists and further assistance is required, please contact our Caple after sales team on:

T - 0117 938 7420

E - [e-mail]

caple

Caple Service T: 0117 938 1900

Fourth Way E: [e-mail]

Avonmouth www.caple.co.uk

Bristol

BS11 8DW
