USER MANUAL GR-V262RL LG

READ THIS OWNER'S MANUAL THOROUGHLY

BEFORE OPERATING AND KEEP IT HANDY

FOR REFERENCE AT ALL TIMES.

REFRIGERATEUR- CONGELATEUR

MANUEL DE L'UTILISATEUR

SVP

AVANT D'UTILISER L'APPAREIL LISEZ

ATTENTIVEMENT LE MANUEL DE L'UTILISATEUR

ET CONSERVEZ LE SOIGNEUSEMENT POUR UNE

CONSULTATION ULTERIEURE.

REFRIGERADOR- CONGELADOR

MANUAL DEL USUARIO

LEA ESTE MANUAL EN SU TOTALIDAD ANTES DE UTILIZAR EL EQUIPO Y MANTÉNGALO SIEMPRE A MANO PARA POSIBLES CONSULTAS.

CONTENTS

IMPORTANT WARNINGS .... 3

INSTALLATION 4

FEATURE CHART 5

OPERATION 6

Starting

Temperature Control

Ice Making

Chilled Compartment

Defrosting

Deodorizer (Optional)

Vitamin Kit (Optional)

SUGGESTIONS ON FOOD STORAGE ..... 9

CLEANING 10

GENERAL INFORMATION ...... 10

LAMP REPLACEMENT 11

BEFORE CALLING FOR SERVICE ..... 11

Cartoon illustration of a smiling refrigerator character with arms and legs (no text or symbols)

THIS REFRIGERATOR IS MANUFACTURED WITH GREAT CARE AND UTILIZES THE LATEST IN TECHNOLOGY.

WE ARE CONFIDENT THAT YOU WILL BE FULLY SATISFIED WITH ITS PERFORMANCE AND RELIABILITY.

BEFORE USING YOUR REFRIGERATOR, PLEASE READ THIS BOOKLET CAREFULLY.

IT PROVIDES EXACT INSTRUCTIONS FOR INSTALLATION, OPERATION, AND

MAINTENANCE, AND ALSO SUPPLIES SOME USEFUL HINTS.

IMPORTANT WARNINGS

DO NOT USE AN EXTENSION CORD

If possible, connect the refrigerator to its own individual electrical outlet to prevent it and other appliances or household lights from causing an overload that could cause a power outage.

ACCESSIBILITY OF SUPPLY PLUG

The refrigerator-freezer should be so positioned that the supply plug is accessible for quick disconnection when accident happens.

SUPPLY CORD REPLACEMENT

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

An empty refrigerator can be a dangerous attraction to children. Remove either gaskets, latches, lids or the entire door from your unused appliance, or take some other action to make it harmless.

In the event of an electric short circuit, grounding (earthing) reduces the risk of electric shock by providing an escape wire for the electric current.

In order to prevent possible electric shock, this appliance must be grounded.

Improper use of the grounding plug can result in an electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

DO NOT MODIFY OR EXTEND THE POWER CORD LENGTH

It will cause electric shock or fire.

No Yes

This appliance must be grounded (earthed). DON'T WAIT! DO IT NOW!

Do not store inflammable materials, explosives, or chemicals in the refrigerator.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance."

Disposal of the old appliance

This appliance contains fluid (refrigerant, lubricant) and is made of parts and materials which are reusable and/or recyclable.

All the important materials should be sent to the collection center of waste material and can be reused after rework (recycling). For take back, please contact with the local agency.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

DISPOSAL OF YOUR OLD APPLIANCE

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

- Información óf fluórinated greenhöúse gases úsed as refrigerant óf this refrigerator.

Chemical name	Composition of Gases	Total GWP (kg CO2-eq)
R-134a	100% HFC-134a	1300

INSTALLATION

1. Place your refrigerator where it is easy to use.
2. Avoid placing the refrigerator near heat sources, direct sunlight or moisture.
3. To ensure proper air circulation around the fridge-freezer, please maintain sufficient space on both the sides as well as top and maintain at least 2 inches (5 cm) from the rear wall.
4. To avoid vibrations, the refrigerator must be level. If necessary, adjust the leveling screw(s) to compensate for unevenness of the floor. To close the doors easily, the front should be slightly higher than the rear. Leveling screw(s) can be turned easily by tipping the cabinet slightly. Turn the leveling screw(s) clockwise to raise the refrigerator, counterclockwise to lower it.

NEXT

1. Wipe off all dust accumulated during shipping and clean your refrigerator thoroughly.
2. Install accessories such as the ice cube box, evaporating tray cover, etc., in their proper places. They are packed together to prevent possible damage during shipping.
3. Connect the power supply cord (or plug) to the outlet. Don't double up with other appliances on the same outlet.
4. Prior to use, let the refrigerator run for 2-3 hours. Check the flow of cold air in the freezer compartment to ensure proper cooling has taken place. Your refrigerator is now ready for use.

FREEZER COMPARTMENT Twisting Ice Serve (Optional) or General Type Ice Making Freezer Shelf Freezer Temperature Control Knob Refrigerator COMPARTMENT Chilled Compartment Refrigerator Temperature Electronic Control Shelves Lamp Deodorizer (Optional) Vitamin Kit (Optional) Vegetable Drawer Used to keep fruits and vegetables, etc. fresh and crisp. Freezer Door Rack Egg Storage Rack Movable Rack Refrigerator Door Rack Leveling Screws

All parts shown may not be included with every model.

STARTING

When your refrigerator is first installed, allow it 2-3 hours to stabilize at normal operating temperatures prior to filling it with fresh or frozen foods.

If operation is interrupted, wait 5 minutes before restarting.

TEMPERATURE CONTROL

□ REFRIGERATOR

REF. TEMP. CONTROL MIN MAX

The default setting of the temperature control button for the refrigerator compartment is NORMAL.

You can set the refrigerator temperature using the Refrigerator Temperature Control.

Whenever pressing the button, the LED emit light.

The temperature of the compartment is highered as the LED luminesce from MIN to MAX.

You can select the desired set point in five (5) steps between minimum and maximum.

For the economic electricity, set the LED to the MIN position.

	Low	Medium Low	Medium	Medium High	High
Temp Control
AVERAGETEMP(°C)*	64.5		3	1	-1
ROOM	REFRIGERATOR

* This temperature can change based on the freezertemperature control setting.

FREEZER

TEMP.CONTROL MIN MID MAX

The default setting of the temperature control knob for the freezer compartment is the MID point.

For colder temperatures, adjust the control knob to MAX, and for warmer temperatures, adjust the control knob to MIN position.

OPERATION

ICE MAKING

Determine which type ice-making system you have.

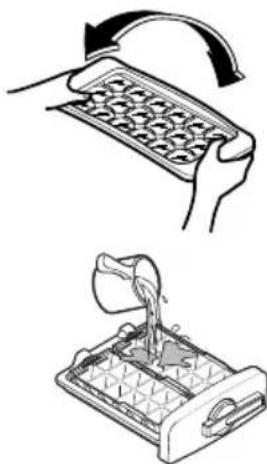

General Type

- To make ice cubes, fill the ice tray with water and place it on the ice cube box. Then insert the ice cube box in the freezer compartment.

- To remove ice cubes, hold the tray at its ends and twist gently.

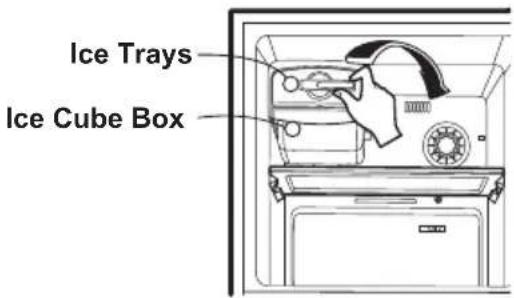

Twisting Ice Serve Type

- To make ice cubes, fill the ice tray with water and insert in its position.

- To remove ice cubes, hold the knob of the tray and turn gently. Then, ice cubes drop in the ice cube box.

- You can remove the Twisting Ice Serve to make the freezer compartment larger.

- You should remove the ice Trays and Ice Cube Box first, then pull the frame out toward the right side.

Ice Trays Ice Cube Box

Illustration showing two steps of a robotic device: adding a tray to a container and pouring liquid into a tray (no text or symbols present)

Ice Trays Ice Cube Box

Frame

OPERATION

FRESHZONE

Whenthedoorisopened, thewarmerairdoesn't influence thefreshzone. You can keep food fresherinit.

Illustration of a refrigerator with a cartoon character pointing to its door, alongside an inset image of the refrigerator (no text or symbols present)

DEFROSTING

• Defrostingtakesplaceautomatically.
• Thedefrostedwaterflowsdowntotheevaporatingtraywhichislocatedinthelowerbacksideofthe refrigeratorandisevaporatedautomatically.

DEODORIZER(OPTIONAL)

• Byusingacatalyst,deodorizingperformanceisguaranteed.
• Unpleasantodoroffoodinthefreshfoodcompartmentisdeodorizedwithnoharmtoyouandthefood.

Howtouse

• As the catalyst is located in cooling air outlet for circulating air in fresh food compartment, there is no needtotouchit.
• Donotpuncturethecoolingairoutletwithasharptipbecausethedeodorizingcatalystmaybe damaged.
• When storing food with a strong odor, wrap it or store it in a container with a lid because the odor may be absorbed by other foods.

Catalyst

Cartoon illustration of a distressed refrigerator with wings and legs, showing steam rising from the door (no text or symbols)

VITAMINKIT(OPTIONAL)

It contains anti-oxydant that is able to avoid oxidation process in order to make the fruits and vegetables fresh for longer time.

VITRANT VITRANT

This part contains anti-oxydant substance that do not to eat. Opening and closing the door too much often can reduce its lifetime.

SUGGESTIONS ON FOOD STORAGE

STORING FOOD

• Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor.
• Do not store food which goes bad easily at low temperatures, such as bananas, pineapples, and melons.
• Allow hot food to cool prior to storing. Placing hot food in the refrigerator could spoil other food and lead to higher electric bills!
• When storing, cover food with vinyl wrap or store in a container with a lid. This prevents moisture from evaporating and helps food to keep its taste and nutrients.
• Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator temperatures even.
• Do not open the door frequently. Opening the door lets warm air enter the refrigerator, causing temperatures to rise.

FREEZER COMPARTMENT

• Do not store bottles in the freezer compartment - they may break when frozen.
• Do not refreeze food that has been thawed. This deteriorates taste and nutrition.
• When storing frozen food like ice cream for a long period, place it on the freezer shelf, not in the door rack.
• Avoid storing any food close to the bottom area of the freezer shelf to keep efficient air circulation.

REFRIGERATOR COMPARTMENT

• Avoid placing moist food deep inside refrigerator shelves, it could freeze upon direct contact with chilled air.
• Always clean food prior to refrigeration. Vegetables and fruits should be washed and wiped, and packed food should be wiped clean to prevent adjacent food from spoiling.
• When storing eggs in their storage rack, ensure that they are fresh. Always store them in a upright position, which keeps them fresh longer.

CLEANING

It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled food should be wiped up immediately, since it may acidify and stain plastic surfaces if allowed to settle.

Never use metallic scouring pads, brushes, coarse abrasive cleaners, or strong alkaline solutions on any surface.

Before you clean, remember that damp objects will stick or adhere to extremely cold surfaces. Do not touch frozen surfaces with wet or damp hands.

EXTERIOR - Use a lukewarm solution of mild soap or detergent to clean the durable finish of your refrigerator. Wipe with a clean, damp cloth and then dry.

INTERIOR - Regular cleaning of the interior and interior parts is recommended. If you have the No Frost model which defrosts automatically, leave both doors open during the entire cleaning process.

Disconnect the power supply, and remove food and all compartment shelves, storage trays etc.

Wash all compartments with a baking soda solution. Rinse and dry.

INTERIOR PARTS - Wash compartment shelves, door racks, storage trays, and magnetic door seals etc. with the baking soda solution or a mild detergent and warm water. Rinse and dry.

WARNING

Always remove power cord from the wall outlet prior to cleaning in the vicinity of electrical parts (lamps, switches, controls, etc.).

Wipe up excess moisture with a sponge or cloth to prevent water or liquid from getting into any electrical part and causing a electric shock. Do not use flammable or toxic cleaning liquids.

GENERAL INFORMATION

VACATION TIME

During average length vacations, you will probably find it best to leave the refrigerator in operation.

Place freezable items in freezer for longer life.

When you plan to be away for an extended period, remove all food, disconnect the power cord, clean the interior thoroughly, and leave each door OPEN to prevent odor formation.

POWER FAILURE

Most power failures are corrected in an hour or two and will not affect your refrigerator temperatures.

However, you should minimize the number of door openings while the power is off. During power failures of longer duration, place a block of dry ice on top of your frozen packages.

DRY ICE WARNING

When using dry ice, provide adequate ventilation.

Dry ice is frozen carbon dioxide (CO2).

When it vaporizes, it can displace oxygen, causing dizziness, light-headedness, unconsciousness, and death by suffocation.

Open a window and do not breathe the vapors.

IF YOU MOVE

If you move, empty the refrigerator (freezer) completely and wash a mild solution of baking soda and water. (2 TBS soda to 1 quart water) Be sure the soda is completely dissolved to avoid scratching the inside of the refrigerator (freezer). Secure any loose items, such as racks, bins, ice trays, etc. Do not try to move a loaded refrigerator.

ANTI-CONDENSATION PIPE

The outside wall of the refrigerator cabinet may

sometimes get warm, especially just after installation.

Don't be alarmed.

This is due to the anti-condensation pipe, which pumps hot refrigerant to prevent sweating on the outer cabinet wall.

Anti-Condensation Pipe

LAMP REPLACEMENT

1. Unplug the power cord from the outlet.
2. Remove refrigerator shelves.
3. To remove the lamp cover, insert a slotted driver at the one of under hole of the lamp cover and pull it out forwards.
4. Turn the lamp counterclockwise.
5. Assemble in reverse order of disassembly. Replacement bulb must be the same specification as original.

Illustration of hands using a screwdriver to press a computer monitor with a downward arrow (no text or symbols)

BEFORE CALLING FOR SERVICE

SERVICE CALLS CAN OFTEN BE AVOIDED!

IF YOU FEEL YOUR REFRIGERATOR IS NOT OPERATING PROPERLY, CHECK THESE POSSIBLE CAUSES FIRST :

PROBLEM	POSSIBLE	CAUSES
REFRIGERATOR DOES NOT OPERATE	Has a house fuse blown or circuit breaker tripped?Has the power cord plug been removed or loosened from the electrical wall outlet?
REFRIGERATOR OR FREEZER COMPARTMENT TEMPERATURE TOO WARM	Temperature control not set on proper position.Appliance is placed close to wall or heat source.Warm weather-frequent door openings.Door left open for a long time.Large amount of foods are kept in the refrigerator.
ABNORMAL NOISE(S)	Refrigerator is installed in a weak or uneven place, or leveling screw needs adjusting.Unnecessary objects placed behind the refrigerator.
REFRIGERATOR HAS ODOR	Foods with strong odors should be tightly covered or wrapped.Interior needs cleaning.
DEW FORMS ON THE CABINET SURFACE	Not unusual during periods of high humidity.Door may have been left ajar.

LG Electronics Inc.
