USER MANUAL QTFX-B2 Qtx

Line drawing of a QTFX-B2 industrial machine with internal components and no visible text or symbols

QTFX-B2

Bubble Machine User Manual

160.563UK

QTFX-B2 Bubble Machine – For indoor use only

Caution! Please read this manual carefully before operating! Damage caused by misuse is not covered by the warranty!

1. General Introduction :

A portable bubble machine with high quality fan and motor to produce the best bubbles possible for your party.

Features :

■ High bubble output
■ High speed fan with low noise
■ Easy to empty and clean tank
For best results to be used with QTX Light bubble fluid 160.574UK (1I) or 160.575UK (5I)

Effects Fluid Chart
qtxlight®
Bubble Fluid

Stock Code	Volume	Description	Results	For use with:
160.574UK	1 Litre	Bubble fluid	Light bubbles that last longer	160.562UK 160.573UK160.571UK 160.570UK
160.575UK	5 Litre
160.576UK	1 Litre	UV bubble fluid	Light bubbles that glow when under UV Light
160.577UK	5 Litre

Snow Fluid

Stock Code	Volume	Description	Results	Far use with:
160.578UK	1 Litre	Snow Fluid	High quality snow lasts 30% longer than other standard fields	160.568UK
160.579UK	5 Litre

Smoke Fluid

Stock Code	Volume	Description	Colour	Results				For use with:
				Dispersion	Density	Stability	Colour of Fog
160.643UK	1 Litre	Standard smoke fluid	Yellow	Quick	Light	Low	White	160.452UK 160.543UK
160.582UK	5 Litre							160.449UK 160.428UK
160.587UK	1 Litre	High grade smoke fluid	Orange	Slow	Medium	Good	White	160.429UK 160.430UK Or for best results use any machine up to 900W
160.588UK	5 Litre
160.644UK	1 Litre	High quality smoke fluid	Pink	Slow	High	Good	Deep white	160.455UK 160.437UK
160.583UK	5 Litre							160.446UK Or for best results use any machine between 1000 - 5000W
160.589UK	5 Litre	Premium smoke fluid	Clear	Slow	V. High	V. Good	V. deep white
160.670UK	20ml	Smoke machine cleaner	Clear	Longer life from your smoke machine				All smoke machines

Haze

Stock Code	Volume	Description	Colour	Results				For use with:
				Dispersion	Density	Stability	Colour of Fog
160.590UK	1 Litre	High quality haze fluid	Clear	Slow	High	Good	Deep white	160.450UK, 160.451UK & 160.454UK
160.591UK	5 Litre

User Manual - QTFX-B2

160.563UK

1. Technical specification :

Power supply 230Vac, 50Hz
Fuse F1A
Power consumption 40W
RPM 20
Dimensions 290 x 240 x 220mm
Weight 2.0kg

1. Disposal :

Please disposal of the unserviceable device according to the current

statutory requirements.

User Manual - QTFX-B2

160.563UK

1. Package Contents :

Please check the contents to ensure that the product has been received in good condition.

QTFX B2 bubble machine x 1pcs User's Guide x 1pcs

Power Cord x 1pcs

If you find any accessory is missing or the machine has arrived with any problems, please contact your local dealer at once. Do not try to fix this item yourself or you will lose the warranty. Please keep the original package and invoice for any possible replacement or returned demand.

1. Recommended Fluid:

For the QTFX-B2 bubble machine we strongly recommend the following fluid which has been specifically formulated for the best results.

QTX Ref Code	Description	Size	Results
160.574UK	High Quality Bubble	1 Litre	Stable bubbles
160.575UK	Fluid	5 Litre

10

3

User Manual - QTFX-B2

160.563UK

User Manual - QTFX-B2

160.563UK

4. Setup :

1. Unpack the bubble machine.
2. Place on a flat surface.
3. Pour the contents of the bubble fluid into the front tank so the bubble wands at the bottom of the wheel are completely submerged.
4. Connect the IEC mains plug and power up.
5. After use unplug from the mains and empty the remaining contents back in to the bubble fluid container or dispose of appropriately.
6. Clean the front tank fully before the next use.

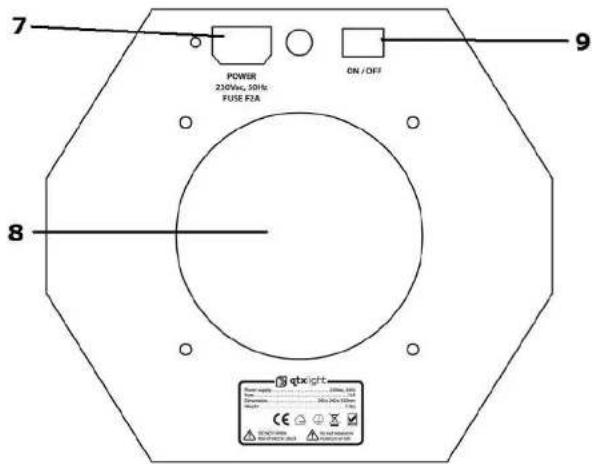

12. Rear Layout:

POWER 230Vac, 50Hz FUSE F2A ON / OFF 7 9 8 qbcight Power supply: 100V, 50Hz Type: 100V, 50Hz Description: 50Hz, 50Hz Quality: No. 1 CE 0.0125 DC/DC power: 0.0125 DC/DC power: 0.0125 DC/DC power: 0.0125 DC/DC power: 0.0125 DC/DC power: 0.0125

5. Mounting instruction :

The fixture may be mounted in any position provided there is adequate room for ventilation and the fluid can not leak.

It is important never to obstruct the front of the machine, fan or vents pathway. Mount the fixture using a secure clamp.

Adjust the angle of the fixture loosening both knobs and tilting the fixture. After finding desired position, re-tighten both knobs.

When selecting installation location, take into consideration refilling the tank and routine maintenance. Safety cables must always be used when installed at a height.

Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperatures changes or restricted ventilation.

5. Caution! To prevent Mortal Electrical Risk and Long Life Operation :

For your safety, please kindly pay attention to all of the warnings listed below:

■ Always plug in the power plug last and disconnect from the mains when the device is not in use or before cleaning.
■ Do not install and operate the device in rain or extreme heat, moisture or dusty environments.
■ This device is for indoor use only and in a dry environment.
■ Do not switch on immediately but wait until it reaches to room temperature if the device has been exposed to drastic temperature fluctuations.
■ Do not shake the device and avoid brute force when installing or operating.

qtxlight ^TM

5

User Manual - QTFX-B2

160.563UK

■ Do not use the device during thunderstorms and please disconnect the power.
■ Do not use solvents or aggressive detergent to clean the device. Use a soft and clean cloth.
■ Do not modify the device or the connected power cord without authorization.
■ Use appropriate safety-rope for safety.
■ Clean the machine regularly using warm water

6. Connect with power supply - The ground wire must be connected :

Use the plug to connect to the main power supply as following.

Wire Connection International signal
Brown Live L
Blue Neutral N
Yellow /Cyan Earth

7. Quick Trouble Shooting :

If the unit is not functioning properly

7.1 Check if main power is on and fuse hasn't blown
7.2 Check there is fluid in the tank
7.3 Check the correct fluid has been used.

6

User Manual - QTFX-B2

160.563UK

8. Replacing Fuse :

Disconnect from the main power supply first, then remove the fuse holder above the IEC Socket to reveal the fuse. Replace the correct fuse rating as stated on lighting or user guide. Then, lock the fuse holder cover back into place.

9. General Maintenance

To maintain optimum performance and minimize wear, the item should be cleaned frequently. Usage and environment are contributing factors in determining frequency. As a general rule, fixtures should be cleaned after use to avoid dust build-up and blockages. Which can result in poor performances, overheating and breakages. Be sure to power off fixture before conducting maintenance.

Unplug fixture from power. Use a vacuum or air compressor and a soft brush to remove dust collected on external vents and internal components. Clean the external case when the fixture is cold with a dry cloth or tissue, and drag dirt and grime to the outside case.

To ensure a continuing high performance it is recommended to use warm water to clean the internal tank.

7
