USER MANUAL RNK82NNF ORION

3D rendering of a rectangular metallic panel or enclosure with a flat top and thin border (no text or symbols)

VIDEO WALL SOLUTION

(42\~82 inches)

1. SAFETY INSTRUCTION

※ Follow this safety instruction to use the monitor properly and prevent the damages.

※ This safety instruction has “Warning” & “Caution” as below

Warning - If the user does not follow this instruction, it may cause the serious damage to the user.

Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor.

※ Keep this user's guide book for later use.

Warning

Never remove the back over and touch the inside of the monitor. If you need a service, please contact the service center.

Cartoon illustration of a smiling computer monitor character with arms and legs, holding a pen and a cross (no text or symbols)

Keep away the monitor from the direct sunlight and a heating appliance.

Cartoon illustration of a sad computer monitor with steam rising, next to a steaming cup and sun (no text or symbols)

Never push objects of any kind into this product as they may result in a risk of fire or electric shock.

Cartoon illustration of a computer monitor with a sad face and a crossed-out '100' sign, symbolizing stress or urgency (no text present)

Connect the power code to the wall outlet tightly. If the power code or plug are defective and the wall outlet is not tight, please do not use them.

Cartoon illustration of a computer monitor with a sad face and a starburst, connected to a power outlet (no text or symbols)

Warning

Do not install this monitor on the outside and near water. If may cause damage to the product, electric shock and fire.

Illustration of a steaming pot and a computer monitor with a sad face, accompanied by a crossed-out 'X' symbol (no text or labels)

For cleaning do not use liquid cleaners. Never touch the power plug with wet-hands.

Cartoon illustration showing a computer monitor with a sad face, a spray bottle, and a QR code on the wall, with no text or symbols present.

When lightning and thundering, unplug the monitor from the wall outlet and never touch it.

Cartoon illustration of a computer monitor character with a sad face and lightning bolts, next to an electrical plug (no text or symbols)

Unplug this product from the wall outlet, when it does not operate for a long time.

Cartoon illustration of a sad computer monitor with a phone emitting sound waves, no text or symbols present

When smoking and noising from the monitor, unplug the product from the wall outlet and contact a service center.

Cartoon illustration of a smiling computer monitor with a waving hand and question mark symbols (no text or labels)

WARNING: How to fix

Do not open this product as it contains high voltage inside.

It may create an electric shock.

It the user disassembles and remove the back cover, it does not make sure to make up for the damages and do a service and exchange the monitor.

Cautions

Install this monitor some distance From the wall and do not install unless Proper ventilation is provided.

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Place this product on a stable place. If not, it may fall, causing serious Damages to the monitor and people.

Cartoon illustration of a computer monitor with a sad face and waving hands (no text or symbols)

The openings must not be blocked by curtain, rug or other similar surface.

Cartoon illustration of a sad computer monitor with arms and frowning faces (no text or symbols)

When carrying this monitor, be careful not to damage the panel and drop it. It may cause some trouble.

Cartoon illustration of a smiling computer monitor with arms extended (no text or symbols)

Before carrying the monitor, tum it off and Unplug the signal cables and the power code From the wall outlet.

Cartoon illustration of a smiling computer monitor with a power button and plug, connected to an electrical outlet (no text or symbols)

Take the power plug out from the wall outlet. Do not pull the cable. It may snap the inner-wires and cause overheating and fire.

Illustration of a hand pointing at an electrical outlet with a cross mark (no text or symbols)

Cautions

Install this monitor about 50cm far from the eyes and an angle of 0\~15 degrees below eyes. Too close installation may cause having weak sight.

50cm

Do not press the LCD panel with hands or the sharpened material hardly.

Cartoon illustration of a sad computer monitor character with arms and legs, holding a blank sign (no text or symbols present)

For cleaning, unplug the monitor from the Wall outlet. Do net use the liquid cloth. Use the soft cloth.

Simple line drawing of a computer monitor with a smiling face, next to a blank envelope and a square (no text or symbols)

Do not use the chemical liquid for cleaning. It may cause fading and breakage.

Illustration showing a crossed-out bottle and a sad face on a computer monitor, symbolizing food safety or hazardous products.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR WATER.

Instructions for Disposal of Electrical and Electronic Equipment in Private Households

Disposal of used Electrical and Electronic Equipment (Applicable in the European Union and other European countries with garbage separate disposal and collection methods)

This symbol on the product, or in the related documents in the package, indicates that this product shall not be treated as normal household waste. Instead, it should be taken to a proper applicable collection point or depot for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent possible negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources.

For more detailed information about recycling of this product, please contact your local city authority, your household waste disposal service or the place where you purchased the product.

2. FCC RF INTERFERENCE STATEMENT

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio, TV technician for help.
• Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.

TABLE OF CONTENTS

1. SAFETY INSTRUCTION 2

1-1 Warning
1-2 Caution

1. FCC STATEMENT 6

2. INSTALLATION 8

3-1 Parts
3-2 How to Install

1. OSD MENU SETTING 13

4-1 Mode Setting
4-2 Menu Setting

1. FEATURES 21

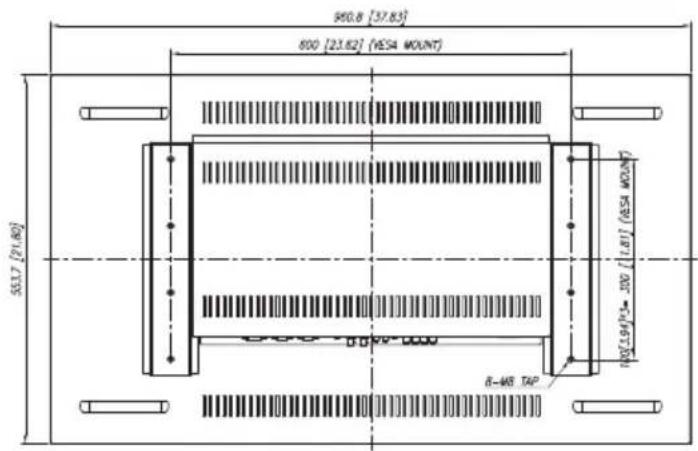

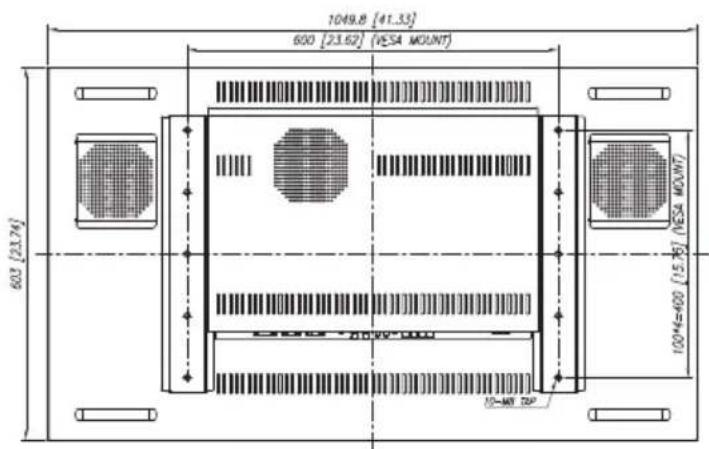

2. MECHANICAL DRAWING 22
3. TROUBLESHOOTING 23

3. INSTALLATION

3-1 Parts

3D illustration of a rectangular panel with a vertical scale on the right side (no text or symbols)

LCD Monitor & Keypad

Joint Bracket

Line drawing of a cable with two connectors (no text or symbols)

UTP Cable DVI Cal

Line drawing of two connected USB cables (no text or symbols)

e

Line drawing of a broadband cable with two 20-pin connectors (no text or symbols)

Line drawing of a remote control with buttons and dials (no text or symbols)

Line drawing of a coiled cable or wire with two connectors (no text or symbols)

Trigger Cable Power

Line drawing of a cable with a plug and connector (no text or symbols)

e Controller

Battery Install CD

3-2 How to Install

KEYPAD CONTROLLER

KEYPAD This KEYPAD is attached to a magnet, so you can freely paste UTP Cable (1.5m) EXIT MENU SOURCE AUTO VOLUME SELECT POWER

If you want to replace with a longer cable Please purchase separately

SHORT KEY FUNCTION

OSD KEY FUNCTION
EXIT MENU	On/off the OSD menu or exit the source selection menu
▼SOURCE	Move the cursor to choose on the OSD menu
	Select the source on the INPUT menu
△AUTO	Move up the cursor to choose on the OSD menu
	Activate the auto adjustment of RGB source
◀VOLUME	Control down on the OSD menu or move to the previous menu
	Volume down
▷SELECT	Select the OSD menu
	Control up on the OSD menu
	Volume up
○/|POWER	Turn the power ON or OFF. There will be a few seconds delay before the display appears. The power LED (next to the power switch) lights with green when the power is turned ON. The power is turned off by pressing the power switch again and the power LED goes red.

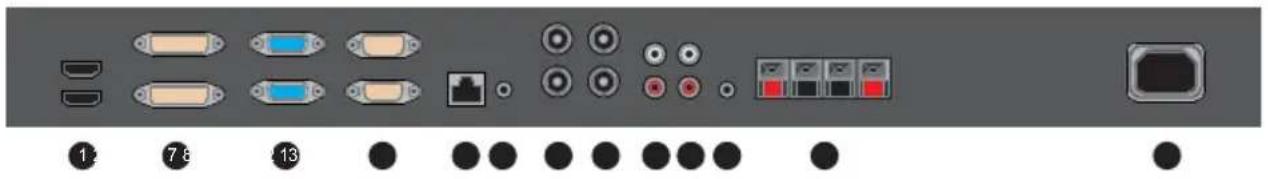

CONNECTION

Diagram of a computer rack front panel with labeled ports and indicator lights

1 HDMI HDMI Signal input / loop output VIDEO-2 Signal input / loop output 8 VIDEO-2 IN / OUT
2 DVI DVI Signal input / loop output Stereo audio input for VIDEO-1 9 AUDIO (VIDEO-1)
3 VGA 10 AUDIO (VIDEO-2) VGA (PC RGB) Signal input / loop output Stereo audio input for VIDEO-2
4 RS-232 IN / OUT 11 TRIGGER SERIAL Cable input / output for RS-232 TRIGGER Signal input
5 KEYPAD UTP Cable input for KEYPAD
6 AUDIO (PC) Stereo audio input for VGA
7 VIDEO-1 IN / OUT VIDEO-1 Signal input / loop output
12 SPEAKER OUT Stereo speaker output
13 AC POWER AC 100-240V input
14 DC24V DC 24V (Adapter) input

1. You can combine two or more monitors, and configure the VIDEO WALL.
2. If you want to configure VIDEO WALL, please contact your dealer or a professional installer.
3. JOINT BRACKET helps to easily adjust the VIDEO WALL. (Supplied with monitor)

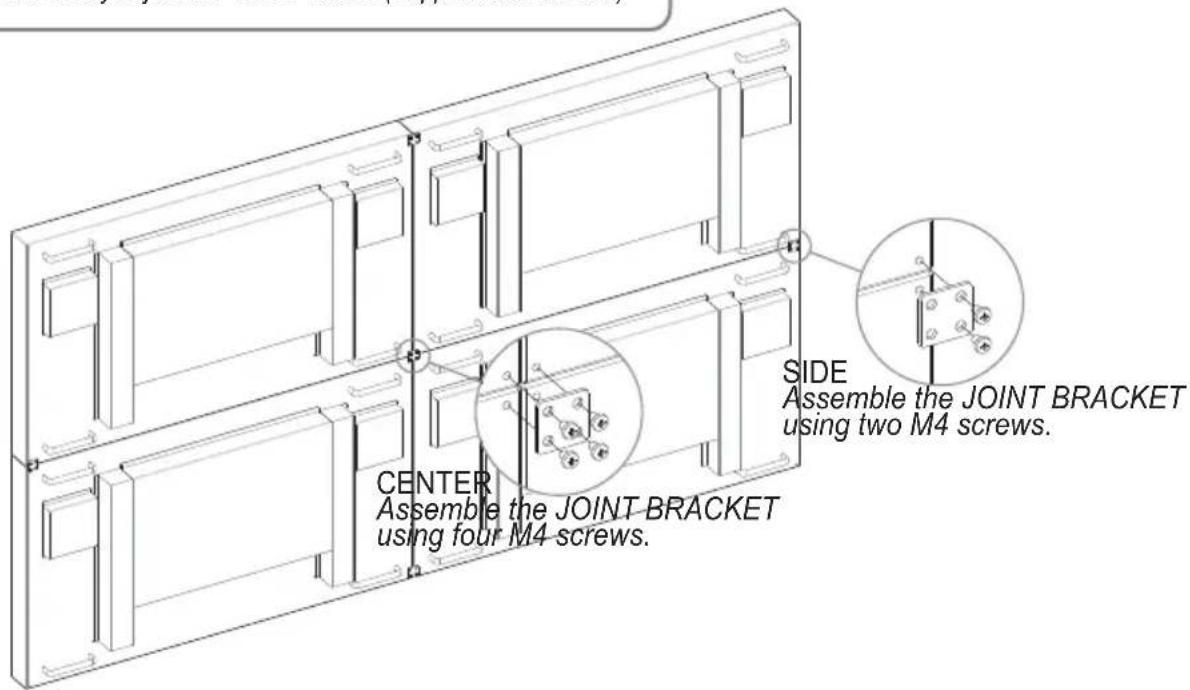

CENTER Assemble the JOINT BRACKET using four M4 screws. SIDE Assemble the JOINT BRACKET using two M4 screws.

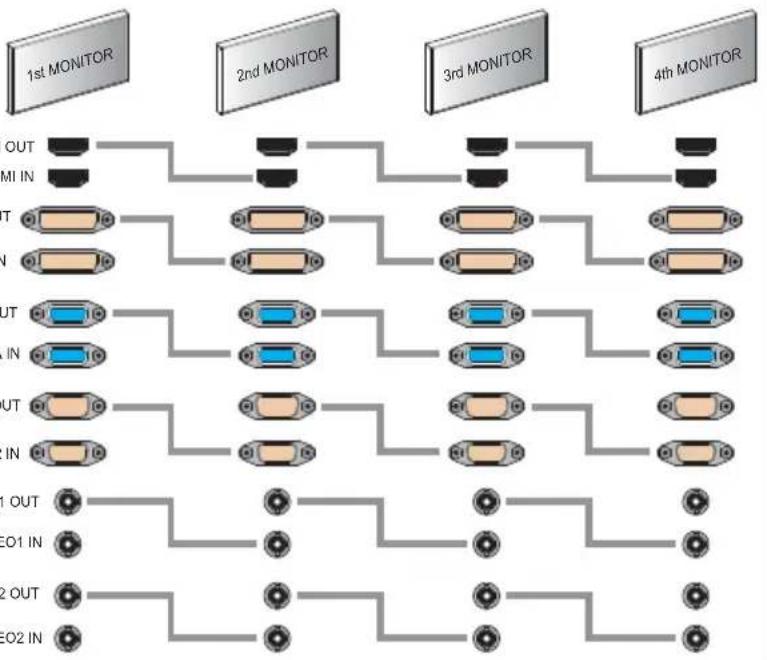

CABLES CONNECTION

* Cable connection order, it may be different from the order of the 'SET ID' or 'SEQUENCE' (Refer to page 15\~17)

Illustration of three electronic devices: a camera, a printer, and a laptop (no text or symbols visible)
    subgraph_Monitors_1["1st MONITOR"]
        A1["Input"] --> B1["OUT"]
        A2["Input"] --> B2["IN"]
        A3["Input"] --> B3["OUT"]
        A4["Input"] --> B4["IN"]
        A5["Input"] --> B5["OUT"]
        A6["Input"] --> B6["IN"]
    end

    subgraph_Monitors_2["2nd MONITOR"]
        A7["Input"] --> B7["OUT"]
        A8["Input"] --> B8["IN"]
        A9["Input"] --> B9["OUT"]
        A10["Input"] --> B10["IN"]
        A11["Input"] --> B11["OUT"]
        A12["Input"] --> B12["IN"]
    end

    subgraph_Monitors_3["3rd MONITOR"]
        A9["Input"] --> B13["OUT"]
        A10["Input"] --> B14["IN"]
        A11["Input"] --> B15["OUT"]
        A12["Input"] --> B16["IN"]
        A13["Input"] --> B17["OUT"]
        A14["Input"] --> B18["IN"]
    end

    subgraph_Monitors_4["4th MONITOR"]
        A14["Input"] --> B19["OUT"]
        A15["Input"] --> B20["IN"]
        A16["Input"] --> B21["OUT"]
        A17["Input"] --> B22["IN"]
    end

    Monitors_5["5th MONITOR"]
    note1["In 1st MONITOR"]
    note2["In 2nd MONITOR"]
    note3["In 3rd MONITOR"]
    note4["In 4th MONITOR"]
    note5["In 5th MONITOR"]
    note6["In 6th MONITOR"]
    note7["In 7th MONITOR"]
    note8["In 8th MONITOR"]
    note9["In 9th MONITOR"]
    note10["In 10th MONITOR"]
    note11["In 11th MONITOR"]
    note12["In 12th MONITOR"]
    note13["In 13th MONITOR"]
    note14["In 14th MONITOR"]
    note15["In 15th MONITOR"]
    note16["In 16th MONITOR"]
    note17["In 17th MONITOR"]
    note18["In 18th MONITOR"]
    note19["In 19th MONITOR"]
    note20["In 20th MONITOR"]
    note21["In 21st MONITOR"]
    note22["In 22nd MONITOR"]
    note23["In 23rd MONITOR"]
    note24["In 24th MONITOR"]
    note25["In 25th MONITOR"]
    note26["In 26th MONITOR"]
    note27["In 27th MONITOR"]
    note28["In 28th MONITOR"]
    note29["In 29th MONITOR"]
    note30["In 30th MONITOR"]
    note31["In 31st MONITOR"]
    note32["In 32nd MONITOR"]
    note33["In 33rd MONITOR"]
    note34["In 34th MONITOR"]
    note35["In 35th MONITOR"]
    note36["In 36th MONITOR"]
    note37["In 37th MONITOR"]
    note38["In 38th MONITOR"]
    note39["In 39th MONITOR"]
    note40["In 40th MONITOR"]
    note41["In 41st MONITOR"]
    note42["In 42nd MONITOR"]
    note43["In 43rd MONITOR"]
    note44["In 44th MONITOR"]
    note45["In 45th MONITOR"]
    note46["In 46th MONITOR"]
    note47["In 47th MONITOR"]
    note48["In 48th MONITOR"]
    note49["In 49th MONITOR"]
    note50["In 50th MONITOR"]

    Note1 --> B7
    Note2 --> B8
    Note3 --> B9
    Note4 --> B10
    Note5 --> B11
    Note6 --> B12
    Note7 --> B13
    Note8 --> B14
    Note9 --> B15
    Note10 --> B16
    Note11 --> B17
    Note12 --> B18
    Note13 --> B19
    Note14 --> B20
    Note15 --> B21
    Note16 --> B22
    Note17 --> B23
    Note18 --> B24
    Note19 --> B25
    Note20 --> B26
    Note21 --> B27
    Note22 --> B28
    Note23 --> B29
    Note24 --> B30
    Note25 --> B31
    Note26 --> B32
    Note27 --> B33
    Note28 --> B34
    Note29 --> B35
    Note30 --> B36
    Note31 --> B37
    Note32 --> B38
    Note33 --> B39
    Note34 --> B40
    Note35 --> B41
    Note36 --> B42
    Note37 --> B43
    Note38 --> B44
    Note39 --> B45
    Note40 --> B46
    Note41 --> B47
    Note42 --> B48
    Note43 --> B49
    Note44 --> B50
    Note45 --> B51
    Note46 --> B52
    Note47 --> B53
    Note48 --> B54
    Note49 --> B55
    Note50 --> B56

    Note50 --> E01["EO01 IN"]

    Note51 --> E02["EO02 IN"]

    Note52 --> E03["EO03 IN"]

    Note53 --> E04["EO04 IN"]

    Note54 --> E05["EO05 IN"]

    Note55 --> E06["EO06 IN"]

    Note56 --> E07["EO07 IN"]

    Note57 --> E08["EO08 IN"]

    Note58 --> E09["EO09 IN"]

    Note59 --> E10["EO10 IN"]

    Note60 --> E11["EO11 IN"]

    Note61 --> E12["EO12 IN"]

    Note62 --> E13["EO13 IN"]

    Note63 --> E14["EO14 IN"]

    Note64 --> E15["EO15 IN"]

    Note65 --> E16["EO16 IN"]

    Note66 --> E17["EO17 IN"]

    Note67 --> E18["EO18 IN"]

    Note68 --> E19["EO19 IN"]

    Note69 --> E20["EO20 IN"]

    Note70 --> E21["EO21 IN"]

    Note71 --> E22["EO22 IN"]

    Note72 --> E23["EO23 IN"]

    Note73 --> E24["EO24 IN"]

    Note74 --> E25["EO25 IN"]

    Note75 --> E26["EO26 IN"]

    Note76 --> E27["EO27 IN"]

    Note77 --> E28["EO28 IN"]

    Note78 --> E29["EO29 IN"]

    Note79 --> E30["EO30 IN"]

    Note80 --> E31["EO31 IN"]

    Note81 --> E32["EO32 IN"]

    Note82 --> E33["EO33 IN"]

    Note83 --> E34["EO34 IN"]

    Note84 --> E35["EO35 IN"]

    Note85 --> E36["EO36 IN"]

    Note86 --> E37["EO37 IN"]

    Note87 --> E38["EO38 IN"]

    Note88 --> E39["EO39 IN"]

    Note89 --> E40["EO40 IN"]

    Note90 --> E41["EO41 IN"]

    Note91 --> E42["EO42 IN"]

    Note92 --> E43["EO43 IN"]

    Note93 --> E44["EO44 IN"]

    Note94 --> E45["EO45 IN"]

    Note95 --> E46["EO46 IN"]

    Note96 --> E47["EO47 IN"]

    Note97 --> E48["EO48 IN"]

    Note98 --> E49["EO49 IN"]

    Note99 --> E50["EO50 IN"]

    Note100 fill:#f9f,stroke:#ccc,stroke-width:2px

* Please install the COMMANDER (Video Wall Control Program) for remote control of the monitors through the computer. For information about installing and using COMMANDER, please refer to the installation disk that came with the monitor.

REMOTE CONTROLLER

POWER MUTE VIDEO VIDEO2 VGA AUTO COLOR TEMP DISHOW S.SET SCAN MODE PIP VOL-VOL MENUEXT KEY LOCK P.INPUT P.LOCATION P.SIZE P.SWAP STILL A B C

A MODE SELECT MENU

VIDEO 1 (Only 40 inches or more) Select VIDEO 1 mode

DVI Select DVI mode

HDMI Select HDMI mode

VIDEO 2 (Only 40 inches or more) Select VIDEO 2 mode

VGA (RGB) Select VGA mode

B OSD CONTROL MENU

POWER Turn ON / OFF the monitor

AUTO Auto adjust position of the screen (in VGA mode)

SCAN MODE Select the scan mode of the screen

MENU / EXIT Activate and exit the OSD menu

STILL Freeze the current image

MUTE Turn ON / OFF the sound

COLOR TEMPERATURE Select color temperature of the screen

VOL- / VOL+ Increase / Decrease the volume level

KEY LOCK Locking the button (Prevent operation)

C PIP CONTROL MENU

S. SET Select between main and PIP audio input

P. INPUT Select an input source for PIP mode

P. SIZE Select a size for PIP mode

PIP Activates PIP/PBP mode

P. LOCATION Select a location for PIP mode

P. SWAP Swap between main and PIP input

4. OSD MENU SETTING

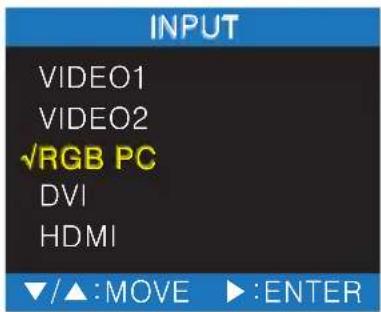

4-1 Mode Setting

INPUT VIDEO1 VIDEO2 ✓RGB PC DVI HDMI ▼/▲:MOVE ▶:ENTER

1. Use Source button and then ▲ or ▼ button to move the source.
2. Press the ▶ button to select the source.
3. Press the MENU/EXIT button to exit the INPUT menu.

VIDEO1 Select VIDEO1 Mode (Only 40 inches or more)

VIDEO2 Select VIDEO2 Mode (Only 40 inches or more)

RGB PC Select VGA Mode

DVI Select DVI Mode

HDMI Select HDMI mode

4-2 Menu Setting

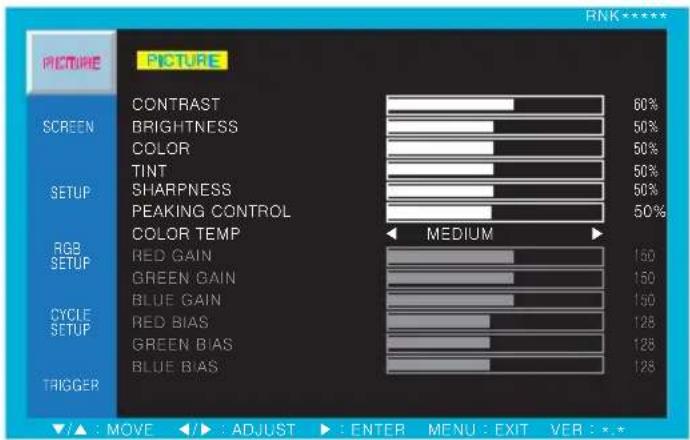

PICTURE CONTRAST 60% BRIGHTNESS 50% COLOR 50% TINT 50% SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB SETUP RED GAIN 150 GREEN GAIN 150 BLUE GAIN 150 RED BIAS 128 GREEN BIAS 128 BLUE BIAS 128 CYCLE SETUP TRIGGER ▲ : MOVE ◀: ADJUST ▶: ENTER MENU: EXIT VER: *.*

1. Press the MENU key to access menu.
2. Use the ▲ or ▼ key to choose PICTURE.
3. Press the ▶ key to enter the PICTURE menu.
4. Use the ▲ or ▼ key to choose an item of PICTURE.
5. Use the ◀ or ▶ key to adjust the setting on a selected item.

ITEM FUNCTION	DEFAULT VALUE AVAILABLE MODE
CONTRAST Adjust the contrast level of color All modes		60%
BRIGHTNESS Adjust the brightness level of color All modes		50%
COLOR Adjust the depth of color VIDEO, HDMI		50%
TINT Adjust the tint of color (only NTSC signal) VIDEO, HDMI		50%
SHARPNESS Adjust the sharpness of picture VIDEO, HDMI		50%
PEAKING CONTROL Adjust the sharpness of outline		50% HDMI
COLOR TEMP	Set the color temperature of screen(MEDIUM, WARM, USER, COOL)* USER - Adjust the gain and bias of RED, GREENand BLUE from 0 to 255	MEDIUM	All modes

SCREEN

PICTURE SCREEN H MONITORS V MONITORS ◀ 01 SEQUENCE H GAP V GAP SCAN MODE PIP PIP INPUT PIP SWAP PIP SIZE PIP LOCATION 01 01 00 00 FULL OFF VIDEO2 SMALL R/B RGB SETUP CYCLE SETUP TRIGGER ▼/▲ : MOVE ◄/► : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

1. Press the MENU key to access menu.
2. Use the ▲ or ▼ key to choose SCREEN.
3. Press the ▶ key to enter the SCREEN menu.
4. Use the ▲ or ▼ key to choose an item of SCREEN.
5. Use the ◀ or ▶ key to adjust the setting on a selected item.

ITEM FUNCTION	DEFAULT VALUE AVAILABLE MODE
H MONITORS	Set the total number of horizontally installed monitors on the video wall situation (01 ~ 99)	01	All modes
V MONITORS	Set the total number of vertically installed monitors on the video wall situation (01 ~ 99)	01	All modes
SEQUENCE	Set the sequence of installed monitors on the video wall situation (01 ~ 99)	01	All modes
H GAP	Set the horizontal gap between adjacent panels caused by bezel width (00 ~ 99)	00	All modes
V GAP	Set the vertical gap between adjacent panels caused by bezel width (00 ~ 99)	00	All modes
SCAN MODE	Select the scan mode of the screen (FULL, REAL,*UNDER, OVER, 4:3)	FULL	All modes
PIP	Activate PIP/PBP mode (OFF, ON, DW1, DW2) (Only 40 inches or more)		HDMIOFF

*UNDER : It does not appear in HDMI mode

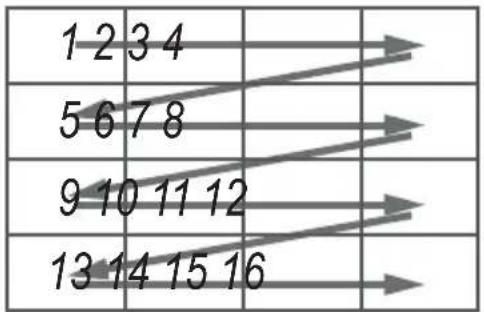

SEQUENCE numerical order

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

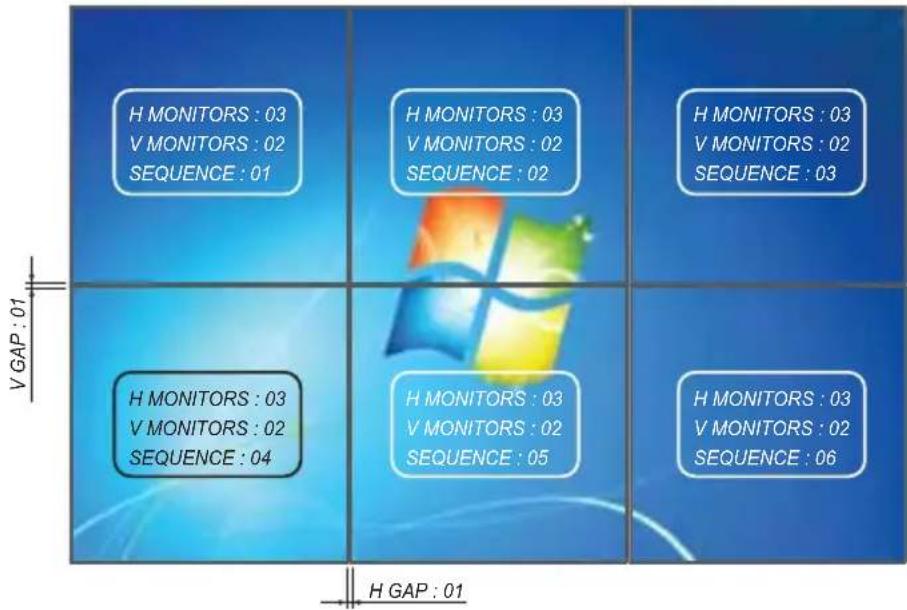

ex) In case of 3X2 Video Wall Setting

H MONITORS : 03 V MONITORS : 02 SEQUENCE : 01 H MONITORS : 03 V MONITORS : 02 SEQUENCE : 02 H MONITORS : 03 V MONITORS : 02 SEQUENCE : 03 H MONITORS : 03 V MONITORS : 02 SEQUENCE : 04 H MONITORS : 03 V MONITORS : 02 SEQUENCE : 05 H MONITORS : 03 V MONITORS : 02 SEQUENCE : 06 H GAP : 01

SCAN MODE

REAL : Display original images entered from the source intactly

UNDER : Display the image on the smaller area than the screen Original image is fully displayed.

OVER : Display the image on the broader area than the screen Original Image is cut off on the edge.

4:3 : Display the image to 4:3 aspect ratio

PIP

Default Setting is OFF and changeable to ON, DW1 and DW2 PIP/PBP modes.

OFF : PIP/PBP modes are not activated.

ON : Switch on PIP/PBP mode

DW1: change to Double Window mode 1

DW2: change to Double Window mode 2

After selecting PIP/PBP modes, following items are activated.

PIP INPUT : Select an input source for PIP image (VIDEO 1, VIDEO 2)

PIP SWAP : Swap main picture and sub picture

PIP SIZE : Select the size of PIP image (SMALL, NORMAL, LARGE)

PIP LOCATION : Select the position of PIP image (R/B, L/B)

SETUP

PICTURE SETUP INPUT LANGUAGE AUDIO MUTE AUDIO OUT NOISE REDUCTION CSD TIME DEFAULT SET ID 01 KEY LOCK OFF LINE SHIFT OFF FAN CONTROL FAN AUTO REF FAN SPEED CURRENT TEMP VIDEO1 ENGLISH OFF INTERNAL ON 15s RGB SETUP CYCLE SETUP AUTO 42c NORMAL 42c TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

1. Press the MENU key to access menu.
2. Use the ▲ or ▼ key to choose SETUP.
3. Press the ▶ key to enter the SETUP menu.
4. Use the ▲ or ▼ key to choose an item of SETUP.
5. Use the ◀ or ▶ key to adjust the setting on a selected item.

ITEM FUNCTION	DEFAULT VALUE AVAILABLE MODE
INPUT Select the input source for main picture All modes
LANGUAGE	Set the language of OSD(ENGLISH, ITALIAN, FRENCH, SPANISH, GERMAN)	ENGLISH	All modes
AUDIO MUTE Turn on/off the audio output All modes		OFF
AUDIO OUT	Select the speaker for audio output(INTERNAL, EXTERNAL)	INTERNAL	All modes
NOISE REDUCTION Set the noise reduction mode All modes		ON
OSD TIME Set the time duration of OSD menu (5~30s) All modes		15s (seconds)
DEFAULT	Factory default setting		All modes
SET ID	Allocate an ID of the set for RS-232 control	01	All modes
KEY LOCK	Lock the key action (Prevent operation)	OFF	All modes
LINE SHIFT	Move the image a little instantaneously to protectthe screen	OFF	All modes
FAN CONTROL	Select the control method of FAN (AUTO, ON, OFF)	AUTO	All modes
FAN AUTO REF	Set the reference temperature for automatic FANcontrol (20~60c)	42c (celsius)	All modes
FAN SPEED	Select the speed of FAN (NORMAL, FAST, SLOW)	NORMAL	All modes
CURRENT TEMP	Display the current temperature		All modes

To cancel KEY LOCK mode

Remote Controller : Press KEY LOCK button

Keypad : Press ▲ & ◀ buttons simultaneously

RGB SETUP (ONLY RGB PC MODE)

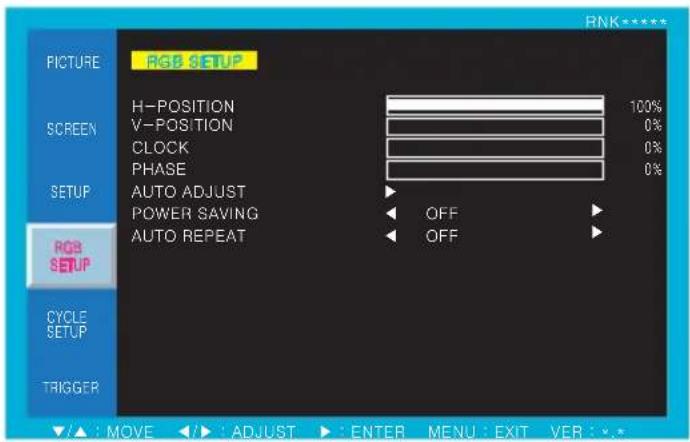

PICTURE RGB SETUP H-POSITION 100% SCREEN V-POSITION 0% CLOCK 0% PHASE 0% SETUP AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF RGB SETUP CYCLE SETUP TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

1. Press the MENU key to access menu.
2. Use the ▲ or ▼ key to choose RGB SETUP.
3. Press the ▶ key to enter the RGB SETUP menu.
4. Use the ▲ or ▼ key to choose an item of RGB SETUP.
5. Use the ◀ or ▶ key to adjust the setting on a selected item.

ITEM FUNCTION	DEFAULT VALUE AVAILABLE MODE
H-POSITION Adjust the horizontal position of the screen RGB PC
V-POSITION Adjust the vertical position of the screen RGB PC
CLOCK Adjust the clock of the screen RGB PC
PHASE Adjust the phase of the screen RGB PC
AUTO ADJUST Adjust all of above items for suitable screen RGB PC
POWER SAVING	Adjust the power saving mode	OFF	RGB PC
AUTO REPEAT	Repeat AUTO ADJUST action automatically	OFF	RGB PC

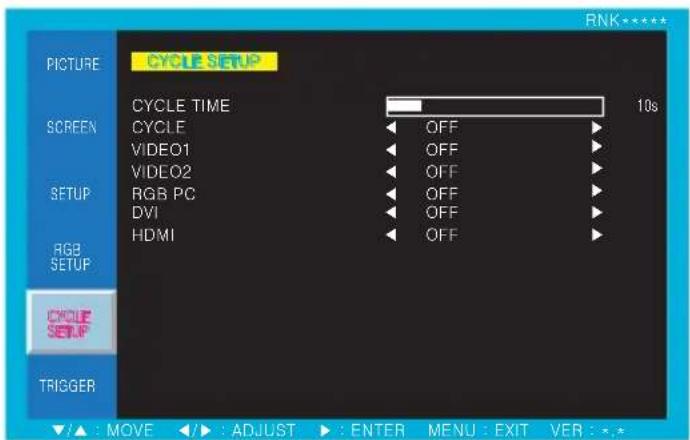

CYCLE SETUP

CYCLE SETUP PICTURE CYCLE TIME 10s SCREEN CYCLE OFF VIDEO1 OFF VIDEO2 OFF RGB PC OFF DVI OFF HDMI OFF RGB SETUP CYCLE SETUP TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

1. Press the MENU key to access menu.
2. Use the ▲ or ▼ key to choose CYCLE SETUP.
3. Press the ▶ key to enter the CYCLE SETUP menu.
4. Use the ▲ or ▼ key to choose an item of CYCLE SETUP.
5. Use the ◀ or ▶ key to adjust the setting on a selected item.

ITEM FUNCTION	DEFAULT VALUE AVAILABLE MODE
CYCLE TIME Adjust the	time interval to display selected mode All modes	10s (seconds)
CYCLE	Display selected modes sequentially in set cycle time	OFF	All modes
VIDEO1 Choice as to whether to cycle of VIDEO1 mode All modes		OFF
VIDEO1 Choice as to whether to cycle of VIDEO2 mode All modes		OFF
RGB PC Choice as to whether to cycle of RGB PC mode All modes		OFF
DVI Choice as to whether to cycle of DVI mode All modesOFF
HDMI Choice as to whether to cycle of HDMI mode All modesOFF

TRIGGER

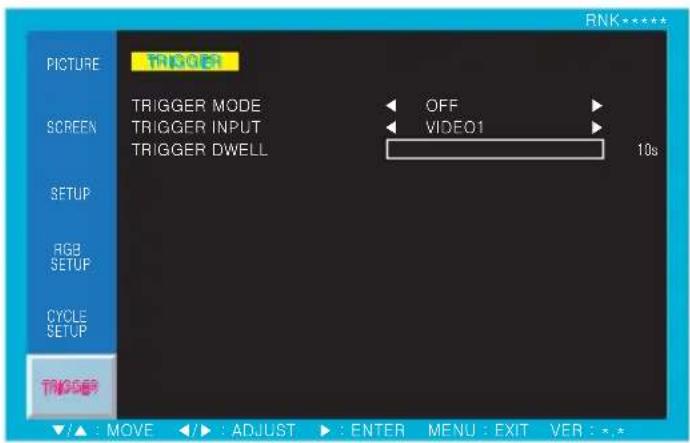

PICTURE TRIGGER SCREEN TRIGGER MODE OFF TRIGGER INPUT VIDEO1 TRIGGER DWELL 10s SETUP RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ◀: ADJUST ▶: ENTER MENU: EXIT VER: *.*

1. Press the MENU key to access menu.
2. Use the ▲ or ▼ key to choose TRIGGER.
3. Press the ▶ key to enter the TRIGGER menu.
4. Use the ▲ or ▼ key to choose an item of TRIGGER.
5. Use the ◀ or ▶ key to adjust the setting on a selected item.

Notice :

After setting the trigger mode, if the trigger terminal is not closed(short input), the screen moves to Trigger modes.

Please set the trigger mode after connecting the trigger signal to the close position.

ITEM FUNCTION	DEFAULT VALUE AVAILABLE MODE
TRIGGER MODE Set the trigger mode to OFF/FULL/PIP/DW1/DW2 All modes		OFF
TRIGGER INPUT	Select the input source of trigger mode (VIDEO1, VIDEO2)	VIDEO1	All modes
TRIGGER DWELL	Set the transition time from trigger mode to normal mode	10s (seconds)	All modes

INPUT SIGNAL MODE TABLE

INPUT SIGNAL MODE RESOLUTION VERTICAL FREQUENCY (Hz)
VGA / DVI	VGA 640X480 60 / 72 / 75
	VGA 720X400 70
	SVGA 800X600 56 / 60 / 75
	XGA 1024X768 60 / 75
	SXGA- 1280X960 60
	SXGA 1280X1024 60 / 75
	WXGA 1366X768 60
	WXGA+ 1440X900 60
	FHD	1920X1080 60
HDMI	SDTV 480i	720X480 30
	SDTV 576i	720X576 25
	EDTV 480p	720X480 60
	EDTV 576p	720X576 50
	HDTV 720p	1280X720 50 / 60
	HDTV 1080i	1920X1080 25 / 30
	HDTV 1080p	1920X1080 50 / 60

5. FEATURE

		RNK42NHF	RNK42NNF RNK46NHF RNK46SHF RNK55NHF RNK82NNF			RNK46SNF		RNK56SHF	RNK55SNF	RNK70NNF
Bezel Width	Outside to BEZEL	13.4 mm	13.4 mm	15.5 mm 5.7 mm (Two Sides) 15.5 mm		26.7 mm/17mm Sides)		5.7 mm (Two Sides)	5.7 mm (Two Sides)	23.2 mm
	Outside to Active Area	15.2 mm	15.2 mm	17.5 mm 5.9 mm (Two Sides) 17.5 mm		26.9 mm/3mm Sides)		5.9 mm (Two Sides)	5.9 mm (Two Sides)	26.5 mm
Display	Screen Size	42.0 inches	42.0 inches	46.0 inches	46.0 inches 54.6 inches	48.0 inches		54.6 inches	54.6 inches	70.0 inches
	Resolution	1920*1080 pixels	1920*1080 pixels	1920*1080 pixels 1920*1080 pixels 1920*1080 pixels				1920*1080 pixels	1920*1080 pixels	1920*1080 pixels
	Pixel Pitch	0.485*0.485 mm	0.485*0.485 mm	0.530*0.530 mm 0.530*0.530 mm		0.530*0.530 mm 0.630*0.630 mm		0.630*0.630 mm	0.630*0.630 mm	0.607*0.607 mm 0.941*0.941 mm
	Brightness	700 cd/m^2	450 cd/m^2	700 cd/m^2	700 cd/m^2	500 cd/m^2	700 cd/m^2 450 cd/m^2	700 cd/m^2	500 cd/m^2	400 cd/m^2
	Contrast Ratio	1300:1	1300:1	3000:1	3500:1	3500:1	4000:1	3500:1	3500:1	4000:1	5000:1
	Aspect Ratio	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9	16:9
	Viewing Angle (HV)	178°178 degrees	178°178 degrees	178°178 degrees	178°178 degrees	178°178 degrees	178°178 degrees	178°178 degrees	178°178 degrees	178°178 degrees	178°178 degrees
	Display Color	16.7 million	16.7 million	16.7 million	16.7 million 16.7 million	16.7 million		16.7 million	16.7 million	16.7 million
	Response Time	8 ms	8 ms	8 ms	8 ms	8 ms	8 ms	8 ms	8 ms	8 ms	8 ms
	Video System	NTSC/PAL	NTSC/PAL	NTSC/PAL	NTSC/PAL	NTSC/PAL	NTSC/PAL	NTSC/PAL	NTSC/PAL	NTSC/PAL	NTSC/PAL
	Panel Life Time	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Interface	Video In/Out (BNC Type)	2/2	2/2	2/2	2/2	2/2	2/2	2/2	2/2	2/2	2/2
	VGA In/Out (15Pin D-Sub)	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1
	DVI In/Out	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1
	HDMI In/Out	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1
	RS-232 In/Out	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1	1/1
	Audio In (RCA Type)	2	2	2	2	2	2	2	2	2	2
	PC Stereo In	1	1	1	1	1	1	1	1	1	1
Special Features	Built in Speakers	Y (10W^2)	Y (10W^2)	Y (10W^2)	Y (10W^2)	Y (10W^2)	Y (10W^2)	Y (10W^2)	Y (10W^2)	Y (10W^2)	Y (10W^2)
	Remote Control	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
	RS-232 Control	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision	Monitor OSD & Multi Vision
	Multi Display Function	PIP/PBP	PIP/PBP	PIP/PBP	PIP/PBP	PIP/PBP	PIP/PBP	PIP/PBP	PIP/PBP	PIP/PBP	PIP/PBP
	Filter Type	3D Comb Filter	3D Comb Filter	3D Comb Filter	3D Comb Filter	3D Comb Filter	3D Comb Filter	3D Comb Filter	3D Comb Filter	3D Comb Filter	3D Comb Filter
	Deinterlacing	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
	Auto Pixel Shift	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
	FAN On/Off Control	N/A	N/A	Y	Y	Y	Y	Y	Y	Y	Y
	Temperature Sensor	N/A	N/A	Y	Y	Y	Y	Y	Y	Y	Y
	One Stretch Image by Edge Set	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
	Trigger Source Switching	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
	Noise reduction	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
	Auto source sequencing	Y	Y	Y	Y	Y	Y	Y	Y	Y	Y
	Multi Lingual Language	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita	Eng Spa Fre, Ger, Ita
Dimension	Outline Dimension	37.83*21.80*3.70 inches	37.83*21.80*2.76 inches	41.33*22.74*3.62 inches	40.31*22.78*5.04 inches	40.31*22.78*5.74 inches	49.00*28.17*3.94 inches	47.69*27.02*5.08 inches	47.69*27.02*5.77 inches	63.09*36.39*4.21 inches	73.17*42.69*4.72 inches
		963.8553.794 mm	963.8553.794 mm	1049.86397 mm	1023.98578.57*128 mm	1023.98578.57*145.7 mm	1244.9715.4*100 mm	1215.9583.3*129 mm	1215.9583.3*146.6 mm	1602.4*924.4*107 mm	1858.4*1084.4*126 mm
Cabinet	Cabinet Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
	Cabinet Material	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel
Regulations		CE, FCC	CE, FCC	CE, FCC	CE, FCC	CE, FCC	CE, FCC	CE, FCC	CE, FCC	CE, FCC	CE, FCC
Power	Electrical Ratings	AC 100-240 V (50/80Hz)	AC 100-240 V (50/80Hz)	AC 100-240 V (50/80Hz)	AC 100-240 V (50/80Hz)	AC 100-240 V (50/80Hz)	AC 100-240 V (50/80Hz)	AC 1O0-240 V (50/80Hz)	AC 100-240 V (50/80Hz)	AC 100-240 V (50/80Hz)	AC 199-240 V (50/80Hz)
Circumstance	Operating Temperature	0~40 celsius	0~40 celsius	0~40 celsius	0~40 celsius	0~40 celsius	0~40 celsius	0~40 celsius	0~40 celsius	0~40 celsius	0~40 celsius
	Storage Temperature	-20~65 celsius	-20~65 celsius	-20~65 celsius	-20~65 celsius	-20~65 celsius	-20~65 celsius	-20~65 celsius	-20~65 celsius	-20~65 celsius	-20~65 celsius
Mounts	VESA Mounts Size	600*300 mm	600*300 mm	600*400 mm	600*400 mm	600*400 mm	600*400 mm	600*400 mm	600*400 mm	800*600 mm	800*600 mm

6. MECHANICAL DRAWING

Units : mm [inches]

950.8 [37.83] 800 [23.62] (RESA MOUNT) 551.7 [21.80] (103.194) [1-100] (RESA MOUNT) 8-WB TAP

RNK42NHF / NNF

1049.8 [41.33] 600 [23.62] (VESA MOUNT) 603 [23.74] 1004=400 (15.75) (VESA MOUNT) 10-MT 2DP

RNK46NHF RNK46

1023.98 [40.31] 600 [23.62] (VESA MOUNT) 578.57 [22.78] 100[1.94]M=400 [10.75] (VESA MOUNT) 10-40° 50°

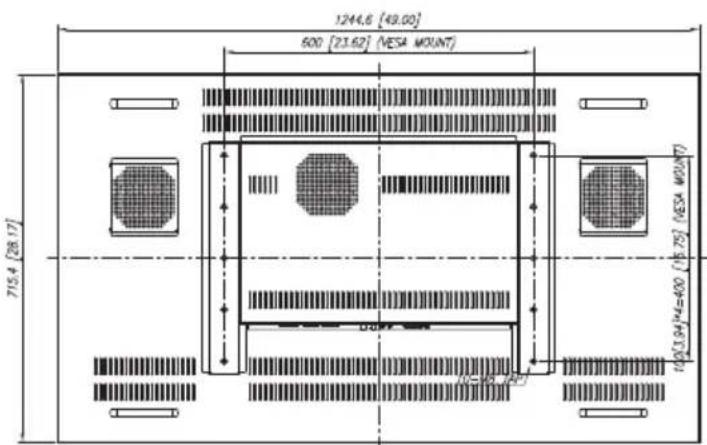

1244.6 [49.00] 500 [23.62] (ESA MOUNT) 715.4 [28.17] 10/1(1.94)*4=400 (18.75) (ESA MOUNT)

RNK55NHF RNK55

1215.5 [47.85] 600 [23.62] (VESA MOUNT) 686.3 [27.02] 100*4=400 (15.76) (VESA MOUNT)

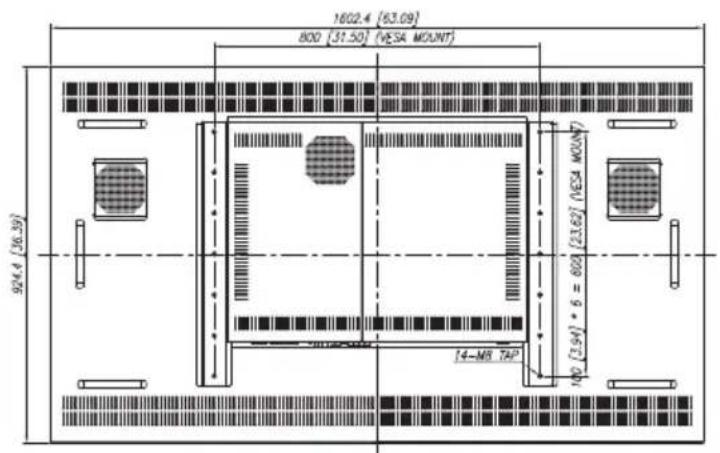

1602.4 (63.09) 800 [31.50] (VESA MOUNT) 924.4 (36.39) [23.62] (VESA MOUNT) 14-M8 TAIP 180 [3.94] * 6 = 600

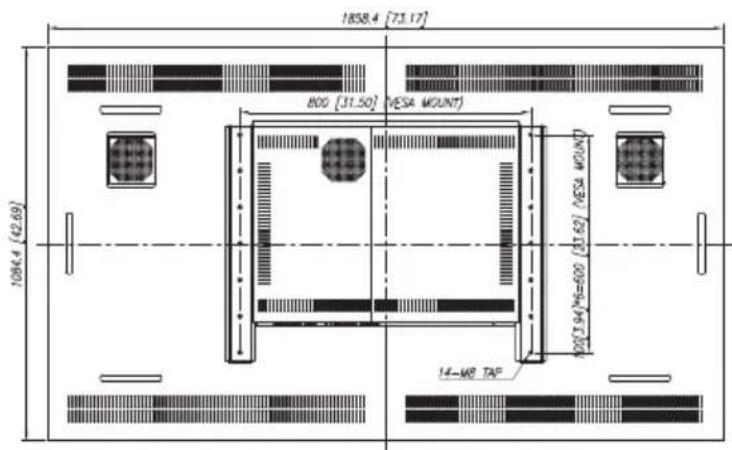

1858.4 [73.17] 800 [31.50] VESA MOUNT 1064.4 (42.69) 100 [194/96=600 (31.62) VESA MOUNT 14-M8 TAP

7. TROUBLESHOOTING

* When the following troubles are occurred, follow the trouble shooting. Before contacting a service center.

Troubleshooting	Troubleshooting Tip
The screen doesn't show up	1. Make sure if the power supply is connected property
	2. Turn on the power.
	3. Select the input signal right for the connected port.
The screen is too light or to dark	Control the BRIGHTNESS
The screen size is not fit for the PC signal	Press the AUTO key among keys in the front.(It is used only in the PC signal)
The screen color shows strange in the PC signal	In the FUNCTION menu of OSD menu, perform the AUTOADJUST.
