USER MANUAL Value 20PVMVE ORION

PROFESSIONAL PUBLIC VIEW MONITOR (PVM) LCD

DRION

20", 26", 32" TFT-LCD MONITOR (SECURITY)

Warning Statements

* Follow this safety instruction to use the monitor properly and prevent the damages.

* This safety instruction has “Warning” and “Caution” as below.

WARNING: If the user does not follow this instruction, it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor.

* Keep this user's guide book for later use.

Never remove the back over and touch the inside of the monitor. If you need a service, please contact the service center.

Keep away the monitor from the direct sunlight and a heating appliance.

Never push objects of any kind into this product as they may result in a risk of fire or electric shock.

Connect the power code to the wall outlet tightly. If the power code or plug are defective and the wall outlet is not tight, please do not use them.

Warning Statements

Do not install this monitor on the outside and near water. If may cause damage to the product, electric shock and fire.

For cleaning do not use liquid cleaners. Never touch the power plug with wet- hands.

When lightning and thundering, unplug the monitor from the wall outlet and never touch it.

Unplug this product from the wall outlet, when It does not operate for a long time.

When smoking and noising from the monitor, unplug the product from the wall outlet and contact a service center.

How to fix

1. Do not open this product as it contains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..

Cautions

Install this monitor some distance From the wall and do not install unless Proper ventilation is provided.

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Place this product on a stable place. If not, it may fall, causing serious Damages to the monitor and people.

Cartoon illustration of a computer monitor character with a sad face and waving hands (no text or symbols)

The openings must not be blocked by curtain, rug or other similar surface.

Cartoon illustration of a computer monitor with a sad face and frowning expression (no text or symbols)

When carrying this monitor, be careful not to damage the panel and drop it. It may cause some trouble.

Before carrying the monitor, tum it off and Unplug the signal cables and the power code From the wall outlet.

Cartoon illustration of a smiling computer monitor with a hand gesture and a small phone connected to it (no text or symbols)

Take the power plug out from the wall outlet. Do not pull the cable. It may snap the inner wires and cause overheating and fire.

Install this monitor about 50cm far from the eyes and an angle of 0\~15 degrees below eyes. Too close installation may cause having weak sight.

50cm

Do not press the LCD panel with hands or the sharpened material hardly.

Cartoon illustration of a sad computer monitor character holding a blank sign, with no text or symbols present.

For cleaning, unplug the monitor from the Wall outlet. Do net use the liquid cloth. Use the soft cloth.

Do not use the chemical liquid for cleaning. It may cause fading and breakage.

Illustration showing a crossed-out bottle and a sad face on a computer monitor, with no text or symbols present.

TABLE OF CONTENTS

1. INSTALLATION 6

1.1 Parts 6
1.2 Connection (20 Inch) 7
1.3 Connection (26 & 32 Inch) 8
1.4 Remote Controller 9

2. FEATURES 10

2.1 Specifications (General) 10
2.2 Specifications (Card Reader) 11

3. OSD SETTING 12-20

3.1 OSD Menu Description (20 Inch) 12-15
3.2 OSD Menu Description (26 & 32 Inch) 16-20

4. CONTROL AND FUNCTIONS 21

1. APPENDIX 22
2. INFORMATION TO THE USER 23
3. TROUBLESHOOTING 24
4. LIMITED LIFETIME WARRANTY 25

INSTALLATION

1.1 Parts

Remove the package cover and place the product on a flat and secure surface or in the installation location. Check whether all the following device and accessories are included with the main system.

Simple black-and-white monitor with a gray screen and a small circular button labeled '6' at the bottom (no text or symbols on the screen itself)

Public View Monitor

User's Guide for PVMV

POWER CORD

VGA CABLE

REMOCON

BATTERY

INSTALLATION

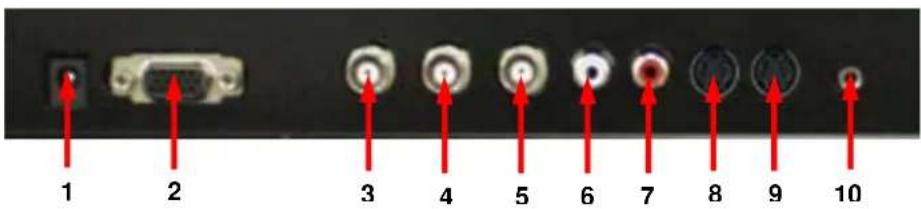

1.2 Connection (20 Inch PVMP)

1 2 3 4 5 6 7 8 9 10

1. DC 12V IN
2. RGB IN

RGB signal input.

1. CAMERA OUT

Composite signal input for AV1

1. VIDEO 2 (AV2) IN

Video looping output for AV1

1. VIDEO 2 (AV2) OUT

Composite signal for AV2

1. AUDIO 1 IN

Stereo audio signal input. This input is for AV1, S-VIDEO

1. AUDIO 2 IN

Stereo audio signal input. This output for AV2.

1. S-VIDEO (Y/C) IN

Y/C separated signal input

1. S-VIDEO (Y/C) OUT

Y/C separated signal looping output.

1. PC STEREO IN

INSTALLATION

1.3 Connection (26 & 32 Inch PVMP)

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

1. HDMI In HDMI signal input

2. DVI IN DVI-D signal input

3. RGB IN RGB signal input

4. PC STEREO INPUT

5. COMPONENT IN YPbPr signal input

6. STEREO AUDIO IN Component stereo audio signal input

7. AUDIO 2 IN Stereo audio signal input. This output for VIDEO2.

8. AUDIO1 IN Stereo audio signal input. This output for VIDEO1 and S-VIDEO.

9. S-VIDEO (Y/C) OUT Y/C separated signal looping output

10. S-VIDEO (Y/C) IN Y/C separated signal input

11. VIDEO2 OUT Video looping output for VIDEO2

12. VIDEO2 IN Composite signal input for VIDEO2

13. VIDEO1 OUT Video looping output for VIDEO1

14. VIDEO1 IN Composite signal input for VIDEO1

15. CAMERA OUT

16. AC INPUT

INSTALLATION

1.3 Remote Controller

A. SOURCE SELECT

Press the button to select the desired input source

B. PVM INPUT

□ POWER

Turn the monitor ON or OFF

□ MUTE

Temporarily silences the sound

□ COLOR TEMP

Adjust the color temperature of the screen.

□ SCAN MODE

Change the scan mode of the screen. (FULL / UNDER / OVER)

□ MENU/EXIT

Activates and exits the OSD menu

□ KEY LOCK

Prevent unauthorized operation of the equipment by locking the buttons

☐ STILLPIP: Activates/deactivates PIP/PBP mode

C. PIP MENU

PIP: Activates/deactivates PIP/PBP mode

P. INPUT: Selects an input source for the sub picture

P. LOC: Selects a location for the sub picture

P. SIZE: Selects the size of the sub picture

P. SWAP:Swansthemainandsub

P. SET: Alternates between main and sub audio input

POWER MUTE VICO1 VICO2 S-VIDEO RGB AUTO COLOR TEMP. OV HBM COMP SCAMINA MEGA S-SET SCAN MODE PIP VOL- ENTER VOL- MEAN/VEGET NEW LOC C P. INPUT P. LOC P. SIZE P. SWAP STILL

FEATURES

2.1 Specifications (General)

VIDEO
Screen Size 20" 26" 32"
Max. Resolution 640 x 480 @ 75Hz 1366 x 768 @ 60Hz 1366 x 768 @ 60Hz
Pixel Pitch 0.6375 x 0.6375mm	0.4215 x 0.4215mm 0.51 x 0.51mm
Brightness	450 cd/m2	450 cd/m2	500 cd/m2
Contrast Ratio 400 : 1 300 : 1	1200 : 1
Aspect Ratio 4:3 16:9	16:9
Viewing Angle (H/V)	170° / 170°	178° / 178°	178° / 178°
Display Color	16.2 Million 16.7 Million	16.7 Million
Response Time	< 30ms < 8ms	< 8ms
Video System	NTSC / PAL / SECAM	NTSC / PAL / SECAM	NTSC / PAL / SECAM
Frequency (H) 31 ~ 48KHz	30 ~ 64KHz	30 ~ 64KHz
Frequency (V)	56 ~ 75Hz	56 ~ 75Hz	56 ~ 75Hz
Panel Lamp Life	50,000 hours	50,000 hours	50,000 hours
INTERFACE
BNC In /Out	1 / 2	2 / 3	2 / 3
S-Video In / Out	1 / 1	1 / 1	1 / 1
VGA In (15Pin D-Sub)	0	1	1
Camera Out	1	1	1
DVI-D In / HDMI In	0 / 0	1 / 1	1 / 1
Audio In (RCA Type)	1	3	3
PC Stereo In	0 / 0	1 / 1	1 / 1
Remote Control	Yes
AUDIO
Built-In Speaker	Yes (2W x 2)	Yes (4W x 2)	Yes (4W x 2)
FEATURES
Filter Type	3D Comb Filter / De-Interlace
LCD Protective Shield	Yes
Multi Language	English, Spanish, French	English, Spanish, French, German, Italian
Motion Detection	Microwave Motion Sensor (10~30 feet)
Pop up Image	Upon Motion Detection or Sleep Mode
CAMERA
Camera Type	WDR Camera	WDR Camera	WDR Camera
Mechanical Design	Tilt Swivel Camera
Signal / Scanning System	NTSC	PAL
Image Sensor	1/3" SONY Super HAD CCD
Resolution	Horizontal : 540 TV Lines
Lens Mount	4~9mm Vari-focal Lens(F=1.5)
Sensitivity	0.1 Lux (Normal Mode) / 0.001 Lux (DSS Mode)
Electronic Shutter	1/60 ~ 1/10,000 Sec	1/50 ~ 1/10,000 Sec
CABINET
Material / Color	Powder Coat Metal / Black (White Optional)
DIMENSION
Outline Dimension	18.93" x 18.01" x 3.0"	25.9" x 18.3" x 4.9"	31.2" x 21.4" x 5.4"
POWER
Consumption : < On	< 60W	< 120W	< 150W
Electrical Ratings	AC100 ~ 240V or DC 12V or DC 24V		AC100 ~ 240V or DC 24V

NOTE : Technical specifications are subject to change without notice..

FEATURES

2.2 Specifications (Card Reader)

SUPPORT STORAGE TYPE
Compact Flash 8MB ~ 8GB
Micro Drive / ST1 Driver 1GB, 2GB, 4GB / 2.5GB, 5GB, 6GB, 8GB
Xd-Picture	16MB~2GB: M-CARD, H-CARD
Multimedia Card 8MB~4GB, MMC Plus, MMC mobile, MMC micro
Secure Digital 8MB~2GB, miniSD, microSD (SDHC,3GB~)
Memory Stick / Duo 4MB ~ 128MB
Memory Stick Pro / Duo 256MB, 512MB, 1GB, 2GB
SOCKET TYPE
Socket	CF Type II, 4 in 1 Multi socket, USB socket
SUPPORT DATA TYPE
Movie	Divx3, Divx4, Divx5 (.avi) / Xvid (.avi)MPEG-1(.mpeg / .mpg) / MPEG-2(.mpeg / .mpg) /MPEG-4(.mpeg / .mpg V3 avi) / A license for Dvix /MPEG-4 decode is required / UP to 800 x 450(under 4Mbps)
Music	MPEG-2, MPEG-1 layer 2, MP3, WMA, low complexity ACC,OGG(optional) 32KHz, 44.1KHz, 48KHz, 88.2KHz, 96KHz
Photo JPEG: JIFF, EXIF (.jpg), Baseline JPEG: below 5120 x 3840
Other
Other Function	e-Book Play

OSD (On Screen Display) SETTING

3.1 OSD MENU Description (20 Inch)

MENU SELECTION

1. Press the MENU key to access the Main menu.
2. Use the and arrow key to highlight a selection
3. Press the OK or ▶ button to select an item.
4. Use the and arrow key to highlight a selection.
5. Use the and arrow key to adjust the setting on a selected item.

NOTE : If you don't connect RGB port, RGB SETUP menu is not select.

A. Input Select

INPUT VIDEO1 VIDEO2 S-VIDEO RGB

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO and RGB mode.

1. Press the SOURCE button and then ▲/▼ button to move the source.
2. Press the ▶ button to select the source.
3. Press the MENU/EXIT button to exit the INPUT menu.

B. Picture Menu

PICTURE SOUND RGB SETUP FUNCTION PICTURE CONTRAST BRIGHTNESS COLOR TINT SHARPNESS COLOR TEMP NORMAL : ENTER MENU : EXIT

OSD (On Screen Display) SETTING

1. Press the MENU/EXIT key and then ▼/◄ or ▲/► key to select the PICTURE menu.
2. Press the OK or ▶ button and then ▲/▶ button to select the adjustment item you need.
3. Press the OK or ▶ button to active the item.
   FX) If you select the BRIGHTNESS, then the picture below appears on the screen.

BRIGHTNESS 61

1. Press the MENU/EXIT button to move the previous menu..

NOTE : TINT item is for the NTSC input only.

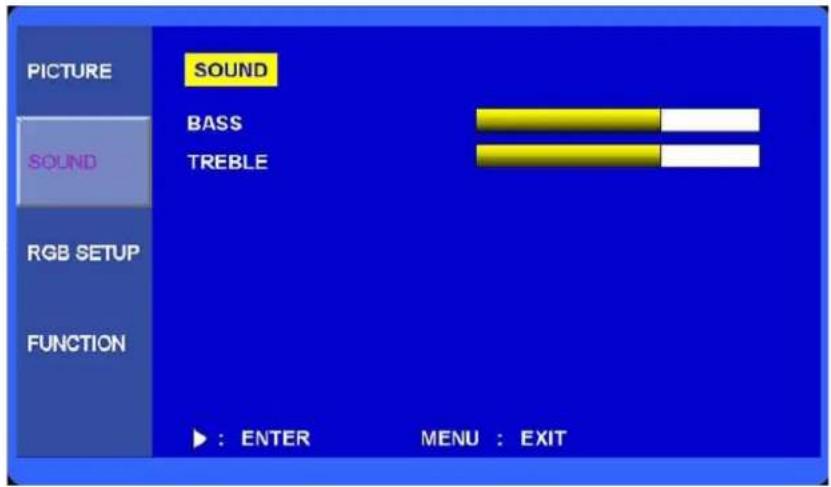

C. Sound Menu

PICTURE SOUND SOUND RGB SETUP FUNCTION SOUND BASS TREBLE ► : ENTER MENU : EXIT

1. Press the MENU button and then ▲/▼ button to select the SOUND menu.
2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need.
3. Press the ▶ button to active the item.

EX) If you select the TREBLE, then the picture below appears on the screen.

TREBLE 31

1. Press the MENU button to move to the previous menu..

OSD (On Screen Display) SETTING

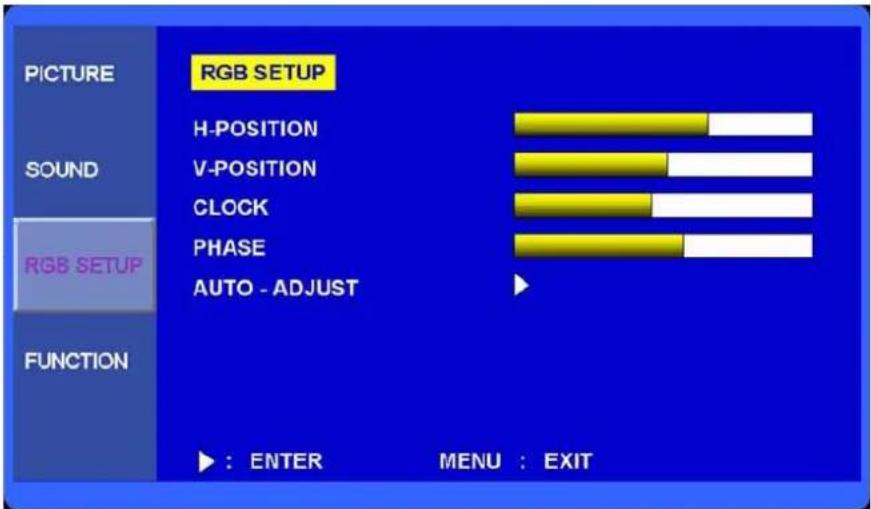

D. RGB Setup Menu

PICTURE RGB SETUP SOUND RGB SETUP FUNCTION H-POSITION V-POSITION CLOCK PHASE AUTO - ADJUST : ENTER MENU : EXIT

1. Press the MENU button and then ▲/▼ button to select the RGB SETUP menu.
2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need.
3. Press the ▶ button to active the item.
4. Press the MENU button to move to the previous menu.

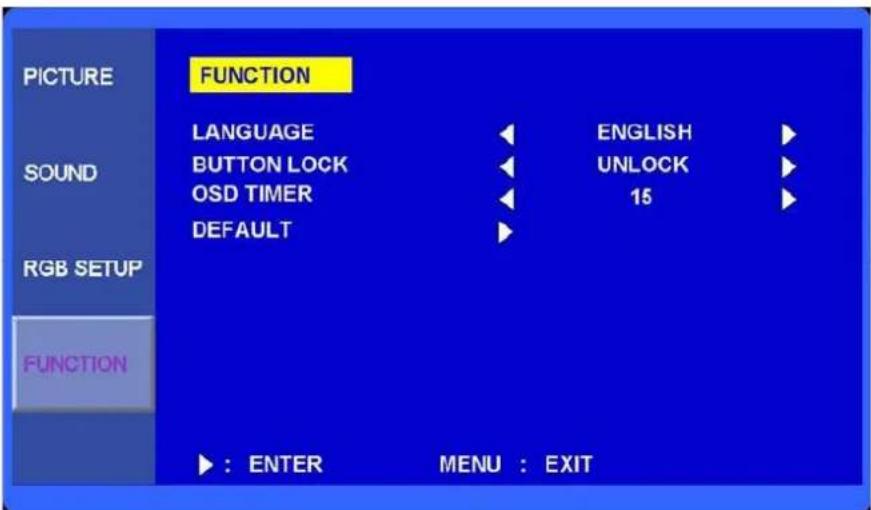

E. Function Menu

PICTURE FUNCTION LANGUAGE ENGLISH SOUND BUTTON LOCK UNLOCK OSD TIMER 15 DEFAULT RGB SETUP FUNCTION ► : ENTER MENU : EXIT

OSD (On Screen Display) SETTING

E. Function Menu (Continue)

1. Press the MENU button and then ▲/▼ button to select the FUNCTION menu.
2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need.
3. Press the ▶ button to active the item.
4. Press the MENU button to move to the previous menu.

LANGUAGE : Select the language: English, French, German, Italian, Spanish.

DEAFULT : Select RESET to set the monitor to the factory default values.

OSD (On Screen Display) SETTING

3.2 OSD MENU Description (26 and 32 Inch)

A. Menu Selection

1. Press the MENU key to access the Main menu.
2. Use the and ▼ arrow key to highlight a selection
3. Press the/SELECT key to select an item.
4. Use the and ▼ arrow key to highlight a selection.
5. Use the ◀ and ▶ arrow key to adjust the setting on a selected item.

B. Input Select

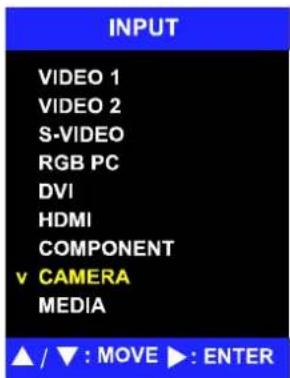

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC, DVI, HDMI, COMPONENT mode.

INPUT VIDEO 1 VIDEO 2 S-VIDEO RGB PC DVI HDMI COMPONENT v CAMERA MEDIA ▲ / ▼ : MOVE ▶ : ENTER

Press the ▶/SELECT key then you can change the input source.

OSD (On Screen Display) SETTING

C. Screen Menu

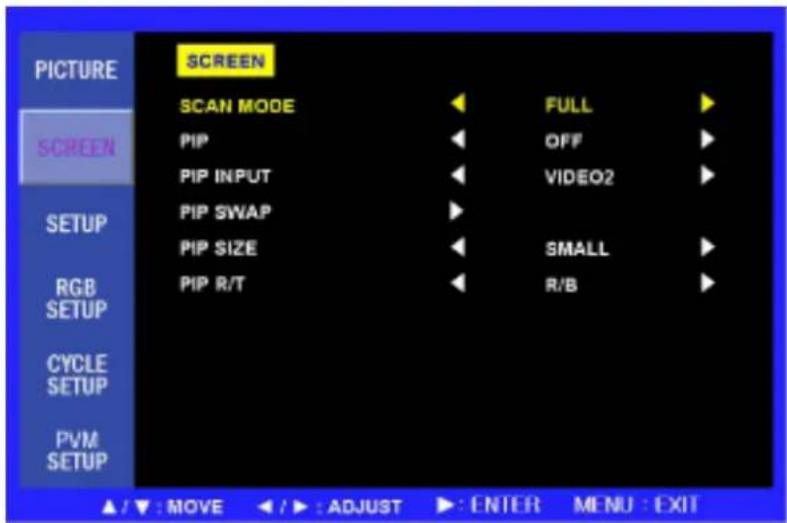

PICTURE SCREEN SCAN MODE PIP PIP INPUT PIP SWAP PIP SIZE PIP R/T FULL OFF VIDEO2 SMALL R/B RGB SETUP CYCLE SETUP PVM SETUP ▲ / ▼ : MOVE ◀ / ▶ : ADJUST ▶ : ENTER MENU : EXIT

1. SCAN MODE

Select the screen size of main. (FULL / UNDER / OVER)

2. PIP

Select PIP mode. (OFF / ON / DW1 / DW2)

3. PIP INPUT

Select sub input of PIP mode. (VIDEO1 / VIDEO2 / S-VIDEO)

4. PIP SWAP

Select swap to interchange main with PIP

5. PIP SIZE

Select the PIP size. (SMALL / NORMAL / LARGE)

6. PIP R/T

Select the PIP position.

- R/B : Right Bottom

- L/B : Left Bottom

- R/T : Right Top

- L/T : Left Top

OSD (On Screen Display) SETTING

D. Setup Menu

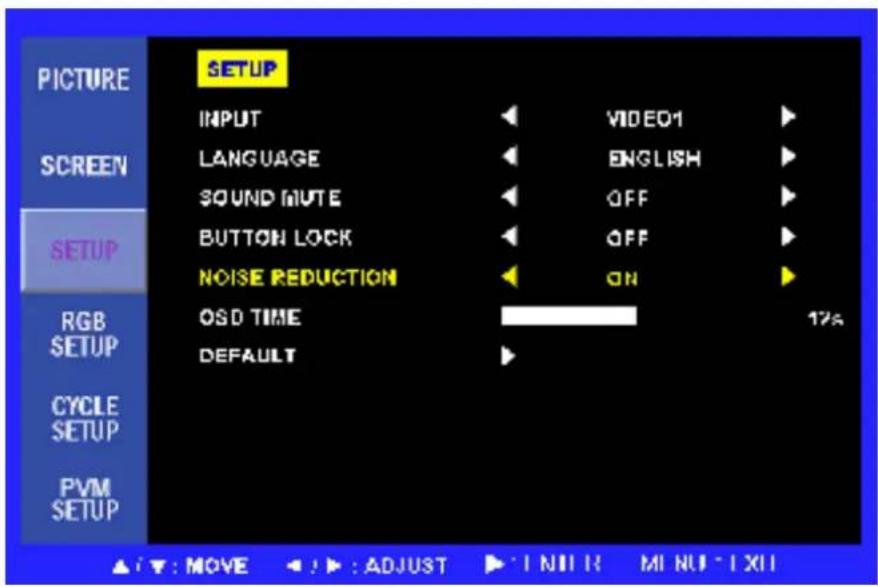

PICTURE SETUP INPUT VIDEO1 SCREEN LANGUAGE ENGLISH SOUND MUTE OFF SETUP BUTTON LOCK OFF NOISE REDUCTION ON RGB SETUP OSD TIME 17% DEFAULT CYCLE SETUP PVM SETUP ▲: ▼: MOVE ▲: ▶: ADJUST ▶: ↑NII R MINI - ↑XII

1. INPUT Select input source. (VIDEO1 / VIDEO2 / S-VIDEO / RGB PC / DVI / HDMI / COMPONENT).
2. LANGUAGE Select English, Italian, French, Spanish or German for the OSD display.
3. SOUND MUTE Select OFF or ON. 'ON' silences the sound, 'OFF' return the sound.
4. BUTTON LOCK Prevents unauthorized operation of the equipment by locking the buttons. Button lock feature by pressing the ◀ and ▲ buttons for 5 seconds.
5. NOISE REDUCTION Reduces the background noise of the video signal.
6. OSD TIME Select the OSD display time from 5 seconds to 30 seconds.
7. DEFAULT Select restore to return to the factory setting.

OSD (On Screen Display) SETTING

E. PVM Setup Menu

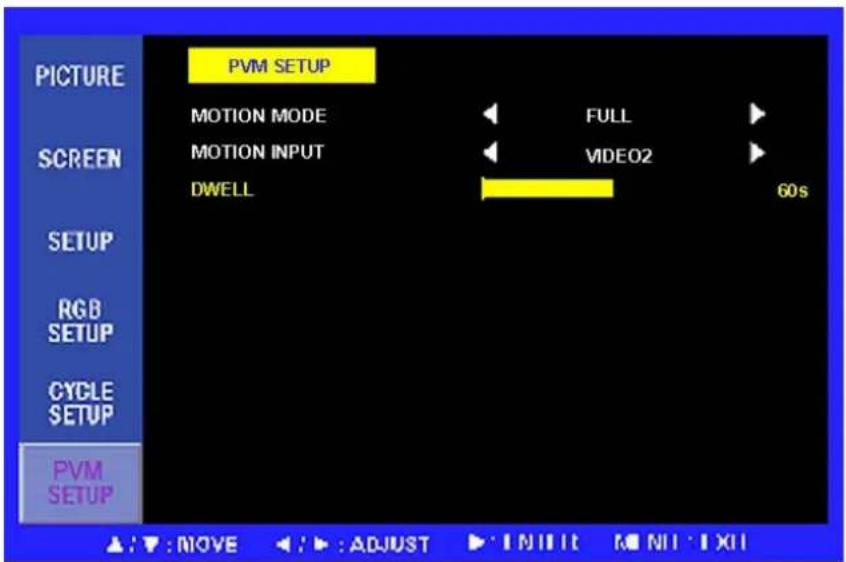

PICTURE PVM SETUP MOTION MODE FULL SCREEN MOTION INPUT VIDEO2 DWELL 60s SETUP RGB SETUP CYCLE SETUP PVM SETUP ▲: ▼: MOVE ▲: ▶: ADJUST ▶: INTI IT □: INTI XII

1. MOTION MODE

Sets the video input which will be displayed when motion signal. (FULL /PIP/ DW1 / DW2)

2. MOTION INPUT

Select the input source of motion mode (VIDEO1 / VIDEO2 / S-VIDEO).

3. DWELL

Sets the time how long displayed on the screen of motion mode from 10 seconds to 60 seconds.

OSD (On Screen Display) SETTING

C. Menu Display

MAIN MENU


SCREEN

SETUP

RGB SETUP

CYCLE SETUP

PVM SETUP


CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

PIP:OFF/ON/DW1(WIDE PBP)/DW2(FULL PBP)

PIP INPUT

PIP SWAP

PIP SIZE: SMALL / NORMAL / LARGE

PIP R/T (ROTATION) : R/B (RIGHT BOTTOM)

L/B (LEFT BOTTOM)

L/T (LEFT TOP)

R/T (RIGHT TOP)

SETUP

INPUT:VIDEO1/VIDEO2/S-VIDEO/RGB PC/DVI/HDMI/COMPONENT

LANGUAGE: ENGLISH / ITALIAN / FRENCH / SPANISH / GERMAN

SOUND MUTE

BUTTON LOCK

NOISE REDUCTION

OSD TIME: 5 \~ 30 SECOND

DEFAULT

RGB SETUP

H-POSION

V-POSITION

COLCK

PHASE

AUTO CONFIG

CYCLE SETUP

CYCLE TIME:10\~30 SEC

CYCLE:ON/OFF

VIDEO 1

VIDEO 2

S-VIDEO

RGB PC

DVI

HDMI

COMPONENT

CAMERA

MEDIA

PVM SETUP

MOTION MODE : FULL / PIP / DW1 / DW2

MOTION INPUT: ALL INPUT

DWELL:10-60 SEC

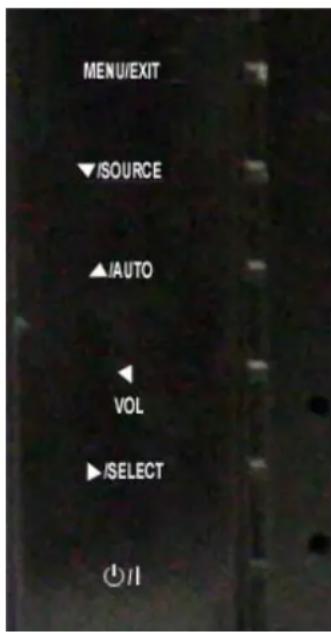

CONTROL AND FUNCTIONS

Menu/EXIT: Activates and exits the OSD.

SOURCE/▼: Select input source, and select the OSD menu.

AUTO/▲: Move the OSD menu and auto adjustment of RGB source.

▶/SELECT: Increase the level of volume and select the OSD menu.

◀ (VOL-): Decrease the level of volume and move the previous menu.

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

The power LED(next to the power switch) lights with green when the power is turned ON.

The power is turned off by pressing the power switch again and the power LED goes Red.

MENU/EXIT ▼/SOURCE ▲/AUTO ◄ VOL ►/SELECT OK/11

LED LENSE, IR RECEIVE LENSE is located in front side.

APPENDIX

5.1 D-SUB Connector PIN Assignment

PIN NO.	PIN Name	PIN NO.	PIN Name
1	RED VIDEO	9	NC
2	GREEN VIDEO	10	SIGNAL CABLE DETECT
3	BLUE VIDEO	11	GROUND
4	GROUND	12	SDA (for DDC)
5	GROUND	13	H-SYNC
6	RED GROUND	14	V-SYNC
7	GREEN GROUND	15	SCL (for DDC)
8	BLUE GROUND

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.

WARNING:

The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment."

TROUBLESHOOTING

* When the following troubles are occurred, follow the trouble shooting. Before contacting a service center.

Troubleshooting	Troubleshooting Tip
The screen doesn’t show up	1. Make sure if the power supply is connected property
	2. Turn on the power.
	3. Select the input signal right for the connected port.
The screen is too light or to dark	Control the BRIGHTNESS
The screen size is not fit for the PC signal	Press the AUTO key among keys in the front.(It is used only in the PC signal)
The screen color shows strange in the PC signal	In the FUNCTION menu of OSD menu, perform the AUTO-ADJUST.

2Year Limited Warranty

All Orion Images products carry a limited warranty from ship date against defects in materials and workmanship. Orion Images is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.

Contact Orion Images

In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation.

Address: 7300 Bolsa Avenue, Westminster, CA 92683

Tel: [phone] / Fax: [phone]

Email: [e-mail]

Website: http://www.orionimages.com
