USER MANUAL MegaVideo D4S-AV1115DN Arecont Vision

Close-up of two Arécont Vision security cameras with reflective lenses, mounted on a curved surface (no text or symbols visible)

D4S/D4F Series

Installation Manual

Arecont Vision

megapixel technology... beyond imagination

D4S/D4F Indoor Dome Installation Manual

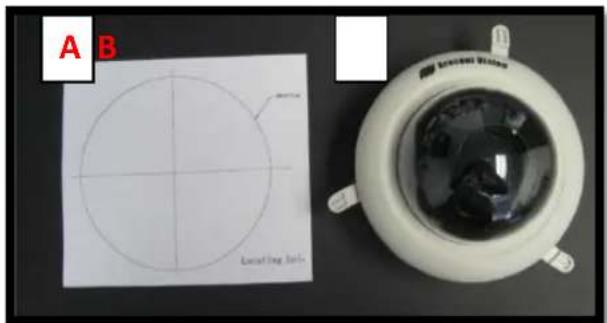

Inside the box:

A. Mounting template
B. Arecont Vision D4S (Image 1-1) or D4F (Image 1-2)
C. Pack of three (3) wood screws and three (3) dry wall anchors (D4S only)

Not included but needed:

• #0 Phillips head screwdriver
• #1 Phillips head screwdriver

A B C Lambling scale

Image 1-1 D4S Indoor Dome

A B Uncoated Window

Image 1-2 D4F Indoor Dome

Mounting the Camera:

1. Remove camera and hardware from the box.
2. Use the Mounting template, prepare the mounting provisions for camera installation.

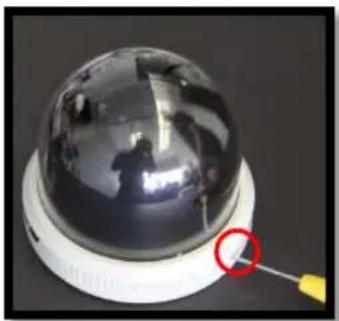

3. Use #0 Philips head screwdriver to loosen the set screw to release the dome cover (Image 2-1 and 2-2). NOTE: Do not remove screw from the dome cover.

Close-up of a spherical security camera with a highlighted cable (no text or symbols visible)

Image 2-1 D4S

Close-up of a white spherical device with a reflective dome and three legs, featuring a red circle highlighting a small yellow object (no text or symbols visible)

Image 2-2 D4F

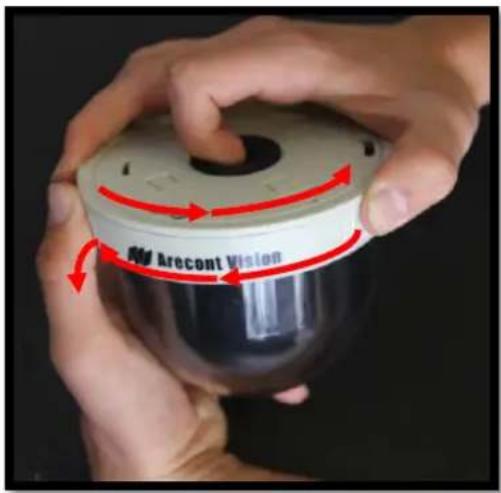

1. Remove D4S or D4F dome cover by rotating counterclockwise as show in Image 3-1 and 3-2.

Aer Cont Vision

Image 3-1 D4S

Avecrol Motion

Image 3-2 D4F

1. Run Ethernet cable through the hole on the bottom of D4S or D4F and plug it into the RJ45 port on AV's H.264 compact MegaVideo® camera. (Image 4-1 and 4-2)

Close-up of a black plastic component with a white band and red circle highlighting a specific area (no text or symbols visible)

Image 4-1 D4S

Close-up of a mechanical component with a red circle highlighting a specific part, no visible text or symbols.

Image 4-2 D4F

6.1 For D4S models, align the mounting holes in the dome with the prepared holes on the mounting surface. Attach D4S to the mounting surface with the wood screws or any optional hardware suitable for the mounting surface. (Image 5)

Close-up of a mechanical component with red circles highlighting specific parts (no visible text or symbols)

Image 5

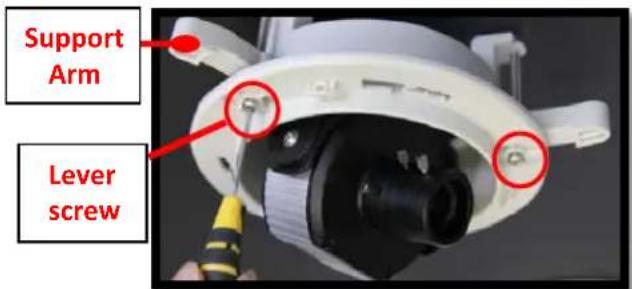

6.2 For D4F models, insert D4F into the prepared hole in the ceiling or wall then tighten the three "lever screws" by rotating clockwise until the D4F is firmly installed, as shown in Image 6. The "Support Arm" will ride down the screw to compress to the mounting surface. NOTE: Do not over-torque the lever screws.

Support Arm Lever screw

Image 6

Adjusting the Tilt and Pan:

1. To adjust the tilt, use a #1 Phillips screwdriver to loosen the screw on the side of the plastic U bracket 1/4 turn (Image 7-1 and 7-2). CAUTION: Do not remove the screw!

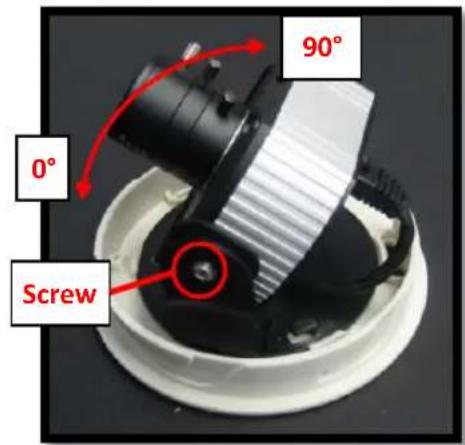

90° 0° Screw

Image 7-1 D4S

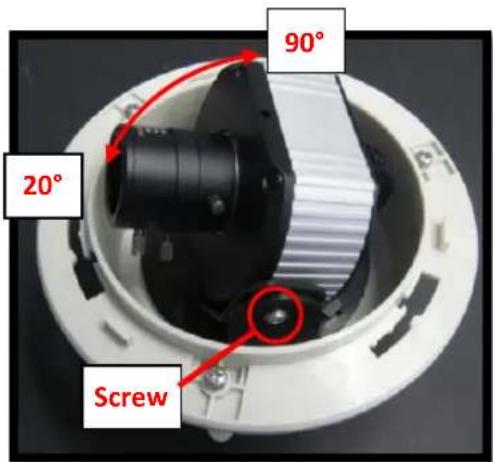

90° 20° Screw

Image 7-2 D4F

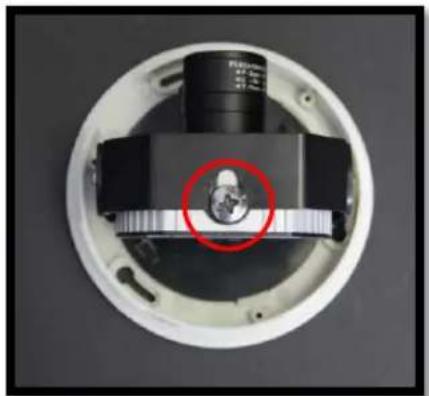

1. Adjust lens tilt as required and tighten the screw. CAUTION: Please attach camera at the end of the slot of U bracket to avoid interference between bubble and lens. (Image 8)

Close-up of a circular electronic device with a central component and a red circle highlighting a feature (no visible text or symbols)

Image 8

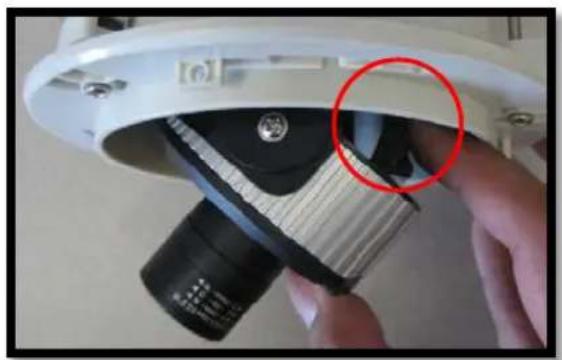

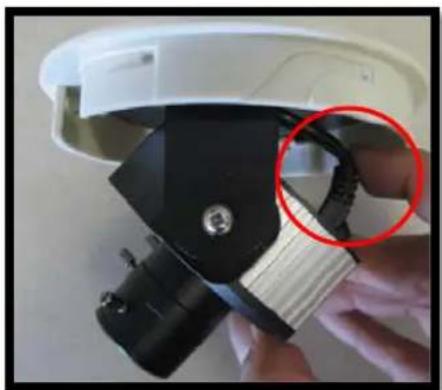

NOTE: Push cable to make camera tilt easier, if getting caught on housing plastic. (Image9-1 and 9-2)

Close-up of a white smart glasses headset with black and white components, hand holding a finger (no visible text or symbols)

Image 9-1 D4S

Close-up of a hand holding a white electronic device with a black lens and a red circle highlighting the lens area (no text or symbols visible)

Image 9-2 D4F

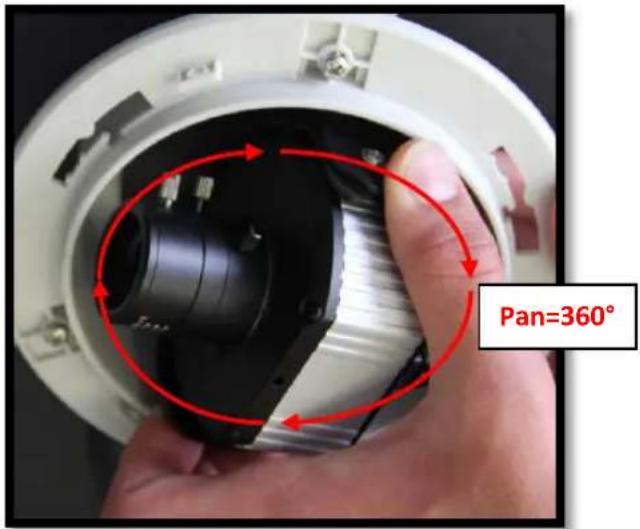

1. To adjust the pan, hold and turn the U bracket as shown in Image 10.

Pan=360°

Image 10

Adjusting the Focus:

1. To focus the lens, loosen the three set screws as shown in Image 11 and adjust each as needed. A adjusts the zoom, B adjusts the iris, C adjusts the focus.

Note: Adjust zoom first then focus!

Note: For more information on proper focusing technique, please watch the "Focusing Arecont Vision Megapixel Cameras" Best Practices Training Video at www.youtube.com/ArecontVision.

1. Secure the dome cover to the camera.

2. Tighten the set screw on the dome cover.

3. Rotate bubble to align camera with slot in camera shield.

4. Remove the protective film from the camera dome. NOTE: be cautious not to scratch the vandal dome cover.

A B C

Image 11
