USER MANUAL Premium 18REDP ORION

Illustration of a flat-screen monitor with a control panel and dot pattern at the bottom (no text or symbols)

PREMIUM WIDE ASPECT RATIO LED SERIES (18\~23 inches)

1. SAFETY INSTRUCTION

※ Follow this safety instruction to use the monitor properly and prevent the damages.

※ This safety instruction has “Warning” & “Caution” as below

Warning - If the user does not follow this instruction, it may cause the serious damage to the user.

Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor.

※ Keep this user's guide book for later use.

Warning

Never remove the back over and touch the inside of the monitor. If you need a service, please contact the service center.

Cartoon illustration of a smiling computer monitor character with a cross mark on its head (no text or symbols)

Keep away the monitor from the direct sunlight and a heating appliance.

Cartoon illustration of a sad computer monitor with steam rising, next to a steaming cup and sun (no text or symbols)

Never push objects of any kind into this product as they may result in a risk of fire or electric shock.

Cartoon illustration of a computer monitor with a sad face and a '100' mark, symbolizing stress or urgency (no text or symbols on the main image)

Connect the power code to the wall outlet tightly. If the power code or plug are defective and the wall outlet is not tight, please do not use them.

Cartoon illustration of a computer monitor with a sad face and a starburst, connected to a power outlet (no text or symbols)

Warning

Do not install this monitor on the outside and near water. If may cause damage to the product, electric shock and fire.

For cleaning do not use liquid cleaners. Never touch the power plug with wet-hands.

When lightning and thundering, unplug the monitor from the wall outlet and never touch it.

Unplug this product from the wall outlet, when It does not operate for a long time.

When smoking and noising from the monitor, unplug the product from the wall outlet and contact a service center.

WARNING : How to fix

Do not open this product as it contains high voltage inside.

It may create an electric shock.

It the user disassembles and remove the back cover, it does not make sure to make up for the damages and do a service and exchange the monitor.

Cautions

Install this monitor some distance From the wall and do not install unless Proper ventilation is provided.

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Place this product on a stable place. If not, it may fall, causing serious Damages to the monitor and people.

Cartoon illustration of a computer monitor with a sad face and waving hands (no text or symbols)

The openings must not be blocked by curtain, rug or other similar surface.

Cartoon illustration of a computer monitor with a sad face and frowning expression (no text or symbols)

When carrying this monitor, be careful not to damage the panel and drop it. It may cause some trouble.

Cartoon illustration of a smiling computer monitor with arms extended (no text or symbols)

Before carrying the monitor, tum it off and Unplug the signal cables and the power code From the wall outlet.

Cartoon illustration of a smiling computer monitor with a pointing finger and connected to a wall socket (no text or symbols)

Take the power plug out from the wall outlet. Do not pull the cable. It may snap the inner-wires and cause overheating and fire.

Illustration of a hand holding a wall-mounted electrical socket with a cross symbol (no text or labels)

Cautions

Install this monitor about 50cm far from the eyes and an angle of 0\~15 degrees below eyes. Too close installation may cause having weak sight.

50cm

Do not press the LCD panel with hands or the sharpened material hardly.

Cartoon illustration of a sad computer monitor character with arms and legs, holding a blank sign (no text or symbols present)

For cleaning, unplug the monitor from the Wall outlet. Do net use the liquid cloth. Use the soft cloth.

Simple line drawing of a computer monitor with a smiling face, alongside two geometric shapes: a cross and a rectangle (no text or symbols)

Do not use the chemical liquid for cleaning. It may cause fading and breakage.

Illustration showing a crossed-out bottle and a sad face on a computer monitor, symbolizing food safety or hazardous content.

2. FCC RF INTERFERENCE STATEMENT

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio, TV technician for help.
• Only shielded interface cable should be used.

Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment.

DOC COMPLIANCE NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications.

TABLE OF CONTENTS

1. SAFETY INSTRUCTION 2

1-1 Warning
1-2 Caution

1. FCC STATEMENT 6

2. INSTALLATION 8

3-1 Parts
3-2 How to Install

1. OSD MENU SETTING 12

5-1 Mode Setting
5-2 Menu Setting (VIDEO, S-VIDEO, COMPONENT Mode)
5-3 Menu Setting (VGA Mode)
5-4 Menu Setting (DVI, HDMI Mode)

1. FEATURES 32
2. LIMITED WARRANTY 33
3. TROUBLESHOOTING 34

3. INSTALLATION

3-1 Parts

Illustration of a flat-screen monitor with a blank screen and control buttons at the bottom (no text or symbols)

LCD Monitor

Line drawing of a rectangular electronic device with a coiled cable and connector (no text or symbols)

Adapter
* Adapter is attached to the back of product

Line drawing of two connected audio/video cables (no text or symbols)

VGA Cable

Line drawing of a cord with two leads tied together (no text or symbols)

Trigger Cable

Line drawing of a cable with a plug, tied at the end (no text or symbols)

Power Cable

Battery

Line drawing of a remote control with buttons and dials (no text or symbols)

Remote Controller

User Manual

3-2 How to Install

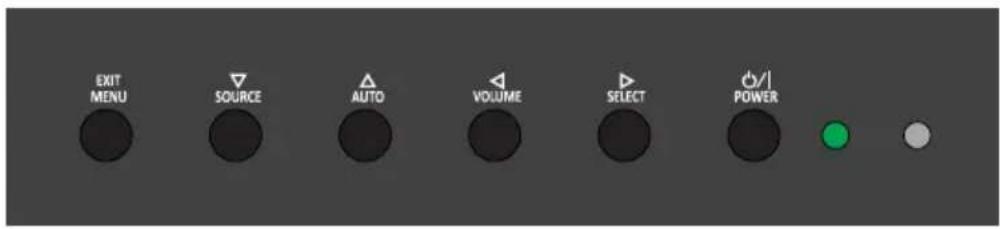

KEY BUTTON

EXIT MENU SOURCE AUTO VOLUME SELECT POWER

SHORT KEY FUNCTION

OSD Key Function
EXIT MENU	Activates and exit the OSD
▽SOURCE	Select input source, and select the OSD menu
△AUTO	Move the OSD menu and auto adjustment of RGB source
◀VOLUME	Decrease the level of volume and move the previous menu
▷SELECT	Increase the level of volume and select rhe OSD menu
○/|POWER	Turns the power ON or OFF. There will be a few seconds delay before the display appears. The power LED (next to the power switch) lights with green when the power is turned ON. The power is turned off by pressing the power switch again and the power LED goes red.

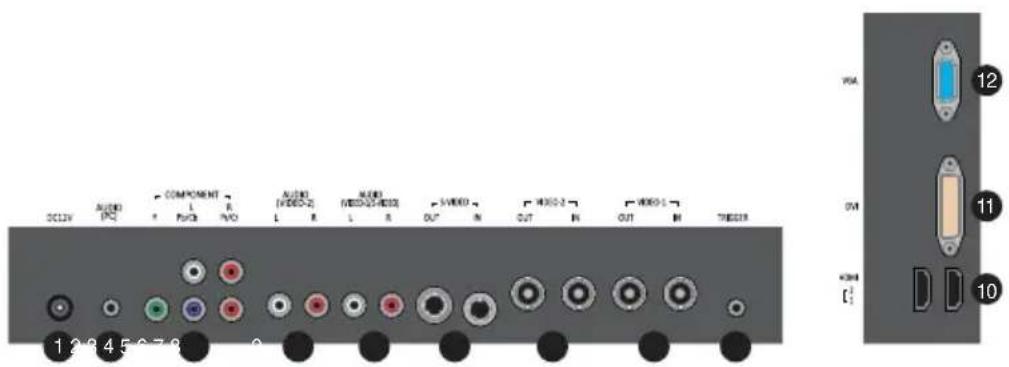

CONNECTION

DC12V A(0) (PO) COMPONENT L R N/O L R N/O M(0) M(0) M(0) OUT IN W(0) W(0) W(0) OUT IN W(0) W(0) THEDER 1 2 3 4 5 6 7 8 VGA 12 GVI 11 KSH 10 [1]

1 DC12V

DC adapter input VIDEO-2 signal input / looping out

7 VIDEO-2 IN / OUT

2 AUDIO (PC)

Stereo audio input for VGA VIDEO-1 signal input / looping out

8 VIDEO-1 IN / OUT

3 COMPONENT

COMPONENT (Y/Pb/Pr) signal & stereo audio input TRIGGER signal input

9 TRIGGER

4 AUDIO (VIDEO-2)

Stereo audio input for VIDEO-2 HDMI signal 1 / 2 input

10 HDMI

POWER	MUTE
Turn ON / OFF the monitor	Turn ON / OFF the sound

AUTO

Auto adjust position of the screen (in VGA mode)

SCAN MODE

Select the scan mode of the screen

MENU / EXITActivate and exit the OSD menu

STILL

Freeze the current image

C PIP CONTROL MENU

S. SET	PIP
Select between main and PIP audio input	Activates PIP/PBP mode

P. INPUTSelect an input source for PIP mode

P. SIZESelect a size for PIP mode

PIP

Activates PIP/PBP mode

P. LOCATIONSelect a location for PIP mode

P. SWAP

Swap between main and PIP input

4. OSD MENU SETTING

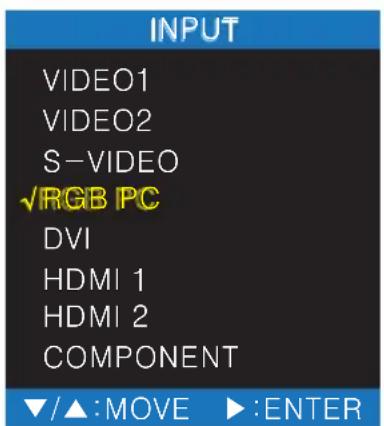

5-1 Mode Setting

INPUT VIDEO1 VIDEO2 S-VIDEO ✓RGB PC DVI HDMI 1 HDMI 2 COMPONENT ▼/▲:MOVE ▶:ENTER

1. Use SOURCE button and then ▲/▼ button to move the source.
2. Press the ▶ button to select the source.
3. Press the MENU/EXIT button to exit the INPUT menu.

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC, DVI, HDMI1, HDMI2 & COMPONENT mode

VIDEO1

Select VIDEO1 mode

S-VIDEO

Select S-VIDEO mode

DVI

Select DVI mode

HDMI2

Select HDMI2 mode

VIDEO2

Select VIDEO2 mode

RGB PC

Select VGA mode

HDMI1

Select HDMI1 mode

COMPONENT

Select COMPONENT mode

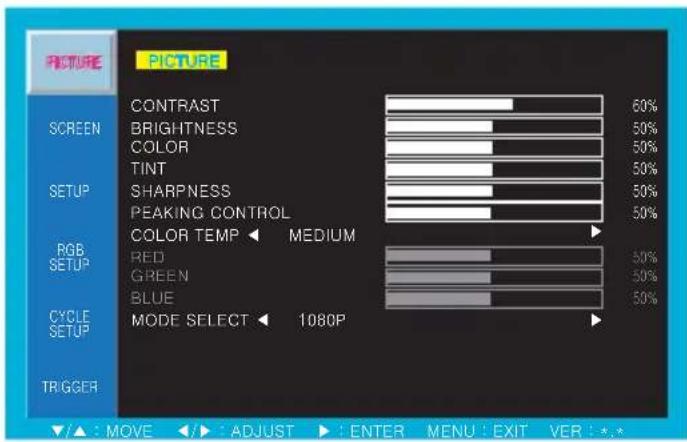

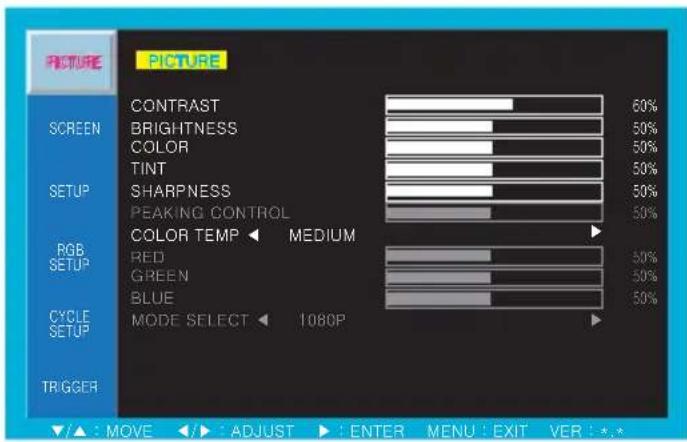

5-2 Menu Setting (VIDEO, S-VIDEO, COMPONENT Mode)


PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB SETUP COLOR TEMP MEDIUM RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER /▲ : MOVE < /► : ADJUST ► : ENTER MENU : EXIT VER : *.*

CONTRAST : Adjust visual color contrast

COLOR : Adjust visual color of screen TINT : Adjust tint of color

SHARPNESS : Adjust sharpness of screen COLOR TEMP : Switch color temperature of screen

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

BRIGHTNESS : Adjust color brightness

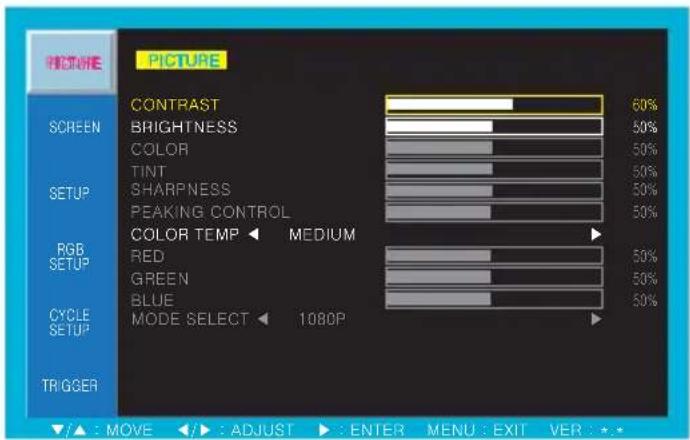

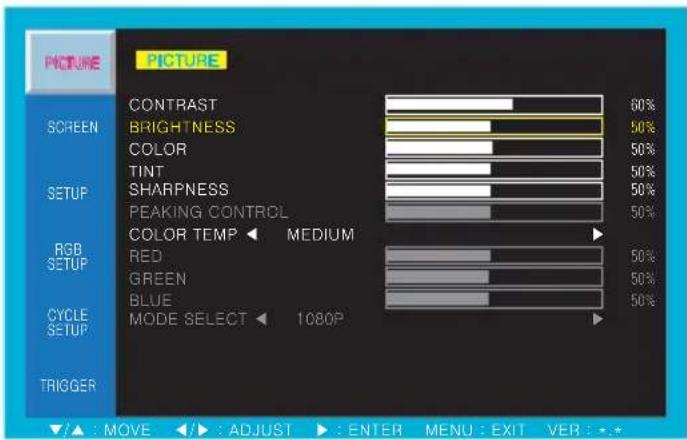

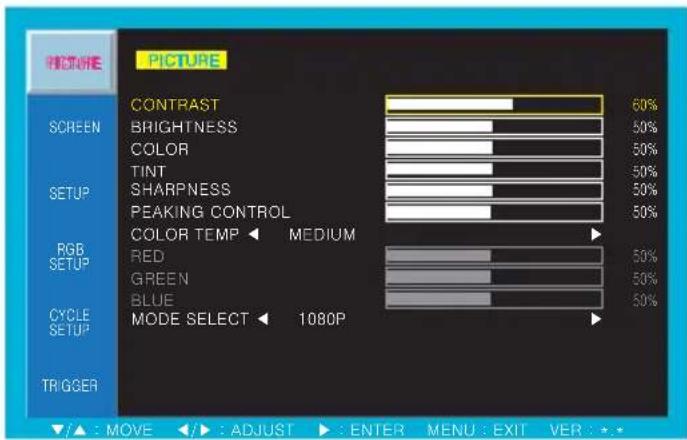

CONTRAST BRIGHTNESS

PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB SETUP RED MEDIUM GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER /▲ : MOVE

Default setting is 60% and adjustable from range of 0 to 100%

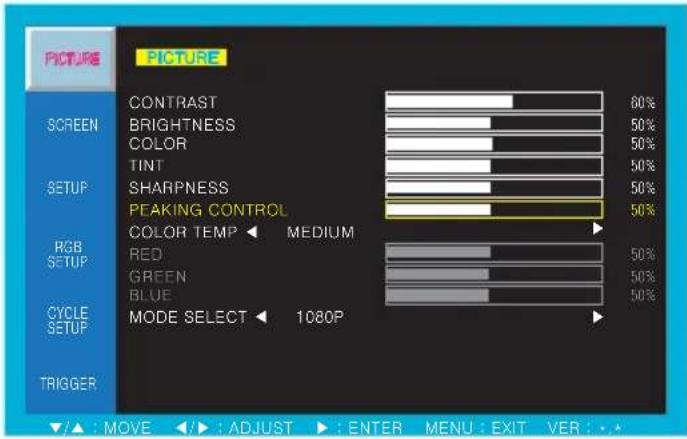

PICTURE CONTRAST BRIGHTNESS COLOR TINT SHARPNESS PEAKING CONTROL COLOR TEMP MEDIUM RED GREEN BLUE MODE SELECT 1080P SCREEN SETUP RGB SETUP CYCLE SETUP TRIGGER 7▲: MOVE ←→: ADJUST →: ENTER MENU: EXIT VER: *.*

Default setting is 50% and adjustable from range of 0 to 100%

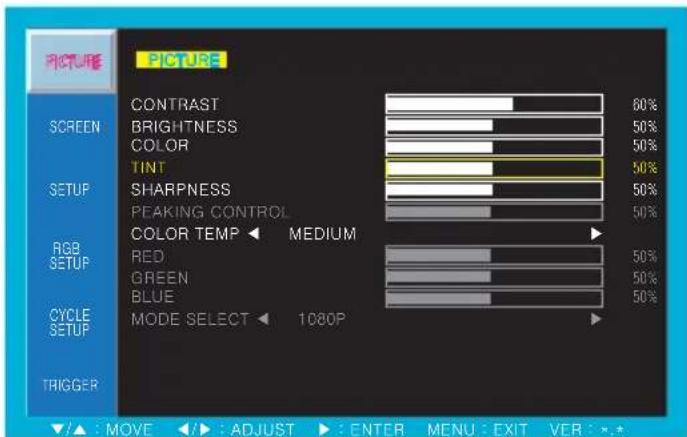

COLOR TINT

PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB SETUP RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is 50% and adjustable from range of 0 to 100%

PICTURE CONTRAST 80% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB SETUP RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P THIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is 50% and adjustable from range of 0 to 100%

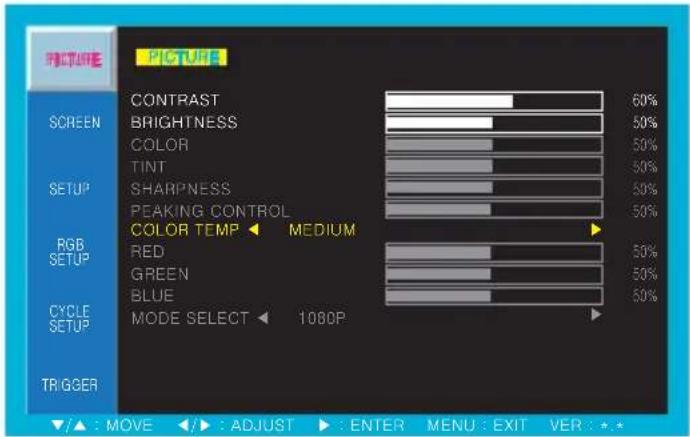

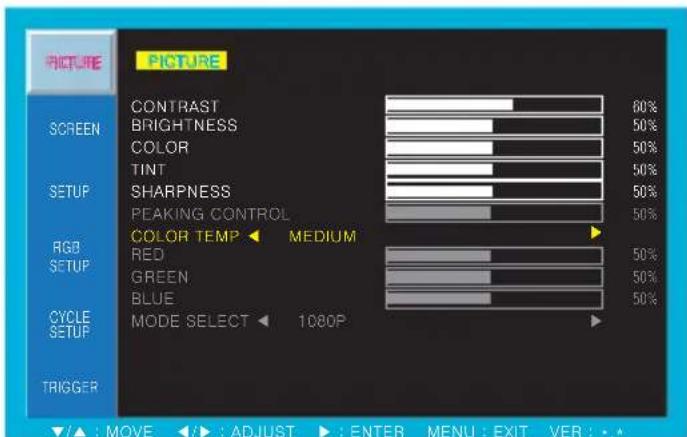

SHARPNESS COLOR TEMP

PICTURE PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB COLOR TEMP MEDIUM RED 50% SETUP GREEN 50% BLUE 50% CYCLE MODE SELECT 1080P 1080P TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: ★★

Default setting is 50% and adjustable from range of 0 to 100%. Default setting is MEDIUM and switch to WARM, USER and COOL color temperature options

PICTURE PICTURE CONTRAST 60% BRIGHTNESS 50% COLOR 50% TINT 50% SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB RED 50% SETUP GREEN 50% BLUE 50% CYCLE MODE SELECT 1080P 1080P TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: ••

USER - Default setting of RED, GREEN, BLUE is 50% and adjustable from range of 0 to 100%

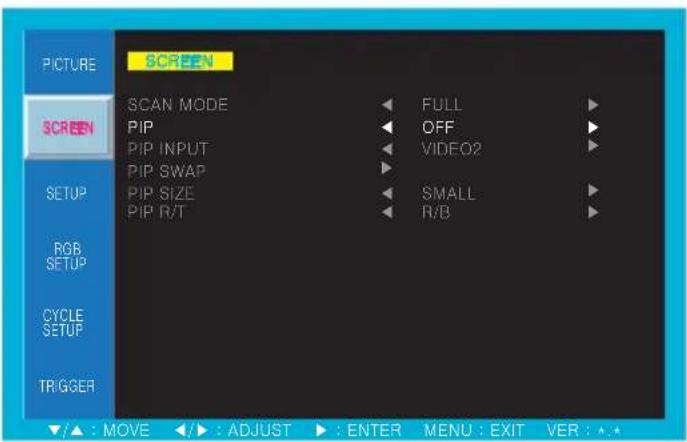

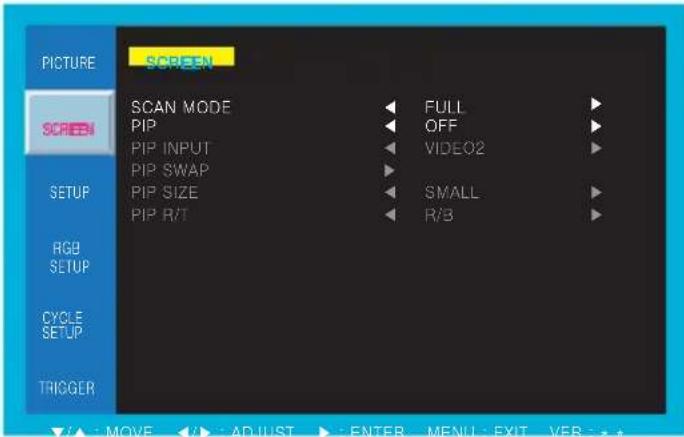

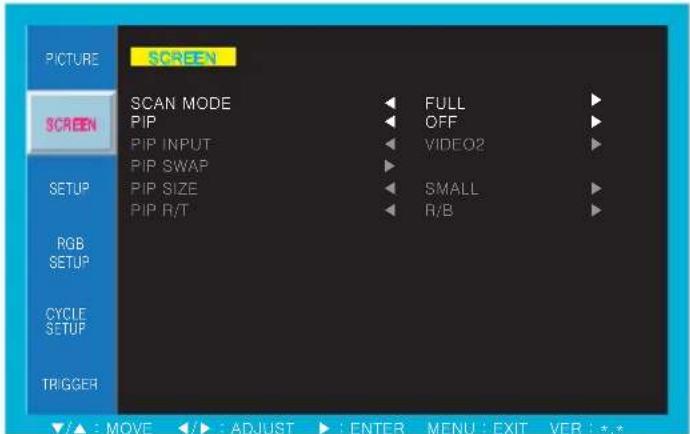

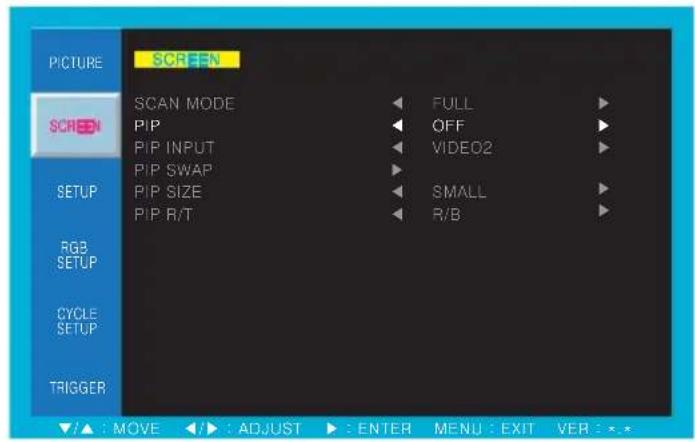

SCREEN

PICTURE SCREEN SCAN MODE PIP PIP INPUT PIP SWAP PIP SIZE PIP R/T FULL OFF VIDEO2 SMALL R/B RGB SETUP CYCLE SETUP TRIGGER /▲: MOVE ◀: ADJUST ▶: ENTER MENU: EXIT VER: <.*

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

SCAN MODE : Select the scan mode of the screen PIP : Activates PIP/PBP mode

PIP, PBP - COMBINATION OF SIGNAL INPUT

SUB MAIN	VIDEO-1 VIDEO-2 S-VIDEO COMPONENT VGA DVI HDMI
VIDEO-1	X O O X X X X
VIDEO-2	O X O X X X X
S VIDEO	O O X X X X X
COMPONENT	O O O X X X X
VGA	O O O X X X X
DVI	O O O X X X X
HDMI	O O O X X X X

SCAN MODE PIP

PICTURE SCREEN SCAN MODE PIP PIP INPUT PIP SWAP PIP SIZE PIP R/T FULL OFF VIDEO2 SMALL R/B RGB SETUP CYCLE SETUP TRIGGER /▲ : MOVE ◀ ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

Default setting is FULL and switch to UNDER, OVER and 4:3 scan mode options

PICTURE SCREEN SCAN MODE PIP PIP INPUT PIP SWAP PIP SIZE PIP R/T FULL OFF VIDEO2 SMALL R/B SCREEN SETUP RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is OFF and switch to ON, DW1 and DW2 PIP/PBP mode options

ON - PIP INPUT : Select an input source for PIP mode (VIDEO1, VIDEO2, S-VIDEO)

PIP SWAP : Swap between main and PIP input

PIP SIZE : Select a size for PIP mode (SMALL, NORMAL, LARGE)

PIP R/T : Select a location for PIP mode (R/B, L/B)

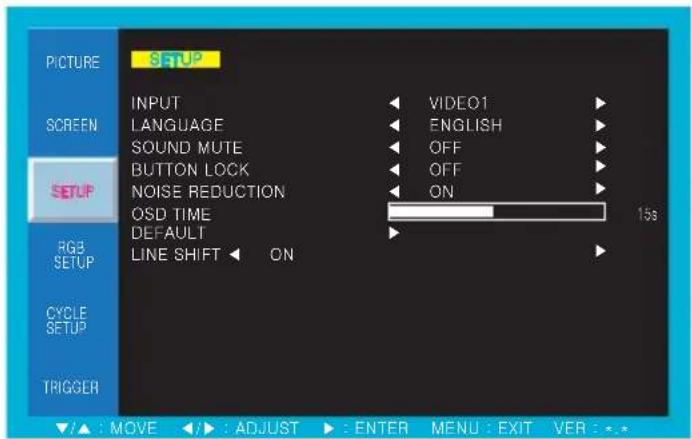

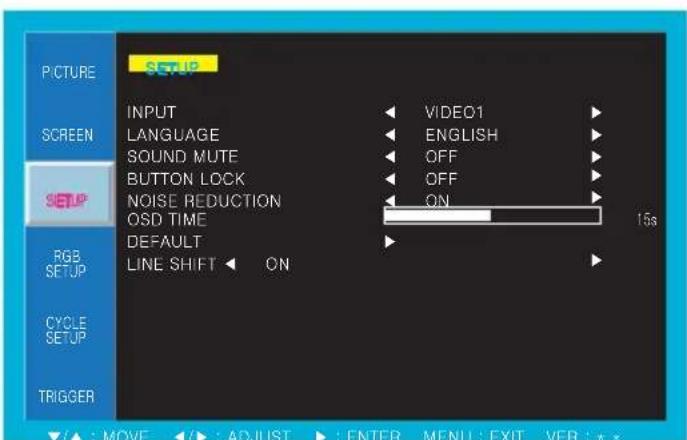

SETUP

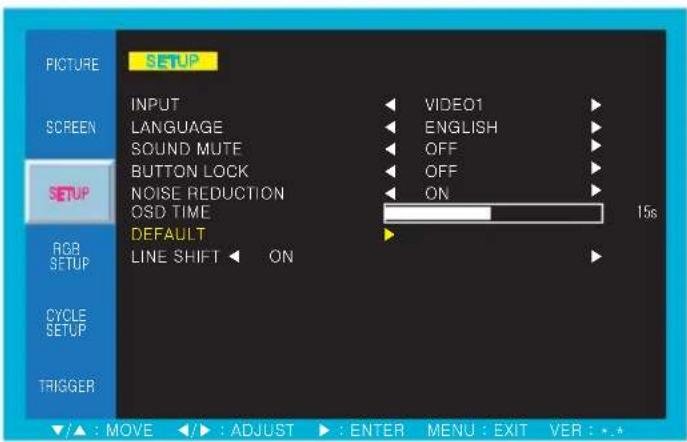

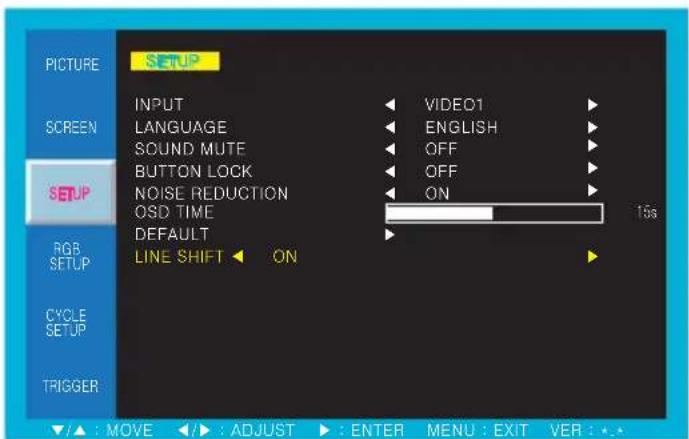

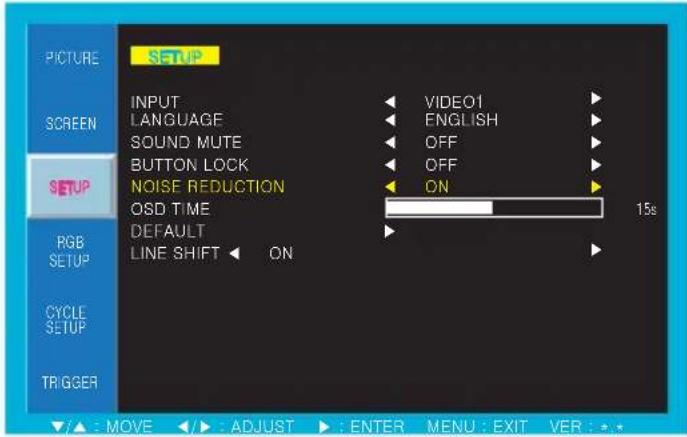

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

1. Press the MENU/EXIT key to access menu.
2. Use the ▲ &▼ arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲ &▼ arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

INPUT : Select an input source for main screen LANGUAGE : Set to different language mode SOUND MUTE : Turn on/off the sound BUTTON LOCK : Locking the button (Prevent operation) NOISE REDUCTION : Set a noise reduction mode OSD TIME : Set a time duration of OSD menu DEFAULT : Factory default setting LINE SHIFT : Move a little to protect the screen

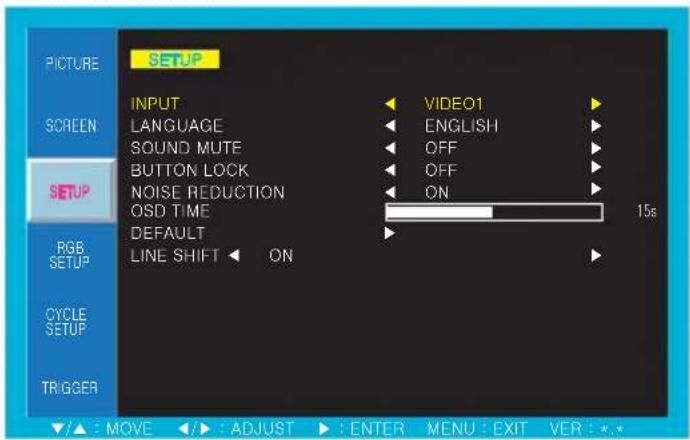

INPUT LANGUAGE

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC, DVI, HDMI1, HDMI2 and COMPONENT mode

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER /▲ : MOVE /► : ADJUST /► : ENTER MENU : EXIT VER : *.*

Default setting is ENGLISH and language setting can be set to ITALIAN, FRENCH, SPANISH and GERMAN

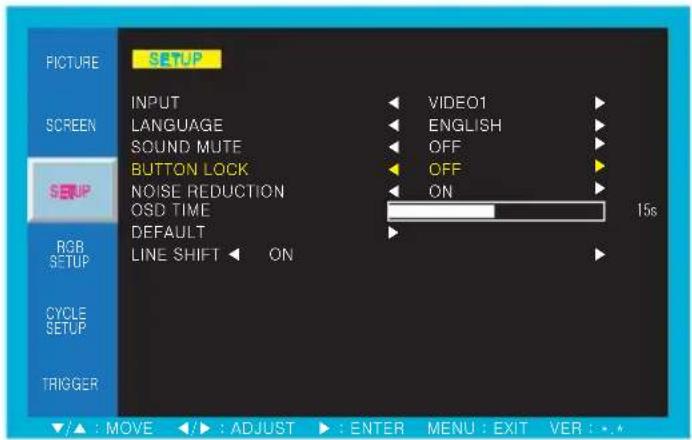

SOUND MUTE BUTTON LOCK

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER ▲/▲ : MOVE ▶/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : ★★

Default setting is OFF and switch to ON sound mute option

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: >.*

Default setting is OFF and switch to ON button lock option
Release the lock - Press KEY LOCK button on the remote control
- Press AUTO & VOLUME button on the key pad

NOISE REDUCTION OSD TIME

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER /▲ : MOVE /► : ADJUST /► : ENTER MENU : EXIT VER : *.*

Default setting is ON and switch to OFF noise reduction option

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

Default setting is 15s and adjustable from range of 5 to 30s

DEFAULT

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

DEFAULT is set OSD menu to factory default

LINE SHIFT

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 1s RGB SETUP CYCLE SETUP TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : ★★

Default setting is ON and switch to OFF line shift option

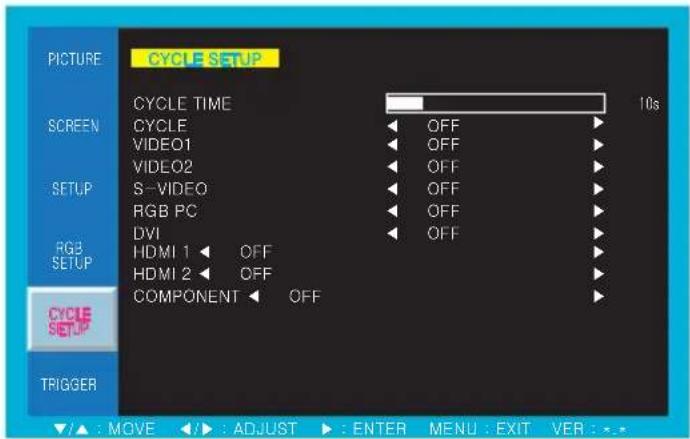

CYCLE SETUP

PICTURE CYCLE SETUP CYCLE TIME 10s SCREEN CYCLE OFF VIDEO1 OFF VIDEO2 OFF S-VIDEO OFF RGB PC OFF DVI OFF RGB SETUP HDMI 1 OFF HDMI 2 OFF COMPONENT OFF TRIGGER /▲ : MOVE /► : ADJUST ► : ENTER MENU : EXIT VER : *.*

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲ &▼ arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

CYCLE TIME : Adjust cycle time to displayed on the screen CYCLE : Selected mode keep change continuously

CYCLE TIME CYCLE

PICTURE CYCLE SETUP CYCLE TIME 10s SCREEN CYCLE OFF VIDEO1 OFF VIDEO2 OFF SETUP S-VIDEO OFF RGB PC OFF DVI OFF RGB SETUP HDMI 1 OFF HDMI 2 OFF COMPONENT OFF TRIGGER ▲: MOVE ▲: ADJUST ▶: ENTER MENU : EXIT VER : ▲

Default setting is 10s and adjustable from range of 10 to 30s

PICTURE CYCLE SETUP CYCLE TIME 10s SCREEN CYCLE OFF VIDEO1 OFF VIDEO2 OFF S-VIDEO OFF RGB PC OFF DVI OFF RGB SETUP HDMI 1 OFF HDMI 2 OFF COMPONENT OFF CYCLE SETUP TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : ★★

Default setting is OFF and switch to ON cycle option

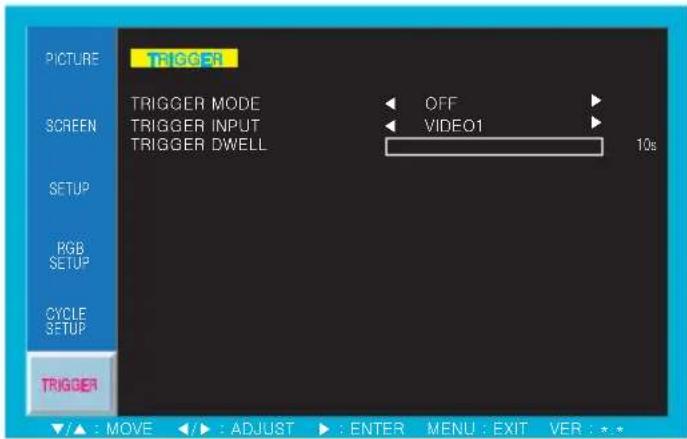

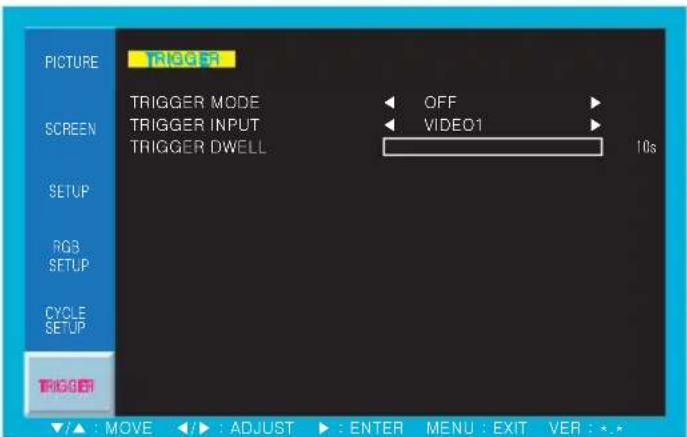

TRIGGER

PICTURE TRIGGER SCREEN SETUP RGB SETUP CYCLE SETUP TRIGGER TRIGGER MODE OFF TRIGGER INPUT VIDEO1 TRIGGER DWELL 10s ▼/▲ : MOVE ◀/► : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

TRIGGER MODE : Set the trigger mode
TRIGGER DWELL : Set the display time of trigger mode

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲ &▼ arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

TRIGGER INPUT : Select the input source of trigger mode
TRIGGER MODE TRIGGER INPUT

PICTURE TRIGGER SCREEN SETUP RGB SETUP CYCLE SETUP TRIGGER MODE TRIGGER INPUT TRIGGER DWELL OFF VIDEO1 10s ▼/▲ : MOVE ◀/► : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

Default setting is OFF and switch to ON trigger mode

PICTURE TRIGGER SCREEN TRIGGER MODE TRIGGER INPUT TRIGGER DWELL OFF VIDEO1 10s SETUP RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ◀: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Inputs can be set to VIDEO1, VIDEO2 and S-VIDEO mode

TRIGGER DWELL

PICTURE TRIGGER SCREEN SETUP RGB SETUP CYCLE SETUP TRIGGER TRIGGER MODE OFF TRIGGER INPUT VIDEO1 10s TRIGGER

Default setting is 10s and adjustable from range of 10 to 60s

5-3 Menu Setting (VGA Mode)


PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB SETUP MEDIUM COLOR TEMP RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU EXIT VER :*.*

CONTRAST : Adjust visual color contrast

COLOR TEMP : Switch color temperature of screen

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

BRIGHTNESS : Adjust color brightness

CONTRAST BRIGHTNESS

PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB SETUP RED MEDIUM GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P 1080P TRIGGER /▲ : MOVE /► : ADJUST > : ENTER MENU : EXIT VER : +.*

Default setting is 60% and adjustable from range of 0 to 100%

PICTURE CONTRAST 60% BRIGHTNESS 50% COLOR 50% TINT 50% SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB RED 50% GREEN 50% BLUE 50% CYCLE MODE SELECT 1080P TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is 50% and adjustable from range of 0 to 100%

COLOR TEMP

PILOT PILOT CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB SETUP RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1000P TRIGGER /▲ : MOVE ↓/► : ADJUST ► : ENTER MENU : EXIT VER : *.*

Default setting is MEDIUM and switch to WARM, USER and COOL color temperature options

USER - Default setting of RED, GREEN, BLUE is 50% and adjustable from range of 0 to 100%

SCREEN

PICTURE SCREEN SCAN MODE FULL PIP OFF PIP INPUT VIDEO2 PIP SWAP PIP SIZE SMALL PIP R/T R/B SETUP RGB SETUP CYCLE SETUP TRIGGER /▲ : MOVE /► : ADJUST ▶ : ENTER MENU : EXIT VER : ×-×

PIP : Activates PIP/PBP mode

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

PIP

PICTURE SCREEN SCAN MODE PIP PIP INPUT PIP SWAP PIP SIZE PIP R/T FULL OFF VIDEO2 SMALL R/B RGB SETUP CYCLE SETUP TRIGGER /▲ : MOVE ◀️: ADJUST ▶ : ENTER MENU : EXIT VER : ★★

Default setting is OFF and switch to ON, DW1 and DW2 PIP/PBP mode options

ON - PIP INPUT : Select an input source for PIP mode (VIDEO1, VIDEO2, S-VIDEO)

PIP SWAP : Swap between main and PIP input

PIP SIZE : Select a size for PIP mode (SMALL, NORMAL, LARGE)

PIP R/T : Select a location for PIP mode (R/B, L/B)

SETUP

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RG3 SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

This function of each menu is listed page 16 Please refer to page 16 for SETUP menu

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼ arrow to adjust the setting on a selected item.

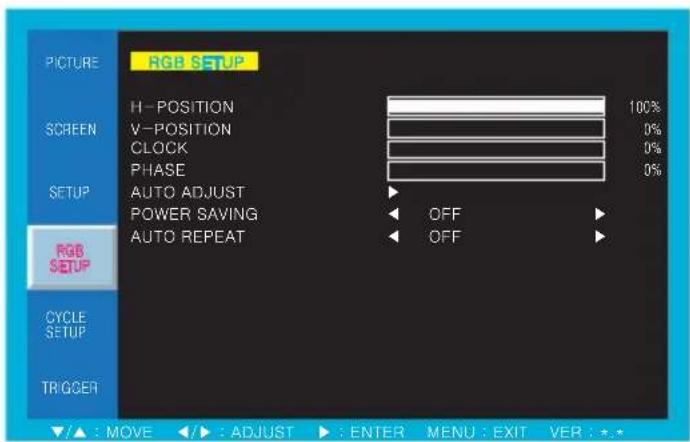

RGB SETUP

PICTURE RGB SETUP H- POSITION 100% SCREEN V- POSITION 0% CLOCK 0% PHASE 0% SETUP AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ◀: ADJUST ▶: ENTER MENU: EXIT VER: +.*

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

H-POSITION : Adjust horizontal position of monitor V-POSITION : Adjust vertical position of monitor

CLOCK : Adjust clock of monitor PHASE : Adjust phase of monitor

AUTO ADJUST : Auto adjust position of screen POWER SAVING : Power saving mode

AUTO REPEAT : Adjust auto repeat of monitor

H-POSITION V-POSITION

PICTURE RGB SETUP H-POSITION 100% SCREEN V-POSITION 0% CLOCK 0% PHASE 0% SETUP AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Can be set between 0 to 100% horizontal position of monitor by manually

PICTURE RGB SETUP H-POSITION 100% SCREEN V-POSITION 0% CLOCK 0% PHASE 0% SETUP AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF CYCLE SETUP TRIGGER ▼/▲: MOVE ◀/►: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Can be set between 0 to 100% vertical position of monitor by manually

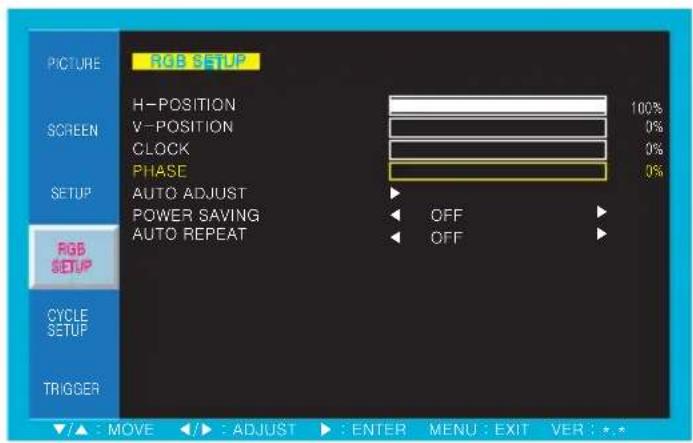

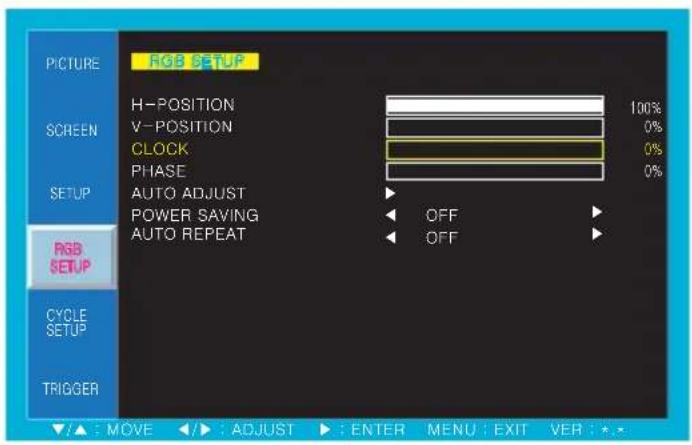

CLOCK PHASE

PICTURE RGB SETUP H-POSITION 100% SCREEN V-POSITION 0% CLOCK 0% PHASE 0% SETUP AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ◀: ADJUST ▶: ENTER MENU: EXIT VER: *.*

PICTURE RGB SETUP H-POSITION 100% SCREEN V-POSITION 0% CLOCK 0% PHASE 0% SETUP AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF RGB SETUP CYCLE SETUP TRIGGER ▲ : MOVE ◀ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

Can be set between 0 to 100% phase of monitor by manuallyCan be

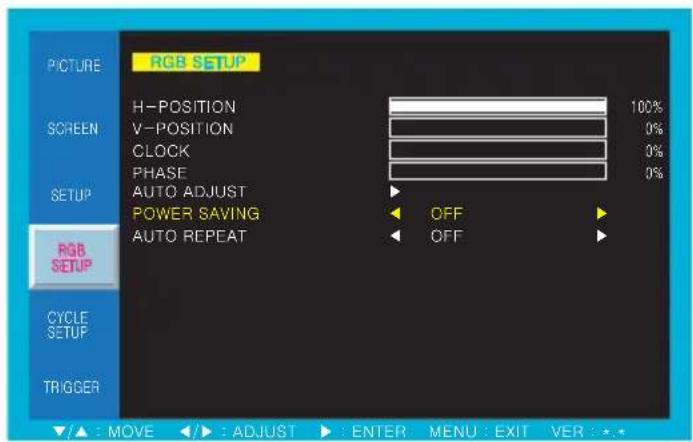

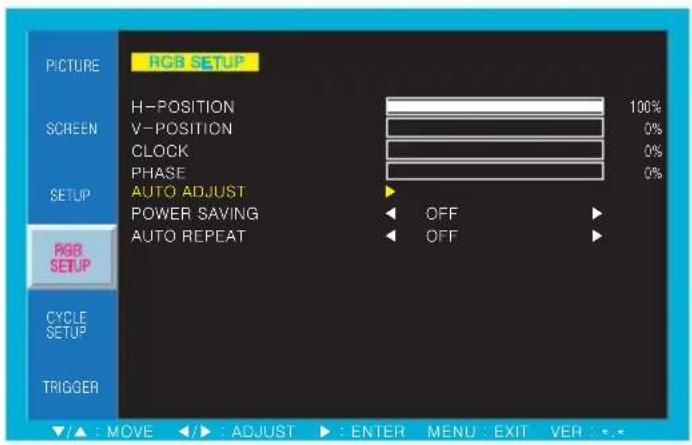

AUTO ADJUST POWER SAVING

RGB SETUP H-POSITION 100% V-POSITION 0% CLOCK 0% PHASE 0% AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF PICKLE SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU : EXIT VER : *.*

RGB SETUP H-POSITION 100% SCREEN V-POSITION 0% CLOCK 0% PHASE 0% AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is OFF and switch to ON power saving modeAuto adj

AUTO REPEAT

PICTURE RGB SETUP H-POSITION 100% SCREEN V-POSITION 0% CLOCK 0% PHASE 0% SETUP AUTO ADJUST POWER SAVING OFF AUTO REPEAT OFF RGB SETUP CYCLE SETUP² TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU : EXIT VER : *.*

Default setting is OFF and switch to ON auto repeat mode

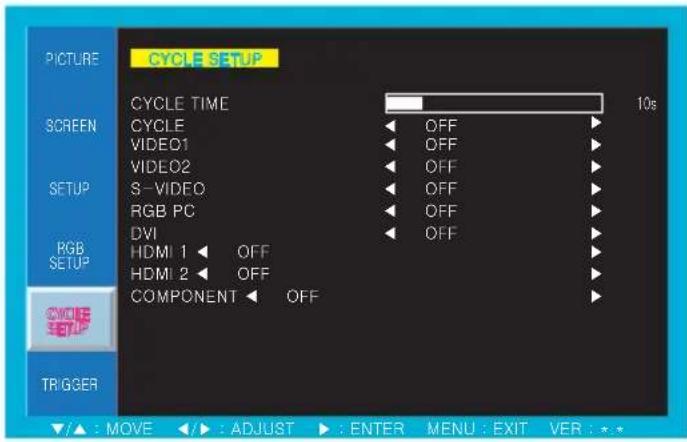

CYCLE SETUP

PICTURE CYCLE SETUP CYCLE TIME 10s SCREEN CYCLE OFF VIDEO1 OFF VIDEO2 OFF S -VIDEO OFF RGB PC OFF DVI OFF RGB SETUP HDMI 1 OFF HDMI 2 OFF COMPONENT OFF TRIGGER ▲ : MOVE ▶ : ADJUST ▶ : ENTER MENU : EXIT VER : ★★

This function of each menu is listed page 19

Please refer to page 19 for CYCLE SETUP menu

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲ &▼ arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

TRIGGER

PICTURE TRIGGER SCREEN SETUP RGB SETUP CYCLE SETUP TRIGGER TRIGGER MODE OFF TRIGGER INPUT VIDEO1 10s TRIGGER

This function of each menu is listed page 20

Please refer to page 20 for TRIGGER menu

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲ & ▼ arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

VGA / DVI / HDMI Mode Tables

VGA / DVI Mode

MODE	RESOLUTION VERTICAL FREQUENCY (Hz)
VGA	720X400 70
	640X480 60 / 72 75
SVGA 800X600	50 / 60 / 72 / 75
XGA 1024X768	50 / 60 / 75
WXGA 1366X768	60
*UXGA	1600X1200 60
*HD 1920X1080	60

*Corresponds only to 21/23 inches

HDMI Mode

	RESOLUTION VERTICAL FREQUENCY (Hz)MODE
EDTV 480i	720X480 30
EDTV 576i	720X576 25
SDTV 480p	720X480 60
SDTV 576p 720X576 60
HDTV 720p 1280X720 50 / 60
HDTV 1080i	1920X1080	30 / 25
HDTV 1080p	1920X1080	50 / 60

Note : Not all resolutions generated by your video source are available on the monitor.

5-4 Menu Setting (DVI, HDMI Mode)


PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB SETUP RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER /▲ : MOVE < /► : ADJUST ► : ENTER MENU : EXIT VER : *.*

CONTRAST : Adjust visual color contrast

COLOR : Adjust visual color of screen TINT : Adjust tint of color

SHARPNESS : Adjust sharpness of screen COLOR TEMP : Switch color temperature of screen

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

BRIGHTNESS : Adjust color brightness

CONTRAST BRIGHTNESS

PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB SETUP RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER /▲ : MOVE

Default setting is 60% and adjustable from range of 0 to 100%

PICTURE CONTRAST BRIGHTNESS COLOR TINT SHARPNESS PEAKING CONTROL COLOR TEMP MEDIUM RED GREEN BLUE CYCLE MODE SELECT 1080P TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is 50% and adjustable from range of 0 to 100%

COLOR TINT

PICTURE PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB SETUP RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER /▲ : MOVE

Default setting is 50% and adjustable from range of 0 to 100%

PICTURE PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB RED 50% SETUP GREEN 50% BLUE 50% CYCLE MODE SELECT 1080P 1080P TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is 50% and adjustable from range of 0 to 100%

SHARPNESS

PICTURE PICTURE CONTRAST 60% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB RED 50% SETUP GREEN 50% BLUE 50% CYCLE MODE SELECT 1080P 1080P TRIGGER ▲: MOVE ◀: ADJUST ▶: ENTER MENU: EXIT VER: ★★

Default setting is 50% and adjustable from range of 0 to 100%

PEAKING CONTROL

PICTURE PICTURE CONTRAST 80% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB COLOR TEMP MEDIUM RED 50% SETUP GREEN 50% BLUE 50% CYCLE MODE SELECT 1080P 1080P TRIGGER ▼/▲ : MOVE ←/► : ADJUST ► : ENTER MENU : EXIT VER : ••

Default setting is 50% and adjustable from range of 0 to 100%

COLOR TEMP

PICTURE PICTURE CONTRAST 80% SCREEN BRIGHTNESS 50% COLOR 50% TINT 50% SETUP SHARPNESS 50% PEAKING CONTROL 50% RGB SETUP COLOR TEMP MEDIUM RED 50% GREEN 50% BLUE 50% CYCLE SETUP MODE SELECT 1080P TRIGGER /▲ : MOVE

Default setting is MEDIUM and switch to WARM, USER and COOL color temperature options
USER - Default setting of RED, GREEN, BLUE is 50% and adjustable from range of 0 to 100%

MODE SELECT

PICTURE CONTRAST 60% BRIGHTNESS 50% COLOR 50% TINT 50% SHARPNESS 50% PEAKING CONTROL 50% COLOR TEMP MEDIUM RGB RED 50% GREEN 50% BLUE 50% CYCLE MODE SELECT 1080P SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: *.*

Default setting is 1080P and switch to 1920X1080 mode
1080P - Bluray, DVD player and AV video equipment (2% Over Scan) 1920X1080 - It is the fit image on PC In (Just/Real Scan)

SCREEN

PICTURE SCREEN SCAN MODE PIP PIP INPUT PIP SWAP PIP SIZE PIP R/T FULL OFF VIDEO2 SMALL R/B RGB SETUP CYCLE SETUP TRIGGER

This function of each menu is listed page 22

Please refer to page 22 for SCREEN menu

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

SETUP

PICTURE SETUP INPUT LANGUAGE SOUND MUTE BUTTON LOCK NOISE REDUCTION OSD TIME DEFAULT LINE SHIFT ON VIDEO1 ENGLISH OFF OFF ON 15s RGB SETUP CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU: EXIT VER: ★

This function of each menu is listed page 16

Please refer to page 16 for SETUP menu

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲ & ▼ arrow to adjust the setting on a selected item.

CYCLE SETUP

PICTURE CYCLE SETUP CYCLE TIME 10s SCREEN CYCLE OFF VIDEO1 OFF VIDEO2 OFF S-VIDEO OFF RGB PC OFF DVI OFF RGB SETUP HDMI 1 OFF HDMI 2 OFF COMPONENT OFF CYCLE SETUP TRIGGER ▲: MOVE ▶: ADJUST ▶: ENTER MENU : EXIT VER : *.*

This function of each menu is listed page 19

Please refer to page 19 for CYCLE SETUP menu

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

TRIGGER

PICTURE TRIGGER SCREEN TRIGGER MODE OFF TRIGGER INPUT VIDEO1 TRIGGER DWELL 10s SETUP RGB SETUP CYCLE SETUP TRIGGER ▼/▲ : MOVE ◀/► : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

This function of each menu is listed page 20

Please refer to page 20 for TRIGGER menu

1. Press the MENU/EXIT key to access menu.
2. Use the ▲&▼arrow to highlight a selection.
3. Press the ▶/SELECT to choose an item.
4. Use the ▲&▼arrow to highlight a selection.
5. Use the ▲&▼arrow to adjust the setting on a selected item.

5. FEATURE

General Features		18REDP [LED] 21REDP [LED] 23REDP [LED]
Display	Screen Size 18.5 inches	21.5 inches 23.0 inches
	Resolution	1366*768 pixels	1920*1080 pixels	1920*1080 pixels
	Pixel Pitch	0.3*0.3 mm	0.248*0.248 mm	0.265*0.265 mm
	Brightness	250 cd/m^2	250 cd/m^2	250 cd/m^2
	Contrast Ratio	1000:1	1000:1	1000:1
	Aspect Ratio	16:9	16:9	16:9
	Viewing Angle (H/V)	170/160 degrees	170/160 degrees	170/160 degrees
	Display Color	16.7 million	16.7 million	16.7 million
	Response Time	5 ms	5 ms	5 ms
	Video System	NTSC/PAL	NTSC/PAL	NTSC/PAL
	Panel Life Time (hours)	30,000 hours	30,000 hours	30,000 hours
Interface	Video In/Out (BNC Type)	2/2	2/2	2/2
	S-Video In/Out 1/1	1/1	1/1
	VGA In (15Pin D-Sub)	1	1	1
	Component	1	1	1
	DVI In/HDMI In	1/2	1/2	1/2
	Audio In (RCA Type)	3	3	3
	PC Stereo In	1	1	1
Audio	Built in Speakers	Y (1W*2)	Y (1W*2)	Y (1W*2)
Transmitter	Remote Control	Y	Y	Y
Special Features	Multi Display Function	PIP/PBP PIP/PBP PIP/PBP Dual Composite Display	Dual Composite Di splay	Dual Composite Display
	Filter Type	3D Comb Filter	3D Comb Filter	3D Comb Filter
	Deinterlacing	Y	Y	Y
	Trigger Source Switching	Y (NO/NC)	Y (NO/NC)	Y (NO/NC)
	Noise reduction	Y	Y	Y
	Auto source sequencing	Y	Y	Y
	Multi Lingual Language	Eng, Spa, Fre, Ger, Ita	Eng, Spa, Fre, Ger, Ita	Eng, Spa, Fre, Ger, Ita
Dimension	Outline Dimension (w Stand)	17.6*3.1(3.2)*11.6 inches	20.4*3.1(3.2)*13.1 inches	21.7*3.1(3.2)*13.9 inches
Cabinet	Cabinet color/Base Stand	Black/Tilt Back	Black/Tilt Back	Black/Tilt Back
	Cabinet Material	Electro-Galvanized Steel	Electro-Galvanized Steel	Electro-Galvanized Steel
Power	Electrical Ratings	AC 100~240 V (50/60Hz)	AC 100~240 V (50/60Hz)	AC 100~240 V (50/60Hz)
		DC 12 V DC 12 V DC 12 V
Circumstance	Operating Temperature	0~50 celsius	0~50 celsius	0~50 celsius
	Storage Temperature	-20~60 celsius	-20~60 celsius	-20~60 celsius
Mounts	VESA Mounts Size	100*100 mm	100*100 mm	100*100 mm
	Ceiling Mount CMK Wall	-01 CMK-01 CMK-01 WB-5, 10, 30, 31 WB-5, 10, 30, 31 RMK-08	10, 30, 31 WB-5, 10, 30, 31 RMK-08	RMK-08
	Rack Mount

6. 2Year Limited Warranty

All ORION IMAGES products carry a limited warranty from ship date against defects in materials and workmanship. ORION IMAGES is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.

Contact ORION IMAGES

In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation.

ORION IMAGES Corp. (USA)

Address: 7300 Bolsa Avenue, Westminster, CA 92683

Tel: [phone] / Fax: [phone]

Email: [e-mail]

Website: http://www.orionimages.com

7. TROUBLESHOOTING

* When the following troubles are occurred, follow the trouble shooting. Before contacting a service center.

Troubleshooting	Troubleshooting Tip
The screen doesn’t show up	1. Make sure if the power supply is connected property
	2. Turn on the power.
	3. Select the input signal right for the connected port.
The screen is too light or to dark	Control the BRIGHTNESS
The screen size is not fit for the PC signal	Press the AUTO key among keys in the front.(It is used only in the PC signal)
The screen color shows strange in the PC signal	In the FUNCTION menu of OSD menu, perform the AUTOADJUST.

MEMO
