USER MANUAL Secure 530 Oricom

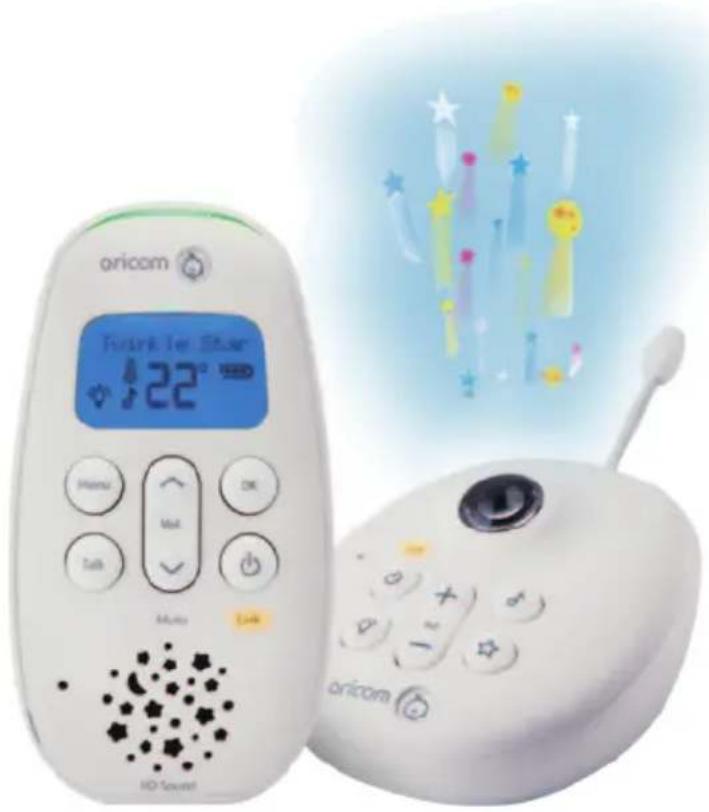

Oricom Audio Baby Monitor Secure 530 with Lightshow

oricom 22° HAPPLE Multi HD-Square oricom

User Guide

KEEP THIS USER GUIDE FOR FUTURE REFERENCE

Always retain your proof of purchase in case of warranty service. AUSTRALIA: www.oricom.com.au NEW ZEALAND: www.oricom.co.nz

Welcome

Thanks for buying an Oricom Baby Monitor. You'll soon be able to relax knowing you can listen for your baby's every gurgle, snuffle or cry.

But first things first. To get set up, just follow the steps from page 9. Set-up only takes a few minutes.

Then, you can learn all about your monitor and how to use it from page 13.

oricom Twinkle Star 22° Mute Link H2 Sound

Important safety information

1. Your baby monitor is designed as an aid. It is not a substitute for responsible and proper adult supervision.
2. Make sure all cables and units are out of your baby's reach – at least one metre away.
3. Never cover either unit, or put them in moist places or inside the cot, bed or playpen.
4. If you travel abroad, check the voltage on your unit's plugs match the local power output.
5. Only use the battery supplied for the Parent unit. If you need to replace it, contact our Sales or Support Team.
6. Do not take the product apart. If you need repairs, get in touch with our Sales or Support Team.
7. The Baby unit might get warm after it's been on for a while. Don't worry – this is normal, and it's perfectly safe.

Inside the box

• Baby unit
• Parent unit
• 2 x AA NiMH 1300mAh rechargeable batteries (Part number: 2B0076) for Parent unit (pre-installed)
• 2 x power adaptors

Warning

Risk of suffocation!

Keep all packaging materials and protective foils out of reach of children.

Contents

Your SC530 Baby Monitor

Parent unit 6

Baby unit....7

Parent unit menu map 8

Setting up

Parent unit 9

Baby unit.... 10

Switching on and linking the Parent and Baby units .... 11

Deciding where to put your units ... 11

Using your SC530 Baby Monitor

Switching the Baby unit on/off ..... 13

Switching the Parent unit on/off...13

Changing your Baby unit settings using the Parent unit menu.... 14

Checking or changing the loudspeaker volume on your Parent unit....14

Changing the loudspeaker volume on your Baby unit.... 15

Lightshow 15

Switch lightshow on/off using the Baby unit....15

Switch lightshow on/off using the Parent unit.... 16

Setting the lightshow timer ..... 16

Talkback 17

Nightlight.... 17

Switching nightlight on/off using the Baby unit....17

Switching nightlight on/off using the Parent unit.... 18

Selecting the nightlight brightness level through the Parent unit..... 18

Setting the nightlight timer......18

Playing music from the Baby unit.... 19

Turning music on/off using the Baby unit.... 19

Turning music on/off using the Parent unit 20

Choosing a song to play using the Parent unit....20

Changing a song currently playing using the Baby unit...... 21

Setting a play time for music ..... 21

Feed timer 22

Starting the feed timer countdown 22

Setting how often you want to get feed timer alerts....23

Cancelling the feed timer countdown 24

Switching the timer repeat option on or off.... 24

Temperature monitor....25

Changing the temperature format 25

Adjusting the monitor's temperature 26

Resetting the temperature on your monitor.... 26

Backlight......

List of tones 28

Resetting the units....29

Oricom Help 30

General information

Cleaning 32

Express Warranty (Australia)...... 32

Your SC530 Baby Monitor

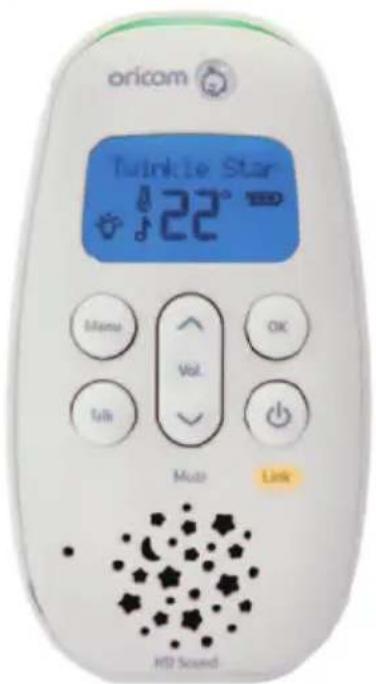

Parent unit

LCD display and backlight

The screen backlight comes on whenever you press a button.

It switches off again after 15 seconds.

Volume up/down

Turns the speaker volume up or down and lets you scroll through the main menu.

Menu

Opens the main menu. Press again to exit the main menu.

Talk

Press and hold down to talk to your baby.

Power socket (on the back)

For connecting to the mains power socket using the power adaptor cable supplied.

oricom Menu Vol. OK Talk Mute Link HD Sound

Battery icon on LCD screen

Tells you how much battery life your unit has left.

OK

Press to confirm when you're scrolling through the main menu.

Power

Press and hold to turn the unit on or off.

Link light

Flashes when your monitor is trying to find a link. Remains solid when the Parent and Baby units are linked to each other.

Mute light

Remains on when your Parent unit is on mute.

Baby unit

Soft nightlight

Link indicator

Flashes orange when your monitor is trying to find a link. Remains solid when the Parent and Baby units are linked to each other.

Microphone

Power on/off

Press and hold to switch the power on or off.

Nightlight

The star/moon/star shapes illuminate around the top of the unit.

Press to switch the nightlight on, keep pressing to cycle from low, medium, high brightness, then off.

Volume +/-

Turns the loudspeaker volume up or down when playing music or using talkback.

Link Vol. oricom

Temperature sensor

Make sure the sensor has space around it and isn't in contact with any surfaces to make sure it's working at its best.

Music

Switches the music on at the Baby unit. (It'll be the same music and will play for the same duration that you last set on the Parent unit.) Press the button again to switch the music off.

Lightshow

Press to switch the Lightshow on or off.

Power socket

(on the back) For connecting to the mains power socket using the power adaptor cable supplied.

Parent unit menu map

    B --> B1["Turn on/off?"]
    B --> B2["Timer"]
    B2 --> B2a["5 min 10 min 15 min Constant"]
    C --> C1["Turn on/off?"]
    C --> C2["Brightness"]
    C --> C3["Timer"]
    C3 --> C3a["High Medium Low"]
    C3 --> C3b["5 min 15 min 60 min Constant"]

    D --> D1["Play/Stop?"]
    D --> D2["Choose song"]
    D --> D3["Timer"]
    D3 --> D3a["5 min 10 min 15 min Constant"]
    D3 --> D3b["Lullabies Nature Classical White noise"]

    E --> E1["Start Timer/Stop Timer"]
    E --> E2["Duration"]
    E --> E3["Timer repeat"]
    E --> E4["Timer Alert"]
    E4 --> E4a["Repeat On Repeat Off Beep Screen Only"]

    F --> F1["Temperature"]
    F --> F2["Crying Alert"]
    F --> F3["Backlight"]

    F1 --> F1a["Beep Screen Only On w alerts Off w alerts"]

    G["Temp Format Temp Alert Adjust Temp Reset Temp"] --> G1["°C °F"]

Setting up

Parent unit

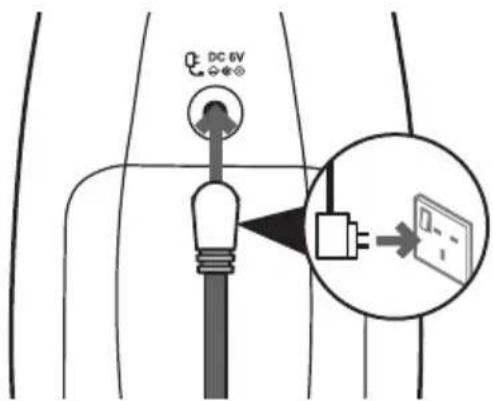

1. Plug one of the power cables into the socket on the back of the Parent unit.
2. Plug the other end of the cable into your mains wall socket and switch it on.

DC 6V

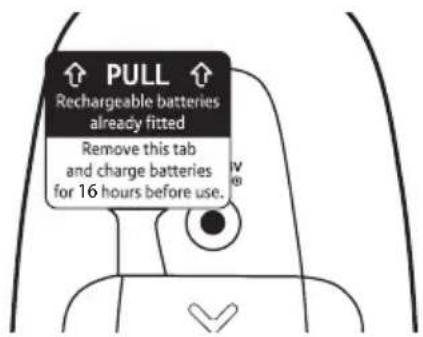

1. Activate the batteries by pulling the plastic tab away from the back of the Parent unit.

PULL Rechargeable batteries already fitted Remove this tab and charge batteries for 16 hours before use.

Warning

Only use the power adaptors supplied. Using incorrect power adaptors may permanently damage your product.

Battery low alert on Parent unit

When the batteries on your Parent unit are running out, an alert will sound and the battery icon 📄 on your display screen will flash. When this happens, you'll need to charge the batteries.

Warning

Always use rechargeable batteries in the Parent unit. Only use the type we've recommended – 2 x AA NiMH 1300mAh batteries (Part number: 2B0076). Charge the batteries as instructed in this user guide. The Parent unit can still be used when it's charging.

Setting up

Taking out the batteries

If you ever need to remove the batteries, slide open the battery compartment cover and use the ribbon to pull them out.

1. Leave the batteries to charge for 16 hours to reach maximum charge. When they are fully charged the battery icon on the display will show full charge

Baby unit

1. Plug the remaining power cable into the socket on the back of the Baby unit.
2. Plug the other end of the cable into your mains wall socket and switch it on.

HD Sound

Switching on and linking the Parent and Baby units

Before switching on, make sure the Parent and Baby unit are at least one metre from each other. Any closer and you might get audio feedback sounds.

1. Press and hold the ⏻ button on the Baby unit until the orange Link indicator flashes.
2. Press and hold the ⏻ button on the Parent unit until all the LEDs on the unit briefly light up. The orange Link indicator will flash and the display will show I'm Linking...
3. When the units are linked, the orange Link indicator lights on the Parent and Baby units will stop flashing. When the lights stay steady, your monitor is ready to use.

Deciding where to put your units

The Baby unit should ideally be within 1 to 2 metres of your baby. Make sure both the Baby unit and mains power cable are connected securely and they're out of baby's reach. If the Parent and Baby units are too close together, you'll hear a high-pitched noise. That's because the units are designed to be put at a distance from one another, such as in separate rooms.

Setting up

Important

The two units will need to be linked before you can start using them. If the link between the units is broken, the Link indicator lights will flash while they try to look for each other. The Parent unit will show I'm Linking...

After 30 seconds, if the link is still broken, the Link indicator lights will flash red. The Parent unit display will show Not Linked and you'll hear an alert.

If the link is broken, check that:

• the mains power is plugged in and switched on at the Baby unit
  • both units are switched on
  • the batteries are charged in the Parent unit
• the Parent and Baby units are within range of each other (in ideal conditions, that's up to 300 metres outdoors and 50 metres indoors).

Using your SC530 Baby Monitor

Switching on/off

Switching the Baby unit on

1. To switch on, press and hold the ⏻ button until the nightlight briefly illuminates and the orange Link light flashes. When it's finished linking, it'll stop flashing and remain steady.
2. To switch off, press and hold the ⏻ button again.

Switching the Parent unit on

1. To switch on, press and hold the ⏻ button on your Parent unit. The LED screen will come on and the green light at the top will illuminate. The Link light will also flash on and off while the units are linking. I'm Linking... will show on the screen. When the units have found each other, your Parent unit will go back to its idle screen.
2. To switch off, press and hold the ⏻ button again. The screen will go blank and all the lights will switch off.

Changing your Baby unit settings using the Parent unit menu

You can use the MenButton on the Parent unit to change settings on the Baby unit without having to disturb your baby.

1. Press Menu and then ↗ to scroll through the menu options. Press OK when the option you want appears on the screen.

2. You'll be taken to the submenu. Press ▲ or ▼ to scroll through the options. Press OK when the option you want shows on the screen.

3. You can then press Menu briefly to step back one menu level at a time, or press and hold Menu go back to the idle screen. If you don't press any buttons for ten seconds, your Parent unit will go back to the idle screen automatically.

Checking or changing the loudspeaker volume on your Parent unit

You can change the volume on either of the units using the 🔒 and 🔒 buttons. When you press the 🔒 or volume button, the current volume will be shown on your display screen. If you've muted the sound Volume off will show on the display screen.

Changing the loudspeaker volume on your Baby unit

There are two different ways to change the volume on the Baby unit.

1. When music is playing or you're using talkback, you can press the + or - buttons to adjust the volume.
2. If no music is playing and you're not using talkback, pressing the + or - buttons will change the volume.

Lightshow

The Baby unit has a lightshow that projects a starry image onto the ceiling of your baby's room. Using the Parent unit menu, you can set when you want the lightshow to start.

Switch lightshow on/off using the Baby unit

1. To switch on, press the ⭐ button. The lightshow will slowly fade in.
2. To switch off, press ★ again. The lightshow will fade out.

Each unit has five volume levels.

If you try to set the volume higher or lower than those, you'll hear a beep.

The Baby unit must be switched on for the lightshow to work but doesn't need to be linked to the Parent unit. Its default setting is Constant.

Switch lightshow on/off on the Parent unit

1. Press Menu. Lightshow will show on the screen. Press OK.

2. Press ⬆ or ⬇ to get to either, Turn On? or Turn Off? and press OK.

Setting the lightshow timer

1. Press Menu. Lightshow will show on the screen. Press OK.

2. Turn On/Off? will appear on the screen. Press √ until Timer is displayed and press OK

3. Press ⬆ or ♦b choose 5min, 10 min, 15 min or Constant. When you've got to the option you want, press OK.

4. Saved will show on your screen and you'll hear the confirmation tone.

Talkback

Your Parent unit comes with one-way talkback, which lets you comfort and reassure your baby. When you speak into the Parent unit, your voice will come through on the Baby unit.

Setting the lightshow timer

1. Press and hold down the talk button on the Parent unit to speak to your baby. While you're pressing the button, Talk will show on the display screen of the Parent unit.

Nightlight

You can set a comforting nightlight on the Baby unit. There are three brightness levels to choose from: low, medium and high. And you can set when you want the light to shine.

Switching nightlight on/off using the Baby unit

1. To turn on or off, press the ⚙ until you get to the setting you want.

TIP: When you're using talkback, you won't be able to hear your baby through the Parent unit until you release the button.

Don't press the button when the Baby unit and Parent unit are in the same room. You'll hear a high-pitched noise if you press the button when the units are within three metres of each other. When using talkback, hold the Parent unit about 30 centimetres in front of your mouth.

The Baby unit must be switched on for the nightlight to work, but need not be linked to the Parent unit. To adjust the brightness level or set the nightlight timer, take a look at page 18.

Switching nightlight on/off using the Parent unit

1. Press Menu and then until you get to Nightlight. Press OK.

2. Press ▲ or ▼o display either Turn On? or Turn Off?, and press OK when you've got to the option you want. Selecting the nightlight brightness level through the Parent unit

3. Press Menu and then ▼ until you see Nightlight. Press OK.

4. Turn On/Off? will show on the screen. Press the arrow buttons to scroll through to Brightness and then press OK.

5. Use the arrow buttons again to choose Low, Medium or High. When you've got to the option you want, press OK. Saved will show on your screen. Setting the nightlight timer

6. Press Menu and use the arrow buttons to get to Nightlight. Press OK.

7. Press the arrow buttons to scroll through to Timer, then press OK again.

8. Press ▲ or ▼ do choose 5 min, 15 min, 60 min or Constant. When you've got to the option you want, press OK to save it.

Playing music from the Baby unit

The Baby unit has 18 songs that can be played to gently soothe your baby, organised into four categories: Lullabies, Nature, Classical and White Noise.

You can select one song to play repeatedly or select the Play All option for a medley of the songs from your selected category. The songs can be set to play in a loop for 5, 10 or 15 minutes or you can leave them playing constantly.

Turning music on/off using the Baby unit

1. To turn the music on, press 📋. The most recently chosen song will start playing at the time you last set on the Parent unit.
2. To turn the music back off, press the 📋 button again.

The default music setting is to Play All of the lullaby songs for 5 minutes. When you switch the Baby unit on, there might be a small delay before it's ready to play music. Adjust the volume of the music using the + or - buttons on the Baby unit.

Turning music on/off using the Parent unit

1. Press ☐ and then use the arrow buttons to get to Music. Press OK.
2. When Play? or Stop? is displayed, press to select the one you want.

Choosing a song to play using the Parent unit

1. Press Menu and then use the arrow buttons until you see Music. Press OK.
2. Press √ again until you see Choose some. Press OK.
3. Use the arrow buttons to choose between the different song categories: Lullabies, Nature, Classical or White Noise. Press OK to select the one you want.
4. Use the arrow buttons to scroll through the song titles and press OK when you get to the option you want. Or you can select Play All to play all of the songs from your chosen category.

Changing a song currently playing using the Baby unit

1. Press and hold down the 📋 button until the song changes. You'll need to turn the music on before choosing a song.

Setting a play time for music

1. Press Menu and then scroll through to Music. Press OK.
2. Use the arrow buttons again to get to Timer. Press OK.
3. Press ⬆ and ⬇ choose how long you want the music to play. You can choose 5 min, 10 min, 15 min or Constant.
4. Press OK when the option you want shows on the screen.

Feed timer

Your new baby monitor can give you handy reminders of when to feed your baby, using the feed timer. You can set a time through the Parent unit of the monitor.

Starting the feed timer countdown

1. Press Menu and use the arrow buttons to scroll through to Feed Timer.
2. Press OK. If your Feed Timer is already switched on, you'll see Stop Timer. If it isn't you'll see Start Timer. You'll then have two options.
   a. To restart the timer if it's already switched on, press OK when you see Stop Timer. And then again when Start Timer appears on the display screen.
   b. To start the timer if it's currently switched off, just press OK when you see Start Timer on the screen.
3. You'll be sent back to the idle screen, which will switch between showing Timer on and the length of time you have before you get your next feed alert.

Setting how often you want to get feed timer alerts

1. Press ☐ and scroll through to Feed Timer, using the arrow buttons. Press OK.
2. Use the arrow buttons again to scroll through to Duration and press OK.
3. Your display screen will show what the timer is currently set at, with the default being 02h:00m. Use the arrow buttons to change each digit to match the time you want to get reminders and press OK. When you return to the idle screen, the feed timer icon 📊 will show on the display. You can set your timer from 1 minute to a maximum of 9 hours 59 minutes. If your Parent unit is switched off, the alert will be cancelled. It'll start playing the alert again when you turn the unit back on.

When you set Repeat On, the feed timer countdown will start again once the alert has sounded (if the alert isn't switched off). The default setting is for the timer to repeat.

Cancelling the feed timer countdown

1. Open the menu and then use the arrow buttons to get to Feed Timer. Press OK.

2. Stop Timer will show on the display screen. Press OK. Timer Off will show on the screen and the timer will disappear from the idle screen. Switching the timer repeat option on or off You can set your monitor to repeat feed time alerts for your chosen amount of time.

3. Press ☐ and then use the arrow buttons to get to Feed Timer.

4. Press OK. Use the arrow buttons to get to Timer Repeat. Press OK.

5. Use the arrow buttons to choose Repeat On or Repeat Off and press OK.

Temperature monitor

Your new monitor comes with a sensor on the Baby unit, which lets you keep an eye on the temperature of your baby's room. If it gets too hot or too cold, the unit will tell you by sounding an alert tone and showing the temperature on the display screen. You can display the temperature in ^ or ^ .

Temperature On	the Parent unit
Below 16°C	display shows the temperature and Too Cold
16 – 24°C	play shows the temperature, no warnings will be displayed.
Over 24°C	display shows the temperature and Too Hot

Changing the temperature format

1. To switch between °C or °F, press ☐ on the Parent unit and then use the arrow buttons to scroll through to Setup. Press OK.

2. When you see Temperature, press OK again.

Important

Use the temperature sensor only as a rough guide to the temperature of your baby's bedroom. What's displayed might depend on where you put the Baby unit in the room.

It shouldn't be used in place of medical devices, which may be more accurate.

Please note that your own temperature reference e.g. your central heating thermostat may not be as accurate, possibly due to tolerances and positioning of the thermostat in relation to your baby monitor.

Healthcare professionals advise that the ideal temperature for your baby's room is between 16°C and 24°C.

Pre-set temperature alert range

The Baby unit comes with pre-set maximum and minimum temperatures. The UK Department of Health has recommended these temperatures to help reduce the risk of cot death.

If the temperature falls below or goes above the set range, an alert will sound on the Parent unit and the display will show Too Cold or Too Hot.

1. Use the arrow buttons to navigate to Temp Format and press OK.

2. Press ⬆ or ⬆ choose °C or °F and press . OK

Adjusting the monitor's temperature If you find the temperature displayed on the Parent unit is slightly different on another thermometer or thermostat in your house, you can adjust the one on your monitor to match.

1. On your Parent unit, press Menu, then use the arrow buttons to get to Setup. Press OK

2. When you see Temperature, press OK.

3. Press √ until Adjust temp? shows on the screen and press OK.

4. Then use the arrow buttons to add the temperature you want to change to and press OK to save.

Resetting the temperature on your monitor If you've adjusted the temperature on your monitor, you can reset it through the Parent unit.

1. Go into the main menu and press √ until you get to Setup. Then press OK.

2. When you see Temperature, press OK.

3. Use the arrow buttons again to scroll through to Reset Temp. Press OK. Saved will be displayed and you'll hear a confirmation beep.

Backlight

You can select whether the backlight comes on when you get an alert on your Parent unit. The default setting is On and the screen will remain lit up for 15 seconds.

1. Press Menu and then use the arrow buttons to scroll through to Setup. Press OK.
2. Press ▼ to get to Backlight and press OK
3. Use the 🔒 and √ buttons to choose between On w alerts or Off w alerts, then press OK to save your choice.

List of tones

Your Audio Baby Monitor Secure 530 can produce various tones. They have the following meaning:

Tone Meaning
Single tone Confirmation (for example, saving a setting)
Fast double tone	Error (for example, trying to change the volume but already reached maximum)
Slow double tone	User alert (for example, time to feed your baby.
Fast triple tone	System alert (for example, link lost or battery low)

You can turn off user alert tones by pressing any button on the Parent unit.

To switch off system alerts for five-minutes, press any button on the Parent unit.

Resetting the units

Resetting either units means they'll return to the settings they came with.

1. Make sure the unit you're resetting is switched on.
2. Parent unit – hold down ⏻ for 10 seconds or until the Parent unit displays the word Reset.
3. Baby unit – hold down ⏻ for 10 seconds or until the link light flashes, nightlight illuminates and you hear a confirmation beep.
   You should only reset if you're having problems with your monitor.

Oricom Help

If you have any problems setting up or using your baby monitor, see if these common questions can help.

Why is the Parent unit beeping?

Take a look at page 28 for a list of the tones the Parent unit makes. It could be beeping for a few different reasons.

• The link has been lost between your units. Check that the Baby unit Link indicator is illuminated. If not, make sure the power adaptor is still connected.
• The feed timer has been set. See page 22.
• The temperature alert has been triggered. See pages 25-27.
  • The batteries are low. See page 9.

If the Parent unit still beeps after this, try switching the Baby unit off at the mains power socket and removing the batteries for around 5 minutes. Make sure the Parent unit is clean by wiping with a damp cloth. If this doesn't work, call the Helpline for advice.

Why isn't the Link light coming on?

• Check that both units are switched on.
• Check the batteries in the Parent unit are installed properly and charged.
• Check that the mains power is plugged in and switched on at the Baby unit.
• Check that the units are within range of each other.

Why aren't the units linking?

• Make sure the units are within range of one another.
• Check if both units are turned on.

What do I do if the battery is showing as low on the Parent unit?

• Plug the unit into a wall power socket to charge it. It's best to leave the unit plugged in whenever you can, to make sure the batteries are always charged.
• To fully charge the batteries, the Parent unit should be on charge for about 16 hours if switched off and 24 hours if switched on.
• To speed things up, turn the Parent unit off when charging if it's not being used.

Why is my Parent unit very quiet?

• You may have set the volume too low. See 14.
• You may have switched Mute on. Take a look at 14.

Why is there a high-pitched noise coming out of one of the units?

• The units might be too close to each other.
• The volume setting might be too high.

Why isn't talkback working

• Check that the volume is loud enough at the Baby unit. See 15.
• Check the units are linked. Take a look at 11 for more on how to do that.

Still stuck?

Try 1300 889 785 or go to www.oricom.com.au

General information

Cleaning

To clean, wipe with a damp cloth.

Express Warranty (Australia)

This Express Warranty is provided by Oricom International Pty Ltd ABN 46086 116 369, Unit 1, 4 Sovereign Place, South Windsor NSW 2756, herein after referred to as “Oricom”.

Oricom products come with guarantees that cannot be excluded under the Australian Consumer Law.

You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Oricom warrants that the product is free from defects in materials or workmanship during the Express Warranty Period. This Express Warranty does not extend to any product from which the serial number has been removed or was purchased outside of Australia.

Nothing in this Express Warranty excludes, restricts or modifies any condition, warranty, guarantee, implied term, right or remedy pursuant to the Australian Consumer Law and which may not be so excluded, restricted or modified. For such conditions, terms, guarantees and warranties that cannot be excluded, restricted or modified, Oricom limits the remedies available to extent permitted in the relevant legislation.

The Express Warranty Period will be 3 years from the date of purchase of the product evidenced by your dated sales receipt. You are required to provide proof of purchase as a condition of receiving Express Warranty services.

You are entitled to a replacement product or repair of the product at our discretion according to the terms and conditions of this document if your product is found to be faulty within the Express Warranty Period.

This Express Warranty extends to the original purchaser only and is not transferable.

Products distributed by Oricom are manufactured using new materials or new and used materials equivalent to new in performance and reliability. Spare parts may be new or equivalent to new. Spare parts are warranted to be free from defects in material or workmanship for thirty (30) days or for the remainder of the Express Warranty Period of the Oricom branded product in which they are installed, whichever is longer.

During the Express Warranty Period, Oricom will where possible repair and if not replace the faulty product or part thereof. All component parts removed under this Express Warranty become the property of Oricom. In the unlikely event that your Oricom product has a recurring failure, Oricom may always, subject to the Competition and Consumer Act 2010, at its discretion, elect to provide you with a replacement product of its choosing that is at least equivalent to your product in performance.

No change to the conditions of this Express Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury arising out of or in connection with a:

1. Failure by you to adhere to the warnings and follow the instructions set out in this user guide for the proper installation and use of the product;
2. Wilful misconduct or deliberate misuse by you of the product;
3. Any external cause beyond our control, including but not limited to power failure, lightning or over voltage; or
4. Modification to the product or services carried out on the product by anyone other than Oricom or Oricom's authorised service provider.

ORICOM CUSTOMER SUPPORT

Oricom have a trained and dedicated team of Customer Support Representatives, each with the knowledge and resources to assist in answering your questions quickly and efficiently.

Oricom Support - Australia

For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions.

1300 889 785

Monday - Friday 8am – 6pm AEST

Email: [e-mail]

www.oricom.com.au

Oricom Support - New Zealand

0800 674 266

Monday - Friday 11am - 7pm NZST

Email: [e-mail]

www.oricom.co.nz

Oricom®

Ref: 22052018
