USER MANUAL RT6360IN HOOVER

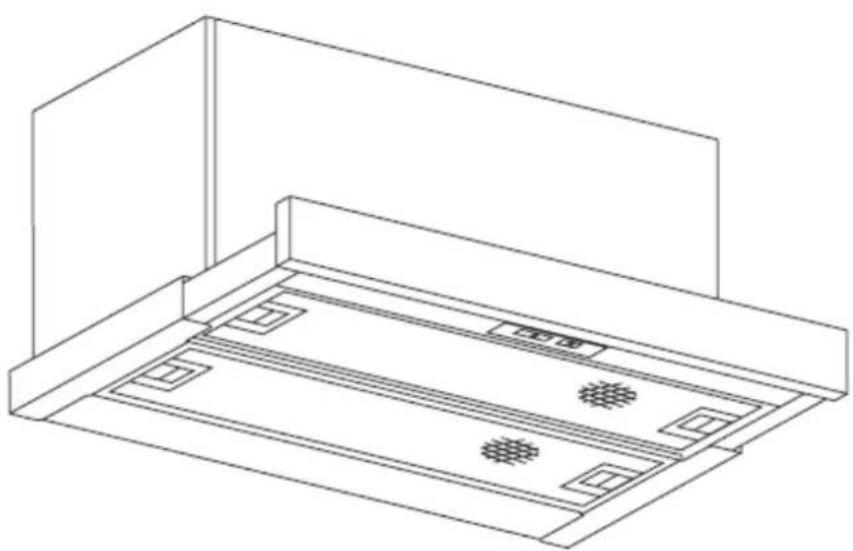

Cooker Hood Instruction Manual

Isometric line drawing of a rectangular electronic device with mounting brackets and internal circuitry (no text or symbols)

Content

1....Safety instructions
2....Installation
3....Start using your cooker hood
4....Troubleshooting
5....Maintenance and cleaning
6 Environment protection

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
• Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

• Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
  ● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
  ● All installation work must be carried out by a competent person or qualified electrician.
• Please dispose of the packing material carefully. Children are vulnerable to it.
  ● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
  ● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
  ● Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
  ● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Prohibition sign with two figures holding a diagonal line, symbolizing no smoking or prohibition

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

• Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
  ● There shall be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
  ● There is a fire risk if cleaning is not carried out in accordance with the instructions
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
  ● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
  ● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
  ● Cleaning and user maintenance shall not be made by children without supervision.
• When the cooker hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
  ● WARNING: Danger of fire: do not store items on the cooking surfaces.
  ●A steam cleaner is not to be used.
  ● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

There are two ways of installation of cooker hood: on the wall and under a wall unit.

Way one: Mounting on the wall:

1. The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect.

65cm 75cm

1. To install onto the wall drill 4 holes of ∅8mm on a suitable place according with the centre distance of hole in the back of the cooker hood.

495 100 60 cm

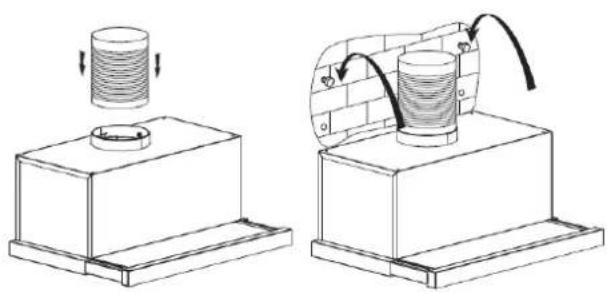

1. Insert the nut into the holes.
2. Insert the screws into the nuts and tight.
3. Put up the cooker hood onto the fixed screws.

Technical line drawing showing two mechanical components: a cylindrical component and a coiled spring assembly (no text or symbols)

Diagram of a brick wall with a cylindrical component and two circular components, no text or symbols present.

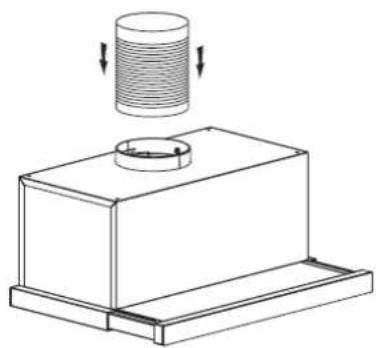

Way two:Mounting under a wall unit

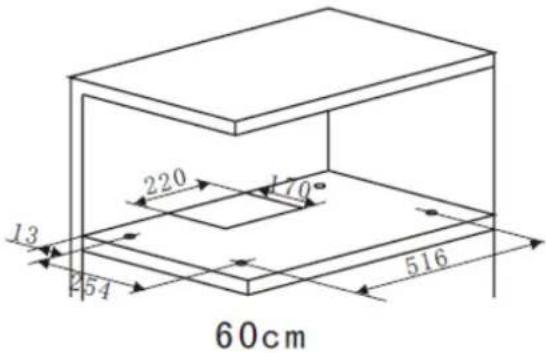

1. Drill 4 holes of 4mm diameter at the bottom of the hanging cupboard.

254 516 60cm

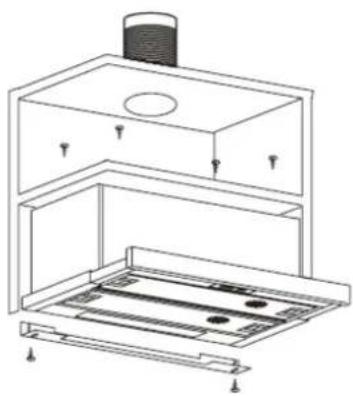

1. Install the cooker hood on the bottom of the cupboard, tighten the hood with the M4 screws.
2. Use two 3*12 screws to fix the adjusted board on the bottom of the hood in order to keep out the gap between hood back and cupboard.

Diagram of a mechanical press or clamping device with a cylindrical component and base, showing motion arrows (no text or symbols)

220 170° 13 254 516 60cm

Technical line drawing of a mechanical assembly with mounting base and cylindrical component (no text or symbols)

Technical line drawing of a mechanical or electrical enclosure with internal components and mounting holes (no text or symbols)

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a

minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is

damaged, it must be replaced by a special cord or assembly available

from the manufacturer or its service agent.

L N L N

WARNING: This is a Class I appliance and MUST be earthed

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

WARNING:

Yellow triangular warning sign with black exclamation mark symbol

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Toggle switch

O I

①

O I II III

②

1. Lamp – Turn on/off light

“O” – to switch off light

“I” – to switch on light

Power – Slide out drawer, power on; slide in drawer, power off.

2 .Speed –select speed to suit cooking conditions

“O” – to switch off motor

Low( I )— light frying/boiling

Medium( II ) – frying/wok cooking/heavy boiling

High ( III ) – grilling, intensive frying and wok cooking

Power – Slide out drawer, power on; slide in drawer, power off.

TROUBLESHOOTING

Fault	Possible Cause	Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the cooker hood and the gas top is too far	Refit the cooker hood to the correct distance.
The Cooker hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket.

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g. weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it. (Leave to dry naturally out of direct sun light)

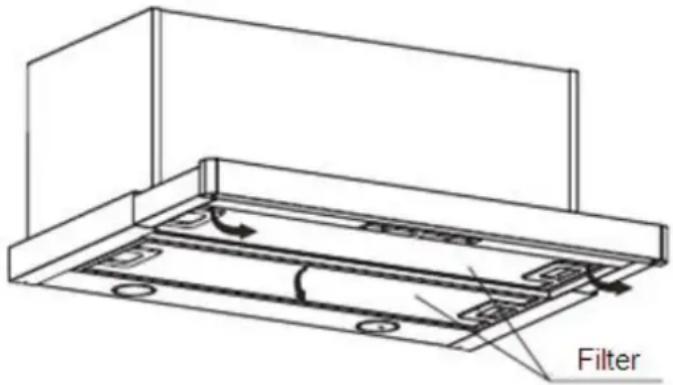

Filter

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
• Angle the filter into slots at the back of the hood.
• Push the button on handle of the filter.
• Release the handle once the filter fits into a resting position.
• Repeat to install all filters.

CARBON FILTER-not supplied

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

• Please pull out the hood and take off the tow filters.
  ● Fix the charcoal filter into motor side to make sure its tighten. See Pic.below.
• Put back the two filters into hood.

Diagram of a mechanical device with rotating wheels and green directional arrows indicating motion (no text or symbols)

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

Note:

• Before Replacement light that the cooker hood can be isolated from the supply mains by means of a plug or an all-pole switch.
• Protect against danger when changing lights, such as wearing gloves.

Changing the lights:

Remove the grease filter.
Use a tool or the hand to press the spring splinter of both sides of LED light to the inside, until the light is pressed out. Then slightly pull the light connecting wire out, and dismantle the terminal of the light connecting wire.
- Apply the reverse procedure to install the light back.
• ILCOS D code for this lamp is: DBR-2/65-H-64
- LED modules -round lamp
- Max wattage: 2 × 2 W
– Voltage range: AC 220-240V
- Dimensions:

64 20.5

Technical line drawing of a mechanical assembly with mounting bracket and internal components (no text or symbols)

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.
