USER MANUAL WRH608IK WESTINGHOUSE

RETRACTABLE RANGEHOOD

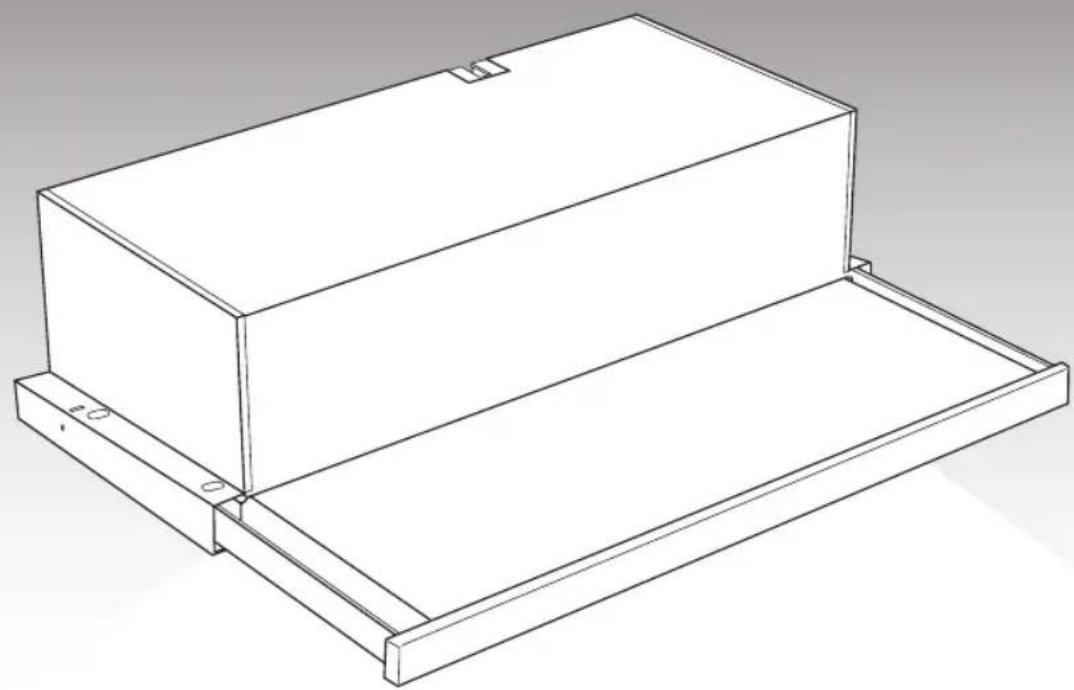

Technical line drawing of a rectangular box mounted on a wooden base (no text or symbols)

OPERATION GUIDE INSTALLATION INSTRUCTIONS

Models: WRH605I • WRH608I • WRH908I • REHR6 • REHR9 • RRE634 • RRE635 • RRE934

These cooker hoods are domestic appliances which have been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 3350.2.31.

Safety Warnings

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure they do not play with the appliance.
• Ensure the cooker hood is switched off before carrying out maintenance, to avoid any possibility of electric shock.
• Grease filters must be removed every four weeks (maximum) for cleaning to reduce the risk of fire.
• Do not fl ambé under the cooker hood.
  • This cooker hood is not recommended for barbeques.
• The exhaust air from the cooker hood must not be discharged into any heating flue, which may carry combustion products from other sources.
• Exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose.
• There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
  • Always cover lit gas burners with pots or pans when the cooker hood is in use.
  • Always switch off gas burners before you remove pots or pans.
• CAUTION: Accessible parts may become hot when used with cooking appliance.
  • Regulations concerning the discharge of air have to be fulfilled.

Cleaning

Wipe the cooker hood body and flue with a sponge or soft cloth soaked in warm soapy water. Do not use oven cleaners or other abrasive materials.

Electrical Connection

• Check that the mains voltage matches with the voltage on the data plate inside the cooker hood.
• Check that the installation complies with standards of local gas and electricity authorities.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Accessories

• Use 125mm round exhaust ducting for best performance.
• When using flexible duct always install duct with the wire helix pulled taut to minimise pressure loss.
• Try to keep exhaust duct short and straight.
• Keep bends in the exhaust duct to a minimum.
• Do not reduce the size or restrict exhaust duct.

INSTALLATION INSTRUCTIONS

Please read instructions carefully. Service calls resulting from incorrect installation will be charged for.

Exhaust air from the Rangehood must not be discharged into any heating fl ue which may carry combustion products from other sources. In addition, exhaust air must not be discharged into a wall cavity, unless the cavity is designed for the purpose. Adequate ventilation of the room must be ensured when the Rangehood is operating simultaneously with appliances burning gas or other fuels. Installation must comply in all respects with your gas and electrical authorities. This Rangehood is an indoor domestic appliance, and has been manufactured and tested to comply with Australian and New Zealand Standard AS/NZS 3350.2.31

It is recommended that the unit be positioned as close as possible to 600mm (electric hobs), 650mm (gas hobs), and no further from the hob than 800mm. The unit becomes less effective as the distance from the cooking surface to the hood increases.

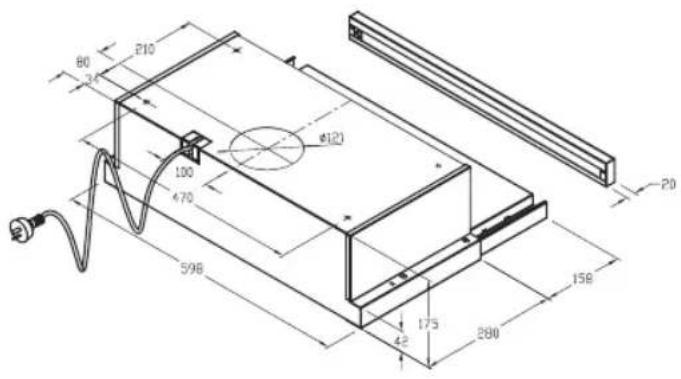

FIXING POINT DIMENSIONS - 600mm Retractable cooker hood

80 210 3 φ120 100 470 596 158 175 42 280 20

FIXING POINT DIMENSIONS - 900mm Retractable cooker hood

90 210 14 898.5 770 130 #21 26 158 175 42 280

The maximum space between the wall and screw cap is 5mm.

wall with 650 GAS 600 ELECTRIC

DUCTING INSTALLATION

When installing with ducting pipe the Duct spigot must be fitted to the ducting hole on top of the body of the cooker hood

Duct Spigot

RECIRCULATING INSTALLATION

(For Models: WRH608, RRE634, RRE635, WRH908 & RRE934)

When installed in recirculating mode the ducting hole cover must be fitted

Ducting hole cover

INSTALLATION INSTRUCTIONS

STANDARD DUCTED INSTALLATION

Models: WRH605I • WRH608I • WRH908I • REHR6 • REHR9 • RRE634 • RRE635 • RRE934

DUCTING ACCESSORIES

For best performance 125mm ducting is recommended.

AR125RC AR125F AR125FD AR125FJ (without damper) AR125FJD (with damper) AR125WV AR125B

Accessories can be bought through your local appliance retailer, or in Australia online at: shop.electrolux.com.au

INSTALLATION INSTRUCTIONS

INSTALLATION USING THE SUPPLIED DRAWER FASCIA

FOR MODELS: WRH605I-WRH608I WRH908I REHR6 REHR9 RRE634 RRE934

Standard ducted installation calls for a door extension of 130mm whether the client opts to use the supplied draw fascia or a custom fascia of the same dimensions as that supplied.

130 3 40

RECIRCULATING VENT INSTALLATION

FOR MODELS: (WRH608I·WRH908I RRE634 RRE934)** (RRE635 already fitted with 70mm front panel)

Note: If the Rangehood is to be vented using the recirculating vent rather than standard ducting, the supplied drawer fascia is not to be used and must be replaced with a client specific custom fascia**.

The custom drawer fascia must be a minimum of 70mm deep as air expelled through the recirculating vent must be deflected upwards.

101 3 70

Unscrew and remove cover from recirculating vent

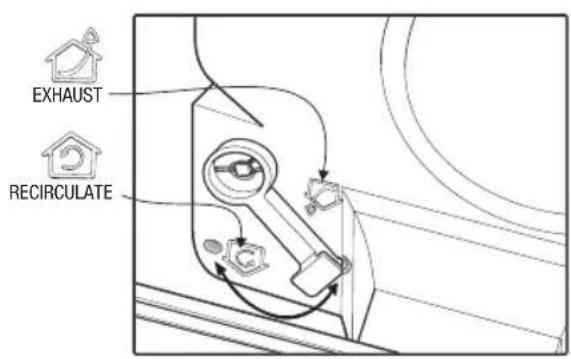

Setting of circulation air door - single fan models

EXHAUST RECIRCULATE

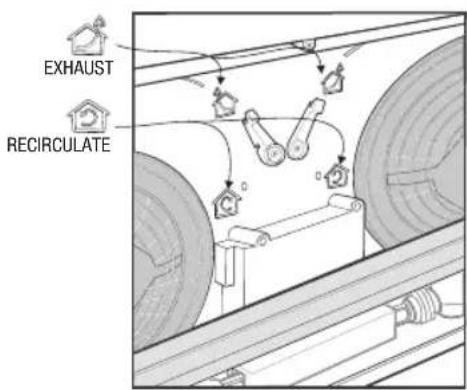

Setting of circulation air doors - dual fan models

EXHAUST RECIRCULATE

INSTALLATION INSTRUCTIONS

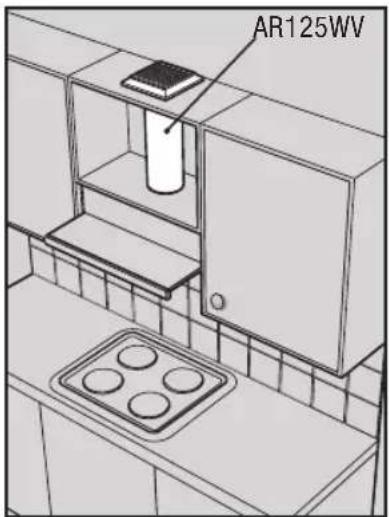

DUCTED RECIRCULATING INSTALLATION

FOR MODELS: REHR6* REHR9* WRH605I*

AR125WV

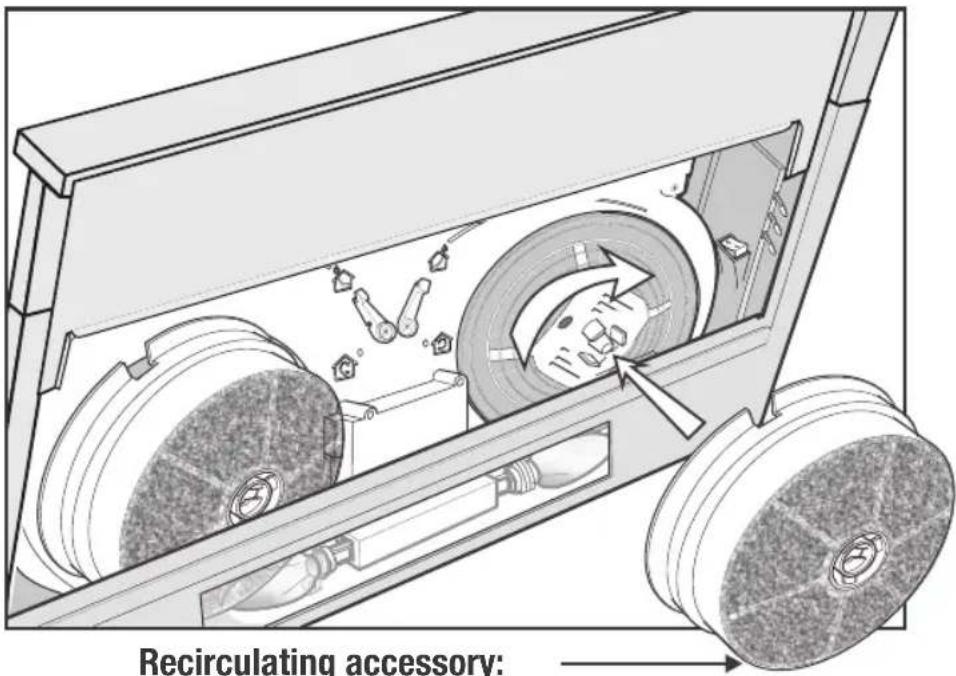

ALL MODELS OPTIONAL CARBON FILTER

An optional carbon fi Iter will diminish cooking odours in the recirculated air.

Depending on the frequency of use and the type of cooking, the expected life of carbon fi Iters is from 1 to 6 months.

Replacement is required.

Recirculating accessory:

Recirculating accessory:

Optional carbon filter ARCFD for recirculating mode only.

IMPORTANT: The Edison Screw lamps may have come loose during transportation. Ensure that lamps are tightened firmly into the socket before power is applied.

MODELS: WRH605I* REHR6* REHR9*

The operation of the light and the two-speed fan are controlled by the drawer action. (see diagram)

MODELS: WRH608I* WRH908I* RRE634* RRE635* RRE934*

The operation of the lights and the three speed fans are controlled by the drawer action. (see diagram)

OFF

TO REPLACE LIGHT GLOBES

1. Open drawer and remove filter.
2. Turn mains switch off before removing lamp.

Replace with 40W maximum E14 candle lamp. Depending on model will require 1 or 2 globes.

MAINS SWITCH

To maintain efficiency and reduce fire risk, filters should be removed every four weeks (maximum) for cleaning. Soak and agitate fl iters in hot soapy water or washing soda. Rinse, drain, shake well and replace.

Do not use caustic solutions or other corrosive agents.

The fi Iters can be washed in the dishwasher, but could dis-colour caused by dishwasher cleaning agents. It is recommended the fi Iters be placed on the top shelf of the dishwasher.

NOTE: Where fitted, optional carbon filters are intended to be a disposable item and should be discarded when saturated. Washing the carbon filter is not recommended.

REMOVE FILTERS FOR CLEANING

1. Slide fi Iter tray forward 1cm.
2. Push in clip on either side to release fi Iter. Fig 1.
3. Pull fi Iter downwards to remove. Repeat 2 & 3 for models with a second fi Iter. Fig 2.
4. Turn off mains switch before cleaning drawer and cooker hood body.
5. After cleaning, re-fit filters making sure the clip pins are securely fitted into the locating holes in the cookerhood body and for twin fi iter versions, also located in the pull out drawer section.
6. Holding clip in, push opposite side of fi Iter up until pins are over locating holes.
7. Release clip ensuring fi Iter is securely fi tted.

Safety Tips: Use of two hands for removal and re-fitting of filters is recommended to avoid accidental dropping of filters which could cause damage to your cooktop or kitchen surfaces.

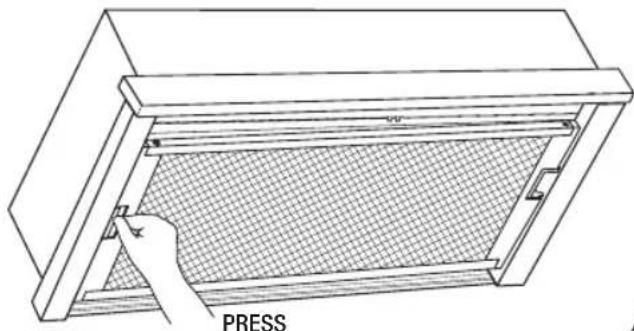

PRESS

Fig 1.

Technical line drawing of a mechanical component with grid pattern and mounting bracket (no text or symbols)

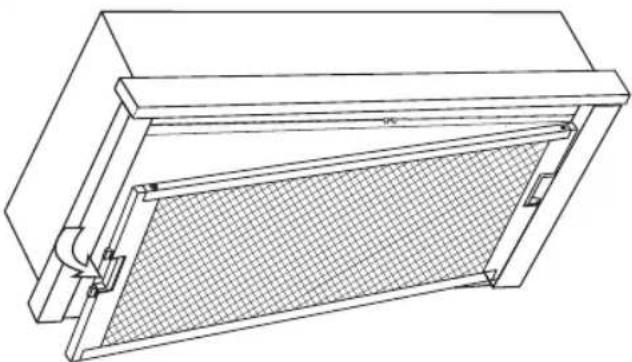

Fig 2.

Should you require further instructions in the use and care of your cooker hood please contact the Customer Care Centre on 1300 363 640 (Australia, Mon-Fri 8.00am-5.00pm Eastern Standard time) or [phone] (New Zealand, Mon-Fri 8.00am-5.00pm). If you have a warranty or spare parts enquiry, you should call the number listed on the warranty page.

This document sets out the terms and conditions of the product warranties for Electrolux Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should you require service for your Appliance.

1. In this warranty

(a) 'acceptable quality' as referred to in clause 10 of this warranty has the same meaning referred to in the ACL:
(b) 'ACL' means Trade Practices Amendment (Australian Consumer Law) Act (No.2) 2010;
(c) 'Appliance' means any Electrolux product purchased by you accompanied by this document;
(d) 'ASC' means Electrolux' authorised serviced centres;
(a) 'Electrolux' means Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot, NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
(f) 'major failure' as referred to in clause 10 of this warranty has the same meaning referred to in the ACL and includes a situation when an Appliance cannot be repaired or it is uneconomic for Electrolux, at its discretion, to repair an Appliance during the Warranty Period;
(g) 'Warranty Period' means

(i) where the Appliance is used for personal, domestic or household use (i.e. normal single family use) as set out in the instruction manual, the Appliance is warranted against manufacturing defects in Australia for 24 months and in New Zealand for 24 months, following the date of original purchase of the Appliance;

(ii) where the Appliance is used for commercial purposes (including being used to directly assist a business or where the Appliance is used in a multi-family communal or share type environment), the Appliance will then be warranted against manufacturing defects in Australia for 3 months and in New Zealand for 3 months, following the date of original purchase of the Appliance.

(h) 'you' means the purchaser of the Appliance not having purchased the Appliance for re-sale, and 'your' has a corresponding meaning.

1. This warranty only applies to Appliances purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) any non-excludable statutory warranties in Australia or New Zealand.
2. During the Warranty Period Electrolux or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux or its ASC may use remanufactured parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux. This warranty does not apply to light globes, batteries, filters or similar perishable parts.
3. Parts and Appliances not supplied by Electrolux are not covered by this warranty.
4. You will bear the cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. If you reside outside of the service area, you will bear the cost of:

(a) travel of an authorised representative;

(b) transportation and delivery of the Appliance to and from Electrolux or its ASC,

In all instances, unless the Appliance is transported by Electrolux or an Electrolux authorised representative, the Appliance is transported at the owner's cost and risk while in transit to and from Electrolux or its ASC.

1. Proof of purchase is required before you can make a claim under this warranty.
2. You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. Electrolux is not liable in the following situations (which are not exhaustive):

(a) the Appliance is damaged by:

(i) accident
(ii) misuse or abuse, including failure to properly maintain or service
(iii) normal wear and tear
(iv) power surges, electrical storm damage or incorrect power supply
(v) Incomplete or improper installation
(vi) incorrect, improper or inappropriate operation
(vii) Insect or vermin infestation
(viii) failure to comply with any additional instructions supplied with the Appliance;

(b) the Appliance is modified without authority from Electrolux in writing;
(c) the Appliance's serial number or warranty seal has been removed or defaced;
(d) the Appliance was serviced or repaired by anyone other than Electrolux, an authorised repairer or ASC.

1. This warranty, the contract to which it relates and the relationship between you and Electrolux are governed by the law applicable where the Appliance was purchased. Where the Appliance was purchased in New Zealand for business purposes the Consumer Guarantee Act does not apply.
2. To the extent permitted by law, Electrolux excludes all warranties and liabilities (other than as contained in this document) including liability for any loss or damage whether direct or indirect arising from your purchase, use or non use of the Appliance.
3. For Appliances and services provided by Electrolux in Australia, the Appliances come with a guarantee by Electrolux that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the Appliances or services to which the warranty relates.
4. At all times during the Warranty Period, Electrolux shall, at its discretion, determine whether repair, replacement or refund will apply if an Appliance has a valid warranty claim applicable to it.
5. For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act.
6. To enquire about claiming under this warranty, please follow these steps: (a) carefully check the operating instructions, user manual and the terms of this warranty;
   (b) have the model and serial number of the Appliance available;
   (c) have the proof of purchase (eg an invoice) available;
   (d) telephone the numbers shown below.
7. You accept that if you make a warranty claim, Electrolux and its ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in point 13 above have been followed.

FOR SERVICEor to find the address of your nearest state service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call (Australia only)	SERVICE AUSTRALIA[IMAGE]ELECTROLUX HOME PRODUCTSwww.electrolux.com.au	FOR SPARE PARTSor to find the address of your nearest state spare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call (Australia only)
FOR SERVICEor to find the address of your nearest authorised service centre in New ZealandFREE CALL 0800 10 66 10(New Zealand only)	SERVICE NEW ZEALAND[IMAGE]ELECTROLUX HOME PRODUCTSwww.electrolux.co.nz	FOR SPARE PARTSor to find the address of your nearest state spare parts centre in New ZealandFREE CALL 0800 10 66 20(New Zealand only)

GRH_Warr_Apr11

OPERATION GUIDE & INSTALLATION INSTRUCTIONS

NOTES

RETRACTABLE

RANGEHO

NOTES

OPERATION GUIDE & INSTALLATION INSTRUCTIONS

ATTENTION INSTALLER:

PLEASE LEAVE THIS BOOKLET WITH THE RANGEHOOD OWNER. THANK YOU.

Thinking of you Electrolux

Part Number: 0342 001 591, Issue C, June 2015
