LKLFAV1031NK - Kitchen faucet Elkay - Free user manual and instructions

Product Type	Kitchen Faucet
Brand	Elkay
Model Number	LKLFAV1031NK
Material	Stainless Steel
Finish	Satin Stainless
Installation Type	Deck Mount, Single Hole
Number of Handles	1
Handle Type	Single Lever
Spray Type	Pull-Down
Spray Functions	Dual Function: Stream and Spray
Flow Rate	1.5 GPM (5.7 L/min)
Spout Height	15.5 inches (394 mm)
Spout Reach	8.25 inches (210 mm)
Maximum Deck Thickness	2 inches (51 mm)
Hole Diameter Required	1.375 inches (35 mm)
Weight	5.2 lbs (2.36 kg)
Warranty	Limited Lifetime Warranty
Certifications	ADA Compliant, NSF 61
Mounting Hardware	Included

Frequently Asked Questions - LKLFAV1031NK Elkay

What is the finish of the Elkay LKLFAV1031NK faucet?

The Elkay LKLFAV1031NK features a Satin Stainless finish that resists fingerprints and water spots.

Is the LKLFAV1031NK compatible with a 3-hole sink?

This faucet is designed for single-hole installation. For 3-hole sinks, an optional deck plate (escutcheon) may be used, but the faucet itself requires only one hole.

What is the flow rate of this faucet?

The flow rate is 1.5 gallons per minute (GPM) at 60 psi, meeting WaterSense standards for efficiency.

How do I clean the LKLFAV1031NK faucet?

Clean with a soft cloth and mild soap. Avoid abrasive cleaners or pads. Rinse thoroughly and dry to prevent water spots. Do not use bleach or harsh chemicals.

Does the faucet come with a spray head?

Yes, it includes a pull-down spray head with dual-function (stream and spray) for versatile use.

What is the warranty on this Elkay faucet?

Elkay offers a Limited Lifetime Warranty covering defects in materials and workmanship. Some components may have shorter warranties.

Can I install this faucet on a granite countertop?

Yes, the faucet is mountable on granite, but you need to ensure the hole diameter is at least 1.375 inches and use the included mounting hardware. Professional installation is recommended.

How do I replace the cartridge if it leaks?

Turn off water supply, disconnect hoses, remove handle and escutcheon, then replace the ceramic disc cartridge. Refer to the manual for specific cartridge part number.

What is the spout height and reach?

The spout height is 15.5 inches and reach is 8.25 inches, providing ample clearance for large pots.

Are replacement parts available for this model?

Yes, Elkay offers replacement parts such as spray head, hose, cartridge, and handle. Contact Elkay customer service or check online retailers using model LKLFAV1031NK.

USER MANUAL LKLFAV1031NK Elkay

Avado - Pull-Down Kitchen Faucet

LKAV1031CR

LKAV1031NK

LKLFAV1031CR

LKLFAV1031NK

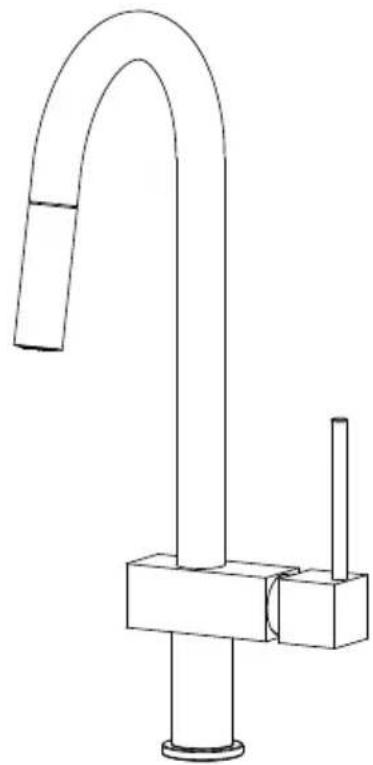

Line drawing of a curved pipe or tube mounted on a base with a vertical rod inserted (no text or symbols)

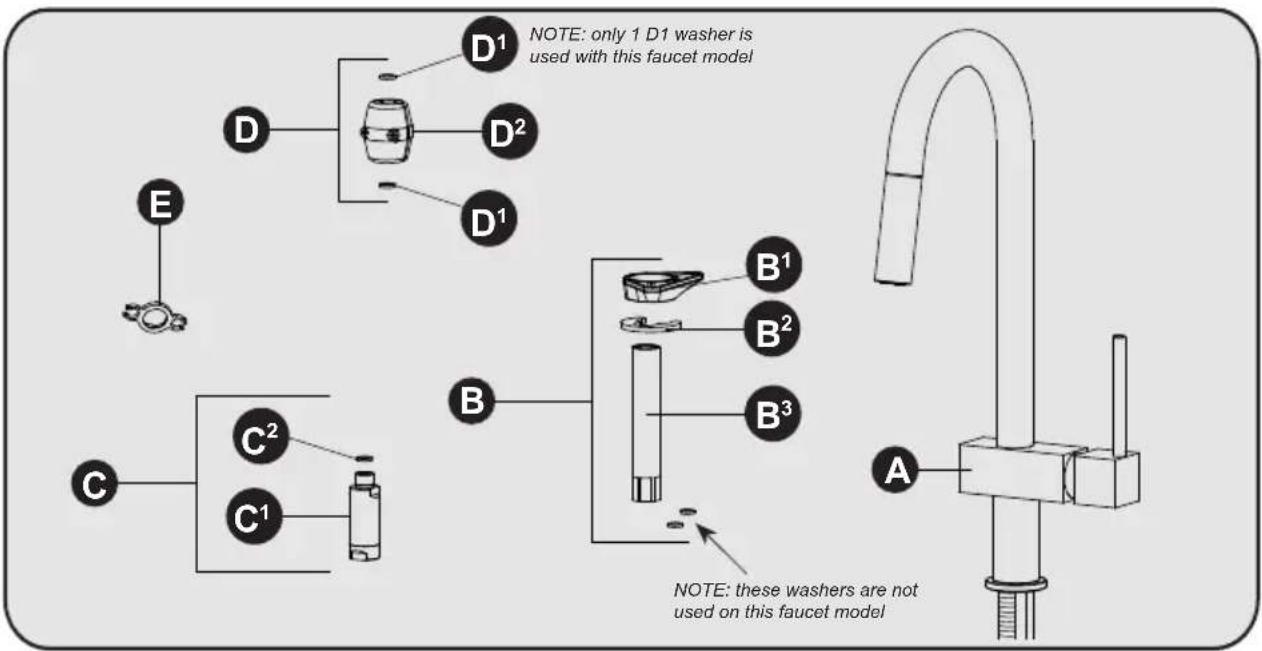

Includes:

NOTE: only 1 D1 washer is used with this faucet model D¹ D² D¹ E C C² C¹ B¹ B² B³ A NOTE: these washers are not used on this faucet model

Tools:

13/16" [20 mm] 13/16" [21 mm] 1/2" [13 mm] 5/8" [16 mm]

SAVE FOR CONSUMER

STEPS:

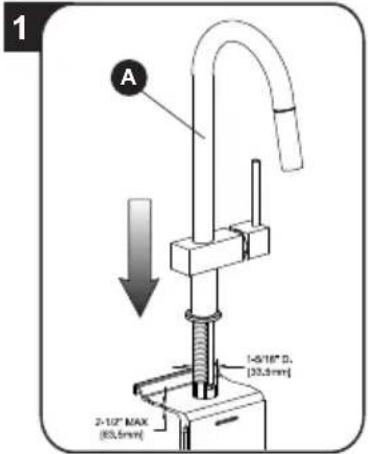

1 A 2-10" MAX (85.5mm) 1-6/18" D. (33.5mm)

Before inserting the single lever group in the hole of the sink, make sure that the base gasket is properly positioned in its seat and that the flexible hoses are well tightened to the body of the tap. Place the single lever group in the hole of the sink, orienting the spout toward the sink tank.

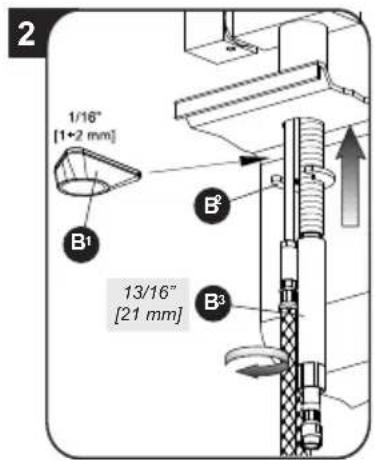

2 1/16" [1+2 mm] B1 B2 13/16" [21 mm] B3

For countertop thicknesses less than 1/16" thick use the flange (B1), for all other installations use the metal washer (B2). Secure mounting hardware in place by tightening mounting nut (B3).

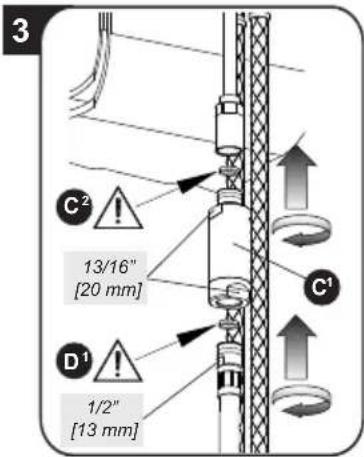

3 C²! 13/16" [20 mm] C¹ D¹ 1/2" [13 mm]

Install the check valve (C1) to the outlet hose with a rubber washer (C2). Secure with wrench. Attach the pull-down hose to the bottom of the check valve with a rubber washer (D1). Secure with wrench.

4 15-3/4" (400mm) D²

Attach the counterweight (D2) to the flexible hose approximately 15-3/4" [400mm] from the connection to the outlet pipe.

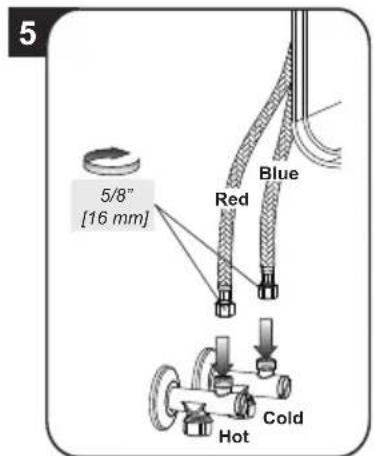

5 5/8" [16 mm] Red Blue Cold Hot

Connect the flexible hoses to the supply connections with rubber gaskets. Secure with wrench. Turn on the water and check for leaks.

CARTRIDGE REPLACEMENT

1 B C A 1/8" [2,5 mm]

2 1-1/8" [28 mm] F E D

3 X

Before dissassembling the faucet be sure that the water supply is turned off. Remove the finish cap (A), paying attention not to damage it. Remove the setscrew (B) with a 1/8" [2,5mm] hex wrench. Remove the handle (C). Lift the finishing ring nut (D) using the reference notch. Unscrew the cartridge nut (E) then pull out the cartridge (F). Put the new cartridge into the body of the faucet, checking that the two centering pins enter into the respective seats (X) and that the gaskets on the cartridge are well positioned. Reassemble the handle following the instructions in reverse order.

1

A 1/16" [2 mm] B

Before operating, ensure the water supply is turned off. Unscrew the fastening pin of the hand shower (A) and remove it from its connection (B).

2

11/16" [18 mm] C 3/4" [19 mm]

Disassemble the hose-carrier connection from the hand shower connection (C).

3

11/16" [18 mm] D 11/16" [18 mm] C

Unscrew the connection (C) from the hose (D).

4

E

Remove the connection of the hand shower from the hose (E).

5

F

Remove the hand shower, completely disconnected, to carry out the replacement (F). Finally reassemble the whole with the opposite procedure.

AERATOR CLEANING / REPLACING

1

Diagram showing a mechanical assembly with labeled component E and directional arrow indicating motion or force

Before removing the aerator make sure that the faucet is turned off. Unscrew the aerator using the aerator installation key (E) included with the faucet. If the aerator is clogged just rinse it with running water. Do not use detergents. Reassemble the aerator by following the instructions in reverse order.

2

Diagram showing a mechanical assembly with a curved pipe and bearing components, no text or symbols present

Congratulations on your purchase of an Elkay product. Although your product is extremely durable, attention should be given to the care, cleaning and maintenance of this product. Cleaning agents and abrasives may cause damage, which may result in oxidation and discoloration.

By following these simple guidelines for proper care and cleaning, it will give you years of enjoyment:

TO CLEAN: Simply wipe gently with a damp cloth and blot dry with a soft towel. A common rule of thumb is: when you dry off, dry off your product.

Avoid build-up of soap, toothpaste or mineral deposits, as these tend to have an adverse effect on the appearance of the product.

NEVER use cleaning products of any kind on this • product - especially those containing ammonia, bleach or alcohol - or those with any form of abrasive.

FOR CARE AND MAINTENANCE:

The water in certain areas of the world can be • very caustic - standing water around the product can cause damage. Be sure to remove standing water with a dry, soft cloth as soon as possible.

- For polished brass finishes, as often as once a week, you can apply a paste wax or special, non-abrasive, brass coating (DO NOT APPLY POLISH).

Before applying a protective coating, gently brush the entire fixture using a soft tooth brush. This will remove any dirt or deposit build-up.

These simple steps will add temporary protective • coating to your faucet and extend the life of the finish.

Failure to follow care and cleaning will void your warranty.

For additional information, please visit elkayusa.com.

WARRANTY

ELKAY LIMITED LIFETIME WARRANTY

Elkay warrants that all parts and finishes of the Elkay Residential brand faucets are free from defects in materials and workmanship for the life of the product, if purchased after 1996. This warranty extends to the original consumer purchaser of the product only.

If the product should leak or drip during normal use, Elkay will provide, free of charge, a replacement cartridge. For other defects in material or workmanship, Elkay will, at its option, supply replacement parts (or if no longer available a comparable product). Elkay reserves the right to examine product in question and its installation prior to replacement.

What is not covered:

1. Damage caused by accident, negligence, misuse, abuse, improper installation or operation or failure to follow care or installation instructions enclosed with your product.
2. Damage occurring during shipment of the product (claims must be presented to the carrier).
3. Normal wear and tear.
4. Labor charges, costs of removal and reinstallation, and any damages to other property.
5. All industrial, commercial and business use whose purchasers are hereby extended a limited lifetime on mechanical parts and 5 years on finish.

THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED IMPLIED, ARISING BY LAW OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. THIS LIMITED WARRANTY MAY NOT BE ALTERED, VARIED, OR EXTENDED, EXCEPT BY A WRITTEN INSTRUMENT EXECUTED BY ELKAY. THE REMEDY OF REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS EXCLUSIVE. IN NO EVENT SHALL THE MANUFACTURER BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES TO ANY PERSON, WHETHER OR NOT OCCASIONED BY NEGLIGENCE OF ELKAY, INCLUDING WITHOUT LIMITATION DAMAGES FOR LOSS OF USE, COSTS PROPERTY DAMAGE OR OTHER MONETARY LOSS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply. This warranty from state to state.

This warranty covers product installed in the United States and Canada.

What you must do to obtain warranty service:

Either write to Elkay, attention Customer Care, 2222 Camden Court, Oak Brook, IL 60523 or call 1-800-223-5529. Please provide date of purchase and installation, description of nature of the defect, and model number or description of model and/or component part.

LKAV1031CR

LKAV1031NK

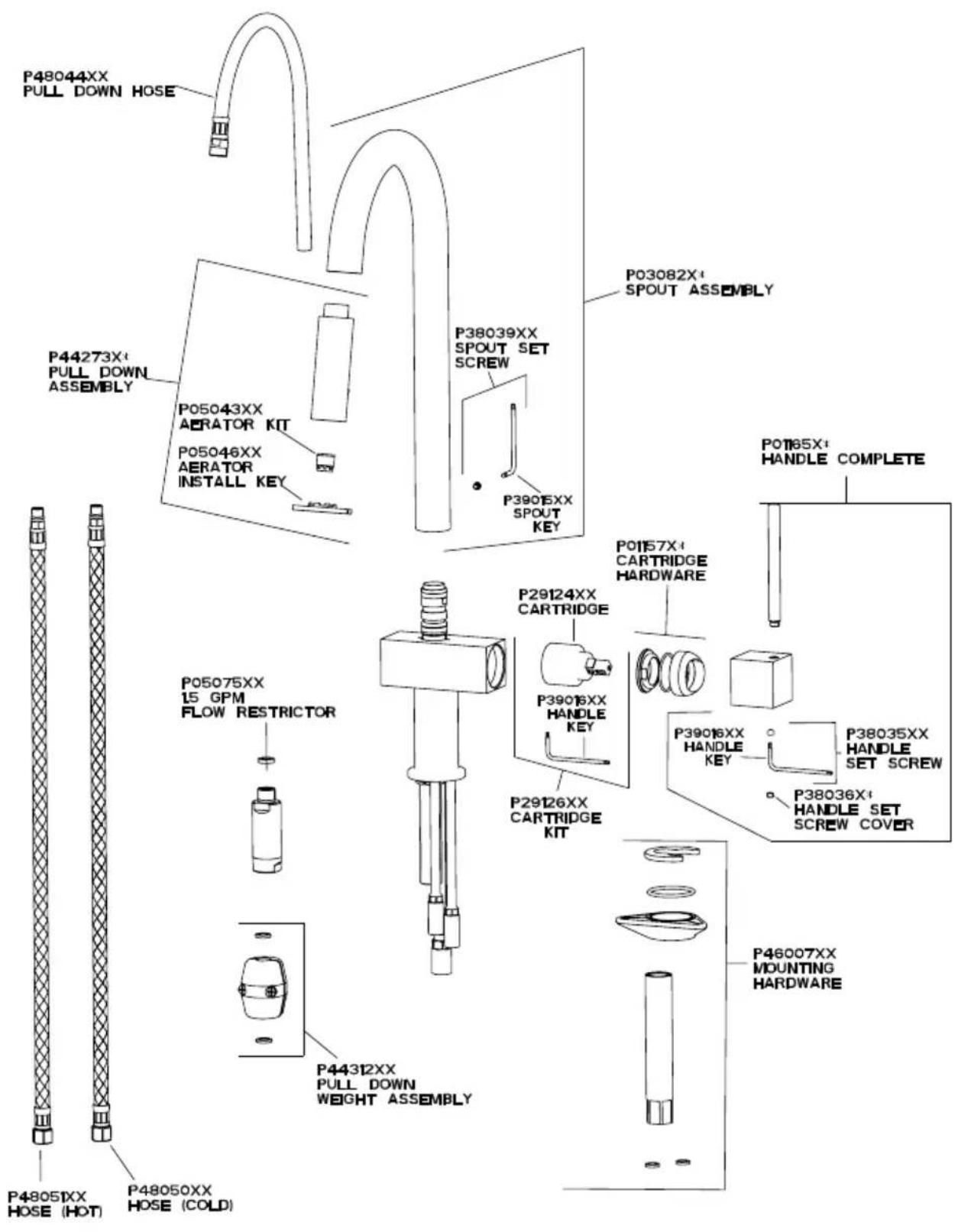

P48044XX PULL DOWN HOSE P44273X1 PULL DOWN ASSEMBLY P05043XX AERATOR KIT P05046XX AERATOR INSTALL KEY P38039XX SPOUT SET SCREW P39015XX SPOUT KEY P03082X1 SPOUT ASSEMBLY P0185X1 HANDLE COMPLETE P0157X1 CARTRIDGE HARDWARE P05072XX 2.2 GPM FLOW RESTRICTOR P29124XX CARTRIDGE P39016XX HANDLE KEY P29126XX CARTRIDGE KIT P39016XX HANDLE KEY P38035XX HANDLE SET SCREW P38036X1 HANDLE SET SCREW COVER P44312XX PULL DOWN WEIGHT ASSEMBLY P48051XX HOSE (HOT) P48050XX HOSE (COLD)

NOTE: *REQUIRES FINISH DESIGNATION

LKLFAV1031CR

LKLFAV1031NK

P48044XX PULL DOWN HOSE P44273X1 PULL DOWN ASSEMBLY P05043XX AERATOR KIT P05046XX AERATOR INSTALL KEY P38039XX SPOUT SET SCREW P39015XX SPOUT KEY P03082X1 SPOUT ASSEMBLY P0185X1 HANDLE COMPLETE P0157X1 CARTRIDGE HARDWARE P05075XX 15 GPM FLOW RESTRICTOR P29124XX CARTRIDGE P39016XX HANDLE KEY P29126XX CARTRIDGE KIT P39016XX HANDLE KEY P38035XX HANDLE SET SCREW P38036X1 HANDLE SET SCREW COVER P46007XX MOUNTING HARDWARE P44312XX PULL DOWN WEIGHT ASSEMBLY P48051XX HOSE (HOT) P48050XX HOSE (COLD)

NOTE: *REQUIRES FINISH DESIGNATION
