BHE-119 - Unspecified Impact - Free user manual and instructions

USER MANUAL BHE-119 Impact

Two articulated arms with black connectors and metal fittings, labeled BH E-107 (no additional text or symbols on the arms themselves)

Two black mechanical arms with connectors and fittings, displayed against a yellow background (no text or symbols on the main objects)

Two-Section Double Articulated Arm

Two black mechanical arms with adjustment knobs and connectors, mounted on a yellow background (no text or symbols visible)

BHE-118
Three-Section Articulated Arm

Mechanical linkage assembly with four black components and connectors, set against a yellow background (no text or symbols visible)

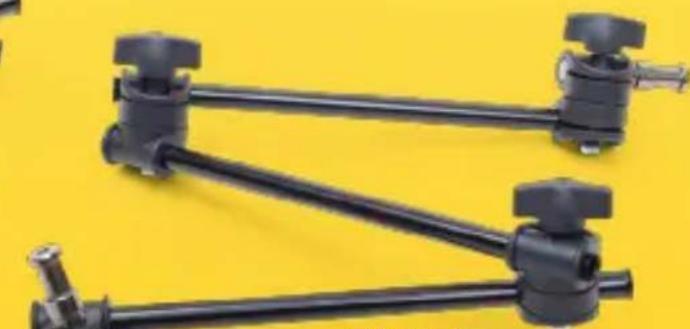

BHE-119
Three-Section Double Articulated Arm

BHE Series

Articulated Arms

INSTRUCTIONS

Introduction

Thank you for choosing the Impact BHE Series Articulated Arm. Often used in conjunction with a super clamp, articulated arms can mount a camera, small light fixture, or light modifier onto anything a super clamp can fit around. The arms will also fit into any baby receiver. Applicable whether you're on location or in the studio, an articulated arm is versatile, extendable, and secure, with locking and sliding arm components.

With a camera bracket (Impact BHE-104, sold separately) on the arm, you can mount your compact, mirrorless, or DSLR camera on anything from a riser to a bicycle to capture unique angles or points of view. Often used for time lapse photos, articulated arms are also great for action and sports photography.

Made from durable and lightweight aluminum, all Impact BHE Series Articulated Arms feature 5/8" spigots. Each single articulated arm has either a 1/4"-20 or a 3/8" threaded socket. Each double articulated arm has a 3/8" threaded socket on one end and a hexagonal double anchor stud on the other end. This gives the arm added strength in a super clamp. You can adjust the angle and extension of each section of the arms and tighten both at once with a single locking knob.

Note: Always check weight limits and load capacity before attaching to location site.

Specifications

	Model	Arm type	Maximum load capacity	Maximum length	Weight
Two-section arms	BHE-107	Single	3.3 lb. (1.50 kg)	23.50" (59.69 cm)	0.95 lb. (0.43 kg)
	BHE-117	Double	11 lb. (4.99 kg)	23.63" (60.02 cm)	1.50 lb. (0.68 kg)
Three-section arms	BHE-118	Single	2.2 lb. (1.00 kg)	32.75" (83.19 cm)	1.15 lb. (0.52 kg)
	BHE-119	Double	10 lb. (4.54 kg)	33.75" (85.73 cm)	1.80 lb. (0.82 kg)

Recommended Accessories

• Impact CC-125 Gaffer Grip Clamp with two 5/8" mounting pins
• Impact CC-106T Super Clamp with T-Handle
• Impact CC-106R Super Clamp with Ratchet Handle
• Impact BHE-104 Camera Bracket Platform for Holding Arms

Visit our website at www.ImpactStudioLighting.com for more Impact accessories.

Warnings △

• Please read and follow these instructions, and keep this manual in a safe place.
• Handle the unit with care.
• Clean the unit with a soft, dry cloth.
• Keep this unit away from children.
  • Make sure everything is secure before proceeding.
• Make sure the item is intact and that there are no missing parts.
• Do not exceed the maximum load capacity.
• All photos are for illustrative purposes only.

One-Year Limited Warranty

This IMPACT product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARR ANT Y PROVIDER MAKES NEIT HER ANY E XPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY Y OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Impact Customer Service Department to obtain a return merchandise authorization ("RMA") number, and return the defective product to Impact along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser's own risk and expense.

For more information or to arrange service, visit www.impactstudiolighting.com or call Customer Service at 212-594-2353.

IMPACT™

A Gradus Group Brand

Product warranty provided by the Gradus Group.

www.gradusgroup.com

IMPACT is a registered trademark of the Gradus Group.

© 2014 Gradus Group LLC. All Rights Reserved.
