Congratulations for your choice!

Congratulations for your choice! The Karma product you have purchased is the result of careful planning by specialized engineers. High quality materials have been used for its construction, to ensure its functioning over time. The product is manufactured in compliance with strict regulations imposed by the European Union, a guarantee of reliability and safety. Please read this manual carefully before starting to use the fixture in order to exploit its full potential.

Karma has several product accessories that can complete your device. We invite you to see the whole range of our products by visiting our website: www.karmaitaliana.it, where you will find, in addition to all our items, detailed descriptions and further documents related to the product. We hope that you will be satisfied with your purchase and we thank you again for your trust in our brand.

Safety notes

• Keep this User Manual for future reference. If you sell the product to another user, be sure to give this manual to the next owner.
• Make sure the voltage of the power source used for the product is correct.
  • This product is not suitable for outdoor use.
• To avoid the risk of fire or short-circuits never expose the fixture to rain or moisture.
• Do not operate the product in an ambient temperature higher than 35^ .
• In the event of a serious operating problem, stop using the product immediately. Never try to repair the product, but contact the authorized technical assistance center.
• Repairs carried out by untrained people can lead to damages both to the fixture and to persons.
• Make sure the adaptor's power cord is not damaged.
• Never disconnect the adaptor from the power source by pulling on the cord.

Shipment and complaints:

After buying or receiving the product, open the box and carefully check the content, to make sure that all parts are included and in good condition. Immediately notify the seller of any transport damage suffered by the device.

In case of return for servicing it is important to ship the product complete with the original packaging: we therefore suggest you to keep it.

Models composition:

• SET 6250 1 receiving base WR 6250 + 1 handheld microphone MW 6250
• SET 6250LAV 1 receiving base WR 6250 + 1 headset microphone MW 6250LAV
• SET 6252 1 receiving base WR 6252 + 2 handheld microphones MW 6250
• SET 6252LAV 1 receiving base WR 6252 + 2 headset microphones MW 6250LAV
• SET 6252PL 1 receiving base WR 6252 + 1 handheld microphone MW 6250 + 1 headset microphone MW 6250LAV

Professional wireless microphone system 210.350 D1 881 SET SIMPL 216.450 D1 882 KARMA VOLUME CH1 VOLUME CH2 1 2 3 4 5 6 7 WR 6252

8 9 10 11 13 ANT B POWER SUPPLY DC 12V/DC/DC DC MEX OUT CE XLR BALANCED ANT A

WR 6252

MW 6250LAV 14 15 16 17 KARMA® 18 19 20 MW 6250

Before arranging any connection make sure that the product is unplugged from the mains. All connections must be made with the device off.

1. Please be sure that the batteries in the microphones are charged and if necessary replace them. To open the battery case, take the handmic and rotate the lower part (20) clockwise by unscrewing it. If you use bodypack transmitters just open the small cover(14). Remember to plug the jack into the jack 3,5mm microphone's socket (17). Important: use only compatible batteries (2 x AA 1.5V) and do not dispose of the replaced batteries with normal household waste, but rather hand them over to a special collection point.

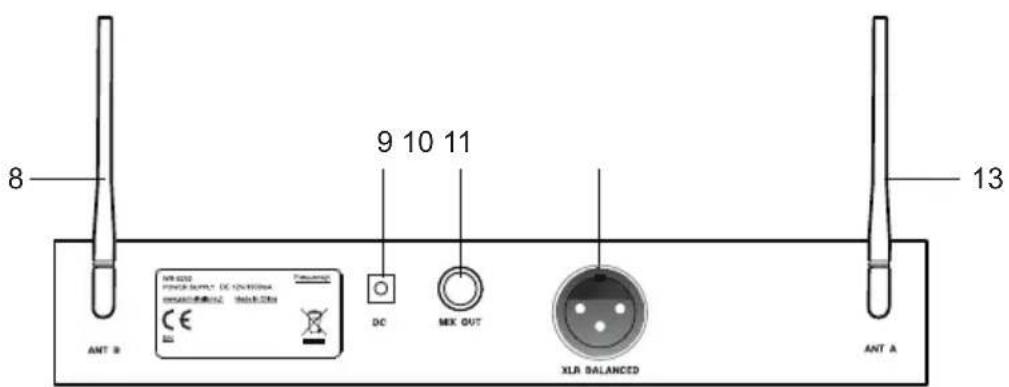

2. Position correctly the receiving base, by keeping a distance of at least 1 mt from the floor or walls. Connect it to mixers or amplifiers through the balanced XRL socket (11) or through the mixed socket with unbalanced Jack 6,3 mm (10) signal. The models with single transmitter have only one XLR output. The output signal is of microphone type. Make sure that the antennas (8-13) are raised in vertical position.
3. Connect the adaptor to the back socket (9) and then to the 230V domestic power source. Warning: don't connect the adaptor to the power socket before connecting the jack: this could cause a spark and damage the unit.
4. After turning on the other components of your audio system, press the ON/OFF key (7) on the base. The led (6) will light on. Press then the ON/OFF key (16-19) on the transmitter. The led (15-18) will indicate the batteries' charge stauts. If it is red it will necessary to replace the batteries.
5. If you are using a bodypack transmitter the clip on the back will allow you to hook it to your belt to carry it easily.

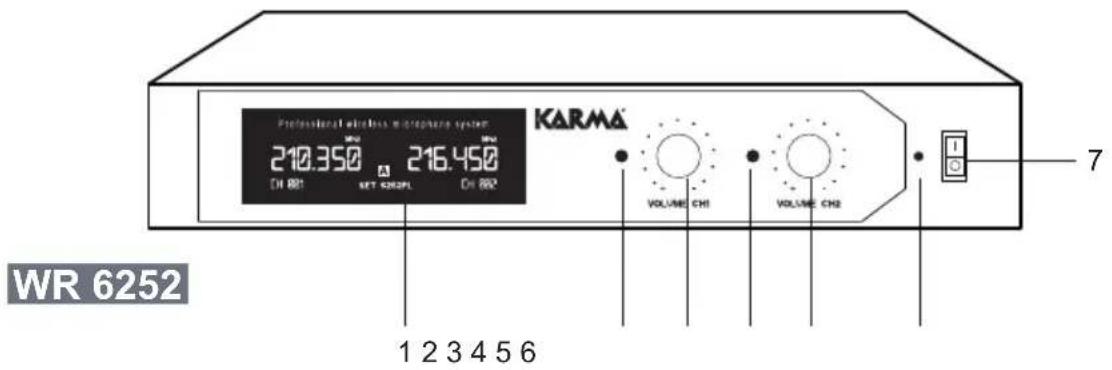

6. Adjust as you wish the receiver's volume through the controls (3-5) on the base. There are double controls to manage separately the two wireless microphones. The displays show information on the signals received by the microphones. The single microphone models have just one volume control.
7. In order to work correctly, transmitter and receiver must operate on the same frequency. In case of malfunctioning check that base and microphone have the same frequency (you can find the frequency in the battery case).

WARNING

• Do not use more than 3 devices of the same model as interference may occur. In the event of interference, try to separate the receiving bases.
• It is not possible to use contemporarily 2 or more transmitters on the same frequency as they wouldn't work together
• If you don't hear your voice when speaking into the microphone and if the led "RF" (2-4) is on, check that the volume on the receiver is high enough. If everything is correct, check that the cable and the mixer or amplifier connected to the receiving base are ok.

This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product

The CE mark indicates that this product complies with the essential applicable European directives and their related standards. Compliance documentation in complete form can be asked to the company Karma Italiana Srl.

Directive 2012/19/UE regarding electric and electronic equipment waste (WEEE).

The symbol of the crossed-out dustbin indicates that the product at the end of its life must be collected separately from other waste. The user must, therefore, confer the fixture complete with all the essential components to an authorized disposal center for collection of electronic and electrical waste, or return it to the dealer when buying new equipment of equivalent type, at a rate of one to one, or one to zero if external dimension is less than 25cm. Appropriate separate collection to send the decommissioned equipment to recycling, treatment and environmentally compatible disposal helps to prevent negative impact on the environment and human health and promotes recycling of the materials making up the product. In Italy illegal dumping of the product by the user entails the application of administrative sanctions pursuant to Legislative Decree n. 49 (14/03/2014).

BASE RICEVENTE

Power Supply 2 batteries 1,5V (AA) not included
Autonomy	around 8h
Max Deviation	+/- 25KHz
Trasmission Power	<10 mW
Dimensions 260 x 50 x 50 mm (handmic)
	62 x 112 x 21 mm (bodypack)
Weight	0,272 Kg (handmic)
	68 gr. (bodypack)

The product is covered by warranty according to current national and European regulations.

For detailed warranty conditions and RMA requests please refer to our website: www.karmaitaliana.it

• The warranty covers manufacturing defects and faults occurred in the first 2 years from the date of purchase. In case of purchase with invoice, the warranty is limited to 1 year
• Damages caused by negligence or wrong use of the device are not covered by warranty.
• The warranty is no longer effective if the item is modified or disassembled by not authorized people.
• This warranty doesn't necessarily envisage the product's replacement.
• External components, batteries, knobs, switches and any removable or subject to wear and tear parts are excluded from warranty.
• Shipment for the return of faulty items is at expense and risk of the owner.
• For all intents and porpuses the warranty is effective only upon exhibition of the invoice or of the purchase receipt.

We also suggest to register your product on our website www.karmaitaliana.it, after signing in to access the private area. In this way you will have the possibility to keep track of the warranty validity and to receive updates on our items.

CE

DICHIARAZIONE DI CONFORMITA' UE EU COMPLIANCE DECLARATION

"Hereby, KARMA ITALIANA SRL declares that the radio equipment type wireless microphone SET 6250/6252 series is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.karmaitaliana.it."

Karma Italiana Srl

NOTE The operating frequencies of this product might be not authorized or require a ministerial license in some countries. Karma Italiana srl suggests the user to contact his national telecommunications authority for information about authorized frequencies and RF power levels in his country.

Karma Italiana srl, in order to improve its products, reserves the right to modify the characteristics whether technical or aesthetic, at any time and without notice.
