1 /NOTICES TO THE USER

• Safety recommendations 19
• Environmental protection 20
  Description of your appliance 21

2/INSTALLING YOUR APPLIANCE

• Using the evacuation mode 22
  Using the recycling mode 22
• Electrical connections 23
  Assembling the hood 24
  Fixing the telescopic flues

Ducting mode 25
- Filtering mode 26

3 / USING YOUR APPLIANCE

Description of the control panel 27

4 / CARING FOR AND CLEANING YOUR APPLIANCE

• Cleaning the grease filters 28
• Changing the charcoal filter 28
• Cleaning and caring of the casing 29
• Changing the light bulb 29
• Maintaining your appliance 30

5/TROUBLESHOOTING 31

6/ AFTER SALES SERVICE 31

Attention

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your oven. They were written for your safety and the safety of others.

SAFETY RECOMMENDATIONS

• This oven was designed for use by private persons in their homes.
• This appliance is to be used by adults.

Make sure that children do not touch and that they do not treat it as a toy. Make sure that they do not touch the appliance's control panel.

• When you receive the appliance, unpack or have it unpacked immediately. Give it an over-all general inspection. Make note of any concerns or reservations on the delivery slip and make sure to keep a copy of this form.
• Your appliance is intended for standard household use. Do not use it for commercial or industrial purposes or for any other purpose than that for which it was designed.
• Do not modify or attempt to modify any of the characteristics of this appliance. This would be dangerous to your safety.
• Repairs must only be carried out by an approved specialist.
• Always unplug the hood before cleaning it or performing other maintenance acts.
• Provide adequate ventilation for the room in the case of simultaneous use of the hood and other appliances powered by an energy source other than electricity. This will prevent the hood from aspirating the combustion gases.
• You should never "flambé" dishes under the hood or operate gas rings under the hood without placing cookware on them (the flames sucked up into the hood can damage the appliance).
• When frying food under the appliance, you must carefully monitor the preparation at all times.
  Oils and grease brought to very high temperatures can catch fire.
• Respect the recommended frequency of cleanings and filter replacements. The accumulation of grease deposits may cause a fire.
• The hood should never be used over a

combustible fuel burning stove (wood, coal, etc.).

• Never use steam or high-pressure devices to clean your appliance (requirement imposed by electrical safety).

• With a view to constantly improving our products, we reserve the right to modify their technical, functional or aesthetic characteristics, making any changes to their features considered necessary or desirable in view of technical progress.

• In order to easily locate the reference information for your appliance, we recommend that you note these data on the "After-Sales Service Department and Customer Relations" page.

(This page also explains to you where to find this information on your appliance.)

-Carefully follow the instructions contained in this user guide. The manufacturer declines all responsibility for any problems, damage or fire caused by the appliance if failing to observe the instructions contained in this user guide.

Warning

In the case of a kitchen heated by a device connected to a chimney (a stove, for example) the "filtering" version of the hood should be installed. Do not use the hood without grease filters.

Suitable ventilation should be provided in the room when the hood is used at the same time as appliances operated by gas or another combustible fuel.

Warning:

APPLIANCE WITH SPECIAL CABLE

Important: this appliance features a specially prepared power cable; in the event of damage to the cable, it must be replaced by another special cable or assembly, available from the after-sales service dealers.

ENVIRONMENTAL PROTECTION

• This appliance's packaging material is recyclable. Help recycle it and protect the environment by dropping it off in the municipal receptacles provided for this purpose.
• Your appliance also contains a great amount of recyclable material. It is marked with this label to

indicate the used appliances that should not be mixed with other waste. This way, the appliance recycling organised by your manufacturer will be done under the best possible conditions, in compliance with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact your town hall or your retailer for the used appliance collection points closest to your home.
- We thank you doing your part to protect the environment.

Warning

Installation should only be performed by installers and qualified technicians

Warning

Remove the protective film from the grease filter before use.

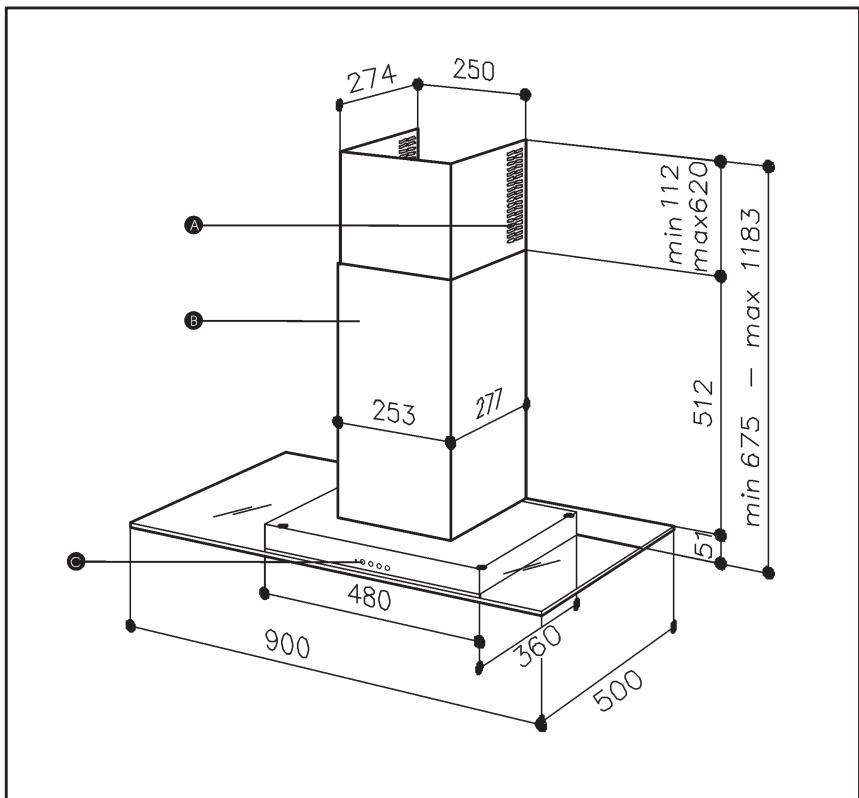

DESCRIPTION OF YOUR APPLIANCE

Air exhaust grids

Telescopic flues

Controls

• The appliance must be unplugged during installation or when any repairs or maintenance work is being performed.
• Ensure that the network voltage corresponds to the voltage noted on the identification plate located inside the hood.
• If the electrical installation at your residence requires any changes in order to hook up your Appliance, call upon a professional electrician.
• If the hood is being used in evacuation mode, do not connect the appliance to a combustion gas exhaust duct (boiler, chimney, etc.) or to a CMV (controlled mechanical ventilation) system.
• Under no circumstances should the exhaust duct empty into the attic.
• Install the hood at safe distance of at least 65~cm from an cooking hob.

This appliance can be installed in either suction version or filtering version.

The appliance is supplied in the filtering version, the charcoal filter is installed (Ref.SHK30AF1).

USING THE DUCTING MODE

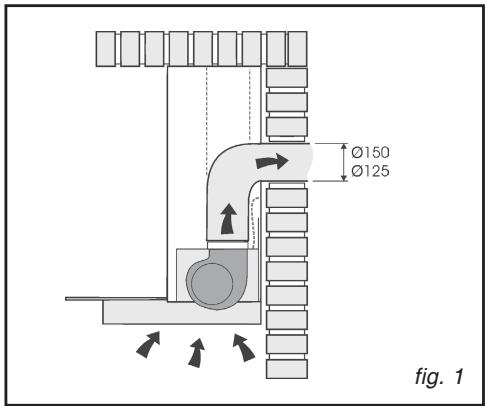

If you posses an outlet to the exterior (fig. 1)

Your hood can be connected to this outlet using a flue (minimum 125mm that is enamelled, in aluminium, flexible or made of inflammable material).

Your cooker hood is a filtering version. All you need to do is to remove the charcoal filter first.

- USING THE FILTERING MODE

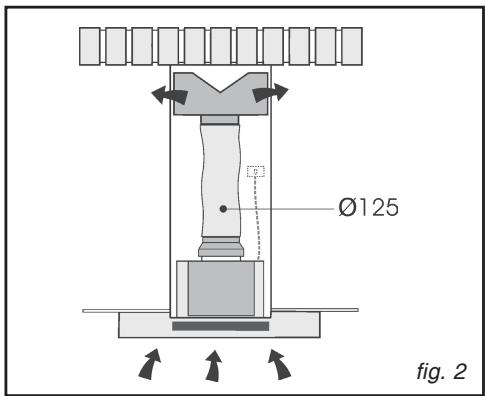

If you do not posses an oulet to the exterior (fig. 2)

All of our appliances can be used in recycling mode.

The air and steam taken up by the unit are purified with charcoal filter and returned to the environment through the aeration grids on the side of the telescopic flue.

ELECTRICAL CONNECTIONS

During installation and maintenance operations, the appliance must be unplugged from the electrical grid; fuses must be cut off or removed. The electrical connections are made before the appliance is installed in its housing.

Ensure that

• the electrical installation has sufficient voltage,
• the electrical wires are in good condition,
• the diameter of the wires complies with the installation requirements.

Warning

This appliance must be grounded.

We cannot be held responsible for any accident resulting from an inexistent, defective or incorrect ground lead.

In case your appliance is not furnished with a non separating flexible cable and has no plug, or has not got any other device ensuring omnipolar disconnection from the electricity main, with a contact opening distance of at least 3mm such separating device ensuring disconnection from the main must be included in the fixed installation. This appliance is delivered with a H05VVF power cord that has three- 0.75mm^2 conductors (neutral, phase and ground). It must be connected to the main power supply (which should be a 230-240V single phase current) via a CE160083 standardised socket that should remain accessible after installation, in keeping with installation guidelines.

If the power cable is damaged, call the after-sales service department in order to avoid danger.

Warning

If the electrical installation at your residence requires any changes in order to hook up your appliance, call upon a professional electrician.

Warning

If the hood displays any malfunctions, unplug the appliance or remove the fuse corresponding to the electrical socket where your appliance is plugged in.

ASSEMBLING THE HOOD

Warning

The hood must be installed in compliance with all applicable regulations concerning the ventilation of premises. In France these regulations are described in DTU 61.1 from the CSTB. In particular, the evacuated air should never be conveyed to a duct used to evacuate smoke from appliances that use gas or other combustible fuels. Unused ducts may only be used after approval from a competent specialist.

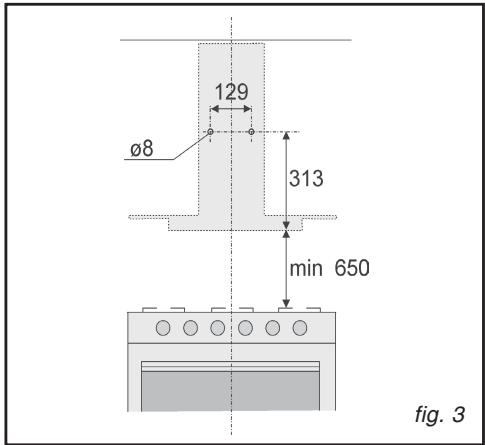

The distance between the supporting surface for the cooking vessels on the hob and the lower part of the hood must be at least 650~mm . If the instructions for installation for the hob specify a greater distance, this has to be taken into account.

• Fixing to the wall:

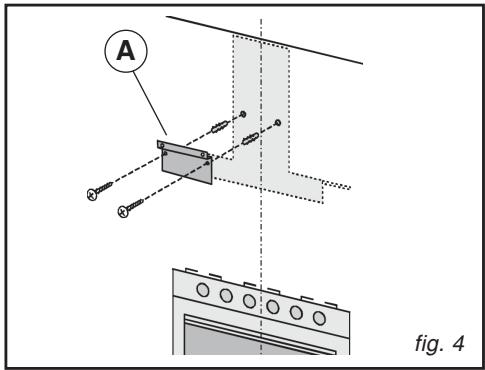

Draw a line on the wall in vertical line with your hob. Mark the first 2 holes to be drilled in the wall, respecting the distances indicated in Fig. 3. Drill the 2 holes and fit the screw anchors provided.
- Fix the metal bracket (A) to the wall using the 2 holes just drilled (Fig. 4); the screws for fixing the bracket are provided. Use the 2 cut-out triangles on the bracket to position it exactly along the vertical axis of the hood.

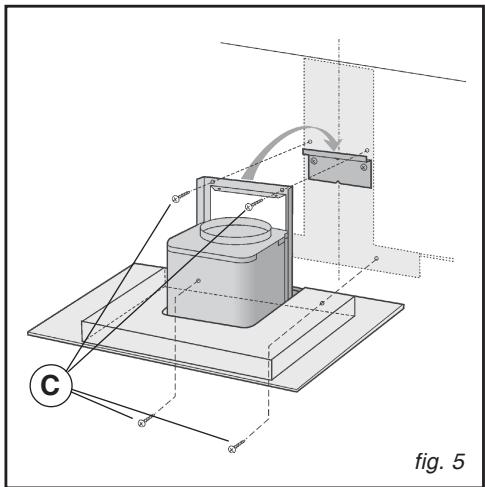

- Hang the hood on the bracket (Fig. 5). Adjust the horizontal position moving the hood to the right or left so that it is aligned with the wall units.
- When adjustment has been completed, without removing the hood, mark the other 4 holes to be drilled (C) in the wall. Remove the hood and drill the holes marked (8 mm diameter). Then use the 4 screw anchors and the 4 screws provided for final fixing.

- FIXING THE TELESCOPIC FLUES

- Ducting mode

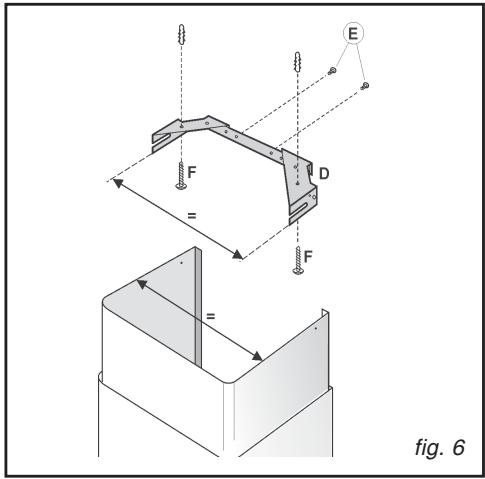

• Adjust the width of the support bracket (D) of the telescopic flue by means of the screws (E) as shown in Fig.6.
• Then, by means of the screw anchors and screws (F) provided, fix the bracket to the ceiling in such a way that it is positioned along the axis with your hood.
• Connect the air outlet pipe to the air vent of the hood; use a flexible pipe and lock it to the air vent of the hood with a metal hose clamp - Fig. 7 (pipe and clamp are not provided).
• For ducting hoods, turn the upper flue over so that the air exhaust grid is in the lower section (Fig. 8).
• Plug in the hood.
  -Fit the telescopic flues placing them on the hood; raise the upper flue as far as the ceiling and secure it with the 2 screws (H)-Fig.9.

Warning

This is the filtering version of your

cooker hood; you must first remove the charcoal filter.

Tip

For optimal use of your appliance, we

recommend that you connect the hood to a 150 mm-diameter flue (not delivered with the appliance). Minimise the number of angles and bends and the lengths of the flue. In the event that the hood will be operated using out-door evacuation, you should ensure a sufficient inflow of fresh air to avoid a pressure deficiency in the room.

Non-return valve

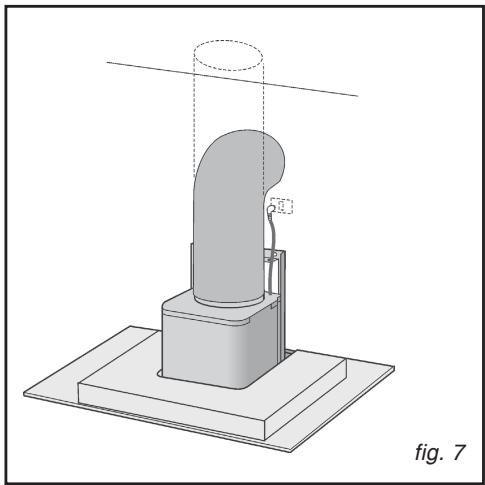

In the case of installation with air evacuation to the outside, fitting the non-return valve prevents the wind from entering and the air from returning.

Caution: Before fastening the air exhaust pipe to the motor, check that the non-return valve on the air vent can move freely.

- Filtering mode

• Adjust the width of the support bracket (D) of the telescopic flue by means of the screws (E) as shown in Fig. 6.
• Then, by means of the screw anchors and screws (F) provided, fix the bracket to the ceiling in such a way that it is positioned along the axis with your hood.

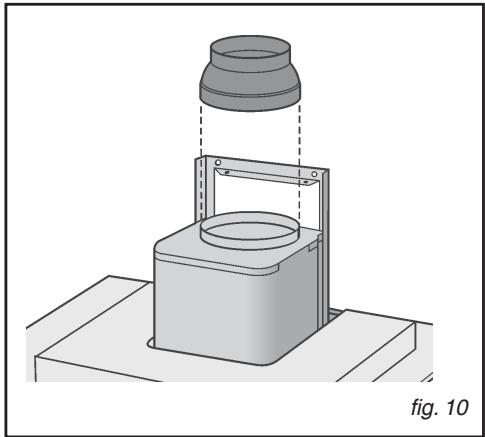

• Mount the flange on the hood in correspondence to the air outlet point (Fig. 10).

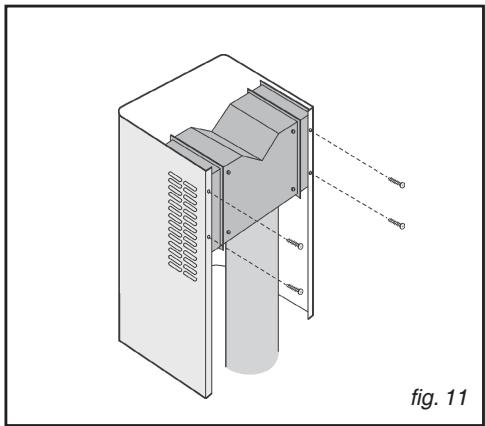

• Take the air baffle and fit a flexible pipe to it (125 mm diameter) locking it with a metal hose clamp (pipe and clamps are not provided); fit the air baffle to the upper flue (Fig. 11) with 4 screws.

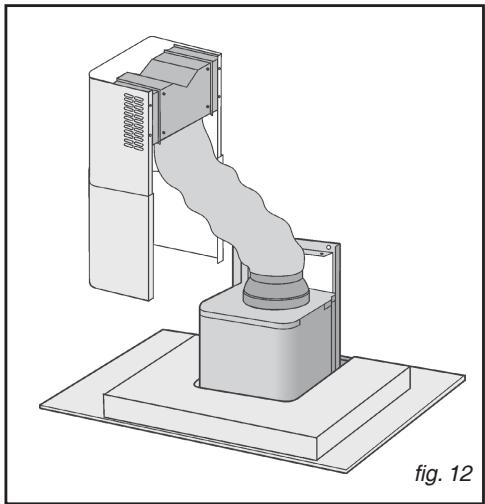

• Connect the flexible pipe to the flange on the air vent (Fig. 12).
• Plug in the hood.
• Fit the telescopic flues placing them on the hood; raise the upper flue as far as the ceiling and secure it with the 2 screws (H) - Fig. 9.

- DESCRIPTION OF CONTROL PANEL

Button A: light button.

Button B: first speed motor ON/OFF button.

Button C: second speed motor ON/OFF button.

Button D: third speed motor ON/OFF button.

E: motor on light.

fig. 13

Warning

Always unplug the hood before cleaning it or performing other maintenance acts. Regular maintenance of your appliance is a guarantee of proper functioning, good performance and durability.

Warning

Failure to respect the guidelines for cleaning the appliance and filters may cause fires. Please carefully adhere to the maintenance recommendations.

- CLEANING THE GREASE FILTERS

Pay special attention to the grease filters, that must be cleaned at regular intervals.

Filter cleaning frequency:

exactly how often depends on use (at least once every other month).

Wash the filters with a commercial household cleanser, then rinse fully and dry. They may be cleaned in a dishwasher making sure that the filter does not come into contact with dirty dishes or silver tableware.

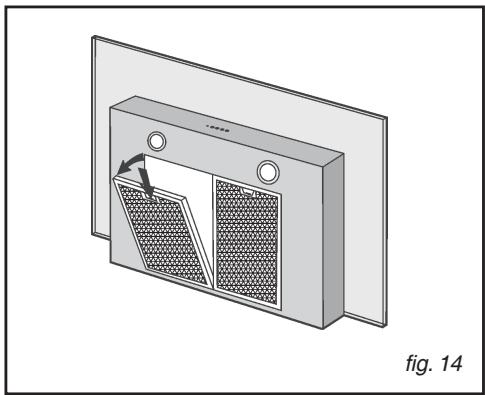

• Removing the grease filter (fig.14)

Remove the grease filter by pushing the catch and turning it outwards (Fig.14).

CHANGING THE CHARCOAL FILTER

If using the hood in the filtering version, the charcoal filter will periodically have to be replaced.

Frequency of filter replacement:

The charcoal filters must be replaced according to use: on the average once every 6 months.

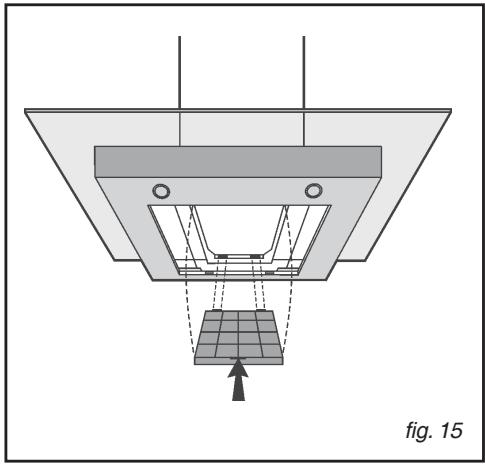

• Replacing the charcoal filter (Fig. 15).

Remove the grease filter by pushing the catch and turning it outwards (Fig.14). Remove the grease filter by pushing the catch downwards and turning the filter outwards (Fig.15).

Charcoal filter ref. no.

SHK30AF1

- CLEANING AND CARING OF THE CASING

Avoid products containing abrasives when cleaning the casing.

CHANGING THE LIGHT BULB

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

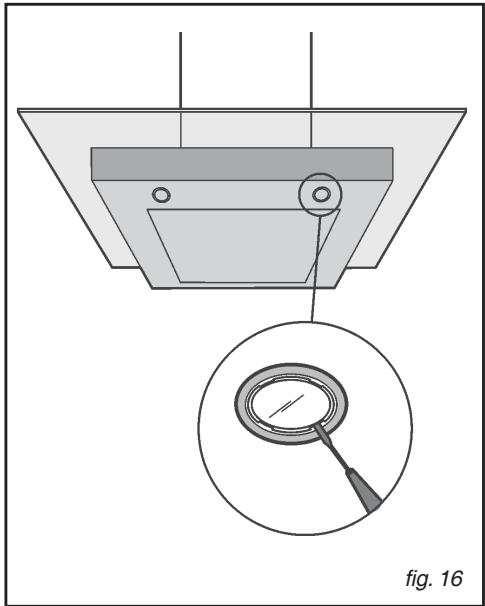

To change the halogen bulbs open the cover levering from the proper slots (Fig. 16). Replace with bulbs of the same type.

CAUTION: Do not handle glass bulb with bare hands.

Warning

Before carrying out any work, the power supply to the hood must be turned off, either by unplugging it or by using the circuit breaker switch.

MAINTAINING YOUR APPLIANCE

MAINTENANCE...	WHAT TO DO ?	PRODUCTS/ACCESSORIES TO USE
Top surface and accessories	Never use metal scouring pads, abrasive products or excessively stiff brushes.	To clean the body and the lighting port, you should use only commercial household cleaning products diluted in water and then rinse using clean water, drying with a soft cloth.
Grease filter	This filter traps fatty vapours and dust. This component plays an important role in ensuring the effectiveness of your hood. In the event of tough stains, use a non-abrasive cream, then rinse with clean water.	Use a commercial household cleaning product then rinse abundantly and dry. These filters can be cleaned in a vertical position in your dishwasher. (Do not allow them touch dirty dishes or silverware).
Charcoal filter	This filter traps odours and must be changed at least once every 6 months depending on your level of use. You should order these filters from your dealer (quoting the reference shown on the identification plate located inside the hood) and note the date the filter was changed.

SYMPTOMS	SOLUTIONS
The hood is not working...	Ensure that: · The power is not cut off. · A speed has been selected.
The hood is not operating effectively...	Ensure that: · The selected motor speed is sufficient for the quantity of smoke or vapours to be cleared. · The kitchen is sufficiently ventilated to allow une for fresh air intake. · The charcoal filter is not worn (hood operating in filtering mode).
The hood stopped working	Ensure that: · The power is not cut off. · The single-pole cut-off device was not activated.

EN

6 / AFTER SALES SERVICE

Any maintenance on your equipment should be undertaken by:

• either your dealer,
• or another qualified mechanic who is an authorized agent for the brand appliances.

When making an appointment, state the full reference of your equipment (model, type and serial number). This information appears on the manufacturer's nameplate attached to your equipment.

THOMSON

FR 01
