CONGRATULATIONS!

Thank You for purchasing the Wet Sounds REV010 CX series Speaker System.

Wet Sounds professional marine audio products represent the ultimate in high performance marine audio. Wet Sounds products are specifically engineered to withstand the rigorous marine environment.

The REVO series are state of the art Marine Speaker Systems designed to provide great reproduction for your marine or off-road audio system.

The REVO 10 CX series is equipped with a 1.25" titanium dome tweeter. RGB LED lighting is included on the underside of the tweeter for a wide variety of colors to be viewed on the cone. REVO 10 CX series speakers are built with Aluminum baskets, providing improved marine stability and strength over conventional materials used in most marine speakers.

Wet Sounds has developed a rubber spider that is built to last much longer than the traditional cotton spiders used in most marine speakers.

The tweeter on REVO speakers is mounted on the grill, which keeps the mid woofer sealed eliminating any chance of water intrusion through the pole piece as common on many marine coaxial speaker systems. Eight different grill designs are available.

SPECIFICATIONS

REVO Specifications REVO10 CX

Power Handling RMS 350 Watts

Power Handling Peak 700 Watts

Frequency Response 35Hz – 22kHz

Sensitivity (@ 1 Watt/1 Meter) 90 dB

Weight (pair) 29.8 Lbs (13.5 Kg)

Diameter 11.02 inches w/grill (279.9mm)

Mounting Depth 4.72 inches (119.8mm)

Hole Cut Out 9.45 inches (240.03mm)

B VO 10 CX INSTALLATION INSTRUCTIONS

1. Make sure that the Tweeter wires & RGB LED Wires are properly attached to the underside of the grill. The Tweeter wires are attached using the fixtures on the grill, while the RGB LED wire is attached using both fixtures & 2-sided tape.

Tweeter & RGB LED wires are routed through these spokes on the grill & should be secured using the fixtures on the grill & 2 sided tape if needed

1. The tweeter wire on the woofer should be routed through the opening in the basket. The RGB wire has a separate opening in the basket.

RGB LED Wire Opening Only Tweeter Wire Opening Only

REVO 10 CX INSTALLATION INSTRUCTIONS

1

1. Place the grill on the basket, making sure to connect the tweeter from the basket to the grill using the supplied connector. There should be enough space under the lip of the grill for the tweeter connector to fit.

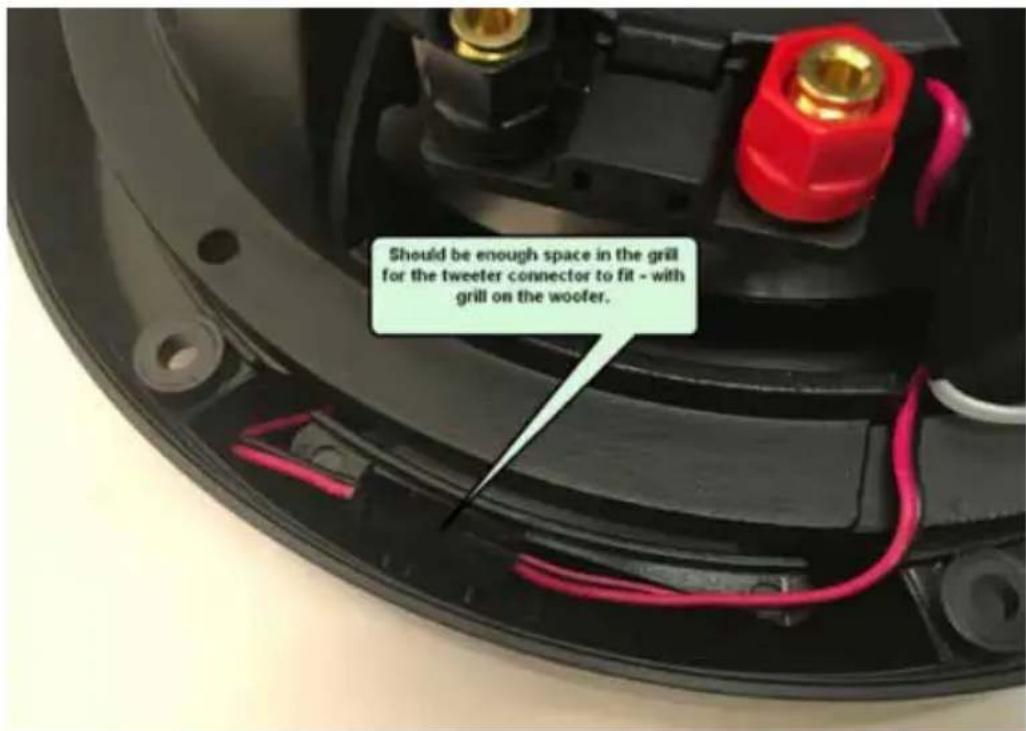

Should be enough space in the grill for the tweeter connector to fit - with grill on the woofer.

1. With the grill in place, route the RGB LED wire through the slot in the basket & make sure the RGB wire is flat against the lip of the basket. Affix the RGB wire into the slot using a wire tie.

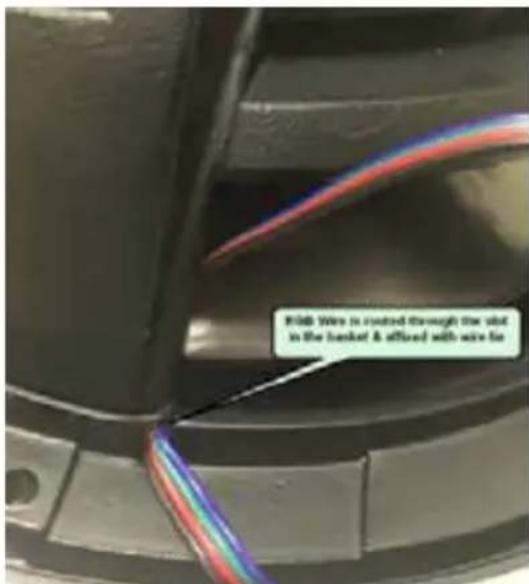

R100 Wire is coated through the slot in the basket & affixed with wire tie

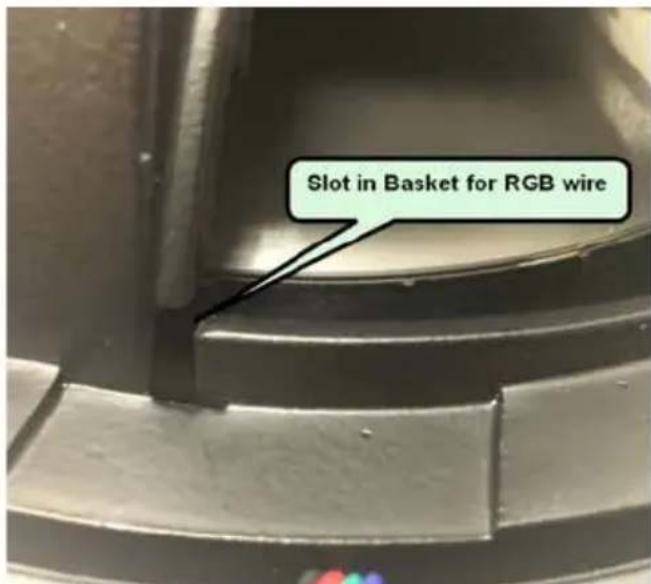

Slot in Basket for RGB wire

5 VO 10 CX INSTALLATION INSTRUCTIONS

1. After connecting the main speaker leads to the screw on terminals and routing the 4 wires of the RGB LED cable through the cut out in the basket, place the assembled speaker in the pre-cut opening, using the supplied rubber gasket between the basket & the opening. With the grill in place, screw in the provided stainless steel screws into the openings located at the 3 O'clock & 9 O'clock position. These screws should only affix the woofer, not the grill. Once these 2 screws are in place, affix the remaining screws, which will attach both the woofer and the grill.

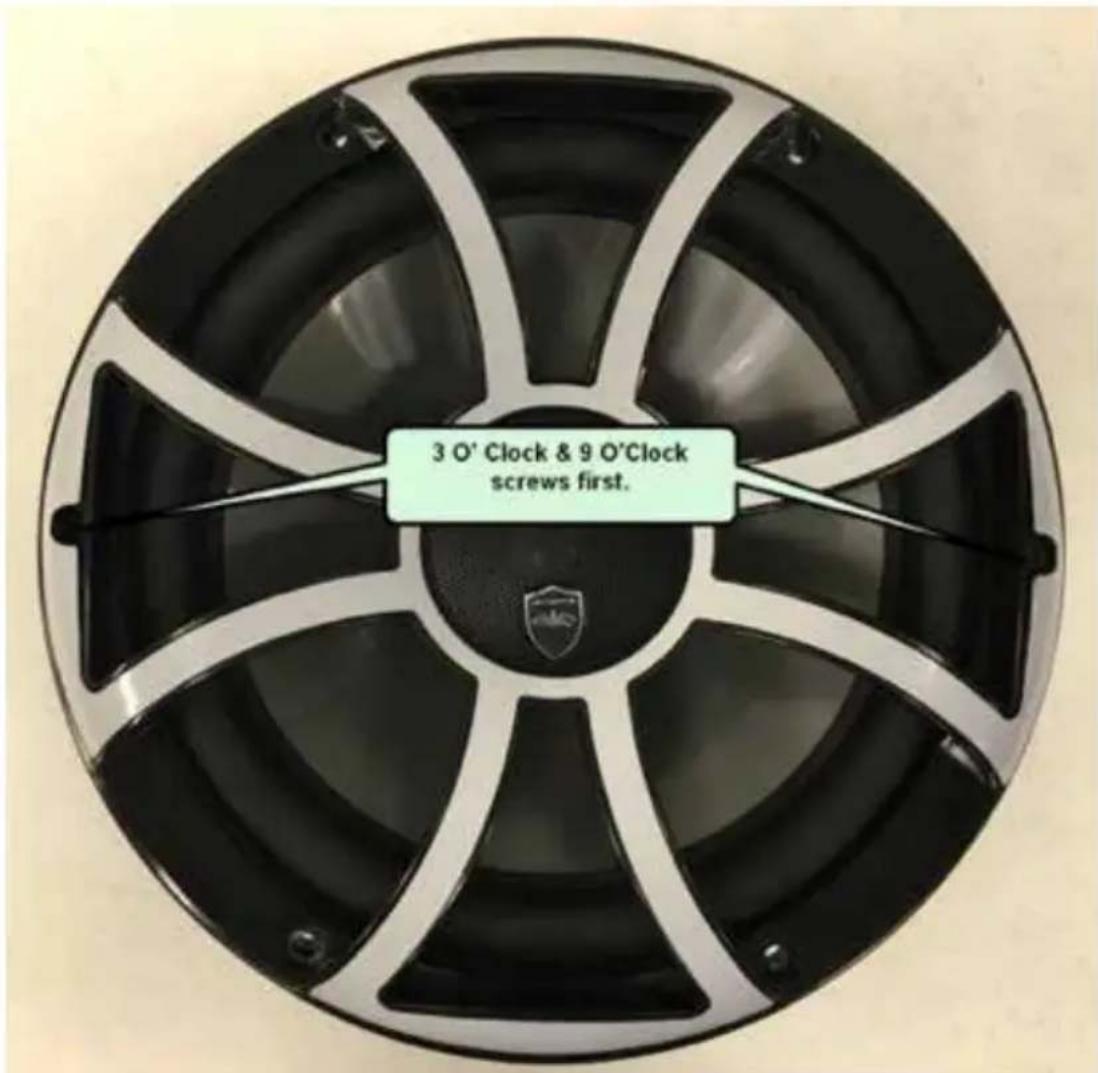

3 O' Clock & 9 O'Clock screws first.

YOU HAVE NOW SUCCESSFULLY INSTALLED THE REVO 10 CX SPEAKER!

WHAT THIS WARRANTY COVERS

This is a “limited” warranty. This warranty covers any defect in materials and workmanship. This warranty only covers the original purchaser and is not transferrable. This warranty is also only valid if the original purchase was made from an authorized Wet Sounds TM dealer.

HOW LONG COVERAGE LASTS

This warranty extends for 2 years from the date of purchase. It is recommended to REGISTER your warranty online within 45 days of purchase at www.wetsounds.com – click on “warranty registration”.

WHAT IS NOT COVERED

This warranty does not cover fading or discoloration caused by exposure to sunlight or chemicals such as ammonia, household bleach, or any cleaning material that contains abrasive substances. Wet Sounds, Inc. does not cover the expense for removal or reinstallation. Additionally, shipping TO Wet Sounds, Inc. must be paid for by the purchaser. This warranty is void and inapplicable if Wet Sounds deems that the product was abused or misused; including but not limited to damage caused by accident, mishandling, improper installation, removing the inline fuse on the power connection, negligence, normal wear and tear, excessive water or heat damage, freight/shipping damage, or products that have been disassembled by anyone other than Wet Sounds technical staff. Wet Sounds will not be responsible for any incidental or consequential damages, except to the extent provided (or prohibited) by applicable law. This warranty gives you specific rights, and you may also have other rights which vary from state to state.

WHAT WET SOUNDS, INC. WILL DO

Wet Sounds, Inc. will repair any part of your product that proves to be defective in materials or workmanship. In the event repair is not possible, Wet Sounds will replace the product in question. If it is deemed necessary Wet Sounds, Inc. will either replace the entire product with a refurbished unit or it will be replaced with a model that is similar in price if that model is no longer available. Labor costs and materials needed to complete this service will be at No Charge to the purchaser. Additionally, return shipping FROM Wet Sounds, Inc. to the purchaser will be paid for by Wet Sounds.

HOW TO GET SERVICE

Contact Wet Sounds, Inc. either by phone [phone]) or by email ([e-mail]). A service representative will assist you in confirming that the problem you are experiencing is caused by a defective product and if that product is covered under warranty. The service representative will issue you a Return Manufacturer's Authorization (RMA) and other details to obtain service for your product.

DO NOT RETURN YOUR PRODUCT WITHOUT THE PROPER RETURN AUTHORIZATION (RMA)!

INTERNET WARNING

Wet Sounds, Inc. products sold on any non-authorized web site or internet auction site are void of any and all manufacturer's warranty. Please contact Wet Sounds (877-938-7757) or visit our web site (www.wetsounds.com) for a list of authorized online sellers or to find an authorized installing retailer near you.

WET SOUNDS INC.

www.wetsounds.com • 877-938-7757

10621 S Sam Houston PKWY W • Suite 100

Houston, Texas 77071

USA
