K38400NA - Computer accessory KENSINGTON - Free user manual and instructions

Product Type	Laptop Lock
Brand	Kensington
Model	K38400NA
Locking Mechanism	Keyed
Cable Length	1.8 m (6 ft)
Cable Thickness	4.4 mm
Weight	150 g
Dimensions (Lock Head)	25 x 25 x 50 mm
Material	Zinc alloy lock head, braided steel cable
Security Level	Standard
Compatibility	Kensington Security Slot (Noble wedge shape)
Included in Box	1 lock, 2 keys
Power Source	None required
Key Replacement	Keys can be ordered via Kensington support
Cleaning	Wipe with a dry or slightly damp cloth
Repairability	Non-repairable; replace if damaged

Frequently Asked Questions - K38400NA KENSINGTON

What is the Kensington K38400NA?

The Kensington K38400NA is a keyed laptop lock designed to secure devices with a Kensington Security Slot.

Does the K38400NA fit all laptops?

It fits laptops and devices that have a standard Kensington Security Slot (T-bar slot). Check your device for the slot before purchasing.

How long is the cable?

The cable is 1.8 meters (6 feet) long, allowing you to wrap it around a fixed object.

Are replacement keys available?

Yes, replacement keys can be ordered through Kensington customer support with proof of purchase.

How do I lock the K38400NA?

Insert the lock head into the security slot, turn the key to extend the locking tabs, and remove the key. To unlock, insert the key and turn to retract the tabs.

Is the lock tamper-proof?

The lock features a zinc alloy head and braided steel cable for resistance to cutting and prying. It is not completely tamper-proof but offers good security.

Can I use the lock with a desktop computer?

Only if the desktop has a Kensington Security Slot. Most desktops do not, but some monitors and peripherals do.

How do I clean the lock?

Wipe the lock with a soft, dry cloth. For stubborn dirt, use a slightly damp cloth and dry immediately. Avoid solvents.

What is the warranty?

Kensington offers a limited lifetime warranty on the K38400NA against defects in materials and workmanship.

Does the lock require batteries?

No, the K38400NA is a purely mechanical key lock and does not require any power source.

USER MANUAL K38400NA KENSINGTON

LD4650 Universal USB-C Dock with K-Fob™ Smart Lock

Part Numbers: K38401M (Multi-User); K38400NA (Single-User) UPC Codes: 8589638401 (Multi-User); 8589638401 (Single-User)

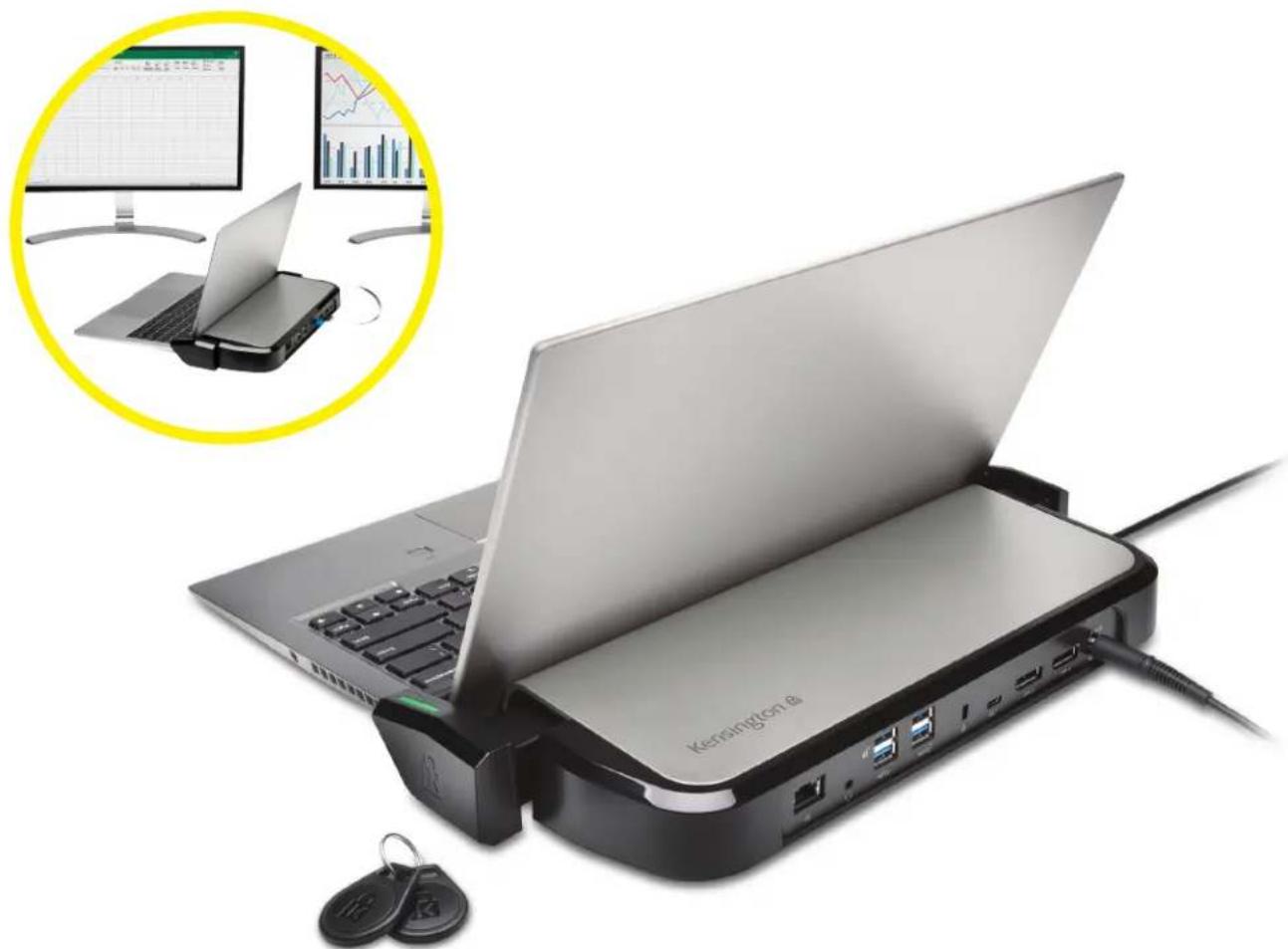

Laptop with open lid and keyboard, showing a small inset image of a laptop displaying a chart (no readable text or symbols)

The LD4650P Universal USB-C Dock with K-Fob™ Smart Lock combines Kensington's thoroughly tested universal USB-C docking technology with next generation encrypted digital laptop locking technology to deliver a game-changing 2-in-1 docking and locking solution for Windows users. Get more compatibility and productivity while reducing laptop theft and improving compliance with corporate security protocols. Secures thin and light laptops 11-15" in size, including models from Dell, HP, Lenovo and other manufacturers.

All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. Brand and product names mentioned are trademarks of their respective companies.

K18_3198-US LD4650P UNIVERSAL USB-C DOCK WITH K-FOB SMART LOCK 1

FEATURES & BENEFITS

• Access Options – Single-User (K38400NA) for a simple locking experience for fixed desk users or Multi-User with Admin Control (K38401M) for hot-desking, hoteling and/or shared workspaces
• Plug & Play for supported Windows 10 systems
• USB-C Connectivity allows users to transfer data (up to 10Gbps), video, and audio while providing up to 60W of power delivery* to USB-C enabled laptops for a simple plug and play experience
• Dual 1080P Video Outputs** for Windows via DisplayPort++ for connection to external monitors, TVs or projectors
• Productivity Ports allow users to connect to peripheral accessories via two USB-A 3.1 Gen 2 ports (10Gbps;5V/0.9A), two USB-A 3.1 Gen 1 ports (5Gbps;5V/0.9A), one 1Gbps Ethernet port, and a combo 3.5mm audio in/out port
• K-Fob™ Smart Lock Technology provides encrypted security with the simplicity of keyless locking
• Professional Locking Design conforms to Kensington's industry-leading testing standards for durability, provides unobstructed access to the laptop's side ports and does not require any laptop modifications
• Adjustable Security Arms accommodate 11"-15" thin and light laptops and easily adjust without tools
• Scratch-Resistant Bumpers protect laptop screen and frame from cosmetic damage
• Flexible Security Options allow you to secure the station to any fixed object using the removable tethered lock cable, or use the built-in Kensington Security Slot with a cable lock, or permanently secure using the desktop mounting holes
• Register & Retrieve™ program provides free and secure cloud-based key fob replacement
  • 3 Year Limited Warranty
  * Supported USB-C devices with PD function only
  ** Host device must support Alt mode over USB-C; Only for Windows

Available in Multi-User and Single-User – Which Access Option do you need?

	Multi-User with Admin ControlK38401M	Single-UserK38400NA
Target Environment Shared workspaces anddedicated desks		Dedicated desk
Administrator Key Fob Access Yes No
K-FobTM Registration Required Yes No
Accepts Any Registered K-FobTM	Yes	No; only accepts issued K-FobTM
Access Details Insert laptop, push lock arms tosecure, use any registered K-FobTMto lock, use same K-FobTM to unlock		Insert laptop, push lock arms tosecure, use supplied K-FobTM tounlock

Technical Specifications

SYSTEM REQUIREMENT

• Operating Systems Supported: Windows 10

• System Resource Requirement: USB-C devices with integrated support for USB-C Power Delivery (PD) up to 60W and DisplayPort Alt mode over USB-C

• Systems Supported: Rear-hinge laptops 11" to 15"

• Plug & Play: Yes for compatible Windows 10 USB-C host devices
  • Power Delivery: Supports USB Power Delivery 3.0 profiles 5V, 9V, 12V, 15V, and 20V, up to 3A

HOST CONNECTIVITY

- Host Docking Connector: USB-C with integrated support for USB-C Power Delivery (PD) up to 60W and DisplayPort Alt mode over USB-C. Compatible with Thunderbolt 3 host devices

VIDEO CONNECTIONS

• Video Connectors:
◦ DisplayPort v1.2++
• HDCP Support: No

• Maximum Resolution Supported:
- Single Monitor: 2560 x 1440 @ 60Hz
- Dual Monitors: 1920 x 1080 @ 60Hz

USB CONNECTIONS

• USB-A 3.1 Gen 2 Ports: Two (5V/0.9A) ports providing speeds up to 10Gbps

- USB-A 3.1 Gen 1 Ports: Two (5V/0.9A) ports providing speeds up to 5Gbps

NETWORK CONNECTIONS

- Ethernet Port: RJ45

- Compatible Ethernet Speeds: 10/100/1000 Mbps

AUDIO CONNECTIONS

• Audio Connectors: ○ One 3.5mm combo port for audio in & out

• Audio Channels Supported: Stereo LR

LED INDICATOR

• Blue LED: Correct key fob; Security Arms will open
• Green LED: Locked

• Red LED: Error/incorrect key fob

POWER & ENVIRONMENTAL

• Power Adapter Rating:

- Input: 100-240V AC, 50-60 Hz; 1.5A

- Output: 20V DC; 5.5A

• Operating Frequencies: 13.56MHz

• Radiated Power: 0.0033mW (EIRP)

- Operating Temperature: 0 to 40^ C (32 to 140^ F )

- Storage Temperature: -40 to 70^ C (-40 to 158^ F )

• Relative Humidity: 5% to 95% non-condensing

PRODUCT DIMENSIONS

- Unit Dimensions

- Width: 320mm (12.6in)

Depth: 220mm (8.7in)

- Height: 44mm (1.7in)

• Unit Weight: 1.47kg (3.21lbs)

• Security Cable: 7x7 wire; 4mm core coated to 5mm; Length 1.8m (6.0ft)

• Thunderbolt 3 Cable: 0.5m (1.6ft)

PACKAGING DIMENSIONS

• Packaging Style: White Box

- Packaging Dimensions:

- Width: 362mm (14.3in)

- Depth: 320mm (12.6in)

Height: 83mm (3.3in)

• Packaging Weight: 3.34kg (7.37lbs)

• Master Carton: 5 pcs

- Package Content:

- One LD4650P Dock with K-Fob Smart Lock

- Two User Key Fobs on One Key Ring

One 0.5m USB-C USB 3.1 Gen 2 Cable (10Gbps)

- One 0.5m USB 2.0 A-Male to A-Male Cable (for use in the event of a power loss)

○ One Security Cable

- One Quick Start Instruction Guide

- Warranty Information & Compliance Sheet

COUNTRY OF ORIGIN, REGULATORY, AND WARRANTY

• Country of Origin: China

• Certifications & Compliance: CE, FCC, IC, RCM, ROHS, WEEE, REACH, IMDA

• Warranty: 3-Years Limited - worldwide

OTHER FEATURES

• Kensington Security Slot

SPECIAL NOTES

- Multiple SKUs

- Multi-User with Admin Control K38401M

- Single-User K38400NA

- Adapters Sold Separately

○ DisplayPort to HDMI (K33984WW)

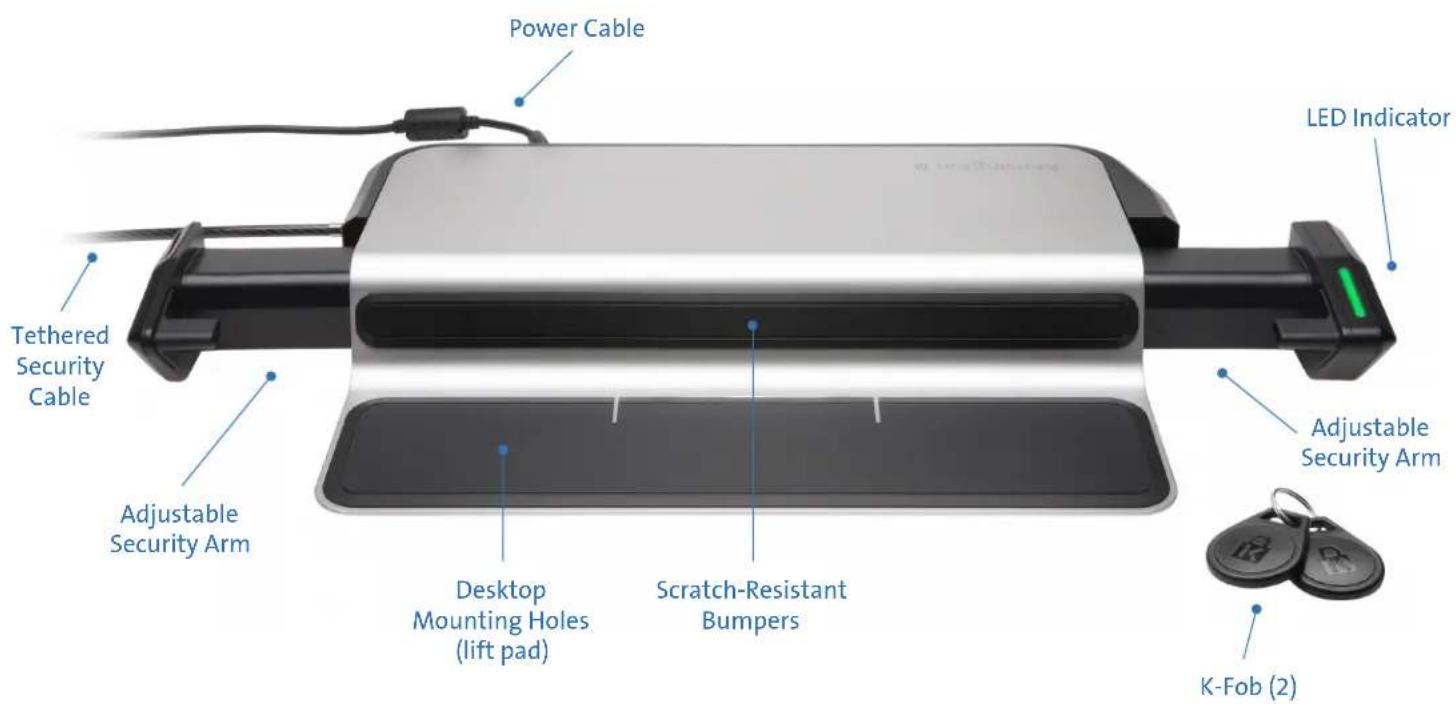

FRONT

Power Cable LED Indicator Tethered Security Cable Adjustable Security Arm Desktop Mounting Holes (lift pad) Scratch-Resistant Bumpers Adjustable Security Arm K-Fob (2)

BACK

Gigabit Ethernet 3.5mm Audio In/Out Port USB-A 3.1 Gen 1 Ports (2) USB-A 3.1 Gen 2 Ports (2) Kensington Security Slot USB-C PD Port Display Port v1.2++ (2) DC20V

All specifications are subject to change without notice. Please check with your supplier for exact offers.

Products may not be available in all markets. Brand and product names mentioned are trademarks of their respective companies.

K18_3198-US LD4650P UNIVERSAL USB-C DOCK WITH K-FOB SMART LOCK 5
