USER MANUAL DCMV45U6D Black Box

Deluxe Vertical Cable Manager

Supports and manages cables connected to rackmounted networking equipment.

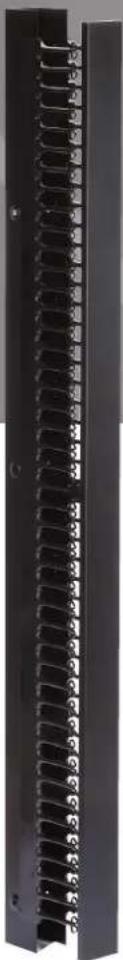

Black vertical rack with multiple slots and a central slot, no visible text or symbols

Trademarks Used in this Manual

Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc.

Any other trademarks mentioned in this manual are acknowledged to be the property of the trademark owners.

We're here to help! If you have any questions about your application

or our products, contact Black Box Tech Support at 724-746-5500

or go to blackbox.com and click on "Talk to Black Box."

You'll be live with one of our technical experts in less than 30 seconds.

1. Specifications 4
2. Overview....5
   2.1 Available Models 5
   2.2 Accessories 5
   2.3 What's Included 5
3. Assembly Instructions ...... 6

1. Specifications

Compliance: EIA 310-D

Construction: Channel body: Steel; Front cover: Multiformed lightweight aluminum; Hinge points and supporting fingers: High-strength composite material

Finish: Aluminum components: RAL 9005 black low-gloss, light-textured RAL 9005 powder-coat finish; Composite parts: Matching black

Size: DCMV45U35S: 84"H (45U) x 4"W x 9.75"D (213.4 x 10.2 x 24.8 cm); DCMV45U35D: 84"H (45U) x 4"W x 16"D (213.4 x 10.2 x 40.6 cm); DCMV45U6S: 84"H (45U) x 6"W x 9.75"D (213.4 x 15.2 x 24.8 cm); DCMV45U6D: 84"H (45U) x 6"W x 16"D (213.4 x 15.2 x 40.6 cm);

Weight: DCMV45U35S: 40 lb. (18.1 kg); DCMV45U35D: 42 lb. (19 kg); DCMV45U6S: 45 lb. (20.4 kg); DCMV45U6D: 47 lb. (21.4 kg)

2. Overview

The Deluxe Vertical Cable Manager supports and manages cables of rackmounted networking equipment. It arrives unassembled, and assembly instructions are described in this manual.

2.1 Available Models

Four models are available:

• Deluxe Vertical Cable Manager, 45U x 4"W single-sided (part number DCMV45U35S)
• Deluxe Vertical Cable Manager, 45U x 4"W double-sided (part number DCMV45U35D)
• Deluxe Vertical Cable Manager, 45U x 6"W single-sided (part number DCMV45U6S)
• Deluxe Vertical Cable Manager, 45U x 6"W double-sided (part number DCMV45U6D)

2.2 Accessories

• 3.5" Rear Post and Gate Kit (DCMVPG35) for DCMV45U35S or DCMV45U35D
• 6" Rear Post and Gate Kit (DCMVPG6) for DCMV45U6S or DCMV45U6D
  • 3.5" Deluxe Cover (DCMRC35)
• 6" Deluxe Cover (DCMRC6)

2.3 What's Included

DCMV45U35S and DCMV45U6S: DCMV45U35D and DCMV45U6D:

• (1) cable manager • (1) double-sided cable manager
• (6) b o l t s • (6) n u t s

• (2) grommets • (2) grommets

• (4) snap hinge "A" • (4) snap hinge "A"

• (4) snap hinge "B" • (4) snap hinge "B"

• (1) c o v e r

• (4) cover snap hinges • (4) cover snap hinges

- This user's manual - (6) snap-on cable guides, 6.25 "D

• (6) s n
• ( 3 ) B r
• T h i s u

3. Assembly Instructions

The Deluxe Vertical Cable Manager is shipped unassembled. Follow the instructions here to assemble the cable manager. The cover can be set up in two ways: snap or hinged.

STEP 1: Attach the four cover snap hinges to the cable manager's cover. See Figure 3-1.

Cover snap hinges Snap cover configuration Hinged cover configuration Cover snap hinges

Figure 3-1. Attach the snap or hinged covers to the cable manager's cover.

STEP 2: Snap cover configuration.

2A: Position (1) snap hinge "A" and (1) snap hinge "B" on the third cable finger from the top and snap together. Be sure that snap hinge "A" is on the outside of the cable manager.

2B: Repeat this step on all four corners as shown in Figure 3-2.

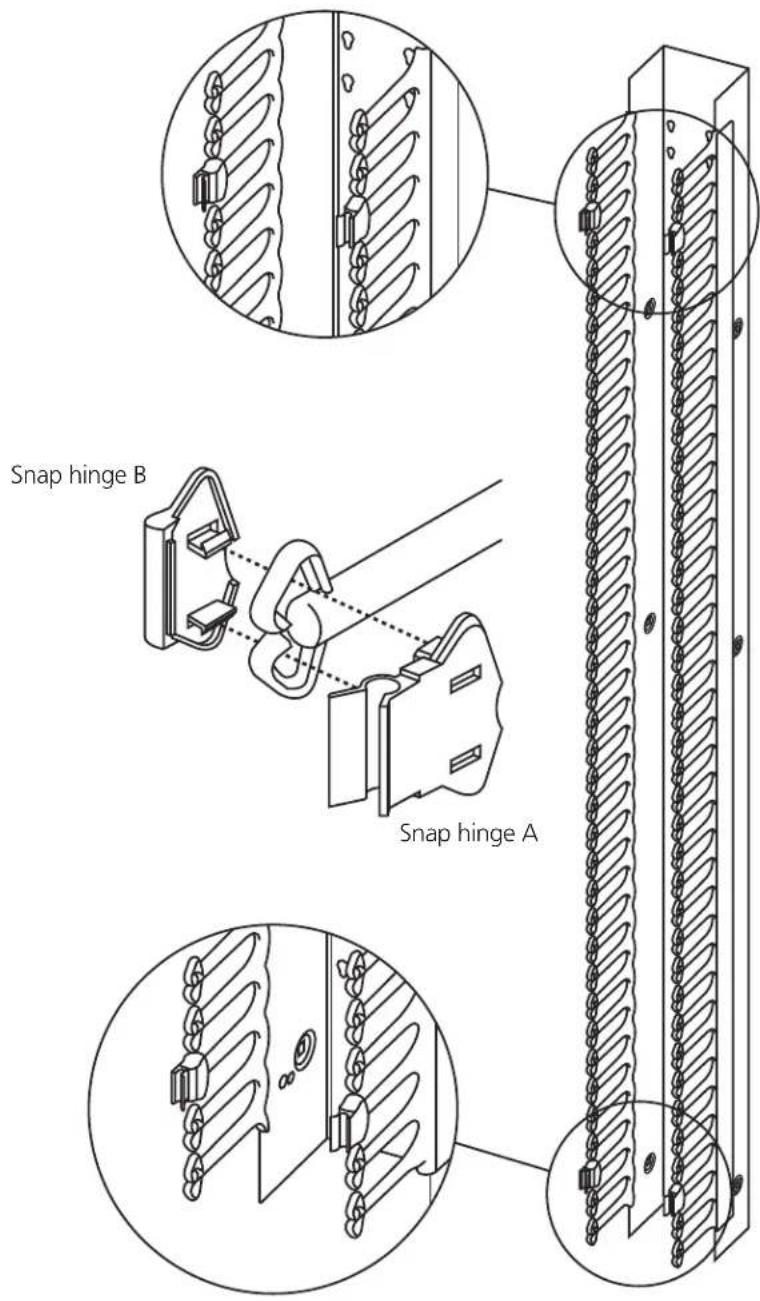

Snap hinge B Snap hinge A

Figure 3-2. Snap covers configuration.

STEP 3: Hinged cover configuration.

3A: Position the cover next to the cable manager to find the correct cable finger to install the snap hinges. Once the correct cable finger is found, position (1) snap hinge "A" (outside) and (1) snap hinge "B" (inside) on the finger and snap together.

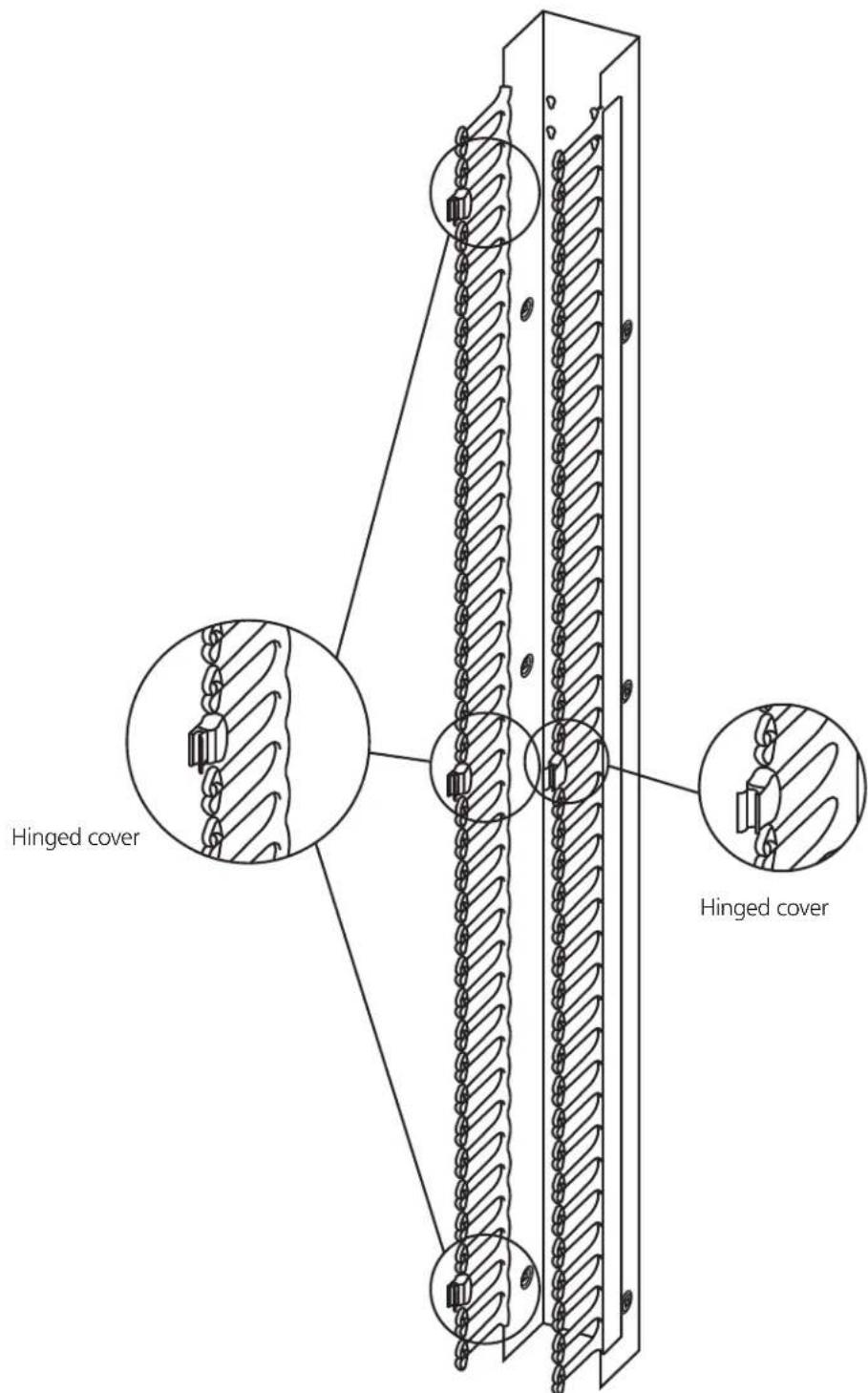

Hinged cover Hinged cover

Figure 3-3. Hinged covers configuration.

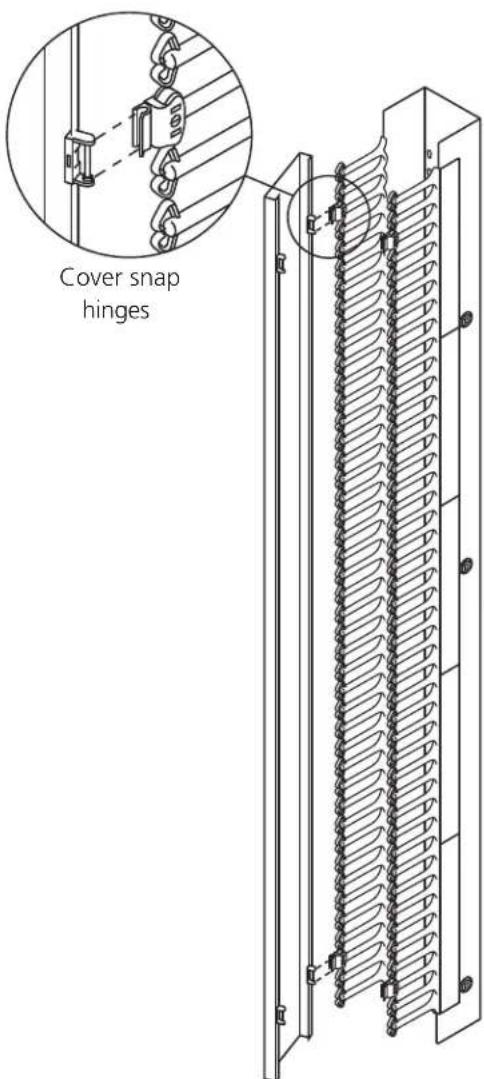

STEP 4: Attach the two cover snap hinges to secure the cover to the cable manager. See Figure 3-4.

Cover snap hinges

Figure 3-4. Attach the cover snap hinges.

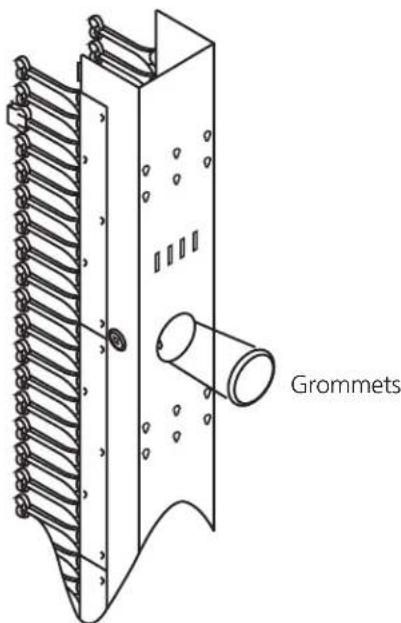

STEP 5: Connect the two grommets to the cable manager. See Figure 3-5.

Grommets

Figure 3-5. Connect the grommets.

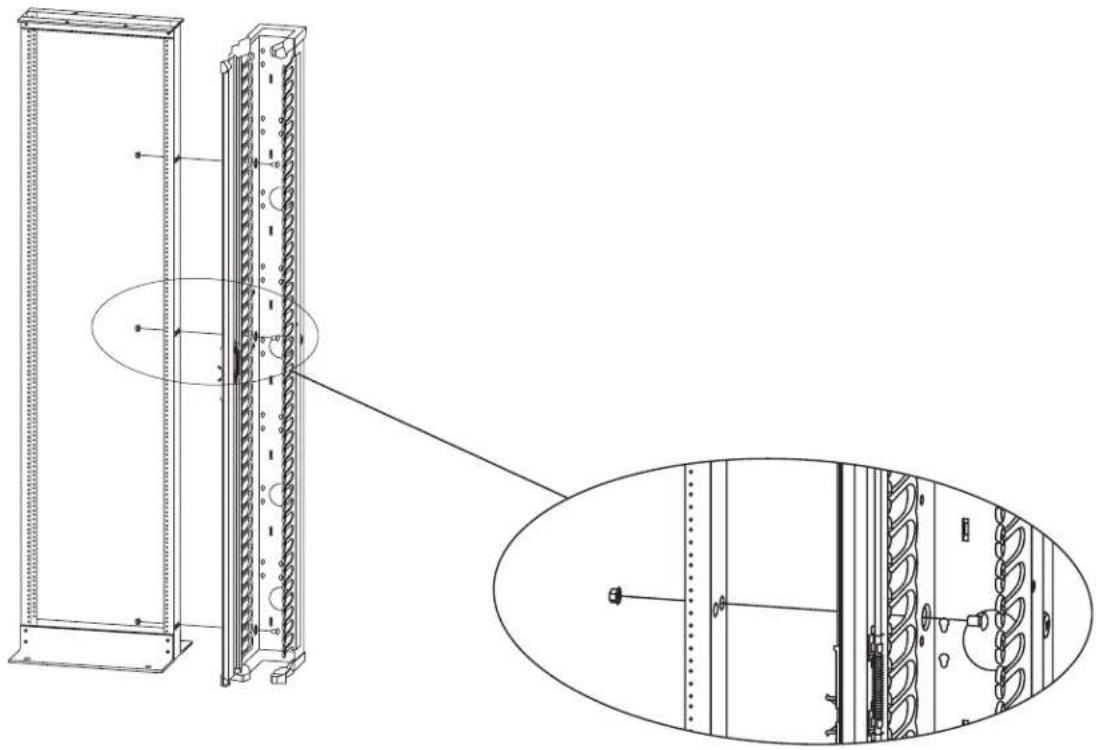

STEP 6: Connect the cable manager to the rack. Using the (6) bolts and (6) nuts, attach the cable manager to a rack. See Figure 3-6.

Technical line drawing of a server rack cabinet with internal components and mounting holes (no text or symbols)

Figure 3-6. Attaching the cable manager to a rack.

Optional Accessories

Cables are routed from the outside of the cable manager through the cable manager's inside channel. Optionally, you can use Post and Gate Kits (DCMVPG6, DCMVPG35) to secure the outside portion of the cable to the cable manager.

For Double-Sided Models Only

STEP 1: Insert the first snap-on cable guide into the mounting holes on the back of the cable manager as shown in Figure 3-7. Press down to lock into place and insert the snap-on hinges into the cable guides. Repeat Step 1 to install the second snap-on cable guide. Be sure to use the mounting holes on the outsides of the cable manager.

Technical line drawing of a mechanical assembly with a bracket and spring-loaded housing (no text or symbols)

Figure 3-7. Install the snap-on cable guides.

STEP 2: Snap the cable gate into place as shown in Figure 3-8.

Technical line drawing of a mechanical assembly with spring-loaded components and mounting brackets (no text or symbols)

Figure 3-8. Install the cable gate.
