Preface

We appreciate your purchase of the HOLUX car navigation.

Please read all instructions thoroughly for a full understanding of the products' features.

Precautions and Notices

• For your own safety, do not operate the controls of the product while driving.
• Use this product prudently. The product is intended to be used only as a navigation aid. It is not for precise measurement of direction, distance, location or topography.
• The calculated route is for reference only. It is the user's responsibility to follow the traffic signs and local regulations along the roads.
• When you get off the car, do not leave your device on the dashboard that is subject to direct sunlight. The overheating of the battery can cause malfunction and/or danger.
• GPS is operated by the United States government, which is solely responsible for the performance of GPS. Any change to the GPS system can affect the accuracy of all GPS equipments.
• GPS satellite signals cannot pass through solid materials (except glass). When you are inside a tunnel or building, GPS positioning is not available.
• A minimum of 4 GPS satellite signals is needed to determine current GPS position. Signal reception can be affected by situations such as bad weather or dense overhead obstacles (e.g. trees and tall buildings).
• Other wireless devices in the vehicle might interfere with the reception of satellite signals and cause the reception to be unstable.
• A car holder is needed when using the device in a car. Be sure to place the device in an appropriate place, so as not to

obstruct the driver's view or deployment of air bags.

Copyright

Without the written consent of HOLUX Technology, Inc, this manual, including the product and the software, may not be duplicated, transmitted, recorded or saved on storage devices. Furthermore, it shall not be translated under any circumstances into any other languages.

Copyright ©2014 HOLUX Technology, Inc. All rights reserved.

Important Notice

Please thoroughly read this manual of operating instructions and explanations. Only use original factory approved batteries and accessories to prevent unexpected damage. If the correct procedures were not followed for operation or incompatible accessories were connected, this is a violation of the warrantee agreement and will automatically void the warrantee. This may also cause personal safety issues.

Interior view of a car dashboard and steering wheel (no visible text or symbols)

First time use

Package Contents

Your product should include the following accessories:

GP3mile 0502 HOLUX

Line drawing of a manual manual shaver with handle and base (no text or symbols)

Device In-vehicle Bracket fixing

Line drawing of a mechanical bracket component (no text or symbols)

Line drawing of a handheld device with a cable and connector (no text or symbols)

Bracket Car charger

Line drawing of a USB cable with connectors and connectors (no text or symbols)

Simple line drawing of a blank rectangular sheet (no text or symbols)

USB cable Quick Guide

Basic Operation

Introduction

Front View

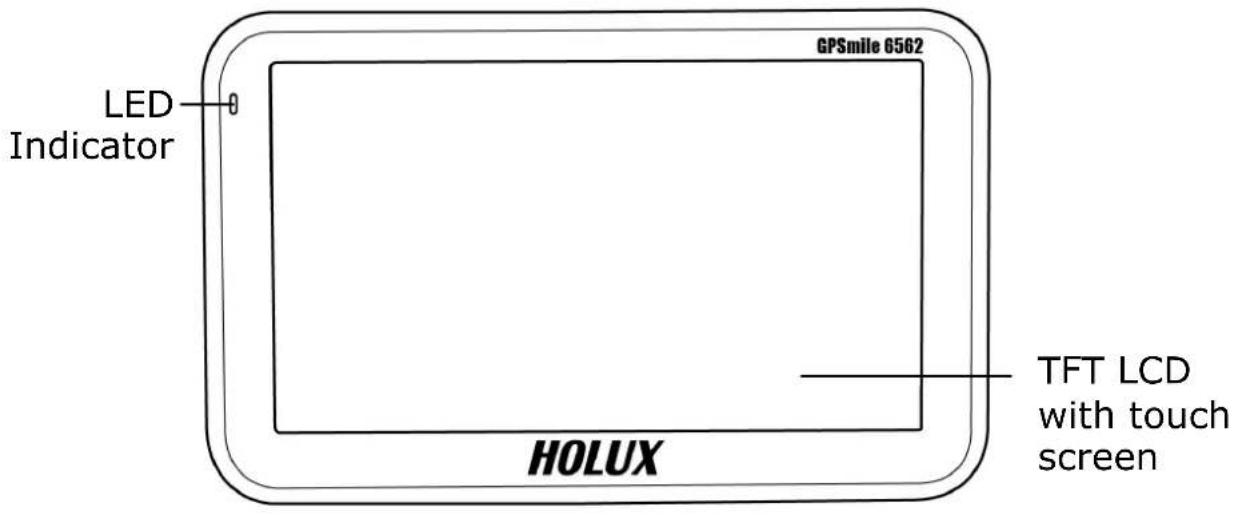

LED Indicator GPSmile 6562 HOLUX TFT LCD with touch screen

Rear View

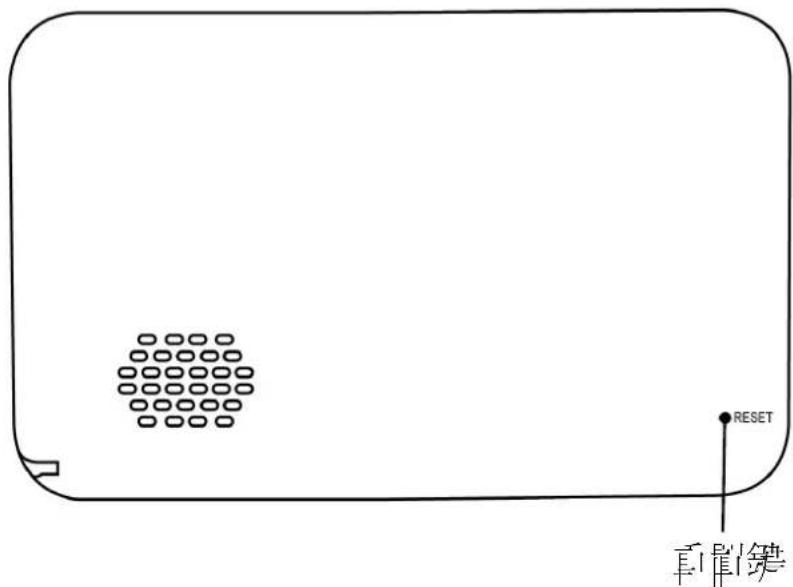

Speaker Reset RESET

Top View

ON/OFF Power button

Left View

Headphone connector Micro SD Slot USB connector

Using the In-Vehicle Bracket

The included in-vehicle bracket set can be securely suctioned on the front windshield, or secured on top of the glove compartment using the adhesive plate. This device will effectively secure the GPS unit in the vehicle. Follow the procedures below to secure the bracket:

1. Install bracket

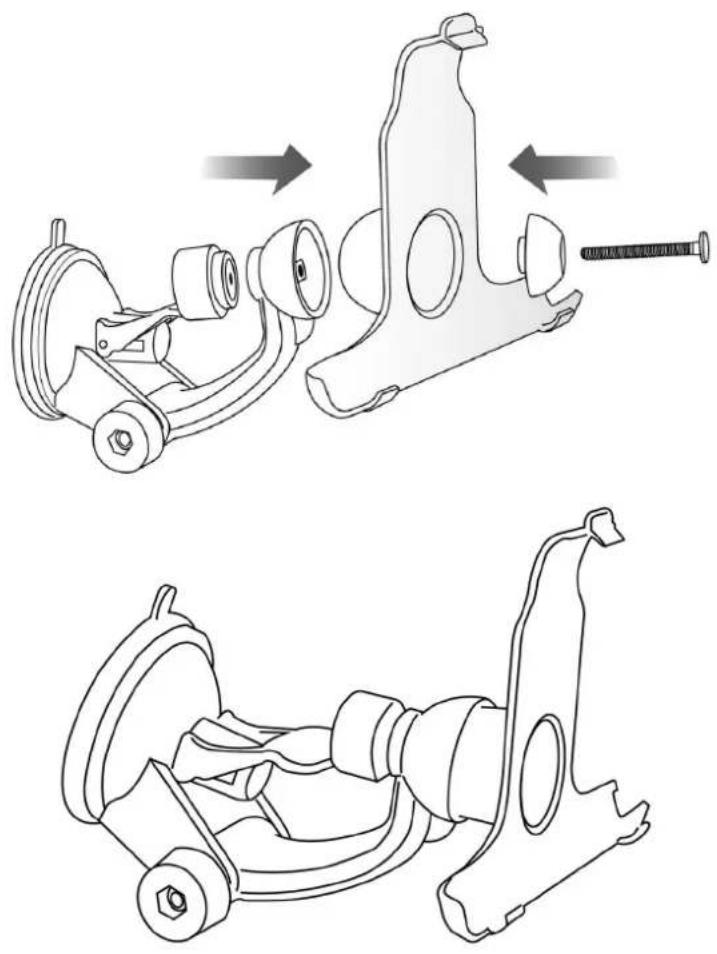

Align the bracket fixing with the in-vehicle bracket as the following illustration shown.

Technical line drawings of automotive suspension components, showing assembly and disassembly (no text or symbols)

2. Install bracket fixing

Screw can be loosened to adjust the bracket fixing. Secure the screw when the bracket fixing is in a proper angle. Suction the bracket fixing to the windshield.

Technical line drawing of a vehicle suspension system with no text or symbols

3. Install GPS unit

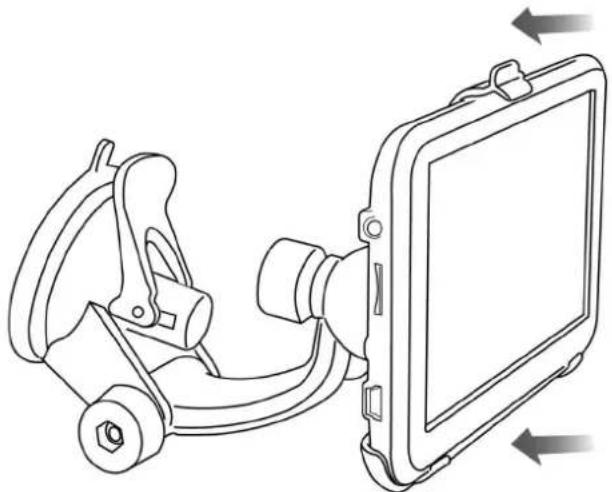

Slide the GPS into the in-vehicle bracket fitting holes to secure. Gently push down until the unit is tightly fixed with the bracket.

Line drawing of a device with attached cable and screen, showing directional arrows (no text or symbols)

• When using the in-vehicle secure bracket, do not install it in a location that will block the view of the driver
• Recommended installation requirements: he bracket base should rest securely on the dashboard to prevent excessive shock.

Connecting the Car Charger

The car charger supplies power to your device when you are using the device in a car.

CAUTION: To protect your device against sudden surges in current, connect the car charger only after the car engine has been started.

1. Connect one end of the car charger to the power connector of your device.
2. Connect the other end to the cigarette lighter in the car to power and charge your device. The indicator on the car charger lights in green to indicate that power is being supplied to your device.

Inserting a micro SD Card

Your device has a SD/MMC slot where you can insert an optional Secure Digital or Multi Media Card storage card.

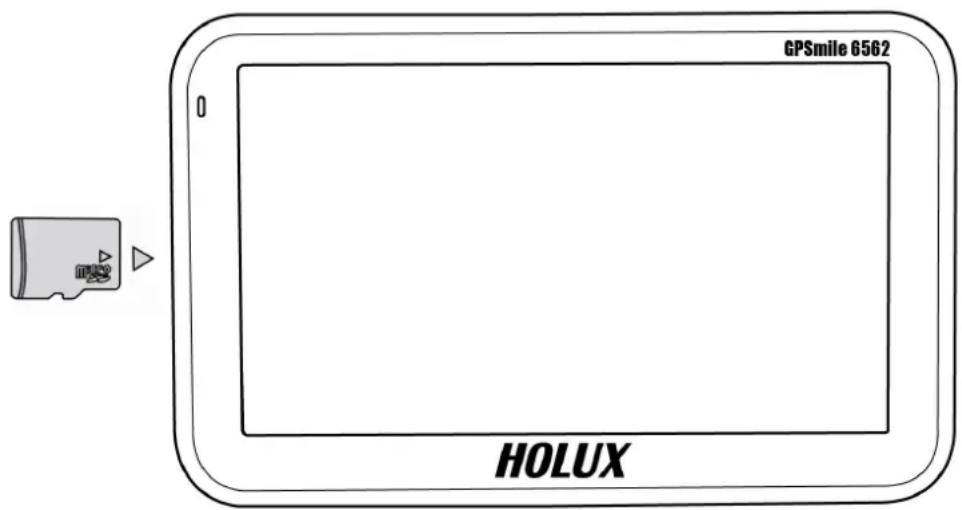

To use a SD/MMC card, insert it into the slot, with the connector pointing to the slot and its label facing the front of the device.

To remove a card, first make sure that no application is accessing the card, and then slightly push the top edge of the card to release it and pull it out of the slot.

GPSmile 6562 HOLUX

NOTE:

● Make sure that no foreign objects enter the slot.
- Keep a SD or MMC card in a well-protected box to avoid dust and humidity when you are not using it.

Getting Started

Performing the Initial Start Up

1. Press the ON/OFF button for several seconds.

ON/OFF

1. Your device will automatically turn on. Connect the car charger as described in the next section.

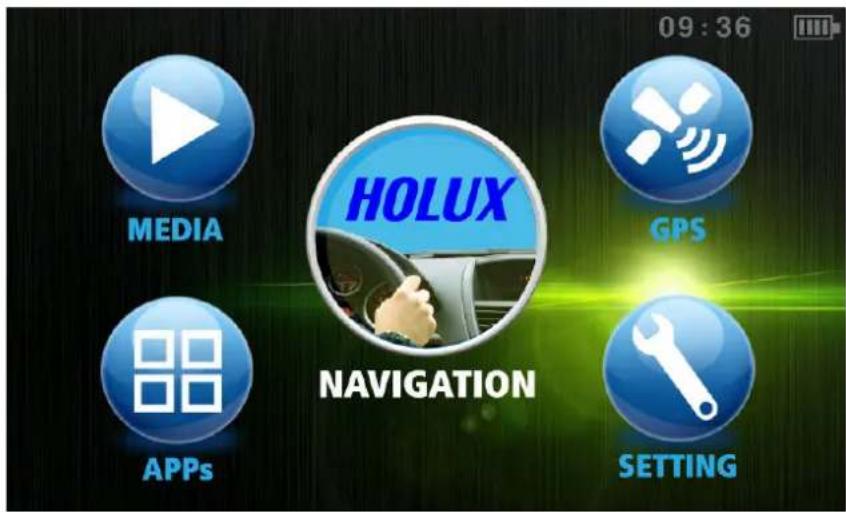

2. Then, the Main Menu appears as shown below. You can now use your device.

09:36 MEDIA HOLUX GPS NAVIGATION APPs SETTING

Turning Off

Press the ON/OFF button for several seconds to turn off the device.

Equipment is about to turn off! 08 S Sleep Power Off Cancel

Sleep

the device will enter into sleeping mode for saving

Power Off

to turn off the device.

Cancel

to return to the previous page.

Main Menu

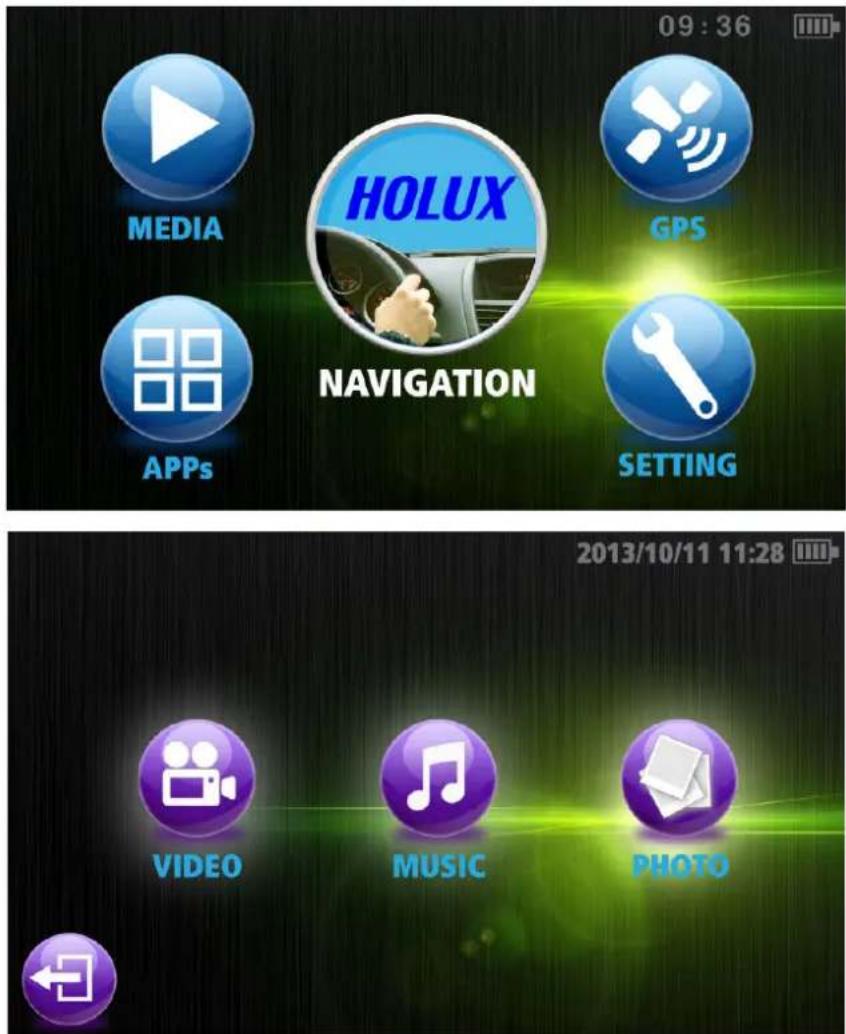

The first time you initialize your device, the Main Menu appears. The Main Menu is your starting place for various tasks. Tap a button to start a task or open another menu.

09:36 MEDIA HOLUX GPS NAVIGATION APPs SETTING

Navigation		Start Navigation
Settings		Device Settings
Applications		Game Calculator
Media		Play music file Play video Play photo
GPS information		Display GPS information

Settings

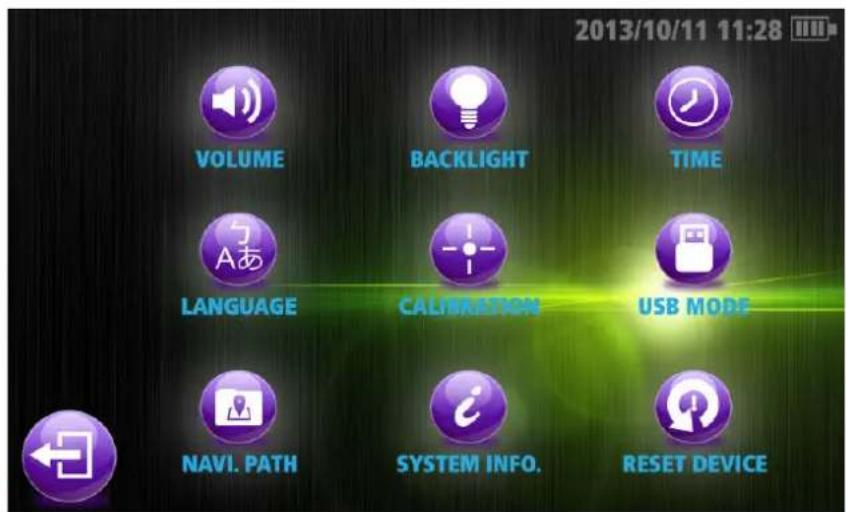

To open the Device Settings menu, first tap the Settings button on the main menu.

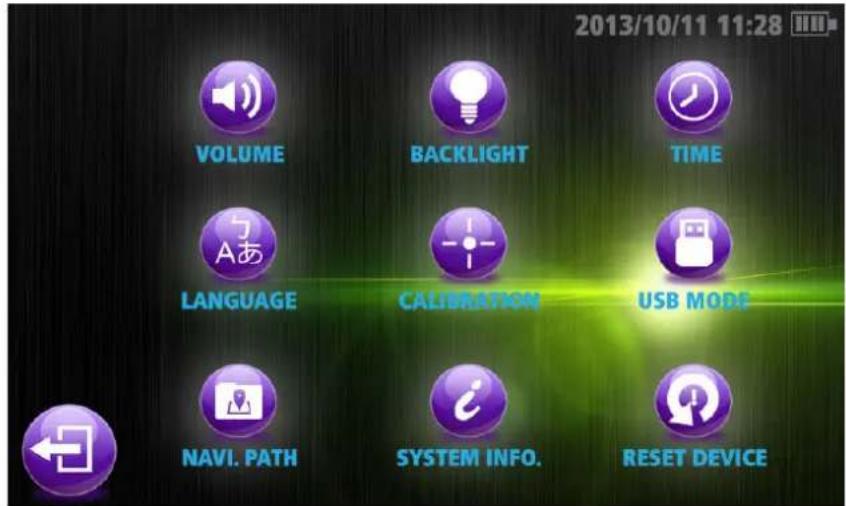

MEDIA HOLUX NAVIGATION GPS APPs SETTING VOLUME BACKLIGHT TIME Aあ LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE 2013/10/11 11:28

The Device Settings menu appears as shown above. The following sections describe these buttons and their functions.

You can customize the device settings such as volume, backlight, date and time. Once you change the settings, your new settings will remain until you change them again.

Press button to return to main menu.

Volume

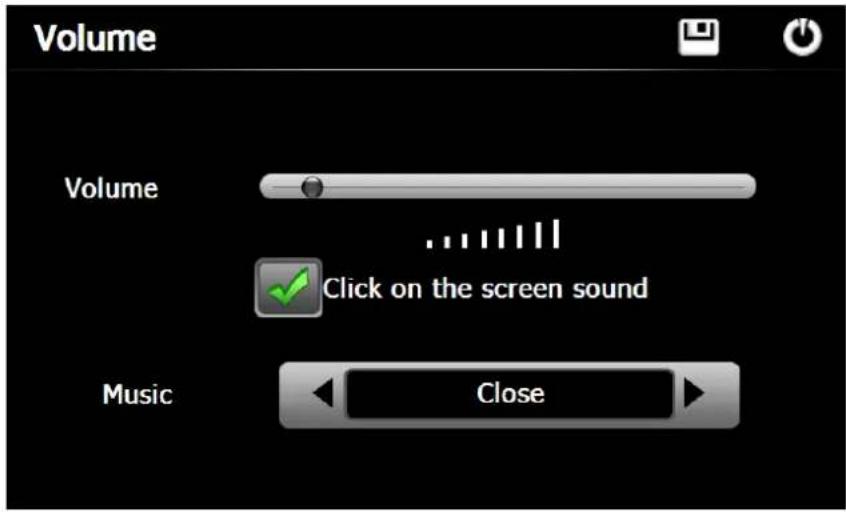

Tap the [Volume] button on the Device Settings menu. The Volume Function menu appears as shown below.

Use just volume.

Tap the Button to save the settings. Tap the Button to go back to the previous page.

2013/10/11 11:28 VOLUME BACKLIGHT TIME LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

Volume Volume ...... Click on the screen sound Music Close

Click on the screen sound

to control touch pad sound.

shows the sound of the touch pad is disabled.

shows the sound of the touch pad is enabled.

Backlight

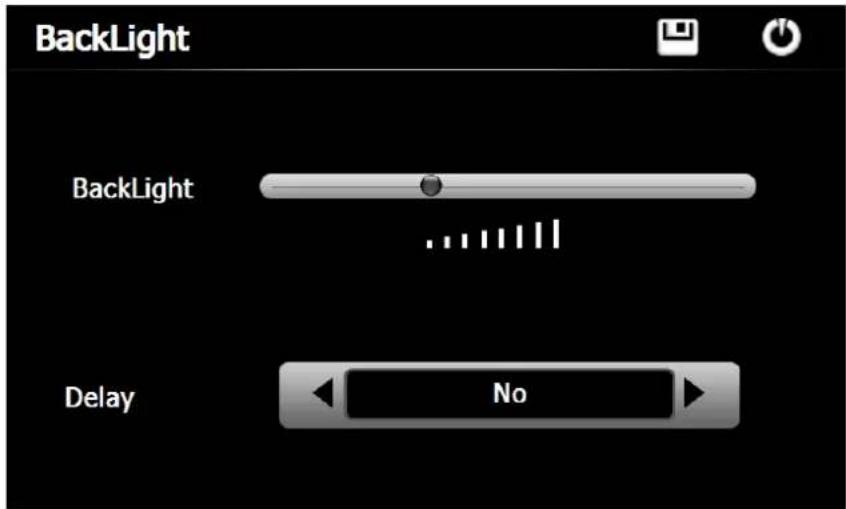

Tap the [Backlight] button on the Device Settings menu. The backlight Function menu appears as shown below.

Use just backlight.

Tap the 📁 button to save the settings. Tap the 📁 button to go back to the previous page.

2013/10/11 11:28 VOLUME BACKLIGHT TIME Aあ LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

BackLight BackLight Delay No

Delay: Adjust the backlight turn off time to save power.

The delay items include: No/ 10 seconds/ 30 seconds/ 1 minute/ 2 minutes/ 3minutes.

Time

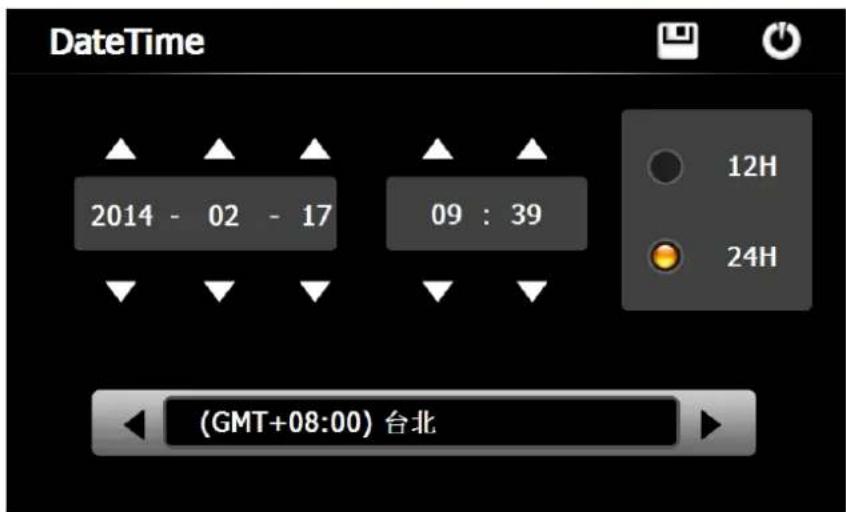

Tap the [Time] button on the Device Settings menu. The Time Function menu appears as shown below.

Use Button to switch the time zone.

Tap the 📁 button to save the settings. Tap the 📋 button to go back to the previous page.

2013/10/11 11:28 VOLUME BACKLIGHT TIME LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

DateTime 2014 - 02 - 17 09 : 39 12H 24H (GMT+08:00) 台北

Language

Tap the [Language] button on the Device Settings menu. The Language Function appears as shown below.

Use English

button to select the language.

Tap the Button to save the settings. Tap the Button to go back to the previous page.

2013/10/11 11:28 VOLUME BACKLIGHT TIME Aあ LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

Language Language English

Calibration

Tap [Calibration] button on the Device Settings menu. The calibrate Function appears as shown below.

2013/10/11 11:28 VOLUME BACKLIGHT TIME LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

1. Tap and hold the center of the target, the target moves to the position of left-up. When again tap and hold the center of the target, the target moves the Next position of left-down.
2. The target moves to five position (left-up' left-down' right-down' right-up' center) in order, forming a period. If nicety taps and holds the target each time, after a period, the target is Disappear; the device completes the calibration process and backs to the Device Settings menu.

Carefully press and briefly hold stylus on the center of the target. Repeat as the target moves around the screen.

Now calibration settings have been measured. Tap the screen to register saved data. Start for 30 seconds to cancel saved data and keep the current setting. Time limit : 28 sec.

USB Mode

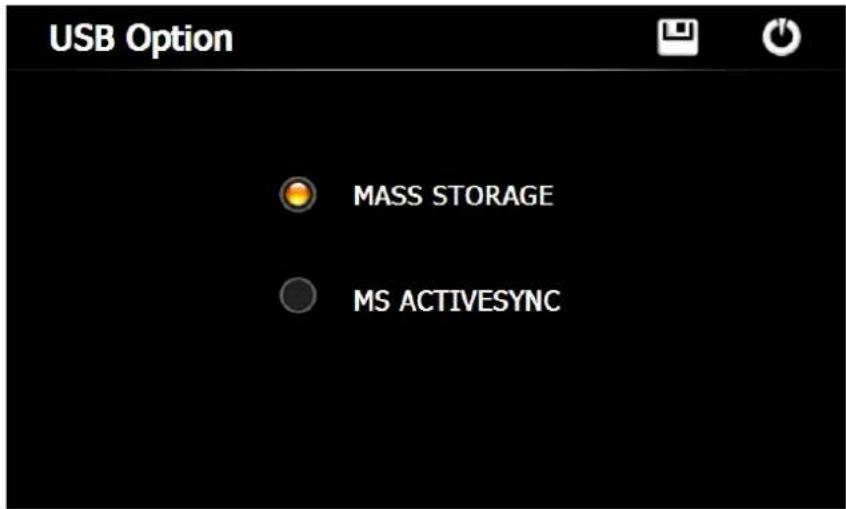

Tap the [USB Mode] button on the Device Settings menu. The Connection Function menu appears as shown below.

2013/10/11 11:28 VOLUME BACKLIGHT TIME LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

Select the USB setting to be [USB Mass Storage] or [ActiveSync] mode.

Tap the 📁 button to save the settings. Tap the 📁 button to go back to the previous page.

USB Option MASS STORAGE MS ACTIVESYNC

Navi. Path

Tap the [Navi.Path] button on the Device Settings menu. The navigation setting function menu appears as shown below.

You can save other map files to this device or to the SD card. Use the [Navi.Path] function to select the map file that you want to use.

2013/10/11 11:28 VOLUME BACKLIGHT TIME LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

Tap the button to select the map file.

Tap the 📁 button to save the settings. Tap the 📁 button to go back to the previous page.

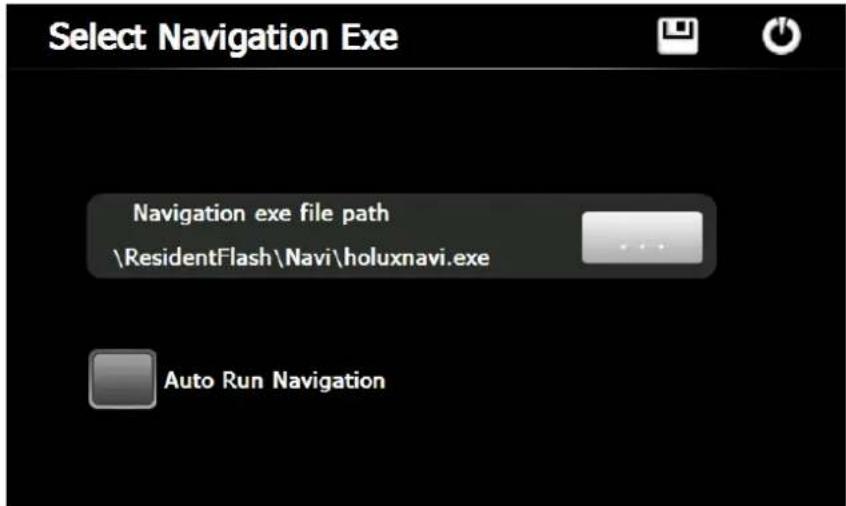

Select Navigation Exe Navigation exe file path \ResidentFlash\Navi\holuxnavi.exe Auto Run Navigation

System Info

Tap the [System Info] button on the Device Settings menu. The System Information appears as shown below.

After accomplishing, tap the knob ⏻ to exit.

2013/10/11 11:28 VOLUME BACKLIGHT TIME Aあ LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

SystemInfo RomVersion: 84.PM.D.NE-5.020131122 Software Version: V2.0.13.12.18 OEM Info: Platform ID: 5946504E44383243 Device ID: 9A3C513A7878E089 RAM: 81.1 MB/128.0 MB Flash: 2.62GB/4.00GB SDCard ID: 03259338

Reset Device

Tap the [Reset Device] button on the Device Settings menu. The default function menu appears as shown below.

Select [Yes] to load factory default settings; [No] to exit.

2013/10/11 11:28 VOLUME BACKLIGHT TIME Aあ LANGUAGE CALIBRATION USB MODE NAVI. PATH SYSTEM INFO. RESET DEVICE

Applications

To open the Device 📄 Applications menu, first tap the Applications button on the main menu.

09:36 MEDIA HOLUX GPS NAVIGATION APPs SETTING 2013/10/11 11:28 CALCULATOR SNAKE GOBANG

The Device Applications menu appears as shown above. The following sections describe these buttons and their functions.

You can use the device applications such as calculator and game.

Press button to return to main menu.

Calculation

Tap [Calculator] on the main screen to enter Calculator screen as below.

You can do general computing and numerical operations.

Calculator 0. MC 7 8 9 / sqrt BACK MR 4 5 6 * % CE MS 1 2 3 — 1/X C M+ 0 +/- . + =

Tap the knob ⏻ to exit.

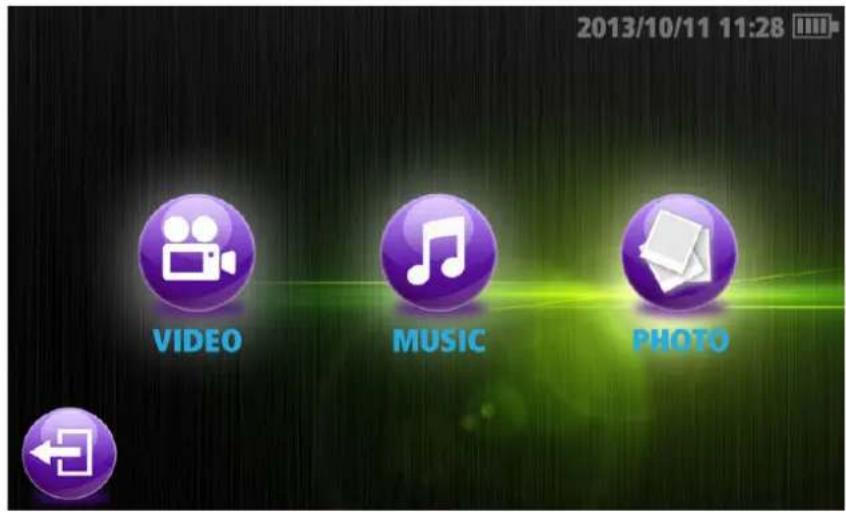

Media

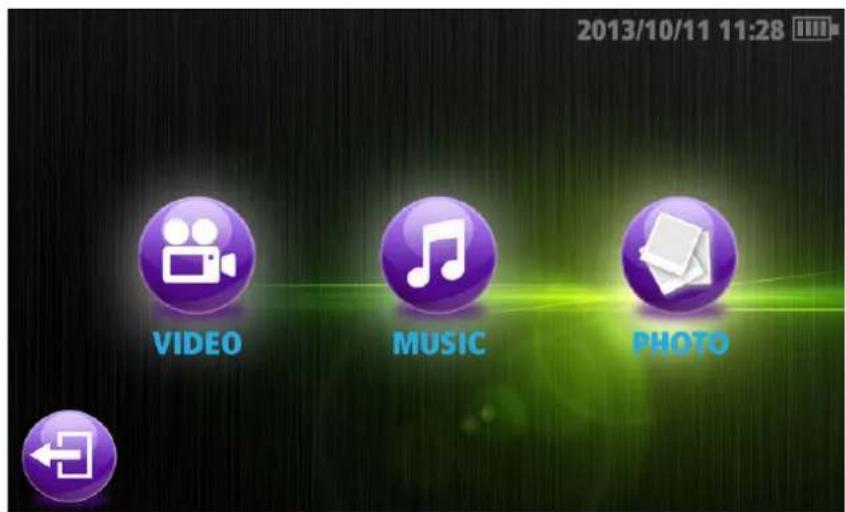

To open the Device 🏠 Applications menu, first tap the Applications button on the main menu.

09:36 MEDIA HOLUX GPS NAVIGATION APPs SETTING 2013/10/11 11:28 VIDEO MUSIC PHOTO

The Device Media menu appears as shown above. The following sections describe these buttons and their functions.

You can use the play media function such as video, music and photo.

Press button to return to main menu.

Video

Tap the [Video] button on the media screen to enter video page.

2013/10/11 11:28 VIDEO MUSIC PHOTO

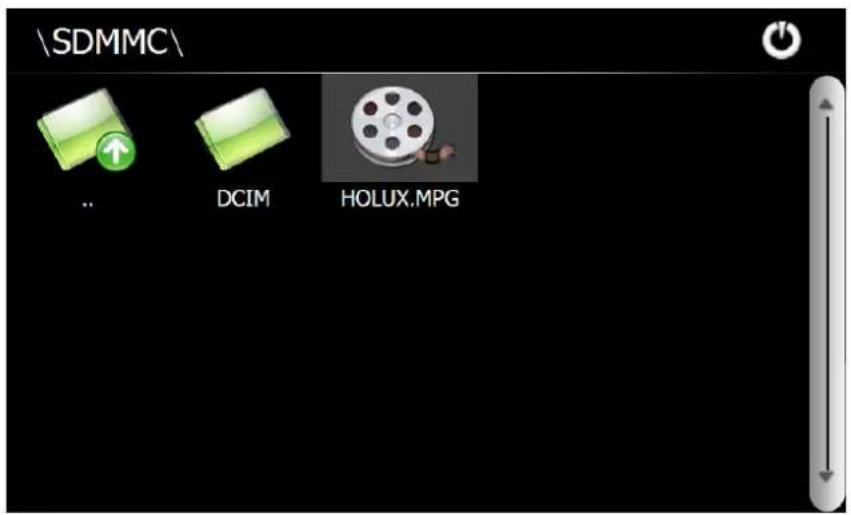

Tap the button to select the video file as below.

\SDMMC\ DCIM HOLUX.MPG

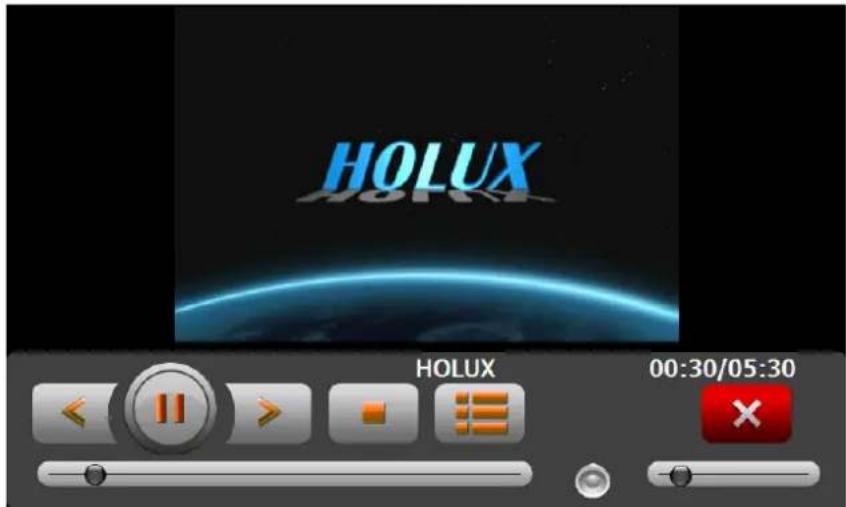

Open a video file by taping a file name you need. The control panel appears at the bottom of the screen where you can easily control the player by tapping the control buttons, such as play, pause, stop, next and previous, progress bar, volume control, repeat, and close.

HOLUX HOLUX HOLUX 00:30/05:30

Double-Tap anywhere enters to full screen. In full screen, all buttons disappear, include Play list. Double-Tap anywhere on the full screen to switch back to the standard screen, all buttons will be appeared.

HOLUX HOLUX

Control button lists

Control Button Description
	Play Play the playback.
	Pause Pause playing
	Stop Stop playing
	Exit the video player	Stop playing, and return to [Media] page.
	Previous/ Next	Play the previous or next file.
	Video file list	Select video file.
	Volume Increase or decrease the volume.

Music

Tap the [Music] button on the media screen to enter music page.

2013/10/11 11:28 VIDEO MUSIC PHOTO

Tap the button to select the music file as below.

Music List File List SDMMC ResidentFlash Play List 10-彼得潘 12-不朽 01-taylor swift-state of grace 02-taylor swift-red

Note: This device supports .WMA file formats only.

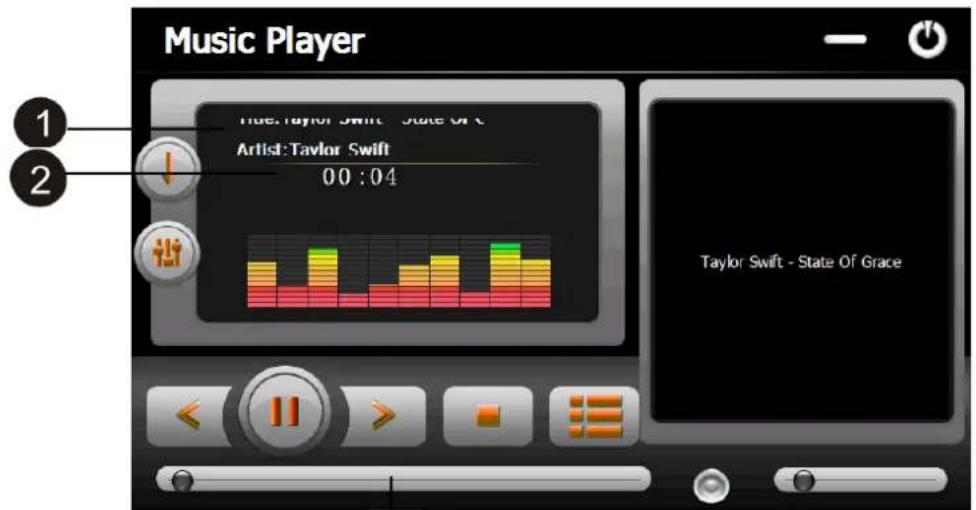

Open a music file by taping a file name you need. The control panel appears at the bottom of the screen where you can easily control the player by tapping the control buttons, such as play, pause, stop, next and previous, progress bar, volume control, repeat, and close.

Music Player artist: Taylor Swift 00:04 Taylor Swift - State Of Grace

3

Control button lists

Control Button Description
	Play Play the playback.
	Pause Pause the playback.
	Previous/ Next Play the previous or next file.
	Play single song	Play current song and then stop.
	Play all songs Play all songs and then stop.
	Loop play Repeat and play all songs continuously.
	Randomly play Play all songs randomly.
	Reduce page	The music keeps play, and return to the [Music] page.
	Exit the audio player	Close the music player, and return to the [Music] page.
	Volume	Increase or decrease the volume.
	Song name	Shows the file of the current file
	Play Time Play Time
	Total Time Total Time


Tap the [Photo] button on the media screen to enter photo page.

2013/10/11 11:28 VIDEO MUSIC PHOTO

Tap the button to select the photo file as below.

\ResidentFlash\Navi\Photo\ .. Photo_PPG01... Photo_PPG02... Photo_PPG03... Photo_PPG04... Photo_PPG05... Photo_PPG06... Photo_PPG07... Photo_PPG15... Photo_PPG17...

Note: This device supports .jpg and .bmp file formats.

Tap one of the photo files, the system opens photo menu and shows the selecting photo.

Blooming cherry blossom branches against a clear blue sky, with no visible text or symbols.

Control button lists

Control Button Description
	Previous/ Next Play the previous or next file.
	Zoom in/out	Zoom in/ zoom out the photo screen
	Rotate photo	Rotate a photo clockwise 90° or counter-clockwise 90°.
	Slide Show	Slide show is to play photos automatically.
	Exit the photo player	Stop playing, and return to [photo] page.

GPS

Tap the [GPS] button to into GPS Receiver page.

This page is for information only. You can view the number of satellite signals t he unit is receiving and also the strength of these signals.

The compass circle shows the satellites that the unit is receiving and the bar chart below shows the strength of the signal from each of these satellites.

09:36 MEDIA HOLUX GPS NAVIGATION APPs SETTING

Tap the knob ⏻ to exit.

Troubleshooting

Power Problems
Power does not turn on when using battery power	The remaining battery power may be too low to run your device. Connect the AC adapter to your device and to AC power. Then, turn on your device.
Screen Problems
Screen is off ● If the screen does not respond even after you press the power button, try the following in order until the problem is solved.● Connect the AC adapter to your device and to external AC power.● Reset your system.
Screen responds slowly	● Make sure that your device is not running out of battery power. If the problem still exists, reset your system.
Screen freezes ● Reset your system.
Screen is hard to read	● Make sure that the backlight of the display is on.● Move to a location with more light.
Inaccurate response to taps	● Recalibrate the touch screen. (See section 3.4 for instructions.)
Connection Problems
Cable Connection Problems	● Make sure that your device and your computer are both turned on before trying to establish a connection.● Make sure that the cable is securely plugged into the USB port on your computer and on thedevice. Connect the USB cable directly to your computer do not run the cable through a USB hub.● Reset your device before connecting the cable. Always disconnect your device before you restart your computer.
GPS Problems
When there are no valid signals available, consider the following:	● Make sure that the GPS antenna has a clear view of the sky.● Note that the GPS reception can be affected by:■ Bad weather■ Dense overhead obstacles (e.g. trees and tall buildings)■ Other wireless device in the car■ Reflective car window tint

Reset System

Occasionally, you may need to reset your device. For example, you should reset your system when it stops responding; or appears to be "frozen" or "locked up.

Insert a small rod, such as a straightened paperclip, into the reset button on the bottom of your device. This is called a "soft reset." The Main Menu should appear after a soft reset.

RESET 真 Barb鍵

Maintaining Your Device

Taking good care of your device will ensure trouble-free operation and reduce the risk of damage to your device.

- Keep your device away from excessive moisture and extreme temperatures.

- Avoid exposing your device to direct sunlight or strong ultraviolet light for extended periods of time.

- Do not place anything on top of your device or drop objects on your device.

- Do not drop your device or subject it to severe shock.

- Do not subject your device to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your device. In the event of moisture condensation, allow the device to dry out completely before use.

● Take care not to sit on the device. We advise not to carry the device in one's back pocket for that reason.

- The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic screen protectors designed specifically for use on portable devices with LCD panels may be used to help protect the screen from minor scratches.

- Never clean your device with it powered on. Use a soft, lint-free cloth moistened with water to wipe the screen and the exterior of your device.

- Do not use paper towels to clean the screen.

- Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any attempt at repair could cause damage to your device and even bodily injury or property damage and will void any warranty.

- Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your device, its parts or accessories.

Regulatory Information

NOTE: Marking labels located on the exterior of your device indicate the regulations that your model complies with. Please check the marking labels on your device and refer to the corresponding statements in this chapter.

Some notices apply to specific models only.

Regulations Statements

Class B Regulations

USA Federal Communications Commission Radio Frequency Interference Statement

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential in stallation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment.

Please note:

The use of a non-shielded interface cable with this equipment is prohibited.

Canada

Canadian Department of Communications

Radio Interference Regulations Class B Compliance Notice

This Class B digital apparatus meets all requirements of the Canada Interference-Causing equipment regulations.

Products with the CE marking comply with Radio & Telecommunication Terminal Equipment Directive (R&TTE) (1999/5/EEC), the Electromagnetic Compatibility Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) as amended by Directive 93/68/ECC - issued by the Commission of the European Community.

Compliance with these directives implies conformity to the following European Standards:

EN301489-1: Electronic compatibility and Radio spectrum Matters (ERM), ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements EN301489-3:

Electronic compatibility and Radio spectrum Matters (ERM), ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for Short-Range Devices (SRD) operating on frequencies between 9 kHz and 40 GHz

En55022: Radio disturbance characteristics

EN55024: Immunity characteristics

EN6100-3-2: Limits for harmonic current emissions

EN6100-3-3: Limitation of voltage fluctuation and flicker in ow-voltage supply system

En60950 / IEC 60950: Product Safety

The manufacturer cannot be held responsible for modifications made by the User and the consequences thereof, which may alter the conformity of the product with the CE Marking.
