Installation

Minimum System Requirement

Total FPS at CIF	2200~1400	1400~1050	1050~550	550~
CPU	Intel Core I7	Intel Core I5	Intel Core 2 Quad Q9400	Intel Core 2 Duo E5300
RAM	2GB	2GB	2GB	1GB
Motherboard	Intel 55 or 57 chip or above, MB vendor Asus, Gigabyte or Intel with Intel Chipset recommended		Intel 35 or 33 chip or above, MB vendor Asus, Gigabyte or Intel with Intel Chipset recommended
Display	ATI Radeon 4650 , nVIDIA GeForce GF-9600 or above (ATI recommended)
Ethernet	100 baseT or above, Gigabit LAN recommended
Hard	250 GB or above
OS	MS Windows XP pro SP3 / Vista SP1/ Win 7

Parameter definition: For IP network camera

S= M*N

M: parameter of resolution of IP camera

N: FPS of Camera

Resolution	5M	3M	2M	1M	VGA/D1	CIF
Value of M	37	27	22	14	3	1

For example: 8 channels system

a) 1 camera at 1 Mega-pixel resolution with 10FPS
b) 2 cameras at D1 resolution with 15FPS
c) 5 cameras at CIF resolution with 30FPS

Answer:

a) M=14; N=10, S=14*10=140. b) M=3; N=15, S=3*15=45 c) M=1; N=30, S=1*30=30

S of All Cam. = 1*140+2*45+5*30=380

Therefore, the Minimum Hardware Requirement is A level.

Parameter definition: For Capture card

S=M^*N+P

P: parameter of capture card

For FCS-8004: P = 60, FCS-8005v1: P = 60, FCS-8006: P = 120

For example: 16 channel system

a) 1 camera at 1 Mega-pixel resolution with 10FPS
b) 2 cameras at D1 resolution with 15FPS
c) 5 cameras at CIF resolution with 30FPS
d) 8 cameras with 2pcs FCS-8006

a) M=14; N=10, S=14*10=140 b) M=3; N=15, S=3*15=45

c) M=1; N=30, S=1*30=30 d) P=120

S of All Cam.=1*140+2*45+5*30+2*120=620

Therefore, the Minimum Hardware Requirement is B level.

LevelOne IP CamSecure

Install IP camera(s)

Step 1: Set up the IP camera referring to the quick installation guide provided.
Step 2: Check the network between the IP camera and the system.
Step 3: Add the IP camera to the system. See details on later pages.

Install capture card(s)

Step1: Insert the card onto an empty PCI slot. Connect the Audio/Video Cable to the connector in the same color.

Step 2: Turn on your PC and start Windows.

Step 3: Insert the included Software CD into CD-ROM.

Step 4: Run SetupDrv.exe from the CD-ROM driver/ directory to install the Capture Card driver.

Step 5: Run dxdiag.exe from start menu 'Start->Run' to check your DirectX version. If the installed version is less than 9.0, install DirectX 9.0 from the CD-ROM directx9/ directory.

Step 6: After driver being installed, restart your PC.

INSTALLATION

LevelOne IP CamSecure

The Installation CD contains the software you need to run the complete system. If you are installing the system on multiple PCs, install the appropriate software for each PC:

LevelOne Network Camera LevelOne Network Camera Install Software QiG User Manual Install Adobe Reader Explore the CD Exit LevelOne Network Camera LevelOne Network Camera Device Search IP CamSecure (64CH) IP CamSecure Pro (trial) Back Copyright © 2011 Digital Data Communications Co. Ltd. All rights reserved. LevelOne level one level One one world_one brand_one level level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One level One

• Server Application: All functions of IP CamSecure systems including MainConsole, Playback, Remote Live Viewer, Backup, and Verification Tool.
• Remote Desktop Tool: The tool to access main console and setup configuration remotely.
• PDA Client: Client application in PDA device.
• Smart Phone Client: Client application in smart phone device.
• iPhone Client: Client application in iPhone, iPod touch, and iPad. Requires iOS 3.0 or later

The following section describes the installation of each element of the Intelligent Surveillance System.

IP CamSecure Installation

Step 1: Insert the Installation CD. Run autorun.exe from the CD-ROM directly to start the installation.

LevelOne Network Camera level one LevelOne Network Camera Install Software QIG User Manual Install Adobe Reader Explore the CD Exit LevelOne Network Camera level one Device Search IP CamSecure (64CH) IP CamSecure Pro (trial) Back Copyright © 2011 Digital Data Communications Co., Ltd. All Rights Reserved. LevelOne Network Camera level one Device Search IP CamSecure (64CH) IP CamSecure Pro (trial)

Step 2: The setup page should be loaded automatically. If it does not, please select your CD-ROM drive manually to open the setup page. Click "IP CamSecure" to initiate the installation.

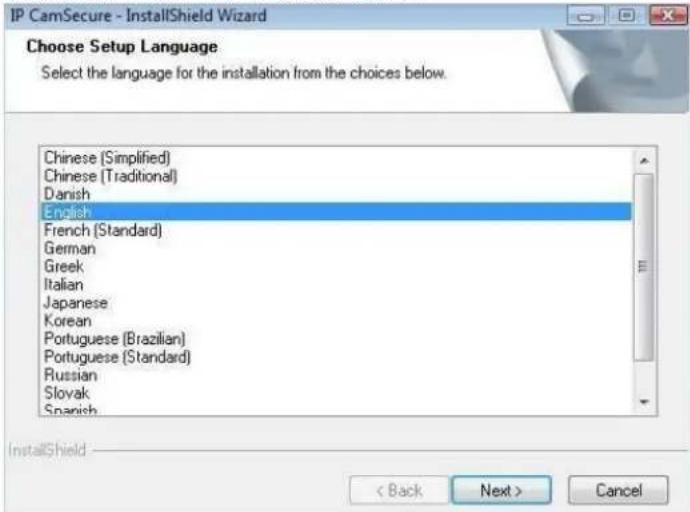

Step 3: Select the language for installation from the choices below

IP CamSecure - InstallShield Wizard Choose Setup Language Select the language for the installation from the choices below. Chinese (Simplified) Chinese (Traditional) Danish English French (Standard) German Greek Italian Japanese Korean Portuguese (Brazilian) Portuguese (Standard) Russian Slovak Spanish InstallShield < Back Next > Cancel

Note: if you want to install Farsi or Hebrew, please select English for language.

After installation is finished, run LangPackFAR.exe for Farsi or LangPackHEB.exe for Hebrew from the language pack folder in CD-ROM directory to install.

LevelOne IP CamSecure

Step 4: Select Next to continue.

IP CamSecure - InstallShield Wizard Welcome to the InstallShield Wizard for IP CamSecure The InstallShield® Wizard will install IP CamSecure on your computer. To continue, click Next. (Back Next) Cancel

Step 5: Check the option I accept the terms of the license agreement, select Next to continue.

IP CamSecure - InstallShield Wizard License Agreement Please read the following license agreement carefully End User License Agreement ("EULA") Do not install or use the software until you have read and accepted all of the license terms. Permission to use the software a conditional upon your agreeing to the license terms, installation or use of the software by you will be deemed to be acceptance of the license terms. Acceptance will bind you to the license terms in a legally enforceable contract with Digital Data Communications Asia Co. Ltd. * SOFTWARE LICENSE AND LIMITED WARRANTY This is an agreement between you, the end user, and Digital Data Communications Asia Co. Ltd. ("DDCA"). By using this software, you agree to become bound by the terms of this agreement. ● I accept the terms of the license agreement ○ I do not accept the terms of the license agreement Print < Back Next > Cancel

Step 6: Enter the appropriate information, select Next to continue.

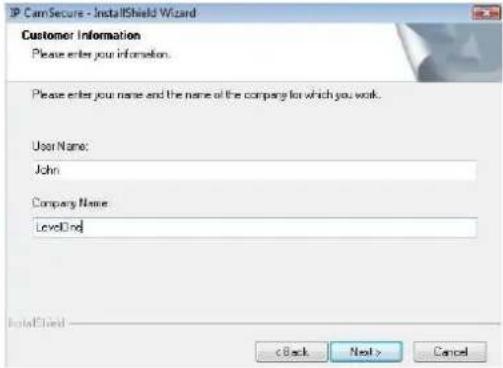

IP CamSecure - InstallShield Wizard Customer Information Please enter your information. Please enter your name and the name of the company for which you work. User Name: John Company Name: LevelDnd InstallShield < Back Next > Cancel

Step 7: Choose Complete or Custom setup type.

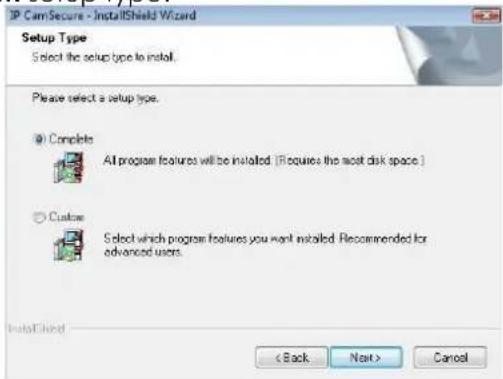

IP CamSecure - InstallShield Wizard Setup Type Select the setup type to install. Please select a setup type. Complete All program features will be installed (if requires the most disk space.) Custom Select which program features you want installed. Recommended for advanced users. InstallShield < Back Next > Cancel

COMPLETE SETUP TYPE

LevelOne IP CamSecure

Installs all program features into the default directory.

Check Complete, and then select Next. All program features will be installed. [COMPLETE SETUP requires the most disk space.]

CUSTOM SETUP TYPE

Allows you to install the system to a preferred directory and select whichever program feature(s) to install. [Recommended for advanced users]

Check Custom, and then select Next.

Select Change if you wish to modify the installation directory.

Select the feature(s) for setup to install, select Next.

IP CamSecure - InstallShield Wizard Select Features Select the features: setup will install. Select the features: you want to install, and deselect the features: you do not want to install. ✓ Scan Console ✓ Playback ✓ Unlock ✓ Backup ✓ Verification Description The main control console of the IP CamSecure. 220.83 MB of space required on the C drive 2237.00 MB of space available on the C drive InstallDirect < Back Next > Cancel

IP CamSecure - InstallShield Wizard Choose Destination Location Select folder where setup All install files. Install IP CamSecure to C:\Program Files\LevelOne\IP\CamSecure Change... InstallShield < Back Next > Cancel

Step 8: Select Install to start the installation.

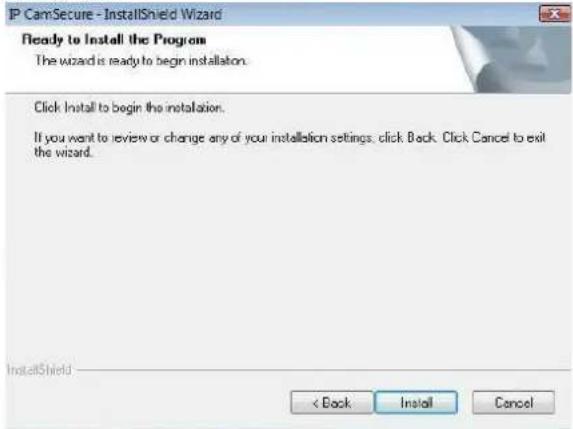

P CamSecure - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click Install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. InstallShield < Back Install Cancel

Step 9: Select Finish, installation complete.

IP CamSecure - InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed IP CamSecure. Click Finish to exit the wizard < Back Finish Cancel

LevelOne IP CamSecure

Remote Desktop Tool

Remote Desktop Tool allow user remote to access Main Console System and setup configuration.

Step 1: Insert the Installation CD. Run autorun.exe from the CD-ROM directly (LevelOne-Pro-1.xx.x/RemoteDesktopViewer) to start the installation.

Step 2: Select Remote Desktop Tool.

Step 3: In the InstallShield Wizard dialog box, click Next to continuous.

Remote Desktop Viewer - InstallShield Wizard Welcome to the InstallShield Wizard for Remote Desktop Viewer The InstallShield Wizard will install Remote Desktop Viewer on your computer. To continue, click Next OK Next Cancel

Step 4: Check the option I accept the terms of the license agreement. Select Next.

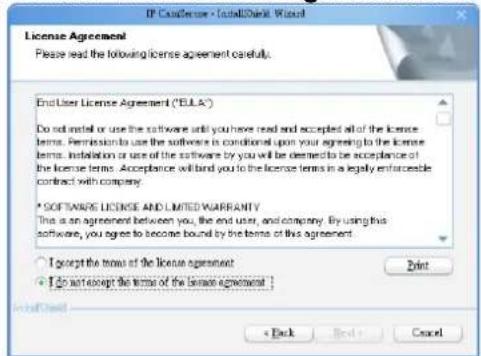

IP Customer - TotalBank Wizard License Agreement Please read the following license agreement carefully. End User License Agreement ("EULA") Do install or use the software until you have read and accepted all of the license terms. Permission to use the software is conditional upon your agreeing to the license terms. Installation or use of the software by you will be deemed to be acceptance of the license terms. Acceptance will bind you to the license terms in a legally enforceable contract with company. * SOFTWARE LICENSE AND LIMITED WARRANTY This is an agreement between you, the end user, and company. By using this software, you agree to become bound by the terms of this agreement. I accept the terms of the license agreement. I do not accept the terms of the license agreement. Print < Back Next > Cancel

Step 5: Enter your information, select Next.

IP Consenee - InstallShield Wizard Customer Information Please enter your information. Please enter your name and the name of the company for which you make. User Name: Test User Company Name: Test Computer < Back Next > Cancel

LevelOne IP CamSecure

Step 6: Select Complete or Custom setup type.

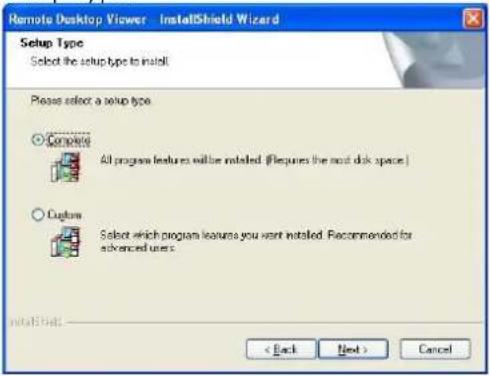

Remote Desktop Viewer - InstallShield Wizard Setup Type Select the setup type to install Please select a setup type Complete All program features will be installed. (Requires the most disk space) Capture Select which program features you want installed. Recommended for advanced users. < Back Next > Cancel

COMPLETE SETUP TYPE

Install all program features into the default directory.

Check Complete, and then select Next. All program features will be installed. [Requires the most disk space.]

CUSTOM SETUP TYPE

Install the system to a preferred directory. Select program feature(s) to install. [Recommended for advanced users]

Check the option Custom, select Next.

Select Change to select folder setup will install files.

Select the features setup will install.

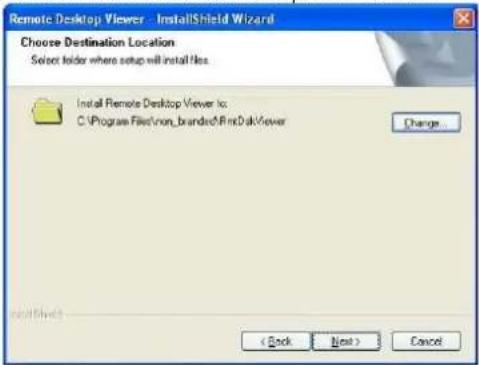

Remote Desktop Viewer - InstallShield Wizard Choose Destination Location Select folder where setup will install files. Install Remote Desktop Viewer to: C:\Program Files\non_branded\FindDak\ viewer Change... < Back Next > Cancel

Remote Desktop Viewer - InstallShield Wizard Select Features Select the features setup will install. Select the features you want to install, and do select the features you do not want to install. ✓ Remote Desktop Viewer Description 3.01 MB of space required on the C drive 3368.95 MB of space available on the C drive < Back Next > Cancel

Step 7: Select Install to start the installation.

Remote Desktop Viewer - InstallShield Wizard Ready to Install the Program The wizard is ready to begin installation. Click install to begin the installation. If you want to review or change any of your installation settings, click Back. Click Cancel to exit the wizard. < Back Install Cancel

LevelOne IP CamSecure

Step 8: Select Finish after installing the system completely.

Remote Desktop Viewer - InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed Remote Desktop Viewer. Click Finish to exit the wizard. LevelOne IP CamSecure

DVR Driver Installation

Driver Install Tool help user to auto detect type of capture card and install corresponding drivers. Step 1: Insert the Installation CD. Run InstallDri.exe from the CD-ROM directly to start the installation. Step 2: In the Driver Setup dialog box, select Next.

CaptureCardDrivers Setup Welcome to the CaptureCardDrivers Setup Wizard This wizard will guide you through the installation of CaptureCardDrivers. It is recommended that you does all other applications before starting Setup. This will make it possible to update relevant system files without having to reboot your computer. Click Install to start the installation. Install Cancel

Step 3: Check I Agree to continue.

CaptureCardDrivers Setup License Agreement Please review the license terms before installing CaptureCardDrivers Press Page Down to see the rest of the agreement. End User License Agreement ("EULA") Do not install or use the software until you have read and accepted all of the license terms. Permission to use the software to conditional use your agreeing to the license terms. Installation or use of the software by you will be deemed to be accordance of the license terms. Acceptance will bind you to the license terms in a legally enforceable contract with company. * SOFTWARE LICENSE AND LIMITED WARRANTY This is an agreement between you, the end user, and company. By using this software, If you accept the terms of the agreement, click I Agree to continue. You must accept the agreement to install NULUDriver. < Back 1 Agree Cancel

Step 4: Installing driver.

CaptureCardDrivers Setup Installing Please wait while CaptureCardDrivers is being installed. Execute: "DetectCardUsers" PCI/WR_19996DEV_A800 Show details < Back Next > Cancel

Step 5: Click Finish after installing the system completely, and then choose to reboot now or later.

CaptureCardDrivers Setup Completing the CaptureCardDrivers Wizard Your computer must be restarted in order to complete the installation. Do you want to reboot now? ● Reboot now! ○ I want to manually reboot later Back Finish Cancel

LevelOne IP CamSecure

PDA Client Installation

Step 1: Connect PDA device to the PC. Step 2: Insert the installation CD, click PDA Client Installation from the CD-ROM directly (LevelOne-Pro-1.xx.x/PDA\_Client) to automatically install the client application in device. Note: If you do not have Microsoft® ActiveSync installed, a message will appear "Cannot find ActiveSync, install ActiveSync and run installation again". Step 3: Check that the client application is installed completely in PDA device.

PDA Client.CAB was successfully installed on your device. If you need more storage space, you can remove installed programs.

LevelOne IP CamSecure

Smart Phone Client Installation

Step 1: Connect Smart Phone device to the PC. Step 2: Insert the installation CD, click Smart Phone Client Installation from the CD-ROM directly (LevelOne-Pro-1.xx.x /SP\_Client) to automatically install the client application in device. Note: If you do not have Microsoft® ActiveSync installed, a message will appear "Cannot find ActiveSync. Please reinstall ActiveSync and then run this installation again." Step 3: Check the client application is installed completely in smart phone device.

Installation successfully installed on your device. If you need more storage space, you can remove installed programs. Done

LevelOne IP CamSecure

iPhone Client Installation

Requirements: Compatible with iPhone, iPod touch, and iPad. Requires iOS 3.0 or later

Main console

Step 1: To see live view on your iPhone, you must enable live streaming service in main console.

1.) Go to network services


Setting User Account Setting License Manager Save/Load Configuration Video Source Counting Application POS Application Log Viewer Backup Network Service Help About MainConsole...

2.) Start Live Streaming


Network Service - 192.168.1.25 Live Streaming Remote Playback 3GPP Service Remote Desktop Central Management Main | Black / White List | Performance | Client Count 0 KIIL KIIL All State IP Camera Bitrate (Kbps) Service Start Stop Server Status: Stopped Options Port: 5150 Default Maximum Connections: 128 ✓ Use Default Web Server Port: 8080 ✓ Save Log LiveServer.log ✓ Enable Audio ✓ OK Cancel

3.) Besides the two points above, please also make sure in stream profiles, the lowest and the minimum profiles are both Mjpeg. The 1x1 grid layout uses profile Low and the 3x2 uses profile Minimum LevelOne IP CamSecure

Stream Profile Setting Camera 1 Stream Profile Format Frame Rate Resolution Quality Bitrrate (kbps) H.264 H264 10 CIF Normal - High MPEG4 30 CIF High - Normal PPEG4 15 CIF Normal - Low MPEG 5 CIF Low - Minimum MPEG 3 QIF Low - Options Video format: MUPEO Frame rate: 5 Resolution: CIF ● Quality Low ○ Citrate 50 Hbps Default Real Size No Video Copy to... OK Cancel

iPhone

Please go to iTunes store (AppStore on iphone) to download Level1 iCamSecure 1.) Open AppStore

中華電信 16:20 57% App Store Contacts Messages Phone Safari

3.) Install iCamSecure

中華電信 16:22 55% Search Info level one iCamSecure No Ratings INSTALLED LevelOne iCamSecure is a totally free app that enables you to monitor remotely live video camera through LevelOne IP CamSecure Surveillance Pro Mega Systems. Easily view multiple cameras via 3G or Wi-Fi. Snapshots, touch screen P/T/Z control and I/O device management are also supported. Main Features: 1. 6 channels live view display at QCIF resolution 2. Single channel live view display at CIF resolution 3. Snapshots 4. Touch Screen P/T/Z Control 5. Supports Preset Point 6. Supports Digital Input/Output Supported Systems: Compatible with LevelOne IP CamSecure Pro Mega (4/8/16/25/36/64-CH) surveillance management systems.

2.) Search for iCamSecure

icamsecure levelOne iCamSecure No Ratings iTunes Store Terms and Conditions...

4.) Run iCamSecure and input server info

Cancel Name Save Levelone Server Address 192.168.6.4 Server Port 5150 Username admin Password ●●●●●

iPhone Screenshots LevelOne IP CamSecure

Back Airport PTZ SnapShot


Sites LevelOne Transportation City Hotel Office Community Security

Notes: if use free bundle IP CamSecure software, it only support 1-CH remote live view, if you want to select different cannel, it must to change the server's setting.. LevelOne IP CamSecure

Quick Start

Execute Main Console

Step 1: Go to Start > All Programs > Surveillance System > Main Console to execute Main Console. Step 2: Enter your own password into the edit box, enter it again for double confirm and then click on OK.

Login IP CamSecure Please enter user name and password User Name: admin Password: ✓ OK ✗ Cancel

Activate IP Camera License(s)

Step 1: Open License Manager Tool in Config menu. Step 2: Select Activate tab, check the PC in Online network environment. Step 3: Insert the SN, SN file or dongle to activate license. Step 4: After software license is activated successfully, please restart Main Console. Note: Please refer to page 119 for advanced settings.

License Management Tool Activate Transfer SN Channel Product Status Step2 Activate type: Online Online Input type: SN SN file: Import offline license File path: Activate Import Exit Schedules Guard About MainConsole... Step 3 inSecure Lite is free and with LevelOne IP camera feature Card.

\*\*IP CamSecure Lite is free bundled with LevelOne IP camera and Capture Card. \*\* IP CamSecure professional version is available upon purchase. While using IP CamSecure Pro v1.20 or later, please input the serial number as a license key to register on internet.

LevelOne IP CamSecure

Install IP camera(s)

Step 1: Setup the IP camera(s) by referring to the user manual provided by the IP camera manufacturer. Step 2: Make sure you can access this camera through IE browser. Step 3: Add the IP camera(s) to the system by following the steps below.

Add IP camera(s)

Step 1: Execute Main Console. Step 2: Type in user name and password and log in to the system. Step 3: In Main Console, go to Config and select Setting to obtain the Setting panel. Step 4: Go to Camera tab. Note: If the IP camera supports UPnP, follow step 5. Otherwise, follow step 8. Step 5: Click on Search to detect IP cameras under this local area network (LAN). Note: The Search function is available only when the IP cameras support UPnP. Step 6: Select one of the IP cameras that are available and enter the username and password. Step 7: Click OK to add the camera. Step 8: Click Insert to insert the IP cameras. Step 9: Enter the IP address or domain name (check the Use DNS option), Http Port, Username, and Password. Step 10: Select Auto Detect. Step 11: Select OK to add the camera. Step 12: Select OK to exit.

Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service About MainConsole... Schedule Guard


Search IP Camera Device Found: IP Vendor Model MAC 102.168.1.13 LevelOne FCS-5011 08-46-75-03-00-06 102.168.1.42 Panasonic BL-C19 08-06-95-36-05-05 102.168.1.130 LevelOne FCS-4003 08-46-75-03-06-13 102.168.1.97 LevelOne WCS-2010 08-12-68-00-44-71 102.168.1.90 LevelOne FCS-1919 08-12-68-83-44-69 102.168.1.60 ANS 3307 08-46-87-73-47-25 102.168.1.93 LevelOne FCS-3803 08-12-68-88-34-05 102.168.1.98 LevelOne FCS-1949 08-12-68-89-47-51 102.168.1.92 LevelOne WCS-2030 08-12-68-85-33-28 102.168.1.94 LevelOne FCS-1929 08-12-68-89-26-10 IP Camera Option: Camera Name: LevelOne FCS-50 11(192.168.1.131) User Name: Password: OK Cancel

Step 5 Step 4

File Edit View Insert Tools Help C:\Users\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\My Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nMy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Documents\nmy Statements


Step 8 IF Camera/Video Server Setting Network Name: IP Address: Http Port: 80 User Name: Password: Protocol TCP UDP HTTP Device Vendor: ACTI Camera Model: SED2100 Camera: 1 2 3 4 5 6 7 8 Auto Detect Description Video Code:MPEG4 Audio Code:N/A Camera:1, D12, D0:2 OK Cancel

Step 9

Step 10

Step 11

LevelOne IP CamSecure

Set Schedule

Step 1: Execute Main Console. Step 2: Type in user name and password. Step 3: Select Schedule. Step 4: The default schedule is "always record" when a camera is newly inserted. Step 5: Choose a camera and then select Configure or just double click on the schedule bar to modify the recording mode. Step 6: Select OK to update the recording schedule. Step 7: Select OK to go back to Main Console.

Set Smart Guard

Step 1: Execute Main Console. Step 2: Type in user name and password and log in the system. Step 3: Click on Guard. Step 4: Select a camera and then click on Insert Event. Step 5: Take "General Motion" for example, select General Motion as the event type and then click on OK. Step 6: In Alarm Event Configuration panel, define your own detection zone, sensitivity and interval. After that, click on OK to save the configuration. Step 7: Click OK to go back to Main Console.

Start Build Back Schedule Start Config Step 3


Step 4 Step 5


Start Programs Scrubs Start Copy Software Base Ctrl Controls Step 3


Step 4


Step 5


Smart Travel Components Source: Adjusted Source: Destination Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination: Destination:

Start Recording & Smart Guard

Step 1: Execute Main Console. Step 2: Type in user name and password and log in the system. Step 3: Click on Start. Step 4: Click on Start Recoding Schedule and Start Smart Guard System to enable the two functions.

Playback

Step 1: Execute Main Console. Step 2: Type in user name and password and log in the system. Step 3: Click on Playback. Step 4: In Playback, click on Date Time Search Dialog. Step 5: Select a specific day from the calendar and click on Show Records to make sure the video is available, left click on mouse and drag to select a video clip to replay; user can also select multiple channels to replay at the same time. Step 6: The recorded files are now ready to view.

DateTime Search Dialog - [Local Machine] Date Time Period Start Time: 2008/7/8 2015/09 End Time: 2008/7/8 2016/09 Video Preview Enable Preview 2009/07/08 20:15:11 Color Event Type General Motion Foreign Object Missing Object Focus Left Camera Block Signal Lost Show Records Show Event Log 07/08 AVIS 07/08 AVIS 207/08 Record Always Record on Motion Record on Event OK Cancel Step 5 Step 4 2009/07/14 STOP SPEED ZOOM


LevelOne IP CamSecure Step 3 Start Monitor All Start Recording Schedule Start Smart Guard System Start Counting Application Enable Secondary Disaster Open Event Report Lock System Config Step 4 Step 3

1. Main Console


level one IP CamSecure 2010/12/10 11:20:38 admin Free: 37.8 GB

This is the main operating system - to activate schedule recording, setup smart guard and configure system setting.

1.1 User Interface Overview

LevelOne IP CamSecure

Information Window Exit Minimize Screen Division Exit:

Shut down the Surveillance System or log out current user.

Minimize:

Minimize the Main Console window.

Screen Division:

Allocate the sub-screen display by clicking on the desired layout icon. To switch to single camera display, double click on a particular sub-screen. Double click on the screen again to regain previous screen division layout.  Divide into 1 screen(s)  Divide into 4 screen(s)  Divide into 6 screen(s)  Divide into 9 screen(s)  Divide into 10 screen(s)  Divide into 13 screen(s)  Divide into 16 screen(s)  Divide into N screen(s)  Divide into 13 screen(s)  Divide into 17 screen(s)  Switch to Full screen  Rotate all screens Only available under wide screen resolution(1440x900, 1680x1050, 1920x1080, 1920x1200):  Divide into 4 screen(s)  Divide into 6 screen(s)  Divide into 9 screen(s)  Divide into 12 screen(s)

Crystal Ball

Indicate the working status of the system. Gray – at rest, Blue - recording, and Red – events detected. When the crystal ball is red, click it to open the event report then cancel the event(s).

Information Window

Display date, time, free Disk space, IP Camera Bit rate customized text and Further information like Temperature, Fan speed, System Resource and Network Utilization. 5 network service icons indicate which services are switched on/off.

	LiveView		Playback		3GPP		Desktop		CMS
Start						[4025]
Stop

LevelOne IP CamSecure

Note: To customize Information about window's setting, go to Config - Setting - General - Status Display. Select Advanced Setting for further information like Temperature, Fan speed, System Resource and Network Utilization.

Start Start Monitor All Start Recording Schedule Start Smart Guard System Start Counting Application Enable Secondary Display Open Event Report Open E-Map Open Resource Report Open I/O Control Panel Lock System Playback Schedule Guard Config

Start:

Click on the Start icon and select from the drop down menu to activate/deactivate: (a) Recording Schedule System, (b) Smart Guard System, or (c) Counting Application. Or select Start/Stop Monitor All to activate/deactivate all the functions at once. The Start menu also include the option to Enable Secondary Display, and open monitor tools, such as open event report to monitor smart guard event; open E-map window to monitor all devices with map indicator; open Resource Report to check system status; open IO Control panel to monitor the DI/DO status and manual triggering the DO devices; or lock the system here. See page 81 for more details about secondary display.

Note:

1. When activating any of the monitor functions of Smart Guard, system would consider the current screen status as normal. Therefore, if you want to, for example, detect Missing Object, be sure the object needed to be protected is in its position at the moment you click Start button. 2. To automatically activate the Recording Schedule System, Smart Guard System and Counting Application, at the Main Console go to Config; Setting; General; Startup to setup the auto-startup functions. 3. As for Secondary Display, open event report, open E-map window, open Resource Report and open IO controls panel, Main Console will keep the behaviors as the latest status when exiting the system.

Playback:

Click on the icon to get Playback Console. You can watch recorded video, search recorded video, adjust image of the stored data, save video/pictures, print images, check log information and event records, and set up recording function configuration. See Playback on page 35 for detail.

Schedule:

Organize recording time schedule and setup recorder configuration. See Schedule on page 51 for detail.

Guard:

Add/edit type(s) of events that you want to detect; setup action(s) responding to events. See Guard on page 58 for detail.

Config:

LevelOne IP CamSecure

Select from the drop down menu to modify the general settings, user account settings, save/load configuration settings, open License Manager, edit counting application and POS application, access log viewer and backup files, or setup network services. See Config on page 70 for detail. Note: User account and License manager could only be enabled for users with administrator privilege.

level one IP CapsSecure 2016/12/10 11/20:38 admin Free: 57.8 GB Set Preset Point / Go to Preset Point Zoom Out / Zoom In PTZ Camera Control Focus Far / Auto Focus / Focus Near

1.2 PTZ Camera Control

Control the movement of PTZ cameras. With cameras that support PTZ control, you can move, zoom, patrol, adjust the focus, and set preset points of the cameras.

1.2.1 Set Preset Point / Go to Preset Point

Adjust the camera view until you are satisfied. Click on the Set icon and set up the view as the preset point 01. Adjust the camera view again and set up the preset point 02. Repeat the process until finish setting up all preset points. You can enter any names you want instead of the preset point 01, preset point 02, preset point 03..., click on the Go icon and view the result of your setting. Note: For the speed settings of PTZ camera, go to Config - Setting - PTZ Config to setup the advanced settings.

1.2.2 Zoom

Click on the + and - signs to zoom in and zoom out the view.

1.2.3 Focus

You can select to have the camera focused near or far. Click on Focus Near 📋 to focus on objects closer to the camera. Click on Focus Far 📋 to focus on objects further away from the camera. Click on Auto Focus If you want the system to decide the focus point for you.

1.2.4 Patrol

Go to Set Preset Point - Set Patrol to obtain the Patrol Setup dialog. From the left window, select the cameras that you would like to have in the patrol group. Align the cameras in order in the right window and adjust the time. Rename the group name if required. After completing the setup, check the Active option, and then click OK. Note: You can define up to four groups of auto patrol. To start or stop, click on Go to Preset Point in the Main Console, and select Start Patrol or Stop Patrol.

Patrol Setup Group 1 | Group 2 | Group 3 | Group 4 | Group Name: Group 1 Period: 5 Sec Active A V OK Cancel

LevelOne IP CamSecure

1.3 On Screen Menu

Right click on the camera screen and get the On Screen Menu, from which you can quickly adjust the setting of camera.

1.3.1 Enable Move/Area Zoom

With cameras that support PT function, click the Enable Move function to adjust the current camera's view by clicking on the display screen. To cancel this function, right click on the screen and select Disable Move. With cameras that support Area Zoom function, click the Enable Move/Area Zoom function to adjust the current camera's view by dragging a rectangle on the display screen. To cancel this function, right click on the screen and select Disable Move/Area Zoom.

1.3.2 Enable Talk

\*This feature is not available under Lite License. With cameras that support two-way audio, select enable talk to utilize the function.

1.3.3 Enable Digital PTZ

To enable the PTZ functions of the camera, select the Enable digital PTZ option. Use mouse wheel or click on the + and - signs to zoom in and zoom out on the camera, or drag a rectangle to enlarge the area. The square flashing on the video grid indicate the correspondent view ratio of the camera.

Enable Move Enable Talk Enable Digital PTZ ImmerVision Lens Setting ▶ Connect Disconnect Show Camera ▶ Duplicate Camera ▶ Delete Camera Fix Aspect Ratio Instant Playback ▶ Snapshot Manual Record Toggle Fullscreen

1.3.4 ImmerVision Lens Setting

With cameras that support ImmerVision Lens. Right click on the display screen and select the mode of lens, original, PTZ mode, Quad mode and Perimeter mode. If the lens setting set as Quad, PTZ, or Perimeter mode, the Enable Digital PTZ option would become Enable ImmerVision digital PTZ.

1.3.5 Connect/ Disconnect

Right click on the display screen and select Connect/ Disconnect to modify the connecting status of the camera.

1.3.6 Show Camera

Select the camera from the Show Camera Menu to display video on selected screen.

Note:

1. The camera list of show camera menu shows as the one in the right column of monitor display panel. 2. The change of displayed screen is only applied to the current display divisions.

1.3.7 Duplicate Camera

Select the camera from the Duplicate Camera Menu to duplicate camera video to selected screen.

Note:

1. The duplicated camera would add to the camera list of duplicate camera menu shows as the one in the right column of monitor display panel. 2. The change of display list will apply to all divisions and also the right column of monitor display.

1.3.8 Delete Camera

Click on Delete Camera to remove a camera from the display screen of the display screen.

Note:

1. The camera list of delete camera menu shows as the one in the right column of monitor display panel. 2. The settings will apply to all divisions and also the right column of monitor display.

1.3.9 Enable Digital PTZ

To enable the PTZ functions of the camera, select the Enable digital PTZ option. Use mouse wheel or click on the + and - signs to zoom in and zoom out on the camera, or drag a rectangle to enlarge the area. The square flashing on the video grid indicate the correspondent view ratio of the camera.

LevelOne IP CamSecure

1.3.10 Fix Aspect Ratio

For some special camera resolution, user can enable Fix Aspect Ratio to view original ratio video, or disable this option to stretch 3:4 to fit window.

1.3.11 Instant Playback

\*This feature is not available under Lite License. To open the Instant Playback window of the camera, select the Instant Playback option and choose the period. Refer to 1.5 Instant Playback section for detail.

1.3.12 Snapshot

Select the snapshot function to capture a specific video image frame immediately. You have the options to copy the image to clipboard or to save it. For further settings, select OSD option and POS option to export the image with date/time, camera number/name and POS text. If the digital PTZ function is enabled in display view, you can also decide Full Size or Selected Region as your snapshot region.

1.3.13 Manual Record

Start recording video by selecting manual record.

Snapshot CAM13 (Cam2) (90 x 74) CAM13 Cam2 OSD PGB Region: Selected region Save Image Copy to Clipboard Close

1.3.14 Toggle Full screen

Select to view a specific channel with full screen. Press "ESC" to go back to original window.

1.4 Live Display

Live display is flexible; you may change channels and screen divisions. Each screen division shares the same display list but has an independent display sequence. For example, when using Show/Duplicate/Delete Camera functions to edit your camera list, the same list will be available to all different screen divisions. Note: This camera list is also available at the monitor display tab from the Config/Setting window. Two monitors can have two independent lists.

Action	Current division		Other division
Show camera (add cam 1)				add to first free channel
Duplicate camera (duplicate cam 2)				add to first free channel
Delete camera (delete cam 2")				remove cam 2" and keep channel free

When using a mouse to drag and drop camera channels, the sequence change will only apply to the current division.

Original	Action	Current division	Other divisions
	Drag cam 1 to cam 4		Note change of sequence

Right click on the camera screen for the on screen menu. Here you will be able to quickly adjust settings of your camera.

LevelOne IP CamSecure

1.5 Instant Playback

\* not available under Lite License Instant Playback function allows you to play the last few minutes of any live video channel. Simply right click on Live Channel and select Instant Playback to access the recorded video.

1.5.1 Instant Playback window overview


Instant Playback Window Playback Navigation 9/24/2009 1x 9:52:35 AM CC# MC#01 Date 1 1. Cake $30 2 Apple $26 3 Cake $42 4 Cake $42 Total $134 Playback Period 9:52:35 AM - 9:53:35 AM Export Period 9:52:41 AM - 9:53:35 AM

Information Window: will show correct date and time of video. Playback Period: indicates the available play period; three options are available: 1 min, 3 min, or 5 min of video. Export Period: indicates the period of video you desire to export. Default is set as available play period. Tool: Adjust to original video resolution button: Press to adjust the video to original video resolution.  Audio button: Press to turn on / off the audio.  POS button: Press to enable / disable POS transaction data overlay.

1.5.2 The navigation of Instant Playback

The Instant Playback window allows you to browse recorded video, take snapshot images and export video with audio and POS transaction data.

To browse recorded video:

Simply click on the timeline to view the video, or use these navigation tools to control the player:    \- Play / Pause / Stop   Slow motion / Speed up control   verse [frame by frame] / Fast Forward   y Previous / Next minute video

LevelOne IP CamSecure

To take snapshots of a video clip:

Pause the video in image which you want to export and click the snapshot button. The snapshot is displayed and can be saved or copied to clipboard.

To export recorded video:

Select export period, click the export button, and setup the options of exported video. The default export video period is as playback period. To customize period, select start/end time and click on Cue In/Out from the drop-down list of button, the export period will be shown on the lower-left corner of the window.

Export Formats include:

- ASF – Format with best efficiency. [Recommended] - AVI (Microsoft Video1) – Supports Windows Media Player with Vista & XP, the quality may be poorer than recorded video by transcode. - AVI (Original Format) – faster export process, better quality on the recorded video but the export file uses VLC Player to play. (For Windows Media Player, please install additional FFDShow codec).

Note:

• The restrictions of AVI format. a. The maximum size of an AVI file is limited to 1.8 GB. b. Variation of frame rate will cause the resulting video to play slower or faster. \- If the selected video sequence uses multiple image resolutions (CIF, 2CIF, 4CIF, etc.) or multiple video format(MPEG-4, M-JPEG, H.264), the exported video sequence will create separate export files every time the resolution changes. LevelOne IP CamSecure

2. Playback


level Cne IP CamSecure 2010/12/10 停止

Watch the recorded video, view and/or search for unusual events and recorded system information. \*There is only 1 channel displayed in Playback in IP CamSecure Lite while there are up to 16 channels displayed in IP CamSecure Pro/Pro Plus simultaneously. 2.1 User Interface overview:

IP CanSecure Search Mode Screen Divisions Open Record Enhancement /Post Processing Tool Save Image Print General Setting Backup Export Video / Audio Log Viewer Exit Minimize Scroll Bar Information Window Audio Volume Control Exit: Minimize the Playback console. Exit: Shut down the Playback console.

Exit: Shut down the Playback console. Scroll bar: Indicates the status of the playing video; drag it to where you want to review. Information Window: Display time and date, video status, cue in/out time points and video playback speed. Audio Volume Control: Adjust the audio volume. Screen Division: Allocate the sub-screen display by clicking on the desired layout icon. To switch to single camera display, double click on a particular sub-screen. Double click on the screen again to go to previous screen division layout. To view in the full screen mode, right click on the screen for the Toggle Full Screen function.

Control:

 Play, Pause and Stop the video.  FWD/REV: Customize the speed on Settings panel.  Step FWD/REV: Forward/reverse frame by frame. Cue: When playing video, click on the Cue In/ Cue Out icon at where you want to set as the starting/ ending point of a saved video clip. The Cue In and Cue Out time will be displayed on the Playback Information Window once they are set.  Speed: Control the speed of the playing video.  Zoom: Zoom in and zoom out.

LevelOne IP CamSecure

On Screen Menu:

Toggle Fullscreen: Select to view cameras under full screen. Press "Esc" or right click to go back to original view. Enable ImmerVision PTZ: Adjust PTZ in PTZ mode. (Depend on device) ImmerVision Lens Setting: Select the mode of lens, original, PTZ mode, Quad mode and Perimeter mode. (Depend on device)

2010/04/16 CAM3 1111 Toggle Fullscreen Enable Immervision PTZ ImmerVision Lens Setting ✓ Original PTZ Mode Quad Mode Perimeter Mode

LevelOne IP CamSecure

2.2 Open Record / Date Time Search Dialog

Click on the Open Record / Date Time Search Dialog button withdraw the video record that you want to review.  bcess the Date-Time Panel and

2.2.1 Date Time Panel


DateTime Search Dialog [Local Machine] 七月 2009 20 29 30 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 2 3 4 5 6 7 8 Date Time Period Start Time: 2009/7/15 00:00:00 End Time: 2000/7/15 00:00:00 Video Preview ✓ Enable Preview ✓ Show Records ✓ Show Event Log Color Event Type General Motion Foreign Object Missing Object Focus Lost Camera Block Signal Lost 07/15 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Camera 1 Camera 2 Camera 3 Camera 4 Camera 5 Camera 6 Camera 7 Camera 8 Record Always Record on Motion Record on Event ✓ OK Cancel

2.2.2 Record Display Window

The record display window shows the information of the available video clips. It may show in calendar or list control view. For further details about how to modify the record display window view, see page 49. - Remote Server Site: Open Remote Playback Site Management to access local machine or set up remote playback server. Select Folder option to directly access recorded data folder or use Recent List to access previously recorded folders. Note: the Select Folder option requires password of MainConsole. \- Refresh: refresh display window Log Viewer: Accesses Log

Local Machine Recent List Select Folder... Remote PC 1 (192.168.1.100) Remote PC 2 (192.168.1.101) Remote PC 3 (192.168.1.103) Remota PC 4 (192.168.1.103)

Viewer Tool To access POS Search Tool Previous Days: Show recording of previous date Next Days: To show recorded of next recording date

2.2.3 Date Time Period

Select the start and end time points that indicate the time period you would like to view.

2.2.4 Video Preview

Check the enable preview option to view the selected video.

2.2.5 Event Type

There are 6 event types; see Chapter 4 - Guard for details. You may set up different colors for different event types to help you select events. \* Note: Some event types will not be available under Lite License.

LevelOne IP CamSecure

2.2.6 Time Table

- Utilize the + icon to select all channels; also utilize the - icon to deselect all channels. Finally, utilize the scale bar to modify the scale of the time table. - Selecting "Show Records" makes Time Table show the period of recording data as below:

Show Records Show Event Log 07/15 Camera 1 Camera 2 Camera 3 Camera 4 Camera 5 Camera 6 Camera 7 Camera 8 Color Event Type General Motion Foreign Object Missing Object Focus Lost Camera Block Signal Lost

\- Selecting Show Event Log makes Time Table show the time of event detection like below:

2.2.7 Withdraw the Record

Step 1: From the record display window, top left of the Date Time Panel, select the date you want to withdraw the record from. The red/green/blue lines shown on the time table indicate available recorded video records. Note: The record display window can be shown in (a) calendar view or (b) list control view. To modify the setting of the record display window, click on the Setting button at the right of the Playback Console. See page 49 for more details. Step 2: Use color bars to differentiate event types from each other. This will help you select video clips. Step 3: Highlight the video clip you want to review by left-clicking and dragging the time period. You may also utilize the Start Time and End Time in Date Time Period Section. In addition, modify the scale of the time table with the + and - signs on the bottom left. Step 4: Check the Enable Preview option to get the preview of the video you select.

LevelOne IP CamSecure

Step 5: Click the camera name to increase or decrease cameras you want to playback. Step 6: Click OK when setting is complete.

2.3 Search Mode

Click on the Search Mode icon 📄 to obtain the Intelligent Search Tool panel. \* This feature is not available under Lite License. - Intelligent Search Tool Panel: Click on the Search Mode icon to open the Intelligent Search Tool. Set up unusual events here to detect abnormality that occurred during the recorded period. • 5 events: General Motion, Foreign Object, Missing Object, Lose Focus, and Camera Occlusion.

\*IP CamSecure Lite only has General Motion option in Search Mode.

2.3.1 Unusual Event-General Motion

• General Motion: Detect all movements in the defined area. - Define Detection Zone: Left click and drag to draw a detection zone. You may define more than one zone on the screen by repeating the process. - Sensitivity: Modify the sensitivity setting with the slider. Sliding rightwards will increase the sensitivity level, meaning the slightest movement will trigger the alarm; in contrast, sliding leftwards will reduce the sensitivity for movement detection. Note: Configuring an appropriate sensitivity level reduces the possibility of a false alarm. For instance, you can lower the sensitivity level to avoid the alarm being triggered by a swinging tree in the breeze.

Intelligent Search Tool Alarm Event Type General Motion Sensitivity Interval: Region Definition Define detection zone Define object size All Clear Rectangle count: 0 Draw Region Stop when found Search Stop

\- Interval: Move the slider control to the right to increase time interval so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the time interval. \- Stop When Found: Check the option to have the video stop where motion was detected. Uncheck to have video continuously run to detect all events available. Results will show in a search result box. Click on the listed event in the box to jump to the point in the video where motion was detected.

2.3.2 Unusual Event-Foreign Object

• Foreign Object: Detect any additional object appearing in the defined area on the screen. - Define detection zone: Left click and drag to draw a detection zone. The search tool will detect additional objects that appear in this zone. - Define object size: Click and drag to draw and define the size of a foreign object. - Sensitivity: Modify the sensitivity setting with the slider. Sliding rightwards will increase the sensitivity level, while sliding leftwards decreases it. - Interval: Click and move the slider control to the right to increase time interval so that the alarm will only be triggered when the object has been removed from the area for longer. Move to the left to reduce the time interval.

Intelligent Search Tool Alarm Event Type Foreign Object Sensitivity: Interval: Region Definition Define detection zone Define object size All Clear Rectangle count: 0 Draw Region Stop when found Search Stop

Note: Setting up an appropriate Interval value will reduce the chance of false alarms. For example, you can lower the Interval to avoid the alarm being triggered by a pedestrian.

LevelOne IP CamSecure

2.3.3 Unusual Event-Missing Object

- Missing Object: Detection of selected objects removed from the defined area on the screen. - Define detection zone: Left click and drag to draw a detection zone. The search tool will detect selected objects removed in this zone. - Sensitivity: Modify the sensitivity setting with the slider. Sliding rightwards will increase the sensitivity level, while sliding leftwards decreases it. - Interval: Click and move the slider control to the right to increase time interval so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the time interval.

Intelligent Search Tool Alarm Event Type Missing Object Sensitivity Interval. Region Definition Define detection zone Define object size All Clear Rectangle count: 0 Draw Region Stop when found Search Stop

2.3.4 Unusual Event- Focus Lost / Camera Occlusion

• Focus Lost: Detection of cameras losing focus in recorded video. • Camera Occlusion: Detection of cameras being blocked in recorded video.

2.4 Enhancement / Post Processing Tool

Click on Enhancement / Post Processing Tool  onfigure settings.

2.4.1 General Setting

Check the option and chose whether you want to apply the setting to all the channels or only to those currently shown on the screen.

2.4.2 Filter Setting

- Visibility: adjust the gamma value of the image to enhance the image and make it cleaner. - Sharpen: activate the function. Move the slider control to the right to sharpen the image, to the left to soften it. - Brightness: activate the function. Move the slider control to the right to make the image brighter. - Contrast: activate the function. Move the slider control to the right to increase contrast. - Grey Scale: show the record in grey scale mode so the image displays in black and white.

Post Processing Tool General Setting Apply active channel Apply all channels Filter Setting Visibility Sharpen Brightness Contract Grey Scale Default ✓ OK

2.5 Save Video

Step 1: Click on the display screen to choose the camera display that you want to save as a video clip. Step 2: Set up the cue in and cue out points; the cue in and cue out time will show on the information window.

2008/02/29 17:16:28 1x IN :17:16:05 OUT:17:16:28 PAUSE Cue In Cue Out

LevelOne IP CamSecure

 Step 3: Click on the Save Video button file name and click SAVE. choose the folder where you want to save the file at, enter the Step 4: Set the Export Format (ASF recommend) and set the Use Profile. - ASF – more efficient than AVI format. [Recommended format] - AVI (Microsoft Video 1) – Supports Windows Media Player with Vista & XP, quality may be poorer than recorded video by transcode process. - AVI (Original Format) - Faster export process with high quality video, but the export files can only be viewed using VLC Player to play. (For Windows Media Player, please install additional FFDShow codec).

Export Video/Audio Export File Path: Export Format: ASF Use Profile: Windows Media Video 8 for Local Area Network (384) Start Time: 2009/06/17 11:41:02 End Time: 2009/06/17 11:42:56 □ Export Audio □ Export OSD □ Export POS Transaction OK Cancel

Note:

• The restrictions of AVI format: a. The maximum size of an AVI file is limited to 4 GB. b. Variation of frame rate will cause the resulting video to play slower or faster. \- If the selected video sequence uses multiple image resolutions (CIF, 2CIF, 4CIF, etc.) or multiple video format (MPEG-4, M-JPEG, H.264), the exported video sequence will create separate export files every time the resolution changes. Step 5: Select to export (i.e. save) the recorded video with Audio, OSD and POS, or export video only. Step 6: Click OK to save the video.

2.6 Save Image

Step 1: Click on the display screen to choose the camera display from which you want to save pictures.  Step 2: Click on the Save Image button when the image you want is shown on the screen. You may click Pause to freeze the video, use Step Forward/ Step Backward function to find the picture(s) that you want to save. Step 3: Select OSD option and POS option to export the image with date/time, camera number/name and POS text. If the digital PTZ function is enabled in display view, you can also decide either Full size or Selected Region as your image region. Step 4: You have the options to copy the image to clipboard or to save it. To save image just choose the folder and the format of image (BMP or JPEG) you prefer and then click save. Note: You may skip step 3 by pre-setting a folder and format that you want to save the images (refer the section automatically save the image file at page 49.)

Snapshot CAM13 (Cam2) (90 x 74) CAM13 Cam2 ✓ OSO POG Region: Selected region Save Image Copy to Clipboard Close

2.7 Print

Click on the Print button print the current image of the video you choose.

Print Content:

Print the image from the current selected channel or all the channels shown on the screen. Select to print original view or selected region on camera.

Page Setting:

Set to print the image with original size or fit to page. Set Align image to Top, Center, or Bottom. LevelOne IP CamSecure

Print Setup Print Content Select channels : • Print active channel image • Print all channels in the current view Select printed region of images • Original • Selected region Page Setting • Original size • Fit to page Align Image: Top ✓ Print ✗ Cancel

2.8 Backup

Compared to the Save Video function, Backup saves everything from the Playback panel, including video and log information. You can start a full function Playback Console and load the backup files into it on any PC with Windows operating system. This means you may monitor the real time video and work on the backup files on separate computers simultaneously. Step 1: Press the Open Record to select data and press Backup  Step 2: You can adjust the Start Time and End Time you want to backup. Step 3: You can adjust the Cameras you want to backup. Step 4: You can calculate the size of the backup data. Step 5: Select the directory you want to save the backup data including CDROM, DVD or Hard Disk. Step 6: Check the log you want to backup. Step 7: Press Backup to start.

Backup Dialog Date Time Period Start Time: 2009/ 4/21 17:29:00 End Time: 2009/ 4/21 17:29:02 Select Camera(s) 1-16 17-32 33-43 49.64 × 1 × 2 × 3 × 4 × 5 × 6 × 7 × 8 × 9 ✓ 10 × 11 × 12 × 3 × 14 × 15 × 16 Calculate Size Select All Deselect All Media ● Backup using CDFROM ○ Backup using DVD ○ Backup on HardDisk Option ✓ Backup Event Log ✓ Backup System Log □ Backup Counter Log □ Backup POS Transaction Step 2 Step 3 Step 4 Step 5 Step 6 Step 7 ✓ Backup Cancel

LevelOne IP CamSecure

2.9 Log Viewer

 Click on the Log Viewer button Activate the Log Viewer dialog.

\*IP CamSecure Lite only has System Log option in Log Viewer.

2.9.1 Unusual Event

View the unusual event history that had been detected by the Smart Guard System.

Log Viewer Unusual Event System Log Counting Application Counting Application (Diagram) PDB Log Log Type: All Channel: All Date: 2009/07/03 DateTime: 2009/06/08 20:15 to 2009/07/08 20:26 Search Event Time Event Type Camers Desorption 2009/07/06 19:28:21 General Motion 02 2009/07/06 19:28:49 General Motion 02 2009/07/06 19:28:53 General Motion 02 2009/07/06 19:28:56 General Motion 02 2009/07/06 19:29:10 General Motion 02 2009/07/06 19:29:12 General Motion 02 2009/07/06 19:29:19 General Motion 02 2009/07/06 19:29:20 General Motion 02 2009/07/06 19:30:04 General Motion 02 2009/07/06 19:30:07 General Motion 02 2009/07/06 19:30:17 General Motion 02 2009/07/06 19:30:21 General Motion 02 2009/07/06 19:30:27 General Motion 02 2009/07/06 19:30:29 General Motion 02 2009/07/06 19:30:42 General Motion 02 2009/07/06 19:31:12 General Motion 02 2009/07/06 19:31:14 General Motion 02 2009/07/06 19:31:16 General Motion 02 2009/07/06 19:31:30 General Motion 02 2009/07/06 19:31:36 General Motion 02 Step 1 Step 2 Step 3 Step 4

Step1: Choose the type of events you wish to view or select "All" from the drop-down menu to view all types of events. The types of Unusual Event include General Motion, Foreign Object, Missing Object, Focus Lost, Camera Occlusion, Signal Lost, Disk Space Exhausted, System Health Unusual and Digital Input Triggered. \* Note: Some event types will not be available under Lite License. Step 2: Choose the camera channel you wish to view or select All for all channels available. Step 3: View the events that happened on a particular date or during a given time period by selecting search period. For a particular date: check the Date box right and indicate the date. For a period: check the DateTime and enter the specific date and time.

Step 4: Click Search.

Note: When working with a video record, 1. Log Viewer will search for Unusual Event in the video record in Date & Time mode, starting from the beginning to the end of the record, which is the default setting of the system. 2. A link ( ) will appear next to each event time where video is available. By clicking on the link, the video will jump to the point where the unusual event takes place.

LevelOne IP CamSecure

2.9.2 Export and Backup Log

View the Export and Backup Log history that had been operated by local or remote user. Step1: Choose the type of event you want to check or select All from the drop-down menu for all types of events.

Log Type: All Date: 2010/01/25 DateTime: 2010/01/25 16:47 to 2018/01/25 10:47 Event Time Event Type Success Username Start Time End Time Length Camera Index File Path DB Audio 2010/01/25 18:35:05 Export Video Yes admin 2009/07/06 17:43:17 2009/07/06 17:43:28 Ddays 00:00:11.000 3 C:\Documents and Set... N/A No 2010/01/25 18:35:46 Backup Yes admin 2009/07/06 17:43:17 2009/07/06 17:43:28 Ddays 00:00:11.000 2,5 D:\NU.Osw/Dorcus26... 2 N/A 2010/01/25 18:36:24 Backup Yes admin 2009/07/06 17:43:17 2009/07/06 17:43:28 Ddays 00:00:11.000 2,3,4,5 C:\Documents and Set... 2 N/A

Step 2: View the events that happened on a particular date or during a given time period by selecting search period. For a particular data: check the Date box right and indicate the date. For a period: check the DateTime and then enter the date and time.

Step 3: Click Search

2.9.3 System Log


Log View Unusual Event System Log Counting Application Counting Application (Diagram) POS Log Log Type: All Date: 2009/05/05 DateTime: 2009/05/05 14:50 to 2009/05/05 14:50 Export to... Search Event Time Event Type Description 2009/05/05 09:54:47 Main Console Startup 2009/05/05 09:56:22 Main Console Shutdown 2009/05/05 13:29:02 Main Console Startup 2009/05/05 13:29:04 User Login admin 2009/05/05 13:29:10 Start Schedule 2009/05/05 13:29:15 Start Smart Guard 2009/05/05 13:47:56 Modify Configuration 2009/05/05 13:48:31 Modify Configuration 2009/05/05 13:49:46 Modify Configuration 2009/05/05 13:50:56 Modify Configuration 2009/05/05 13:51:35 Modify Configuration Step 1 Step 2 Step 3

Select Log Type from the drop-down menu. There are in total 31 types of log types, including: √ Main Console Startup √ Main Console Shutdown √ User Login √ User Login Failed √ Start Schedule √ Stop Schedule √ Execute Recycle √ Enable Channel √ Disable Channel √ Start Smart Guard √ Stop Smart Guard √ Modify Smart Guard √ Modify Schedule √ Modify Configuration √ Start Live Streaming Server √ Stop Live Streaming Server √ Modify Live Streaming Server √ Start Remote Playback Server √ Stop Remote Playback Server √ Modify Remote Playback Server √ IP Camera Connection Lost √ Auto Restart Windows √ Modify POS Setting √ POS Connection Lost √ Modify E-Map √ Start Remote Desktop √ Stop Remote Desktop √ Modify Remote Desktop √ Start Central Management √ Stop Central Management √ Modify Central Management \* Note: Some event types will not be available under Lite License.

LevelOne IP CamSecure

Step1: Choose the type of event you want to check or select "All" from the drop-down menu for all types of events. Step 2: View the events that happened on a particular date or during a given time period by selecting search period. For a particular date: check the Date box and indicate the date. For a period: check the DateTime and then enter specific date and time. Step 3: Click Search.

2.9.4 Counting Application

Display the history of Counting Application during a given time period. \* This feature is not available under Lite License.

Log Viewer Unusual Event | System Log | Counting Application | Counting Application (Diagram | POS Log | Channel: All Date: 2007/09/26 Date&Time: 2007/09/26 13:31 to 2007/05/26 13:31 Export to Search Event Time Channel In Out 2007/07/25 19:00:00 Camera 3 14 13 2007/07/25 19:30:00 Camera 3 0 4 2007/07/25 19:32:42 Camera 3 0 0 2007/07/27 11:30:00 Camera 3 4 2 2007/07/27 12:00:00 Camera 3 5 6 2007/07/27 12:30:00 Camera 3 4 4 2007/07/27 12:32:15 Camera 3 0 0 2007/09/26 13:29:49 Camera 1 0 0 Step 4

Step1: Select the channel you want to check or select All from the drop-down menu for all channels. Step 2: Select search period. View the events that happened on a particular date or during a given time period by selecting search period. For a particular date: check the Date box right and indicate the date. For a period: check the DateTime and then enter the date and time. Step 3: Click Search. Step 4: Press the button Export to. Step 5: Type the file name and choose the file format (.xls or .txt). LevelOne IP CamSecure

2.9.5 Counting Application (Diagram)

Display the Counting Application data in diagram format. \* not available under Lite License  Step 4 Step1: Select the channel you want to check or select All from the drop-down menu for all channels. Step 2: From the drop-down menu, set up how you would like the diagram to be displayed. You have the options of one day, one month, or one year. Step 3: Select a specific date to make it the start point of the diagram. Step 4: Click Search. Step 5: Press the button Export to. Step 6: Type the file name and the file will save as BMP files.

2.9.6 POS Log

View POS Log history detected by the Smart Guard System. \* not available under Lite License

Log Yaver Unusual Event | System Log | Counting Application | Counting Application (Diagram) | POS Log Log Type: Connection Lost Date: Open Cash Drawer Connection Lost DateTime: User Defined Event Rule 1 User Defined Event Rule 2 User Defined Event Rule 3 User Defined Event Rule 4 User Defined Event Rule 5 User Defined Event Rule 6 User Defined Event Rule 7 User Defined Event Rule 8 User Defined Event Rule 9 User Defined Event Rule 10 POS: All 200/05/08 16:14 Export to... Search Camera Event Name POS Name Description Step 5

Step1: Choose the type of events you wish to view or select All from the drop-down menu to view all types of events. The types of Unusual Event include Transaction Start, Transaction End, Open Cash Register, Connection Lost, and Special User Defined Event. Please refer to the User manual of POS for detail. Step 2: Choose the camera channel you wish to view or select All for all the channels available. Step 3: View the events that happened on a particular date or during a given time period by selecting search period. For a particular date: check the Date box and indicate the date. For a period: check the DateTime and then enter a specific date and time. Step 4: Click Search. A link ( ) will appear next to each event time where video is available. By clicking on the link, the video will jump to the point where the unusual event takes place. Step 5: Press the button Export to. Step 6: Type the file name and choose the file format (.xls or .txt). LevelOne IP CamSecure

2.9.7 Export and Backup Log

View the Export and Backup Log history that had been operated by local or remote user.

Log Viewer Unusual Event | System Log | Counting Application | Counting Application (Diagram) | P08 Log | Export and Backup Log | Log Type: All Date: 2010/01/25 DateTime: 2010/01/25 18:47 to 2010/01/25 18:47 Export to Search Event Time Event Type Success Username Start Time End Time Length Camera Index File Path DB Audio 2010/01/25 18:35:05 Export Video Yes admin 2009/07/06 17:43:17 2009/07/06 17:43:28 0days 00:00:11.000 3 C:\Documents and Set... N/A No 2010/01/25 18:35:46 Backup Yes admin 2009/07/06 17:43:17 2009/07/06 17:43:28 0days 00:00:11.000 2,5 D:\WUO\yw\Coruc26... 2 N/A 2010/01/25 18:36:24 Backup Yes admin 2009/07/06 17:43:17 2009/07/06 17:43:28 0days 00:00:11.000 2,3,4,5 C:\Documents and Set... 2 N/A

Step1: Choose the type of event you want to check or select All from the drop-down menu for all types of events. Step 2: View the events that happened on a particular date or during a given time period by selecting search period. For a particular data: check the Date box right and indicate the date. For a period: check the DateTime and then enter the date and time.

Step 3: Click Search

2.9.8 Export

You may export the file to .xls or .txt file

Log Viewer Unusual Event System Log Counting Application Counting Application (Diagram) POS Log Log Type: All Date: 2009/05/05 Export to... DateTime: 2009/05/05 14:58 to 2009/05/05 14:58 Search Event Time Event Type Description 2009/05/05 09:54:47 Main Console Startup 2009/05/05 09:56:22 Main Console Shutdown 2009/05/05 13:29:02 Main Console Startup 2009/05/05 13:29:04 User Login admin 2009/05/05 13:29:10 Start Schedule 2009/05/05 13:29:15 Start Smart Guard 2009/05/05 13:47:56 Modify Configuration 2009/05/05 13:48:31 Modify Configuration 2009/05/05 13:49:46 Modify Configuration 2009/05/05 13:50:56 Modify Configuration 2009/05/05 13:51:35 Modify Configuration

Step1: Select Export to. Step2: Type the file name and choose the file format, .xls or .txt.

D1
	A	B	C	D	E
1	EventTime	EventType	Description
2	2007/09/12 00:45:41	Main Console Startup
3	2007/09/12 00:45:44	User Logis	admin
4	2007/09/12 01:11:10	Main Console Shutdowns
5	2007/09/12 01:27:04	Main Console Startup
6	2007/09/12 01:27:05	User Logis	admin
7	2007/09/12 01:28:27	Main Console Shutdowns
8	2007/09/12 15:06:51	Main Console Startup
9	2007/09/12 15:06:52	User Logis	admin
10	2007/09/12 15:07:04	Main Console Shutdowns
11	2007/09/12 15:08:28	Main Console Startup
12	2007/09/12 15:08:30	Main Console Shutdowns
13	2007/09/12 15:08:54	Main Console Startup
14	2007/09/12 15:09:01	Main Console Shutdowns
15	2007/09/12 15:14:11	Main Console Startup
16	2007/09/12 15:14:12	Main Console Shutdowns
17	2007/09/12 15:14:31	Main Console Startup
18	2007/09/12 15:15:30	Main Console Shutdowns
19	2007/09/12 19:44:15	Main Console Startup
20	2007/09/12 19:44:58	Main Console Shutdowns
21	2007/09/12 22:51:57	Main Console Startup
22	2007/09/12 22:51:59	Main Console Shutdowns
23	2007/09/12 22:52:14	Main Console Startup
24	2007/09/12 22:52:18	User Logis	admin
25	2007/09/12 22:52:34	Main Console Shutdowns
26	2007/09/12 22:53:19	Main Console Startup

.xls

2007/09/12 00:45:41, Main Console Startup, 2007/09/12 00:45:44, User Login, admin 2007/09/12 01:11:10, Main Console Shutdown, 2007/09/12 01:27:04, Main Console Startup, 2007/09/12 01:27:05, User Login, admin 2007/09/12 01:28:27, Main Console Shutdown, 2007/09/12 15:06:51, Main Console Startup, 2007/09/12 15:06:52, User Login, admin 2007/09/12 15:07:04, Main Console Shutdown, 2007/09/12 15:08:28, Main Console Startup, 2007/09/12 15:08:40, Main Console Shutdown, 2007/09/12 15:08:54, Main Console Startup, 2007/09/12 15:09:01, Main Console Shutdown, 2007/09/12 15:14:11, Main Console Startup, 2007/09/12 15:14:12, Main Console Shutdown, 2007/09/12 15:14:31, Main Console Startup, 2007/09/12 15:15:28, Main Console Shutdown, 2007/09/12 19:44:15, Main Console Startup, 2007/09/12 19:44:58, Main Console Shutdown, 2007/09/12 22:51:57, Main Console Startup, 2007/09/12 22:51:59, Main Console Shutdown, 2007/09/12 22:52:14, Main Console Startup, 2007/09/12 22:52:18, User Login, admin 2007/09/12 22:52:24, Main Console Shutdown, 2007/09/12 22:53:19, Main Console Startup,

.txt

LevelOne IP CamSecure

2.10 Setting

Click on the General Setting button go to Setting for system configurations.

Record Display setting:

• Calendar View: Choose to display records under calendar view. • List Control: Choose to display records under checklist.

七月 2009 27 28 29 30 1 2 3 4 28 5 6 7 8 9 10 11 29 12 13 14 15 16 17 18 30 19 20 21 22 23 24 25 31 26 27 28 29 30 31 1 32 2 3 4 5 6 7 8



Record Date 2009/07/19 2009/07/17 2009/07/16 2009/07/15 2009/07/14 2009/07/13 2009/07/12


Setting General | Server | OSD | POS | Record Display ○ Calendar View ○ List Control Play ○ Play when open ● Auto skip when record motion only mode Next interval: 1 min Previous interval: 1 min Capture Image ○ Save in clipboard ● Manually save the image file ○ Automatically save the image file Preferences image format: Image Miscellaneous ○ Synchronize video frames OK Cancel

Play setting:

- Play when open: Check the option and set the system to start playing the video clip every time a record is withdrawn. - Auto skip when record motion only mode: Check the option to set up the system to automatically skip to the points where there were motions recorded. - Next interval: Set the interval with which the video goes forward when you click on the "Next" icon on the control panel. - Previous interval: Set the interval with which the video goes backward when you click on the "Previous" icon on the control panel. Capture Image setting: Sets how you want to save the image. • Save in clipboard: The image will be saved in the clipboard; image will be available to paste elsewhere. - Manually save the image file: You can manually select where you want to save the image. Name the saved file, and choose the file format you want to save as. • Automatically save the image file: By pre-setting a path/URL and the image format, the system will automatically save the image accordingly when you click the Save button in the control panel.

Miscellaneous

\- Synchronize video frames: Select this option to avoid display problems that may occur under high CPU loading.

Server Setting

Remote Playback Site Management. Please refer to page 44 for details.

OSD Setting

Enable Camera OSD to display video information on recorded video. Information includes camera name, camera number, date and time. User can also set up OSD font; include the font, size, font color and any font effects desired.

POS Overlay Setting

\* not available under Lite License Enable POS overlay to adjust Font, Size, Color, Bold, Edge in "Foreground" section, color and transparency in "Background" section, and then adjust display settings in "Display on Video Preview".

General CSD POS Enable camera OSG Foreground Font: Tahoma Size: 9 Color: Bold: Edge Background Color: Transparency: 40 Info Camera Name Camera Number Date: 2009/04/21 Time: 下午06:45:55 Default OK Cancel


Setting General OSD FOS Enable POS overlay Foreground Font: Tahoma Size: 10 Color: Bold Edge Background Color: Transparency: 40 Display on Video Preview Always Last for 10 seconds Default Apply OK Cancel

LevelOne IP CamSecure

2.11 Remote Server

2.11.1 Add Remote Playback Site

Press the Remote Server Icon add and setup remote playb  or go to setting – server to config remote playback site management to

Remote Playback Site Management Server Setting Server Name: Address: Port: 5160 User Name: Password: Save Password: Test Server Add Delete Update OK Cancel

Step 1: Enter the IP address or DNS, Port, Username, and Password. Step 2: Click Add to add the server. Step 3: Click OK to exit the "Settings" panel.

2.11.2 Access Remote Playback Site

Go to Date Time Panel and click on the Playback Site  icon on the top of the display window to access the Remote

Local Machine Recent List Select Folder.. Remote PC 1 (192.168.1.100) Remote PC 2 (192.168.1.101) Remote PC 3 (192.168.1.103) Remota PC 4 (192.168.1.103)

3. Schedule


Schedule Configurations Load Copy to Default 01 Camera1 02 Camera2 03 Camera3 04 Camera4 Default Camera1 Camera2 Camera3 Camera4 Start Time End Time Record FPS Quality Resolution 06:30 15:45 Always Insert Delete Configurex Start Time End Time Record FPS Quality Resolution 06:30 15:45 Always Day Mode Week No OK Cancel

Click on the Schedule icon on the Main Console and set up the time duration for video recording on the schedule configuration panel. LevelOne IP CamSecure

3.1 Day / week Mode


Load Camera / Channel Day /Week Mode Schedule Configurations Load Copy to Default 01 Camera1 02 Camera2 03 Camera3 04 Camera4 Default Camera1 Camera2 Camera3 Camera4 Start Time End Time Record FPS Quality Resolution 06:30 15:48 Always Default Custom Day Mode Weak Mix... Schedule Details OK Cancel

Day Mode: Schedule the cameras to turn the recorder on and off at the same time every day according to your setting. Week Mode: Allows you to schedule each camera for a different day of the week, additionally, you may assign extra holidays in the "Week" mode Schedule Details: An outline of start time, end time, Record mode, frame rate, quality and resolution. Please note these values refer to configured settings. Actual performance may vary according to camera and hardware settings. To setup the time schedule for each camera, you may 1. "Load" the preset modes or 2. "Insert" a new schedule manually or 3. "Copy to" other cameras after manual setup.

3.1.1 Load Preset Modes

The system provides six modes to quickly setup recording schedule. Simply click on the load for the drop-down menu. Refer to the below tables for the definitions of each mode in each series. IP+ series (IP camera)

Mode	Format	Time	Record	FPS	Quality	Resolution
Regular	M-JPEG	0:00-24:00	Always	Max	Max	Max
	MPEG-4			Max
Office	M-JPEG	8:00-20:00	Always	Max	Max	Max
	MPEG-4			Max
Shop	M-JPEG	10:00-22:00	Always	Max	Max	Max
	MPEG-4			Max
Highly Secure	M-JPEG	0:00-24:00	Always	Max	Max	Max
	MPEG-4			Max
Disk Saving	M-JPEG	0:00-24:00	Motion	10	Max	Max
	MPEG-4			i-frame
Minor	M-JPEG	0:00-24:00	Motion	5	Max	Max
	MPEG-4			i-frame

 The Max indicates settings are same as camera settings in the config>setting>camera>camera parameter panel. LevelOne IP CamSecure FCS-8005, 8006 series (Analog camera)

Mode	Format	Time	Record	FPS	Quality	Resolution
Regular	MPEG-4	0:00-24:00	Always	30	Normal	CIF
Office	MPEG-4	8:00-20:00	Always	30	Normal	CIF
Shop	MPEG-4	10:00-22:00	Always	30	Normal	CIF
Highly Secure	MPEG-4	0:00-24:00	Always	30	Highest	Max
Disk Saving	MPEG-4	0:00-24:00	Motion	30	Normal	CIF
Minor	MPEG-4	0:00-24:00	Motion	15	Low	CIF

LevelOne IP CamSecure

3.1.2 Insert a New Schedule Manually

Step 1: Left-click and draw the bar you want add to the time table. The scheduled time will show as a grey bar.

Schedule Configuration Load Copy to Default 01 Camera1 02 Camera2 03 Camera3 04 Camera4 Default Camera1 Camera2 Camera3 Camera4 Step 1 Input Delete Control Start Time End Time Record FPS Quality Resolution Day Mode Week Mo. Step 2 Step 3 Step 4 OK Cancel

Step 2: Click the Insert icon and add a new schedule in the Regular Mode, i.e. to record video during the time period you set with 30 FPS, normal video quality, and normal resolution. Step 3: Change the setting by clicking on the Configure icon (See page 56 for detail) or double click the Schedule Information. Step 4: Click OK.

3.1.3 Copy Schedule

You may set up the schedule for each channel/camera by repeating the process above, or by simply applying the setting of a single camera to all the others by clicking the Copy To icon at the top of the display window.

3.1.4 Holiday and Custom setting

Allows you to schedule each camera for a different day of the week, additionally, you may assign extra holidays in the "Week" mode

Schedule Configuration Load Copy to Default 01 Camera1 02 Camera2 03 Camera3 04 Camera4 Sunday Monday Tuesday Wednesday Thursday Friday Saturday Default Holiday Custom Day Mode Weekly No Camera4 Sunday Monday Tuesday Wednesday Thursday Friday Saturday Last Delete Customer Start Time End Time Record RPS Quality Resolution OK Cancel Holiday Custom

LevelOne IP CamSecure

Holiday: You may assign holidays where the system will work according to the setting for Sunday. Note: The default Holiday setting will apply Sunday's settings. For the Middle East region where Friday is a holiday, please adjust setting by right clicking on and select "Apply Holiday Schedule From...". Custom: You can assign a particular date(s) on which the system will work according to a special schedule(s) different from the others.

3.2 Adjust the Scheduled Setting:

You can manually change the setting at any time after you insert or load a schedule. - Option 1: Move the cursor to the "Time Bar" and change the length or move the bar sideways to change the start and end points. - Option 2: Click on the Configure icon or double click on "Schedule Information" from the list to obtain the "Encoding Option" panel (next page) and select the desired setting.

Schedule Configuration Time Bar Configure Schedule Information Default 01 Camera1 02 Camera2 03 Camera3 04 Camera4 Sunday Monday Tuesday Wednesday Thursday Friday Saturday Camera4 Bunday Tomorrow Tuesday Wednesday Thursday Friday Saturday Insert Delete Configure Start Time End Time Record FPS Quality Resolution 01:15 15:00 Always Day Mode Week Mode OK Cancel

LevelOne IP CamSecure

3.3 Encoding Option

Original Video Encoded Video

Encoding Options Original Video Encoded Video Time Start Time: 00:00 End Time: 23:59 Pre-record: 5 sec. (Max. 50) Post-record: 3 sec. (Max. 50) Audio: Record Audio Mode ● Always Record ○ Record on Event ○ Record on Motion: Sensitivity Normal Frame Interval 2 Rectangle Count: 0 (Max. 10) Alt Clear Default Video Encoder ● Keep original video format ○ Adjust MJPEG video frame rate 30 ○ Keep key frame only (for MPEO4, H.264, MJPEG) ○ Customized encoding Setup Default ✓ OK Cancel Record Mode Video Encoder

3.3.1 Pre-record/ Post-record Time

The pre-record/ post-record function saves the recording data accordingly. For instance, to set up a 5 second pre-record time means the system will start saving the recording data 5 seconds before the event happens. Note: The maximum of pre-record/post record period is 60 seconds.

3.3.2 Record Mode

Always Record:

Select this option to record the video continuously.

Record on Event: \* Some options are not available under Lite License

Select this option to obtain the "Select Event" panel. From the Smart Guard list, check the camera events or digital inputs to trigger the recorded action. Click OK. Note: Please note it is required to enable "Smart Guard" from the Main Console panel before configuring "record on event" to trigger recording.

\*Smart Guard is only in IP CamSecure Pro.

Record on Motion:

Select this option to start recording when motion is detected. Adjust sensitivity, the frame interval and zone to setup motion detection. To setup a single detection zone, left-click and drag the mouse to draw a rectangle. To setup more than one detection zone, simply repeat the same process or click "All" to select the entire screen. Note: The maximum number of rectangle detection zones is 10.

Select Event Smart Guard CAM01 Main Gate General Motion CAM02 Driveway CAM03 Pool General Motion CAM04 Room A General Motion CAM05 Room B General Motion CAM06 Back Door General Motion Digital Input: Main Gate Input:0 Pool Input:0 Pool Input:1 Pool Input:2 Pool Input:3 OK Cancel

3.3.3 Encoded Options

This option sets up the quality of the recorded video. The "Original Video" window is the original stream from the camera. The "Encoded Video" is preview of the recorded video corresponding with the encode settings below.

LevelOne IP CamSecure

For IP cameras

The Encode Video function will reduce frames or re-encode original streaming from IP cameras. To save Hard Disk usage, adjust framer ate with original video format or re-encode to smaller file size by adjusting frame rate, resolution and Quality/Bit rate.

Keep Original Video format:

Select this option to reduce frame rate only but not to re-encode video streams to save Hard Disk usage. \- Adjust MJPEG video frame rate: Move slider to left to reduce frame rate. Note: The maximum FPS will correspond to original video streams set up on camera configuration. \- Keep key-frame only: System will only record key frames of video streaming. Note: The key frame interval is controlled by each camera manufacturer and cannot be adjusted.

Video Encoder Keep original video format Adjust MJPEG video frame rate Keep key frame only (for MPEG4, H.264, MkPEG) Customized encoding Setup Default

Customized encoding: \* not available under Lite License

The video stream will be decoded then re-encoded by configuration. Click "Setup" button to adjust "Encoder Parameter". Note: Customized encoding function causes high CPU usage, make sure the PC specification is enough (recommend Core 2 Quad or above)

Enrolet Parameter: Video format: NFE34 Frame rate: 30 Resolution: CIF ● Quality: Normal ○ Bit rate: 200 kbps ✓ OK Cancel

For Analog cameras

The Encode Video function sets Frame Rate, Quality, and Resolution that you want to record and provides an approximate recorded time period. For FCS-8005/8006 capture cards you may additionally choose from different video formats, including Mpeg4 and H.264.

Video Encoder Frame Rate Full (30.0) Quality Normal Resolution 320x240 Default Approximate: 1GB (6 hr 12 min)

4. Guard

\*Guard is only in IP CamSecure Pro.

Event and Action Configuration Event CAM09 QA Room General Motion CAM10 Office Foreign Object CAM11 Demo Camera Occlusion CAM12 Desktop Signal Lost Test POS Transaction Start Digital Input Testboard Input:2 (Input 2) System Disk Space Exhausted Action Actions Options On Screen Display Send E-Mail FTP PTZ Preset Go E-Map Map:Map, Indicator:None Video Preview Advanced OK Cancel

Click on the Guard button on the Main Console to start the "Event and Action Configuration" panel. You will need to specify an event to be detected as well as set the appropriate action for the system when the event occurs.

Note:

1. Event Report: When the crystal ball is red, you can click it to obtain the Smart Guard Event Report and cancel the event(s).

Smart Guard Event Report Event Time Event Type Camera Description 2005/11/21 15:16:14 General Motion 9 2005/11/21 15:16:29 Missing Object 13 Cancel Event Cancel All Close

4.1 Event

LevelOne IP CamSecure Insert Event

Event and Action Configuration Event CAM01 Main Gate General Motion CAM02 Driveway CAM03 Pool General Motion CAM04 Room A General Motion CAM05 Room B General Motion CAM06 Back Door General Motion Digital Input System Action Action Options Video Preview OK Cancel

There are 4 sources of events: Camera (video image), POS, Digital Input (device connected to your PC) and System (condition of your hardware). You can assign multiple events by following the instructions below. \* Note: Some event types will not be available under Lite License.

4.1.1 Camera Event - Assign a Camera Event

Step 1: Select a camera and click "Insert Event" icon.

Select Event Event Type Description Signal Lost Detect video signal connection General Motion Detection of any movement Foreign Object Detect foreign object in defined area(s) Missing Object Missing/being moved of defined object Lose Focus Camera focus lost detector Camera Occlusion Camera blocked or damaged ✓ OK Cancel Step 2 Step 3

Step 2: There are six types of events: Signal Lost, General Motion, Foreign Object, Missing Object, Lose Focus, and Camera Occlusion. Select the event you want on the Event Type list, and then click OK. \* Note: Only General Motion and Signal Lost are supported under Lite License. Step 3: Configure the Event Type. See the following instructions.

4.1.2 Camera Event – Basic Setting

[Signal Lost, General Motion, Foreign Object, Missing Object, Focus Lost, and Camera Occlusion] Enable Event: Check the box to activate the event.

Life Cycle:

• Automatically cancel event when event disappears: the alarm/action will be cancelled once the abnormality is fixed or ends. • Manually cancel event or event continues triggered: The alarm/action will continue until being canceled from the Main Console. The user currently not at the seat watching the screen will be notified by the alarm. Note: To cancel the event: Function 1: Start > Open Event Report > Cancel All Events Function 2 : Click the red crystal ball to obtain the Smart Guard

Alarm Event Configuration Basic Camera 1 - Signal Lost Enable Event Life Cycle Automatic cancel event when event disappear Manual cancel event or event last triggered Cancel event after 10 seconds Activated Period Always activated Activated only in the following period 03:00 to 22:00 OK Cancel

LevelOne IP CamSecure

Event Report than cancel the event(s). \- Cancel event after timeout xx seconds: Enable checkbox and set the timeout seconds to cancel the event after a specific time whether the event disappears or not.

4.1.3 Camera Event - Signal Lost

Detect the loss of video signal from camera.

4.1.4 Camera Event - General Motion

\- Detect any movement in the defined detection zone.

Alarm Event Configuration Basic Advanced Sensitivity Interval Region Definition Start Simulation Video Preview Camera 1 General Motion Sensitivity Interval Ignore Lighting Change Region Definition Define detection zone Define object size All Clear Start Simulation OK Cancel

Alarm Event Option:

\- Sensitivity: Click and move the slider control to the right to increase sensitivity so that minimal movement will trigger the alarm. Move the bar to the left to reduce the sensitivity. Setting up an appropriate sensitivity value will minimize false alarms. For example, you can lower the sensitivity to avoid the alarm being triggered by a swinging tree in the breeze. \- Interval: Click and move the slider control to the right to increase interval time so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the interval

Region Definition:

\- Define detection zone: To detect General Motion, you have to define a detection zone. Left-click and drag the mouse to draw a detection zone. You may define more than one zone on the screen by repeating the same process. User can also click on "All" button to select the entire detection zone. Start Simulation: Click the Start Simulation button and test the function on the preview screen.

4.1.5 Camera Event - General Motion (Device)

\- Detect movement with motion detectors of devices (IP cameras or video servers). \* Note: This function is only available on devices with built-in motion detection. Please refer to the user manual of your device to set up motion detection. \- Start Simulation Click to test if motion detection is set up correctly. \- Go to Web Interface Click to go directly to device web page for configurations.

Alarm Event Configuration Basic Advanced Camera 9 - General Motion(Device) Video Preview Start Simulation Go to Web Interface OK Cancel

LevelOne IP CamSecure

4.1.6 Camera Event - Foreign Object

Alarm will be set off when an object appears in the defined area on the screen.

Alarm Event Configuration Basic Advanced Alarm Event Option Camera 1 Foreign Object Sensitivity: Interval: Ignore Lighting Change Video Preview Sensitivity Interval: Region Definition Define object size Define detection zone Region Definition Define object size All Clear Start Simulation Start Simulation ✓ OK Cancel

Alarm Event Option:

- Sensitivity: Click and move the slider control to the right to increase sensitivity so that minimal movement will trigger the alarm. Move the bar to the left to reduce the sensitivity of movement detected. Setting up an appropriate sensitivity value will minimize false alarms. For example, you can lower the sensitivity to avoid the alarm being triggered by a swinging tree in the breeze. - Interval: Click and move the slider control to the right to increase interval time so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the interval.

Region Definition:

- Define detection zone: To detect Foreign Object, you have to define a detection zone. Left-click and drag the mouse to draw a detection zone. You may define more than one zone on the screen by repeating the same process. User can also click on "All" button to select the entire detection zone. - Define Object size: After defining the detection zone, select Define Object Size and then left-click and drag the mouse to indicate the size of the object you want to detect. Note: For instance, if you want to prevent somebody from leaving a briefcase in a hallway, place a briefcase in the hallway in view of the camera. On the screen, draw an area that fits the size of the briefcase and define it as the object size. Remove the briefcase and then activate the Smart Guard function on the Main Console. The system will consider everything on the screen normal when you click Start to activate the monitor function. Start Simulation: Click the Start Simulation button and test the function on the preview screen.

4.1.7 Camera Event - Missing Object

Alarm triggers when an object disappears in the defined area on the screen.

Alarm Event Configuration Basic Advanced Sensitivity Interval Region Definition Start Simulation Video Preview Camera 1 General Motion Sensitivity Interval Ignore Lighting Change Region Definition Define detection zone Define object size All Clear Start Simulation OK Cancel

LevelOne IP CamSecure

Alarm Event Option:

Sensitivity: Click and move the slider control to the right to increase sensitivity so that minimal movement will trigger the alarm. Move the bar to the left to reduce the sensitivity of movement. Setting up the appropriate sensitivity value will reduce the chance of false alarms. For example, you can lower the sensitivity to avoid the alarm being triggered by a swinging tree in the breeze. Interval: Click and move the slider control to the right to increase interval time so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the interval.

Region Definition:

Define detection zone: To detect Missing Object, you have to define a detection zone. Left-click and drag the mouse to draw a detection zone. You may define more than one zone on the screen by repeating the same process. User can also click on "All" button to select the entire detection zone. Note: For instance, if you want to prevent somebody from removing the computer monitor on the desk, draw an area that fits the size of the monitor on the screen.

Alarm Event Configuration Basic Advanced Alarm Event Option Canvas 1 Missing Object Sensitivity Interval □ Onsite Lighting Common Region Definition ● Define detection zone ○ Define object size All Clear Start Simulation Video Preview OK Cancel

Start Simulation: Click the Start Simulation button and test the function on the preview screen.

4.1.8 Camera Event - Lose Focus

This function alarms you when any of the cameras is losing focus and has blur image.

Alarm Event Configuration Basic Advanced Alarm Event Option Camera 1 Focus Lost Sensitivity Interval Ignore Lighting Change Region Definition Define detection zone Define object size All Clear Start Simulation Start Simulation Video Preview OK Cancel

Alarm Event Option:

Sensitivity: Click and move the slider control to the right to increase sensitivity so that a relatively small movement will trigger the alarm. Move the bar to the left to reduce the sensitivity of movement detection. Set up an appropriate Sensitivity value will reduce the chance of false alarm. For example, you can lower the Sensitivity to avoid the alarm being triggered by a swinging tree in the breeze. Interval: Click and move the slider control to the right to increase interval time so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the interval time.

LevelOne IP CamSecure

\- Ignore Lighting: Check the box to avoid alarm being set off by light changing.

Region Definition:

\- Define detection zone: To detect Lose Focus, you have to define a detection zone. Left-click and drag the mouse to draw a detection zone. You may define more than one zone on the screen by repeating the same process. User can also click on "All" button to select the entire detection zone. Start Simulation: Click the Start Simulation button and test the function on the preview screen.

4.1.9 Camera Event - Camera Occlusion

This function alarms you when any of the cameras are blocked.

Alarm Event Configuration Basic Advanced Alarm Event Option Camera 1 Focus Lost Sensitivity Interval Ignore Lighting Change Region Definition Define dset on zone Define object size All Clear Start Simulation Video Preview ✓ OK Cancel

Alarm Event Option:

- Sensitivity: Click and move the slider control to the right to increase sensitivity so that a relatively small movement will trigger the alarm. Move the bar to the left to reduce the sensitivity of movement detection. Set up an appropriate Sensitivity value will reduce the chance of false alarm. For example, you can lower the Sensitivity to avoid the alarm being triggered by a swinging tree in the breeze. - Interval: Click and move the slider control to the right to increase interval time so that the alarm will only be triggered when the movement lasts longer. Move to the left to reduce the interval time. - Ignore Lighting: Check the box to avoid alarm being set off by light changing.

Region Definition:

\- Define detection zone: To detect Camera Occlusion, you have to define a detection zone. Left-click and drag the mouse to draw a detection zone. You may define more than one zone on the screen by repeating the same process. User can also click on "All" button to select the entire detection zone. Start Simulation: Click the Start Simulation button and test the function on the preview screen.

4.1.10 POS Event - Assign a POS Event

Step 1: Select a ☑ POS device from the list and click ☐ to insert event. Note: Please insert the POS device in Config -POS Application first. Then set the alarm based on it. Step 2: There are five types of events: Transaction Start, Transaction End, Open Cash Register, Connection Lost and User Defined. Select the event you want on the Event Type list, and then click OK. Transaction Start - Detect the beginning of any transaction. Transaction End - Detect the end of any transaction. \$ Open Cash Drawer - Detect the opening of any cash drawer. Connection Lost - Detect the connection problems between POS box and Main Console. User Defined - Detect any condition defined by user. LevelOne IP CamSecure

Select Event Event Type Description Transaction Start A transaction starts Transaction End A transaction ends Open Cash Drawer Cash Drawer is opened Connection Lost Connection Lost User Defined 1 User defined event rule 1 User Defined 2 User defined event rule 2 User Defined 3 User defined event rule 3 User Defined 4 User defined event rule 4 ✓ OK × Cancel!

Step 3: Configure the setting of the Event Type. Please refer to the POS section of the User manual.

4.1.11 Digital Input Event - Digital Input Event


Event and Action Configuration Event CAM01 Camera 1 General Motion CAM02 Camera 2 CAM03 Camera 3 CAM04 Camera 4 Digital Input card1 Input 0 System Action Action Options ✓ OK × Cancel Select Digital Input Module I/O Module Input Pin cardi 1 (switch) cardi 2 (Input 2) cardi 3 (Input 3) cardi 4 (Input 4) cardi 5 (Input 5) cardi 6 (Input 6) cardi 7 (Input 7)

Step 1: Click and highlight Digital Input on the event type list, and then click the Insert Event icon. Step 2: Select the device that is connected to your system.

4.1.12 System Event - Assign a System Event


Event and Active Configurations Event CAMO1 name1 General Motion CAMO2 name2 General Motion CAMO3 name3 General Motion CAMO4 name4 General Motion CAMOS name5 Digital Input System Action Action Options ✓ OK ✗ Cancel Select Event Event Type Description Disk Space Exhausted Disk space is exhausted System Health Unusual High CFU temperature or low fa... Resource Depleted CPU or memory is depleted Network Congestion Network bandwidth is overloading ✓ OK ✗ Cancel

Step 1: Click and highlight System on the event type list, and click the Insert Event icon. Step 2: There are four events, select the event you want to detect. LevelOne IP CamSecure

4.1.13 System Event - Disk Space Exhausted

This function alarms you when disk space is exhausted.

4.1.14 System Event - System Health Unusual

This function alarms you when CPU is under high temperature or fan speeds are running low. Current Status: Displays current CPU temperature, Motherboard Temperature, Fan Speed and Power fan speed. Options: Check the Temperature Format for Celsius or Fahrenheit; fix maximum motherboard temperature for High Temperature Alarm and minimum RPM for Power Fan Speed Alarm.

4.1.15 System Event – Resource Depleted

This function alarms you when CPU or memory is depleted. Current Status: Shows you the current Total CPU Loading and Total Memory Usage. Options: Fix maximum percentage for High CPU Loading Alarm and High Memory Usage Alarm.

4.1.16 System Event – Network Congestion

This function alarms you when network bandwidth is overloaded. Current Status: Shows you the current Total Upload/Download bit rates. Options: Fix maximum bit rate (Kbps) for High Upload/Download Bit rate Alarms. System Health Unusual

Alarm Event Configuration Basic Advanced Current Status CPU Temperature: 0C Motherboard Temperature: 0C Fan Speed: 0 RPM Power Fan Speed: 0 RPM Options Temperature Format: ○ Celsius ○ Fahrenheit High temperature alarm at: 70C High Motherboard Temperature Alarm at: 70C Low Fan Speed Alarm at: 1000 RPM Low Power Fan Speed Alarm at: 1000 RPM ✓ OK Cancel

Resource Depleted

Alarm Event Configuration Basic Advanced Current Status Total CPU Loading 81 % Total Memory Usage 64 % Options High CPU Loading Alarm at: 70 % High Memory Usage Alarm at 70 % ✓ OK Cancel

Network Congestion

Alarm Event Configurations Basic Advanced Current Status Total Upload Bitrate 0 Kbps Total Download Bitrate 0 Kbps Options High Upload Bitrate Alarm at: 100 Kbps High Download Bitrate Alarm at: 100 Kbps ✓ OK Cancel

4.1.17 System Event - TV-Out

\* Note: This function is not available if there is no IPS-7108/7116 card installed.

Event and Action Configuration Event CAM01 Camera 1 General Motion CAM02 Camera 2 General Motion CAM03 Camera 3 General Motion CAM04 Camera 4 General Motion CAM05 Camera 5 General Motion CAM06 Camera 6 General Motion CAM07 Camera 7 General Motion CAM08 Camera 8 General Motion CAM09 Camera 9 General Motion CAM10 Camera 10 General Motion CAM11 Camera 11 General Motion CAM12 Camera 12 General Motion Action Select Notification Action Action Type Description On Screen Display Display warning message on video... Play Sound Play warning sound Send E-Mail Send E-mail to contactors Phone Call Dial a phone call to contactor PT2 Preset Go Tigger PT2 camera to present p... DUDO Popup DUDO panel or trigger digi... SMS Send SMS to contactors Central Server Send to Central Server FTP Send snapshot to FTP E-Map Popup E-Map on Event TV-Out Pop-up video to TV-Out monitor ... ✓ OK Cancel Advances ✓ OK Cancel

Pop-up video to TV-Out monitor on event.

4.2 Action

4.2.1 Action - Assign a action type


Event and Action Configuration Event Action CAMOL Camera T General Motion Digital Input System Select Notification Action Action Type Description On Screen Display Cin Screen Display Play Sound Play Sound Send E-Mail Send E-Mail Phone Call Phone Call PTZ Preset Go PTZ Preset Go DI/DO DI/DO Send a SMS message Send a SMS message Send to Central Server Send to Central Server FTP Send snapshot to FTP Popup E-Map on Event Popup E-Map on Event OK Cancel Step 1 Step 2 insert a new action:

Step 1: Choose an event and click the insert action icon  Step 2: There are 10 types of actions, select the actions you want and then click OK. 1. On Screen Display 6. DI/DO 2. Play Sound 7. Send a SMS Message 3. Send E-mail 8. Send to Central Server 4. Phone Call 9. Send snapshot to FTP 5. PTZ Preset Go 10. Popup E-Map on event. \* Note: Some actions will not be available under Lite License. Step 3: Configure the setting of the Action Type if needed.

4.2.2 Action Type - On Screen display

A red warning will be flashing on the screen of Main Console, indicating which type of unusual event is detected. Step 1: Select the "On Screen display" action and then click OK. Step 2: The responding window will popup to Selected Camera. Click the "On Screen display" indicator to modify the setting. Camera: Display the camera applied to this action. Auto popup: Click the Auto popup column and select the expected monitor for popping up the event. Displayed text: You can follow the default setting to show the event type, or enable "Customized Text" to define the text as your preference.

Select Camera Camera Auto popup CAM01 Cam1 N/A N/A Monitor #1 Displayed Text ● Missing Object ○ Customized Text OK Cancel

4.2.3 Action Type - Play Sound

Sound alarm – the system will play the sound as alarm when an unusual event is detected. Step 1: Select the "Play Sound" action and then click OK. Step 2: The responding window will popup to choose a Wave file (.wav). Click the "Play Sound" indicator to modify the setting.

LevelOne IP CamSecure

4.2.4 Action Type - Send E-mail

The system will send an E-mail immediately to given accounts indicating the type of event, the time, and attaching a picture taken while the event is detected. Step 1: Select the "Send E-mail" action and then click OK. Step 2: The responding window will popup to Select Contact, type the message to append. (You can choose more than one contact). Edit Address Book: Insert the contact information here. Note: 1. To give the system the E-mail accounts, go to Config > Setup > Hotline. See Configurations on page 80 for details. 2. For Digital Input Events, this warning action will send the snapshot of the associated camera. Please refer to I/O settings for details.

Select Contactor Edit Address Book Contactor: Name E-Mail Address User [e-mail] User [e-mail] User [e-mail] Customized message content: Motion detection alarm of camera A, please do the below SOP. OK Cancel

4.2.5 Action Type - Phone Call

The system will call a given phone number when an unusual event is detected. \* Note: This function is not available under Lite License. Step 1: Select the Phone Call action and then click OK. Step 2: The responding window will popup to Select Contactor and key-in the message which want to append on SMS content. (You can choose one more contact at once). Note: To setup the phone number and make an audio record for the phone call, go to Config - Setup - Hotline. See Configuration on page 80l.

4.2.6 Action Type - PTZ Preset Go

The PTZ (pan/tilt/zoom) camera will go to a preset point or detected. \* Note: This function is not available under Lite license. Step 1: Select the "PTZ Preset Go" action and then click OK. Step 2: The responding window will pop up to PTZ Camera Preset Go modify the setting. Step 3: Set the action of cameras which you want to trigger by event For example: Please follow below steps to setup this function. \- Set the action of camera 1: 1. Choose camera 1. 2. Set the start, end preset points. 3. Select the Life Cycle. 4. Click on Add. \- Set the action of camera 2: 5. Choose camera 2. 6. Set the start patrol and end patrol. 7. Select the Life cycle 8. Click on Add. 9. Finally click on Ok to save all setting of cameras. Note: Configure your PTZ camera before using this function. See Config on page 78 for PTZ camera configuration.

PTZ Camera Preset Go Camera: CAM14 (camera 3) IP Camera Start • Preset • Patrol 1 Life Cycle • Stop PTZ action when event disappear • Keep PTZ action 10 second End • Preset • Patrol 2 The end preset go will take 10 second Add Clear Update Delete Camera Start Life Cycle End End Preset Go OK Cancel

LevelOne IP CamSecure

4.2.7 Action Type - DI/DO

To trigger Digital input/output devices connected to the system, such as alarm lights and sirens.

Select Digital Input Module Digital output to signal: I/O Module Input Pin LevelOne WCS-20... 0 (Input 0) AXIS 214 (192.16... 0 (Input 0) ✓ Automatically popup I/O control panel ✓ OK Cancel I/O Devices ✓ Show name DI DO Input 0 Output 0 Input 0 Output 0

Step 1: Select the "DI/DO" action and then click OK. Step 2: The responding window will prompt user to Select Digital Input Module. Click the "DI/DO" indicator to modify the setting. Step 3: Select the device that is connected to your system, that is, the PC you are working with. You can enable the Automatically Popup I/O Control Panel check box to obtain the correspondent panel to monitor the I/O status. Note: You should adjust the setting of I/O device in Config>Setting>I/O Device first, the I/O control panel will display the device status based on it. You can also adjust the size of the panel by dragging a mouse or click the -on the right top of the display window.

4.2.8 Action Type - Send an SMS message

The system will send an SMS message immediately to given accounts indicating the type and time of event. \* Note: This function is not available under Lite License. Step 1: Select the "Send a SMS message" action and then click OK. Step 2: The responding windows will popup to Select Contactor (You can choose one or more contacts). Click the "Send an SMS message" indicator to modify the setting. Note: To configure a GSM modem for the system, go to Config - Setup - Hotline. See Configuration at page 80.

Select Contactor Contactor: Edit Address Book Name Phone Number User 1 111-1111-1111 User 2 222-2222-2222 User 3 333-3333-3333 Customized message content: customized message of each alarm OK Cancel

4.2.9 Action Type – Send to Central Server

This action will send an event and snapshot to the Central Management Server (separate software package, not included). \* Note: This function is not available under Lite License. Step 1: Select the "Send to Central Server" action and then click OK. Note: Please refer to the CMS user manual for details on using the Central Management System. LevelOne IP CamSecure

4.2.10 Action Type - Send snapshot to FTP

The system will upload a snapshot immediately to FTP site. \* Note: This function is not available under Lite License. Step 1: Select the "Send snapshot to FTP" action and then click OK.

Note:

1. For Digital Input Events, this warning action will send the snapshot of the associated camera. Please refer to I/O settings for details. 2. To define an FTP server, go to Config > Setup > Hotline. See Configuration at page 80 for detail.

4.2.11 Action Type - Popup E-Map on Event

The system will auto popup E-Map window and show the assigned map and indicator. \* Note: This function is not available under Lite License. Step 1: Select the "Popup E-Map on Event" action and then click OK. Step 2: The responding window will popup to Popup e-map on event. Click the "Popup E-Map on Event" indicator to modify the setting. Step 3: Select the Map Layer and Indicator, and then click OK. Note: To edit E-Map, see Configuration at page 92.

Popup e-map on event Map Layer: Flower Indicator: Cam1 OK Cancel

4.3 Advanced Settings

Click on the Advanced button on the bottom of the Event and Action Configuration dialog for advanced settings. Condition of startup – Smart Guard can be started under the follow modes: 1. Manually start/stop from Start menu or as Main Console startup setting (default) 2. Started by defined D/I trigger. Select D/I from dropdown list and click OK.

Event and Action Configuration Event CAMCEL QA Room General Motion CAM10 Office Foreign Object CAM11 Demo Camera Occusion CAM12 Desktop Signal Lost Test POS Transaction Start Digital Input Testboard Input2 (Input 2) System Disk Space Exhausted Action Action Options On Screen Display Send E-Mail FTP PTZ Preset Go E-Map Map Map, Inc. Advanced Settings Condition of startup Manually start/stop from Start menu or as Main Console startup setting Start Smart Guard detection when digital input signal trigger Select digital input module: Testboard input:Switch OK Cancel Advanced OK Cancel

LevelOne IP CamSecure

5. Configuration


FAM10A Rotorini FAM15 Dameri FAM16 Desktop IP CamSecure 2010/10/18 12:18:56 admin Free:7.0 GB NIMO Surveillance Setting User Account Setting License Manager SaveLoad Configuration Counting Application POS Application POS Search Log Viewer Backup Network Service Help About Main Console...

Config Click on the Config icon, select from the drop-down menu and open the Configuration panel. Modify the setting and access License Manager, Counting application, POS application, Log viewer, Backup, Network Services. Select Save/Load Configuration to save/load all the settings. \* Counting Application and POS Application not available under Lite License. \* Video Source function available only with MPEG-4 software compression captures devices.  Setting  User Account Setting  License Manager Save/Load Configuration  Counting Application  POS Application  POS Search  Log Viewer  Backup Network Service Help About Main Console... LevelOne IP CamSecure 5.1 Setting - General

Storage Status Display Startup General Camera I/O Device PTZ Config Hotline Address Book Monitor Display Joystick Startup Main Console Schedule Recording System Smart Guard System Counting Application Live Streaming Server Remote Playback Server 3GPP Server Remote Desktop Server Central Management Service Full Screen Auto Login Setup Miscellaneous Automatically popup event report Minimize to system tray Synchronize video frames DDNS Service Storage Location D:\Video Enable Disk Load Balance Automatic Recycle: Recycle when disk space is less than 10 % Only keep video for days Log Recycling Audio Preview Default Channel (Not Used) Enable Audio on Active Channel Volume Audio Preview Auto Reboot Every Day at 01:00 AM Status Display Current Date Current Time Login User Free Disk Space IP Camera Bitrate User Defined Text 1 User Defined Text 2 Surveillance Advanced Setting Audio Preview Auto Reboot OK Cancel

5.1.1 Startup

Check the Main Console box to execute Main Console system when windows startup. Check the following 3 main functions and 5 network services to auto activate functions when Main Console system is executing, including Schedule Recording System, Smart Guard System, Counting Application, Live Streaming Server, Remote Desktop Server, 3GPP Server, Remote Desktop Server and Central Management Service. Checking other options can setup the startup status as Full screen or allow system to auto login with the preset account. Setup Auto login: Enable "Auto login" and click the Setup button to obtain the Auto Login Setup panel, insert the User Account and Password to login automatically when the system starts. Enable the Minimize after login to minimize the Main Console window after login.

5.1.2 Storage

Location: Assign the default folder (you can setup several directories for storage) for the system to store all data files. Recommend not to save in system HD (C:\) to avoid PC efficiency drop when free storage is low. If you have more than one drive available for recording, you may check "Enable Disk Load Balance" to evenly distribute recording to multiple drives. This will increase efficiency of the system. Automatic Recycle: The system will automatically delete out-dated data to save storage space. - Recycle when disk space is: Set the standard limit to let the system recycle automatically. Less than \_ %: The system will start to recycle if the disk space is less than the indicated percentage(default is 10%).

Auto Login Setup User Account: Password: Password Confirm: ✓ Minimize after login ✓ OK ✗ Cancel


Advanced Recycle Setting Event Log Keep event log within interval of video files Keep event log for 7 days System Log Keep system log within interval of video files Keep system log for 14 days Counting Keep counting log within interval of video files Keep counting log for 90 days POS Transaction Keep POS transaction within interval of video files Keep POS transaction for 90 days Resource Report Keep resource report within interval of video files Keep resource report for 90 days OK Cancel

LevelOne IP CamSecure

Note:

1. The system will detect the storage space of default location firstly, if the default storage space is exhausted, the video will be stored to the next directory. 2. If all the status of locations exceeds the storage rule, the system will start recycling in an hour progress. • Only keep video for: Delete the video records that are older than the number of days set. Note: If the default storage spaces exhausted (disc space is less than 3%), the system will start to recycle by hourly period. \- Log Recycling: Click the button to obtain the Advanced Recycle Setting panel. Set the days that you want to keep the event or Keep all event logs within interval of video files. Event Log: Delete the event log data that is older than the number of days set. System Log: Delete the system log data that is older than the number of days set. Counting: Delete the counting application data that is older than the number of days set. POS Transaction: Delete the POS transaction data that is older than the number of days set. Resource Report: Delete the Resource report data that is older than the number of days set.

5.1.3 Status Display

Check the boxes of the information that you wish to see in the information display window in the Main Console.

2010/10/18 17:46:17 admin Free:7.0 GB NUUO Surveillance

- Status Display: Select the information such as Current Date, Current Time, Login User, Free Disk Space, IP Camera Bit rate and User Defined Text. - Advanced Setting: Click the button to obtain the Advanced Setting Panel to select Temperature, Fan Speed, System Resource and Network Utilization information you wish to display.

Advanced Setting Temperature ✓ CPU Temperature ✓ Celsius Degree ✓ Fahrenheit Degree ✓ Mctherboard Temperature ✓ Celsius Degree ✓ Fahrenheit Degree Fan Speed ✓ CPU Fan Speed ✓ Power Fan Speed System Resource ✓ Total CPU Loading ✓ Total Memory Usage Network Utilization ✓ Total Upload Bitrate ✓ Total Download Bitrate ✓ OK ✗ Cancel

5.1.4 Miscellaneous

Automatically Popup Event Report: Event report dialog to automatically popup when events are detected. Make sure to stop Smart Guard System before you modify the setting, otherwise the modification will not take effect. Minimize to system tray: Enable the Option to minimize the Main console to be an icon in notification area of windows task bar when pressing the minimize button.

Minimize


Toolbar with icons including power button, grid, and function buttons (no readable text)

Note: Insert the username and password of MainConsole again when clicking the minimized MainConsole icon in notification area of windows task bar to start monitoring. Synchronize video frames: Select to avoid image tearing problems that may occur while CPU loading is increased. \- DDNS Service: Dynamic Domain Name Server (DDNS) function allows you to use Live View or Web View to connect to the Main Console through Internet event if you have a dynamic IP address. Click on the DDNS button to obtain the Dynamic DNS Setup panel. Set up the DDNS function by selecting the provider type, filling with user name, password and hostname, and adjust the update period. \*DDNS Service is only in IP CamSecure Pro.

Dynamic DNS Setup Enable DDNS Provider DtDNS User name Password Host name Update period —— 16 minutes OK Cancel

5.1.5 Audio Preview

Default Channel: Select the audio channel that you wish to hear from in "Default Channel". Enable Audio on Active Channel: Select the "Enable Audio on Active Channel" option to hear the audio from the selected video channel (selected by mouse) on each video grid of Main Console. The default channel will play if no specific video channel is selected. Volume: Adjust the volume with the "volume bar."

Composite image showing a night scene with a vehicle and a road, alongside a smartphone interface (no readable text or symbols)

System plays the audio of "default channel"

Screenshot of a video editing interface showing a scene with a green bounding box and a timeline bar displaying '00:00' and '14:00'.

System plays the audio of the upper-left "selected channel"

5.1.6 Auto Reboot

Check the option of "Enable Auto Reboot" so that you can reboot the system on the time you select. Step 1: Check the option of "Enable Auto Reboot." Step 2: Select the time you want to reboot. Note: Enable "Main Console", "Auto Login", "Setup login account" and check other status in Startup section so when PC reboots the system will run normally.

Auto Reboot Enable Auto Reboot Every Day at 12:00 AM Central Management Service Full Screen Auto Login Setup DDNS Service

LevelOne IP CamSecure

5.2 Setting - Camera

Config

General Camera I/O Device PTZ Config Hotline User Account Address Book Monitor Display Joystick Search Insert Delete Config CAM01 Cam1 CAM02 VIVOTBK-FD7131 CAM03 VIVOTBK-IZ7151 CAM04 AXIS 210A (192.168.2.22) CAM05 D-Link DCS-6100 (192.168.2.22) CAM06 Vivotek FD7141 (192.168.2.22) CAM07 Vivotek FD7132 (192.168.2.22) CAM08 AXIS 210A (192.168.2.22) CAM09 VIVOTBK-IP7135 CAM10 LevelOne WCS-2040 (192.168.2.24) CAM11 LevelOne WCS-2060 (192.168.2.24) CAM12 AXIS 214 (192.168.2.24) CAM13 D-Link DCS-5610 (192.168.2.24) CAM14 CAM2 CAM14 CAM2 Camera Parameter CAM2 Go to Web Interface Camera Settings Video Parameter Stream Profile OSO Setting Enable Date 2009/04/30 Time AM11.15.00 Camera Number Camera Name Font Bitrate Apply All ✓ OK ✓ Cancel

5.2.1 Add Camera

Four function buttons will be included in the Setting/Camera panel if you have our Hybrid Surveillance System license for IP camera. Search: Click on the Search icon for the Search IP Camera panel. The system will start scanning automatically; click on the Stop Scan button to stop scanning any time.

Search IP Cameras Device Found: Stop Scan IP Vendor Model MAC 192.168.1.131 LevelOne FCS-5011 00-49-25-00-00-06 192.168.1.43 Panasonic BL-C10 00-80-F0-56-d6-ad 192.168.1.130 LevelOne FCS-4000 00-49-25-00-00-13 192.168.1.97 LevelOne WCS-2010 00-11-68-80-44-F1 192.168.1.90 LevelOne FCS-1010 00-11-68-80-44-BD 192.168.1.60 AXIS 207 00-49-8C-72-47-B5 192.168.1.93 LevelOne FCS-3000 00-11-68-80-3A-05 192.168.1.98 LevelOne FCS-1040 00-11-68-80-47-01 192.168.1.92 LevelOne WCS-2030 00-11-68-80-32-2B 192.168.1.94 LevelOne FCS-1030 00-11-68-80-36-FD IP Camera Option Camera Name: LevelOne FCS-5011 (192.168.1.131) User Name: Password: OK Cancel

Fill in the user name and password for each IP camera found and click OK to add it to the camera list. Insert: Click on the Insert icon for the IP/Video Server Setting panel and add IP cameras to the list. See following part (IP Camera/Video Server Setting panel) for detail. Delete: Click on the Delete button to remove the selected IP camera(s) from the system. Click OK to finalize the modification. Config: Click on the Config button for the IP/Video Server Setting panel. You can modify the IP camera settings with the Setting panel. See following part (IP Camera / Video Server Setting panel) for detail. LevelOne IP CamSecure

5.2.2 IP Camera / Video Server Setting panel


Network IP Camera / Video Server Setting Network: Name: IP Address: Use DNS Http Port: 00 User Name: Password: Protocol: TCP UDP HTTP Device Vendor: Camera Model: Auto Detect Camera: ✓ 1 2 3 4 □ 5 □ 6 □ 7 □ 8 Description Video Codec:MJPEG Audio Codec:NIA Camera:1, Dt:0, Do:0 ✓ OK ✗ Cancel

Network: Fill in required info of the Network field (including Name, IP Address, Http Port, User Name, Password and Protocol) referring to the instruction provided by the camera manufacturer. Check "Use DNS" to use domain name instead of IP address. Device: Choose the IP camera manufacturer from the drop-down menu. Alternatively click on "Auto Detect" and the detected vendor /model name will show in the box. Description: Shows information for the IP camera.

5.2.3 Camera Parameter

Camera List


General Camera I/O Device FTZ Config Hotline User Account Address Book Monitor Display Joystick Search Insert Delete Config CAM01 Cam1 CAM02 VIVOTEK-FD7.131 CAM03 VIVOTEK-IZ7151 CAM04 AXIS 210A (192.168.2.22) CAM05 D-Link DCS-5100 (192.168. CAM06 Vivotek FD7141 (192.168.: CAM07 Vivotek FD7132 (192.168. CAM08 AXIS 210A (192.168.2.22) CAM09 VIVOTEK-IP7135 CAM10 LevelOne WCS-2040 (192. CAM11 LevelOne WCS-2060 (192. CAM12 AXIS 214 (192.168.2.24) CAM13 D-Link DCS-5510 (192.168 CAM14 CAM2 CAM14CAM2 Camera Parameter CAM2 Go to Web Interface Camera Settings Video Parameter Stream Profile OED Setting Enable Date 2009/04/30 Time AM11:15:00 Camera Number Camera Name Font Bitrate Apply All OK Cancel

Camera List: The camera(s) connected to the system will show on the panel, click the name of the camera to adjust the setting.

Camera Parameter:

Camera Name: Name the camera. Go to Web Interface: Go to vendor's website interface to configure the camera setting (optional). Camera Settings: Set the camera parameter offered by camera vendor. Video Parameter: Adjusts the video's brightness, contrast, saturation, and color hue values. Lens Setting: ImmerVision Lens are currently supported. Click to enable lens or setup configurations, such as camera position. Stream Profile: Stream profiles are pre-defined to preferred settings which will respond from the query of

LevelOne IP CamSecure

the remote live view function. Each profile has different Format, Frame, Resolution, Quality and Bit rate (Kbps) settings.

Stream Profile Vivotek PZ61x2 (192.168.2.240) Stream Profile Format Frame Rate Resolution Quality Bitrate (Kbps) Original MPEG4 - - - - High MPEG4 30 D1 High - Normal MPEG4 15 CIF Normal - Low MPEG4 10 CIF Low - Minimum MPEG4 3 QCIF Low Options Video format: MPEG4 Frame rate: 30 Resolution: D1 Quality: High Bit rate: 200 Kbps Default Real Size Copy to... OK Cancel

Note:

The types of stream profiles and options will differ among stream sources. IP cameras on NVR IP+ License: 5 profiles including Original (not configurable), High, Normal, Low and Minimum (for PDA/Smart Phone Clients). • IP cameras on NVR Lite License: 3 fixed, not configurable profiles including Original, Low and Minimum (for PDA/Smart Phone Clients). • Analog cameras on FCS-8005-8006 series: 4 profiles including High, Normal, Low and Minimum (for PDA/Smart Phone Clients).

Note:

1. Use "Copy to..." option to apply settings of a single camera to others. 2. To choose stream profile of remote live view, see Live view setting at page 105 for detail.

5.2.4 OSD Setting

Select the information that you wish to see in the on-screen display, or the sub-screen of the camera. Click the Font button to setup the font style.

Choose Font Foreground Font: Tahoma Size: 9 Color: ✓ Bold ✓ Edge Background Color: Transparency: 210 Default OK Cancel Apply

LevelOne IP CamSecure

5.3 Setting - I/O Device


I/O Device Setting Module: Testboard Device: SCB-C28 COM Port: COM10 ID: Adder 90 Add Modify Remove Digital Input/output pins of selected I/O module Name: Switch Type: NIO Associated Camera: NIA Pin Name Signal Type DBD Switch N/O DI1 Input 1 N/O DI2 Input 2 N/O DI3 Input 3 N/O DO0 Light N/O DO1 Output 1 N/O DO2 Output 2 N/O DO3 Output 3 N/O Input Monitor Digital Input Monitor 0 1 2 3 Digital Output Simulation 0 1 2 3 Output Monitor ✓ OK Cancel

I/O Device Setting:

- Module Setting: Name the module device and ID that has been connected to the digital input/output device(s) to your system. • Device: This column displays the device(s) already installed to the system. • ID: Select the number of the I/O port to which you plug the ribbon cable. Input Monitor: The device(s) is turned on if the dot is red. By triggering the digital input device, the related icon will light up. This is used to check that the device is correctly connected. Output Monitor: The device(s) is turned on if the dot is red. By clicking on the icon, you may trigger the digital device connected to the system. This can be used to test if the output device is correctly connected.

Device Setting

• Name: Insert the name of the device (input and output). • Type: Select the device type from the drop-down menu. 1. N/O: Normal Open. 2. N/C: Normal Close. \- Associated Camera: You may assign one camera to each digital input device. Smart Guard will collect snapshots from these cameras upon certain triggered events. For details please refer to 4.2 - Action. DI's included with IP cameras will keep its own camera as default associated camera.

5.4 Setting - PTZ Config


Setting General Camera I/O Device PTZ Config Hottime User Account Address Book Monitor Display Joystick Basic Setting CAMD1 Camera 1 CAMD2 Camera 2 CAMD3 Camera 3 CAMD4 Camera 4 Basic Setting Camera Model: Pelco D Com Port: COM1 Baud Rate: 2400 Address: Addr.00 Advanced Setting Pan Speed: Medium Tilt Speed: Medium Zoom Speed: Medium Auto Plan Speed: Slow Miscellaneous Patrol Group User-Define Preset Advanced Setting Miscellaneous OK Cancel

LevelOne IP CamSecure

Install PTZ cameras and follow the instructions of the camera manufacturer. A PTZ camera is usually connected to the PC with RS-485/RS-422. Check the box on the camera list to activate the PTZ control function of a PTZ camera. Basic Setting: Select the camera model, com port, baud rate, and address according to your PTZ camera. Note: If the camera model is an IP PTZ camera, you can work PTZ function directly without the com port, baud rate, and address settings. Advanced Setting: You may setup the pan speed, tilt speed, zoom speed and auto pan speed. Adjust the settings by dragging the bars.

Miscellaneous:

• Patrol Group: You can setup the Patrol Group, please see page 30 for detail. - Default PTZ Preset: By enabling this function, the PTZ camera will automatically go back to a default preset point when no PTZ commands are under action. To enable this option, check "Back to PTZ preset after idle" and define idle periods and a default preset point.

Default PTZ Preset Tool PTZ preset default setting ✓ Back to PTZ preset after idle Time interval of idle timeout: 30 Sec. Back to preset point after idle: PTZ home ✓ OK ✗ Cancel

\- User-Defined Preset: User-Defined Preset for the analog speed dome can trigger the extra-function of the speed dome itself, for example auto-tracking, login menu of camera...etc. You can refer to the detailed description of each analog speed dome on its user manual.

User-Defined Preset Dialog Configuration Preset Name: Preset Number: Preset Type: Set Preset Go to Preset Add Delete Update ID Name Preset Type 1 point 17 80 Set 2 function 1 99 Set 3 function 2 95 Go 4 function 3 65 Go ✓ OK Cancel

Step1: Type the Preset Name. Preset Number. Step 2: Type the Step 3: Select the Preset Type. Step 4: Press the buttons to Add, Delete, or Update preset setup.

5.5 Setting - Hotline

LevelOne IP CamSecure

Setting General Camera I/O Device PTZ Config Hotline User Account Address Book Monitor Display Joystick E-Mail *SMTP Server: *Port 25 *E-Mail Sender: E-Mail Subject: Body Content: SMTP server needs authentication SQL User Account: Password: Send Test Mail FTP *Server: *Port 21 *Login ID: *Password: Upload directory: / Passive mode Upload Test File Telephone Modem: Motorola SM56 Speakerphone Modem Wave File: ... Automatic hangup after 30 sec Test Make test phone call to: Dial Hang Up GSM modem Port: None Baud Rate: 115200 PIN Code: Interval: 1 minutes Test Send a test message to: Test OK Cancel

\*Hotline is only in IP CamSecure Pro.

Configure the settings of various contacts or devices, including E-mail, FTP, GSM modem and Telephone calls which will be triggered upon event detection. E-mail: Input the following information: Server, Port, and Sender's E-mail address, E-mail's subject title, Body content and SSL option for encrypted transmission. Click on the Send Test Mail button to test the settings. Note: \* indicates mandatory fields FTP: Input the following information: server, Port, Login ID, Password, and Upload directory, according to your FTP type to enable/disable Passive mode. You may click on the Upload Test File button to test the settings. Note: \* indicates mandatory fields Telephone: Select the modem that the system is going to dial the info call with, and then insert the phone number you want to dial to. (A modem is required for voice transition.) Note: 1. You must use a modem with voice capability. 2. You may select a Wave format file; it will be played in the phone to alarm the person who picks up the phone call. GSM modem: Set the Port and Baud Rate of the GSM modem device, and then enter PIN code. You can setup the interval of send SMS message. You may click on Test to send a test SMS message. Note: The interval is set to fix a minimum time period between two SMS messages. If set as 60 min, the SMS between 60 min would be deleted and not sent to user. LevelOne IP CamSecure

5.6 Setting - Address Book

Manage the address book from which you may send out a phone call or an E-mail when an unusual event is detected.

Setting General | Camera | I/O Device | PTZ Config | Hotline | User Account | Address Book | Monitor Display | Please input the name and contact information Name: Michael Phone: [phone] E-Mail: [e-mail] Description: Add Clear Modify Remove Contact persons Name Phone E-Mail Description Michael 555-1123125 [e-mail]

\*Address Book is only in IP CamSecure Pro/Pro Plus.

5.7 Setting - Monitor Display


Playback Option Cameras List Run Playback on Monitor Primary Secondary 01 Cam1 02 VIVOTEK-FD7131 03 VIVOTEK-I27151 04 AXIS 210A (192.168.2.2 05 D-Link DCS-6100 (192.1 06 Vivotek FD7141 (192.16 07 Vivotek FD7132 (192.16 08 AXIS 210A (192.168.2.2 09 VIVOTEK-IP7135 10 LevelOne WCS-2040 (19 11 LevelOne WCS-2060 (19 12 AXIS 214 (192.168.2.24 13 D-Link DCS-5510 (192.1 Auto Scan Primary Channel 01 Cam1_1 Secondary Channel 07 Vivotek FC Auto-scan Interval 1 sec Layout NIN Type: 3x8 OK Cancel

Playback Option: Execute Playback on the secondary monitor by checking the box. Make sure to adjust the display setting of your computer in advance to avoid system error. Cameras List: The left side displays a list of all cameras; modify the cameras shown on primary/ secondary monitor in the right window.

\*The dual monitor is only in IP CamSecure Pro.

Auto Scan: Activate auto scan to rotate the channels/ cameras on the display screen. For instance, you may select to show only 4 sub-screens on the main console while having 16 channels connected to the system. With auto scan function, you will be able to see all 16 channels by turns. You can set up a primary channel that will always be on the screen and a secondary channel that has secondary priority. Layout: Choose the number of divisions for NxN division on the Main Console screen. LevelOne IP CamSecure

5.8 Setting - Joystick

\* Note: This function is not available under Lite license.

Function Parameter Active Joystick: CH PRODUCTS IP DESKTOP CONTROLLER Button Function Parameter Button 1 Goto Preset Point 1 Button 2 Goto Preset Point 2 Button 3 Goto Preset Point 3 Button 4 Goto Preset Point 4 Button 5 Goto Previous Camera Button 6 Goto Next Camera Button 7 Toggle Single Camera View Button 8 Toggle Full Screen Button 9 Switch Screen Layout Button 10 Switch Active Monitor Button 11 PTZ Speed Down Button 12 PTZ Speed Up Import Export Default Import Export Default ✓ OK Cancel

Function: You can choose the function from the drop-down menu for the button of the joystick.

Setting General | Camera | I/O Device | PTZ Config | Hotline | User Account | Address Book | Active Joystick: CH PRODUCTS IP DESKTOP CONTROLLER Button Function Parameter Button 1 Goto Preset Point 1 Button 2 N/A 2 Button 3 Goto Preset Point 3 Button 4 Goto Camera 4 Button 5 Goto Previous Camera Button 6 Goto Next Camera Button 7 Switch Screen Layout Button 8 Toggle Single Camera View Button 9 Toggle Full Screen Button 10 Start/Stop Auto Scan Button 11 PTZ Speed Up Button 12 PTZ Speed Down Zoom Wide Zoom Tele Start/Stop Patrol Switch Active Monitor Import Export Default

Note: Following is a complete list of all log types: 1. N/A 9. Start/Stop Auto Scan 2. Goto Preset Point 10. PTZ Speed Up 3. Goto Camera 11. PTZ Speed Down 4. Goto Previous Camera 12. Zoom Wide 5. Goto Next Camera 13. Zoom Tele 6. Switch Screen Layout 14. Start/Stop Patrol 7. Toggle Single Camera View 15. Switch Active Monitor 8. Toggle Full Screen Parameter: You can choose the parameter of the function from the drop-down menu. Default: You can set the default setting for the joystick. Export: You can export the setting of the joystick. Import: You can import the setting of the joystick.

LevelOne IP CamSecure

5.9 User Account Setting

Only default admin account could manage the user accounts here. From the list on this tab, highlight each account and modify the privilege setting. There are 3 default privilege profiles of account groups: - Admin: Have privileges of all system functions and devices, except add/delete/update privileges of other users. • Power User: Have limited privileges of system functions and complete privileges of assigned devices. • User: All the privileges of system functions are forbidden, user could only manage assigned devices.

User account Setting General | Camera | I/O Device | PTZ Config | Hotline | User Account | Address Book | Monitor Display | Joystick | Name Group Description admin Admin Administrator can't exit m... User User Account Name: adults Group: adults Description: Administrator Password: Password Confirm: Disable User Account Keep remote login for 3 minutes Privilege: Function Login Main System Exit Main System Configure Main System Start/Stop Operation Start/Stop Network Service Local Backup Delete Recorded Files Remote Backup Remote Login Browse Log Login Playback Minimize Main System Device Camera Cam1 Access Remote Access PTZ Control Remote PTZ Control VIVOTEK-FD7131 Access Add Delete Default Update OK Cancel Add Delete Default Update

- Add: Click to create a new account after inserting related information. Note: The "Add" button is only enabled when adding a new account. - Delete: Click to delete the indicated account. - Default: Click to go back to default privilege settings of related user group. • Upgrade: Click to save the modifications of each account. User Account Setting: The admin may create and modify the content of user account here. • Name: Insert the user name. • Group: Assign the group for each user. • Description: Insert the description related to each user. • Password: Insert the password assigned to each user. • Password confirm: Insert again to confirm the password. - Disable User Account: Check the "Disable User Account" will block this account to access system. The signal "will appear after disabling the account. Note: Only the default admin account couldn't be disabled.

Setting User Account Name Group Description admin Admin Administrator Guard3 User Guard1 PowerUser 12345 Guard2 User 123

\- Keep remote login for\_\_minutes: Insert the duration to auto kick out account after logging in from remoteLiveViewer or Remote Playback server. Privilege: Check each privilege of functions and devices for each user account.

LevelOne IP CamSecure

- Function: Check the settings, operation related and system configuration, and the privilege of remote access.\* • Device: Check the device privileges of camera, digital output and POS in MainConsole and client applications.

5.10 License Manager

The license of the software should be registered first before operating the former version of Intelligent Surveillance System. Execute the License Management Tool in Config >License Manager to activate the license from dongle or serial number allocated with the software package, or de-activate the license then bring it to another PC to activate it again. Note: Please refer page 119 for the detail setting of License Management tool.

Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service About MainConsole... Schedule Guard

5.11 Save/ Load Configuration

The Save/ Load Configuration function allows system users to save any specific setting as a CFG (config) file. You may save several different CFG files at a time. Save Configuration: To save a specific setting, go to Config - Save/Load Configuration - Save. In the popup window, type in the file name and then save it as a CFG file. Load Configuration: To load a specific setting, go to Config - Save/ Load Configuration - Load. In the popup window, go to the directory that you saved the CFG files at, select any one of them and then click OK to load the file. Note: Main Console will be automatically shut down after loading a new configuration. Restart Main Console manually.

Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service About MainConsole...

LevelOne IP CamSecure

5.12 Counting Application

\* Note: This function is not available under Lite license.

Camera List Operation Start Simulation Counting CAM01 (Main Gata) CAM02 (Driveway) CAM03 (Pool) CAM04 (Room A) CAM05 (Room B) CAM06 (Back Door) Video Preview No Signal Operation Define detection zones Define object size Clear Start Simulation Options 1 Way Counting 2 Way Counting Densitivity Runtime Show counting result Show object bounding box Reset every 30 mins Result In: 0 Out: 0 OK Cancel

\*Counting Application is only in IP CamSecure Pro/Pro Plus.

Camera List: Select which camera would enable counting application.

Operation:

Define detection zones: Defined the detection zone. Define object size: Defined the size of the object to count. Options: 1 Way Counting will take objects going from Region 1 to Region 2 as one count. In 2 Way Counting mode, it counts either going from Region 1 to Region 2 or from Region 2 to Region 1. Runtime: Check the boxes to show the counting result on the screen and/or show object bounding box, which draws the shape of the object that the system detects in red squares. You can choose from the drop-down menu of how long you want to reset the counting number. Start Simulation: Click to test the setting.

5.13 POS Application

\* Note: This function is not available under Lite license. Each Main Console system can manage up to 64 POS cash register devices. The POS Application tool can be used to configure POS devices. Refer to the User manual for details.

\*POS Application is only in IP CamSecure Pro.


POS Application Data Source | Display | Insert | Delete | Configure | xs gt hy POS Info Name: hy IP: Serial Box: SCB-C31 Tag Filter: Default Associated Cameras CAM01 Cam1 CAM06 Vivotech FD7141 (192.16) CAM09 VIVOTEK-IP7135 OK Cancel

5.14 Network Service

LevelOne IP CamSecure There are 5 types of network services: Live streaming server, Remote playback server, 3GPP service, Remote Desktop, and Central Management Service. From the Main Console, go to Config - Network Service to obtain the Network Service panel.

\*IP CamSecure Lite only has Live Streaming in Network Service.

An icon shows for each network service in the information window of Main Console when started. See 1.1 User Interface Overview for details.

	LiveView		Playback		3GPP		Desktop		CMS
Start
Stop


Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service About MainConsole...

5.14.1 Live Streaming Server

When starting the live streaming function of computer, the system allows remote users to log in to the specific computer and view cameras that are connected to it. As system administrator, user could be able to monitor these accounts in order to maintain the system efficiency.

Main

On Live Streaming Server panel, administrator can see all the clients who are currently logging in to the computer and watching the live video from the remote side.

Network Service - 192.168.4.29 / 192.168.1.53 Main Black/While List Performance Client Count 0 Kill Client Kill All Clients State IP Camera Bitrate (Kbps) Service Server Status: Stopped Start Stop Options Port: 5150 Default Maximum Connections: 16 Use Default Web Server Port: 80 Save Log C:\Documents and Settings\USER\桌面\LiveServe ... Enable Audio OK Cancel Client list Service Options

Client list:

- Client Count: Show the amount of channels that are connecting to system. - Kill Client: Highlight an IP address and click on the "Kill Client" button to block the client from your client list. • Kill All Clients: Click on this button and all clients are blocked from logging into your system.

Service:

• Server Status: Click on Start/Stop to turn on/off this option.

LevelOne IP CamSecure

Options: Adjust the setting only when the server is stopped.

• Port: Assign a port for the clients to connect to your system via Remote Live Viewer. Default port is 5150. • Maximum Connections: Number of connections that are allowed to connect to the system. Default is 16 channels and maximum is 128, one camera video counts as one connection. - Use Default Web Server: Activate the Web server by checking the box; clients will be able to watch live video via Internet Explorer. The port for live streaming server is set to 80 by default. Note: This must be checked in order to access system via IE\*. • Save Log: Save the log information at appointed folder. - Enable Audio: Select this option to enable the audio transmission along with video stream.

Black / White List


Network Service - 192.168.4.39 / 192.168.1.53 Main Black/White List Performance Enable White List Enable Black List 192 . 168 . 2 . 50 to 192 . 168 . 2 . 80 Add to White List Add to Black List Delete ID IP Range Access 0 192.168.4.39 - 192.168.4.40 Accept 1 192.168.4.50 - 192.168.4.55 Accept 2 192.168.1.80 - 192.168.1.90 Deny Apply to all Apply to All Network Servers OK Cancel Enable list IP address Black/ White list Apply to all

- White List: Check the "Enable White List" box to activate the white list filter. Only IP from the white list is allowed to log in. - Black List: Check the "Enable Black List" box to activate the black list filter. IP from the black list will be blocked. - IP Address: Enter an IP address into the IP address field on the left. To add an IP address range to the system, enter 2 sets of IP address to indicate a series of IP(s). - Add/Delete: Add the IP(s) onto the list or remove it from the list. - Apply to All Network Servers: Apply the settings to both the live streaming server and the remote playback server. LevelOne IP CamSecure

Performance

Total bit rate Individual Camera bit rate information

Network Service Main Black/White List Performance Live Streaming Remote Playback 3GPP Service Remote Desktop Central Management Total bitrate: 195.9Kbps Camera 1 bitrate: 6.7Kbps [2005/12/05 14:56:24] User Login: admin Accept [2005/12/05 14:56:24] Play CAM 1: admin [2005/12/05 14:56:29] Play CAM 2: admin [2005/12/05 14:56:31] Play CAM 5: admin [2005/12/05 14:56:33] Play CAM 9: admin [2005/12/05 14:56:36] Play CAM 12: admin [2005/12/05 14:56:38] Play CAM 14: admin ✓ OK Cancel

Live Streaming Server log information

5.14.2 Remote Playback Server

When starting the remote playback function, the system allows remote users to log in to the specific computer and withdraw data files that are stored on it. As system administrator, user could be able to monitor the accounts logging in to maintain the system efficiency. \*Remote Playback is only in IP CamSecure Pro and there are up to 16 channels displayed simultaneously.

Main

On Remote Playback Server panel, administrator can see all the clients who are currently logging in to the computer and watching the playback video from the remote side.

Network Service - 192.168.4.39 / 192.168.1.53 Live Streaming Remote Playback 3GPP Service Remote Desktop Central Management Main Black/White List Performance User Count 0 Kill Client KII All Clients IP User Bitrate (Kbps) Service Server Status: Stopped Start Stop Options Port: 5160 Default Maximum Users: 3 Use Default Web Server Fort: 81 Save Log RemotePlayback.log Client list Service Options OK Cancel

LevelOne IP CamSecure

Client list:

• User Count: Show the number of users that are connecting to system. - Kill Client: Highlight an IP address and click on the "Kill Client" button to block the client from your client list. - Kill All Clients: Click on this button and then block all the clients logging to your system.

Service:

• Server Status: Click on Start/Stop to turn on/off this option. Options: Adjust the setting only when the server is stopped. - Port: Assign a port for the clients to connect to your system via Remote playback server. Default port is 5160. • Maximum Users: Number of connections that are allowed to connect to the system. Default is 8 users and maximum is 64. Note: One user counts as one account that is logging in to the server. - Use Default Web Server: Activate the Web server by checking the box; clients will be able to watch live video via Internet Explorer. The port for live streaming server is set to 80 by default. Note: Must check this item for system access via IE\*. • Save Log: Save the log information at appointed folder. Black / White List and Performance - Please refer to Live Streaming Server section

5.14.3 3GPP Service

When starting the 3GPP service function of your computer, the system allows remote users to log in and view cameras that are connecting to it with 3GPP supported mobile phone. See Appendix A for more details about 3GPP Service.

Network Service - 192.168.4.39 / 192.168.1.53 Main Client Count 0 State IP Camera User Agent Service Server Status: Stopped Start Stop Options Port: 554 Default Enable User Authentication Client list Service Options OK Cancel

Client list:

\- Client Count: Show the number of channels that are connected to system.

Service:

• Server Status: Click on Start/Stop to turn on/off this option. Options: Adjust the setting only when the server is stopped. • Port: Assign a port for the clients to connect to your system via 3GPP Service. Default port is 554. - Enable User Authentication: User need to insert the username and password to login to the 3GPP server and view the video stream.

5.14.4 Remote Desktop

When starting the Remote Desktop, the system allows remote users to use Remote Desktop Tool to login and configure system. See Appendix B to install and use this tool.

Options:

- Port: Assign a port for Desktop tool to login and configure system. - Disconnect idle client after (300\~3600 sec): Auto disconnect the on-line user who idled more than set period.

Authentication:

Enabling this option would only allow admin account to use Desktop tool to login system.

Service:

• Server Status: Click on Start/Stop to turn on/off this option.

5.14.5 Central Management Service

\* Note: This function is not available under Lite license. This service only supports Central Management System (CMS). When starting the Central Management Service option of the system, the Main Console would send event information to NCS and allow NCS system to control I/O device from remote side.

Note:

1. To enable this action, go Guard >Action and select "Send to Central Server" to enable the action triggered by preference event. 2. Please refer to the user manual of Central Management System for detailed information.

Network Service - 192.108.4.39 / 192.108.1.53 Main Live Streaming Remote Playback 3GPP Service Remote Desktop Central Management Options Port: 5140 Default Disconnect idle client after (300~3600 sec): 3600 Authentication Enable User Authentication (Use admin password) Service Server Status Start Stop Option Authentication Server Status ✓ OK Cancel


Network Service - 0.0.0.0 / 192.168.0.83 / 218.167.191.175 Main Client Count 0 Kill Client Kill All Clients State IP Service Server Status: Etopped Start Stop Options Port: 5170 Default Maximum Connections: 16 Client Service Options OK Cancel

Client list:

- Client Count: Show the amount of NCS Servers that are connected to system. - Kill Client: Highlight an IP address and click on the "Kill Client" button to block the client from your client list. - Kill All Clients: Click on this button and then block all the clients logged in to your system.

Service:

• Server Status: Click on Start/Stop to turn on/off this option. Options: Adjust the setting only when the server is stopped. • Port: Assign a port for NCS System to connect Main Console system. Default port is 5170. • Number of connections from NCS Servers that are allowed to connect to the system. The default is 8 NCS Servers and maximum is 16. LevelOne IP CamSecure

5.15 About Main Console

Go to About Main Console for detailed system and license information.

Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service Help About MainConsole... About Main Console MainConsole Version 1.28.0 Copyright© 2004-10 Digital Data Communications Asia Co. Ltd. All rights reserved. http://www.level1.com Product Information Model Type: IP Camera License Number: 16 POS License Number: 0 Device Pack Version: 1.5.0

5.16 Video Source

(For system with MPEG4 capture device only, not supported under Lite license) Step 1: Go to Video Source to adjust the Video Standard to NTSC or PAL. Step 2: Adjust the maximum Video Resolution for all analog cameras.

Video Resolution	Frame Rate	Quality
Turbo mode	Higher	Lower
Standard mode	Normal	Normal
High Quality mode	Lower	Higher

Step 3: Click Sync all video signal level after pressing OK to synchronize video signal level to the optimized display (Auto-gain control).

Setting Save/Load Configuration Video Source Counting Application Log Viewer Backup Network Service About MainConsole... Video Source Video Standard: NTSC Video Resolution: 352x240 (Turbo) Sync all video signal level a 352x240 (Standard) 640x480 (Turbo) 640x480 (Standard) 640x480 (High Quality) 704x480 (Turbo) 704x480 (Standard) 704x480 (High Quality)

6. E-Map


E-Map Device and Map Map Airport East Gate Distro Device Cam1 Cam3(192.168.2.210) Cam4 (192.168.2.213) AX5 01755 (192.168.2.210) Cam3(192.168.2.210)-I Cam3(192.168.2.219)-O Cam4 (192.168.2.213)-I Cam4 (192.168.2.213)-O E-Map Preview Information Cam3(192.168.2.219)-Output 0 (I/O) state:OFF

With E-Map, users can easily track the actual location of an occurring event, at the moment it happens. The arrow and lightning icons on E-Map represent cameras and I/O devices. These icons will turn red once they are triggered by alarms. To launch the E-Map application, simply click on Start and select Open E-Map from the start menu for the E-Map window. There are 2 modes available in the E-Map application:  Edit mode: Allows users to add/edit maps and indicators of devices. In Edit mode, the action buttons on the bottom of the window will be available. Please complete configurations are running E-map function for the first time.  Operate mode: All settings will be activated in this mode. LevelOne IP CamSecure

6.1 Edit Mode

All E-map modifications must be configured in Edit Mode.

E-May Device and Map Map Airport East Gate Elastic Device Cam1 Cam3(192.168.2.219) Cam4 (192.168.2.213) AX8 Q1755 (192.168.2.2 Cam3(192.168.2.219)-lr Cam3(192.168.2.210)-0 Cam4 (192.168.2.213)-lr Cam4 (192.168.2.213)-0 do dt E-Map Preview Information Bistro (Map) Add Map Edit Map Delete Rotate Function button Edit mode/ Operate mode Switch button

6.1.1 Add/Edit/Delete Map

Add E-Map:

Step 1: Click on the switch button to switch to Edit mode. Make sure all devices are connected and setup properly. Step 2: Right click on the Map 📋 icon in device and map list to obtain the option menu to add map, or just click "Add Map" button to obtain the "Map Config" dialog.

Map Config Map Image File: Map Name: OK Cancel

Step 3: Select the map file and insert the map name. Click OK, and then the map you added appears in the tree structure of device and map list. Step 4: The map indicator appears on the left-up corner of parent map. Drag it to the position you want on appointed map.

Edit E-Map:

Step 1: Make sure you are in Edit mode and all devices are connected and inserted. Step 2: Right click on the "Map 🔊" icon to obtain the option menu to edit map, or just click the "Edit Map" button to obtain the "Map Config" dialog. Step 3: Modify the required details, and then click OK to save configuration.

Delete E-Map:

Step 1: Make sure you are in Edit mode and all devices are connected and inserted. Step 2: Right click on the "Map 🔒" icon to obtain the option menu to delete map, or just click the Delete button to remove appointed map from list. Note: The root map cannot be deleted.

LevelOne IP CamSecure

6.1.2 Add/Rotate/Delete Device Indicator

Add Indicator:

Step 1: Make sure you are in Edit mode and all devices are connected and inserted. Step 2: Click on the "Map" icon to go to the desired map layer. Step 3: Please make sure the map you want is displayed. Select device from the list and directly drag a device to the desired location on the map. Note: Different devices are symbolized by different indicators. \- Camera indicator, -digital Output indicator, -POS indicator.

Rotate Indicator:

Step 1: Click on an existing camera indicator on your map under Edit mode. This camera indicator will be marked with a green ring. Step 2: Each click on the Rotate button rotates the indicator 45 degrees clockwise. Note: Only camera indicators are allowed to be rotated.

Delete Indicator:

Step 1: Click on an existing camera indicator on your map under Edit mode. This camera indicator will be marked with a green ring. Step 2: Click on the Delete button and the indicator will be gone.

6.2 Operate Mode

After configuration under Edit mode, switch to Operate mode to commit settings.

E-Map Device and Map Map Airport East Gate Bistro Device Cam1 Cam3(192.168.2.219) Cam4 (192.168.2.213) AXG Q1755 (192.168.2. Cam3(192.168.2.219)-ir Cam3(192.168.2.219)-0 Cam4 (192.168.2.213)-ir Cam4 (192.168.2.213)-0 de gt Preview Information Cam3(192.168 2.219)-Output 0 (UO) state: OFF

Operate mode/ Edit mode Switch button

6.2.1 Device and Map Tree list

This window will list all devices and map hierarchies; click device or map indicator to show related information on E-Map windows.  Map – Select the map you want to show on E-Map Window.  Camera – A preview of the selected camera will show in the preview window. The indicator, if previously created, will be highlighted on the map.  Digital Input – Select it to highlight the device with green ring on map and show status on Information window. If the Digital Input is from IP camera, the preview window will display live video of the camera.  Digital Output – Select it to highlight the device with green ring on map and show status on Information window. If the Digital Output is from IP camera, the preview window will display live video of the camera.  POS – Select it to highlight the POS device with green ring on map and display live video of first associated camera on preview window.

LevelOne IP CamSecure

6.2.2 E-Map picture

This window will show the map layer and indicators.

Device Indicator:

Select device indicators from the Device and Map Tree list for related information and to preview video.

Map indicator:

Selecting a map indicator will bring you to that map layer. To return to an upper layer, right click on the map and select UP or click on the map layer.

6.2.3 Information and Preview windows

This window will show the related information of each indicator.  Map Info – Shows map name. Camera – Shows camera name and connection status.  Digital Input – Shows Digital Input name and status (0 or 1). Digital Output – Shows Digital Output name and status (0 or 1).  POS – Shows POS device name, connection status, first associated camera name and connection status. 6.3 Layout Adjustment

E-Map Device and Map Map Airport East Gate Eistro Device Cam1 Cam3(192.168.2.219) Cam4 (192.168.2.219) A48 G1755 (192.168.2.219) Cam3(192.168.2.219)-lr Cam3(192.168.2.219)-0 Cam4 (192.168.2.213)-lr Cam4 (192.168.2.213)-0 E-Map Preview Information Bistro (Map) Add Map Edit Map Delete Route Save

Triangular indicator

Shrink the window:

Click on "▶◀ Triangular indicators" to hide the "Device and Map" or "Preview" and "Information" windows on the right and left sides. Click again to go back to the default layout.

Full screen display:

For systems with dual monitor, users can view Main Console on the primary monitor, and view a full-sized E-Map on the secondary monitor. Step 1: Click on “▶◀ Triangular indicators” to hide the “Device and Map” or “Preview” and “Information” windows on the right and left sides. Step 2: Click “☐” on the upper-right corner of the window for the full screen mode of E-Map.

E-Map Add Map Edit Map Delete Remove Save

LevelOne IP CamSecure

7. Log Viewer

\*IP CamSecure Lite only has System Log option in Log Viewer.

Log Viewer Unusual Event | System Log | Counting Application | Counting Application (Diagram) | POS Log | Log Type: All Channel: All Date: 2009/07/15 Export to... DateTime: 2009/07/15 14:45 to 2009/07/15 14:45 Search Event Time Event Type Camera Description 2009/07/15 14:45:46 General Motion 03 2009/07/15 14:45:51 General Motion 02

View the history and export reports of unusual events detected by the Smart Guard System. To launch Log Viewer, simply click on Config and select Log Viewer from the menu. LevelOne IP CamSecure

7.1 Unusual Event


Log Viewer Unusual Event | System Log | Counting Application | Counting Application (Diagram) | POS Log | Log Type: AI Channel: AI Date: 2009/07/15 DateTime: 2009/07/15 14:45 to 2008/07/15 14:45 Export to... Search Step1 Step2 Step3 Event Type Event Type Camera Description 2009/07/15 14:45:46 General Motion 03 2009/07/15 14:45:51 General Motion 02 Step 4

Step1: Choose the type of events you wish to view or select All from the drop-down menu to view all. The types of Unusual Events include General Motion, Foreign Object, Missing Object, Focus Lost, Camera Occlusion, Signal Lost, Disk Space Exhausted, System Health Unusual and Digital Input Triggered. \* Note: Detection of some events is not available under Lite license. Step 2: Choose the camera channel you wish to view or select All for all channels available. Step 3: View the events that happened on a particular date or during a given time period by defining a search period. For a particular date: check and specify date in the Date box. For a period: check the DateTime and then enter the date and time.

Step 4: Click Search.

Note: When working with a video record, as default, Log Viewer will search for Unusual Events in the video record in Date & Time mode, starting from the beginning to the end of the record. A link ( ) will appear next to each event time where video is available. By clicking on the link, an instant playback window will pop up to show recorded video. Note: Instant playback is available under the following Smart Guard events: General Motion, Foreign Object, Missing Object, Focus Lost and Camera Occlusion. LevelOne IP CamSecure

7.2 System Log

Step 1

Step 2


Log Viewer Unusual Event System Log Counting Application Counting Application (Diagram) PCS Log Log Type: All Date: 2009/05/05 DateTime: 2009/05/05 14:58 to 2009/05/05 14:58 Export to... Search Event Time Event Type Description 2009/05/05 09:54:47 Main Console Startup 2009/05/05 09:56:22 Main Console Shutdown 2009/05/05 13:29:02 Main Console Startup 2009/05/05 13:29:04 User Login admin 2009/05/05 13:29:10 Start Schedule 2009/05/05 13:29:15 Start Smart Guard 2009/05/05 13:47:56 Modify Configuration 2009/05/05 13:48:31 Modify Configuration 2009/05/05 13:49:46 Modify Configuration 2009/05/05 13:50:56 Modify Configuration 2009/05/05 13:51:35 Modify Configuration

Step 3

Step1: Choose the type of event you want to check or select All from the drop-down menu for all types of events. Select Log Type form the drop-down menu. There are in total 31 types of log types, including: √ Main Console Startup √ Main Console Shutdown √ User Login √ User Login Failed √ Start Schedule √ Stop Schedule √ Execute Recycle √ Enable Channel √ Disable Channel √ Start Smart Guard √ Stop Smart Guard √ Modify Smart Guard √ Modify Schedule √ Modify Configuration √ Start Live Streaming Server √ Stop Live Streaming Server √ Modify Live Streaming Server √ Start Remote Playback Server √ Stop Remote Playback Server √ Modify Remote Playback Server √ IP Camera Connection Lost √ Auto Restart Windows √ Modify POS Setting √ POS Connection Lost √ Modify E-Map √ Start Remote Desktop √ Stop Remote Desktop √ Modify Remote Desktop √ Start Central Management √ Stop Central Management √ Modify Central Management \* Note: Detection of some system logs is not available under Lite license. Step 2: View the events that happened on a particular date or during a given time period by selecting search period. For a particular date: check the Date box right and indicate the date. For a period: check the DateTime and then enter the date and time. Step 3: Click Search. LevelOne IP CamSecure

7.3 Counting Application

\* Note: This function is not available under Lite license. Display the history of Counting Application during a given time period.

Log Viewer Unusual Event | System Log Counting Application Counting Application (Diagram POS Log | Channel: All Date: 2007/09/25 Date&Time: 2007/09/25 13:31 to 2007/09/25 13:31 Export to Search Event Time Channel In Out 2007/07/25 19:00:00 Camera 3 14 13 2007/07/25 19:30:00 Camera 3 0 4 2007/07/25 19:32:42 Camera 3 0 0 2007/07/27 11:30:00 Camera 3 4 2 2007/07/27 12:00:00 Camera 3 5 6 2007/07/27 12:30:00 Camera 3 4 4 2007/07/27 12:32:15 Camera 3 0 0 2007/09/26 13:29:49 Camera 1 0 0

Step 4 Step1: Select the channel you want to check or select All from the drop-down menu for all channels. Step 2: Select search period. View the events that happened on a particular date or during a given time period by selecting search period. For a particular date: check the Date box right and indicate the date. For a period: check the DateTime and then enter the date and time. Step 3: Click Search. Step 4: Press the button Export to. Step 5: Type the file name and choose the file format (.xls or .txt). LevelOne IP CamSecure

7.4 Counting Application (Diagram)

\* Note: This function is not available under Lite license. Display the Counting Application data in diagram format.  Step1: Select the channel you want to check or select All from the drop-down menu for all channels. Step 2: From the drop-down menu, set up how you would like the diagram to be displayed. You have the options of one day, one month, or one year. Step 3: Select a specific date to make it the start point of the diagram. Step 4: Click Search. Step 5: Press the button Export to. Step 6: Type the file name and the file will save as BMP files.

7.5 POS Log

\* Note: This function is not available under Lite license. View the POS Log history detected by the Smart Guard System.

Log Server Unusual Event | System Log | Counting Application | Counting Application (Diagram) | POS Log | Log Type: Connection Lost Open Cash Drawer Date: Connection Lost User Defined Event Rule 1 User Defined Event Rule 2 User Defined Event Rule 3 Date Time: 2009/05/08 16:14 Camera User Defined Event Rule 4 User Defined Event Rule 5 User Defined Event Rule 6 User Defined Event Rule 7 User Defined Event Rule 8 User Defined Event Rule 9 User Defined Event Rule 10 POS: All Export to... Search Event Name POS Name Description Step 5

Step1: Choose the type of events you wish to view or select All from the drop-down menu to view all types of events. The types of Unusual Event include Transaction Start, Transaction End, Open Cash Register, Connection Lost, and special User defined event. Please refer to the User manual of POS for details. Step 2: Choose the camera channel you wish to view or select All for all the channels available. Step 3: View the events that happened on a particular date or during a given time period by selecting search period. For a particular date: check the Date box right and indicate the date. For a period: check the DateTime and then enter the date and time. Step 4: Click Search. A link ( ) will appear next to each event time where video is available. By clicking on the link, an instant playback window will pop up to show recorded video Step 5: Press the button Export to. Step 6: Type the file name and choose the file format (.xls or .txt). LevelOne IP CamSecure

7.6 Export

After each log search, export needed info to .xls or .txt files.

Log Vave Unusual Event System Log Counting Application Counting Application (Diagram) POS Log Log Type: All Date: 2009/05/05 DateTime: 2009/05/05 14:50 to 2009/05/05 14:50 Export to... Search Event Time Event Type Description 2009/05/05 09:54:47 Main Console Startup 2009/05/05 09:56:22 Main Console Shutdown 2009/05/05 13:29:02 Main Console Startup 2009/05/05 13:29:04 User Login admin 2009/05/05 13:29:10 Start Schedulo 2009/05/05 13:29:15 Start Smart Guard 2009/05/05 13:47:56 Modify Configuration 2009/05/05 13:48:31 Modify Configuration 2009/05/05 13:49:46 Modify Configuration 2009/05/05 13:50:56 Modify Configuration 2009/05/05 13:51:35 Modify Configuration

Step 1 Step1: Press the button Export to. Step2: Type the file name and choose the file format (.xls or .txt).

D1 A B C D E 1 Draw/Time Event/Type Description 2 200705.2.00 4:54 Main Console Stamp 3 200705.2.00 4:54 Use Login astris 4 200705.2.01 11:30 Main Console Stormers 5 200705.2.01 27:04 Main Console Stamp 6 200705.2.01 27:05 Use Login astris 7 200705.2.01 28:27 Main Console Stormers 8 200705.2.15 06:51 Main Console Stamp 9 200705.2.15 06:53 Use Login astris 10 200705.2.15 09:04 Main Console Stormers 11 200705.2.15 08:23 Main Console Stamp 12 200705.2.15 08:40 Main Console Stormers 13 200705.2.15 08:54 Main Console Stamp 14 200705.2.15 09:01 Main Console Stormers 15 200705.2.15 14:11 Main Console Stamp 16 200705.2.15 14:12 Main Console Stormers 17 200705.2.15 14:31 Main Console Stamp 18 200705.2.15 15:20 Main Console Stormers 19 200705.2.19 44:13 Main Console Stamp 20 200705.2.19 44:54 Main Console Stormers 21 200705.2.22 31:57 Main Console Stamp 22 200705.2.22 31:59 Main Console Stormers 23 200705.2.22 32:34 Main Console Stamp 24 200705.2.22 32:31 Use Login astris 25 200705.2.22 32:34 Main Console Stormers 26 200705.2.22 33:39 Main Console Stamp

> D1 = 3/3/9/9/9/

.xls

2007/09/12 08:45:41, Main Console Startup, 2007/09/12 08:45:44, User Login, admin 2007/09/12 01:11:10, Main Console Shutdown, 2007/09/12 01:27:04, Main Console Startup, 2007/09/12 01:27:05, User Login, admin 2007/09/12 01:28:27, Main Console Shutdown, 2007/09/12 15:06:51, Main Console Startup, 2007/09/12 15:06:52, User Login, admin 2007/09/12 15:07:04, Main Console Shutdown, 2007/09/12 15:08:28, Main Console Startup, 2007/09/12 15:08:40, Main Console Shutdown, 2007/09/12 15:08:54, Main Console Startup, 2007/09/12 15:09:01, Main Console Shutdown, 2007/09/12 15:14:11, Main Console Startup, 2007/09/12 15:14:12, Main Console Shutdown, 2007/09/12 15:14:31, Main Console Startup, 2007/09/12 15:15:28, Main Console Shutdown, 2007/09/12 19:44:15, Main Console Startup, 2007/09/12 19:44:58, Main Console Shutdown, 2007/09/12 22:51:57, Main Console Startup, 2007/09/12 22:51:59, Main Console Shutdown, 2007/09/12 22:52:14, Main Console Startup, 2007/09/12 22:52:18, User Login, admin 2007/09/12 22:52:24, Main Console Shutdown, 2007/09/12 22:53:19, Main Console Startup,

.txt LevelOne IP CamSecure

8. Backup


Backup System [Localhost] Backup Help New Period Remove Period Backup Delete Start Date Time End Date Time Camera(s) Size 2009/5/14 下午 01:09:00 2009/5/14 下午 01:32:00 1,2,3,4 843,322KB 2009/5/15 上午 10:33:00 2009/5/15 上午 10:46:00 1,3 111,185KB

The backup function saves recorded video and other log information. Backup files may be reloaded on any PC with the Playback System installed. Follow the instructions below for more information on obtaining backup files. LevelOne IP CamSecure

8.1 Backup Recorded files


Backup System [LocalHost] Backup Help New Period Remove Period Backup Delete Start Date Time End Date Time Concept(s) Size Step 1 Step 2 Step 3

Step 1: Add (Remote) Backup Site: Press the "Remote Server button to go to remote backup site management to add and setup the backup site. - Enter the IP address or DNS, Port, Username, and Password. - Click Add to add the server. - Click OK to exit the Setting panel. Step 2: Access (Remote) Backup Site: Click on the icon and insert the username/password of the remote server to access the backup Site. Step 3: Click on New Period to obtain the Select Date/Time Period panel. Step 4: Select the data you want to backup by highlighting the time period. Besides the time-table, you may also set up start time and end time in the Date Time Period section. Step 6

DateTime Search Dialog [Local Machine] Date Time Period Start Time: 2003/ 7/15 00:00:00 End Time: 2003/ 7/15 00:00:00 Video Preview Enable Preview Step 4 Show Records Show Event Log Step 5 07/16 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 Camera 1 Camera 2 Camera 3 Camera 4 Camera 5 Camera 6 Camera 7 Camera 8 Record Always Record on Motion Record on Event ✓ OK ✗ Cancel Step 7

  to add/delete all the channels. Step 6: Check the box of Enable Preview to get the preview of the video you select. Step 7: Click OK when the settings are complete and go back to the Backup System panel. Step 8: If there is any data period not wanted, click Remove Period to remove the data period on the backup list. LevelOne IP CamSecure

Backup System [Localhost] Backup Help New Period Remove Period Backup Delete Start Date Time End Date Time Camera(s) Size 2009/5/14 下午 01:09:00 2009/5/14 下午 01:32:00 1,2,3,4 843,322KB 2009/5/15 上午 10:33:00 2009/5/15 上午 10:46:00 1,3 [11,185KB

Step 9: Click the Backup icon to obtain Backup panel.

Backup Summary Total backup data size: 74,434KB Media Backup using CDROM Backup using DVD Backup on HardDisk Option Backup Event Log Backup System Log Backup Counter Log Backup POS Transaction OK Cancel

Step 10: Summary: Check the summary section to see the size of the file(s). Step 11: Media: Choose the path you want to save the file or burn the file into a CD (direct CD burning for Windows XP only), DVD or on Hard Disk. Step 12: Option: Select the log information you would like to backup (Event Log, System Log, Counter Log and POS Transaction), and then click OK.

8.2 Delete Recorded files

Step 1: Click on "New Period" to obtain the Select Date Time Period panel.

Backlog System [Localhost] Backup Help New Period Remove Period Backup Delete Start Date Time End Date Time Event(s) Size 2009/5/14 上午 11:54:00 2009/5/14 下午 12:19:00 1,2,3,4 914,584KB 2009/5/11 下午 08:41:00 2009/5/11 下午 08:54:00 1,2,3,4 606,411KB Step 1 Step 3

Step 2: Follow steps 3-7 above from the backup section to select data period which you want to delete. Step 3: Click on the Delete icon and delete all the data in the backup list from the database. Note: Deleted video cannot be recovered. LevelOne IP CamSecure

9. Remote Live Viewer


Screenshot of a retro computer interface with a blank screen, control panel, and toolbar (no readable text or symbols)

With the Remote Live Viewer console, remote users may watch up to 128 channels real-time video from remote live streaming servers. \*There is only 1 channel displayed in Live Viewer in IP CamSecure Lite while there are up to 16 channels displayed in IP CamSecure Pro simultaneously. LevelOne IP CamSecure

9.1 Setting

Click General Setting to obtain setting dialog.

General Setting

9.1.1 General Setting


LiveView Setting General Server Group Camera OSD POS Monitor Display Notification Jc Audio preview Enable audio on active channel Miscellaneous Synchronize video frames OK Cancel

Audio preview:

\- Enable audio on active channel: Select to enable audio streaming on active channel.

Miscellaneous:

\- Synchronize video frames: Select to avoid image tearing problems that may occur while CPU loading is increased.

9.1.2 Server setting


LiveView Setting General Server Group Camera OSD POS Monitor Display Notification Jr Server List Server Setting Server Name: Address: Port: 5150 User Name: Password: Save Password: Auto Login: Test Server localhost (localhost) Add Delete Update OK Cancel

Step 1: Enter the Server Name. Step 2: Enter the Address, Port, User Name, and Password to log in the server. Step 3: Enable "Save Password" to login without entering the password again. Step 4: Enable "Auto Login" to login automatically when starting Remote Live Viewer. Step 5: Click on Test Server to check if the server is available. Step 6: Click Add to insert the setting to server list.

Note:

To change the setting, select a server on server list and click "Update" after modify setting. To remove the server, select a server on server list and then click "Delete". LevelOne IP CamSecure

9.1.3 Group Setting

Allocate different cameras into each appointed group. \* Note: Cameras under Lite license cannot be included in a group with other servers.

LiveView Setting General Server Group Camera OSD POS Monitor Display Notification Jc Insert Delete Rename Company localhost - AXIS Q1755 (192 localhost - Cam1 localhost - Cam1 Home ← → localhost Cam1 TRENDnet 310W (192.168.2 D-Link DCS-5610 (192.168.2 D-Link DCS-6100 (192.168.2 AXIS Q1755 (192.168.2.250 Cam2 D-Link DCS-5610 (192.168.2 AXIS Q1755 (192.168.2.250 Cam1 Step 1 Step 4 Step 3 ✓ OK Cancel

Step 1: Log in to all the servers that contain the camera(s) you would like to put into the group(s). Step 2: Click Insert to create a new group; name the group for future reference. Step 3: From the window at the right, highlight the camera(s) that you would like to add to a group and then click on the “<--” button. Repeat the process until satisfied with the group setting. Step 4: Click on the Delete and Rename button to remove or rename a specific group. Step 5: Repeat Steps 2 to 4 to adjust the group setting until satisfied. Step 6: Click OK.

9.1.4 Camera Setting

Select the preferred stream type of each camera as default live view profile. \* Note: Some stream profiles are not available under Lite license.

LiveView Setting General Server Group Camera OSD POS Monitor Display Notification Jc Login localhost Cam1 TRENDnet 312W (192.168.2 D-Link DCS-5610 (192.168.2 D-Link DCS-6100 (192.168.2 AXIS Q1755 (192.168.2.250 Cam2 localhost - Cam1 Stream Profile Info Stream profile: Original Video format: MJPEG Frame rate: - Resolution: - Quality: - Bitrate: - Copy to... ✓ OK Cancel

LevelOne IP CamSecure

Stream profile: List differs according to different types of video inputs and licenses. Auto: The system will adjust the stream type automatically to fit different screen divisions. Recoded: The system will follow the stream profile set in Main Console >Schedule >Encoding Options. Original (IP only): The system will display the streaming directly from the IP camera and video server. Copy to: Select in order to copy the preferred stream profile of a channel to all of the listed channels.

9.1.5 OSD Setting

Adjust font style of Camera OSD on this panel.

LiveView Setting General Server Group Camera OSD POS Monitor Display Notification Jr Enable camera OSD Foreground Font: Tahoma Size: 9 Color: Bold Edge Background Color: Transparency 40 Info Camera Name Date 2009/05/22 Time 下午04:49:24 Bitrate Default Apply OK Cancel

9.1.6 POS Setting

Adjust font style of POS overlay on panel. \* Note: This function is not available under Lite license.

LiveView Setting General Server Group Camera OSD POS Monitor Display Notification Jc Enable POS overlay Foreground Font: Tahoma Size: 10 Color: Bold Edge Background Color: Transparency: 40 Default Apply OK Cancel

LevelOne IP CamSecure

9.1.7 Monitor Display Setting

Activate auto scan to rotate the channels/ cameras on screen. \*The dual monitor is only in IP CamSecure Pro/Pro Plus.

Note:

- For instance, you may select to show only 4 sub-screens on the live viewer while having 16 channels connected to the system. With auto scan function, you will be able to see all 16 channels by turns. • Each monitor supports up to an 8x8 layout with auto scan function to show 128 channels.

LiveView Setting General Server Group Camera OSD POS Monitor Display Notification Jc Step 1 Monitor Resolution #1 1280 x 800 Auto scan Auto scan group: Company Primary channel: AXIS Q1755 (192.168) Secondary channel: Cam1 Auto scan interval: 2 sec. Layout NxN type: 5x5 Step 2 Step 3 Step 4 Step 5 ✓ OK Cancel

Step 1: Select the Monitor connected to the system. Step 2: Auto scan group: Select appointed server group to activate auto scan settings. Step 3: Primary channel: Select appointed channel that will always be on the screen when auto scan is activated. Step 4: Secondary channel: Select appointed channel with secondary priority behind primary channel when auto scan is activated. Step 5: Layout: Select the screen division of "NxN type" in Remote live viewer panel.

9.1.8 Notification Setting


LiveView Setting General | Server | Group | Camera | OSD | POS | Monitor Display | Notification | Jc ▶ Status display ✓ Show recording status ✓ Show camera event ✓ Show counting result Miscellaneous ✓ Popup system event ✓ OK ✗ Cancel

LevelOne IP CamSecure

Status display:

• Show recording status: Select it to show the crystal ball with recording status on monitor display. • Show camera event: Select it to show the smart guard detected event appointed in Main Console on each channel. Note: To execute this function, need setup on screen display as an action of Smart Guard instant response. • Show counting result: Select it to show the counting result appointed in Main Console on each channel. \* Note: This function is not available under Lite license.

Miscellaneous:

\- Popup system event: Select to allow system events appointed in Main Console to pop up messages as warning.

9.1.9 Joystick Setting

Settings are same to Main Console joystick settings. For details please refer to page 75. \* Note: This function is not available under Lite license.

LiveView Setting Server | Group | Camera | OSD | POS | Monitor Display | Notification | Joystick | Active Joystick: USB Gamepad Button Function Parameter Button 1 Goto Preset Point 1 Button 2 Goto Preset Point 2 Button 3 Goto Preset Point 3 Button 4 Goto Preset Point 4 Button 5 Goto Previous Camera Button 6 Goto Next Camera Button 7 Toggle Single Camera View Button 8 Toggle Full Screen Button 9 Switch Screen Layout Button 10 N/A Import Export Default ✓ OK Cancel

9.2 Server/Group/Camera

Display a complete list of the server(s), group(s) and camera(s) that are added to the system. Server View: Cameras are listed according to recording server. Group View: Cameras are listed according to customized grouping. Server View

Demo Site Virotek IP7 Virotek P27 Sony FX530 Virotek ID7 Sony CM12 Sony_1 Office_1 voutomer P12 CAMEB _1 Brickam_1

Group View

Group A Vivotek IF7161_1 Vivotek PZ1111_1 Sony RX5308_1 Group B Vivotek IF7172_1 PT2 CAMERA_1 DynaColor V6_1 Group C Office_1 ZAVIC F5190 (192)

LevelOne IP CamSecure

9.2.1 login/logout server

Option1: Select a server on the list and click on LOG IN/ LOG OUT to access/ logout the server. Option2: On the server list, right click to obtain menu options. Log In/Log Out Server

the Duplicate Camera Connect Disconnect Login Server Logout Server Connect All Disconnect All

9.2.2 Connect/Disconnect camera

Option1: On the server/camera list, double click on a camera to connect. Option2: On the server/ camera list, right click on a camera to obtain the menu options to connect/disconnect.

Connect/Disconnect Camera

Option3: Select a camera from the list, then drag it to where you want it to be displayed.

ed. Dense Site Vivade ID2 Connect Disconnect Login Server Logout Server Connect All Disconnect All


Screenshot of a video editing interface showing a nighttime scene with a blue arrow pointing to a control panel with Chinese text.

Option4: Play / Stop/ Drop: Select a camera/video and click on this button to play/stop/disconnect a particular channel.

Play Stop Drop

9.2.3 Multiple Views:

Step1: On the server/camera list, select a camera and right click on it to obtain the menu options. Step2: Select Duplicate Camera and the duplicate camera with green indicator will display below on camera list. Step3: Double click on the duplicated camera to connect and display on screen.

Demo Site Duplicate Camera Connect Disconnect Login Server Logout Server Connect All Disconnect All customer

9.3 PTZ Control

Control the movement of PTZ cameras. With cameras that support PTZ control, you can move, zoom, patrol, adjust the focus, and set preset points of the cameras.

9.3.1 Preset/ Go

Adjust the camera view until satisfied. Click on the Set icon to define the current view as preset point 01. Adjust the camera view again to setup preset point 02. Repeat the process until you finish setting up all preset points. Customize preset point names by defining names. Click on the Go icon and view the result of your setting. Note: For the speed settings of PTZ camera, please configure from Main Console - Config - Setting - PTZ Config.

LevelOne IP CamSecure

9.3.2 Zoom

Click on the + and - signs to zoom in and zoom out the view.

9.3.3 Focus

You can select to have the camera focused near or far. To focus near means objects that are closer will be clearer than the objects that are further away. On contrast, to focus far means objects that are further will be clearer than the objects that are closer. Click on the Focus icon and select auto focus if you want the system to decide the focus point for you.

9.3.4 Patrol

To control PTZ camera to patrol around pre-defined path of preset points, click on Goto Preset Point – Start Patrol / Stop Patrol. Note: To setup patrol path, please setup on Main Console – Set Preset Point – Set Patrol.

9.4 On Screen Menu

Right click on the camera screen for the On Screen Menu, from which you can quickly adjust the setting of camera.

9.4.1 Enable Move / Area Zoom

With cameras that support PT function, click the Enable Move function to adjust the current camera's view by clicking on the display screen. To cancel this function, right click on the screen and select Disable Move. With cameras that support Area Zoom function, click the Enable Move/Area Zoom function to adjust the current camera's view by dragging a rectangle on the display screen. To cancel this function, right click on the screen and select Disable Move/Area Zoom.

Enable Move
Enable Digital PTZ
Stream Profile	▶
Instant Playback	▶
Enable Audio
Snapshot
Toggle Fullscreen

9.4.2 Enable Talk

\*This feature is not available under Lite License. With cameras that support two-way audio, select enable talk to utilize the function.

9.4.3 Enable Digital PTZ

To enable the PTZ functions of the camera, select the Enable digital PTZ option. Use mouse wheel or click on the + and - signs to zoom in and zoom out on the camera, or drag a rectangle to enlarge the area. The square flashing on the video grid indicate the correspondent view of the camera.

9.4.4 ImmerVision Lens Setting

With cameras that support ImmerVision Lens. Right click on the display screen and select the mode of lens, original, PTZ mode, Quad mode and Perimeter mode. If the lens setting set as Quad, PTZ, or Perimeter mode, the Enable Digital PTZ option would become Enable ImmerVision digital PTZ.

9.4.5 Stream Profile

Select different level Stream Profiles to downgrade video quality for bandwidth concerns. \* Note: Some stream profiles are not available under Lite license.

Enable Digital PTZ Stream Profile Enable Audio E-Map Snapshot Toggle Fullscreen Auto Recorded Original High Normal Low Minimum

9.4.6 Instant Playback

To open the Instant Playback window of the camera, select the Instant Playback option and choose the period. The instant playback window allows the user to browse recorded video, take snapshot images and export video with audio and POS transaction data. \* Note: This function is not available under Lite license.

LevelOne IP CamSecure

To browse recorded video

By simply clicking on the timeline you can view the video. Use the navigation tools below for advanced control.  \- Play / Pause / Stop  peed up/Speed down  ast Forward/reverse frame by frame  lay Previous / Next minute video

To keep a snapshot of the video clip

Pause the video at desired time point and click snapshot button. The snapshot is displayed and can be saved or copied to clipboard.

To export recorded video

Select desired export period and click export button Additional options are available when exporting. Adjust to original video resolution button is the tool to adjust the video to original video resolution. Audio button turns the audio on / off. POS button is to enable / disable POS transaction data overlay.

9.4.7 Enable Audio

With cameras that support audio function, click the Enable Audio function to listen to the current camera's audio by clicking on the display screen. To cancel this function, right click on the screen and de-select Enable Audio.

9.4.8 Snapshot

The snapshot function copies and captures a specific video image to the clipboard or to save as a bmp file. The snapshot can be customized with/without OSD, POS information and selectable range after digital zoom in.

9.4.9 Toggle Full screen

Switch to view video with full screen display. To disable the function, right click on screen and de-select option or simply press "ESC" to go back to original window.

9.5 Start Monitor

9.5.1 Multiple Monitor

Select Open Monitor to append monitor to view more live videos on multiple monitors. Each appended monitor has the same list and view control buttons as the Main monitor, with the exception of the Start, Playback, and Setting buttons.

9.5.2 E-Map

Select Open E-Map to obtain the E-Map window. The GUI map helps to locate devices easily and the information window helps to show the status of each device.

Start Monitor


Open Monitor Open E-Map Open I/O Control Panel localhost: A2 Playing 692.4 kbps

 Map Info – Show map name.  Camera – Show camera name and connecting status.  Digital Input – Show Digital Input name and status (0 or 1).  Digital Output -Show Digital Output name and status (0 or 1).  POS – Show POS device name, connecting status, first associated camera name and connecting status. LevelOne IP CamSecure

9.5.3 I/O Control

Select to obtain the I/O control panel. Use the panel to view DI status and control DO devices remotely. Note: Adjust the setting of I/O device in Main console – Config – Setting - I/O Device first, the I/O control panel will display the device status based on these settings.

9.6 Playback

Select to obtain the Playback panel and view video remotely.

9.6.1 Add Remote Playback Site

 Press the Remote Sever i con to go to remote playback site management to add and setup a remote playback connection. Step 1: Enter the IP address or DNS, Port, Username, and Password. Step 2: Click Add to add the server. Step 3: Click OK to exit the Setting panel.

9.6.2 Access Remote Playback Site

 Go to Date/Time Panel and click on the icon on the top of the display window to access the Remote Playback Site

IO Devices Servers: localhost Show name DI Input 0 Input 0 DO Output 0 Output 0


Remote Playback Site Management Server Setting Server Name: Address: Port 5160 User Name: Password: Save Password: Test Server Add Delete Update OK Cancel


Local Machine Remote Server 1 (192.168.1.51) Remote Server 2 (192.168.1.52) 29 13 14 15 16 17 18 19 30 20 21 22 23 24 25 26 31 27 28 29 30 31 1 2 32 3 4 5 6 7 8 9

LevelOne IP CamSecure

10. Web View


Server IP Untitled Document - Windows Internet Explorer Http://218.167.193.22.8080/ Untitled Document Remote Live Viewer Remote Playback Download Client Pack Http://218.167.193.22.8080\liveview.htm Remote Live Viewer Remote Playback Download Client Pack

\*There is only 1 channel displayed in Live Viewer via web browser in IP CamSecure Lite while there are up to 4 channels displayed in IP CamSecure Pro simultaneously. Note: Make sure the Live Stream Server is enabled. Check 5.14 Network Service for more detail.

10.1 Server IP

Start Internet Explorer browser and enter the IP address or DDNS name of the server followed by the connecting port. Example: http://192.168.1.16:8080/ Note: 192.168.1.16 is the IP address of the server. 8080 is the port specified in Use Default Web Server in Network Service.

10.2 Remote Live Viewer

Press this icon to use Remote Live Viewer which functions are the same as Remote Live Viewer. See page 105 for details.

10.3 Remote Playback

Press this icon to use Remote Playback which functions are the same as Playback except remote server and backup functions. See page 35 for details.

10.4 Download Client Pack

Press to download client pack to install application based Remote Live Viewer and Remote Playback. LevelOne IP CamSecure

11. Utilities

A. Verification Tool B. License Management Tool C. Resource Management Tool D. DB Tool

A. Verification Tool

LevelOne IP CamSecure The Verification Tool verifies whether the data created by the system has been tampered with. It is the process by which a digital watermark (a digital signature) is added to each recorded video frame to ensure its authenticity.  There are 3 types of data that can be verified by the Verification Tool: 1. File in (.DAT) (.264) format will be displayed as . 2. File in (.AVI) (.ASF) format will be displayed as . 3. File in (.BMP) (.JPG) format will be displayed as .

1.1 Execute Verification Tool

Step 1: Execute Verification Tool from program files.

User Windows Live Dr.eyel譚典通 Eset Finance management GlobalSCAPE Infogrames Intel PROSet Wireless MBN 5 Microsoft Office IP Surveillance System Uninstall System User Manual Backup System DBTools Main Console Playback System Remote Live Viewer Verification Tool Step 1

Step 2: Insert the Administrator Password to log in. Step 3: The Verification Tool appears after login.

1.2 Verification Tool Overview


Add File Add Folder Remove File Select All Video Preview Verification Tool File Name Watermark Start Time End Time Cam Name Path C00001... 2009/05/... 2009/05/... TRENDne... C:\Documents and Se 0604_sa... 2009/06/... 2009/06/... Sanyo VD... C:\Documents and Se 0604_S... 2009/06/... 2009/06/... Sanyo VC... C:\Documents and Se C00002... 2009/05/... 2009/05/... D-Link DC... C:\Documents and Se Status : Number of file Verified : 0 files Number of file Passed : 0 files Verify : Time elapsed : 00 : 00 : 000 Time left : 00 : 00 : 000 Play Verify Pause Stop

Add File: Click to insert the single file to list for verification. Add Folder: Click to choose the folder with multiple files to list for verification. Remove File: Click to remove indicated file(s) from list. Select All: Click to select all files in list for verification.

Note:

1. Choose the file type first before selecting files. Only (.dat) (.264) (.avi) (.asf) (.bmp) (.jpg) are supported. 2. User can also drag files directly into the list for verification. Video Preview: Check this column to preview video of selected file. Click on the buttons below the window to play Pause and Stop the file. Note: Preview of (.bmp) (.jpg) format is not allowed. LevelOne IP CamSecure

1.3 Verify Image/Video

Step 1: Select single or multiple files for verification. Step 2: Click "verify" to start verification. Step 3: The verification result will show on the watermark column. If a file was tampered with, it will show ✗ If a file passes verification, it will show . Watermark

Verification Tool File Name Watermark Start Time End Time Cam Name Path C00002... 2009/05/... 2009/05/... D-Link DC... C:\Documents anc 0604_S... 2009/06/... 2009/06/... Sanyo VC... C:\Documents anc 0604_sa... 2009/06/... 2009/06/... Sanyo VD... C:\Documents anc C00001... 2009/05/... 2009/05/... TRENDne... C:\Documents anc C00001... 2009/05/... 2009/05/... TRENDne... C:\Documents anc C00001... 2009/05/... 2009/05/... TRENDne... C:\Documents anc C00002... 2009/05/... 2009/05/... D-Link DC... C:\Documents anc C00002... 2009/05/... 2009/05/... D-Link DC... C:\Documents anc Status : Verify : Number of file Verified : 7 files Time elapsed : 00 : 08 : 266 Number of file Passed : 7 files Time left : 01 : 49 : 380 Verification report

Step 4: The verification report will indicate the information related to the verification. LevelOne IP CamSecure

B. License Management Tool

The license of the software should be registered before you start using the Intelligent Surveillance System. Execute the License Management Tool to activate the license from dongle or serial number included with the software package, or de-activate the license then bring it to another PC to activate it again. Please note different level licenses cannot coexist under one license server. Upgrade licenses will replace lower level licenses into higher level ones. Both "Online" and "Offline" status of PC environments are available on executing the tool to "activate" or "transfer" the license. The following is a total of 4 types of license management process: - To activate the license with PC connected to network, follow the Activation Online process. - To activate the license with PC not connected to network, follow the Activation Offline process. - To de-activate/transfer the license with PC connected to network, follow the Transfer Online process. - To de-activate/transfer the license with PC not connected to network, follow the Transfer Offline process.

1.1 License Management Tool Overview

1.1.1 Execute License Management Tool

Step 1: Execute License Manager Tool in config menu or installation folders.

01.03.58-0100.0192 Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service About MainConsole... Start Playback Schedule Guard


Settings\USER\桌面\NUUO SW\Dorcus26_3_2_0_26\Dorcus2 Config db dump PTZProtocol skin wave Activate TooLe xe Alpha2.dll Alpha.dll

Step 2: The "License Management Tool" will appear. Please refer below for the tool overview.

1.1.2 License Management Tool Overview


Activate License Management Tool Activate tab SN status Activate type Activate type Input type Activate Import offline license Activate Transfer SN Channel Product Status Activate type Online Offline Input type SN: SN file: Activate from dongle Activate Import offline license File path: Import Exit

LevelOne IP CamSecure

Transfer


License Management Tool Activate Transfer SN Channel Product Status Transfer Tab SN status Transfer type Transfer Transfer License Transfer Transfer type: • Online • Offline Transfer Exit

1.2 Activate/Transfer License

1.2.1 Activate License

Activation Online

Step 1: Open License Manager Tool. Step 2: Select On line as Activate type. Step 3: Input the SN (Serial number) or Import SN file, and then click on Activate button.

Input type ● SN: ○ SN file: ○ Activate from dongie Activate

Step 4: Restart Main Console if activation is successful.

Activation Offline

Step 1: Open License Manager Tool. Step 2: Select Offline as Activate type.

Activate type ○ Online ● Offline

Step 3: Click on Export offline pack. Please note this license will bind with hardware configurations and it is not recommended to register with removable network devices.

Input type SN: SN file: Activate from dongle Export offline pack

Step 4: Save Request file, and then take it to another PC that is connected to the Internet.

Request File File Edit View Favorites Tools Help Address C:\Documents and Settings\April\Desktop\Data Request File Go libexpat.dll LicenseTool.dll 1.0.0.1 LicenseTool Dynamic Link Library offline.req REQ File 1 KB OffLineTool.exe OffLineActivation MFC Applica...

Step 5: Execute OffLineTool.exe in the other PC. Input the SN (Serial number) or Import SN file, and then click on Activate button.

Offline Tool Information: Activate new SN. Please input SN: Input type ● SN: ○ SN title: Activate

Step 6: Save License file, and then take it to original NVR system. Step 7: Open License Manager Tool again, select Import offline license, then click Import button to activate.

Import offline license File path: C:\Documents and Sel Import

Step 8: Restart Main Console if activation is successful.

1.2.2 Transfer License

Transfer Online

Step 1: Open License Manager Tool. Step 2: Select Transfer Tab, and then check Online as Transfer type. Step 3: Select SN and click on Transfer button.

License Management Tool Activate Transfer SN Channel Product Status 012585858585858583 16 IP+ Activated Transfer type: ○ Online ○ Online Transfer

Step 4: Restart Main Console if transfer is successful. LevelOne IP CamSecure

Transfer Offline

Step 1: Open License Manager Tool. Step 2: Select Transfer Tab, and then check Offline as Transfer type. Step 3: Select SN, and then click Transfer button to transfer SN.

License Management Tool Activate Transfer SN Channel Product Status SP56-0242+039-777 16 activated Transfer type: ○ On line ● Off line Transfer

Step 4: Save Request file. Restart Main Console if transfer is successful..

Request File File Edit View Favorites Tools Help Address C:\Documents and Settings\April\Desktop\Application File Go libexpat.dll LicenseTool.dll 1.0.0.1 LicenseTool Dynamic Link Library offline.req OffLineTool.exe REQ File OffLineActivation MFC Applica... 1 KB

Step 5: Copy request file to another PC connected to internet. Step 6: Execute OffLineTool.exe in another PC, check Transfer SN and click Transfer to send request file to license server.

Off Line Tool Information: Transfer activated SN. Transfer SN: 5A70D3X30108E1C7N22 Transfer Exit

Note: User needs to copy request file to another PC and send it to license server, otherwise the SN can't be re-activate again!!

Off Line Tool Information: Complete! Transfer has finished. ------------------------ Transfer activated SN. Transfer SN: 5A71-D23C-09E1-7422 Transfer Exit

LevelOne IP CamSecure

C. Resource Management Tool

The Resource Management Tool detects whether the system is operational. Note: For further application of the Resource Management Tool, please refer to page 58 In "Guard" chapter.

1.1 Execute Resource Management tool

Step 1: Open Resource Report from start menu. Step 2: The Resource Management Tool will appear.

1.2 System Resource Overview

Step 1

Start Monitor All Stop Recording Schedule Stop Smart Guard System Start Counting Application Enable Secondary Display Open Event Report Open E-Map Open Resource Report Open I/O Control Panel Lock System


System Resource Resource Report History Diagram System Resource System Health CPU Temperature: 0 °C (32 °F) Motherboard Temperature: 0 °C (32 °F) CPU Fan Speed: 0 RPM Power Fan Speed: 0 RPM CPU Loading: 21 % Memory Usage: 71 % Memory Used: 1456 MB Memory Available: 580 MB Logical Disk Free: 15 % C:\Documents and Settings\USER\@-s\N Network Utilization Memory Usage 100% 50% Advanced ✓ OK Advance

1.2.1 System Resource

System Health: This item shows the system information, including "CPU Temperature", "Motherboard Temperature", "CPU Fan Speed" and "Power Fan Speed". Note: User needs to install the "SpeedFan" first to gather the CPU and Motherboard temperature information. CPU Loading: This item shows the percentage of CPU usage. Memory Usage: This item shows the memory usage of system. "Memory Used" and "Memory Available" are included. Logical Disk Free: This item shows the percentage of available disk space for storage. Note: The disk directory will be the same as the one in MainConsole - Config - Setting - Storage - Location. Network Utilization: This item shows the total bit-rate utilization for the upload and download of the computer.

1.2.2 Instant Diagram

Click each item in the list to obtain the instant system diagram. The "system resource" will be displayed as each variable in Vertical Axis; the unit of Horizontal Axis will be displayed as "Per Second". LevelOne IP CamSecure

Resource Report System Resource System Health CPU Temperature: 43 °C (109 °F) Motherboard Temperature: 45 °C (113 °F) CPU Fan Speed: 0 RPM Power Fan Speed: 0 RPM CPU Loading: 48 % Memory Usage: 90 % Memory Used: 1848 MB Memory Available: 196 MB Logical Disk Free: 8 % C:\Documents and Settings\USER\ID-a\IN Network Utilization Total Uploaded Bitrate: 0 bps Total Download Bitrate: 0 bps CPU Loading 100% 50% 0% Vertical Axis Horizontal Axis Advanced ✓ OK

1.3 Advanced Resource Report

Click the Advanced button to search and export system logs in "Search" tab and obtain the history diagram of an specified period in "Diagram" tab.

1.3.1 Search


Advanced Resource Report Search | Display Type: CPU Loading >= 50.00 % Date: 2009/06/08 DateTime: 2009/06/08 15:51 to 2009/06/08 15:51 Start Time End Time Log Type Avg Min Max 2009/06/08 15:54:55 2009/06/08 15:55:10 CPU loading 60.56% 50.00% 100.00% 2009/06/08 15:56:00 2009/06/08 15:56:05 CPU loading 60.51% 50.00% 100.00% 2009/06/08 15:56:15 2009/06/08 15:56:20 CPU loading 60.49% 50.00% 100.00% 2009/06/08 15:56:40 2009/06/08 15:57:10 CPU loading 60.26% 50.00% 100.00% 2009/06/08 15:57:15 2009/06/08 15:57:20 CPU loading 60.19% 50.00% 100.00% 2009/06/08 15:57:35 2009/06/08 15:57:40 CPU loading 60.19% 50.00% 100.00% 2009/06/08 15:57:45 2009/06/08 15:57:50 CPU loading 60.32% 50.00% 100.00% 2009/06/08 15:57:55 2009/06/08 15:58:00 CPU loading 60.27% 50.00% 100.00% 2009/06/08 15:58:35 2009/06/08 15:58:55 CPU loading 60.11% 50.00% 100.00% 2009/06/08 15:59:25 2009/06/08 15:59:35 CPU loading 60.11% 50.00% 100.00% 2009/06/08 15:59:40 2009/06/08 15:59:50 CPU loading 60.04% 50.00% 100.00% 2009/06/08 15:59:55 2009/06/08 15:59:55 CPU loading 60.74% 51.67% 63.34% 2009/06/08 16:34:33 2099/36/33 CPU loading 62.74% 71.34% 2899/36/33 CPU loading 71.34% 2899/36/33 CPU loading 71.34% Step 1 Step 2 Step 3 Step 4 OK

Step 1: Choose the system event type, and then select the standard percentage to search system log. Step 2: Select the Date/Time duration to search system log. Step 3: Click Search to start searching, the system logs will be listed below. Step 4: Click Export to save the system log in (\*.xls) or (\*.txt) format. Step 5: Click OK to close the report window.

	A	B	C	D	E	F
1	StartTime	EndTime	LogType	Avg	Max	Min
2	2009/06/08 12:20:23	2009/06/08 12:20:28	CPU loading	54	54	54
3	2009/06/08 12:20:53	2009/06/08 12:20:58	CPU loading	65.5	54	77
4	2009/06/08 12:21:13	2009/06/08 12:21:18	CPU loading	61.67	54	77
5	2009/06/08 12:21:23	2009/06/08 12:21:28	CPU loading	65.5	54	77
6	2009/06/08 12:21:53	2009/06/08 12:21:58	CPU loading	64.2	54	77
7	2009/06/08 12:22:53	2009/06/08 12:22:58	CPU loading	62.33	53	77
8	2009/06/08 12:23:48	2009/06/08 12:23:53	CPU loading	61.86	53	77
9	2009/06/08 12:24:48	2009/06/08 12:24:58	CPU loading	59.44	51	77

LevelOne IP CamSecure

1.3.2 Display


Advanced Resource Report Search Display Type: CPU Loading Date:Time: 2009/06/08 16:39 Period: One Day Save Display Step 4 Step 5 Step 1 Step 2 Step 3 CPU Loading 100% 0% Maximum: 2009/06/08 15:16:25 Minimum: 2009/06/08 13:35:54 ✓ OK Step 6

Step 1: Choose the system event type. Step 2: Select the Date/Time to draft history diagram. Step 3: Setup the start time and duration for charting. User can choose "One Day", "One Hour" or "One Minute" as the duration. Step 4: Click "Display" to start charting, the diagram will be displayed at below column. Step 5: Click "Save" to save the diagram in (\*.bmp) format. Step 6: Click "OK" to close the report window.  LevelOne IP CamSecure

D. DB Tool

The DB Tool repairs database files and Export configurations. Warning: improper use of this DB Tool may cause loss of recorded video. Step 1: Execute DB Tool from program files.

Step 1 IP Surveillance System MPEG-4 Hybrid System RealWMC Skype Storm Codec T-TIME Ulead COOL 360 Ulead Photo Explorer 8.6 Ulead PhotoImpact 11 Ulead Systems Backup System DBTools Main Console Playback System Remote Live Viewer Remote Playback Server System User Manual

Step 2: Enter the password of administrator to log in.

Step 2 DBTools login Please enter password for the administrator of Main Console : User name: admin Password: OK Cancel

1.1 Repair Database

This page has three repair method, Modify Location, Verify Only, and Repair.

For modify locatione:

The Playback system can recognize all recording video in the folders listed on MainConsole - Config - Setting - General page. For some reason, user needs to use Playback system to open recording video beyond storage location setting. For this propose, user could follow below steps to modify location by DB tool. Note: The default storage location is in the installation directory, (ex: D:\video) Step 1: Select Repair database.

DBTools (IP version 3, 1, 0, 0) Repair database Repair database Modify locations to store video files. Please confirm locations where video files were stored and press button "Modify" to confirm.

Step 2: Select the repair Method as Modify Location.

Repair database Modify locations to store video files. Please confirm locations where video files were stored and press button "Modify" to confirm. Install Path: C:\Program Files\SCB_IP Method: Modify Location

LevelOne IP CamSecure

Step 3: For add database location, please click on button and use URL to choose location. For remove database location, please choose location form list and click on button to remove location.

Video File Locations D:\Video

Step 4: Click on Modify button to modify location. After modification, the Modify Result will show on the panel.

Modify Result: 2 locations confirmed. Open Log Modify

Example of modify database:

In certain cases where video data needs to be transferred from one PC to another PC, user will need to perform the following: 1. Manually copy all recorded video data from the default installation path or other user-defined storage path of the old PC.

C:\Program Files\IP CamSecure IBM IBM ThinkVantage InstallShield Installation Inf Intel Internet Explorer Koei Lenovo 20060321 20060323 manual wave www 3gpp.dll Recorded video data

2. Manually paste all recorded video data to the default installation path or other user-defined storage path of the new PC 3. Follow previous page to add new location on new PC. 4. Old recorded video data can be viewed by playback system on the new PC.

For verify and repair proposes:

This tool is used to check and repair your database and recorded video with problems: (1) If there are records in database, but no video file, use this DB Tools to delete records. (2) If there are video files but no record in database, use this DB Tools to rearrange the database and find these records. Step 1: Switch to Repair database windows.

DBTools (IP version 3, 1, 0, 0) Repair database Repair database Modify locations to store video files. Please confirm locations where video files were stored and press button "Modify" to confirm.

LevelOne IP CamSecure Step 2: Select the repair Method as Modify Location.

Repair database Verify video files stored by surveillance system. Please confirm locations where video files were stored and press button "Verify" to check all files. Fixing database is only needed when verification is failed. Install Path: C:\Program Files\SCB_IP Method: Verify Only

Step 3: Check the video location windows. The system will list all video locations in table, but if there are any omit, please use to insert. Note: After inserting location, the system will show files count below table.

File Count 41

Step 4: Choose the method of "Verify Only", and click "verify". This method will only check the files without modify. Verify result will show how many files broken or missing.

Verify Result: 41 files verified, 0 files broken, 0 files missing.

Step 5: Choose the method of "Repair (Complete)", and click "Repair". The Repair Result will show how many files are fixed and inserted.

Repair Result: 2 files fixed, 41 files inserted.

Step 6: The repaired new database will replace the old one and the original database will change file names with extended repair date and time as below.

Address D:\Video Name EventLog.mdb FileRecord.mdb FileRecord.mdb_20080714A121358.mdb PosRecord.mdb ScheduleConfig.mdb SystemLog.mdb SystemLog.mdb_20080714A121358.mdb

Note: Open Log is a tool to record the repaired database. It will record repair method, file operation, start time and end time.

dbteol.log - Netepad File Edit Format View Help Operation "Verify Only" is started at (2008/07/14 12:01:17) File Broken: D:\Video/20080708/c00002/c00002S00A20080708112323437.dat File Broken: D:\Video/20080708/c00002/c00002S00A20080708114304625.dat 41 files verified, 2 files broken, 0 files missing. Operation "Verify Only" is finished at (2008/07/14 12:01:19) Operation "Verify Only" is started at (2008/07/14 12:13:19) File Broken: D:\Video/20080708/c00002/c00002S00A20080708112323437.dat File Broken: D:\Video/20080708/c00002/c00002S00A20080708114304625 dat 41 files verified, 2 files broken, 0 files missing. Operation "Verify only" is finished at (2008/07/14 12:13:20) Operation "Repair (Complete)" is started at (2008/07/14 12:13:58) File Repaired: D:\Video/20080708/c00002/c00002S00A20080708112323437.dat File Repaired: D:\Video/20080708/c00002/c00002S00A20080708114304625.dat 2 files fixed, 41 files inserted. Operation "Repair (Complete)" is finished at (2008/07/14 12:14:07)

LevelOne IP CamSecure

1.2 Export Configurations

This tool is used when user wants to export all system configurations to backup, take to another PC for technical trouble shooting. Step 1: Press "Export".

DBTools (IP version 3, 1, 0, 0) Repair database Export configurations Export Configurations Export Main Console configurations for trouble shooting. Please provide the exported *.cfg file to the technical support . Export

Step 2: Select the location you want to Export and type the name of the configurations. Step 3: Press "Save" to start to import database.

Save As Save jnc: Video dump ENap manual mdb skin www ServerConfig.cfg Go To Last Folder Visited File name: Save Save as type: Config Files (*.clg) Cancel

LevelOne IP CamSecure

Appendix A - 3GPP Service

How to setup 3GPP streaming connection (using BenQ-Siemens mobile phones) System Configuration

DVR / NVR server v2.6
CPU:	Intel core2 Duo 1.86 GHz
Memory:	512 DDR RAM
Ethernet:	Realtek RTL8168/8111 PCI-E
Hard Disk:	160GB
Graphic card:	ASUS Extreme AX550
Operating System:	Windows XP Professional SP2
Mobile Phone:	BenQ-Siemens E81

1.1 Configuration from Main Console server

Step 1: Go to Config and select Network Service

2007/02/12 19:18:00:04 Cancel 352x206 IP CamSecure 2007/02/12 22:08:04 Free:23 x 48 Setting Download Configuration Counting Application Log Viewer Backup Network Service About ManCorrecte... Start Project Services Card

Step 2: Select 3GPP Service, and then click Start Note: In the Option item, the "port" selected here is the same port from mobile handset

Open3 Device Main Client Count 0 State IP Camera User Agent Service Server Status: Shopped Start Options Port: $5A Default OK Cancel 2007/02/12 22/01/50 Free:1.3GB Start Playback Schedule Start Config

1.2 Configuration from 3G Mobile Phone

LevelOne IP CamSecure

1.2.1 BenQ-Siemens E81

Step 1: Go to Menu, then Internet

ENQ-SIEMENS Internet Select Back

Step 2: Select Bookmarks

Internet Home Page Enter URL Bookmarks History Settings Select Exit

Step 3: Add New Bookmark

Step 4: Configure the Adress setting as the following example. Ex: rtsp://61.216.97.69:554/media00.3gp 61.216.97.69:554 is the IP address of NVR or DVR system Port : port specified in 3GPP Service from NVR or DVR system

Bookmark details Name: 3pp last Address: http://intream2pms Last update Jan-24-2007 Save offline: Edit Cancel

Step 5: Save the settings and start playing

1.2.2 BenQ P50

Step 1: Connect GPRS

Step 2: Download and install the [PLATFORM4] software. Step 3: Execute the Main Console. Step 4: Press the [Config] → [Network Service] → [Start] Step 5: Open [PLATFORM4], press the button framed by red into Option Step 6: [Open URL] enter the RTSP address of the camera EX: rtsp://61.216.97.69/media00.3gp→channel 1 EX: rtsp://61.216.97.69/media01.3gp→channel 2 EX: rtsp://61.216.97.69/media02.3gp→channel 3 Step 7: [Setting I]change the setting and press "OK" [Protocol] TCP [Buffer Size] 60 [Connection TimeOut] 103 [Data Recept. TimeOut] 100 [Deblocking Filter] check Step 5

PLATFORM Player 3.0 for Pocket PC PLATFORM 4 PHILIPS

Step 6

Platform4 Player 04:36 ok Network Settings Protocol: UDP TCP Buffer Size: 60 sec. Connection TimeOut: 103 sec. Data Recept. TimeOut: 100 sec. Video Settings ✓ Deblocking Filter ✓ Dithering ✓ Zoom and crop in Fullscreen Open Settings I Settings II About

LevelOne IP CamSecure

Mensajeria Bandaía de entre Recibido Conectando... Conectando a: CHT INTERNET Conectando a GPRS. Configuración Cancelar Ocultar MMS 0 elemento(s). Nuevo Herram. Cuentas

Step 7

Platform4 Player Open Url http://61.216.97.69/media00.3qp Browse... Broadcast Listen to Broadcast... Progressive Download Save As... Open Settings I Settings II About

Step 8: Go back to PLATFORM4, searching and get the video.

PLATFORM Player 3.0 for Pocket PC PHILIPS


PLATDEM Player 3.0 for Pocket PC PHILIPS

LevelOne IP CamSecure

Appendix B – PDA / Smart Phone Client

PDA / SP (Smart Phone) Client are only applied for devices with Windows Mobile 5.0 platform or above. See the sections below to find how to install and execute PDA / SP Client.

Note:

1. The different between Smart Phone and PDA Client is navigation of operation, user can only control client with phone buttons. 2. The resolution of PDA / SP Client is limited in 240\*320 (QVGA).

1.1 Install PDA / Smart Phone Client

Step 1: Connect mobile device to the PC. Step 2: Insert the installation CD and click on PDA Client Installation / Smart Phone Client Installation to install application in device. Note: If you do not have Microsoft® ActiveSync installed, a message will appear "Cannot find ActiveSync. Please reinstall ActiveSync and then run this installation again." Step 3: Check the client application is installed completely in the mobile device.

Installation successfully installed on your device. If you need more storage space, you can remove installed programs.

1.2 Execute PDA / Smart Phone Client

1.2.1 Main Console setting

Step 1: Go to Config and select Network Service Network Service

CAM1.0 Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service Start Playback Schedule Guard About ManConsole...

Step 2: Select "Live Streaming", and then click "Start". Note: The "Port" selected here will be the same with the one in PDA/Smart Phone.

Network Service - 192.160.4.31 / 192.160.1.54 Live Streaming Live Streaming Remote Playback 3GPP Service Remote Desktop Central Management Main Black/White List Performance Client Count 0 Kill Kill All State IP Camera Biterate (kbps) Service Server Status: Stopped Start Stop Options Port 5160 Default Maximum Connections: 15 Use Default Web Server Port 81 Says Log LiveServer log Enable Audio Start Port OK Cancel

LevelOne IP CamSecure

1.2.2 Execute and Login

Step 1: Make sure your PDA/Smart Phone device is connected to network, and then go to Start - Programs - PDA/Smart Phone Client to execute application.

Programs Download Agent Excel Mobile File Explorer Notes LiveViewer Pictures & Videos Pocket MSN PowerPoint Search Tasks Terminal Word Mobile LOGIN Address 192.168& Port 5150 Name admin Password Remember My Password

Step 2: Insert Address, Port, Name and Password of the server and click on to login.

1.3 PDA/Smart Phone Client Overview

There are 3 main pages of Client application: Monitor Preview, I/O Control and System Info. Switch between these buttons to adjust overall configuration.

Live View I/O control System Info Log out

1.3.1 Live View


Camera List Live Video Display MobileLiveViewer 12:01 214AXIS 214 (192.168.2.24)

Camera List: Display Live Video Back to Camera List

LevelOne IP CamSecure

Displays all "snapshots" of channels connected to server as camera list. Click on indicated snapshot to get the channel information, and then click on to display live video. Note: The Screen Division and Refresh option could help to quick find the channel. Screen Divisions  Refresh

Live Video Display:

Live View panel could display "live video", control PTZ, and snapshot. Click to go back camera list. PTZ Control: Click on PT Control Panel and Zoom Out/In to control physical PTZ camera or adjust digital PTZ under digital PTZ mode. Note: To switch between "Digital PTZ" and "Physical PTZ", simply click on button.

Zoom Out/In PT Control

Preset Go: Click ▶ to select indicated preset point.

Preset03 bbbb Preset04 Preset05

Snapshot: Click to take the snapshot and save it to default folder. Full Screen: Click to toggle to the "Full Screen Mode", right click on screen to obtain the PT control panel and disable full screen display.

18:37:58 2009/06/22 Disable Full Screen

Enable Audio: Click ☐ to enable the audio of current channel. LevelOne IP CamSecure

1.3.2 I/O Control

Select "I/O Control" button to monitor status of DI/DO devices, and control DO devices.

MobileLiveViewer 4:24 I/O Device list AXIS 214 (192.168.2.24) DI/DO Status Input 0 Output 0 I/O Control list:

I/O Device list:

Select and monitor the device connected with Server.

DI/DO status:

Monitor the DI/DO status synchronized with Server, and then click Output button to trigger the DO action.  Gray icon indicates the normal status of DI/DO devices.  Red icon indicates the alarm status of DI/DO devices.  Green icon indicates the synchronization process.

1.3.3 System Info

Display the server and client information. Server information includes address, post, and version. Client information includes login user, count of camera and I/O device with access authority and version.

Server Information Address: 192.168.1.84 Port: 5150 Version: 3.2.0 Client Information Username: admin Camera Count: 5 IO Count: 2 Version: 1.0.0

LevelOne IP CamSecure

Appendix C – iPhone Browser

Live Streaming service can handle requests from iPhone's Safari browser. This section will guide you how to use this feature with iPhone devices.

1.1 Configuration from Main Console server

Step 1: Go to "Config" and select "Network Service" Network Service

CAM1.0 Setting User Account Setting License Manager Save/Load Configuration Counting Application POS Application Log Viewer Backup Network Service Start Playback Schedule Guard About MainConsole...

Step 2: Select "Live Streaming", and then click "Start". Note: The "Port" selected here will be the same as the web live view and web playback. Live Streaming

Network Service - 192.168.4.31 / 192.168.1.54 Main Black White List Performance Client Count 0 KILL KILL AP State IP Camera Rotate Web Service Start Server Status: Stopped Start Options Port: $150 Default Maximum Connections: 16 Use Default Web Server Port: 91 Save Log LiveServer log Enable Audio Start Port OK Cancel

1.2 Connect to Main Console server

Step 1: Make sure the I-phone is connected to the internet. Open Safari browser and enter the IP address or DDNS "name" of the server followed by the connecting port. Example: http://192.168.1.16:8080/ Note: 192.168.1.16 is the IP address of the server. 8080 is the port specified in "Use Default Web Server" in Network Service. Step 2: Enter user name and password to login Main Console Server, select camera to view live video.

1.3 Live Display

To view live video, select camera from list, use touch panel to zoom in the video. To switch video, please click to back to list and select another camera to view the video.

1.4 PTZ Control

With cameras that support PTZ function, the PTZ panel will show as picture. User can control camera to pan, tile and zoom in/zoom out manually, or move to pre-set location by select PTZ preset point from drop down list.

iPod 下午3:18 nuuo 192.168.1.92/Camera... Yahoo! [↑] [↓] [+] +

LevelOne IP CamSecure

Appendix D - Remote Desktop Tool

How to install Remote Desktop Tool Step 1: Insert the Installation CD. Step 2: Go to Remote Desktop Viewer directly and Run Setup.exe file.

How to Start Remote Desktop Tool

Step 1: Start - All Programs - Remote Desktop Viewer - Remote Desktop Viewer. Step 2: Enter address, Port, Password of server. Enable the option to use 8 bits color level to show steadier screen. Step 3: Click OK to Start Remote Desktop.

Remote Desktop Viewer Server: Port: 5140 Default Password: ✓ Use 8 bits color level OK Cancel

LevelOne IP CamSecure

Appendix E – iPhone App “iCamSecure”


Description

LevelOne "iCamSecure" is a totally free app for iPad, iPhone and iPod touch that enables you to monitor remotely live video camera through LevelOne IP CamSecure Surveillance Lite/Pro Mega Systems. Easily view multiple cameras via 3G or Wi-Fi. Snapshots, touch screen P/T/Z control and I/O device management are also supported.

Main Features:

1. 6 channels live view display at QCIF resolution 2. Single channel live view display at CIF resolution 3. Snapshots 4. Touch Screen P/T/Z Control 5. Supports Preset Point 6. Supports Digital Input/Output

Supported Systems:

Compatible with LevelOne IP CamSecure Lite/Pro Mega (4/8/16/25/36/64-CH) surveillance management systems. Screenshots:

Back Airport PTZ SnapShot


Sites LevelOne Transportation City Hotel Office Community Security

Requirements:

Compatible with iPhone, iPod touch, and iPad. Requires iOS 3.0 or later

Download:

iCamSecure is available exclusively from Apple's App Store and is a free download. LevelOne IP CamSecure

Appendix F – Device Pack

Device Pack is released to support new cameras. Always get the latest version of Device Pack to ensure your IP CamSecure system support current implementing cameras. You can find the Device Pack version oh the red area:

About Main Console MainConsole Version 1.26.1 Professional Copyright (C) 2004 -10 Digital Data Communications Asia Co. Ltd. All rights reserved. http://www.level1.com Product Information Model Type: IP Cameras Camera License Number: 64 (IP+) Device Pack Version: 1.4.2 Build 3.3.13 17084

Notice

1.) the Device Pack only available on IP CamSecure Lite/Pro 1.26.x and later version 2.) Must install IP CamSecure software before install device pack 3.) if you wants to upgrade the Device Pack version, it needs to remove first, then install it.

Download:

Device Pack is available from LevelOne's Web site http://www.level1.com/
