USER MANUAL CN-E 15.5-47mm T2.8 L SP CANON

CN-E15.5-47mm T2.8 L S CN-E15.5-47mm T2.8 L SP

取扱説明書

OPERATION MANUAL

使用说明书

Close-up of a Canon 15.5-47 high-speed camera lens (no visible text or symbols beyond product branding)

Read this operation manual before using the product.

Keep the manual in place for future reference.

Two cylindrical objects aligned on a horizontal surface, one with a slightly thicker end and the other with a thinner end (no text or symbols)

ズーム/フォーカスレバー

Close-up of a mechanical component with measurement markings (no readable text or symbols)

PL マウント (SP タイプ)

F.B.（フランジバック）調整

Mechanical assembly diagram showing a piston-cylinder mechanism with a 360° angle indicator (no text or symbols on the diagram itself)

3

Technical line drawings of a camera module with lens assembly (no text or labels)

注意

Technical illustration of a camera lens mounted on a base unit, showing mechanical components and motion direction (no text or symbols)

2

Technical illustration of a camera lens mounted on a base unit, showing mechanical components and motion direction (no text or symbols)

アクセサリー取付け寸法

单位：mm

Sタイプ(EFマウント)

φ114 Canon 15.5-47 8 222 146.3 7 77.2 6 44.9 7 60 20 22 20 19 18 17 NC1/4-20 12 111.1 5.5

125 68 27 UNC3/8-16 φ17

SPタイプ(PLマウント)

Canon φ114 15.5-47 8 214 138.3 7 69.2 6 36.9 11.8 2±0.02 T 4 5.4 8 11 16 23 103.1 UNC1/4-20 12

125 68 27 φ17 UNC3/8-16

ギア仕様

GENERAL SAFETY INFORMATION .....4

Product Configuration ....6

Names of Parts ....7

F.B. (Back Focus) Adjustment ....8

Available Accessories 10

Dimensions of Parts 12

Specifications 13

Appendix External view ...... apx. 2

FCC REGULATIONS

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canadian Radio Interference Regulations

CAN ICES-3(B)/NMB-3(B)

European Union (and EEA) only.

This symbol indicates that this product is not to be disposed of with your household waste, according to the WEEE Directive (2002/96/EC) and your national law. This product should be handed over to a designated collection point, e.g., on an authorized one-for-one basis when you buy a new similar product or to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority, approved WEEE scheme or your household waste disposal service.

Your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources and will avoid incurring administrative sanctions according to art. 50 and following of Italian legislative decree 22/97.

For more information regarding return and recycling of WEEE products, please visit www.canon-europe.com/environment.

(EEA: Norway, Iceland and Liechtenstein)

GENERAL SAFETY INFORMATION

The safety warnings and cautions provided on the product or in this operation manual must be observed.

Failure to observe these warnings and cautions provided to guard against hazards may result in injury or accident.

Read this operation manual carefully to familiarize yourself with its contents and ensure that you can operate the product properly.

Also, store this manual in a safe place where it can easily be referenced whenever required.

This operation manual uses the following symbols and terms to identify hazards to protect you and others by preventing the occurrence of accidents.

WARNING

This indicates a potentially hazardous situation which, if not heeded, may result in death or serious injury to you or others. Be sure to heed all warning notices to ensure safe operation at all times.

CAUTION

Indicates hazardous situations which, if not heeded, may result in minor or moderate injury to you or other persons, or damage to your property.

NOTE

Emphasizes essential information which, if not heeded, may render the product unworkable or cause it to function improperly.

Also, provides helpful information for operation.

HANDLING THE PRODUCT

WARNING

1. Do not stare at the sun or other source of high-intensity light through the lens. Doing so could injure your eyes.

CAUTION

1. Make sure all mountings are tightened securely. If any of these mountings becomes loose, the lens may fall, possibly causing injury.

2. Inspect all mountings periodically (about every 6 months to 1 year) to make sure they are securely tightened, and tighten any loose parts. Otherwise, the lens may fall, possibly causing injury.

3. If it becomes necessary to repair this product, or to perform any operations or adjustments not mentioned in this operation manual, contact Canon's representative or the dealer who originally supplied the lens.

NOTE

1. Protect the lens from strong impacts or shocks. Striking or dropping the lens may result in a malfunction.

2. Do not bring the lens, kept in a very cold ambient temperature, into a warm room, because the lens may fog on the inside or condensation may occur. In these cases, the lens cannot be used until these problems clear. If the lens must be used under such conditions, countermeasures are recommended.

MAINTENANCE AND INSPECTION

NOTE

1. Gently blow or brush away dust or dirt on the lens surface using a lens blower or a soft lens brush. Remove any fingerprints or other stains with a soft clean cotton cloth moistened with commercially available lens cleaning fluid or lens cleaning paper. Be careful not to rub dust across the lens, as the lens surface may be scratched.
2. A periodic inspection about once a year is recommended.

The inspection and maintenance interval depends on the operating conditions, the frequency of use, and the environment. If required, overhaul the lens.

STORAGE

CAUTION

1. Always attach the lens cap (or hood cap) and the dust cap before storing the lens. Storing the lens without these caps attached may present a fire hazard. (Very bright light, such as sunlight, may be focused by the lens and cause a fire.)

NOTE

1. If the lens becomes damp because of use in fog, mist, or drizzle, wipe off the moisture with a soft dry cloth and seal the lens together with an effective desiccant in a vinyl bag to remove moisture that has entered the interior.

TO THE CUSTOMER

1. Canon shall bear no responsibility for damage resulting from improper operation of this product by the customer.
2. Canon shall make no guarantees about the product quality, functions, or operation manual and its marketability and suitability for the customer's purpose.
   Moreover, Canon shall bear no responsibility for any damage, direct or incidental, that results from usage for the customer's purpose.
3. Canon shall make no guarantees about the results obtained using this product.
4. The product specifications, configuration, and appearance are subject to change without prior notice.
5. For further information on repairs, maintenance, or adjustments not mentioned in this operation manual, contact your Canon dealer or your Canon sales representative.
6. Note that Canon may be unable to undertake servicing or repair of a product if it is modified without consulting Canon or your Canon sales representative.

CANON INC.

30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan

Canon Europe Ltd

3 The Square, Stockley Park, Uxbridge, Middlesex, UB11 1ET UK

Product Configuration

Two types of the CN-E15.5-47mm T2.8 L are available for the positive lock mount (S type) and the Canon EF mount (SP type). Figures in this manual are for the S type lens unless otherwise mentioned.

Lens body ....1

Lens cap ....1

Zoom/focus lever (short) ....1

Rear lens cap ....1

Zoom/focus lever (long) ....1

Operation Manual ....1

Attachment holder ....1

Reference Guide ....1

Lens cap Reference Guide Operation Manual Lens body Attachment holder Rear lens cap* Zoom/focus lever (short) Zoom/focus lever (long)

* The shape of the rear lens cap for the SP type differs from the figure above.

Names of Parts

Focus drive gear Number of teeth: 133 Module: 0.8 metric module P.C.D.: 106.4 mm Angular rotation: 300° Zoom drive gear Number of teeth: 111 Module: 0.8 metric module P.C.D.: 88.8 mm Angular rotation: 93.5° Iris drive gear Number of teeth: 111 Module: 0.8 metric module P.C.D.: 88.8 mm Angular rotation: 55° Canon 15.5-47 Lens holder Attachment holder F.B. adjuster cover EF mount (S type) Zoom/focus levers PL mount (SP type)

F.B. (Back Focus) Adjustment

F.B. (back focus) of this lens can be adjusted in the following procedures. Before starting, select an object with sharp contrast at a distance* that facilitates the adjustment work.

* Recommended object distance range: 3 to 6 ft.

1

Remove three screws and remove the F.B. adjuster cover as in the right figure.

Note: Be sure to keep the screws for later reattachment.

3 to 6 ft. Screws x 3 F.B. adjuster cover

2

Mount the lens on the camera and turn two F.B. adjuster screws counterclockwise one revolution as in the right figure.

CAUTION

Be sure to securely mount the lens on the camera mount.

Note: Be sure not to remove the screws.

Screws x 2 360 degrees

3

Turn the iris ring to set the iris to fully open (T2.8).

4

Turn the zoom ring to set the lens to the telephoto end, then turn the focus ring to bring the object into focus.

5

Turn the zoom ring to set the lens to the wide angle end, then turn the F.B. adjuster to bring the object into focus.

Note: Be sure not to move the focus ring at this time.

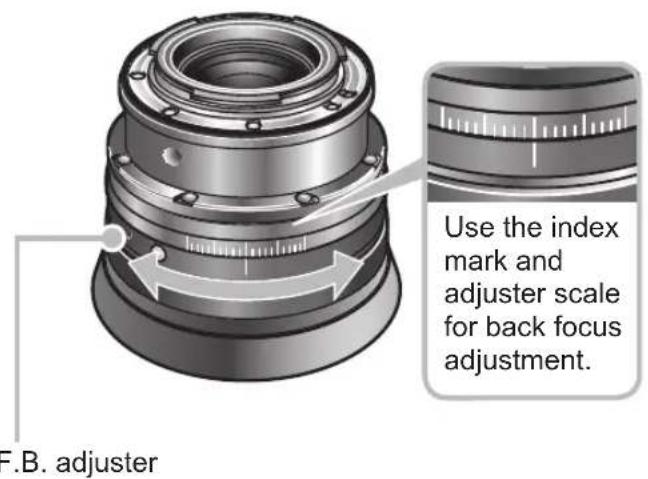

F.B. adjuster Use the index mark and adjuster scale for back focus adjustment.

6

Repeat steps 4 and 5 two or three times.

7

Secure the F.B. adjuster and reattach the F.B. adjuster cover following the reverse procedure.

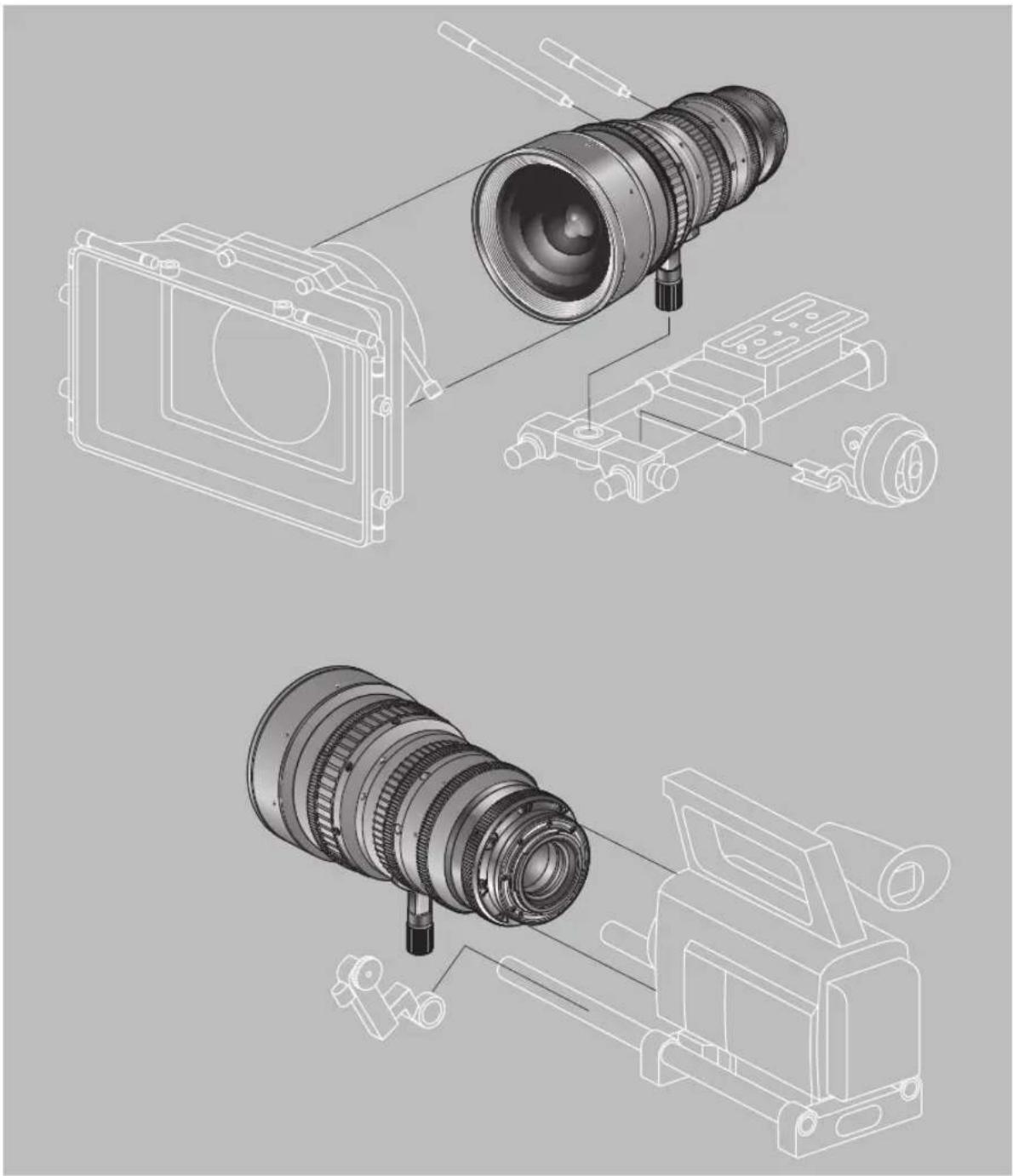

Available accessories

A variety of professional camera accessories are available using 15 mm and 19 mm rod adaptors.

(When using a 19 rod, attach the supplied attachment holder to the lens holder.)

CAUTION

Be sure to use the lens holder when mounting the lens on a camera. Be sure to avoid applying excessive weight to the lens mount when the lens is mounted on a lens support.

Technical line drawings of a camera module with multiple lenses and adjustment parts (no text or symbols)

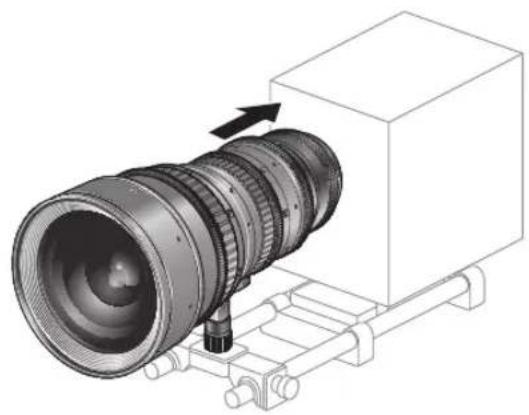

1

Attach the lens to the camera tightly so that both mounting surfaces are in complete contact.

Refer to the operation manual for the respective camera for the detailed information.

Technical illustration of a camera lens mounted on a base unit, showing mechanical components and motion direction (no text or symbols)

2

Secure the attachment holder on the lens support using the clamping screw supplied with the lens support.

Lens support

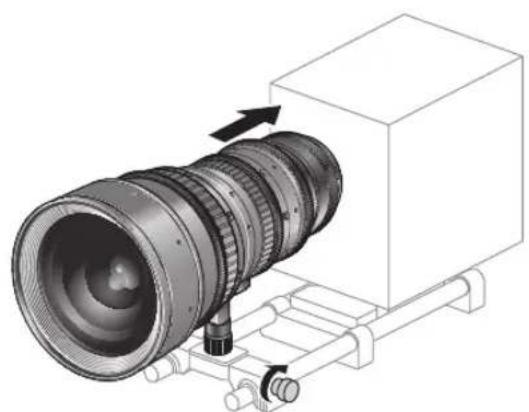

3

Push the lens toward the camera until both mounting surfaces are in complete contact and clamp the lens support to the rods.

Technical illustration of a camera lens mounted on a base unit, showing mechanical components and motion direction (no text or symbols)

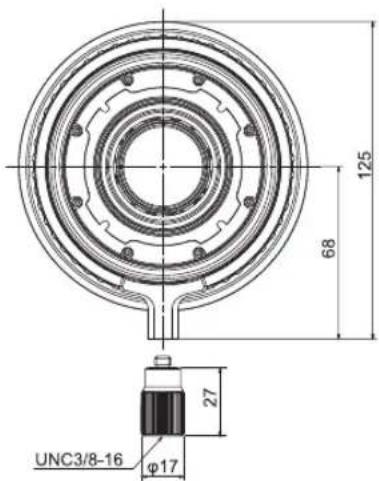

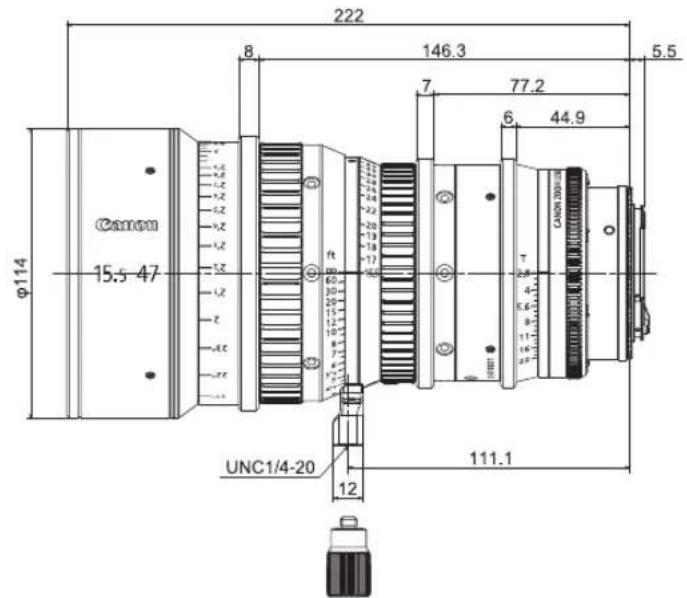

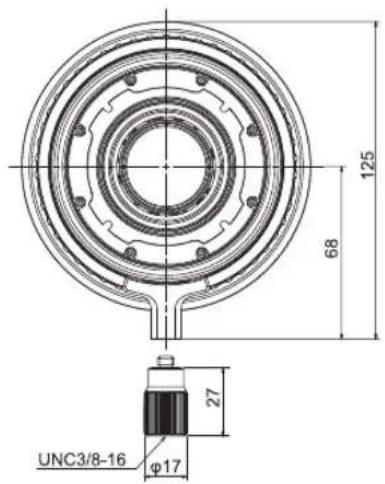

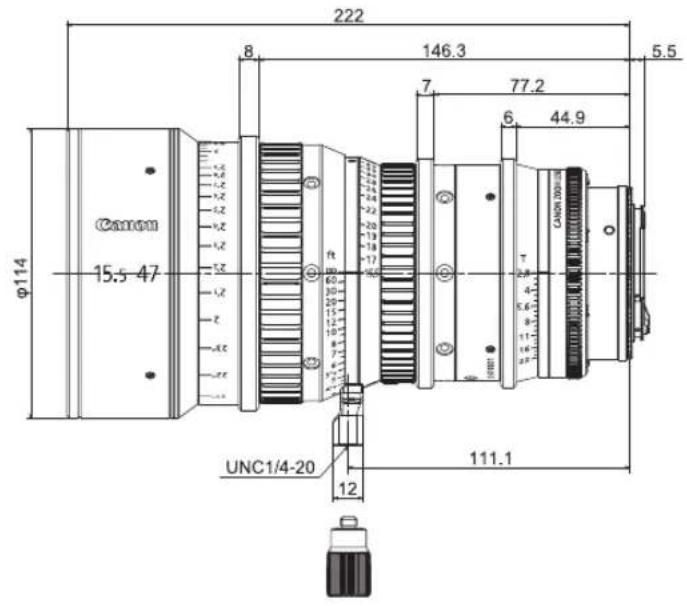

Dimensions of parts

Unit: mm

S type (EF mount)

φ114 Canon 15.5-47 8 222 146.3 7 77.2 6 44.9 7 60 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 20 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21

125 68 27 UNC3/8-16 φ17

SP type (PL mount)

Canon φ114 15.5-47 8 214 138.3 7 69.2 6 36.9 11.8 2±0.02 T 4 5.4 8 11 16 23 103.1 UNC1/4-20 12

125 68 27 φ17 UNC3/8-16

Spur gear specifications

	Focus drive gear Zoom drive gear Iris drive gear
Number of teeth	133 111 111
Module 0.8 metric module 0.8 metric module
P.C.D. 106.4 mm	88.8 mm 88.8 mm
Angular rotation 3	00 degrees	93.5 degrees	55 degrees

Specifications

			CN-E15.5-47mm T2.8 L S CN-E15.5-47mm T2.8 L SP
Lens Mount Canon EF PL
Focal Length 15.5 to 47 mm
Maximum T-stop T2.8 (f = 15.5 to 47)
Iris Blades 11 pieces
Coverage	Super 35mmImage Circle /H x V (1.78:1)		Φ27.5 mm /24.0 x 13.5 mm
	Angular Field of View(H / V) at wide angle end		75.5 / 47.1 degrees
	Angular Field of View(H / V) at telephoto end		28.6 / 16.3 degrees
Coverage	EOS C300Image Circle /H x V (1.78:1)		Φ28.2 mm /24.6 x 13.8 mm
	Angular Field of View(H / V) at wide angle end		76.9 / 48.0 degrees
	Angular Field of View(H / V) at telephoto end		29.3 / 16.7 degrees
Coverage	EOS C500Image Circle /H x V (1.9:1)		Φ29.6 mm /26.2 x 13.8 mm
	Angular Field of View(H / V) at wide angle end		80.4 / 48.0 degrees
	Angular Field of View(H / V) at telephoto end		31.1 / 16.7 degrees
Minimum Object Distance(M.O.D.)			0.5 m / (from the image sensor)
ObjectDimensions atM.O.D.		Super 35mm	43.6 x 24.5 cm at wide angle end14.1 x 7.9 cm at telephoto end
		EOS C300	44.7 x 25.1 cm at wide angle end14.5 x 8.1 cm at telephoto end
		EOS C500	47.6 x 25.1 cm at wide angle end15.4 x 8.1 cm at telephoto end
Focus Angular Rotation 300 degrees
Zoom Angular Rotation 93.5 degrees
Spur Gear Module 0.8 metric module
Front Diameter Φ114 mm
Length 222 mm 214 mm
Weight 2.2 kg

* A variety of professional camera accessories compatible with the 15mm and 19mm rod system can be used with this lens.

* This lens is compatible with EOS cameras that have a Super 35mm or equivalent sensor, or an APS-C image sensor. The lens is not compatible with cameras that have a 35-mm full-size sensor or an APS-H sensor.

Reference Information

This lens is a full manual lens for shooting movies.

• This lens is developed primarily for movie production, and have a color balance typical for movies. This means that the color reproduction is warmer than that of EF lenses which are basically used to shoot still images. Therefore, when using both types of lens together, adjust the color balance (redo the white balance etc.) as necessary.
• In general, the depth of field becomes shallow and the focusing range becomes extremely narrow near the widest aperture and when shooting a subject at close range. In addition, this tendency increases for lenses with longer focal lengths. When shooting images, carefully check the focusing condition using the zoom mode of the finder or other means, and shoot a sufficient number of test images before performing focus operations.

(for EF mount Lens only)

• The T-numbers of this lens are indicated on the iris ring of the lens. On the other hand, the iris information from this lens to the camera uses the F-number in consideration of use together with conventional EF lenses. Therefore, the camera side displays a different value (F-number) from the indication on the iris ring of the lens.
• Information of the focal length displayed on the camera side omits the figures below the decimal point.

中文

安全使用须知....2

产品配置 4

各部位名称 5

F.B.（后焦）调整 6

可以利用的附件 8

各部位尺寸 10

规格 11

索引.... 12

Appendix（附录）

External view（外部视图）...... apx. 2

中文版使用说明书用于日本以外的国家。

安全使用须知

Technical line drawings of a camera module with lens assembly (no text or symbols)

注意

Technical illustration of a camera lens mounted on a base unit, showing mechanical components and motion direction (no text or symbols)

2

Technical illustration of a camera lens mounted on a base unit, showing mechanical components and motion direction (no text or symbols)

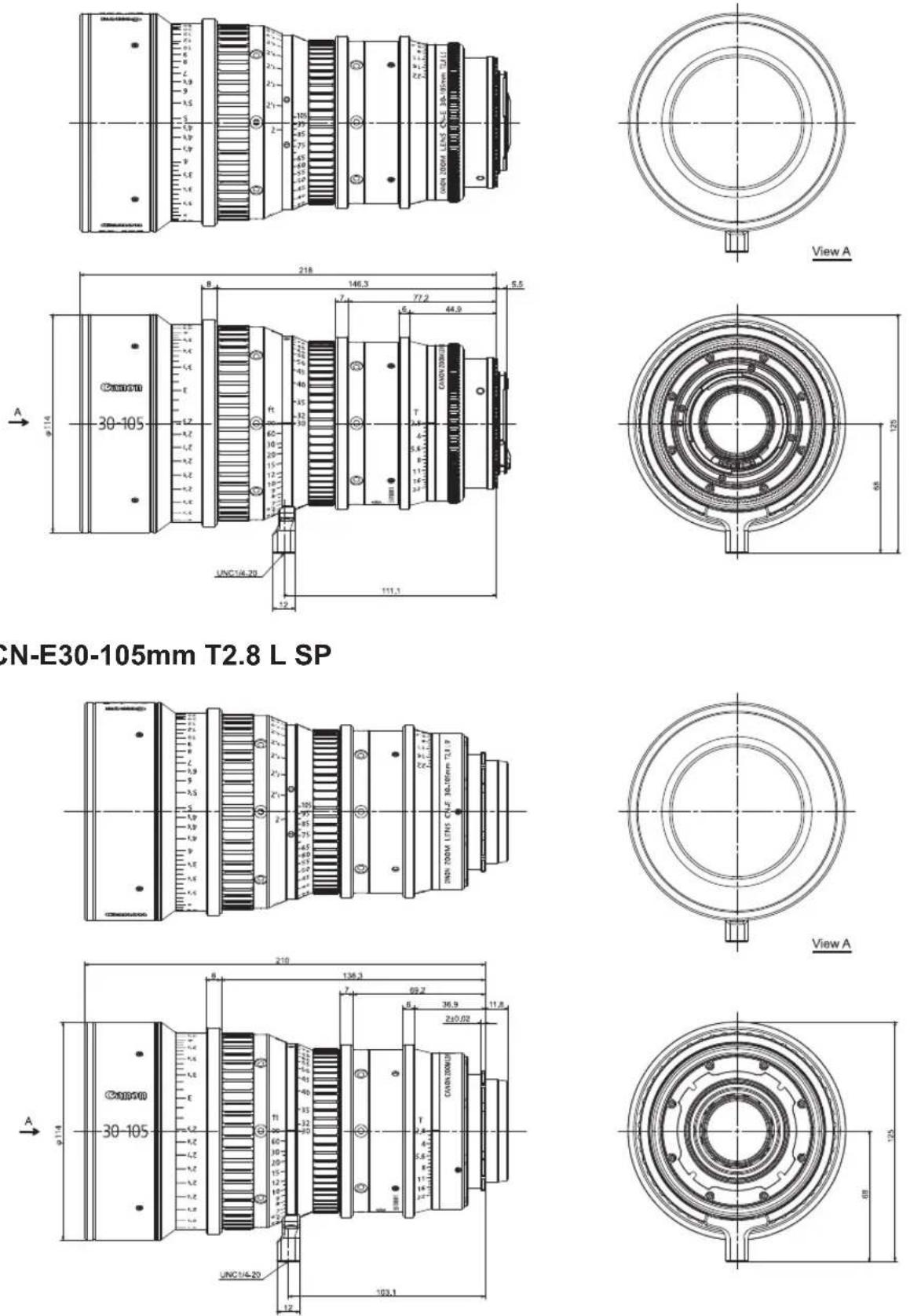

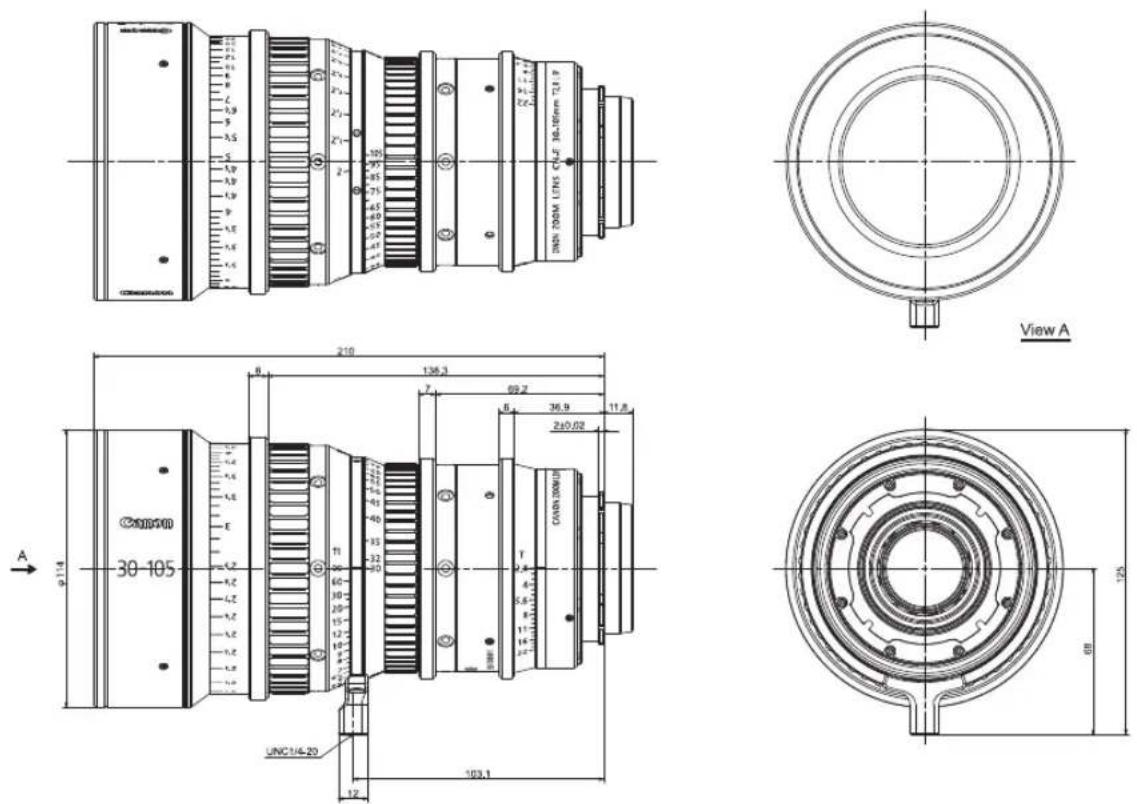

各部位尺寸

单位：mm

S型（EF基座）

Canon φ114 15.5-47 8 222 146.3 7 77.2 6 44.9 CAN1/4-20 12 111.1

125 68 27 UNC3/8-16 φ17

SP型（PL基座）

φ114 Canon 15.5-47 8 214 138.3 7 69.2 6 36.9 11.8 2±0.02 T CANON 10000 UNC1/4-20 12 103.1

125 68 27 UNC3/8-16 φ17

直齿轮规格
