Introduction

This document is your User's Guide for the Mingle Bar (PA511D). We have written this guide to provide you with the information you need to quickly and smoothly use the video bar.

After a quick introduction of the video bar and who this product is intended for, we will dive into its key features, system requirements, and technical specs and show you how to set up and install the device. Lastly, this guide will finish with a link to our technical support team and with some brief information on AVerMedia's background.

Thank you for taking the time to use and try out our latest video bar, we hope you enjoy using it as much as we enjoyed making it. If you have any questions or suggestions on our products or need any further editorial assistance, please don't hesitate to contact us.

Mingle Bar (PA511D)

Be seen, Be heard, Be Connected

Rather than worrying about setting up separate cameras, microphones, speakers, and other equipment, Mingle Bar (PA511D) is plug-and-play and combines all the necessary equipment into one convenient device.

The intelligent audio pickup with AI noise reduction, beamforming, and far-field adaptive technologies reproduces resonant voice from anywhere in the room. Mingle Bar provides real-time, highly sensitive HDR, 3DNR, and AWB technologies with great image optimization in any lighting environment, so you'll always look sharp and professional.

The 124° FoV and 4K UHD quality cover all people and whiteboard to communicate and collaborate effectively. Find and frame everyone with the AI auto-framing function with AI Gesture recognition.

Key Features

• 4K image quality with ultra-wide FOV

Ultra-wide 124° diagonal field of view to capture more of the room or include additional participants. Supports multiple resolutions, including 4K (Ultra HD) 1080p (Full HD), and 720p (HD) to best support the quality offered by your application and monitor.

- Look professional in any light

Provides real-time highly sensitive 3DNR, HDR, and AWB technologies with great image optimization in any lighting environment so that you will always look sharp and professional.

• AI-powered auto framing

Find and frame everyone in the room with the AI auto-framing function with AI

Gesture recognition.

• Intelligent audio pickup

The intelligent audio pickup with AI noise reduction, beamforming, and far-field adaptive technologies picks up and reproduces resonant voices from anywhere in the room.

- Rich I/O with one-cable connection

One cable connection to get all you need (display, webcam, speakerphone, wired network) to start a meeting easily.

• Multiple mounting options

Freedom to mount wherever it works best—tabletop, wall, tripod, or monitor—for the best possible huddle room experience.

• Works with most video conferencing applications

Compatible with virtually any video conferencing software app.

• Kensington security slot

Built-in Kensington security slots to help secure the device.

System Requirements

Mingle Bar

- Operating System:

Windows 10 or later;

macOS 10.14 or later;

Chrome OS 85.0.4183.131 or later

- Software Compatible: Facebook, YouTube, Facebook Messenger, FaceTime, Line, GoToWebinar, Cisco Webex, Microsoft Teams, ZOOM, OBS, StreamLab OBS, Skype, Skype for Business, Slack, Google Meet, Lifesize, Amazon Chime, Whereby (Appear.in)

Hardware System Requirement

• CPU: 3.2 GHz Intel® Core™ i5-4460 processor or better

• RAM: 4 GB or more

• USB: USB 3.1 Gen 1 compatible with USB 2.0 (lower resolution)

Technical Specifications

Camera
Maximum Resolution/Frame Rate	3840x2160/30fps
Field of View	124° (D), 115°(H), 79°(V)
Format	MJPEG, YUY2, and NV12 of UVC 1.0
Zoom	4x Digital Zoom
Image Processing	Auto Framing, Gesture Recognition, 3D Noise Reduction, High Dynamic Range, Auto Lighting Correction, Auto Face Exposure
Privacy Shutter	Yes
Audio
Microphone	Dual Omnidirectional Stereo Microphones
Microphone Pickup Distance	4 m/13.12 ft.
Speaker	5W with Bass Enhancement
Audio Processing	AI Noise Reduction, Acoustic Echo Cancellation, Beamforming, Far-Field Adaptive, Full Duplex
Others
Interfaces	1 x HDMI (4K)1 x USB-A (3.2 Gen 1)1 x USB-C (3.2 Gen 1)1 x RJ451 x Aux port for recommended expansion microphone (optional)1x LED Indicator2 x K-SlotPower Connector
Software Add-on Value	Image AdjustmentFirmware UpdateIssue Report
Dimensions (W x D x H)	295 x 70.4 x 78.7 mm / 11.6 x 2.8 x 3.1 in.
Weight	555 g/19.6 oz.
What's in the Box	PA511DQuick Start GuideUSB-C Cable or USB-C to USB-A Cable (Selectable)Power Adapter (12V/1.5A)

*Specifications are subject to change without prior notice.

Product Overview

Front View

Power On/Off Privacy Shutter LED Indicator AVMerMedia Lens

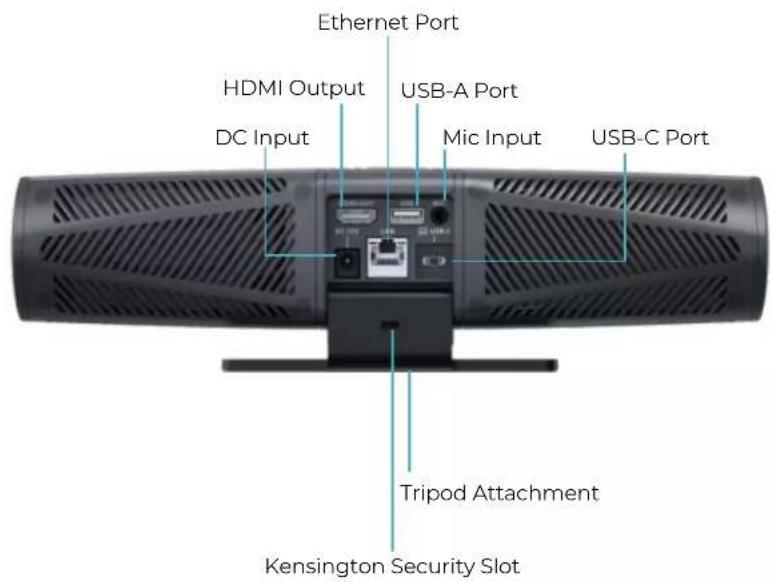

Rear View

Ethernet Port HDMI Output DC Input USB-A Port Mic Input USB-C Port Tripod Attachment Kensington Security Slot

Installation

1. Plug Mingle Bar into a power outlet.

2. Connect a monitor/TV to Mingle Bar via an HDMI cable.

3. Connect Mingle Bar's USB-C port to your laptop using the included USB cable.

Note:

*Ensure the computer's USB port supports DisplayPort Alt Mode for HDMI to function properly on Mingle Bar.

**Optional: Mingle Bar is also capable of hosting other devices such as keyboards, external microphones, routers, etc. when needed.

Placement

It is recommended to place Mingle Bar below or near the monitor/TV as close to eye level as possible. The accessories for the mounting options below are sold separately and require additional installations.

Mount to the TV

Line drawing of a mechanical device with a central hub and base mount (no text or symbols)

Mount on the Wall

Simple geometric diagram with a rounded corner and horizontal line, no text or symbols present.

Table / Shelf

Line drawing of a cylindrical device mounted on a base, with no visible text or symbols

Tripod

(Tripod not included)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

LED Status Indicator

Flashing White	Booting/firmware updating
Solid White	Ready
Solid Yellow	Playing audio
Solid Green	In use: video calling/video previewing
Flashing Green	Incoming calls
Flashing Blue Twice	Turning on AI Framing
Flashing Purple Twice	Turning off AI Framing
Solid Red	Microphone muted (3rd party app)

AI Framing Function with Gesture Control

This feature enables the webcam to automatically adjust and recenter the image when additional people enter its field of view. It can be turned on or off using a hand gesture—just hold up your hand within one meter in front of the camera for three seconds until the power indicator flashes (blue: on, purple: off) twice.

3s

Using Connect

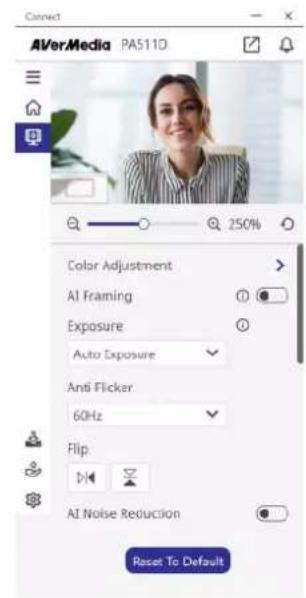

Connect is a simple and intuitive software that allows you to manage devices easily. It provides image preview, image adjustment, digital zoom, image mirror/flip, AI adjustment, and firmware updates to enhance your video calls.

Download Connect at https://www.avermedia.com/product-detail/Connect

Connect AVMerMedia Home My Devices PA511D Mingle Bar Featured Supported Devices > Connect Introduction >

Connect AVverMedia PA511D 250% Color Adjustment AI Framing Exposure Auto Exposure Anti Flicker 60Hz Flip: AI Noise Reduction Reset To Default

Simple Video Adjustment

Adjust your device's color, exposure, zoom, and field of view to look your best in meetings.

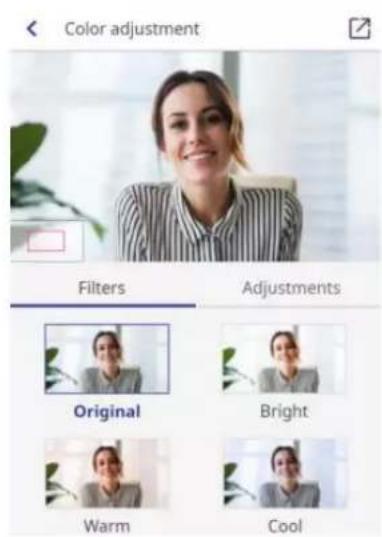

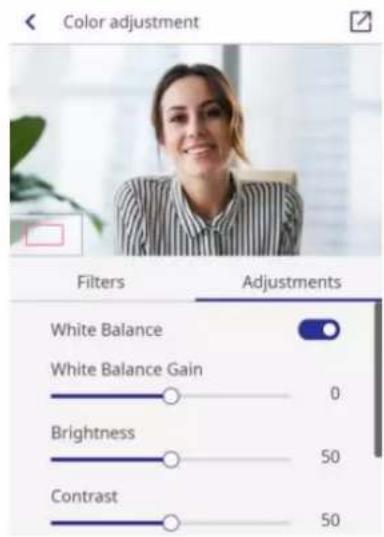

Change the Color Settings

Add a color filter preset to suit your needs. Or manually turn on/off or adjust the exposure settings.

Color adjustment Filters Adjustments Original Bright Warm Cool

Color adjustment Filters Adjustments White Balance White Balance Gain 0 Brightness 50 Contrast 50

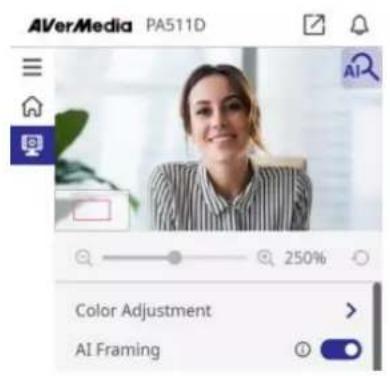

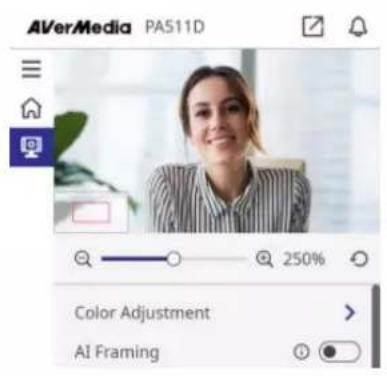

Digital Zoom and AI Framing Controls

You can either turn AI Framing on and let it get the best shots for you or use the digital zoom function (up to 400%) to frame manually.

AVerMedia PA511D Color Adjustment > AI Framing

AVerMedia PAS11D Color Adjustment > AI Framing

Look Great in Various Lighting Conditions

Connect provides exposure methods to make you look natural in different lighting conditions.

• Auto Exposure: Automatically adjust the exposure value of the video according to the ambient light.
• Manual Exposure: Manually adjust the video exposure and gain.
• Face Exposure: Enhanced exposure for faces, suitable for dark indoor environments.
- High Dynamic Range (HDR): Automatically enhance the contrast according to the ambient light to obtain the best video quality. Suitable for environments with high contrast.

Color Adjustment AI Framing Exposure Auto Exposure Manual Exposure Face Exposure High Dynamic Range

Deliver Uninterrupted Voice

You can choose to turn on the "AI Noise Reduction" function to suppress distracting background noise if needed. There are three levels to choose from.

AI Noise Reduction Medium High Low

Stay Up to Date

Connect delivers notifications to let you know when an update is available and ready for installation. It also provides information on connection status and warnings.

Connect AVerMedia Device Management PA511D Details • Firmware up to date

Contact Us

Please contact us here should you have any questions or suggestions.

About AVerMedia

AVerMedia empowers people to easily connect and boldly create through innovative audiovisual technology. Our solutions help people work productively, build new relationships, and expand their horizons in ways that weren't possible before. Our products include a wide range of powerful yet easy-to-use devices such as webcams, video capture cards, and microphones for content creators, schools, and businesses. We also provide hardware design services for a range of AI and IoT applications, from smart retail to smart cities.

AVerMedia is guided by a philosophy of contributing to society- whether through products that change customers' lives for the better or by ensuring our operations are socially responsible.

Connect with AVerMedia:

Website: https://www.avermedia.com/

LinkedIn: https://www.linkedin.com/company/avermedia-technologies

Appendix – F.A.Q.

1. How to enable auto framing (AI Framing, ePTZ)?

Method 1. By hand gesture:

You may turn on Auto Framing by hand gesture. Just hold your right or left hand with your palm facing the Video Bar for three seconds until the power indicator flashes twice.

The following are sample hand gestures. The correct one is an open hand palm, like showing number five:

Man wearing a striped shirt and white shorts, waving hand (no text or symbols visible)

Please show a complete hand palm, without being hidden by shirts.

Man in a modern office setting with city skyline background (no visible text or symbols)

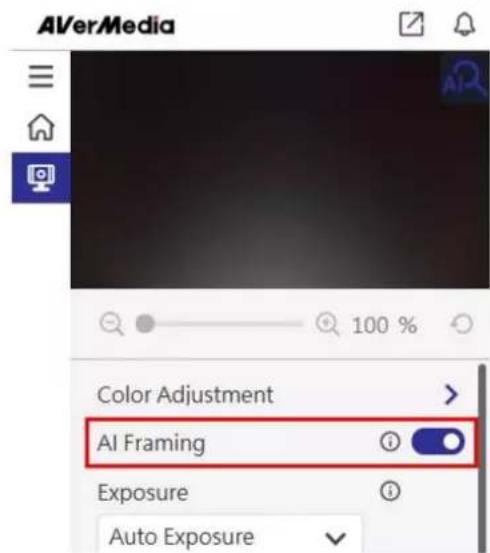

Method 2. By Connect software:

To enable Auto Framing, another way is to use AVerMedia Connect software, by tweaking the toggle as marked below:

AVerMedia Color Adjustment AI Framing Exposure Auto Exposure

1. Is my computer's USB Type-C port able to output videos to Mingle Bar (PA511D)?

Make sure the USB Type-C port in use supports DisplayPort Alt Mode or Thunderbolt 3 or 4 projection, for videos to be exported through PA511D and to display on a monitor or a TV.

How to identify if a USB Type-C port supports DisplayPort Alt Mode or Thunderbolt 3/4 projection?

Check if there is one of the following symbols next to the USB Type-C port:

- A lightning bolt symbol indicating Thunderbolt 3 or 4

- A D-shaped icon indicating DP Alt Mode

SSE→D

1. Why do I need AVerMedia PA511D's AI noise reduction, considering some video conferencing applications should be capable of it as well?

Compared to using Microsoft Teams or Zoom with CPU loading consumed, the AI noise reduction by AVerMedia PA511D helps on reducing noise, whereas it does not consume any extra CPU loading. The AI noise reduction filters non-human background noise coming from coffee machines, keyboard typing, cooling fans, etc.
